HP Compaq 8200, Compaq 8200 Elite Specification

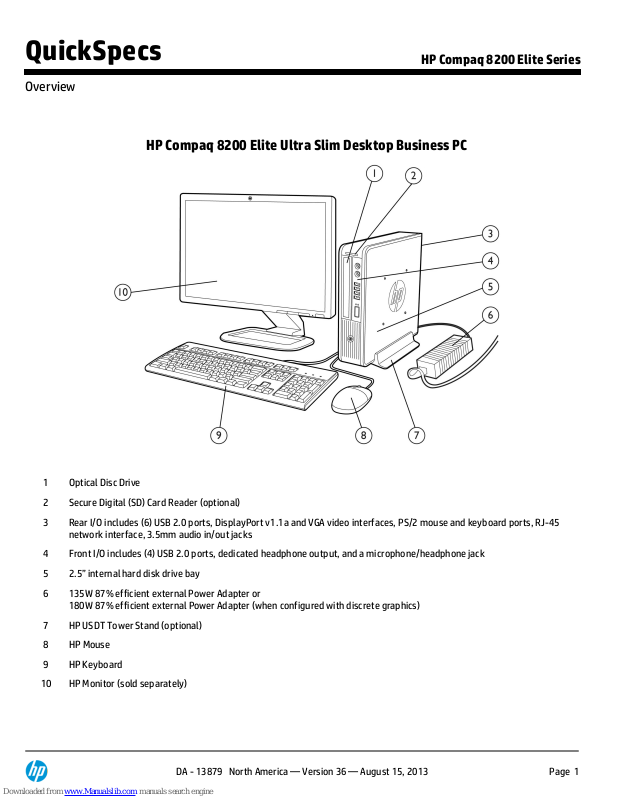

HP Compaq 8200 Elite Ultra Slim Desktop Business PC

1

Optical Disc Drive

2

Secure Digital (SD) Card Reader (optional)

3

Rear I/O includes (6) USB 2.0 ports, DisplayPort v1.1a and VGA video interfaces, PS/2 mouse and keyboard ports, RJ-45
network interface, 3.5mm audio in/out jacks

4

Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack

5

2.5” internal hard disk drive bay

6

135W 87% efficient external Power Adapter or
180W 87% efficient external Power Adapter (when configured with discrete graphics)

7

HP USDT Tower Stand (optional)

8

HP Mouse

9

HP Keyboard

10

HP Monitor (sold separately)

QuickSpecs

HP Compaq 8200 Elite Series

Overview

DA - 13879 North America — Version 36 — August 15, 2013

Page 1

HP Compaq 8200 Elite Small Form Factor Business PC

1

Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort v1.1a
and VGA video interfaces, and 3.5mm audio in/out jacks

2

Low profile expansion slots include (1) PCI, (1) PCI Express x1 and (2) PCI Express x16 graphics

3

Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack

4

HP Mouse

5

HP Keyboard

6

3.5” external drive bay supporting a media card reader or a secondary hard disk drive

7

5.25” external drive bay supporting an optical disk drive

8

3.5” internal drive bay supporting primary hard disk drive

9

240W standard or 90% high efficiency Power Supply

10

HP Monitor (sold separately)

QuickSpecs

HP Compaq 8200 Elite Series

Overview

DA - 13879 North America — Version 36 — August 15, 2013

Page 2

HP Compaq 8200 Elite Convertible Minitower Business PC

1

(3) 5.25” external drive bays supporting optical disk drives, removable hard disk drives, or the HP Media Card Reader

2

320W standard or 90% high efficiency Power Supply

3

Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort v1.1a
and VGA video interfaces, and 3.5mm audio in/out jacks

4

Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack

5

(3) 3.5” internal drive bays supporting multiple hard disk drives capable of RAID configurations

6

Full height expansion slots include (3) full-length PCI, (1) PCI Express x1, and (2) full-length PCI Express x16 graphics

7

HP Mouse

8

HP Keyboard

9

HP Monitor (sold separately)

QuickSpecs

HP Compaq 8200 Elite Series

Overview

DA - 13879 North America — Version 36 — August 15, 2013

Page 3

At A Glance

Choice of four professional chassis form factors: USDT, SFF, CMT
PC chassis and all internal components and modules are 100% free of brominated flame retardants (BFRs) and Polyvinyl
Chloride (PVC).
UEFI BIOS developed and engineered by HP for better security, manageability and software image stability
Intel Q67 Express chipset supporting Intel 2nd generation Core processors, featuring Intel HD Graphics and vPro Technology
(available with select processors)
Intel 82579LM GbE integrated network connection
DDR3 Synchronous Dynamic Random Access Memory (SDRAM)
Integrated dual independent monitor support via VGA and digital DisplayPort v1.1a video interfaces
Discrete graphics options available for all platforms including the Ultra Slim Desktop (USDT)
SRS Premium Sound audio management software
Standard efficiency or 90% high efficiency energy saving power supplies available on the SFF and CMT models
87% efficient energy saving external power adapter standard with USDT models
ENERGY STAR qualified
SFF and CMT models can be configured with multiple hard disk drives in a RAID array
Guaranteed lengthy purchase lifecycles and image stability
Software image fully compatible across all models and form factors
Created using industry leading Design for Environment standards
Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals
(

http://h10019.www1.hp.com/business-site/index.html

)
Tailored HP Factory Express deployment and lifecycle services available
(

http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx

)
Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions
and exclusions apply)
Tool-less serviceability features for easier upgrades and repairs

QuickSpecs

HP Compaq 8200 Elite Series

Overview

DA - 13879 North America — Version 36 — August 15, 2013

Page 4

Operating Systems

Preinstalled

Genuine Windows 7 Home Basic Edition (32-bit)
Genuine Windows 7 Home Premium Edition (32-bit or 64-bit)
Genuine Windows 7 Professional Edition (32-bit or 64-bit)
Genuine Windows 7 Ultimate Edition (32-bit or 64-bit)
FreeLnx

Supported

Genuine Windows XP Professional Edition
Genuine Windows Vista Home Basic

1

Genuine Windows Vista Business

1

Genuine Windows Vista Enterprise Edition

1

Genuine Windows 7 Enterprise Edition

Certified

Novell SUSE Linux Enterprise Desktop 11

†

Red Hat Enterprise Linux 64

††

1

Certain Windows Vista product features require advanced or additional hardware. Refer to the following web sites for details:

www.microsoft.com/windowsvista/getready/hardwarereqs.mspx
www.microsoft.com/windowsvista/getready/capable.mspx

Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the
tool, visit:

www.windowsvista.com/upgradeadvisor

† The following features are not supported by Novell SUSE Linux Enterprise Desktop:

Intel Gigabit CT Desktop NIC
Broadcom NetXtreme Gigabit Ethernet Plus
HP 22-in-1 Media Card Reader
HP ProtectTools
HP Blu-ray Writer playback of commercial movies
DisplayPort video interface
HP 2nd serial port adapter
Power Management features
Systems configured with Linux do not qualify for ENERGY STAR

†† The following features are not supported by Red Hat Enterprise Linux 64:

TPM v1.2 embedded Security Chip
Intel Gigabit CT Desktop NIC
HP Wireless 802.11b/g/n NIC
HP 22-in-1 Media Card Reader
HP Blu-ray Writer
HP FireWire / IEEE 1394 PCI Card
HP 2nd serial port Adapter
HP USB Smart Card (CCID) Keyboard
AMD Radeon HD 6350 Graphics

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 5

NVIDIA Quadro NVS 295 Graphics
Power Management features
Systems configured with Linux do not qualify for ENERGY STAR

Value Added Software

(included with all models; not included when configured with FreeDOS)

HP ProtectTools Security Suite

HP Vision Diagnostics

HP Software Management Agent

PDF Complete Special Edition (trialware)

Computrace for Desktops agent

Microsoft Office Starter Edition 2010

Value Added Software

(included with select models; not included when configured with FreeDOS)

HP Power Assistant v2.0

HP Virtual Rooms

Computer Setup Utility

Corel WinDVD

Roxio Creator Business

HP Direct Connect

Norton Internet Security 2011

1

Box Online Storage – Unlimited

Norton Internet Security 2012

1

HP Connect

Microsoft Windows Virtual PC – XP Mode

HP MyRoom

Box Online Storage – Unlimited (United States of America only)

1

Includes a 60 day subscription for virus definition and minor program revision updates. Internet access required to receive updates.

HP Client Management Solutions

(available for free download from the Internet)

http://www.hp.com/go/easydeploy

HP Client Automation Starter

1

HP Client Catalog for Microsoft SMS

HP SoftPaq Download Manager

HP Systems Software Manager

1

Available from your HP Sales Representative or HP Channel Partner

HP Business PC Services and Features

HP Stable Platform Program

Factory Express Deployment and Lifecycle Services

Intel Stable Image Platform Program (SIPP)

Intel Core vPro Processors

Business-to-Business Portals

Trusted Platform Module (TPM) v1.2

1

HP Global Series Services

1

TPM module disabled where use is restricted by law.

Service and Support

On-site warranty and service1: This limited warranty and service offering delivers parts, labor and on-site repair for terms up to 5
years. Response time is next business day2 and includes free telephone support3 24 x 7. Global coverage2 ensures any product
purchased in one country and transferred to another non-restricted country will remain fully covered under the original warranty and
service offering. Some countries/regions do not offer one year onsite and labor.

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 6

1

Terms and conditions may vary by country. Certain restrictions and exclusions apply

2

On-site services may be provided pursuant to a service contract between HP and an authorized HP third party provider, and is not
available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by
country

3

Technical telephone support applies only to HP configured, HP and HP qualified third party hardware and software. Toll-free calling
and 24 x 7 support may not be available in some countries.

Chipset

Intel Q67 Express

Processor

USDT

SFF/CMT

Intel® Pentium® Processors

Intel Pentium G620 Processor

2.60 GHz, 3M cache, 2 cores/2 threads
Intel HD Graphics

X X

Intel Pentium G630 Processor

2.70 GHz, 3M cache, 2 cores/2 threads
Intel HD Graphics

X X

Intel Pentium G840 Processor

2.80 GHz, 3M cache, 2 cores/2 threads
Intel HD Graphics

X X

Intel Pentium G850 Processor

2.90 GHz, 3M cache, 2 cores/2 threads
Intel HD Graphics

X X

Intel Pentium G860 Processor

3.00 GHz, 3M cache, 2 cores/2 threads
Intel HD Graphics

X X

Intel® 2nd Generation Core™ i3 Processors

Intel Core i3-2100 Processor

3.10 GHz, 3M cache, 2 cores/4 threads
Intel HD Graphics 2000

X X

Intel Core i3-2105 Processor

3.10 GHz, 3M cache, 2 cores/4 threads
Intel HD Graphics 3000

X X

Intel Core i3-2120 Processor

3.30 GHz, 3M cache, 2 cores/4 threads
Intel HD Graphics 2000

X X

Intel Core i3-2130 Processor

3.40 GHz, 3M cache, 2 cores/4 threads
Intel HD Graphics 2000

X X

Intel® 2nd Generation Core™ i5 Processors

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 7

Intel Core i5-2400 Processor

3.10 GHz, 6M cache, 4 cores/4 threads
Intel HD Graphics 2000
Intel Stable Image Platform Program (SIPP)
Supports Intel vPro Technology

X

Intel Core i5-2400S Processor

2.50 GHz, 6M cache, 4 cores/4 threads
Intel HD Graphics 2000
Intel Stable Image Platform Program (SIPP)
Supports Intel vPro Technology

X

Intel Core i5-2500 Processor

3.30 GHz, 6M cache, 4 cores/4 threads
Intel HD Graphics 2000
Intel Stable Image Platform Program (SIPP)
Supports Intel vPro Technology

X

Intel Core i5-2500S Processor

2.70 GHz, 6M cache, 4 cores/4 threads
Intel HD Graphics 2000
Intel Stable Image Platform Program (SIPP)
Supports Intel vPro Technology

X

Intel® 2nd Generation Core™ i7 Processors

Intel Core i7-2600 Processor

3.40 GHz, 8M cache, 4 cores/8 threads
Intel HD Graphics 2000
Intel Stable Image Platform Program (SIPP)
Supports Intel vPro Technology

X

Intel Core i7-2600S Processor

2.80 GHz, 8M cache, 4 cores/8 threads
Intel HD Graphics 2000
Intel Stable Image Platform Program (SIPP)
Supports Intel vPro Technology

X

Intel 2nd Generation Core vPro Processors

All HP Compaq 8200 Elite Series models featuring this technology include processors that are part of the Intel 2011 Stable Image
Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP Compaq 8200 Elite Series
Business PC, thus making these models the most stable, secure, and manageable platforms available to enterprises today.

Intel Active Management Technology (AMT) v7.0

– An advanced set of remote management features and functionality which
provides network administrators the latest and most effective tools to remotely discover, heal, and protect networked client systems
regardless of the system's health or power state. AMT 7.0 includes the following advanced management functions:

Power Management (on, off, reset)
Hardware Inventory (includes BIOS and firmware revisions
Hardware Alerting
Agent Presence
System Defense Filters
SOL/IDER
Cisco NAC/SDN Support

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 8

ME Wake-on-LAN
DASH 1.1 compliance
IPv6 Support
Fast Call for Help – a client inside or outside the firewall may initiate a call for help via BIOS screen, periodic connections, or alert
triggered connection
Remote Scheduled Maintenance – pre-schedule when the PC connects to the IT or service provider console for maintenance.
Remote PCs can get required patches, be inventoried, etc by connecting to their IT console or Service Provider when it's
convenient
Remote Alerts – automatically alert IT or service provider if issues arise
Access Monitor – Provides oversight into Intel® AMT actions to support security requirements
PC Alarm Clock
Microsoft NAP Support
Host Base set-up and configuration
Management Engine (ME) firmware roll back
Wireless AMT functionality on Desktop (WoDT)
Enhanced KVM resolution

Redundant Array of Independent Drives (RAID)

Flexible implementation:

DriveLock is supported while in RAID mode. Users can manage the DriveLock password from within F10 Setup. Locked drives will
be displayed as such in the RAID option ROM interface.
Hard drive information can be viewed within F10 Setup while in RAID mode. Previously, the hard drives will not appear in Drive
Configuration when switching to RAID mode.
DPS Self Test can be executed on physical hard drives while in RAID mode.
The RAID Setup Utility (accessed through CTRL-I) can be protected by the F10 Setup password.

NOTE:

RAID 1 is the only RAID configuration offered via factory configurations. The pre-configured systems:

Are only available on the SFF and CMT form factors. The USDT does not support RAID as it does not allow for more than one hard
disk drive.
Are complete RAID systems and have both drives installed. If the CMT is configured with three hard disk drives, the third drive is
would be unpartitioned and not part of the RAID array
Have the necessary Option ROM configuration.
Are pre-loaded and pre-installed with all required Intel software.
Include a preinstalled operating system that is mirrored mode out of the box.

Please refer to the HP White Paper titled “Advanced Host Controller Interface (AHCI) and Redundant Array of Independent Disks (RAID)
on HP Compaq 8200 Elite Series PCs” at:

http://www.hp.com

for more information and instructions.

System Memory Support

The HP Compaq 8200 Elite Series supports the 2nd generation Intel® Core™ processor family. Based on a new PC micro-architecture, the
processor is designed for a two-chip platform consisting of a processor and Platform Controller Hub (PCH). Unlike previous generations,
the processor includes an integrated memory controller (IMC). The IMC supports DDR3 protocols with two independent, 64-bit wide
channels each accessing one or two DIMMs.

Two channels of non-ECC unbuffered DDR3 memory with a maximum of two UDIMMs or SODIMMs per channel

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 9

Single-channel and dual-channel memory organization modes
Data burst length of eight for all memory organization modes
DDR3 memory data transfer rates of 1066 MT/s (PC3-8500) and 1333 MT/s (PC3-10600)
64-bit wide channels
DDR3 I/O voltage of 1.5V
Maximum memory bandwidth of 10.6 GB/s in single-channel mode or 21 GB/s in dual-channel mode assuming DDR3 1333 MT/s
(PC3-10600)
1GB, 2GB, and 4GB DDR3 DRAM technologies are supported. Using 4 GB device technologies, the largest memory capacity
possible is 32 GB, assuming dual channel mode with four x 8 GB dual ranked unbuffered DIMM memory configuration.

CAUTION: You

must shut down the computer and disconnect the power cord before adding or removing memory modules. Regardless of
the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an active AC outlet.
Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

Memory Configurations:

Ultra Slim Desktop

Slot 1 is black and must always be populated. Not all memory configurations possible are represented below.

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system
resource requirements. Addressing memory above 4 GB requires a 64-bit operating system

Total Memory

Socket

Channel A (black)

Channel B (black)

2 GB

(dual channel)

1 GB 1 GB

4 GB

(dual channel)

2 GB 2 GB

8 GB

(dual channel)

4 GB 4 GB

Memory Configurations:

Small Form Factor
Convertible Minitower

Slot 1 is black and must always be populated. Not all memory configurations possible are represented below.

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system
resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 10

Total Memory

Socket

Channel A

Channel B

1 (black)

2 (white) 3 (white) 4 (white)

2 GB 2 GB

unpopulated unpopulated unpopulated

4 GB

(dual channel)

2 GB

unpopulated

2 GB

unpopulated

8 GB

(dual channel)

2 GB 2 GB 2 GB 2 GB

16 GB

(dual channel)

4 GB 4 GB 4 GB 4 GB

USDT

SFF

CMT

Storage Drive Support

USDT

SFF

CMT

SDR

ODD

HDD

MCR

ODD

HDD

MCR

ODD

HDD

Quantity Supported

1 1 1 1 1 2 1 2 3

Position

1 2 3 1 2

1,3

3

1,2

4,5,6

Data Storage Drives

USDT

SFF/CMT

160-GB Hard Disk Drives

HP 160GB 7.2K rpm SATA 3.0Gb/s 2.5” Hard Disk Drive

X

HP 160GB 10K rpm SATA 3.0Gb/s 2.5” Hard Disk Drive
Includes 3.5” adapter

X

250-GB Hard Disk Drives

HP 250-GB 7.2K rpm SATA 3.0Gb/s 2.5” Hard Disk Drive

X

HP 250-GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive

X

300-GB Hard Disk Drive

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 11

HP 300GB 10K rpm SATA 3.0Gb/s 2.5” Hard Disk Drive
Includes 3.5” adapter

X

320-GB Hard Disk Drive

HP 320-GB 7.2K rpm SATA 3.0Gb/s 2.5” Hard Disk Drive

X

HP 320-GB 7.2K rpm SATA 3.0Gb/s 2.5” Self-Encrypting Drive
Includes 3.5” adapter when installed in SFF or CMT

X X

500-GB Hard Disk Drives

HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive

X

750-GB Hard Disk Drives

HP 750-GB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive

X

1-TB Hard Disk Drives

HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive

X

Solid State Drives

HP 80-GB SATA 3.0Gb/s Solid State Drive
Includes 3.5” adapter when installed in SFF or CMT

X X

HP 120-GB SATA 3.0Gb/s Solid State Drive
Includes 3.5” adapter when installed in SFF or CMT

X X

HP 128-GB SATA 3.0Gb/s Solid State Drive
Includes 3.5” adapter when installed in SFF or CMT

X X

HP 160-GB SATA 3.0Gb/s Solid State Drive
Includes 3.5” adapter when installed in SFF or CMT

X X

NOTE:

Use of HP System Software Recovery Disks (SSRD) is not supported on 80GB or 128GB SSD models due to minimum image

size requirements (>=140GB) for the SSRD.

Optical Disc Drives

HP DVD-ROM Drive

1

X

HP Slim DVD-ROM Drive

1

X

HP SuperMulti DVD Writer Drive

1,2,3

X

HP Slim SuperMulti DVD Writer Drive

1,2,3

X

HP Blu-ray Writer Drive

X

HP Slim Blu-ray Writer Drive

X

1

For playing DVDs, Corel WinDVD 8

2

For writing CDs, choice of Sonic/Roxio Easy Media Creator 9 or Roxio Business Creator 10

3

For writing CDs and DVDs, video editing and authoring DVDs, choice of Sonic/Roxio Easy Media Creator 9 or Roxio Business

Creator 10

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 12

Media Card Readers

HP 22-n-1 Media Card Reader

X

HP Secure Digital (SD) HC Media Reader

X

Security Solutions and Capabilities

USDT

SFF/CMT

Trusted Platform Module (TPM) 1.2

1

X X

SATA port disablement (via BIOS)

X X

Drive lock

X X

RAID configurations

X

HP ProtectTools Security Software Suite

X X

Intel Identify Protection Technology (IPT):
Models configured with Intel 2nd generation Core processors have the ability to utilize
advanced security protection for online transactions. IPT, used in conjunction with
participating web sites, provides double identity authentication by adding a hardware
component in addition to the usual user name and password. IPT is initialized through an HP
ProtectTools module

Serial, parallel, USB enable/disable (via BIOS)

X X

Optional USB Port Disable at factory (user configurable via BIOS)

X X

Removable media write/boot control

X X

Power-On password (via BIOS)

X X

Setup password (via BIOS)

X X

HP Solenoid Hood Lock / Sensor

X

HP Hood Sensor

X

Support for chassis padlocks and cable lock devices

X X

1

TPM module disabled where use is restricted by law.

Network Interface Connections

USDT

SFF/CMT

Intel 82579LM integrated GbE Network Connection

X X

Intel Gigabit CT Desktop NIC (PCIe x1)

X

HP 802.11 b/g/n Wireless NIC (PCIe x1)

X

Intel Centrino Advanced-N 6205 Wireless NIC (mini PCI Express)

X

NOTE:

Either the integrated network connection or the Intel Centrino wireless NIC is required to support Intel vPro Technology

features.

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 13

Graphics

USDT

SFF/CMT

Intel HD Graphics 2000/3000 (integrated)

X X

ATI Radeon HD 5450 Graphics (MXM)

X

AMD FirePro 2270 Graphics (PCIe x16)

X

AMD Radeon HD 6350 Graphics (PCIe x16)

X

AMD Radeon HD 6450 Graphics (PCIe x16)

X

AMD Radeon HD 6570 Graphics (PCIe x16)
Only available as a single graphics card configuration

CMT only

Nvidia NVS 295 Graphics (PCIe x16)

X

Nvidia NVS 300 Graphics (PCIe x16)

X

Nvidia NVS 310 Graphics (PCIe x16)

X

Nvidia GeForce 405 Graphics (PCIe x16)
Available in China only

X

HP DisplayPort Cable

X X

HP DisplayPort to DVI-D Adapter

X X

HP DisplayPort to HDMI Adapter

X X

HP DisplayPort to VGA Adapter

X X

Surround View (enable/disable via F10)*

* For Windows 7 systems, this enables the Surround View option that allows the integrated
graphics controller and an AMD PCI Express graphics card to work at the same time for
multi-monitor support.

X X

Multi-Media

USDT

SFF/CMT

High Definition Audio with Realtek ALC261 codec (all ports are stereo)

X X

Microphone/Headphone* and dedicated headphone front ports (3.5mm)

X X

Line-out and Line-In rear Ports* (3.5mm)

X X

Multi-streaming capable

*

X X

Internal Speaker (standard)

X X

HP Thin USB Powered Speakers

X X

HP TV Tuner (mini PCIe card)

X

HP USB HD 720P Business Webcam

X X

HP Business Headset

X X

SRS Premium Sound

X X

*The front microphone port is re-taskable as a Line-in, Microphone-in or Headphone-in port. Rear audio input ports are re­taskable as a Line-in or Microphone-in port. External speakers must be powered externally. Multi-streaming can be enabled in the
Realtek control panel to allow independent audio streams to be sent to/from the front and rear jacks. This allows for different
audio applications to use separate audio ports on the system. For example, the front jacks could be used with a headset for a
communications application while the rear jacks are being used with external speakers and a multimedia application.

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 14

Input/Output Devices

USDT

SFF/CMT

HP PS/2 Standard Keyboard

X X

HP USB Standard Keyboard

X X

HP USB Keyboard with USB ports

X X

HP USB Smart Card (CCID) Keyboard

X X

HP USB Mini Keyboard

X X

HP USB and PS/2 Washable Keyboard

X X

HP PS/2 Optical Mouse

X X

HP USB Optical Mouse

X X

HP USB Laser Mouse

X X

HP USB and PS/2 Washable Mouse

X X

Miscellaneous Devices and Configurations

USDT

SFF/CMT

HP FireWire IEEE 1394 Card

X

HP SuperSpeed USB 3.0 PCIe x1 Card

X

HP Serial Port Adapter (RS-232 compatible); provides 2nd Serial Port

X

HP Parallel Port Adapter

X

HP eSATA Port Adapter

X

HP USDT Tower Stand

X

HP SFF Tower Stand

SFF only

Configure CMT in desktop orientation

CMT only

HP USDT Rear Port/Cable Control Cover

X

QuickSpecs

HP Compaq 8200 Elite Series

Standard Features and Configurable Components (availability may vary by country)

DA - 13879 North America — Version 36 — August 15, 2013

Page 15

Communication Devices

USDT

SFF/CMT

Part Number

Intel Gigabit CT Desktop NIC (PCIe x1)

X

FH969AA

Broadcom NetXtreme GbE Ethernet Plus NIC (PCIe x1)

X

FS215AA

HP Wireless 802.11 b/g/n NIC (PCIe x1)

X

FH971AA

NOTE:

The use of any of these optional NIC Cards (wired or wireless) will disable the Intel vPro Technology

features.

Graphics Solutions

USDT

SFF/CMT

Part Number

AMD Radeon HD 6350 Graphics (PCIe x16)

X

QK638AA

AMD Radeon HD 6450 Graphics (PCIe x16)

X

QM229AA

AMD Radeon HD 6570 Graphics (PCIe x16)

CMT/MT only

QP027AA

Nvidia NVS 295 Graphics (PCIe x16)

X

FY943AA

Nvidia NVS 300 Graphics (PCIe x16)

X

BV456AA

Nvidia GeForce 405 Graphics (PCIe x16)
(Available in China only)

X

QM194AA

HP DisplayPort Cable Kit

X X

VN567AA

HP DisplayPort To Dual Link DVI-D Adapter

X X

NR078AA

HP DisplayPort To DVI-D Adapter

X X

FH973AA

HP DisplayPort to HDMI Adapter

X X

BP937AA

HP DisplayPort to VGA Adapter

X X

AS615AA

HP DMS-59 to Dual DVI Cable

X

DL139A

HP DMS-59 to Dual DisplayPort Adapter

X

XP688AA

Data Storage Drives and Accessories

USDT

SFF/CMT

Part Number

HP 160GB SATA 10K SFF in 3.5in Frame Hard Disk Drive

X X

EW222AA

HP 300GB SATA 10K SFF in 3.5in Frame Hard Disk Drive

X X

FM802AA

HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive

X

QK554AA

HP 750-GB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive

X

QR469AA

HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive

X

QK555AA

HP 128-GB SATA 3.0Gb/s Solid State Drive

X X

QV063AA

HP 160-GB SATA 3.0Gb/s Solid State Drive

X X

QV064AA

HP 180-GB SATA 3.0Gb/s Solid State Drive

X X

C1N42AA

NOTE:

Use of HP System Software Recovery Disks (SSRD) is not supported on 128GB SSD models due to minimum image size

requirements (>=140GB) for the SSRD.

HP eSATA Adapter

X

FH966AA

QuickSpecs

HP Compaq 8200 Elite Series

After-Market Options (availability may vary by region)

DA - 13879 North America — Version 36 — August 15, 2013

Page 16

HP Removable SATA Hard Drive Enclosure (frame & carrier)

X

RY102AA

HP Removable SATA Hard Drive Enclosure (carrier only)

X

RY103AA

Input Devices

USDT

SFF/CMT

Part Number

HP PS/2 Standard Keyboard

X X

DT527A

HP USB Standard Keyboard

X X

DT528A

HP USB Keyboard with USB ports

X X

BT330AA

HP USB Mini Keyboard

X X

AS601AA

HP USB Gray Keyboard

X X

DT529A

HP USB Smart Card (CCID) Keyboard

X X

BV813AA

HP USB Keyboard and Mouse Kit

X X

RC465AA

HP USB Washable Keyboard

X X

VF097AA

HP USB and PS/2 Washable Mouse

X X

BM866AA

HP USB and PS/2 Washable Keyboard and Mouse Kit

X X

BU207AA

HP PS/2 Optical Mouse

X X

EY703AA

HP USB Optical Mouse

X X

DC172AT

HP USB Laser Mouse

X X

GW405AT

HP USB Travel Mouse

X X

RH304AA

HP 2.4GHz Wireless Keyboard and Mouse

X X

NB896AA

System Memory

USDT

SFF/CMT

Part Number

HP 1 GB DIMM

X

AT023AA

HP 2 GB DIMM

X

AT024AA

HP 4 GB DIMM

X

VH638AA

HP 1 GB SO-DIMM

X

VH639AA

HP 2 GB SO-DIMM

X

VH640AT

HP 4 GB SO-DIMM

X

VH641AT

QuickSpecs

HP Compaq 8200 Elite Series

After-Market Options (availability may vary by region)

DA - 13879 North America — Version 36 — August 15, 2013

Page 17

Multimedia Devices

USDT

SFF/CMT

Part Number

HP Thin USB Powered Speakers

X X

KK912AA

HP DVD-ROM Drive

X

AR629AA

HP SuperMulti DVD Writer Drive

X

AR630AA

HP Blu-ray Writer Drive

X

AR482AA

HP Slim DVD-ROM Drive

X

VP033AA

HP Slim SuperMulti DVD Writer Drive

X

VP034AA

HP USB HD 720P Business Webcam

X X

QP896AA

HP Business Headset

X X

QK550AA

Removable Media Storage

USDT

SFF/CMT

Part Number

HP USB External Diskette Drive

X X

DC141B

HP 22-n-1 Media Card Reader

X

AR941AA

Security Devices

USDT

SFF/CMT

Part Number

HP/Kensington MicroSaver Cable Lock

X X

PC766A

HP Business PC Security Lock

X X

PV606AA

HP USDT Rear Port Controller Cover

X

VN571AA

HP SFF Solenoid Lock and Hood Sensor

SFF only

BP428AA

HP CMT Solenoid Lock and Hood Sensor

CMT only

DE618A

HP SFF Wall Mount/Security Sleeve

SFF only

VN570AA

HP Keyed Lock Cable

X X

BV411AA

HP Client Automation Software

USDT

SFF/CMT

Part Number

HP Client Automation – Standard Edition (single seat)

X X

T3488AA

HP Client Automation – Standard Edition (10 seats)

X X

TA599AA

HP Client Automation – Standard Edition (100 seats)

X X

TA600AA

HP Client Automation – Standard Edition (500 seats)

X X

TA601AA

HP Client Automation – Standard Edition (1,000 seats)

X X

T3489AA

QuickSpecs

HP Compaq 8200 Elite Series

After-Market Options (availability may vary by region)

DA - 13879 North America — Version 36 — August 15, 2013

Page 18

Stands and Accessories

USDT

SFF/CMT

Part Number

HP Integrated Work Center Stand (USDT)

X

LH526AA

HP Integrated Work Center Stand (SFF)

SFF only

QP897AA

HP USDT Tower Stand

X

VN568AA

HP SFF Tower Stand

SFF only

VN569AA

HP Serial Port Adapter (RS-232 compatible)

X

PA716A

HP 5.25” Blank Bezel Kit (50 pack)

X

DC177B

HP FireWire IEEE 1394 Card

X

PA997A

HP SuperSpeed USB 3.0 Card

X

BM867AA

Monitors

USDT

SFF/CMT

Part Number

HP Compaq LA1751g 17-inch LCD Monitor

EM889AA

HP Compaq LA1951g 19-inch LCD Monitor

EM890AA

HP Compaq LA1956x 19-inch LED Backlit Monitor

A9S75AA

HP Compaq LA2006x 20-inch LED Backlit LCD Monitor

XN374AA

HP Compaq LA2206xc 21.5-inch Webcam LCD Monitor

LW490AA

HP Compaq LA2205wg 22-inch Widescreen LCD Monitor

NM274AA

HP Compaq LA2306x 23-inch LED Backlit LCD Monitor

XN375AA

HP Compaq L2206tm 21.5-inch LED Backlit Touch Monitor

B0L55AA

HP L2401x 24-inch LED Backlit Monitor

B6R21AA

QuickSpecs

HP Compaq 8200 Elite Series

After-Market Options (availability may vary by region)

DA - 13879 North America — Version 36 — August 15, 2013

Page 19

Weights &
Dimensions

(configured with 1 HDD & 1
ODD)

USDT

SFF

CMT

Chassis
(H x W x D)

2.6 x 9.9 x 10 in
66 x 252 x 254 mm

4.0 x 13.3 x 14.9 in
100 x 338 x 379 mm

17.6 x 7.00 x 18.0 in
448 x 178 x 445 mm

System Volume

257.5 cu in

4.2 L

782.77 cu in

12.8 L

2166.34 cu in

35.5 L

Tower Stand
(H x W x D)

1.1 x 4.9 x 6.7 in
27 x 125 x 170 mm

1.1 x 7.0 x 7.9 in
29 x 178 x 200 mm

N/A

Packaging
(H x W x D)

8.6 x 15.7 x 19.7 in
218 x 398 x 500 mm

9.0 x 19.7 x 23.4 in
229 x 500 x 594 mm

22.6 x 12.7 x 24.4 in
575 x 323 x 620 mm

System Weight

*

6.8 lb

3.1 kg

16.7 lb

7.6 kg

24.5 lb

11.2 kg

Shipping Weight

*

14.4 lb

6.5 kg

17.9 lb

8.1 kg

34.0 lb

15.4 kg

Max Supported Weight
(desktop orientation)

77.0 lb

35.0 kg

77.0 lb

35.0 kg

77.0 lb

35.0 kg

I/O Ports

USDT

SFF/CMT

USB 2.0

Front – four (4) ports
Rear – six (6) ports

Serial

N/A

one RS-232 compatible port standard
second port available optionally

Parallel

N/A

one port available as an option

eSATA

N/A

one port available as an option

PS/2

color coded support for keyboard (purple) and mouse (green)

Video

VGA and DisplayPort v1.1a provide integrated dual independent monitor support

DVI output

available via optional DisplayPort to DVI Adapter

Audio

Front – microphone & headphone
Rear – line input (supports microphone or line input), line out
All ports are 3.5mm in diameter

NOTE:

See Audio/Visual section for information on re-taskable audio ports.

NIC

Industry standard RJ-45 port accesses the integrated network interface controller

Slots

USDT

SFF

CMT

Mini PCI Express

1 each

N/A N/A

MXM

1 each

N/A N/A

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications

DA - 13879 North America — Version 36 — August 15, 2013

Page 20

Conventional PCI
Revision 2.3
5-volt

N/A

1 each

2.5” low profile

6.6” length
25W max. power

3 each

4.2” full height

6.6” length
25W max. power

PCI Express 2.0

N/A

1 each x1 slot

2.5” low profile

6.6” length
25W max. power

1 each x1 slot

4.2” full height

6.6” length
25W max. power

N/A

1 each x16 slot

2.5” low profile

6.6” length
25W max. power

1 each x16 slot

4.2” full height

6.6” length
75W max. power
(for single graphics card)
35W max. power
(for dual graphics cards)

N/A

1 each x16 slot
(wired as a x4)

2.5” low profile

6.6” length
25W max. power

1 each x16 slot
(wired as a x4)

4.2” full height

6.6” length
35W max. power

Bays

USDT

SFF

CMT

3.5” external

N/A

1 bay available for Media Card
Reader unless used for a
secondary hard drive

N/A

5.25” external

N/A

1 each

8.19” depth

2 each

8.19" depth

1 each

5.7" depth

Slim

1 each

N/A N/A

Secure Digital (SD) Reader

1 each

N/A N/A

Internal HDD Bays

1 each

2.5” drives

1 each

3.5” drives

3 each

3.5” drives

Controller

USDT

SFF

CMT

Hard Drive Controller

These systems provide up to four serial ATA (SATA) interfaces that support transfer rates up to 6.0
Gb/s (for ports 0 and 1, 3 Gb/s on all others) and RAID data protection functionality. These systems
can also support an external SATA (eSATA) device through an optional bracket/cable assembly (does
not apply to USDT).

SATA Interfaces

2 ea. SATA 3.0 2 ea. SATA 3.0

1 ea. SATA 2.0

1 ea. eSATA

2 ea. SATA 3.0
2 ea. SATA 2.0
1 ea. eSATA

Host SATA Controller

Advanced Host Controller Interface (AHCI) Revision 1.2. The specification includes a description of
the hardware/software interface between system software and the host controller hardware.

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications

DA - 13879 North America — Version 36 — August 15, 2013

Page 21

Unit Environment and Operating Conditions

General Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is
operated within the specified operating range.
Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other's re­circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign
matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure,
and the same operating guidelines listed above will still apply.

Temperature Range

Operating: 50° to 95° F (10° to 35° C)

*

Non-operating: –22° to 140° F(–30° to 60° C)

Relative Humidity

Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5% to 95% (non-condensing at ambient)

Maximum Altitude
(unpressurized)

Operating: 10,000 ft (3048 m)
Non-operating: 30,000 ft (9144 m)

*Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained sunlight.
Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.

Power Supply

USDT

SFF

CMT

Standard Efficiency

N/A

240W active PFC 320W active PFC

High Efficiency

*

Integrated

graphics:

135W active PFC

87% efficient

240W active PFC

87/90/87% efficient at

20/50/100% load

320W active PFC

87/90/87% efficient at

20/50/100% load

Discrete

graphics:

180W active PFC

87% efficient

Operating Voltage Range

90 - 264 VAC 90 - 264 VAC 90 - 264 VAC

Rated Voltage Range

100 - 240 VAC 100 - 240 VAC 100 - 240 VAC

Rated Line Frequency

50/60 Hz 50/60 Hz 50/60 Hz

Operating Line Frequency
Range

47 – 63 Hz 47 – 63 Hz 47 – 63 Hz

Rated Input Current

N/A

4A

5.5A

Rated Input Current with
Energy Efficient* Power
Supply

135W: 2.4A
180W: 2.9A

4A

5.5A

Current Leakage
(NFPA 99)

< 250 µA < 275 µA < 450 µA

Power Supply Fan

N/A

92mm variable speed 92mm variable speed

Power cord length

N/A

6.0 ft. (1.83 m) 6.0 ft. (1.83 m)

External Power Adapter

Dimensions

6.7 x 2.6 x 1.5 in

N/A N/A

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications

DA - 13879 North America — Version 36 — August 15, 2013

Page 22

Total Cord Length

12 ft 8 in

N/A N/A

*High efficiency power supply is a requirement for ENERGY STAR qualification in conjunction with a select range of processors and
modules

ROM BIOS Information

Key features of the HP BIOS include:

Deployment and manageability – HP BIOS provides several technologies that help integrate the HP Compaq 8200 Elite Series PC
into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages.
Select models feature either Intel Standard Manageability or Intel Core vPro Processor Technology.
Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced
change notification.
Support UEFI specification 2.1
Computrace agent – For tracking and tracing services, available in select countries, separate software and purchase of a
subscription is required.
Thermal and power management – The HP BIOS provides and enables thermal and power management technologies so
component temperatures are managed for high reliability and to assist in operating the HP Business Desktop computer in any
enterprise environment.
Acoustic performance – Industry leading acoustic emissions across the range of operating conditions.
Serviceability – HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery – HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS updates
from within DOS (DOSFlash), BIOS updates from within Windows (HPQFlash), HP Client Manager, and fail-safe recovery. In
addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is available
from within the BIOS software and from the support website.
HP BIOS uses PKI signing of the BIOS for trusted BIOS upgrades and recovery.

Additional HP BIOS Features

Power-On password – Helps prevent an unauthorized user from powering on the system.
Administrator password – Also known as the setup password, this helps prevent unauthorized changes to the system
configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made to
BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) – Represents a significant innovation in power and configuration
management, allowing operating systems and applications to manage power based on activity and usage. HP Elite models use
ACPI to provide power conservation features.
S5 Max Power Savings setting supports EU Lot6 requirement and allows the computer to power down below 1W is S5 (when
turned off). When S5 Max Power Savings feature is enabled power to slots is turned off along with WOL functionality.

Other Features

Advanced Configuration and Power Management Interface (ACPI). Allows the system to wake from a low power mode. Controls
system power consumption, making it possible to place individual cards and peripherals in a low-power or powered-off state
without affecting other elements of the system.
System Management BIOS v2.6
Intel Wired for Management support; industry wide initiative to make Intel architecture based PCs, servers and mobile
computers more inherently manageable out-of-the-box and over the network
Dual State Power Button; acts as both an on/off button and a suspend-to-sleep button

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications

DA - 13879 North America — Version 36 — August 15, 2013

Page 23

Serviceability Features

Dual colored power LED on front of computer to indicate either normal or fault condition
Diagnostic LED Explanation Table:

Number of 1-second red LED blinks followed by a 2-second pause, then repeats:

2 - processor thermal protection activated
3 - processor not installed
4 - power supply failure
5 -- memory error
6 - video error
7 - PCA failure (ROM detected failure prior to video)
8 - invalid ROM, bootblock recovery mode
9 - system not fetching code

10 - system hang while loading an option ROM
System/Emergency ROM
Flash ROM
CMOS Battery Holder for easy replacement
Flash Recovery with Video Configuration Record Software
5 Aux Power LED on System PCA
Processor ZIF Socket for easy Upgrade
Over-Temp Warning on Screen (Requires IM Agents)
Clear Password Jumper
DIMM Connectors for easy Upgrade
Clear CMOS Button
NIC LEDs (integrated) (Green & Amber)
Dual Color Power and HD LED - To Indicate Normal Operations and Fault Conditions
Color coordinated cables and connectors
Tool-less Hood Removal
Front power switch
System memory can be upgraded without removing the system board or any internal components
Tool-less Hard Drive, CD & Diskette Removal
Green Pull Tabs, and Quick Release Latches for easy Identification

Additional Features

Description

Computrace

Computrace agent support standard

Towerable Orientation

Product can be oriented as either a desktop or a tower

Drive Protection System

DPS Access through F10 Setup during Boot
A diagnostic hard drive self test. It scans critical physical components and every sector of

the hard drive for physical faults and then reports any faults to the user
Running independently of the operating system, it can be accessed through a Windows-

based diagnostics utility or through the computer's setup procedure. It produces an
evaluation on whether the hard drive is the source of the problem and needs to be
replaced

The system expands on the Self-Monitoring, Analysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that alerts the user to certain types
of failures

SMART Technology (Self-Monitoring,
Analysis and Reporting Technology)

Allows hard drives to monitor their own health and to raise flags if imminent failures were
predicted

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications

DA - 13879 North America — Version 36 — August 15, 2013

Page 24

SMART I - Drive Failure Prediction

SMART II - Off-Line Data Collection

SMART III - Off-Line Read Scanning with
Defect Reallocation

SMART IV - End-to-End CRC for hard drives

Predicts failures before they occur. Tracks fault prediction and failure indication
parameters such as re-allocated sector count, spin retry count, calibration retry count

By avoiding actual hard drive failures, SMART hard drives act as "insurance" against
unplanned user downtime and potential data loss from hard drive failure

IOEDC: I/O Error Detection Circuitry

Detects errors in Read/Write buffers on HDD cache RAM

Interface in F10 setup provides confirmation of SMART IV support.

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications

DA - 13879 North America — Version 36 — August 15, 2013

Page 25

High Definition Audio

Type

Integrated

HD Stereo Codec

Realtek 2-channel ALC261 codec

Audio I/O Ports

Front microphone-In (150-K ohm Input Impedance)
Rear Line-In/Microphone input (150-K ohm Input Impedance, function is configurable by audio

driver)
Rear Line-Out* (190 ohms Output Impedance, expects at least a 10-K ohm load)
Front Headphone-Out (0.5 Ohm Output Impedance, expects at least a 32 ohm load)

Front Microphone/Headphone jack is re-task able to provide Microphone input, line-in or Headphone
output to support connecting two headphones to the front of the system. When configured as a
second front headphone output, both front headphone outputs are always driven with the same
signal.

All ports are 3.5mm

Internal Speaker Amplifier

1.5W amplifier for the internal speaker only. External speakers must be powered externally. Rear
Line-in audio port is re-taskable as either Line-in or Microphone-In.

Multi-streaming Capable

Multi-streaming can be enabled in the Realtek control panel to allow independent audio streams to
be sent to/from the front and rear jacks.

Sampling

8 kHz - 192 kHz

Wavetable Syntheses

Yes – Uses OS soft wavetable

Analog Audio

Yes

# of Channels on Line-Out

Stereo (Left & Right channels)

Internal Speaker

Yes

External Speaker Jack

Yes

HP Thin USB Powered Speakers

On/Off/Volume Controls

Right side of right speaker

Power LED

Front of right speaker (green)

Frequency Response

FO to 20kHz

Watts

2/3 watt (normal/maximum)

Dimensions/Speaker

(H x W x D)

5.72 x 3.74 x 0.96 in

14.52 x 9.50 x 2.45 cm

Net Weight

0.68 lbs

0.31kg

Color

Black

Environmental

(all conditions non-condensing)

Operating Temperature:

14° to 104° F (-10° to 40° C)

Relative Humidity

40% to 90%

Speaker Cable Length

Input Cord:

5.91 ft (1800 mm)

L-channel Cord:

3.28 ft (1000 mm)

USB Cord:

5.91 ft (1800 mm)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Audio

DA - 13879 North America — Version 36 — August 15, 2013

Page 26

SRS Premium Sound Technology

SRS Premium Sound™

is a state-of-the-art solution suite which optimizes the audio experience for all business applications including
VoIP, computer based training, business presentations and digital content creation for any speaker configuration (notebook / desktop
speakers or headphones). SRS Premium Sound delivers natural and immersive surround sound complete with deep, enveloping bass
and crystal clear dialog which allows users to clearly hear audio and voice in communications or presentations and ensures that digital
content can be experienced with uncompromised quality.

SRS Premium Sound Features

Premium audio experience for all applications including VoIP, Video Conferencing, Webcasts, Multimedia Presentations and
Digital Content Creation
Natural and Immersive sound from two speakers or headphones
Custom-tuned solutions to provide superior natural sound from desktop speakers and headphones
Crystal clear dialog
Deep, rich bass
Intuitive user interface with presets for ease of use

SRS Premium Sound Benefits

Turn your desktop into a multimedia powerhouse!
Bring your business communication to life with natural sounding voice and clear dialog
Increase productivity by making computer based training, webcasts and VoIP available anytime and anywhere with crystal clear
audio
Make presentations shine with rich, expansive sound without the need for external speakers
Take digital content creation to a new level with deep bass, enhanced fidelity and immersive surround sound which ensures that
your content is heard with uncompromised quality and detail

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Audio

DA - 13879 North America — Version 36 — August 15, 2013

Page 27

Intel 82579LM GbE Network Connection

(integrated)

Connector

RJ-45

System Interface

Integrated on PCA

Controller

Intel 82579LM GbE platform LAN connect networking controller

Memory

24 KB FIFO packet buffer memory

Data rates supported

10/100/1000 Mbps

IEEE Compliance

802.1P

802.1Q

802.2

802.3

802.3ab

802.3az

802.3u

Bus architecture

PCI Express and SMBus

Data transfer mode

PCIe-based interface for active state operation (S0 state) and SMBus for host and management
traffic (Sx low power state)

Power requirement

Requires 3.3V and 1.05V or just 3.3V with integrated regulators
Power consumption 0.697 Watts

Boot ROM support

Yes

Network transfer mode

Full-duplex
Half-duplex (not supported for the 1000BASE-T transceiver)

Network transfer rate

10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps

Environmental

Operating Temperature:

0° to 85° C

Operating Humidity:

60% RH

Management

WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable diagnostic.

Alerting

ASF 2.0 support; AMT 7.0 support

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Communications

DA - 13879 North America — Version 36 — August 15, 2013

Page 28

Intel Gigabit CT Desktop Network Interface Controller

Connector

RJ-45

System Interface

PCI Express x1

Controller

Intel WG82574L Gigabit Ethernet Controller

Memory

Integrated Dual 48K configurable transmit receive FIFO Buffers

Data rates supported

10/100/1000 Mbps

Compliance

IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant, 802.3x flow control

Bus architecture

PCI-E 1.0a

Data path width

X1, 250 MB/s, Bi-directional interface

Data transfer mode

Bus-master DMA

Hardware certifications

FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for European Union

Power requirement

Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T

Boot ROM support

Yes

Network Transfer Rate

10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)

Environmental

Operating Temperature:

32° to 131°F (0° to 55° C)

Operating Humidity:

85% at 131° F (55° C)

Dimensions

4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm)

Management

WOL, PXE, DMI, WFM 2.0

HP 802.11 b/g/n Wireless Network Connection

Dimensions

(L x H)

2.8 x 2.2 in (7.0 x 5.7 cm)

Weight

0.08 lbs (40 g)

Controller

Ralink RT2790

System interface

PCI Express x1

Network standard

802.11 b/g/n

Frequency band

2.400 - 2.497 GHz

Operating temperature

14° to 149°F, operating (-10° to 65°C, operating)

Storage temperature

-40° to 176°F, non-operating (-40° to 80°C, non-operating)

Humidity

10-90% operating
5-95% non-operating

Operating voltage

3.3V +/- 9%
12V +/- 8%

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Communications

DA - 13879 North America — Version 36 — August 15, 2013

Page 29

Power Consumption

Platform/WLAN Mode

Power Consumption

Maximum Power Consumption:

10 Watts

Transmit Only

4 Watts maximum averaged power over 1 second

Transmit Packet or Active Scanning

1000 mA peak current for 100 microseconds or
longer

Receive Only Mode or Idle without IEEE PSP mode
enabled

3 Watts maximum averaged over 1 second

Idle, with IEEE PSP mode enabled

1.0 Watts maximum averaged over 1 second

Transmit Disabled
(turned off in software)

50 mW maximum, averaged over 1 second

Platform in S3 or S4
(power removed from Low Profile PCI Express
Card)

5 mW maximum, averaged over 1 second

Output Power

(approximate)

802.11b mode

+19 dBm +/- 1.0 dB maximum

802.11g mode

+17 dBm +/- 1.0 dB maximum

EWC mode

+17 dBm +/- 1.0 dB maximum (total power in all
transmit chains)

Security

IEEE and WiFi compliant 64 / 128 bit WEP encryption
AES: CCM

802.1x authentication
WPA: 802.1x. WPA-PSK and TKIP
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through V5

Antenna

HP part number 497317-003

Certifications

Wi-Fi certified

Certifications for use by
country

United States, Canada, Peru, Taiwan

Intel Centrino Advance-N 6205 Wireless Network Interface Connection
(USDT only)

Wireless LAN Standards

IEEE 802.11a/b/g/n
IEEE 802.11 e, 802.11i, 802.11d, 802.11d, 802.11h

Interoperability

Wi-Fi certified (802.11 a/b/g/n WMM, WPA, WPA2 and WPS)
Tested with wireless access points from several major manufacturers
OS compatible with Microsoft Windows, Win7, Vista, and XP
Cisco Compatible Extensions Program compliant (802.11a/b/g only) with Microsoft Windows XP,

Windows Vista and Windows 7

Frequency Band

2.4 GHz and 5 GHz

Antenna Structure

2 transmit; 2 receive (2x2)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Communications

DA - 13879 North America — Version 36 — August 15, 2013

Page 30

Data Rates

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of
Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n
specification

Modulation

Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Security

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of
128bits), TKIP, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP, MSCHAP, PEAP-MSCHAPv2,
LEAP, EAP-FAST, EAP-SIM, EAP-AKA PAP, CHAP, TLS, GTC

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products
through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows Vista and XP
only.

Sub-channels

Multinational support with frequency bands and channels compliant to local regulations.

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Network Architecture Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Intel® My Wifi Technology (iPAN)

Roaming

Provide seamless roaming between like access points (same frequency band)

Output Power (for CCK)

15 dBm

Output Power (for OFDM; power
varies by data rate)

15 dBm

Power Consumption

Transmit: 2.3 Watts (average, with one spatial streams)
Receive: 1.9 Watts (average with two receive chains)
Idle mode: 30mW – 40mW (average)
Radio off: 20 mW (max)

Power Management

ACPI compliant power management

802.11 compliant power saving mode

Antenna Connections

3 U.FL type connectors, 50 ohm nominal impedance

Range

802.11 a - Typical (@6 Mbps)

600 feet - Outdoor Open Area
150 feet - Indoor, Office environment

802.11 b - Typical (@1 Mbps)

1200 feet - Outdoor Open Area
300 feet - Indoor, Office environment

802.11 g - Typical (@1 Mbps)

1200 feet - Outdoor Open Area
300 feet - Indoor, Office environment

Form Factor

MiniPCI-Express

Weight

0.013 lb (4.0 g)

Dimensions

1.1 x 1.2 in (26.8 x 30.0 mm)

Operating Voltage

3.3V +/- 9%, 1.5V +/- 5%

Temperature

Operating:
Non-operating:

32° to 176° F (0° to 80° C)

-40° to 176° F (-40° to 80° C)

Humidity

Operating:
Non-operating:

10% to 90% (non-condensing)
5% to 90% (non-condensing)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Communications

DA - 13879 North America — Version 36 — August 15, 2013

Page 31

Microsoft Windows XP

Microsoft Windows Vista and Win 7

Configuration Utility

Microsoft Windows XP Wireless Network
Connection Manager
Intel PROSet for Microsoft Windows XP
(required for Cisco Compatible Extensions
support)

Microsoft Windows Vista Wireless Network
Connection Manager
Intel IHV extensions for Win7 and Vista
available to support Cisco Compatible
Extensions

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Communications

DA - 13879 North America — Version 36 — August 15, 2013

Page 32

Intel HD Graphics 2000/3000

3D/2D Controller

Microsoft DirectX 10.1 based with support for Pixel Shader 4.1

VGA Controller

Integrated

DisplayPort

v1.1a; integrated, multimode capable; supports HDCP and audio over DisplayPort

Bus Type

Intel® Flexible Display Interface (Intel® FDI) - a proprietary link for carrying display traffic from the
Processor Graphics controller to the PCH display I/Os.

Memory

Intel graphics do not have dedicated memory but utilizes some of the computer's system memory
The amount of memory used for graphics depending on the amount of system memory installed,
BIOS settings, operating system, and system load. 32 MB is pre-allocated for graphics use at system
boot time. Additional memory can be allocated at boot time by the BIOS for PAVP (Protected Audio
Video Playback) support for playback of protected video content.

Additional memory is allocated for graphics as needed using Intel's Dynamic Video Memory
Technology (DVMT), to provide an optimal balance between graphics and system memory use.

Maximum Graphics Memory

Microsoft Windows XP

Microsoft Windows Vista

Microsoft Windows 7

Up to 1GB

Up to 1.7GB Up to 1.7GB

Note: the actual amount of maximum graphics memory can be less than the amounts listed above
depending upon your computer's configuration.

HW Video Decode

Hardware Accelerated decode for MPEG2 encrypted video; support for PAVP

Maximum Color Depth

32 bits/pixel

Multi-display Support

Integrated dual independent monitor support facilitated via one VGA port and one DisplayPort v1.1a
integrated on the back plane of the system board and presented as part of the rear I/O set of
interfaces. Support for DVI, HDMI, dual link DVI or second VGA monitor provided by optional HP
DisplayPort adapters. (see complete listing of available optional adapters elsewhere in this
QuickSpec).

Small Form Factor and Tower systems can support greater than two monitors with the addition of an
optional PCI Express discrete graphics card. Both the integrated graphics and PCIe discrete graphics
can be utilized simultaneously. The Ultra-slim Desktop only supports MXM graphics cards which do
not provide additional video output ports, therefore will not provide this functionality.

Graphics/Video API Support

DirectX 10.1 support in hardware
OpenGL 3.0 support in hardware

Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Maximum Refresh Rates (Hz)

Analog

Digital

640x480

85 60

800x600

85 60

1024x768

85 60

1280x720

85 60

1280x1024

85 60

1440x900

75 60

1600x900

75 60

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Graphics

DA - 13879 North America — Version 36 — August 15, 2013

Page 33

1600x1200

85 60

1680x1050

75 60

1920x1080

85

60-R

1920x1200

85

60-R

1920x1440

85

N/A

2048x1536

75

N/A

2560x1600

N/A

60

*

* Only supported when using a DisplayPort connection

NOTE:

other resolutions may be available but are not recommended as the may not have been tested and qualified by HP

NOTE:

60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital connections

AMD FirePro 2270 Graphics Card

Form Factor

PCI Express x16 (generation 2.0)
Low Profile, half length, 2.3" x 6.6"
Full height bracket utilized when configured to CMT or MT

Graphics Controller

AMD FirePro 2270 GPU

Output Connector

Single DMS-59 connector
Supports dual analog displays with included DMS-59 to dual VGA Y cable.
Supports dual digital displays with optional DMS-59 to dual DVI cable.
Supports dual DisplayPort displays with optional DMS59 to dual DisplayPort cable.

Core Clock

600MHz

Memory Clock

600MHz

Memory Frame Buffer

512MB, DDR3, 64-bit wide

Supported Graphics APIs

DirectX 11 support in hardware
OpenGL 4.0 support in hardware

Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Maximum Refresh Rate (Hz)

Analog

Digital

640 x 480

85 60

800 x 600

85 60

1024 x 768

85 60

1280 x 720

85 60

1280 x 1024

85 60

1440 x 900

75 60

1600 x 1200

85 60

1680 x 1050

75 60

1920 x 1080

85

60-R

1920 x 1200

85

60-R

1920 x 1440

85

N/A

2048 x 1536

75

N/A

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Graphics

DA - 13879 North America — Version 36 — August 15, 2013

Page 34

NOTE:

60-R denotes reduced blanking timings are used on single link DVI connections and may be used with other digital connections.

AMD Radeon HD 5450 Graphics Card

Form Factor

MXM 3.0 A

Engine Clock

650 MHz

Memory Type

DDR3

Memory Data Rate

800 MHz

Memory Size (width)

512 MB (64 bit)

3D API support

DX11, SM 5

LVDS support

Yes

Output Connectors

VGA & DisplayPort 1.1 supporting dual independent displays

HDCP support

yes

HDMI support

1.3 compatible

BD support

Full rate playback @ max. resolution of display
Full sub-video support w/o frame drops
Full BDJ or iHD support w/o frame drops

Total Power Consumption

25W

AMD Radeon HD 6350 Graphics Card

Form Factor

PCI Express x16 (generation 2.0)
Low Profile, half length, 2.3" x 6.6"
Full height bracket utilized when configured to CMT or MT

Graphics Controller

AMD HD 6350 GPU

Output Connector

Single DMS-59 connector
Supports dual analog displays with included DMS-59 to dual VGA cable.
Supports dual DVI displays with optional DMS-59 to dual DVI cable.

Core Clock

650MHz

Memory Clock

800MHz

Memory Frame Buffer

512MB, DDR3, 64-bit wide

Supported Graphics APIs

HDCP supported on DVI output using optional DMS-59 to dual DVI cable.
DirectX 11 support in hardware.
OpenGL 4.0 support in hardware.

Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Maximum Refresh Rate (Hz)

Analog

Digital

640 x 480

85 60

800 x 600

85 60

1024 x 768

85 60

1280 x 720

85 60

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Graphics

DA - 13879 North America — Version 36 — August 15, 2013

Page 35

1280 x 1024

85 60

1440 x 900

75 60

1600 x 1200

85 60

1680 x 1050

75 60

1920 x 1080

85

60-R

1920 x 1200

85

60-R

1920 x 1440

85

N/A

2048 x 1536

75

N/A

NOTE:

60-R denotes reduced blanking timings are used on single link DVI connections and may be used with other digital connections.

AMD Radeon HD 6450 Graphics Card

Form Factor

PCI Express x16 (Generation 2.0)
Low Profile, half length, 2.3" x 6.6"
Full height bracket utilized when configured to CMT or MT

Graphics Controller

AMD HD 6450 GPU

Output Connector

One (1) DisplayPort1.1
One (1) Dual Link DVI-I
Includes a DVI to VGA adapter. Other optional adapter kits are available to support DVI-D, and HDMI
monitor inputs (see a complete listing of available optional adapters elsewhere in this QuickSpec).
Supports audio with video through the DisplayPort 1.1 connector.
DisplayPort v1.2 support will be provided in a future driver update.

Core Clock

625MHz

Memory Clock

800MHz

Memory Frame Buffer

512MB, DDR3, 64-bit wide

Display Maximum Resolution

Digital: 2560 x 1600
Analog: 2048 x 1536
(see chart below for more resolutions)

Supported Graphics APIs

HDCP supported on DisplayPort 1.1 and DVI output.
DirectX 11 support in hardware.

Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Maximum Refresh Rate (Hz)

Analog

Digital

640 x 480

85 60

800 x 600

85 60

1024 x 768

85 60

1280 x 720

85 60

1280 x 1024

85 60

1440 x 900

75 60

1600 x 1200

85 60

1680 x 1050

75 60

1920 x 1080

85

60-R

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Graphics

DA - 13879 North America — Version 36 — August 15, 2013

Page 36

1920 x 1200

85

60-R

1920 x 1440

85 60

*

2048 x 1536

75 60

*

2560 x 1600

N/A

60

*

* Only supported when using a dual link DVI or DisplayPort monitor connection

NOTE:

60-R denotes reduced blanking timings are used on single link DVI connections and may be used with other digital connections.

AMD Radeon HD 6570 Graphics Card

Form Factor

PCI Express x16 (generation 2.0)
Full height for CMT or MT chassis.

Graphics Controller

AMD HD 6570 GPU

Output Connector

Two (2) DisplayPort 1.1
One (1) Dual Link DVI-I
Includes a DVI-I to VGA adapter. Other optional adapter kits are available to support DVI-D, and HDMI
monitor inputs (see complete listing of available optional adapters elsewhere in this QuickSpec).
Supports audio with video through the DisplayPort 1.1 connector. Audio is also supported with an
optional DisplayPort to HDMI Adapter.
DisplayPort 1.2 support will be provided in a future driver update.

Core Clock

650MHz

Memory Clock

900MHz

Memory Frame Buffer

1GB of DDR3,128-bit wide

Supported Graphics APIs

HDCP supported on DisplayPort and DVI output.
DirectX 11 support in hardware.
OpenGL 4.0 support in hardware

Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Maximum Refresh Rate (Hz)

Analog

Digital

640 x 480

85 60

800 x 600

85 60

1024 x 768

85 60

1280 x 720

85 60

1280 x 1024

85 60

1440 x 900

75 60

1600 x 1200

85 60

1680 x 1050

75 60

1920 x 1080

85

60-R

1920 x 1200

85

60-R

1920 x 1440

85 60

2048 x 1536

75 60

2560 x 1600

N/A

60

NOTE:

60-R denotes reduced blanking timings are used on single link DVI connections and may be used with other digital connections.

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Graphics

DA - 13879 North America — Version 36 — August 15, 2013

Page 37

NVIDIA NVS 295 Graphics Card

Form Factor

PCI Express x16 (generation 2.0)
Low Profile, half length, 2.3" x 6.6"
Full height bracket utilized when configured to CMT or MT

Graphics Controller

NVIDIA NVS 295 Graphics Board

Output Connectors

Two (2) DisplayPort
Includes two (2) DisplayPort to VGA Adapters

Memory Frame Buffer

256 MB DDR3 SDRAM

Display Output

Drives DisplayPort enabled digital displays at resolutions up to 2560 × 1600 at 60 Hz with reduced
blanking

Drives DVI enabled digital displays at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking
(through DisplayPort to DVI-D (single link) cable)

Supported Graphics APIs

OpenGL 3.0 in hardware
DirectX 10.0 in hardware

NVIDIA NVS 300 Graphics Card

Form Factor

PCI Express x16 (generation 2.0)
Low Profile, half length, 2.3" x 6.6"
Full height bracket utilized when configured to CMT or MT

Graphics Controller

Nvidia GT218 GPU

Memory Frame Buffer

512MB DDR3, 64-bit wide

Output Connectors

Single DMS-59 connector
Supports dual analog displays with included DMS-59 to dual VGA Y cable.
Supports dual DVI displays with an optional DMS59 to dual DVI cable.

Core Clock

520MHz

Memory Clock

790MHz

Supported Graphics APIs

OpenGL 3.3 support in hardware
DirectX 10.0 support in hardware

Display Resolutions and Refresh Rates

NOTE:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Maximum Refresh Rate (Hz)

Analog

Digital

640 x 480

85 60

800 x 600

85 60

1024 x 768

85 60

1280 x 720

85 60

1280 x 1024

85 60

1440 x 900

75 60

1600 x 1200

85 60

1680 x 1050

75 60

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Graphics

DA - 13879 North America — Version 36 — August 15, 2013

Page 38

1920 x 1080

85

60-R

1920 x 1200

85

60-R

1920 x 1440

85

N/A

2048 x 1536

75

N/A

NOTE:

60-R denotes reduced blanking timings are used on single link DVI connections and may be used with other digital connections.

NVIDIA NVS 310 Graphics Card

Introduction

The NVIDIA® NVS™ 310 Graphics Card is a PCI Express low profile form factor graphics add-in card targeted as an active low cost
graphics solution for the corporate business and enterprise markets.

The NVIDIA® NVS 310 graphics card is an ideal solution for customers requiring a small form factor graphics add-in card for either
standard or small form factor PC designs.

Performance and Features

The NVIDIA® NVS 310 Graphics Card offers 512 MB of ultrafast DDR3 memory and is capable of supporting up to 2 displays.

DisplayPort connector supports multimode technology to support connection to DVI-D, VGA and HDMI monitors with optional
adapters in kits

NR078AA, FH973AT, BP937AA, AS615AA

.

For a DisplayPort to DisplayPort connections use the optional DisplayPort Cable Kit VN567AA.

Form Factor (H x L)

Low Profile: 2.713 × 6.15 in

Bus Type

PCI Express x16, 2.0 compliant

Graphics Controller

NVIDIA® NVS 310

Memory Size

512 MB DDR3

Memory Clock

875MHz

Memory Bandwidth

14 GB/s

Connectors

2 x DisplayPort 1.2

Maximum Resolution

Up to 2560 x 1600 (digital display) per display.

Display Output

Up to 2 displays in the following configurations

DisplayPort output:

Drives two DisplayPort enabled digital display at resolutions up to 2560 × 1600 at 60 Hz with
reduced blanking, when connected natively using the 2 DisplayPort connectors on the NVS 310
graphics card
Supports 2 monitors up to resolution of 1920 × 1200 at 60 Hz with reduced blanking using
DisplayPort 1.2 multi stream topology technology.

DVI-D output:

Drives two digital display at resolutions up to 1920 × 1200 at 60 Hz with reduced blanking
using DisplayPort to DVI-D single-link cable adaptors
Drives two digital display at resolutions up to 2560× 1600 at 60 Hz with reduced blanking
using DisplayPort to DVI-D dual-link cable adaptors

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Graphics

DA - 13879 North America — Version 36 — August 15, 2013

Page 39

HDMI output:

NVS 310 is capable of driving two high definition (HD) panels up to resolutions of 1920 ×
1080P at 60 Hz using DisplayPort to HDMI cable adaptors

VGA display output:

Drives two analog display at resolutions up to 1920 × 1200 at 60 Hz using DisplayPort to VGA
cable adaptors

Max. Power

19.5 W

Display Resolutions and Refresh Rates

Note:

other resolutions may be available but are not recommended as they may not have been tested and qualified by HP

Resolution

Maximum Refresh Rates (Hz) by Connection

DisplayPort to VGA

DisplayPort to DVI-D

DisplayPort to HDMI

DisplayPort

640 x 480

85 60 60 60

800 x 600

85 60 60 60

1024 x 768

85 60 60 60

1280 x 720

85 60 60 60

1280 x 1024

85 60 60 60

1440 x 900

75 60 60 60

1600 x 1200

60 60 60 60

1680 x 1050

60 60 60 60

1920 x 1080

60-R 60-R

60 60

1920 x 1200

60-R 60-R

60

1920 x 1440

60

2048 x 1536

60

2560 x 1600

60

Note:

60-R denotes reduced blanking timings are used on single link DVI connections and may be used with other digital connections.

NVIDIA GeForce 405 Graphics Card

Form Factor

PCI Express x16 (Generation 2.0)
Low Profile, half length, 2.3" x 6.6"
Full height bracket utilized when configured to CMT or MT

Graphics Controller

NVIDIA GeForce 405

Output Connectors

One (1) VGA analog
One (1) DVI-I digital

Memory Frame Buffer

512MB DDR3, 64-bit wide

Maximum Resolution

Analog: 1920 x 1440 x 32bpp @ 75Hz
Digital: 1600 x 1200 x 32bpp @ 60Hz

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Graphics

DA - 13879 North America — Version 36 — August 15, 2013

Page 40

Introduction

:

HP Serial Advanced Technology Attachment (SATA) Hard Drives maximize the performance of HP Business PCs by providing the
technologies to meet your increasing storage demands with high-capacity drives offering superior reliability and performance.

SATA provides faster data transfer speeds, better system cooling airflow, more bandwidth, more headroom for speed increases in
future generations and better data integrity. A next-generation technology, the SATA interface connects hard drives to the PC platform
enabling easy aggregation of multiple hard drives into a single PC. This offers you the additional benefits of dedicated bandwidth, the
ability to more easily identify device failures and scalability. The HP Compaq 8200 Elite Series supports the latest SATA 6.0Gb/s
specification.

HP Drive Lock

HP Serial ATA Hard Drives offer enhanced security via a new Drive Lock. When enabled, this ATA security feature set prevents software
access to user data on the drive until one or two user-defined passwords are provided.

SMART IV Technology

Self Monitoring Analysis and Reporting Technology (SMART) hard drive technology allows hard drives to monitor their own health and
to raise flags if imminent failures are predicted. If the drive determines that a failure is imminent, the SMART hard drive technology
enables the intelligent manageability or management software to generate a fault alert. While the current versions of SMART hard
drives do a good job monitoring the data on the hard drive media, the ever increasing emphasis on reliability and quality has promoted
HP to implement SMART IV technology which constantly checks that the data flow from host interface to media and media to host
interface is not compromised. This is accomplished by inserting a 2 byte parity code into every 512 byte block in the data path of the
hard drive's Cache RAM. This unique parity checking performed by HP's SMART IV technology hard drives, allows for more complete
error detection coverage encompassing the entire data path between the host and the hard drive.

Smart IV is also known as IOEDC: I/O Error Detection Code.

Native Command Queuing

NCQ or Native Command Queuing is a SATA protocol extension that allows the hard drive to have several write or read commands
outstanding at the same time. In contrast, normal non-queued operation requires each command to be completed before the next
command is issued by the host system. Queuing allows the drive to complete the commands in the order that allows for best overall
throughput. It also involves an advanced method of transferring data to or from the host, called First Party Direct Memory Access
(FPDMA), which allows the hard drive and the host controller to manage the data transfers for multiple outstanding commands, without
involving the host processor. NCQ can contribute to better performance but the results are dependent on many factors, including the
access patterns of the various applications and operating system functions that are initiating drive accesses. Enabling NCQ features in
the hard drive requires AHCI support from the host system BIOS, controller, and driver. AHCI support is typically implemented in RAID
configurations.

NOTE:

GB = 1 billion bytes. Actual available capacity is less.

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications – Hard Disk Data Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 41

HP 160-GB 7.2K SATA 3.0Gb/s 2.5" Hard Disk Drive

Capacity

160,041,885,696 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 2.0 (3.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

312,581,808

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

2.0 ms

Average:

12 ms

Full-Stroke:

22 ms

Height

(nominal)

0.374 in/9.5 mm

Width

(nominal)

Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm

Operating Temperature

41° to 131° F (5° to 55° C)

HP 160-GB 10K SATA 3.0Gb/s 2.5" Hard Disk Drive

Capacity

160,041,885,696 bytes

Rotational Speed

10,000 rpm

Interface

Serial ATA 2.0 (3.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

312,581,808

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

2.0 ms

Average:

12 ms

Full-Stroke:

22 ms

Height

(nominal)

0.6 in (1.53 cm)

Width

(nominal)

Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications – Hard Disk Data Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 42

HP 250-GB 7.2K SATA 3.0Gb/s 2.5" Hard Disk Drive

Capacity

250,059,350,016 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 2.0 (3.0 Gb/s)

Buffer Size

8 MB

Logical Blocks

488,397,168

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

2.0 ms

Average:

12 ms

Full-Stroke:

22 ms

Height

(nominal)

0.374 in/9.5 mm

Width

(nominal)

Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm

Operating Temperature

41° to 131° F (5° to 55° C)

HP 250-GB 7.2K SATA 6.0Gb/s 3.5" Hard Disk Drive

Capacity

250,059,350,016 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 3.0 (6.0 Gb/s)

Buffer Size

8 MB

Logical Blocks

488,397,168

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

1.0 ms

Average:

8.5 ms

Full-Stroke:

18 ms

Height

(nominal)

1 in/2.54 cm

Width

(nominal)

Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications – Hard Disk Data Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 43

HP 300-GB 10K rpm SATA 3.0Gb/s 2.5" Hard Disk Drive

Capacity

300,069,052,416 bytes

Rotational Speed

10,000 rpm

Interface

Serial ATA 2.0 (3.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

586,072,368

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

0.7 ms

Average:

4.4 ms

Full-Stroke:

9.5 ms

Height

(nominal)

0.6 in (1.53 cm)

Width

(nominal)

Media diameter: 2.5 in (6.36 cm)
Physical size: 2.75 in (6.99 cm)

Operating Temperature

41° to 131° F (5° to 55° C)

HP 320-GB 7.2K rpm SATA 3.0Gb/s 2.5" Hard Disk Drive

Capacity

320,072,933,376 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 2.0 (3.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

488,397,168

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

2.0 ms

Average:

12 ms

Full-Stroke:

22 ms

Height

(nominal)

0.374 in/9.5 mm

Width

(nominal)

Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications – Hard Disk Data Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 44

HP 320-GB 7.2K rpm SATA 3.0Gb/s 2.5" Self-Encrypting Hard Disk Drive

Capacity

320,072,933,376 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 2.0 (3.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

488,397,168

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

2.0 ms

Average:

12 ms

Full-Stroke:

22 ms

Height

(nominal)

0.374 in/9.5 mm

Width

(nominal)

Media diameter: 2.5 in/63.5 mm
Physical size: 2.75 in/70 mm

Operating Temperature

41° to 131° F (5° to 55° C)

HP 500-GB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive

Capacity

500,107,862,016 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 3.0 (6.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

976,773,168

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

2.0 ms

Average:

11 ms

Full-Stroke:

21 ms

Height

(nominal)

1 in/2.54 cm

Width

(nominal)

Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications – Hard Disk Data Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 45

HP 750-GB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive

Capacity

750,107,862,016 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 3.0 (6.0 Gb/s)

Buffer Size

16 MB

Logical Blocks

976,773,168

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

2.0 ms

Average:

11 ms

Full-Stroke:

21 ms

Height

(nominal)

1 in/2.54 cm

Width

(nominal)

Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

HP 1-TB 7.2K rpm SATA 6.0Gb/s 3.5" Hard Disk Drive

Capacity

1,000,204,886,016 bytes

Rotational Speed

7,200 rpm

Interface

Serial ATA 3.0 (6.0 Gb/s)

Buffer Size

32 MB

Logical Blocks

1,953,525,168

Seek Time

(typical reads,
includes controller overhead,
including settling)

Single Track:

2.0 ms

Average:

11 ms

Full-Stroke:

21 ms

Height

(nominal)

1 in/2.54 cm

Width

(nominal)

Media diameter: 3.5 in/8.89 cm
Physical size: 4 in/10.2 cm

Operating Temperature

41° to 131° F (5° to 55° C)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications – Hard Disk Data Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 46

HP 80-GB Solid State Drive

Unformatted Capacity

80-GB

Architecture

Multi Level Cell (MLC) NAND Flash with wear leveling 10 channel controller

Interface

Serial ATA 2.0 (3.0 Gb/s)

Dimensions

(W x H x D)

2.74 x 0.37 x 4 in/6.98 x 0.95 x 10.2 cm

Weight

0.18 lb/80 g

Bandwidth Performance

Sustained Sequential Read:

Up to 250 MB/s

Sustained Sequential Write:

Up to 70 MB/s

Random Read:

Up to 35K IOPs

Random Write:

Up to 6.6K IOPs

Latency

Read:

65-ms

Write:

85-ms

Power

DC power requirement:

5 VDC 5%-100 mV ripple p-p

Total power consumption:

0.15W (active); 0.075W (idle)

Useful Drive Life

35TB written, up to 20GB/day for 5 years

Environmental

(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Maximum Wet Bulb

Temperature

(operating):

84° F (29° C)

Shock:

1,500 G/0.5-ms

NOTE:

For solid state disk drives, GB means 1 billion bytes. 16GB is the unformatted capacity of this drive before a portion of the drive is
reserved for flash management features. Actual capacity varies by content and will be less than 15.8GB.

NOTE:

Use of HP System Software Recovery Disks (SSRD) is not supported on 80GB or 128GB SSD models due to minimum image size
requirements (>=140GB) for the SSRD.

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications – Solid State Data Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 47

HP 120-GB Solid State Drive

Unformatted Capacity

120 GB

Architecture

Multi Level Cell (MLC) NAND Flash with wear leveling 10 channel controller

Interface

Serial ATA 2.0 (3.0 Gb/s)

Dimensions

(W x H x D)

2.74 x 0.37 x 4 in/6.98 x 0.95 x 10.2 cm

Weight

0.18 lb/80 g

Bandwidth Performance

Sustained Sequential Read:

Up to 250 MB/s

Sustained Sequential Write:

Up to 70 MB/s

Random Read:

Up to 35K IOPs

Random Write:

Up to 6.6K IOPs

Latency

Read:

65-ms

Write:

85-ms

Power

DC power requirement:

5 VDC 5%-100 mV ripple p-p

Total power consumption:

0.15W (active); 0.075W (idle)

Useful Drive Life

35TB written, up to 20GB/day for 5 years

Environmental

(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Maximum Wet Bulb

Temperature

(operating):

84° F (29° C)

Shock:

1,500 G/0.5-ms

NOTE:

For solid state disk drives, GB means 1 billion bytes. 16GB is the unformatted capacity of this drive before a portion of the drive is
reserved for flash management features. Actual capacity varies by content and will be less than 15.8GB.

HP 160-GB Solid State Drive

Unformatted Capacity

160-GB

Architecture

Multi Level Cell (MLC) NAND Flash with wear leveling 10 channel controller

Interface

Serial ATA 2.0 (3.0 Gb/s)

Dimensions

(W x H x D)

2.74 x 0.37 x 4 in/6.98 x 0.95 x 10.2 cm

Weight

0.18 lb/80 g

Bandwidth Performance

Sustained Sequential Read:

Up to 250 MB/s

Sustained Sequential Write:

Up to 70 MB/s

Random Read:

Up to 35K IOPs

Random Write:

Up to 6.6K IOPs

Latency

Read:

65-ms

Write:

85-ms

Power

DC power requirement:

5 VDC 5%-100 mV ripple p-p

Total power consumption:

0.15W (active); 0.075W (idle)

Useful Drive Life

35TB written, up to 20GB/day for 5 years

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications – Solid State Data Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 48

Environmental

(all conditions, non-condensing)

Operating Temperature:

32° to 158° F (0° to 70° C)

Relative Humidity:

5% to 95%

Maximum Wet Bulb

Temperature

(operating):

84° F (29° C)

Shock:

1,500 G/0.5-ms

NOTE:

For solid state disk drives, GB means 1 billion bytes. 16GB is the unformatted capacity of this drive before a portion of the drive is
reserved for flash management features. Actual capacity varies by content and will be less than 15.8GB.

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications – Solid State Data Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 49

HP USB Standard Keyboard

Physical characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country)

Dimensions

(L x W x H)

18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

Weight

2 lb (0.9 kg)

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft® PC 99 - 2001

Functionally compliant

Mechanical

Languages

38 available

Keycaps

Low-profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop

(out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop

(in box)

42 in (107 cm) on concrete, 16-drop sequence

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Input/Output Devices

DA - 13879 North America — Version 36 — August 15, 2013

Page 50

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

Kit contents

Keyboard

Installation Guide

Warranty Card

Safety and Comfort Guide

HP PS/2 Standard Keyboard

Physical Characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country)

Dimensions

(L x W x H)

18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

Weight

2 lb (0.9 kg) minimum

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

PS/2 6-pin mini din connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft PC 99 - 2001

Functionally compliant

Mechanical

Languages

38 available

Keycaps

Low-profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes (using Hasco modified tester)

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft

1.8 m

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Input/Output Devices

DA - 13879 North America — Version 36 — August 15, 2013

Page 51

Environmental

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop

(out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop

(in box)

42 in (107 cm) on concrete, 16-drop sequence

Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

HP USB Smart Card (CCID) Keyboard
Introduction

:

Boost your security, simplify access procedures and reduce the costs associated with managing networks by preventing unauthorized
access to your computers and networks using smartcard technology with the HP Smart Card (CCID) Keyboard.

The USB Smart Card (CCID) Keyboard is a full-sized keyboard that takes advantage of digital signatures and certificates to secure the
environment for transactions performed on both public and private networks. The USB Smart Card (CCID) Keyboard works with all
smart cards that comply with ISO standard 7816.

Smart cards are easy-to-use credit card-sized devices which require multiple forms of information to be validated before you gain
access to your accounts or resources. Used worldwide, smart cards strengthen access to a network or other resource using dual-factor
authentication. Implementing a two-factor authentication (or multi-factor authentication) process reduces the risk of unauthorized
access by verifying and validating your identity in one of the following ways:

Something you know - a combination of username and password or PIN
Something you have - a smart card or security token.

Something you have (smart card) plus something you know (PIN), improves user-access security within corporate network
environments. Smart cards are used in government agencies, healthcare companies and the finance industry.

HP ProtectTools Smart Card Manager provides authentication software for the smart card. The Smart Card Reader module works with
the HP ProtectTools Security Manager and enables the user to setup, use, and manage the smart card. This allows strengthened
security with HP patented technology.

Key Benefits:

Protects against unauthorized access with smart card technology
Delivers even greater security when combined with a HP ProtectTools smart card and the HP
ProtectTools Security Software
Combination of username and password or pin with a smart card or security token
Secures online transactions using digital signatures and certificates
Conforms to industry standards for ease of setup and use
Delivers long product life and quiet operation with high-impact materials and lubricated keys
Spill drain feature

Keys

104, 105, 106, 107, 109 layout
(depending upon country

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Input/Output Devices

DA - 13879 North America — Version 36 — August 15, 2013

Page 52

Physical Characteristics

Form factor

USB basic smart card keyboard

Colors

Carbonite/Silver

Dimensions

(H x W x D)

18.2 x 6.3 x 1.3 in

46.3 x 16.1 x 3.3 cm

Weight

2 lb (0.9 kg) minimum

Electrical

Operating voltage

+ 5VDC ± 5%

Power consumption

100-mA maximum (with four LEDs ON)

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft PC 99 - 2001

Functionally compliant

Mechanical

Languages

30+ available

Keycaps

Standard design

Switch actuation

55 g nominal peak force with tactile feedback

Switch life

20 million keystrokes
(using Hasco modified tester)

Switch type

Contamination-resistant membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

6 ft (1.8 m)

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-22° to 140° F (-30° to 60° C)

Operating humidity

10% to 90% (non-condensing at ambient)

Non-operating humidity

20% to 80% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop

(out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop

(in box)

42 in (107 cm) on concrete, 16-drop sequence

Support

All ISO 7816 smart cards

Interface

Reads from and writes to all ISO7816-1, 2, 3, 4 memory and
microprocessor smart cards (T=0, T=1)

Chipset

SCM STCIII

Standard APIs supported

PC/SC, EMV2000, CT-API

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Input/Output Devices

DA - 13879 North America — Version 36 — August 15, 2013

Page 53

SmartCard Function

Power

USB Port
Short circuit detection (protects smart card and reader)
Power supply compliant with ISO7816 and EMV (5V, 60 mA)
Supports 3-V and 5-V cards

Power consumption

100-mA maximum draw

Communication

From card

9600 bps to 330,000 bps

From computer

12 Mbps (USB transfer speed)

Landing mechanism

Contact device

Friction contact

Card insertions rating

Up to 100,000 insertion cycles

Interface modes

CCID protocol

Reader performance interface

USB connection

Electro-magnetic standards

Europe

2004/108/EC

USA

USAFCC part 15

Approvals

CE-Mark, UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, EMV2000, USB-IF

Ergonomic Compliance

ISO 9241-4, TUVGS

Kit Contents

Keyboard, I/O Security and Documentation CD, warranty card

HP USB & PS2 Washable Keyboard

Physical Characteristics

Keys

104, 105, 106, 107, 109 layout (depending upon country)

Dimensions

(L x W x H)

18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)

Weight

2 lb (0.9 kg) minimum

Electrical

Operating voltage

+ 5VDC ±5%

Power consumption

50-mA maximum (with three LEDs ON)

System interface

USB Type A plug connector

ESD

CE level 4, 15-kV air discharge

EMI - RFI

Conforms to FCC rules for a Class B computing device

Microsoft® PC 99 - 2001

Functionally compliant

Mechanical

Keycaps

Stepped -profile design

Switch actuation

55-g nominal peak force with tactile feedback

Switch life

20 million keystrokes

Switch type

Contamination-resistant switch membrane

Key-leveling mechanisms

For all double-wide and greater-length keys

Cable length

7 ft

2.2 m

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Input/Output Devices

DA - 13879 North America — Version 36 — August 15, 2013

Page 54

Microsoft PC 99 - 2001

Mechanically compliant

Acoustics

43-dBA maximum sound pressure level

Environmental

Operating temperature

50° to 122° F (10° to 50° C)

Non-operating temperature

-4° to 149° F (-20° to 65° C)

Operating humidity

10% to 95% (non-condensing at ambient)

Non-operating humidity

0% to 95% (non-condensing at ambient)

Operating shock

40 g, six surfaces

Non-operating shock

80 g, six surfaces

Operating vibration

2-g peak acceleration

Non-operating vibration

4-g peak acceleration

Drop

(out of box)

26 in (66 cm) on carpet, six-drop sequence

Drop

(in box)

42 in (107 cm) on concrete, 16-drop sequence

Approvals

UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, C-Tick, KCC, USB-IF, WHQL, EN/IEC 60601-1, IP66/NEMA4X

Ergonomic compliance

ANSI HFS 100, ISO 9241-4, and TUVGS

HP PS/2 Optical Mouse

Dimensions

(H x L x W)

1.56 x 2.44 x 4.61 in (3.95 x 6.21 x 11.7 cm)

Weight

4.44 oz (126 g)

Environmental

Operating temperature

-32° to 104°F (0° to 40° C)

Non-operating temperature

-4° to 140°F (-20° to 60° C)

Operating humidity

10% to 90%
(non condensing at ambient)

Non-operating humidity

10% to 90%
(non condensing at ambient)

Operating shock

40 g, 6 surfaces

Non-operating shock

80 g, 6 surfaces

Operating vibration

2 g peak acceleration

Non-operating vibration

4 g peak acceleration

Drop

(out of box)

80 cm height onto asphalt tile over concrete or equivalent, 5-drop
in 5 direction except the cable face

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Input/Output Devices

DA - 13879 North America — Version 36 — August 15, 2013

Page 55

Electrical

Operating voltage

5 VDC ± 10%

Power consumption

100mA

System consumption

PS/2 mini-din connector

ESD

CE level 4, 15 kV air discharge

EMI-RFI

Conforms to FCC rules for a Class B computing device

Microsoft PC99 - 2001

Functionally compliant

Mechanical

Resolution

400 ± 20% DPI

Tracking speed

10 in/s (25.4 cm/s) maximum

Acceleration

100 in/s/s (2.54 m/s/s)

Switch actuation

61 g nominal peak force

Switch life

3,000,000 operations (using Hasco modified tester)

Switch type

Low force micro-switches

Tracking mechanism life

155 mi (250 km) at average speed of 10 in/s

Cable length

6 ft (1.8 m)

Microsoft PC99 - 2001

Mechanically compliant

Scroll wheel

Width

8 mm

Diameter

1.01 in (25.6 mm)

Maximum rotation speed

48 rats/sec

Switch type

Light force micro-switch

Switch life

1 million operations

Mechanical life

Minimum 200,000 revolutions

Regulatory Approvals

UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Input/Output Devices

DA - 13879 North America — Version 36 — August 15, 2013

Page 56

HP USB Optical Mouse

Dimensions

(H x L x W)

1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)

Weight

0.27 lb (0.12 kg)

Cable length

72.8 in (185 cm)

System requirements

Microsoft Windows 95, 98, 2000, Me, XP and Vista
Available USB port

HP USB Laser Mouse

Scroll Wheel

24

Maximum Rotation Speed

48 rats/sec

Switch Type

Wheel

Switch Life

Button - 3,000,000

Wheel - 1,000,000 times

Tilt switch - 500,000 times

Environmental

Operating Temperature

32° to 104° F (0° to 40° C)

Non-operating Temperature

-4° to 140° F (-20° to 60° C)

Operating Humidity

10% to 90%
(non-condensing at ambient)

Non-operating Humidity

20% to 80%
(non-condensing at ambient)

Operating Shock

40 g, six surfaces

Non-operating Shock

80 g, six surfaces

Operating Vibration

2-g peak acceleration

Non-operating Vibration

4-g peak acceleration

Electrical

Operating Voltage

+ 5VDC ± 5%

Power Consumption

MTBF

> 150,000 hrs

ESD

IEC-61000-4-2 criteria B, Contact discharge: +/- 4kV, Air
discharge: +/- 8kV

EMI-RFI

FCC Class B

PC98

PC 99 Compliant

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Input/Output Devices

DA - 13879 North America — Version 36 — August 15, 2013

Page 57

Mechanical

Resolution

800dpi

Tracking Speed

25 cm/sec

Acceleration

0.5mm

Switch Actuation

0.6N (60gf)

Switch Life

Button - 3,000,000

Wheel - 1,000,000 times

Tilt switch - 500,000 times

Cable Length

1850mm

PC98-99

PC99 compliant

Regulatory Approvals

UL60950-1, UL 94, UL 746 (A-E), UL 796
TUV/GS: EN 60950-1, EN 60825-1
FCC Class B, UL 1950, cUL, TUV GS, CE, C-tick, VCCI, BSMI, RRL

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Input/Output Devices

DA - 13879 North America — Version 36 — August 15, 2013

Page 58

HP Blu-ray Writer Drive

AMO Part Number

AR482AA

Height

5.25-inch, half-height, tray-load

Orientation

Either horizontal or vertical

Interface type

SATA

Disc capacity

50 GB DL or 25 GB standard

Dimensions

(W x H x D)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 19.0 cm)

Weight

(max)

2.0 lb (907 g)

Disc Capacity

DVD-ROM

8.5GB DL or 4.7GB standard

Blu-ray

50GB DL or 25GB standard

Full Stroke DVD

< 250 ms (seek)

Full Stroke CD

< 210 ms (seek)

Blu-ray

< 275 ms (seek)

Startup Time

(Time to drive ready from tray loading)

BD-ROM (SL/DL)

25S / 28S

BD-R (SL/DL)

25S / 28S

BD-RE (SL/DL)

25S / 28S

DVD-ROM (SL/DL)

18S / 18S

DVD-R (SL/DL)

25S / 25S

DVD-RW

25S

DVD+R (SL/DL)

25S / 25S

DVD+RW

DVD+RW 25S

DVD-RAM

45S

CD-ROM

15S

CD-ROM Read

CD-ROM up to 40X

CD-R up to 40X

CD-RW up to 40X

DVD-ROM Read

DVD-RAM up to 5X

DVD+RW up to 10X

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 59

Maximum Data Transfer Rates

DVD-RW up to 10X

DVD+R DL up to 8X

DVD-R DL up to 8X

DVD-ROM up to 16X

DVD-ROM DL up to 8X

DVD+R up to 12X

DVD-R up to 12X

Blu-ray

BD-ROM up to 6X

BD-ROM DL up to 4.8X

BD-R up to 6X

BD-R DL up to 4.8X

BD-R up to 6X

BD-RE SL/DL up to 4.8X

Power

Source

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC -1000 mA typical, 1600 mA maximum
12 VDC -600 mA typical, 1400 mA maximum

Environmental

(all conditions
non-condensing)

Temperature

(operating)

41° to 122° F (5° to 50° C)

Relative Humidity

(operating)

10% to 90%

Maximum Wet Bulb
Temperature

(operating)

86° F (30° C)

HP SuperMulti DVD Writer Drive

AMO Part Number

AR630AT

Height

5.25-inch, half-height, tray-load

Orientation

Either horizontal or vertical

Interface type

Serial ATA

Dimensions

(W x H x D)

5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

Weight

(max)

2.6 lb (1.2 kg)

CD Media Read Access

Random

< 120 ms typical

Full Stroke

< 200 ms typical

DVD Media Read Access

Random

< 130 ms typical

Full Stroke

< 240 ms typical

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 60

Performance

CD Media Read Transfer

CD-ROM, CD-R Read

Up to 6000 KB/s (40X)

CD-RW Read

Up to 4800 KB/s (32X)

Digital/Analog
Audio Playback

Up to 2400 KB/s (16X)

Digital Audio Extraction
(CD-ROM, CD-R)

Up to 6000 KB/s (40X)

Digital Audio Extraction
(CD-RW)

Up to 4800 KB/s (32X)

Video CD Playback

Up to 2400 KB/s (16X)

DVD Media Read Transfer

DVD-ROM SL Read

Up to 21600 KB/s (16X)

DVD-ROM DL Read

Up to 10800 KB/s (8X)

DVD Video Playback

Up to 10800 KB/s (8X)

DVD Video SL
(other than playback)

Up to 21600 KB/s (16X)

DVD Video DL
(other than playback)

Up to 10800 KB/s (8X)

DVD-R

Up to 21600 KB/s (16X)

DVD+R

Up to 21600 KB/s (16X)

DVD-RW

Up to 10800 KB/s (8X)

DVD-R DL

Up to 10800 KB/s (8X)

DVD+RW

Up to 10800 KB/s (8X)

CD Media Write Transfer

CD-R Write

Up to 6000 KB/s (40X)

CD-RW

600 KB/s (4X)

CD-RW (High speed)

1500 KB/s (10X)

CD-RW (Ultra speed)

Up to 3600 KB/s (24X)

CD-RW (Ultra speed+)

Up to 4800 KB/s (24X)

DVD Media Write Transfer

DVD+R

Up to 21600 KB/s (16X)

DVD+R DL (v1.2)

Up to 16200 KB/s (8X)

DVD+R DL (v1.1)

Up to 10800 KB/s (8X)

DVD+RW (Volume 2 v1.0)

Up to 10800 KB/s (8X)

DVD+RW (Volume 1 v1.3)

Up to 5400 KB/s (4X)

DVD-R (v2.1 rev. 6.0)

Up to 16200 KB/s (12X)

DVD-R (v2.1 rev. 4.0)

Up to 21600 KB/s (16X)

DVD-R DL (v3.0 rev. 5.0)

Up to 10800 KB/s (8X)

DVD-R DL (v3.0 rev. 3.0)

Up to 10800 KB/s (8X)

DVD-RW (v1.2 rev. 3.0)

8100 KB/s (6X)

DVD-RW (v1.2 rev. 2.0)

Up to 5400 KB/s (4X)

DVD-RAM (v2.2 rev. 5.0)

Up to 16200 KB/s (5X)

DVD-RAM (v2.2 rev. 2.0)

Up to 6750 KB/s (5X)

Media

Read

Write

CD-ROM

Yes

No

CD-R

Yes Yes

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 61

Media Compatibility

CD-RW

Yes Yes

DVD-ROM

Yes

No

DVD-ROM DL

Yes

No

DVD-RAM

Yes Yes

DVD+R

Yes Yes

DVD+R DL

Yes Yes

DVD+RW

Yes Yes

DVD-R

Yes Yes

DVD-RW

Yes Yes

DVD-R DL

Yes

No

Power Supply

Source

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%

100 mV ripple p-p

12 VDC ± 5%

200 mV ripple p-p

DC Current

5 VDC

<1000 mA (typical)
1600 mA (max.)

12 VDC

1200 mA (typical)
2000 mA (max.)

Total Drive Power
(Standby Mode)

< 2.5W

Rear Panel

SATA Power Connector, 15-pin
SATA Data Connector, 7-pin
Markings to identify each connector

Environmental conditions

(all
conditions
non-condensing)

Temperature
(operating)

41° to 122° F
(5° to 50° C)

Temperature
(storage)

–22° F to 140° F
(–30° C to 60° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb Temperature

86° F (30° C)

Altitude

0 to 10,171 ft.
(0 to 3,100 meters)

HP DVD-ROM Drive

AMO Part Number

AR629AA

Height

5.25-inch, half-height, tray-load

Orientation

Either horizontal or vertical

Interface type

Serial ATA

Dimensions

(W x H x D)

5.8 x 1.7 x 6.9 in (14.8 x 4.2 x 17.5 cm)

Weight

(max)

2.1 lb (950 kg)

CD Media Read Access

Random

< 120 ms typical

Full Stroke

< 200 ms typical

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 62

Performance

DVD Media Read Access

Random

< 130 ms typical

Full Stroke

< 240 ms typical

CD Media Read Transfer

CD-ROM, CD-R Read

Up to 6000 KB/s (40X)

CD-RW Read

Up to 4800 KB/s (32X)

Digital/Analog
Audio Playback

Up to 2400 KB/s (16X)

Digital Audio Extraction
(CD-ROM, CD-R)

Up to 6000 KB/s (40X)

Digital Audio Extraction
(CD-RW)

Up to 4800 KB/s (32X)

Video CD Playback

Up to 2400 KB/s (16X)

DVD Media Read Transfer

DVD-ROM SL Read

Up to 21600 KB/s (16X)

DVD-ROM DL Read

Up to 10800 KB/s (8X)

DVD Video Playback

Up to 10800 KB/s (8X)

DVD Video SL
(other than playback)

Up to 21600 KB/s (16X)

DVD Video DL
(other than playback)

Up to 10800 KB/s (8X)

DVD-R

Up to 21600 KB/s (16X)

DVD+R

Up to 21600 KB/s (16X)

DVD-RW

Up to 10800 KB/s (8X)

DVD-R DL

Up to 10800 KB/s (8X)

DVD+RW

Up to 10800 KB/s (8X)

Media Compatibility

Media

Read

Write

CD-ROM

Yes

No

CD-R

Yes

No

CD-RW

Yes

No

DVD-ROM

Yes

No

DVD-ROM DL

Yes

No

DVD-RAM

Yes

No

DVD+R

Yes

No

DVD+R DL

Yes

No

DVD+RW

Yes

No

DVD-R

Yes

No

DVD-RW

Yes

No

DVD-R DL

Yes

No

Power Supply

Source

SATA DC power receptacle

DC Power Requirement

5 VDC ± 5%

100 mV ripple p-p

12 VDC ± 5%

200 mV ripple p-p

DC Current

5 VDC

1000 mA (typical)
1600 mA (max.)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 63

DC Current

12 VDC

1200 mA (typical)
2000 mA (max.)

Total Drive Power
(Standby Mode)

< 2.5W

Rear Panel

SATA Power Connector, 15-pin
SATA Data Connector, 7-pin
Markings to identify each connector

Environmental conditions

(all
conditions
non-condensing)

Temperature
(operating)

41° to 122° F
(5° to 50° C)

Temperature
(storage)

–22° F to 140° F
(–30° C to 60° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb Temperature

86° F (30° C)

Altitude

0 to 10,171 ft.
(0 to 3,100 meters)

HP Slim SuperMulti DVD Writer Drive

AMO Part Number

VP034AA

Height

12.7mm height

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Disc recording capacity

Up to 8.5 GB DL or 4.7 GB standard

Dimensions

(W x H x D)

5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)

Weight

(max)

0.42 lb (190 g)

Write speeds

DVD-RAM

Up to 5X

DVD-R DL

Up to 4X

DVD+R

Up to 8X

DVD+RW

Up to 4X

DVD+R DL

Up to 4X

DVD-R

Up to 8X

DVD-RW

Up to 6X

CD-R

Up to 24X

CD-RW

Up to 16X

DVD-RAM

Up to 5X

DVD-RW, DVD+RW

Up to 8X

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 64

Read speeds

DVD-R DL, DVD+R DL

Up to 6X

DVD+R, DVD-R

Up to 8X

DVD-ROM DL, DVD-ROM

Up to 8X

CD-ROM, CD-R

Up to 24X

CD-RW

Up to 24X

Access time

(typical reads, including
settling)

Random

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Full Stroke

DVD: < 250 ms (seek), CD: < 210 ms (seek)

Stop Time

< 4 seconds

Cache Buffer

2 MB (minimum)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7
MB/s); ATA UltraDMA Mode 3 (44.4 MB/s - default)

Power

Source

Four-pin, DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

12 VDC ± 5%-200 mV ripple p-p

DC Current

5 VDC (< 1000 mA typical, 1600 mA maximum)

12 VDC (< 600 mA typical, 1400 mA maximum)

Total Drive Power

(standby mode)

< 2.5 Watt

Audio output

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Environmental conditions

(operating - non-condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

10% to 90%

Maximum Wet Bulb
Temperature

86° F (30° C)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 65

HP Slim DVD-ROM Drive

AMO Part Number

VP033AA

Height

12.7mm

Orientation

Either horizontal or vertical

Interface type

SATA/ATAPI

Dimensions

(W x H x D)

5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)

Weight

(max)

0.42 lb (190 g)

Read speeds

DVD+R/-R/+RW/

-RW/+R DL /-R DL

Up to 4X

DVD-ROM

Up to 8X

CD-ROM, CD-R

Up to 24X

CD-RW

Up to 24X

Access time

(typical reads, including
settling)

Random DVD

DVD: < 140 ms (typical), CD: < 125 ms (typical)

Random CD

DVD: < 250 ms (seek), CD: < 210 ms (seek)

Data Transfer Modes

ATA PIO mode 4 (16.7 MB/s); ATA Multi-word DMA mode 2 (16.7
MB/s)

Power

Source

Four-pin, DC power receptacle

DC Power Requirement

5 VDC ± 5%-100 mV ripple p-p

DC Current

5 VDC - <1000 mA typical, < 1600 mA maximum

Total Drive Power

(standby mode)

< 2.5 Watt

Audio output

Line-Out

0.7 VRMS

Signal-to-Noise Ratio

74 dB

Channel Separation

65 dB

Environmental

(all conditions

non-condensing)

Temperature

41° to 122° F (5° to 50° C)

Relative Humidity

5% to 85%

Maximum Wet Bulb
Temperature

(operating)

86° F (30° C)

HP 22-n-1 Media Card Reader

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 66

USB Interface

USB 2.0 High-speed interface

NOTE:

Requires the USB cable to be connected to the internal USB 2.0 port or a USB 2.0 PCI card.

Advance protocol support

Supports hardware ECC (Error Correction Code) function

Supports hardware CRC (Cyclic Redundancy Check) function

Supports MS 4-bit parallel transfer mode

Supports MS-PRO 4-bit parallel transfer mode

Supports MS PRO-HG Duo 4-bit parallel transfer mode

Supports SD 4-bit parallel transfer mode

Supports high-speed 50Mhz SD 4-bit card (version 2.0)

Supports high-speed 52Mhz MultiMediaCard 8-bit card (version 4.2)

Supports CF v4.0 with PIO mode 6 and Ultra DMA mode

Supported media type

CompactFlash Type I

CompactFlash Type II

Microdrive

MultiMediaCard

Reduced Size MultiMediaCard (RS MultiMediaCard)

MultiMediaCard 4.2 (MultiMediaCard Plus, including MultiMediaCard Plus HC)

Reduced Size MultiMediaCard 4.2 (MultiMediaCard Mobile, including MultiMediaCard Mobile HC)

Secure Digital Card (SD)

Secure Digital High Capacity (SDHC)

miniSD

miniSD High Capacity

Micro SD (T-Flash)

Micro SD HC

Memory Stick

Memory Stick Select

Memory Stick Duo (MS Duo)

Memory Stick PRO (MS PRO)

Memory Stick PRO Duo (MS PRO Duo)

Memory Stick PRO-HG Duo

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 67

MagicGate Memory Stick (MG)

MagicGate Memory Stick Duo

Picture Card

Supported media type with
card adapter

Memory Stick Micro (M2)

MultiMediaCard Micro

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Removable Storage

DA - 13879 North America — Version 36 — August 15, 2013

Page 68

Eco-Label Certifications &
declarations

This product has received or is in the process of being certified to the following approvals and may
be labeled with one or more of these marks:

US ENERGY STAR ®
IT ECO declaration
EPEAT Gold where HP registers commercial desktop products. See

http://www.epeat.net

for

registration status in your country

Ultra Slim Desktop

Energy Consumption

(typically

configured)

115 VAC 230 VAC 100 VAC

Normal Operation

18.95 W 20.01 W 18.66 W

Sleep (Energy Star low power
mode)

2.09 W

2.182 W 2.099 W

Off

1.128 W 1.228 W 1.127 W

NOTE:

Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with
the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications
for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is for a
typically configured model.

Heat Dissipation

(typically

configured)

*

115 VAC 230 VAC 100 VAC

Normal Operation

65 BTU/hr 68 BTU/hr 64 BTU/hr

Sleep

7 BTU/hr 7 BTU/hr 7 BTU/hr

Off

4 BTU/hr 4 BTU/hr 4 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained
for one hour.

Declared Noise Emissions

(in accordance with ISO 7779 and ISO 9296)
System Fan Off

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

Idle

3.7

28

Fixed Disk
(random writes)

3.9

28

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight

Battery Size

CR2032 (coin cell)

Battery Type

Lithium

Additional Information

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Environmental Data

DA - 13879 North America — Version 36 — August 15, 2013

Page 69

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive ­2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Silver where HP
registers commercial desktop products. See http://www.epeat.net for registration status in
your country.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0.04% post consumer recycled plastic (by wt.)
This product is 93.7% recyclable when properly disposed of at end of life.

Packaging Materials

External:

Corrugated 1966 g

Internal:

Polyethylene low density Foam 154 g
The corrugated packaging material contains at least 38.38% recycled content.
The Polyethylene low density Foam packaging material contains at least 60.42% recycled
content.

Small Form Factor

Energy Consumption

115 VAC 230 VAC 100 VAC

Normal Operation

31.07 W 31.42 W 31.31 W

Sleep (Energy Star low power
mode)

2.14 W 2.37 W 2.11 W

Off

0.88 W 1.06 W 0.86 W

Heat Dissipation

*

115 VAC 230 VAC 100 VAC

Normal Operation

106.25 BTU/hr

107.4 BTU/hr

107.08 BTU/hr

Sleep

7.3 BTU/hr

8.10 BTU/hr

7.2 BTU/hr

Off

3 BTU/hr

3.6 BTU/hr 2.9 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained
for one hour.

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Environmental Data

DA - 13879 North America — Version 36 — August 15, 2013

Page 70

Declared Noise Emissions

(in accordance with ISO 7779 and ISO 9296)
System Fan Off

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

Idle

3.74 27.5

Fixed Disk
(random writes)

4.53 32.8

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight

Battery Size

CR2032 (coin cell)

Battery Type

Lithium

Additional Information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive ­2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level where HP
registers commercial desktop products. See

http://www.epeat.net

for registration status in
your country.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and
ISO1043.
This product contains 0.04% post consumer recycled plastic (by wt.)
This product is 93.7% recyclable when properly disposed of at end of life.

Packaging Materials

External:

Corrugated 1966 g

Internal:

Polyethylene low density Foam 154 g
The corrugated packaging material contains at least 38.38% recycled content.
The Polyethylene low density Foam packaging material contains at least 60.42% recycled
content.

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Environmental Data

DA - 13879 North America — Version 36 — August 15, 2013

Page 71

Convertible Minitower

Energy Consumption

(typically

configured)

115 VAC 230 VAC 100 VAC

Normal Operation

31.4797 W 31.2721 W 31.5603 W

Sleep (Energy Star low power
mode)

2.1754 W 2.3982 W 2.1609 W

Off

0.9116 W 1.1064 W 0.8938 W

NOTE:

Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family . HP computers marked with
the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications
for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is for a
typically configured model.

Heat Dissipation

(typically

configured)

*

115 VAC 230 VAC 100 VAC

Normal Operation

108 BTU/hr 107 BTU/hr 108 BTU/hr

Sleep

7 BTU/hr 8 BTU/hr 7 BTU/hr

Off

3 BTU/hr 4 BTU/hr 3 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained
for one hour.

Declared Noise Emissions

(in accordance with ISO 7779 and ISO 9296)
System Fan Off

Sound Power

(LWAd, bels)

Sound Pressure

(LpAm, decibels)

Idle

3.8

21

Fixed Disk
(random writes)

3.8

21

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight:

Battery Size

CR2032 (coin cell)

Battery type

Li-Ion

Additional Information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive –
2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment
(WEEE) Directive – 2002/96/EC.
This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold where HP
registers commercial desktop products. See

http://www.epeat.net

for registration status in
your country.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Environmental Data

DA - 13879 North America — Version 36 — August 15, 2013

Page 72

ISO1043.
This product contains 0.05% post consumer recycled plastic (by wt.)
This product is 95.1% recyclable when properly disposed of at end of life.

Packaging Materials

External

Corrugated: 1900g

Internal

Polyethylene low density foam: 230g
The corrugated carton packaging material contains at least 53.5% recycled content.
The Polyethylene low density foam packaging material is made from 60.42% recycled
content.

All Models

RoHS Compliance

Hewlett-Packard is committed to compliance with all applicable environmental laws and
regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive.
HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on
a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels
below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is
widely recognized that there is no technically feasible alternative (as indicated by an exemption
under the EU RoHS Directive).

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer to
the HP General Specification for the Environment at:

http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/
gen_specifications.html

):

Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants - may not be used as flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel - finishes must not be used on the external surface designed to be frequently handled
or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Environmental Data

DA - 13879 North America — Version 36 — August 15, 2013

Page 73

Packaging

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in
packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in packaging materials.
Use readily recyclable packaging materials such as paper and corrugated materials.
Reduce size and weight of packages to improve transportation fuel efficiency.
Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and
Recycling

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic
areas. To recycle your product, please go to:

http://www.hp.com/go/reuse-recycle

or contact your
nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at:

http://www.hp.com/go/recyclers

. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

Hewlett-Packard Corporate
Environmental Information

For more information about HP's commitment to the environment:
Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/
ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/operations/
envmanagement.html

Copyright © 2012 Hewlett-Packard Development Company, L.P.

All rights reserved. Microsoft, Windows, Windows 7, and Windows Vista are registered trademarks or trademarks of Microsoft
Corporation in the U.S. and/or other countries. Intel, Core 2 Quad, Core 2 Duo, Pentium and Celeron are registered trademarks or
trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S.
and other countries. All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The
warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.

QuickSpecs

HP Compaq 8200 Elite Series

Technical Specifications - Environmental Data

DA - 13879 North America — Version 36 — August 15, 2013

Page 74
