HP Compaq 6715b, Compaq 6715s, Compaq 6710b, Compaq 6710s Maintenance and Service Guide

HP Compaq 6715b and 6715s Notebook PC, HP Compaq 6710b and 6710s Notebook PC

Maintenance and Service Guide

AMD, Sempron, Turion, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Java is a US trademark of Sun Microsystems, Inc. Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Fourth Edition: May 2011

First Edition: March 2007

Document Part Number: 443119-004

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description ........................................................................................................... 1

2 External component identification ................................................................................... 13

Top components ..................................................................................................................... 13

Buttons, switches, and fingerprint reader .................................................................... 13

Keys ...................................................................................................................... 15

Lights ..................................................................................................................... 16

TouchPad ............................................................................................................... 17

Front components ................................................................................................................... 18

Left-side components ............................................................................................................... 19

Rear components ................................................................................................................... 20

Right-side components ............................................................................................................ 21

Bottom components ................................................................................................................ 22

3 Illustrated parts catalog .................................................................................................. 23

Serial number location ............................................................................................................ 23

Computer major components ................................................................................................... 24

Plastics Kit ............................................................................................................................. 33

Cable Kit .............................................................................................................................. 34

Mass storage devices ............................................................................................................. 35

Miscellaneous parts ................................................................................................................ 36

Sequential part number listing .................................................................................................. 37

4 Removal and replacement procedures ............................................................................ 45

Preliminary replacement requirements ....................................................................................... 45

Tools required ......................................................................................................... 45

Service considerations ............................................................................................. 45

Plastic parts ............................................................................................. 45

Cables and connectors ............................................................................. 46

Drive handling ......................................................................................... 46

Grounding guidelines .............................................................................................. 47

Electrostatic discharge damage .................................................................. 47

Packaging and transporting guidelines ........................................ 48

Workstation guidelines .............................................................. 48

Equipment guidelines ................................................................. 49

Unknown user password .......................................................................................... 50

Component replacement procedures ........................................................................................ 51

Serial number ......................................................................................................... 51

Battery ................................................................................................................... 52

SIM ....................................................................................................................... 53

Display inverter ....................................................................................................... 54

Hard drive ............................................................................................................. 56

Computer feet ......................................................................................................... 58

Bluetooth module .................................................................................................... 58

Expansion memory module ....................................................................................... 60

WLAN module ........................................................................................................ 62

Optical drive .......................................................................................................... 66

Keyboard ............................................................................................................... 68

Internal memory module ........................................................................................... 70

RTC battery ............................................................................................................ 71

WWAN module ..................................................................................................... 72

Switch cover ........................................................................................................... 74

Fan ....................................................................................................................... 75

Heat sink ................................................................................................................ 76

Processor ............................................................................................................... 78

Display assembly .................................................................................................... 80

Top cover ............................................................................................................... 85

Speaker assembly ................................................................................................... 89

USB/Media Card Reader board ............................................................................... 90

System board ......................................................................................................... 92

PC Card/audio board assembly ............................................................................... 95

Modem module ....................................................................................................... 97

SIM slot board ........................................................................................................ 99

5 Computer Setup ............................................................................................................ 101

Starting Computer Setup ....................................................................................................... 101

Using Computer Setup .......................................................................................................... 102

Navigating and selecting in Computer Setup ............................................................ 102

Restoring factory settings in Computer Setup ............................................................. 102

Computer Setup menus ......................................................................................................... 103

File menu ............................................................................................................. 103

Security menu ....................................................................................................... 104

Diagnostics menu .................................................................................................. 104

System Configuration menu .................................................................................... 105

6 Specifications ............................................................................................................... 108

Computer specifications ........................................................................................................ 108

15.4-inch, WSXGA display specifications ............................................................................... 109

15.4-inch, WXGA display specifications ................................................................................. 110

Hard drive specifications ...................................................................................................... 111

Primary 6-cell, Li-ion battery specifications ............................................................................... 112

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive specifications .............................. 113

DVD/CD-RW Combo Drive specifications ............................................................................... 115

DVD-ROM drive ................................................................................................................... 116

System DMA specifications .................................................................................................... 117

System interrupt specifications ............................................................................................... 118

System I/O address specifications .......................................................................................... 119

System memory map specifications ......................................................................................... 121

7 Screw listing ................................................................................................................. 122

Torx T8M2.5×7.0 screw ....................................................................................................... 122

Phillips PM2.0×5.0 captive screw .......................................................................................... 123

Phillips PM2.5×13.0 captive screw ........................................................................................ 124

Phillips PM3.0×3.0 screw ..................................................................................................... 125

Phillips PM2.5×3.0 screw ..................................................................................................... 126

Torx T8M2.5×9.0 screw ....................................................................................................... 128

Phillips PM2.0×3.0 screw ..................................................................................................... 130

Black Phillips PM2.5×8.0 captive screw .................................................................................. 131

Silver Phillips PM2.5×8.0 captive screw ................................................................................. 132

Phillips PM2.5×8.0 screw ..................................................................................................... 133

Phillips PM2.0×6.0 screw ..................................................................................................... 134

Torx T8M2.5×6.0 screw ....................................................................................................... 135

Hex HM5.0×9.0 screw lock .................................................................................................. 136

Phillips PM2.5×5.0 screw ..................................................................................................... 137

Phillips PM2.5×3.0 broad-head screw .................................................................................... 139

8 Backup and recovery .................................................................................................... 140

Backup and recovery in Windows Vista .................................................................................. 140

Creating recovery discs ......................................................................................... 140

Backing up your information ................................................................................... 140

When to back up ................................................................................... 141

Backup suggestions ................................................................................ 141

vii

Backing up specific files or folders ............................................................ 142

Backing up the entire hard drive .............................................................. 142

Creating recovery points ......................................................................... 143

Scheduling backups ................................................................................ 143

Performing a recovery ............................................................................................ 143

Performing a recovery from the recovery discs ........................................... 144

Performing a recovery from the hard drive ................................................. 144

Initiating a recovery in Windows ............................................... 145

Initiating a recovery from the hard drive recovery partition ........... 145

Backup and recovery in Windows XP ..................................................................................... 146

Creating recovery discs ......................................................................................... 146

Backing up your information ................................................................................... 146

When to back up ................................................................................... 147

Backup suggestions ................................................................................ 147

Backing up specific files or folders ............................................................ 147

Backing up the entire hard drive .............................................................. 148

Creating recovery points ......................................................................... 149

Scheduling backups ................................................................................ 149

Performing a recovery ............................................................................................ 149

Performing a recovery from the recovery discs ........................................... 150

Performing a recovery from the hard drive ................................................. 150

Initiating a recovery in Windows ............................................... 151

Initiating a recovery from the hard drive recovery partition ........... 151

9 Connector pin assignments ........................................................................................... 152

Audio-out (headphone) ......................................................................................................... 152

Audio-in (microphone) .......................................................................................................... 152

External monitor ................................................................................................................... 153

RJ-11 (modem) ..................................................................................................................... 154

RJ-45 (network) .................................................................................................................... 154

S-Video-out .......................................................................................................................... 155

Universal Serial Bus .............................................................................................................. 155

10 Power cord set requirements ...................................................................................... 156

Requirements for all countries and regions ............................................................................... 156

Requirements for specific countries and regions ....................................................................... 157

11 Recycling .................................................................................................................... 158

Battery ................................................................................................................................ 158

Display ............................................................................................................................... 158

viii

Index ............................................................................................................................... 164

1 Product description

Category Description HP Compaq

6715s Notebook PC

Processors AMD Turion™ 64 Mobile

Technology processors:

●

TL-64 (dual-core) 2.2-GHz processor with 1 MB of L2 cache

●

MK-38 (single-core) 2.2-GHz processor with 512 KB of L2 cache

●

TL-60 (dual-core) 2.0-GHz processor with 1 MB of L2 cache

●

TL-56 (dual-core) 1.8-GHz processor with 1 MB of L2 cache

●

TL-52 (dual-core) 1.6-GHz processor with 1 MB of L2 cache

●

TL-50 (dual-core) 1.6-GHz processor with 1 MB of L2 cache

Mobile AMD Sempron™ processors:

√√√

HP Compaq 6715b Notebook PC without WWAN

HP Compaq 6715b Notebook PC with WWAN

●

3800+ 2.2-GHz processor with 256 KB of L2 cache

●

3600+ 2.0-GHz processor with 256 KB of L2 cache

●

3500+ 1.8-GHz processor with 512 KB of L2 cache

●

3400+ 1.8-GHz processor with 256 KB of L2 cache

Chipset

Graphics Unified Memory Architecture (UMA),

●

Northbridge: RS690T

●

Southbridge: SB600

integrated with shared video memory

√√√

Category Description HP Compaq

6715s Notebook PC

HP Compaq 6715b Notebook PC without WWAN

HP Compaq 6715b Notebook PC with WWAN

Panels

Memory

●

15.4-inch, WSXGA+ with WWAN and WLAN antenna transceivers and cables

●

15.4-inch, WXGA with WWAN and WLAN antenna transceivers and cables

●

15.4-inch, WXGA, BrightView with WLAN antenna transceivers and cables

●

15.4-inch, WSXGA+ with WLAN antenna transceivers and cables

●

15.4-inch, WXGA with WLAN antenna transceivers and cables

●

Support privacy film √√√

●

Two SODIMM slots, both customeraccessible/upgradable (memory slot under the keyboard must be populated first)

●

DDRII PC2-5300 (667-MHz)

●

Supports dual-channel memory

√

√√

√√√

Supports the following configurations:

●

4096 MB total system memory (2048 MB × 2, dual-channel)

●

2048 MB total system memory (2048 MB × 1)

●

2048 MB total system memory (1024 MB × 2, dual-channel)

●

1024 MB total system memory (512 MB × 2, dual-channel)

●

1024 MB total system memory (1024 MB × 1)

●

512 MB total system memory (512 MB × 1)

2 Chapter 1 Product description

Category Description HP Compaq

6715s Notebook PC

HP Compaq 6715b Notebook PC without WWAN

HP Compaq 6715b Notebook PC with WWAN

Hard drives

Optical drives

●

Supports all 9.5-mm, 2.5-inch hard drives

●

Serial ATA

The following hard drives are available:

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 7200- and 5400-rpm

●

12.7-mm tray load

●

Fixed, no modular requirements (1screw removal)

Supports all common optical formats including the following:

●

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with Lightscribe

●

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive

●

DVD/CD-RW Combo Drive

√√√

●

DVD-ROM drive

Diskette drive Supports external USB drive only √√√

Audio

Modem

Ethernet

●

Azalia

●

Stereo speakers

●

Integrated monoaural microphone

●

Headphone and microphone jacks

●

56K data/fax modem (MDC1.5)

●

Modem cable included in Brazil, the Czech Republic, France, Greece, Hungary, Israel, Latin America, Poland, Russia, Saudi Arabia, Slovakia, Slovenia, South Africa, Turkey, and the United Kingdom.

●

Integrated Broadcom 5787 10/100/1000 LAN

●

Integrated Broadcom 5906 10/100 LAN

√√√

√√

√

Category Description HP Compaq

6715s Notebook PC

HP Compaq 6715b Notebook PC without WWAN

HP Compaq 6715b Notebook PC with WWAN

Wireless Integrated wireless options by way

Wireless local area network

Wireless wide area network

●

S4/S5 wake on LAN (on AC power only)

●

Network interface card (NIC) power down

of wireless module

(WLAN) options:

●

Broadcom 802.11a/b/g/n √√

●

Broadcom 802.11a/b/g √√√

●

Broadcom 802.11b/g √√√

●

Option for no WLAN √√

(WWAN) options:

●

Evolution-data optimized (EVDO) WWAN module

●

High-speed downlink packet access (HSPDA) WWAN module

√√√

√

Wireless personal area network

External media card

Ports

●

Subscriber identity module (SIM) √

(WPAN) options:

●

Bluetooth® 2.0 module + Blueflame module

●

Supports no WPAN option

●

One Type I/II PC Card slot, 16-bit PCMCIA and 32-bit CardBus

●

Media Card Reader (MS Duo adapters, plus SD, MMC, MS, MSPro, and xD)

●

1394a port √√

●

Docking connector √√

●

Headphone connector √√√

●

Microphone connector

●

Primary battery connector √√√

●

RJ-11 modem port √√√

√√√

√√

√√√

4 Chapter 1 Product description

Category Description HP Compaq

6715s Notebook PC

HP Compaq 6715b Notebook PC without WWAN

HP Compaq 6715b Notebook PC with WWAN

Docking Docking support √√

Keyboard/ pointing devices

●

RJ-45 Ethernet port √√√

●

S-Video-out connector √√

●

Smart AC adapter connector √√√

●

Travel battery connector √√√

●

USB ports (4) √√

●

USB ports (2) √

●

VGA port (Dsub 15-pin) supporting 1600 × 1200 external resolution @ 75 Hz, hot plug/unplug, and auto detect

●

Spill-resistant keyboard with embedded numeric keypad, TouchPad, and fingerprint reader

●

Spill-resistant keyboard with embedded numeric keypad and TouchPad

●

Two-way scrolling √√√

√√√

√√

√

Power requirements

Security

●

Windows Vista™ hardware Start button

Primary batteries:

●

6-cell, 2.55-Ah Li-ion battery (55 Whr)

●

6-cell, 2.20-Ah Li-ion battery (47 Whr)

Travel batteries:

●

12-cell Li-ion battery

●

8-cell Li-ion battery

AC adapter:

●

90-watt

●

Localized cable plug support

●

3-wire plug with ground pin

●

Supports multipin AC connector)

●

Fingerprint reader √√

√√√

Category Description HP Compaq

6715s Notebook PC

HP Compaq 6715b Notebook PC without WWAN

HP Compaq 6715b Notebook PC with WWAN

Operating system

Certified: SuSe Linux Enterprise Desktop

Supported:

●

HP 3D DriveGuard √√

●

HP DriveGuard √

●

Security cable slot √√√

●

Smart card reader/bezel snap-in √√√

●

Trusted platform module (TPM) 1.2 on system board

Preinstalled:

●

Windows Vista Home Basic √√√

●

Windows Vista Business 32/64 √√√

●

FreeDOS √√√

●

Windows® XP Professional √√

(SLED) 10

●

Windows Vista Enterprise √√

●

Windows XP Professional √√√

√√

√√√

Serviceability End-user replaceable parts:

●

AC adapter

●

Hard drive

●

Memory module

●

Optical drive

●

Primary battery

●

WLAN module

●

WWAN module

√√√

6 Chapter 1 Product description

Category Description HP Compaq

6710s Notebook PC

HP Compaq 6710b Notebook PC without WWAN

HP Compaq 6710b Notebook PC with WWAN

Processors Intel® Core™ Duo processors:

●

T7700 2.4-GHz processor with 800MHz Front Side Bus (FSB) and 4 MB of L2 cache

●

T7500 2.2-GHz processor with 800MHz FSB and 4 MB of L2 cache

●

T7300 2.0-GHz processor with 800MHz FSB and 4 MB of L2 cache

●

T7100 1.8-GHz processor with 800MHz FSB and 2 MB of L2 cache

Chipset

Graphics Unified Memory Architecture (UMA),

Panels

●

Northbridge: Intel GM965 with 800MHz FSB

●

Southbridge: ICH8M

integrated with shared video memory

●

15.4-inch, WSXGA+ with WLAN and WWAN antenna transceivers and cables

●

15.4-inch, WXGA with WLAN and WWAN antenna transceivers and cables

√√√

√

●

15.4-inch, WSXGA+ with WLAN antenna transceivers and cables

●

15.4-inch, BrightView, WXGA with WLAN antenna transceivers and cables

●

15.4-inch, WXGA with WLAN antenna transceivers and cables

●

Support privacy film √√√

√√

Category Description HP Compaq

6710s Notebook PC

HP Compaq 6710b Notebook PC without WWAN

HP Compaq 6710b Notebook PC with WWAN

Memory

●

Two SODIMM slots, both customer accessible/upgradable (memory slot under the keyboard must be populated first)

●

DDRII PC2-5300 (667-MHz)

●

Supports dual-channel memory

Supports the following configurations:

●

4096 MB total system memory (2048 MB × 2, dual-channel)

●

2048 MB total system memory (2048 MB × 1)

●

2048 MB total system memory (1024 MB × 2, dual-channel)

●

1024 MB total system memory (512 MB × 2, dual-channel)

●

1024 MB total system memory (1024 MB × 1)

●

512 MB total system memory (512 MB × 1)

√√√

Hard drives

●

Supports all 9.5-mm, 2.5-inch hard drives

●

Serial ATA

The following hard drives are available:

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 7200- and 5400-rpm

√√√

8 Chapter 1 Product description

Category Description HP Compaq

6710s Notebook PC

HP Compaq 6710b Notebook PC without WWAN

HP Compaq 6710b Notebook PC with WWAN

Optical drives

Diskette drive Supports external USB drive only √√√

Audio

●

12.7-mm tray load

●

Fixed, no modular requirements (1screw removal)

Supports all common optical formats including the following:

●

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with Lightscribe

●

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive

●

DVD/CD-RW Combo Drive

●

DVD-ROM drive

●

Azalia

●

Stereo speakers

●

Integrated monoaural microphone

●

Headphone and microphone jacks

√√√

Modem

Ethernet

Wireless Integrated wireless options by way

Wireless local area network

●

56K data/fax modem (MDC1.5)

●

Modem cable included in Brazil, the Czech Republic, France, Greece, Hungary, Israel, Latin America, Poland, Russia, Saudi Arabia, Slovakia, Slovenia, South Africa, Turkey, and the United Kingdom.

●

Integrated Broadcom 5787 10/100/1000 LAN

●

Integrated Broadcom 5906 10/100 LAN

●

S4/S5 wake on LAN (on AC power only)

●

Network interface card (NIC) power down

of wireless module

(WLAN) options:

●

Broadcom 802.11a/b/g/n √√

√√√

√√

√

√√√

Category Description HP Compaq

6710s Notebook PC

HP Compaq 6710b Notebook PC without WWAN

HP Compaq 6710b Notebook PC with WWAN

Wireless wide area network

Wireless personal area network

External media card

●

Broadcom 802.11a/b/g √√√

●

Broadcom 802.11b/g √√√

●

Option for no WLAN √√

(WWAN) options:

●

Evolution-data optimized (EVDO) WWAN module

●

High-speed downlink packet access (HSPDA) WWAN module

●

Subscriber identity module (SIM) √

(WPAN) options:

●

Bluetooth® 2.0 module + Blueflame module

●

Supports no WPAN option

●

One Type I/II PC Card slot, 16-bit PCMCIA and 32-bit CardBus

●

Media Card Reader (MS Duo adapters, plus SD, MMC, MS, MSPro, and xD)

√

√√√

√√

Ports

●

1394a port √√

●

Docking connector √√

●

Headphone connector √√√

●

Microphone connector √√√

●

Primary battery connector √√√

●

RJ-11 modem port √√√

●

RJ-45 Ethernet port √√√

●

S-Video-out connector √√

●

Smart AC adapter connector √√√

●

Travel battery connector √√√

●

USB ports (4) √√

●

USB ports (2) √

10 Chapter 1 Product description

Category Description HP Compaq

6710s Notebook PC

HP Compaq 6710b Notebook PC without WWAN

HP Compaq 6710b Notebook PC with WWAN

Docking Docking support √√

Keyboard/ pointing devices

Power requirements

●

VGA port (Dsub 15-pin) supporting 1600 × 1200 external resolution @ 75 Hz, hot plug/unplug, and auto detect

●

Spill-resistant keyboard with embedded numeric keypad, TouchPad, and fingerprint reader

●

Spill-resistant keyboard with embedded numeric keypad and TouchPad

●

Two-way scrolling √√√

●

Windows Vista™ hardware Start button

Primary batteries:

●

6-cell, 2.55-Ah Li-ion battery (55 Whr)

●

6-cell, 2.20-Ah Li-ion battery (47 Whr)

Travel batteries:

√√√

√√

√

√√√

Security

●

12-cell Li-ion battery

●

8-cell Li-ion battery

AC adapter:

●

90-watt

●

Localized cable plug support

●

3-wire plug with ground pin

●

Supports multipin AC connector

●

Fingerprint reader √√

●

HP 3D DriveGuard √√

●

HP DriveGuard √

●

Security cable slot √√√

●

Smart card reader/bezel snap-in √√√

●

Trusted platform module (TPM) 1.2 on system board

√√

Category Description HP Compaq

6710s Notebook PC

HP Compaq 6710b Notebook PC without WWAN

HP Compaq 6710b Notebook PC with WWAN

Operating system

Certified: SuSe Linux Enterprise Desktop

Supported:

Serviceability End-user replaceable parts:

Preinstalled:

●

Windows Vista Home Basic √√√

●

Windows Vista Business 32/64 √√√

●

FreeDOS √√√

●

Windows® XP Professional √√

√√√

(SLED) 10

●

Windows Vista Enterprise √√

●

Windows XP Professional √

√√√

●

AC adapter

●

Hard drive

●

Memory module

●

Optical drive

●

Primary battery

●

WLAN module

●

WWAN module

12 Chapter 1 Product description

2 External component identification

Top components

Buttons, switches, and fingerprint reader

Top components

Item Component Function

(1) Power button

(2) Internal display switch Turns off the display if the display is closed while the power is

(3) Info button (select models only) Launches Info Center, which enables you to open various

●

When the computer is off, press the button to turn on the computer.

●

When the computer is on, press the button to shut down the computer.

●

When the computer is in the Sleep state (Windows Vista) or in Standby (Windows XP), press the button briefly to exit Sleep or Standby.

●

When the computer is in Hibernation, press the button briefly to exit Hibernation.

If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

To learn more about power settings, follow these steps:

●

In Windows Vista, select Start > Control Panel > System and Maintenance > Power Options.

●

In Windows XP, select Start > Control Panel > Performance and Maintenance > Power Options.

on.

software solutions.

(4) Wireless button Turns the wireless feature on or off, but does not establish a

wireless connection.

NOTE: A wireless network must be set up in order to establish

a wireless connection.

(5) Presentation button (select models only) Starts the presentation feature.

(6) Volume mute button (select models only) Mutes and restores speaker sound.

(7) Volume scroll zone (select models only) Adjusts speaker volume. Slide your finger to the left to decrease

volume and to the right to increase volume. You can also tap the minus sign on the scroll zone to decrease volume, or tap the plus sign on the scroll zone to increase volume.

(8) Internal microphone (select models only) Records sound.

(9) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a password

logon.

14 Chapter 2 External component identification

Keys

Item Component Function

(1) esc key Displays system information when pressed in combination with

the fn key.

(2) fn key Executes frequently used system functions when pressed in

combination with a function key or the esc key.

(3) Windows logo key Displays the Windows Start menu.

(4) Windows applications key Displays a shortcut menu for items beneath the pointer.

(5) Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.

(6) Function keys Execute frequently used system functions when pressed in

combination with the fn key.

Top components

Lights

Item Component Function

(1) Power lights (2)

(2) Wireless lights (2)

(3) Caps lock light On: Caps lock is on.

(4) Num lock light On: Num lock is on or the embedded numeric keypad is

(5) Volume mute light (select models only)

(6) Volume down light (select models only) Blinking: The volume scroll zone is being used to decrease

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state (Windows Vista) or in Standby (Windows XP).

●

Blinking rapidly: An AC adapter with a higher power rating must be connected.

●

Off: The computer is off or in Hibernation.

●

On: An integrated wireless device, such as a wireless local area network (WLAN) device, a wireless wide-area network (WWAN) device, and/or a Bluetooth device is turned on.

●

Off: All wireless devices are turned off.

enabled.

●

Off: Computer sound is turned on.

●

On: Computer sound is turned off.

speaker volume.

(7) Volume up light (select models only) Blinking: The volume scroll zone is being used to increase

16 Chapter 2 External component identification

speaker volume.

Item Component Function

(8) Battery light

(9) Drive light

TouchPad

●

Amber: A battery is charging.

●

Green: A battery is close to full charge capacity.

●

Blinking amber: A battery that is the only available power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

●

Off: If the computer is plugged into an external power source, the light turns off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

●

Blinking green: The hard drive or optical drive is being accessed.

●

Amber: HP 3D DriveGuard has temporarily parked the internal hard drive.

Item Component Function

(1) TouchPad* Moves the pointer and selects or activates items on the screen.

(2) Left TouchPad button* Functions like the left button on an external mouse.

(3) TouchPad scroll zone Scrolls up or down.

(4) Right TouchPad button* Functions like the right button on an external mouse.

*This table describes factory settings. View or change pointing device preferences as follows:

●

In Windows Vista, select Start > Control Panel > Hardware and Sound > Mouse.

●

In Windows XP, select Start > Control Panel > Printers and Other Hardware > Mouse.

Top components

Front components

Item Component Function

(1) Wireless light

(2) Power light

(3) Battery light

●

On: An integrated wireless device, such as a WLAN device, a WWAN device, and/or a Bluetooth device, is turned on.

●

Off: All wireless devices are turned off.

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state (Windows Vista) or in Standby (Windows XP).

●

Blinking rapidly: An AC adapter with a higher power rating must be connected.

●

Off: The computer is off or in Hibernation.

●

Amber: A battery is charging.

●

Green: A battery is close to full charge capacity.

●

Blinking amber: A battery that is the only available power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

●

(4) Drive light

(5) Speakers Produce sound.

(6) Display release latch Opens the computer.

18 Chapter 2 External component identification

●

Blinking green: The hard drive or optical drive is being accessed.

●

Amber (select models only): HP 3D DriveGuard has temporarily parked the hard drive.

Left-side components

Item Component Function

(1) PC Card slot Supports optional Type I or Type II 32–bit (CardBus) or 16–bit

(2) PC Card eject button Ejects a PC Card from the PC Card slot.

(3) Power connector Connects an AC adapter.

(4) Vent Enables airflow to cool internal components.

PC Cards.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(5) USB ports (2) Connect optional USB devices.

(6) Audio-out (headphone) jack Produces sound when connected to optional powered stereo

speakers, headphones, ear buds, a headset, or television audio.

(7) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo

array microphone, or monaural microphone.

(8) 1394 port (select models only) Connects an optional IEEE 1394 or 1394a device, such as a

camcorder.

Left-side components

Rear components

Item Component Function

(1) Security cable slot Attaches an optional security cable to the computer.

(2) RJ-45 (network) jack Connects a network cable.

(3) External monitor port Connects an external VGA monitor or projector.

(4) S-Video-out jack Connects an optional S-Video device such as a television, VCR,

NOTE: The security cable is designed to act as a deterrent,

but it may not prevent the computer from being mishandled or stolen.

camcorder, overhead projector, or video capture card.

20 Chapter 2 External component identification

Right-side components

Item Component Function

(1) Media Card Reader (select models only) Supports the following optional digital card formats:

●

Secure Digital (SD) Memory Card

●

MultiMediaCard (MMC)

●

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

Memory Stick Duo Adapter

●

xD-Picture Card (XD)

(2) USB ports (2) (select models only) Connect optional USB devices.

(3) Optical drive Reads optical discs, and, on select models, also writes to optical

discs.

(4) RJ-11 (modem) jack Connects a modem cable.

Right-side components

Bottom components

Item Component Function

(1) Battery bay Holds the battery.

(2) Battery release latches (2) Release the battery from the battery bay.

(3) Accessory battery connector Connects an optional accessory battery.

(4) Vents (3) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(5) Bluetooth module compartment (select models only) Contains a Bluetooth device.

(6) Docking connector (select models only) Connects an optional docking device.

(7) Memory/WLAN module compartment Contains the memory module slot and the WLAN module slot.

CAUTION: To prevent an unresponsive system, replace the

wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

(8) Hard drive bay Holds the hard drive.

22 Chapter 2 External component identification

3 Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.

Serial number location

Computer major components

24 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(1) Display assemblies

15.4-inch, WSXGA+ display assembly for use with HP Compaq 6715b and 6710b computer models with WWAN capability

15.4-inch, WXGA display assembly for use with HP Compaq 6715b and 6710b computer models with WWAN capability

15.4-inch, WXGA, BrightView display assembly for use with HP Compaq 6715b and 6710b computer models without WWAN capability

15.4-inch, WSXGA+ display assembly for use with HP Compaq 6715b and 6710b computer models without WWAN capability

15.4-inch, WXGA display assembly for use with HP Compaq 6715b and 6710b computer models without WWAN capability

15.4-inch, WXGA, BrightView display assembly for use with HP Compaq 6715s and 6710s computer models

15.4-inch, WSXGA+ display assembly for use with HP Compaq 6715s and 6710s computer models

15.4-inch, WXGA display assembly for use with HP Compaq 6715s and 6710s computer models

Display assembly internal components

Display bezel 446871-001

15.4-inch, WSXGA+ display panel for use with HP Compaq 6710b computer models with WWAN capability

443814-001

443817-001

443816-001

443813-001

443815-001

443812-001

443818-001

443819-001

446900-001

15.4-inch, WXGA display panel for use with HP Compaq 6710b computer models with WWAN capability

15.4-inch, WSXGA+ display panel for use with HP Compaq 6710b computer models without WWAN capability

15.4-inch, WXGA, BrightView display panel for use with HP Compaq 6710b computer models without WWAN capability

15.4-inch, WXGA display panel for use with HP Compaq 6710b computer models without WWAN capability

15.4-inch, WSXGA+ display panel for use with HP Compaq 6710s computer models 446902-001

15.4-inch, WXGA, BrightView display panel for use with HP Compaq 6710s computer models

15.4-inch, WXGA display panel for use with HP Compaq 6710s computer models 446901-001

Display inverter (includes 2-sided tape) 446870-001

Display left and right hinges 446882-001

Display enclosure for use with HP Compaq 6715b and 6710b computer models 446883-001

Display enclosure for use with HP Compaq 6715s and 6710s computer models 450612-001

(2) Switch covers (include power button board and power button board cable)

446899-001

446897-001

446898-001

446896-001

446903-001

Computer major components

Item Description Spare part number

For use with HP Compaq 6715b and 6710b computer models (includes LED board and

cable)

For use with HP Compaq 6715s and 6710s computer models (does not include LED board

and cable)

(3) Keyboards

Belgium 443811-181

Brazil 443811-201

The Czech Republic 443811-221

Denmark 443811-081

France 443811-051

French Canada 443811-121

Germany 443811-041

Greece 443811-DJ1

Hungary 443811-211

International 443811-B31

Iceland 443811-DD1

443911-001

443910-001

Israel 443811-BB1

Italy 443811-061

Japan 443811-291

Korea 443811-AD1

Latin America 443811-161

Norway 443811-091

Portugal 443811-131

Russia 443811-251

Saudi Arabia 443811-171

Slovakia 443811-231

Slovenia 443811-BA1

Spain 443811-071

Sweden and Finland 443811-B71

Switzerland 443811-BG1

Taiwan 443811-AB1

Thailand 443811-281

Turkey 443811-141

26 Chapter 3 Illustrated parts catalog

Item Description Spare part number

The United Kingdom 443811-031

The United States 443811-001

(4) Fan 443917-001

(5) WWAN modules

EVDO WWAN module 399440-001

Vodafone HSPDA WWAN module 448672-002

Cingular HSPDA WWAN module 448673-002

(6) Heat sinks (include thermal material)

For use with HP Compaq 6715 computer models 443912-001

For use with HP Compaq 6710 computer models 446920-001

Thermal Material Kits (not illustrated)

For use in all countries and regions except Japan and Asia/Pacific 413706-001

For use in Japan and Asia/Pacific countries and regions 445853-001

(7) Memory modules, 1-DIMM

2048-MB, PC2-5300 417506-001

1024-MB, PC2-5300 414046-001

512-MB, PC2-5300 414045-001

Cable Kit (see

(8a) Microphone (includes receiver and cable)

(8b) Modem module cable (includes RJ-11 connector and cable)

(8c) Bluetooth module cable

Plastics Kit (see

(9a) PC Card slot bezel

(9b) Hard drive cover (includes 2 captive screws, secured by C-clips)

(9c) Memory/WLAN module compartment cover (includes 1 captive screw, secured by a C-clip)

(9d) Bluetooth module compartment cover (includes 1 captive screw, secure by a C-clip)

Computer feet (4 large rubber feet, 4 small rubber feet, not illustrated)

(10) Processors (include thermal material)

Processors for use with HP Compaq 6715 computer models in all countries and regions except Japan and Asia/

Pacific:

Cable Kit on page 34 for more Cable Kit spare part information) 443887-001

Plastics Kit on page 33 for more Plastics Kit spare part information) 443905-001

AMD Turion TL-64 (2.2-GHz, 1-MB L2 cache) 443913-001

AMD Turion MK-38 (2.2-GHz, 512-KB L2 cache) 446045-001

AMD Turion TL-60 (2.0-GHz, 1-MB L2 cache) 430876-001

Computer major components

Item Description Spare part number

AMD Turion TL-56 (1.8-GHz, 1-MB L2 cache) 430875-001

AMD Turion TL-52 (1.6-GHz, 1-MB L2 cache) 430874-001

AMD Turion TL-50 (1.6-GHz, 1-MB L2 cache) 450940-001

Mobile AMD Sempron 3800+ (2.2-GHz, 256-KB L2 cache) 450939-001

Mobile AMD Sempron 3600+ (2.0-GHz, 256-KB L2 cache) 443916-001

Mobile AMD Sempron 3500+ (1.8-GHz, 512-KB L2 cache) 430872-001

Mobile AMD Sempron 3400+ (1.8-GHz, 256-KB L2 cache) 430871-001

Processors for use with HP Compaq 6715 computer models in Japan and Asia/Pacific countries and regions

AMD Turion TL-60 (2.0-GHz, 1-MB L2 cache) 443892-001

AMD Turion TL-56 (1.8-GHz, 1-MB L2 cache) 443891-001

AMD Turion TL-52 (1.6-GHz, 1-MB L2 cache) 443890-001

Mobile AMD Sempron 3500+ (1.8-GHz, 512-KB L2 cache) 443915-001

Mobile AMD Sempron 3400+ (1.8-GHz, 256-KB L2 cache) 443914-001

Processors for use with HP Compaq 6710 computer models

Intel Core Duo T7700 2.4-GHz with 4-MB of L2 cache 446894-001

Intel Core Duo T7500 2.2-GHz with 4-MB of L2 cache 446893-001

Intel Core Duo T7300 2.0-GHz with 4-MB of L2 cache 446892-001

Intel Core Duo T7100 1.8-GHz with 2-MB of L2 cache 446891-001

(11) Top covers (include TouchPad and TouchPad cable)

For use with HP Compaq 6715b and 6710b computer models (includes fingerprint reader) 443822-001

For use with HP Compaq 6715s and 6710s computer models (does not include fingerprint

reader)

(12) PC Card/audio board assembly

For use with HP Compaq 6715b and 6710b computer models (includes 1394 port) 443889-001

For use with HP Compaq 6715s and 6710s computer models 443888-001

(13) RTC battery 449137-001

(14) System boards

For use with HP Compaq 6715b computer models with WWAN capability (includes

WWAN module slot)

For use with HP Compaq 6715b computer models without WWAN capability (does not

include WWAN module slot)

443823-001

443896-001

443898-001

For use with HP Compaq 6715s computer models 443897-001

For use with HP Compaq 6710b computer models with WWAN capability (includes

WWAN module slot)

28 Chapter 3 Illustrated parts catalog

446905-001

Item Description Spare part number

For use with HP Compaq 6710b computer models without WWAN capability (does not

include WWAN module slot)

For use with HP Compaq 6710s computer models 446906-001

(15) SIM slot board––for use with HP Compaq 6715b and 6710b computer models with

WWAN capability

(16) Speaker assembly 443821-001

(17) Modem modules (include modem module cable)

For use with HP Compaq 6715 computer models and with HP Compaq 6710 computer

models in all countries and regions except Japan and Asia/Pacific

For use with HP Compaq 6710 computer models in Japan and Asia/Pacific countries and

regions

(18) USB/Media Card Reader board––for use with HP Compaq 6715b and 6710b

computer models (includes USB/Media Card Reader board cable)

(19) Optical drive connector board 443820-001

(20) Base enclosures (include 8 rubber feet, not illustrated)

For use with HP Compaq 6715b and 6715s computer models 443809-001

For use with HP Compaq 6710s and 6710s computer models 443808-001

(21) Batteries

446904-001

443907-001

441074-001

449139-001

443883-001

6-cell, 2.55-Ah, 55-Wh, Li-ion battery 443885-001

6-cell, 2.20-Ah, 47-Wh, Li-ion battery 443884-001

(22) Hard drives (include hard drive bracket and connector)

160-GB, 5400-rpm 443920-001

120-GB, 5400-rpm 443919-001

80-GB, 7200-rpm 445939-001

80-GB, 5400-rpm 443918-001

(23) WLAN modules

802.11a/b/g/n Broadcom WLAN modules for use with all computer models

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the

Virgin Islands

441530-001

Computer major components

Item Description Spare part number

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For use in Israel and Japan 441530-291

441530-002

802.11a/b/g/n Intel WLAN module for use with HP Compaq 6710 computer models

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the

Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South

Korea

For use in Japan 441086-291

802.11a/b/g Broadcom WLAN modules for use with all computer models

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the

Virgin Islands

441086-001

441086-002

441086-003

441075-001

30 Chapter 3 Illustrated parts catalog

Item Description Spare part number

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For use in Israel and Japan 441075-291

441075-002

802.11a/b/g Intel WLAN modules for use with HP Compaq 6710 computer models

For use in Antigua and Barbuda, Argentina, Australia, the Bahamas, Barbados, Brunei,

Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and Vietnam

For use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda, Brazil, Bulgaria, the

Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan

For use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic of China, Peru, Qatar,

South Korea, Uruguay, and Venezuela

For use in Japan 407575-291

802.11a/b/g Intel WLAN modules for use with HP Compaq 6710 computer models

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

407575-001

407575-002

407575-003

441082-001

Computer major components

Item Description Spare part number

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South

Korea

For use in Japan 441082-291

802.11b/g Broadcom WLAN modules for use with all computer models

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the

U.S. Virgin Islands

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

441082-002

441082-003

441060-001

441060-002

For use in Japan 441060-291

802.11b/g WLAN module for use with HP Compaq 6710 computer models in Japan 409280-004

(24) Bluetooth modules (include Bluetooth module cable)

For use with all computer models in all countries and regions except Japan and Asia/

Pacific

For use with all computer models in Japan and Asia/Pacific countries and regions 450066-001

(25) Optical drives (include bezel and optical drive bracket)

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 443903-001

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 443904-001

32 Chapter 3 Illustrated parts catalog

398393-002

Item Description Spare part number

DVD/CD-RW Combo Drive 443901-001

DVD-ROM drive 443902-001

Plastics Kit

Item Description Spare part number

Plastics Kit 443905-001

(1) PC Card slot bezel

(2) Hard drive cover (includes 2 captive screws, secured by C-clips)

(3) Memory/WLAN module compartment cover (includes 1 captive screw, secured by a C-clip)

(4) Bluetooth module cover (includes 1 captive screw, secured by a C-clip)

(5) Computer feet (4 large and 4 small rubber feet)

Plastics Kit

Cable Kit

Item Description Spare part number

Cable Kit 443887-001

(1) Modem module cable (includes RJ-11 connector and cable)

(2) Microphone (includes receiver and cable)

(3) Bluetooth module cable

34 Chapter 3 Illustrated parts catalog

Mass storage devices

Item Description Spare part number

(1) Hard drives (include frame and connector)

160-GB, 5400-rpm 443920-001

120-GB, 5400-rpm 443919-001

80-GB, 7200-rpm 445939-001

80-GB, 5400-rpm 443918-001

(2) Optical drives (include bezel and optical drive bracket)

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 443903-001

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 443904-001

DVD/CD-RW Combo Drive 443901-001

DVD-ROM drive 443902-001

Mass storage devices

Miscellaneous parts

Description Spare part number

AC adapters

90-watt AC adapter for use in North America 391173-001

90-watt AC adapter for use in Africa, Europe, and the Middle East 416421-021

Power cords:

Australia 246959-011

Brazil 246959-201

Denmark 246959-081

Europe, the Middle East, and Africa 246959-021

Israel 246959-BB1

Italy 246959-061

Japan 246959-291

Korea 246959-AD1

Switzerland 246959-AG1

The United Kingdom 246959-031

The United States 246959-001

Screw Kit

Hex HM5.0×9.0 screw lock

Phillips PM3.0×3.0 screw

Phillips PM2.5×13.0 captive screw

Phillips PM2.5×8.0 captive screw

Phillips PM2.5×7.0 captive screw

Phillips PM2.5×7.0 screw

Phillips PM2.5×5.0 screw

Phillips PM2.5×3.0 screw

Phillips PM2.0×6.0 screw

Phillips PM2.0×5.0 captive screw

Phillips PM2.0×3.0 screw

Torx T8M2.5×9.0 screw

443906-001

Smart card reader module 443908-001

36 Chapter 3 Illustrated parts catalog

Sequential part number listing

Spare part number

246959-001 Power cord for use in the United States

246959-011 Power cord for use in Australia

246959-021 Power cord for use in Europe, the Middle East, and Africa

246959-031 Power cord for use in the United Kingdom

246959-061 Power cord for use in Italy

246959-081 Power cord for use in Denmark

246959-201 Power cord for use in Brazil

246959-291 Power cord for use in Japan

246959-AD1 Power cord for use in Korea

246959-AG1 Power cord for use in Switzerland

246959-BB1 Power cord for use in Israel

391173-001 90-watt PFC AC adapter for use with computer models in Africa, Europe, and the Middle East

398393-002 Bluetooth module for use with all computer models in all countries and regions except Japan and Asia/Pacific

Description

(includes Bluetooth module cable)

399440-001 EVDO WWAN module

407575-001 802.11a/b/g Intel WLAN module for use with HP Compaq 6710 computer models in Antigua and Barbuda,

Argentina, Australia, the Bahamas, Barbados, Brunei, Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and Vietnam

407575-002 802.11a/b/g Intel WLAN module for use with HP Compaq 6710 computer models in Aruba, Austria,

Azerbaijan, Bahrain, Belgium, Bermuda, Brazil, Bulgaria, the Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan

407575-003 802.11a/b/g Intel WLAN module for use with HP Compaq 6710 computer models in Ecuador, Haiti,

Honduras, Pakistan, the People's Republic of China, Peru, Qatar, South Korea, Uruguay, and Venezuela

407575-291 802.11a/b/g Intel WLAN module for use with HP Compaq 6710 computer models in Japan

409280-004 802.11b/g WLAN module for use with HP Compaq 6710 computer models in Thailand

413706-001 Thermal Material Kit for use in all countries and regions except Japan and Asia/Pacific

414045-001 512-MB, 1-DIMM, PC2-5300 memory module

414046-001 1024-MB, 1-DIMM, PC2-5300 memory module

416421-021 90-watt PFC AC adapter for use with computer models in North America

417506-001 2048-MB, 1-DIMM, PC2-5300 memory module

Sequential part number listing

Spare part number

430871-001 Mobile AMD Sempron 3400+ 1.8-GHz processor for use with HP Compaq 6715 computer models in all

430872-001 Mobile AMD Sempron 3500+ 1.8-GHz processor for use with HP Compaq 6715 computer models in all

430874-001 AMD Turion TL-52 1.6-GHz processor for use with HP Compaq 6715 computer models in all countries and

430875-001 AMD Turion TL-56 1.8-GHz processor for use with HP Compaq 6715 computer models in all countries and

430876-001 AMD Turion TL-60 2.0-GHz processor for use with HP Compaq 6715 computer models in all countries and

441060-001 802.11b/g Broadcom WLAN module for use with all computer models only in Canada, the Cayman Islands,

441060-002 802.11b/g Broadcom WLAN module for use with all computer models only in Afghanistan, Albania,

Description

countries and regions except Japan and Asia/Pacific (256-KB L2 cache)

countries and regions except Japan and Asia/Pacific (512-KB L2 cache)

regions except Japan and Asia/Pacific (1-MB L2 cache)

Guam, Puerto Rico, the United States, and the Virgin Islands

Algeria, Andorra, Angola, Antigua & Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

441060-291 802.11b/g Broadcom WLAN module for use with all computer models only in Japan

441074-001 For use with HP Compaq 6715 computer models and with HP Compaq 6710 computer models in all

countries and regions except Japan and Asia/Pacific

441075-001 802.11a/b/g Broadcom WLAN module for use with all computer models only in Canada, the Cayman

Islands, Guam, Puerto Rico, the United States, and the Virgin Islands

38 Chapter 3 Illustrated parts catalog

Spare part number

441075-002 802.11a/b/g Broadcom WLAN module for use with all computer models only in Afghanistan, Albania,

441075-291 802.11a/b/g Broadcom WLAN module for use with all computer models only in Israel and Japan

Description

441082-001 802.11a/b/g Intel WLAN module for use with HP Compaq 6710 computer models in Antigua & Barbuda,

Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, Vietnam

441082-002 802.11a/b/g Intel WLAN module for use with HP Compaq 6710 computer models in Austria, Azerbaijan,

Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

441082-003 802.11a/b/g Intel WLAN module for use with HP Compaq 6710 computer models in Australia, New

Zealand, Pakistan, the People's Republic of China, and South Korea

441082-291 802.11a/b/g Intel WLAN module for use with HP Compaq 6710 computer models in Japan

441086-001 802.11a/b/g/n Intel WLAN module for use with HP Compaq 6710 computer models in Antigua and

Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

441086-002 802.11a/b/g/n Intel WLAN module for use with HP Compaq 6710 computer models in Austria, Azerbaijan,

441086-003 802.11a/b/g/n Intel WLAN module for use in with HP Compaq 6710 computer models in Australia, New

Zealand, Pakistan, the People's Republic of China, and South Korea

Sequential part number listing

Spare part number

441086-291 802.11a/b/g/n Intel WLAN module for use with HP Compaq 6710 computer models in Japan

441530-001 802.11a/b/g/n Broadcom WLAN module for use with all computer models only in Canada, the Cayman

441530-002 802.11a/b/g/n Broadcom WLAN module for use with all computer models only in Afghanistan, Albania,

Description

Islands, Guam, Puerto Rico, the United States, and the Virgin Islands

Algeria, Andorra, Angola, Antigua & Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

441530-291 802.11a/b/g/n Broadcom WLAN module for use with all computer models only in Israel and Japan

443808-001 Base enclosure for use with HP Compaq 6715b and 6710s computer models (includes 8 rubber feet)

443809-001 Base enclosure for use with HP Compaq 6715s and 6710s computer models (includes 8 rubber feet)

443811-001 Keyboard for use in the United States

443811-031 Keyboard for use in the United Kingdom

443811-041 Keyboard for use in Germany

443811-051 Keyboard for use in France

443811-061 Keyboard for use in Italy

443811-071 Keyboard for use in Spain

443811-081 Keyboard for use in Denmark

443811-091 Keyboard for use in Norway

443811-121 Keyboard for use in French Canada

443811-131 Keyboard for use in Portugal

443811-141 Keyboard for use in Turkey

443811-161 Keyboard for use in Latin America

443811-171 Keyboard for use in Saudi Arabia

443811-181 Keyboard for use in Belgium

40 Chapter 3 Illustrated parts catalog

Spare part number

443811-201 Keyboard for use in Brazil

443811-211 Keyboard for use in Hungary

443811-221 Keyboard for use in the Czech Republic

443811-231 Keyboard for use in Slovakia

443811-251 Keyboard for use in Russia

443811-281 Keyboard for use in Thailand

443811-291 Keyboard for use in Japan

443811-AB1 Keyboard for use in Taiwan

443811-AD1 Keyboard for use in Korea

443811-B31 Keyboard for use internationally

443811-B71 Keyboard for use in Sweden

443811-BA1 Keyboard for use in Slovenia

443811-BB1 Keyboard for use in Israel

443811-BG1 Keyboard for use in Switzerland

Description

443811-DD1 Keyboard for use in Iceland

443811-DJ1 Keyboard for use in Greece

443812-001 15.4-inch WXGA, BrightView display assembly for use with HP Compaq 6715s and 6710s computer models

443813-001 15.4-inch WSXGA+ display assembly for use with HP Compaq 6715b and 6710b computer models without

WWAN capability

443814-001 15.4-inch WSXGA+ display assembly for use with HP Compaq 6715b and 6710b computer models with

WWAN capability

443815-001 15.4-inch WSXGA+ display assembly for use with HP Compaq 6715b and 6710b computer models without

WWAN capability

443816-001 15.4-inch WXGA, BrightView display assembly for use with HP Compaq 6715b and 6710b computer

models without WWAN capability

443817-001 15.4-inch WXGA, BrightView display assembly for use with HP Compaq 6715b and 6710b computer

models with WWAN capability

443818-001 15.4-inch WSXGA+ display assembly for use with HP Compaq 6715s and 6710s computer models

443819-001 15.4-inch WXGA display assembly for use with HP Compaq 6715s and 6710s computer models

443820-001 Optical drive connector board

443821-001 Speaker assembly

443822-001 Top cover for use with HP Compaq 6715b and 6710b computer models (includes TouchPad, TouchPad

cable, and fingerprint reader)

443823-001 Top cover for use with HP Compaq 6715s and 6710s computer models (includes TouchPad and TouchPad

cable)

Sequential part number listing

Spare part number

443883-001 USB/Media Card Reader board––for use with HP Compaq 6715b and 6710b computer models (includes

443884-001 6-cell, 2.20-Ah, 47-Wh battery

443885-001 6-cell, 2.55-Ah, 55-Wh battery

443887-001 Cable Kit

443888-001 PC Card/audio board assembly for use with HP Compaq 6715s and 6710s computer models

443889-001 PC Card/audio board assembly for use with HP Compaq 6715b and 6710b computer models (includes

443890-001 AMD Turion TL-52 1.6-GHz processor for use with HP Compaq 6715 computer models only in Japan and

443891-001 AMD Turion TL-56 1.8-GHz processor for use only with HP Compaq 6715 computer models only in Japan

443892-001 AMD Turion TL-60 2.0-GHz processor for use only with HP Compaq 6715 computer models only in Japan

443896-001 System board for use with HP Compaq 6715b computer models with WWAN capability (includes WWAN

Description

USB/Media Card Reader board cable)

1394 port)

Asia/Pacific countries and regions (1-MB L2 cache)

and Asia/Pacific countries and regions (1-MB L2 cache)

module slot)

443897-001 System board for use with HP Compaq 6715s computer models

443898-001 System board for use with HP Compaq 6715b computer models without WWAN capability (does not include

WWAN module slot)

443901-001 DVD/CD-RW Combo Drive

443902-001 DVD-ROM drive

443903-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe

443904-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive

443905-001 Plastics Kit

443906-001 Screw Kit

443907-001 SIM slot board (for use with HP Compaq 6715b and 6710b computer models)

443908-001 Smart card reader module

443910-001 Switch cover for use with HP Compaq 6715s and 6710s computer models (includes power button board and

power button board cable, but does not include LED board or LED board cable)

443911-001 Switch cover for use with HP Compaq 6715b and 6710b computer models (includes power button board and

power button board cable and LED board and LED board cable)

443912-001 Heat sink for use with HP Compaq 6715 computer models (includes thermal material)

443913-001 AMD Turion TL-64 2.2-GHz processor for use with HP Compaq 6715 computer models in all countries and

regions except Japan and Asia/Pacific (1-MB L2 cache)

443914-001 Mobile AMD Sempron 3400+ 1.8-GHz processor for use with HP Compaq 6715 computer models only in

Japan and Asia/Pacific countries and regions (256-KB L2 cache)

42 Chapter 3 Illustrated parts catalog

Spare part number

443915-001 Mobile AMD Sempron 3500+ 1.8-GHz processor for use with HP Compaq 6715 computer models only in

443916-001 Mobile AMD Sempron 3600+ 2.0-GHz processor for use with HP Compaq 6715 computer models in all

443917-001 Fan

443918-001 80-GB, 5400-rpm hard drive

443919-001 120-GB, 5400-rpm hard drive

443920-001 160-GB, 5400-rpm hard drive

445853-001 Thermal Material Kit for use in Japan and Asia/Pacific countries and regions

445939-001 80-GB, 7200-rpm hard drive

446045-001 AMD Turion MK-38 2.2-GHz processor for use with HP Compaq 6715 computer models in all countries and

446870-001 Display inverter (includes 2-sided tape)

446871-001 Display bezel

446882-001 Display left and right hinges

Description

Japan and Asia/Pacific countries and regions (512-KB L2 cache)

countries and regions except Japan and Asia/Pacific (256-KB L2 cache)

regions except Japan and Asia/Pacific (512-KB L2 cache)

446883-001 Display enclosure for use with HP Compaq 6715b and 6710b computer models

446891-001 Intel Core Duo T7700 2.4-GHz processor with 4-MB L2 cache

446892-001 Intel Core Duo T7500 2.2-GHz processor with 4-MB L2 cache

446893-001 Intel Core Duo T7300 2.0-GHz processor with 4-MB L2 cache

446894-001 Intel Core Duo T7100 1.8-GHz processor with 2-MB L2 cache

446896-001 15.4-inch, WXGA display panel for use with HP Compaq 6710b computer models without WWAN

capability

446897-001 15.4-inch, WSXGA+ display panel for use with HP Compaq 6710b computer models without WWAN

capability

446898-001 15.4-inch, WXGA, BrightView display panel for use with HP Compaq 6710b computer models without

WWAN capability

446899-001 15.4-inch, WXGA display panel for use with HP Compaq 6710b computer models with WWAN capability

446900-001 15.4-inch, WSXGA+ display panel for use with HP Compaq 6710b computer models with WWAN

capability

446901-001 15.4-inch, WXGA display panel for use with HP Compaq 6710s computer models

446902-001 15.4-inch, WSXGA+ display panel for use with HP Compaq 6710s computer models

446903-001 15.4-inch, WXGA, BrightView display panel for use with HP Compaq 6710s computer models

446904-001 System board for use with HP Compaq 6710b computer models without WWAN capability (does not include

WWAN module slot)

446905-001 System board for use with HP Compaq 6710b computer models with WWAN capability (includes WWAN

module slot)

Sequential part number listing

Spare part number

446906-001 System board for use with HP Compaq 6710s computer models

446920-001 Heat sink for use with HP Compaq 6710 computer models (includes thermal material)

448672-002 Vodafone HSPDA WWAN module

448673-002 Cingular HSPDA WWAN module

449137-001 RTC battery

449139-001 Modem module for use with HP Compaq 6710 computer models in Japan and Asia/Pacific countries and

450066-001 Bluetooth module for use with all computer models in all countries and regions except Japan and Asia/Pacific

450612-001 Display enclosure for use with HP Compaq 6715s and 6710s computer models

450939-001 Mobile AMD Sempron 3800+ 2.2-GHz processor for use in all countries and regions except Japan and

450940-001 AMD Turion TL-50 1.6-GHz processor for use in all countries and regions except Japan and Asia/Pacific (1-

Description

regions (includes modem module cable)

(includes Bluetooth module cable)

Asia/Pacific (256-KB L2 cache)

MB L2 cache)

44 Chapter 3 Illustrated parts catalog

4 Removal and replacement

procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

●

Flat-bladed screwdriver

●

Hex 5.0-mm nutdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Torx T8 screwdriver

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Preliminary replacement requirements

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

46 Chapter 4 Removal and replacement procedures

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you area ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 v 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Preliminary replacement requirements

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

●

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

●

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.

●

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe materials.

●

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.

●

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.

●

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

48 Chapter 4 Removal and replacement procedures

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

●

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

●

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

●

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Preliminary replacement requirements

Unknown user password

If the computer you are servicing has an unknown user password, follow these steps to clear the password:

NOTE: These steps also clear CMOS.

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 52).

5. Remove the real-time clock (RTC) battery (see

6. Wait approximately 5 minutes.

7. Replace the RTC battery and reassemble the computer.

8. Connect AC power to the computer. Do not reinsert any batteries at this time.

9. Turn on the computer.

All passwords and all CMOS settings have been cleared.

RTC battery on page 71).

50 Chapter 4 Removal and replacement procedures

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 81 screws and screw locks, in 16 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw and screw lock size and location during removal and replacement.

Serial number

Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer.

Component replacement procedures

Battery

Description Spare part number

6-cell, 2.55-Ah, 55-Wh, Li-ion battery 443885-001

6-cell, 2.20-Ah, 47-Wh, Li-ion battery 443884-001

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery:

1. Turn the computer upside down on a flat surface, with the battery bay toward you.

Slide the release latches (1) to release the battery.

Remove the battery (2).

Install the battery by inserting it into the battery bay until you hear a click.

52 Chapter 4 Removal and replacement procedures

SIM

NOTE: This section applies only to computer models with WWAN capability.

NOTE: If there is a SIM inserted in the SIM slot, remove it before disassembling the computer. Be sure

the SIM is reinserted in the SIM slot after reassembling the computer.

Before removing the SIM, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the SIM:

1. Press in on the SIM (1). (The module is partially ejected from the SIM slot.)

2. Remove the SIM (2) from the SIM slot.

Battery on page 52).

Reverse this procedure to install the SIM.

Component replacement procedures

Display inverter

NOTE: If it has been determined that the display inverter is the component that must be replaced to

complete the computer repair, the display assembly does not have to be removed. Follow the procedures in this section to replace the display inverter. For information on replacing the display assembly and display hinges, see

Description Spare part number

Display inverter (includes 2-sided tape) 446870-001

Before removing the display inverter, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the display inverter:

Display assembly on page 80.

Battery on page 52).

1. Turn the computer right-side up, with the front toward you.

2. Open the computer as far as it will open.

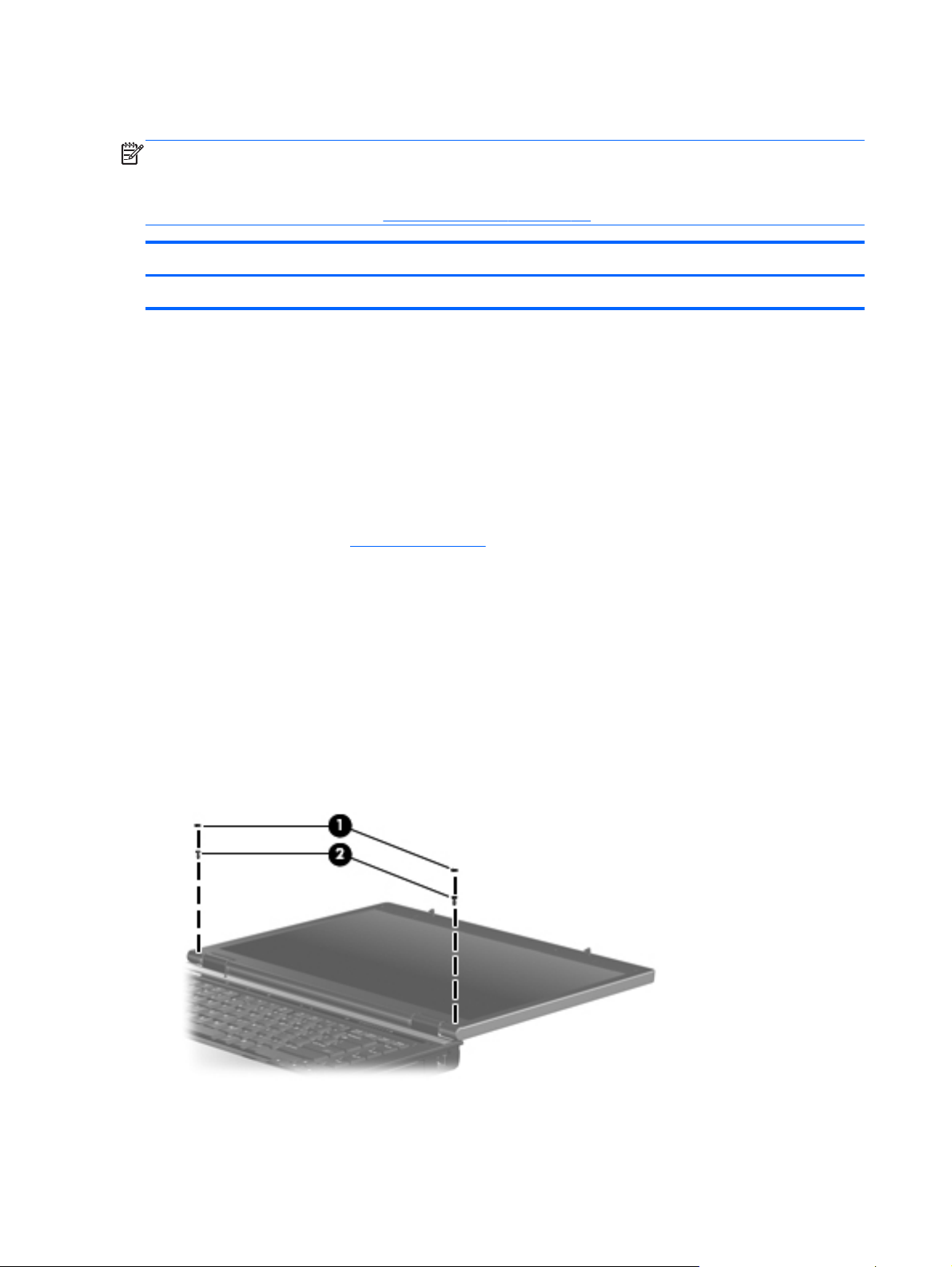

3. Remove the two rubber screw covers (1) on the bottom edge of the display bezel.

4. Remove the two Torx T8M2.5×7.0 screws (2) that secure the bottom edge of the display bezel to

the display enclosure.

5. Flex the inside edges of the left and right sides (1) and the bottom edge (2) of the display bezel

until the bezel disengages from the display enclosure.

54 Chapter 4 Removal and replacement procedures

Release the bottom edge of the display bezel (3) from the display assembly.

Release the inverter (1) from the display enclosure as far as the display panel cable and backlight cable allow.

Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.

9. Remove the display inverter.

Reverse this procedure to install the display inverter.

Component replacement procedures

Hard drive

Description Spare part number

160-GB, 5400-rpm hard drive 443920-001

120-GB, 5400-rpm hard drive 443919-001

80-GB, 7200-rpm hard drive 445939-001

80-GB, 5400-rpm hard drive 443918-001

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 52).

Remove the hard drive:

1. Position the computer with the front toward you.

2. Loosen the two Phillips PM2.0×5.0 screws (1) that secure the hard drive cover to the computer.

3. Lift the left side of the hard drive cover (2), swing it to right, and remove the cover.

NOTE: The hard drive cover is included in the Plastics Kit, spare part number 443905-001.

Loosen the Phillips PM2.5×13.0 hard drive retention screw (1) that secures the hard drive to the computer.

56 Chapter 4 Removal and replacement procedures

Grasp the Mylar tab (2) on the hard drive and slide the hard drive (3) to the right to disconnect it from the system board.

6. Remove the hard drive (4) from the hard drive bay.

7. If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×3.0 hard drive

bracket screws (1) from each side of the hard drive.

8. Lift the bracket (2) straight up to remove it from the hard drive.

Reverse this procedure to reassemble and install the hard drive.

Component replacement procedures

Computer feet

The computer feet are adhesive-backed rubber pads. The feet are included in the Plastics Kit, spare part number 443905-001. There are 8 rubber feet in 2 different sizes. The feet attach to the base enclosure in the locations illustrated below.

Bluetooth module

Description Spare part number

For use with computer models in all countries and regions except Japan and Asia/Pacific (includes Bluetooth module cable)

For use with computer models in Japan and Asia/Pacific countries and regions (includes Bluetooth module cable)

398393-002

450066-001

Before removing the memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 52).

Remove the Bluetooth® module:

1. Position the computer with the front toward you.

2. Loosen the Phillips PM2.0×5.0 screw (1) that secures the Bluetooth module cover to the computer.

58 Chapter 4 Removal and replacement procedures

Lift the rear edge of the cover (2), swing it toward you, and remove the cover.

NOTE: The Bluetooth module cover is included in the Plastics Kit, spare part number

443905-001.

Remove the Bluetooth module (1) from the computer.

Disconnect the Bluetooth module cable (2) from the module.

6. Remove the Bluetooth module.

Reverse this procedure to reassemble and install the Bluetooth module.

Component replacement procedures

Expansion memory module

Description Spare part number

2048-MB, PC2-5300, 1-DIMM, memory module 417506-001

1024-MB, PC2-5300, 1-DIMM, memory module 414046-001

512-MB, PC2-5300, 1-DIMM, memory module 414045-001

Before removing the expansion memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 52).

Remove the expansion memory module:

1. Loosen the Phillips PM2.0×5.0 screw (1) that secures the memory/WLAN module compartment

cover to the computer.

2. Lift the rear edge of the cover (2), swing it toward you, and remove the cover.

NOTE: The memory/WLAN module compartment cover is included in the Plastics Kit, spare part

number 443905-001.

3. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The edge of the module opposite the slot rises away from the computer.)

60 Chapter 4 Removal and replacement procedures

Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect installation into the

memory module slot.

Reverse this procedure to install the expansion memory module.

Component replacement procedures

WLAN module

CAUTION: The WLAN module and WWAN module are not interchangeable.

Description Spare part number

802.11a/b/g/n Broadcom WLAN module for use with all computer models

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the Virgin Islands

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For use in Israel and Japan 441530-291

441530-001

441530-002

802.11a/b/g/n Intel WLAN modules for use with HP Compaq 6710 computer models

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea 441086-003

For use in Japan 441086-291

802.11a/b/g Broadcom WLAN modules for use with all computer models

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the Virgin Islands

62 Chapter 4 Removal and replacement procedures

441086-001

441086-002

441075-001

Description Spare part number

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For use in Israel and Japan 441075-291

802.11a/b/g Intel WLAN modules for use with HP Compaq 6710 computer models

441075-002

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea 441082-003

For use in Japan 441082-291

802.11a/b/g Intel WLAN modules for use with HP Compaq 6710 computer models

For use in Antigua and Barbuda, Argentina, Australia, the Bahamas, Barbados, Brunei, Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and Vietnam

For use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda, Brazil, Bulgaria, the Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan

441082-001

441082-002

407575-001

407575-002

Component replacement procedures

Description Spare part number

For use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic of China, Peru, Qatar, South Korea, Uruguay, and Venezuela

For use in Japan 407575-291

802.11b/g Broadcom WLAN module for use with all computer models

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the United States, and the U.S. Virgin Islands

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, China, Colombia, Comoros, Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Gren, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

407575-003

441060-001

441060-002

For use in Japan 441060-291

802.11b/g Intel WLAN module for use with HP Compaq 6710 computer models in Thailand 409280-004

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory/WLAN module compartment cover (see

Battery on page 52).

Expansion memory module

on page 60).

64 Chapter 4 Removal and replacement procedures

Remove the WLAN module:

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The

white WLAN antenna cable is connected to the WLAN module “Aux” terminal. If the computer is equipped with an 802.11a/b/g/n WLAN module, the yellow WLAN antenna cable (2) is connected to the middle terminal on the WLAN module.

2. Remove the two Phillips PM2.5×3.0 screws (3) that secure the WLAN module to the computer.

(The edge of the module opposite the slot rises away from the computer.)

3. Remove the WLAN module (4) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (5) to prevent incorrect installation.

Reverse this procedure to install the WLAN module.

Component replacement procedures

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel and optical drive bracket.

Description Spare part number

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 443903-001

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 443904-001

DVD/CD-RW Combo Drive 443901-001

DVD-ROM drive 443902-001

Before removing the optical drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory/WLAN module compartment cover (see

Battery on page 52).

Expansion memory module

on page 60).

Remove the optical drive:

1. Position the computer with left side toward you.

2. Remove the Torx T8M2.5×9.0 screw (1) that secures the optical drive to the computer.

3. Use a flat-bladed tool to push the metal tab (2) toward the left side of the computer. (The optical

drive is partially ejected from the optical drive bay.)

66 Chapter 4 Removal and replacement procedures

Remove the optical drive (3) from the computer.

5. If it is necessary to replace the optical drive bracket, remove the two Phillips PM2.0×3.0 screws

(1) that secure the bracket to the optical drive.

6. Remove the optical drive bracket (2).

Reverse this procedure to reassemble and install the optical drive.

Component replacement procedures

Keyboard

For use in Spare part number For use in Spare part number

Belgium

Brazil

The Czech Republic

Denmark

France

French Canada

Germany

Greece

Hungary

International

Iceland

Israel

Italy

Japan

Korea

443811-181

443811-201

443811-221

443811-081

443811-051

443811-121

443811-041

443811-DJ1

443811-211

443811-B31

443811-DD1

443811-BB1

443811-061

443811-291

443811-AD1

Latin America

Norway

Portugal

Russia

Saudi Arabia

Slovakia

Slovenia

Spain

Sweden and Finland

Switzerland

Taiwan

Thailand

Turkey

The United Kingdom

The United States

443811-161

443811-091

443811-131

443811-251

443811-171

443811-231

443811-BA1

443811-071

443811-B71

443811-BG1

443811-AB1

443811-281

443811-141

443811-031

443811-001

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory/WLAN module compartment cover (see

Battery on page 52).

Expansion memory module

on page 60).

Remove the keyboard:

1. Position the computer with the front toward you.

68 Chapter 4 Removal and replacement procedures

Loosen the three Phillips PM2.5×8.0 screws that secure the keyboard to the computer.

Turn the computer display-side up, with the front toward you.

4. Open the computer as far as possible.

5. Slide the four keyboard retention tabs (1) toward you. The tabs are located between the esc and

f1 keys, between the f4 and f5 keys, between the f8 and f9 keys, and between the f12 and scroll

keys.

6. Lift the rear edge of the keyboard (2) and swing it toward you until it rests on the palm rest.

Component replacement procedures

Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and disconnect the keyboard cable (2) from the system board.

Remove the keyboard.

Reverse this procedure to install the keyboard.

Internal memory module

Description Spare part number

2048-MB, PC2-5300, 1-DIMM, memory module 417506-001

1024-MB, PC2-5300, 1-DIMM, memory module 414046-001

512-MB, PC2-5300, 1-DIMM, memory module 414045-001

Before removing the internal memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory/WLAN module compartment cover (see

Battery on page 52).

Expansion memory module

on page 60).

Release the keyboard (see

Keyboard on page 68).

70 Chapter 4 Removal and replacement procedures

Remove the internal memory module:

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The edge of the module opposite the slot rises away from the computer.)

2. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect installation into the

memory module slot.

Reverse this procedure to install the internal memory module.

RTC battery

NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all

passwords and CMOS settings to be cleared.

Description Spare part number

RTC battery 449137-001

Before removing the RTC battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 52).

5. Remove the memory/WLAN module compartment cover (see

on page 60).

6. Release the keyboard (see

Keyboard on page 68).

Component replacement procedures

Expansion memory module

Remove the RTC battery:

▲

Use a non-conductive, flat-bladed tool to pry the RTC battery out of the slot.

Reverse this procedure to install the RTC battery. Be sure the RTC battery is installed with the “+” sign facing up.

WWAN module

CAUTION: The WWAN module and WLAN module are not interchangeable.

Description Spare part number

EVDO WWAN module 399440-001

Vodafone HSPDA WWAN module 448672-002

Cingular HSPDA WWAN module 448673-002

Before removing the WWAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory/WLAN module compartment cover (see

Battery on page 52).

Expansion memory module

on page 60).

6. Release the keyboard (see

Keyboard on page 68).

72 Chapter 4 Removal and replacement procedures

Remove the WWAN module:

1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.

NOTE: The red WWAN antenna cable is connected to the WWAN module “Main” terminal.

The blue WWAN antenna cable is connected to the WWAN module “Aux” terminal. If the computer is equipped with an HSPDA WWAN module, the red WWAN antenna cable is connected to the only terminal on the module.

2. Remove the two Phillips PM2.5×3.0 screws (2) that secure the WWAN module to the computer.

(The edge of the module opposite the slot rises away from the computer.)

Remove the WWAN module (3) by pulling the module away from the slot at an angle.

NOTE: WWAN modules are designed with a notch (4) to prevent incorrect installation.

Reverse this procedure to install the WWAN module.

Component replacement procedures

Switch cover

Description Spare part number

Switch cover for use with HP Compaq 6715b and 6710b computer models (includes power button board and cable and LED board and cable)

Switch cover for use with HP Compaq 6715s and 6710s computer models (includes power button board and cable, but does not include LED board and cable)

443911-001

443910-001

Before removing the switch cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Release the keyboard (see

Battery on page 52).

Keyboard on page 68).

Remove the switch cover:

NOTE: Step 1 applies only to HP Compaq 6715b and 6710b computer models.

Release the ZIF connector (1) to which the LED board cable is attached and disconnect the LED board cable (2) from the system board.

2. Insert a flat-bladed tool into one of the four slots (3) in the switch cover and lift the switch cover

(4) until it disengages from the computer.

3. Remove the switch cover.

Reverse this procedure to install the switch cover.

74 Chapter 4 Removal and replacement procedures

Fan

Description Spare part number

Fan 443917-001

Before removing the fan, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Release the keyboard (see

6. Remove the switch cover (see

Battery on page 52).

Keyboard on page 68).

Switch cover on page 74).

Remove the fan:

1. Disconnect the fan cable (1) from the system board.

NOTE: The illustration below shows the fan removal steps for the HP Compaq 6715 computer

model. The fan cable on the HP Compaq 6710 computer model is in a different location, but the disconnection steps are the same.

Loosen the Phillips PM2.5×8.0 captive screw (2) that secures the fan to the computer.

3. Remove the Phillips PM2.5×8.0 screw (3) that secures the fan to the computer.

4. Remove the fan (4).

Reverse this procedure to install the fan.

Component replacement procedures

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the left and

right sides of the computer.

The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software applications. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

Heat sink

NOTE: All heat sink spare part kits include thermal material.

Description Spare part number

For use with HP Compaq 6715 computer models 443912-001

For use with HP Compaq 6710 computer models 446920-001

Thermal Material Kit for use in all countries and regions except Japan and Asia/Pacific 413706-001

Thermal Material Kit for use in Japan and Asia/Pacific countries and regions 445853-001

Before removing the heat sink, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Release the keyboard (see

6. Remove the switch cover (see

7. Remove the internal memory module (see

Battery on page 52).

Keyboard on page 68).

Switch cover on page 74).

Internal memory module on page 70). This step applies

only to HP Compaq 6710 computer models.

8. Remove the fan (see

Fan on page 75).

Remove the heat sink:

76 Chapter 4 Removal and replacement procedures

NOTE: Step 1 applies to HP Compaq 6715 computer models. The heat sink on HP Compaq 6710

computer models is secured to the computer by captive screws which must be loosened rather than removed.

Remove the four Phillips PM2.0×6.0 screws (1) that secure the heat sink to the system board.

Release the heat sink (2) by lifting the right side until it disengages from the processor.

NOTE: Due to the adhesive quality of the thermal material located between the heat sink and

processor, it may be necessary to move the heat sink from side to side to detach the heat sink from the processor.

3. Remove the heat sink (3) by swinging it counterclockwise until the left side of the heat sink clears

the top cover.

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink (1)

and the processor and system board components (2) each time the heat sink is removed. Thermal material is included with all heat sink and processor spare part kits.

Reverse this procedure to install the heat sink.

Component replacement procedures

Processor

NOTE: All processor spare part kits include thermal material.

Description Spare part number

Processors for use with HP Compaq 6715 computer models in all countries and regions except Japan and Asia/Pacific:

AMD Turion TL-64, 2.2-GHz processor (1-MB L2 cache) 443913-001

AMD Turion MK-38, 2.2-GHz processor (512-KB L2 cache) 446045-001

AMD Turion TL-60, 2.0-GHz processor (1-MB L2 cache) 430876-001

AMD Turion TL-56, 1.8-GHz processor (1-MB L2 cache) 430875-001

AMD Turion TL-52, 1.6-GHz processor (1-MB L2 cache) 430874-001

AMD Turion TL-50, 1.6-GHz processor (1-MB L2 cache) 450939-001

Mobile AMD Sempron 3800+ 2.2-GHz processor (256-KB L2 cache) 450940-001

Mobile AMD Sempron 3600+ 2.0-GHz processor (256-KB L2 cache) 443916-001

Mobile AMD Sempron 3500+ 1.8-GHz processor (512-KB L2 cache) 430872-001

Mobile AMD Sempron 3400+ 1.8-GHz processor (256-KB L2 cache) 430871-001

Processors for use with HP Compaq 6715 computer models in Japan and Asia/Pacific countries and regions

AMD Turion TL-60, 2.0-GHz processor (1-MB L2 cache) 443892-001

AMD Turion TL-56, 1.8-GHz processor (1-MB L2 cache) 443891-001

AMD Turion TL-52, 1.6-GHz processor (1-MB L2 cache) 443890-001

Mobile AMD Sempron 3500+ 1.8-GHz processor (512-KB L2 cache) 443915-001

Mobile AMD Sempron 3400+ 1.8-GHz processor (256-KB L2 cache) 443914-001

Processors for use with HP Compaq 6710 computer models

Intel Core Duo T7700 2.4-GHz processor (4-MB L2 cache) 446894-001

Intel Core Duo T7500 2.2-GHz processor (4-MB L2 cache) 446893-001

Intel Core Duo T7300 2.0-GHz processor (4-MB L2 cache) 446892-001

Intel Core Duo T7100 1.8-GHz processor (2-MB L2 cache) 446891-001

Before removing the processor, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 52).

78 Chapter 4 Removal and replacement procedures

Release the keyboard (see

Keyboard on page 68).

6. Remove the switch cover (see

Remove the fan (see

Fan on page 75).

8. Remove the heat sink (see

Switch cover on page 74).

Heat sink on page 76).

Remove the processor:

1. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn

counterclockwise until you hear a click.

Lift the processor (2) straight up and remove it.

NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed

on the processor slot when you install the processor. The illustration below shows the processor removal steps for the HP Compaq 6715 computer model.

NOTE: The illustration below shows the processor removal steps for the HP Compaq 6710

computer model.

Reverse this procedure to install the processor.

Component replacement procedures

Display assembly

Description Spare part number

15.4-inch, WSXGA+ display assembly for use with HP Compaq 6715b and 6710b computer models with WWAN capability

15.4-inch, WXGA display assembly for use with HP Compaq 6715b and 6710b computer models with WWAN capability

15.4-inch, WXGA, BrightView display assembly for use with HP Compaq 6715b and 6710b computer models without WWAN capability

15.4-inch, WSXGA+ display assembly for use with HP Compaq 6715b and 6710b computer models without WWAN capability

15.4-inch, WXGA display assembly for use with HP Compaq 6715b and 6710b computer models without WWAN capability

15.4-inch, WXGA, BrightView display assembly for use with HP Compaq 6715s and 6710s computer models

15.4-inch, WSXGA+ display assembly for use with HP Compaq 6715s and 6710s computer models

15.4-inch, WXGA display assembly for use with HP Compaq 6715s and 6710s computer models 443819-001

443814-001

443817-001

443816-001

443813-001

443815-001

443812-001

443818-001

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory/WLAN module compartment cover (see

Battery on page 52).

Expansion memory module

on page 60).

6. Disconnect the wireless antenna cables from the WLAN module (see

WLAN module on page 62).

7. Remove the following components:

a. Keyboard (see

b. Switch cover (see

Keyboard on page 68)

Switch cover on page 74)

Remove the display assembly:

1. Disconnect the display panel cable (1) from the system board.

80 Chapter 4 Removal and replacement procedures

Remove the wireless antenna cables (2) from the routing channels and clips built into the top cover.

3. Remove the two Torx T8M2.5×9.0 screws (1) that secure the display assembly to the computer.

NOTE: The screw removed from the left hinge secures a ground loop (2) for the display panel

cable.

4. Position the computer with the rear panel toward you.

5. Remove the four Torx T8M2.5×9.0 screws (1) that secure the display assembly to the computer.

Component replacement procedures

Lift the display assembly straight up and remove it (2).

CAUTION: When installing the display assembly, be sure that the 4 wireless antenna cables

routed out of the display right hinge are routed and arranged properly. Each antenna cable has an exposed section of cable (1) and a metallic grounding sleeve (2). The grounding sleeve must completely cover the exposed section of cable. Each cable must be secured inside a space in the copper grounding clip (3). Left to right, the cables must be installed in a red, white, black, blue sequence.

Failure to follow these routing instructions can result in degradation of the computer's WLAN and WWAN performance.

82 Chapter 4 Removal and replacement procedures

If it is necessary to replace the display hinges, remove the following:

(1) Four rubber screw covers from the display bezel top edge

(2) Four Torx T8M2.5×6.0 screws from the display bezel top edge

(3) Two rubber screw covers from the display bezel bottom edge

(4) Two Torx T8M2.5×7.0 screws from the display bezel top edge

8. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display

bezel until the bezel disengages from the display enclosure.

9. Remove the display bezel (3).

NOTE: The display bezel is available using spare part number 446871-001.

10. Remove the four Torx T8M2.5×6.0 screws (1) that secure the display panel to the display

enclosure.

Component replacement procedures

11.

Remove the display panel (2).

12. Remove the four Phillips PM2.0×3.0 screws (1) that secure each display hinge to the display

panel.

13. Remove the display hinges (2).

NOTE: The left and right display hinges are available using spare part number 446882-001.

Reverse this procedure to reassemble and install the display assembly.

84 Chapter 4 Removal and replacement procedures

Top cover

Description Spare part number

Top cover for use with HP Compaq 6715b and 6710b computer models (includes TouchPad and cable and fingerprint reader)

Top cover for use with HP Compaq 6715s and 6710s computer models (includes TouchPad and cable)

443822-001

443823-001

Before removing the top cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 52).

5. Remove the following components:

a. Hard drive (see

b. Memory/WLAN module compartment cover (see

Optical drive (see

Hard drive on page 56)

Expansion memory module on page 60)

Optical drive on page 66)

d. Keyboard (see

e. Switch cover (see

f. Display assembly (see

Keyboard on page 68)

Switch cover on page 74)

Display assembly on page 80)

Remove the top cover:

1. Turn the computer upside down, with the rear panel toward you.

Remove the thirteen Torx T8M2.5×9.0 screws (1) that secure the top cover to the computer.

Component replacement procedures

Remove the two HM5.0×9.0 screw locks (2) that secure the top cover to the computer.

Turn the computer right-side up, with the front toward you.

5. Disconnect the TouchPad cable (1) from the system board.

NOTE: Step 6 applies only to HP Compaq 6715b and 6710b computer models.

6. Disconnect the fingerprint reader board cable (2) from the system board.

7. Remove the microphone (3) from the clip built into the top cover and remove the microphone

cable from the clips built into the top cover.

86 Chapter 4 Removal and replacement procedures

Remove the three Torx T8M2.5×9.0 screws that secure the top cover to the computer.

9. Lift the rear edge of the top cover (1) until it disengages from the base enclosure.

10. Swing the rear edge of the top cover (2) toward you until it rests at an angle.

11. Lift the top cover (3) straight up and remove it.

12. If it is necessary to replace the microphone and cable, disconnect the microphone cable (1) from

the PC Card/audio board assembly and remove it.

NOTE: The microphone is available in the Cable Kit, spare part number 443887-001.

Component replacement procedures

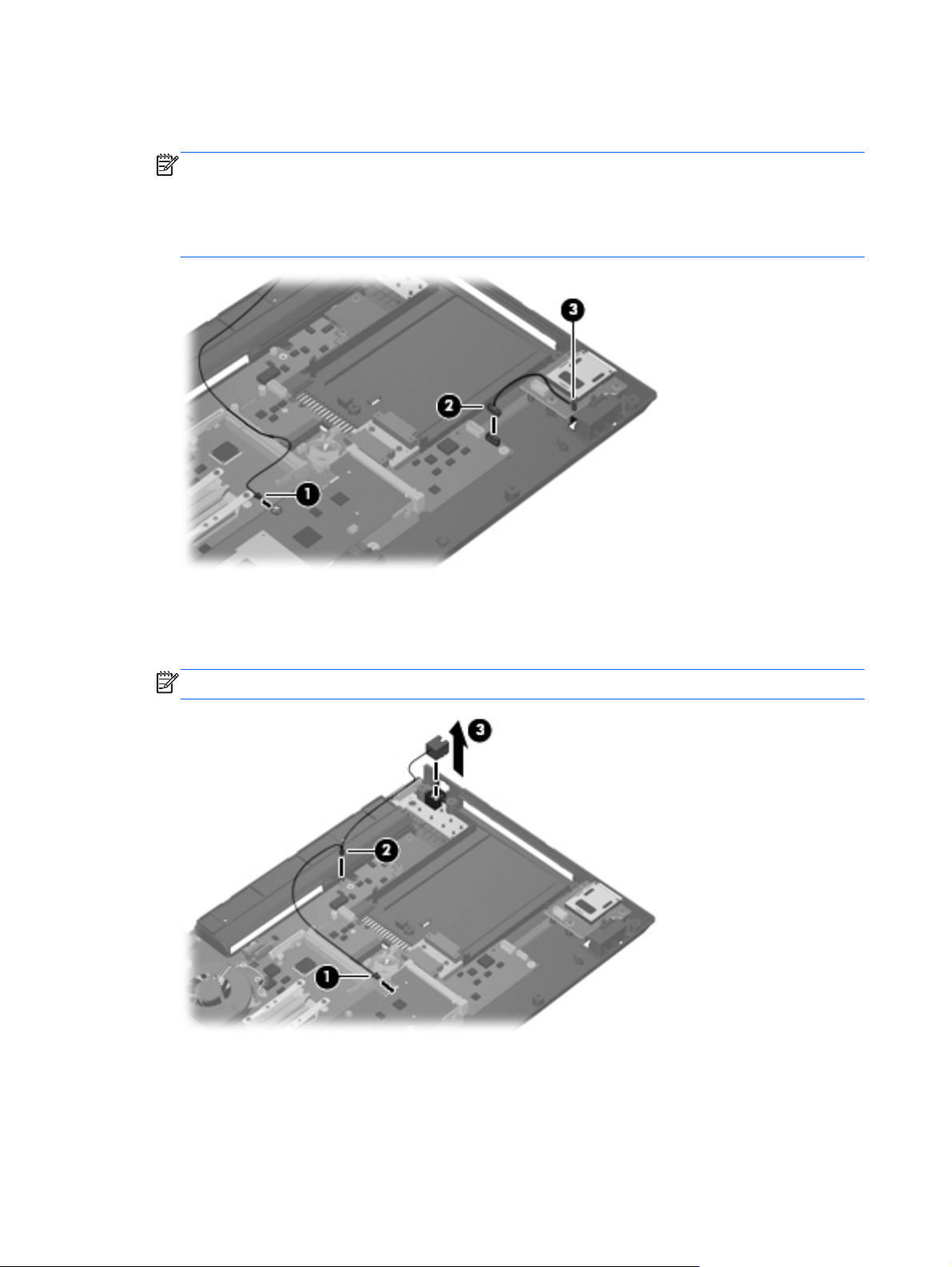

13.

If it is necessary to replace the Bluetooth module cable, disconnect the cable (2) from the system board and remove the cable from the opening (3) in the base enclosure.

NOTE: The Bluetooth module cable is included with the Bluetooth module, spare part numbers

398393-002 (for use with all computer models in all countries and regions except Japan and Asia/Pacific) and 450066-001 (for use with all computer models in all countries and regions except Japan and Asia/Pacific), and is also available in the Cable Kit, spare part number 443887-001.

14.

If it is necessary to replace the modem module cable, disconnect the cable (1) from the modem module and the system board (2), and remove the modem connector (3) from the clip built into the base enclosure.

NOTE: The modem module cable is available in the Cable Kit, spare part number 443887-001.

Reverse this procedure to install the top cover, microphone, Bluetooth module cable, and modem module cable.

88 Chapter 4 Removal and replacement procedures

Speaker assembly

Description Spare part number

Speaker assembly 443821-001

Before removing the speaker assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 52).

5. Remove the following components:

a. Hard drive (see

b. Memory/WLAN module compartment cover (see

c. Optical drive (see

d. Keyboard (see

e. Switch cover (see

f. Display assembly (see

g. Top cover (see

Hard drive on page 56)

Expansion memory module on page 60)

Optical drive on page 66)

Keyboard on page 68)

Switch cover on page 74)

Display assembly on page 80)

Top cover on page 85)

Remove the speaker assembly:

1. Disconnect the speaker cable (1) from the PC Card/audio board assembly.

2. Remove the two Phillips PM2.5×5.0 screws (2) that secure the speaker assembly to the base

enclosure.

Component replacement procedures

Remove the speaker assembly (3).

Reverse this procedure to install the speaker assembly.

USB/Media Card Reader board

NOTE: This section applies only to HP Compaq 6715b and 6710b computer models.

Description Spare part number

USB/Media Card Reader board (includes USB/Media Card Reader board cable) 443883-001

Before removing the USB/Media Card Reader board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 52).

5. Remove the following components:

a. Hard drive (see

Memory/WLAN module compartment cover (see

c. Optical drive (see

d. Keyboard (see

Hard drive on page 56)

Expansion memory module on page 60)

Optical drive on page 66)

Keyboard on page 68)

e. Switch cover (see

Switch cover on page 74)
