HP Compaq 100EU SFF PC Quickspecs

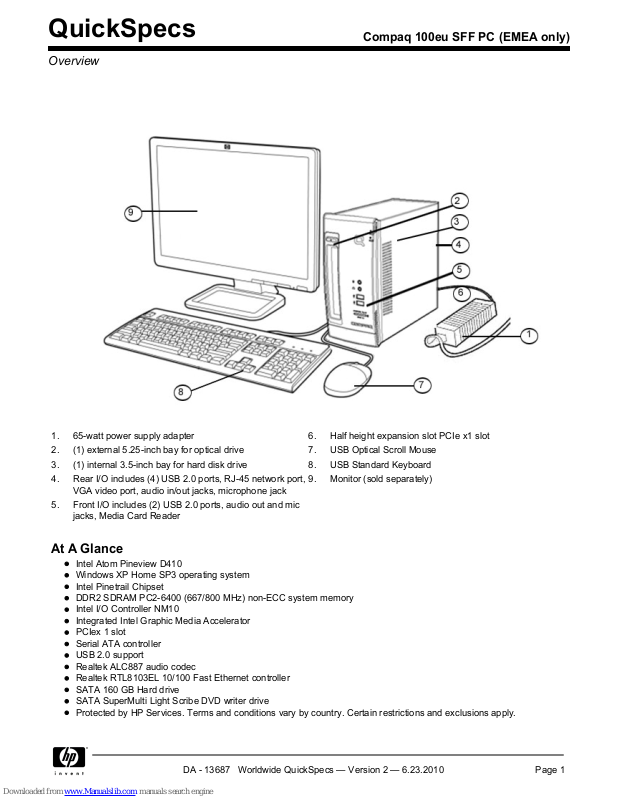

1.
65-watt power supply adapter
6.
Half height expansion slot PCIe x1 slot
2.
(1) external 5.25-inch bay for optical drive
7.
USB Optical Scroll Mouse
3.
(1) internal 3.5-inch bay for hard disk drive
8.
USB Standard Keyboard
4.
Rear I/O includes (4) USB 2.0 ports, RJ-45 network port,
VGA video port, audio in/out jacks, microphone jack
9.
Monitor (sold separately)
5.
Front I/O includes (2) USB 2.0 ports, audio out and mic
jacks, Media Card Reader
At A Glance
Intel Atom Pineview D410
Windows XP Home SP3 operating system
Intel Pinetrail Chipset
DDR2 SDRAM PC2-6400 (667/800 MHz) non-ECC system memory
Intel I/O Controller NM10
Integrated Intel Graphic Media Accelerator
PCIex 1 slot
Serial ATA controller
USB 2.0 support
Realtek ALC887 audio codec
Realtek RTL8103EL 10/100 Fast Ethernet controller
SATA 160 GB Hard drive
SATA SuperMulti Light Scribe DVD writer drive
Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Overview
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 1
Operating Systems and
Application Software
(availability varies by
region)
Preinstalled
Windows XP Home SP3
*
Supported
Genuine Windows Vista Business 32
**
Windows XP Professional
Genuine Windows 7 Home Premium Edition 32
*
Genuine Windows 7 Home Basic Edition 32
*
Genuine Windows 7 Starter
*
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to
install the Windows 7 software and take full advantage of Windows 7 functionality.
See:
http://www.microsoft.com/windows/windows-7/
for details.
+ Windows 7 Professional disk may also be included for future upgrade if desired. To qualify for
this downgrade an end user must be a business (including governmental or educational
institutions) and is expected to order annually at least 25 customer systems with the same custom
image.
2007 Microsoft Office Ready PC
PDF Complete
CyberLink Power2Go
CyberLink LabelPrint
LightScribe Runtime
Internet Explorer 8
Internet Explorer Home Page
Microsoft Windows Live Toolbar
Hard Drives
160-GB Serial ATA 3.0-Gb/s NCQ, Smart IV (7200 rpm)
System Memory
1-GB DDR2 Synch DRAM 800-MHz Non-ECC (1 x 1GB)
Optical Drive
SATA SuperMulti LightScribe DVD Writer Drive
Input Devices
Keyboard
USB Standard Keyboard
Mouse
USB Optical Scroll Mouse
Audio
Realtek ALC887 High Definition audio codec
3D audio compliant and HD Audio compatible
Communication
Integrated Realtek RTL8103EL 10/100 Ethernet Controller
Graphics
Integrated Intel Graphics Media Accelerator
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
Standard Features and Configurable Components (availability may vary by country)
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 2
Base Unit
One (1) drive bays and one PCI ex1 expansion slot
92 x 92 x 25 mm chassis fan
System board with Intel Pineview CPU and NM10 Chipset, Intel GMA graphic controller,
Realtek RTL8103EL 10/100 Fast Ethernet controller, Realtek ALC887 AUDIO codec, (1)
PCI ex1 slot, 2 DDR2 SO- DIMM memory slots, (2) Serial ATA data connectors
PSU Adapter & Power cord
Slots
PCI ex1
One (1) half-height PCI ex 1 slot
Memory Expansion
Two (2) DDR2 SO-DIMM slots (4 GB maximum memory support)
Bays
External
One (1) 5.25"
USB Support
EHCI high-speed USB 2.0 controller
Two (2) front ports; Four (4) rear ports, Two (2) internal ports on system board
Interfaces
One (1) analog VGA video port
One (1) rear line in; one (1) rear line out; one (1) rear mic in, (1) front mic in, (1) front headphone
out
One (1) RJ45 network port
Weight & Dimensions
Chassis Dimensions
(H x D x W)
9.21 x 10.54 x 4.41 in
234 x 260 x 112 mm
Packaged Dimensions
(L x H x W)
19.48 x 12.99 x 8.50 in
495 x 330 x 216 mm
System Weight
22.4 lb (10.2 kg)
Shipping Weight
30.8 lb (14.0 kg)
Technology and
Features
Memory Type
PC2-6400 DDR2 SO- DRAM (800 MHz) non-ECC
Up to 4-GB maximum system memory supported
Hard Drive Interfaces
Supported
Serial ATA
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
System Details
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 3
Chassis
Front Panel
Power button
Power On LED
HDD Activity LED
Cooling Solutions
Supported
Active heatsink (variable speed)
Chassis fan
Slots Supported
One (1) half-height expansion slot
Front I/O
Two (2) USB 2.0 ports
Rear I/O
Four (4) USB 2.0 ports, one (1) RJ45, three (3) Audio (line in, line out,
mic)
Drive Bays
One (1) 5-1/4" external
Internal Speaker
N/A
Security
Padlock loop
Kensington Lock Support
Power Supply
65-watt AC Power Adapter
Unit Environment and
Operating Conditions
General Unit Operating Guidelines
Keep the computer away from excessive moisture, direct moisture and the extremes of heat
and cold, to ensure that unit is operated within the specified operating range.
Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required
airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that
they are subject to each other's re-circulated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the
computer. Lint, dust and other foreign matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation
must be provided on the enclosure, and the same operating guidelines listed above will still
apply.
Temperature Range
Operating
32° to 104° F (0° to 40° C)
Non-operating
-22° to 149° F (-30° to 65° C)
Relative Humidity
Operating
10% to 90% (non-condensing at ambient)
Non-operating
5% to 95% (non-condensing at ambient)
Maximum Altitude
(unpressurized)
Operating
10,000 ft (3048 m)
Non-operating
30,000 ft (9000 m)
NOTE:
Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 10,000 ft (3000 m)
above sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper
limit may be limited by the type and number of options installed.
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
System Details
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 4
System Board
Processor
Intel Atom Pineview D410
Chipset
Intel I/O Controller Hub NM10
Super I/O
Intel I/O ITE 8758E1
Front Side Bus
Frequency
667MHz
Memory
DDR2 S0-DIMM
2 x DIMM slots
Clock Generator
SLG84516BTTR
Integrated Graphics
Intel Graphics Media Accelerator (GMA)
Audio
Realtek ALC887 HD Audio compatible codec with two channel audio 3D
audio
LOM
Realtek RTL8103EL 10/100 Fast Ethernet controller
Storage
Two Serial ATA interfaces (hard drive and optical drive)
Expansion Slots
1 x PCI ex 1 slot
BIOS
SPI EEPROM
Industrial Standard
USB 2.0
Rear Side I/O Ports
4 x USB 2.0 ports
1 x RJ-45 10/100 port
1 x D-sub 15 pin analog VGA port
3 x audio ports
On Board I/O Interfaces
1 x Front panel connector, Switch, LED (ON/Flash/OFF)
1 x Fan headers for chassis, with voltage/fan speed control
1 x header to support 2 USB 2.0 ports at front side
1 x header to support 2 front (Headphone/Mic) audio ports
1 x header to support USB media reader
Board Size
PCB Size: 9.6 x 9.6 in (24.38 x 24.38 cm)
Additional Features
Bootable without keyboard, mouse or monitor
Keyboard/mouse/USB wake up
Support S3, S4 and S5
ACPI status
Hardware monitor capability
Network Interface
Integrated Realtek
RTL8103EL 10/100 Fast
Ethernet Controller
Hardware Highlights
PCIe x1 interface
Features
10-Mbps and 100-Mbps operation
Crossover detection and auto-correction
Wake-on-Lan and remote Wake-up (Wakeon-LAN supported from S3, S4
Power Supply
65 Watt Power Adapter
90 to 140VAC, or 180 to 264VAC operating voltage range
100 to 127VAC, or 200 to 240VAC rated voltage range
50-60 Hz rated line frequency
47-63 Hz operating line frequency range
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
System Details
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 5
Power Conservation
'Energy Saver'
APM 1.2 support
Screen blanking
Hard drive 'Idle' mode
System Idle mode
~2 watt power consumption in ES mode - suspend to RAM (S3) (instantly available PC)
Processor/Cache memory power-down (S3)
Eup Lot 6 - less than 1W with BIOS setup option (Max power savings)
System Environmental
Specs
Values are subject to change without notification and are for reference only.
Performance of system, options, and ancillary equipment will vary depending on the system
configuration.
Levels presented do not account for non-HP/Compaq installed hardware.
Ambient Air
Temperature
Operating
32° to 104°F (0° to 40°C) at sea level with an
altitude de-rating of 1.0°C per every 1000 ft
(300 m) above sea level to a maximum of
8000 ft (2500 m), no direct sustained sunlight.
Maximum rate of change is 77°F/Hr (25°C/Hr).
The upper limit may be limited by the type and
number of options installed.
Storage
-22° to 149°F (-30° to 65°C) Maximum rate of change: 410°F/Hr
(210°C/Hr).
Humidity
Operating
10% to 90% relative humidity (Rh), 86°F
(30°C) maximum wet bulb temperature, noncondensing.
Storage
10% to 95% relative humidity (Rh), 101.66°F
(38.7°C) maximum wet bulb temperature,
non-condensing.
Altitude
Operating
0 to 10,000 feet (0 to 3048 meters) - This
value may be limited by the type and number
of options installed. Maximum allowable
altitude change rate is 1,000 ft/min (304.8
m/min).
Non-Operating
0 to 30,000 feet (0 to 9,144 meters) Maximum allowable altitude change rate is
1200 ft/min (365.76 m/min).
Shock
Listed are the levels of shock the product can withstand with NO
damage being incurred. The values represent peak input acceleration
during a 2 to 3 ms half-sine shock pulse, 11 ms trapezoidal shock pulse.
Non-Operating
35G's (Half-sine Shock)
35G's (Trapezoidal Shock)
Vibration
Listed are the levels of vibration the product can withstand with NO
damage being incurred. The values represent a flat random vibration
input acceleration profile across the given frequency range.
Operating
Random vibration at 5Hz@0.00025G²/Hz,
10Hz@0.01G²/Hz, 100Hz@0.01G²/Hz,
300Hz@0.00001G²/Hz
5Hz to 300Hz, (0.25G's nominal).
Non-Operating
Random vibration at 0.008G²/Hz,
10Hz to 500Hz, (2 Grms nominal).
QuickSpecs
Compaq 100eu SFF PC (EMEA only)
System Details
DA - 13687 Worldwide QuickSpecs — Version 2 — 6.23.2010
Page 6
