HP P9000 Replication Manager Software

Application Agent CLI User Guide

Part number: TB584-96080 Ninth edition: October 2013

Legal and notice information

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Acknowledgments

Microsoft, Windows, and Windows XP are U.S. registered trademarks of Microsoft Corporation.

UNIX is a registered trademark of The Open Group.

Export Requirements

You may not export or re-export this document or any copy or adaptation in violation of export laws or regulations.

Without limiting the foregoing, this document may not be exported, re-exported, transferred or downloaded to or within (or to a national resident of) countries under U.S. economic embargo, including Cuba, Iran, North Korea, Sudan, and Syria. This list is subject to change.

This document may not be exported, re-exported, transferred, or downloaded to persons or entities listed on the U.S. Department of Commerce Denied Persons List, Entity List of proliferation concern or on any U.S. Treasury Department Designated Nationals exclusion list, or to parties directly or indirectly involved in the development or production of nuclear, chemical, biological weapons, or in missile technology programs as specified in the U.S. Export Administration Regulations (15 CFR 744).

Hitachi and Universal Replicator are registered trademarks of Hitachi, Ltd. ShadowImage and TrueCopy are registered trademarks of Hitachi, Ltd. and Hitachi Data Systems Corporation.

Revision history

DescriptionEditionVersionDate

First editionFirst7.1.0-00April 2011

Added information for new and changed features.Second7.1.1-00August 2011

Added information for new and changed features.Third7.2.0-00November 2011

Added information for new and changed features.Fourth7.2.1-00March 2012

Added information for new and changed features.Fifth7.3.1-00August 2012

Added information for new and changed features.Sixth7.4.0-00November 2012

Added information for new and changed features.Seventh7.4.1-00February 2013

Added information for new and changed features.Eighth7.5.0-00May 2013

Added information for new and changed features.Ninth7.6.0-00October 2013

Contents

Preface .............................................................................................. 25

1 Overview of Application Agent .......................................................... 27

Application Agent features ........................................................................................................ 27

Application Agent functions ...................................................................................................... 28

Backing up data ............................................................................................................... 28

Restoring data .................................................................................................................. 29

Managing data by using dictionary map files ....................................................................... 29

Pair management using copy groups ................................................................................... 30

Cluster support .................................................................................................................. 30

Reducing workload by using commands ............................................................................... 31

Data management on another storage systems ...................................................................... 31

Managing generations ...................................................................................................... 32

2 Application Agent system configurations ............................................. 35

Basic configurations for backing up and restoring data .................................................................. 35

Configurations in which data is backed up and restored within a storage system ........................ 35

Configurations in which data can be backed up and restored between two storage systems ......... 36

Continuous Access Software or Continuous Access Journal configuration ............................. 36

Business Copy and Continuous Access Software multi-target configuration ........................... 37

Business Copy and Continuous Access Journal multi-target configuration ............................. 38

Continuous Access Software and Continuous Access Journal multi-target configuration .......... 39

Business Copy (multi-generation), Continuous Access Software, or Continuous Access Journal

configuration ............................................................................................................... 40

Precautions on backing up and restoring data between storage systems .................................... 41

Configurations using tape devices ........................................................................................ 42

Configurations for operation in cluster environments ...................................................................... 43

Operation-standby cluster configuration ................................................................................. 43

Mutual-standby cluster configuration ..................................................................................... 44

Configurations when VSS is used ................................................................................................ 45

Requirements and precautions for backing up file systems .............................................................. 46

System configurations for backing up SQL Server databases ........................................................... 47

Configurations for restoring an SQL Server database to a host that is not the original host ........... 47

Configurations for using the log-shipping functionality ............................................................. 48

Cascade configurations ...................................................................................................... 49

Multi-target configurations ................................................................................................... 50

Requirements and precautions for backing up SQL Server databases ............................................... 51

Allocating files that comprise a database .............................................................................. 54

Allocating multiple database configuration files to one volume ................................................. 55

Allocating metafiles ............................................................................................................ 55

Using a dynamic disk configuration ...................................................................................... 57

Using a cluster configuration ................................................................................................ 58

System configurations for backing up Exchange databases ............................................................. 58

Cascade configurations ...................................................................................................... 58

Application Agent CLI User Guide 3

CCR configurations ............................................................................................................. 58

Configuration in which only the active server is used ........................................................ 59

Configuration in which only the standby server is used ...................................................... 59

Configuration in which different backup servers are used for the active and standby

servers ....................................................................................................................... 60

Configuration in which the same backup server is used for the active and standby servers ..... 60

SCR configurations ............................................................................................................. 61

DAG configurations ............................................................................................................ 62

Backing up and restoring active mailbox database copies ................................................. 63

Backing up and restoring passive mailbox database copies .............................................. 64

Backing up and restoring the active mailbox database copy and the passive mailbox database

copy by using different backup servers ........................................................................... 65

Backing up and restoring the active mailbox database copy and the passive mailbox database

copy by using the same backup server ........................................................................... 67

Comparison of DAG configurations ................................................................................ 68

Requirements and precautions for backing up Exchange databases ................................................. 69

Using VSS ......................................................................................................................... 70

Restoring backup data obtained using VSS in units of Information Stores ................................... 73

Using a dynamic disk configuration ...................................................................................... 75

Using a cluster configuration ................................................................................................ 75

Cascade configuration ........................................................................................................ 76

CCR configuration .............................................................................................................. 77

SCR configuration .............................................................................................................. 78

DAG configuration ............................................................................................................. 78

Requirements when using RAID Manager to configure a pair volume ............................................... 80

Volume configurations usable by Application Agent ...................................................................... 87

Examples of disk group configurations usable by Application Agent .......................................... 89

Requirements and precautions for volume configurations ................................................................ 91

Volume configuration requirements ....................................................................................... 91

Precautions when changing a volume configuration ................................................................ 92

Requirements and precautions when a disk group Is configured ................................................ 93

Using dynamic disks in Veritas Storage Foundation .......................................................... 93

Backing up and restoring dynamic disks by dynamically or statically recognizing secondary

volumes ...................................................................................................................... 94

Expanding dynamic volumes ......................................................................................... 94

Precautions for partition styles for disks ................................................................................. 94

3 Preparation for using Application Agent .............................................. 97

Setting up an environment for Application Agent ........................................................................... 97

Setting up RAID Manager ........................................................................................................ 100

Backing up one primary volume to multiple generations ........................................................ 101

Backing up multiple primary volumes to a single generation .................................................. 101

Backing up multiple primary volumes to multiple generations ................................................. 102

Backup or restore between storage systems .......................................................................... 103

Setting up a multi-target or cascade configuration ................................................................. 105

Setting up operation of Application Agent .................................................................................. 106

Specifying the retry count and interval for cluster resource status retry check ............................. 106

Specifying the retry count and interval for process status retry check ........................................ 108

Specifying the retry count and interval for command execution status retry check ...................... 109

Setting up the backup option for SQL Server database backup ............................................... 109

Setting up the dictionary map synchronization option for SQL Server database backup ............. 110

Setting up the recovery option for SQL Server database backup ............................................. 110

Setting up restoration while cluster resources are online ......................................................... 111

Setting up parallel execution of verification processes for Exchange database backup ............... 114

Setting communication timeout periods for the Protection Manager service ............................... 114

Setting up Application Agent for linkage with RAID Manager ....................................................... 115

Specifying instance numbers .............................................................................................. 115

Specifying a retry count and interval for pair status retry checking .......................................... 118

Specifying a retry count and interval for RAID Manager command busy retry checking ............. 123

Specifying a retry count and interval appropriate to operation style ........................................ 123

Specifying track sizes used when copying data .................................................................... 125

Specifying volume pair creation ......................................................................................... 126

Settings for using secondary volume dynamic recognition ...................................................... 127

Setting up operation mode when automatically selecting copy groups ..................................... 128

Notes on starting and stopping RAID Manager .................................................................... 128

Specifying the installation path for RAID Manager ................................................................ 129

Specifying modification of pair status if a backup error occurs ................................................ 129

Creating dictionary map files ................................................................................................... 130

Creation in a non-cluster configuration or on a backup server ................................................ 130

Creation in an Active-Passive cluster configuration ................................................................. 131

Creation in an Active-Active cluster configuration .................................................................. 133

Creation in a cascade configuration for Exchange database backup ....................................... 135

Specifying cluster configuration settings and creating a definition file ............................................. 136

Settings related to shared disks and cluster groups ................................................................ 136

How to define a cluster group (when a backup target and shared disks are to be in the same

cluster group) ............................................................................................................ 137

How to Define Cluster Groups (When a Backup Target and Shared Disks Are to Be in Separate

Cluster Groups) ......................................................................................................... 138

Creating a cluster information configuration definition file when using Veritas cluster server ........ 139

Creating a database configuration definition file ......................................................................... 142

Creating a configuration definition file for SQL Server database backup .................................. 142

Specifying settings related to linkage with an SQL Server ............................................................. 144

Specifying settings for using VSS ............................................................................................... 147

Using VSS with P9000 RMXP Shadow Copy Provider version 01-02-03/03 or later .................. 149

Using VSS with P9000 RMXP Shadow Copy Provider version 01-02-03/02 or earlier ............... 150

Creating a cascade configuration definition file for Exchange database backup .............................. 151

Setting up linkage with a tape backup management software ....................................................... 155

Registering information for linkage with a tape backup management software .......................... 155

Creating a configuration definition file for tape backup ......................................................... 156

Configuration parameters ........................................................................................... 156

Configuration file examples ......................................................................................... 159

User-defined configuration definition file ....................................................................... 160

Creating a list file ................................................................................................................... 161

Creating a copy-group list file ............................................................................................ 161

Creating a database list file or mount point directory list file .................................................. 161

Commands that support a target definition file ............................................................... 162

File name of the list file ............................................................................................... 162

List file storage location .............................................................................................. 162

Contents of the list file ................................................................................................ 162

Creating a transaction log list file ....................................................................................... 163

File name of the transaction log list file ......................................................................... 163

Transaction log list file storage location ......................................................................... 163

Contents of the transaction log list file ........................................................................... 163

Creation of a transaction log list file ............................................................................. 164

Updating a dictionary map file ................................................................................................. 164

Specifying how to mount a secondary volume ............................................................................ 165

Making the OS dynamically recognize the secondary volume ................................................ 166

Making the OS statically recognize the secondary volume ..................................................... 174

Determining a mount point and mount target when mounting a secondary volume .................... 178

Application Agent CLI User Guide 5

Determination of a mount point .................................................................................... 179

Determination of a mount target ................................................................................... 181

Preparations required before executing extended commands ........................................................ 181

Checking the prerequisite conditions ................................................................................... 182

Execution permissions for extended commands .............................................................. 183

Automatic execution of extended commands ................................................................. 183

Prerequisite VBScript version ........................................................................................ 183

Deletion of unnecessary files ....................................................................................... 183

Setting up an FTP service for backing up to tape .................................................................. 184

Specifying how to start the extended commands ................................................................... 184

Creating a host environment settings file .............................................................................. 185

Creating operation IDs ...................................................................................................... 186

Creating operation definition files for file system backup ........................................................ 187

Deployment of operation definition files ........................................................................ 187

Format of operation definition files ............................................................................... 188

Example of creating operation definition files (in a cluster configuration) ........................... 189

Creating operation definition files for SQL Server database backup ........................................ 191

Deployment of operation definition files ........................................................................ 192

Format of operation definition files ............................................................................... 192

Example of creating operation definition files ................................................................ 194

Creating operation definition files for Exchange database backup .......................................... 196

Deployment of operation definition files ........................................................................ 196

Format of operation definition files ............................................................................... 197

Example of creating operation definition files ................................................................ 199

Checking the temporary directory for extended commands .................................................... 201

Checking the copy-group list file ......................................................................................... 202

Checking the FTP service (if you are going to back up to tape) ............................................... 202

Creating a user script .............................................................................................................. 203

Overview of user scripts .................................................................................................... 203

Coding rules for user scripts ............................................................................................... 203

Coding rules for user scripts ........................................................................................ 203

Entries in user scripts .................................................................................................. 204

Script environment variables ........................................................................................ 210

Command execution permission ................................................................................... 210

Commands that can be specified in user pre-processing and user post-processing .............. 210

Examples of user script usage ............................................................................................ 212

Specifying settings for sending mail .......................................................................................... 212

Backing up the Application Agent operating environment ............................................................. 214

Files that need to be backed up ......................................................................................... 214

Application Agent environment setting files and log files ................................................. 214

Definition files created after the installation of Application Agent ...................................... 215

Application Agent backup information .......................................................................... 215

Recovering the operating environment ................................................................................. 217

Recovering operating environment (common among servers) ........................................... 217

Recovering backup information (file server) .................................................................... 218

Recovering backup information (database server) ........................................................... 218

Restoring backup information (backup server) ................................................................ 218

Creating the Exchange environment configuration file .................................................................. 219

4 Application Agent operations .......................................................... 221

Application Agent commands .................................................................................................. 221

Extended commands ........................................................................................................ 221

Basic commands .............................................................................................................. 222

Correspondence between extended commands and basic commands ........................................... 222

Precautions on operations ........................................................................................................ 225

Precautions on operations ................................................................................................. 226

Precautions on backup and restoration ................................................................................ 226

Precautions on backup ...................................................................................................... 227

Precautions on restoration .................................................................................................. 229

Precautions when executing commands simultaneously .......................................................... 229

Precautions for executing commands in a cluster environment ................................................. 230

Precautions regarding backup servers ................................................................................. 230

Precautions when mounting ......................................................................................... 230

Precautions regarding the drive when mounting data to a backup server ........................... 231

Precautions when importing backup information ............................................................ 231

Command execution conditions ................................................................................... 231

Precautions when updating dictionary map files ................................................................... 231

Unavailable tools when executing commands ...................................................................... 232

Disk group configuration that does not allow backup (dynamic disk configuration) .................... 232

Notes on pair volume resynchronization in a cascade configuration ........................................ 233

Precautions when executing commands ..................................................................................... 233

Permissions required for users executing commands .............................................................. 233

Possibility of concurrent execution with other commands ........................................................ 237

Retry time when an error occurs ......................................................................................... 240

Stopping retry operations caused by a command that cannot execute concurrently with other

commands ...................................................................................................................... 240

Executing multiple drmmediabackup or drmmediarestore commands concurrently ..................... 241

Configurations that requires RAID Manager user authentication .............................................. 242

Starting and stopping the Protection Manager service ................................................................. 242

Starting the Protection Manager service .............................................................................. 242

Restarting the Protection Manager service ............................................................................ 243

Stopping the Protection Manager service ............................................................................. 243

5 Operation for file systems ................................................................ 245

Backing up and restoring a file system ....................................................................................... 245

Precautions when backing up a file system ........................................................................... 245

Precautions when restoring a file system .............................................................................. 245

Precautions when executing commands in a cluster environment ............................................. 246

Precautions on forced termination of commands ................................................................... 246

Backing up and restoring data between volumes ......................................................................... 246

System configuration ......................................................................................................... 246

Processing flow ................................................................................................................ 247

Backing up a file system to a secondary volume ................................................................... 248

Restoring a file system to a primary volume .......................................................................... 249

Backing up and restoring by using a tape device ........................................................................ 249

System configuration ......................................................................................................... 249

Flow of processing ........................................................................................................... 251

Backing up a file system to tape ......................................................................................... 253

Resynchronizing copy groups ...................................................................................... 253

Backing up a file system ............................................................................................. 253

Backup using VSS ...................................................................................................... 255

Restoring a file system from tape ......................................................................................... 256

Backing up a file system by using a user script ............................................................................ 258

System configuration ......................................................................................................... 258

Processing flow ................................................................................................................ 259

User script example .......................................................................................................... 260

Backup execution example ................................................................................................ 263

Backing up and restoring between local sites and remote sites ...................................................... 265

Application Agent CLI User Guide 7

Backing up a file system to a remote site ............................................................................. 266

Operations at the local site ......................................................................................... 266

Operations at the remote site ...................................................................................... 267

Operations at the local site ......................................................................................... 268

Restoring a file system to the local site ................................................................................. 269

Operations at the remote site ...................................................................................... 269

Operations at the local site ......................................................................................... 270

Restoring a file system to a remote site ................................................................................ 271

Operations at the remote site ...................................................................................... 271

Recovering a file system from a remote site to the local site .................................................... 272

Operations at the local site ......................................................................................... 272

Operations at the remote site ...................................................................................... 272

Operations at the local site ......................................................................................... 272

Backing up and restoring a file system by using a tape backup management software that cannot link

with Application Agent ............................................................................................................ 272

Backing up and restoring a file system by using a file share .......................................................... 273

Preparing to back up or restore a file system by using a file share ........................................... 273

Example of backing up a file system by using a file share ...................................................... 274

Example of restoring a file system by using a file share .......................................................... 274

Deleting backup data .............................................................................................................. 275

6 Operation for SQL Server databases ................................................ 277

Backing up and restoring an SQL Server database ...................................................................... 277

Precautions when backing up and restoring a database ........................................................ 277

Precautions when restoring a database ............................................................................... 278

Precautions when recovering a database ............................................................................. 279

Precautions when backing up and restoring multiple databases .............................................. 279

When multiple databases are stored in the same volume ................................................ 279

When multiple databases are stored in multiple volumes ................................................. 280

Database status when restoring and recovering .................................................................... 281

Requirements for transaction log backup .............................................................................. 282

Precautions regarding backup of transaction logs ................................................................. 282

Precautions regarding sequences of transaction logs ............................................................. 283

Transaction log backups after roll-forward ..................................................................... 283

Precautions regarding application of transaction logs ............................................................ 285

Recovering the SQL Server database from the last backup data ....................................... 285

Recovering the SQL Server database from backup data existing prior to the last backup

data ......................................................................................................................... 286

SQL Server database requirements for executing commands .................................................. 286

Service status ............................................................................................................ 286

Database status ......................................................................................................... 287

Database type ........................................................................................................... 290

Backing up and restoring data between volumes ......................................................................... 291

System configuration ......................................................................................................... 291

Processing flow ................................................................................................................ 292

Backing up an SQL Server database to a secondary volume .................................................. 293

Restoring an SQL Server database to a primary volume ........................................................ 294

Restoring an SQL Server database ............................................................................... 294

Using the drmsqlrecover command to recover an SQL Server database ............................. 295

Using the drmsqlrecovertool dialog box to recover an SQL Server database ...................... 295

Backing up and restoring by using a tape device ........................................................................ 296

System configuration ......................................................................................................... 297

Processing flow ................................................................................................................ 298

Backing up an SQL Server database to tape ........................................................................ 300

Resynchronizing copy groups ...................................................................................... 300

Backing up an SQL Server database ............................................................................ 301

Restoring an SQL Server database from tape ....................................................................... 303

Restoring an SQL Server database ............................................................................... 303

Recovering an SQL Server database with the drmsqlrecover command ............................. 305

Recovering an SQL Server database using the drmsqlrecovertool dialog box ..................... 305

Backing up an SQL Server database by using a user script .......................................................... 306

System configuration ......................................................................................................... 307

Processing flow ................................................................................................................ 307

User script example .......................................................................................................... 308

Backup execution example ................................................................................................ 310

Operation using SQL Server transaction logs .............................................................................. 311

System configuration ......................................................................................................... 311

Example of operation using a transaction log backup ........................................................... 312

Backing up an SQL Server database ................................................................................... 313

Resynchronizing copy groups ...................................................................................... 313

Backing up an SQL Server database ............................................................................ 314

Backing up transaction logs ............................................................................................... 314

Restoring SQL Server databases ......................................................................................... 315

Applying the drmsqlrecovertool dialog box to restore an SQL Server database ......................... 315

Using the drmsqlrecovertool dialog box to recover an SQL Server database ...................... 315

Using the drmsqlrecover command to recover an SQL Server database (using a transaction

log list file) ................................................................................................................ 316

Example of operation using transaction log backup .............................................................. 317

Backing up and restoring transaction log backup files .................................................................. 318

System configuration ......................................................................................................... 319

Backing up the transaction log backup file ........................................................................... 320

Restoring the transaction log backup file .............................................................................. 322

Backing up and restoring multiple generations by locking a copy group ......................................... 323

Example of operation using lock functionality and generation management ............................. 324

Locking a copy group ....................................................................................................... 324

Unlocking a copy group .................................................................................................... 326

Backing up and restoring between local sites and remote sites ...................................................... 327

Backing up an SQL Server database to a remote site ............................................................ 329

Operation at the local site .......................................................................................... 329

Operation at the remote site ........................................................................................ 330

Operation at the local site .......................................................................................... 331

Restoring an SQL Server database to the local site ................................................................ 331

Operation at the remote site ........................................................................................ 331

Operation at the local site .......................................................................................... 332

Restoring an SQL Server database to a remote site ............................................................... 333

Operation at the remote site ........................................................................................ 333

Recovering data from the remote site to the local site ............................................................ 334

Operation at the local site .......................................................................................... 335

Operation at the remote site ........................................................................................ 335

Operation at the local site .......................................................................................... 335

Backing up and restoring in a multi-target configuration ............................................................... 335

Example of backing up an SQL Server database .................................................................. 338

Example of restoring an SQL Server database ...................................................................... 339

Performing restoration and recovery on a host other than the backup host ...................................... 341

Using the SQL Server log-shipping function ................................................................................ 346

Before using the log-shipping function ................................................................................. 346

Setting a distribution target server as an operating server ...................................................... 350

Backing up and restoring in a cascade configuration or multi-target configuration ........................... 352

Application Agent CLI User Guide 9

Preparations for performing backup or restoration in a cascade configuration or multi-target

configuration ................................................................................................................... 353

Creating a user script to perform a backup in a cascade configuration .................................... 357

Outline of user script files ............................................................................................ 357

Coding rules for user script files ................................................................................... 358

Sample user script files ............................................................................................... 358

Backing up an SQL Server database in a cascade configuration ............................................ 367

Backing up transaction logs in a cascade configuration without a backup catalog .................... 371

Restoring an SQL Server database in a cascade configuration ............................................... 371

Backing up and restoring using a tape backup management software that cannot link with Application

Agent .................................................................................................................................... 376

Backing up and restoring an SQL Server database by using a file share ........................................ 377

Preparing to back up or restore by using a file share ............................................................. 378

Backing up an SQL Server database by using a file share ..................................................... 379

Example of restoring a database by using a file share ........................................................... 379

Restoring data to an SQL Server instance that is different from the backup source ............................ 380

System configuration ......................................................................................................... 380

Operation flow ................................................................................................................ 381

Preparations for restoration (recovery) ........................................................................... 381

Operations for restoration (recovery) ............................................................................ 382

Operation example .......................................................................................................... 382

Example of restoring an SQL Server database from tape and recovering on the secondary

volume ..................................................................................................................... 382

Example of restoring (recovering) an SQL Server database on the log distribution

destination ................................................................................................................ 383

Example of restoring (recovering) an SQL Server database on the primary volume ............. 383

Deleting backup data .............................................................................................................. 383

Making an SQL Server database backed up to a secondary volume available for use ..................... 384

System configuration ......................................................................................................... 384

User script example .......................................................................................................... 386

script1.txt (used for data mining) .................................................................................. 386

script2.txt (used for backup) ........................................................................................ 387

Example ......................................................................................................................... 388

Backing up and restoring when using an SQL Server replication configuration ................................ 388

System configuration ......................................................................................................... 388

Requirements for the publication database and the distribution database .......................... 389

Requirements for the subscription database ................................................................... 390

Example ......................................................................................................................... 390

Back up the databases ............................................................................................... 390

Back up the transaction logs of the publication database ................................................ 391

Prepare for database restoration .................................................................................. 391

Restore the databases ................................................................................................. 392

Perform database recovery .......................................................................................... 393

Prepare to restart operations ....................................................................................... 393

Setting and checking the 'sync with backup' option .............................................................. 393

How to set the 'sync with backup' option ...................................................................... 394

How to check the 'sync with backup' option .................................................................. 394

Backing up and restoring in an SQL Server AlwaysOn availability group configuration .................... 394

System configuration ......................................................................................................... 394

Backing up and restoring a user database to the active server ................................................ 395

Restoring a user database to the standby server from the active server ..................................... 396

Restoring a user database to the secondary-use server from the active server ............................ 398

7 Operation for Exchange databases .................................................. 401

Backing up and restoring a storage group ................................................................................. 401

Precautions when backing up an Exchange database ........................................................... 401

Precautions when restoring an Exchange database ............................................................... 402

Precautions when restoring from a tape ......................................................................... 402

Note on performing a recovery using roll forward .......................................................... 402

Procedure for handing the message (KAVX1510-E) ........................................................ 402

Notes on restoring data obtained with a VSS backup ..................................................... 403

Procedure for when the Information Store cannot be mounted .......................................... 403

Precautions on recovery storage groups and recovery databases ............................................ 404

Precautions when configuring volumes ................................................................................ 404

Precautions on database verification ................................................................................... 404

Backing up and restoring data between volumes without using VSS ............................................... 404

System configuration ......................................................................................................... 404

Processing flow ................................................................................................................ 405

Backing up storage groups to a secondary volume ............................................................... 406

Restoring storage groups to a primary volume ...................................................................... 407

Backing up and restoring data between volumes by using VSS ..................................................... 407

System configuration ......................................................................................................... 407

Processing flow ................................................................................................................ 408

Backing up storage groups to a secondary volume ............................................................... 409

Restoring storage groups to a primary volume ...................................................................... 410

Backing up and restoring by using a tape device ........................................................................ 410

System configuration ......................................................................................................... 410

Processing flow ................................................................................................................ 412

Backing up storage groups to tape ..................................................................................... 414

Resynchronizing copy groups ...................................................................................... 414

Cold backup ............................................................................................................. 415

Online backup .......................................................................................................... 416

Backup using VSS ...................................................................................................... 417

Restoring storage groups from tape ..................................................................................... 419

Backing up a storage group by using a user script ...................................................................... 421

System configuration ......................................................................................................... 421

Processing flow ................................................................................................................ 421

User script example .......................................................................................................... 422

Backup execution example ................................................................................................ 423

Restoring by using transaction logs (Roll-forward) ........................................................................ 424

System configuration ......................................................................................................... 425

Rolling forward the transaction logs at the time of restoration ................................................. 426

Backing up and restoring between local sites and remote sites ...................................................... 427

Backing up storage groups to a remote site .......................................................................... 428

Operations at the local site ......................................................................................... 429

Operations at the remote site ...................................................................................... 430

Operations at the local site ......................................................................................... 431

Restoring a storage group to a local site .............................................................................. 431

Operations at the remote site ...................................................................................... 432

Operations at the local site ......................................................................................... 433

Backing up and restoring in a cascade configuration .................................................................. 434

Backing up concurrently at both local and remote sites .......................................................... 436

Operation at the local site .......................................................................................... 436

Operation at both the local and remote sites ................................................................. 438

Restoring data using the backup data at the local site ........................................................... 442

Restoring data using the backup data at the remote site ........................................................ 446

Backing up and restoring in a CCR configuration ........................................................................ 450

Using different backup servers for the active and standby servers ............................................ 452

Performing a backup on the active server ...................................................................... 453

Application Agent CLI User Guide 11

Performing a backup on the standby server ................................................................... 457

Restoring data when using the automatic seed function ......................................................... 461

Restoring backup data acquired on the active server (when the automatic seed function is

used) ........................................................................................................................ 461

Restoring backup data acquired on the standby server (when the automatic seed function is

used) ........................................................................................................................ 465

Restoring data when not using the automatic seed function .................................................... 469

Restoring backup data acquired on the active server (when the automatic seed function is not

used) ........................................................................................................................ 469

Restoring backup data acquired on the standby server (when the automatic seed function is

not used) .................................................................................................................. 473

Backing up and restoring in SCR configurations .......................................................................... 477

System configuration ......................................................................................................... 477

Backing up in an SCR configuration .................................................................................... 478

Roll-forward recovery on backed up data acquired in an SCR configuration ............................. 482

Point-in-time restoration when not using the SCR seed function ................................................ 486

Point-in-time restoration when using the SCR seed function ..................................................... 489

Backing up and restoring in DAG configurations ......................................................................... 492

System Configuration ........................................................................................................ 492

Backing up active mailbox database copies ........................................................................ 494

Backing up passive mailbox database copies ...................................................................... 497

Restoring backup data of an active mailbox database copy ................................................... 500

Restoring backup data of a passive mailbox database copy .................................................. 503

Backing up and restoring storage groups using a tape backup management software that is unable to

link with Application Agent ...................................................................................................... 506

Backing up and restoring storage groups by using a file share ...................................................... 507

Preparing to use a file share for storage group backup and restore ......................................... 508

Example of using a file share for storage group backup ......................................................... 508

Example of using a file share for storage group restoration .................................................... 509

Deleting backup data .............................................................................................................. 509

8 Troubleshooting ............................................................................. 511

Troubleshooting procedure ....................................................................................................... 511

Troubleshooting extended commands ........................................................................................ 511

Data required for troubleshooting .............................................................................................. 512

Data required for troubleshooting ....................................................................................... 512

OS log information .................................................................................................... 512

Application Agent information ..................................................................................... 513

RAID Manager information ......................................................................................... 515

Database information (when the backup is of an SQL Server database or Exchange

database) ................................................................................................................. 516

Other information ...................................................................................................... 516

Operation details ....................................................................................................... 516

Log files output by extended commands .............................................................................. 516

Adjusting trace log settings ...................................................................................................... 519

Adjusting the output level for detailed trace log information ................................................... 519

Adjusting the number of log files for detailed trace log information ......................................... 519

Investigating collected data ...................................................................................................... 519

Investigating standard output logs ....................................................................................... 520

Investigating the trace logs for Application Agent-cooperative software .................................... 520

Investigating the detailed trace log ..................................................................................... 520

Troubleshooting dictionary map file errors .................................................................................. 522

Verifying dictionary map files ............................................................................................. 523

Restoring key definition files (.KDF) ..................................................................................... 524

Restoring key files (.K01 or .Knn) ........................................................................................ 524

Restoring missing data files (.DRF or .DAT) ........................................................................... 525

When data file (.DRF or .DAT) backups exist ................................................................. 525

When data file (.DRF or .DAT) backups do not exist ....................................................... 525

Restoring incorrect data files (.DRF or .DAT) ......................................................................... 525

Displaying dictionary map file information or backup information ........................................... 526

Recreating dictionary map files .......................................................................................... 527

9 Support and other resources ............................................................ 529

Contacting HP ........................................................................................................................ 529

HP technical support ......................................................................................................... 529

Subscription service .......................................................................................................... 529

Documentation feedback ................................................................................................... 529

Related information ................................................................................................................. 529

Conventions ........................................................................................................................... 530

A Example of an Application Agent environment configuration ............... 533

System configuration ............................................................................................................... 533

Server configuration ......................................................................................................... 534

Storage system configuration ............................................................................................. 535

Example settings for the RAID Manager configuration definition file ............................................... 536

Example settings for the Application Agent configuration definition file (init.conf) ............................ 539

Example settings for the RAID Manager-linkage definition file (DEFAULT.dat) ................................... 540

Example of creating dictionary map files .................................................................................... 541

Example of registering SQL Server information ............................................................................ 541

Example settings for linkage to tape backup management software ............................................... 542

Example registering information for linkage to the tape backup management software .............. 543

Example of the configuration definition file for tape backup ................................................... 543

Example settings for the host environment settings file .................................................................. 544

Example settings for an operation definition file .......................................................................... 544

Example settings for a copy-group list file ................................................................................... 545

B List of files used in Application Agent ................................................ 547

List of files used in Application Agent ........................................................................................ 547

C Replacing primary and secondary volume disks while Application Agent

is running ........................................................................................ 553

Replacing primary and secondary volume disks while Application Agent is running ........................ 553

Procedure for replacing a primary volume disk ........................................................................... 553

Procedure for replacing a secondary volume disk ....................................................................... 556

D Restoring from a tape directly to a primary volume in a Fast Snap or

Snapshot configuration ...................................................................... 559

Example of Fast Snap or Snapshot configuration ......................................................................... 559

Procedure for backing up to tape on the backup server ................................................................ 559

Procedure for restoring from tape directly to the primary volume .................................................... 560

E Correspondence to Replication Manager GUI terms ............................ 561

Correspondence to Replication Manager GUI terms .................................................................... 561

Application Agent CLI User Guide 13

Glossary .......................................................................................... 563

Index ............................................................................................... 567

Figures

Overview of Application Agent ................................................................................. 281

Logical volume consisting of multiple copy groups ...................................................... 302

Data management at a remote site ........................................................................... 323

Backing up multiple generations .............................................................................. 334

Backing up multiple generations when a copy group is locked ..................................... 345

Example of a system configured to back up and restore data within a storage system ....... 366

Continuous Access Software or Continuous Access Journal system configuration .............. 377

Business Copy and Continuous Access Software multi-target configuration ...................... 388

Business Copy and Continuous Access Journal multi-target configuration ........................ 399

Continuous Access Software and Continuous Access Journal multi-target configuration ..... 4010

Business Copy (multi-generation), Continuous Access Software, or Continuous Access

Journal configuration ............................................................................................... 41

Example of configuration for concurrent backup from multiple primary volumes to multiple

secondary volumes (remote copy) ............................................................................. 42

Example of a system configured with a tape device ..................................................... 4313

Example of a cluster configuration of the operation standby type (Active-Passive) ............. 4414

Example of a cluster configuration of the mutual standby type (Active-Active) .................. 4515

Example of a system configured to use VSS to back up data ........................................ 4616

Example of a system configured to restore data on a host that differs from the host used

for backup ............................................................................................................. 48

Example of a system configuration for the log-shipping functionality ............................... 4918

Example of a cascade configuration (when the backup is of an SQL Server database) ..... 5019

Example of a multi-target configuration (when the backup is of an SQL Server

database) .............................................................................................................. 51

Allocation of database configuration files ................................................................... 5521

When multiple database configuration files are allocated to a volume ........................... 5522

Metafile allocation .................................................................................................. 5623

Metafile allocation (in the cluster configuration) ........................................................... 5724

Example of a cascade configuration (when backing up Exchange databases) ................. 5825

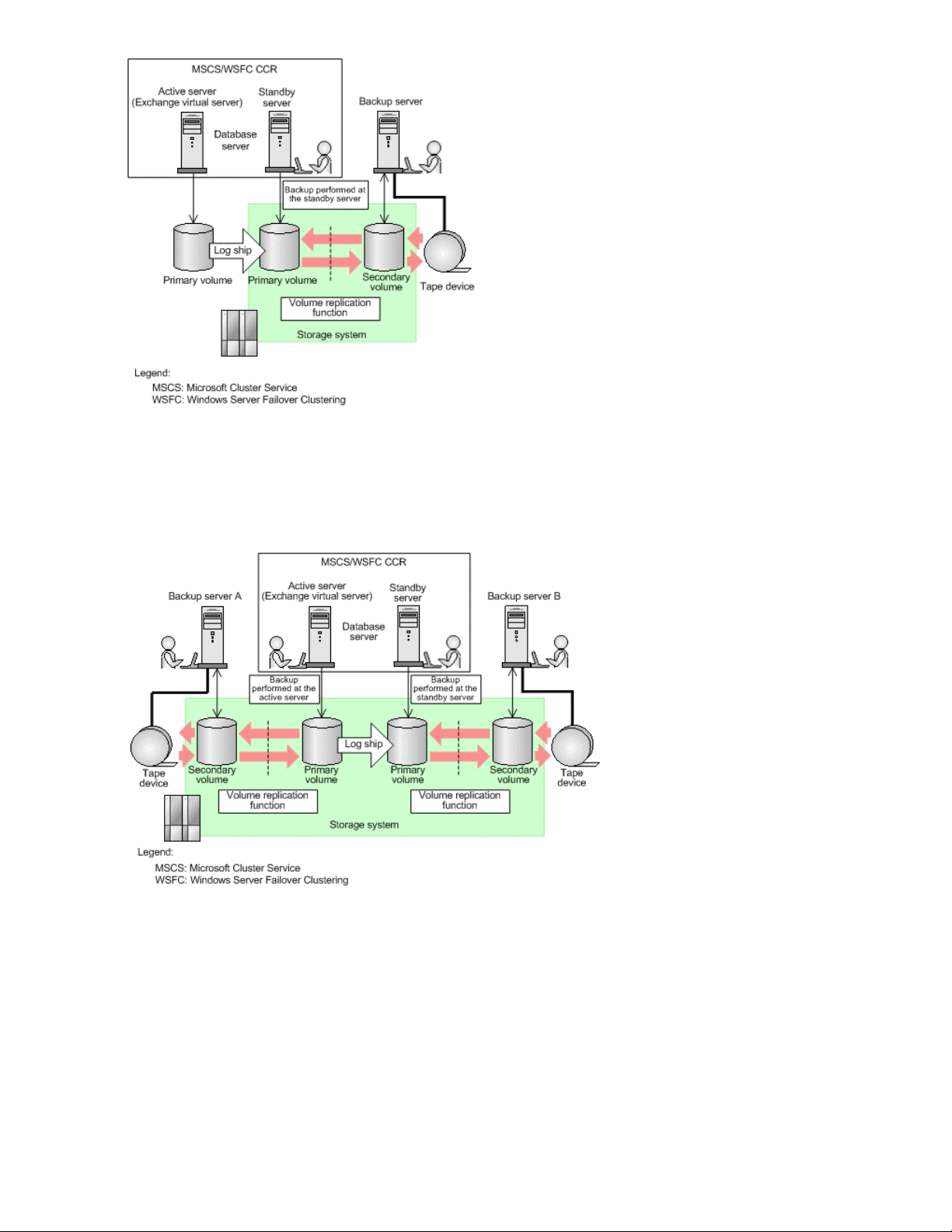

Example of a CCR configuration (only the active server is used) .................................... 5926

Example of a CCR configuration (only the standby server is used) ................................. 6027

Example of a CCR configuration (active and standby servers use different backup

servers) .................................................................................................................. 60

Application Agent CLI User Guide 15

Example of a CCR configuration (active and standby servers use the same backup

server) ................................................................................................................... 61

Example of an SCR configuration .............................................................................. 6230

Configuration in which an active mailbox database copy Is backed up and restored ....... 6431

Configuration in which a passive mailbox database copy Is backed up and restored ....... 6532

Configuration in which an active mailbox database copy and a passive mailbox database

copy are backed up and restored by different backup servers ....................................... 66

Configuration in which an active mailbox database copy and a passive mailbox database

copy are backed up and restored by the same backup server ....................................... 67

Restoration in units of Information Stores (when the backup target is an Exchange

database) .............................................................................................................. 74

Configuration for managing the primary volume and secondary volume from the same

server (without using Application Agent) .................................................................... 80

System configuration (when the primary volume for Business Copy and the primary volume

for Continuous Access Software are the same LDEV) .................................................... 82

System configuration (when the secondary volume for Business Copy and the primary

volume for Continuous Access Software are the Same LDEV) ......................................... 83

System configuration (In a Business Copy cascade configuration, when the volume subject

to backup operates both as the primary volume and the secondary volume) ................... 84

In XP Continuous Access Asynchronous/Continuous Access Journal configuration: restoring

UserDB1 and UserDB2 together or separately ............................................................ 86

In XP Continuous Access Asynchronous/Continuous Access Journal configuration: restoring

UserDB1 and UserDB2 together ................................................................................ 86

Examples of a disk set configuration and of a relationship between a disk group and a

disk set .................................................................................................................. 88

Examples of disk group configurations usable by Application Agent .............................. 8943

Data backup and restoration in a system configuration where multiple disk groups exist

in a file system ........................................................................................................ 90

Configuration example of a mounted directory that becomes a backup target ................. 9245

Configuration example of a mounted directory that does not become a backup target ..... 9246

Volume configuration and configuration definition to back up one primary volume to

multiple generations .............................................................................................. 101

Volume configuration and configuration definition to back up multiple primary volumes

to a single generation ........................................................................................... 102

Volume configuration and configuration definition to back up multiple primary volumes

to multiple generations .......................................................................................... 103

Example of a configuration definition for backup or restore between storage systems ..... 10450

Configuration definition for a multi-target configuration and a cascade configuration ..... 10651

Example of specifying a RAID Manager instance number in the RAID Manager-linkage

definition file (DEFAULT.dat) .................................................................................... 118

Example of creating dictionary map files in an Active-Passive cluster configuration ......... 13153

Example of creating dictionary map files in an Active-Active cluster configuration .......... 13354

Cluster group definition (when a backup target and shared disks are in the same cluster

group) ................................................................................................................. 138

Cluster Group Definition (When a Backup Target and Shared Disks are in Different Cluster

Groups) ............................................................................................................... 139

Example of deploying operation definition files (cluster configuration when the backup is

of a file system) ..................................................................................................... 187

Example of locations of operation definition files (when the backup is of an SQL Server

database) ............................................................................................................ 192

Example of locations of operation definition files (when the backup is of an Exchange

database) ............................................................................................................ 197

Protecting backup information for disk backups ......................................................... 21560

Protecting backup information for tape backups ........................................................ 21761

Correspondence of backup catalog and copy group ................................................. 22762

Disk group configuration that does not allow backup ................................................. 23363

System configuration for backing up and restoring data between volumes (when the backup

is of a file system) ................................................................................................. 247

Procedure for backing up a file system to the secondary volume .................................. 24865

Procedure for restoring a file system to the primary volume ......................................... 24866

System configuration for backing up a file system to tape and restoring it from tape ....... 25067

Procedure for backing up a file system to tape .......................................................... 25268

Procedure for restoring a file system from tape .......................................................... 25269

System configuration for backup of a file system to tape ............................................. 25970

Processing flow ..................................................................................................... 26071

System configuration for backing up and restoring a file system between a local site and

a remote site ........................................................................................................ 265

Backing up and restoring multiple databases (same volume configuration) .................... 28073

Backing up and restoring multiple databases (multiple volume configuration) ................ 28074

Tape restoring multiple databases (multiple volume configuration) ................................ 28175

Database statuses during restoration and recovery .................................................... 28276

Transaction log backups after roll-forward (1) ........................................................... 28477

Transaction log backups after roll-forward (2) ........................................................... 28478

Transaction log backup error after roll-forward .......................................................... 28579

Order of applying transaction log backups (1) .......................................................... 28580

Order of applying transaction log backups (2) .......................................................... 28681

System configuration for backing up and restoring data between volumes (when the backup

is of an SQL server database) ................................................................................. 292

Procedure for backing up an SQL Server database to the secondary volume ................ 29383

Procedure for restoring an SQL Server database to the primary volume ........................ 29384

System configuration for backing up an SQL Server database to tape and restoring it from

tape .................................................................................................................... 297

Application Agent CLI User Guide 17

Procedure for restoring an SQL Server database to the primary volume ........................ 29986

Procedure for restoring an SQL Server database from its backup tape .......................... 30087

System configuration for backup of an SQL Server database to tape ............................ 30788

Processing flow ..................................................................................................... 30889

System configuration for operations using the SQL Server transaction log ..................... 31190

Operation using transaction log backups ................................................................. 31291

Operations using SQL Server transaction log backup (restoring a database to the state it

was immediately before failure) .............................................................................. 317

Backing up SQL Server transaction log backup files ................................................... 31993

Example of operation in which a particular copy group is locked ................................ 32494

System configuration for backing up and restoring an SQL Server database between a

local site and a remote site .................................................................................... 328

System configuration for backing up an SQL Server database to tape and restoring it from

tape in a multi-target configuration .......................................................................... 336

System configuration for restoring and recovering from a host not used for backup (when

backing up) ......................................................................................................... 342

System configuration for restoring and recovering from a host not used for backup (when

restoring) ............................................................................................................. 343

System configuration for log-shipping operations ....................................................... 34799

System configuration for setting a distribution target server to be an operating server ..... 351100

Sample configuration for backing up to a secondary volume at a remote site (cascade

101

configuration) ....................................................................................................... 352

Points in time at which a user script is executed ......................................................... 357102

Sample cascade configuration ................................................................................ 358103

Flow of script-specified operations performed when local backup is not involved ........... 360104

Flow of script-specified operations performed when local backup is involved ................. 364105

System configuration using file sharing to back up and restore an SQL Server

106

database ............................................................................................................. 378

System configuration for restoring data to an SQL Server instance different from the backup

107

source ................................................................................................................. 381

System configuration for restoring to an SQL Server instance that is different from the

108

backup source (using a user script) .......................................................................... 385

Configuration for using the SQL Server replication function ......................................... 389109

Configuration of backup server for the publisher/distributor server .............................. 390110

Operation when using Application Agent on an SQL Server in an AlwaysOn availability

111

group configuration ............................................................................................... 395

System configuration for backing up and restoring data between volumes without using

112

VSS (when an Exchange database is backed up) ...................................................... 405

Processing flow for backing up storage groups to a secondary volume ......................... 406113

Processing flow for restoring storage groups on the primary volume ............................. 406114

System configuration for backing up and restoring data between volumes by using VSS

115

(when an Exchange database is backed up) ............................................................. 408

Processing flow for backing up storage groups to a secondary volume ......................... 409116

Processing flow for restoring storage groups on the primary volume ............................. 409117

System configuration for backing up and restoring storage groups to and from tape ...... 411118

Processing flow for backing up storage groups to tape ............................................... 413119

Processing flow for restoring storage groups from tape ............................................... 414120

System configuration for backup of a storage group to tape ........................................ 421121

Processing flow ..................................................................................................... 422122

Flow of operation using transaction logs .................................................................. 424123

System configuration for restoring data in units of Information Stores by applying transaction

124

logs .................................................................................................................... 425

System configuration for backing up and restoring a storage group between a local site

125

and a remote site .................................................................................................. 427

Example of a system for backing up and restoring data in a cascade configuration ....... 435126

Example of a system for backing up and restoring data in a CCR configuration ............ 451127

System configuration for an SCR system ................................................................... 477128

System configuration for backing up and restoring data in a DAG configuration ............ 493129

System configuration (for the example Application Agent environment configuration) ...... 534130

Example of replacing a primary volume disk ............................................................ 554131

Example of replacing a secondary volume disk ......................................................... 556132

Application Agent CLI User Guide 19

Tables

Types of data subject to backup in the SQL Server database ......................................... 511

Comparison of DAG configurations ........................................................................... 682

Types of data subject to backup in the Exchange database ........................................... 693

Approximate amount required to verify Exchange Server 2003 database for backup by

using VSS .............................................................................................................. 72

Approximate amount required to verify Exchange Server 2007 database for backup by

using VSS .............................................................................................................. 72

Approximate amount required to verify Exchange Server 2010 database for backup by

using VSS .............................................................................................................. 73

Conditions for allocating files when restoring backup data in units of Information

Stores .................................................................................................................... 74

Volume configurations that Application Agent can back up and restore .......................... 878

Application Agent environment setup tasks needed for each kind of server ..................... 979

Parameters in init.conf (to set the retry count and retry interval for checking the status of

cluster resources) ................................................................................................... 107

CLU_RETRY_WAIT value for each type of cluster software ........................................... 10711

Parameters in init.conf (to specify the retry count and retry interval for checking the status

of a process) ........................................................................................................ 108

Parameters in init.conf (to specifying a retry count and a retry interval for command

execution status retries checking) ............................................................................. 109

Parameter in init.conf (backup option) ...................................................................... 10914

Parameter in init.conf (dictionary map synchronization option) .................................... 11015

Parameter in init.conf (recovery option) .................................................................... 11016

Parameter in init.conf (setting up restoration when the cluster resources are in the online

state) ................................................................................................................... 111

Parameter in CLU_MSCS_RESTORE and cluster resource status (file system) ................... 11118

Parameter in CLU_MSCS_RESTORE and cluster resource status (SQL Server database

1) ....................................................................................................................... 112

Parameter in CLU_MSCS_RESTORE and cluster resource Status (SQL Server database

2) ....................................................................................................................... 113

Parameter in CLU_MSCS_RESTORE and cluster resource status (Exchange database) ...... 11321

Parameter in init.conf (setup of parallel execution of verification processes) ................... 11422

Parameter in init.conf (setting the communication timeout period for the Protection Manager

service) ................................................................................................................ 114

Parameters in the RAID Manager-linkage definition file (DEFAULT.dat) (to specify an

instance number) .................................................................................................. 116

Parameters in the RAID Manager-linkage definition file (DEFAULT.dat) (to specify the retry

count and retry interval for checking the status of a pair) ............................................ 119

Values in the RETRY_WAIT parameter set for each storage system ................................ 11926

Parameters in the RAID Manager-linkage definition file (DEFAULT.dat) (to specify the retry

count and interval for checking the pair status according to the purpose) ..................... 120

Parameters in the RAID Manager-linkage definition file (DEFAULT.dat) (to specify a retry

count and a retry interval for RAID Manager command busy status retries checking) ...... 123

Parameter in copy parameter definition files ............................................................. 12429

Parameter in the RAID Manager-linkage definition file (DEFAULT.dat) (to specify the track

size used when copying data) ................................................................................ 126

Parameter in the RAID Manager-linkage definition file (DEFAULT.dat) (to specify whether

to create a pair automatically) ................................................................................ 127

Parameters in the RAID Manager-linkage definition file (DEFAULT.dat) (settings for using

the secondary volume dynamic recognition functionality) ........................................... 127

Parameter in the RAID Manager-linkage definition file (DEFAULT.dat) (settings for operation

mode when automatically selecting copy groups) ...................................................... 128

Parameter in the RAID Manager-linkage definition file (DEFAULT.dat) (specifying the

installation path for RAID Manager) ........................................................................ 129

Parameter in the RAID Manager-linkage definition file (DEFAULT.dat) (specifying

modification of the pair status if an error occurs) ....................................................... 129

Directories that need to be created on a shared disk and locations of explanations on

how to create the directories ................................................................................... 137

Parameters for the cluster software ........................................................................... 14037

Relationship between SQL_AUTORECOVERY_TIME parameter and restored objects ....... 14438

Parameter defined in the sqlinit_instance-name.conf file (specification of SQL Server login

timeout option) ..................................................................................................... 146

Parameter defined in the sqlinit_instance-name.conf file (specification of SQL Server

automatic recovery time) ........................................................................................ 146

Default settings for Windows services related to P9000 RMXP Shadow Copy Provider .... 14741

vsscom.conf parameters ......................................................................................... 14842

System environment variables required to use VSS (file server or database server) .......... 14943

System environment variables required to use VSS (backupserver) ................................ 14944

System environment variables required to use VSS (file server or database server) .......... 15045

System environment variables required to use VSS (backup server) ............................... 15146

Parameters defined in the definition file for the cascade configuration .......................... 15247

How the -cascade option and the sections are evaluated ............................................ 15448

Parameters to be defined in the configuration definition file for tape backup (for

NetBackup) .......................................................................................................... 156

Parameters defined in the configuration file for tape backup (for Backup Exec) .............. 15850

How to determine a mount point when the command for mounting a secondary volume

is executed (with a backup id specified in the option) ................................................. 179

Application Agent CLI User Guide 21

How to determine a mount point when the command for mounting a secondary volume

is executed (when a copy group is specified for an option) ......................................... 180

How to determine a mount target when the command for mounting a secondary volume

is executed ........................................................................................................... 181

Extended command execution preparation tasks needed for each kind of server ........... 18154

Value and maximum value length of each entry in a host environment settings file ......... 18555

Example: contents and maximum value length of each entry in an operation definition file

(when the backup is of a file system) ........................................................................ 188

Cluster Resources (In cluster configuration when the backup is of a file system) .............. 18957

Operation IDs for which an operation definition file is created (in cluster configuration

when the backup is of a file system) ......................................................................... 190

Contents and maximum value length of each entry in an operation definition file (when

the backup is of an SQL Server database) ................................................................ 193

Cluster resources (when the backup is of an SQL Server database) .............................. 19460

Example of VDI metafile storage directory ................................................................ 19561

Operation IDs for which to create operation definition files (when the backup is of an SQL

Server and in a cluster configuration) ....................................................................... 195

Contents and maximum value length of each entry in an operation definition file (when

the backup is of an Exchange database) .................................................................. 197

Cluster resources (when the backup is of an Exchange database) ................................ 19964

Operation IDs for which an operation definition file is created (when the backup is of an

Exchange database and in a cluster configuration) .................................................... 200

Naming conventions for the temporary directory for extended commands .................... 20166

Naming conventions for the temporary directory for extended commands .................... 20167

Directories used for inter-server FTP transmission and reception ................................... 20268

Directories used for inter-server FTP transmission and reception ................................... 20269

Coding rules for user scripts ................................................................................... 20370

Entries in user scripts ............................................................................................. 20471

Script environment variables ................................................................................... 21072

Commands that can be specified in user pre-processing and user post-processing ......... 21173

Examples of user script usage ................................................................................. 21274

mail.conf parameters ............................................................................................. 21275

Parameters in the Exchange environment configuration file .......................................... 21976

Correspondence between extended commands and basic commands (commands used

for backing up and restoring file systems) ................................................................. 222

Correspondence between extended commands and basic commands (Common

commands) .......................................................................................................... 222

Correspondence between extended commands and basic commands (Tape

commands) .......................................................................................................... 223

Correspondence between extended commands and basic commands (Utility

commands) .......................................................................................................... 224

Correspondence between extended commands and basic commands (SQL server

database) ............................................................................................................ 224

Correspondence between extended commands and basic commands (Exchange

database) ............................................................................................................ 225

Required permissions for each command (commands used when backing up and restoring

a file system) ........................................................................................................ 234

Required permissions for each command (common system commands) ......................... 23484

Required permissions for each command (tape system commands) .............................. 23585

Required permissions for each command (utility commands) ....................................... 23686

Required permissions for each command (when the backup target is an SQL server

database) ............................................................................................................ 236

Required permissions for each command (when the backup target is an exchange

database) ............................................................................................................ 236

Possibility of concurrent execution with other commands (commands used when backing

up and restoring a file system) ................................................................................ 237

Possibility of concurrent execution with other commands (common commands) .............. 23890

Possibility of concurrent execution with other commands (tape-related commands) ......... 23891

Possibility of concurrent execution with other commands (utility commands) ................... 23992

Possibility of concurrent execution with other commands (when the backup is of an SQL

Server database) .................................................................................................. 239

Possibility of concurrent execution with other commands (when the backup is of an

Exchange database) ............................................................................................. 240

Functions that require that the Protection Manager service be running .......................... 24295

User script creation example ................................................................................... 26096

Relationship between the status of the SQL Server service and the executable

command ............................................................................................................ 286

SQL Server database status where a command can be executed (1) ............................ 28798

SQL Server database status where a command can be executed (2) ............................ 28999

Relationship between the type of the sql server database and executable commands ..... 290100

User script creation example ................................................................................... 308101

Sample script for when a local backup is not performed ............................................. 360102

Sample script for when a local backup is performed .................................................. 364103

User script creation example ................................................................................... 422104

OS log information .............................................................................................. 512105

Application Agent information ................................................................................ 513106

RAID Manager information .................................................................................... 515107

Database information (when the backup is of an SQL Server database or Exchange

108

database) ............................................................................................................ 516

Other information ................................................................................................. 516109

Items that are output to the log file for extended commands ........................................ 517110

Application Agent CLI User Guide 23

Items output to the detailed trace log ....................................................................... 521111

Sources of messages (controlled objects) and corresponding message IDs .................... 521112

Commands for displaying dictionary map file information .......................................... 526113

Commands for displaying backup information .......................................................... 526114

Product reference conventions ................................................................................. 530115

Server configuration (for the example Application Agent environment configuration) ...... 534116

Storage system volume configuration (for the example Application Agent environment

117

configuration) ....................................................................................................... 535

Examples of shared directory usage (for the example Application Agent environment

118

configuration) ....................................................................................................... 536

List of files used in Application Agent ....................................................................... 547119

Correspondence of Replication Manager GUI and Application Agent command line

120

interface terms ...................................................................................................... 561

Preface

This guide describes how to manage HP P9000 Replication Manager Software.

Application Agent CLI User Guide 25

Preface26

1 Overview of Application Agent

Application Agent is designed to reduce the workload on system administrators and to provide efficient and reliable data protection. This chapter describes the features and functions of Application Agent. The descriptions in this chapter apply to the Application Agent CLI.

Application Agent features

Application Agent is a software package that simplifies data maintenance operations, especially those dealing with backup and restoration. Application Agent ensures the protection of important data while minimizing the effect on other jobs that are being processed. In addition, Application Agent reduces the workload on system administrators and the cost of data management.

Modern day information systems for enterprises must be able to protect important data without adversely affecting any other jobs that are concurrently processing. These systems must also be able to quickly restart any jobs that are being executed, if and when an error occurs. To meet these demands, all storage systems are RAID-compliant (managed via the RAID Manager software) and include volume replication functions. These replication functions are able to quickly create a replica of a logical volume within a storage system without the use of a host. A system administrator who manages backups can use these functions to then back up the replica (the secondary volume) of a logical volume (the primary volume) to a tape device without having to disconnect the primary volume from the system. This allows the primary volume to continue being used for any other jobs that are still being processed.

Until now, system administrators had to deal with the following issues when using volume replication functions to back up a database during online operations (also referred to as an online backup):

Extensive expertise is required:

To use the volume replication functions included in storage systems, you needed to have extensive expertise in databases, file systems, the logical volume manager, and RAID devices.

Backup operations are complex:

To back up a database object, many complex operations, some of which are susceptible to human error, must be performed. In addition, since backup operations differ depending on the type of database application or file system, learning how to perform all the necessary operations is difficult and time-consuming.

Application Agent resolves these two issues while enabling high-speed, reliable backup operations that allow the user to get the most out of the available storage system functions.

Application Agent internally manages the relationships between the objects to be backed up and their associated logical units among the RAID devices, the relationships between the primary and secondary volumes, and the backup history. This information is contained in dictionary map files. Application Agent references the dictionary map files in order to automatically control the database and RAID devices, thus reducing the workload on system administrators and the storage system's TCO.

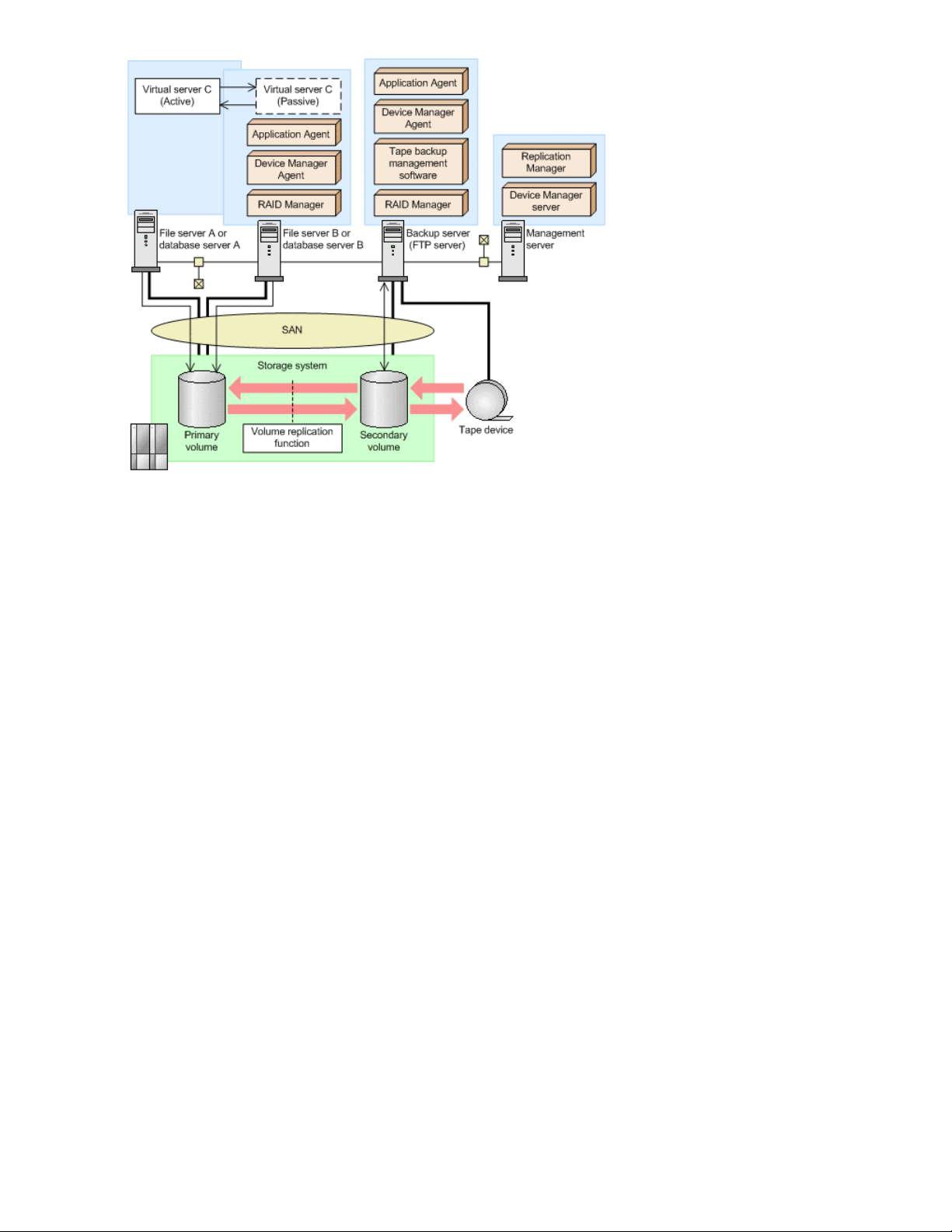

The following figure provides an overview of how Application Agent interacts with various storage media.

Application Agent CLI User Guide 27

Figure 1 Overview of Application Agent

The following describes how Application Agent controls other software components. The numbers below correspond to those in the figure above:

1. Application Agent quiesces (pauses) file systems or databases in storage systems in order to

ensure reliable backup operations.

2. By using RAID Manager, Application Agent backs up or restores volumes that have already been

operated on using the functions built into the storage systems.

3. Application Agent operates in conjunction with other tape backup management software to

perform tape backup or restore operations.

NOTE:

Application Agent utilizes a CLI to communicate with RAID Manager and other tape backup management software. RAID Manager and one other tape backup management software must be installed before using Application Agent.

Application Agent functions

This section describes the key functions provided by Application Agent and their benefits.

Backing up data

Application Agent provides two backup commands. One backup command uses the volume replication function of the storage system to perform a high-speed disk copy operation. The other backup command (in conjunction with another tape backup management software) backs up the data on the secondary volume to a tape device. You can use whichever backup command most suits your specific needs. Having two options for backups is useful because it decreases the amount of expertise required to back up file systems or databases managed by DBMSs.

Overview of Application Agent28

User script files are used to perform a series of backup operations to copy data from a primary volume to a secondary volume, and then from the secondary volume to a tape device. Using these scripts allows system administrators to accomplish a series of commands in just one command.

Restoring data

Application Agent provides various commands that use volume replication functions to restore a database or file system from a backup. You can use whichever restore command most suits your specific needs. Having two options for restoring data is useful because it decreases the amount of expertise required to restore file systems or databases managed by DBMSs.

Managing data by using dictionary map files

Application Agent can detect a variety of configuration definitions required for backup or restore operations, such as information about file systems and databases, and disk management information about RAID devices. Application Agent uses this information and creates a series of files called the dictionary map files.

Application Agent refers to the dictionary map files for using RAID Manager, which helps reduce the workload on system administrators.

The dictionary map files consist of the following files:

Application map file

This file stores information about the relationships between objects in the target database (such as journal logs) and their associated files.

Core map file

This file stores information about the relationships between mount point directories for file systems and disk numbers across RAID devices.

Copy group map file

This file stores information about the connections (mapping) between primary and secondary volumes.

Backup catalog

The backup catalog stores the Application Agent backup history and the information pertaining to generational backups. When a backup is performed, a new record that contains information about the backup is created in the backup catalog. When Application Agent restores data from a backup, Application Agent references the information in the backup catalog.

Information stored in the backup catalog includes the following:

• Backup ID

• Backup start date and time

• Backup source information

• Backup destination information

The backup ID is an ID used to uniquely differentiate sets of backup data. Application Agent automatically assigns a 10-digit backup ID whenever data is backed up, and registers the ID in the backup catalog.

When there are multiple sets of backup data, either because you are managing generations (multiple secondary volumes that are associated with a single primary volume), or because you have backed up data from secondary volumes to a tape device (after making a backup from the primary volume to the secondary volume), you can restore the desired data by specifying the backup ID. You can also specify a backup comment, if you want to be able to specify backup data via a fixed character string instead of the normal 10-digit backup ID.

Application Agent CLI User Guide 29

If you execute Application Agent commands in a cluster configuration, you must specify the location of the dictionary map files to be used for each virtual server. For details on cluster configurations, see “ Cluster support ” on page 30. For details on how to create the dictionary map files in a cluster configuration, see “Creating dictionary map files” on page 130.

Pair management using copy groups

In Application Agent, a primary and secondary volume pair whose synchronization is started and stopped by using volume replication or RAID Manager functions is referred to as a copy group (or pair volume). The following figure shows a logical volume that consists of multiple copy groups.

Figure 2 Logical volume consisting of multiple copy groups

If the logical volume that contains the data you want to back up consists of more than one physical volume, create a copy group (pair volume) for each of the primary and secondary physical volumes. Application Agent can automatically manage multiple copy groups together in order to start and stop the synchronization of the logical volume that you want to back up.

Copy group names consist of a RAID Manager group name (dev_group) and a RAID Manager pair logical volume name (dev_name). For example, if a dev_group is VG01 and a dev_name is dev01, the copy group name will become VG01,dev01.

Cluster support

Application Agent supports failover clustering, which is based on cluster software for a variety of OSs. Applying the cluster configuration to file servers and database servers allows you to perform backups without stopping the system, even if a failure occurs.

Application Agent comes with a function that can automatically control clusters, so that you can take full advantage of the high-availability offered with cluster-based systems. In order to perform a cold backup or restoration of a database, it must be taken offline. If a database is taken offline while the cluster resources that are monitoring the DBMS are still online, a failover will occur. This usually results in the need to control cluster resources manually. However, by utilizing the Application Agent function, cluster resources that monitor the DBMS are automatically taken offline, and then put back online whenever Application Agent is used to perform a cold backup or restore operation for data.

Overview of Application Agent30

Application Agent supports mutual standby cluster configurations (Active-Active) as well as operational standby cluster configurations (Active-Passive).

For details on cluster configurations see “Operation-standby cluster configuration” on page 43 or “Mutual-standby cluster configuration” on page 44.

In a cluster environment using Microsoft Cluster Service or Windows Server Failover Clustering, you can select whether to perform data restoration while cluster resources that monitor the DBMS are in the online state or in the offline state. For a restore operation in which the cluster resources are in the offline state, you need to take all the databases that are using the DBMS services offline. However, for a restore operation in which the cluster resources are in the online state, you only need to take offline the databases that are involved in the restore operation.

Depending on the storage system type and the functionality of the OS, you might not be able to perform a restore operation while the cluster is online.

For details on how to perform a restore operation while the cluster resources are online, see “Setting

up restoration while cluster resources are online” on page 111.

Reducing workload by using commands

Application Agent provides two types of commands: basic and extended commands.

Basic commands are used to perform backups, restore operations, and other operations on backup data, as well as for setting up Application Agent environments.

Execute basic commands in combination to perform Application Agent operations. For example, if you want to perform a tape backup you must execute two commands in combination: a basic command for mounting the primary volume to the secondary volume, and then another command for backing up the data on the secondary volume to a tape device.

Application Agent provides scripts that can automatically execute a series of commands. These scripts are called extended commands. Extended commands make it easier for you to perform backup tasks that use multiple Application Agent commands.

Data management on another storage systems

Application Agent allows you to manage data that is on another storage system (hereafter referred to as a remote site).

Application Agent allows you to back up and restore secondary volumes to and from a local site (the storage system where the primary volume resides) and a remote site (a storage system different from the one where the primary volume resides).

The figure below illustrates the relations between physical volumes and a local site or a remote site.

Application Agent CLI User Guide 31

Figure 3 Data management at a remote site

Managing data at a remote site allows you have a secondary volume in a storage system that is physically different from the storage system where the primary volume resides. Application Agent uses the Continuous Access Software or Continuous Access Journal copy type to back up or restore volumes to or from a remote site.

In this manual, using the volume copy function along with the Continuous Access Software or Continuous Access Journal copy type to copy a volume to a remote site is generically referred to as copying a volume between storage system (or the remote copy function). By backing up data to a remote site, you can restore the data from the remote site should a problem occur in the storage system at the local site. This improves the stability of data. Backing up data on a remote site is a great way to ensure a fast and easy recovery, if and when a disaster occurs, damaging the data on the local site.

Application Agent can perform the following operations on a remote site:

• Back up and restore data

• Re-synchronize a copy group

• Display resource information

• Lock a copy group

• Back up to and restore data from a tape device

• Mount or unmount a secondary volume

Managing generations

Application Agent can manage multiple secondary volumes for a single primary volume. In these cases, the secondary volumes are referred to as generations (or generational backups).

Overview of Application Agent32

When selecting a secondary volume for a backup, you can either manually select the volume you want to use or have Application Agent choose it for you. In order to have Application Agent choose a secondary volume for you, you need to use the volume copy function. When manually selecting a volume, specify the generation name unique to the desired volume. Application Agent creates generation names using the following format:

local_MU# or remote_MU#

Each element used to create a unique generation name is described below:

local

Specify this when the secondary volume will be stored on the same storage system as the primary volume.

remote

Specify this when the secondary volume will be stored on a different storage system than the primary volume.

MU#

The MU number defined in the RAID Manager configuration definition file (horcmn.conf).

When you back up data to a Continuous Access Software secondary volume (on a remote site), the assigned generation name is remote_0.

The following figure shows an example of what happens when backing up multiple generations. In this example, because a maximum of only three generations can be made, after generations 1 to 3 are created, the fourth generation (generation 4) must write over one of the preexisting volumes. In this case, the oldest volume (generation 1) is overwritten. Generations 5 and 6 follow the same pattern of overwriting the oldest, existing generation.

Figure 4 Backing up multiple generations

Normally, Application Agent automatically determines which secondary volume to use for the backup destination. However, if there are specific secondary volumes that you do not want to use for backup purposes, you can use a Application Agent command to lock the contents of the secondary volumes.

The figure below illustrates the process of backing up multiple generations when a specific copy group is locked. In this example, after generation 1 is obtained, the generation 1 copy group is locked in order to prevent it from being overwritten. As a result, the remaining secondary volumes, 2 and 3, are used as containers for any remaining generations.

Application Agent CLI User Guide 33

Figure 5 Backing up multiple generations when a copy group is locked

The order in which secondary volumes are used for backups does not change regardless of which generation you might decide to restore at some point in time.

The number of generations that Application Agent can manage, and the backup and restore operations available are all dependent on the volume replication functions of the particular storage system.

Overview of Application Agent34

2 Application Agent system configurations

This chapter describes the system configurations and volume configurations required for using Application Agent as well as provides precautions applicable to those configurations. The descriptions in this chapter apply to the Application Agent CLI.

Basic configurations for backing up and restoring data

This section describes the basic system configurations and provides precautions applicable to using Application Agent to back up and restore data.

The following basic configurations can be used for backing up and restoring data with Application Agent:

• Configurations in which data is backed up and restored within a storage system

• Configurations in which data can be backed up and restored between two storage systems

• Configurations in which data is backed up on tape devices

Configurations in which data is backed up and restored within a storage system

In order to use Application Agent to back up or restore data between a primary volume and a secondary volume, connect a file server or a database server to the storage system.

Install Application Agent on the file server or the database server. You can now execute backup and restore commands.

The following is an example of a system configured to back up and restore data within a storage system. A file server or database server allows you to manage only the primary volume.

Application Agent CLI User Guide 35

Figure 6 Example of a system configured to back up and restore data within a storage system

Configurations in which data can be backed up and restored between two storage systems

Application Agent supports the use of Continuous Access Software and Continuous Access Journal for backing up and restoring data on the storage systems of remote sites, as a safeguard in the event of storage system failure at a local site. This subsection describes the configurations in which data can be backed up between two storage systems (local and remote sites).

Application Agent supports the following configurations as a system configuration for backing up and restoring data between storage systems:

• Continuous Access Software and Continuous Access Journal configuration

• Business Copy and Continuous Access Software multi-target configuration

• Business Copy and Continuous Access Journal multi-target configuration

• Continuous Access Software and Continuous Access Journal multi-target configuration

• Business Copy (multi-generation), Continuous Access Software, or Continuous Access Journal

configuration

The following explains each of these configurations.

Continuous Access Software or Continuous Access Journal configuration

Application Agent supports the Continuous Access Software or Continuous Access Journal configuration as the basic configuration for backing up and restoring data between storage systems.

The following figure shows a Continuous Access Software or Continuous Access Journal system configuration diagram.

Application Agent system configurations36

Figure 7 Continuous Access Software or Continuous Access Journal system configuration

Business Copy and Continuous Access Software multi-target configuration

Application Agent supports a multi-target configuration for Business Copy and Continuous Access Software.

The following figure shows the Business Copy and Continuous Access Software multi-target configuration diagram.

Application Agent CLI User Guide 37

Figure 8 Business Copy and Continuous Access Software multi-target configuration

Business Copy and Continuous Access Journal multi-target configuration

Application Agent supports a multi-target configuration for Business Copy and Continuous Access Journal.

The following figure shows the Business Copy and Continuous Access Journal multi-target configuration diagram.

Application Agent system configurations38

Figure 9 Business Copy and Continuous Access Journal multi-target configuration

Continuous Access Software and Continuous Access Journal multi-target configuration

Application Agent supports a multi-target configuration for Continuous Access Software and Continuous Access Journal.

The following figure shows the Continuous Access Software and Continuous Access Journal multi-target configuration diagram.

Application Agent CLI User Guide 39

Figure 10 Continuous Access Software and Continuous Access Journal multi-target configuration

Business Copy (multi-generation), Continuous Access Software, or Continuous Access Journal configuration

Application Agent supports a system configuration for Business Copy (multi-generation), and Continuous Access Software, or Continuous Access Journal.

The following figure shows the Business Copy (multi-generation) and Continuous Access Software, or Continuous Access Journal configuration diagram.

Application Agent system configurations40

Figure 11 Business Copy (multi-generation), Continuous Access Software, or Continuous Access Journal configuration

Precautions on backing up and restoring data between storage systems

• Regarding pair creation of paired volumes between storage system

Application Agent does not automatically create paired volumes when it backs up data between

a local site and a remote site. Users must create a pair of paired volumes in advance.

• Regarding data backup from one primary volume to multiple volumes between storage system

Application Agent supports only data backup from one primary volume to one secondary volume.

It cannot back up data from one primary volume to multiple secondary volumes.

• Regarding data backup from multiple primary volumes to multiple secondary volumes between

storage system

Concurrent backup from multiple primary volumes to multiple secondary volumes requires that the

secondary volumes have the same generation number. To assign the same generation number to

multiple secondary volumes, specify the same number in MU#s defined in the RAID Manager

configuration definition file (horcmn.conf). For the system configuration, check the hardware

specifications.

The following figure shows a configuration diagram for concurrent backup from multiple primary

volumes to multiple secondary volumes.

Application Agent CLI User Guide 41

Figure 12 Example of configuration for concurrent backup from multiple primary volumes to multiple secondary volumes (remote copy)

• Regarding start of RAID Manager instances between storage systems

RAID Manager instances between a local site and a remote site are not automatically started. Start the RAID Manager instances on the remote site in advance.

Configurations using tape devices

To store data backed up to tape by using Application Agent, the system needs two servers: a file server or a database server that manages the primary volume, and a backup server connected to the tape device.

When using this configuration, install Application Agent both in the file server or database server and in the backup server, and then execute commands for the primary volume from the file server or database server, and for the secondary volume from the backup server, respectively.

The following is an example of a system configured to store backed-up data to tape. A file server or database server allows you to manage only the primary volume. A backup server allows you to manage only the secondary volume.

Application Agent system configurations42

Figure 13 Example of a system configured with a tape device

Configurations for operation in cluster environments

This section describes configurations for operation when a database server and a file server are used in a cluster environment.

Application Agent supports the following configurations:

• Operation-standby cluster configurations

• Mutual-standby cluster configurations

Operation-standby cluster configuration

Application Agent can handle a two-node cluster configuration of the operation standby type (Active-Passive) on a database server and file server.

The following is an example of a cluster configuration of the operation standby type (Active-Passive). You can build a cluster configuration using file servers or database servers. You cannot allocate one cluster server to a file server or database server and the other cluster server to a backup server.

Application Agent CLI User Guide 43

Figure 14 Example of a cluster configuration of the operation standby type (Active-Passive)

To execute Application Agent commands in a cluster configuration of the operation standby type (Active-Passive), you need to assign a storage destination for the dictionary map files used by each virtual server. For about the dictionary map files in a cluster configuration, see “Creation in an

Active-Passive cluster configuration” on page 131.

Mutual-standby cluster configuration

Application Agent can handle a cluster configuration of the mutual standby type (Active-Active) on a database server and file server. A cluster configuration of the mutual standby type is a multiple structure of operation standby type environments.

The following is an example of a cluster configuration of the mutual standby type (Active-Active). You can build a cluster configuration using file servers or database servers. You cannot allocate one cluster server to a file server or database server and the other cluster server to a backup server.

Application Agent system configurations44

Figure 15 Example of a cluster configuration of the mutual standby type (Active-Active)

To execute Application Agent commands in a cluster configuration of the mutual standby type (Active-Active), create a dictionary map files for each virtual server. Additionally, you need to assign a storage destination for the dictionary map files used by each virtual server. For details about the dictionary map files in a cluster configuration, see “Creation in an Active-Active cluster

configuration” on page 133.

Configurations when VSS is used

Application Agent can use VSS to back up data when the backup is of a file system or an Exchange database.

Normally, when database data stored on a storage system volume is copied to another volume, access from hosts (database applications) must be suspended and the database must be frozen. If VSS is used, however, the OS functionality can control transactions for database applications and I/O operations for a volume, and the database can be frozen without the previously mentioned suspensions. This provides higher reliability for backup operations.

Application Agent requires two servers (one file server or database server and one backup server) when it uses VSS to back up data. The file server and database server manage primary volumes. The backup server imports VSS snapshots and verifies the Exchange database. The backup server can also store backup results on a tape.

In this configuration, the user executes the backup and restore commands on the file server or on the database server. On the backup server, the Protection Manager service imports VSS snapshots and verifies the Exchange database via the backup and restore commands. For more information about how to store data in a tape, see “Backing up a file system to tape” on page 253 or “Backing up storage

groups to tape” on page 414.

The following figure is an example of a system configuration where Application Agent uses VSS to back up data.

Application Agent CLI User Guide 45

Figure 16 Example of a system configured to use VSS to back up data

Requirements and precautions for backing up file systems

This subsection explains requirements and precautions when using VSS to back up file systems.

• P9000 RMXP Shadow Copy Provider must be installed both in the file server and backup server

in advance. Note that, if P9000 RMXP Shadow Copy Provider has not been installed on those servers when Application Agent is installed, P9000 RMXP Shadow Copy Provider will be installed together with Application Agent.

• The backup server is required even if data is not backed up to tape, because the backup server

imports VSS snapshots.

• File system write processing is halted for a given length of time (within 10 seconds) during backup.

This processing is resumed after backup has been completed.

• Note on integrity of the backup data for a file system when VSS is used:

When VSS is used to back up a file system, Application Agent obtains a snapshot without using VSS Writer. Although this ensures the integrity of the file system, the integrity of the data for an application that was operating during the backup cannot be ensured.

• Set up the environment of Application Agent to use VSS. For details on environment settings required

to use VSS, see “Specifying settings for using VSS” on page 147.

• All the file systems subject to backup and restoration must be mounted in advance.

• Do not use LUN#0 as a secondary volume for the backup destination. If the LUN#0 disk is used

as a secondary volume for the backup destination, other disks might not be recognized.

Application Agent system configurations46

• Do not mount another volume in a directory on the volume to be backed up. If another volume is

mounted, mounting and restoration for the secondary volume might fail.

• If you change the settings of the following files, use the Services pane in the Windows to restart

the Protection Manager service:

• Application Agent configuration definition file (init.conf)

• RAID Manager-linkage definition file (DEFAULT.dat)

• If Veritas Snapshot Provider is installed on the database server or backup server where a VSS

backup will be performed, make sure you use version Veritas Snapshot Provider 1.04 or later. If a VSS backup is executed using version Veritas Snapshot Provider 1.03 or earlier, the volume

to be backed up might be left with Read-Only and Hidden attributes. If this happens, the drive will not be allocated at system startup.

If this occurs, release these attributes as described in Microsoft Knowledge Base Article 840781.

• If a system failure or other problem causes a VSS backup to be interrupted, the volume that is the

target of the backup might be left with the Read-Only and Hidden attributes. If these attributes remain, the drive will not be allocated at system startup. If this occurs, release the attributes as per Microsoft Knowledge Base Article 840781.

• File systems on a dynamic disk cannot be backed up.

System configurations for backing up SQL Server databases

This section describes system configurations in which Application Agent is used to back up an SQL Server database.

Configurations for restoring an SQL Server database to a host that is not the original host

When the backup is of an SQL Server database, data on a host that differs from the host used for backup can be restored. To restore data by using Application Agent on a host that differs from the host used for backup, the system needs two servers: database server 1 for backup, and database server 2 for restoration. Operations are usually performed on database server 1, but when an error occurs on database server 1, the operations are switched to database server 2.

In this configuration, install Application Agent both in database server 1 and in database server 2. Execute backup commands on database server 1, and restoration commands on database server 2, respectively.

The following is an example of a system configured to restore data on a host that differs from the host used for backup.

Application Agent CLI User Guide 47

Figure 17 Example of a system configured to restore data on a host that differs from the host used for backup

Configurations for using the log-shipping functionality

You can use the log-shipping function to back up an SQL Server database. When you use this function, the system needs two servers: a source server that distributes log files, and a destination server to which the log files are distributed.

When using this configuration, install Application Agent both in the source server and in the destination server.

The following is an example of a system configured to use SQL Server's log-shipping functionality.

Application Agent system configurations48

Figure 18 Example of a system configuration for the log-shipping functionality

Cascade configurations

When the backup is of an SQL Server database, Application Agent can handle the backup to a secondary volume at a remote destination. The backup configuration in this case is called a cascade configuration because backup configuration has multiple hierarchies. For data backup and restoration in a cascade configuration, use user scripts. However, in a cascade configuration consisting of Business Copy volumes only, user script cannot be used.

The following is an example of a cascade configuration consisting of Business Copy volumes and Continuous Access Software volumes when the backup is of an SQL Server database.

Application Agent CLI User Guide 49

Figure 19 Example of a cascade configuration (when the backup is of an SQL Server database)

Multi-target configurations

When the backup is of an SQL Server database, Application Agent can handle a multi-target configuration that backs up data to a remote destination and to a secondary volume with a local environment at the same time. For data backup and restoration in multi-target configuration, use user scripts.

The following is an example of a multi-target configuration when the backup is of an SQL Server database.

Application Agent system configurations50

Figure 20 Example of a multi-target configuration (when the backup is of an SQL Server database)

Requirements and precautions for backing up SQL Server databases

The table below describes the types of data subject to backup in the SQL Server database. Backed-up databases differ depending on option specifications in the backup command (the drmsqlbackup or EX_DRM_SQL_BACKUP command).

Table 1 Types of data subject to backup in the SQL Server database

Database subject to backup

master

model

msdb

Type of file subject to backup

Data file

Transaction log file

Meta file

Data file

Transaction log file

Meta file

Data file

Transaction log file

Backup file name

Same as the backup source file name

Varies depending on the VDI metafile storage directory specified with the -drmsqlinit command

Same as the backup source file name

Varies depending on the VDI metafile storage directory specified with the -drmsqlinit command

Same as the backup source file name

Storage destination for backup files

Secondary volume

Meta file

Varies depending on the VDI metafile storage directory specified with the -drmsqlinit command

Application Agent CLI User Guide 51

Database subject to backup

Type of file subject to backup

Backup file name

Storage destination for backup files

User database

Distribution database

Data file

Transaction log file

Meta file

Data file

Transaction log file

Metafile

Same as the backup source file name

Varies depending on the VDI metafile storage directory specified with the -drmsqlinit command

Same as the backup source file name

Depends on the VDI metafile storage directory specified in the -drmsqlinit command

Secondary volume

When the -system option is not specified, only user databases are backed up.

This file is created when the backup command executes.

When a VDI metafile storage directory was registered by using the drmsqlinit command, the metafile is stored in the registered directory. The file name is backup-ID_database-ID.dmp. When a VDI metafile storage directory was not registered by using the drmsqlinit command, the metafile is stored in the directory that contains the file whose management number (file_id) for SQL Server in the database file is a minimum value. The file name is META_database-ID.dmp.

In Application Agent, data is backed up and restored in physical volumes units so the object configuration of an SQL Server database requires the following:

• Configure the database configuration files that comprise one instance on one physical volume.

Do not store database configuration files that comprise multiple instances on one physical volume.

• Store the following directory and file on a physical volume that does not contain database config-

uration files (*.mdf, *.ndf, and *.ldf):

• Metafile storage directory (except when metafile setting is blank)

• Backup data of the transaction log

Roll-forward recovery processing can be performed if the above directory and file are placed on separate volumes. This is because, even if a restoration is performed, the metadata and transaction log file cannot return to the status they were in when the backup was performed.

Backup processing for Application Agent checks whether these requirements are satisfied. If they are not satisfied, backup processing will terminate with an error.

• You can use the following characters when naming a database:

• ASCII characters

• Multi-byte characters (one character must be expressed by using 1 or 2 bytes)

However, do not use the following characters:

\ / : , ; * ? < > |

Application Agent system configurations52

• Do not use the name META_database-ID (ten digits).dmp for a data file of a database or transaction

log file.

• Backed-up data cannot be restored or recovered by specifying the -undo option during execution

of the drmsqlinit command when there is no registered directory for storing the UNDO file.

• Backup for the transaction log cannot be executed during execution of the drmsqlinit command

when there is no registered directory for storing the transaction log backup file.

• If the system databases (master, model, and msdb) are to be backed up, specify, as the output

destination for SQL Server error log files, a volume different than the one that contains the system databases.

• Store tempdb in a volume other than the user database to be backed up. If it is stored in the user

database subject to backup then, when the user database is restored, tempdb is overwritten by the data restored from the secondary volume while it is online, and consequently the SQL Server might go into an abnormal state. In this case, restart the SQL Server to recreate tempdb and restore the server to a normal state. After restarting the SQL Server, specify a volume other than the user database to be backed up, and then re-execute the restoration. Before re-executing restoration, see “SQL Server database requirements for executing commands” on page 286 to check if the database can properly be restored.

• The database cannot be restored to SQL Servers with the version different from the one at backup.

For example, a database backed up with SQL Server 2005 cannot be restored to SQL Server

2008.

• One execution of the drmsqlbackup command can back up a maximum of 64 databases. If

you want to back up 65 or more databases, execute the drmsqlbackup command more than once.

The following points must be considered if you are using SQL Server:

• In Application Agent, a backup or restoration cannot be performed for database snapshots. If you

want to back up all the instances, delete the database snapshot. If you include the database snapshot in the backup target, the backup will fail.

• The service broker becomes disabled for databases that are restored by using the drmsqlrestore

command. To enable the service broker, execute the following SQL statement after restoration:

ALTER DATABASE [database name database-name] SET ENABLE_BROKER

• If any of the following commands is executed on a database where the database mirroring function

is used, execute the command on the principal server: drmsqlbackup, drmsqllogbackup, drmsqldisplay -refresh

• If a database that uses the database mirroring function is to be restored, release the database

mirroring setting before restoring the database.

• If the system databases (master, model, and msdb) are to be restored in addition to a database

that uses the database mirroring function, release the mirroring setting on the database that is to be restored, restore the system databases, and then restore the database that uses the database mirroring function.

• If you use any of the following commands to delete backup information, the VDI metafile that was

created when the backup was performed will also be deleted. Before deleting the backup information, back up the exported backup information and the VDI metafile.

• drmresync

• drmappcat -delete

• EX_DRM_RESYNC

• For SQL Server 2005, the database configuration files of the resource and master databases are

stored in the same location. Application Agent does not show information about freezing and backup processing for the resource database. The database configuration file of the resource

Application Agent CLI User Guide 53

database is backed up and restored along with the database configuration file of the master database when the system database is backed up and restored.

• For SQL Server 2008, the data compression function is not supported.

• The following features of SQL Server 2008 and SQL Server 2012 are not supported:

• FILESTREAM Data

• Change Data Capture

• Change Tracking

• Backup Compression (Database and Transaction Log)

• SQL Server 2012 supports the following types of data compression:

• Row compression

• Page compression

• Columnstore indexes

• When SQL Server 2012 uses an AlwaysOn availability group configuration, operations for

backing up and restoring user databases on the active node are supported. The following operations are not supported when using an AlwaysOn availability group configuration:

• An operation for backing up and restoring system databases

• An operation for backing up and restoring user databases on the passive node

• For SQL Server 2012, Server Core is not supported. Also, AlwaysOn failover cluster instance

operations using one of the following configurations are not supported:

• A database is stored in the shared folder for the network

• tempdb is stored on a local disk

• A cluster is configured across multiple subnets

Allocating files that comprise a database

Allocate the database file backed up by Application Agent to a volume separate from files not to be backed up.

Application Agent can back up only the database configuration files (the *.mdf and *.ndf data files and the *.ldf transaction log file) and metafiles. Metafiles are generated when the backup command is executed.

For database configuration files that are not subject to backup and for general files, no freezing processing is executed. Therefore, if the primary volume contains a file that is not subject to the freezing processing, pair partitions will be duplicated during file writing, resulting in loss of database integrity.

Allocate only the database configuration files subject to the freezing processing in the primary volume.

Allocation of database configuration files is shown in the figure below.

Application Agent system configurations54

Figure 21 Allocation of database configuration files

Allocating multiple database configuration files to one volume

When multiple database configuration files are allocated to a volume, all databases need to be backed up or restored in a group.

The figure below shows how backup and restoration are performed in this case.

Figure 22 When multiple database configuration files are allocated to a volume

Allocating metafiles

A metafile is a file SQL Server outputs during backup processing. Metafiles store information about database composition and are therefore used in restoration processing.

If you have specified a VDI metafile storage directory by using the drmsqlinit command, when backup data of the secondary volume is backed up to tape, the metafile must also be backed up to the tape (this is not necessary if the metafile is stored in the same directory as the database file).

When you back up to tape, you need to use FTP or a similar method to transfer the metafile created in the metafile storage directory in the database server to the backup server. In this situation, transfer the file in the directory using the same name as in the metafile storage directory in the backup server and allocate the same drive characters.

Metafile allocation on the database server and the backup server is shown in the figure below.

Application Agent CLI User Guide 55

Figure 23 Metafile allocation

Assume that you have a cluster system in which database servers are clustered using Microsoft Cluster Service or Windows Server Failover Clustering, and one of the cluster servers has failed over to the other server. In this case, if a metafile has been stored on a volume in the storage system, the primary volume can be restored from the secondary volume.

HP recommends that you store metafiles in a volume belonging to the resource group of SQL Server so that, even if the cluster resource of SQL Server fails over, you can use the files by having them fail over at the same time.

Metafile allocation for cluster configuration of the operation standby type (Active-Passive) is shown in the figure below.

Application Agent system configurations56

Figure 24 Metafile allocation (in the cluster configuration)

Using a dynamic disk configuration

• Do not allocate a data file made up of multiple instances to a file system (drive) of a disk group

subject to backup and restoration.

• Allocate the following directories and files to a file system (drive) of a disk group different from

the one to which data files (*.mdf and *.ndf) are allocated. If these directories and files are allocated to a file system (drive) of the same disk group, an error will occur when backup is executed.

• Metafile storage directory (only if a VDI metafile storage directory was specified with the

drmsqlinit command)

• Backup data of the transaction log

• To allocate a file that is made up of multiple databases to a file system (drive) of the same disk

group, you must collectively back up and restore all the databases. If these requirements are not met when performing Application Agent backup, backup processing terminates with an error.

• To back up or restore databases individually, allocate database data files to a file system (drive)

of a different disk group.

• Store tempdb in a file system (drive) of a disk group different from the one to which a user database

subject to backup belongs. When the user database is restored if tempdb is stored in a file system (drive) of the same disk

group, tempdb is overwritten by the data restored from the secondary volume in the online state. Then, the SQL Server goes into an abnormal state. In this case, restart the SQL Server to recreate tempdb and restore the server to a normal state. After restarting the SQL Server, specify a file system (drive) different from the one to which a user database subject to backup belongs as a destination in which tempdb is stored, and then re-execute restoration. Before re-executing restoration, see “SQL Server database requirements for executing commands” on page 286 to check if the database can properly be restored.

Application Agent CLI User Guide 57

Using a cluster configuration

• Do not register the service resources of multiple SQL Server instances into a cluster group.

• In a cluster environment, specify a user on each node for the owner of a database subject to

backup. Local users with the same user name and password on different nodes are not considered to be the same user. Therefore, use a domain user account that is common to all nodes. If failover is performed to a node where the database-owner user does not exist, backup fails because the database owner is unknown.

• In a cluster environment, install an SQL Server instance as a failover cluster.

• In a cluster configuration using Veritas Cluster Server for Windows, the file system that contains

registry replication data should not be backed up by Application Agent. Make sure that you allocate such a file system to a disk group or physical disk that is not subject to backup.

System configurations for backing up Exchange databases

This section describes system configurations in which Application Agent is used to back up Exchange databases.

Cascade configurations

When you back up Exchange databases, Application Agent can back up data concurrently at both the local and remote sites. This type of multi-level backup configuration is called a cascade configuration.

To back up a volume in a cascade configuration, you need a database server and a backup server at both the local site and the remote site.

The following figure shows an example of a cascade configuration when Application Agent is used to back up Exchange databases.

Figure 25 Example of a cascade configuration (when backing up Exchange databases)

CCR configurations

Application Agent supports backup in a CCR configuration. CCR is a high availability function of Exchange Server 2007, and includes the following features:

• Ability to ship logs (transaction log replication) between active and standby server volumes.

Application Agent system configurations58

• When VSS backup is used with SCC, backups can be performed only at the active server. However,

when VSS backup is used with CCR, backups can also be performed at the standby server.

• Ability to reduce processing loads on the active server by performing backups on the standby

server.

In this manual, the function that performs seed processing automatically when restoring data is called the automatic seed function. For details about seed processing, see the Exchange Server 2007 manual.

CCR can be configured for performing backups in any of the following four ways:

• Configuration in which only the active server is used

• Configuration in which only the standby server is used

• Configuration in which different backup servers are used for the active and standby servers

• Configuration in which the same backup server is used for the active and standby servers

Configuration in which only the active server is used

The following figure shows an example of a CCR configuration in which only the active server is used.

Figure 26 Example of a CCR configuration (only the active server is used)

Configuration in which only the standby server is used

The following figure shows an example of a CCR configuration in which only the standby server is used.

Application Agent CLI User Guide 59

Figure 27 Example of a CCR configuration (only the standby server is used)

Configuration in which different backup servers are used for the active and standby servers

The following figure shows an example of a CCR configuration in which different backup servers are used for the active and standby servers.

Figure 28 Example of a CCR configuration (active and standby servers use different backup servers)

Configuration in which the same backup server is used for the active and standby servers

The following figure shows an example of a CCR configuration in which the same backup server is used for the active and standby servers.

Application Agent system configurations60

Figure 29 Example of a CCR configuration (active and standby servers use the same backup server)

SCR configurations

Application Agent provides VSS backup and restoration functionality for SCR configuration sources. Limitations on the target configuration are the same as for Exchange Server 2007. For details about the limitations for Exchange Server 2007, see the Exchange Server 2007 documentation.

The following shows an example of an SCR configuration.

Application Agent CLI User Guide 61

Figure 30 Example of an SCR configuration

Application Agent's restore processing provides the SCR seed function that executes seed processing (data resync) in an SCR configuration. The user can set whether the SCR seed function is to be used. The SCR seed function is used in the following cases:

• When a point-in-time restore operation is performed.

• When data integrity between the source and target is known to have been lost when a roll-forward

restore operation was performed.

If at least one of the targets set for each storage group is running, you can perform the restore operation using the seed function.

When the SCR seed function is not used in an SCR configuration, the user must perform seed processing manually after restoration. The following describes seed processing in an SCR configuration:

1. Cancel replication.

2. Delete the Exchange database file, the transaction log file, and the checkpoint file from the target.

3. Resync data from the source to the target.

4. Restart replication.

DAG configurations

A DAG configuration is one type of high-availability functionality in Exchange Server 2010 or Exchange Server 2013. A mailbox database used in a DAG configuration is called a mailbox database copy. A replication-source mailbox database copy is called an active mailbox database copy, and a replication-target mailbox database copy is called a passive mailbox database copy. In a DAG configuration, you can group multiple Exchange databases, and back up mailbox databases within

Application Agent system configurations62

a group. If an error occurs in an active mailbox database copy, you can use the data in a passive mailbox database copy to continue operation.

Application Agent provides backup and restore functionalities for mailbox database copies in the event of a logical error occurring due to issues such as incorrect email transmission and viruses. The restore functionality performs seed processing, which resynchronizes data by copying the passive mailbox database copy to the restored active mailbox database copy.

The DAG configuration manages only mailbox stores, but by using Application Agent, you can specify both mailbox stores and public folder stores at the same time for backup or restore processing. This availability is possible because Application Agent excludes public folder stores from processing related to the DAG configuration, such as stopping replication or the seed function.

There are four types of DAG configurations that use Application Agent:

• Backing up and restoring active mailbox database copies

• Backing up and restoring passive mailbox database copies

• Backing up and restoring the active mailbox database copy and the passive mailbox database

copy by using different backup servers

• Backing up and restoring the active mailbox database copy and the passive mailbox database

copy by using the same backup server

Backing up and restoring active mailbox database copies

The following figure shows an example of a DAG configuration in which an active mailbox database copy is backed up and restored.

Application Agent CLI User Guide 63

Figure 31 Configuration in which an active mailbox database copy Is backed up and restored

Primary volume 1 is the active mailbox database copy, primary volume 2 is the passive mailbox database copy, and the secondary volume is managed by the backup server. The active side manages all the services and backup and restore operations, and the passive side temporarily takes over execution of the active side's services if needed. The data synchronization between the active side and the passive side is accomplished via log shipping. On the active side, data is backed up from primary volume 1 to the secondary volume, and then the data on the secondary volume is stored on a tape device.

If an error occurs on the active side, the passive side takes over the execution of services. You cannot perform any backup or restore operations until the active side recovers from the error. After recovery, seed processing is performed from the passive side, so that the data that was updated while the passive side executing the services is applied to the active side.

If an error occurs on the passive side, seed processing is performed from the active side, so that the data on the passive side is restored.

If logical errors, such as those caused by viruses, occur on both the active side and the passive side, the data is restored from the tape device to the secondary volume, and then from the secondary volume to primary volume 1. The restored data is then applied to primary volume 2 via seed processing.

Backing up and restoring passive mailbox database copies

The following figure shows an example of a DAG configuration in which a passive mailbox database copy is backed up and restored.

Application Agent system configurations64

Figure 32 Configuration in which a passive mailbox database copy Is backed up and restored

Primary volume 1 is the active mailbox database copy, primary volume 2 is the passive mailbox database copy, and the secondary volume is managed by the backup server. The active side manages services, and the passive side takes over execution of the active side's services if needed and also performs backup and restore operations. The data synchronization between the active side and the passive side is accomplished via log shipping. On the passive side, data is backed up from primary volume 2 to the secondary volume, and then the data on the secondary volume is stored on a tape device.

If an error occurs on the active side, the passive side takes over the execution of services. After the active side recovers from the error, seed processing is performed from the passive side, so that the data that was updated while the passive side was executing the services is applied to the active side.

If an error occurs on the passive side, seed processing is performed from the active side, so that the data on the passive side is restored. You cannot perform any backup or restore operations until the passive side has been recovered from the error.

If logical errors, such as those caused by viruses, occur on both the active side and the passive side, the data is restored from the tape device to the secondary volume, and then from the secondary volume to primary volume 2. The restored data is then applied to primary volume 1 via seed processing.

Backing up and restoring the active mailbox database copy and the passive mailbox database copy by using different backup servers

The following figure shows an example of a DAG configuration in which an active mailbox database copy and a passive mailbox database copy are backed up and restored by different backup servers.

Application Agent CLI User Guide 65

Figure 33 Configuration in which an active mailbox database copy and a passive mailbox database copy are backed up and restored by different backup servers

Primary volume 1 is the active mailbox database copy, and primary volume 2 is the passive mailbox database copy. Secondary volume 1 is managed by backup server 1, and secondary volume 2 is managed by backup server 2. The data synchronization between the active side and the passive side is accomplished via log shipping. Data is backed up on both the active side and the passive side, and the data on each secondary volume is stored on a tape device.

If an error occurs on the active side, the passive side takes over the execution of services and also performs backup and restore operations. If a logical error occurs on the passive side while the passive side is executing the active side's services, the data is restored from the tape device to secondary volume 2, and then from secondary volume 2 to primary volume 2. After the active side recovers from the error, seed processing is performed from the primary volume 2, so that the data that was updated while the passive side was executing the services is applied to primary volume 1.

If an error occurs on the passive side, seed processing is performed from the active side, so that the data on the passive side is restored.

If logical errors, such as those caused by viruses, occur on both the active side and the passive side, the data is restored from the tape device to secondary volume 1, and then from secondary volume 1 to primary volume 1. The restored data is then applied to primary volume 2 via seed processing.

Application Agent system configurations66

Backing up and restoring the active mailbox database copy and the passive mailbox database copy by using the same backup server

The following figure shows an example of a DAG configuration in which an active mailbox database copy and a passive mailbox database copy are backed up and restored by the same backup server.

Figure 34 Configuration in which an active mailbox database copy and a passive mailbox database copy are backed up and restored by the same backup server

Primary volume 1 is the active mailbox database copy, and primary volume 2 is the passive mailbox database copy. Secondary volume 1 and secondary volume 2 are managed by the backup server. The data synchronization between the active side and the passive side is accomplished via log shipping. Data is backed up on both the active side and the passive side, and the data on each secondary volume is stored on a tape device.

If an error occurs on the passive side, seed processing is performed from the active side, so that the data on the passive side is restored.

Application Agent CLI User Guide 67

Comparison of DAG configurations

The following table compares the four types of DAG configurations that use Application Agent. Refer to this table when setting up your system.

Table 2 Comparison of DAG configurations

Fault tolerance

If an error occurs on the backup server or the backup volume, backup and restore operations are not available.

Backup and restore operations are still available if an error occurs on one backup server or on one backup volume.

Configuration 4Configuration 3Configuration 2Configuration 1Item

Backup and restore operations are still available if an error occurs on one backup volume. Backup and restore operations are not available if an error occurs on one backup server.

More backup servers and backup volumes are required than in Configuration 1 and Configuration 2.

The verification time is double that of the other configurations

Verification time is shorter than in Configuration 4, although two backup volumes are used, because each backup volume is managed by a different backup server.

because two backup volumes are used and only one backup server manages these volumes. However, you can specify the

VERIFY_PARALLEL_COUNT paramet-

er to perform verification processing in parallel to shorten the time required.

Cost

Time required for verification

Fewer backup servers and backup volumes are required than in Configuration 3 and Configuration 4.

Verification time is shorter than in Configuration 4 because only one backup volume is used.

Legend:

Configuration 1: Configuration in which the active mailbox database copy is backed up and restored

Configuration 2: Configuration in which the passive mailbox database copy is backed up and restored

Configuration 3: Configuration in which the active mailbox database copy and the passive mailbox database copy are backed up and restored by different backup servers

Configuration 4: Configuration in which the active mailbox database copy and the passive mailbox database copy are backed up and restored by the same backup server

Application Agent system configurations68

Requirements and precautions for backing up Exchange databases

The following table describes the types of data subject to backup in the Exchange database.

Table 3 Types of data subject to backup in the Exchange database

ExtensionFiles subject to backupDatabase subject to backup

Data files (Exchange Server Information Store)

Exchange Server storage group

Data files

Exchange Server Information Store

Files with the .stm extension exist only in Exchange Server 2003.

In Application Agent, data is backed up and restored in physical volumes units so the object configuration of an Exchange database requires the following:

• The files to be backed up must all be placed on a RAID volume defined as a pair.

• Deploy the storage group or Information Store by taking into consideration that the unit for backup

is physical volumes. In Exchange Server 2003 or Exchange Server 2007:

• If you deploy multiple storage groups in the same physical volume, you need to back up or restore these storage groups as one group. When backing up or restoring a storage group separately, deploy the storage group on a separate physical volume.

In Exchange Server 2010 or Exchange Server 2013:

• If you deploy multiple Information Stores on the same physical volume, you need to back up or restore these Information Stores as one group. When backing up or restoring an Information Store separately, deploy the Information Store on a separate physical volume.

Transaction log files

Checkpoint files

*.edb

*.stm

*.logTransaction log files

*.chkCheckpoint files

*.edb

*.log

*.chk

• When you place an Exchange database that is subject to backup on the volume, note the following:

In Exchange Server 2003 or Exchange Server 2007:

• You cannot put the transaction log file (*.log) on a volume where a data file is placed.

• For online backup and VSS backup, data files (*.edb, *.stm) and checkpoint files (*.chk)

cannot be allocated to the same volume.

In Exchange Server 2010 or Exchange Server 2013:

• When you back up a database, you cannot put the transaction log file (*.log) on the same volume that holds a data file (*.edb). Data is restored in physical volumes units so you will not be able to perform a roll-forward restore operation if you put both the transaction log file and the database file on the same physical volume. You must therefore put the transaction log file and the database file on different physical volumes.

• When you set a name for a storage group or Information Store, note the following:

Application Agent CLI User Guide 69

• Maximum length: 64 characters

• Characters that cannot be used = ; \ / ,

• The operations shown below change information pertaining to the Exchange Server on the Active

Directory, so if you perform any of these operations you will no longer be able to restore backup data obtained before these operations (that is, you will no longer be able to use the drmex- grestore or EX_DRM_EXG_RESTORE command):

• Modification of the paths of the Information Store, log, and system files.

• Addition or deletion of storage groups.

• Modification of the storage group name.

• Addition of an Information Store to a storage group.

• Deletion of an Information Store from a storage group.

If you have performed any of the above operations, you will need to back up the Active Directory and the Exchange database again. To perform a backup for the Active Directory, follow the instructions given in documentation provided by Microsoft.

• Performing any of the operations shown below changes the database name, and you will no

longer be able to restore and recover backup data obtained before these operations (that is, you will no longer be able to use the drmexgrestore or EX_DRM_EXG_RESTORE command with the -recovery option specified):

• Repairing Information Store using the ESEUTIL utility (ESEUTIL /p).

• Defragmentation using the ESEUTIL utility (ESEUTIL /d).

If you have performed any of these operations, you will have to execute the drmexgbackup or EX_DRM_EXG_BACKUP command, and then back up the Exchange database again.

• You can use a circular log only when using Exchange Server 2003 to perform a cold backup or

• The recovery storage groups for Exchange Server 2003 and Exchange Server 2007 cannot be

• The recovery database for Exchange Server 2010 and Exchange Server 2013 cannot be backed

• When using Fast Snap or Snapshot, you cannot perform a back up to tape by using Application

• When using Exchange Server 2003, you can use cold backup and online backup. When using

• Of the high-availability functions in Exchange Server 2007, only SCC, CCR, and SCR are suppor-

Using VSS

This section describes requirements and precautions used when VSS is used to back up an Exchange database.

online backup. However, if you use a circular log, the oldest log among the existing log files is deleted when a new log file is created. This means that some logs might disappear at roll-forward. For this reason, when performing roll-forward recovery, do not use a circular log.

backed up. The files and folders that make up the recovery storage group must be placed on a different file system from the storage groups to be backed up.

up. The files and folders that make up the recovery database must be placed on a different physical volume from that of the database to be backed up.

Agent. Therefore, use another backup product to make a tape backup of an Exchange database that is on the primary volume.

Exchange Server 2007, Exchange Server 2010, or Exchange Server 2013, you can use only VSS backup.

ted. LCR is not supported.

• P9000 RMXP Shadow Copy Provider must be installed in advance, on both the database server

and the backup server. If P9000 RMXP Shadow Copy Provider has not been installed on those servers when Application Agent is installed, P9000 RMXP Shadow Copy Provider will be installed together with Application Agent.

Application Agent system configurations70

• The backup server is required even if data is not backed up to tape. This is because the backup

server imports VS snapshots and verifies the Exchange database.

• If Veritas Snapshot Provider is installed on the database server or backup server where a VSS

backup will be performed, make sure you use version Veritas Snapshot Provider 1.04 or later. If a VSS backup is executed using version Veritas Snapshot Provider 1.03 or earlier, the volume

to be backed up might be left with Read-Only and Hidden attributes. If this happens, the drive will not be allocated at system startup and Exchange Server will not operate normally. If this occurs, release these attributes as described in Microsoft Knowledge Base Article 840781.

• If a system failure or other problem causes a VSS backup to be interrupted, the volume that is the

target of the backup might be left with the Read-Only and Hidden attributes. If these attributes remain, the drive will not be allocated at system startup, and Exchange Server will not operate normally. If this occurs, release the attributes as per Microsoft Knowledge Base Article 840781.

• If you want to perform a VSS backup, perform a restoration, or delete transaction logs while Ex-

change Server is operating, you must make sure that certain services are running. The services that must be running differ depending on the version of Exchange Server.

For Exchange Server 2003, Exchange Server 2007, or Exchange Server 2010:

Microsoft Exchange Information Store Service must be running.

For Exchange Server 2013:

Microsoft Exchange Information Store Service and Microsoft Exchange Replication Service must be running.

• During backup, the database write processing of Exchange Server shuts down for a certain period

(up to 10 seconds). During that period, the database write processing of Exchange Server (such as sending mail) is suspended. After backup finishes, the database write processing of Exchange Server is resumed.

• Since the number of log files might increase during backup operations by VSS, when you perform

backup by using VSS, the backup results might contain a log file that has not been recorded in the catalog.

• Set the environment of Application Agent to use VSS. For details on environment settings required

to use VSS, see “Specifying settings for using VSS” on page 147.

• The Information Stores of the storage group that are to be backed up must all be mounted in ad-

vance.

• When Protection Manager version 4.4 or earlier is used to back up storage groups, the Information

Stores of storage groups to be restored must all be mounted in advance. When Protection Manager version 5.5 is used, the Information Stores do not need to be mounted in advance in order to be restored.

• If the name of the Exchange database has been changed, you must perform the following opera-

tions:

• For Exchange Server 2003 or Exchange Server 2007, unmount all of the Information Stores

in the relevant storage group and then remount them.

• For Exchange Server 2010 or Exchange Server 2013, unmount and then remount the Inform-

ation Stores.

• Do not use LUN#0 as a secondary volume for the backup destination. If the LUN#0 disk is used

as a secondary volume for the backup destination, other disks might not be recognized.

• When data is backed up, a folder named DRMVSSMETADATA_backup-ID is created in the root

directory of the secondary volume. Do not delete this folder, as a backup metadata file necessary for restoration is stored in it. This folder is automatically deleted after data has been restored.

• Do not mount another volume in a directory on the volume to be backed up. If another volume is

mounted, mounting and restoration for the secondary volume might fail.

Application Agent CLI User Guide 71

• It might take a long time to execute the backup command for VSS backup, because the VSS import

server verifies the backup result database. The time required to verify the database depends on factors such as the database capacity, the backup server's machine performance, and disk performance. Also, an option can be specified in the drmexgbackup or EX_DRM_EXG_BACKUP command used for completing the backup operation without verifying the database. If you omit the verification, HP recommends that you use the drmexgverify or EX_DRM_EXG_VERIFY command to verify the database before performing restoration or backing up data to tape.

Note that, although an option is provided for the drmexgbackup or EX_DRM_EXG_BACKUP command to delete transaction logs after backup without verification, if this option is used when the database is corrupted, roll-forward recovery might not be able to be performed.

• The following are the files verified during database verification when backup is performed by using

VSS:

• Data files in the Information Store (*.edb)

• Transaction log files that have not been committed (*.log)

• Note on approximate periods required for database verification when a backup is performed by

using VSS:

• For Exchange Server 2003, Application Agent uses the ESEUTIL utility to verify databases.

The table below lists the approximate amount of time required to verify a database. Note that the approximate amount listed in the table only apply under certain conditions, and are not a guarantee product performance.

Table 4 Approximate amount required to verify Exchange Server 2003 database for backup by using VSS

Amount of time required for database verification

10 seconds2500 MB• CPU: Pentium 4 1.5 GHz

35 seconds22 GB

System configuration for the database server

• Memory: 1 GB

• Storage system: XP128

Capacity of the data file (*.edb)

Number of transaction log files (*.log)

• The following table lists the approximate amount of time required to verify a database for Exchange Server 2007.

Table 5 Approximate amount required to verify Exchange Server 2007 database for backup by using VSS

Amount of time required for database verification

3 hours5500 GB

System configuration for the backup server

• CPU: 3.0 GHz x 2

• Memory: 6 GB

• Storage system: HP

XP24000

Capacity of the data file (*.edb)

Number of transaction log files (*.log)

Application Agent system configurations72

• The following table lists the approximate amount of time required to verify a database for Exchange Server 2010.

Table 6 Approximate amount required to verify Exchange Server 2010 database for backup by using VSS

Backup server system configuration

• CPU: 3.0 GHz x 2

• Memory: 4 GB

• Storage system: HP P9500

• If you change settings for the following files, restart the Protection Manager service:

• Application Agent configuration definition file (init.conf)

• RAID Manager-linkage definition file (DEFAULT.dat)

• For the storage groups subject to backup and restoration, do not enable circular logs. If a circular

log is enabled, you cannot perform backup and restoration by using VSS.

Data file capacity (*.edb)

Number of transaction log files (*.log)

Amount of time required for database verification

30 minutes5100 GB

Restoring backup data obtained using VSS in units of Information Stores

When using Exchange Server 2003 and Exchange Server 2007, you can restore backup data obtained using VSS in units of Information Stores (in units of *.edb and *.stm data files). Restoring backup data in units of Information Stores makes it possible to quickly restore just the required data files.

To restore backup data in units of Information Stores, you must partition the disk into units of data to be restored. Therefore, take into account the unit of restoration when allocating data files.

Database configurations that allow restoration in units of Information Stores

• Configurations in which only the Information Store data files (*.edb and *.stm) to be restored

individually are stored on separate disks

• Configurations in which only Information Store data files (*.edb and *.stm) to be restored

individually are stored on the same disk

• Configurations in which multiple Information Store data files within the same storage group are stored on the same disk

You can perform restoration of all Information Stores stored on the same disk provided that you specify all the Information Stores. In this case, if you do not specify all Information Stores stored on the same disk, the command will end with an error.

Database configurations that do not allow restoration in units of Information Stores

• When data files (*.edb and *.stm), transaction log files (*.log), and check point files (*.chk) in different storage groups are located on the same disk, Information Stores below a storage group that shares the disk cannot be restored individually.

Application Agent CLI User Guide 73

The table below lists the conditions for allocating files when restoring backup data in units of Information Stores.

Table 7 Conditions for allocating files when restoring backup data in units of Information Stores

Files on the same disk

Restoration target

No other files

Information Store that is a restoration target

Information Stores in the same storage group

Information Stores in different storage groups

*.stm*.edb*.stm*.edb*.stm*.edb

*.edb

NNAAI--

NNAA--I*.stm

Legend:

I: Can be restored individually. A: Can be restored provided all Information Stores on the same disk are specified. N: Cannot be restored individually.

--: Not applicable

The figure below shows a database configuration that allows restoration in units of Information Stores.

Figure 35 Restoration in units of Information Stores (when the backup target is an Exchange database)

In the above example, Information Stores from IS11 to IS14 belong to the storage group SG1. In this case, you can restore backup data in the following units:

• Restore only IS11 individually

Application Agent system configurations74

• Restore only IS12 individually

• Restore IS13 and IS14 at the same time (you cannot restore just one)

NOTE:

When restoring backup data in units of Information Stores, you must apply (roll forward) the transaction log at the time of restoration. For details on precautions relating to executing commands at restoration, see the description for the drmexgrestore command in the manual

Software Application Agent CLI Reference Guide

Using a dynamic disk configuration

• Dynamic disks are supported only by Exchange Server 2003.

• If multiple storage groups are allocated to a file system (drive or mount point directory) of the same

disk group, you must collectively backup or restore these storage groups.

• To back up or restore storage groups individually, allocate them to a file system (drive or mount

point directory) of a different disk group.

• When allocating an Exchange database subject to backup to a file system (drive or mount point

directory), note the following points:

• You cannot allocate the transaction log file (*.log) to a file system (drive or mount point dir-

ectory) of the same disk group to which data files are allocated.

• For online backup, you cannot allocate the data files (*.edb, *.stm) and checkpoint file (*.chk) to a file system (drive or mount point directory) of the same disk group.

HP P9000 Replication Manager

• The recovery storage groups for Exchange Server 2003 cannot be backed up. Allocate files and

folders that comprise a recovery storage group to a file system (drive or mount point directory) of a disk group different from a storage group subject to backup.

Using a cluster configuration

• Do not register the instances of multiple Exchange resources into a cluster group.

• In a cluster environment, when restoring data in a physical node different from that used during

backup, an Exchange virtual server that uses the same shared disk as that used during backup must be running. Application Agent cannot restore data for an Exchange virtual server, such as one at a remote site, that uses a disk different from the one used during backup.

Using the Veritas Cluster Server for Windows

• The status of the cluster resource groups must be online during backup. If it is not online, the backup

command (drmexgbackup or EX_DRM_EXG_BACKUP) will end in error.

• The file system that stores registry replication data should not be backed up via Application Agent.

Make sure that you allocate such a file system to a disk group or physical disk that is not subject to backup.

• Application Agent uses Veritas Cluster Server Enterprise Agent for Microsoft Exchange to manage

the Exchange services and Exchange protocol services. Do not change the default name for the resource type ExchService and ExchProtocol provided by Veritas Cluster Server Enterprise Agent for Microsoft Exchange. Veritas Cluster Server Enterprise Agent for Microsoft Exchange is bundled with Veritas Storage Foundation.

Application Agent CLI User Guide 75

Using Microsoft Cluster Service or Windows Server Failover Clustering

If you are using Exchange Server 2003 or Exchange Server 2007, note the following points:

• Among the cluster resource groups, the Exchange System Attendant resource and the Exchange

Information Store resource must be online during backup. If they are not online, the backup command (drmexgbackup or EX_DRM_EXG_BACKUP) will result in an error.

• When using VSS, the following conditions must be satisfied regarding the relationship between

the cluster resource and the Exchange Information Store resource to be operated: For Exchange Server 2003:

Except for the relationship between the cluster resource and the Exchange System Attendant resource to be operated, do not set the Exchange Information Store resource to go offline when a cluster resource goes offline.

For Exchange Server 2007:

Do not set the Exchange Information Store resource to go offline when the cluster resource to be operated goes offline.

Cascade configuration

• Backups in an SCC environment are supported.

• Backups must be executed on the active server of a cluster.

• A disk with Remote Copy defined must be registered as a disk resource of the cluster.

• The primary volume of Remote Copy must be connected to the active server.

• The secondary volume of Remote Copy must be connected to the standby server.

• When you concurrently back up at both the local and remote sites, different backup servers must

be used at each site.

• The Protection Manager service must be running at both the local and remote sites.

• When you back up by using VSS, the VSXPHORCMINST_REMOTE system environment variable

must be set for the backup server at the remote site.

• You must create a definition file for the cascade configuration. For details about creating a

definition file for the cascade configuration, see “Creating a cascade configuration definition file

for Exchange database backup” on page 151.

• You must store the dictionary map files and backup catalog on different disks at both the local

and remote sites. These disks must be accessible regardless of whether the virtual server is online or offline.

• The dictionary map files at both the local and remote sites must be updated with the most recent

information.

• The RAID Manager instance for managing Remote Copy must be active.

• If the RAID Manager instance used for managing Remote Copy is the same as the RAID Manager

instance managed by Application Agent (the RAID Manager instance specified for the HORCMINST parameter in the RAID Manager-linkage definition file), after you update the dictionary map files, you must use the drmcgctl command at both the local and remote sites to lock the Remote Copy copy groups.

• Before you back up, you must use the RAID Manager command to set the Remote Copy pair status

to PAIR.

• Before you back up, you must conceal the secondary volume of the local copy at both the local

and remote sites.

• When you back up, you must set the Exchange virtual server name to the DRM_HOSTNAME envir-

onment variable.

Application Agent system configurations76

• If an error occurs after backup of the local site is complete but before backup of the remote site

is complete, you cannot restore using the data backed up at the local site.

• Before you restore, you must use the RAID Manager command to set the Remote Copy pair status

to PSUS (SSUS).

• You can only restore backup data obtained at the site that is being restored. You cannot restore

backup data that was obtained at a different site.

CCR configuration

• With a CCR configuration, you must manage dictionary map files and backup catalogs separately

for the active and standby servers. The dictionary map files and backup catalogs acquired by each of the servers are used by the respective database servers and by the backup servers used by these database servers.

• If the active and standby servers use the same backup server, the active and standby servers must

use different copy group names for the disk to which the backups are saved.

• The active and backup servers cannot back up the same storage group concurrently. Wait until

execution of the backup command is finished on the first server before you begin backup on the other server.

• With VSS backup, the active and backup servers can back up different storage groups concurrently.

• If a transaction log is deleted, roll-forward cannot be performed using backup data that was ac-

quired earlier than the deleted transaction log.

• Backup data can be restored only to the node on which the backup was performed. The backup

data acquired at the active server cannot be restored to the standby server, and the backup data acquired at the standby server cannot be restored to the active server.

• To restore a backup acquired at the standby server, you must perform a fail-over operation on the

active server so that the standby server is switched to the active server.

• In a CCR environment, the replication function must be stopped before you perform a point-in-time

restore operation.

• If data on the active server becomes corrupted or if the database is restored, you must perform

seed processing (data resync). If you use the automatic seed function, all seed processing is performed automatically during res-

toration. If you do not use this function, you must manually perform seed processing for each storage group. If an error occurs during restoration using the automatic seed function, you must manually perform seed processing on the storage group that resulted in the seed processing error.

The following describes how to perform manual seed processing:

• Stop the replication function.

• Delete the Exchange database file, the transaction log file, and the checkpoint file on the

standby server.

• Resynchronize the standby server with the active server data.

• Restart the replication function.

• If you use the automatic seed function, the EXG_CCR_SEED parameter value must be ON in the

Exchange environment configuration file that is specified in the -ef option of the restore command. For details about the Exchange environment configuration file, see “Creating the Exchange envir-

onment configuration file” on page 219.

• If you use the automatic seed function, the Protection Manager service must be active on the

standby server.

• If you use the automatic seed function, the same version of Application Agent must be installed

on both the active and standby servers. To use the automatic seed function, the same version of Application Agent must be installed on

both the active and standby servers.

Application Agent CLI User Guide 77

• The following is a guideline for determining the time required for seed processing:

Seed processing time per storage group (seconds) = capacity-of-database-subject-to-seed-processing (MB)/25 (MB/second)

For the above formula to be applicable, the following conditions must be satisfied:

• The network used for seed processing is a Gigabit Ethernet.

• The server used for seed processing has sufficient performance (such as CPU and disk perform-

ance) to adequately run the installed applications (such as Application Agent, Exchange Server, and tape backup management softwares).

SCR configuration

• If you use the SCR seed function, the same version of Application Agent as the source must be

installed on all targets.

• If you use the SCR seed function, the EXG_SCR_SEED parameter value must be set to ON in the

Exchange environment configuration file that is specified in the -ef option of the restore command.

• If you use the SCR seed function, the Protection Manager service must be active on all targets.

• SCR is not supported in a cascade configuration.

• If you perform a point-in-time restore without using the SCR seed function, the replication function

to be restored will be stopped, but seeding or replication will not be restarted. After the restoration, manually perform seed processing.

• To perform a backup for a database in an SCR configuration, the following conditions must be

satisfied:

• The source Microsoft Exchange Replication Service must be running.

• For storage groups in which SCR is enabled, replication statuses of all targets are Healthy.

• A storage group that has been specified as the source can be backed up or restored by using

VSS.

• The guideline for determining the time required for SCR seed processing is described below.

For the formula shown below to be applicable, the following conditions must be satisfied:

• Gigabit Ethernet is employed for the network that is used for seed processing.

• The CPU and disks have sufficient performance.

Note that depending on CPU or disk performance, the actual processing time might be shorter than the result calculated by the following formula. The calculation result should be used for estimation, and it does not guarantee the product performance.

Seed processing time per storage group (seconds) = capacity-of-database-subject-to-seed-pro- cessing (MB) * the-number-of-targets / 25 (MB/second)

DAG configuration

The following conditions must be satisfied when backing up the database in a DAG configuration:

• To back up the active mailbox database copy, see “Using VSS” on page 70.

• To back up the passive mailbox database copy, the conditions below must be satisfied in addition

to the conditions in “Using VSS” on page 70. If any of the conditions are not satisfied, a message indicating an error is displayed and you cannot perform backup.

• The active mailbox database copy must be mounted for the passive mailbox database copy that is to be backed up.

• Microsoft Replication Service must be running on the Exchange Server that performs the backup.

Application Agent system configurations78

• For Information Stores for which DAGs are enabled, the replication status of each passive

mailbox database copy to be backed up must be Healthy.

• For a mailbox database copy, you cannot back up both the active mailbox database copy and

the passive mailbox database copy at the same time. Wait until the backup command executed for one mailbox database copy is finished before executing the backup command for the other mailbox database copy.

• To restore the backup data, the mailbox database copy to be restored must be in the active status.

If it is not in the active status, a message indicating an error is displayed.

• Backup data can be restored only by the Exchange Server that backed up the data. An Exchange

Server cannot restore backup data that was obtained by a different Exchange Server.

• Correct execution of the replication function after restoration requires seed processing. If you do

not perform seed processing, the replication function will not return to normal.

• If you use the seed function in a DAG configuration, for the -ef option, you need to specify an

Exchange environment configuration file in which the EXG_DAG_SEED parameter value is set to ON. If the Exchange environment configuration file does not have this setting (for example, the first

priority is finishing a restoration or deferring seed processing), seed processing will not be executed.

• If you perform a restore operation without using the seed function in a DAG configuration, the

replication function for the object to be restored stops, and seed processing is not executed. After the restore operation finishes, you will need to manually start seed processing and the replication function.

• If you want to perform a roll-forward restore operation in a configuration in which mailbox database

copies on both the active side and the passive side are backed up, specify the option for deleting transaction logs only for the active side or only for the passive side. This is because if an option for deleting transaction logs is executed, the transaction log information for other mailbox database copies will be also deleted. HP recommends that you specify the option for deleting transaction logs only for the active side or only for the passive side to prevent all of the transaction logs from being deleted and to improve redundancy.

• When you perform a restore operation, the Microsoft Exchange Replication Service must be running

on an Exchange Server that is operating as the primary active manager.

• Even when you execute seed processing after performing a point-in-time restore operation, the

copy queue length might not be 0. To switch over mailbox database copies in this state, use Exchange Management Shell.

• Example command: Move-ActiveMailboxDatabase database-name -ActivateOn- Server switchover-target-server-name -SkipLagChecks:$True -MountDialOverride:Besteffort

• You cannot perform a backup operation in an environment in which both an active mailbox

database copy and a passive mailbox database copy exist.

• When you perform a point-in-time restore of the passive mailbox database copy backup, the active

mailbox database copy might be restored to a status it was in before the execution of the backup command. To avoid this problem, perform the following procedure:

1. Stop the database copy.

2. Reseed the database.

3. Back up the passive mailbox database copy.

• Automatic reseed cannot be used with Exchange Server 2013.

• For Exchange Server 2013, before performing the restore, you must stop the Microsoft Exchange

Search Host Controller Service on the database server. The following problems might occur when you stop the Microsoft Exchange Search Host Controller

Service:

Application Agent CLI User Guide 79

• Users cannot search items with Outlook Web App or Outlook (online mode). However, users can search items with Outlook in cache mode.

• When you execute the Get-MailboxDatabaseCopyStatus command, Failed appears for ContentIndexState.

• After you restart the Microsoft Exchange Search Host Controller Service, the index processing starts again. At this time, ContentIndexState changes from Failed to Healthy, and the processing required before you can resume email searches on Outlook Web App might take some time.

Requirements when using RAID Manager to configure a pair volume

Application Agent uses the pair volumes defined by RAID Manager to back up or restore a file system or database object. When you create a pair volume by using RAID Manager, abide by the following rules:

• You cannot configure a paired volume so that the same server manages both the primary volume

and secondary volume as physical disks.

Figure 36 Configuration for managing the primary volume and secondary volume from the same server (without using Application Agent)

• A copy group must consist of pair volumes for the same application. When a copy group consists

of more than one pair volume and there are pair volumes for different applications in the copy group, an unexpected backup or restoration might be performed.

• When using Business Copy, configure the pair volume in the storage system. When using Continu-

ous Access Software, configure the pair volume between the storage systems.

Application Agent system configurations80

• Application Agent operates the pair volumes for Business Copy, Fast Snap, Snapshot, Continuous

Access Software or Continuous Access Journal.

• Application Agent cannot back up or restore volumes paired by Flex Copy or Auto LUN.

• Depending on the version of RAID Manager, the model of the storage system, and the version of

the microcode, the functionality for acquiring the copy type of the pair volume (copy group) might not be supported. Because of this, Application Agent might not be able to correctly recognize whether the copy type of a pair volume (copy group) is supported, since the copy type cannot be retrieved. Thus, if you configure a system in which Flex Copy pair volumes and Business Copy, Fast Snap, or Snapshot pair volumes co-exist, since the Flex Copy pair volumes (copy groups) are not supported, make sure that they are disregarded as backup or restoration targets, by locking them with the drmcgctl command.

• When using Continuous Access Software, do not enter an MU number in the MU# setting in the

RAID Manager configuration definition file (horcmn.conf). If 0 is defined for the MU# setting, volume information for the Continuous Access Software pair will not be stored in the dictionary

map when you execute a drmXXdisplay# command with the -refresh option specified. Therefore, the volume information cannot be displayed by the Application Agent command, and the pair volume cannot be backed up.

drmXXdisplay indicates the drmfsdisplay, drmsqldisplay, or drmexgdisplay command.

• When using Continuous Access Journal, define h0 (h and a generation number) for the MU#

setting in the RAID Manager configuration definition file (horcmn.conf). If 0 is defined for MU#, the Continuous Access Journal information will not be stored in the dictionary map when you execute a drmXXdisplay command with the -refresh option specified. Therefore, volume information cannot be displayed by the Application Agent command, and the pair volume cannot be backed up.

• When using Continuous Access Software or Continuous Access Journal, make sure that you start

the RAID Manager instance that manages the secondary volume (the RAID Manager instance that manages the primary volume when you are executing the command in a backup server) in advance.

• The RAID Manager configuration definition file (horcmn.conf) of a RAID Manager instance that

links with Application Agent must satisfy the following conditions:

• The RAID Manager configuration definition file (horcmn.conf) must be in the Windows dir- ectory (%windir%).

The environment variable HORCM_CONF cannot be used to change the location of the RAID Manager configuration definition file (horcmn.conf).

• The instance number (n) in the RAID Manager configuration definition file name (horcmn.conf) must include only numeric characters. Also, note that 0 must not be placed before numeric characters.

Examples of valid file names: horcm1.conf, horcm120.conf Examples of invalid file names: horcm001.conf, horcmA20.conf

• When using Continuous Access Software or Continuous Access Journal, make sure that you create

a pair before executing a Application Agent command. If you do not, the pair volume cannot be backed up.

• When performing a backup or restoration on a database server, make sure that you unmount the

secondary volume in advance. If you do not, unexpected backup or restoration might be performed.

• When you want to mix the pair volumes for Business Copy and Continuous Access Software, the

following system configurations can be used:

Application Agent CLI User Guide 81

Figure 37 System configuration (when the primary volume for Business Copy and the primary volume for Continuous Access Software are the same LDEV)

When using the configuration shown in Figure 37 to restore the paired volume for Business Copy by using Application Agent, set the status of the paired volume for Continuous Access Software to SMPL or PSUS (SSUS). When you restore the pair volume for Business Copy with the status of a pair volume for Continuous Access Software PAIR, an error message indicating that the status of the copy group is invalid is output and the restore operation fails.

Application Agent system configurations82

Figure 38 System configuration (when the secondary volume for Business Copy and the primary volume for Continuous Access Software are the Same LDEV)

When using the configuration shown in Figure 38 to back up or restore the paired volume for Business Copy using Application Agent, set the status of the paired volume for Continuous Access Software to SMPL or PSUS (SSUS). When you back up or restore a pair volume for Business Copy with the status of a pair volume for Continuous Access Software PAIR, an error message indicating that the status of the copy group is invalid is output and the backup or restore operation fails.

Application Agent CLI User Guide 83

Figure 39 System configuration (In a Business Copy cascade configuration, when the volume subject to backup operates both as the primary volume and the secondary volume)

In a Business Copy cascade configuration, Application Agent only supports backup and restore operations for the pair volumes of the primary volumes used in the database or the file system.

When using a Business Copy cascade configuration as shown in Figure 39 and the volume subject to backup serves both as the primary volume and secondary volume, set the paired volume status on the secondary volume to SMPL and SSUS. Similarly, for restoration, set the status to SMPL.

• For the consistency group definitions It is necessary to consider how Application Agent backup

and restore operations are performed when defining consistency groups. Perform a backup or restore operation after defining consistency groups as described below:

• Define consistency groups while considering the operations for restoring the databases. Pay extra attention to the definitions if partial restoration of databases backed up at the same time will be performed.

• For SQL Server databases If restoring individual databases separately: Define one consistency group to one database to make each database in a separate consistency

group. If restoring multiple databases together: It is possible to define consistency groups to make databases that are always restored together

in a same consistency group.

• For Exchange databases If restoring individual Information Stores separately: Define consistency groups to make each Information Store of data files (*.edb, *.stm) in a

same consistency group. In addition, define consistency groups to make the transaction log files and checkpoint files (*.log, *.chk) of each storage group in a same consistency group.

If restoring multiple Information Stores together: It is possible to define consistency groups so that the data files (*.edb, *.stm) of Information

Stores that are always restored together are in one consistency group. In addition, define consistency groups to make the transaction log files and checkpoint files (*.log, *.chk) of each storage group in a same consistency group.

If restoring individual storage groups separately: Define consistency groups to make each file type of each storage group in a separate consist-

ency group. However, if rolling forward is not performed when restore and recovery operations are performed, it is possible to define consistency groups to make all files of each storage group are in a same consistency group.

If restoring multiple storage groups together:

Application Agent system configurations84

If not using VSS: It is possible to define consistency groups to make files of the same file types of multiple storage

groups that are always restored together are in a same consistency group. However, if rolling forward is not performed when restore and recovery operations are performed, it is possible to define consistency groups to make all files of the storage groups that are always restored together are in a same consistency group.

If using VSS: Define consistency groups to make files of each file type of each storage group in a separate

consistency group. However, if rolling forward is not performed when restore and recovery operations are performed, it is possible to define consistency groups to make all files of each storage group are in a same consistency group.

• Define consistency groups to make each consistency group correspond to one RAID Manager configuration definition file group (dev_group) so that the same copy groups are in each consistency group and RAID Manager configuration definition file.

The figures below show the relationships between databases, volumes, consistency groups, and RAID Manager groups.

Application Agent CLI User Guide 85

Figure 40 In XP Continuous Access Asynchronous/Continuous Access Journal configuration: restoring UserDB1 and UserDB2 together or separately

Figure 41 In XP Continuous Access Asynchronous/Continuous Access Journal configuration: restoring UserDB1 and UserDB2 together

• For information about precautions to take when changing a volume configuration, see “Precautions

when changing a volume configuration” on page 92.

• Even if there are pair volumes created in the storage system, you cannot use them unless they have

RAID Manager configurations defined on the host.

• For an environment that uses virtual command device as a command device, start the RAID Manager

instances on the virtual command device server before executing Application Agent CLI so that the virtual command device is in a state that can be used. Since Application Agent CLI itself does not activate nor stop the RAID Manager instances on the virtual command device server, when Application Agent CLI is executed but the virtual command device is in a state that cannot be used, an error will occur.

If an error occurs, check the log file for RAID Manager on the server where Application Agent CLI was executed and confirm that the cause of the error is the virtual command device (\\.\IP-

Application Agent system configurations86

CMD-IP-address-PORT-number), take measures based on the confirmed information, and then start Application Agent CLI operation once again.

Volume configurations usable by Application Agent

The table below describes volume configurations that Application Agent can back up and restore.

Table 8 Volume configurations that Application Agent can back up and restore

Logical volume manager

LDM

Veritas Storage Foundation

Disk management method

Basic disk

Volume-configuration unit that Application Agent can back up and restore

Location where a database or file to be backed up and restored is stored

File system on a disk partitionPhysical disk

File system on a logical volumePhysical diskBasic disk

File system on a logical volumeDisk groupDynamic disk

Legend:

--: Not applicable

GPT disks are supported.

VSS cannot be used.

When using a Windows dynamic disk , you can use the logical volume manager to group one or more physical volumes and use the group as one or more logical volumes. Specifying a logical volume enables users to back up and restore data without needing to consider any physical volume.

The unit for grouping physical volumes and logical volumes is called a disk group.

In Application Agent dynamic disk configuration, a group of one or more dynamic disks and one or more logical volume groups allocated to a dynamic disk is called a disk set. In Figure 42, part of the physical volume A is allocated to the logical volume A, and the rest of the physical volume A and part of the physical volume B are allocated to the logical volume B. Likewise, the rest of the physical volume B and part of the physical volume C are allocated to the logical volume C, and the rest of the physical volume C is allocated to the logical volume D. In this case, a group of the four logical volumes to which the contents of the three physical volumes are allocated is one disk set (disk set 1). Also, if you allocate all the contents of one physical volume to one logical volume, you can make a one-to-one relationship disk set (disk set 2).

In the Veritas Storage Foundation environment, when configured, a disk group is recognized as one or more disk sets. In this environment, Application Agent backs up and restores data using a disk group as the minimum unit.

The following figure shows examples of a disk set configuration and of a relationship between a disk group and a disk set.

Application Agent CLI User Guide 87

Figure 42 Examples of a disk set configuration and of a relationship between a disk group and a disk set

In this manual, unless it is necessary to distinguish between Veritas Storage Foundation and LVM disk groups, both groups are generically referred to as a disk group.

Application Agent can also simultaneously back up a basic disk and a disk group.

When a dynamic disk is being used, Application Agent supports both of the following configurations:

• One disk group is used as one logical volume.

• One disk group is divided into multiple logical volumes.

When a basic disk is being used, Application Agent supports only a configuration where one physical disk is used as one logical volume (partition).

NOTE:

For Windows, before using Application Agent, make sure that Automatic mounting of new volume is disabled on the database server or backup server.

Perform the following procedure to check the current status, and if Automatic mounting of new volume is enabled, disable it:

1. Execute the diskpart command in the command prompt.

2. Enter automount to display the current status.

3. If Automatic mounting of new volumes enabled. is displayed, enter automount

disable to disable the setting.

4. Type exit to end the diskpart command execution.

Application Agent system configurations88

Examples of disk group configurations usable by Application Agent

If you configure a disk group with logical volume manager, Application Agent can be used only when one or more physical volumes constitute one disk group. You cannot divide one physical group into multiple disk groups.

The following figure shows examples of disk group configurations usable by Application Agent.

Figure 43 Examples of disk group configurations usable by Application Agent

In the Windows dynamic disk configuration, when multiple disk groups exist in a file system, Application Agent collectively backs up and restores all the mount points in disk groups. It cannot back up only some drives in a disk group.

The following figure shows data backup and restoration in a system configuration where multiple disk groups exist in a file system.

Application Agent CLI User Guide 89

Figure 44 Data backup and restoration in a system configuration where multiple disk groups exist in a file system

In this figure, disk groups DG01 and DG02 each of which consists of two physical volumes are configured. Three logical volumes are created on DG01 and one logical volume is created on DG02. Mount points D:, E:, and F:, are assigned to DG01 and mount point G: assigned to DG02.

In this case, specifying a mount point directory batch definition file in the drmfsbackup command enables Application Agent to back up data. In this mount point directory batch definition file, the mount points of all the file systems defined in the disk groups are written.

Example:

In this example, the command uses the mount point directory batch definition file mp_dg01.dat to specify the mount points D:, E:, and F: of DG01, and the mount point G:of DG02:

PROMPT> drmfsbackup mp_dg01.dat -mode cold KAVX0001-I The drmfsbackup command will now start. KAVX0019-I Copying file(s) now... KAVX0040-I The backup ID has been assigned as follows: Backup ID = 0000000001 KAVX0002-I The drmfsbackup command will now end. PROMPT>

For example, specifying DG02 file system (G:) following the -target option of the drmfsrestore command enables Application Agent to restore only DG02. Executing the drmfsrestore command without -target option restores both DG01 and DG02 file systems.

Application Agent system configurations90

Example:

Restore only the file system created in disk group DG02 after backing up disk groups DG01 and

DG02.

PROMPT> drmfsrestore 0000000001 -resync -target G: KAVX0001-I The drmfsrestore command will now start. KAVX0019-I Copying file(s) now... KAVX0002-I The drmfsrestore command will now end. PROMPT>

Requirements and precautions for volume configurations

This section describes the requirements and precautions for volume configurations when Application Agent is used.

Volume configuration requirements

• You cannot use Application Agent in a configuration where a physical volume is divided into

multiple disk groups using logical volume manager.

• Do not use any functions for expanding or reducing the capacity of a logical volume. If you use

such functions, Application Agent will not perform backup and restoration correctly. This is because the number of physical volumes that make up the logical volume changes according to the change in capacity of the logical volume. Application Agent checks whether the configuration of logical volumes has been changed and, if changed, restoration terminates with an error.

• If the volumes to be processed by Application Agent contain an LDEV for which a mode other

than the normal mode is specified for the access level by using Data Retention Utility, neither a backup nor a restoration can be performed.

• When executing backup and restoration of file systems and databases, Application Agent mounts

and unmounts the volume subject to processing. In this situation, set the mount point directory name as follows:

Maximum number of characters: The specifiable path length depends on the limitation for the RAID Manager mount or unmount functionality:

- When performing a disk backup: The path length limitation described above applies to the length of the path where the volume for

which cold backup operations are to be performed has been mounted.

- When backing up to tape: The path length limitation described above applies to the length of the path where the volume for

which disk backup operations are to be performed has been mounted. This limitation also applies to the length of the path where the secondary volume for which tape backup operations are to be performed is mounted.

Usable characters: Characters that can be used for a folder name in Windows (you cannot use a null character).

• One mount point can be specified for each logical volume.

• Allocate database files and file systems that are not subject to backup and restoration so that they

are not included in the same disk configuration unit as those that are subject to backup and restoration.

• Allocate database files and file systems that are backed up simultaneously but can be restored

separately so that they are not included in the same disk configuration unit as those that are subject to backup and restoration.

Application Agent CLI User Guide 91

• If one disk group contains multiple physical volumes, Application Agent performs volume duplication

operation for backup only by the number of physical volumes.

• Do not define the following as copy groups, and do not specify them as backup targets: directories

at a directory mount point, or volumes mounted to a drive. Also, configure directory mount points that are backup targets so that they are on the same directory level.

The following shows a configuration example of a mounted directory that can become a backup target. In the figure below, data files and log files are mounted to a directory and specified as backup targets.

Figure 45 Configuration example of a mounted directory that becomes a backup target

The following shows a configuration example of a mounted directory that does not become a backup target. When the configuration places a mount point directory on a directory below a volume, higher-level volumes that contain a volume that was mounted to a directory cannot be specified as a backup target.

Figure 46 Configuration example of a mounted directory that does not become a backup target

Precautions when changing a volume configuration

• If the following operations or changes are performed on a logical volume manager that is a backup

operation target, or on a file system or RAID Manager configuration definition file (horcmn.conf), then update the dictionary map files before executing backup. Note that if you execute backup without updating the dictionary map files, a system inconsistency might occur. To update the dictionary map files, use the drmfsdisplay, drmsqldisplay, or drmexgdisplay command. For details about how to use these commands, see the HP P9000 Replication Manager Software Application Agent CLI Reference Guide.

• A new file system was mounted on a directory under the file system.

• A file system was unmounted.

• A file system was moved to another directory and mounted.

Application Agent system configurations92

• A disk group was deleted or disabled.

• A logical volume allocated to a disk group was added or deleted.

• A physical volume belonging to a disk group is added, deleted, or replaced.

• A change was made in the RAID Manager configuration definition file (horcmn.conf), such

as the adding or deleting of a pair volume.

• If you made changes to a configuration involving an update of the dictionary map files, to restore

the data backed up before the change to a file server or database server, first restore the configuration for the logical volume manager and file system to the state that was in place at the time the backup was created, and then perform restoration. Note that if you perform restoration incorrectly, a system inconsistency might occur. To review the configuration that was in place at the time the backup was created, use the drmfscat, drmsqlcat, or drmexgcat command. For details about how to use these commands, see the HP P9000 Replication Manager Software Ap- plication Agent CLI Reference Guide. For details about restoration when a physical volume is replaced, see Appendix C on page 553.

Requirements and precautions when a disk group Is configured

When you operate Application Agent in a disk group configuration managed by Veritas Storage Foundation, the following prerequisites apply:

• The same OS, version revision, and service pack are installed on all the Windows servers subject

to backup and restoration by Application Agent.

• The physical disk subject to backup and restoration does not include a system (OS startup) disk.

• All the physical disks subject to backup and restoration are LUs of a storage system device and

for which a pair volume is defined.

• The dynamic volume is a concatenated volume (simple volume or spanned volume).

• HP recommends that one disk group consist of one concatenated volume.

• Striped volumes, mirrored volumes, and RAID5 volumes are not supported.

• You must dynamically recognize the secondary volume when backing up secondary volumes

(dynamic disk backup destinations) of multiple generations to tape.

Using dynamic disks in Veritas Storage Foundation

Prerequisites for the Veritas Storage Foundation environment and disk groups are as follows:

• Veritas Storage Foundation with the same version revision and service pack is installed on all the

Windows servers subject to backup and restoration by Application Agent.

• Do not back up and restore data with Veritas Storage Foundation functions because the disk group

configurations managed by Application Agent might be changed.

• Disk group names must be unique in all the systems that back up and restore data. If multiple file

servers or database servers are sharing one backup server, the disk group names used by the file server and database server might be duplicated in the backup server. If this occurs, Application Agent is unable to uniquely recognize the disk groups in which data to be backed up to tape is stored.

• Application Agent cannot back up and restore primary disk groups.

• Installing Veritas Storage Foundation enables you to use Veritas Enterprise Administrator instead

of Windows disk management. Do not use Veritas Enterprise Administrator during execution of Application Agent.

Application Agent CLI User Guide 93

Backing up and restoring dynamic disks by dynamically or statically recognizing secondary volumes

Dynamically recognizing secondary volumes:

• When Application Agent dynamically recognizes the secondary volume, the Demount Device

Warning message is output to the Windows event log.

Statically recognizing secondary volumes:

• Do not rescan disk information with disk management, Veritas Enterprise Administrator, or the

diskpart or vxassist command. A Foreign disk, Failed volume, or Missing disk appears, making it impossible for Application Agent to recognize the disk configuration correctly. If there is an application that is using the appropriate disk, an unexpected write error might occur.

If Application Agent is unable to recognize the disk configuration correctly, restore the disk configuration in the following procedures. However, restoration of application data being executed when disk information is being rescanned is not guaranteed.

1. Execute Import Foreign Disk Format for the Foreign disk with Disk Management.

2. Execute Reactivate Volume for the Failed volume. This mounts the file system and restores the

original configuration. HP recommends that you execute CHKDSK (disk check) for the restored file system.

• If you change a disk configuration on a physical disk (e.g., by volume expansion), update the

dictionary map files on the file server or database server, back up the files to a volume once as in initial construction, and then restart the backup server. This enables the server to recognize the secondary volume disk configuration correctly.

Expanding dynamic volumes

• If you expand a dynamic volume, update the dictionary map files.

• When you expand a dynamic volume, HP recommends that you do not expand it to a new phys-

ical disk that does not belong to the disk set. This expansion will cause multiple disk sets to join. If you change a volume configuration such that multiple disk sets are joined, when restoring prejoin data, you must return the dynamic disks to the basic disks, restore the disk set configuration to the pre-join configuration, and then restore all pre-join disk sets.

• Once you have expanded a dynamic volume, you cannot restore data backed up before the ex-

pansion. If you want to restore data backed up before expanding the dynamic volume, return the volume configuration to the configuration that existed before the expansion and then update the dictionary map files.

Precautions for partition styles for disks

• After performing a backup, disk partition styles cannot be modified.

When replacing a disk, the same partition style that was in use at the time the backup was performed must be applied to the disk.

• If the partition style was changed after the backup was performed, and you execute the restore

command (drmfsrestore, drmsqlrestore, or drmexgrestore), or you execute the drmdevctl command by specifying either the -sigview or -sigset option, the operation might

end with an error. In this case, change the partition style to the one that was in use when the backup was performed.

• When the backup target is being managed in a cluster configuration, the disk signatures for the

primary volume and secondary volume must be the same signatures when the backup was per-

Application Agent system configurations94

formed. To view the backup signatures that were created when the backup was performed, execute the drmdevctl command by specifying the backup ID and the -sigview option.

Application Agent CLI User Guide 95

Application Agent system configurations96

3 Preparation for using Application Agent

This chapter explains the flow of environment setup required for using Application Agent, and gives details on each step in the environment setup. The descriptions in this chapter apply to the Application Agent CLI.

Setting up an environment for Application Agent

Table 4-1 shows the procedures for setting up an environment for Application Agent and the tasks required for each server. To set up the environment, refer to the tasks marked "Needed" for each type of server in the table.

Sometimes Application Agent commands need to be executed during environment setup. Administrator permissions are required to execute Application Agent commands. For details on user permissions for executing commands, see “Permissions required for users executing commands” on page 233.

NOTE:

If you omit specifying the parameters for setting up an environment or specify an invalid value (a value that cannot be set), the default values will be used.

Table 9 Application Agent environment setup tasks needed for each kind of server

File serv-

Environment setup task

er or database

Backup server

File name

server

Set up the

Set up the environment for prerequisite

products.

volume replication functionality of the storage system.

Set up RAID Manager

Set up the tape backup management software

Not needed

NeededNeeded

RAID Manager configuration definition file (horcmn.conf)

--Needed

Sections and documents for reference

Documentation for the storage system

Setting up RAID Manager, page 100

Documentation for the tape backup management software

Application Agent CLI User Guide 97

Environment setup task

Set up Application Agent operations.

Specify settings for linkage with RAID Manager.

Create a cluster information configuration definition file.

File server or database server

Backup server

NeededNeeded

Not neededNeeded

File name

Application Agent configuration definition file (init.conf)

RAID Manager-linkage definition file (DEFAULT.dat)

--NeededNeededCreate dictionary map files.

Cluster information configuration definition file (cluster-name.dat)

Sections and documents for reference

Setting up operation of Application Agent, page 106

Setting up Application Agent for linkage with RAID Manager, page 115

Creating dictionary map files, page 130

Specifying cluster configuration settings and creating a definition file, page 136

Create a database configuration definition file (when the backup is of an SQL Server database).

Specify the SQL Server

Specify settings related to linkage with an SQL

server

Specify settings for using VSS (when the backup is of a file system or an Exchange database).

Create a definition file for the cascade configuration (when backing up an Exchange database)

Specify the SQL Server automatic recovery time

Creating a

Not neededNeeded

NeededNeeded

Not neededNeeded

Database configuration definition file (instance-name.dat)

sqlinit_instance-name.conf

VSS definition file (vsscom.conf)

Definition file for the cascade configuration (Exchange-virtual- server-name.dat)

database configuration definition file, page 142

Specifying settings related to linkage with an SQL Server, page 144

Specifying settings for using VSS, page 147

Creating a cascade configuration definition file for Exchange database backup, page 151

Preparation for using Application Agent98

Environment setup task

File server or database server

Backup server

File name

Sections and documents for reference

Set up linkage with a tape backup management software.

Specify settings for batch operations.

Update the dictionary map files.

Perform preparation for executing extended commands.

Specify settings for sending mail.

Not needed

Needed

Not neededNeeded

Configuration definition file for linkage with a tape backup management software (DE- FAULT.dat)

Configuration definition file for tape backup

Any fileNeededNeeded

User script file (any file name)Not neededNeededCreate a user script.

Mail send definition file (mail.conf)

--NeededNeeded

Setting up linkage with a tape backup management software, page 155

Creating a list file, page 161

Updating a dictionary map file, page 164

Preparations required before executing extended commands, page 181

Creating a user script, page 203

Specifying settings for sending mail, page 212

Back up the operating environment of Application Agent.

Create an Exchange environment settings file.

Exchange environment settings

Not neededNeeded

file (Exchange-environment- settings-file-name.conf)

--NeededNeeded

Legend:

Needed: This setup task is needed. Not needed: This setup task is not needed.

--: File setting is not required.

To use SQL Server's log-shipping functionality, the source server and distribution-destination servers must have the same environment settings as the database server.

In each storage system, set up the volume replication functionality of the storage system.

Backing up the Application Agent operating environment, page 214

Creating the Exchange environment configuration file, page 219

Application Agent CLI User Guide 99

Specify these settings when a command has ended with an error (with the error message KAVX1008-E).

This is not required for a backup server. When a primary volume exists in the backup server, the dictionary map files must be updated.

When the primary volume does not exist in the backup server, updating of the dictionary map files is not necessary.

Setting up RAID Manager

To back up data by using Application Agent, you need to create a RAID Manager configuration definition file (horcmn.conf, when n is the instance number) for each instance, to match the intended usage.

The location of the RAID Manager configuration definition file (horcmn.conf) is as follows:

system-drive\Windows

NOTE:

• Do not specify a path to the configuration definition file in the HORCM_CONF environment variable.

• When using the Device Manager agent on the same host as Application Agent, do not set the

server.agent.rm.pairDefinitionForm property in the server.properties file. For details about the server.agent.rm.pairDefinitionForm property, see the

Command View Advanced Edition Suite Software Administrator Guide

HP P9000

In Application Agent, a pair of a primary volume and secondary volume is managed as a copy group. A copy group is defined by a combination of dev_group and dev_name specified in a RAID Manager configuration definition file.

Application Agent does not allow duplication of copy group names on the same server. If more than one RAID Manager instance is activated, make sure that the combination of dev_group and dev_name is unique among all the RAID Manager configuration definition files.

If the system contains both a copy group that is subject to Application Agent backup operation and a copy group that is not subject to Application Agent backup operation, the conditions below must be met. If an Application Agent command is executed when the conditions below are not met, pair volumes that are not subject to backup operation will enter an unexpected state.

• A copy group that is subject to Application Agent backup operation and a copy group that is not

subject to Application Agent backup operation must be defined with different dev_group names.

• The primary volumes of all copy groups defined with the same dev_group name as a copy group

that is subject to Application Agent backup operation must be connected to a database server or file server.

In addition, HP recommends that you define pair volumes that are not subject to Application Agent backup operation in the RAID Manager configuration definition file (horcm.conf) of a RAID Manager instance that is different from the one used by Application Agent.

Application Agent supports the HORCM_LDEV section of the RAID Manager configuration definition file (horcmn.conf) if the RAID Manager version is 01-18-03/06 or later. Application Agent supports the HORCM_ALLOW_INST and HORCM_LDEVG sections in configuration definition files (horcmn.conf) if the RAID Manager version is 01-24-03/12 or later.

Preparation for using Application Agent100

HP BL465c User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Application Agent CLI User Guide

Preface

1 Overview of Application Agent

Application Agent features

Application Agent functions

Backing up data

Restoring data

Managing data by using dictionary map files

Pair management using copy groups

Cluster support

Reducing workload by using commands

Data management on another storage systems

Managing generations

2 Application Agent system configurations

Basic configurations for backing up and restoring data

Configurations in which data is backed up and restored within a storage system

Configurations in which data can be backed up and restored between two storage systems

Continuous Access Software or Continuous Access Journal configuration

Business Copy and Continuous Access Software multi-target configuration

Business Copy and Continuous Access Journal multi-target configuration

Continuous Access Software and Continuous Access Journal multi-target configuration

Business Copy (multi-generation), Continuous Access Software, or Continuous Access Journal configuration

Precautions on backing up and restoring data between storage systems

Configurations using tape devices

Configurations for operation in cluster environments

Operation-standby cluster configuration

Mutual-standby cluster configuration

Configurations when VSS is used

Requirements and precautions for backing up file systems
