HP 6710b User Manual

Download
Page 1
QuickSpecs

Overview

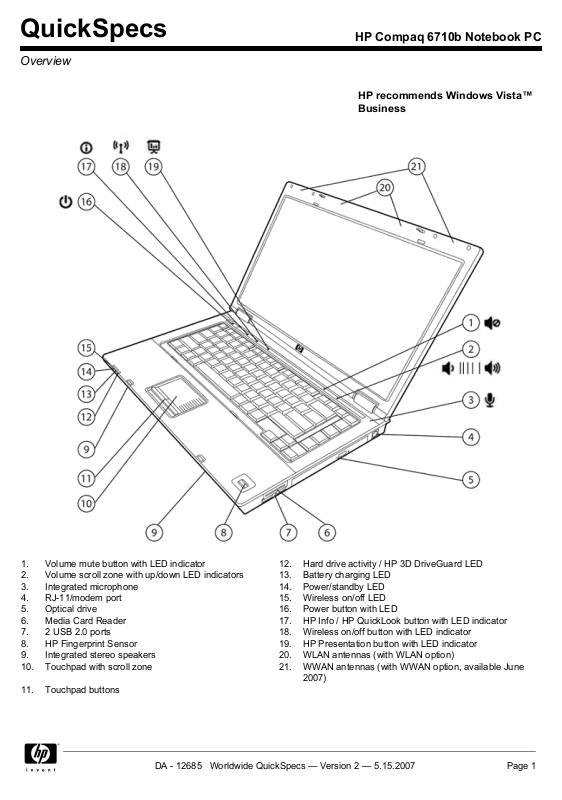

HP Compaq 6710b Notebook PC
HP recommends Windows Vista™ Business
1.
Volume mute button with LED indicator
2.
Volume scroll zone with up/down LED indicators
3.
Integrated microphone
4.
RJ-11/modem port
5.
Optical drive
6.
Media Card Reader
7.
2 USB 2.0 ports
8.
HP Fingerprint Sensor
9.
Integrated stereo speakers
10.
Touchpad with scroll zone
11.
Touchpad buttons
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
2007)
Page 1
Page 2
QuickSpecs
Overview
1.
Power connector
2.
2 USB 2.0 ports
3.
Stereo headphone/line out
4.
Stereo microphone in
5.
1394a port
6.
Type I/II PC Card slot
HP Compaq 6710b Notebook PC
7.
PC Card eject button
8.
S-Video TV out
9.
VGA/external monitor connector
10.
RJ-45/Ethernet port
11.
Kensington Lock slot
At A Glance
Genuine Windows Vista Business 32/64, Genuine Windows Vista Home Basic 32, Genuine Windows XP Professional, or FreeDOS Widescreen 15.4-inch diagonal display with wide-viewing angle, BrightView and HP Privacy Filter support Flexible wireless connectivity options:
Integrated HP ev2200 1xEV-DO or HP hs2300 HSDPA Broadband Wireless module (available June 2007) Integrated 802.11 a/b/g/draft-n, a/b/g, or b/g wireless LAN module
Bluetooth® Intel® Core™2 Duo processor Thin, lightweight design starting at 5.7 lb/2.59 kg and 1.4-inch/34.9 mm thin at front Security features including Drive Encryption for HP ProtectTools, HP Fingerprint Sensor, TPM 1.2* HP QuickLook on Windows Vista models for instant access to email, calendar, and contact information Up to 160-GB 5400 rpm or 80-GB 7200 rpm user-removable hard drive with HP 3D DriveGuard protection Media Card Reader Touch-sensitive controls for HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, external volume up, volume down, and mute Integrated optical drive, including optional DVD+/-RW SuperMulti DL LightScribe Drive Up to 4 GB of 667-MHz DDR2 SDRAM, dual channel memory support Mobile Intel Graphics Media Accelerator X3100, with up to 384-MB shared system memory Broadcom NetLink Gigabit Ethernet Controller Touchpad with scroll zone
* TPM module disabled where not permitted by law (for example, Russia and China).
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 2
Page 3
QuickSpecs

Standard Features

HP Compaq 6710b Notebook PC
Processors
Operating System
Chipset
Intel Core 2 Duo Processor T7700 (2.40-GHz, 800-MHz FSB, 4-MB L2 cache)*
Intel Core 2 Duo Processor T7500 (2.20-GHz, 800-MHz FSB, 4-MB L2 cache)*
Intel Core 2 Duo Processor T7300 (2.00-GHz, 800-MHz FSB, 4-MB L2 cache)*
Intel Core 2 Duo Processor T7100 (1.80-GHz, 800-MHz FSB, 2-MB L2 cache)*
* Intel's numbering is not a measurement of higher performance.
NOTE:
speeds in battery optimization mode.
Preinstalled
Supported
Certified
*
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx http://www.microsoft.com/windowsvista/getready/capable.mspx
Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit
Mobile Intel GM965
Processor speed denotes maximum performance mode; processors will run at lower
Genuine Windows Vista Business 32/64* Genuine Windows Vista Home Basic 32* Genuine Windows XP Professional FreeDOS
Genuine Windows Vista Enterprise*
SuSE Linux Enterprise Desktop 10
Certain Windows Vista product features require advanced or additional hardware. See
and
for details. Windows Vista
http://www.windowsvista.com/upgradeadvisor
.
Graphics
Display
Memory
Mobile Intel Graphics Media Accelerator X3100, up to 384-MB shared system memory Microsoft DirectX 9 capable
Internal
External
Standard
Maximum
Dual-channel
NOTE:
recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Due to the non-industry standard nature of some third-party memory modules, we
15.4-inch diagonal WXGA anti-glare (1280 x 800 resolution and 16M colors)
15.4-inch diagonal WXGA BrightView (1280 x 800 resolution and 16M colors)
15.4-inch diagonal WSXGA+ WVA anti-glare (1680 x 1050 resolution and 16M colors) HP Privacy Filter support
Up to 32-bit per pixel color depth
VGA
port supports resolutions up to 2048 x 1536 at 75 Hz, and lower
resolutions at up to 100 Hz
NOTE:
resolution and color depth settings.
512-MB, 1024-MB, 2048-MB, or 4096-MB 667-MHz DDR2 SDRAM; two SODIMM slots supporting dual channel memory
Upgradeable to 4096-MB maximum (2048-MB SODIMM in slots 1 and
2)
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
Resolutions are dependent upon monitor capability, and
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 3
Page 4
QuickSpecs
Standard Features
HP Compaq 6710b Notebook PC
Communications
Wireless Devices
Integrated Broadcom NetLink Gigabit Ethernet Controller (10/100/1000 NIC)*
56K V.92 modem**
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Wireless LAN is factory configurable or available as an option to be added later. Broadband Wireless (WWAN) requires Windows Vista Business or Windows XP Professional and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.
HP ev2200 1xEV-DO Broadband Wireless Module (available June 2007)
HP hs2300 HSDPA Broadband Wireless Module (available June 2007)
All 802.11a/b/g integrated wireless LAN options
Intel Wireless WiFi Link 4965AGN*
Intel Wireless WiFi Link 4965AG*
Intel PRO/Wireless 3945ABG Network Connection*
Intel PRO/Wireless 3945BG Network Connection*
Broadcom 4321AGN
802.11a/b/g/draft-n Wi­Fi Adapter
Integrated WWAN module connects to the Verizon Wireless BroadbandAccess and NationalAccess networks (U.S. only) Supports CDMA 1xEV-DO, 1xRTT connections at 850 and 1900 MHz.
NOTE:
details, go to
Two 850/900/1800/1900/2100-MHz antennas integrated in the top of the display panel support current and future WWAN technologies
Integrated WWAN module that provides connection to GSM, GPRS, EDGE, UMTS, and HSDPA mobile networks in many countries. Currently available for the Cingular network service in the U.S. (supports international roaming).
NOTE:
required.
Two 850/900/1800/1900/2100-MHz antennas integrated in the top of the display panel support current and future WWAN technologies.
Wi-Fi certified Cisco Compatible Extensions support (Version 4.0) with Microsoft Windows XP Wired Equivalent Privacy (WEP) support up to 128-bit keys Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP­GTC, PEAP-MSCHAPv2, and LEAP Advanced Encryption Standard (AES) support WiFi certified for WPA2, WMM Dual antennas integrated in the display enclosure
Integrated support for 802.11a, b, g, and draft-n Up to 300-mbps data rate
Integrated support for 802.11 a, b and g Up to 54-mbps data rate
Integrated support for 802.11 a, b and g Up to 54-mbps data rate
Integrated support for 802.11 b and g Up to 54-mbps data rate
Integrated support for 802.11a, b, g, and draft-n Up to 300-mbps data rate
Separately purchased Verizon Wireless service is required. For
http://www.hp.com/go/broadbandwireless
Separately purchased mobile network operator service is
.
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 4
Page 5
QuickSpecs
Standard Features
HP Compaq 6710b Notebook PC
Keyboard
Touch-sensitive controls
Broadcom 4311AG
802.11a/b/g WiFi Adapter
Broadcom 4311BG
802.11b/g WiFi Adapter
HP Integrated Module with Bluetooth Wireless Technology
* Requires Intel Core 2 Duo processor
The 101/102-key compatible keyboard features an industry standard, full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, and 12 function keys. U.S. and International key layouts are available. Other features include an integrated numeric keypad, hotkeys for instant access to power conservation, brightness, and other features, 19-mm x 19-mm key pitch (center-to-center spacing), 2.5-mm stroke, and comfort-dished keycaps.
Touch-sensitive controls provide easy access to the following features: HP Info Center, HP QuickLook, wireless on/off, HP Presentation button, external volume up, volume down, and mute
Integrated support for 802.11 a, b and g Up to 54-mbps data rate
Integrated support for 802.11 b and g Up to 54-mbps data rate
Bluetooth Specification v2.0 compliant Works with a wide range of Bluetooth devices
Pointing device
Expansion card slots
Storage
Touchpad with scroll zone, two pick buttons
1 Type I/II PC Card slot
or
Optional Integrated Smart Card Reader
(replaces PC Card slot)
Media Card Reader
*NOTE
: Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick
Duo Card directly into your notebook could damage the memory card and/or notebook.
Hard drives
NOTE:
cycles. Up to 10 GB is reserved for the system recovery software.
HP 3D DriveGuard
Fixed optical drives
These hard drives are customer removable and will withstand multiple insertion/removal
Supports 32-bit CardBus and 16-bit PC Cards
Compatible with ISO 7816 compliant Smart Cards PC/SC interface support
Supports SD (Secure Digital), MMC (MultiMedia Card), Memory Stick, Memory Stick Pro, Memory Stick Duo*, xD-Picture card
80/120/160-GB 5400 rpm SMART SATA 80-GB 7200 rpm SMART SATA
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is detected.
DVD-ROM Drive DVD/CD-RW Combo Drive DVD+/-RW SuperMulti DL Drive DVD+/-RW SuperMulti DL LightScribe Drive
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 5
Page 6
QuickSpecs
Standard Features
HP Compaq 6710b Notebook PC
Interfaces
Audio
PC Card slot
External monitor
1394a
Stereo microphone in
Stereo headphone/line out
Power connector
RJ-11/modem
RJ-45/Ethernet
S-video TV out
USB 2.0
Docking connector
Secondary battery connector
LED status indicators
High Definition Audio support w/24-bit DAC Integrated stereo speakers Integrated microphone Touch-sensitive controls for volume up, volume down, and mute Stereo headphone/line out Stereo microphone in
One Type I/II PC Card slot or optional Smart Card Reader
One – VGA
One
One
One
One
One
One
One (Support for NTSC/PAL)
Four
One
One
Fifteen
Software
Preinstalled software with Windows Vista or Windows XP
Additional software available from the web
* Download available from hp.com for Windows Vista; preinstalled with Windows XP.
PDF Complete HP Backup and Recovery Manager HP Help and Support Center HP QuickLook (Windows Vista only) HP OpenView Radia Management Agent HP Universal Print Driver HP ProtectTools Security Manager: BIOS Configuration for HP ProtectTools Credential Manager for HP ProtectTools Device Access Manager for HP ProtectTools* Drive Encryption for HP ProtectTools Embedded Security for HP ProtectTools HP Quick Launch Buttons HP Wireless Assistant Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition (select models) Roxio Creator 9 (for optional DVD+/-RW and DVD/CDRW drives) Synaptics Touchpad Driver Symantec Norton Internet Security with complimentary 60-day live update Intervideo WinDVD – DVD Player
HP Client Manager Java Card Security for HP ProtectTools
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 6
Page 7
QuickSpecs
Standard Features
HP Compaq 6710b Notebook PC
HP Backup and Recovery Manager
SMBIOS Version 2.4
HP ProtectTools Security Manager
Each unit is shipped with HP Backup and Recovery Manager. HP Backup and Recovery Manager can provide data and system file protection for HP business PCs to enable fast recovery if the system becomes corrupted or if important information is accidentally deleted. HP Backup and Recovery Manager can perform scheduled or manual backups of the entire drive or individual files and folders. Up to 10 GB of the hard drive is reserved for the system recovery software. HP Backup and Recovery Manager can also create software recovery CDs or DVDs (requires optional hardware).
System Management BIOS, previously known as DMI BIOS, is used to store system management information.
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP ProtectTools Security Manager is an extensible client security console that delivers enhanced security capabilities through add-on software modules. Modules currently available are:
BIOS Configuration for HP ProtectTools Credential Manager for HP ProtectTools Device Access Manager for HP ProtectTools Drive Encryption for HP ProtectTools Embedded Security for HP ProtectTools Java Card Security for HP ProtectTools
Security
Standard Features
Optional Features
*
NOTE:
For more information on HP security solutions refer to
TPM module disabled where use is restricted by law; for example, Russia and China.
HP ProtectTools Security Manager HP Fingerprint Sensor Configuration Control Hardware Memory Change Alert Ownership Tag Setup Password Power-On Password TPM 1.2 Embedded Security Chip* TPM Enhanced DriveLock* HP Disk Sanitizer HP 3D DriveGuard Kensington Lock Slot Support for Computrace / LoJack for Laptops (must be purchased separately)
Smart Card Reader
(replaces Type I/II PC Card slot)
HP Privacy Filter
Compatible with ISO 7816 compliant Smart Cards PC/SC interface support
Narrows viewing area so that screen data is visible only to persons directly in front of the monitor
http://www.hp.com/go/security
.
Power Supply
*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to 12-cell Ultra-Capacity batteries.
External 90-watt Smart AC adapter, 6-foot (1.8-meter) power cord included. Total length including external AC adapter is 12 feet (3.66 meter). HP Fast Charge*
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 7
Page 8
QuickSpecs
Standard Features
HP Compaq 6710b Notebook PC
Battery
Battery Life
System Standby Time
Primary battery
Optional HP Extended Life Battery
Optional HP Ultra­Capacity Battery
Primary battery
Primary battery and optional HP Extended Life Battery
Primary battery and optional HP Ultra­Capacity Battery
NOTE:
The listed battery life measurements were taken on models running Microsoft Windows XP Professional. Battery life will vary depending on the product configuration, product model, applications loaded on the product, power management settings of the product, and the product features used by the customer. As with all batteries, the maximum capacity of this battery will decrease with time and usage.
Up to 1 week
6-cell (55 WHr) Lithium-Ion battery 6-cell (47 WHr) Lithium-Ion battery
8-cell (52 WHr) high capacity Lithium-Ion battery
12-cell (95 WHr) high capacity Lithium-Ion battery
6-cell (55 WHr) Primary 6-cell (47 WHr) Primary
Up to 5 hours and 15 minutes Up to 4 hours and 15 minutes
Up to 10 hours and 45 minutes
Up to 14 hours and 30 minutes Up to 13 hours and 30 minutes
Up to 9 hours and 45 minutes
Power Conservation
Docking and Stands
Supports enhanced Intel SpeedStep technology with Intel Core 2 Duo processors (allows Battery Optimized Mode, Maximum Performance Mode, or Automatic mode)
Intel Display Power Saving technology
Hibernation
Standby
ACPI compliance
HP 3-in-1 NAS Docking Station HP Advanced Docking Station HP Basic Docking Station HP Standard Monitor Stand HP Adjustable Notebook Stand HP External MultiBay II
HP's shared docking solutions provide simple and convenient port replication and cable management. Features include Gigabit NIC pass through, modem pass through, legacy parallel and serial ports, S-video TV out, USB 2.0 ports, integrated security mechanism*, integrated MultiBay II and ExpressCard** slots. These docking solutions are compatible across multiple Business Notebook platforms enabling a lower total cost of ownership.
* HP/Kensington Cable Lock required (purchased separately) ** HP 3-in-1 NAS Docking Station and HP Advanced Docking Station only
Service and Support
HP Services offers limited 3- year, 1-year and 90-day warranty options depending on country; 1-year limited warranty on primary battery. On-site service and warranty upgrades are also available.
NOTE:
details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for
.
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 8
Page 9
QuickSpecs

Options

HP Compaq 6710b Notebook PC
Memory
MultiBay II Storage
(9.5-mm)
NOTE:
in-1 NAS Docking Station, HP Advanced Docking Station, or HP External MultiBay II
Other Storage
Communications
Requires HP 3-
HP 512-MB (DDR2 667 MHz) SODIMM
HP 1-GB (DDR2 667 MHz) SODIMM
HP 2-GB (DDR2 667 MHz) SODIMM
HP MultiBay II DVD-ROM Drive
HP MultiBay II DVD/CD-RW Combo Drive
HP MultiBay II DVD+/-RW SuperMulti DL Drive
HP 80-GB 5400rpm MultiBay II Hard Drive
HP 80-GB 5400rpm Primary SATA Hard Drive
HP DVD+/-RW SuperMulti DL LightScribe Drive
HP Notebooks USB Diskette Drive
Intel Wireless WiFi Link 4965AGN option kit*
* Requires Intel Core 2 Duo processor
EM993AA
EM994AA
EM995AA
PA849A
PA850A
PA851A
PH357A
ET354AA
ET353AA
DC361B
RT081AA#xxx
Expansion Solutions
Power
Carrying Cases
HP Docking Station with Smart Adapter
HP Advanced Docking Station with Smart Adapter
HP 3-in1 NAS Docking Station
HP Standard Monitor Stand
HP Adjustable Notebook Stand
HP External MultiBay II
HP 2-Bay Battery Charging Station (North America only)
HP 2-Bay Battery Charging Station (rest of world)
HP 10-Bay Battery Charging Station (North America only)
HP Battery Adapter Kit
HP 90W Smart AC Adapter
HP 90W Smart Auto Adapter
HP 65W AC/Auto/Air Combo Smart Adapter
HP 6-Cell Li-Ion Primary Battery
HP 8-cell Extended Life Battery
HP 12-cell Ultra-Capacity Battery
HP Value Nylon Case
HP Universal Nylon Case
HP Executive Leather Case
HP Deluxe Nylon Backpack
HP Universal Messenger Bag
HP Deluxe Roller Case
EN488AA#xxx
EN489AA#xxx
EM537AA#xxx
PA507A
PA508A
PA509A#xxx
DT533A#xxx
EW424AA#xxx
DT534A#ABA
PK402A
ED495AA#xxx
ED493AA
ED993AA#xxx
PB994A
PB993A
EJ092AA
RR314AA
RR315AA
RR316AA
RR317AA
GD404AA
GD405AA
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 9
Page 10
QuickSpecs
Options
HP Compaq 6710b Notebook PC
Security
Input/Output Devices
HP PC Card Smart Card Reader with Java Card
HP ProtectTools Java Card – 10 units
HP/Kensington MicroSaver Security Lock
HP PS/2 Keyboard & Mouse Bundle
HP USB Keyboard & Mouse Bundle
HP USB/PS2 Optical 2-Button Scroll Mouse
HP USB Optical Travel Mouse
HP Bluetooth PC Card Mouse
EL347AA
EL348AA
PC766A
RC464AA#xxx
RC465AA#xxx
DC369A
RH304AA
RJ316AA
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 10
Page 11
QuickSpecs

Memory

Support for up to 4096 MB of 667-MHz DDR2 SDRAM Two DIMM slots DIMM sizes supported: 512 MB, 1024 MB, and 2048 MB
Standard Memory
512 MB (512 MB x 1) 1024 MB (1024 MB x 1 or 512 MB x 2) 2048 MB (2048 MB x 1 or 1024 MB x 2) 4096 MB (2048 MB x 2)
HP Compaq 6710b Notebook PC
Optional Memory Upgrades
Up to
1024 MB 1024 MB 1024 MB 1536 MB 1024 MB 2048 MB 1024 MB 1024 MB 4096 MB 2048 MB 2048 MB
Memory Upgrades
Support for up to 4096 MB of memory is available (with the installation of optional DDR2 SDRAM memory kits). Both memory slots are user accessible. Please refer to the Hardware and Software Guide for installation procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
Slot 1 Slot 2
Empty
512 MB 512 MB
512 MB
NOTE:
standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
HP 512-MB (DDR2 667 MHz) SODIMM
HP 1024-MB (DDR2 667 MHz) SODIMM
HP 2048-MB (DDR2 667 MHz) SODIMM
This chart does not represent all possible memory configurations. Due to the non-industry
EM993AA
EM994AA
EM995AA
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 11
Page 12
QuickSpecs

Storage

Removable Media Drive Support
HP Compaq 6710b Notebook PC
DVD-ROM Drive
DVD/CD-RW Combo Drive
DVD+/-RW SuperMulti DL Drive
DVD+/-RW SuperMulti DL LightScribe Drive
Hard Drive Support
Primary Hard Drives
160-GB 5400 rpm SMART SATA Hard Drive
120-GB 5400 rpm SMART SATA Hard Drive
80-GB 5400 rpm SMART SATA Hard Drive
80-GB 7200 rpm SMART SATA Hard Drive
Quantity Supported
One
One
One
One
Quantity Supported
One
One
One
One
Drive Bay
Fixed optical drive bay
Fixed optical drive bay
Fixed optical drive bay
Fixed optical drive bay
Drive Bay
Dedicated hard drive bay
Dedicated hard drive bay
Dedicated hard drive bay
Dedicated hard drive bay
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 12
Page 13
QuickSpecs

Technical Specifications

HP Compaq 6710b Notebook PC
System Unit
Dimensions
Weight
NOTE:
varies by configuration and components. Weight includes 6-cell battery, 80-GB hard drive, and optical drive. Weight varies by configuration and components.
Stand-Alone Power Requirements
Power)
Temperature
Relative Humidity
Shock
Random Vibration
Altitude
(unpressurized)
Industry Standard Certifications
(HxWxD)
Height varies depending upon where on the notebook the measurement is made. Weight
(AC
1.4 in (at front) x 14.1 in x 10.4 in
34.9 mm (at front) x 357.0 mm x 265.0 mm
Starting at 5.7 lb (2.59 kg)
Nominal Operating Voltage
Average Operating Power
Max Operating Power
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
UL
CSA
FCC Compliance
Energy Star Compliant
ICES
GS
Australia / NZ A-Tick Compliance
CCC
Japan VCCI Compliance
MIC
BSMI
CE Marking Compliance
BNCI or BELUS
CIT
GOST
Saudi Arabian Compliance (ICCP)
SABS
UKRSERTCOMPUTER
18.5 V
12.5 W
< 90 W
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
–4° to 140° F (–20° to 60° C)
10% to 90%, non-condensing
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
125 G, 2 ms, half-sine
200 G, 2 ms, half-sine
0.75 grms
1.50 grms
–50 to 10,000 ft (–15.24 to 3,048 m)
–50 to 40,000 ft (–15.24 to 12,192 m)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 13
Page 14
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
HP 90W Smart AC Adapter
Dimensions
Weight
Input
Output
Connector
Environmental Design
EMI and Safety Certifications
5.24 x 2.28 x 1.1 in (13.3 x 5.8 x 2.9 cm)
0.86 lb (390 g)
100 to 240 VAC
Input Efficiency
Input frequency range
Input AC current
Output power
DC output
Hold-up time
Output current limit
3 pin/grounded, mates with interchangeable cords
Operating temperature
Non-operating (storage) temperature
Altitude
Humidity
Storage Humidity
CE Mark – full compliance with LVD and EMC directives; Worldwide safety standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals – C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.
83% min at 115 VAC
47 to 63 Hz
1.5 A at 90 VAC, 0.75 A at 180 VAC PFC Version
2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC Version
90W
18.5V
5 msec at 115 VAC input
<11A, Over voltage protection- 29V max automatic shutdown
32° to 104° F (0° to 40° C)
–4° to 149° F (–20° to 65° C)
0 to 10,000 ft (0 to 3,048 m)
20% to 80%
10% to 90%
Optional HP Ultra­Capacity Battery
Dimensions
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Fuel Gauge
(H x W x L)
1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)
1.77 lb (0.803 kg)
12-cell Lithium-Ion
Watt-hour Capacity
Operating (Charging)
Operating (Discharging)
Non-operating
Smart Adapter
System ON
When pressed, LEDs light indicating level of charge remaining on battery
95Wh
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
3 to 4 hours
4 to 5 hours (depending on system power consumption)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 14
Page 15
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Optional HP Extended Life Battery
6-Cell (55WHr) Lithium­Ion battery (DT06055)
Dimensions
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
Fuel Gauge
Dimensions
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
(H x W x L)
(H x W x L)
1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)
1.00 lb (0.455 kg)
8-cell Lithium-Ion
Watt-hour Capacity
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF mode or Standby
System ON
HP Fast Charge
When pressed, LEDs light indicating level of charge remaining on battery
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)
0.737 lb (0.335 kg)
6-cell Lithium-Ion
Watt-hour Capacity
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF Mode or Standby
System ON
HP Fast Charge
52Wh
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
3 hours
3 to 5 hours (depending on system power consumption)
Charges the battery up to 90% within 90 minutes when system is OFF
55Wh
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
2.5 hours
3 to 5 hours (depending on system power consumption)
Charges the battery up to 90% within 90 minutes when system is OFF
6-Cell (47WHr) Lithium­Ion battery (DT06047)
Dimensions
Weight
Cells/Type
Energy
Temperature
Battery Re-Charge Time
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
(H x W x L)
0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)
0.715 lb (0.325 kg)
6-cell Lithium-Ion
Watt-hour Capacity
Operating (Charging)
Operating (Discharging)
Non-operating
System in OFF Mode or Standby
System ON
HP Fast Charge
47Wh
32° to 113° F (0° to 45° C)
14° to 140° F (–10° to 60° C)
–4° to 140° F (–20° to 60° C)
2.5 hours
3 to 5 hours (depending on system power consumption)
Charges the battery up to 90% within 90 minutes when system is OFF
Page 15
Page 16
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
15.4-inch WSXGA+ wide-viewing angle, anti-glare
15.4-inch WXGA anti­glare
Dimensions
Diagonal Size
Surface Treatment
Number of Colors
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
Active Area
Diagonal Size
Surface Treatment
Number of Colors
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
(W x H)
(W x H)
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
Anti-glare
Up to 16M
300:1 (typical)
60 Hz
200 nit (typical)
Pitch
Format
Configuration
CCFL
129
±60° Horizontal, ± 50° Vertical (minimum)
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
Anti-glare
Up to 16M
300:1 (typical)
60 Hz
200 nit (typical)
Pitch
Format
Configuration
CCFL
98
±30° Horizontal, ±10° Vertical (minimum)
0.197 mm
1680 x 1050
RGB stripe
0.259 mm
1280 x 800
RGB stripe
15.4-inch WXGA BrightView
Hard Drives
Active Area
Diagonal Size
Surface Treatment
Number of Colors
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
(W x H)
13.0 x 8.1 in (33.1 x 20.7 cm)
15.4 in (39.1 cm)
BrightView
Up to 16M
300:1 (typical)
60 Hz
200 nit (typical)
Pitch
Format
Configuration
CCFL
98
±30° Horizontal, ±10° Vertical (minimum)
0.259 mm
1280 x 800
RGB stripe
Page 16
Page 17
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
80-GB 7200 rpm SATA
160-GB 5400 rpm SATA
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
0.25 lb (113 g)
80 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous
(maximum)
Single Track
Average
Maximum
7200 rpm
156,301,488
41° to 140° F (5° to 60° C) [case temp]
ATA Security
0.22 lb (101 g)
160 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous
(maximum)
Single Track
Average
Maximum
5400 rpm
312,581,808
41° to 140° F (5° to 60° C) [case temp]
ATA Security
100 MB/s (Drive Capability)
1 ms
10 ms
18 ms
100 MB/s (Drive Capability)
3 ms
13ms
24 ms
120-GB 5400 rpm SATA
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
0.22 lb (101 g)
120 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous
(maximum)
Single Track
Average
Maximum
5400 rpm
234,441,648
41° to 140° F (5° to 60° C) [case temp]
ATA Security
100 MB/s (Drive Capability)
3 ms
13ms
24 ms
Page 17
Page 18
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
80-GB 5400 rpm SATA
Removable Storage Drives
DVD-ROM Drive
Drive Weight
Capacity
Height
Width
Interface
Transfer Rate
Seek Time
(typical reads, including settling)
Rotational Speed
Logical Blocks
Operating Temperature
Features
Access Times
Max Data Transfer Rate
Transfer Mode
Interface
Supported Media
Supported Media
Max Media Capacity
(read)
Transport
(read)
(write)
0.22 lb (101 g)
80 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-7 / SATA 1.0a
Synchronous
(maximum)
Single Track
Average
Maximum
5400 rpm
156,301,488
41° to 140° F (5° to 60° C) [case temp]
ATA Security
Random
24X CD-ROM
8X-DVD
Multiword DMA Mode 2
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW
None
4.7 GB
Tray Loading
100 MB/s (Drive Capability)
3 ms
13 ms
24 ms
<116 ms CD
<125 ms DVD
3,600 KB/s
10,800 KB/s
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 18
Page 19
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
DVD/CD-RW Combo Drive
DVD+/-RW SuperMulti DL Drive
Access Times
Max Data Transfer Rate
Transfer Mode
Interface
Supported Media
Supported Media
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
Access Times
Max Data Transfer Rate
Transfer Mode
Interface
Supported Media
Supported Media
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
(read)
(write)
(read)
(write)
Random
24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
Multiword DMA Mode 2
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW
CD-R, CD-RW
8.5 GB
700 MB
Tray loading
Random
24X CD-ROM
8X DVD
24X CD-R
16X CD-RW
8X DVD+R
4X DVD+RW
8X DVD-R
4X DVD-RW
2.4X DVD+R(9)
5X DVD-RAM
Multiword DMA Mode
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM
8.5 GB
8.5 GB
Tray Loading
<110 ms CD
<130 ms DVD
3,600 KB/s
10,800 KB/s
3,600 KB/s
3,600 KB/s
<175 ms CD
<230 ms DVD
3,600 KB/s
10,800 KB/s
3,600 KB/s
2,400 KB/s
10,800 KB/s
5,400 KB/s
10,800 KB/s
5,400 KB/s
2,700 KB/s
6,750 KB/s
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 19
Page 20
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
DVD+/-RW SuperMulti DL LightScribe Drive
Access Times
Max Data Transfer Rate
Transfer Mode
Interface
Supported Media
Supported Media
Max Media Capacity
(read)
Max Media Capacity
(write)
Transport
(read)
(write)
Random
24X CD-ROM
8X DVD
24X CD-R
16X CD-RW
8X DVD+R
4X DVD+RW
8X DVD-R
4X DVD-RW
2.4X DVD+R(9)
5X DVD-RAM
Multiword DMA Mode
EIDE
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM
CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, LightScribe
8.5 GB
8.5 GB
Tray Loading
<175 ms CD
<230 ms DVD
3,600 KB/s
10,800 KB/s
3,600 KB/s
2,400 KB/s
10,800 KB/s
5,400 KB/s
10,800 KB/s
5,400 KB/s
2,700 KB/s
6,750 KB/s
HP Fingerprint Sensor
Audio
Mobile Voltage Operation
Operating Temperature
Current Consumption @ 3.3V
High-Rate Image Capture
ESD Resistance
Detection Matrix
3.0V–3.6V Single Supply
32° – 158°F (0° – 70°C)
Less than 70 mA peak imaging and scrolling Less than 25 mA hardware finger detection Advanced Power Management
Up to 240 image frames /sec
IEC 61000-4-2 Level 4 (±15KV)
192 x 16 Pixels
9.7 mm x 0.81 mm 500 ppi High-Resolution Images
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 20
Page 21
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Hardware
Audio Output Quality
Implementation
Touch-Sensitive Volume Controls
Full Duplex
Sound Blaster Pro compatible
Microphone In
Headphone/Line Out
Integrated Microphone
Frequency Response
Signal to Noise Ratio
Total Harmonic Distortion
Noise Floor
Play/Record Sampling Rate
(s)
DAC
ADC
ADI1981HD High Definition CODEC
Volume up, volume down, and mute
Yes
Yes
Stereo
Stereo
Yes
20 Hz – 20 kHz
>85 dB
0.01%
-110 dB
8 kHz – 48kHz
16, 20 or 24-bit
16 or 20-bit
Integrated Stereo Speakers
Communications
Integrated Broadcom NetLink Gigabit Ethernet Controller
(10/100/1000 NIC)
Power Rating
Impedance
Ethernet Features
Power Management
Performance Features
Manageability
Interface
NIC Device Driver Name
2 Watts
4 Ohms
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-
14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) 1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE
802.3 clauses 34-42) Auto-Negotiation (Automatic Speed Selection) Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s IEEE 802.1p QoS (Quality of Service) Support IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
ACPI compliant -- multiple power modes Situation-sensitive features reduce power consumption
TCP/IP/UDP Checksum Offload (configurable)
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only) PXE 2.1 Remote Boot Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30)) Comprehensive diagnostic and configuration software suite
PCI Express x1
Broadcom NetLink Gigabit Ethernet
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 21
Page 22
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
V.92 56K Data/Fax Modem
Drivers Available
Form Factor
Power Management Support
Approvals/ Certifications
Data Mode Capabilities
Fax Mode Capabilities
Command Set
Microsoft Windows Vista Microsoft Windows XP
MDC 1.5 Daughtercard
APM Revision 1.2, ACPI
UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other Countries
V.92 data
V.8bis
V.80
V44, V.42bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
Optional symbol rates:
2800, 3429 Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
3600, 31200 Automatic rate re-negotiation V.34 V.32bis V.32 V.23 V.22bis V.22 V.21 Bell 212A Bell 103J
TIA/EIA-578-B (Class 1) T.30, T.4 (Group 3) V.17 V.29 V.27ter V.21 Channel 2
V.250 (Partial) TIA-602 Identification: +GMI, +GMM, +GMR Port control: +IPR, +ICF, +IFC, +ILRR Modulation: +MS, +MR, +MA Error control: +ES, +ER, +EB, +ESR, +ETBM Data compression: +DS, +DR V.251
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 22
Page 23
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
HP ev2200 1xEV-DO Broadband Wireless Module
Band and Power Class
Wireless Protocol Standards
Wireless Parametric Standards
Interoperability
Frequency Band
Data Rates
Mode)
Maximum Output Power
Power Consumption
(maximum)
Power Consumption, Sleep Mode
Power Management
Antenna Type
Form Factor
Weight
Dimensions
Width x Thickness)
Voltage, Operating
Temperature, Operating
TIA/EIA/IS-98-D)
Temperature, Non­operating, 96 hours
(from MIL-STD 202 Method 108)
Humidity, Non­operating
Configuration Utilities
LED Activity
(Packet
(Length x
(from
0 (North American Cellular) – Class III; 1 (North American PCS) – Class II
CDMA 1x Release 0/A; IS-95A, IS-95B, IS-2000
Meets or exceeds TIA/EIA IS-98-D
CDG 22 (TIA/EIA/IS-95-A) CDG 53(TIA/EIA/IS-95-B) C.S0031 (TIA/EIA/IS-2000) CDG 64 (TIA/EIA/IS-2000) C.S0032 (TIA/EIA/IS-866)
Dual Band: 850 MHz (Cellular) and 1900 MHz (PCS)
IS-856 rates up to 2.4 Mbps IS-2000 data rates up to 307.2 kbps
24dBm (+/-1)
500mA
1.7mA – 3.5mA
USB selective suspend CDMA slotted mode sleep and dormant modes
High efficiency dual band antennae with spatial diversity, mounted in the display enclosure
PCI-Express MiniCard
0.35 oz (10 g)
2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)
3.3v +/- 10%
–22° to 140° F (–30° to 60° C) (full RF performance) –22° to 167° F (–30° to 75° C) (reduced RF performance)
–40° to 185° F (–40° to 85° C)
85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
Verizon Wireless VZAccess Manager
LED Off – Radio Off; Solid LED On – Radio On
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 23
Page 24
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
HP hs2300 HSDPA Broadband Wireless Module
Frequency Bands and Power Class
Wireless Protocol Standards
Wireless Parametric Standards
Additional Standards Compliance
Data Rates
(Packet Mode)
Chipset and Module
Maximum Output Power
Power Consumption
(maximum)
Power Consumption, Sleep Mode
Power Management
Antenna Type
Form Factor
Weight
Dimensions
Width x Thickness)
Voltage, Operating
Temperature, Operating
Temperature, Non­operating, 96 hours
(from MIL-STD 202 Method 108)
Humidity, Non­operating
LED Activity
Configuration Utilities
(Length x
850/1900/2100MHz WCDMA Power class 3 (+24dBm) 850MHz GSM/GPRS/EDGE 900MHz GSM/GPRS/EDGE, 1800MHz GSM/GPRS/EDGE 1900MHz GSM/GPRS/EDGE EDGE E2 power GPRS/EDGE Multislot Class 12 GPRS PCS/DCS power class 1 GSM power class 4
GPRS/EDGE: 3GPP R99 GERAN P1 WCDMA Release 5 (R5) High-Speed Downlink Packet Access (HSDPA) 3.6Mbps GSM Phase 2+
Complies with 3GPP specifications
FCC parts 15/22/24, CE, Microsoft WHQL, R&TTE directive 1999/5/EC (health, safety, EMC, spectrum), GCF-CC (Module), European Union Directive 2002/95/EC (restrictions of the use of certain Hazardous Substances (RoHS) in electronic equipment), Infrastructure Interoperability Testing (IOT)
Designed maximum data rate: EDGE 118 kbps UL / 236 kbps DL UMTS 384 kbps UL / 384 kbps DL HSDPA 384 kbps UL / 3.6 Mbps DL
Qualcomm MSM6280 chipset; Sierra Wireless MC8775 module
32 dBm (+/-2) GSM/EDGE GMSK mode
800mA
4 – 8mA
USB Selective Suspend sleep and standby mode
High efficiency 5- band antennae, mounted in the display enclosure
PCI-Express MiniCard
0.35 oz (10 g)
2.01 x 1.18 x 0.18 in (51 x 30 x 4.5 mm)
3.3v +/- 10%
–22° to 140° F (–30° to 60° C) (full RF performance) –22° to 167° F (–30° to 75° C) (reduced RF performance)
–40° to 185° F (–40° to 85° C)
85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)
LED Off – Radio Off; Solid LED On – Radio On
Varies per country and mobile network operator
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 24
Page 25
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Intel PRO/Wireless 3945ABG Network Connection
Wireless LAN Standards
Interoperability
Frequency Band
Data Rates
Modulation
Security
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
CKK)
Output Power
OFDM; power varies by data rate)
Power Consumption
Power Management
Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
Antenna Connections
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
1
(for
2
(for
2
IEEE 802.11a IEEE 802.11b IEEE 802.11g
Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at
http://www.hp.com/go/notebooks/WLAN
2.4 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST, EAP-SIM.
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
15 dBm
15 dBm
Transmit: 1.8 Watts (max) Receive: 1.4 Watts (max) Idle mode3: 150 mW (nominal) Sleep mode: 30 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
2 U.FL type connectors, 50 ohm nominal impedance
802.11 a – Typical (@6 Mbps)
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.013 lb (6 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3V +/- 9%, 1.5V +/- 5%
Operating Non-operating
Operating Non-operating
600 feet – Outdoor Open Area 150 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)
10% to 90% (non-condensing) 5% to 95% (non-condensing)
)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 25
Page 26
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Intel PRO/Wireless 3945BG Network Connection
Altitude
Configuration Utility5Microsoft Windows 2000 or XP
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with
5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
Wireless LAN Standards
Interoperability
Frequency Band
Data Rates
Modulation
Security
1
Operating Non-operating
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Off – Radio OFF; Solid LED On – Radio ON
IEEE 802.11b IEEE 802.11g
Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at
http://www.hp.com/go/notebooks/WLAN
2.4 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST, EAP-SIM.
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
)
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
2
CKK)
Output Power
OFDM; power varies by data rate)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
(for
(for
2
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
15 dBm
15 dBm
Page 26
Page 27
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Power Consumption
Power Management
Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
Antenna Connections
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
Configuration Utility5Microsoft Windows 2000 or XP
Transmit: 1.8 Watts (max) Receive: 1.4 Watts (max) Idle mode3: 150 mW (nominal) Sleep mode: 30 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
2 U.FL type connectors, 50 ohm nominal impedance
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.013 lb (6 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3V +/- 9%, 1.5V +/- 5%
Operating Non-operating
Operating Non-operating
Operating Non-operating
Choice of Configuration Utility:
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)
10% to 90% (non-condensing) 5% to 95% (non-condensing)
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
Intel Wireless WiFi Link 4965AGN
Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with
5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
Wireless LAN Standards
Interoperability
Frequency Band
LED Off – Radio OFF; Solid LED On – Radio ON
IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (draft 1.02)
Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows 2000 and XP (details at
http://www.hp.com/go/notebooks/WLAN
Tested with wireless access points from several major manufacturers (details at
2.4 GHz and 5 GHz
http://www.hp.com/go/notebooks/WLAN/
)
draft-n)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 27
Page 28
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Data Rates
Modulation
Security
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
CKK)
Output Power
OFDM; power varies by data rate)
Power Consumption
Power Management
Receiver Sensitivity4300 Mbps: -68 dBm, 54 Mbps: -74 dBm, 6 Mbps: -90 dBm
Antenna Connections
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
1
(for
2
(for
2
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (draft): 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n (draft) specification
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of 128, 192, and 256 bits), 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP­MSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows 2000 and XP only.
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
15 dBm
15 dBm
Transmit: 2.3 Watts (average, with two spatial streams) Receive: 1.9 Watts (average with three receive chains) Idle mode3: 30 mW (average) Radio off: 20 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
3 U.FL type connectors, 50 ohm nominal impedance
802.11 a – Typical (@6 Mbps)
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.013 lb (6 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3V +/- 9%, 1.5V +/- 5%
Operating Non-operating
Operating Non-operating
Operating Non-operating
600 feet – Outdoor Open Area 150 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)
10% to 90% (non-condensing) 5% to 90% (non-condensing)
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 28
Page 29
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Intel Wireless WiFi Link 4965AG
Configuration Utility5Microsoft Windows 2000 or XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode and on battery power.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with
5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
Wireless LAN Standards
Interoperability
Frequency Band
Data Rates
Modulation
Security
1
LED Off – Radio OFF; Solid LED On – Radio ON
IEEE 802.11a IEEE 802.11b IEEE 802.11g
Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at
http://www.hp.com/go/notebooks/WLAN
2.4 GHz and 5 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES (support for key sizes of 128, 192, and 256 bits), 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP­MSCHAPv2, LEAP, EAP-FAST.
)
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows 2000 and XP only.
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
2
CKK)
Output Power
OFDM; power varies by data rate)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
(for
(for
2
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
15 dBm
15 dBm
Page 29
Page 30
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Power Consumption
Power Management
Receiver Sensitivity454 Mbps: -74 dBm, 6 Mbps: -90 dBm
Antenna Connections
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
Configuration Utility5Microsoft Windows 2000 or XP
Transmit: 1.6 Watts (average) Receive: 1.1 Watts (average) Idle mode3: 30 mW (average) Radio off: 20 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
2 U.FL type connectors, 50 ohm nominal impedance
802.11 a – Typical (@6 Mbps)
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.013 lb (6 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3V +/- 9%, 1.5V +/- 5%
Operating Non-operating
Operating Non-operating
Operating Non-operating
Choice of Configuration Utility:
600 feet – Outdoor Open Area 150 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)
10% to 90% (non-condensing) 5% to 90% (non-condensing)
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
Broadcom 4311AG
802.11a/b/g WiFi Adapter
Microsoft Windows XP Wireless Network Connection Manager Intel PROSet for Microsoft Windows 2000 or XP (required for Cisco Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode and on battery power.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with
5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
Wireless LAN Standards
Interoperability
Frequency Band
LED Off – Radio OFF; Solid LED On – Radio ON
IEEE 802.11a IEEE 802.11b IEEE 802.11g
Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at
http://www.hp.com/go/notebooks/WLAN
2.4 GHz and 5 GHz
)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 30
Page 31
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Data Rates
Modulation
Security
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
CKK)
Output Power
OFDM; power varies by data rate)
Power Consumption
Power Management
Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
Antenna type
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
1
(for
2
(for
2
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
17.5 dBm
15 dBm
Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode3: 390 mW (nominal) Sleep mode: 20 mW (max)
ACPI compliant power management
802.11 compliant power saving mode
High efficiency dual band antenna with spatial diversity, mounted in the display enclosure
802.11 a – Typical (@6 Mbps)
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.026 lb (12 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating Non-operating
Operating Non-operating
Operating Non-operating
600 feet – Outdoor Open Area 150 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C)
-40° to 176° F (-40° to 80° C)
10% to 90% (non-condensing) 5% to 95% (non-condensing)
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 31
Page 32
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Broadcom 4311BG
802.11b/g WiFi Adapter
Configuration Utility5Microsoft Windows 2000 or XP
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with
5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
Wireless LAN Standards
Interoperability
Frequency Band
Data Rates
Modulation
Security
1
LED Off – Radio OFF; Solid LED On – Radio ON
IEEE 802.11b IEEE 802.11g
Wi-Fi certified Cisco Compatible Extensions Program compliant with Microsoft Windows 2000 and XP (details at
http://www.hp.com/go/notebooks/WLAN
2.4 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.
)
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4).
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
2
CKK)
Output Power
OFDM; power varies by data rate)
Power Consumption
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
(for
(for
2
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
17.5 dBm
15 dBm
Transmit: 2.0 W (max) Receive: 1.5 W (max) Idle mode3: 390 mW (nominal) Sleep mode: 20 mW (max)
Page 32
Page 33
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Power Management
Receiver Sensitivity454 Mbps: -72 dBm, 11 Mbps: -88 dBm , 1 Mbps: -97 dBm
Antenna type
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
Altitude
Configuration Utility5Microsoft Windows 2000 or XP
ACPI compliant power management
802.11 compliant power saving mode
High efficiency dual band antenna with spatial diversity, mounted in the display enclosure
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.026 lb (12 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating Non-operating
Operating Non-operating
Operating Non-operating
Choice of Configuration Utility:
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
32° to 176° F (0° to 80° C) –40° to 176° F (–40° to 80° C)
10% to 90% (non-condensing) 5% to 95% (non-condensing)
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
Broadcom 4321AGN
802.11a/b/g/draft-n WiFi Adapter
Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. In Power Save Polling mode.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
4. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with
5. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
Wireless LAN Standards
Interoperability
Frequency Band
LED Off – Radio OFF; Solid LED On – Radio ON
IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (draft)
Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows 2000 and XP (details at
http://www.hp.com/go/notebooks/WLAN
Tested with wireless access points from several major manufacturers (details at
2.4 GHz and 5 GHz
http://www.hp.com/go/notebooks/WLAN/draft-n
)
)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 33
Page 34
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Data Rates
Frequency Support
Modulation
Security
Sub-channels
Media Access Protocol
Network Architecture Models
Roaming
Output Power
CKK)
Output Power
OFDM; power varies by data rate)
Power Consumption
Power Management
Receiver Sensitivity3270 Mbps: -66dBm, 162 Mbps: -72 dBm, 54 Mbps: -72 dBm, 11 Mbps: -
Antenna type
Range
Form Factor
Weight
Dimensions
Operating Voltage
Temperature
Humidity
1
(for
2
(for
2
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (draft): 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39,
40.5, 48, 52, 54, 58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135, 162, 216, 243, 270 Mbps
20 MHz: 2.4 GHz and 5 GHz bands 40 MHz: 5 GHz band only
Direct Sequence Spread Spectrum DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES, 802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2, LEAP, EAP-FAST.
Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program Version 4) with Microsoft Windows 2000 and XP only.
Multinational support with frequency bands and channels compliant to local regulations.
CSMA/CA (Collision Avoidance) with ACK
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
17 dBm
15 dBm
Idle associated: 300 mW Idle unassociated: 150 mW Transmit/Receive 20 MHz channel: 2.6 W (max) Transmit/Receive 40 MHz channel: 3.3 W (max)
ACPI compliant power management
802.11 compliant power saving mode
85 dBm , 1 Mbps: -94 dBm
High efficiency dual band antenna with spatial diversity, mounted in the display enclosure
802.11 a – Typical (@6 Mbps)
802.11 b – Typical (@1 Mbps)
802.11 g – Typical (@1 Mbps)
PCI-Express MiniCard
0.026 lb (12 g)
0.19 x 1.2 x 2.0 in (4.75 x 29.85 x 50.8 mm)
3.3v +/- 10%
Operating Non-operating
Operating Non-operating
600 feet – Outdoor Open Area 150 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment
14° to 149° F (–10° to 65° C) –40° to 176° F (–40° to 80° C)
10% to 90% (non-condensing) 5% to 95% (non-condensing)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 34
Page 35
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
HP Integrated Module with Bluetooth Wireless Technology
Altitude
Configuration Utility4Microsoft Windows 2000 or XP
LED Activity
Check latest software/driver release for updates on supported security features.
1. Maximum output power may vary by country according to local regulations.
2. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
3. and a packet error rate of 10% for 802.11a/g (OFDM modulation). WLAN supplier's client utility is required for Cisco Compatible Extensions support with
4. Microsoft Windows 2000 or XP. WLAN may also be compatible with certain third-party software supplicants.
Bluetooth Specification
Dimensions
Frequency Band
Number of Available Channels
Data Rates and Throughput
Transmit Power
Receiver Sensitivity
Power Consumption
Antenna
Range
Electrical Interface
OS Support
Bluetooth Software Supported
Link Topology
Security
Power Management
Operating Non-operating
Choice of Configuration Utility:
Microsoft Windows XP Wireless Network Connection Manager Broadcom Wireless Configuration Utility (required for Cisco Compatible Extensions support)
Microsoft Windows Vista
Microsoft Windows Vista Wireless Network Connection Manager
LED Off – Radio OFF; Solid LED On – Radio ON
2.0 Compliant
1.02 x 0.55 x 0.22 in (26 x 14 x 5.7 mm)
2402 to 2480 MHz
79 (1 MHz) available channels
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric
-6 dBm to 4 dBm (Bluetooth Class II)
Better than -80 dBM at 0.1 % raw bit error rate
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Internally integrated within module
Up 33 ft (10 m)
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Genuine Windows Vista
Genuine Windows XP
Genuine Windows 2000
Broadcom Bluetooth for Windows
Microsoft Windows XP Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Full support of Bluetooth Security Provisions
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 35
Page 36
QuickSpecs
Technical Specifications
HP Compaq 6710b Notebook PC
Certifications
Temperature
Humidity
Altitude
Bluetooth Profiles Supported
*
indicates the profile is also supported by Microsoft Windows XP SP2
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
(with Bluetooth for Windows 4.0 software)
Serial Port Profile (SPP)*
Dial-Up Networking (DUN)*
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)*
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)*
Personal Area Networking Profile (PAN)*
Human Interface Device Profile (HID)*
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
-4° to 158° F (-20° to 70° C)
-40° to 176° F (-40° to 80° C)
10% to 90%
5% to 95%
15,000 ft (4,572 m)
40,000 ft (12,192 m)
Copyright © 2007 Hewlett-Packard Development Company, L.P.
All rights reserved. Microsoft, Windows and Windows XP are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Core 2 Duo and Celeron are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 12685 Worldwide QuickSpecs — Version 2 — 5.15.2007
Page 36
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
