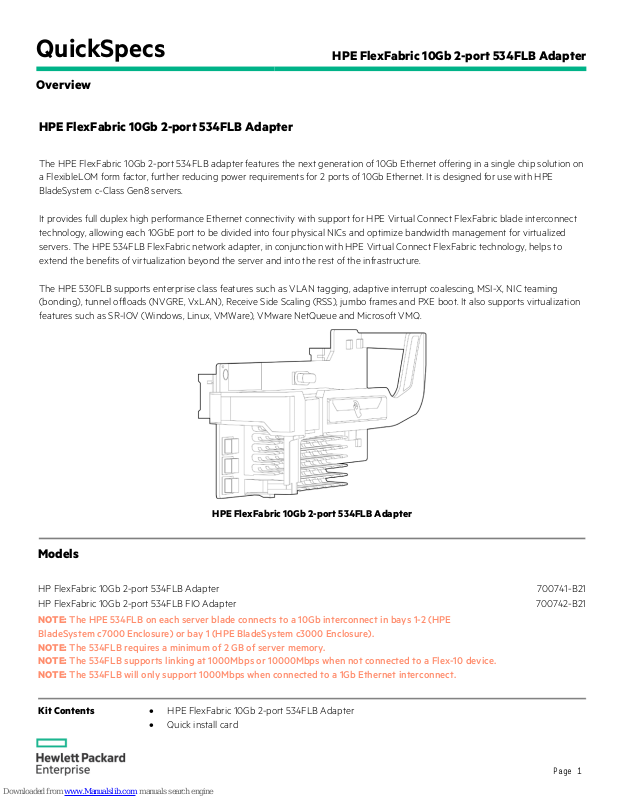

HPE FlexFabric 10Gb 2-port 534FLB Adapter
Overview
Page 1
HPE FlexFabric 10Gb 2-port 534FLB Adapter
The HPE FlexFabric 10Gb 2-port 534FLB adapter features the next generation of 10Gb Ethernet offering in a single chip solution on
a FlexibleLOM form factor, further reducing power requirements for 2 ports of 10Gb Ethernet. It is designed for use with HPE
BladeSystem c-Class Gen8 servers.
It provides full duplex high performance Ethernet connectivity with support for HPE Virtual Connect FlexFabric blade interconnect
technology, allowing each 10GbE port to be divided into four physical NICs and optimize bandwidth management for virtualized
servers. The HPE 534FLB FlexFabric network adapter, in conjunction with HPE Virtual Connect FlexFabric technology, helps to
extend the benefits of virtualization beyond the server and into the rest of the infrastructure.
The HPE 530FLB supports enterprise class features such as VLAN tagging, adaptive interrupt coalescing, MSI-X, NIC teaming
(bonding), tunnel offloads (NVGRE, VxLAN), Receive Side Scaling (RSS), jumbo frames and PXE boot. It also supports virtualization
features such as SR-IOV (Windows, Linux, VMWare), VMware NetQueue and Microsoft VMQ.
HPE FlexFabric 10Gb 2-port 534FLB Adapter
Models
HP FlexFabric 10Gb 2-port 534FLB Adapter
700741-B21
HP FlexFabric 10Gb
2-port 534FLB FIO Adapter 700742-
B21
NOTE:
The HPE 534FLB on each server blade connects to a 10Gb interconnect in bays 1-2 (HPE
BladeSystem c7000 Enclosure) or bay 1 (
HPE BladeSystem c3000 Enclosure).
NOTE:
The 534FLB requires a minimum of 2 GB of server memory.
NOTE:
The 534FLB supports linking at 1000Mbps or 10000Mbps when not connected to a Flex-10 device.
NOTE:
The 534FLB will only support 1000Mbps when connected to a 1Gb Ethernet interconnect.
Kit Contents
• HPE FlexFabric 10Gb 2-port 534FLB Adapter
• Quick install card
QuickSpecs
HPE FlexFabric 10Gb 2-
port 534FLB Adapter
Overview
Page 2
•
Product warranty statement
•
Drivers, user guide, and utilities via:
http://www.hpe.com
QuickSpecs
HPE FlexFabric 10Gb 2-
port 534FLB Adapter
Compatibility
Page
3
HPE
ProLiant
Server Support
• HPE ProLiant BL420c Gen8
• HPE ProLiant BL460c Gen8
• HPE ProLiant BL465c Gen8
• HPE ProLiant BL660c Gen8
Supported
Interconnect
Modules
• HPE Virtual Connect FlexFabric-20/40 F8 Module for c-Class BladeSystem
• HPE Virtual Connect FlexFabric-20/40 F8 Module for c-Class BladeSystem with TAA
• HPE Virtual Connect FlexFabric 10Gb/24-port Module for c-Class BladeSystem
• HPE Virtual Connect FlexFabric 10/24 Enterprise Edition BLc7000 Option
• HPE Virtual Connect Flex-10/10D Module for c-Class BladeSystem
• HPE Virtual Connect Flex-10/10D Module Enterprise Edition for BLc7000 Option
• HPE Virtual Connect Flex-10 10Gb Ethernet Module for c-Class BladeSystem
• HPE Virtual Connect Flex-10 Ethernet Module Enterprise Edition for BLc7000 Option
• HPE 6120XG Blade Switch
• HPE 6120G/XG Blade Switch
• HPE 6125XLG Ethernet Blade Switch
• HPE 6125XLG Ethernet Blade Switch with TAA
• HPE 6125G/XG Ethernet Blade Switch
• HPE 6125G/XG Ethernet Blade Switch with TAA
• HPE 6125G Ethernet Blade Switch
• HPE 6125G Ethernet Blade Switch with TAA
• Cisco Catalyst 3120G Blade Switch for HPE
• Cisco Catalyst 3120X Blade Switch for HPE
• Cisco Catalyst 3020 Blade Switch
• Cisco Fabric Extener B22HP for HPE
• HPE 10GbE Pass Thru Module
• HPE 1GbE Pass Thru Module
NOTE:
10GbE converged connectivity is supported in all HPE Virtual Connect Flex-10 Ethernet, HPE
Virtual Connect FlexFabric modules,
HPE 6120XG, HPE 6125XG series switches, Cicso B22 Fabric
Extender and
HPE 10GbE Pass-
Thru modules. All other supported interconnects and switches are limited
to 1GbE per connection for Ethernet
-ony traffic.
QuickSpecs
HPE FlexFabric 10Gb 2-
port 534FLB Adapter
Standard Features
Page
4
Product Features
• Full hardware offload of iSCSI and FCoE storage protocol processing for highest performance
converged Ethernet data and storage networks.
• Dual-port 10GbE Flex-10 FlexibleLOM network adapter that provides the flexibility to choose the
type of LOM to meet growing infrastructure needs
• Industry-leading throughput and latency performance* Tunnel Offload support for NVGRE and
VxLAN
• Optimized for virtual server environments with support for HPE Flex-10 Technology and Single-Root
I/O Virtualization (SR-IOV)User configurable bandwidth settings when combined with the 10Gb Flex10 Virtual Connect module. From 100Mb/s to10Gb/s on up to four "Physical Function" NICs per port,
in increments of 100Mb/s for NIC. The combined bandwidth of NICs cannot exceed port bandwidth
i.e. 10 Gb.
• Up to 40Gb/s bi-directional near line
rate throughput
• Hardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE)
• Improved small packet performance
• Support for Preboot eXecution Environment (PXE)
•
Integrated PHY and MAC
Dual
-port 10
Gigabit Ethernet
Throughput
(theoretical
bandwidth)
The
HPE 534FLB adapter delivers 20,000 Mbps full duplex Ethernet transfer rate per port (40 Gbps
aggregate full duplex), providing the network performance needed to improve response times and alleviate
bottlenecks. 10Gb Ethernet b
andwidth is ideal for high performance computing, database clusters.
HPE
Virtual
Connect FlexFabric
10Gb Ethernet
Module for the c
-
Class BladeSystem
Evolve 10Gb at your own speed! When paired with the
HPE Virtual Connect FlexFabric 10Gb Ethernet
Module
s, take advantage of four Flex Nics, which are PCI Physical Function devices that are OS/ Hypervisor
independent. In addition take advantage of
iSCSI and FCoE storage offload capability making it a full-
Converged Network Adapter (CNA)
Server ROM recognizes
them as individual NICs
Speeds can be set per NIC from 100Mb to 10Gbs in 100Mb increments
Three fold increase in number of network connections per port.
Up to four physical function NICs per port.
Ideal for virtualized server environment, especially for
dedicated bandwidth application like virtual machine
migration from one physical server to another physical server.
Jumbo Frames
The
HPE 534FLB adapter supports jumbo frames (also known as extended frames), permitting up to a 9K
byte (KB) transmission
unit (MTU) when running Ethernet I/O traffic. This is over 5X the size of a standard
1500
-byte Ethernet frame. With jumbo frames, networks can achieve higher throughput performance and
greater CPU utilization. These attributes are particularly useful for
database transfer and tape backup
operations.
TCP/IP Stateless
Offloading
TCP, IP, UDP checksum offload, Large Send Offload (LSO), TCP, Segmentation Offload (TSO). These features
optimize host efficiency, leaving the CPU available for other duties.
Tunnel Offload
Minimize the impact of overlay networking on host performance with tunnel offload support for VXLAN
