QuickSpecs
Overview

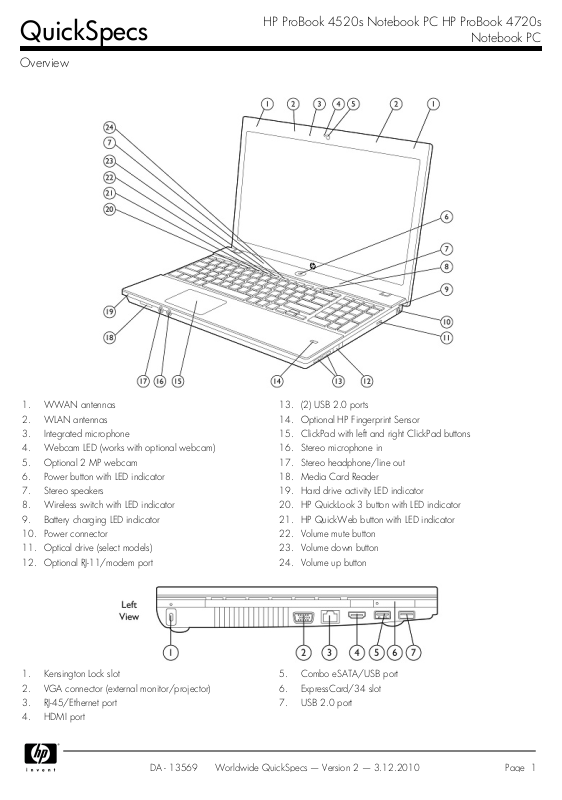

HP ProBook 4520s Notebook PC HP ProBook 4720s
Notebook PC
1.
WWAN antennas
2.
WLAN antennas
3.
Integrated microphone
4.
Webcam LED (works with optional webcam)
5.
Optional 2 MP webcam
6.
Power button with LED indicator
7.
Stereo speakers
8.
Wireless switch with LED indicator
9.
Battery charging LED indicator
10.
Power connector
11.
Optical drive (select models)
12.
Optional RJ-11/modem port
1.
Kensington Lock slot
2.
VGA connector (external monitor/projector)
3.
RJ-45/Ethernet port
4.
HDMI port
13.
(2) USB 2.0 ports
14.
Optional HP Fingerprint Sensor
15.
ClickPad with left and right ClickPad buttons
16.
Stereo microphone in
17.
Stereo headphone/line out
18.
Media Card Reader
19.
Hard drive activity LED indicator
20.
HP QuickLook 3 button with LED indicator
21.
HP QuickWeb button with LED indicator
22.
Volume mute button
23.
Volume down button
24.
Volume up button
5.
Combo eSATA/USB port
6.
ExpressCard/34 slot
7.
USB 2.0 port
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 1
QuickSpecs
Overview
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
1.
Battery release latches
2.
Battery bay
3.
SIM card slot (select units, located inside battery bay)
At A Glance
Genuine Windows 7 versions, Genuine Windows Vista versions, Genuine Windows XP Professional available through
downgrade rights from Windows 7 Professional, SUSE Linux, Red Flag Linux (PRC only), or FreeDOS
Thin, lightweight design with brushed aluminum finish for durability and style
Color choice of caviar or bourdeaux finish
Full-sized spill-resistant keyboard with better spaced keys and full separate numeric keypad
ATI Mobility Radeon HD 4350 discrete graphics with 512 MB dedicated video memory
or integrated Intel HD Graphics
ArcSoft TotalMedia Suite for playing, creating, and editing video and audio files
New keyboard function keys for play, rewind, and fast-forward of video and audio files
Corel Home Office productivity suite for word processing, spreadsheets, and presentations
HDMI port for connecting to high-resolution displays; combo eSATA/USB port
HP Face Recognition for HP ProtectTools for easy logins using the optional integrated 2 MP webcam
Up to 500 GB 7200 rpm hard drive or 750 GB 5400 rpm hard drive with HP 3D DriveGuard protection
HP Power Assistant to conserve power, increase battery run-time, monitor power needs, report workforce power consumption
HP QuickLook 3 (quick access to e-mail, calendar, contacts and tasks), HP QuickWeb, HP DayStarter
HP Connection Manager 3.1
Flexible wireless connectivity options:
Integrated HP un2420 EV-DO/HSDPA Mobile Broadband Module* provides worldwide Gobi mobile Internet
technology with GPS
Integrated Intel Centrino® Advanced-N 6200 802.11 a/b/g/n, Atheros 802.11 b/g/n, Broadcom 802.11
a/b/g/n or b/g wireless LAN module
Bluetooth® v2.1
HP ProBook 4520s offers choice of 9-cell or 6-cell battery to customize weight and run-time to your needs
Integrated Media Card Reader and ExpressCard/34 slot
Widescreen LED-backlit HD display with 16:9 aspect ratio, BrightView optional
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 2
HP ProBook 4520s Notebook PC HP ProBook
QuickSpecs
4720s Notebook PC
Overview
HP ProBook 4520s: 15.6-inch diagonal
HP ProBook 4720s: 17.3-inch diagonal
Choice of an Intel® Core™ i7, Core i5, or Core i3 processor
Enhanced security features including HP ProtectTools, HP Face Recognition, Computrace LoJack Pro ready, HP SpareKey, HP
Disk Sanitizer, optional HP Fingerprint Sensor, and optional HP Privacy Filter
Optional optical drives include Blu-ray ROM DVD+/-RW SuperMulti DL Drive for high-definition playback and DVD+/-RW
SuperMulti DL LightScribe Drive for burning custom labels directly to your discs
* Only available with HP ProBook 4520s with Intel HD Graphics.
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 3
QuickSpecs
Standard Features (availability may vary by country)
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
Processors
Operating System
Intel Core i7-620M Processor (2.66 GHz, 4 MB L3 cache)
Up to 3.33 GHz with Intel Turbo Boost Technology
Intel Core i5-540M Processor (2.53 GHz, 3 MB L3 cache)
Up to 3.06 GHz with Intel Turbo Boost Technology
Intel Core i5-520M Processor (2.4 GHz, 3 MB L3 cache)
Up to 2.93 GHz with Intel Turbo Boost Technology
Intel Core i5-430M Processor (2.26 GHz, 3 MB L3 cache)
Up to 2.53 GHz with Intel Turbo Boost Technology
Intel Core i3-350M Processor (2.26 GHz, 3 MB L3 cache)
Intel Core i3-330M Processor (2.13 GHz, 3 MB L3 cache)
NOTE:
battery optimization mode.
* Intel's numbering is not a measurement of higher performance.
Preinstalled
Supported
Certified
* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install
the Windows 7 software and take full advantage of Windows 7 functionality.
See:
Processor speed denotes maximum performance mode; processors will run at lower speeds in
Genuine Windows 7 Professional Edition 32
Genuine Windows XP Professional available through downgrade rights
from Windows 7 Professional
Genuine Windows 7 Home Premium Edition 32
Genuine Windows 7 Home Basic Edition 32
Genuine Windows 7 Starter
Genuine Windows Vista Business 32
Genuine Windows Vista Home Basic 32
SUSE Linux Enterprise Desktop 11
Red Flag Linux (PRC only)
FreeDOS
Genuine Windows 7 Professional 64
SUSE Linux Enterprise Desktop 11
http://www.microsoft.com/windows/windows-7/
*
*
*
*
*
*
*
*†
*
*
**
**
*
for details.
Chipset
** Certain Windows Vista product features require advanced or additional hardware. See:
http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx
http://www.microsoft.com/windowsvista/getready/capable.mspx
Advisor can help you determine which features of Windows Vista will run on your computer. To
download the tool, visit:
† Windows XP Professional is preinstalled on this system and includes end user rights and media for
Windows 7 Professional. You may only use one version at a time. You must back up all data (files,
photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
Mobile Intel HM57 Express Chipset
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
http://www.windowsvista.com/upgradeadvisor
and
for details. Windows Vista Upgrade
.
Page 4
QuickSpecs
Standard Features (availability may vary by country)
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
Graphics
Display
Integrated graphics (HP ProBook 4520s only):
Intel HD Graphics
Discrete graphics:
ATI Mobility Radeon HD 4350 graphics controller with 512 MB dedicated video memory
Microsoft DirectX 10.1 (discrete),10 (integrated) capable
Internal
External
HP ProBook 4520s:
15.6-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
15.6-inch diagonal LED-backlit HD BrightView (1366 x 768 resolution)
HP ProBook 4720s:
17.3-inch diagonal LED-backlit HD+ anti-glare (1600x900 resolution)
17.3-inch diagonal LED-backlit HD+ BrightView (1600x900 resolution)
Optional HP Privacy Filter
Up to 32-bit per pixel color depth
VGA
port supports resolutions up to 1600 x 1200 at 75 Hz, and lower
resolutions at up to 100 Hz.
HDMI
port supports direct connection to high-definition displays with up to
1920 x 1080 resolution and 7-channel audio with one convenient cable (not
included).
NOTE:
and color depth settings.
Resolutions are dependent upon monitor capability, and resolution
Memory
Standard
Maximum
Dual-channel
* Memory speed is processor dependent.
NOTE:
branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower
memory speed. Full availability of 4 GB or more of memory requires Windows Vista Business 64-bit or
Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your
configuration, so that above 3 GB all memory may not be available due to system resource requirements.
Due to the non-industry standard nature of some third-party memory modules, we recommend HP
DDR3 PC3-10600 SDRAM (1333 MHz)
Two SODIMM slots supporting dual-channel memory
1024 MB and 2048 MB SODIMMs
Standard memory up to 4096 MB
Upgradeable to 8192 MB with optional 4096 MB SODIMMs in slots 1 and
2
Maximized dual-channel performance requires SODIMMs of the same size
and speed in both memory slots.
*
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 5
QuickSpecs
Standard Features (availability may vary by country)
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
Communications
Wireless Devices
Realtek Ethernet (10/100/1000 NIC)
Optional 56K V.92 modem
* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for
Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,
connection to a Gigabit Ethernet server and network infrastructure is required.
** Designed for downloads from 56K modem compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability
is subject to country regulatory approval.
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring
support for the latest industry standards. Mobile Broadband (WWAN) requires a Windows operating
system and is available in select countries as a factory configurable feature for the HP ProBook 4520s
only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of
the supported wireless LAN and wireless WAN options.
HP un2420
EV-DO/HSPA Mobile
Broadband Module
(available for HP ProBook
4520s with Intel HD
Graphics only)
All 802.11 integrated
wireless LAN options
Intel Centrino AdvancedN 6200 (2x2)
Atheros 9285G
802.11b/g/n (1x1)
Broadcom 4322AGN
802.11a/b/g/n
WiFi Adapter
Broadcom 4312G
802.11b/g
WiFi Adapter
HP Integrated Module
with Bluetooth Wireless
Technology
* In countries where 802.11n is not allowed, this capability is not enabled (Intel 802.11a/b/g only).
**
Integrated mobile broadband module with Gobi global mobile Internet
technology that provides connectivity to both CDMA (EVDO) and UMTS
(HSPA) networks. It also provides GPS functionality for various mapping
applications and security applications.
NOTE:
Two 850/900/1575/1800/1900/2100 MHz antennas integrated in
the top of the display panel support current and future WWAN technologies.
Wi-Fi certified
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,
PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
Dual antennas integrated in the display enclosure
Integrated support for 802.11a, b, g, and n
2 transmit, 2 receive antennas
Up to 300 mbps data rate
Integrated support for 802.11b, g, and n
Up to 300 mbps data rate
Integrated support for 802.11a, b, g, and n
Cisco Compatible Extensions support
Up to 300 mbps data rate
Integrated support for 802.11 b and g
Cisco Compatible Extensions support
Up to 54 mbps data rate
Bluetooth Specification v2.1 compliant
Works with a wide range of Bluetooth devices
*
Separately purchased mobile network operator service is required.
*
*
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 6
QuickSpecs
Standard Features (availability may vary by country)
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
Keyboard
Pointing device
Expansion card slots
Storage
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a
drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of
damage to sensitive components underneath. The 101/102-key compatible keyboard features a full-pitch
key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing
keys, both left and right control and alt keys, full separate numeric keypad, and 12 function keys. US and
International key layouts are available. Other features include hotkeys for instant access to power
conservation and brightness, and 19.05 x 19.05 mm key pitch (center-to-center spacing).
ClickPad with gestures support:
Two-finger scroll, zoom, pinch and pivot rotate
ExpressCard/34 slot
Media Card Reader
* Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo Card
directly into your notebook could damage the memory card and/or notebook.
Internal Storage Device
NOTE:
HP 3D DriveGuard
(Windows models only)
Fixed optical drives
Up to 15 GB is reserved for the system recovery software.
Supports ExpressCard/34 (34 mm x 75 mm x 5 mm) card sizes
Supports SD (Secure Digital), MMC (MultiMedia Card), Memory Stick,
Memory Stick Pro, Memory Stick Duo*, xD-Picture card
250/320/500 GB 7200 rpm SMART SATA II Hard Drive
750 GB 5400 rpm SMART SATA II Hard Drive
The hard drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital motion
detection with intelligent sensitivity to help protect the hard drive during
normal use from shock and vibration. The digital accelerometer temporarily
halts all data transfer and parks the hard drive when abrupt motion is
detected.
Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive
DVD+/-RW SuperMulti DL LightScribe Drive
DVD-ROM Drive
* Support for the Blu-ray DVD drive on configurations with integrated
graphics requires Windows7 or Windows Vista; configurations with discrete
graphics support it with any offered Windows operating system.
*
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 7
QuickSpecs
Standard Features (availability may vary by country)
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
Interfaces
Audio/Visual
VGA
HDMI
Stereo microphone in
Stereo headphone/line
out
Power connector
RJ-11/modem (optional)
RJ-45/Ethernet
Combo eSATA/USB 2.0
USB 2.0
LED status indicators
High Definition Audio support
Integrated stereo speakers
Integrated digital microphone
Stereo headphone/line out
Stereo microphone in
Optional 2 MP webcam
One
One
One
One
One
One
One
One
Three
Eight
Software
Supports videoconferencing and still image capture
Improved quality for video streaming and still image capture (1600x1200 resolution)
Up to 30 frames/sec
Fixed focus lens
16-bit true color (camera sensor up to UXGA resolution)
Preinstalled software with
Windows Vista
Additional software
available from the web
HP Recovery Manager (available with Windows 7 or Vista only)
HP Support Assistant (available with Windows 7 or Vista only)
HP ProtectTools Security Manager
HP Face Recognition
HP QuickLaunch Buttons Software
HP QuickLook 3
HP QuickWeb
HP Power Assistant
HP Connection Manager 3.1
HP Wireless Assistant
HP Day Starter
Corel Home Office productivity suite 60-day trial
Roxio Creator Business (select models)
ArcSoft Total Media Suite
Microsoft Office Professional 2007 60-day Convertible Trial
McAfee Total Protection
Norton Online Backup
HP Webcam Software (select models)
Skype
WinZip 12 trial
HP SoftPaq Download Manager
*
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 8
QuickSpecs
Standard Features (availability may vary by country)
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
HP Recovery Manager
Security
Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery
Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if
important system files are accidentally deleted. Up to 15 GB of the hard drive is reserved for the system
recovery software.
Standard Features
Optional Features
* The Computrace agent is shipped turned off, and must be activated by customers when they purchase
a subscription with terms ranging from one to five years.
For more information on HP security solutions refer to:
HP ProtectTools Security Manager
Face Recognition for HP ProtectTools
One Step Login
Enhanced Pre-Boot Security
HP SpareKey
HP Disk Sanitizer
Setup Password
Kensington Lock Slot
Support for Computrace* LoJack Pro for HP ProtectTools
HP Fingerprint Sensor
HP Privacy Filter
http://www.hp.com/go/security
.
HP ProtectTools Security
Manager
HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP
ProtectTools Security Manager is an extensible client security console that delivers enhanced security
capabilities through add-on software modules. The following modules are available on the hard drive
(also downloadable from the web) and can be configured in Software Setup:
Credential Manager for HP ProtectTools
Device Access Manager for HP ProtectTools
Drive Encryption for HP ProtectTools
File Sanitizer for HP ProtectTools
Privacy Manager for HP ProtectTools (Chat & Sign)
Embedded Security for HP ProtectTools
Computrace LoJack Pro for HP ProtectTools
HP ProtectTools is now centrally manageable with the capability to manage notebooks from a single
point. Security is management ready out of the box, in partnership with Digital Persona. New features
address requirements that customers expect from a centrally managed security solution such as user
provisioning, credential reset, and credential revocation.
HP ProtectTools provides two separate management solutions, targeted at the enterprise and the SMB:
Digital Persona Pro AD: Designed for the enterprise customer. Integrates with Active Directory and
gives IT Managers the ability to provision users, create login policies based on passwords,
biometrics or smartcards. Management features also include remote credential recovery in case the
user forgets the password, loses the smartcard or cannot use the fingerprint reader for any reason.
In addition, advanced auditing capabilities are also built in. Digital Persona Pro AD is available
now.
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 9
QuickSpecs
Standard Features (availability may vary by country)
Digital Persona Pro Workgroup: Designed for the small business customer. Provides features similar
to the Active Directory version, but for workgroups. Workgroup activation is built into HP
ProtectTools, and activation of up to 5 seats is completely free.
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
Power Supply
Battery
Battery Life
System Standby Time
Models with integrated graphics: External 65-watt Smart AC adapter
Models with discrete graphics: External 90-watt Smart AC adapter
6-foot (1.8-meter) power cord included; total length including external AC adapter is 12 feet (3.66 meter)
HP Fast Charge
* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast
Charge does not apply to the HP 9-cell battery.
Primary battery
HP ProBook 4520s
9-cell battery
6-cell battery
HP ProBook 4720s
8-cell battery
NOTE:
features, use, wireless functionality and power management settings. The maximum capacity of the
battery will naturally decrease with time and usage. See MobileMark07 battery benchmark
www.bapco.com/products/mobilemark2007
Up to TBD week
Battery life will vary depending on the product model, configuration, loaded applications,
*
HP ProBook 4520s:
HP 9-cell (93 WHr) Li-Ion battery
HP 6-cell (47 WHr) Li-Ion battery
HP ProBook 4720s:
HP 8-cell (73 WHr) Li-Ion battery
Configurations with integrated
graphics
Up to 10 hours
Up to 5 hours Up to 4 hours
N/A
for additional details.
Configurations with
discrete graphics
Up to 8 hours
Up to 6 hours
Power Conservation
Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum Performance
Mode, or Automatic mode)
ATI PowerPlay technology
Hibernation
Standby
ACPI compliance
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 10
QuickSpecs
Standard Features (availability may vary by country)
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
Service and Support
HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country;
1-year limited warranty on primary battery. Warranty upgrades are also available. HP Care Pack
Services extend service contracts beyond the standard warranties. To choose the right level of service for
your HP product, use the HP Care Pack Services Lookup Tool at:
Additional HP Care Pack Services information by product is available at:
http://www.hp.com/hps/carepack
NOTE:
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
.
http://www.hp.com/go/lookuptool
.
.
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 11
QuickSpecs
Options (availability may vary by country)
HP ProBook 4520s Notebook PC HP ProBook
4720s Notebook PC
Memory
Storage
Communication
Expansion
HP 1 GB (DDR3 1333 MHz) SODIMM
HP 2 GB (DDR3 1333 MHz) SODIMM
HP 4 GB (DDR3 1333 MHz) SODIMM
HP 250 GB USB Pocket Media Hard Drive
HP External USB CD/DVD R/RW Drive
HP WLAN 802/11 a/b/g/draft-n Mini-card Kit
HP Basic Adjustable Stand
HP USB 2.0 Docking Station
HP Essential USB 2.0 Port Replicator
HP Dual Hinge Notebook Stand
HP Display & Notebook Stand
HP Adjustable Display Stand
HP Adjustable Dual Display Stand
AT911AA
AT912AA
AT913AA
FE477AA
FS943AA
KM591AA#xxx
AL549AA
FQ834AA
AQ731AA
AW661AA
AW662AA
AW663AA
AW664AA
Power
Carrying Cases
65W Smart AC Adapter
90W Smart AC/Auto/Air Combo Adapter
HP 65W Slim Adapter
HP Smart 65W Travel AC Adapter
90W Smart AC Adapter
HP 6-Cell Li-Ion Primary Battery
HP Deluxe Nylon Backpack
HP Value Nylon Case
HP Universal Nylon Case
HP Executive Leather Case
HP Deluxe Roller Case
HP Basic Backpack
HP Basic Messenger
HP Basic Carrying Case
HP Professional Series Carrying Case
HP Professional Series Backpack
HP Professional Series Messenger
HP Professional Series Designer Tote
HP Professional Series Slip Case
HP Elite Series Quick Case
ED494AA
AJ652AA
AX727AA
AU155AA
ED495AA
KU531AA
RR317AA
RR314AA
RR315AA
RR316AA
GD405AA
AM863AA
AP355AA
AJ078AA
AT886AA
AT887AA
AT888AA
AT889AA
AT890AA
AT892AA
DA - 13569 Worldwide QuickSpecs — Version 2 — 3.12.2010
Page 12
Loading...
