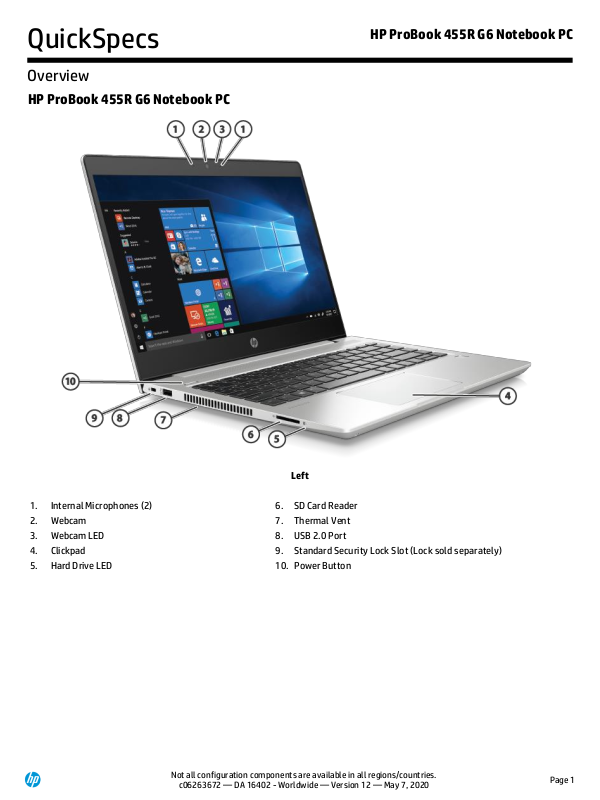

QuickSpecs
HP ProBook 455R G6 Notebook PC
Overview
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 1
HP ProBook 455R G6 Notebook PC
Left
1.
Internal Microphones (2)
6.
SD Card Reader
2.
Webcam
7.
Thermal Vent
3.
Webcam LED
8.
USB 2.0 Port
4.
Clickpad
9.
Standard Security Lock Slot (Lock sold separately)
5.
Hard Drive LED
10.
Power Button
QuickSpecs
HP ProBook 455R G6 Notebook PC
Overview
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 2
Right
1.
Power connector
5.
USB 3.1 Gen 1 port
2.
USB Type-C™ 3.1 Gen 1 port
6.
USB 3.1 Gen 1 port
3.
Ethernet port (RJ-45)
7.
Headphone/Microphone Combo Jack
4.
HDMI port (Cable not included)
8.
Optional HP Fingerprint Sensor (select models)
QuickSpecs
HP ProBook 455R G6 Notebook PC
Overview
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 3
At a Glance
• Preinstall Windows 10 or FreeDOS 3.0
• Choice of 2nd Generation AMD Ryzen™ processors
• Display include your choice of 39.62 cm (15.6") diagonal HD, Ultra Wide Viewing Angle FHD
• Integrated AMD Radeon™ Vega UMA Graphics
• Enhanced security features including TPM2.0, HP BIOSphere, Hardware enforced Firmware Protection, HP Fingerprint
Sensor4 (select models) and optional IR camera3
• Passed 19 MIL-STD 810 G testing, plus an additional 120,000 hours of reliability testing through HP's Total Test Process
1
• Weight starting at 4.41 lbs (2 kgs)
• HP Long-Life Rechargeable batteries, with HP Fast Charge Technology recharges 50% in 30 minutes
2
• Battery life Up to 13 hours and 45 minutes
• Supports wireless LAN
• Up to 512 GB Solid State Drives and 1 TB Hard Drive
• 32 GB total system memory
• 720 p HD webcam, IR camera for face authentication with Windows Hello
• Spill-resistant and optional backlit Keyboard with numeric keypad
3
, and Clickpad with multi-touch gestures enabled,
taps enabled as default
1. MIL-STD-810G testing is not intended to demonstrate fitness of U.S. Department of Defense (DoD) contract requirements or for
military use. Test results are not a guarantee of future performance under these test conditions. Accidental damage requires
an optional HP Accidental Damage Protection Care Pack.
2. Recharges the battery up to 50% within 30 minutes when the system is off or in standby mode when used with the power
adapter provided with the notebook. After charging has reached 50% capacity, charging speed will return to normal. Charging
time may vary +/-10% due to System tolerance.
3. Sold separately or as an optional feature.
4. HP Fingerprint Sensor is an optional feature and requires configuration at purchase.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 4
PRODUCT NAMES
HP ProBook 455R G6 Notebook PC
OPERATING SYSTEMS
Preinstalled
Windows 10 Pro 641
Windows 10 Pro 64 (National Academic only)2
Windows 10 Home 641
Windows 10 Home Single Language 64
1
FreeDOS 3.0
1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for
updates. See http://www.windows.com/.
2. Some devices for academic use will automatically be updated to Windows 10 Pro Education with the Windows 10
Anniversary Update. Features vary; see https://aka.ms/ProEducation for Windows 10 Pro Education feature information.
PROCESSORS
AMD Ryzen™ 7 PRO 3700U APU with Radeon™ Vega 10 Graphics (2.3 GHz base clock, up to 4 GHz max boost clock,
4 MB L3 cache, 4 cores)
3,4,5,6
AMD Ryzen™ 5 3500U APU with Radeon™ Vega 8 Graphics (2.1 GHz base clock, up to 3.7 GHz max boost clock,
4 MB cache, 4 cores)
3,4,5,6
AMD Ryzen™ 3 3300U APU with Radeon™ Vega 6 Graphics (2.1 GHz base clock, up to 3.5 GHz max boost clock,
4 MB cache, 4 cores)
3,4,5,6
AMD Ryzen™ 3 3200U APU with Radeon™ Vega 3 Graphics (2.6 GHz base clock, up to 3.5 GHz max boost clock,
4 MB cache, 2 cores)
3,4,5,6
Processors Family
AMD Ryzen™ APU processor6
3. Multicore is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application
workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.
4. Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.
5. Max Boost clock frequency performance varies depending on hardware, software and overall system configuration.
6. In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on
products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7
drivers on http://www.support.hp.com.
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 5
CHIPSET
Integrated with processor
GRAPHICS
Integrated
Radeon™ Vega Graphics7
Supports
Support HD decode, DX12, HDMI 1.4b to 4K 30 Hz
7. HD content required to view HD images.
DISPLAYS
Non-Touch
39.6 cm (15.6") diagonal HD SVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB, two WLAN
antennas (1366 x 768)
7,8
39.6 cm (15.6") diagonal HD SVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB for HD camera, one WLAN
antenna (1366 x 768)
7,8
39.6 cm (15.6") diagonal HD SVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB for HD camera, two WLAN
antennas (1366 x 768)
7,8
39.6 cm (15.6") diagonal HD SVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB for HD + IR camera, two WLAN
antennas (1366 x 768)
7,8
39.6 cm (15.6") diagonal FHD UWVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB, two WLAN
antennas (1920 x 1080)
7,8
39.6 cm (15.6") diagonal FHD UWVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB for HD camera, one WLAN
antenna (1920 x 1080)
7,8
39.6 cm (15.6") diagonal FHD UWVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB for HD camera, two WLAN
antennas (1920 x 1080)
7,8
39.6 cm (15.6") diagonal FHD UWVA eDP anti-glare LED-backlit slim, 220 cd/m², 67% sRGB for HD + IR camera, two WLAN
antennas (1920 x 1080)
7,8
Touch
Supports narrow bezel
HDMI
HDMI1.4b, up to 4K 30Hz
7. HD content required to view HD images.
8. Resolutions are dependent upon monitor capability, and resolution and color depth settings.
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 6
STORAGE AND DRIVES
Primary Storage
1 TB 5400 rpm SATA9
500 GB 7200 rpm SATA9
Primary M.2 Storage
128 GB SATA TLC Solid State Drive9
256 GB PCIe® NVMe™ Value Solid State Drive9
512 GB PCIe® NVMe™ TLC Solid State Drive9
512 GB PCIe® NVMe™ Value Solid State Drive9
Note: PCIe SSD not available for Celeron
9. For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10)
is reserved for system recovery software.
MEMORY
Maximum Memory
32 GB DDR4-2400 SDRAM
10
Memory
32 GB DDR4- 2400 SDRAM (2 X 16 GB)10
16 GB DDR4- 2400 SDRAM (1 x 16 GB)10
8 GB DDR4- 2400 SDRAM (1 x 8 GB)
8 GB DDR4- 2400 SDRAM (2 x 4 GB)10
4 GB DDR4- 2400 SDRAM (1 x 4 GB)
Memory Slots
2 SODIMM
Both slots are customer accessible / upgradeable
DDR4 PC4 SODIMMS, system runs at 2400
Supports Dual Channel Memory
10. Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to
ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
NETWORKING/COMMUNICATIONS
WLAN
Realtek RTL8822BE 802.11ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo
11
Realtek RTL8821CE 802.11ac (1x1) Wi-Fi® and Bluetooth® 4.2 Combo
11
Ethernet
Realtek RTL8111EP 10/100/1000 NIC12
11. Wireless access point and Internet service required and sold separately. Availability of public wireless access points
limited.
12. The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet,
and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server
and network infrastructure is required.
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 7
AUDIO/MULTIMEDIA
Audio
Integrated Microphone (Mono or Dual Array)
2 Integrated Stereo Speakers
Speaker Power
2W/4ohm Per speaker
Camera
720p HD Camera7
720p HD Camera+IR Camera
7,13
Sensors
Accelerometer
Hall sensor
7. HD content required to view HD images.
13. Sold separately or as an optional feature.
KEYBOARDS/POINTING DEICES/BUTTONS & FUNCTION KEYS
Keyboard
HP Premium Keyboard, spill resistant with numeric keypad and optional backlit
14
14. Backlit keyboard is an optional feature.
Pointing Device
Clickpad with multi-touch gesture support
Function Keys
F1 - Display Switching
F2 - Blank
F3 - Brightness Down
F4 - Brightness Up
F5 - Audio Mute
F6 - Volume Down
F7 - Volume Up
F8 - Mic Mute
F9 - Blank or Backlit Toggle
F10 - Blank
F11 - Wireless
F12 - Sleep
Hidden Functions
Fn+R - Break
Fn+S - Sys Rq
Fn+C - Scroll Lock
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 8
SOFTWARE AND SECURITY
BIOS
HP BIOSphere Gen4
15
HP DriveLock & Automatic DriveLock
16
BIOS Update via Network
Secure Erase
17
Absolute Persistence Module
18
Pre-boot Authentication
HP Wireless Wakeup
Software
HP Native Miracast Support
19
HP LAN-Wireless Protection
HP Connection Optimizer
HP 3D DriveGuard
HP Support Assistant
20
HP Noise Cancellation Software
HP Host Based MAC Address Manager
Buy Office (Sold separately)
Manageability Features
HP Driver Packs
21
HP System Software Manager (SSM)
HP BIOS Config Utility (BCU)
HP Client Catalog
HP Manageability Integration Kit Gen3
22
HP Cloud Recovery
23
Client Security Software
HP Client Security Suite Gen424 including:
HP Security Manager25 (including Credential Manager, HP Password Manager, HP Spare Key)
HP Power On Authentication
HP Fingerprint Sensor (select models)29
Windows Defender26
Security Management
Secure Erase
17
TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)
27
SATA 0,1 port disablement (viaBIOS)
Serial, USB enable/disable (viaBIOS)
Power-on password (viaBIOS)
Setup password (viaBIOS)
Support for chassis padlocks and cable lock devices
Integrated hood sensor
HP Sure Click28
15. HP BIOSphere Gen4 requires Intel® or AMD 8th Gen processors. Features may vary depending on the platform and
configurations.
16. HP Drive Lock & Automatic Drive Lock is not supported on NVMe drives
17. HP Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 80088 "Clear" sanitation method.
18. Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription.
Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability
outside the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit:
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 9
http://www.absolute.com/company/legal/agreements/ computrace-agreement. Data Delete is an optional service provided
by Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers
must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from
Absolute Software.
19. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming.
20. HP Support Assistant requires Windows and Internet access.
21. HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement.
22. HP Manageability Integration Kit can be downloaded from
http://www8.hp.com/us/en/ads/clientmanagement/overview.html
23. HP Cloud Recovery is available for HP Elite and Pro desktops and laptops PCs with Intel® or AMD processors and requires
an open, wired network connection. Note: You must back up important files, data, photos, videos, etc. before use to avoid
loss of data. Detail please refer to: https://support.hp.com/us-en/document/c05115630
24. HP Client Security Suite Gen 4 requires Windows and Intel® or AMD 7th or 8th generation processors.
25. HP Password Manager requires Internet Explorer or Chrome or Firefox. Some websites and applications may not be
supported. User may need to enable or allow the add-on / extension in the internet browser.
26. Windows Defender Opt In, Windows 10, and internet connection required for updates.
27. Firmware TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the TPM 2.0 specification version v0.89 as
implemented by Intel Platform Trust Technology (PTT).
28. HP Sure Click is available on most HP PCs and supports Microsoft® Internet Explorer and Chromium™. Supported
attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or
Adobe Acrobat are installed.
29. HP Fingerprint Sensor is an optional feature and requires configuration at purchase.
POWER
Power Supply
HP Smart 65 W External AC power adapter30
HP Smart 65 W EM External AC power adapter30
HP Smart 65 W USB Type-C™ adapter30
HP Smart 45 W External AC power adapter30
HP Smart 45 W USB Type-C™ adapter30
Primary Battery
HP Long Life 3-cell, 45 Wh Li-ion polymer
31
Battery Life
Up to 13 hours and 45 minutes
32
Power Cord
3-wire plug - 1.8 m30
3-wire plug - 1 m30
2-wire plug - 1 m30
Duckhead power cord - 1.0m30
Duckhead power cord - 1.8m30
Battery Weight
0.49 lb
0.22 kg
30. Availability may vary by country.
31. Battery is internal and not replaceable by customer. Serviceable by warranty.
32. Windows 10 MM14 battery life will vary depending on various factors including product model,
configuration, loaded applications, features, use, wireless functionality, and power management
settings. The maximum capacity of the battery will naturally decrease with time and usage.
See http://www.bapco.com for additional details.
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 10
WEIGHTS & DIMENSIONS
Weight
Starting at 4.41 lbs33
Starting at 2 kgs33
Dimensions (w x d x h)
14.37 x 10.11 x 0.75 in
36.49 x 25.69 x 1.9 cm
33. Weight will vary by configuration.
PORTS/SLOTS
Ports
1 USB 3.1 Type-C™ Gen 1 (Power delivery, DisplayPort™ 1.2)
2 USB 3.1 Gen 1
1 USB 2.0 (charging)
1 HDMI 1.4b34
1 RJ-45
1 AC power
1 Headphone/Microphone Combo Jack
Expansion Slots
1 SD
Supports SD, SDHC, SDXC
34. HDMI cable sold separately.
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 11
SERVICE AND SUPPORT
HP Services offers 3-year and 1-year limited warranties and 90 day software limited warranty options depending on country.
Batteries have a default one year limited warranty except for Long Life batteries which will have same 1-year or 3-year
limited warranty as the platform. Refer to http://www.hp.com/support/batterywarranty/ for additional battery information.
On-site service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that
go beyond the standard limited warranties. To choose the right level of service for your HP product, use the HP Care Pack
Services Lookup Tool at: http://www.hp.com/go/cpc.35
35. HP Care Packs are sold separately. Service levels and response times for HP Care Packs may vary depending on your
geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit
http://www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or
indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local
laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty
provided with your HP Product.
ENVIRONMENTAL & INDUSTRY
Eco-Label Certifications
& declarations
This product has received or is in the process of being certified to the following approvals and may
be labeled with one or more of these marks:
• IT ECO declaration
• US ENERGY STAR®
• EPEAT® Silver registered in the United States. See http://www.epeat.net for registration status in
your country.
• TCO Certified 8.0
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Notebook model is based on a Typically Configured Notebook.
Energy Consumption
(in accordance with US
ENERGY STAR® test
method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation
(Short idle)
7.452 W
7.620 W
7.512 W
Normal Operation
(Long idle)
4.884 W
5.052 W
4.932 W
Sleep
0.528 W
0.576 W
0.540 W
Off
0.312 W
0.336 W
0.312 W
Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model
family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S.
Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model
family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is
for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a
Microsoft Windows® operating system.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation
(Short idle)
25 BTU/hr
26 BTU/hr
26 BTU/hr
Normal Operation
(Long idle)
17 BTU/hr
17 BTU/hr
17 BTU/hr
Sleep
2 BTU/hr
2 BTU/hr
2 BTU/hr
Off
1 BTU/hr
1 BTU/hr
1 BTU/hr
Heat dissipation is calculated based on the measured watts, assuming the service level is attained
for one hour.
Declared Noise
Emissions
Sound Power
(L
WAd
, bels)
Sound Pressure
(L
pAm
, decibels)
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 12
(in accordance with
ISO 7779 and ISO 9296)
Typically Configured –
Idle
2.7
14
Fixed Disk – Random
writes
3.1
14
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years. Upgradeable
features and/or components contained in the product may include:
• 3 USB ports
• 2 SODIMM memory slots
• Interchangeable HDD
Spare parts are available throughout the warranty period and or for up to “5” years after the end of
production.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the1ppm by weight
Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell)
Battery type: lithium/manganese dioxide
Additional Information
• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE)
Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water
and Toxic Enforcement Act of 1986).
• This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the Silver level, see
http://www.epeat.net
• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and ISO1043.
• This product contains 3% post-consumer recycled plastic (by wt.)
• This product is 94.5% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Corrugated
295 g
Internal:
PLASTIC/Polyethylene Expanded - EPE
68 g
PLASTIC/Polyethylene low density - LDPE
10 g
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (refer
to the HP General Specification for the Environment at
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 13
• Mercuric Oxide Batteries
• Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging
materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management
and Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To
recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest
HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible
manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for
each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
HP Inc. Corporate
Environmental
Information
For more information about HP’s commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-information/environment/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_14K
_Certificate.pdf
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
SYSTEM UNIT
Stand-Alone Power Requirements
(AC Power)
Nominal Operating Voltage
19V
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 14
Average Operating Power
Windows 10
Integrated graphics
Data is not available (APU 15W)
Max Operating Power
UMA < 45W
Temperature
Operating
32° to 95° F (0° to 35° C)
Non-operating
-4° to 140° F (-20° to 60° C)
Relative Humidity
Operating
10% to 90%, non-condensing
Non-operating
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
Shock
Operating
40 G, 2 ms, half-sine
Non-operating
200 G, 2 ms, half-sine
Random Vibration
Operating
0.75 grms
Non-operating
1.50 grms
Altitude (unpressurized)
Operating
-50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating
-50 to 40,000 ft (-15.24 to 12,192 m)
Planned Industry Standard Certifications
UL
Yes
CSA
Yes
FCC Compliance
Yes
ENERGY STAR®
Selected models36
EPEAT® 2019
Yes, Silver in U.S.37
ICES
Yes
Australia /
Yes
NZ A-Tick Compliance
Yes
CCC
Yes
Japan VCCI Compliance
Yes
KC
Yes
BSMI
Yes
CE Marking Compliance
Yes
BNCI or BELUS
Yes
CIT
Yes
GOST
Yes
Saudi Arabian Compliance (ICCP)
Yes
SABS
Yes
UKRSERTCOMPUTER
Yes
36. Configurations of the HP ProBook 455R G6 that are ENERGY STAR® qualified are identified as HP ProBook 455R G6
ENERGY STAR on HP websites and on http://www.energystar.gov.
37. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit
http://www.epeat.net for more information.
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 15
DISPLAYS
NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may
vary either higher or lower.
Panel LCD 14 inch diagonal
FHD (1920 x 1080) AntiGlare WLED UWVA 45%
NTSC 250 nits eDP slim
Outline Dimensions (W x H x D)
316.17 x 197.98 (max)
Active Area
309.37 x 174.02 (typ.)
Weight
285 g (max)
Diagonal Size
14.0 inch
Thickness
3.0 mm (max)
Interface
eDP 1.2 (2 lane)
Surface Treatment
Anti-glare
Touch Enabled
No
Contrast Ratio
600:1 (typ)
Refresh Rate
60 Hz
Brightness
250 nits
Pixel Resolution
1920 x 1080 (FHD)
Format of LCD Pixel Arrangement
RGB
Backlight
LED
Color Gamut Coverage
45% of NTSC
Color Depth
6 bits
Viewing Angle
UWVA 85/85/85/85
Panel LCD 15.6 inch
diagonal FHD (1920x1080)
Anti-Glare WLED UWVA 45%
NTSC 220nits eDP slim NB
Outline Dimensions (W x H x D)
350.96 x 216.75 (max)
Active Area
344.16 x 193.59 (typ)
Weight
<370 g max.
Diagonal Size
15.6"
Thickness
3.2 mm max.
Interface
eDP 1.2
Surface Treatment
Anti-glare
Touch Enabled
No
Contrast Ratio
600:1 (typ) - AG
Refresh Rate
60 Hz
Brightness
220 nits typical (Panel Only)
Pixel Resolution
1920 x 1080 (FHD)
Format of LCD Pixel Arrangement
RGB
Backlight
LED
Color Gamut Coverage
45% of NTSC
Color Depth
6 bits + Hi FRC
Viewing Angle
UWVA 85/85/85/85
Outline Dimensions (W x H x D)
350.96 x 216.75 (max)
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 16
Panel LCD 15.6 inch diagonal
HD (1366x768) Anti-Glare
WLED SVA 45% NTSC 220nits
eDP 1.2 w/o PSR slim NB
Active Area
344.16 x 193.59 (typ)
Weight
<370 g max.
Diagonal Size
15.6"
Thickness
3.2 mm max.
Interface
eDP 1.2
Surface Treatment
Anti-glare
Touch Enabled
No
Contrast Ratio
300:1 (typ)
Refresh Rate
60 Hz
Brightness
220 nits typical (Panel Only)
Pixel Resolution
1366 x 768 (HD)
Format of LCD Pixel Arrangement
RGB
Backlight
LED
Color Gamut Coverage
45% of NTSC
Color Depth
6 bits + Hi FRC
Viewing Angle
SVA 40/40/15/30
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 17
STORAGE AND DRIVES
HARD DRIVES
500 GB 7200 rpm
SATA Hard Drive
Drive Weight
0.20 lbs (92 g) ~ 0.21 lbs (95 g)
Rotation speed
7200 rpm
Cache Buffer
Up to 32 MB
Height
0.28 in (7 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
600 MB/s
Seek Time
Single Track: 2 ~ 1.5 ms
Average: 11 ~ 13 ms
Maximum: 18 ~ 22 ms
Logical Blocks
976,773,168
Operating Temperature
32° to 140° F (0° to 60° C) [top cover temp]
Security Features
ATA Security
Features
S.M.A.R.T., NCQ, Ultra DMA
1 TB 5400 rpm SATA Hard
Drive
Drive Weight
0.21 lbs (94 g)
Rotation speed
5400 rpm
Cache Buffer
Up to 32 MB
Height
0.28 in (7.2 mm)
Width
2.75 in (69.85 mm)
Interface
ATA-8, SATA 3.0
Transfer Rate
600 MB/s
Seek Time
Single Track 2 ms
Average 12 ~ 13 ms
Maximum 18 ~ 22 ms
Logical Blocks
1,953,525,168
Operating Temperature
32° to 140° F (0° to 60° C) [top cover temp]
Security Features
ATA Security
Features
S.M.A.R.T., NCQ, Ultra DMA
SSD 128 GB 2280 M2
SATA-3 TLC
Form Factor
M.2 2280
Capacity
128 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 lb (10 g)
Interface
ATA-8, SATA 3.0
Maximum Sequential Read
Up To 520 MB/s
Maximum Sequential Write
Up To 450 MB/s
Logical Blocks
250,069,680
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 18
Features
DIPM; TRIM; DEVSLP
256 GB 2280 PCIe NVMe
Value Solid State Drive
Form Factor
M.2 2280
Capacity
256 GB
NAND Type
Value
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Interface
PCIe NVMe Gen 3
Maximum Sequential Read
Up To 1700 MB/s
Maximum Sequential Write
Up To 1300 MB/s
Logical Blocks
500,118,192
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
TRIM; L1.2
512 GB 2280 M2 PCIe NVMe
TLC Solid State Drive
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
TLC
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Interface
PCIe NVMe Gen 3X4
Maximum Sequential Read
Up To 2600 MB/s
Maximum Sequential Write
Up To 1400 MB/s
Logical Blocks
1,000,215,216
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
TRIM; L1.2
SSD 512 GB 2280 PCIe NVMe
Value
Form Factor
M.2 2280
Capacity
512 GB
NAND Type
Value
Height
0.09 in (2.3 mm)
Width
0.87 in (22 mm)
Weight
0.02 plb (10 g)
Interface
PCIe NVMe Gen 3X4
Maximum Sequential Read
Up To 1700 MB/s
Maximum Sequential Write
Up To 1500 MB/s
Logical Blocks
1,000,215,215
Operating Temperature
32° to 158°F (0° to 70°C) [ambient temp]
Features
TRIM; L1.2
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 19
NETWORKING/COMMUNICATIONS
WLAN
Realtek 802.11a/b/g/n/ac
(2x2) WiFi® and Bluetooth®
4.2 Combo1
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi® certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
802.11a/n/ac
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
• 802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Security3
• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode
only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
• 802.11b: +14dBm minimum
• 802.11g: +12dBm minimum
• 802.11a: +12dBm minimum
• 802.11n HT20(2.4GHz): +12dBm minimum
• 802.11n HT40(2.4GHz): +12dBm minimum
• 802.11n HT20(5GHz): +10dBm minimum
• 802.11n HT40(5GHz): +10dBm minimum
• 802.11ac VHT80(5GHz): +10dBm minimum
Power Consumption
Transmit mode 2.0 W
Receive mode 1.6 W
Idle mode (PSP) 180 mW (WLAN Associated)
Idle mode 50 mW (WLAN unassociated)
Connected Standby 10 mW
Radio disabled 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 20
Receiver Sensitivity3
802.11b, 1Mbps: -93.5dBm maximum
802.11b, 11Mbps: -84dBm maximum
802.11a/g, 6Mbps: -86dBm maximum
802.11a/g, 54Mbps: -72dBm maximum
802.11n, MCS07: -67dBm maximum
802.11n, MCS15: -64dBm maximum
802.11ac, MCS0: -84dBm maximum
802.11ac, MCS9: -59dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card to
support WLAN MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230: 2.3 x 22.0 x 30.0 mm
Weight
Type 2230: 2.8g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available
Channels
Legacy: 0~79 (1 MHz/CH)
BLE: 0~39 (2 MHz/CH)
Signaling Data Rate4
Legacy: 3 Mbps signaling data rate1 2.17 Mbps
BLE: 1 Mbps signaling data rate1 0.2 Mbps
1. Actual throughput may vary.
Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with
a maximum transmit power of + 4 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Electrical Interface
USB 2.0 compliant
Bluetooth Software
Supported
Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 21
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Power Management
Certifications
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950UL, CSA, and CE Mark
Bluetooth Profiles
Supported
BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for
802.11a/g (OFDM modulation).
4. Actual throughput may vary
Realtek 802.11a/b/g/n/ac
(1x1) WiFi® and Bluetooth®
4.2 Combo1
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi® certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
802.11a/n
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
• 802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)
Modulation
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Security3
• IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode
only
• AES-CCMP: 128 bit in hardware
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 22
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• WAPI
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
• 802.11b: +14dBm minimum
• 802.11g: +12dBm minimum
• 802.11a: +12dBm minimum
• 802.11n HT20(2.4GHz): +12dBm minimum
• 802.11n HT40(2.4GHz): +12dBm minimum
• 802.11n HT20(5GHz): +10dBm minimum
• 802.11n HT40(5GHz): +10dBm minimum
• 802.11ac VHT80(5GHz): +10dBm minimum
Power Consumption
Transmit mode 2.0 W
Receive mode 1.6 W
Idle mode (PSP) 180 mW (WLAN Associated)
Idle mode 50 mW (WLAN unassociated)
Connected Standby 10 mW
Radio disabled 8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps: -93.5dBm maximum
802.11b, 11Mbps: -84dBm maximum
802.11a/g, 6Mbps: -86dBm maximum
802.11a/g, 54Mbps: -72dBm maximum
802.11n, MCS07: -67dBm maximum
802.11n, MCS15: -64dBm maximum
802.11ac, MCS0: -84dBm maximum
802.11ac, MCS9: -59dBm maximum
Antenna type
High efficiency antenna.
One embedded dual band 2.4/5 GHz antenna is provided to the card to
support WLAN communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230: 2.3 x 22.0 x 30.0 mm
Weight
Type 2230: 2.8g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2 Compliant
Frequency Band
2402 to 2480 MHz
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 23
Number of Available
Channels
Legacy: 0~79 (1 MHz/CH)
BLE: 0~39 (2 MHz/CH)
Signaling Data Rate1
Legacy: 3 Mbps signaling data rate1 2.17 Mbps
BLE: 1 Mbps signaling data rate1 0.2 Mbps
1. Actual throughput may vary.
Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device with
a maximum transmit power of + 4 dBm for BR and EDR.
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Electrical Interface
USB 2.0 compliant
Bluetooth Software
Supported
Link Topology
Microsoft Windows Bluetooth Software
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Power Management
Certifications
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles
Supported
BT4.1-ESR 5/6/7 Compliance
LE Link Layer Ping
LE Dual Mode
LE Link Layer
LE Low Duty Cycle Directed Advertising
LE L2CAP Connection Oriented Channels
Train Nudging & Interlaced Scan
BT4.2 ESR08 Compliance
LE Secure Connection- Basic/Full
LE Privacy 1.2 –Link Layer Privacy
LE Privacy 1.2 –Extended Scanner Filter Policies
LE Data Packet Length Extension
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for
802.11a/g (OFDM modulation).
4. Actual throughput may vary
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 24
Realtek RTK8111HSH
10/100/1000 Integrated
NIC
Connector
RJ-45
System Interface
PCIe + SMBus
Data rates supported
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-
30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE (Energy Efficient Ethernet)
Power Management
ACPI compliant – multiple power modes
Situation-sensitive features reduce power consumption
Advanced link down power saving for reducing link down power
consumption
Performance Features
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload (ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
Jumbo Frame 9K
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30)
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
Management Interface
Auto MDI/MDIX Crossover cable detection
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 25
POWER
HP 45 W
Smart AC adapter
Dimensions (H x W x D)
3.74 x 1.57 x 1.04 in (9.5 x 4.0 x 2.65 cm)
Weight
0.386 lb (175g) max
Input
90 to 265 VAC
Input Efficiency
87.74% at 115Vac and 88.4% at 230Vac
Input frequency range
47 to 63 Hz
Input AC current
1.4 A at 90 VAC
Output
Output power
45W
DC output
19.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<8.0A
Connector
4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating
temperature
32° F to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° F to 185oF (-20o to 85° C)
Altitude
0 to 16,400 ft (0 to 5,000 m)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
HP 65 W
Smart AC adapter
Dimensions
90 x 51 x 28.5mm
Weight
unit: 220g +/- 10g
Input
Input Efficiency
88% min at 115 VAC and 89% min at 230 VAC
Input frequency range
47 to 63 Hz
Input AC current
1.7 A at 90 VAC
Output
Output power
65W
DC output
19.5V
Hold-up time
5 msec at 115 VAC input
Output current limit
<11.0A
Connector
4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating
temperature
32° F to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° F to 185° F (-20° to 85° C)
Altitude
0 to 16,400 ft (0 to 5000m)
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 26
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
HP 65 W
EM Smart AC adapter
Dimensions
102 x 55 x 30mm
Weight
270g +/- 10g
Input
Input Efficiency
87% min at 115V/230V
Input frequency range
47 to 63 Hz
Input AC current
1.7 A at 90 VAC and maximum load
DC output
65 W(19.5V/3.33A)
Hold-up time
5 msec at 115 VAC input
Output current limit
<11A, Over voltage protection- 29V max
automatic shutdown
Connector
4.5mm Barrel Type, 3 pin/grounded, mates with interchangeable cords
Environmental Design
Operating
temperature
0° to 35° C
Non-operating (storage)
temperature
-20° to 85° C
Altitude
0 to 5,000 m
Humidity
0% to 95%
Storage Humidity
0% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
AC Adapter 65 W
nPFC USB type C
Dimensions
74 x 74 x 28.5mm
Weight
unit: 245g +/- 10g
Input
Input Efficiency
81.5% min at 115 Vac/ 230Vac @ 5V/3A
86.7% min at 115 Vac/ 230Vac @ 9V/3A
88% min at 115 Vac/ 230Vac @ 10V/5A
88% min at 115 Vac/ 230Vac @ 12V/5A
89% min at 115 Vac/ 230Vac @ 15V/4.33A
89% min at 115 Vac/ 230Vac @ 20V/3.25A
Input frequency range
47 to 63 Hz
Input AC current
1.7 A at 90 VAC and maximum load
Output power
65W
DC output
5V/9V/10V/12V/15V/20V
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 27
Hold-up time
5ms at 115 Vac input
Output current limit
<8.0A
Connector
Type C
Environmental Design
Operating
temperature
32°F to 95°F (0° to 35°C)
Non-operating (storage)
temperature
-4°F to 185°F (-20°to 85°C)
Altitude
0 to 16,400 ft (0 to 5000m)
Humidity
0% to 95%
Storage Humidity
0% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
* MTBF - over 200,000 hours at 25°C ambient condition.
AC Adapter 45 W
nPFC USB type C
Dimensions
62.0 x 62.0 x 28.5mm
Weight
unit: 220g +/- 10g
Input
Input Efficiency
Average Efficiency of 25%, 50%, 75%, 100%
load condition with 115Vac/230Vac Spec:5V:
81.5%9V: 86.7%10V: 87.5%12V: 87.8%15V:
87.8%20V: 87.8%
Input frequency range
47 to 63 Hz
Input AC current
Max. 1.4 A at 90 Vac
Output power
5V/15W
9V/27W
10V/37.5W
12V/45W
15V/45W
20V/45W
DC output
5V/9V/10V/12V/15V/20V
Hold-up time
5ms at 115 Vac input
Output current limit
<5.0A
Connector
Type C
Environmental Design
Operating
temperature
32° F to 95° F (0° to 35° C)
Non-operating (storage)
temperature
-4° F to 185° F (-20° to 85° C)
Altitude
-4° F to 185° F (-20° to 85° C)
Humidity
20% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Certifications
*CE Mark - full compliance with LVD and EMC directives
* Worldwide safety standards - IEC60950, EN60950, UL60950, Class1,
SELV; Agency approvals - C-UL-US, NORDICS, DENAN, EN55022 Class B,
FCC Class B, CISPR22 Class B, CCC, NOM-1 NYCE.
QuickSpecs
HP ProBook 455R G6 Notebook PC
Technical Specifications
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 28
* MTBF - over 200,000 hours at 25°C ambient condition.
3 Cell WHr 45 Long Life Polymer HP Fast Charge
Technology1
Dimensions (H x W x L)
6.0. x 184.7 x 88.9 mm
Weight
0.22 kg (0.48lb)
Cells/Type
3cell Lithium-Ion
Energy
Voltage
11.55 V
Amp-hour capacity
3.900Ah
Watt-hour capacity
45Wh
Temperature
Operating (Charging)
32° to 113° F (0° to 45° C)
Operating (Discharging)
14° to 122° F (-10° to 60° C)
Optional Travel Battery
Available
No
1. Recharges the battery up to 50% within 30 minutes when the system is off or in standby
mode when used with the power adapter provided with the notebook. After charging has
reached 50% capacity, charging speed will return to normal. Charging time may vary +/-10%
due to System tolerance.
QuickSpecs
HP ProBook 455R G6 Notebook PC
Options and Accessories (sold separately and availability may vary by country)
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 29
Type
Description
Part Number
Cases
HP Essential Top Load Case
H2W17AA#xxx
HP Essential Backpack (up to 15.6")
H1D24AA
HP Essential Messenger Case (up to 17.3")
H1D25AA
Docking
HP USB-C Mini Dock
1PM64AA#xxx
HP USB-C Universal Dock
1MK33AA#xxx
HP USB-C Dock G4
3FF69AA#xxx
HP TB Dock 120W w/Audio
3YE87AA#xxx
HP Thunderbolt Dock 120W G2
2UK37AA#xxx
HP TB Dock G2 w/ Combo Cable
3TR87AA#xxx
HP TB Dock 120W G2 Cable
3XB94AA
HP TB Dock G2 Combo Cable
3XB96AA
HP TB Dock G2 Audio Module
3AQ21AA
HP USB Travel Dock
T0K30AA#xxx
DIB HP 400G6 HDD Bracket Kit
5LV47AV
Input/Output
HDMI to VGA Adapter
H4F02AA
HP USB-C to HDMI 2.0 Adapter
1WC36AA
HP USB-C to VGA Adapter
N9K76AA
HP USB Essential Keyboard and Mouse
H6L29AA
HP Ultra Mobile Wireless Mouse
H6F25AA#xxx
HP Comfort Grip Wireless Mouse
H2L63AA
HP 3-Button USB Laser Mouse
H4B81AA
HP USB Travel Mouse
G1K28AA
HP USB Collaboration Keyboard
Z9N38AA#xxx
UCC
HP UC Speaker Phone
4VW02AA
HP Stereo 3.5 mm Headset
T1A66AA
HP Stereo USB Headset
T1A67AA
Power
HP Power Bank
N9F71AA#xxx
HP 45W LC USB-C Power Adapter
1MZ01AA#ABA
HP 45W Smart AC Adapter 4.5mm
H6Y88AA#xxx
HP 65W Slim AC Adapter
H6Y82AA#xxx
HP 65W USB-C Power Adapter
3PN48AA
HP 45W USB-C Power Adapter
1HE07AA#xxx
HP 65W USB-C Power Adapter
1HE08AA#xxx
HP USB-C Power Bank
2NA10AA#xxx
Storage
HP External USB Optical Drive
F2B56AA
HP 500GB 7200rpm HDD
F3B97AA
HP 512GB TLC PCI-e 3x4 NVMe SSD (2280)
1FU88AA
QuickSpecs
HP ProBook 455R G6 Notebook PC
Options and Accessories (sold separately and availability may vary by country)
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 30
Memory
4GB 2666MHz DDR4
4VN05AA
8GB 2666MHz DDR4
4VN06AA
16GB 2666 MHz DDR4
4VN07AA
Security
HP Essential Keyed Cable lock 12.3mm
T0Y14AA
HP Keyed Cable Lock 10mm
T1A62AA
HP UltraSlim Keyed Cable Lock
T1A62AA
Displays
HP ProDisplay P240va 23.8 inch Monitor
N3H14AA
HP ProDisplay P232 23 inch Monitor
K7X31AA
HP EliteDisplay E223 21.5 inch Monitor
1FH45AA
HP EliteDisplay E243 23.8-inch Monitor
1FH47AA
HP EliteDisplay S14 14-inch Portable Display
3HX46AA
QuickSpecs
HP ProBook 455R G6 Notebook PC
Summary of Changes
Not all configuration components are available in all regions/countries.
c06263672 — DA 16402 - Worldwide — Version 12 — May 7, 2020
Page 31
Date of change:
Version History:
Description of change:
May 7, 2019
V1 to V2
Added
Environmental section, Updated at a glance section
June 10, 2019
V2 to V3
Added
HP Cloud Recovery
July 17, 2019
V3 to V4
Updated
Processor
July 24, 2019
V4 to V5
Updated
Color Gamut Format
July 25, 2019
V5 to V6
Added
Speaker to Audio Section
September 20, 2019
V6 to V7
Updated
Lock Slot and 250 nits Panel
October 11, 2019
V7 to V8
Added
DisplayPort™ 1.2
November 21, 2019
V8 to V9
Updated
Longevity and Upgrading section
November 26, 2019
V9 to v10
Added
Processor Ryzen 3700U
February 27, 2020
V10 to V11
Updated
Copyright and footnote for fingerprint sensor
May 7, 2020
V11 to V12
Added
Ethernet in networking section
Copyright © 2020 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP
shall not be liable for technical or editorial errors or omissions contained herein.
Bluetooth is a trademark of its proprietor and used by HP Inc. under license. Intel, Core, Celeron and Intel vPro are trademarks of
Intel Corporation or its subsidiaries in the U.S. and/or other countries. NVIDIA, the NVIDIA logo, and GeForce are trademarks and/or
registered trademarks of NVIDIA Corporation in the U.S. and other countries. USB Type-C™ and USB-C™ are trademarks of USB
Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. Microsoft and
Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Loading...
