Page 1

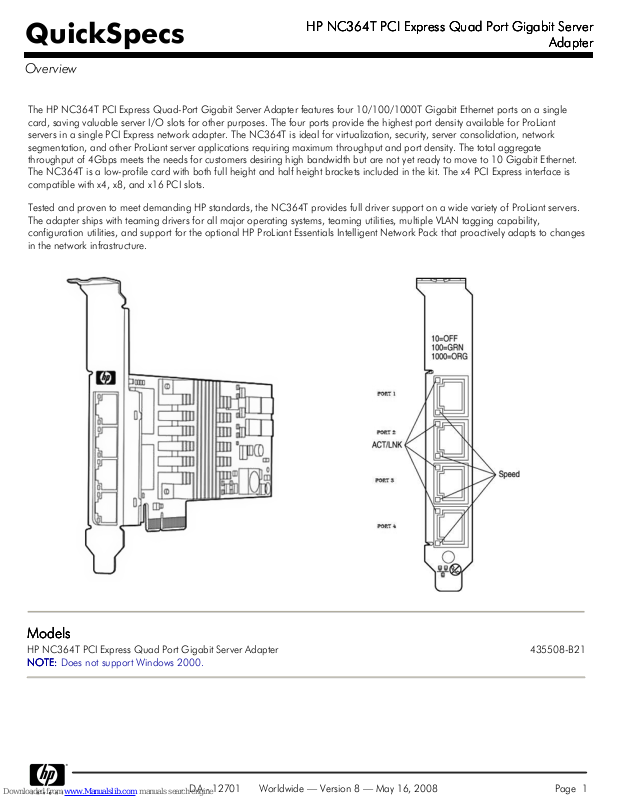

The HP NC364T PCI Express Quad-Port Gigabit Server Adapter features four 10/100/1000T Gigabit Ethernet ports on a single
card, saving valuable server I/O slots for other purposes. The four ports provide the highest port density available for ProLiant
servers in a single PCI Express network adapter. The NC364T is ideal for virtualization, security, server consolidation, network
segmentation, and other ProLiant server applications requiring maximum throughput and port density. The total aggregate
throughput of 4Gbps meets the needs for customers desiring high bandwidth but are not yet ready to move to 10 Gigabit Ethernet.
The NC364T is a low-profile card with both full height and half height brackets included in the kit. The x4 PCI Express interface is
compatible with x4, x8, and x16 PCI slots.
Tested and proven to meet demanding HP standards, the NC364T provides full driver support on a wide variety of ProLiant servers.
The adapter ships with teaming drivers for all major operating systems, teaming utilities, multiple VLAN tagging capability,
configuration utilities, and support for the optional HP ProLiant Essentials Intelligent Network Pack that proactively adapts to changes
in the network infrastructure.
Models
ModelsModels
Models
HP NC364T PCI Express Quad Port Gigabit Server Adapter
NOTE:
NOTE: NOTE:
NOTE:
Does not support Windows 2000.
435508-B21
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
Overview
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 1
Page 2
NC364T Kit contents
NC364T Kit contentsNC364T Kit contents
NC364T Kit contents
HP NC364T PCI Express Quad Port Gigabit Server Adapter
Full height and half height brackets; the full height bracket is pre-installed on the card
CD containing drivers, user guide, installation and diagnostic utilities
Quick install card inclusive of instructions on changing to the half height bracket (if needed)
Product warranty statement
NOTE:
NOTE: NOTE:
NOTE:
For a brief, printer friendly data sheet that describes this product and informs you of the essential capabilities and
specifications, please visit:
http://h71028.www7.hp.com/ERC/downloads/4AA0-6064ENW.pdf
.
Standard Features
Standard FeaturesStandard Features
Standard Features
Server Support
Server SupportServer Support
Server Support
ProLiant DL (rack-optimized):
ProLiant DL (rack-optimized):ProLiant DL (rack-optimized):
ProLiant DL (rack-optimized):
HP ProLiant DL120 G5
HP ProLiant DL145 G3
HP ProLiant DL140 G3
HP ProLiant DL160 G5
HP ProLiant Dl165 G5
HP ProLiant DL180
HP ProLiant DL180 G5
HP ProLiant Dl185 G5
HP ProLiant DL320 G5
HP ProLiant DL320s
HP ProLiant DL360 G5
HP ProLiant DL365
HP ProLiant DL365 G5
HP ProLiant DL380 G5
HP ProLiant DL385 G2
HP ProLiant DL385 G5
HP ProLiant DL580 G4
HP ProLiant DL580 G5
HP ProLiant DL585 G2
HP ProLiant DL585 G5
HP ProLiant DL785 G5
ProLiant ML (expansion-optimized):
ProLiant ML (expansion-optimized):ProLiant ML (expansion-optimized):
ProLiant ML (expansion-optimized):
HP ProLiant ML110 G5
HP ProLiant ML115 G5
HP ProLiant ML150 G3
HP ProLiant ML150 G5
HP ProLiant ML310 G4
HP ProLiant ML310 G5
HP ProLiant ML350 G5
HP ProLiant ML370 G5
HP ProLiant ML570 G4
NOTE:
NOTE: NOTE:
NOTE:
Some servers may be discontinued.
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
Overview
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 2
Page 3
Quad-port Gigabit
Quad-port GigabitQuad-port Gigabit
Quad-port Gigabit
Ethernet Throughput
Ethernet ThroughputEthernet Throughput
Ethernet Throughput
With a theoretical throughput of 10 Gbps each direction, the x4 PCI Express bus is more than capable of
supporting the NC364T's four gigabit ports. Up to 1000 Mbps Ethernet transfer rate per port (4000
Mbps combined) delivers outstanding network performance designed to improve response time and
remove bottlenecks across the entire network. Four ports on a single adapter are ideal for high density,
I/O slot constrained servers, virtualization and security, applications, server consolidation, and increased
network segmentation. The total aggregate throughput of 4Gbps also meets the needs for customers
desiring high bandwidth but are not yet ready to move to 10 Gigabit Ethernet.
NOTE:
NOTE:NOTE:
NOTE:
Port enumeration on the NC364T is from the top down, i.e. the port near the top of the adapter
is port #1 and the port closest to the gold teeth is port #4
Jumbo Frames
Jumbo FramesJumbo Frames
Jumbo Frames
Jumbo frames (also known as extended frames) permit a 9K byte transmission unit (MTU), which is six
times the size of standard 1500 byte Ethernet frame. The NC364T supports jumbo frames as a way to
achieve higher throughput and better CPU utilization. Jumbo frames are particularly useful for database
transfers and tape backups.
802.1Q VLANs with
802.1Q VLANs with802.1Q VLANs with
802.1Q VLANs with
802.1p QoS Tagging
802.1p QoS Tagging802.1p QoS Tagging
802.1p QoS Tagging
IEEE 802.1Q virtual local area network (VLAN) protocol allows each physical port of the NC364T to be
separated into multiple virtual NICs for added network segmentation and enhanced security and
performance. VLANs increase security by isolating traffic between users. Limiting the broadcast traffic to
within the same VLAN domain also improves performance. IEEE quality of service (QoS) 802.1p tagging
allows the adapter to mark or tag frames with a priority level across a QoS-aware network for improved
traffic flow.
TCP/IP Stateless
TCP/IP StatelessTCP/IP Stateless
TCP/IP Stateless
Offloading
OffloadingOffloading
Offloading
For overall improved system response, the NC325m supports standard TCP/IP offloading techniques
including:
TCP/IP checksum offload (TCO) moves the TCP and IP checksum offloading from the CPU to the
network adapter.
Large send offload (LSO) or TCP segmentation offload (TSO) allows the TCP segmentation to be
handled by the adapter rather than the CPU.
Interrupt Coalescence
Interrupt CoalescenceInterrupt Coalescence
Interrupt Coalescence
Interrupt coalescing (interrupt moderation) groups multiple packets, thereby reducing the number of
interrupts sent to the host. This process optimizes host efficiency, leaving the CPU available for other
duties.
Dual Address Cycles
Dual Address CyclesDual Address Cycles
Dual Address Cycles
Dual address cycles (DAC) provide the ability to address memory above 4 GB and improve system
performance by preventing the server operating system from performing a buffer copy from below 4 GB
to above 4 GB.
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
Performance
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 3
Page 4
10/100/1000T Twisted
10/100/1000T Twisted10/100/1000T Twisted
10/100/1000T Twisted
Pair Networks
Pair NetworksPair Networks
Pair Networks
In addition to Gigabit Ethernet, the NC364T adapter supports both 10Mbps and 100Mbps providing
compatibility with Ethernet and Fast Ethernet twisted pair networks.
Full and Half Height
Full and Half HeightFull and Half Height
Full and Half Height
Brackets
BracketsBrackets
Brackets
The NC364T is a low-profile card supporting both full height and half height PCI Express slots. A full
height bracket is pre-installed on the card with the half height bracket in the box. The quick install card
includes instructions on how to change brackets if needed.
x4/x8/x16 PCI Express
x4/x8/x16 PCI Expressx4/x8/x16 PCI Express
x4/x8/x16 PCI Express
Compatibility
CompatibilityCompatibility
Compatibility
The x4 PCI Express interface on the NC364T is compatible with x4, x8, and x16 PCI slots. If installed in
a x8 or x16 slot, the adapter will operate at the x4 speed.
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
Versatility
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 4
Page 5
Network Adapter
Network AdapterNetwork Adapter
Network Adapter
Teaming
TeamingTeaming
Teaming
ProLiant Network Adapter Teaming provides fault tolerance and load balancing across a team of two or
more network adapters. The team of adapters works together as a single virtual adapter. Support for
several different types of teaming is included. Optional advanced teaming capabilities are further
supported through the ProLiant Essentials Intelligent Networking Pack.
The teaming options offer IT professionals an easy, efficient, and cost-effective way to provide network
fault tolerance and increased network bandwidth. For more information, see the ProLiant Network
Adapter Teaming home page:
http://h18000.www1.hp.com/products/servers/networking/teaming.html
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
High Availability
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 5
Page 6
Auto-negotiation
Auto-negotiationAuto-negotiation
Auto-negotiation
The NC364T automatically senses the speed of the device to which it is attached. It also automatically
configures for half or full duplex, depending on the duplex mode of the switch, hub, or router connected
to the adapter.
Management Support
Management SupportManagement Support
Management Support
Like all HP server adapters, the NC364T ships with drivers and agents that can be managed from HP
Systems Insight Manager, as well as using any other management application that supports SNMP. HP
Systems Insight Manager can recognize the NC364T individually or in teams, and can collect and report
SNMP statistics on the adapter events.
Server Integration
Server IntegrationServer Integration
Server Integration
The NC364T is a completely integrated, tested, and qualified solution that is optimized for HP servers.
HP validates a wide variety of major operating systems drivers with the full suite of web-based enterprise
management utilities and ProLiant Essentials (including SmartStart and HP Systems Insight Manager) that
simplify network management. Integrated Management Log (IML) support is provided by the NC364T for
critical event logging on HP servers.
This approach provides a more robust and reliable networking solution than offerings from other venders
and provides users with a single point of contact for both their servers and their network adapters.
Configuration Utilities
Configuration UtilitiesConfiguration Utilities
Configuration Utilities
Each NC364T ships with a suite of operating system-tailored configuration utilities that allow the user to
enable initial diagnostics and configure adapter teaming. This includes a patented teaming GUI for
Microsoft Windows operating systems. Additionally, support for scripted installations of teams in a
Microsoft Windows environment allow for unattended OS installations.
LED Indicators
LED IndicatorsLED Indicators
LED Indicators
Per port bracket LED indicators show link integrity, network activity, and network speed for easy
troubleshooting.
WOL
WOLWOL
WOL
The NC364T provides Wake-on-LAN (WOL) support on Port 1 allowing an administrator to remotely
power on a WOL-capable server. When the server powers down, the NC364T maintains power through
an alternate source and continuously monitors the network for a special wake-up packet. When the
adapter receives the special packet created for its MAC address, the NC364T instructs the server to
power on.
PXE
PXEPXE
PXE
Support for pre-boot execution environment (PXE) enables automatic deployment of computing resources
remotely from anywhere. It allows a new or existing server to boot over the network and download
software, including the operating system, from a management/ deployment server at another location on
the network. Additionally, PXE enables decentralized software distribution and remote troubleshooting
and repairs.
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
Network Management
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 6
Page 7
Warranty
WarrantyWarranty
Warranty
Additional information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
Support Services
Support ServicesSupport Services
Support Services
Care Pack services provide a range of life cycle support options that let you choose the service levels that
meet your business requirements, from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13 ours, 5 day to 24 hours, 7
days call window with options including 4-hour response or 6-hour Call-To-Repair.
Comprehensive range of software technical support for Microsoft, Linux, ProLiant Essentials, and
VMware-based IT solutions helping to deliver high level of application availability. Response times
ranging from 30 minutes for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support Solution
NOTE:
NOTE: NOTE:
NOTE:
For more information on HP Care Pack services, contact any of our worldwide sales offices or
resellers or visit our worldwide Web site on the internet at:
http://www.hp.com/hps/carepack
NOTE:
NOTE: NOTE:
NOTE:
For more complete information on HP Services offerings, customers and resellers, please visit us
at:
http://www.hp.com/hps
NOTE:
NOTE: NOTE:
NOTE:
Additional information regarding worldwide limited warranty and technical support is available
at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
Service and Support, HP Care Pack, and Warranty Information
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 7
Page 8
Additional Gigabit Server
Additional Gigabit ServerAdditional Gigabit Server
Additional Gigabit Server
Adapters
AdaptersAdapters
Adapters
HP NC110T PCI Express Gigabit Server Adapter
NOTE:
NOTE: NOTE:
NOTE:
Does not support Windows 2000.
434905-B21
HP NC360T PCI Express Dual Port Gigabit Server Adapter
412648-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter
394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter
394791-B21
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
NOTE:
NOTE: NOTE:
NOTE:
Supported on a full length-full height slot only.
394795-B21
HP NC7170 PCI-X Dual Port 1000T Gigabit Server Adapter
313881-B21
10 Gigabit Server
10 Gigabit Server10 Gigabit Server
10 Gigabit Server
Adapters
AdaptersAdapters
Adapters
HP NC510C PCIe 10 Gigabit Server Adapter
NOTE:
NOTE: NOTE:
NOTE:
A minimum of 1 gigabyte (1 GB) of server memory is required per each
NC510C adapter.
414129-B21
HP NC510F PCIe 10 Gigabit Server Adapter
NOTE:
NOTE: NOTE:
NOTE:
A minimum of 1 gigabyte (1 GB) of server memory is required per each
NC510F adapter.
414126-B21
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
Related Options
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 8
Page 9
General Specifications
General SpecificationsGeneral Specifications
General Specifications
Communications
CommunicationsCommunications
Communications
Processor
ProcessorProcessor
Processor
Two Intel 82571EB
Data rate
Data rateData rate
Data rate
10/100/1000 Mbps, Half- and full-duplex
Data path
Data pathData path
Data path
Four lane (x4) PCI Express compatible with x1, x4, x8, and x16 PCI Express
slots
On-board memory
On-board memoryOn-board memory
On-board memory
256 KB
Bus type
Bus typeBus type
Bus type
PCI Express 1.0a
Bus speed
Bus speedBus speed
Bus speed
10 Gbps uni-directional; 20 Gbps bi-directional (x4 PCIe, encoded rate)
Interrupt levels
Interrupt levelsInterrupt levels
Interrupt levels
Automatically configured
Connector
ConnectorConnector
Connector
Four RJ-45
Cable distance
Cable distanceCable distance
Cable distance
Up to 328 ft (100 m)
Wiring
WiringWiring
Wiring
Category 5 (CAT-5) or better twisted-pair cabling
Form factor
Form factorForm factor
Form factor
Low profile card with both full height (pre-installed) and half height brackets
included in kit
IEEE Compliance
IEEE ComplianceIEEE Compliance
IEEE Compliance
802.3, 802.3ab, 802.3u, 802.3x, Dynamic 802.3ad, 802.3p, 802.1Q
Power and Environmental
Power and EnvironmentalPower and Environmental
Power and Environmental
Specifications
SpecificationsSpecifications
Specifications
Operating
OperatingOperating
Operating
Temperature
TemperatureTemperature
Temperature
32° to 131° F (0° to 55° C)
Humidity
HumidityHumidity
Humidity
10% to 90% non-condensing
Non-operating
Non-operatingNon-operating
Non-operating
Temperature
TemperatureTemperature
Temperature
-40° to 185° F (-40° to 85° C)
Humidity
HumidityHumidity
Humidity
5% to 95% non-condensing
Power requirement
Power requirementPower requirement
Power requirement
1250 mA @ 12V maximum
Emissions classification
Emissions classificationEmissions classification
Emissions classification
Class B
Agency approvals
Agency approvalsAgency approvals
Agency approvals
USA
USAUSA
USA
FCC (CFR 47 part 15) and UL 60950
Canada
CanadaCanada
Canada
ICES-003 and CSA60950
Japan
JapanJapan
Japan
VCCI
Korea
KoreaKorea
Korea
MIC (RRL), EMC Registration
Australia
AustraliaAustralia
Australia
ACA, AS/NZS3548/EN55022:1998,
EN55024:1998
European Union
European UnionEuropean Union
European Union
EN55022:1998 (CISPR 22), EN55024:1998,
and IEC60950:1999 (EN60950:2000)
RoHS Compliance
RoHS ComplianceRoHS Compliance
RoHS Compliance
6 of 6
Safety
SafetySafety
Safety
UL Mark (USA and Canada)
CE Mark
EN 60590
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
Technical Specifications
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 9
Page 10
Operating System Support
Operating System SupportOperating System Support
Operating System Support
32-bit Windows
Microsoft Windows Server 2003 Standard, Web, Small Business, and Enterprise Editions
64-bit Windows
Microsoft Windows Server 2003 Standard and Enterprise Editions
Microsoft Windows Server 2008
Microsoft certified miniport and teaming drivers
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
Novell NetWare 6.5
Novell Open Enterprise Server x86
SCO UnixWare 7.1.3, 7.1.4
SCO OpenServer 5.0.7, 6.0.0
Solaris 10 8/07
NDIS 2 for MS-DOS unattended operating system install (43K or less in size)
Windows Preinstallation Environment (WinPE) (MS-DOS replacement)
VMware ESX Server and Microsoft Virtual Server
NOTE:
NOTE: NOTE:
NOTE:
For more Linux OS support & certification information, please visit our the ProLiant &
Bladesystem Server Linux matrix:
http://h18004.www1.hp.com/products/servers/linux/hpLinuxcert.html
Environment-friendly
Environment-friendlyEnvironment-friendly
Environment-friendly
Products and Approach
Products and ApproachProducts and Approach
Products and Approach
End-of-life Management
End-of-life ManagementEnd-of-life Management
End-of-life Management
and Recycling
and Recyclingand Recycling
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to
http://www.hp.com/go/green
. To recycle your product, please go to:
http://www.hp.com/go/green
or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at:
http://www.hp.com/go/green
. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Windows is a US registered trademark of Microsoft Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
QuickSpecs
HP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit ServerHP NC364T PCI Express Quad Port Gigabit Server
HP NC364T PCI Express Quad Port Gigabit Server
Adapter
AdapterAdapter
Adapter
Technical Specifications
DA - 12701 Worldwide — Version 8 — May 16, 2008
Page 10
Loading...
