HP StorageWorks 400t and 400r All-in-One Storage
QuickSpecs
Overview
Simple. Affordable. Reliable.
HP All-in-One Storage
(iSCSI Target), enhanced file serving for end-user clients (NAS), backup target services for network data, and data protection
software to keep all of your data safe and secure; these are the key functions of HP All-in-One Storage and together, they allow
businesses to lower costs, increase efficiencies, and respond to rapid data growth. HP StorageWorks All-in-One Storage Systems
are radically simple, integrated, and affordable network storage solutions that enable small and midsize companies to easily
manage, grow, and protect their data without requiring them to become storage experts. These systems are designed to be
deployed and managed by IT generalists with no storage expertise and deliver everything you need to lower the cost and
complexity of rapidly growing data storage environments.
The easy-to-use, All-in-One Storage Manager (ASM) interface reduces the time, expense, and expertise required to keep up with
rapidly growing applications like Microsoft Exchange. Busy IT Managers do not have time to learn and manage complex storage
technologies; ASM eliminates this barrier by handling all underlying storage tasks and presenting network storage in application-
centric terms, giving administrators newfound levels of control. Data migration tools for Exchange 2003/2007 and SQL Server
2000/2005 include 'best practice' recommendations which allow any IT generalist to look like a storage expert. Tools for hosting
'user defined' applications enable flexible iSCSI deployment in many different environments including Windows, Linux, VMware
ESX, or other standards-compliant iSCSI initiators.. Administrators can quickly and easily setup or expand data areas, migrate data
from capacity constrained servers, manage disk based backup storage areas, implement disk and tape backup policies, and more.
Finally, a simple, affordable, and reliable network storage solution that provides many of the management, consolidation, and data
protection features typically reserved for higher-priced and more complex storage products.
: Imagine having a single integrated solution that could provide shared storage for application servers
Systems
NOTE:
high number of drive spindles, and utilize SAS hard drives.
About the AiO400t
expansion for application servers (iSCSI Target), enhanced file serving for end-user clients (NAS), and comprehensive data
protection features. The AiO400t is an affordable solution for small datacenter or branch office environments that need less than
1TB SATA or 584GB SAS total raw capacity.
About the AiO400r
storage expansion for application servers (iSCSI Target), enhanced file serving for end-user clients (NAS), and comprehensive data
protection features. The AiO400r is an affordable solution for small datacenter or branch office environments that need less than
2TB SATA or 1.2TB SAS total raw capacity.
NOTE:
from:
installation of software updates depending on the version of ASM installed on your system. Be sure to check for updates to make
sure you are using the latest version of the software. Critical updates for the Windows Storage Server 2003 R2 operating system
can be implemented using standard Windows Update functionality but you should disable any auto-restart options to avoid
complications with iSCSI connections. For other software components you should only update components as part of an All-in-One
Storage System update. Do not separately download or install individual updates for Data Protector Express as this may adversely
affect the management integration of these components.
iSCSI performance varies by model and host application I/O characteristics. For best performance choose a system with a
: This 4-drive entry-level tower solution built on the ProLiant ML110 G5 platform provides shared storage
: This 4-drive entry-level rackmount solution built on the ProLiant DL160 G5 hardware platform provides shared
Updates to the HP All-in-One Storage Manager (ASM) are posted to support links available on individual product pages
http://www.hp.com/go/AiOStorage
. Some of the management features discussed in this document may require the
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 1
QuickSpecs
Highlights
HP StorageWorks 400t and 400r All-in-One
Storage Systems
Benefits of HP
StorageWorks
All-in-One
Storage Systems
Breakthrough simplicity
that lowers the cost and
complexity of data
management
Integrated and adaptive
storage solutions to
enable business growth
Affordable and cost
effective solution for
growing application
environments
Application-centric
storage management
simplifies operation and
lowers costs
'Best Practice' toolkit
makes every IT
Administrator look like a
storage expert
Shared storage for
growing application
servers (iSCSI SAN)
enables efficient use of
capacity
Enhanced file serving for
end-user clients (NAS) to
improve productivity and
collaboration
Comprehensive and
integrated data
protection to ensure easy
roll-back and disaster
recovery
Easy to deploy and
manage so you can
focus on your core
business
The intuitive All-in-One Storage Manager interface radically simplifies the
growth, management, and protection of data by hiding complexity and
enabling storage to be a turnkey resource. Designed for IT generalists with
no storage expertise, these systems can be setup and actively serving files in
minutes.
A single storage solution that can respond to a wide variety of business
needs. HP All-in-One Storage Systems offer an incredible degree of utility
and flexibility by providing shared storage for multiple application servers,
file serving for end-user clients, disk based backup capabilities, and data
protection for both file and application data via snapshots and backup
software.
Managed through a single interface, HP All-in-One Storage provides shared
application storage (iSCSI Target), file serving (NAS), and data protection
below the cost of separate products and without the need to change your
infrastructure.
NOTE:
be implemented using standard Ethernet hardware you probably already
have.
Easy to manage because it uses terms and functions familiar to application
administrators. Includes end-to-end iSCSI management for Windows Servers
plus iSCSI provisioning for other iSCSI initiators (Linux, VMWare ESX Server,
etc.). Provides data migration wizards for Microsoft Exchange 2003/2007
and SQL Server 2000/2005.
HP All-in-One Storage Systems include tools to easily migrate and manage
data using best practice settings. For example, iSCSI storage for a Microsoft
Exchange Storage Group can be expertly setup and migrated in less than
10 mouse clicks, saving you time and reducing the risk to your business.
Sharing storage between servers is more efficient and costs less to manage
over time when compared against adding additional drives to individual
servers. Sharing storage means that you maximize investments in additional
capacity while enabling easier growth and shorter backup windows. HP All-
in-One Storage Systems utilize the Microsoft iSCSI Software Target to
provide block-based access to network storage.
Tuned for faster file serving performance (20% faster than standard Windows
Server on the same hardware). Single Instance Storage (SIS) de-duplication
features can improve capacity utilization by 30% or more by eliminating
duplicate files within shared volumes. Full text search capabilities increase
the speed of end-user search. Support for heterogeneous environments
(CIFS/NFS) gives you the flexibility your changing business needs to serve
multiple operating environments.
Provides an easy mechanism to manage disk based snapshots for easy
rollback, integrated data protection software for offsite and archive, hot plug
disk drives (RAID), and hardware redundancy. Data can also be replicated
to another system for enhanced disaster recovery. Utilize your All-in-One
Storage pool as a disk based backup target for other systems in your
environment and manage Data Protector Express virtual library objects direct
from the All-in-One Storage Manager.
Uses standard tools and concepts familiar to server administrators to reduce
learning curve and barriers to network storage. The industry standard iSCSI
interface provides the benefits of shared SAN storage on a traditional
TCP/IP network. HP ProLiant hardware ensures reliability, low TCO, and
supportability. The All-in-One Storage Manager quickly walks administrators
A dedicated segment is recommended for your iSCSI traffic and can
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 2
QuickSpecs
Highlights
Award winning
warranty, support and
troubleshooting tools to
ensure worry-free
operation
HP StorageWorks 400t and 400r All-in-One
Storage Systems
through all major setup and management tasks.
HP All-in-One Storage Systems can send alerts for various events such as an
impending disk failure reducing the potential for downtime while HP's world
class support organization and partner network ensures that you can quickly
recover in the case of a problem.
Available Product
Configurations
HP StorageWorks 400t
All-in-One Storage
System (AiO400t)
HP StorageWorks 400r
All-in-One Storage
System (AiO400r)
This 4-drive entry-level tower solution built on the ProLiant ML110 G5
platform provides shared storage expansion for application servers (iSCSI
Target), enhanced file serving for end-user clients (NAS), and comprehensive
data protection features. The AiO400t is an affordable solution for small
datacenter or branch office environments that need less than 1TB SATA or
584GB SAS total raw capacity.
Sizing Guidelines: For Exchange environments, the AiO400 can be
used for smaller Storage Groups with less than 100 mailboxes when
using the Exchange ESRP implementation guidelines. Out of the box
implementations should only use the AiO400 for very few users or
archival Storage Groups unless using SAS HDDs. While it is certified
for VMWare ESX iSCSI connectivity, the AiO400 is not
recommended in VMFS environments due highly random read/write
performance characteristics of VMFS.
This 4-drive entry-level rackable solution built on the ProLiant DL160 G5
hardware platform provides shared storage expansion for application servers
(iSCSI Target), enhanced file serving for end-user clients (NAS), and
comprehensive data protection features. The AiO400r is an affordable
solution for small datacenter or branch office environments that need less
than 2TB SATA or 1.2TB SAS total raw capacity.
HP StorageWorks 600
All-in-One Storage
System (AiO600)
HP StorageWorks 1200
All-in-One Storage
System (AiO1200)
Sizing Guidelines: For Exchange environments, the AiO400 can be
used for smaller Storage Groups with less than 100 mailboxes when
using the Exchange ESRP implementation guidelines. Out of the box
implementations should only use the AiO400 for very few users or
archival Storage Groups unless using SAS HDDs. While it is certified
for VMWare ESX iSCSI connectivity, the AiO400 is not
recommended in VMFS environments due highly random read/write
performance characteristics of VMFS.
This mid-level tower/rack solution built on the ML350 G5 hardware platform
provides shared storage expansion for application servers (iSCSI SAN),
enhanced file serving for end-user clients (NAS), and comprehensive data
protection features. The AiO600 is an excellent solution for customers
looking for increased capacity, scalability, and hardware redundancy. The
AiO600 is available in both SATA and Serial Attached SCSI (SAS)
configurations.
Sizing Guidelines: For Exchange environments, AiO600 SATA
configurations are appropriate for storage groups with less than 500
mailboxes while AiO600 SAS configurations support up to 1,000
mailboxes when using the Exchange ESRP implementation guidelines.
Out of the box implementations for the AiO600 will support approx
25% of these numbers. The AiO600 is certified with VMWare ESX for
iSCSI connectivity; due to the highly random read/write performance
characteristics of VMFS we recommend SAS HDDs and the AiO1200
SAS as the best performance option for use with VMWare ESX and
VMFS.
This high capacity and performance optimized solution built on the DL320s
hardware platform provides shared storage expansion for application servers
(iSCSI SAN), enhanced file serving for end-user clients (NAS), and
comprehensive data protection features. The AiO1200 is an excellent
solution for customers looking for increased performance and capacity from
12 internal drives and a high performance RAID controller. The AiO1200 is
available in both SATA and Serial Attached SCSI (SAS) configurations.
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 3
QuickSpecs
Highlights
HP StorageWorks All-in-
One SB600c Storage
Blade (AiO SB600c)
HP StorageWorks 400t and 400r All-in-One
Storage Systems
Sizing Guidelines: For Exchange environments, AiO1200 SATA
configurations are appropriate for storage groups with less than 500
mailboxes while AiO1200 SAS configurations support up to 1,500
mailboxes when using the Exchange ESRP implementation guidelines.
Out of the box implementations for the AiO1200 will support approx
25% of these numbers. The AiO1200 is certified with VMWare ESX
for iSCSI connectivity; due to the highly random read/write
performance characteristics of VMFS we recommend SAS HDDs for
use with VMWare ESX and VMFS.
This half-height all-in-one storage blade solution was designed for HP c-class
BladeSystem environments and combines a BL460 server blade and SB40
storage blade. It provides shared storage expansion for blade servers (iSCSI
SAN), enhanced file serving for end-user clients (NAS), and comprehensive
data protection features. The AiO SB600c is an excellent solution for
customers looking at c-3000 or c-7000 BladeSystem deployments. The AiO
SB600c is available in a SAS configuration.
Software Feature
Specifications for the
HP All-in-One Storage
Family
All-in-One Storage
Management
Interface
Shared Application
Storage (Microsoft
iSCSI Software
Target)
Sizing Guidelines: For Exchange environments, AiO SB600c SAS
configurations are appropriate for storage groups with less than 500
mailboxes. The AiO SB600c is certified with VMWare ESX for iSCSI
connectivity.
This single easy to use, integrated storage management tool can manage many
aspects of the storage environment.
Rapid startup tools for fast and easy installation and out-of-the box
configuration
Provides end-to-end management and provisioning of iSCSI storage for non-
clustered 32-bit and 64-bit Windows Server 2003 hosts from the iSCSI
Target all the way through to the host
Provides management and provisioning of iSCSI storage for standards-
compliant non-Windows iSCSI initiators such as VMWare, Linux, etc.
Application data hosting and migration wizard using HP and Microsoft 'Best
Practice' storage configurations for Microsoft Exchange 2003/2007
Storage Groups and Microsoft SQL Server 2000/2005 databases.
Application data hosting and iSCSI Setup wizard for other 'User Defined'
Applications (Oracle, mySQL, VMware ESX, etc.)
File Share creation wizard with storage allocation and directory quota
management.
Data protection policy assignment (snapshots and backup) integrated into
application migration and share creation wizards for data hosted on the
system.
Data Protector Express virtual library device provisioning and space
management as well as support for Data Protector Express D2D2Any add-on
option.
Application-level capacity provisioning and online growth for shares, SQL
Server and Exchange. SQL Server support includes data file and log
directory provisioning and Exchange support includes Mailstore, Publicstore
and log directory provisioning.
Quota monitoring and alerting per share or application.
Remote management via Microsoft Internet Explorer or Terminal Services.
Support for iLO or Lights-Out 100 varies by platform.
Support for setup and management of both internal storage as well as
supported direct attached MSA storage enclosures.
Supports management of tiered storage environments where both SAS,
parallel SCSI, or SATA hard drives are attached to the All-in-One Storage
System either internally or on externally attached MSA storage enclosures.
Compliant with iSCSI industry standards and compatible with industry
standard iSCSI initiators. Interoperability has been verified for Windows
2000, Windows Server 2003, VMware ESX Server 3, SUSE Linux
Enterprise Server 10, RedHat Enterprise Linux 5, and Qlogic 40xx series
iSCSI hardware HBAs. For additional information please visit:
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 4
QuickSpecs
Highlights
HP StorageWorks 400t and 400r All-in-One
Storage Systems
File/print serving
(NAS Operating
System - Windows
Storage Server 2003
R2 Standard Edition)
Integrated Data
Protection
Operating System
http://www.microsoft.com/storage
MMC based console to setup iSCSI Target storage. This console can be
used to setup advanced storage options. Basic iSCSI Target setup and
management can be performed directly from the All-in-One Storage
Manager.
Support for advanced features such as TCP/IP offload with multi-function
network adapters (requires Microsoft Scalable Network Pack (SNP) and
multi-pathing (MPIO). NOTE: The HP iSCSI Acceleration Pack on HP multi-
function NICs is not supported on the iSCSI Target but is supported on host
servers as an iSCSI initiator.
The Microsoft iSCSI Target can be used as target storage behind a
Microsoft application cluster. For more information on this implementation
read the whitepaper on this topic found at:
http://www.hp.com/go/AiOStorage
Native CIFS/SMB file serving support - Windows based file serving
optimized for Windows clients
Microsoft Services for Network File System (NFS) to enable heterogeneous
file serving to non-Windows clients.
HP Enhanced, File Server Management Console
De-duplication via Single Instance Storage (SIS) to eliminate duplicate files
and maximize available capacity; SIS can improve capacity utilization by
30% or more
Full-text indexing to maximize productivity and allow for fast data retrieval.
File Server Resource Manager for quotas, file screening and storage
reporting
Print Server management console with unlimited printer support
Unlimited Client Access License (CAL) included
Print Server support
Easy to use print management console
Unlimited printer support in Standard Edition
RAID hard drive configurations (hot swappable drives)
Disk-based snapshots for easy roll-back
Scheduled or ad-hoc by application
Managed through HP All-in-One Storage Manager
Exchange and SQL Server aware snapshots ensure consistent data
sets for the applications.
512 snapshots per independent iSCSI/Application volume. 64
snapshots for file share volumes. (
shares are on a common volume the iSCSI snapshot limit is 448.
A fully integrated copy of HP StorageWorks Data Protector Express software
(v3.5) provides enhanced backup and recovery operations. (
the backup server LTU component of Data Protector Express and does not
include any add-on licenses for features such as Bare Metal Recovery or
Disk-to-Disk-to-Any functionality. If using the All-in-One Storage System as a
backup server for a Data Protector Express backup domain all members of
the domain should be running the same version of Data Protector Express
Automatic discovery of tape devices
Software based Virtual Tape functionality
Disk-to-disk-to-any data protection
Microsoft Distributed File System Replication (DFS-R) to enable replication of
files to an alternate HP All-in-One Storage System, including
DFS Management Console
Configuration and Diagnostic Tools
Support for HP StorageWorks Storage Mirroring v5 (AiO Edition) to enable
replication and failover of both files and iSCSI LUNs.
o A 60-day trial version of HP StorageWorks Storage Mirroring software is
included on most systems or can be downloaded from:
http://h18000.www1.hp.com/products/storage/software/sm/index.html
Microsoft Windows Storage Server 2003 Release 2, Standard Edition
.
.
NOTE:
If iSCSI LUNs and file
NOTE:
)
This is
)
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 5
QuickSpecs
Highlights
400t All-in-One Storage System (AiO400t)
HP StorageWorks 400t and 400r All-in-One
Storage Systems
Front View
1.
DVD-ROM Drive
2.
Power LED
3.
Drive Activity LED
4.
Front Bezel
5.
SAS cable
6.
7.
8.
9.
10.
:
Smart Array E200 controller
System Board
HP LO 100c Management Card (Optional)
System Fan
365W Power Supply
Rear View:
1.
System fan
2.
PCI slot cover retainer
3.
PCI slot covers (one slot occupied by Smart Array E200 and
one slot occupied by 360T NIC)
4.
HP LO 100c Management Port (Optional)
5.
LAN Port (RJ-45)
6.
Rear USB 2.0 Ports
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
7.
8.
9.
10.
11.
12.
Serial Ports
VGA Port
PS/2 Keyboard Port
PS/2 Mouse Port
Power Supply Outlet
Power supply unit (PSU) fan
Page 6
QuickSpecs
Highlights
HP StorageWorks 400t and 400r All-in-One
Storage Systems
AiO400t
Hardware
Specifications
Processor
Memory
Operating System
Storage Controller
Internal Storage
Storage Layout
Optical Drive
Expansion Slots
Network Controller
Remote Manageability
Form Factor
Power and Cooling
Warranty
Dual-core Intel® Pentium® E2160 1.8 GHz with 1 x 1MB L2 cache
2 GB of memory standard, expandable to 4 GB
Memory Type: PC2-6400 unbuffered DDR2 ECC 800MHz
Memory Protection: Unbuffered ECC
Windows Storage Server 2003 Release 2, Standard Edition
Smart Array E200/128MB Controller with BBWC
Four 3.5" (large form factor) non hot-plug drive bays
1TB SATA Model: 4 x 250GB 7200 RPM HDDs
584GB SAS Model: 4 x 146GB 15,000 RPM HDDs
Factory RAID configuration: (1) RAID 5 Logical disk for OS on disks 0-
3. (1) RAID 5 Logical disk for recovery partition on disks 0-3. (1) RAID
5 Logical disk for User Data and iSCSI LUNs on disks 0-3.
Half-Height Internal DVD-ROM
(1) Full-height, half-length 32-bit/33MHz PCI at 3.3V slot
(1) Full-height, half--length PCIe x1 slot (occupied by NC360T NIC)
(1) Full-height, full--length PCIe x1 slot (x8 connector)
(1) Full-height, full-length PCIe x8 slot (occupied by Smart Array
E200/128MB controller)
(1) Lights-out 100c option slot
Embedded NC105i PCIe Gigabit Ethernet Server Adapter
Additional NC360T dual-port Gigabit Ethernet Server Adapter
Remote system management User Interface (UI), Remote Desktop or
Telnet
Remote hardware management via optional Lights-Out 100
Micro ATX Tower
Non-redundant system fans and power supply
Protected by HP Services and a worldwide network of resellers and
service providers. The AiO400t comes with a standard 1-1-1
warranty (1 year parts exchange, 1 year labor, and 1 year onsite,
next business day response) which can be upgraded to same day
support through HP Care Packs. Certain restrictions and exclusions
apply. SATA hard drives have a one-year warranty. Warranty also
includes a 1 year Software Support Carepack.
AiO400r All-in-One Storage System (AiO400r)
Front View
1.
Access panel
2.
Quad-Core Intel® Xeon® 5405 2.00GHz processor
(supports up to two)
:
6.
7.
DVD-ROM drive
Two USB ports
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 7
HP StorageWorks 400t and 400r All-in-One
QuickSpecs
Highlights
3.
Eight PC2-5300 (DDR2-667) fully buffered DIMM memory
slots
4.
Power supply (650 Watts)
5.
System fans
11.
1.
Power Supply cable socket
2.
PS/2 Mouse Port
3.
PS/2 Keyboard Port
4.
Two GbE LAN ports for NIC 1 and NIC 2 (RJ-45)
5.
Rear USB 2.0 Ports
8.
9.
10.

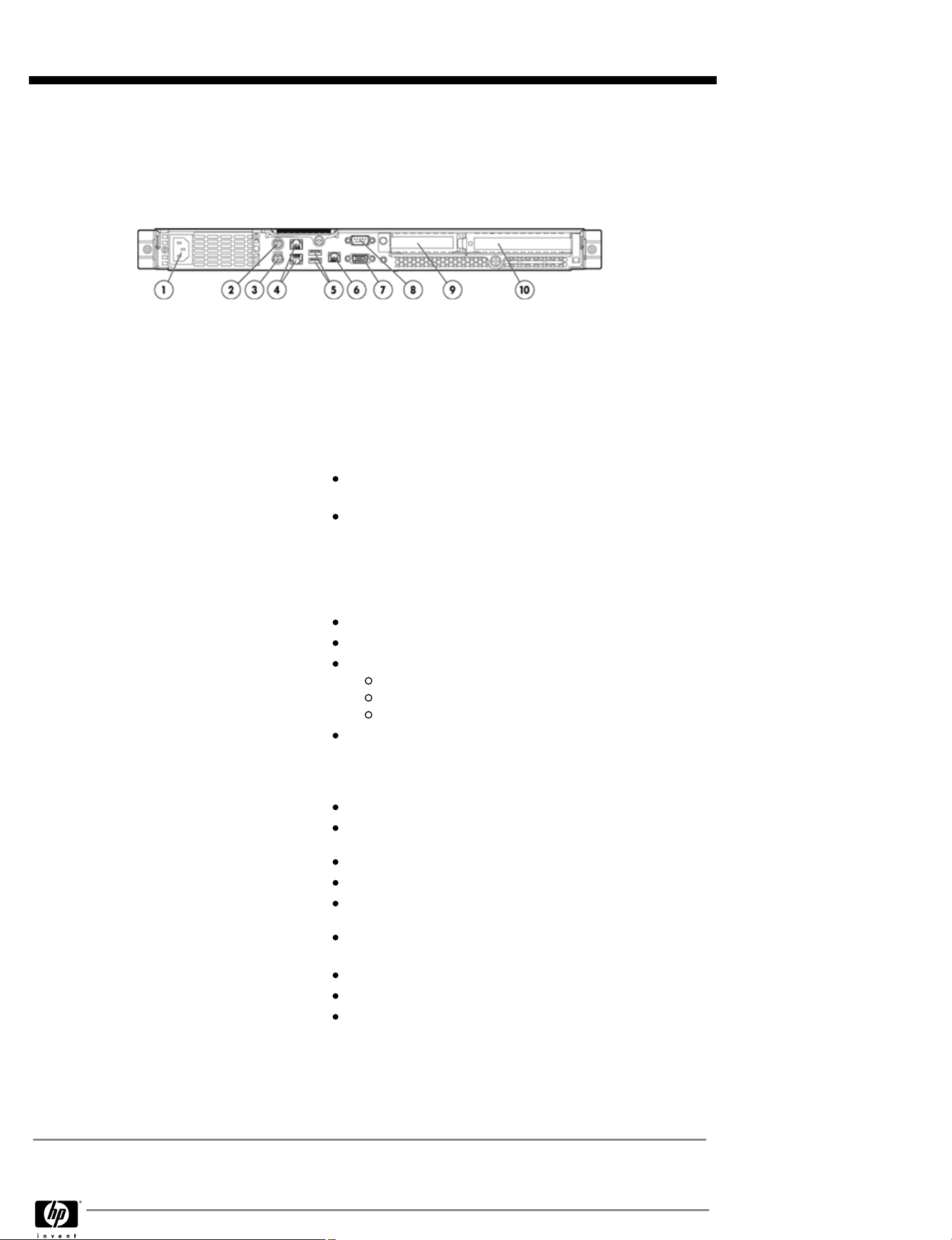

Rear View:
6.
7.
8.
9.
10.
Storage Systems
Power on/off & system LEDs
Four (4) 3.5" hot-plug SAS/SATA hard drive bays
Four (4) 3.5" hot-plug SAS/SATA hard drive bays
Two PCIe x16 expansion slots (one open)
Lights Out 100i port for remote management
Video Port
Serial Port
Low Profile PCIe Slot Cover (x16 slot open)
Full-sized PCIe Slot (occupied by Smart Array E200
controller)
AiO400r
Hardware
Specifications
Processor
Memory
Operating System
Storage Controller
Internal Storage
Storage Layout
Optical Drive
Expansion Slots
Network Controller
Remote Management
Form Factor
Power and Cooling
Warranty
Quad-core Intel® Xeon® processor E5405 2.00GHz (One processor
standard; up to 2 supported). 12MB (2 x 6MB) level 2 cache
2 GB of memory standard, expandable to 4 GB. Type PC2-5300
Fully Buffered DIMMs (DDR2-667) w/ Advanced ECC Memory
Protection. 8 DIMM Sockets
NOTE:
read cache in a traditional storage array. Write cache is driven by
the Storage Controller in the All-in-One Storage System.
Windows Storage Server 2003 Release 2, Standard Edition
Smart Array E200/128MB Controller with BBWC
Four 3.5" (large form factor) front load, hot plug hard drives
Factory RAID configuration: (1) RAID 5 Logical disk for OS on disks 0-
3. (1) RAID 5 Logical disk for DON'T ERASE recovery partition on
disks 0-3. (1) RAID 5 Logical disk for User Data and iSCSI LUNs on
disks 0-3.
Slimline internal DVD-ROM
Full-length, full-height PCIe x16 slot (occupied by Smart Array
E200/128MB controller)
Half-length, low-profile PCIe x16 slot
Embedded NC320i PCIe Dual Port Gigabit Server Adapter
Remote system management User Interface (UI), Remote Desktop or
Telnet
HP ProLiant Lights Out 100i remote management - Advanced Pack
included
1U rack mount
Non-redundant system fans and power supply
Protected by HP Services and a worldwide network of resellers and
service providers. The AiO400t comes with a standard 1-1-1
warranty (1 year parts exchange, 1 year labor, and 1 year onsite,
next business day response) which can be upgraded to same day
support through HP Care Packs. Certain restrictions and exclusions
apply. SATA hard drives have a one-year warranty. Warranty also
includes a 1 year Software Support Carepack.
System memory in the All-in-One Storage System equates to
1TB SATA Model: 4 x 250GB 7,200 RPM HDDs
2TB SATA Model: 4 x 500GB 7,200 RPM HDDs
1.2TB SAS Model: 4 x 300GB 15,000 RPM HDDs
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 8
QuickSpecs
Highlights
HP StorageWorks 400t and 400r All-in-One
Storage Systems
Optional Software
to Enhance HP
All-in-One Storage
Systems
HP StorageWorks Storage Mirroring (AiO Edition
software enables remote replication over an IP LAN/WAN between multiple All-in-One Storage
Systems for both file (NAS) and block (iSCSI) data. Key features include asynchronous replication
that can be scheduled to a fine granular level, Logical Unit Number (LUN), file or byte level.
Other features include multiple replication configuration options including peer-to-peer and many-
to-one. In addition, Storage Mirroring is a very cost effective disaster recovery alternative from one
host to another within a LAN, storage center, or between direct attached storage in metro offices
and regional centers. Additional configurations allow replication from small office environments to
ensure business continuity without an outside IT staff.
For more information:
http://h18000.www1.hp.com/products/storage/software/sm/index.html
HP Data Protector Express optional extensions
features and reliability without compromising its ease of use. Features such as open file backup,
D2D2Any backup and recovery and bare metal disaster recovery minimize the impact of backup
and recovery operations. The D2D2Any feature extends the scale and capability of the D2D
backup (Virtual Library) to allow backups to be moved or copied from disk to other media such as
tape for longer term retention. Agents are available for the protection of networked file servers,
application servers, HP Data Protection Storage Server and Windows desktops. High
performance is delivered through the Data Protector Express three-tier architecture - unique in this
class of product - and self-tuning parallel backup streams that allows multiple jobs to run
concurrently.
The HP All-in-One Storage System includes the backup server LTU which enables the backup and
recovery of file and iSCSI data on the AiO and the setup and management of virtual libraries; you
can consolidate the rest of your backup infrastructure and add advanced functionality by including
any of the optional extensions such as D2D2Any, bare metal recovery, or network agents for
backup of data stored locally on other servers.
) - HP StorageWorks Storage Mirroring
- Data Protector Express delivers class leading
For more information on Data Protector Express visit:
http://www.hp.com/go/dataprotectorexpress
SKU's, options, and functional extensions.
HP Storage Essentials NAS Manager
(NAS) management capabilities for HP All-in-One Storage Systems. Visualize your distributed HP
All-in-One Storage Systems and centrally manage their capacity, performance, events, and
dependencies to ensure availability and performance and unify SAN and NAS management.
For more information on the complete line of HP Storage Essential products go to:
http://www.hp.com/go/storageessentials
. Click on the QuickSpec link for information on
- Provides comprehensive Network Attached Storage
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 9
HP StorageWorks 400t and 400r All-in-One
QuickSpecs
Service and Support, HP Care Pack, and Warranty Information
HP Care Pack Services offer upgraded service levels to extend and expand your standard product warranty with easy to buy, easy
to use support packages that help you make the most of your hardware and software investments. They let you choose the support
levels that meet your business requirements. They help you contain total cost of ownership.
HP Care Pack warranty extensions can be purchased along with HP products to cost-effectively upgrade or extend your warranty.
For most HP products, including the AiO400t and AiO400r, post-warranty HP Care Pack Services are available when your
original warranty has expired.
Storage Systems
Why purchase an HP
Care Pack service?
Your standard warranty protects against product defects during normal working hours. HP Care Pack
Services help you extend this protection to more coverage hours and more days per week. This can
increase uptime which can improve your productivity and profitability. These convenient service
packages:
Protect your investment in HP products
Provide consistent, predictable levels of support across your entire department or business
Ease budget planning with fixed-cost support that includes parts and labor
Give you direct access to proven technical and problem-solving expertise
Offer a choice of response-time and repair-time commitments
Deliver prompt, measurable results
Are available whenever and wherever you do business
HP Care Pack availability may vary by country and product.
The breadth, depth, and quality of HP hardware and software support services can help you improve
the performance of your IT support processes and resolve the complex software and hardware problems
that tax user productivity. HP Care Pack services help you increase IT environment stability, efficiency,
and agility from the desktop to the data center, and improve the productivity of your employees.
HP offers an optional migration service to assist the customer in moving to the newest product release.
This may be in the form of a defined kit and service, or may alternatively be performed on a time &
material basis.
Warranty and Services
Included with the
Product
HP Services allows the customer to leverage HP's experience in selecting and configuring the most
widely used security features, and provides an environment that is immediately more available due to
increased change control and significantly improved data security.
For more information on these and other service options, please contact any of our worldwide sales
offices or visit our web site at:
HP basic Software warranty provides that the Software media will be free of physical defects for a
period of ninety (90) days from delivery. In addition to this basic Software warranty HP also includes, as
part of the product, a 1 year, Software Support Carepack that provides phone in support for 9hrs/day,
5 days/week for all the bundled software including the WSS2003 R2 operating system including the
iSCSI functionality, the Data Protector Express software, and the enhanced All-in-One Storage Manager
(ASM) GUI. This AiO400 product support can be uplifted to 24x7 for up to 5 years.
The HP AiO400t and AiO400r come with a 1-1-1 hardware warranty (1 years parts exchange, 1 year
labor, and 1 year on-site, next business day response) for product hardware.
http://www.hp.com/hps/support
.
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 10
QuickSpecs
Service and Support, HP Care Pack, and Warranty Information
HP StorageWorks 400t and 400r All-in-One
Storage Systems
Available HP Care Pack
Services
Installation Services
Extend your product warranty with a choice of cost-saving support packages.
HP Care Pack Services are sold by HP and HP authorized enterprise and commercial resellers. Services
for customers purchasing via direct and enterprise resellers are quoted using HP order configuration
tools.
HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific
duration and hours of coverage.
HP Care Pack is not available for less than the product's warranty duration.
HP Care Pack is available for sale anytime during the warranty period for most products, but the
commencement date will be the same as the Warranty Start Date (delivery date to end user
customer). Proof of purchase may be required.
HP Care Pack services are prepaid.
For additional information on Product Services and HP Care Pack, as well as orderable part numbers,
please refer to the URL:
If you have specific questions about availability or how to obtain services contact your local HP
representative. Contact information for your local area can be found at:
http://www.hp.com/services
The Installation service deployment activities follow the AiO Quick Start Poster and include:
http://www.hp.com/hps/carepack/
.
.
Support Plus 24
CarePack
Unpacking the product, performing initial inspection, rack mounting if required, and setting up
product hardware and power connectivity and connecting customer provided cables.
Working with the customer to determine if access to the AiO will be DHCP or networking.
Configuring the AiO by running the Rapid Startup Wizard which sets such things as date, time,
user name and password, setting up integrated Lights Out (iLO) and simple network management
protocol (SNMP).
The AiO "Create a Shared Folder" Wizard is run to configure the AiO to share files, and access
is confirmed.
Finally, a product orientation of < 10 minutes provides a brief overview of how the product was set up,
as well as how to find information within the product documentation.
HP Support Plus 24 provides all the benefits of the regular Support Plus Care Pack, but HP Services
engineers are available to work with your IT team to deliver onsite hardware support and over-the-phone
software support around-the-clock 365 days per year.
Three years of HP Support Plus 24 x 7
Improve coverage hours from 9x5 to 24x7
Improve HW response time from warranty of next business day to 4hrs same day
Extend coverage from 1 year to 3 years
Includes both AiO hardware and software
Improve the productivity of system managers and operators
Improve system performance and reduce downtime due to software defects
Expedite problem resolution through expert-level technical resources
Enjoy consistent service coverage across geographically dispersed sites
Access to patches for HP and selected third-party software and firmware
In short you enjoy all the benefits of HP Support Plus at any time or on any day you may need them.
Choose Support Plus 24 when you not only need all of the benefits of Support Plus, but also require
responsive hardware and software services available anytime.
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 11
QuickSpecs
Service and Support, HP Care Pack, and Warranty Information
HP StorageWorks 400t and 400r All-in-One
Storage Systems
Support Plus
CarePack
HP Support Plus helps you increase the performance and availability of your IT infrastructure with
comprehensive, consistent hardware and software services. HP Services engineers deliver onsite
hardware support and over-the-phone software support 13 hours per day, 5 days per week.
Three years of HP Support Plus 13x5
Extend basic coverage from 1 year to 3 years
Improve HW response time from warranty of next business day to 4hrs same day
Improve coverage hours from 9x5 to 13x5 (due to improved response time)
Includes both AiO hardware and software
Improve the productivity of system managers and operators
Improve system performance and reduce downtime due to software defects
Expedite problem resolution through expert-level technical resources
Enjoy consistent service coverage across geographically dispersed sites
Access to patches for HP and selected third-party software and firmware
Our Service coverage encompasses the HP AiO400t and AiO400r products, selected multi-vendor
hardware and provides trouble-shooting software problems which in turn range from the Windows
Storage Server 2003 operating system up to the available utilities. And Support Plus provides recovery
and re-configuration assistance of the base HP AiO400t and AiO400r using the Quick Recovery disk
and your saved configuration file (application recovery not included).
Choose Support Plus when you need to:
eSupport
Improve uptime with responsive hardware and software services.
Enjoy consistent service coverage across geographically dispersed sites.
Update HP and selected third-party software with tested and certified patches.
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
Access to certain features of the support portal requires an HP service agreement. To access the support
portal, visit:
http://www.hp.com/support
Education Services
Financial Services
HP offers a variety of training methods to fit your needs including traditional instructor-led courses at one
of our 120 training centers worldwide, onsite training customized to your needs, in your facility, or even
Remotely Assisted Instruction Learning that combines the best of traditional classroom training (including
its live instructor and labs) with the best of online training (no traveling required). And if you like learning
on your own schedule, at your own pace, make use of e-learning opportunities on the award-winning
HP IT Resource Center, a "learning community" with extensive on-demand resources that can be
accessed 24x7. For more information on these services, contact your HP sales representative or visit:
http://www.hp.com/learn
HP Financial Services provides innovative financing and financial asset management programs to help
customers cost-effectively acquire, manage, and ultimately retire their HP solutions. For more information
on these services, please contact your HP sales representative or visit:
http://www.hp.com/go/hpfinancialservices.
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
and click on "HP StorageWorks".
Page 12
HP StorageWorks 400t and 400r All-in-One
QuickSpecs
Product Configuration Wizard
In the following steps you will be guided through a series of steps to help you configure the best solution for your environment. You
will also be supplied with information about complementary products that can be ordered at the same time. It is important to note
that HP StorageWorks All-in-One Storage Systems include all of the software features and benefits listed above as standard features;
this means that there are no expensive upgrades or options required to achieve this integrated storage functionality and data
management.
NOTE:
integrated or configured and ship as separate components.
Step 1 - Order the desired HP All-in-One Storage System based on form factor, power cord
localization (AiO400t), capacity, performance, scalability, and redundancy requirements.
HP StorageWorks 400t All-in-One Storage System
AiO400t common
specifications
The steps outlined below are intended only as a guide for the options available. All options chosen are not factory
Processor
Memory
Operating System
Storage Controller
Internal Storage
Optical Drive
Network Controller
Form Factor
Power and cooling
Remote Management
File Serving
Protocol Support
iSCSI Initiator Support
Dual-Core Intel® Pentium® E2160 1.8 GHz with 1 x 1MB L2 cache
2 GB of memory standard (2 x 1GB), expandable to 4 GB
Windows Storage Server 2003 Release 2, Standard Edition
Smart Array E200/128MB Controller with BBWC
Varies by model - select model below depending on needs. Capacity points
listed are total raw capacity. Hard drives are non hot-pluggable.
Half-Height Internal DVD-ROM
Embedded NC105i PCIe Gigabit Ethernet Server Adapter plus Additional
NC360T dual-port Gigabit Ethernet Server Adapter
Micro ATX Tower
Non-redundant system fans and power supply
Remote management User Interface (UI), Remote Desktop, or Telnet. Remote
hardware management via optional Lights-Out 100
SMB/CIFS, NFS, NCP, AppleTalk, HTTP, FTP
Compliant with iSCSI industry standards and compatible with industry
standard iSCSI initiators. Interoperability has been verified for Windows
2000, Windows Server 2003, VMware ESX Server 3, SUSE Linux
Enterprise Server 10, RedHat Enterprise Linux 5, and Qlogic 40xx series
iSCSI hardware HBAs. For additional information please visit:
http://www.microsoft.com/storage
.
Storage Systems
AiO400t
1TB SATA Model
AK296A (Amer)
AK297A (Asia)
AK298A (Euro)
AK299A (China)
AK300A (Aust)
Internal Storage
4 x 250GB front loading, 7200 RPM SATA HDDs
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 13
QuickSpecs
Product Configuration Wizard
HP StorageWorks 400t and 400r All-in-One
Storage Systems
AiO400t
584GB SAS Model
AK291A (Amer)
AK292A (Asia)
AK293A (Euro)
AK294A (China)
AK295A (Aust)
HP StorageWorks 400r All-in-One Storage System
AiO400r common
specifications
Internal Storage
Processor
Memory
Operating System
Storage Controller
Internal Storage
Optical Drive
Network Controller
Form Factor
Power and cooling
Remote Management
File Serving
Protocol Support
iSCSI Initiator Support
4 x 146GB front loading 15,000 RPM SAS HDDs
Quad-Core Intel® Xeon® processor E5405 (2.00GHz, 80W, 1333MHz
FSB) (One processor standard; up to 2 supported)
2 GB of memory standard (2 x 1GB), expandable to 4 GB
Windows Storage Server 2003 Release 2, Standard Edition
Smart Array E200/128MB Controller with BBWC
Varies by model - select model below depending on needs. Capacity points
listed are total raw capacity.
Slimline internal DVD-ROM
Embedded NC320i PCIe Dual Port Gigabit Server Adapter
1U rack mount
Non-redundant system fans and power supply
Remote management User Interface (UI), Remote Desktop, or Telnet. HP
ProLiant Lights Out 100i remote management - Advanced Pack included
SMB/CIFS, NFS, NCP, AppleTalk, HTTP, FTP
Compliant with iSCSI industry standards and compatible with industry
standard iSCSI initiators. Interoperability has been verified for Windows
2000, Windows Server 2003, VMware ESX Server 3, SUSE Linux
Enterprise Server 10, RedHat Enterprise Linux 5, and Qlogic 40xx series
iSCSI hardware HBAs. For additional information please visit:
http://www.microsoft.com/storage
.
AiO400r
1TB SATA Model
AK224A
AiO400r
2TB SATA Model
AK225A
AiO400r
1.2TB SAS Model
AK226A
Internal Storage
Internal Storage
Internal Storage
4 x 250GB front loading, hot-plug, 7,200 RPM SATA HDDs
4 x 500GB front loading, hot-plug, 7,200 RPM SATA HDDs
4 x 300GB front loading, hot-plug, 15,000 RPM SAS HDDs
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 14
HP StorageWorks 400t and 400r All-in-One
QuickSpecs
Product Configuration Wizard
Step 2 - Select expansion options based on system choice: AiO400t or AiO400r
Step 2a: AiO400t options
Storage Systems
Additional Memory
Network Adapters
Lights Out Management
Card
Storage HBAs
NOTE:
expandable to OS limit of 4 GB. All models have a total of four DIMM sockets. See 'Memory' section
of QuickSpecs below for more information on memory configuration.
2048 MB Unbuffered ECC PC2-6400 DDR2 (1x2048 MB)
1024 MB Unbuffered ECC PC2-6400 DDR2 (1x1024 MB)
512 MB Unbuffered ECC PC2-6400 DDR2 (1x512 MB)
HP NC110T PCI Express Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
HP ProLiant ML110 G5 Lights-Out 100 Remote Management Card
SAS HBAs
HP SC44Ge Host Bus Adapter
HP SC40Ge Host Bus Adapter
NOTE:
http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html
(SC44Ge HBA)
SCSI HBAs
HP SC11Xe Host Bus Adapter (PCI-e)
HP U320e SCSI Host Bus Adapter
NOTE:
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
Every HP All-in-One 400t Storage System comes standard with 2 GB of memory and is
Please see the HBA QuickSpecs for additional information:
Please see the following QuickSpecs for additional information:
450260-B21
450259-B21
450258-B21
434905-B21
412648-B21
435508-B21
445513-B21
416096-B21
449176-B21
412911-B21
AH627A
Step 2b - AiO400r options
Additional Processor
Additional Memory
NOTE:
backup HBA, or external storage expandability. Chose only one expansion card.
Network Adapters
The AiO400r has ONE low-profile PCI Express x16 slot available for one of the following: additional network ports, a
NOTE:
desired.
Quad-Core Intel® Xeon® processor E5405 (2.00GHz, 80W, 1333MHz FSB)
Option Kit
NOTE:
expandable to OS limit of 4 GB. All models have a total of four DIMM sockets. See 'Memory' section
of QuickSpecs below for more information on memory configuration
1 GB FBD PC2-5300 2X512 Kit
2 GB FBD PC2-5300 2X1GB Kit
4 GB FBD PC2-5300 2X2GB Kit
HP NC110T PCI Express Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC510C PCIe 10 Gigabit Server Adapter
NOTE:
NC510C adapter.
The AiO400r supports a total of 2 processors so you may add one additional processor if
Every HP All-in-One 400r Storage System comes standard with 2 GB of memory and is
A minimum of 1 gigabyte (1 GB) of server memory is required per each
446077-B21
397409-B21
397411-B21
397413-B21
434905-B21
412648-B21
435508-B21
394793-B21
394791-B21
414129-B21
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 15
QuickSpecs
Product Configuration Wizard
HP StorageWorks 400t and 400r All-in-One
Storage Systems
Storage Controllers
Storage HBAs
HP NC510F PCIe 10 Gigabit Server Adapter
NOTE:
NC510F adapter.
HP Smart Array E500/256MB Controller
HP Internal SAS/SATA 4-Port Cable
NOTE:
SAS/SATA 4-Port Cable.
SAS HBAs
HP SC44Ge Host Bus Adapter
NOTE: Please see the HBA QuickSpecs for additional information:
http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html
(SC44Ge HBA)
SCSI HBAs
HP SC11Xe Host Bus Adapter (PCI-e)
HP U320e SCSI Host Bus Adapter
NOTE: Please see the following QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)
A minimum of 1 gigabyte (1 GB) of server memory is required per each
The purchase of a SAS Storage Controller requires the purchase of HP
414126-B21
435129-B21
457692-B21
416096-B21
412911-B21
AH627A
Step 3 - Add optional software
Data Protector Express extensions
NOTE:
extensions are required to backup file or iSCSI block data but the following extensions can be added for advanced functionality.
(
NOTE:
such as Bare Metal Recovery or Disk-to-Disk-to-Any functionality)
Additional extensions are available if you are enabling network backup from clients or servers to the AiO as a backup target. For
more information on HP Data Protector Express please visit:
Storage Mirroring replication software
HP StorageWorks Storage Mirroring software enables remote replication over an IP LAN/WAN between multiple All-in-One
Storage Systems for both file (NAS) and block (iSCSI) data. Key features include asynchronous replication that can be scheduled to
a fine granular level, Logical Unit Number (LUN), file or byte level. Other features include multiple replication configuration options
including peer-to-peer and many-to-one. In addition, Storage Mirroring is a very cost effective disaster recovery alternative from one
host to another within a LAN, storage center, or between direct attached storage in metro offices and regional centers. Additional
configurations allow replication from small office environments to ensure business continuity without an outside IT staff.
HP All-in-One Storage Systems ship with the HP StorageWorks Data Protector Express Backup server LTU. No functional
This is the backup server LTU component of Data Protector Express and does not include any add-on licenses for features
http://www.hp.com/go/dataprotectorexpress
HP StorageWorks Data Protector Express D2D2Any LTU
HP StorageWorks Data Protector Express Drive Expansion (1 incremental drive) LTU
.
BB130AA
BB133AA
T5446A
Step 4 - Add external storage enclosure for additional capacity (AiO400r only)
NOTE:
Storage System as well as direct attached MSA storage enclosures. ASM also supports management of tiered storage environments
where both SCSI/SAS or SATA hard drives are attached to the All-in-One Storage System.
External storage enclosure support matrix for HP All-in-One Storage Systems
System
AiO400r
NOTE:
http://h18006.www1.hp.com/storage/disk_storage/msa_diskarrays/drive_enclosures/index.html
The HP All-in-One Storage Manager (ASM) software supports management of both internal storage on the All-in-One
Physical Max /
Enclosure
MSA60
MSA50, MSA70
For more information on storage enclosures from HP, including product QuickSpecs, please visit:
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Recommended Max
4 (1+3 cascade) / 1
2 (1+1 cascade)/ 1
Host Controller or Adapter
SmartArray E500
SmartArray E500
Page 16
QuickSpecs
Product Configuration Wizard
HP StorageWorks 400t and 400r All-in-One
Storage Systems
External Storage
Enclosures
HP StorageWorks Modular Smart Array 50 Enclosure (MSA50)
NOTE:
host connectivity and redundant power supplies.
HP StorageWorks 60 Modular Smart Array (MSA60)
NOTE:
host connectivity and redundant power supplies.
HP StorageWorks 70 Modular Smart Array (MSA70)
NOTE:
host connectivity and redundant power supplies.
Rack-mountable 10 drive (2.5" SAS/SATA) 1U enclosure with 3Gb/s SAS
Rack-mountable 12 drive (3.5" SAS/SATA) 2U enclosure with 3Gb/s SAS
Rack-mountable 25 drive (2.5" SAS/SATA) 2U enclosure with 3Gb/s SAS
Step 5 - Add tape backup solution
NOTE:
System. If adding external attached MSA Storage Enclosures or utilizing the All-in-One Storage System as a backup server for other
systems on the network, you may need to select a faster or higher capacity tape backup option. For a complete list of supported
tape options please visit:
For more information on the complete HP StorageWorks tape backup portfolio, please visit:
up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit:
http://www.hp.com/go/connect
connectivity information.
Recommended tape backup solutions for All-in-One Storage Systems.
Model
AiO 400r
1 TB SATA
2 TB SATA
1.2 TB SAS
AiO 400t
1 TB SATA
584 GB SAS
Specifications for recommended configurations
Standard SKU
Additional SAS drive
Drives
Slots
Ncapacity TB
Ncapacity TB (2:1)
Nthruput TB/Hr
The following sizing recommendations are based on backing up the available raw capacities in the All-in-One Storage
www.hp.com/go/tape
Recommendation
Tape
Solution
1/8 G2
2024(1)
1/8 G2
1/8 G2
1/8 G2
. Please consult the EBS connectivity matrix at:
4 full
backups,
total TB
4 1.16
8 2.33
4.8 1.40
4 1.16
2.336 0.68
Full Backup
Time in
Hours
1/8 G2
AK377A AK378A AK380A
NA NA
1 1 2
8 24 24
6.4 19.2 19.2
12.8 38.4 38.4
0.86 0.86 1.72
.
Lowest Cost
Tape
Solution
1/8 G2
1/8 G2
1/8 G2
1/8 G2
1/8 G2
http://www.hp.com/go/ebs
2 full
backups,
total TB
2 1.16
4 2.33
2.4 1.40
2 1.16
1.168 0.68
2024(1)
Full Backup
Time in
Hours
http://www.hp.com/go/tape
Highest Performance
Tape
Solution
1/8 G2
2024(2)
1/8 G2
1/8 G2
1/8 G2
2024(2
AK383A
364430-B21
418408-B21
418800-B21
for detailed
Full
4 full
backups,
total TB
4 1.16
8 1.16
4.8 1.40
4 1.16
2.336 0.68
Backup
Time in
Hours
. For an
Tape Solutions
HP StorageWorks 1/8 G2 Ultrium 1760 SAS Autoloader
HP StorageWorks MSL2024 1 Ultrium 1760 SAS Tape Library
HP StorageWorks MSL8096 2 Ultrium 1760 SAS Tape Library
NOTE:
http://www.hp.com/go/automation
Please reference the Tape Autoloader and Library QuickSpecs at:
for additional information.
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
AK377A
AK378A
AK380A
Page 17
QuickSpecs
Product Configuration Wizard
Step 6 - Add HP CarePack services
HP StorageWorks 400t and 400r All-in-One
Storage Systems
AiO400t CarePacks
AiO400r CarePacks
HP 1y Support Plus AiO400r/t StorSys SVC
HP 1ySupportPlus24 AiO400r/t StorSys SVC
HP 3y Support Plus AiO400r/t StorSys SVC
HP 3ySupportPlus24 AiO400r/t StorSys SVC
HP 1y PWSupportPlusAiO400r/t StorSys SVC
HP 1yPWSupportPlus24AiO400r/tStorSys SVC
HP Installation
HP 1y Support Plus AiO400r/t StorSys SVC
HP 1ySupportPlus24 AiO400r/t StorSys SVC
HP 3y Support Plus AiO400r/t StorSys SVC
HP 3ySupportPlus24 AiO400r/t StorSys SVC
HP 1y PWSupportPlusAiO400r/t StorSys SVC
HP 1yPWSupportPlus24AiO400r/tStorSys SVC
HP Installation
UH165E
UH166E
UH167E
UH168E
UH169PE
UH170PE
UF285E
UH165E
UH166E
UH167E
UH168E
UH169PE
UH170PE
UF285E
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 18
QuickSpecs
Technical Specifications
HP StorageWorks 400t and 400r All-in-One
Storage Systems
AiO400t
Additional
Specifications
Dimensions
(with feet)
Weight
(approximate)
Input Requirements
(per power supply)
Power Specifications
Power Supply Output
(per power supply)
System Inlet Temperature
Relative Humidity
(non-condensing)
Altitude
(HxWxD)
14.5 x 6.9 x 16.8 in (36.7 x 17.5 x 42.6 cm)
Maximum
(all hard drives, power
supplies, and processors
installed)
Minimum
(one hard drive, power
supply, and processor
installed)
Rated Line Voltage
Rated Input Current
Rated Input Frequency
Rated Input Power
To review typical system power ratings use the Power Calculator which is
available via the online tool located at URL:
http://h30099.www3.hp.com/configurator/calc/Power%20Calculator
%20Catalog.xls
- Click on the system of interest. Example: DL380 G5
- Follow the instructions of the next screens.
Rated Steady-State Power
Maximum Peak Power
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
39 lb (17.5 kg)
23.81 lb (10.8 kg)
90 to 132 VAC,
180 to 264 VAC
6 A (at 100 VAC),
3 A (at 200 VAC)
47 to 63 Hz
600 W (at 100 VAC),
600 W (at 200 VAC)
365 W (at 100 VAC),
365 W (at 200 VAC)
385 W (at 100 VAC),
385 W (at 200 VAC)
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change is
10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if
operating with a fan fault or above 30°C
(86°F).
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
10% to 90% relative humidity (Rh), 28°C
(82.4°F) maximum wet bulb temperature, non-
condensing.
5% to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature, non-
condensing.
3050 m (10,000 ft). This value may be limited
by the type and number of options installed.
Maximum allowable altitude change rate is
457 m/min (1500 ft/min).
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500
ft/min).
AiO400R
Additional
Specifications
Dimensions
(with bezel)
(HxWxD)
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
1.70 x 17.64 x 26.85 in (4.32 x 44.80 x 68.20 cm)
Page 19
QuickSpecs
Technical Specifications
HP StorageWorks 400t and 400r All-in-One
Storage Systems
Specifications
Weight
(approximate)
Input Requirements
(per power supply)
Power Specifications
Power Supply Output
(per power supply)
System Inlet Temperature
Relative Humidity
(non-condensing)
Altitude
Acoustic Noise
All hard drives, power
supplies, and processors
installed
Rated Line Voltage
Rated Input Current
Rated Input Frequency
Rated Input Power
To review typical system power ratings use the Power Calculator which is
available via the online tool located at URL:
http://h30099.www3.hp.com/configurator/calc/Power%20Calculator
%20Catalog.xls
- Click on the system of interest. Example: DL380 G5
- Follow the instructions of the next screens.
Rated Steady-State Power
Operating
Non-operating
Operating
Non-operating
Operating
Non-operating
Listed are the declared A-Weighted sound power levels (LWAd) and
declared average bystander position A-Weighted sound pressure levels
(LpAm) when the product is operating in a 23°C ambient environment. Noise
emissions were measured in accordance with ISO 7779 (ECMA 74) and
declared in accordance with ISO 9296 (ECMA 109).
Idle
LWAd
LpAm
Operating
LWAd
LpAm
37.00 lb (16.78 kg)
90 to 132 VAC,
180 to 264 VAC
7.31A at 115VAC,
3.6A at 230VAC
47 to 63 Hz
855W (at 100 VAC),
840.72W (at 200 VAC)
653.10W (at 100 VAC),
653.08W (at 200 VAC)
50° to 95° F (10° to 35° C) at sea level with
an altitude derating of 1.8°F per every 1000 ft
(1.0°C per every 305 m) above sea level to a
maximum of 10,000 ft (3050 m), no direct
sustained sunlight. Maximum rate of change is
18°F/hr (10°C/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if
operating with a fan fault or above 86°F
(30°C).
40° to 140° F (-40° to 60° C)
Maximum rate of change is 36°F/hr
(20°C/hr).
10% to 85% relative humidity (Rh), 82.4°F
(28°C) maximum wet bulb temperature, non-
condensing.
10% to 95% relative humidity (Rh), 101.7°F
(38.7°C) maximum wet bulb temperature, non-
condensing.
10,000 ft (3050 m). This value may be limited
by the type and number of options installed.
Maximum allowable altitude change rate is
1500 ft/min (457 m/min).
30,000 ft (9144 m). Maximum allowable
altitude change rate is 1500 ft/min (457
m/min).
6.86
52.36dBA
6.89
52.60dBA
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 20
HP StorageWorks 400t and 400r All-in-One
QuickSpecs
Technical Specifications
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
Storage Systems
DA - 12913 Worldwide QuickSpecs — Version 1 — 2.11.2008
Page 21
Loading...
