User Guide
© Copyright 2014 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and Centrino
are trademarks of Intel Corporation in the
U.S. and other countries. AMD is a
trademark of Advanced Micro Devices, Inc.
SD Logo is a trademark of its proprietor.
Java is a U.S. trademark of Sun
Microsystems, Inc. Microsoft and Windows
are U.S. registered trademarks of the
Microsoft group of companies.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: January 2014
Document Part Number: 752438-xx1
Product notice
This user guide describes features that are
common to most models. Some features
may not be available on your computer.
This computer may require upgraded and/
or separately purchased hardware and/or a
DVD drive to install the Windows 7 software
and take full advantage of Windows 7
functionality. Go to
http://windows.microsoft.com/en-us/
windows7/get-know-windows-7 for details.
To access the latest user guide, go to
http://www.hp.com/support, and select your
country. Select Drivers & Downloads, and
then follow the on-screen instructions.
Software terms
By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to
be bound by the terms of the HP End User
License Agreement (EULA). If you do not
accept these license terms, your sole
remedy is to return the entire unused
product (hardware and software) within 14
days for a full refund subject to the refund
policy of your seller.
For any further information or to request a
full refund of the price of the computer,
please contact your seller.
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Welcome ........................................................................................................................................................... 1
Finding information ............................................................................................................................... 2
2 Getting to know your computer ......................................................................................................................... 4
Right ..................................................................................................................................................... 4
Left ....................................................................................................................................................... 6
Display .................................................................................................................................................. 7
Top ....................................................................................................................................................... 8
TouchPad ............................................................................................................................ 8
Lights ................................................................................................................................... 9
Buttons, speakers, and fingerprint reader (select models only) ......................................... 11
Keys ................................................................................................................................... 12
Bottom ................................................................................................................................................ 13
Front ................................................................................................................................................... 14
3 Connecting to a network ................................................................................................................................. 15
Connecting to a wireless network ....................................................................................................... 15
Using the wireless controls ................................................................................................ 15
Turning wireless devices on or off ..................................................................... 15
Using the wireless button .................................................................................. 16
Using operating system controls ....................................................................... 16
Using a WLAN ................................................................................................................... 16
Using an Internet service provider .................................................................... 16
Setting up a WLAN ............................................................................................ 17
Configuring a wireless router ............................................................................ 17
Protecting your WLAN ....................................................................................... 17
Connecting to a WLAN ...................................................................................... 18
Using Bluetooth wireless devices ...................................................................................... 18
Connecting to a wired network ........................................................................................................... 18
Connecting to a local area network (LAN) ......................................................................... 19
4 Navigating using the keyboard, touch gestures and pointing devices ............................................................ 20
Using pointing devices ....................................................................................................................... 20
Setting pointing device preferences ................................................................................... 20
Using the TouchPad and gestures .................................................................................... 20
Turning the TouchPad off and on ...................................................................... 21
v
Tapping ............................................................................................................. 21
Scrolling ............................................................................................................ 22
2-finger pinch zoom ........................................................................................... 22
2-finger click ...................................................................................................... 23
Using the keyboard ............................................................................................................................ 23
Identifying the hot keys ...................................................................................................... 23
Using keypads ................................................................................................................... 25
Using the embedded numeric keypad ............................................................... 25
Turning the embedded numeric keypad on and off .......................... 26
Switching key functions on the embedded numeric keypad ............. 26
Using an optional external numeric keypad ...................................................... 26
5 Multimedia ....................................................................................................................................................... 27
Using the media activity controls ........................................................................................................ 27
Audio .................................................................................................................................................. 27
Connecting speakers ......................................................................................................... 27
Adjusting the volume ......................................................................................................... 27
Connecting headphones .................................................................................................... 28
Connecting a microphone .................................................................................................. 28
Connecting headphones and microphones ....................................................................... 28
Checking audio functions on the computer ........................................................................ 28
Webcam (select models only) ............................................................................................................ 29
Video .................................................................................................................................................. 29
VGA ................................................................................................................................... 30
HDMI (select models only) ................................................................................................. 30
Configuring audio for HDMI ............................................................................................... 31
6 Power management ........................................................................................................................................ 32
Shutting down the computer ............................................................................................................... 32
Setting power options ......................................................................................................................... 32
Using power-saving states ................................................................................................. 32
Intel Rapid Start Technology (select models only) ............................................ 33
Initiating and exiting Sleep ................................................................................ 33
Initiating and exiting Hibernation ....................................................................... 33
Using the power meter and power settings ....................................................... 34
Setting password protection on wakeup ........................................................... 34
Using battery power ........................................................................................................... 34
Finding additional battery information ............................................................... 34
Using Battery Check ......................................................................................... 35
Displaying the remaining battery charge ........................................................... 35
Maximizing battery discharge time .................................................................... 35
vi
Managing low battery levels .............................................................................. 35
Identifying low battery levels ............................................................. 35
Resolving a low battery level ............................................................ 36
Inserting or removing the battery ...................................................................... 36
Inserting a battery ............................................................................. 36
Removing a battery .......................................................................... 36
Conserving battery power ................................................................................. 37
Storing a user-replaceable battery (select models only) ................................... 37
Disposing of a user-replaceable battery (select models only) ........................... 37
Replacing a user-replaceable battery (select models only) .............................. 38
Using external AC power ................................................................................................... 38
Testing an AC adapter ...................................................................................... 38
7 External cards and devices ............................................................................................................................. 40
Using memory card readers (select models only) .............................................................................. 40
Inserting a memory card .................................................................................................... 40
Removing a memory card .................................................................................................. 40
Using a USB device ........................................................................................................................... 41
Connecting a USB device .................................................................................................. 42
Removing a USB device .................................................................................................... 42
Using optional external devices .......................................................................................................... 42
Using optional external drives ............................................................................................ 43
8 Drives .............................................................................................................................................................. 44
Handling drives ................................................................................................................................... 44
Using hard drives ............................................................................................................................... 44
Removing or replacing the service door ............................................................................ 44
Removing the service door ............................................................................... 44
Replacing the service door ................................................................................ 45
Replacing or upgrading the hard drive ............................................................................... 46
Removing the hard drive ................................................................................... 46
Installing a hard drive ........................................................................................ 48
Improving hard drive performance ..................................................................................... 48
Using Disk Defragmenter .................................................................................. 48
Using Disk Cleanup ........................................................................................... 49
Using HP 3D DriveGuard (select models only) .................................................................. 49
Identifying HP 3D DriveGuard status ................................................................ 49
9 Security ........................................................................................................................................................... 50
Protecting the computer ..................................................................................................................... 50
vii
Using passwords ................................................................................................................................ 50
Setting passwords in Windows .......................................................................................... 51
Setting passwords in Computer Setup .............................................................................. 52
Managing a BIOS administrator password ........................................................................ 52
Entering a BIOS administrator password .......................................................... 53
Using antivirus software ..................................................................................................................... 53
Using firewall software ....................................................................................................................... 53
Installing critical security updates ....................................................................................................... 54

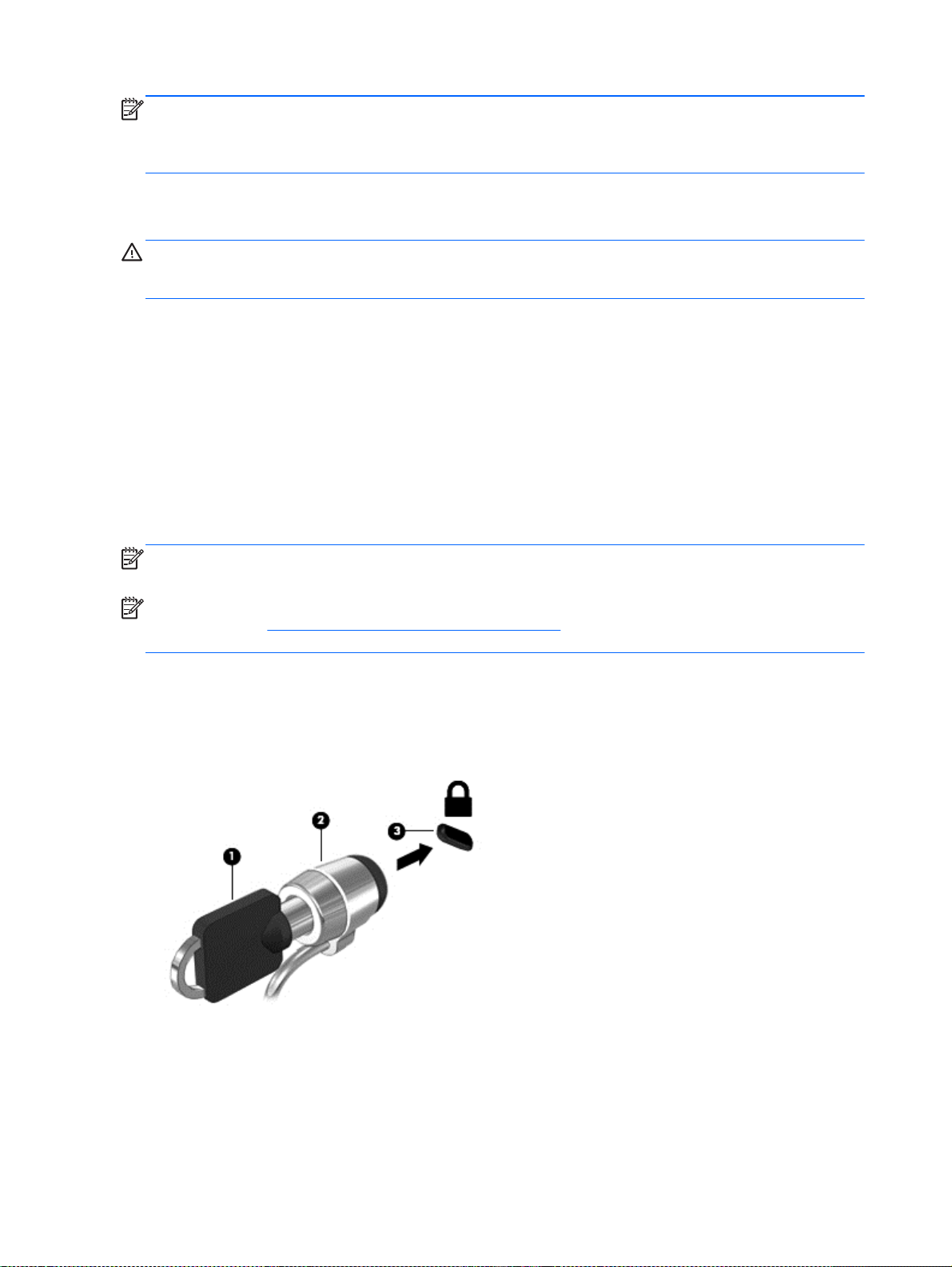

Installing an optional security cable .................................................................................................... 54
Using the fingerprint reader (select models only) ............................................................................... 54
Locating the fingerprint reader ........................................................................................... 55
10 Maintenance ................................................................................................................................................. 56
Adding or replacing memory modules ................................................................................................ 56
Cleaning your computer ..................................................................................................................... 58
Cleaning procedures .......................................................................................................... 59
Cleaning the display (All-in-Ones or Notebooks) .............................................. 59
Cleaning the sides or cover ............................................................................... 59
Cleaning the TouchPad, keyboard, or mouse ................................................... 59
Updating programs and drivers .......................................................................................................... 59
Using SoftPaq Download Manager .................................................................................................... 60
11 Backup and recovery .................................................................................................................................... 61
Creating recovery media and backups ............................................................................................... 61
Guidelines .......................................................................................................................... 61
Creating recovery media with HP Recovery Disc Creator ................................................. 61
Creating recovery media ................................................................................... 62
Backing up your information .............................................................................................. 62
Performing a system recovery ............................................................................................................ 63
Using the Windows recovery tools ..................................................................................... 63
Using f11 recovery tools (select models only) ................................................................... 64
Using Windows 7 operating system media ........................................................................ 64
12 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI) .......................................................... 66
Starting Setup Utility (BIOS) ............................................................................................................... 66
Updating the BIOS ............................................................................................................................. 66
Determining the BIOS version ........................................................................................... 66
Downloading a BIOS update ............................................................................................. 66
Using HP PC Hardware Diagnostics (UEFI) ...................................................................................... 67
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ............................... 68
viii
13 Support ......................................................................................................................................................... 69
Contacting support ............................................................................................................................. 69
Labels ................................................................................................................................................. 70
14 Specifications ................................................................................................................................................ 71
Input power ......................................................................................................................................... 71
Operating environment ....................................................................................................................... 71
Appendix A Traveling with or shipping your computer ....................................................................................... 72
Appendix B Troubleshooting .............................................................................................................................. 73
Troubleshooting resources ................................................................................................................. 73
Resolving issues ................................................................................................................................ 73
The computer is unable to start up .................................................................................... 73
The computer screen is blank ............................................................................................ 73
Software is functioning abnormally .................................................................................... 74
The computer is on but not responding ............................................................................. 74
The computer is unusually warm ....................................................................................... 74
An external device is not working ...................................................................................... 74
The wireless network connection is not working ................................................................ 75
A disc does not play ........................................................................................................... 75
A movie is not visible on an external display ..................................................................... 75
The process of burning a disc does not begin, or it stops before completion .................... 76
Appendix C Electrostatic discharge ................................................................................................................... 77
Index ................................................................................................................................................................... 78
ix
x
1Welcome
After you set up and register the computer, it is important to take the following steps:
Connect to the Internet—Set up your wired or wireless network so that you can connect to the
●
Internet. For more information, see
Update your antivirus software—Protect your computer from damage caused by viruses. The
●
software is preinstalled on the computer. For more information, see
on page 53.
Connecting to a network on page 15.
Using antivirus software
Get to know your computer—Learn about your computer features. See
●
computer on page 4 and Navigating using the keyboard, touch gestures and pointing devices
on page 20 for additional information.
Find installed software—Access a list of the software preinstalled on the computer:
●
Select Start > All Programs. For details about using the software included with the computer, see
the software manufacturer's instructions, which may be provided with the software or on the
manufacturer's website.
Back up your hard drive by creating recovery discs or a recovery flash drive. See
●
recovery on page 61.
Getting to know your
Backup and
1
Finding information
You have already used
Setup Instructions
to turn on the computer and locate this guide. To locate
resources that provide product details, how-to information, and more, use this table.
Resources For information about
Setup Instructions
Help and Support
To access Help and Support, select Start > Help and
Support.
To access the latest user guide, go to
http://www.hp.com/support, and select your country.
Select Drivers & Downloads, and then follow the onscreen instructions.
Worldwide support
This booklet is provided with your computer.
To get support in your language, go to
http://welcome.hp.com/country/us/en/
wwcontact_us.html.
HP website
To access the latest user guide, go to
http://www.hp.com/support, and select your country.
Select Drivers & Downloads, and then follow the onscreen instructions.
poster
How to set up the computer
●
Help to identify computer components
●
Operating system information
●
Software, driver, and BIOS updates
●
Troubleshooting tools
●
How to access support
●
Online chat with an HP technician
●
Email support
●
Support telephone numbers
●
HP service center locations
●
Support information
●
Ordering parts and finding additional help
●
Accessories available for the device
●
Safety & Comfort Guide
To access the user guides, select Start > Help and
Support > User guides.
– or –
Go to
http://www.hp.com/ergo.
Regulatory, Safety, and Environmental Notices
To access the user guides, select Start > Help and
Support > User guides.
Limited Warranty
To access this guide, select Start > Help and Support
> User guides > View Warranty Information.
– or –
Go to
http://www.hp.com/go/orderdocuments.
*You can find the expressly provided HP Limited Warranty applicable to your product located with the user guides on your
computer and/or on the CD/DVD provided in the box. In some countries/regions, HP may provide a printed HP Limited
Warranty in the box. For some countries/regions where the warranty is not provided in printed format, you may request a
printed copy from
North America: Hewlett-Packard, MS POD, 11311 Chinden Blvd., Boise, ID 83714, USA
●
Europe, Middle East, Africa: Hewlett-Packard, POD, Via G. Di Vittorio, 9, 20063, Cernusco s/Naviglio (MI), Italy
●
Asia Pacific: Hewlett-Packard, POD, P.O. Box 200, Alexandra Post Office, Singapore 911507
●
*
http://www.hp.com/go/orderdocuments or write to:
Proper workstation setup, posture, health, and work habits
●
Electrical and mechanical safety information
●
Regulatory and safety information
●
Battery disposal information
●
Warranty information
2 Chapter 1 Welcome
Resources For information about
When you request a printed copy of your warranty, please include your product number, warranty period (found on your
service label), name, and postal address.
IMPORTANT: Do NOT return your HP product to the addresses above. For U.S. support, go to
contactHP. For worldwide support, go to http://welcome.hp.com/country/us/en/wwcontact_us.html.
http://www.hp.com/go/
Finding information 3
2 Getting to know your computer
Right
Component Description
(1)
(2)
(3)
Power light
Hard drive light
Audio-out (headphone)/Audio-in
(microphone) jack
On: The computer is on.
●
Blinking: The computer is in the Sleep state, a power-
●
saving state. The computer shuts off power to the
display and other unneeded components.
Off: The computer is off or in Hibernation. Hibernation
●
is a power-saving state that uses the least amount of
power.
NOTE: For select models, the Intel® Rapid Start
Technology feature is enabled at the factory. Rapid Start
Technology allows your computer to resume quickly from
inactivity. For more information, see
states on page 32.
Blinking white: The hard drive is being accessed.
●
Amber: HP 3D DriveGuard has temporarily parked the
●
hard drive. (select models only)
NOTE: For more information about HP 3D DriveGuard,
Using HP 3D DriveGuard (select models only)
see
on page 49.
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or a television audio cable. Also
connects an optional headset microphone. This jack does
not support optional microphone-only devices.
WARNING! To reduce the risk of personal injury, adjust
the volume before putting on headphones, earbuds, or a
headset. For additional safety information, see the
Regulatory, Safety, and Environmental Notices
the user guides, select Start > Help and Support > User
Guides.
NOTE: When a device is connected to the jack, the
computer speakers are disabled.
NOTE: Be sure that the device cable has a 4-conductor
connector that supports both audio-out (headphone) and
audio-in (microphone).
Using power-saving
. To access
4 Chapter 2 Getting to know your computer
Component Description
(4)
(5) Optical drive (select models only) Depending on your computer model, reads an optical disc
(6) Optical drive eject button (select models
(7)
USB 2.0 port Connects an optional USB device, such as a keyboard,
mouse, external drive, printer, scanner or USB hub.
NOTE: For details about different types of USB ports, see
Using a USB device on page 41.
or reads and writes to an optical disc.
Releases the optical drive disc tray.
only)
Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being
mishandled or stolen.
Right 5
Left
Component Description
(1)
(2) AC adapter/Battery light
(3) Vent Enables airflow to cool internal components.
(4)
(5)
(6)
Power connector Connects an AC adapter.
White: The AC adapter is connected to external power
●
and the battery is fully charged.
Amber: The AC adapter is connected to external
●
power and the battery is charging.
Off: The AC adapter is not connected to external
●
power.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
External monitor port Connects an external VGA monitor or projector.
HDMI port Connects an optional video or audio device, such as a
high-definition television, any compatible digital or audio
component, or a high-speed HDMI device.
RJ-45 (network) jack/lights Connects a network cable.
Green (left): The network is connected.
●
Amber (right): The network is showing activity.
●
(7)
USB 3.0 ports (2) Each USB 3.0 port connects an optional USB device, such
6 Chapter 2 Getting to know your computer
as a keyboard, mouse, external drive, printer, scanner or
USB hub.
NOTE: For details about different types of USB ports, see
Using a USB device on page 41.
Display
Component Description
(1) Internal microphones (2) Record sound.
(2) Webcam light On: The webcam is in use.
(3) Webcam (select models only) Records video and captures photographs. Some models allow
you to video conference and chat online using streaming video.
For information on using the webcam, select Start > All
Programs > Communication and Chat > HP WebCam.
(4) WLAN antennas (2)* Send and receive wireless signals to communicate with wireless
local area networks (WLAN).
*The antennas are not visible on the outside of the computer. For optimal transmission, keep the areas immediately around
the antennas free from obstructions. To see wireless regulatory notices, see the section of the
Environmental Notices
User Guides.
that applies to your country or region. To access the user guides, select Start > Help and Support >
Regulatory, Safety, and
Display 7
Top
TouchPad
Component Description
(1) TouchPad on/off button and light Turns the TouchPad on and off.
(2) TouchPad zone Moves the pointer and selects or activates items on the
screen.
(3) Left TouchPad button Functions like the left button on an external mouse.
(4) Right TouchPad button Functions like the right button on an external mouse.
8 Chapter 2 Getting to know your computer
Lights
Component Description
(1)
(2)
(3)
(4) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a
Power light
Mute light
Wireless light On: An integrated wireless device, such as a wireless local
On: The computer is on.
●
Blinking: The computer is in the Sleep state, a power-
●
saving state. The computer shuts off power to the
display and other unneeded components.
Off: The computer is off or in Hibernation. Hibernation
●
is a power-saving state that uses the least amount of
power.
NOTE: For select models, the Intel® Rapid Start
Technology feature is enabled at the factory. Rapid Start
Technology allows your computer to resume quickly from
inactivity. For more information, see Using power-saving
states on page 32
Amber: Computer sound is off.
●
Off: Computer sound is on.
●
area network (WLAN) device and/or a Bluetooth® device, is
on.
NOTE: On some models, the wireless light is amber when
all wireless devices are off.
password logon.
(5) TouchPad light
On: The TouchPad is off.
●
Top 9
Component Description
Off: The TouchPad is on.
●
(6) Caps lock light On: Caps lock is on, which switches the keys to all capital
letters.
10 Chapter 2 Getting to know your computer
Buttons, speakers, and fingerprint reader (select models only)
Component Description
(1)
(2) Speakers (2) Produce sound.
Power button
When the computer is off, press the button to turn on
●
the computer.
When the computer is on, press the button briefly to
●
initiate Sleep.
When the computer is in the Sleep state, press the
●
button briefly to exit Sleep.
When the computer is in Hibernation, press the button
●
briefly to exit Hibernation.
CAUTION: Pressing and holding down the power button
will result in the loss of unsaved information.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.
NOTE: For select models, the Intel® Rapid Start
Technology feature is enabled at the factory. Rapid Start
Technology allows your computer to resume quickly from
inactivity. For more information, see
states on page 32.
To learn more about your power settings: Select Start >
Control Panel > System and Security > Power Options.
Using power-saving
(3) Fingerprint reader (select models only) Allows a fingerprint logon to Windows, instead of a password
logon.
Top 11
Keys
Component Description
(1) esc key Displays system information when pressed in combination
with the fn key.
(2) fn key Executes frequently used system functions when pressed
in combination with a function key, the num lk key, the esc
key, or the b key.
(3)
(4) Function keys Execute frequently used system functions when pressed in
(5) Function keys Execute frequently used system functions when pressed in
(6) Num lock key Toggle keypad between numbers and directional
(7) Keypad Type numbers or use for directional functionality.
Windows button Displays the Windows Start menu.
combination with the fn key.
combination with the fn key.
functionality.
12 Chapter 2 Getting to know your computer
Bottom
Component Description
(1)
(2) Battery bay Holds the battery.
(3) Keyboard screw Allows removal of the keyboard.
(4)
(5) Vents (4) Enable airflow to cool internal components.
Battery cover release latch and lock Releases the battery cover over the battery bay.
Memory service cover Provides access to the keyboard screw, memory
module slots, and optical drive.
Bottom 13
Component Description
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off during
routine operation.
(6) Speakers (2) Produce sound.
Front
(7)
Component Description
Service door Provides access to the hard drive bay, the wireless
LAN (WLAN) module slot, and the memory module
slots.
CAUTION: To prevent an unresponsive system,
replace the wireless module only with a wireless
module authorized for use in the computer by the
governmental agency that regulates wireless devices
in your country or region. If you replace the module
and then receive a warning message, remove the
module to restore computer functionality, and then
contact support. To access Help and Support, select
Start > Help and Support.
(1) Memory card reader Reads optional memory cards that store, manage,
share, or access information.
14 Chapter 2 Getting to know your computer
3 Connecting to a network
Your computer can travel with you wherever you go. But even at home, you can explore the globe
and access information from millions of websites using your computer and a wired or wireless
network connection. This chapter will help you get connected to that world.
Connecting to a wireless network
Wireless technology transfers data across radio waves instead of wires. Your computer may be
equipped with one or more of the following wireless devices:
Wireless local area network (WLAN) device—Connects the computer to wireless local area
●
networks (commonly referred to as Wi-Fi networks, wireless LANs, or WLANs) in corporate
offices, your home, and public places such as airports, restaurants, coffee shops, hotels, and
universities. In a WLAN, the mobile wireless device in your computer communicates with a
wireless router or a wireless access point.
HP Mobile Broadband Module (select models only)—A wireless wide area network (WWAN)
●
device that gives you wireless connectivity over a much larger area. Mobile network operators
install base stations (similar to cell phone towers) throughout large geographic areas, effectively
providing coverage across entire states, regions, or even countries.
Bluetooth device—Creates a personal area network (PAN) to connect to other Bluetooth-
●
enabled devices such as computers, phones, printers, headsets, speakers, and cameras. In a
PAN, each device communicates directly with other devices, and devices must be relatively
close together—typically within 10 meters (approximately 33 feet) of each other.
For more information about wireless technology, see the information and website links provided in
Help and Support. To access Help and Support, select Start > Help and Support.
Using the wireless controls
You can control the wireless devices in your computer using these features:
Wireless button, wireless switch, or wireless key (referred to in this chapter as the wireless
●
button)
Operating system controls
●
Turning wireless devices on or off
You can use the wireless button or HP Connection Manager (select models only) to turn on and turn
off wireless devices.
NOTE: A computer may have a wireless button, a wireless switch, or a wireless key on the
keyboard. The term wireless button is used throughout this guide to refer to all types of wireless
controls.
To turn off wireless devices using HP Connection Manager:
Right-click the HP Connection Manager icon in the notification area, at the far right of the
▲
taskbar, and then click the power button next to the desired device.
-or-
Connecting to a wireless network 15
Select Start > All Programs > Productivity and Tools > HP Connection Manager, and then click
the power button next to the desired device.
Using the wireless button
The computer has a wireless button, one or more wireless devices, and one or two wireless lights,
depending on the model. All of the wireless devices on your computer are enabled at the factory, so
the wireless light is on (white) when you turn on the computer.
The wireless light indicates the overall power state of your wireless devices, not the status of
individual devices. If the wireless light is white, at least one wireless device is on. If the wireless light
is off, all wireless devices are off.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
Because the wireless devices are enabled at the factory, you can use the wireless button to turn on or
turn off the wireless devices simultaneously.
Using operating system controls
The Network and Sharing Center allows you to set up a connection or network, connect to a network,
manage wireless networks, and diagnose and repair network problems.
To use operating system controls:
Select Start > Control Panel > Network and Internet > Network and Sharing Center.
▲
For more information, access Help and Support by selecting Start > Help and Support.
Using a WLAN
With a WLAN device, you can access a wireless local area network (WLAN), which is composed of
other computers and accessories that are linked by a wireless router or a wireless access point.
NOTE: The terms
A large-scale WLAN, such as a corporate or public WLAN, typically uses wireless access points
●
that can accommodate a large number of computers and accessories and can separate critical
network functions.
A home or small office WLAN typically uses a wireless router, which allows several wireless and
●
wired computers to share an Internet connection, a printer, and files without requiring additional
pieces of hardware or software.
To use the WLAN device in your computer, you must connect to a WLAN infrastructure (provided
through a service provider or a public or corporate network).
Using an Internet service provider
When you are setting up Internet access in your home, you must establish an account with an
Internet service provider (ISP). To purchase Internet service and a modem, contact a local ISP. The
ISP will help set up the modem, install a network cable to connect your wireless computer to the
modem, and test the Internet service.
wireless router
and
wireless access point
are often used interchangeably.
NOTE: Your ISP will give you a user ID and a password to use for Internet access. Record this
information and store it in a safe place.
16 Chapter 3 Connecting to a network
Setting up a WLAN
To set up a WLAN and connect to the Internet, you need the following equipment:
A broadband modem (either DSL or cable) (1) and high-speed Internet service purchased from
●
an Internet service provider
A wireless router (2) (purchased separately)
●
A wireless computer (3)
●
NOTE: Some modems have a built-in wireless router. Check with your ISP to determine what type
of modem you have.
The illustration below shows an example of a wireless network installation that is connected to the
Internet.
As your network grows, additional wireless and wired computers can be connected to the network to
access the Internet.
For help in setting up your WLAN, see the information provided by your router manufacturer or your
ISP.
Configuring a wireless router
For help in configuring a wireless router, see the information provided by your router manufacturer or
your ISP.
NOTE: It is recommended that you initially connect your new wireless computer to the router by
using the network cable provided with the router. When the computer successfully connects to the
Internet, disconnect the cable, and access the Internet through your wireless network.
Protecting your WLAN
When you set up a WLAN or access an existing WLAN, always enable security features to protect
your network from unauthorized access. WLANs in public areas (hotspots) like coffee shops and
airports may not provide any security. If you are concerned about the security of your computer in a
hotspot, limit your network activities to email that is not confidential and basic Internet surfing.
Wireless radio signals travel outside the network, so other WLAN devices can pick up unprotected
signals. Take the following precautions to protect your WLAN:
Use a firewall.
●
A firewall checks both data and requests for data that are sent to your network, and discards any
suspicious items. Firewalls are available in both software and hardware. Some networks use a
combination of both types.
Use wireless encryption.
●
Wireless encryption uses security settings to encrypt and decrypt data that is transmitted over
the network. For more information, access Help and Support by selecting Start > Help and
Support.
Connecting to a wireless network 17
Connecting to a WLAN
To connect to the WLAN, follow these steps:
1. Be sure that the WLAN device is on. If the device is on, the wireless light is on. If the wireless
light is off, press the wireless button.
NOTE: On some models, the wireless light is amber when all wireless devices are off.
2. Click the network status icon in the notification area, at the far right of the taskbar.
3. Select a WLAN to connect to.
4. Click Connect.
If the WLAN is a security-enabled WLAN, you are prompted to enter a security code. Type the
code, and then click OK to complete the connection.
NOTE: If no WLANs are listed, you may be out of range of a wireless router or access point.
NOTE: If you do not see the WLAN you want to connect to, click Open Network and Sharing
Center. and then click Set up a new connection or network. A list of options is displayed,
allowing you to manually search for and connect to a network or to create a new network
connection.
5. Follow the on-screen instructions to complete the connection.
After the connection is made, place the mouse pointer over the network status icon in the notification
area, at the far right of the taskbar, to verify the name and status of the connection.
NOTE: The functional range (how far your wireless signals travel) depends on WLAN
implementation, router manufacturer, and interference from other electronic devices or structural
barriers such as walls and floors.
Using Bluetooth wireless devices
A Bluetooth device provides short-range wireless communications that replace the physical cable
connections that traditionally link electronic devices such as the following:
Computers (desktop, notebook, PDA)
●
Phones (cellular, cordless, smart phone)
●
Imaging devices (printer, camera)
●
Audio devices (headset, speakers)
●
Mouse
●
Bluetooth devices provide peer-to-peer capability that allows you to set up a personal area network
(PAN) of Bluetooth devices. For information about configuring and using Bluetooth devices, see the
Bluetooth software Help.
Connecting to a wired network
There are 2 kinds of wired connections: local area network (LAN) and modem connection. A LAN
connection uses a network cable and is much faster than a modem, which uses a telephone cable.
Both cables are sold separately.
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not plug a
modem cable or telephone cable into an RJ-45 (network) jack.
18 Chapter 3 Connecting to a network
Connecting to a local area network (LAN)
Use a LAN connection if you want to connect the computer directly to a router in your home (instead
of working wirelessly), or if you want to connect to an existing network at your office.
Connecting to a LAN requires an 8-pin, RJ-45 network cable.
To connect the network cable, follow these steps:
1. Plug the network cable into the network jack (1) on the computer.
2. Plug the other end of the network cable into a network wall jack (2) or router.
NOTE: If the network cable contains noise suppression circuitry (3), which prevents
interference from TV and radio reception, orient the circuitry end of the cable toward the
computer.
Connecting to a wired network 19
4 Navigating using the keyboard, touch
gestures and pointing devices
Your computer allows navigation using touch gestures (select models only) in addition to the
keyboard and mouse. Touch gestures can be used on your computer TouchPad or on a touch screen
(select models only).
Select computer models have special action key or hot key functions on the keyboard to perform
routine tasks.
Using pointing devices
NOTE: In addition to the pointing devices included with your computer, you can use an external
USB mouse (purchased separately) by connecting it to one of the USB ports on the computer.
Setting pointing device preferences
Use Mouse Properties in Windows to customize settings for pointing devices, such as button
configuration, click speed, and pointer options. You can also view demonstrations of TouchPad
gestures.
To access Mouse Properties:
Select Start > Devices and Printers. Then right-click the device representing your computer, and
●
select Mouse settings.
Using the TouchPad and gestures
The TouchPad allows you to navigate the computer screen and control the pointer by using simple
finger movements.
TIP: Use the left and right buttons on the TouchPad as you would use the corresponding buttons on
an external mouse.
NOTE: TouchPad gestures are not supported in all apps.
20 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
Turning the TouchPad off and on
To turn the TouchPad off and on, quickly double-tap the TouchPad on/off button.
Tapping
To make an on-screen selection, use the Tap function on the TouchPad.
Tap one finger on the TouchPad zone to make a selection. Double-tap an item to open it.
●
Using pointing devices 21
Scrolling
Scrolling is useful for moving up, down, or sideways on a page or image.
Place two fingers slightly apart on the TouchPad zone and then drag them up, down, left, or
●
right.
2-finger pinch zoom
2-finger pinch zoom allows you to zoom out or in on images or text.
Zoom in by placing two fingers together on the TouchPad zone and then moving your fingers
●
apart.
Zoom out by placing two fingers apart on the TouchPad zone and then moving your fingers
●
together.
22 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
2-finger click
2-finger click allows you to make menu selections for an object on the screen.
NOTE: Using 2-finger click is the same action as using right-click with the mouse.
●
Place two fingers on the TouchPad zone and press to open the options menu for the selected
object.
Using the keyboard
The keyboard and mouse allow you to type select items, scroll and to perform the same functions as
using touch gestures. The keyboard also allows you to use action keys and hot keys to perform
specific functions.
NOTE: Depending on the country or region, your keyboard may have different keys and keyboard
functions than those discussed in this section.
Identifying the hot keys
A hot key is a combination of the fn key (2) and the esc key (1) or one of the function keys (4) or (5).
Using the keyboard 23
To use a hot key:
Briefly press the fn key, and then briefly press the second key of the hot key combination.
▲
Hot key combination Description
fn+esc Displays system information.
fn+f1 Opens Help and Support.
Help and Support provides tutorials, answers to questions, and product updates.
fn+f2 Decreases the screen brightness level.
fn+f3 Increases the screen brightness level.
fn+f4 Switches the screen image among display devices connected to the system. For example, if a
monitor is connected to the computer, fn+f4 alternates the screen image from computer display to
monitor display to simultaneous display on both the computer and the monitor.
Most external monitors receive video information on the computer using the external VGA video
standard. The fn+f4 hot key can also alternate images among other devices that are receiving video
information on the computer.
fn+f6 Mutes or restores speaker sound.
fn+ f7 Decreases speaker volume.
fn+f8 Increases speaker volume.
fn+f9 Plays the previous track of an audio CD or the previous section of a DVD or a BD.
fn+f10 Plays, pauses, or resumes an audio CD, a DVD, or a BD.
24 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
Hot key combination Description
fn+f11 Plays the next track of an audio CD or the next section of a DVD or a BD.
fn+f12 Turns the wireless feature on or off.
NOTE: This key does not establish a wireless connection. To establish a wireless connection, a
wireless network must be set up.
Using keypads
The computer includes an embedded numeric keypad, and it also supports an optional external
numeric keypad, or an optional external keyboard that includes a numeric keypad.
Using the embedded numeric keypad
Component Description
(2) fn key Turns the embedded numeric keypad on and off when pressed
in combination with the num lk key.
NOTE: The embedded numeric keypad will not function while
an external keyboard or numeric keypad is connected to the
computer.
(6) num lk key Turns the embedded numeric keypad on and off when pressed
(7) Embedded numeric keypad When the keypad is turned on, it can be used like an external
in combination with the fn key.
NOTE: The keypad function that is active when the computer is
turned off is reinstated when the computer is turned back on.
numeric keypad.
Each key on the keypad performs the function indicated by the
icon in the upper-right corner of the key.
Using the keyboard 25
Turning the embedded numeric keypad on and off
Press fn+num lk to turn on the embedded numeric keypad. Press fn+num lk again to turn off the
keypad.
NOTE: The embedded numeric keypad is turned off while an external keyboard or numeric keypad
is connected to the computer.
Switching key functions on the embedded numeric keypad
You can temporarily alternate the functions of keys on the embedded numeric keypad between their
standard keyboard functions and their keypad functions:
To use the navigational function of a keypad key while the keypad is off, press and hold the fn
●
key while pressing the keypad key.
To use the standard function of a keypad key while the keypad is on:
●
Press and hold the fn key to type in lowercase.
◦
Press and hold fn+shift to type in uppercase.
◦
Using an optional external numeric keypad
Keys on most external numeric keypads function differently according to whether num lock is on or
off. (Num lock is turned off at the factory.)For example:
When num lock is on, most keypad keys type numbers.
●
When num lock is off, most keypad keys function like the arrow, page up, or page down keys.
●
When num lock on an external keypad is turned on, the num lock light on the computer is turned on.
When num lock on an external keypad is turned off, the num lock light on the computer is turned off.
To turn num lock on or off on an external keypad as you work:
Press the num lk key on the external keypad, not on the computer.
▲
26 Chapter 4 Navigating using the keyboard, touch gestures and pointing devices
5 Multimedia
Your computer may include the following:
Integrated speaker(s)
●
Integrated microphone(s)
●
Integrated webcam
●
Preinstalled multimedia software
●
Multimedia buttons or keys
●
Using the media activity controls
Depending on your computer model, you may have the following media activity controls that allow
you to play, pause, fast forward, or rewind a media file:
Media buttons
●
Media hot keys (specific keys pressed in combination with the fn key)
●
Media keys
●
Audio
On your HP computer, you can play music CDs, download and listen to music, stream audio content
from the web (including radio), record audio, or mix audio and video to create multimedia. To
enhance your listening enjoyment, attach external audio devices such as speakers or headphones.
Connecting speakers
You can attach wired speakers to your computer by connecting them to a USB port (or the audio-out
jack) on your computer or on a docking station.
To connect wireless speakers to your computer, follow the device manufacturer's instructions. To
connect high-definition speakers to the computer, see
Before connecting audio devices, be sure to adjust the volume.
Adjusting the volume
Depending on your computer model, you can adjust the volume using the following:
Volume buttons
●
Volume hot keys (specific keys pressed in combination with the fn key)
●
Volume keys
●
WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones,
earbuds, or a headset. For additional safety information, see the
Environmental Notices
Configuring audio for HDMI on page 31.
Regulatory, Safety and
. To access the user guides, select Start > Help and Support > User guides.
NOTE: Volume can also be controlled through the operating system and some programs.
Using the media activity controls 27
NOTE: See Getting to know your computer on page 4 for information on what type of volume
controls your computer has.
Connecting headphones
You can connect wired headphones to the headphone jack on your computer.
To connect wireless headphones to your computer, follow the device manufacturer's instructions.
WARNING! To reduce the risk of personal injury, lower the volume setting before putting on
headphones, earbuds, or a headset. For additional safety information, see the
Environmental Notices
.
Connecting a microphone
To record audio, connect a microphone to the microphone jack on the computer. For best results
when recording, speak directly into the microphone and record sound in a setting free of background
noise.
Connecting headphones and microphones
You can connect wired headphones or headsets to the audio-out (headphone)/audio-in (microphone)
jack on your computer. Many headsets with integrated microphones are commercially available.
Regulatory, Safety and
To connect
instructions.
WARNING! To reduce the risk of personal injury, lower the volume setting before putting on
headphones, earbuds, or a headset. For additional safety information, see the
wireless
Environmental Notices
headphones or headsets to your computer, follow the device manufacturer's
. To access this guide, select Start > Help and Support > User guides.
Checking audio functions on the computer
NOTE: For best results when recording, speak directly into the microphone and record sound in a
setting free of background noise.
To check the audio functions on your computer, follow these steps:
1. Select Start > Control Panel > Hardware and Sound > Sound.
2. When the Sound window opens, click the Sounds tab. Under Program Events, select any sound
event, such as a beep or alarm, and click the Test button.
You should hear sound through the speakers or through connected headphones.
To check the recording functions on your computer, follow these steps:
1. Select Start > All Programs > Accessories > Sound Recorder.
2. Click Start Recording and speak into the microphone.
3. Save the file to your desktop.
Regulatory, Safety and
4. Open a multimedia program and play back the sound.
To confirm or change the audio settings on your computer:
Select Start > Control Panel > Audio.
▲
28 Chapter 5 Multimedia
Webcam (select models only)
Some computers include an integrated webcam. With the preinstalled software, you can use the
webcam to take a photo or record a video. You can preview and save the photo or video recording.
The webcam software enables you to experiment with the following features:
Capturing and sharing video
●
Streaming video with instant message software
●
Taking still photos
●
Video
Your HP computer is a powerful video device that enables you to watch streaming video from your
favorite websites and download video and movies to watch on your computer without needing to
connect to a network.
To enhance your viewing enjoyment, use one of the video ports on the computer to connect an
external monitor, projector, or TV. Your computer may have an high-definition multimedia interface
(HDMI) port, which allows you to connect a high-definition monitor or TV.
Your computer may have one or more of the following external video ports:
VGA
●
HDMI (High Definition Multimedia Interface)
●
DisplayPort
●
Thunderbolt
●
IMPORTANT: Be sure that the external device is connected to the correct port on the computer,
using the correct cable. Check the device manufacturer's instructions if you have questions.
NOTE: See Getting to know your computer on page 4 for information about your computer's video
ports.
Webcam (select models only) 29
VGA
The external monitor port, or VGA port, is an analog display interface that connects an external VGA
display device such as an external VGA monitor or a VGA projector to the computer.
1. To connect a VGA display device, connect the device cable to the external monitor port.
2. Press fn+f4 to alternate the screen image between 4 display states:
PC Screen only: View the screen image on the computer only.
●
Duplicate: View the screen image simultaneously on
●
device.
Extend: View the screen image extended across
●
device.
Second screen only: View the screen image on the external device only.
●
Each time you press fn+f4, the display state changes.
NOTE: For best results, especially if you choose the "Extend" option, adjust the screen
resolution of the external device, as follows. Select Start > Control Panel > Appearance and
Personalization. Under Display, select Adjust screen resolution.
HDMI (select models only)
The HDMI port connects the computer to an optional video or audio device, such as a high-definition
television, or to any compatible digital or audio component.
NOTE: To transmit video and/or audio signals through the HDMI port, you need an HDMI cable
(purchased separately).
One HDMI device can be connected to the HDMI port on the computer. The information displayed on
the computer screen can be simultaneously displayed on the HDMI device.
To connect a video or audio device to the HDMI port:
1. Connect one end of the HDMI cable to the HDMI port on the computer.
both
the computer and the external
both
the computer and the external
30 Chapter 5 Multimedia
2. Connect the other end of the cable to the video device
3. Press fn+f4 to alternate the computer screen image between 4 display states:
PC screen only: View the screen image on the computer only.
●
Duplicate: View the screen image simultaneously on
●
device.
Extend: View the screen image extended across
●
Second screen only: View the screen image on the external device only.
●
Each time you press fn+f4, the display state changes.
NOTE: For best results, especially if you choose the "Extend" option, adjust the screen resolution of
the external device, as follows. Select Start > Control Panel > Appearance and Personalization.
Under Display, select Adjust screen resolution.
Configuring audio for HDMI
To configure HDMI audio, first connect an audio or video device, such as a high-definition TV, to the
HDMI port on your computer. Then configure the default audio playback device as follows:
1. Right-click the Speakers icon in the notification area, at the far right of the taskbar, and then click
Playback devices.
2. On the Playback tab, click either Digital Output or Digital Output Device (HDMI).
3. Click Set Default, and then click OK.
To return audio to the computer speakers, follow these steps:
1. Right-click the Speakers icon in the notification area, at the far right of the taskbar, and then click
Playback devices.
both
the computer and external
both
the computer and external device.
2. On the Playback tab, click Speakers.
3. Click Set Default, and then click OK.
Video 31
6 Power management
NOTE: A computer may have a power button or a power switch. The term
throughout this guide to mean both types of power controls.
Shutting down the computer
CAUTION: Unsaved information is lost when the computer shuts down.
The shutdown command closes all open programs, including the operating system, and then turns off
the display and computer.
Shut down the computer under any of the following conditions:
When you need to replace the battery or access components inside the computer
●
When you are connecting an external hardware device that does not connect to a Universal
●
Serial Bus (USB) port
When the computer will be unused and disconnected from external power for an extended
●
period
Although you can turn off the computer with the power button, the recommended procedure is to use
the Windows shutdown command:
NOTE: If the computer is in the Sleep state or in Hibernation, you must first exit Sleep or
Hibernation before shutdown is possible by briefly pressing the power button.
1. Save your work and close all open programs.
power button
is used
2. Select Start > Shut Down.
If the computer is unresponsive and you are unable to use the preceding shutdown procedure, try the
following emergency procedures in the sequence provided:
Press ctrl+alt+delete. Click the Power icon, and then click Shut Down.
●
Press and hold the power button for at least 5 seconds.
●
Disconnect the computer from external power.
●
On models with a user-replaceable battery, remove the battery.
●
Setting power options
Using power-saving states
Sleep is enabled at the factory.
When Sleep is initiated, the power lights blink and the screen clears. Your work is saved to memory.
CAUTION: To reduce the risk of possible audio and video degradation, loss of audio or video
playback functionality, or loss of information, do not initiate Sleep while reading from or writing to a
disc or an external memory card.
32 Chapter 6 Power management
NOTE: You cannot initiate any type of networking connection or perform any computer functions
while the computer is in the Sleep state.
Intel Rapid Start Technology (select models only)
For select models, the Intel Rapid Start Technology (RST) feature is enabled by default. Rapid Start
Technology allows your computer to resume quickly from inactivity.
Rapid Start Technology manages your power-saving options as follows:
Sleep—Rapid Start Technology allows you to select the Sleep state. To exit from Sleep, press
●
any key, activate the TouchPad, or press the power button briefly.
Hibernation—Rapid Start Technology initiates Hibernation after a period of inactivity while in the
●
Sleep state when running on battery power or on external power or when the battery reaches a
critical level. After Hibernation is initiated, press the power button to resume your work.
NOTE: Rapid Start Technology can be disabled in Setup Utility (BIOS). If you want to be able to
initiate the Hibernation state, you must enable user-initiated Hibernation using Power Options. See
Initiating and exiting Hibernation on page 33.
Initiating and exiting Sleep
With the computer on, you can initiate Sleep in any of the following ways:
Briefly press the power button.
●
Close the display.
●
Select Start, click the arrow next to the Shut down button, and then click Sleep.
●
To exit Sleep
Briefly press the power button.
●
If the display is closed, open the display.
●
Press a key on the keyboard.
●
Tap or swipe the TouchPad
●
When the computer exits Sleep, the power lights turn on and the computer returns to the screen
where you stopped working.
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before the computer will return to the screen.
Initiating and exiting Hibernation
The system is set at the factory to initiate Hibernation after a period of inactivity when running on
battery power or on external power, or when the battery reaches a critical battery level.
Power settings and timeouts can be changed in Windows Control Panel.
To initiate Hibernation
Select Start, click the arrow next to the Shut down button, and then click Hibernate.
▲
To exit Hibernation:
Briefly press the power button.
▲
The power lights turn on and your work returns to the screen where you stopped working.
Setting power options 33
NOTE: If you have set a password to be required on wakeup, you must enter your Windows
password before your work will return to the screen.
Using the power meter and power settings
The power meter is located in the notification area, at the far right of the taskbar. The power meter
allows you to quickly access power settings and view the remaining battery charge.
To reveal the percentage of remaining battery charge and the current power plan, point over the
●
power meter icon.
To use Power Options, or to change the power plan, click the power meter icon and select an
●
item from the list.
Different power meter icons indicate whether the computer is running on battery or external power.
The icon also reveals a message if the battery has reached a low or critical battery level.
Setting password protection on wakeup
To set the computer to prompt for a password when the computer exits Sleep or Hibernation, follow
these steps:
1. Select Start > Control Panel > System and Security > Power Options.
2. In the left pane, click Require a password on wakeup.
3. Click Change Settings that are currently unavailable.
4. Click Require a password (recommended).
NOTE: If you need to create a user account password or change your current user account
password, click Create or change your user account password, and then follow the on-screen
instructions. If you do not need to create or change a user account password, go to step 5.
5. Click Save changes.
Using battery power
WARNING! To reduce potential safety issues, use only the battery provided with the computer, a
replacement battery provided by HP, or a compatible battery purchased from HP.
The computer runs on battery power whenever it is not plugged into external AC power. Computer
battery life varies, depending on power management settings, running programs, display brightness,
external devices connected to the computer, and other factors. Keeping the battery in the computer
whenever the computer is plugged into AC power charges the battery and also protects your work in
case of a power outage. If the computer contains a charged battery and is running on external AC
power, the computer automatically switches to battery power if the AC adapter is disconnected on the
computer or an AC power loss occurs.
NOTE: When you disconnect AC power, the display brightness is automatically decreased to save
battery life.
Finding additional battery information
Help and Support provides the following tools and information about the battery:
34 Chapter 6 Power management
Battery Check tool to test battery performance
●
Information on calibration, power management, and proper care and storage to maximize battery
●
life
Information on battery types, specifications, life cycles, and capacity
●
To access battery information:
Select Start > Help and Support > Learn > Power Plans: Frequently Asked Questions.
▲
Using Battery Check
Help and Support provides information on the status of the battery installed in the computer.
To run Battery Check:
1. Connect the AC adapter to the computer.
NOTE: The computer must be connected to external power for Battery Check to work properly.
2. Select Start > Help and Support > Troubleshoot > Power, Thermal, and Mechanical.
3. Click the Power tab, and then click Battery Check.
Battery Check examines the battery and its cells to see if they are functioning properly, and then
reports the results of the examination.
Displaying the remaining battery charge
Move the pointer over the power meter icon on the Windows desktop in the notification area, at
▲
the far right of the taskbar.
Maximizing battery discharge time
Battery discharge time varies depending on features you use while on battery power. Maximum
discharge time gradually decreases as the battery storage capacity naturally degrades.
Tips for maximizing battery discharge time:
Lower the brightness on the display.
●
Remove the battery on the computer when it is not being used or charged, if the computer
●
contains a user-replaceable battery
Store the user-replaceable battery in a cool, dry location.
●
Select the Power saver setting in Power Options.
●
Managing low battery levels
The information in this section describes the alerts and system responses set at the factory. Some
low-battery alerts and system responses can be changed using Power Options. Preferences set
using Power Options do not affect lights.
Identifying low battery levels
When a battery that is the sole power source for the computer reaches a low or critical battery level,
the following behavior occurs:
The battery light (select models only) indicates a low or critical battery level.
●
Setting power options 35
– or –
The power meter icon in the notification area shows a low or critical battery notification.
●
NOTE: For additional information about the power meter, see Using the power meter and
power settings on page 34.
If the computer is on or in the Sleep state, the computer remains briefly in the Sleep state, and then
shuts down and loses any unsaved information.
Resolving a low battery level
Resolving a low battery level when external power is available
Connect one of the following devices:
▲
AC adapter
●
Optional docking or expansion device
●
Optional power adapter purchased as an accessory from HP
●
Resolving a low battery level when no power source is available
To resolve a low battery level when no power source is available, save your work and shut down the
computer.
Inserting or removing the battery
Inserting a battery
To insert the battery:
1. Turn the computer upside down on a flat surface, with the battery bay toward you.
2. Insert the battery (1) into the battery bay until it is seated.
The battery release latch (2) automatically holds the battery in place. Slide the battery lock .(3)
outwards to lock the battery securely in place.
Removing a battery
To remove the battery:
CAUTION: Removing a battery that is the sole power source for the computer can cause loss of
information. To prevent loss of information, save your work and shut down the computer through
Windows before removing the battery.
36 Chapter 6 Power management
1. Turn the computer upside down on a flat surface, with the battery bay toward you.
2. Slide the battery release latch (1) and battery lock (2) inwards to release the battery.
3. Remove the battery from the computer (3).
Conserving battery power
Select low power-use settings through Power Options in Windows Control Panel.
●
Turn off wireless and LAN connections and exit modem applications when you are not using
●
them.
Disconnect unused external devices that are not plugged into an external power source.
●
Stop, disable, or remove any external memory cards that you are not using.
●
Decrease screen brightness.
●
Before you leave your work, initiate Sleep, or shut down the computer.
●
Storing a user-replaceable battery (select models only)
CAUTION: To reduce the risk of damage to a battery, do not expose it to high temperatures for
extended periods of time.
If a computer will be unused and unplugged from external power for more than 2 weeks, remove the
user-replaceable battery and store it separately.
To prolong the charge of a stored battery, place it in a cool, dry place.
NOTE: A stored battery should be checked every 6 months. If the capacity is less than 50 percent,
recharge the battery before returning it to storage.
Calibrate a battery before using it if it has been stored for one month or more.
Disposing of a user-replaceable battery (select models only)
WARNING! To reduce the risk of fire or burns, do not disassemble, crush, or puncture; do not short
external contacts; do not dispose of in fire or water.
See the
user guides, select the Start > Help and Support > User Guides. To access battery information, select
Start> Help and Support > Learn > Power Plans: Frequently Asked Questions.
Regulatory, Safety and Environmental Notices
for proper battery disposal. To access the
Setting power options 37
Replacing a user-replaceable battery (select models only)
Battery Check notifies you to replace the battery when an internal cell is not charging properly or
when the battery storage capacity has reached a weak condition. If the battery is possibly covered by
an HP warranty, instructions include a warranty ID. A message refers you to the HP website for more
information about ordering a replacement battery.
Using external AC power
WARNING! Do not charge the computer battery while you are onboard aircraft.
WARNING! To reduce potential safety issues, use only the AC adapter provided with the computer,
a replacement AC adapter provided by HP, or a compatible AC adapter purchased from HP.
NOTE: For information on connecting to AC power, see the
the computer box.
External AC power is supplied through an approved AC adapter or an optional docking or expansion
device.
Connect the computer to external AC power under any of the following conditions:
When charging or calibrating a battery
●
When installing or modifying system software
●
When writing information to a CD, a DVD, or a BD (select models only)
●
When running Disk Defragmenter
●
When performing a backup or recovery
●
When you connect the computer to external AC power, the following events occur:
The battery begins to charge.
●
If the computer is turned on, the power meter icon in the notification area changes appearance.
●
When you disconnect external AC power, the following events occur:
The computer switches to battery power.
●
The display brightness is automatically decreased to save battery life.
●
Setup Instructions
poster provided in
Testing an AC adapter
Test the AC adapter if the computer exhibits any of the following symptoms when it is connected to
AC power:
The computer does not turn on.
●
The display does not turn on.
●
The power lights are off.
●
To test the AC adapter:
NOTE: The following instructions apply to computers with user-replaceable batteries.
1. Shut down the computer.
2. Remove the battery on the computer.
38 Chapter 6 Power management
3. Connect the AC adapter to the computer, and then plug it into an AC outlet.
4. Turn on the computer.
If the power lights turn
●
If the power lights remain
●
Contact support for information on obtaining a replacement AC power adapter.
on
, the AC adapter is working properly.
off
, the AC adapter is not functioning and should be replaced.
Setting power options 39
7 External cards and devices
Using memory card readers (select models only)
Optional memory cards provide secure data storage and convenient data sharing. These cards are
often used with digital media–equipped cameras and PDAs as well as with other computers.
To determine the memory card formats that are supported on your computer, see
your computer on page 4.
Inserting a memory card
CAUTION: To reduce the risk of damage to the memory card connectors, use minimal force to
insert a memory card.
1. Hold the card label-side up, with the connectors facing the computer.
2. Insert the card into the memory card reader, and then press in on the card until it is firmly
seated.
Getting to know
You will hear a sound when the device has been detected, and a menu of options may be
displayed.
Removing a memory card
CAUTION: To reduce the risk of loss of data or an unresponsive system, use the following
procedure to safely remove the memory card.
1. Save your information and close all programs associated with the memory card.
2. Click the remove hardware icon on the Windows desktop in the notification area, at the far right
of the taskbar. Then follow the on-screen instructions.
40 Chapter 7 External cards and devices
3. Press in on the card (1), and then remove it from the slot (2).
NOTE: If the card does not eject, pull the card out of the slot.
Using a USB device
Universal Serial Bus (USB) is a hardware interface that can be used to connect an optional external
device, such as a USB keyboard, mouse, drive, printer, scanner, or hub.
Some USB devices may require additional support software, which is usually included with the
device. For more information about device-specific software, see the manufacturer's instructions.
These instructions may be provided with the software, on disc, or on the manufacturer’s website.
The computer has at least 1 USB port that supports USB 1.0, 1.1, 2.0, or 3.0 devices. Your computer
may also have a USB charging port that provides power to an external device. An optional docking
device or USB hub provides additional USB ports that can be used with the computer.
Using a USB device 41
Connecting a USB device
CAUTION: To reduce the risk of damage to a USB connector, use minimal force to connect the
device.
Connect the USB cable for the device to the USB port.
▲
NOTE: The following illustration may look slightly different than your computer.
You will hear a sound when the device has been detected.
NOTE: The first time you connect a USB device, a message in the notification area lets you know
that the device is recognized by the computer.
Removing a USB device
CAUTION: To reduce the risk of damage to a USB connector, do not pull on the cable to remove
the USB device.
CAUTION: To reduce the risk of loss of information or an unresponsive system, use the following
procedure to safely remove the USB device.
1. To remove a USB device, save your information and close all programs associated with the
device.
2. Click the remove hardware icon on the Windows desktop in the notification area, at the far right
of the taskbar, and then follow the on-screen instructions.
3. Remove the device.
Using optional external devices
NOTE: For more information about required software and drivers, or to learn which computer port to
use, see the manufacturer's instructions.
To connect an external device to the computer:
CAUTION: To reduce the risk of damage to the equipment when connecting a powered device, be
sure that the device is turned off and the AC power cord is unplugged.
42 Chapter 7 External cards and devices
1. Connect the device to the computer.
2. If you are connecting a powered device, plug the device power cord into a grounded AC outlet.
3. Turn on the device.
To disconnect an unpowered external device, turn off the device, and then disconnect it from the
computer. To disconnect a powered external device, turn off the device, disconnect it from the
computer, and then unplug the AC power cord.
Using optional external drives
Removable external drives expand your options for storing and accessing information. A USB drive
can be added by connecting the drive to a USB port to the computer.
NOTE: HP external USB optical drives should be connected to the powered USB port to the
computer.
USB drives include the following types:
1.44-megabyte diskette drive
●
Hard drive module
●
External optical drive (CD, DVD, and Blu-ray)
●
MultiBay device
●
Using optional external devices 43
8Drives
Handling drives
CAUTION: Drives are fragile computer components that must be handled with care. Refer to the
following cautions before handling drives. Do not drop a drive, place items on it, or expose it to
liquids, or temperature or humidity extremes.
Observe these precautions when handling drives:
Before removing or installing a drive, shut down the computer. If you are unsure whether the
●
computer is off, in the Sleep state, or in Hibernation, turn the computer on, and then shut it
down.
Before handling a drive, discharge static electricity by touching a grounded surface.
●
Do not touch the connector pins on a removable drive or on the computer.
●
Do not use excessive force when inserting a drive into a drive bay.
●
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective
●
packaging and label the package “FRAGILE.”
Avoid exposing a drive to magnetic fields. Security devices with magnetic fields include airport
●
walk-through devices and security wands. Airport conveyer belts and similar security devices
that check carry-on baggage use X-rays instead of magnetism and do not damage drives.
Remove media from a drive before removing the drive from the drive bay, or traveling with,
●
shipping, or storing a drive.
Do not type on the keyboard or move the computer while an optical drive is writing to a disc. The
●
write process is sensitive to vibration.
Before you move a computer that is connected to an external hard drive, initiate Sleep and allow
●
the screen to clear, or properly disconnect the external hard drive.
Using hard drives
CAUTION: To prevent information loss or an unresponsive system:
Save your work and shut down the computer before adding or replacing a memory module or hard
drive.
If you are not sure whether the computer is off, turn the computer on by pressing the power button.
Then shut down the computer through the operating system.
Removing or replacing the service door
Removing the service door
Remove the service door to access the hard drive and other components.
1. Remove the battery (see
Inserting or removing the battery on page 36).
44 Chapter 8 Drives
2. With the battery bay toward you, remove the screw (1), tilt the service door up (2), and then lift
the service door away (3).
Replacing the service door
Replace the service door after accessing the memory module slot, hard drive, regulatory label, and
other components.
1. Tilt down the service door to align the front edge of the service door near the front edge of the
computer (1).
2. Insert the alignment tabs (2) on the rear edge of the service door with the notches on the
computer, and tilt down and into place.
Using hard drives 45
3. With the battery bay toward you and insert and tighten the screw (3).
4. Insert the battery (see Inserting or removing the battery on page 36).
Replacing or upgrading the hard drive
CAUTION: To prevent information loss or an unresponsive system:
Shut down the computer before removing the hard drive from the hard drive bay. Do not remove the
hard drive while the computer is on, in the Sleep state, or in Hibernation.
If you are not sure whether the computer is off, turn the computer on by pressing the power button.
Then shut down the computer through the operating system.
Removing the hard drive
To remove a hard drive:
1. Save your work and shut down the computer.
2. Disconnect AC power and external devices connected to the computer.
3. Turn the computer upside down on a flat surface.
4. Remove the battery. (See
Inserting or removing the battery on page 36).
46 Chapter 8 Drives
5. With the battery bay toward you, remove the screw (1), tilt the service door up (2), and then lift
the service door away (3).
6. Lift connector (1) to disconnect the hard drive. Pull the plastic tab to move the hard drive cable
away (2) and then lift the hard drive of the bay (3).
Using hard drives 47
Installing a hard drive
NOTE: Your computer may look slightly different from the illustration in this section.
To install the hard drive:
1. Insert the hard drive into the hard drive bay (1), and pull the plastic tab (2) to reconnect the drive
cable. Then press the connector down to reconnect the hard drive (3).
2. Replace the service door (see Removing or replacing the service door on page 44).
3. Insert the battery (see
4. Connect AC power and external devices to the computer.
5. Turn on the computer.
Inserting or removing the battery on page 36).
Improving hard drive performance
Using Disk Defragmenter
As you use your computer over time, the files on the hard drive become fragmented. A fragmented
drive means data on your drive is not contiguous (sequential) and, because of this, the hard drive
works harder to locate files, thus slowing down the computer. Disk Defragmenter consolidates (or
physically reorganizes) the fragmented files and folders on the hard drive so that the system can run
more efficiently.
NOTE: It is not necessary to run Disk Defragmenter on solid-state drives.
After you start Disk Defragmenter, it works without supervision. However, depending on the size of
your hard drive and the number of fragmented files, Disk Defragmenter may take more than an hour
to complete.
48 Chapter 8 Drives
HP recommends defragmenting your hard drive at least once a month. You may set Disk
Defragmenter to run on a monthly schedule, but you can defragment your computer manually at any
time.
To run Disk Defragmenter:
1. Connect the computer to AC power.
2. Select Start > All Programs > Accessories > System Tools > Disk Defragmenter.
3. Click Defragment disk.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support. To access
Help and Support, select Start > Help and Support.
For additional information, access the Disk Defragmenter software Help.
Using Disk Cleanup
Disk Cleanup searches the hard drive for unnecessary files that you can safely delete to free up disk
space and help the computer to run more efficiently.
To run Disk Cleanup:
1. Click Start > All Programs > Accessories > System Tools > Disk Cleanup.
2. Follow the on-screen instructions.
Using HP 3D DriveGuard (select models only)
HP 3D DriveGuard protects a hard drive by parking the drive and halting data requests under either of
the following conditions:
You drop the computer.
●
You move the computer with the display closed while the computer is running on battery power.
●
A short time after the end of one of these events, HP 3D DriveGuard returns the hard drive to normal
operation.
NOTE: Because solid state drives (SSDs) lack moving parts, they do not require HP 3D DriveGuard
protection.
NOTE: A hard drive in a primary hard drive bay or a secondary hard drive bay is protected by HP
3D DriveGuard. A hard drive installed in an optional docking device or connected to a USB port is not
protected by HP 3D DriveGuard.
For more information, see the HP 3D DriveGuard software Help.
Identifying HP 3D DriveGuard status
The hard drive light on the computer changes color to show that the drive in a primary hard drive bay
and/or the drive in a secondary hard drive bay (select models only) is parked. To determine whether a
drive is currently protected or whether it is parked, view the icon on the Windows desktop in the
notification area, at the far right of the taskbar, or in the Mobility Center.
Using hard drives 49
9 Security
Protecting the computer
Standard security features provided by the Windows operating system and the non-Windows
Computer Setup utility (BIOS) can protect your personal settings and data from a variety of risks.
NOTE: Security solutions are designed to act as deterrents. These deterrents may not prevent a
product from being mishandled or stolen.
NOTE: Before you send your computer for service, back up and delete confidential files, and
remove all password settings.
NOTE: Some features listed in this chapter may not be available on your computer.
NOTE: Your computer may support Computrace, which is an online security-based tracking and
recovery service available in select regions. If the computer is stolen, Computrace can track the
computer if the unauthorized user accesses the Internet. You must purchase the software and
subscribe to the service in order to use Computrace. For information about ordering the Computrace
software, go to
Computer risk Security feature
http://www.hp.com.
Unauthorized access to Computer Setup (f10) BIOS administrator password in Computer Setup*
Unauthorized startup from an optional external optical drive
(select models only), optional external hard drive (select
models only), or internal network adapter
Unauthorized access to a Windows user account Windows user password
Unauthorized access to data
Unauthorized access to Computer Setup settings and other
system identification information
Unauthorized removal of the computer Security cable slot (used with an optional security cable)
*Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will
not load. You can use either a pointing device (TouchPad or USB mouse) or the keyboard to navigate and make selections
in Computer Setup.
Using passwords
A password is a group of characters that you choose to secure your computer information. Several
types of passwords can be set, depending on how you want to control access to your information.
Passwords can be set in Windows or in the non-Windows Computer Setup utility that is preinstalled
on the computer.
Boot options feature in Computer Setup*
Windows user password
●
Windows Defender
●
BIOS administrator password in Computer Setup*
BIOS administrator passwords is set in Computer Setup and is managed by the system BIOS.
●
Windows passwords are set only in the Windows operating system.
●
50 Chapter 9 Security
You can use the same password for a Computer Setup feature and for a Windows security feature.
You can also use the same password for more than one Computer Setup feature.
Use the following tips for creating and saving passwords:
When creating passwords, follow requirements set by the program.
●
Do not use the same password for multiple applications or websites, and do not reuse your
●
Windows password for any other application or website.
Do not store passwords in a file on the computer.
●
The following tables list commonly used Windows and BIOS administrator passwords and describe
their functions.
Setting passwords in Windows
Password Function
Administrator password* Protects access to a Windows administrator-level account.
User password* Protects access to a Windows user account.
*For information about setting a Windows administrator password or a Windows user password, access Help and Support by
selecting Start > Help and Support.
NOTE: Setting the Windows Administrator password does
not set the BIOS Administrator password.
Using passwords 51
Setting passwords in Computer Setup
Password Function
BIOS administrator password* Protects access to Computer Setup.
*For details about each of these passwords, see the following topics.
Managing a BIOS administrator password
To set, change, or delete this password, follow these steps:
Setting a new BIOS administrator password
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2. Press f10 to enter Computer Setup.
3. Use the arrow keys to select Security > Setup BIOS Administrator Password, and then press
enter.
4. When prompted, type a password.
NOTE: If features have been enabled to prevent removing
the BIOS administrator password, you may not be able to
remove it until those features have been disabled.
5. When prompted, type the new password again to confirm.
6. To save your changes and exit Computer Setup, click the Save icon and then follow the on-
screen instructions.
– or –
Use the arrow keys to select Exit > Exit Saving Changes, and then press enter.
Your changes go into effect when the computer restarts.
Changing a BIOS administrator password
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2. Press f10 to enter Computer Setup.
3. Use the arrow keys to select Security > Change Password, and then press enter.
4. When prompted, type your current password.
5. When prompted, type your new password again to confirm.
6. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Exit > Exit Saving Changes, and then press enter.
Your changes go into effect when the computer restarts.
Deleting a BIOS administrator password
52 Chapter 9 Security
1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup
Menu” message is displayed at the bottom of the screen.
2. Press f10 to enter Computer Setup.
3. Use the arrow keys to select Security > Change Password, and then press enter.
4. When prompted, type your current password.
5. When prompted for the new password, leave the field empty, and then press enter.
6. Read the warning. To continue, select YES.
7. When prompted to type your new password again, leave the field empty, and then press enter.
8. To save your changes and exit Computer Setup, click the Save icon in the lower-left corner of
the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select Exit > Exit Saving Changes, and then press enter.
Your changes go into effect when the computer restarts.
Entering a BIOS administrator password
At the BIOS administrator password prompt, type your password (using the same kind of keys you
used to set the password), and then press enter. After 3 unsuccessful attempts to enter the BIOS
administrator password, you must restart the computer and try again.
Using antivirus software
When you use the computer to access e-mail, a network, or the Internet, you potentially expose it to
computer viruses. Computer viruses can disable the operating system, programs, or utilities, or cause
them to function abnormally.
Antivirus software can detect most viruses, destroy them, and, in most cases, repair any damage they
have caused. To provide ongoing protection against newly discovered viruses, antivirus software
must be kept up to date.
For more information about computer viruses, type viruses in the Search box in Help and Support.
Using firewall software
Firewalls are designed to prevent unauthorized access to a system or network. A firewall can be a
software program you install on your computer and/or network, or it can be a solution made up of
both hardware and software.
There are two types of firewalls to consider:
Host-based firewalls—Software that protects only the computer it is installed on.
●
Network-based firewalls—Installed between your DSL or cable modem and your home network
●
to protect all the computers on the network.
When a firewall is installed on a system, all data sent to and from the system is monitored and
compared with a set of user-defined security criteria. Any data that does not meet those criteria is
blocked.
Your computer or networking equipment may already have a firewall installed. If not, firewall software
solutions are available.
Using antivirus software 53
NOTE: Under some circumstances a firewall can block access to Internet games, interfere with
printer or file sharing on a network, or block authorized e-mail attachments. To temporarily resolve the
problem, disable the firewall, perform the task that you want to perform, and then reenable the
firewall. To permanently resolve the problem, reconfigure the firewall.
Installing critical security updates
CAUTION: Microsoft® sends out alerts regarding critical updates. To protect the computer from
security breaches and computer viruses, install all critical updates from Microsoft as soon as you
receive an alert.
Updates to the operating system and other software may have become available after the computer
left the factory. To be sure that all available updates are installed on the computer, observe these
guidelines:
1. Run Windows Update as soon as possible after you set up your computer.
2. Run Windows Update monthly thereafter.
3. Obtain updates to Windows and other Microsoft programs, as they are released, from the
Microsoft website and through the updates link in Help and Support.
Installing an optional security cable
NOTE: A security cable is designed to act as a deterrent, but it may not prevent the computer from
being mishandled or stolen.
NOTE: The security cable slot on your computer may look slightly different from the illustration in
this section. See
on your computer.
1. Loop the security cable around a secured object.
2. Insert the key (1) into the cable lock (2).
3. Insert the cable lock into the security cable slot on the computer (3), and then lock the cable lock
with the key.
Getting to know your computer on page 4 for the location of the security cable slot
Using the fingerprint reader (select models only)
Integrated fingerprint readers are available on select computer models.
54 Chapter 9 Security
Locating the fingerprint reader
The fingerprint reader is a small metallic sensor that is located in one of the following areas of your
computer:
Near the bottom of the TouchPad
●
On the right side of the keyboard
●
On the upper-right side of the display
●
On the left side of the display
●
Depending on your computer model, the reader may be oriented horizontally or vertically. Both
orientations require that you swipe your finger perpendicular to the metallic sensor. See
know your computer on page 4 for the location of the fingerprint reader on your computer.
Getting to
Using the fingerprint reader (select models only) 55
10 Maintenance
Adding or replacing memory modules
The computer has one memory module compartment. The capacity of the computer can be upgraded
by adding a memory module to the vacant expansion memory module slot or by upgrading the
existing memory module in the primary memory module slot.
NOTE: Before adding or replacing a memory module, make sure the computer has the most recent
BIOS version, and update the BIOS if needed. See
CAUTION: Failure to update the computer to the latest BIOS prior to installing or replacing a
memory module may result in various system problems.
WARNING! To reduce the risk of electric shock and damage to the equipment, unplug the power
cord and remove all batteries before installing a memory module.
CAUTION: Electrostatic discharge (ESD) can damage electronic components. Before beginning any
procedure, ensure that you are discharged of static electricity by touching a grounded metal object.
CAUTION: To prevent information loss or an unresponsive system:
Shut down the computer before adding or replacing memory modules. Do not remove a memory
module while the computer is on, in the Sleep state, or in Hibernation.
Updating the BIOS on page 66.
If you are not sure whether the computer is off or in Hibernation, turn the computer on by pressing the
power button. Then shut down the computer through the operating system.
NOTE: To use a dual-channel configuration when adding a second memory module, be sure that
both memory modules are identical.
NOTE: The primary memory is located in the bottom memory slot and the expansion memory is
located in the top memory slot.
To add or replace a memory module:
1. Save your work and shut down the computer.
2. Disconnect AC power and external devices connected to the computer.
3. Remove the battery (see
4. Remove the service door (see
5. If you are replacing a memory module, remove the existing memory module:
a. Pull away the retention clips (1) on each side of the memory module.
The memory module tilts up.
Removing a battery on page 36).
Removing the service door on page 44).
56 Chapter 10 Maintenance
b. Grasp the edge of the memory module (2), and then gently pull the memory module out of
the memory module slot.
CAUTION: To prevent damage to the memory module, hold the memory module by the
edges only. Do not touch the components on the memory module.
To protect a memory module after removal, place it in an electrostatic-safe container.
6. Insert a new memory module:
CAUTION: To prevent damage to the memory module, hold the memory module by the edges
only. Do not touch the components on the memory module.
a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
Adding or replacing memory modules 57
c. Gently press the memory module (3) down, applying pressure to both the left and right
edges of the memory module, until the retention clips snap into place.
CAUTION: To prevent damage to the memory module, be sure that you do not bend the
memory module.
7. Replace the service door (see Replacing the service door on page 45).
8. Insert the battery (see
9. Connect AC power and external devices to the computer.
10. Turn on the computer.
Inserting a battery on page 36).
Cleaning your computer
Use the following products to safely clean your computer:
Dimethyl benzyl ammonium chloride 0.3 percent maximum concentration (for example,
●
disposable wipes, which come in a variety of brands).
Alcohol-free glass-cleaning fluid
●
Water with mild soap solution
●
Dry microfiber cleaning cloth or a chamois (static-free cloth without oil)
●
Static-free cloth wipes
●
58 Chapter 10 Maintenance
CAUTION: Avoid strong cleaning solvents that can permanently damage your computer. If you are
not sure that a cleaning product is safe for your computer, check the product contents to make sure
that ingredients such as alcohol, acetone, ammonium chloride, methylene chloride, and hydrocarbons
are not included in the product.
Fibrous materials, such as paper towels, can scratch the computer. Over time, dirt particles and
cleaning agents can get trapped in the scratches.
Cleaning procedures
Follow the procedures in this section to safely clean your computer.
WARNING! To prevent electric shock or damage to components, do not attempt to clean your
computer while it is turned on.
Turn off the computer.
●
Disconnect AC power.
●
Disconnect all powered external devices.
●
CAUTION: To prevent damage to internal components, do not spray cleaning agents or liquids
directly on any computer surface. Liquids dripped on the surface can permanently damage internal
components.
Cleaning the display (All-in-Ones or Notebooks)
Gently wipe the display using a soft, lint-free cloth moistened with an alcohol-free glass cleaner. Be
sure that the display is dry before closing the display.
Cleaning the sides or cover
To clean the sides or cover, use a soft microfiber cloth or chamois moistened with one of the cleaning
solutions listed previously or use an acceptable disposable wipe.
NOTE: When cleaning the cover of the computer, use a circular motion to aid in removing dirt and
debris.
Cleaning the TouchPad, keyboard, or mouse
WARNING! To reduce the risk of electric shock or damage to internal components, do not use a
vacuum cleaner attachment to clean the keyboard. A vacuum cleaner can deposit household debris
on the keyboard surface.
CAUTION: To prevent damage to internal components, do not allow liquids to drip between the
keys.
To clean the TouchPad, keyboard, or mouse, use a soft microfiber cloth or a chamois moistened
●
with one of the cleaning solutions listed previously or use an acceptable disposable wipe.
To prevent keys from sticking and to remove dust, lint, and particles from the keyboard, use a
●
can of compressed air with a straw extension.
Updating programs and drivers
HP recommends that you update your programs and drivers on a regular basis to the latest versions.
Updates can resolve issues and bring new features and options to your computer. Technology is
always changing, and updating programs and drivers allows your computer to run the latest
technology available. For example, older graphics components might not work well with the most
Updating programs and drivers 59
recent gaming software. Without the latest driver, you would not be getting the most out of your
equipment.
http://www.hp.com/support to download the latest versions of HP programs and drivers. In
Go to
addition, register to receive automatic update notifications when they become available.
Using SoftPaq Download Manager
HP SoftPaq Download Manager (SDM) is a tool that provides quick access to SoftPaq information for
HP business computers without requiring the SoftPaq number. Using this tool, you can easily search
for SoftPaqs, and then download and unpack them.
SoftPaq Download Manager works by reading and downloading, from the HP FTP site, a published
database file containing computer model and SoftPaq information. SoftPaq Download Manager
allows you to specify one or more computer models to determine which SoftPaqs are available for
download.
SoftPaq Download Manager checks the HP FTP site for updates to the database and software. If
updates are found, they are downloaded and applied automatically.
SoftPaq Download Manager is available on the HP website. To use SoftPaq Download Manager to
download SoftPaqs, you must first download and install the program. Go to
sdm, and follow the instructions to download and install SoftPaq Download Manager.
To download SoftPaqs:
Select Start > All Programs > HP > HP SoftPaq Download Manager.
▲
http://www.hp.com/go/
NOTE: If prompted by User Account Control, click Yes.
60 Chapter 10 Maintenance
11 Backup and recovery
Your computer includes HP and Windows tools to help you safeguard your information and retrieve it
if you ever need to. These tools will help you return your computer to a proper working state, all with
simple steps. This section provides information about the following processes:
Creating recovery media and backups
●
Restoring and recovering your system
●
Creating recovery media and backups
Recovery after a system failure is only as good as your most recent backup.
1. After you successfully set up the computer, create HP Recovery media. This step creates a
Windows 7 operating system DVD and a
to reinstall the original operating system in cases where the hard drive is corrupted or has been
replaced. The
recovery media with HP Recovery Disc Creator on page 61.
2. Use Windows Backup and Recovery tools to perform the following:
Back up individual files and folders
●
Driver Recovery
DVD installs specific drivers and applications. See Creating
Driver Recovery
DVD. The Windows DVD can be used
Back up your entire hard drive (select models only)
●
Create system repair discs (select models only) with the installed optical drive (select
●
models only) or an optional external optical drive
Create system restore points
●
NOTE: This guide describes an overview of backing up, restoring, and recovering options. For more
details about the tools provided, see Help and Support. To access Help and Support, select Start >
Help and Support.
NOTE: HP recommends that you print the recovery procedures and save them for later use, in case
of system instability.
In case of system failure, you can use the backup files to restore the contents of your computer. See
Backing up your information on page 62.
Guidelines
When creating recovery media or backing up to discs, use any of the following types of discs
●
(purchased separately): DVD+R, DVD+R DL, DVD-R, DVD-R DL, or DVD±RW. The discs you
use will depend on the type of optical drive you are using.
Be sure that the computer is connected to AC power before you start the recovery media
●
creation process or the backup process.
Creating recovery media with HP Recovery Disc Creator
HP Recovery Disc Creator is a software program that offers an alternative way to create recovery
media. After you successfully set up the computer, you can create recovery media using HP
Recovery Disc Creator. This recovery media allows you to reinstall your original operating system as
Creating recovery media and backups 61
well as select drivers and applications if the hard drive becomes corrupted. HP Recovery Disc
Creator can create two kinds of recovery DVDs:
Windows 7 operating system DVD—Installs the operating system without additional drivers or
●
applications.
Driver Recovery
●
HP Software Setup utility installs drivers and applications.
DVD—Installs specific drivers and applications only, in the same way that the
Creating recovery media
NOTE: The Windows 7 operating system DVD can be created only once. Thereafter, the option to
create that media will not be available after you create a Windows DVD.
To create the Windows DVD:
1. Select Start > All Programs > Productivity and Tools > HP Recovery Disc Creator.
2. Select Windows disk.
3. From the drop-down menu, select the drive for burning the recovery media.
4. Click the Create button to start the burning process.
After the Windows 7 operating system DVD has been created, create the
1. Select Start > All Programs > Productivity and Tools > HP Recovery Disc Creator.
2. Select Driver disk.
3. From the drop-down menu, select the drive for burning the recovery media.
4. Click the Create button to start the burning process.
Backing up your information
Driver Recovery
DVD:
You should create system repair media and your initial backup immediately after initial system setup.
As you add new software and data files, you should continue to back up your system on a regular
basis to maintain a reasonably current backup. You should also create Windows system repair media
(select models only) which can be used to start up (boot) the computer and repair the operating
system in case of system instability or failure. Your initial and subsequent backups allow you to
restore your data and settings if a failure occurs.
You can back up your information to an optional external hard drive, a network drive, or discs.
Note the following when backing up:
Store personal files in the Documents library, and back it up regularly.
●
Back up templates that are stored in their associated directories.
●
Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot
●
of your settings. The screen shot can be a time-saver if you have to reset your preferences.
When backing up to discs, number each disc after removing it from the drive.
●
NOTE: For detailed instructions on various backup and restore options, perform a search for these
topics in Help and Support. To access Help and Support, select Start > Help and Support.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support. To access Help
and Support, select Start > Help and Support.
62 Chapter 11 Backup and recovery
To create a backup using Windows Backup and Restore:
NOTE: The backup process may take over an hour, depending on file size and the speed of the
computer.
1. Select Start > All Programs > Maintenance > Backup and Restore.
2. Follow the on-screen instructions to set up your backup, create a system image (select models
only), or create system repair media (select models only).
Performing a system recovery
In case of system failure or instability, the computer provides the following tools to recover your files:
Windows recovery tools: You can use Windows Backup and Restore to recover information you
●
have previously backed up. You can also use Windows Startup Repair to fix problems that might
prevent Windows from starting correctly.
f11 recovery tools (select models only): You can use the f11 recovery tools to recover your
●
original hard drive image. The image includes the Windows operating system and software
programs installed at the factory.
NOTE: If you are unable to boot (start up) your computer and you cannot use the system repair
media you previously created (select models only), you must purchase Windows 7 operating system
media to reboot the computer and repair the operating system. For additional information, see
Windows 7 operating system media on page 64.
Using
Using the Windows recovery tools
Using the Windows recovery tools, you can:
Recover individual files
●
Restore the computer to a previous system restore point
●
Recover information using recovery tools
●
NOTE: For detailed instructions on various recovery and restore options, perform a search for these
topics in Help and Support. To access Help and Support, select Start > Help and Support.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support. To access Help
and Support, select Start > Help and Support.
To recover information you previously backed up:
1. Select Start > All Programs > Maintenance > Backup and Restore.
2. Follow the on-screen instructions to recover your system settings, your computer (select models
only), or your files.
To recover your information using Startup Repair, follow these steps:
CAUTION: Some Startup Repair options will completely erase and reformat the hard drive. All files
you have created and any software installed on the computer are permanently removed. When
reformatting is complete, the recovery process restores the operating system, as well as the drivers,
software, and utilities from the backup used for recovery.
Performing a system recovery 63
1. If possible, back up all personal files.
2. If possible, check for the presence of the Windows partition.
To check for the Windows partition, select Start > Computer.
NOTE: If the Windows partition is not listed, you must recover your operating system and
programs using the Windows 7 operating system DVD and the
additional information, see
3. If the Windows partition is listed, restart the computer, and then press f8 before the Windows
operating system loads.
4. Select Startup Repair.
5. Follow the on-screen instructions.
NOTE: For additional information on recovering information using the Windows tools, select Start >
Help and Support.
Using Windows 7 operating system media on page 64.
Using f11 recovery tools (select models only)
CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files
that you have created and any software that you have installed on the computer are permanently
removed. The f11 recovery tool reinstalls the operating system and HP programs and drivers that
were installed at the factory. Software not installed at the factory must be reinstalled.
To recover the original hard drive image using f11:
Driver Recovery
media. For
1. If possible, back up all personal files.
2. If possible, check for the presence of the HP Recovery partition: click Start, right-click Computer,
click Manage, and then click Disk Management.
NOTE: If the HP Recovery partition is not listed, you must recover your operating system and
programs using the Windows 7 operating system media and the
additional information, see
3. If the HP Recovery partition is listed, restart the computer, and then press esc while the “Press
the ESC key for Startup Menu” message is displayed at the bottom of the screen.
4. Press f11 while the “Press <F11> for recovery” message is displayed on the screen.
5. Follow the on-screen instructions.
Using Windows 7 operating system media on page 64.
Using Windows 7 operating system media
If you cannot use the recovery media you previously created using the HP Recovery Disc Creator
(select models only), you must purchase a Windows 7 operating system DVD to reboot the computer
and repair the operating system.
To order a Windows 7 operating system DVD, go to the HP website. For U.S. support, go to
http://www.hp.com/support. For worldwide support, go to http://welcome.hp.com/country/us/en/
wwcontact_us.html. You can also order the DVD by calling support. For contact information, see the
Worldwide Telephone Numbers
CAUTION: Using a Windows 7 operating system DVD completely erases hard drive contents and
reformats the hard drive. All files that you have created and any software that you have installed on
the computer are permanently removed. When reformatting is complete, the recovery process helps
you restore the operating system, as well as drivers, software, and utilities.
booklet included with the computer.
Driver Recovery
media. For
To initiate recovery using a Windows 7 operating system DVD:
64 Chapter 11 Backup and recovery
NOTE: This process takes several minutes.
1. If possible, back up all personal files.
2. Restart the computer, and then insert the Windows 7 operating system DVD into the optical
drive before the Windows operating system loads.
3. When prompted, press any keyboard key.
4. Follow the on-screen instructions.
5. Click Next.
6. Select Repair your computer.
7. Follow the on-screen instructions.
After the repair is completed:
1. Eject the Windows 7 operating system DVD and then insert the
2. Install the Hardware Enabling Drivers first, and then install Recommended Applications.
Driver Recovery
DVD.
Performing a system recovery 65
12 Using Setup Utility (BIOS) and HP PC
Hardware Diagnostics (UEFI)
Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and
output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup
Utility (BIOS) includes settings for the types of devices installed, the startup sequence of the
computer, and the amount of system and extended memory.
Starting Setup Utility (BIOS)
To start Setup Utility (BIOS), turn on or restart the computer, quickly press esc, and then press f10.
NOTE: Use extreme care when making changes in Setup Utility (BIOS). Errors can prevent the
computer from operating properly.
Updating the BIOS
Updated versions of the BIOS may be available on the HP website.
Most BIOS updates on the HP website are packaged in compressed files called
Some download packages contain a file named Readme.txt, which contains information regarding
installing and troubleshooting the file.
Determining the BIOS version
To determine whether available BIOS updates contain later BIOS versions than those currently
installed on the computer, you need to know the version of the system BIOS currently installed.
BIOS version information (also known as
fn+esc (if you are already in Windows) or by using Setup Utility (BIOS).
1. Start Setup Utility (BIOS) (see
2. To exit Setup Utility (BIOS) without saving your changes, use the arrow keys to select Exit,
select Exit Discarding Changes, and then press enter.
3. Select Yes.
Downloading a BIOS update
CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download
and install a BIOS update only when the computer is connected to reliable external power using the
AC adapter. Do not download or install a BIOS update while the computer is running on battery
power, docked in an optional docking device, or connected to an optional power source. During the
download and installation, follow these instructions:
ROM date
Starting Setup Utility (BIOS) on page 66).
and
System BIOS
) can be revealed by pressing
SoftPaqs
.
Do not disconnect power from the computer by unplugging the power cord from the AC outlet.
Do not shut down the computer or initiate Sleep.
Do not insert, remove, connect, or disconnect any device, cable, or cord.
66 Chapter 12 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI)
1. From the Start screen, type hp support assistant, and then select the HP Support
Assistant app.
2. Click Updates and tune-ups, and then click Check for HP updates now.
3. Follow the on-screen instructions.
4. At the download area, follow these steps:
a. Identify the most recent BIOS update and compare it to the BIOS version currently installed
on your computer. If the update is more recent than your BIOS, make a note of the date,
name, or other identifier. You may need this information to locate the update later, after it
has been downloaded to your hard drive.
b. Follow the on-screen instructions to download your selection to the hard drive.
If the update is more recent than your BIOS, make a note of the path to the location on your
hard drive where the BIOS update is downloaded. You will need to access this path when
you are ready to install the update.
NOTE: If you connect your computer to a network, consult the network administrator before
installing any software updates, especially system BIOS updates.
BIOS installation procedures vary. Follow any instructions that are revealed on the screen after the
download is complete. If no instructions are revealed, follow these steps:
1. From the Start screen, type file, and then select Windows Explorer.
2. Click your hard drive designation. The hard drive designation is typically Local Disk (C:).
3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains
the update.
4. Double-click the file that has an .exe extension (for example,
The BIOS installation begins.
5. Complete the installation by following the on-screen instructions.
NOTE: After a message on the screen reports a successful installation, you can delete the
downloaded file from your hard drive.
Using HP PC Hardware Diagnostics (UEFI)
HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run
diagnostic tests to determine whether the computer hardware is functioning properly. The tool runs
outside the operating system so that it can isolate hardware failures from issues that are caused by
the operating system or other software components.
To start HP PC Hardware Diagnostics UEFI:
1. Turn on or restart the computer, quickly press esc, and then press f2.
The BIOS searches three places for the diagnostic tools, in the following order:
filename
.exe).
Using HP PC Hardware Diagnostics (UEFI) 67
a. Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device on page 68.
b. Hard drive
c. BIOS
2. When the diagnostic tool opens, use the keyboard arrow keys to select the type of diagnostic
test you want to run, and then follow the on-screen instructions.
NOTE: If you need to stop a diagnostic test, press esc.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
NOTE: Instructions for downloading HP PC Hardware Diagnostics (UEFI) are provided in English
only.
1. Go to http://www.hp.com.
2. Point to Support, located at the top of the page, and then click Download Drivers.
3. In the text box, enter the product name, and then click Go.
– or –
Click Find Now to let HP automatically detect your product.
4. Select your computer model, and then select your operating system.
5. In the Diagnostic section, click HP UEFI Support Environment.
– or –
Click Download, and then select Run.
68 Chapter 12 Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI)
13 Support
Contacting support
If the information provided in this user guide or Help and Support does not address your questions,
you can contact support. For U.S. support, go to
support, go to
Here you can:
Chat online with an HP technician.
●
NOTE: When support chat is not available in a particular language, it is available in English.
E-mail support.
●
Find support telephone numbers.
●
Locate an HP service center.
●
http://welcome.hp.com/country/us/en/wwcontact_us.html.
http://www.hp.com/go/contactHP. For worldwide
Contacting support 69
Labels
The labels affixed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer.
IMPORTANT: All labels described in this section will be located in one of 3 places depending on
your computer model: affixed to the bottom of the computer, located in the battery bay, or under the
service door.
Service label—Provides important information to identify your computer. When contacting
●
support, you will probably be asked for the serial number, and possibly for the product number or
the model number. Locate these numbers before you contact support.
Component
(1) Serial number
(2) Product number
(3) Warranty period
Microsoft® Certificate of Authenticity label (select models only prior to Windows 8)—Contains
●
the Windows Product Key. You may need the Product Key to update or troubleshoot the
operating system. HP platforms preinstalled with Windows 8 or Windows 8.1 do not have the
physical label, but have a Digital Product Key electronically installed.
NOTE: This Digital Product Key is automatically recognized and activated by Microsoft
Operating Systems on a reinstall of the Windows 8 or Windows 8.1 operating system with HPapproved recovery methods.
Regulatory label(s)—Provide(s) regulatory information about the computer.
●
Wireless certification label(s)—Provide(s) information about optional wireless devices and the
●
approval markings of some of the countries or regions in which the devices have been approved
for use.
70 Chapter 13 Support
14 Specifications
Input power
●
Operating environment
●
Input power
The power information in this section may be helpful if you plan to travel internationally with the
computer.
The computer operates on DC power, which can be supplied by an AC or a DC power source. The
AC power source must be rated at 100–240 V, 50–60 Hz. Although the computer can be powered
from a standalone DC power source, it should be powered only with an AC adapter or a DC power
source supplied and approved by HP for use with this computer.
The computer can operate on DC power within the following specifications.
Input Power Rating
Operating voltage and current 19.5 V dc @ 3.33 A – 65 W
NOTE: This product is designed for IT power systems in Norway with phase-to-phase voltage not
exceeding 240 V rms.
NOTE: The computer operating voltage and current can be found on the system regulatory label.
Operating environment
Factor Metric U.S.
Temperature
Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity (noncondensing)
Operating 10% to 90% 10% to 90%
Nonoperating 5% to 95% 5% to 95%
Maximum altitude (unpressurized)
Operating -15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft
Input power 71
A Traveling with or shipping your computer
If you have to travel with or ship your computer, here are some tips to keep in mind to keep your
equipment safe.
Prepare the computer for traveling or shipping:
●
Back up your information to an external drive.
◦
Remove all discs and all external media cards, such as memory cards, from the computer.
◦
Turn off and then disconnect all external devices.
◦
Shut down the computer.
◦
Take along a backup of your information. Keep the backup separate on the computer.
●
When traveling by air, carry the computer as hand luggage; do not check it in with the rest of
●
your bags.
CAUTION: Avoid exposing a drive to magnetic fields. Security devices with magnetic fields
include airport walk-through devices and security wands. Airport conveyer belts and similar
security devices that check carry-on baggage use X-rays instead of magnetism and do not
damage drives.
If you plan to use the computer during a flight, listen for the in-flight announcement that tells you
●
when you are allowed to use your computer. In-flight computer use is at the discretion of the
airline.
If you are shipping the computer or a drive, use suitable protective packaging and label the
●
package “FRAGILE.”
If the computer has a wireless device installed, the use of these devices may be restricted in
some environments. Such restrictions may apply aboard aircraft, in hospitals, near explosives,
and in hazardous locations. If you are uncertain of the policy that applies to the use of a
particular device, ask for authorization to use your computer before you turn it on.
If you are traveling internationally, follow these suggestions:
●
Check the computer-related customs regulations for each country or region on your
◦
itinerary.
Check the power cord and adapter requirements for each location in which you plan to use
◦
the computer. Voltage, frequency, and plug configurations vary.
WARNING! To reduce the risk of electric shock, fire, or damage to the equipment, do not
attempt to power the computer with a voltage converter kit sold for appliances.
72 Appendix A Traveling with or shipping your computer
B Troubleshooting
Troubleshooting resources
Access website links and additional information about the computer through Help and Support.
●
To access Help and Support, select Start > Help and Support.
NOTE: Some checkup and repair tools require an Internet connection. HP also provides
additional tools that do not require an Internet connection.
Contact HP support. For U.S. support, go to
●
support, go to
Choose from the following types of support:
Chat online with an HP technician.
◦
NOTE: When chat is not available in a particular language, it is available in English.
E-mail HP support.
◦
Find HP support worldwide telephone numbers.
◦
Locate an HP service center.
◦
http://welcome.hp.com/country/us/en/wwcontact_us.html.
Resolving issues
The following sections describe several common issues and solutions.
The computer is unable to start up
If the computer does not turn on when you press the power button, the following suggestions may
help you determine why the computer does not start up:
If the computer is plugged into an AC outlet, plug another electrical device into the outlet to be
●
sure that the outlet is providing adequate power.
http://www.hp.com/go/contactHP. For worldwide
NOTE: Use only the AC adapter provided with the computer or one approved by HP for this
computer.
If the computer is plugged into an external power source other than an AC outlet, plug the
●
computer into an AC outlet using the AC adapter. Be sure that the power cord and AC adapter
connections are secure.
The computer screen is blank
If the screen is blank but you have not turned off the computer, one or more of these settings may be
the cause:
The computer may be in the Sleep state. To exit Sleep, briefly press the power button. Sleep is
●
an energy-saving feature that turns off the display. Sleep can be initiated by the system while the
computer is on but is not in use, or when the computer has reached a low battery level. To
Troubleshooting resources 73
change these and other power settings, right-click the Battery icon on the Windows desktop in
the notification area, at the far right of the taskbar, and then click Preferences.
The computer may not be set to display the image on the computer screen. To transfer the
●
image to the computer screen, press fn+f4. On most models, when an optional external display,
such as a monitor, is connected to the computer, the image can be displayed on the computer
screen or the external display, or on both devices simultaneously. When you press fn+f4
repeatedly, the image alternates among the computer display, one or more external displays,
and simultaneous display on all devices.
Software is functioning abnormally
If the software is unresponsive or responds abnormally, restart the computer. Click Start, click the
arrow next to Shut down, and then select Restart. If you cannot restart the computer using this
procedure, see the next section,
The computer is on but not responding on page 74.
The computer is on but not responding
If the computer is turned on but is not responding to software or keyboard commands, try the
following emergency shutdown procedures, in the sequence provided, until shutdown occurs:
CAUTION: Emergency shutdown procedures result in the loss of unsaved information.
Press and hold the power button for at least 5 seconds.
●
Disconnect the computer from external power and remove the battery.
●
The computer is unusually warm
It is normal for the computer to feel warm to the touch while it is in use. But if the computer feels
unusually
If you suspect that the computer is overheating, allow the computer to cool to room temperature. Be
sure to keep all vents free from obstructions while you are using the computer.
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).
NOTE: The fan in the computer starts up automatically to cool internal components and prevent
overheating. It is normal for the internal fan to cycle on and off during operation.
warm, it may be overheating because a vent is blocked.
An external device is not working
Follow these suggestions if an external device does not function as expected:
Turn on the device according to the manufacturer's instructions.
●
Be sure that all device connections are secure.
●
Be sure that the device is receiving electrical power.
●
Be sure that the device, especially if it is older, is compatible with the operating system.
●
Be sure that the correct drivers are installed and updated.
●
74 Appendix B Troubleshooting
The wireless network connection is not working
If a wireless network connection is not working as expected, follow these suggestions:
To enable or disable a wireless or wired network device, right-click the Network Connection icon
●
on the Windows desktop in the notification area, at the far right of the taskbar. To enable
devices, select the check box from the menu option. To disable the device, clear the check box.
Be sure that the wireless device is turned on.
●
Be sure that the computer wireless antennas are free from obstructions.
●
Be sure that the cable or DSL modem and its power cord are properly connected and that the
●
lights are on.
Be sure that the wireless router or access point is properly connected to its power adapter and to
●
the cable or DSL modem, and that the lights are on.
Disconnect and then reconnect all cables, and turn the power off and then back on.
●
A disc does not play
Save your work and close all open programs before playing a CD or a DVD.
●
Log off the Internet before playing a CD or a DVD.
●
Be sure that you insert the disc properly.
●
Be sure that the disc is clean. If necessary, clean the disc with filtered water and a lint-free cloth.
●
Wipe from the center of the disc to the outer edge.
Check the disc for scratches. If you find scratches, treat the disc with an optical disc repair kit
●
available at many electronics stores.
Disable Sleep mode before playing the disc.
●
Do not initiate Sleep while playing a disc. Otherwise, you may see a warning message asking if
you want to continue. If this message is displayed, click No. After you click No, the computer
may behave in either of the following ways:
Playback may resume.
◦
– or –
The playback window in the multimedia program may close. To return to playing the disc,
◦
click the Play button in your multimedia program to restart the disc. In rare cases, you may
need to exit the program and then restart it.
A movie is not visible on an external display
1. If both the computer display and an external display are turned on, press fn+f4 one or more
times to switch between the 2 displays.
2. Configure the monitor settings to make the external display primary:
a. From the Windows desktop, right-click on a blank area of the computer desktop, and select
Screen resolution.
b. Specify a primary display and a secondary display.
NOTE: When using both displays, the DVD image will not appear on any display designated as
the secondary display.
Resolving issues 75
The process of burning a disc does not begin, or it stops before completion
Be sure that all other programs are closed.
●
Turn off Sleep mode.
●
Be sure that you are using the right kind of disc for your drive.
●
Be sure that the disc is inserted properly.
●
Select a slower write speed and try again.
●
If you are copying a disc, save the information on the source disc to your hard drive before trying
●
to burn the contents to a new disc, and then burn from your hard drive.
76 Appendix B Troubleshooting
C Electrostatic discharge
Electrostatic discharge is the release of static electricity when two objects come into contact—for
example, the shock you receive when you walk across the carpet and touch a metal door knob.
A discharge of static electricity from fingers or other electrostatic conductors may damage electronic
components. To prevent damage to the computer, damage to a drive, or loss of information, observe
these precautions:
If removal or installation instructions direct you to unplug the computer, unplug it after being
●
properly grounded and before removing a cover.
Keep components in their electrostatic-safe containers until you are ready to install them.
●
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
●
Use nonmagnetic tools.
●
Before handling components, discharge static electricity by touching an unpainted metal surface
●
of the component.
If you remove a component, place it in an electrostatic-safe container.
●
If you need more information about static electricity or assistance with component removal or
installation, contact HP support.
77
Index
Symbols/Numerics
2-finger click TouchPad gestures
23
2-finger pinch zoom TouchPad
gesture 22
A
AC adapter, testing 38
AC adapter/battery light 6
administrator password 51
antivirus software 53
audio functions, checking 28
audio-in (microphone) jack,
identifying 4
audio-out (headphone) jack,
identifying 4
B
Backup and Restore 63
backup tools 61
backups
creating 62
recovering 63
battery
conserving power 37
discharging 35
displaying remaining charge
35
disposing 37
low battery levels 35
replacing 38
storing 37
Battery Check 35
battery cover release latch 13
battery cover, identifying 13
battery information, finding 34
battery power 34
battery temperature 37
BIOS
determining version 66
downloading an update 66
updating 66
Bluetooth device 15, 18
Bluetooth label 70
buttons
left TouchPad 8
media 27
optical drive eject 5
power 11, 32
right TouchPad 8
volume 27
Windows button 12
C
cables
USB 42
caps lock light, identifying 10
caring for your computer 58
checking audio functions 28
cleaning your computer 58
components
bottom 13
display 7
front 14
left side 6
right side 4
top 8
Computer Setup
BIOS administrator password
52
computer, traveling 37, 72
configuring
audio for HDMI 31
connecting to a WLAN 18
connector, power 6
conservation, power 37
corporate WLAN connection 18
critical battery level 32
critical updates, software 54
D
Disk Cleanup software 49
Disk Defragmenter software 48
display image, switching 24
drive media 32
Driver Recovery DVD,
creating 61
using for restore 64
drives
external 43
handling 44
hard 43
optical 43
using 44
E
electrostatic discharge 77
embedded numeric keypad,
identifying 25
esc key, identifying 12
external AC power, using 38
external devices 42
external drive 43
external monitor port 6, 30
F
f11 recovery 64
fingerprint reader 54
fingerprint reader, identifying 11
firewall software 53
fn key, identifying 12, 23
function keys, identifying 12
H
hard drive
external 43
HP 3D DriveGuard 49
installing 48
removing 46
hard drive light 49
hard drive light, identifying 4
hard drive recovery 64
hard drive, identifying 14
HDMI port, connecting 30
HDMI port, identifying 6
HDMI, configuring audio 31
headphone (audio-out) jack 4
headphones and microphones,
connecting 28
Help and Support hot key 24
Hibernation
exiting 33
initiating 33
78 Index
high-definition devices,
connecting 30
hot keys
adjusting volume 24
audio CD, DVD, or BD
controls 24
decrease screen brightness
24
decreasing speaker sound 24
description 23
Help and Support 24
increase screen brightness 24
increasing speaker sound 24
muting speaker sound 24
switching screen image 24
using 24
wireless 25
hot keys, media 27
HP 3D DriveGuard 49
HP PC Hardware Diagnostics
(UEFI)
downloading 68
using 67
HP Recovery Disc Creator,
using 61
HP Recovery partition
checking for presence 64
using for recovery 64
hubs 41
I
input power 71
internal microphones, identifying
7
Internet connection setup 17
issues, resolving 73
J
jacks
audio-in (microphone) 4
audio-out (headphone) 4
network 6
RJ-45 (network) 6
K
keyboard hot keys, identifying 23
keyboard screw, identifying 13
keypad
identifying 25
keypad, external
num lock 26
using 26
keys
esc 12
fn 12
function 12
media 27
volume 27
L
labels
Bluetooth 70
Microsoft Certificate of
Authenticity 70
regulatory 70
serial number 70
wireless certification 70
WLAN 70
latch, battery cover release 13
lights
AC adapter/battery 6
caps lock 10
hard drive 4
power 4, 9
RJ-45 (network) status 6
TouchPad 9
wireless 9
lights, hard drive 49
low battery level 35
M
maintenance
Disk Cleanup 49
Disk Defragmenter 48
media activity controls 27
media controls, keys 24
media hot keys 27
memory card
inserting 40
removing 40
supported formats 40
memory card reader, identifying
14
memory module
identifying 14
inserting 57
removing 56
replacing 56
memory service, identifying 13
microphone (audio-in) jack,
identifying 4
Microsoft Certificate of Authenticity
label 70
mouse, external
setting preferences 20
mute key, identifying 24
N
network jack, identifying 6
num lk key, identifying 25
num lock, external keypad 26
O
operating environment 71
optical drive 43
optical drive eject button,
identifying 5
optical drive, identifying 5
optional external devices, using
42
P
passwords
administrator 51
BIOS administrator 52
user 51
pointing devices, setting
preferences 20
ports
external monitor 6, 30
HDMI 6, 30
USB 5
VGA 30
power
battery 34
conserving 37
options 32
power button 32
power button, identifying 11
power connector, identifying 6
power lights 4, 9
power switch 32
power-saving states 32
product name and number,
computer 70
public WLAN connection 18
R
readable media 32
recovery media, creating 61
Index 79
recovery media, using for
restore 64
recovery partition 64
recovery tools 61
recovery tools, Windows 63
recovery, system 63
regulatory information
