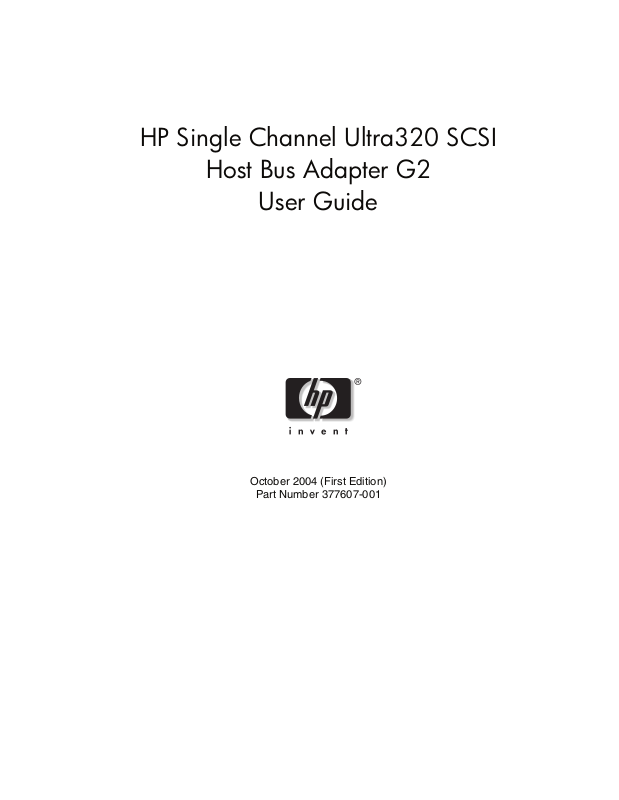

HP Single Channel Ultra320 SCSI
Host Bus Adapter G2
User Guide
October 2004 (First Edition)
Part Number 377607-001
© Copyright 2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors
or omissions contained herein.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
October 2004 (First Edition)
Part Number 377607-001
Contents
About This Guide
Audience Assumptions..................................................................................................................................v
Important Safety Information........................................................................................................................v
Symbols on Equipment .................................................................................................................................v
Rack Stability ...............................................................................................................................................vi
Symbols in Text............................................................................................................................................vi
Getting Help ............................................................................................................................................... vii
Technical Support................................................................................................................................ vii
HP Website .......................................................................................................................................... vii
Authorized Reseller ............................................................................................................................. vii
Reader’s Comments ................................................................................................................................... vii
Chapter 1
Introduction
Features ..................................................................................................................................................... 1-1
PCI/PCI-X Features................................................................................................................................... 1-2
Ultra320 HBA Support.............................................................................................................................. 1-2
SCSI Connectors ....................................................................................................................................... 1-3
Port Assignments ................................................................................................................................ 1-3
SCSI IDs.................................................................................................................................................... 1-3
Multiple Adapter Installation .................................................................................................................... 1-4
SCSI Termination...................................................................................................................................... 1-4
SCSI Cables............................................................................................................................................... 1-5
SCSI Cable Connectors............................................................................................................................. 1-5
Chapter 2
Installing the Hardware
Items Needed............................................................................................................................................. 2-1
Preparing the Server .................................................................................................................................. 2-1
Opening the Server.................................................................................................................................... 2-2
Installing the Single Channel Ultra320 SCSI HBA G2............................................................................. 2-2
Cabling the Single Channel Ultra320 SCSI HBA G2 ............................................................................... 2-2
External SCSI Connections................................................................................................................. 2-3
Internal SCSI Connections.................................................................................................................. 2-4
Completing the Installation ....................................................................................................................... 2-5
Updating the Firmware and Installing the Drivers.............................................................................. 2-5
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide iii
Contents
Chapter 3
Installing the Firmware and Software
Appendix A
Regulatory Compliance Notices
Regulatory Model Number .......................................................................................................................A-1
Federal Communications Commission Notice .........................................................................................A-1
Class A Equipment.............................................................................................................................A-1
Class B Equipment .............................................................................................................................A-2
Declaration of Conformity for Products Marked with the FCC Logo, United States Only ...............A-2
Modifications......................................................................................................................................A-2
Cables .................................................................................................................................................A-3
Canadian Notice (Avis Canadien).............................................................................................................A-3
Class A Equipment.............................................................................................................................A-3
Class B Equipment .............................................................................................................................A-3
European Union Regulatory Notice..........................................................................................................A-3
Japanese Notice......................................................................................................................................... A-5
Korean Notice...........................................................................................................................................A-5
Class A Equipment.............................................................................................................................A-5
Class B Equipment .............................................................................................................................A-5
BSMI Notice.............................................................................................................................................A-6
Appendix B
Electrostatic Discharge
Grounding Methods .................................................................................................................................. B-1
Index
iv HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
This guide provides step-by-step instructions for installation and reference information for
operation for the HP Single Channel Ultra320 SCSI Host Bus Adapter G2.
Audience Assumptions
This guide is for the person who installs, administers, and troubleshoots servers. HP assumes
you are qualified in the servicing of computer equipment and trained in recognizing hazards
in products with hazardous energy levels.
Important Safety Information
Before installing this product, read the Important Safety Information document included with
the server.
About This Guide
Symbols on Equipment
The following symbols may be placed on equipment to indicate the presence of potentially
hazardous conditions:
WARNING: This symbol, in conjunction with any of the following symbols, indicates
the presence of a potential hazard. The potential for injury exists if warnings are not
observed. Consult your documentation for specific details.
This symbol indicates the presence of hazardous energy circuits or electric shock
hazards. Refer all servicing to qualified personnel.
WARNING: To reduce the risk of injury from electric shock hazards, do not open this
enclosure. Refer all maintenance, upgrades, and servicing to qualified personnel.
This symbol indicates the presence of electric shock hazards. The area contains no
user or field serviceable parts. Do not open for any reason.
WARNING: To reduce the risk of injury from electric shock hazards, do not open this
enclosure.
This symbol on an RJ-45 receptacle indicates a network interface connection.
WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do
not plug telephone or telecommunications connectors into this receptacle.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide v
About This Guide
Weight in kg
Weight in lb
Rack Stability
This symbol indicates the presence of a hot surface or hot component. If this surface is
contacted, the potential for injury exists.
WARNING: To reduce the risk of injury from a hot component, allow the surface to
cool before touching.
These symbols, on power supplies or systems, indicate that the equipment
is supplied by multiple sources of power.
WARNING: To reduce the risk of injury from electric shock, remove all
power cords to completely disconnect power from the system.
This symbol indicates that the component exceeds the recommended weight for
one individual to handle safely.
WARNING: To reduce the risk of personal injury or damage to the equipment,
observe local occupational health and safety requirements and guidelines for
manual material handling.
WARNING: To reduce the risk of personal injury or damage to the equipment, be sure
that:
• The leveling jacks are extended to the floor.
• The full weight of the rack rests on the leveling jacks.
• The stabilizing feet are attached to the rack if it is a single-rack installation.
• The racks are coupled together in multiple-rack installations.
• Only one component is extended at a time. A rack may become unstable if more
Symbols in Text
These symbols may be found in the text of this guide. They have the following meanings.
WARNING: Text set off in this manner indicates that failure to follow directions in the
warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
IMPORTANT: Text set off in this manner presents essential information to explain a concept or
complete a task.
NOTE: Text set off in this manner presents additional information to emphasize or supplement
important points of the main text.
than one component is extended for any reason.
vi HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
Getting Help
If you have a problem and have exhausted the information in this guide, you can get further
information and other help in the following locations.
Technical Support
In North America, call the HP Technical Support Phone Center at 1-800-HP-INVENT. This
service is available 24 hours a day, 7 days a week. For continuous quality improvement, calls
may be recorded or monitored. Outside North America, call the nearest HP Technical Support
Phone Center. Telephone numbers for worldwide Technical Support Centers are listed on the
HP website at http://www.hp.com.
Be sure to have the following information available before you call HP:
• Technical support registration number (if applicable)
• Product serial number
• Product model name and number
• Applicable error messages
About This Guide
• Add-on boards or hardware
• Third-party hardware or software
• Operating system type and revision level
HP Website
The HP website has information on this product as well as the latest drivers and flash ROM
images. You can access the HP website at http://www.hp.com.
Authorized Reseller
For the name of your nearest authorized reseller:
• In the United States, call 1-800-345-1518.
• In Canada, call 1-800-263-5868.
• Elsewhere, see the HP website for locations and telephone numbers.
Reader’s Comments
HP welcomes your comments on this guide. Please send your comments and suggestions by
email to ServerDocumentation@hp.com.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide vii
Features
1
Introduction
The HP Single Channel Ultra320 SCSI Host Bus Adapter (HBA) G2 contains one
independent low-voltage differential SCSI (LVDS) channel that interfaces directly between
the server PCI or PCI-X local bus and up to 15 SCSI devices. The adapter supports industrystandard interfaces and protocols. The Single Channel Ultra320 SCSI HBA G2 can be used
with all SCSI devices, including Ultra320 SCSI, Ultra160 SCSI, Ultra2 SCSI, and Ultra
SCSI. For optimum performance and throughput, the SCSI HBA card must be installed in a
64-bit, 133-MHz, PCI-X slot with Ultra320 devices.
Standard SCSI features of the Single Channel Ultra320 SCSI HBA G2 include:
• Support of Ultra320 and legacy modes and devices, including single-ended (SE) or
multimode low-voltage differential (LVD) devices (high-voltage differential [HVD]
devices are not supported)
• One bootable SCSI channel
• SCSI data transfers up to 320 MB/s
• Narrow or Wide SCSI data path
• Single independent channel that allows LVD and SE devices to operate separately at peak
performance
• Automatic detection and communication with Ultra320 SCSI, Ultra160 SCSI, Ultra2
SCSI, and Ultra SCSI
• One 68-pin wide SCSI internal connector that supports Ultra320 SCSI, Ultra160 SCSI,
Ultra2 SCSI, and Ultra SCSI
• One Very High-Density Cable Interconnect (VHDCI) external connectors that support
Ultra320 SCSI, Ultra160 SCSI, Ultra2 SCSI, and Ultra SCSI
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide 1-1
Introduction
PCI/PCI-X Features
• PCI-X 1.0 and PCI 2.2 compliance
• PCI-X compatibility with 32- and 64-bit, 50–133 MHz slots
• PCI compatibility with 32- and 64-bit 5-V/33-MHz and 3.3-V/66-MHz slots
• Half-size form factor that occupies a single 64-bit universal PCI-X slot
• Streaming PCI-enhanced memory data read and write commands
• PCI bus address and data parity generation and checking
Ultra320 HBA Support
The Single Channel Ultra320 SCSI HBA G2 provides 64-bit PCI-X bus master operation and
SCSI data transfer rates of up to 320 MB/s, provided that all components are Ultra320
capable. This combination allows high throughput in many network application
environments, including resource sharing, database servicing, and high-performance backup
solutions.
The adapter also supports bus mastering, split completion responses, message-signaled
interrupts, scatter/gather caching, and broad range of direct memory access (DMA)
capabilities. This HBA supports all SCSI functions supported by the previous HP Single
Channel Ultra320 SCSI HBA.
The Single Channel Ultra320 SCSI HBA G2 is compatible with SPI-4 and PCI-X
specifications and incorporates latest developments in Ultra320 SCSI technology, offering
twice the performance of previous Ultra160 products.
1-2 HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
SCSI Connectors
The Single Channel Ultra320 SCSI HBA G2 has the following connectors:
Figure 1-1: Single Channel Ultra320 SCSI HBA G2
Item Description
Introduction
1 External VHDCI connectors
2 Internal wide SCSI connector
The external connector is standard VHDCI connectors and mounted on the slot panel and
accessible through the back of the server. Screwlocks are provided on the external SCSI
cables to secure them to the VHDCI connectors.
Port Assignments
This adapter has one channel (Channel A) that supports one internal wide SCSI connector
and one external VHDCI connector. This arrangement enables direct connection to the
channel using existing or commonly available cables.
SCSI IDs
The Single Channel Ultra320 SCSI HBA G2 contains one SCSI bus that supports up to 15
peripherals. Channel A has internal and external connectors. The peripherals on the bus must
have a unique SCSI ID ranging from 6 to 0, then 15 to 8, with 6 being the highest priority and
8 being the lowest priority. SCSI IDs on all peripherals must be either manually set with
switches or jumpers on the device itself or automatically set on HP products that support
hot-pluggable drives. The SCSI IDs determine the priority of the peripheral device when
attempting to access the SCSI bus. The server assigns the SCSI adapter to the highest priority
by setting the ID of the adapter to 7.
For maximum performance, if both low- and high-throughput devices must be connected to
the same bus, assign the low-throughput devices a higher SCSI ID priority. This
configuration allows the low-throughput devices access to the bus.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide 1-3
Introduction
Multiple Adapter Installation
The following considerations apply when you install more than one
Single Channel Ultra320 SCSI HBA G2:
• Each adapter has one independent SCSI channel that supports up to 15 devices.
• Each SCSI channel has its own set of unique SCSI IDs (from 6 to 0, 15 to 8). Each
peripheral on a bus must be assigned its own unique ID.
SCSI Termination
All SCSI buses require termination on both ends of the bus to prevent signal degradation. The
Single Channel Ultra320 SCSI HBA G2 supplies the termination on the adapter end of the
SCSI bus. Hot-plug drives do not require terminators on the ribbon cable because terminators
are included on the drive backplane. Nonhot-plug internal drives require terminators on the
ribbon cable. Individual SCSI devices in HP servers should not contain bus termination.
Ultra320, Ultra2, and Ultra SCCI require multimode or LVD-only terminators (rather than
SE-only terminators used with Wide Ultra SCSI-3, Fast Wide SCSI-2, and Fast SCSI-2).
External SCSI buses must also be terminated. This termination is supplied in HP external
storage systems. Individual SCSI devices in HP storage systems should not contain bus
termination.
CAUTION: To prevent boot error messages, the integrated SCSI controller on the system
board of the server must be terminated at all times. If a Single Channel Ultra320 SCSI HBA
G2 is replacing the integrated controller, a terminated SCSI ribbon cable connected to the
system board should be left, even if there are no SCSI devices attached to this cable.
1-4 HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
SCSI Cables
Cables are provided with most HP server products that require cabling. If additional cables
are needed or the correct one was not provided with the server product, they can be ordered
from an authorized HP reseller or authorized HP Service Provider. Refer to Table 1-1 for
cable option kit part numbers.
Table 1-1: External Cable Option Kit Part Numbers
Cable Option Kit Part Number
VHDCI to Wide 6 foot 341176-B21
VHDCI to Wide 12 foot 341177-B21
VHDCI to VHDCI 6 foot 341174-B21
VHDCI to VHDCI 12 foot 341175-B21
Note: An internal 68-pin to 50-pin SCSI adapter (part number 199618-001) is
also available.
If the option kit part number for the cable needed is not listed here, or for additional ordering
information, refer to the HP website at http://www.hp.com.
Introduction
SCSI Cable Connectors
To identify the various SCSI cables required in a Single Channel Ultra320 SCSI HBA G2
installation in the various configurations of HP servers, refer to Figure 1-2.
Keep these characteristics of SCSI cables in mind:
• External VHDCI cables have a round wire with securable connectors, and the connector
heads are smaller than 68-pin external wide SCSI connector heads.
• Internal SCSI cables have a flat ribbon cable with push-on connectors.
• HP SCSI cables are keyed so they cannot be installed incorrectly.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide 1-5
Introduction
Figure 1-2: Identifying SCSI cable connectors
Item Description
1 External 68-pin wide SCSI connector
2 External VHDCI SCSI connector
3 Internal 68-pin wide SCSI connector
1-6 HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
This chapter discusses the installation of the HP Single Channel Ultra320 SCSI HBA G2 in
an HP server.
Items Needed
• Torx T-15 screwdriver
Installing the Hardware
WARNING: To reduce the risk of personal injury from electric shock and hazardous
energy levels, only authorized service technicians should attempt to install this
equipment. Consult the safety information and user documentation provided with the
computer before attempting this installation.
Many servers are capable of producing energy levels that are considered hazardous
and are only intended to be serviced by qualified personnel trained in dealing with
these hazards. Do not remove enclosures or attempt to bypass any interlocks that may
be provided for the purpose of removing these hazardous conditions.
2
• HP PCI-X U320 HBA Support Software CD or the SmartStart and Support Software CD
• Documentation that came with the server
Preparing the Server
Use the following general guidelines to prepare the server for installation of the Single
Channel Ultra320 SCSI HBA G2.
WARNING: When working with equipment installed in a rack, be sure that the
equipment and rack are stable before beginning.
To prepare the server:
1. Perform a normal system shutdown.
2. Power down the server.
3. Power down all peripheral devices attached to the server.
4. Unplug the AC power cord from the outlet, and then unplug it from the server.
5. Disconnect all peripheral devices attached to the server.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide 2-1
Installing the Hardware
Opening the Server
Before installing the Single Channel Ultra320 SCSI HBA G2, open the server and gain access
to the PCI/PCI-X bus expansion slots. For instructions on opening the server and accessing
the PCI/PCI-X slots, refer to the documentation that came with the server.
After the PCI/PCI-X slots have been accessed, proceed to the next section, “Installing the
Single Channel Ultra320 SCSI HBA G2.”
Installing the Single Channel Ultra320 SCSI HBA G2
Use the following general guidelines to install the Single Channel Ultra320 SCSI HBA G2 in
a server.
WARNING: To reduce the risk of personal injury from hot surfaces, allow the internal
system components to cool before touching.
CAUTION: Electrostatic discharge (ESD) can damage electronic components. Be sure the
user is properly grounded before beginning this procedure. Refer to Appendix B for ESD
information.
1. Locate the PCI/PCI-X bus expansion slots. Refer to the documentation that came with the
server for the specific location of these slots.
2. Depending on the server model, remove the retaining screw or open the expansion slot
latches that secure the PCI/PCI-X slots.
3. Remove the slot cover from the PCI/PCI-X slot. Save the protective cover to use if the
slot becomes empty.
4. Install the adapter into the PCI/PCI-X slot, and press it firmly into place. The contacts on
the adapter edge should be fully seated in the system board connector.
5. Depending on the server model, secure the adapter by replacing the retaining screw or by
closing the slot latch.
To connect the adapter to other devices, proceed to the next section, “Cabling the Single
Channel Ultra320 SCSI HBA G2.”
Cabling the Single Channel Ultra320 SCSI HBA G2
The Single Channel Ultra320 SCSI HBA G2 can be connected to external SCSI devices or to
internal SCSI devices (located in the server). The following sections provide cabling
information for both external and internal connections.
IMPORTANT: All SCSI devices (except CD-ROM drives) that are on the same SCSI bus must be
either internal to the server or in an external storage system, but not both. When using both internal and
external SCSI devices, connect each type to a separate port.
2-2 HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
External SCSI Connections
To connect the Single Channel Ultra320 SCSI HBA G2 to SCSI devices located outside the
server, you need one external SCSI cable for each channel to which it is connected.
Figure 2-1: External SCSI cabling on an HP server
Item Description
Installing the Hardware
1 VHDCI-VHDCI cable
2 External VHDCI-to-narrow SCSI cable
3 External VHDCI-to-Wide SCSI cable
To connect to an Ultra320 or an Ultra160 SCSI peripheral, use a VHDCI-VHDCI cable. To
connect to a Fast SCSI-2 peripheral, use an external VHDCI-to-narrow SCSI cable. To
connect to a Fast Wide SCSI-2 or Wide Ultra SCSI-3 peripheral, use an external
VHDCI-to-Wide SCSI cable.
If these cables are not furnished with the HP external SCSI device, you might be able to
obtain them from an authorized HP reseller. Refer to “SCSI Cables” in Chapter 1 for more
information.
To attach the cable:
1. Attach the appropriate end of the cable to the external peripheral according to the
instructions that came with the device. Be sure to secure the thumbscrews.
2. Attach the VHDCI end of the cable to the adapter and secure the thumbscrews.
After the cabling is complete, proceed to “Completing the Installation” in this chapter.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide 2-3
Installing the Hardware
Internal SCSI Connections
Use the information in this section to connect the Single Channel Ultra320 SCSI HBA G2 to
internal SCSI devices. The most common cabling scenarios include:
• Placing hard drives or other devices on a separate SCSI bus
• Replacing the integrated SCSI controller with Single Channel Ultra320 SCSI HBA G2
• Connecting additional internal SCSI devices
CAUTION: If the server has an integrated Ultra320 SCSI controller, the controller must be
terminated at all times to prevent boot error messages.
IMPORTANT: To run in LVD mode (Ultra320 or Ultra160), all components, including the ribbon cable,
must be LVD capable.
Replacing the Integrated SCSI Controller
Use the following guidelines to replace the integrated SCSI controller with the Single
Channel Ultra320 SCSI HBA G2:
1. Unplug the original SCSI cable from the system board.
2. Plug the SCSI cable into the appropriate connector on the Single Channel Ultra320 SCSI
HBA G2.
IMPORTANT: Do not connect SCSI cables to both internal and external connectors from the same
port. If both SE and LVD devices are in the server, use a separate port for each.
For more information on connecting cables, refer to “Cabling the Single Channel
Ultra320 SCSI HBA G2” in this chapter.
3. Depending on the server model, the cable might need to be secured by clipping it to
another component in the server. Refer to the system documentation for specific
instructions on internal cabling.
The Single Channel Ultra320 SCSI HBA G2 now supports the internal SCSI devices. The
integrated controller on the system board can be used to support other SCSI devices. If the
integrated controller is not being used to support other SCSI devices, it must be terminated.
Proceed to “Completing the Installation” in this chapter.
2-4 HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
Connecting Additional Internal SCSI Devices
Use the following guidelines to connect new SCSI devices to the Single Channel Ultra320
SCSI HBA G2. To perform this procedure, an additional SCSI cable is needed for each type
of device that is connecting to the Single Channel Ultra320 SCSI HBA G2.
1. Install the additional SCSI devices in the server. Refer to the documentation provided
with the system for specific installation instructions.
2. Plug the new cables into the appropriate connectors on the Single Channel Ultra320 SCSI
HBA G2.
3. Route the cables according to the instructions in your server documentation.
4. Attach the cables to the new SCSI devices. Proceed to “Completing the Installation” in
this chapter.
Completing the Installation
After all cabling and connections have been completed, reassemble the server by following
these guidelines:
1. Be sure all cables are routed correctly and are not restricting or being pinched by other
components. Refer to the server documentation for proper routing of the cables for the
server model.
Installing the Hardware
2. Reconnect any peripheral devices to the server.
3. Plug the AC power cord into the server, then into a grounded AC outlet.
4. Turn on any peripheral devices attached to the server.
5. Turn on the server.
Updating the Firmware and Installing the Drivers
Software drivers must be installed in the server to enable communication between the
processor and the new Single Channel Ultra320 SCSI HBA G2. Some HP servers also require
updated system ROM firmware before they can take advantage of the new features of Single
Channel Ultra320 SCSI HBA G2. HP recommends running the System ROMPaq Utility to be
sure your server has the latest ROM version. For more information, refer to “Upgrading the
System ROM” in Chapter 3.
Proceed to Chapter 3, “Installing the Firmware and Software,” to install the necessary drivers
for the operating system and model.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide 2-5
3
Installing the Firmware and Software
After the HP Single Channel Ultra320 SCSI HBA G2 has been installed in the server,
complete the installation by upgrading the system ROM (if necessary) and installing the new
drivers for the operating system. Follow the procedures outlined in the Support Software
documentation included in the kit.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide 3-1
Regulatory Compliance Notices
Regulatory Model Number
For the purpose of regulatory compliance certifications and identification, this product has
been assigned a unique regulatory model number. The regulatory model number can be found
on the product nameplate label, along with all required approval markings and information.
When requesting compliance information for this product, always refer to this regulatory
model number. The regulatory model number is not the marketing name or model number of
the product.
Federal Communications Commission Notice
Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has
established Radio Frequency (RF) emission limits to provide an interference-free radio
frequency spectrum. Many electronic devices, including computers, generate RF energy
incidental to their intended function and are, therefore, covered by these rules. These rules
place computers and related peripheral devices into two classes, A and B, depending upon
their intended installation. Class A devices are those that may reasonably be expected to be
installed in a business or commercial environment. Class B devices are those that may
reasonably be expected to be installed in a residential environment (for example, personal
computers). The FCC requires devices in both classes to bear a label indicating the
interference potential of the device as well as additional operating instructions for the user.
A
The FCC rating label on the device shows the classification (A or B) of the equipment.
Class B devices have an FCC logo or FCC ID on the label. Class A devices do not have an
FCC logo or FCC ID on the label. After the Class of the device is determined, refer to the
corresponding statement in the following sections.
Class A Equipment
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the interference at
personal expense.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide A-1
Regulatory Compliance Notices
Class B Equipment
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit that is different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio or television technician for help.
Declaration of Conformity for Products Marked with the FCC Logo, United States Only
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
For questions regarding your product, contact us by mail or telephone:
• Hewlett-Packard Company
• 1-800-652-6672 (For continuous quality improvement, calls may be recorded or
For questions regarding this FCC declaration, contact us by mail or telephone:
• Hewlett-Packard Company
• 1-281-514-3333
To identify this product, refer to the part, series, or model number found on the product.
Modifications
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
monitored.)
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
The FCC requires the user to be notified that any changes or modifications made to this
device that are not expressly approved by Hewlett-Packard Company may void the user’s
authority to operate the equipment.
A-2 HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI
connector hoods in order to maintain compliance with FCC Rules and Regulations.
Canadian Notice (Avis Canadien)
Class A Equipment
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Class B Equipment
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations
Regulatory Compliance Notices
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
European Union Regulatory Notice
This product complies with the following EU Directives:
• Low Voltage Directive 73/23/EEC
• EMC Directive 89/336/EEC
CE Compliance of this product is valid only if powered with the correct HP-provided and CE
marked AC adapter.
If this product has telecommunication functionality, it also complies with the essential
requirements of:
• R&TTE Directive 1999/5/EC
*For a notified body number refer to the product regulatory label.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide A-3
Regulatory Compliance Notices
Compliance with these directives implies conformity to harmonized European standards
(European Norms), which are listed on the EU Declaration of Conformity issued by
Hewlett-Packard for this product or product family.
The telecommunications functionality of this product may be used in the following EU and
EFTA countries:
Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg,
Malta, Netherlands, Norway, Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden,
Switzerland, and United Kingdom.
Notice for Use in France and Italy
Italy:
E'necessaria una concessione ministeriale anche per l'uso del prodotto. Verifici per favore con
il proprio distributore o direttamente presso la Direzione Generale Pianificazione e Gestione
Frequenze.
License required for use. Verify with your dealer or directly with General Direction for
Frequency Planning and Management (Direzione Generale Pianificazione e Gestione
Frequenze).
France:
L'utilisation de cet equipement (2.4GHz Wireless LAN) est soumise a certaines restrictions:
Cet equipement peut etre utilise a l'interieur d'un batiment en utilisant toutes les frequences de
2400 a 2483.5MHz (Chaine 1-13). Pour une utilisation en environement exterieur, vous devez
utiliser les frequences comprises entre 2454-2483.5MHz (Chaine 10-13). Pour les dernieres
restrictions, voir http://www.art-telecom.fr.
For 2.4 GHz Wireless LAN operation of this product certain restrictions apply: This product
may be used indoor for the entire 2400-2483.5 MHz frequency band (channels 1-13). For
outdoor use, only 2454-2483.5 MHz frequency band (channels 10-13) may be used. For the
latest requirements, see http://www.art-telecom.fr.
A-4 HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
Notice for products incorporating 5GHz Wireless LAN devices
Frequency availability for 802.11a or 802.11h Wireless LAN is not currently harmonized
throughout the European Union. For compliance requirements, users should verify with their
supplier, local HP office or Telecommunications authority.
Japanese Notice
Regulatory Compliance Notices
Korean Notice
Class A Equipment
Class B Equipment
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide A-5
Regulatory Compliance Notices
BSMI Notice
A-6 HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
B
Electrostatic Discharge
To prevent damaging the system, be aware of the precautions you must follow when setting
up the system or handling parts. A discharge of static electricity from a finger or other
conductor can damage system boards or other static-sensitive devices. This type of damage
can reduce the life expectancy of the device.
To prevent electrostatic damage, observe the following precautions:
• Avoid hand contact by transporting and storing products in static-safe containers.
• Keep electrostatic-sensitive parts in their containers until they arrive at static-free
workstations.
• Place parts on a grounded surface before removing them from their containers.
• Avoid touching pins, leads, or circuitry.
• Be sure you are properly grounded when touching a static-sensitive component or
assembly.
Grounding Methods
There are several methods for grounding. Use one or more of the following methods when
handling or installing electrostatic-sensitive parts:
• Use a wrist strap connected by a ground cord to a grounded workstation or computer
chassis. Wrist straps are flexible straps with a minimum of 1 megohm ± 10 percent
resistance in the ground cords. To provide proper ground, wear the strap snug against the
skin.
• Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on
both feet when standing on conductive floors or dissipating floor mats.
• Use conductive field service tools.
• Use a portable field service kit with a folding static-dissipating work mat.
If you do not have any of the suggested equipment for proper grounding, have an authorized
HP reseller install the part.
IMPORTANT: For more information on static electricity, or assistance with product installation, contact
your authorized HP reseller.
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide B-1
6
68-pin to 50-pin SCSI adapter 1-5
A
adapter
replacing Integrated SCSI controller 2-4
SCSI IDs 1-3
attaching cables 2-3
authorized reseller vii
automatic detection 1-1
Index
connections
additional internal SCSI devices 2-5
external SCSI 2-3
internal SCSI 2-4
connectors
external 1-1, 1-5
internal 1-1, 1-5
port assignments 1-3
SCSI 1-3
SCSI cable 1-5
VHDCI 1-1, 1-5
D
B
boot error messages 1-4
bus priority, SCSI IDs 1-3
C
cables
attaching 2-3
characteristics 1-5
external option kit part numbers 1-5
FCC compliance statement A-3
flat ribbon 1-5
identifying 1-5
ordering 1-5
SCSI connectors, illustrated 1-6
terminating 1-4
cabling
external connections 2-3
HP Single Channel Ultra320 SCSI Host Bus
Adapter G2 2-2
internal connections 2-4
caution, boot error messages 1-4
channel A 1-3
channel B 1-3
compatability, PCI/PCI-X 1-2
compliance
HP Single Channel Ultra320 SCSI Host Bus
Adapter G2 1-2
PCI/PCI-X 1-2
data transfer rates 1-1
Declaration of Conformity A-2
devices
HVD (high-voltage differential) devices 1-1
maximum performance 1-3
multimode LVD (low-voltage differential) 1-1
drivers, installing 2-5
E
electrostatic discharge (ESD) B-1
external
cable option kit part numbers 1-5
SCSI connections 2-3
VHDCI connectors 1-1, 1-5
F
FCC notices
Class A Equipment A-1
Class B Equipment A-2
classification label A-1
Declaration of Conformity A-2
device modifications A-2
Federal Communications Commission notices See
FCC notices
firmware
installing 3-1
updating 2-5
flat ribbon cable 1-5
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide Index-1
Index
G
grounding methods B-1
H
hardware
cabling 2-2
completing the installation 2-5
installing 2-1
preparing the server 2-1
hot-plug drives 1-4
HP Single Channel Ultra320 SCSI Host Bus Adapter
G2
cabling 2-2
compliance 1-2
data transfer rates 1-1
features 1-1
support 1-2
HP website vii
HVD (high-voltage differential) devices 1-1
I
installing
drivers 2-5
firmware and software 3-1
hardware 2-1
multiple adapters 1-4
Integrated SCSI controller, replacing 2-4
internal
SCSI connections 2-4
SCSI connectors 1-1, 1-5
internal SCSI devices, connecting additional 2-5
M
multimode LVD (low-voltage differential)
devices 1-1
multiple adapters, installing 1-4
R
rates, data transfer 1-1
read and write commands 1-2
regulatory compliance notices
BSMI A-6
cables A-3
Canadian A-3
Class A equipment A-1
Class B equipment A-2
device modifications A-2
Japanese A-5
regulatory model number A-1
replacing the integrated SCSI controller 2-4
S
screwlocks, SCSI cable 1-3
SCSI cable
connectors, illustrated 1-6
screwlocks 1-3
SCSI channels, defined 1-1
SCSI connectors
external, defined 1-1
illustrated 1-3
internal, defined 1-1
SCSI data path, defined 1-1
SCSI data transfer rates, defined 1-1
SCSI devices
cables 1-5
connectors 1-3
tagged command queuing 1-2
terminating 1-4
servers, opening 2-2
single-ended (SE) devices 1-1
software, installing 3-1
support, HP Single Channel Ultra320 SCSI Host Bus
Adapter G2 1-2
symbols in text vi
O
opening the server 2-2
ordering cables 1-5
T
tagged command queuing 1-2
technical support vii
telephone numbers vii
terminating, SCSI devices 1-4
P
PCI enhanced memory data 1-2
PCI/PCI-X, features 1-2
peripherals, SCSI IDs 1-3
port assignments
defined 1-3
illustrated 1-3
preparing the server 2-1
Index-2 HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide
U
Ultra SCSI devices, automatic detection 1-1
updating, firmware 2-5
Index
V
VHDCI connectors 1-1, 1-5
W
websites vii
HP Single Channel Ultra320 SCSI Host Bus Adapter G2 User Guide Index-3
Loading...
