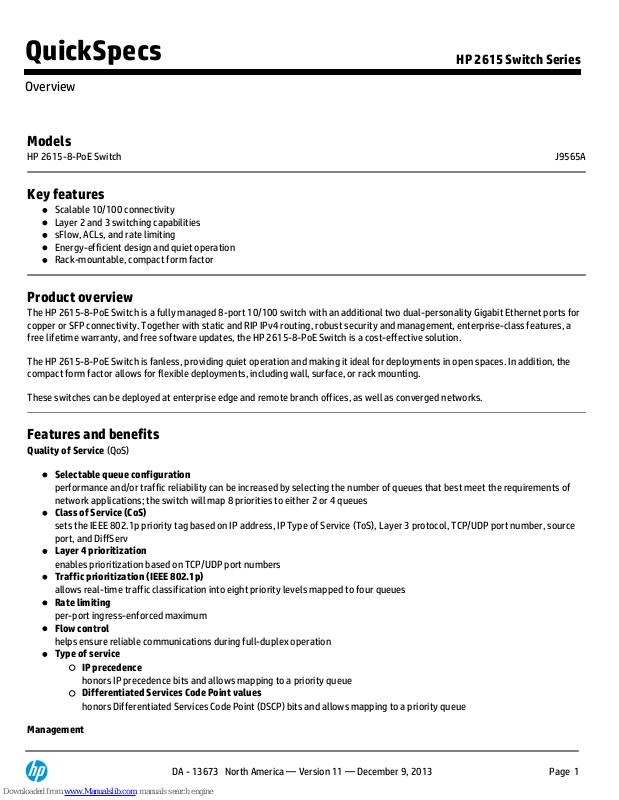

HP 2615, 2615-8-PoE, J9565A Specifications
Models
HP 2615-8-PoE Switch
J9565A
Key features
Scalable 10/100 connectivity
Layer 2 and 3 switching capabilities
sFlow, ACLs, and rate limiting
Energy-efficient design and quiet operation
Rack-mountable, compact form factor
Product overview
The HP 2615-8-PoE Switch is a fully managed 8-port 10/100 switch with an additional two dual-personality Gigabit Ethernet ports for
copper or SFP connectivity. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, a
free lifetime warranty, and free software updates, the HP 2615-8-PoE Switch is a cost-effective solution.
The HP 2615-8-PoE Switch is fanless, providing quiet operation and making it ideal for deployments in open spaces. In addition, the
compact form factor allows for flexible deployments, including wall, surface, or rack mounting.
These switches can be deployed at enterprise edge and remote branch offices, as well as converged networks.
Features and benefits
Quality of Service
(QoS)
Selectable queue configuration
performance and/or traffic reliability can be increased by selecting the number of queues that best meet the requirements of
network applications; the switch will map 8 priorities to either 2 or 4 queues
Class of Service (CoS)
sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source
port, and DiffServ
Layer 4 prioritization
enables prioritization based on TCP/UDP port numbers
Traffic prioritization (IEEE 802.1p)
allows real-time traffic classification into eight priority levels mapped to four queues
Rate limiting
per-port ingress-enforced maximum
Flow control
helps ensure reliable communications during full-duplex operation
Type of service
IP precedence
honors IP precedence bits and allows mapping to a priority queue
Differentiated Services Code Point values
honors Differentiated Services Code Point (DSCP) bits and allows mapping to a priority queue
Management
QuickSpecs
HP 2615 Switch Series
Overview
DA - 13673 North America — Version 11 — December 9, 2013
Page 1
Choice of management interfaces
Web graphical user interface (GUI)
easy-to-use graphical interface allows configuration of the switch from any Web browser
Command-line interface (CLI)
robust command-line interface provides advanced configuration and diagnostics
Simple Network Management Protocol (SNMPv2c/SNMPv3)
allows switch to be managed with a variety of third-party network management applications
Multiple configuration files
configuration file management tools allow up to three configuration files to be managed and stored on the switch
Dual flash images
provide independent primary and secondary operating system files for backup while upgrading
Dual flash images
provide independent primary and secondary operating system files for backup while upgrading
Command authorization
leverages RADIUS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit
trail
Front-panel LEDs
Locator LED
allows users to set the locator LED on a specific switch to either turn on, blink, or turn off; simplifies troubleshooting by
making it easy to locate a particular switch within a rack of similar switches
Per-port LEDs
provides an at-a-glance view of status, activity, speed, and full-duplex operation
provides an at-a-glance view of status, activity, speed, and full-duplex operation
power LED and fault LEDs display any issues
Connectivity
Dual-personality functionality
two 10/100/1000 ports or SFP slots provide optional fiber connectivity such as Gigabit-SX, -LX, -LH, 100-FX, 100-BX, and 1000BX
IEEE 802.3af Power over Ethernet
provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and
security cameras (see product specifications for total PoE power available)
Auto-MDIX
automatically adjusts for straight-through or crossover cables on all 10/100 ports
RJ-45 serial console port
provides easy accessibility on front of the unit to the switch CLI
IPv6
IPv6 host
the switches can be managed and deployed at the edge of IPv6 networks
Dual stack (IPv4/IPv6)
provides transition mechanism from IPv4 to IPv6; supports connectivity for both protocols
Single IP address management
single IP address management for a virtual stack of up to 16 switch
Resiliency and high availability
IEEE 802.1s Multiple Spanning Tree
provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for
IEEE 802.1d and IEEE 802.1w
QuickSpecs
HP 2615 Switch Series
Overview
DA - 13673 North America — Version 11 — December 9, 2013
Page 2
Port trunking and link aggregation
Trunking
supports up to eight links per trunk to increase bandwidth and create redundant connections
IEEE 802.3ad Link Aggregation Protocol (LACP)
eases configuration of trunks through automatic configuration
SmartLink
provides easy-to-configure link redundancy of active and standby links
Layer 2 switching
GARP VLAN Registration Protocol
allows automatic learning and dynamic assignment of VLANs
VLAN support and tagging
supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
Per-VLAN Spanning Tree Plus (PVST+)
allows each VLAN to build a separate spanning tree to improve link bandwidth usage in network environments with multiple
VLANs
Layer 3 routing
Static IP routing
provides manually configured routing; includes ECMP capability
Routing Information Protocol (RIP)
provides RIPv1 and RIPv2 routi
Security
Access control lists (ACLs)
provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number
Identity-driven ACL
enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each
authenticated network user
Source-port filtering
allows only specified ports to communicate with each other
RADIUS/TACACS+
eases switch management security administration by using a password authentication server
Secure protocols for encryption of management traffic
Secure Shell (SSHv2)
encrypts all transmitted data for secure, remote CLI access over IP networks
Secure Sockets Layer (SSL)
encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
Secure FTP (SFTP)
encrypts uploads and downloads of configuration file
Port security
allows access only to specified MAC addresses, which can be learned or specified by the administrator
Dynamic IP lockdown
works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing
DHCP protection
blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
Dynamic ARP protection
QuickSpecs
HP 2615 Switch Series
Overview
DA - 13673 North America — Version 11 — December 9, 2013
Page 3
blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
MAC address lockout
prevents configured particular MAC addresses from connecting to the network
MAC address lockdown
allows only specified MAC addresses access to the network on a specified port
Multiple user authentication methods
IEEE 802.1X
uses an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server to authenticate in accordance with industry
standards
Web-based authentication
provides a browser-based environment, similar to IEEE 802.1X, to authenticate clients that do not support the IEEE 802.1X
supplicant
MAC-based authentication
authenticates the client with the RADIUS server based on the client's MAC address
Authentication flexibility—2 IEEE 802.1X
provides authentication of multiple IEEE 802.1X users per port; prevents user "piggybacking" on another user's IEEE 802.1X
authentication
Protected ports
prevents designated ports from communicating with each other while allowing access to unprotected ports
Per-port broadcast throttling
selectively configures broadcast control on heavy traffic port uplinks
Physical security
Front-panel buttons
provides the ability to disable reset and clear buttons on front panel for added security
Kensington Lock slot
includes a Kensington Lock slot for securing the switches in open-space deployments
Spanning Tree Protocol Root Guard
when running the spanning tree protocol, protects root bridge from malicious attacks or configuration mistakes
STP BPDU port protection
blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
Convergence
IP multicast snooping and data-driven IGMP
automatically prevent flooding of IP multicast traffic
LLDP-MED (Media Endpoint Discovery)
defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure
network devices such as IP phones
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
facilitates easy mapping using network management applications with LLDP automated device discovery protocol
PoE allocations
supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more
efficient energy savings
Monitor and diagnostics
Port mirroring
enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
Network tools
command-line interface includes telnet client, ping, traceroute, and Layer 2 link test tools for diagnostics
QuickSpecs
HP 2615 Switch Series
Overview
DA - 13673 North America — Version 11 — December 9, 2013
Page 4
Logging
local and remote logging of events via SNMP (v2c and v3) and syslog
Troubleshooting
ingress and egress port monitoring enable network problem solving
Uni-Directional Link Detection (UDLD)
monitors a link between two switches and blocks the ports on both ends of the link if the link goes down at any point between
the two devices
Find-Fix-Inform
finds and fixes common network problems automatically, then informs the administrator
RMON, XRMON, sFlow, and SMON
provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
Flexibility
Flexible mounting
Rackable
can be mounted in a standard 19-inch rack with included hardware
Wall mountable
allows the switch to be mounted to a wall using included hardware
Surface mountable
allows the product to be mounted above or below a surface (such as a desk or table) with included hardware
Compact size
product is designed to reduce space requirements (see product specifications for exact dimensions)
Power supply clip
provides the ability to attach or detach the power supply to the device, allowing for either an integrated solution or a separate
one, depending on deployment requirements
Product Architecture
Energy-efficient design
:
Fans
fanless design helps reduce power consumption
Port LEDs
port link and activity LEDs can be turned off to conserve energy
Port low-power mode option
when no link is detected on a port, the port will automatically go into low-power mode to conserve energy
Warranty and support
Lifetime Warranty 2.0
advance hardware replacement for as long as you own the product with next-business-day delivery (available in most countries)†
Electronic and telephone support (for Lifetime Warranty 2.0)
limited 24x7 telephone support is available from HP for the first 3 years; limited electronic and business hours telephone
support is available from HP for the entire warranty period; to reach our support centers, refer to
www.hp.com/networking/contact-support
; for details on the duration of support provided with your product purchase, refer
to
www.hp.com/networking/warrantysummary
Software releases
to find software for your product, refer to
www.hp.com/networking/support
; for details on the software
releases available with your product purchase, refer to
www.hp.com/networking/warrantysummary
QuickSpecs
HP 2615 Switch Series
Overview
DA - 13673 North America — Version 11 — December 9, 2013
Page 5
†HP warranty includes repair or replacement of hardware for as long as you own the product, with next business day advance
replacement (available in most countries). The disk drive included with HP AllianceOne Advanced Services and Services zl Modules, HP
Threat Management Services zl Module, HP AllianceOne Extended zl Module with Riverbed Steelhead, HP MSM765zl Mobility Controller
and HP Survivable Branch Communication zl Module powered by Microsoft Lync has a five-year hardware warranty. For details, refer to
the Software license and hardware warranty statements at:
www.hp.com/networking/warranty
.
QuickSpecs
HP 2615 Switch Series
Overview
DA - 13673 North America — Version 11 — December 9, 2013
Page 6
Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.
HP E2615-8-PoE Switch
J9565A
8 autosensing 10/100 ports
2 dual-personality ports RJ-45 10/100/1000 port ; or an SFP slot
1 - J9701A 1U - Height
See Configuration
Note:1, 2
Configuration Rules:
Note 1
The following Transceivers install into this switch:
HP X121 1G SFP LC SX Transceiver
J4858C
HP X121 1G SFP LC LX Transceiver
J4859C
HP X111 100M SFP LC FX Transceiver
J9054C
HP X112 100M SFP LC BX-D Transceiver
J9099B
HP X112 100M SFP LC BX-U Transceiver
J9100B
HP X121 1G SFP LC LH Transceiver
J4860C
HP X122 1G SFP LC BX-D Transceiver
J9142B
HP X122 1G SFP LC BX-U Transceiver
J9143A
HP X111 100M SFP LC FX Transceiver
J9054C
Note 2
Localization required. (See Localization Menu for list.)
Internal Power Supplies
No Power supplies
Transceivers
SFP Transceivers
HP X121 1G SFP LC SX Transceiver
J4858C
HP X121 1G SFP LC LX Transceiver
J4859C
HP X111 100M SFP LC FX Transceiver
J9054C
HP X121 1G SFP LC LH Transceiver
J4860C
HP X122 1G SFP LC BX-D Transceiver
J9142B
HP X122 1G SFP LC BX-U Transceiver
J9143B
QuickSpecs
HP 2615 Switch Series
Configuration
DA - 13673 North America — Version 11 — December 9, 2013
Page 7
HP X112 100M SFP LC BX-D Transceiver
J9099B
HP X112 100M SFP LC BX-U Transceiver
J9100B
Cables
Multi-Mode Cables
HP .5m Multi-mode OM3 LC/LC FC Cable
AJ833A
HP 1m Multi-mode OM3 LC/LC FC Cable
AJ834A
HP 2 m Multimode OM3 LC/LC FC Cable
AJ835A
HP 5 m Multimode OM3 LC/LC FC Cable
AJ836A
HP 15 m Multimode OM3 LC/LC FC Cable
AJ837A
HP 30 m Multimode OM3 LC/LC FC Cable
AJ838A
HP 50 m Multimode OM3 LC/LC FC Cable
AJ839A
OM4 Cables
HP Premier Flex LC/LC OM4 2f 1m Cbl
QK732A
HP Premier Flex LC/LC OM4 2f 2m Cbl
QK733A
HP Premier Flex LC/LC OM4 2f 5m Cbl
QK734A
HP Premier Flex LC/LC OM4 2f 15m Cbl
QK735A
HP Premier Flex LC/LC OM4 2f 30m Cbl
QK736A
HP Premier Flex LC/LC OM4 2f 50m Cbl
QK737A
Switch Enclosure Options
Rack Mount Kit
HP X410 1U Univ 4-post Rack Mnt Kit
J9583A
See Configuration
Note:1
HP X410 1U Integ Univ 4-post Rck Mnt Kit
J9583AZ
QuickSpecs
HP 2615 Switch Series
Configuration
DA - 13673 North America — Version 11 — December 9, 2013
Page 8
Loading...
