HP 2610 User Manual

ProCurve 2610 Switches

Installation and Getting Started Guide

Power over Ethernet

HP ProCurve 2610 Switches

Installation and Getting Started Guide

Publication Number

5991-8573 July 2009

Applicable Products

HP ProCurve Switch 2610-24 (J9085A) HP ProCurve Switch 2610-24/12PWR (J9086A) HP ProCurve Switch 2610-24-PWR (J9087A) HP ProCurve Switch 2610-48 (J9088A) HP ProCurve Switch 2610-48-PWR (J9089A) HP ProCurve 600 Redundant and External

Power Supply HP ProCurve 610 External Power Supply (J8169A)

(J8168A)

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

Warra nt y

See the Customer Support/Warranty booklet included with the product.

A copy of the specific warranty terms applicable to your Hewlett-Packard products and replacement parts can be obtained from your HP Sales and Service Office or authorized dealer.

Hewlett-Packard Company 8000 Foothills Boulevard, m/s 5552 Roseville, California 95747-5552

www.procurve.com

Safety

Before installing and operating these products, please read the “Installation Precautions” in chapter 2, “Installing the 2610 Switches”, and the safety statements in appendix C, “Safety and EMC Regulatory Statements”.

Contents

1 Introducing the Switch

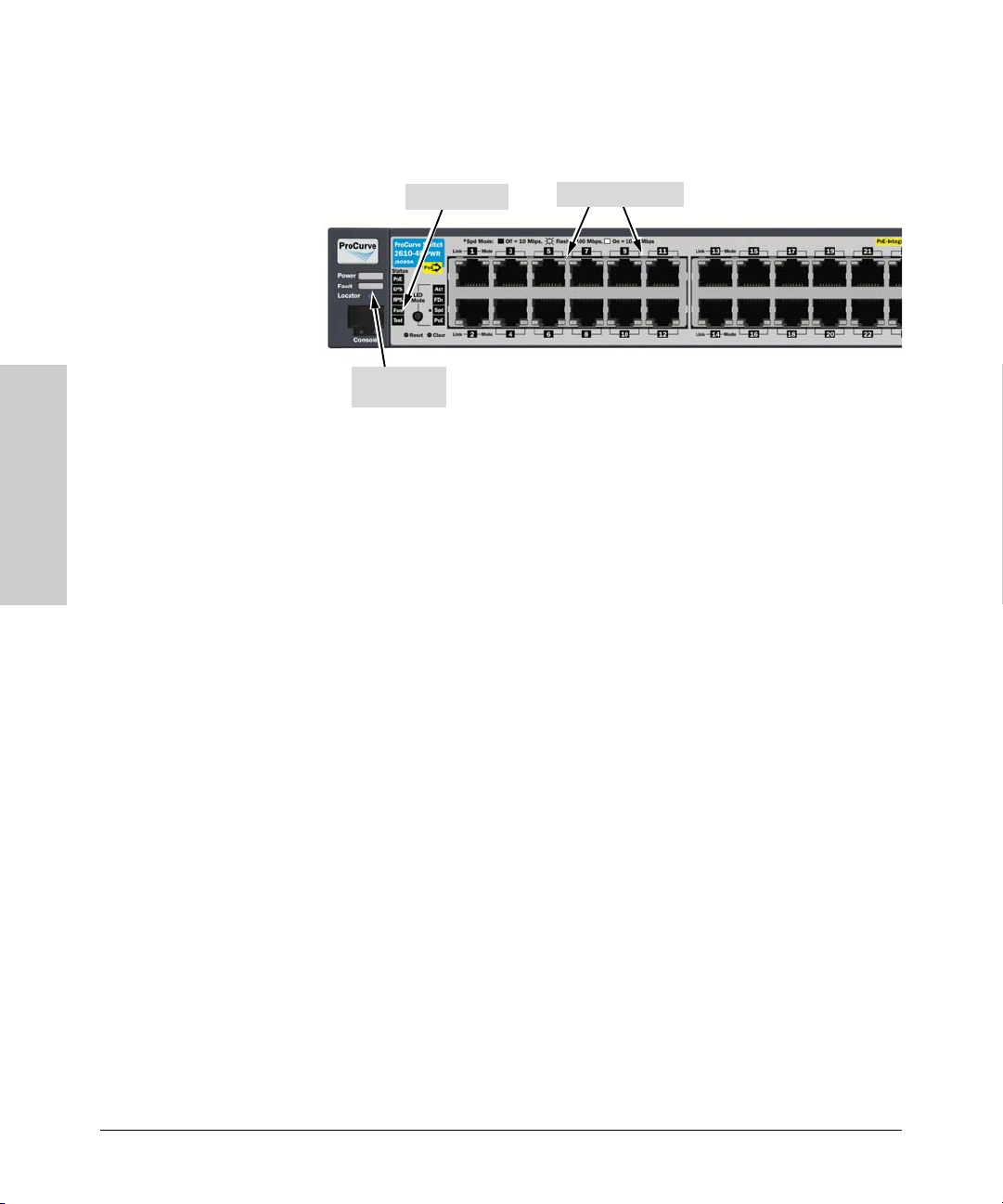

Front of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Port LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . 1-9

Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Back of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

RPS and EPS Input Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

2 Installing the Switch

Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

LED Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

3. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

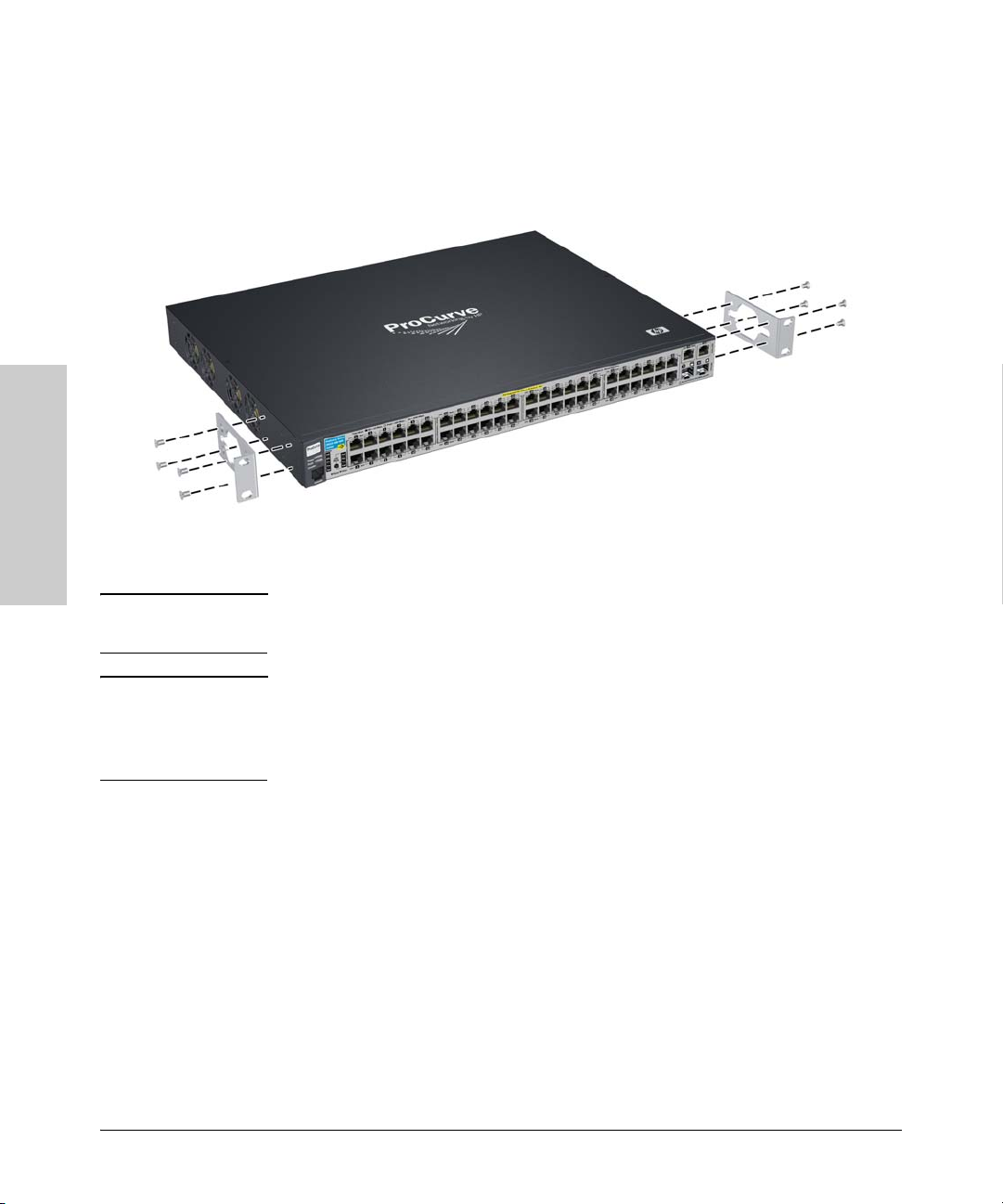

Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Rack Mounting the 2610-PWR switches . . . . . . . . . . . . . . . . . . . . 2-10

Rack Mounting the Non-PWR Switches . . . . . . . . . . . . . . . . . . . . 2-12

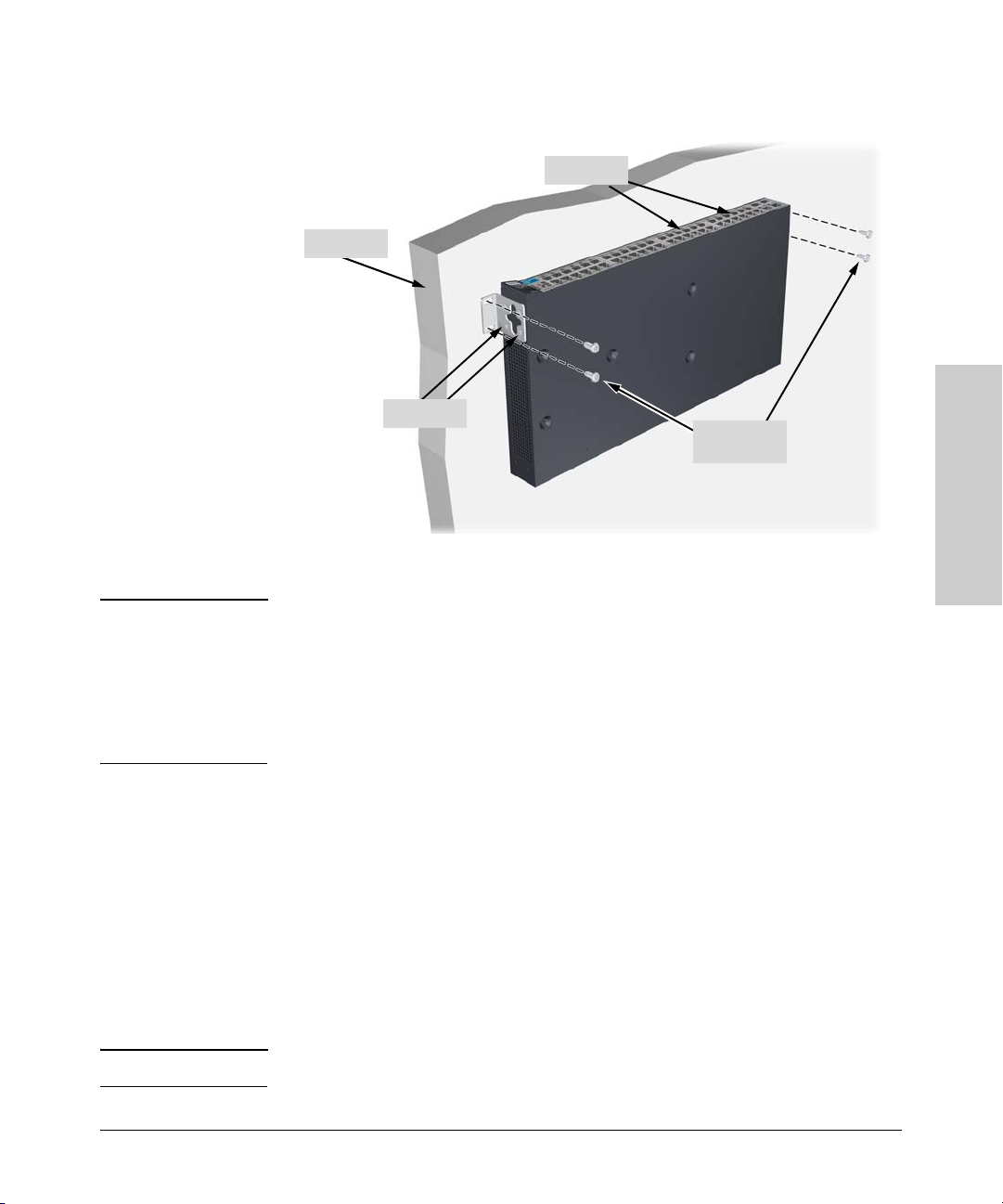

Flat Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Wall mounting Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Horizontal Surface Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

4. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-16

5. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

iii

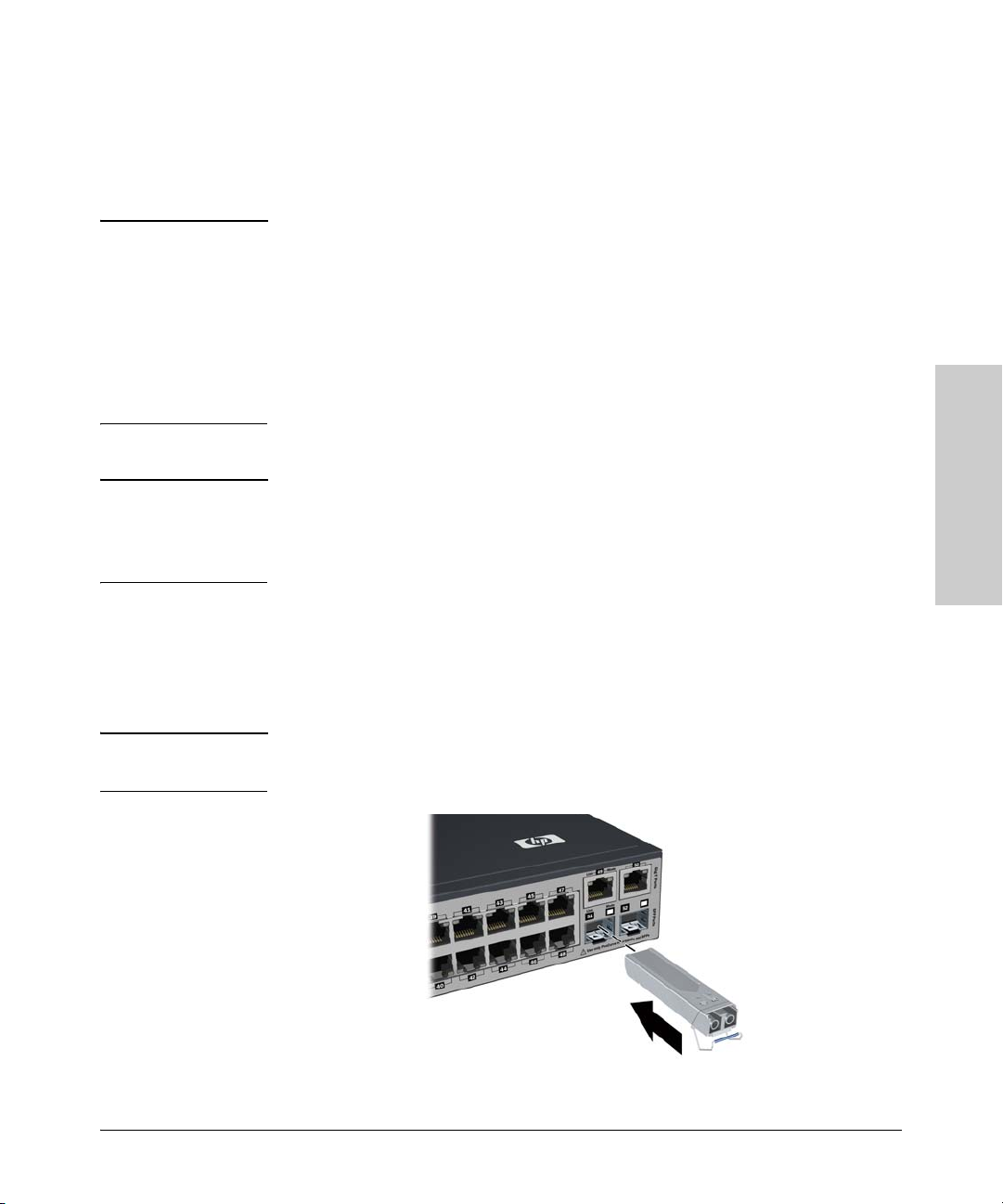

6. Installing or Removing mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Installing the mini-GBICs: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Removing the mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Connecting Cables to mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

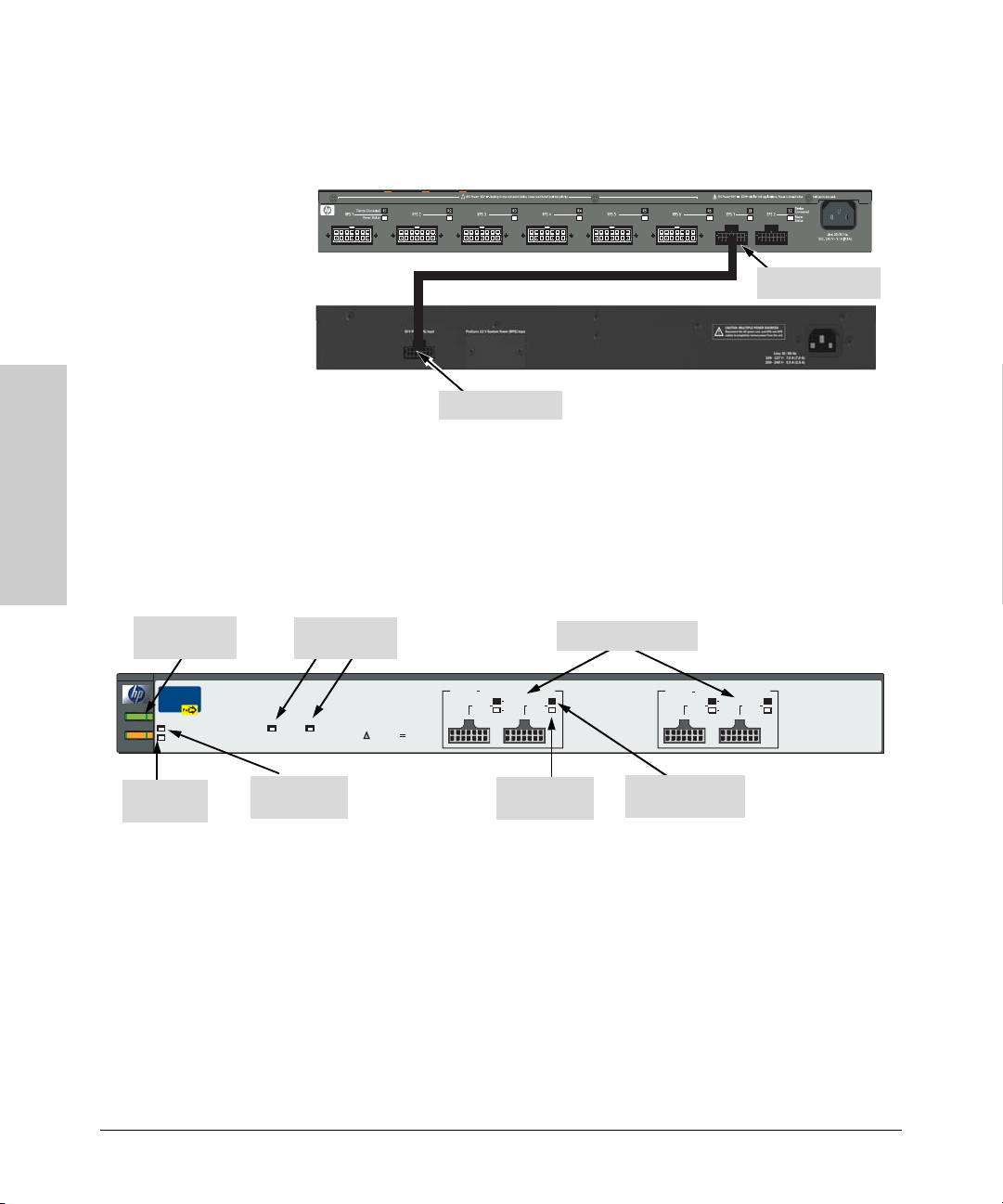

7. (Optional) Connect a Redundant Power Supply

to a Switch 2610-PWR Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

The 600 RPS/EPS provides two types of power to

the switches: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19

The 610 EPS only provides external PoE power: . . . . . . . . . . . . 2-19

RPS/EPS Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Operating Characteristics of the 600 RPS/EPS (J8168A) . . . . . . 2-20

Operating Characteristics of the 610 EPS (J8169A) . . . . . . . . . . 2-21

600 RPS/EPS LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

610 EPS LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24

8. (Optional) Connect a Console to the Switch . . . . . . . . . . . . . . . . . . 2-26

Terminal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26

Direct Console Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27

Sample Network Topologies for

Non-PWR Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28

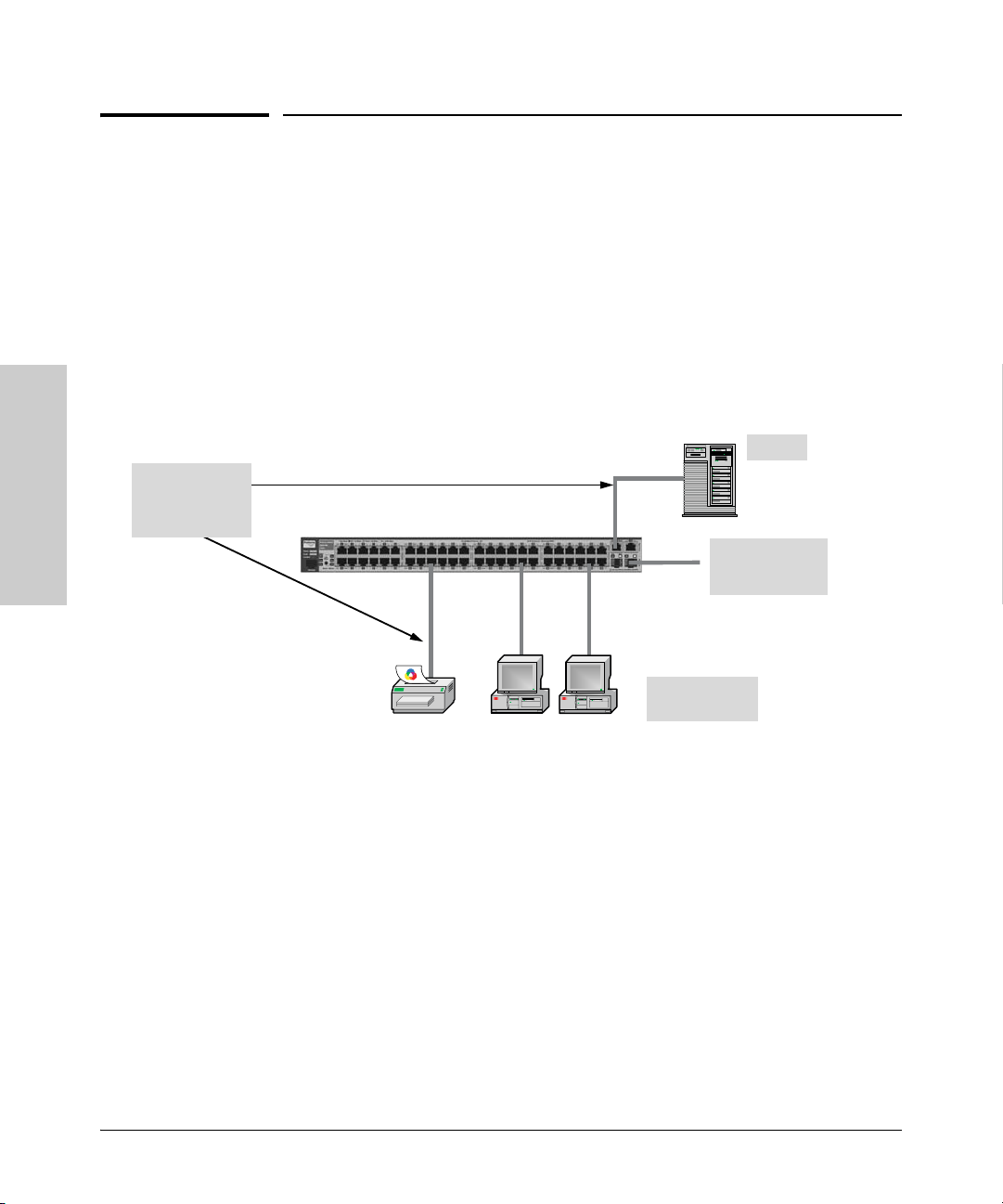

As a Desktop Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-28

As a Segment Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29

Connecting to a Backbone Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-30

Sample Network Topologies for PWR Switches . . . . . . . . . . . . . . . . . . . . 2-32

As a Desktop Switch Implementing PoE . . . . . . . . . . . . . . . . . . . . . . . 2-32

As a Segment Switch Implementing PoE . . . . . . . . . . . . . . . . . . . . . . . 2-33

Stacking the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-35

3 Configuring the Switch

Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Using the Console Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Where to Go From Here . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Using the IP Address for Remote Switch Management . . . . . . . . . . . . . . . . 3-5

Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

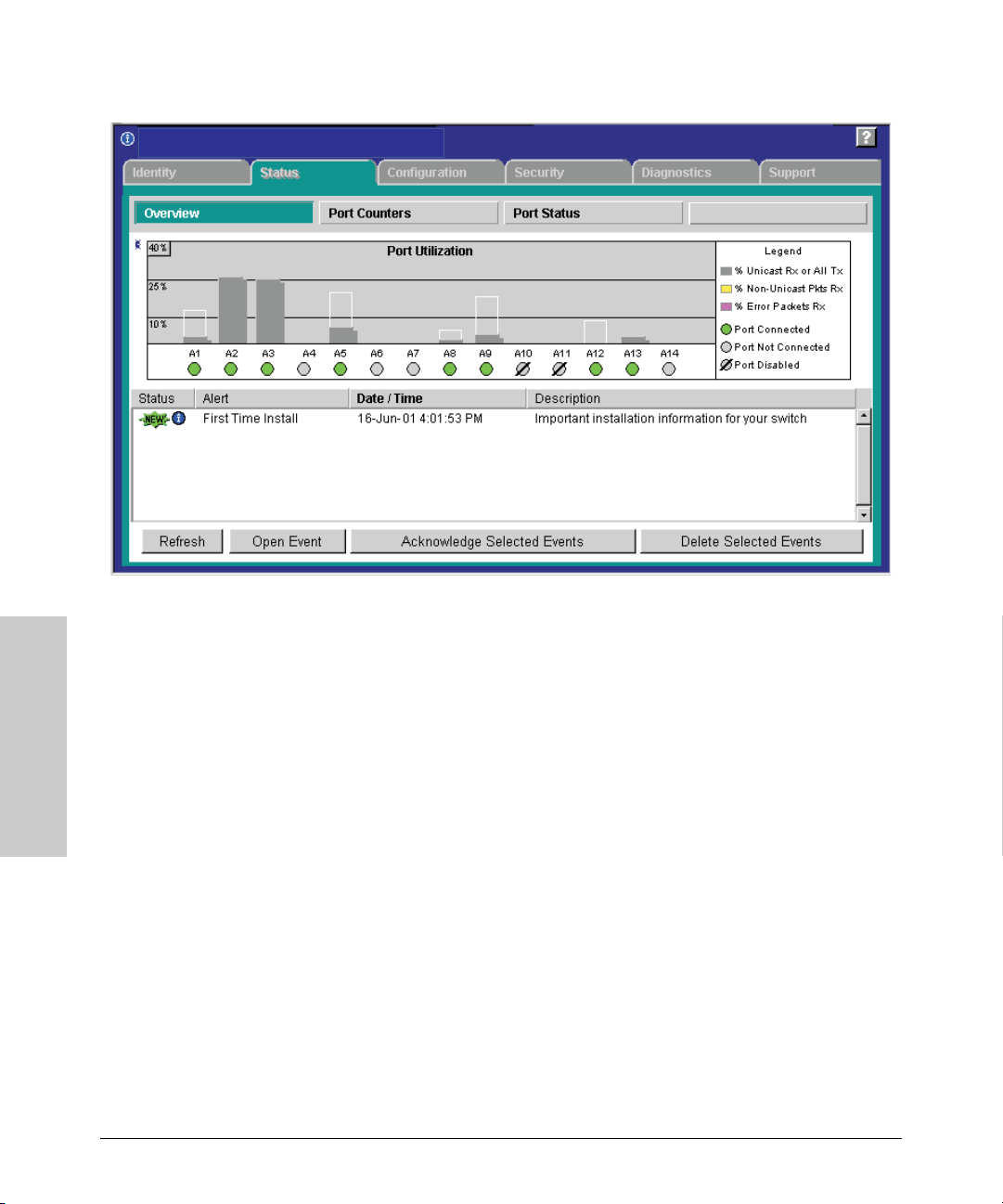

Starting a Web Browser Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

4 Troubleshooting

Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

LED patterns for General Switch Troubleshooting . . . . . . . . . . . . . . . 4-4

LED Patterns for PoE Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Checking the Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Checking Console Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Testing Switch-to-Device Network Communications . . . . . . . . . . . . 4-11

Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . 4-11

Restoring the Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . 4-12

Downloading New Switch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

A Switch Specifications

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

RPS/EPS Electrical Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

BTU Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Acoustics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

RPS/EPS Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Cable Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

B Cabling and Technology Information

Cabling specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Technology distance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Mode Conditioning Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Straight-through Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . B-6

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6

Crossover Twisted-Pair Cable for

10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . . B-7

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

Straight-Through Twisted-Pair Cable for

1000 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

C Safety and EMC Regulatory Statements

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Informations concernant la sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2

Hinweise zur Sicherheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Considerazioni sulla sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4

Consideraciones sobre seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5

Safety Information (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6

Safety Information (China) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7

EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8

Korea . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9

Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9

European Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-10

D Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements . . . . . . D-1

Index

vii

Introducing the Switch

The ProCurve 2610 Switches are multiport switches that can be used to build high-performance switched workgroup networks. These switches are storeand-forward devices that offer low latency for high-speed networking. The 2610-PWR Switches also support Redundant Power Supply and Power over Ethernet (PoE) technologies.

Introducing the Switch

HP ProCurve Switch 2610-24 (J9085A)

HP ProCurve Switch 2610-48 (J9088A)

HP ProCurve Switch 2610-24/12PWR (J9086A)

HP ProCurve Switch 2610-24-PWR (J9087A)

HP ProCurve Switch 2610-48-PWR (J9089A)

1-1

Introducing the Switch

Throughout this manual, these switches will be referred to as the 2610 Switches and the 2610-PWR Switches.

■ The 2610 Switches, has either 24 or 48 auto-sensing 10/100Base-TX RJ-45

ports with four Gigabit Uplink ports, two RJ-45 and two mini-GBIC (Small Form Factor Pluggable (SFP)) slots. For a list of supported mini-GBICs see page 2-17.

The RJ-45 Gigabit Uplink ports are auto-sensing 10/100/1000Base-T. These

Introducing the Switch

ports operate independently, they are not dual-personality.

Table 1-1. These products support optional network connectivity with the

following speeds and technologies:

Transceiver Form-

Factor and Connector

Speed Technology Cabling 1 SFP (“mini-GBIC”)

100 Mbps

1 Gbps

For supported transceivers, see www.hp.com/go/procurve/faqs. ProCurve Mini GBICs and SFPs have links to a list of supported products (first question in the “General product information” category).

For technical details of cabling and technologies see “Cabling and Technology Information” in the appendices.

100-FX Fiber (multimode) LC

100-BX Fiber (single mode) LC

1000-T Copper (twisted-pair) RJ-45

1000-SX Fiber (multimode) LC

1000-LX Fiber (multimode or

single mode)

1000-LH Fiber (single mode) LC

1000-BX Fiber (single mode) LC

Connector

The 2610-PWR Switches incorporate two additional features. These switches offer two types of power, one for switch AC operating power, and the other for Power over Ethernet (PoE) power:

■ Power-over-Ethernet or PoE power - PoE technology allows IP

telephones, wireless LAN Access Points and other appliances to receive power as well as data over existing LAN cabling, without needing to modify the existing Ethernet infrastructure. The 2610-PWR Switches are designed with an internal PoE power supply capable of providing 406 watts of PoE power (126 watts on the 2610-24/12PWR). All of the Switch 2610-PWR ports can provide up to 15.4 watts (or 7.5 watts if all 12 ports are used on the 2610-24/12PWR) of PoE power to connected devices.

1-2

Introducing the Switch

■ For further information regarding PoE power, see the PoE Planning and

Implementation Guide, which is on the ProCurve Web site at

www.hp.com/go/procurve/manuals, (See page 1-13).

■ Redundant and External Power Supply Support - The 2610-PWR

Switches can be connected to a ProCurve 600 Redundant and External Power Supply (J8168A), hereafter referred to as the 600 RPS/EPS or a ProCurve 610 External Power Supply, hereafter referred to as the 610 EPS, and receive redundant power from that unit. As an RPS unit, the 600 RPS/ EPS will provide all the AC power necessary to keep the switch running should the switch internal AC power supply fail.

As an EPS unit, the 600 RPS/EPS and the 610 EPS can supply up to 408 watts of PoE power to the switch if the internal PoE power supply of the switch should fail. When used with the Switch 2610-48-PWR, the additional EPS power can provide up to 15.4 watts per port for 48 ports. For further information regarding the 600 RPS/EPS or the 610 EPS PoE capabilities, see the PoE Planning and Implementation Guide, which is on the ProCurve Web site at www.hp.com/go/procurve/manuals, (See page

1-13).

These switches can be directly connected to computers, printers, and servers to provide dedicated bandwidth to those devices, and you can build a switched network infrastructure by connecting the switch to hubs, other switches, or routers. In addition, the 2610 Switches offer full network management capabilities.

Introducing the Switch

1-3

Introducing the Switch

Front of the Switch

Power

and Fault

LEDs

RPS, Fan and Test

Status LEDs

Switch port LEDs

ProCurve Switch 2610-48

Introducing the Switch

Console

Port

Power

and Fault

LEDs

Console

Port

Reset and Clear

buttons

RPS, EPS, Fan and

Test Status LEDs

Reset and Clear

buttons

LED Mode select button

and indicator LEDs

Switch port LEDs

LED Mode select button

and indicator LEDs

10/100Base-TX RJ-45 ports1

ProCurve Switch 2610-48-PWR

10/100Base-TX RJ-45 ports1

Uplink ports

(1000Base-T

Uplink ports

(1000Base-T

and mini-GBIC)

and Mini-GBIC)

Console

1-4

Power

and Fault

LEDs

Reset and Clear

Port

buttons

RPS and Test

Status LEDs

Switch port LEDs

LED Mode select button

and indicator LEDs

All 10/100Base-TX RJ-45 ports have the Auto-MDIX feature.

Two RJ-45 10/100/1000Base-T ports and two Mini-GBIC (SFP) slots.

10/100Base-TX RJ-45 ports1

ProCurve Switch 2610-24

Uplink ports

(1000Base-T

and Mini-GBIC)

Introducing the Switch

Front of the Switch

Network Ports

■ 24, or 48 auto-sensing 10/100Base-TX ports.

All these ports have the “Auto-MDIX” feature, which means that you can use either straight-through or crossover twisted-pair cables to connect any network devices to the switch.

■ Two RJ-45 10/100/1000Base-T ports for high speed uplink.

■ Two mini-GBIC (SPF) slots for fiber uplinks.

LEDs

On the 2610 Switches, there are three groupings of LEDs:

■ switch status LEDs (Table 1-2)

■ port LEDs (Table 1-3)

■ Port LED Mode indicator LEDs (near the selector button) (Table 1-4)

Table 1-2. Switch Status LEDs

Switch LEDs State Meaning

Power (green)

On The internal power supply is working properly.

Off No power connection. The switch is NOT receiving power.

Flashing2A failure of the internal power supply. It should be flashing simultaneously

with the Fault LED. (If an RPS is connected to the switch, the RPS is actively powering the switch, the RPS LED will be on.)

Introducing the Switch

Fault (orange)

Locator (blue)

Off The normal state; indicates there are no fault conditions on the switch.

Flashing

On On briefly after the switch is powered on or reset, at the beginning of

On Flashing Off

A fault has occurred with a component on the switch. The Status LED for the component with the fault will flash simultaneously.

switch self test. If this LED is on for a prolonged time, the switch has encountered a fatal hardware failure, or has failed its self test. See chapter 4, “Troubleshooting” for more information.

The Locator LED is used to locate a specific switch in an area full of switches. The LED can be set to be on solid or flash for a s pecified number of minutes (1-1440). The default is 30 minutes. Use the command “chassislocate”.

1-5

Introducing the Switch

Front of the Switch

Switch LEDs State Meaning

PoE (green/

orange)

Flashing/ orange

Normal operation. The switch is ready to supply PoE power

One or more ports has experienced a fault condition for PoE delivery. The

Fault LED will be flashing simultaneously. If it is a self test failure, the Test LED will be flashing simultaneously. When the switch is put in PoE LED Mode, The Mode LED for the port with the problem will also be flashing simultaneously.

Introducing the Switch

Flashing/ orange

One or more ports has an alert condition for PoE delivery, for example, an

oversubscription condition (not enough PoE power available). Only this LED will be flashing, the Fault LED is off. When the switch is put in PoE LED Mode, The Mode LEDs for the ports with the alert condition will also be flashing.

RPS Status (green/

Normal operation. An external power supply is connected and operating correctly. The external power supply could be powering the unit.

orange)

Flashing orange

An external power supply is connected but may be powering another

switch or the external power supply has experienced a fault. Only this LED flashes, the Fault LED is off.

An external power supply is not connected.

The switch is connected to an external power supply and operating correctly.

The external power supply has experienced a fault:

• There is a fan, overcurrent, power supply, or temp fault on the EPS.

EPS Status (green)

Off

Flashing orange

• The Switch dete cts the EPS is present but cannot communicate with it. Check the Error Log on the switch for more information.

1-6

Fan (green/ orange)

Off

is connected but the external power supply is not powered up.

On The cooling fan is operating normally.

The switch is not connected to an external powe r supply or the EPS cable

Flashing orange

The cooling fan has failed. The switch Fault LED will be flashing

simultaneously.

Introducing the Switch

Front of the Switch

Switch LEDs State Meaning

Te st

Off The normal operational state; the switch is not undergoing self test. (green/ orange)

On The switch self test and initialization are in progress after the switch has

been power cycled or reset. The switch is not operational until this LED goes off. The Test LED also comes on briefly when you “hot swap” a miniGBIC into the switch; the mini-GBIC is tested when it is hot swapped.

Flashing

orange

The flashing behavior is an on/off cycle once every 0.8 seconds approximately, a fast flash.

The flashing behavior is an on/off cycle once every 1.6 seconds approximately, a slow flash.

ProCurve Switch 2610-PWR Series only.

A component of the switch has failed its self test. The switch Fault LED,

Test LED, and the failed component LED will flash simultaneously.

See the ProCurve 600/610 External Power Supplies Installation and Getting Started Guide for information on the LED behavior of the external power

supplies.

Introducing the Switch

1-7

Introducing the Switch

Front of the Switch

Switch LEDs State Meaning

Switch 2610 non-PWR Series

Port LEDs

The port LEDs provide information about the individual switch ports.

Table 1-3. Port LEDs

Introducing the Switch

Port LEDs Displays port link information, network activity information, whether the port is

configured for full-duplex operation, or the speed of the connection depending on the LED Mode select ed. See “LED Mode Select B utton and Indicator LEDs” on the next page for more information.

Mini-GBIC LEDs:

Link Flashing

Link and Mode (green)

Switch 2610-PWR Series

Link (green)

orange

On for 2 seconds

On The port is enabled and receiving a link indication from the connected

Off One of these condition exists:

One of the following conditions exist:

• the mini-GBIC is not supported by the current software

• the mini-GBIC is not a genuine ProCurve Mini-GBIC and is not supported

• the mini-GBIC is an “A” version in a switch that requires a “B” version or later.

Both the Link and Mode LED turn on solid for 2 seconds and then go to normal operation . This indicates the mini-GBIC has been recognized by the switch.

device. In PoE mode, indicates that the port is configured to enable PoE power delivery to the connected device.

• no active network cable is connected to the port

• the port is not receiving link beat or sufficient light

• the port has been disabled through the switch console, the web browser interface, ProCurve Manager, or other network management tool.

• In PoE mode, indicates that the port is configured such that PoE power delivery is disabled.

1-8

Flashing

Mode (green) Depending on the mode selected, displays the following:

• Connection speed information

• network activity information

• PoE power delivery status See “LED Mode Select Button and Indicator LEDs:” below for more information.

The flashing behavior is an on/off cycle once every 1.6 seconds, approximately.

The port has failed self test. The switch Fault, and Self Test LEDs will flash simultaneously.

Introducing the Switch

Front of the Switch

LED Mode Select Button and Indicator LEDs

To optimize the amount of information that can be displayed for each of the switch ports in the limited space available, the 2610 Switches use multipledisplay LEDs for each port.

Introducing the Switch

The non-PWR switches, have two LEDs per port. The Link status is always shown by the Link LED. The operation of the Mode LED is controlled by the LED Mode select button, and the current setting is indicated by the LED Mode indicator LEDs near the button. Press the button to step from one view mode to the next. The default view is Activity (Act).

Figure 1-1. 2610 non-PWR Switches

The PWR switches also have two LEDs per port. The Link status is always shown by the Link LED as with the non-PWR switches. The operation of the Mode LED is the same as the non-PWR switches. The difference is the PWR switches have an additional mode, and that is PoE. In PoE mode, the Link LED indicates the PoE configuration for the port: On if PoE is enabled on the port; Off if PoE is disabled on the port. The default view is Activity (Act).

Link LED

LED Mode select button

and indicator LEDs

Link LED

(port number)

LED Mode select button

and indicator LEDs

Mode LED

Figure 1-2. 2610-PWR Switches

1-9

Introducing the Switch

Front of the Switch

Switch LEDs State Meaning

All 2610 Switches

Table 1-4. Multiple-Display Port LEDs

Port LED View indicator LEDs 3 green LEDs)

Act FDx Spd

Introducing the Switch

Switch 2610-PWR Series

LED Mode indicator LEDs (PoE is the additional LED, green)

PoE Indicates the Port LEDs are lit for ports that are providing PoE power to the

Indicates the Port LEDs are displaying network activity information. Indicates the Port LEDs are lit for ports that are in full-duplex mode. Indicates the Port LEDs are displaying the connection speed at which each

port is operating:

• if the Port LED is off, the port is operating at 10 Mbps.

• if the Port LED is flashing, the port is operating at 100 Mbps.

• if the Port LED is on continuously, the port is operating at 1000 Mbps.

connected device.

Reset Button

This button is for:

■ Resetting the switch - When the switch is powered on. This action clears

any temporary error conditions that may have occurred and executes the switch self test.

■ Restoring Factory Default Configuration - When pressed with the

Clear button in a specific pattern, any configuration changes you may have made through the switch console, the web browser interface, and SNMP management are removed, and the factory default configuration is restored to the switch. For the specific method to restore the factory default configuration, see “Restoring the Factory Default Configuration”

on page 12, “Troubleshooting” of this manual.

1-10

Clear Button

This button is used for:

■ Deleting Passwords - When pressed by itself for at least one second, the

button deletes any switch console access passwords that you may have configured. Use this feature if you have misplaced the password and need console access. This button is provided as a convenience, however if you are concerned with the security of the switch configuration and operation, you should make sure the switch is installed in a secure location. This button can be disabled by a CLI command.

■ Restoring Factory Default Configuration - See Reset Button above.

Introducing the Switch

Back of the Switch

Console Port

This port is used to connect a console to a 2610 Switches by using the RJ-45 to DB9 cable, supplied with the switch. This connection is described under “8. (Optional) Connect a Console to the Switch” on page 26 in chapter 2, “Installing the Switch.” The console can be a PC or workstation running a VT-100 terminal emulator, or a VT-100 terminal.

Back of the Switch

RPS Input

Figure 1-3. ProCurve Switch 2610-24 and 2610-48 non-PWR

AC power connector

Introducing the Switch

EPS Input

RPS Input

Figure 1-4. ProCurve Switch 2610-24-PWR and 2610-48-PWR

EPS Input

RPS Input

Figure 1-5. ProCurve Switch 2610-24/12PWR

AC power connector

1-11

Introducing the Switch

Switch Features

RPS and EPS Input Port

The 2610 Switches support connectivity to a redundant power supply (RPS/ EPS). The ProCurve 600 Redundant and External Power Supply (J8168A) and the ProCurve 610 External Power Supply (J8169A) are accessory products for these switches. The RPS functionality of the 600 procides redundant system power in case the switch’s internal power supply fails. The EPS functionality of the 600 and the 610 provides additional PoE power.

Introducing the Switch

Power Connector

The 2610 Switches and 2610-PWR Switches do not have a power switch; they are powered on when connected to an active AC power source. The switches automatically adjust to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz. There are no voltage range settings required.

Switch Features

The features of the 2610 Switches and 2610-PWR Switches include:

■ 24, or 48 auto-sensing 10/100Base-TX RJ-45 ports with Auto-MDIX.

■ 4 Uplink ports—two are 1000Base-T RJ-45 and two are mini-GBIC (SFP)

slots.

■ Power over Ethernet (PoE) operation—the 2610-PWR Switches are IEEE

802.3af compliant and provide up to 15.4W per port to power IP phones, wireless access points, web cameras, and more. For more information, see the PoE Planning and Implementation Guide, which is on the ProCurve Web site at www.hp.com/go/procurve/manuals, (See page 1-13).

■ The 2610-PWR Switches support some pre-standard PoE devices.

However, the use of a cross-over cable may be required. For a current list see the FAQ page for the 2610-PWR Switch, which can be found on the ProCurve Web site, www.hp.com/go/procurve/manuals, Technical Support, FAQs (all).

■ Plug-and-play networking—all ports are enabled—just connect the

network cables to active network devices and your switched network is operational.

■ Auto-MDIX on all twisted-pair ports, 10/100 and 10/100/1000, meaning that

all twisted-pair connections can be made using straight-through cables. Cross-over cables are not required, although they will also work.

■ Automatic learning of the hardware addresses in each switch’s 8000-

address forwarding table, (with configurable address aging value).

1-12

Introducing the Switch

Switch Features

■ Automatically negotiated full-duplex operation for the 10/100 and

10/100/1000 RJ-45 ports when connected to other auto-negotiating devices—the mini-GBIC ports always operate at full duplex, unless a 100-FX SFP transceiver is installed. The 100-FX SFP transceiver can operate at half duplex.

■ Easy management of the switches through several available interfaces:

• console interface—a full featured, easy to use, VT-100 terminal interface that is especially good for out-of-band switch management or for Telnet access to the switch.

• web browser interface—an easy to use built-in graphical interface that can be accessed from common web browsers.

• ProCurve Manager—an SNMP-based, graphical network management tool that you can use to manage your entire network.

■ Support for the Spanning Tree Protocol to eliminate network loops

■ Support for up to 30 IEEE 802.1Q-compliant VLANs so you can divide the

attached end nodes into logical groupings that fit your business needs.

■ Download of new switch software for product enhancements or bug fixes.

■ Dual-speed fans to maintain cooling if the environment warms up on the

following switches:

• Switch 2610-48 (J9088A)

• Switch 2610-24/12PWR (J9086A)

• Switch 2610-24-PWR (J9087A)

• Switch 2610-48-PWR (J9089A)

■ Support for many advanced features to enhance network performance—

for a description, see the Management and Configuration Guide, which is on the ProCurve Web site at www.hp.com/go/procurve/manuals. To display the list of downloadable manuals, click on the following link:

Introducing the Switch

HP ProCurve Switch 2610 Series.

(You may want to bookmark this Web page for easy access in the future.)

1-13

Installing the Switch

The ProCurve 2610 Switches come with an accessory kit that includes the brackets for mounting the switch in a standard 19-inch telco rack, in an equipment cabinet, or on a wall. The brackets are designed to allow mounting the switch in a variety of locations and orientations. Rubber feet are provided that can be attached so the switch can be securely located on a horizontal surface.

This chapter shows how to install the Switch 2610.

Included Parts

The 2610 Switches have the following components:

■ HP ProCurve Switch Quick Setup Sheet

■ Read Me First

■ HP ProCurve Switches General Safety and Regulatory Information

booklet

■ 2610 Switch Specific Safety and Regulatory Information sheet

■ Console cable

■ Customer Support/Warranty booklet

■ Accessory kits:

2610 Non-PWR switches and the J9086A 24/12-port partial PoE switch

Kit number 5069-6535

Contains:

• two mounting brackets

• eight 8-mm M4 screws to attach the mounting brackets to the switch

• four 5/8-inch number 12-24 screws to attach the switch to a rack

• four rubber feet

The mounting brackets in this kit are longer to support the increased depth of the 2610-

PWR products.

2610-PWR switches, J9087A and J9089A

Kit number 5069-5705

Contains:

• two mounting brackets

• eight 8-mm M4 screws to attach the mounting brackets to the switch

• four 5/8-inch number 12-24 screws to attach the switch to a rack

• four rubber feet

Installing the Switch

2-1

Installing the Switch

Included Parts

■ AC power cord, one of the following:

Non-PWR Switches PWR Switches

Australia/New Zealand China Continental Europe Denmark Japan Switzerland United Kingdom/Hong Kong/Singapore United States/Canada/Mexico South Africa Thailand Ta iw a n India

The cords for the PWR Switches support a higher amperage.

The 2610-24/12PWR Switch in India uses the 8121-0780 power cord.

8120-6803 8120-8377 8120-6802 8120-6806 8120-6804 8120-6807 8120-8709 8120-6805 8120-8929 8121-0673 8121-0964 8121-0780

8120-6810 8120-8471 8120-6811 8120-6814 8120-6804 8120-6815 8120-6809 8120-2371 8120-8929 8121-0673 8121-0964

8120-8929

Japan Power Cord Warning

Installing the Switch

2-2

Installing the Switch

Included Parts

Installation Precautions

WARNING ■ The rack or cabinet should be adequately secured to prevent it

from becoming unstable and/or falling over.

Devices installed in a rack or cabinet should be mounted as low as possible, with the heaviest devices at the bottom and progressively lighter devices installed above.

■ For safe operation do not install the switch with the side of the

switch (with the fan vents) facing either downward or upward.

■ Do not wall mount the 2610-PWR switches.

Cautions ■ If one of the following switches is to be mounted in a rack, you can use a

rail kit. Rail kit part number 508783-B21 can be used only with the following switches.

• J9085A ProCurve Switch 2610-24

• J9088A ProCurve Switch 2610-48

• J9086A ProCurve Switch 2610-24/12PWR

■ Ensure the power source circuits are properly grounded, then use the

power cord supplied with the switch to connect it to the power source.

■ If your installation requires a different power cord than the one supplied

with the switch, ensure the cord is adequately sized for the switch’s current requirements. In addition, be sure to use a power cord displaying the mark of the safety agency that defines the regulations for power cords in your country. The mark is your assurance that the power cord can be used safely with the switch. If the PWR device’s supplied power cord does not fit, contact ProCurve Networking support.

■ When installing the switch, the AC outlet should be near the switch and

should be easily accessible in case the switch must be powered off.

■ Ensure the switch does not overload the power circuits, wiring, and over-

current protection. To determine the possibility of overloading the supply circuits, add together the ampere ratings of all devices installed on the same circuit as the switch and compare the total with the rating limit for the circuit. Maximum ampere ratings are usually printed on the devices near the AC power connectors.

■ Do not install the switch in an environment where the operating ambient

temperature might exceed 50°C (122°F). This includes a fully-enclosed rack. Ensure the air flow around the sides and back of the switch is not restricted. Leave at least 7.6 cm (3 inches) for cooling.

■ Ensure all port covers are installed when the port is not in use.

Installing the Switch

2-3

Installing the Switch

Installation Procedures

These steps summarize your switch installation. The rest of this chapter provides details on these steps.

1. Prepare the installation site (page 2-6). Make sure the physical environment into which you will be installing the switch is properly prepared, including having the correct network cabling ready to connect to the switch and having an appropriate location for the switch. See page

2-3 for some installation precautions.

2. Verify the switch passes self test (page 2-6). Plug the switch into a power source and observe that the LEDs on the switch’s front panel indicate correct switch operation.

3. Mount the switch (page 2-9). The 2610 Switches can be mounted in a 19-inch telco rack, in an equipment cabinet, on a wall, or on a horizontal surface. The 2610-PWR Switches may be mounted in racks and cabinets or on a horizontal surface.

Installing the Switch

The 2610-PWR Switches must not be wall mounted. The 2610 Non-PWR Switches can be wall mounted. See page 2-14 for wall mounting instruc- tions.

The following switches can be rack mounted with rail kit part number 508783-B21.

• J9085A ProCurve Switch 2610-24

• J9088A ProCurve Switch 2610-48

• J9086A ProCurve Switch 2610-24/12PWR

4. Connect power to the switch (page 2-16). Once the switch is mounted, plug it into the main power source.

5. Connect the network devices (page 2-16). Using the appropriate network cables, connect the network devices to the switch ports.

6. (Optional) Install mini-GBICs (page 2-17). The switch has two slots for installing mini-GBICs. Depending on where you install the switch, it may be easier to install the mini-GBICs first. Mini-GBICs can be hot swapped—they can be installed or removed while the switch is powered on.

7. (Optional) Connect a 600 RPS/EPS or 610 EPS (page 2-18). You may wish to use a 600 RPS/EPS or 610 EPS with your Series 2610-PWR Switch. To do so you must connect these external power supplies using the RPS or EPS cables supplied with these devices.

2-4

Installing the Switch

Installation Procedures

8. (Optional) Connect a console to the switch (page 2-26). You may wish to modify the switch’s configuration, for example, to configure an IP address so it can be managed using a web browser, from an SNMP network management station, or through a Telnet session. Configuration changes can be made by using the included console cable to connect a PC to the switch’s console port.

At this point, your switch is fully installed. See the rest of this chapter if you need more detailed information on any of these installation steps.

Installing the Switch

2-5

Installing the Switch

Installation Procedures

1. Prepare the Installation Site

Cabling Infrastructure - Ensure the cabling infrastructure meets the necessary network specifications. See the following table for cable types and lengths, and see appendix B, “Cabling and Technology Information” for more information:

■ Installation Location - Before installing the switch, plan its location and

orientation relative to other devices and equipment:

• In the front of the switch, leave at least 7.6 cm (3 inches) of space for

the twisted-pair and fiber-optic cabling.

• In the back of the switch, leave at least 3.8 cm (1 1/2 inches) of space

for the power cord.

• On the sides of the switch, leave at least 7.6 cm (3 inches) for cooling.

2. Verify the Switch Passes Self Test

Before mounting the switch in its network location, you should first verify it

Installing the Switch

is working properly by plugging it into a power source and verifying it passes its self test.

1. Connect the power cord supplied with the switch to the power connector on the back of the switch, and then into a properly grounded electrical outlet.

Connect power cord to

the power connector

Figure 2-1. Connecting the power cord

2-6

+ 82 hidden pages
