Hoover HGD 640 GH, HGD 640 SGH, HGH 640 B, HGD 750 X, HGD 750 SGH User Manual

HOBS
USER INSTRUCTIONS

❐ HGD 640 SGH ❐ HGD 750 X
❐ HGD 640 GH ❐ HGD 750 SGH
❐ HGH 640 SX ❐ HGD 750 GH
❐ HGH 640 X
❐ HGH 640 SW
❐ HGH 640 W
❐ HGH 640 SB
❐ HGH 640 B

HOOVER

1

TECHNICAL CHARACTERISTICS

* Manufacturer setting IE cat. II2H3 + GB cat. II2H3 +

Tab.1

A

This appliance has been designed for non-professional, i.e. domestic, use.

GBIE

BUILT IN HOBS

Burners/hotplates

Type / reference
Flame failure device
Fish burner PES
Double ring burner
Ultra rapid burnes
Semirapid burner
Rapid burner
Griddle 174x160 mm
Griddle 229x379
Electric plate Ø 80 PE
Electric plate Ø 145 PE
Electric plate 160x265 mm PE
Installed gas Type/Power
G20 20mbar* (METHANE)
G30 28-30 mbar (GPL)
Installation class
Voltage/ Frequency V/Hz
Electrical imput power
Electronic ignition

Product dimension WDX (mm)

A/B

4 gas

-

PL03/PL04

- / yes

­1
1
2
1

-

-

-

-

-

8,95 kW

649 g/h

3

230/50

-

yes

590x510

C

5 gas

-

PL73/PL74

- / yes

­1
1
2
2

-

-

-

-

-

11,6kW

842 g/h

3

230/50

-

yes

745x510

DC ø 110 mm
UR ø 110 mm
SR ø 51 mm
R ø 71 mm

2

B

C

GBIE

3

INSTRUCTIONS FOR THE INSTALLER

INSTALLATION

The Purchaser is responsible for the installation of the hob. The Manufacturer does not
accept any responsibility for any damage or loss resulting from incorrect installation,
and as such this will not covered by the Manufacturer’s Guarantee.
The hob may be installed in any worktop which is heat resistant to a temperature of
100° C, and has a thickness of 25 - 45 mm. The dimensions of the insert to be cut out
of the worktop are in shown in Fig. 1.
If the Hob is fitted next to a cabinet on either side, the distance between the Hob and the
cabinet must be at least 15 cm (see Fig. 2); while the distance between the hob and the
rear wall must be at least 5,5 cm.
The distance between the hob and any
other unit or appliance above it (e.g. An ex­tractor hood) must be no less than 70 cm
(fig.2).
When there is an accessible space between
the built-in hob and the cavity below, a divi­ding wall made of insulating material should
be inserted (wood or a similar material).
The wall should be at least 10 mm away from
bottom of the drawer. (fig. 3)

Important - The diagram below shows
how the sealant should be applied.

The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base
of the unit.

Fig. 1

Fig. 2

Fig. 3

accessible space

GB IE

Plan 60 Plan 75

4

INSTRUCTIONS FOR THE INSTALLER

The following information is intended for qualified and competant persons only who will
ensure that your appliance is installed correctly. All current legislation concerning the in­stallation of Gas appliances must be observed by the installer*
* For the U.K. only - By law, the gas installation/commissioning must be carried out by a
«Corgi», registered installer.

This appliance must be installed in accordance with applicable regulations and should only be
used in well-ventilated locations. Before using this appliance carefully study the instruction book.

Suitable location

A gas-powered cooking appliance produces heat and humidity in the area in which it is
installed. For this reason you should ensure good ventilation either by keeping all natu­ral air passages open or by installing an extractor hood with an exhaust flue. Intensive
and prolonged use of the appliance may require extra ventilation, such the opening of a
window or an increase in speed of the electric fan, if you have one.
If a hood cannot be installed, an electric fan should be fitted to an outside wall or win­dow as long there are air vents in the area.
The electric fan should be able to carry out a complete change of air in the kitchen 3-5
times every hour. The installer should follow the relavant national standards.

If a hob of 60 cm is fitted above an oven which is not equipped with fan cooling system
it is recommended that openings are created within the built in furniture to ensure cor­rect air circulation.
The size of these openings must be at least 300 cm

2

and placed as shown in fig. 4.

When a 75 cm hob is fitted over a built in oven, the latter must be fan cooled.

FIG. 4

60 Cm

2

240 Cm

2

120 Cm

2

180 Cm

2

GBIE

5

ELECTRICAL CONNECTION

Warning - this appliance must be earthed

This appliance is designed for domestic use only. Connection to the mains supply must
be made by a competant electrician, ensuring that all current regulations concerning
such installations are observed.
The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp
plug/socket is not suitable. A double pole switch must be provided and the circuit must
have appropriate fuse protection. Further details of the power requirement of the in­dividual product will be found in the users’ instruction and on the appliance rating plate.

In
the case of built-in product you are advised, should you wish to use a longer cable than
the one supplied, that a suitably rated heat resistant type must be used.
The wiring must be connected to the mains supply as follows:

CONNECT TO SPUR TERMINAL

Green & Yellow Wire Earth Connection
Blue Wire Neutral Connection
Brown Wire Live Connection

Note: We do not advocate the use of earth leakage devices with electric cooking applian­ces installed to spur points because of the «nuisance tripping» which may occur. You are
again reminded that the appliance must be correctly earthed, the manufacturer decli­nes any responsibility for any event occurring as a result of incorrect electrical installation.

Declaration of compliance: This equipment, in the parts intended to come into con­tact with food, complies with the regulations laid down in EEC directives 89/109.

This appliance complies with directive 89/336/EEC, 73/23/EEC, 90/396/EEC and
the following changes.

GAS CONNECTION

The labels on the Hob indicate the types of gas that can be used.
It is possible to use other types of gas after carrying out simple modifications.
Warning: If gas can be smelt in the vicinity of this appliance turn off the gas supply to the
appliance and call the engineer directly. Do not search for a leak with a naked flame.

GB IE

6

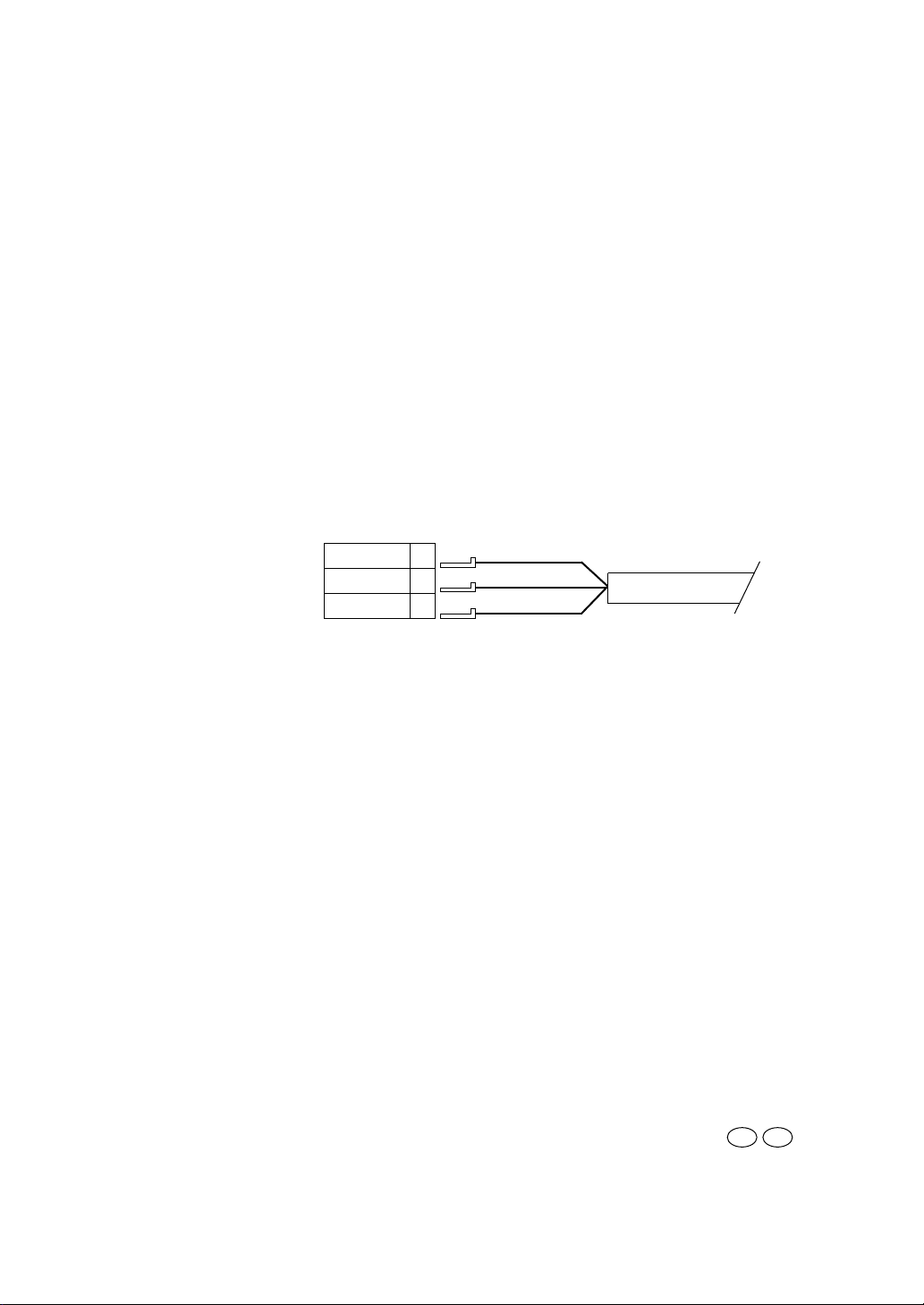

LIVE L

EARTH

NEUTRAL N

MAINS

SUPPLY

BROWN WIRE
GREEN/YELLOW WIRE
BLUE WIRE

POWER
CABLE

These instructions are for Fitters qualified for installation of equipment in line with the
relevant national standard. All work must be carried out with the electricity supply dis­connected.
The rating plate on the hob shows the type of gas with which it is designed to be used.
It is possible to use other types of gas after carrying out some simple modifications.
(See the instructions in the following paragraphs).
connection to the mains gas supply or gas cylinder should be carried out according to
the relevant national standards, after having checked that it is regulated for the type of
gas with which it will be supplied. If it is not correctly regulated follow the instructions in
the paragraph entitlet «Adaption for different types of gas». For liquid gas (cylinder
gas) use pressure regulators which comply with the relevant national standards.
N.B.: for safe operation, economic use of energy and to ensure greater durability

of the

appliance, make sure that the supply pressure conforms with the values shown

in the
table on page 8.
Use only pipes, washers and sealing washers which comply with the relevant national
standards.

When connecting the hob to the gas supply via use of flexible hoses please ensure
that the maximum distance covered by the hose does not exceed 2 metres.

N.B.: carry out a final check for leaks on the pipework using a soapy solution.
Never use a flame. Also, make sure that the flexible pipe cannot come into con­tact with a movlng part of

the cabinet (eg, a drawer) and that it is not situa

ted

where it could be damaged.

GAS CONNECTION

ELECTRICAL CONNECTION

Check the data on the rating plate, located on the outside of the unit, to ensure that the
supply and input voltage are suitable.
Before connection, check the earthing system.
By Law, this appliance must be earthed. If this regulation is not complied with, the
Manufacturer will not be responsible for any damage caused to persons or property.
If a plug is not already attached, fit a plug appropriate to the load indicated on the rating
plate. The earth wire is coloured yellow/green. The plug should always be accessible.
Where the Hob is connected direct to the electricity supply, a circuit breaker must be
fitted with at least a 3 mm contact spacing when in the open position.

If the power supply cord is damaged this is to be replaced by a qualified engineer so as
to prevent any potential risk.
The earth wire ( green a yellow coloured) must be at least 10 mm longer than the live
and neutral wires.
The section of the cable used must be of the correct size in relation to the absorbed
power of the hob.
Please check rating plate for the power details and ensure that the power supply cord
is of the type H05RR-F, H05VV-F, H05V2V2-F.

GBIE

7

ADAPTING THE HOB TO DIFFERENT TYPES OF GAS

To adapt the Hob for use with different types of gas, carry out the following instructions:
— remove the grids and burners
— insert the hexagonal spanner (supplied) into the burner support (Fig. 6)
— unscrew the injector and replace it with one suitable for the gas to be used (see

Table of gas consumption)

— carry out regulation of the burner .

1/2 GAS
CONICAL

A) As illustrated, as­semble parts in se­quence:
A) fixed pipe
B) washer
C) Elbow fitting with

tapered thred
connection

2) Tighten the joints
with the Spanners,
remembering to twist
the pipes into position.

3) Attach fitting C to
mains gas supply us­ing rigid copper pipe
or flexible steel pipe.

IEGB

Please note

Some models are equipped with both conical and cylindrical connectors for gas supply.
Please select the type which is correct for the supply concerned.

To prevent any potential damage to the hob please carry out the installation following
this sequence:

Fig. 5

A B

Hexagonal spanner

Fig. 6

Cylindrical
(but connector)

Tapered thread conical

GB IE

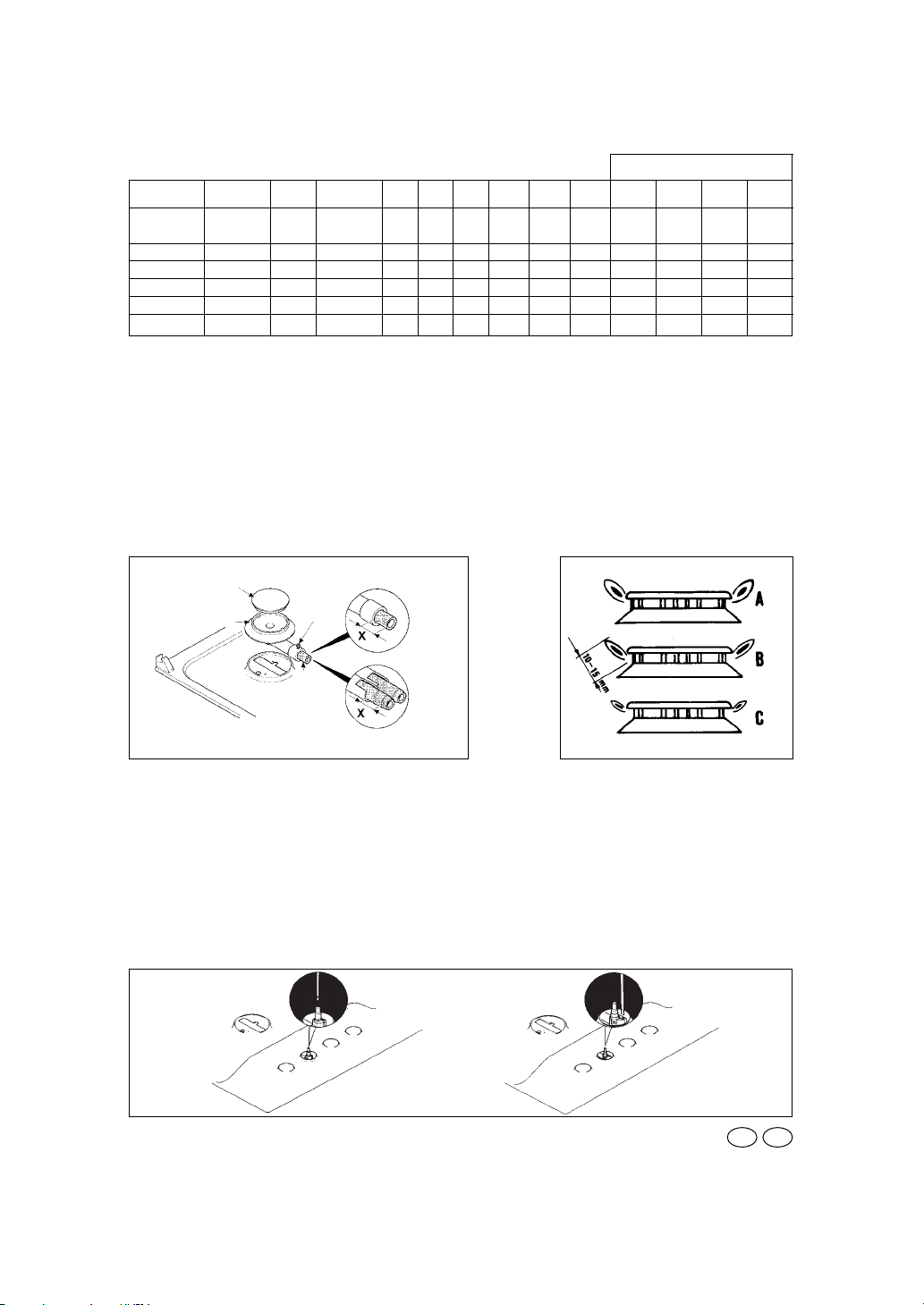

REGULATING THE MINIMUM FLAME

After lighting the burners, turn the control knob to the minimum setting and then remo­ve the knob (this can easily be removed by apply a gentle pressure).
Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in
Fig. 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise
increases the flow – Use this adjustment to obtain a flame of approximately 3 to 4 mm
in length and then replace the control knob.

When the gas supply available is LPG (Bottle gas)- the screw to set the idle flame must
be turned (clockwise) to the end stop.

Screws regulating

(for differend models)

8

Fig. 9

Fig. 7 Fig. 8

BURNER

BURNER CAP

AIR REGULATION

SCREW

FIXING
SCREW

SMALL

MEDIUM

LARGE

DOUBLE RING

MAXI
FISH

For dimensions «X» see table of gas consumption

SETTING OF THE GAS BURNERS

When the jets have been changed it is necessary to set the correct air gap by keeping
to the setting “X” as shown in the table “ gas consumption” fig 7. Warning the value of ‘
X ‘ setting varies in relation to the size of gas burner and type of gas chosen.
A good flame must be of medium length (fig.8B), excessive air will cause the flame to
be short and with sharp colour (fig.8C): in this case it is necessary to extend out the tu­be for the air setting from the burner body, if there is insufficient air the flame will ap­pear weak and long (fig. 8A): in this case push the tube of the air setting back into the
burner body. To adjust the air setting tube loosen the retaining screw.
Once the air is correctly set secure the screw over the tube ( fig. 7).

GBIE

reg.

air
4 mm
2 mm

15 mm
13 mm

15 mm

Working

burner

large

medium

maxi

double ring

fish

Ø gas jet

1/100 mm

120

93
2x94
2x94

2x94

Ø gas jet

1/100 mm

80

61
2x65
2x65

2x65

STD. Dim

kW

2,65

1,5
3,3
3,3

3,3

l/h

G20
252
143
314
314

314

g/h

G30
193
109
238
238

238

g/h

G31
189
107
236
236

236

Qn

kW

2,5

1,45

3,1
3,1

3,1

l/h

G25
277
161
343
343

343

min.Dim

kW
0,65
0,38

0,9

0,9

0,9

reg.

air
4 mm
2 mm

15 mm
13 mm

15 mm

reg.

air
2 mm
5 mm
0 mm
0 mm

0 mm

G20 G30 G25 G31

G30
G31

G20/G25

G20 20mbar
G30 29mbar
G31 37mbar

G25

25mbar

X dimension according

to Gas type

Table of gas consumption 1W = 0,860 kcal/h

reg.

air
5 mm
7 mm

15 mm
15 mm

15 mm

Hob type Burner type Ø pan / pot (cm)

A;B;C. R/H front burner 12÷18
A;B;C. L/H front burner 12÷18
A;B;C. R/H rear burner 18÷24
A;B. L/H rear burner 24÷26
C L/H rear burner 18÷24
C Central burner 24÷28

9

When you have carried out the new gas regulation, replace the old gas rating pla­te on your appliance with one (supplied with hob) suitable for the type of gas for
which it has been regulated.

USE OF HOB

USER INSTRUCTIONS

This appliance must only be used for the purpose for which it is intended, domestic
cooking, and any other use will be considered improper and could therefore be danger­ous. The Manufacturer will not be responsible for any damage or loss resulting from
improper use.

USING THE GAS BURNER

To ignite the burners, place a lighted taper close to the burner, press in and turn the
control knob anti-clockwise.
If the burners have not been used for a couple of days, wait for a few seconds before
lighting the burner, this will allow any air present in the pipes to escape.
For appliances fitted with electronic ignition carry out the following:

• push in and turn the knob anticlockwise to the

★

symbol.

• ignite the burner by pressing the sparker button.
For hobs fitted with automatic ignition simply push in and turn the knob to the

★

symbol.

The ignition system will continue to generate sparks as long as the gas tap is being
pressed.

If the burner is not ignited within 5 seconds, turn the knob to the 0 position and repeat
the operation.
For models fitted with a safety tap (which cuts-off the flow of gas if the flame is acci­dentally extinguished) the burners are ignited ad described above, but care must be
taken to keep the knob pressed in for 5 or 6 seconds after the flame is ignited.

ATTENTION:

Prior to switching on the gas hob ensure that the burners and bur-

ner caps are correctly placed within their position.

GENERAL ADVICE

For the best results, the flat-bottomed pans size should match the gas burner size as
follows. See fig. pag. 1-2.

For smaller containers the gas burner should be regulated so that the flame does not
overlap the base of the pan. Vessels with concave or convex base should not be used.

WARNING: If a burner is accidentally extinguehed, turn the knob to the off posi­tion and do not attempt to re-ignite if for at least 1 minute.

If over the years the gas taps become stiff to turn it is necessary to lubricate them.

Such operation must be carried out only by qualified Service Engineers.

GB IE

10

GB IE

MAINTENANCE AND CLEANING

Before cleaning the Hob, ensure the appliance has cooled down. Remove the plug from
the socket or (if connected directly) switch off the electricity supply.
When cleaning the enamelled, varnished or chrome sections, use warm soapy water
or a non caustic detergent. For stainless steel use an appropriate cleaning solution.
Hotplates should only be cleaned with a cotton cloth coated with vaseline or seed oil.
Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid
or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnisched or stain­less steel sections.
The burners can be cleaned with soapy water. To restore their original shine, use a
household stainless steel cleaner. After cleaning, dry the burners and replace.

It is important the Burners are replaced correctly.

AFTERCARE

Before calling out a Service Engineer please check the following:

— that the plug is correctly inserted and fused;
— that the gas supply is not faulty.
If the fault cannot be identified:
switch off the appliance — do not tamper with it — call the Aftercare Service Centre.

Chromed grids and burners

Chromed grids and burners have the tendency to dark with the use.
This is a normal and inevitable phenomenon, but it doesn’t jeopardize absolutely the
functionality of the hob.
In anycase from our after sales service centre the spare parts are available.

The Manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors con­tained in this brochure. We reserve the right to carry out modifications to products as required, including
the interests of consumption, without prejiudice to the characteristics relating to safety or function.
