SmartLine
Technical Information
STD800 SmartLine Differential Pressure
Specification 34-ST-03-82, Jan 2021
Introduction
Part of the SmartLine® family of products, the STD800 is a
high performance differential pressure transmitter featuring
piezoresistive sensor technology. By combining
differential pressure sensing with on chip static pressure
and temperature compensation the STD800 offers high
accuracy and stability over a wide range of application
pressures and temperatures. The SmartLine family is also
fully tested and compliant with Experion® PKS providing
the highest level of compatibility assurance and integration
capabilities. SmartLine easily meets the most demanding
application needs for pressure measurement applications.
Best in Class Features:
Accuracies up to 0.035% of span standard & 0.025%
of span optional
Stability up to 0.01% of URL per year for 15 years
Automatic static pressure & temperature
compensation
Rangeability up to 400:1
Response times as fast as 90ms
Multiple local display capabilities
External zero, span, & configuration capability
Polarity insensitive electrical connections
Comprehensive on-board diagnostic capabilities
Integral Dual Seal design for highest safety based on
ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
World class overpressure protection
Full compliance to SIL 2/3 requirements.
Modular design characteristics
Available with additional 15-year warranty
Plugged Impulse Line Detection Option
Dual/Triple Calibration Option (HART & Fieldbus only)
Figure 1 – STD800 Differential Pressure
Transmitters feature field-proven piezoresistive
sensor technology
Communications/Output Options:
4-20mA dc
Honeywell Digitally Enhanced (DE)
HART ® (version 7.0)
FOUNDATION™ Fieldbus
All transmitters are available with the above listed
communications protocols.
Span & Range Limits:
Model
URL
“H
2
O (mbar)
LRL
“H
2
O (mbar)
Min Span
“H
2
O (mbar)
STD810
10 (25)
-10 (-25)
0.1 (0.25)
STD820
400 (1000)
-400 (-1000)
1.0 (2.5)
Model
psi (bar)
psi (bar)
psi (bar)
STD830
100 (7.0)
-100 (-7.0)
1 (0.07)
STD870
3000 (210)
-100 (-7.0)
30 (2.1)
2 STD800 Smart Pressure Transmitter
Description
The SmartLine family of gauge pressure, differential
pressure, and absolute pressure transmitters is designed
around a high performance piezo-resistive sensor. This
one sensor integrates multiple sensors linking process
pressure measurement with on-board static pressure (DP
Models) and temperature compensation measurements
resulting in the best total performance available. This level
of performance allows the ST 800 to replace virtually any
competitive transmitter available today.
Unique Indication/Display Options
The ST 800 modular design accommodates a basic
alphanumeric LCD display or a unique advanced graphics
LCD display with many unparalleled features.
Basic Alphanumeric LCD Display Features
Modular (may be added or removed in the field)
0, 90,180, & 270 degree position adjustments
Configurable (HART only) and standard (Pa, KPa,
MPa, KGcm2, Torr, ATM, inH2O, mH2O, bar,
mbar, inH2O, inHG, FTH2O, mmH2O, mm HG, &
psi) measurement units
2 Lines 16 Characters (4.13H x 1.83W mm)
Square root output indication (√)
Advanced Graphics LCD Display Features
Modular (may be added or removed in the field)
0, 90, 180, & 270 degree position adjustments
Standard and custom measurement units
available.
Up to eight display screens with 3 formats are
possible
(Large PV with Bar Graph or PV with Trend
Graph)
Configurable screen rotation timing (1 to 30 sec)
Display Square Root capabilities may be set
separately from the 4-20mA dc output signal
Unique “Health Watch” indication provides instant
visibility of diagnostics
Multiple language capability. (EN, DE, FR, IT, ES,
RU, TR, CN & JP)

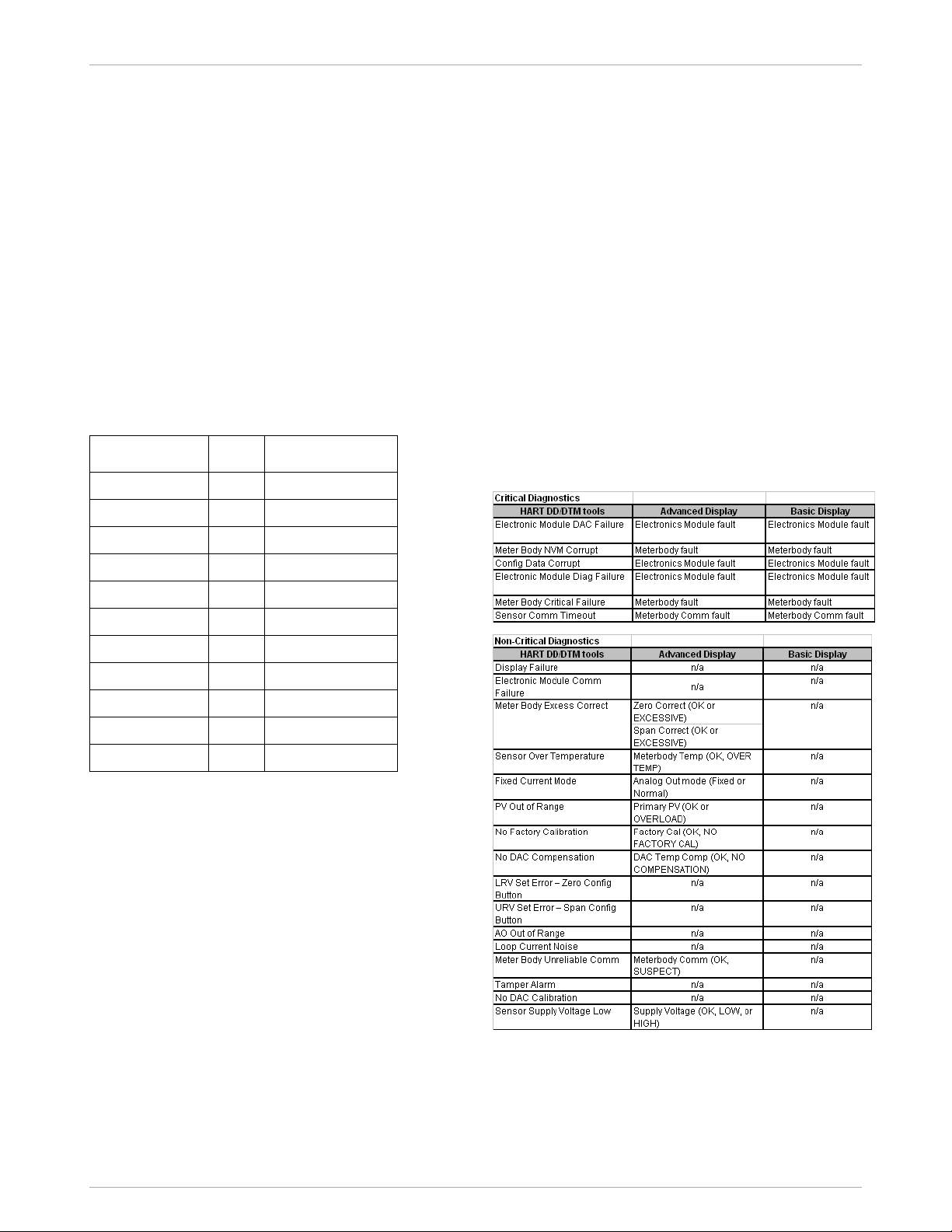

Diagnostics
SmartLine transmitters all offer digitally accessible
diagnostics which aid in providing advanced warning of
possible failure events minimizing unplanned shutdowns,
providing lower overall operational costs
Configuration Tools
Integral Three Button Configuration Option
Suitable for all electrical and environmental requirements,
SmartLine offer the ability to configure the transmitter and
display via three externally accessible buttons when either
display option is selected. Zero/span capabilities are also
optionally available via these buttons with or without
selection of a display option.
Hand Held Configuration
SmartLine transmitters feature two-way communication and
configuration capability between the operator and the
transmitter. All Honeywell transmitters are designed and
tested for compliance with the offered communication
protocols and are designed to operate with any Standards
compliant handheld configuration device.
Personal Computer Configuration
Honeywell’s SCT 3000 Configuration Toolkit provides an
easy way to configure Digitally Enhanced (DE) instruments
using a personal computer as the configuration interface.
Field Device Manager (FDM) Software and FDM Express
are also available for managing HART & Fieldbus device
configurations.
System Integration
o SmartLine communications protocols all meet the most
current published standards for HART/DE/Fieldbus.
o Integration with Honeywell’s Experion PKS offers the
following unique advantages.
o Transmitter messaging
o Maintenance mode indication
o Tamper reporting
o FDM Plant Area Views with Health summaries
o All ST 800 units are Experion tested to provide the
highest level of compatibility assurance
STD800 Smart Pressure Transmitter 3
Modular Design
To help contain maintenance & inventory costs, all ST 800
transmitters are modular in design supporting the user’s
ability to replace meter bodies, add indicators or change
electronic modules without affecting overall performance or
approval body certifications. Each meter body is uniquely
characterized to provide in-tolerance performance over a
wide range of application variations in temperature and
pressure and due to the Honeywell advanced interface,
electronic modules may be swapped with any electronics
module without losing in-tolerance performance
characteristics.
Modular Features:
Meter body replacement
Exchange/replace electronics/comms modules*
Add or remove integral indicators*
Add or remove lightning protection (terminal
connection)*
* Field replaceable in all electrical environments (including
IS) except flameproof without violating agency approvals.
With no performance effects, Honeywell’s unique modularity
results in lower inventory needs and lower overall
operating costs.
Plugged Impulse Line Detection:
STD800 models are offered with a PILD option which
provides indication of a plugged impulse line or process
connection. When used in conjunction with a basic or
advanced display, a non-critical diagnostic indication
appears on the integral display. For units without an
integral display, an indication can be seen via the host or
hand held device when HART Protocol is utilized.
Dual/Triple Calibration:
STD800 models are optionally offered with multiple
calibrations. In lieu of a standard factory calibration, units
can be supplied with 1, 2, or 3 customer specified
calibrations. These calibrations are stored in the meter
body and provide users with factory calibrated
performance at up to three different calibrated ranges.
This increases application flexibility without requiring any
costly recalibration or additional inventory.
4 STD800 Smart Pressure Transmitter
Performance Specifications
Reference Accuracy (conformance to +/-3 Sigma)
Table 1
Zero and span may be set anywhere within the listed (URL/LRL) range limits
Accuracy at Specified Span, Temperature and Static Pressure Effects: (conformance to +/-3)
Table 2
Accuracy
1,2
(% of Span)
Combined Zero &
Span temperature
Effect
(% Span / 28
o
C (50
F))
Combined Zero &
Span Static Line
Pressure Effect4
(% Span/1000psi)3
Model
URL
Reference
Turndown
A
B
C
(see URL
units)
D E F
G
Standard
Accuracy
STD810
10 in H2O
(25mbar)
10:1
0.010
0.025
1 (2.5)
0.070
0.040
0.050
0.075
STD820
400 in H2O
(1000mbar)
16:1
0.005
0.0325
25 (62.5)
0.025
0.007
0.080
0.007
STD830
100 psi
(7.0 bar)
6.7:1
0.005
0.0325
15 (1.05)
0.025
0.010
0.075
0.075
STD870
3000 psi
(210 bar)
15:1
0.005
0.0325
200 (14)
0.025
0.006
0.075
0.075
High
Accuracy
Option
STD820
400 in H2O
(1000mbar)
16:1
0.005
0.020
25 (62.5)
0.025
0.0107
0.080
0.007
STD830
100 psi
(7 bar)
6.7:1
0.005
0.0275
15 (1.05)
0.025
0.010
0.075
0.075
STD870
3000 psi
(210 bar)
15:1
0.005
0.030
200 (14)
0.025
0.006
0.075
0.075
Turn Down Effect
Temp Effect
Static Effect
Model
URL
LRL
Min Span
Maximum
Turndown
Ratio
Stability
(% URL/ Yr
for 15 years)
Reference
Accuracy
1,2
(% Span) Std/Opt
STD810
10 in H2O (25mbar)
-10 in H2O (-25mbar)
0.1 in H2O
(0.25mbar)
100:1
0.015
0.035
STD820
400 in H2O
(1000mbar)
-400 in H2O
(-1000mbar)
1 in H2O (2.5mbar)
400:1
0.010
0.0375 / 0.025
STD830
100 psi (7.0 bar)
-100 psi (-7.0 bar)
1 psi (0.07 bar)
100:1
0.020
0.0375 / 0.0325
STD870
3000 psi (210 bar)
-100 psi (-7.0 bar)
30 psi (2.1 bar)
100:1
0.010
0.0375 / 0.0350
STD800 Smart Pressure Transmitter 5
Total Performance = +/- √(Accuracy)
2
+ (Temp Effect)2+ (Static Line Pressure Effect)2
Total Performance Examples: (standard accuracy 5:1 Turndown, up to 50 oF shift & up to 1000 psi Static Pressure3)
Model
Total Performance
Model
Total Performance
STD810 @ 2”H
2
O
0.505% of span
STD830 @ 20 psi
0.140% of span
STD820 @ 80” H
2
O
0.135% of span
STD870 @ 600 psi
0.131% of span
Typical Calibration Frequency: Calibration verification is recommended every four (4) years
Notes:
1. Terminal based Accuracy – Incudes combined effects of linearity, hysteresis and repeatability. Analog output adds 0.005% of
span
2. For zero based spans and reference conditions of 25 C (77 F). 0 psig static pressure. 10 to55% RH, and 316 Stainless Steel
barrier diaphragm.
3. STD810 includes only zero shift with static pressure. Results ar % of span/25 psig.
Operating Conditions – All Models
Parameter
Reference
Condition
Rated Condition
Operative Limits
Transportation and
Storage
C
F
C
F
C
F
C
F
Ambient Temperature1
STD800
25±1
77±2
-40 to 85
-40 to 185
-40 to 85
-40 to 185
-55 to 120
-67 to 248
Meter Body Temperature2
STD810, 820, 830, 870
25±1
77±2
-40 to 1101
-40 to 2301
-40 to 125
-40 to 257
-55 to 120
-67 to 248
Humidity %RH
10 to 55
0 to 100
0 to 100
0 to 100
Vac. Region – Min. Pressure
All Models Except STD810
mmHg absolute
inH2O absolute
Atmospheric
Atmospheric
25
13
2 (short term ) 3
1 (short term ) 3
Supply Voltage
Load Resistance
10.8 to 42.4 Vdc at terminals (IS versions limited to 30 Vdc)
0 to 1,440 ohms (as shown in Figure 2)
Maximum Allowable
Working Pressure (MAWP)
4,5
(ST 800 products are rated to
Maximum Allowable Working
Pressure. MAWP depends on
Approval Agency and transmitter
materials of construction.)
Standard:
STD810 = 50 psi (3.45 bar)
STD820, STD830 and STD870 = 4,500 psi (310 bar)
Optional:
STD820, STD830, STD870 = 6,000 psi (420 bar)
Static Pressure Limit = Maximum Allowable Working Pressure (MAWP) = Overpressure
Limit for ST 800 Differential Pressure Transmitters
1
LCD Display operating temperature -20C to +70C . Storage temperature -30C to 80C.
2
Silicone 704 minimum temperature rating is 0
o
C (32oF). CTFE minimum temperature rating is -30C (-22F).
NEOBEE M-20 minimum temperature rating is -15oC (5oF). NEOBEE is a registered trademark of Stepan Company.
3
Short term equals 2 hours at 70C (158F).
4
MAWP applies for temperatures -40 to 125C. Static Pressure Limit is de-rated to 3,000 psi for -26C to -40C. for all models except STD810. Use of
graphite. o-rings de-rates transmitter to 3,625 psi. Use of 1/2:” process adaptors with graphite o-rings de-rates transmitter to 3,000 psi.
5
Consult factory for MAWP of ST 800 transmitters with CRN approval.
6 STD800 Smart Pressure Transmitter
Figure 2 - Supply voltage and loop resistance chart & calculations
Performance Under Rated Conditions – All Models
Parameter
Description
Analog Output
Digital Communications:
Two-wire, 4 to 20 mA (HART & DE Transmitters only)
Honeywell DE, HART 7 protocol or FOUNDATION Fieldbus ITK 6.0.1 compliant
All transmitters, irrespective of protocol have polarity insensitive connection.
HART & DE Output Failure
Modes
(NAMUR for DE Units requires
selecting display and
configuration buttons or factory
configuration)
Honeywell Standard: NAMUR NE 43
Compliance:
Normal Limits: 3.8 – 20.8 mA 3.8 – 20.5
mA
Failure Mode: ≤ 3.6 mA and ≥ 21.0 mA ≤ 3.6 mA and ≥
21.0 mA
Supply Voltage Effect
0.005% span per volt.
Transmitter Turn on Time
(includes power up & test
algorithms)
HART or DE: 2.5 sec. Foundation Fieldbus: Host dependant
Response Time
(delay + time constant)
DE/HART Analog Output FOUNDATION Fieldbus
90mS 150mS (Host Dependant)
Damping Time Constant
HART: Adjustable from 0 to 32 seconds in 0.1 increments. Default: 0.50 seconds
DE: Discrete values 0, .16, .32, .48, 1, 2, 4, 8, 16, 32 seconds. Default: 0.48 seconds
Vibration Effect
ST 820, ST 830, ST 870
Less than +/- 0.1% of URL w/o damping
Per IEC60770-1 field or pipeline, high vibration level (10-2000Hz: 0.21
displacement/3g max acceleration)
Electromagnetic Compatibility
IEC 61326-3-1
Lightning Protection Option
Leakage Current: 10uA max @ 42.4VDC 93C
Impulse rating: 8/20uS 5000A (>10 strikes) 10000A (1 strike min.)
10/1000uS 200A (> 300 strikes)
STD800 Smart Pressure Transmitter 7
Materials Specifications (see model selection guide for availability/restrictions with various models)
Parameter
Description
Barrier Diaphragms Material
316L SS, Hastelloy® C-2762, Monel® 400 3, Tantalum, Gold-plated 316L SS, Goldplated Hastelloy® C-276, Gold-plated Monel® 400
Process Head Material
316 SS4, Carbon Steel (Zinc-plated) 5
316 SS4, Carbon Steel (Zinc-plated) 5, Hastelloy C-2766, Monel 400 7
Vent/Drain Valves & Plugs
1
316 SS4, Hastelloy C-2762, Monel 400
7
Head Gaskets
Glass-filled PTFE standard. Viton® and graphite are optional.
Meter Body Bolting
Carbon Steel (Zinc plated) standard. Options include 316 SS, NACE A286 SS bolts,
Monel K500, Super Duplex and B7M.
Optional Adapter Flange and
Bolts
Adapter Flange materials include 316 SS, Hastelloy C-276 and Monel 400. Bolt
material for flanges is dependent on process head bolts material chosen. Standard
adaptor seal material is glass-filled PTFE. Viton and graphite are optional.
Mounting Bracket
Carbon Steel (Zinc-plated) or 304 Stainless Steel or 316 Stainless Steel
Fill Fluid
Silicone Oil 200, Silicone Oil 704, Inert Fluorinated Oil CTFE and NEOBEE® M-20
(Note that STD810 is only available with Silicone Oil 200 and NEOBEE® M-20)
Electronic Housing
Pure Polyester Powder Coated Low Copper (<0.4%)-Aluminum. Meets NEMA 4X,
IP66, & P67. All stainless steel housing is optional.
Mounting
Can be mounted in virtually any position using the standard mounting bracket. Bracket
is designed to mount on 2-inch (50 mm) vertical or horizontal pipe. See Figure 3.
Process Connections
1/4- NPT or 1/2- NPT with adapter (meets DIN requirements)
Wiring
Accepts up to 16 AWG (1.5 mm diameter).
Dimensions
See Figure 4.
Net Weight
8.3 pounds (3.8 Kg) with Aluminum Housing
1
Vent/Drains are sealed with Teflon®
2
Hastelloy C-276 or UNS N10276
3
Monel 400 or UNS N04400 4 Supplied as 316 SS or as Grade CF8M, the casting equivalent of 316 SS.
5
Carbon Steel heads are zinc-plated and not recommended for water service due to hydrogen migration. For that service, use 316 stainless steel wetted
Process Heads.
6
Hastelloy C-276 or UNS N10276. Supplied as indicated or as Grade CW12MW, the casting equivalent of Hastelloy C-276
7
Monel 400 or UNS N04400. Supplied as indicated or as Grade M30C, the casting equivalent of Monel 400
8 STD800 Smart Pressure Transmitter
Communications Protocols & Diagnostics
HART Protocol
Version:
HART 7
Power Supply
Voltage: 10.8 to 42.4Vdc at terminals
Load: Maximum 1440 ohms See figure 2
Minimum Load: 0 ohms. (For handheld communications a
minimum load of 250 ohms is required)
Foundation Fieldbus (FF)
Power Supply Requirements
Voltage: 9.0 to 32.0Vdc at terminals
Steady State Current: 17.6mAdc
Software Download Current: 27.4mAdc
Available Function Blocks
Block Type
Qty
Execution Time
Resource 1 n/a
Transducer 1 n/a
Diagnostic 1 n/a
Analog Input
1*
30 ms
PID w/Autotune
1
45 ms
Integrator 1 30 ms
Signal Char (SC)
1
30 ms
LCD Display 1 n/a
Flow Block 1 30 ms
Input Selector
1
30 ms
Arithmetic 1 30 ms
* AI block may have two (2) additional instantiations.
All available function blocks adhere to FOUNDATION
Fieldbus standards. PID blocks support ideal & robust PID
algorithms with full implementation of Auto-tuning.
Link Active Scheduler
Transmitters can perform as a backup Link Active
Scheduler and take over when the host is disconnected.
Acting as a LAS, the device ensures scheduled data
transfers typically used for the regular, cyclic transfer of
control loop data between devices on the Fieldbus.
Number of Devices/Segment
Entity IS model: 6 devices/segment
Schedule Entries
18 maximum schedule entries
Number of VCR’s: 24 max
Compliance Testing: Tested according to ITK 6.0.1
Software Download
Utilizes Class-3 of the Common Software Download
procedure as per FF-883 which allows the field devices of
any manufacturer to receive software upgrades from any
host.
Honeywell Digitally Enhanced (DE)
DE is a Honeywell proprietary protocol which provides
digital communications between Honeywell DE enabled
field devices and Hosts.
Power Supply
Voltage: 10.8 to 42.4Vdc at terminals
Load: Maximum 1440 ohms See figure 2
Standard Diagnostics
ST 800 top level diagnostics are reported as either critical
or non-critical and readable via the DD/DTM tools or
integral display as shown below.
Refer to ST 800 diagnostics tech note for additional level
diagnostics.
Other Certification Options
Materials
o NACE MRO175, MRO103, ISO15156
Hazardous Areal Certifications:
MSG
CODE
AGENCY
TYPE OF PROTECTION
COMM.
OPTION
ELECTRICAL
PARAMETERS
AMBIENT TEMP
(Ta)
A
FM
Approvals
TM
USA
Explosionproof:
Class I, Division 1, Groups A, B, C, D;
Dust Ignition Proof:
Class II, III, Division 1, Groups E, F, G;
T6..T5
Class l, Zone 0/1, AEx db IIC T6..T5 Ga/Gb
Class ll, Zone 21, AEx tb IIIC T95o Db
All
Note 1
T5: -50 ºC to 85ºC
T6: -50 ºC to 65ºC
Intrinsically Safe:
Class I, II, III, Division 1, Groups A, B, C, D,
E, F, G: T4
Class l, Zone 0, AEx ia IIC T4 Ga
FISCO Field Device (Only for FF Option)
Ex ia IIC T4 Ga; Ex ic IIC T4 Gc
4-20 mA /
DE/ HART
Note 2a
-50 ºC to 70ºC
Foundation
Fieldbus
Note 2b
-50 ºC to 70ºC
Nonincendive:
Class I, Division 2, Groups A, B, C, D
locations, T4
Class l, Zone 2, AEx nA IIC T4 Gc
4-20 mA /
DE/ HART/
Foundation
Fieldbus
Note 1
-50 ºC to 85ºC
Enclosure: Type 4X/ IP66/ IP67
All
All
-
STANDARDS: FM Class 3600:2011; FM Class 3610: 2010; FM Class 3611: 2004; FM Class
3615: 2006; FM Class 3616: 2011; FM Class 3810: 2005; ANSI/ISA 60079-0: 2013; ANSI/UL
60079-1: 2015; ANSI/UL 60079-11: 2014; ANSI/ISA 60079-15: 2012; ANSI/UL 60079-26: 2017;
ANSI/UL 60079-31: 2015; ANSI/NEMA 250: 2003; ANSI/ IEC 60529: 2004
B
Canadian
Standards
Association
(CSA)
USA and
Canada
Explosion Proof:
Class I, Division 1, Groups A, B, C, D;
Class II, Division 1, Groups E, F, G;
Class III, Division 1, T6..T5
Class I Zone 1 AEx db IIC T6..T5 Ga/Gb
Ex db IIC T6..T5 Ga/Gb
Zone 22 AEx tb IIIC T95o Db
Ex tb IIIC T95o Db
All
Note 1
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe:
Class I, II, III, Division 1, Groups A, B, C, D;
Class II, Division 1, Groups E, F, G;
Class III, Division 1, T4
Class I Zone 0, AEx ia IIC T4 Ga
Class I Zone 2, AEx ic IIC T4 Gc
Ex ia IIC T4 Ga
Ex ic IIC T4 Gc
FISCO Field Device (Only for FF Option)
Ex ia IIC T4 Ga;
Ex ic IIC T4 Gc
4-20 mA /
DE/ HART
Note 2
-50oC TO 70oC
Foundation
Fieldbus
Note 2
-50oC TO 70oC
Nonincendive:
Class I, Division 2, Groups A, B, C, D;
Class II, Division 2, Groups F, G;
Class III, Division 2, T4
Class I Zone 2 AEx nA IIC T4 Gc
Ex nA IIC T4 Gc
4-20 mA /
DE/ HART/
Foundation
Fieldbus
Note 1
-50oC to 85oC
Enclosure: Type 4X/ IP66/ IP67
All
All
-
MSG
CODE
AGENCY
TYPE OF PROTECTION
COMM.
OPTION
ELECTRICAL
PARAMETERS
AMBIENT TEMP
(Ta)
STANDARDS: CSA C22.2 No. 0-10; CSA C22.2 No. 94-M91; CSA C22.2 No. 25-1966; CSA C22.2
No. 30-M1986; CSA C22.2 No. 142-M1987; CSA C22.2 No. 157-92; CSA C22.2 No. 213-M1987;
CSA-C22.2 No. 60529:05; CSA-C22.2 No. 60079-0:11; CSA-C22.2 No. 60079-1:11; CSA-C22.2
No. 60079-11:11; CSA-C22.2 No. 60079-15:12; CSA-C22.2 No. 60079-31:12; ISA 12.12.012010; ISA 60079-0: 2009; ISA 60079-11: 2011; ISA 60079-15: 2009; ISA 60079-26: 2008; ISA60079-27:2007 (12.02.04)-2006 (R2011); UL 913 Ed. 6; UL 916:1998; ANSI/ISA-12.27.01-2011
C
ATEX
Flameproof: SIRA 12ATEX2233X
II 1/2 G Ex db IIC T6..T5 Ga/Gb
II 2 D Ex tb IIIC T95oC…T120oC Db
All
Note 1
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe: SIRA 12ATEX2233X
II 1 G Ex ia IIC T4 Ga
FISCO Field Device (Only for FF Option)
II 1 G Ex ia IIC T4 Ga
4-20 mA / DE/
HART
Note 2
-50oC TO 70oC
Foundation
Fieldbus
Note 2
-50oC TO 70oC
Zone 2, Increase Safety: SIRA
12ATEX4234X
II 3 G Ex ec IIC T4 Gc
4-20 mA / DE/
HART/
Note 1
-50oC TO 85oC
Zone 2, Intrinsically Safe: SIRA
12ATEX4234X
II 3 G Ex ic IIC T4 Gc
FISCO Field Device (Only for FF Option)
II 3 G Ex ic IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 2
-50oC TO 85oC
Enclosure: IP66/ IP67
All
All
-
STANDARDS: EN 60079-0: 2012/A11: 2013; EN 60079-1: 2014; EN 60079-7: 2015; EN 6007911: 2012; EN 60079-26: 2015; EN 60079-31: 2009
D
IECEx
World
Flameproof: IECEx SIR 12.0100X
Ex db IIC T6..T5 Ga/Gb
Ex tb IIIC T95oC…T120oC Db
All
Note 1
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe: IECEx SIR 12.0100X
Ex ia IIC T4 Ga
FISCO Field Device (Only for FF Option)
Ex ia IIC T4 Ga; Ex ic IIC T4 Gc
4-20 mA / DE/
HART
Note 2
-50oC TO 70oC
Foundation
Fieldbus
Note 2
-50oC TO 70oC
Zone 2, Increase Safety: IECEx SIR
12.0100X
Ex ec IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 1
-50oC TO 85oC
Zone 2, Intrinsically Safe: IECEx SIR
12.0100X
Ex ic IIC T4 Gc
FISCO Field Device (Only for FF Option)
Ex ic IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 2
-50oC TO 85oC
Enclosure: IP66/ IP67
All
All
-
STANDARDS: IEC 60079-0: 2011; IEC 60079-1: 2014; IEC 60079-7: 2017; IEC 60079-11: 2011;
IEC 60079-26: 2014; IEC 60079-31: 2013
E
SAEx
South Africa
Flameproof :
Ex d IIC T6…T5 Ga/Gb
Ex tb IIIC T95oC…T120oC Db
All
Note 1
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe:
Ex ia IIC Ga T4
FISCO Field Device (Only for FF Option)
Ex ia IIC T4 Ga; Ex ic IIC T4 Gc
4-20 mA / DE/
HART
Note 2
-50oC TO 70oC
Foundation
Fieldbus
Note 2
-50oC TO 70oC
Zone 2, Increase Safety:
II 3 G Ex ec IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 1
-50oC TO 85oC
Zone 2, Intrinsically Safe:
Ex ic IIC T4 Gc
FISCO Field Device (Only for FF Option)
Ex ic IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 2
-50oC TO 85oC
Enclosure: IP66/ IP67
All
All
-
F
INMETRO
Brazil
Flameproof:
Ex db IIC T6..T5 Ga/Gb
Ex tb IIIC T95oC…T120oC Db
All
Note 1
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe:
Ex ia IIC T4 Ga
FISCO Field Device (Only for FF Option)
Ex ia IIC T4 Ga; Ex ic IIC T4 Gc
4-20 mA / DE/
HART
Note 2a
-50oC TO 70oC
Foundation
Fieldbus
Note 2b
-50oC TO 70oC
Zone 2, Increase Safety:
II 3 G Ex ec IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 1
-50oC TO 85oC
Zone 2, Intrinsically Safe:
Ex ic IIC T4 Gc
FISCO Field Device (Only for FF Option)
Ex ic IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 2
-50oC TO 85oC
Enclosure : IP 66/67
All
All
-
G
NEPSI
CHINA
Flameproof:
Ex db IIC T6..T5 Ga/Gb
Ex tb IIIC T 95oC Db
All
Note 1
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe:
Ex ia IIC T4 Ga
FISCO Field Device (Only for FF Option)
Ex ia IIC T4 Ga; Ex ic IIC T4 Gc
4-20 mA / DE/
HART
Note 2
-50oC TO 70oC
Foundation
Fieldbus
Note 2
-50oC TO 70oC
Zone 2, Increase Safety:
II 3 G Ex ec IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 1
-50oC TO 85oC
Zone 2, Intrinsically Safe:
Ex ic IIC T4 Gc
FISCO Field Device (Only for FF Option)
Ex ic IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 2
-50oC TO 85oC
Enclosure : IP 66/67
All
All
-
H
KOSHA
Korea
Flameproof :
Ex d IIC T4, T5, T6
Ex tD A21 IP66/IP67 T95oC…T120 oC
All
Note 1
T4: -50oC TO 85oC
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe:
Ex ia IIC T4
4-20 mA /
DE/ HART
Note 2
Ta= -50 ºC to 70ºC
Foundation
Fieldbus
Note 2
Ta= -50 ºC to 70ºC
Enclosure: IP66/ IP67
All
All
-
I
EAC
Russia, Belarus
and
Kazakhstan
Flameproof:
Ga/Gb Ex d IIC T6..T5
Ex tb IIIC Db T 85oC
All
Note 1
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe:
Ga Ex ia IIC T4 X
FISCO Field Device
(Only for FF Option)
Ga Ex ia IIC T4 X
4-20 mA /
DE/ HART
Note 2
-50oC TO 70oC
Foundation
Fieldbus
Note 2
-50oC TO 70oC
Zone 2, Non Sparking:
2 Ex nA IIC T4 Gc X
4-20 mA /
DE/ HART/
Foundation
Fieldbus
Note 1
-50oC TO 85oC
Zone 2, Intrinsically Safe:
Ga Ex ic IIC T4 X
FISCO Field Device
(Only for FF Option)
2 Ex ic IIC T4 Gc X
4-20 mA /
DE/ HART/
Foundation
Fieldbus
Note 2
-50oC TO 85oC
Enclosure : IP 66/67
All
All
J
CCoE
INDIA
Flameproof:
Ex d IIC T6..T5 Ga/Gb
All
Note 1
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe:
Ex ia IIC T4 Ga
FISCO Field Device (Only for FF Option)
Ex ia IIC T4 Ga; Ex ic IIC T4 Gc
4-20 mA / DE/
HART
Note 2
-50oC TO 70oC
Foundation
Fieldbus
Note 2
-50oC TO 70oC
Non Sparking
Ex nA IIC T4 Gc
4-20 mA / DE/
HART/
Foundation
Fieldbus
Note 1
-50oC TO 85oC
Enclosure: IP66/ IP67
All
All
-
K
UATR
UKRAINE
Flameproof:
II 1/2 G Ex db IIC T6..T5 Ga/Gb
II 2 D Ex tb IIIC T95oC…T120oC Db
All
Note 1
T5: -50oC TO 85oC
T6: -50oC TO 65oC
Intrinsically Safe:
II 1 G Ex ia IIC T4 Ga
FISCO Field Device (Only for FF Option)
II 1 G Ex ia IIC T4 Ga
4-20 mA / DE/
HART
Note 2
-50oC TO 70oC
Foundation
Fieldbus
Note 2
-50oC TO 70oC
Enclosure: IP66/ IP67
All
All
-
Notes:
1. Operating Parameters:
Voltage= 11 to 42 V DC
= 10 to 30 V (FF)
Current= 4-20 mA Normal
= 30 mA (FF)
2. Intrinsically Safe Entity Parameters
a. Analog/ DE/ HART Entity Values:
Vmax= Ui = 30V
Imax= Ii= 105mA
Ci = 4.2nF
Li =984 uH
Pi =0.9W
Transmitter with Terminal Block Revision E or Later
Vmax= Ui = 30V
Imax= Ii= 225mA
Ci = 4.2nF
Li = 0
Pi =0.9W
Note : Transmitter with Terminal Block Revision E or later
The revision is on the label that is on the module. There will be two lines of text on the label:
First is the Module Part #: 50049839-001 or 50049839-002
Second line has the supplier information, along with the REVISION:
XXXXXXX-EXXXX, THE “X” is production related, THE POSITION of the “E” IS THE REVISION.
b. Foundation Fieldbus- Entity Values
Vmax= Ui = 30V
Imax= Ii= 180mA
Ci = 0nF
Li = 984 uH
Pi =1W
Transmitter with Terminal Block Revision F or Later )
Vmax= Ui = 30V
Imax= Ii= 225mA
Ci =0nF
Li = 0
Pi =1 W
FISCO Field Device
Vmax= Ui = 17.5V
Imax= Ii= 380 mA
Ci = 0nF
Li = 0
Pi =5.32 W
Note : Transmitter with Terminal Block Revision F or later
The revision is on the label that is on the module. There will be two lines of text on the label:
First is the Module Part #: 50049839-003 or 50049839-004
Second line has the supplier information, along with the REVISION:
XXXXXXX-EXXXX, THE “X” is production related, THE POSITION of the “E” IS THE REVISION.
Approval Certifications:
Marine Certificates
This certificate defines the certifications covered for the ST 800 Pressure Transmitter family of
products, including the SMV 800 Smart Multivariable Transmitter. It represents the compilation of
the five certificates Honeywell currently has covering the certification of these products into
marine applications.
For ST 800 Smart Pressure Transmitter and SMV800 Smart Multivarible Transmitter
American Bureau of Shipping (ABS) - 2009 Steel Vessel Rules 1-1-4/3.7, 4-6-2/5.15, 4-8-3/13
& 13.5, 4-8-4/27.5.1, 4-9-7/13. Certificate number: 04-HS417416-PDA
Bureau Veritas (BV) - Product Code: 389:1H. Certificate number: 12660/B0 BV
Det Norske Veritas (DNV) - Location Classes: Temperature D, Humidity B, Vibration A, EMC B,
Enclosure C. For salt spray exposure; enclosure of 316 SST or 2-part epoxy protection with 316
SST bolts to be applied. Certificate number: A-11476
Korean Register of Shipping (KR) - Certificate number: LOX17743-AE001
Lloyd's Register (LR) - Certificate number: 02/60001(E1) & (E2)
SIL 2/3 Certification
IEC 61508 SIL 2 for non-redundant use and SIL 3 for redundant use according to EXIDA and
TÜV Nord Sys Tec GmbH & Co. KG under the following standards: IEC61508-1: 2010; IEC
61508-2: 2010; IEC61508-3: 2010.
MEASUREMENT
INTRUMENTS
DIRECTIVE (MID)
2004/ 22/ EC
Certificate Issued by NMI Certin B.V.
Mechanical Class: M3 Electromagnetic Environment: E3
Ambient Temperature Range: -25 oC to + 55 oC
Unit
Custom Calibration
STD820
0 to 1000 mBar
STD830
0 to 7 Bar
STA84L
0 to 35 Bar A
STG84L
0 to 35 Bar
STD870
0 to 100 Bar
STA87L
0 to 100 Bar A
STG87L
0 to 100 Bar
Mounting & Dimensional Drawings
Mounting Configurations
Figure 3 – Typical mounting configurations for STD810, STD820, STD830 and STD870 for reference
Reference Dimensions:
millimeters
inches
Figure 4 – Typical mounting dimensions of STD810, STD820, STD830 & STD870 for reference
Model STD800
Differential Pressure Transmitter
Model Selection Guide:
34-ST-16-82 Issue 25
KEY NUMBER
URL LRL Max Span Min Span Units Selection
10 (25.0) -10 (-25.0) 10 (25) 0.1 (0.25)
" H2O (mbar) STD810
400/(1000) -400/(-1000) 400/(1000) 1.0 (2.5)
" H2O (mbar) STD820
100 (7.0) -100 (-7.0) 100 (7.0) 1 (0.07) psi (bar) STD830
3000 (210) -100 (-7.0) 3000 (210) 30 (2.1) psi (bar) STD870
TABLE I
316L Stainless Steel A _ _ _ _ _ _ * * * *
Hastelloy® C-276 B _ _ _ _ _ _ * * *
Monel® 400 C _ _ _ _ _ _ * * *
Tantalum D _ _ _ _ _ _ a a a
Gold Plated Stainless Steel 1 _ _ _ _ _ _ * * * *
Gold Plated Hastelloy C-276 2 _ _ _ _ _ _ * * *
Gold Plated Monel 400 3 _ _ _ _ _ _ * * *
316L Stainless Steel E _ _ _ _ _ _ * * * *
Hastelloy C-276 F _ _ _ _ _ _ * * *
Monel 400 G _ _ _ _ _ _ * * *
Tantalum H _ _ _ _ _ _ a a a
Gold Plated Stainless Steel 4 _ _ _ _ _ _ * * * *
Gold Plated Hastelloy C-276 5 _ _ _ _ _ _ * * *
Gold Plated Monel 400 6 _ _ _ _ _ _ * * *
Hastelloy C-276 J _ _ _ _ _ _ * * *
Tantalum K _ _ _ _ _ _ a a a
Gold Plated Hastelloy C-276 7 _ _ _ _ _ _ * * *
Monel 400 L _ _ _ _ _ _ a a a
Gold Plated Monel 400 8 _ _ _ _ _ _ a a a
Silicone Oil 200 _ 1 _ _ _ _ _ * * * *
Fluorinated Oil CTFE _ 2 _ _ _ _ _ * * *
Silicone Oil 704 _ 3 _ _ _ _ _ * * *
NEOBEE® M-20
_ 4 _ _ _ _ _ * * * *
None None (1/4" NPTF female thread Std) _ _ A _ _ _ _ * * * *
1/2" NPT female
Materials to Match Head & Head Bolt Materials Selections
1
_ _ H _ _ _ _ * * * *
Carbon Steel _ _ _ C _ _ _ * * * *
316 SS _ _ _ S _ _ _ * * * *
Grade 660 (NACE A286) with NACE 304 SS Nuts _ _ _ N _ _ _ * * * *
Grade 660 (NACE A286) Bolts & Nuts _ _ _ K _ _ _ p p p p
Monel K500 _ _ _ M _ _ _ p p p p
Super Duplex _ _ _ D _ _ _ p p p p
B7M _ _ _ B _ _ _ * * * *
Head Type Vent Type Location
Single Ended None None None _ _ _ _ 1 _ _ * * * *
Single Ended Standard Vent Side
Matches Head Material
1
_ _ _ _ 2 _ _ * * * *
Single Ended Center Vent Side Stainless Steel Only _ _ _ _ 3 _ _ t t t t
Dual Ended Standard Vent End
Matches Head Material
1
_ _ _ _ 4 _ _ * * * *
Dual Ended Center Vent End Stainless Steel Only _ _ _ _ 5 _ _ t t t t
Dual Ended Std Vent/Plug Side/End
Matches Head Material
1
_ _ _ _ 6 _ _ * * * *
Teflon® or PTFE (Glass Filled)
_ _ _ _ _ A _ * * * *
Viton® or Fluorocarbon Elastomer _ _ _ _ _ B _ * * * *
Graphite _ _ _ _ _ C _ * * * *
Standard Static Pressure - 4500 psig (310 bar) except STD810: 50 psi (3.5 bar)
_ _ _ _ _ _S * * * *
High Pressure 6000 psi (415 bar) _ _ _ _ _ _H k k k
b. Fill Fluid
c. Process
Connection
d. Bolt/Nut
Materials
e. Vent/Drain
Type/Location
Vent Material
f. Gasket
Material
g. Static
Pressure
1
Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required
Availability
Measurement
Range
METER BODY SELECTIONS
a. Process
Wetted Heads
& Diaphragm
Materials
Process Head Material
Diaphragm Material
Plated Carbon Steel
316 Stainless Steel
Hastelloy C-276
Monel 400
Instructions:
Make selections from all Tables Key through XIII using column below the proper arrow. Asterisk indicates
availability. Letter (a) refer to restrictions highlighted in the restrictions table. Tables delimited w ith dashes.
Model Selection Guide
Model Selection Guides are subject to change and are inserted into the specifications as guidance only.
STD870
STD830
H L L H
H 90
o
L STD820
STD810
TABLE II
Standard
High Side Left, Low Side Right2 / Std Head Orientation
1
* * * *
Reversed
Low Side Left, High Side Right2 / Std Head Orientation
2
* * * *
90/Standard
High Side Left, Low Side Right2 / 900 Head Rotation
3 h h h h
TABLE III
0 * * * *
A * * * *
B
* * * *
C * * * *
D * * * *
E * * * *
F * * * *
NEPSI Explosion proof, Intrinsically Safe & Non-incendive G * * * *
KOSHA Explosion proof, Intrinsically Safe & Non-incendive H * * * *
EAC Customs Union(Russia,Belarus,Kazakhstan)Ex Approval, Flame proof, Intrinsically Safe I * * * *
CCoE Explosion proof, Intrinsically Safe & Non-incendive
J * * * *
UATR Flameproof, Intrinsically Safe & Dustproof K * * * *
TABLE IV
Connection
1/2 NPT A _ _ * * * *
M20 B _ _ * * * *
1/2 NPT C _ _ * * * *
M20 D _ _ * * * *
1/2 NPT E _ _ * * * *
M20 F _ _ * * * *
1/2 NPT
G _ _
* * * *
M20
H _ _
* * * *
_ H _ * *
* *
_ D _ u u
u u
_ F _ * *
* *
Indicator
None _ _ 0 * *
* *
None _ _ A f f
f f
Basic _ _ B * *
* *
Basic _ _ C * *
* *
Advanced _ _ D * *
* *
Advanced _ _ E * *
* *
Advanced _ _ H * *
* *
Advanced _ _ J * *
* *
TABLE V
1 _ _ * *
* *
2 _ _ * *
* *
Write Protect Fail Mode
Disabled
High> 21.0mAdc Honeywell Std (3.8 - 20.8 mAdc)
_ 1 _ f f
f f
Disabled
Low< 3.6mAdc Honeywell Std (3.8 - 20.8 mAdc)
_ 2 _ f f
f f
Enabled
High> 21.0mAdc Honeywell Std (3.8 - 20.8 mAdc)
_ 3 _ f f
f f
Enabled
Low< 3.6mAdc Honeywell Std (3.8 - 20.8 mAdc)
_ 4 _ f f
f f
Enabled N/A N/A _ 5 _
g g g g
Disabled N/A N/A _ 6 _ g g g g
Factory Standard _ _ S * *
* *
Custom Configuration (Unit Data Required from customer) _ _ C * *
* *
2
Left side/Right side as viewed from the customer connection perspective
3
NAMUR Output Limits 3.8 - 20.5mAdc can be configured by the customer or select custom configuration Table Vc
ATEX Explosion proof, Intrinsically Safe & Non-incendive
IECEx Explosion proof, Intrinsically Safe & Non-incendive
SAEx Explosion proof, Intrinsically Safe & Non-incendive
INMETRO Explosion proof, Intrinsically Safe & Non-incendive
Approvals
Meter Body & Connection Orientation
Head/Connect
Orientation
Agency Approvals (see data sheet for Approval Code Details)
No Approvals Required
FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof
CSA Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof
TRANSMITTER ELECTRONICS SELECTIONS
a. Electronic
Housing
Material &
Connection
Type
Material
Lightning Protection
Polyester Powder Coated Aluminum
None
Polyester Powder Coated Aluminum
None
Polyester Powder Coated Aluminum
Yes
Polyester Powder Coated Aluminum
Yes
316 Stainless Steel (Grade CF8M)
None
316 Stainless Steel (Grade CF8M)
None
316 Stainless Steel (Grade CF8M)
Yes
316 Stainless Steel (Grade CF8M)
Yes
b. Output/
Protocol
Analog Output
Digital Protocol
4-20mA dc
HART Protocol
4-20mA dc
DE Protocol
none
Foundation Fieldbus
c. Customer
Interface
Selections
Ext Zero, Span & Config Buttons
Languages
None
None
Yes (Zero/Span Only)
None
None
English
Yes
English
None
EN, GE, FR, IT, SP, RU, TU
Yes
EN, GR, FR, IT,SP, RU, TU
None
EN, CH, JP
Yes
EN, CH, JP
CONFIGURATION SELECTIONS
Diagnostics
Standard Diagnostics
Advanced Diagnostics (Above with Plugged Impulse Detection PILD)
b. Output Limit,
Failsafe &
Write Protect
Settings
High & Low Output Limits
3
Fieldbus or Profibus
Fieldbus or Profibus
a. Application
Software
c. General
Configuration
STD870
STD830
STD820
TABLE VI STD810
Accuracy
Standard Factory Std Single Calibration A * * * *
Standard Custom (Unit Data Required) Single Calibration B * * * *
Standard Custom (Unit Data Required) Dual Calibration C * * * *
Standard Custom (Unit Data Required) Triple Calibration D * * * *
High Accuracy Factory Std Single Calibration E s s s
High Accuracy Custom (Unit Data Required) Single Calibration F s s s
High Accuracy Custom (Unit Data Required) Dual Calibration G s s s
High Accuracy Custom (Unit Data Required) Triple Calibration H s s s
TABLE VII
None None 0 _ _ _ * * * *
Angle Bracket Carbon Steel 1 _ _ _ * * * *
Angle Bracket 304 SS 2 _ _ _ * * * *
Angle Bracket 316 SS 3 _ _ _ * * * *
Marine Approved Bracket Carbon Steel 8 _ _ _ * * * *
Marine Approved Bracket 304 SS 4 _ _ _ * * * *
Flat Bracket Carbon Steel 5 _ _ _ * * * *
6 _ _ _ * * * *
Flat Bracket 316 SS
7 _ _ _ * * * *
No customer tag _ 0 _ _ * * * *
One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) _ 1 _ _ * * * *
Two Wired Stainless Steel Tag (Up to 4 lines 26 char/line) _ 2 _ _ * * * *
No Conduit Plugs or Adapters Required _ _ A0 * * * *
_ _ A2 n n n n
_ _ A6 n n n n
_ _ A7 m m m m
_ _ A8 n n n n
_ _ A9 m m m m
TABLE VIII
None - No additional options 00 * * * *
Low Temperature Rating (-50 deg C min. ambient operative temperature limit) LT w w w
NACE MR0175; MR0103; ISO15156 (FC33338) Process wetted parts only FG * * * *
NACE MR0175; MR0103; ISO15156 (FC33339) Process wetted and non-wetted parts F7 c c c c
Marine (DNV, ABS, BV, KR, LR) MT d d d d
EN10204 Type 3.1 Material Traceability (FC33341) FX * * * *
Certificate of Conformance (F3391) F3 * * * *
Calibration Test Report & Certificate of Conformance (F3399) F1 * * * *
Certificate of Origin (F0195) F5 * * * *
FMEDA (SIL 2/3) Certification (FC33337) FE j j j j
Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) TP * * * *
Cert Clean for O2 or CL2 service per ASTM G93 OX e e e e
PMI Certification
1
PM * * * *
Extended Warranty Additional 1 year
01 * * * *
Extended Warranty Additional 2 years
02 * * * *
Extended Warranty Additional 3 years
03 * * * * b
Extended Warranty Additional 4 years
04 * * * *
Extended Warranty Additional 15 years 15
* * * *
TABLE IX
Factory Factory Identification 0000 * *
* *
OTHER Certifications & Options: (Str ing in s equence com m a delim ited (XX, XX, XX,….)
Certifications &
Warranty
b
b
Manufacturing Specials
b. Customer
Tag
Customer Tag Type
c.
Unassembled
Conduit
Plugs &
Adapters
Unassembled Conduit Plugs & Adapters
1/2 NPT Male to 3/4 NPT Female 316 SS Certified Conduit Adapter
1/2 NPT 316 SS Certified Conduit Plug
M20 316 SS Certified Conduit Plug
Minifast® 4 pin (1/2 NPT) (not suitable for X-Proof applications)
Minifast® 4 pin (M20) (not suitable for X-Proof applications)
CALIBRATION & ACCURACY SELECTIONS
a. Accuracy
and
Calibration
Calibrated Range
Calibration Qty
ACCESSORY SELECTIONS
a. Mounting
Bracket
Bracket Type
Material
Flat Bracket
304 SS
MODEL RESTRICTIONS
Table
a
c 1d
d IV a
e Ib
fgj IVb
m IV a
n IV a
pts Ia
v IV a
w Ib
b
FIELD INSTALLABLE REPLACEMENT PARTS
Integrally Mounted Advanced Indicator Kit (compatible with all Electronic Modules)
Terminal Strip w/o Lightening Protection for HART or DE Modules
Terminal Strip w/Lightning Protection Kit for HART or DE Modules
Terminal Strip w/o Lightening Protection FFB/Profibus Module
Terminal Strip w/Lightning Protection Kit for FFB/Profibus Module
HART Electronics Module
HART Electronics Module w/connection for external configuration buttons
DE Electronics Module
DE Electronics Module w/connection for external configuration buttons
FFB Electronics Module w/connection for external configuration buttons
PRODUCT MANUALS
All product documentation is available at www.honeywellprocess.com.
ST 800 Smart Transmitter User Manual - English
34-ST-25-35
ST 800 Smart Transmitter HART/DE Communications Manual - English
34-ST-25-38
ST 800 Smart Transmitter Safety Manual - English
34-ST-25-37
ST 800 Smart Transmitter Foundation Fieldbus Manual - English
34-ST-25-39
Integrally Mounted Basic Indicator Kit (Compatible with all Electronic Modules)
III
ST 800 Smart Transmitter Function Block Manual - English
34-ST-25-42
50049849-503
50049849-504
FFB Electronics Module Kit
50049849-507
50049849-508
Description
Part Number
50049911-501
50049846-501
50075472-531
50075472-532
50075472-533
50075472-534
50049849-501
50049849-502
C, D, G, H _ _
IVb
_D,F_
_1_ _ _ _ _
VIII
FE
Select only one option from this group
1
The PM option is available on all Smartline Pressure Transmitter process wetted parts such as process heads, flanges, bushings and vent plugs
except plated carbon steel process heads and flanges. PM option information is also available on diaphragms except Gold plated and STG and STA
in-line construction pressure transmitters.
Description
Kit Number
B- No CRN number available
Ia
J, K, 7, L, 8
A,E _ _ _ _ _ _uVa
2 _ _
VIa
C,D,G,H
_ H _
Vb
_ 1,2,6 _
B, D, F, H _ _
A, C, E, G _ _
IVb
_ F _
IVb
_ H, D _hIe
_ _ _ _ 4, 5, 6_ _
Vlla
1,2,3,4,5,6,7,8_ _ _
_ _ _ N,K,D,B _ _ _
Ia
D,H,K,L,8 _ _ _ _ _ _
C, D, G, H _ _
VIIa
1,2,3,5,6,7 _ _ _
_ 2 _ _ _ _ _
VIII
F7, FG
k
Ia
J,K,7,L,8 _ _ _ _ _ _
Ic
_ _ H _ _ _ _
Id
_ _ _ B,D,M,N,S _ _ _
Ie
_ _ _ _ 1, 2, 3, 5, 6 _ _
III
B- No CRN number available
If
_ _ _ _ _ C_
Restriction
Letter
Available Only with
Not Available with
Selection(s)
Table
Selection(s)
For more information
To learn more about SmartLine Pressure
Transmitters, visit www.honeywellprocess.com
Or contact your Honeywell Account Manager
Process Solutions
Honeywell
1250 W Sam Houston Pkwy S
Houston, TX 77042
Honeywell Control Systems Ltd
Honeywell House, Skimped Hill Lane
Bracknell, England, RG12 1EB
34-ST-03-82
Jan 2021
2021 Honeywell International Inc.
Shanghai City Centre, 100 Jungi Road
Shanghai, China 20061
www.honeywellprocess.com
Sales and Service
For application assistance, current specifications, ordering, pricing, and name of the nearest Authorized Distributor,
contact one of the offices below.
ASIA PACIFIC
Honeywell Process Solutions,
Phone: + 800 12026455 or
+44 (0) 1202645583
(TAC) hfs-tac-
support@honeywell.com
Australia
Honeywell Limited
Phone: +(61) 7-3846 1255
FAX: +(61) 7-3840 6481
Toll Free 1300-36-39-36
Toll Free Fax:
1300-36-04-70
China – PRC - Shanghai
Honeywell China Inc.
Phone: (86-21) 5257-4568
Fax: (86-21) 6237-2826
Singapore
Honeywell Pte Ltd.
Phone: +(65) 6580 3278
Fax: +(65) 6445-3033
South Korea
Honeywell Korea Co Ltd
Phone: +(822) 799 6114
Fax: +(822) 792 9015
EMEA
Honeywell Process Solutions,
Phone: + 800 12026455 or
+44 (0) 1202645583
Email: (Sales)
FP-Sales-Apps@Honeywell.com
or
(TAC)
hfs-tac-support@honeywell.com
Web
Knowledge Base search
engine http://bit.ly/2N5Vldi
AMERICAS
Honeywell Process Solutions,
Phone: (TAC) (800) 423-9883
or (215) 641-3610
(Sales) 1-800-343-0228
Email: (Sales)
FP-Sales-Apps@Honeywell.com
or
(TAC)
hfs-tac-support@honeywell.com
Web
Knowledge Base search
engine http://bit.ly/2N5Vldi
Specifications are subject to change without notice.
Loading...
