PRO-2200
One Reader Interface
Installation Manual
Part Number: PRO22R1
TD1147 rev0601
PRO22R1-Reader Interface Introduction
i
Table of Contents
Warnings and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iii
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v
Product Liability; Mutual Indemnification . . . . . . . . . . . . . . . . . . . . . . .v
Unpacking Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v
Shipping Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi
Confidentiality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vii
Reader Interface (PRO22R1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Power, Reader and Door Hardware Wir ing . . . . . . . . . . . . . . . . . . .1-1

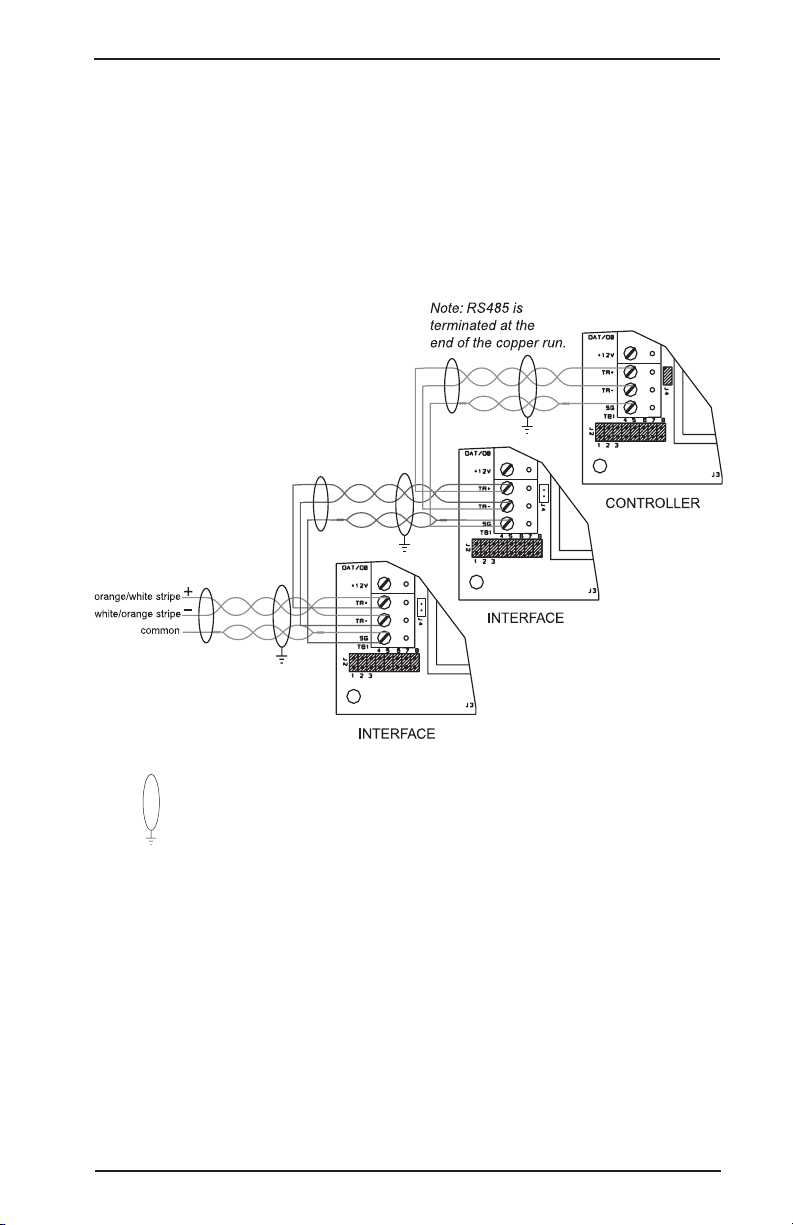

Communication to Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Introduction PRO22R1-Reader Interface
ii
NOTES
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
WWaarrnniinnggss aanndd CCaauuttiioonnss
WARNING
Before installation, TURN OFF the external circuit breaker
which supplies power to the system.
Before connecting the device to the power supply, verify that
the output voltage is within specifications of the power supply.
Do not apply power to the system until after the installation has
been completed.
Personal injury or death could occur, and the equipment could
be damaged beyond repair, if these WARNINGS are not
observed!
WARNING
Fire Safety and Liability Notice
Never connect card readers to any critical entry, exit door,
barrier, elevator or gate without providing an alternative exit in
accordance with all fire and life safety codes pertinent to the
installation.These fire and safety codes vary from city to city
and you must get approval from local fire officials whenever
using an electronic product to control a door or other barrier.
Use of egress buttons, for example, may be illegal in some
cities. In most applications, single action exit without prior
knowledge of what to do is a life safety requirement. Always
make certain that any required approvals are obtained in
writing. DO NOT ACCEPT VERBAL APPROVALS, THEY ARE
NOT VALID.
Engineered Systems never recommends using the PRO-2200
Series or related products for use as a primary warning or
monitoring system. Primary warning or monitoring systems
should always meet local fire and safety code requirements.
The installer must test the system on a regular basis and
instruct the end user in appropriate daily testing procedures.
Failure to test a system regularly could make installer liable to
the end user for damages if a problem occurs.
WARNING
EARTH ground all enclosures, for proper installation.
WARNING

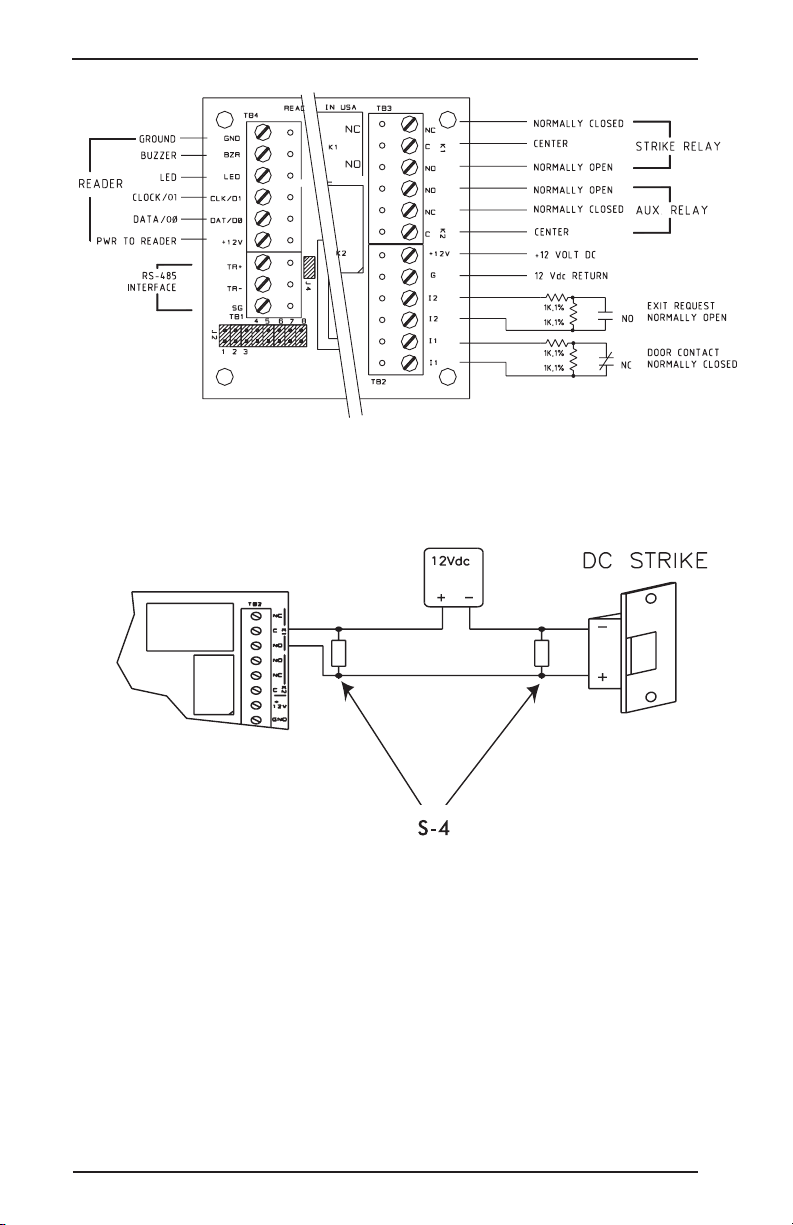

Use suppressors on all door strikes. Use S-4 suppressors for
installation. Engineered Systems recommends only DC strikes.
iii
PRO22R1-Reader Interface Introduction
Introduction PRO22R1-Reader Interface
iv
CAUTION
IF ANY DAMAGE TO THE SHIPMENT IS NOTICED, A CLAIM
MUST BE FILED WITH THE COMMERCIAL CARRIER
RESPONSIBLE.
CAUTION
Electro-static discharge can damage CMOS integrated circuits
and modules.
To prevent damage always follow these procedures:
Use static shield packaging and containers to transport all
electronic components, including completed reader assemblies.
Handle all ESD sensitive components at an approved static
controlled workstation.These workstations consist of a desk
mat, floor mat and an ESD wrist strap.Workstations are
available from var ious vendors.
NOTICE
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the
FCC Rules when wired using metal conduit for the cabling
external to the enclosure.These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment.This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications.Operation of this equipment in a residential
area is likely to cause harmful interference that will require
correcting at the users expense.
NOTICE
This document and the data in it shall not be duplicated, used
or disclosed to others for procurement or manufacture, except
as authorized by and with the written permission of,
Engineered Systems.The information contained in this
document or in the product itself is considered the exclusive
property and trade secrets of Engineered Systems. Copyright
laws of the United States protect all information in this
document, and in the software product itself.
NOTICE
Any use of this product is subject to the terms and acceptance
of the Engineered Systems Software Agreement. Please
request a copy from Engineered Systems, and review the
agreement carefully.
PRO22R1-Reader Interface Introduction
DDiissccllaaiimmeerr
Product Liability; Mutual Indemnification
In the event that a Customer receives a claim that a Product or
any component thereof has caused personal injury or damage
to property of others, Customer shall immediately notify
Engineered Systems in writing of all such claims. Engineered
Systems shall defend or settle such claims and shall indemnify
and hold Customer harmless for any costs or damages including reasonable attorneys’ fees which Customer may be
required to pay as a result of the defective Product or the negligence of Engineered Systems, its agents, or its employees.
Customer shall hold harmless and indemnify Engineered
Systems from and against all claims, demands, losses and liability arising out of damage to property or injur y to persons
occasioned by or in connection with the acts or omissions of
Customer and its agents and employees, and from and against
all claims, demands, losses and liability for costs of fees,
including reasonable attorneys’ fees, in connection therewith.
Unpacking Procedure
CAUTION
If any damage to the shipment is noticed before unpacking, a
claim must be filed with the commercial carrier.
All containers should be opened and unpacked carefully in
order to prevent damage to the contents.
The following steps are used to unpack equipment in preparation for installation:
1. Open the container and remove the unit(s) and all packing
material. Retain the container and all packing materials.
They may be used again for reshipment of the equipment, if
needed.
2. Inspect the contents for shortage. If items are missing,
contact the order entry department at 800-323-4576.
3. Visually check contents.If damage is discovered, perform
the following:
• If shipping caused damage to the unit, a claim must be
filed with the commercial carrier.
• If any other defect is apparent, call 800-323-4576 for a
return authorization.
v
Introduction PRO22R1-Reader Interface
vi
Shipping Instructions
To ship equipment back to Engineered Systems:
1. Contact the customer service depar tment at 800-323-4576
before returning equipment.
When calling, please have available:
• A description of the problem or reason for returning
the equipment.
• Original purchase order number, invoice number and
whether or not the unit is still under warranty.
• A new purchase order number if the unit is not under w arr anty.
2. Obtain the Return Authorization Number (RMA) from the
customer service department at 800-323-4576.
3. Show the RMA number on all packages shipped. Packages
not marked with an RMA number will be refused at the
factory and returned COD.
4. Carefully pack the equipment for shipment.Use the original
packing material whenever possible.
Limited Warranty
All Products sold or licensed by Engineered Systems include a
warranty registration card which must be completed and
returned to Engineered Systems by or on behalf of the end
user in order for Engineered Systems to provide warranty
service, repair, credit or exchange. All warranty work shall be
handled through Customer which shall notify Engineered
Systems and apply for a Return Merchandise Authorization
(RMA) number prior to returning any Product for service, repair,
credit or exchange. Engineered Systems warrants that its
Products shall be free from defects in materials and workmanship for a period of two years from date of shipment of the
Product to Customer.The warranty on Terminals, Printers,
Communications Products and Upgrade kits is 90 days from
date of shipment. Satisfaction of this warranty shall be limited to
repair or replacement of Products which are defective or
defective under normal use.Engineered Systems’warranty
shall not extend to any Product which, upon examination, is
determined to be defective as a result of misuse, improper
storage, incorrect installation, operation or maintenance,
alteration, modification, accident or unusual deterioration of the
Product due to physical environments in excess of the limits set
forth in Product manuals.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND
THIS PROVISION.THIS WARRANTY IS IN LIEU OF ALL
PRO22R1-Reader Interface Introduction
vii
OTHER W ARRANTIES WHETHER EXPRESS, IMPLIED OR
STATUTORY, INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR
PURPOSE. NO REPRESENTATION OR WARRANTY OF THE
DISTRIBUTOR SHALL EXTEND THE LIABILITY OR
RESPONSIBILITY OF THE MANUFACTURER BEYOND THE
TERMS OF THIS PROVISION. IN NO EVENT SHALL ENGINEERED SYSTEMS BE LIABLE FOR ANY RE-PROCUREMENT COSTS, LOSS OF PROFITS, LOSS OF USE, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES TO
ANY PERSON RESULTING FROM THE USE OF
ENGINEERED SYSTEMS’ PRODUCTS.
Confidentiality
All software, drawings, diagrams, specifications, catalogs,
literature, manuals and other materials fur nished by Engineered
Systems relating to the design, use and service of the Products
shall remain confidential and shall constitute proprietary rights
of Engineered Systems and Customer agrees to treat such
information as confidential. Customer shall acquire no rights in
the design of the Products or the related materials except to
use such information solely for the purpose of and only during
the time it sells the Products. Customer shall not copy the
design of any of the Products or use or cause to be used any
Product design or related materials for its own benefit or for the
benefit of any other party.The covenants contained in this section shall remain effective throughout the term of this
Agreement and thereafter unless specifically waived by
Engineered Systems in writing.
The information in this document is subject to change without notice.
© 2001 Engineered Systems. All rights reserved.
Introduction PRO22R1-Reader Interface
viii
NOTES
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
__________________________________________________________
PRO22R1-Reader Interface Installation
1-1
Reader Interface (PRO22R1)
The PRO22R1 provides interfacing to a TTL/Wiegand type reader
and door hardware as needed, for a single door. The Reader
Interface can accept data from a reader with clock/data or
Wiegand interface and provides a tri-stated LED control and
buzzer control.Two form-C relay outputs may be used for strike
control or alarm signaling. Two supervised inputs are provided for
monitoring the door contact and exit push button and one input
(J3) for enclosure tamper. Communication to the interface is
accomplished via an RS-485 interface.
Power, Reader and Door Hardware Wiring
All interconnection to the Interface are via quick-disconnect terminal blocks.The Interface requires 12 VDC ±15% for power. The
12 VDC is available for powering a reader.
Reader with TTL (clock/data or wd1/wd0) interface is supported
by the Interface.
Two supervised inputs are typically used for door contact and exit
push button monitoring. End of line resistors are required for line
supervision.
Two form-C relay contacts are provided for controlling door strike
or other devices.The contact ratings are different on these outputs. Load switching can cause contact abnormal wear and premature contact failure.Switching of inductive loads (strike) also
causes EMI (electromagnetic interference) which may interfere
with normal operation of other equipment.To minimize contact
premature failure and to increase system reliability, surge protectors should be used (Part #S-4).
Installation PRO22R1-Reader Interface
1-2
The following circuit is recommended.Locate the protection circuit that is close to the load and one at the PRO22R1 (within 12
inches [30cm]), as the effectiveness of the circuit will decrease if
it is located far away.
PRO22R1-Reader Interface Installation
1-3
Communication to Controller
The Interface communicates to a controller via a half duplex
multi-drop RS-485 interface.The total cable length is limited to
4,000 feet (1,200 meters). Shielded cable of 24AWG with characteristic impedance of 120 ohm and <13pf/ft capacitance is specified for the RS-485 interface.The last devices on both end of the
cable should have the termination installed (set jumper J4 on).
Represents that the shield must be grounded on one end.
Each Interface must be configured to have a unique address and
correct baud rate.The address and baud rate are selected by
installing the specified jumpers. Use 38400 as the standard Baud
rate setting. See the following diagram.
Installation PRO22R1-Reader Interface
1-4
J2
1
2
3
4
5
678
1
2
3
4
5
67
8
2400
9600
19200 38400
BAUD RATE
OPEN, NORMAL OPERATION
ADDRES
S SELECTION
2
3456
78
1
PRO22R1-Reader Interface Installation
Specifications
The Interface is for use in low voltage, class 2 circuits only.
1-5
Electrical
Mechanical
Environment
Voltage
Current
Relay Contacts
Monitor Inputs
RS-485 Comm Cable
LED Output
Buzzer Output
Reader Data Inputs
Reader Power
Dimensions
Weight
Temperature
Humidity
12 VDC ±10%
125mA max. (plus reader current 300 total max)
K1, 5A at 28 VDC; K2, 1A at 28 VDC
2 supervised, End of Line resistors, 1k 1% ¼ watt standard
4,000 (1,219 m) ma
120Ωimpedance <13pf capacitance
TTL compatible, high > 3V, low < 0.5V, 5mA source/sink max.
Open collector, 5 VDC open circuit max. 10mA sink max.
TTL compatible inputs
12 VDC, 175mA max.
4.25 W x 2.75 L x 1.4 H (108 mm W x 70 mm L x 36 mm
H)
4 oz. (120 g) nominal
-67° F to +185° F (-55° C to +85° C), storage
2° F to 50° F (0° C to 40° C), operating
10% to 95% RHNC
x. 24 AWG, 2 twistedpairs shield with drain,
Honeywell Security & Data Collection
2700 Blankenbaker Pkwy, Suite 150
Louisville, KY 40299
(800) 675-3364
www.honeywellaccess.com
Loading...
