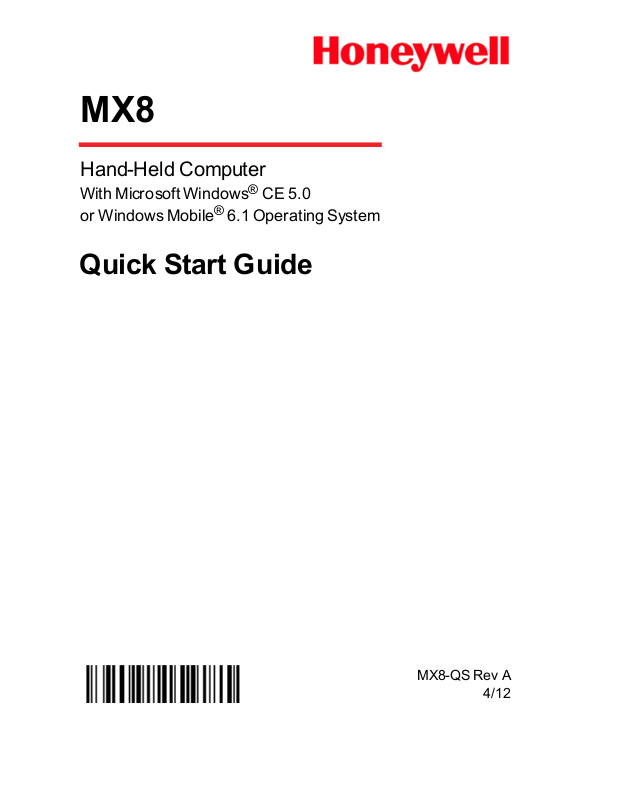

Honeywell MX8 User Manual

MX8

Hand-Held Computer

With Microsoft Windows®CE 5.0
or WindowsMobile®6.1 Operating System

Quick Start Guide

MX8-QS Rev A

4/12

Setting up the MX8

Please have the following Information available before
setting up your MX8:

l Network ID (SSID) of the Access Point
l WEP key or LEAP authentication credentials

1. Insert a fully charged battery into the MX8.

2. Press the Power button.

3. Accept the EULA.

4. Calibrate the touch screen.

5. Set the date and time.

6. Edit the radio parameters.

7. Edit the RFTerm Terminal Emulation
parameters (optional).

8. Perform a reboot.

Bluetooth and MX8

Please refer to the MX8 Reference Guide for
information when using the MX8 with Bluetooth.

ActiveSync

Installing ActiveSync on Desktop/Laptop

ActiveSync (version 4.5 or higher for Windows XP
desktop/laptop computers) must be resident on the
host (desktop/laptop) computer. Windows Mobile
Device Center is required for a Windows
Vista/Windows 7 desktop/laptop computer. ActiveSync
and Windows Mobile Device Center for the PC are
available from the Microsoft website. Follow Microsoft's
instructions to locate, download and install ActiveSync
or Windows Mobile Device Center on your
desktop/laptop.

ActiveSync using USB-Client Connection

The only connection type is USB Client.

1. Connect the MX8 end of the USB cable to the
I/O port on the bottom of the MX8.

2. Connect the USB type A connector on the I/O
cable to a USB port on a PC or laptop.

ActiveSync starts automatically when the USB cable is
connected.

When the MX8 loses connection (e.g., enters Suspend
Mode), the connection to ActiveSync is lost. When the
MX8 resumes, disconnect the PC end of the cable and
re-connect.

Please refer to the MX8 Reference Guide for
ActiveSync information.

Setting Up the Radio

If the access point uses an authentication protocol
(WEP, LEAP, etc.), your radio must use the same
authentication. Please contact your IT department for
WEP keys or LEAP credentials. Please refer to the
MX8 Reference Guide for information on using WPA.

1. Tap Start > Programs > Summit > SCU OR
tap the Summit Client Utility icon on the
desktop.

2. Tap the Admin Login button and enter the
password (default = SUMMIT).

3. Tap the Profile tab and make sure the Default
profile is selected.

4. Select SSID and enter your SSID value.

5. If the access point is using WEP, select WEP
from the Encryption pull down list.

6. Tap the WEP keys/PSKs button and enter the
WEP Key(s) and tap OK. Skip to step 12.

7. If the access point is using LEAP, select LEAP
from the EAP Type pull down list.

8. Select WEP EAP from the Encryption pull down
list.

9. If the Cisco/CCS certified AP is configured for
open authentication, set the Auth Type radio
parameter to Open.

10. If the AP is configured for network EAP only, set
the Auth Type radio parameter to LEAP.

11. Tap the Credentials button and enter the User
Name and Password.

12. Tap the Commit button to save the radio
configuration.

13. Tap the Main tab. Wait for a radio connected
message.

14. Tap the Admin Logout button when finished.

15. Reboot the MX8.

Please refer to the Radio Mode parameter in the MX8
Reference Guide. It is important that this parameter
setting corresponds to the Access Point to which the
MX8 connects.

Setting Up AppLock

MX8 devices are shipped to boot in Administration
mode. In this mode, the user has full access to the
device and no password is needed. After the
administrator completes the process below, the MX8
switches to end-user mode and restricts access to only
the specified application(s).

1. Tap Start > Settings > Control Panel >
Administration icon.

2. Assign application(s) on the Application tab
screen.

3. Assign a password on the Security tab screen.

4. Select a view level on the Status tab screen, if
desired.

5. Tap OK.

6. Press the hotkey (Ctrl + Shift + A) sequence to
launch AppLock and lock the configured
application(s).

7. The device is now in end-user mode.

Connecting Using RFTerm

Before you make a host connection, you will, at a
minimum, need to know:

l the alias name or IP address (Host Address)

and

l the port number (Telnet Port) of the host system

to properly set up your host session.

1. Make sure the mobile client network settings
are properly configured. If you are connecting
via WLAN (802.11x), make sure your MX8 is
connected to the network.

2. Launch RFTerm by tapping the RFTerm icon
on the desktop.

3. Select Session > Configure from the
application menu and select the host type. This
is dependent on the host system to which you
are connecting; i.e., 3270 mainframe, AS/400
5250 server or VT host.

4. Enter the Host Address of the system. This
may either be a DNS name or an IP address of
the host system.

5. Update the telnet port number if your host
application is configured to listen on a specific
port. If not, use the default telnet port.

6. Select OK.

7. Select Session > Connect from the application
menu or tap the Connect button on the Tool
Bar.

8. Upon a successful connection, the host
application screen is displayed.

To change options (e.g., Display, Colors, Cursor,
Barcode), please refer to the RFTerm Reference Guide
for descriptions of these and other features.

Rebooting the MX8

To warmboot the MX8 with Windows CE 5.0:

1. Using the Start menu, select Start > Run and
type warmboot in the text box.

2. Press Enter.

Warmboot is not supported on the MX8 with Windows
Mobile. Use Suspend/Resume instead:

1. Tap the Power key to Suspend the MX8.

2. Any keypress or screen tap wakes the MX8
from Suspend.

When the MX8 is booting, there may be small delays
while the wireless client connects, applications launch,
remote management completes and Bluetooth devices
connect.
