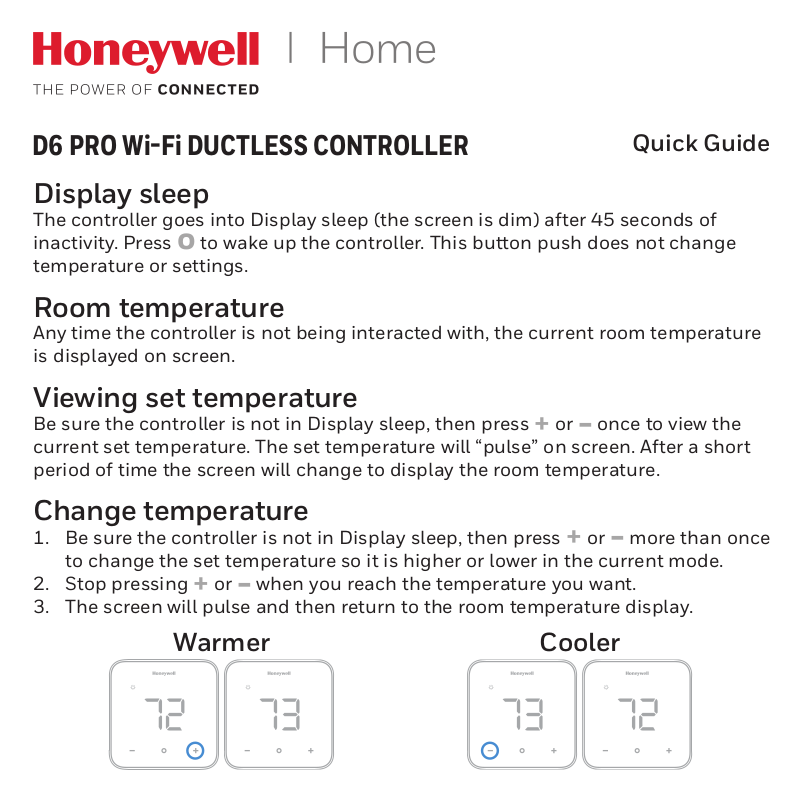

Honeywell D6 PRO Quick Manual

D6 PRO Wi-Fi DUCTLESS CONTROLLER

Quick Guide

Display sleep

The controller goes into Display sleep (the screen is dim) after 45 seconds of
inactivity. Press o to wake up the controller. This button push does not change
temperature or settings.

Room temperature

Any time the controller is not being interacted with, the current room temperature
is displayed on screen.

Viewing set temperature

Be sure the controller is not in Display sleep, then press + or - once to view the
current set temperature. The set temperature will “pulse” on screen. After a short
period of time the screen will change to display the room temperature.

Change temperature

1. Be sure the controller is not in Display sleep, then press + or - more than once
to change the set temperature so it is higher or lower in the current mode.

2. Stop pressing + or - when you reach the temperature you want.

3. The screen will pulse and then return to the room temperature display.

Warmer Cooler

Change mode

33-00388-03

1. Be sure the controller is not in Display sleep, then press o to change the
system mode.

2. Stop pressing o when you reach the mode you want.

The ductless unit will beep when it gets a command from the controller.

Symbol Mode

Heat mode - the ductless unit warms the space to the
temperature shown on the controller.

Cool mode - the ductless unit cools the space to the
temperature shown on the controller.

[screen is blank] Off mode - the ductless unit is turned off
