Honeywell D6000 User Manual

Dolphin 6000 Mobile Computers

with Windows Mobile 6.5

Users Guide

Disclaimer

Honeywell International Inc. ( HII ) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII.

Web Address: www.honeywellaidc.com

Trademarks

Dolphin 6000, Dolphin 6000 RF, HomeBase, Mobile Base, and QuadCharger are trademarks or registered trademarks of Hand Held Products, Inc. or Honeywell International Inc.

Microsoft, Windows, Windows Mobile, Windows CE, Windows 98 Second Edition, Windows NT, Windows 2000, Windows ME, Windows XP, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation.

Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are the property of their respective owners.

Patents

Please refer to the product packaging for a list of patents.

Other Trademarks

The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell.

Conventions

The touch panel display can be activated by using the stylus (included with the device) or a finger. To activate the display, open a file or select a menu, use the bottom tip of the stylus to Tap the touch panel display or gently press the touch panel with your finger.

Safety Information

Label Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Laser Safety Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

LED Safety Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

RoHS Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Agency Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

UL and cUL Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Approvals by Country . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

R&TTE Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Dolphin 6000 RF Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

FCC+IC Exposure :. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Canadian Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

For European Community Users. . . . . . . . . . . . . . . . . . . . . . . 1-6

Waste Electrical and Electronic Equipment. . . . . . . . . . . . . . 1-6

Electrically Powered Devices. . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Microwaves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Getting Started

Out of the Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Install Main Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Charge the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Before Initial Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Charging Using the Communication Cable . . . . . . . . . . . . . . 2-2

Boot the Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Using Touch Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Today Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Navigation Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Command Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Navigation Bar Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Set Time Zone, Time, and Date . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Pop-Up Menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Selecting Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

File Explorer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Search Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Hardware Overview

Standard Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Peripherals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

HomeBase. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Communication/Charging Cables . . . . . . . . . . . . . . . . . . . . . 3-2

Li-ion Battery Pack. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Vehicle Charging Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

USB Client Holder Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

iii

Base View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Memory Card Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

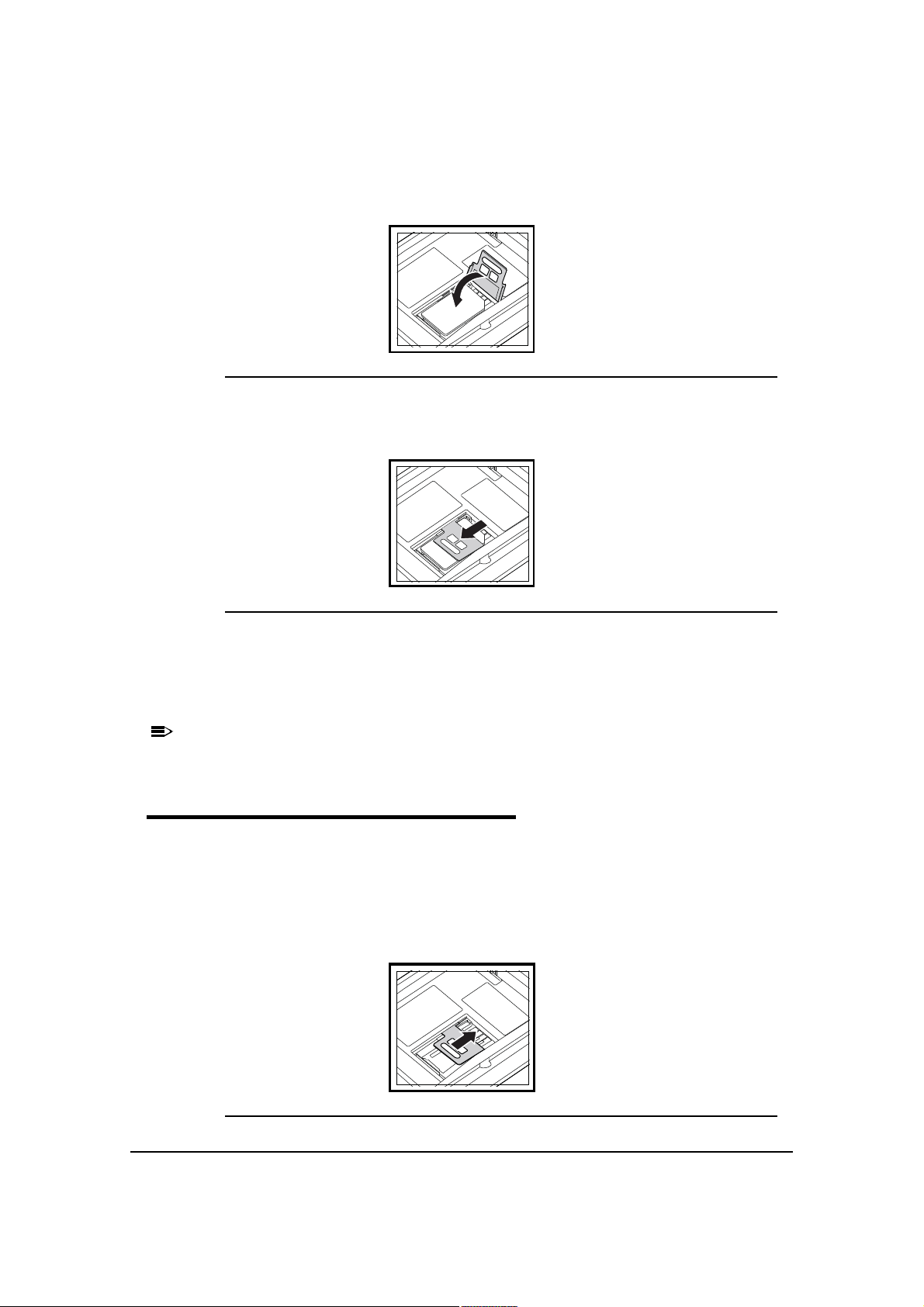

Installing a SIM Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Bottom Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

I/O Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Using the Touch Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Charging Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Charging Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Storing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Battery Pack Use and Disposal. . . . . . . . . . . . . . . . . . . . . . . 3-14

Managing Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Checking Battery Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

Resetting the Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Soft Reset (Warm Boot). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Hard Reset (Cold Boot). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Suspend Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Hardware Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Using the Scan Image Engine

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Angled Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Image Engine Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Laser Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Supported Bar Code Symbologies . . . . . . . . . . . . . . . . . . . . . 4-2

Decoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Decode a Bar Code. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Aiming Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Using the Camera

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Taking a picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Recording Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Using the Keypad

Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Using the Function Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Using the Navigation Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

29-Key Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Keypad Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

System Settings

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

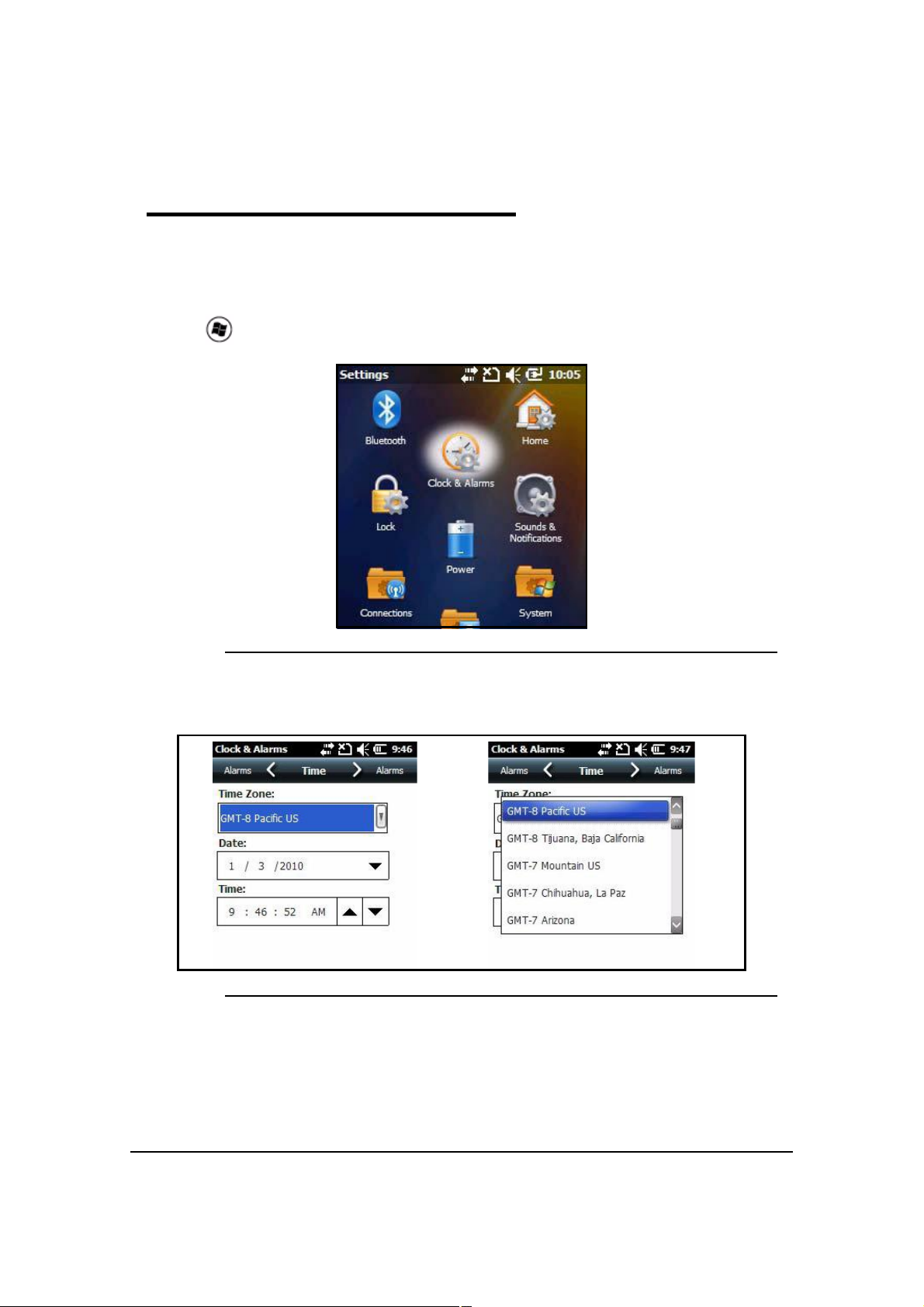

Clock & Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

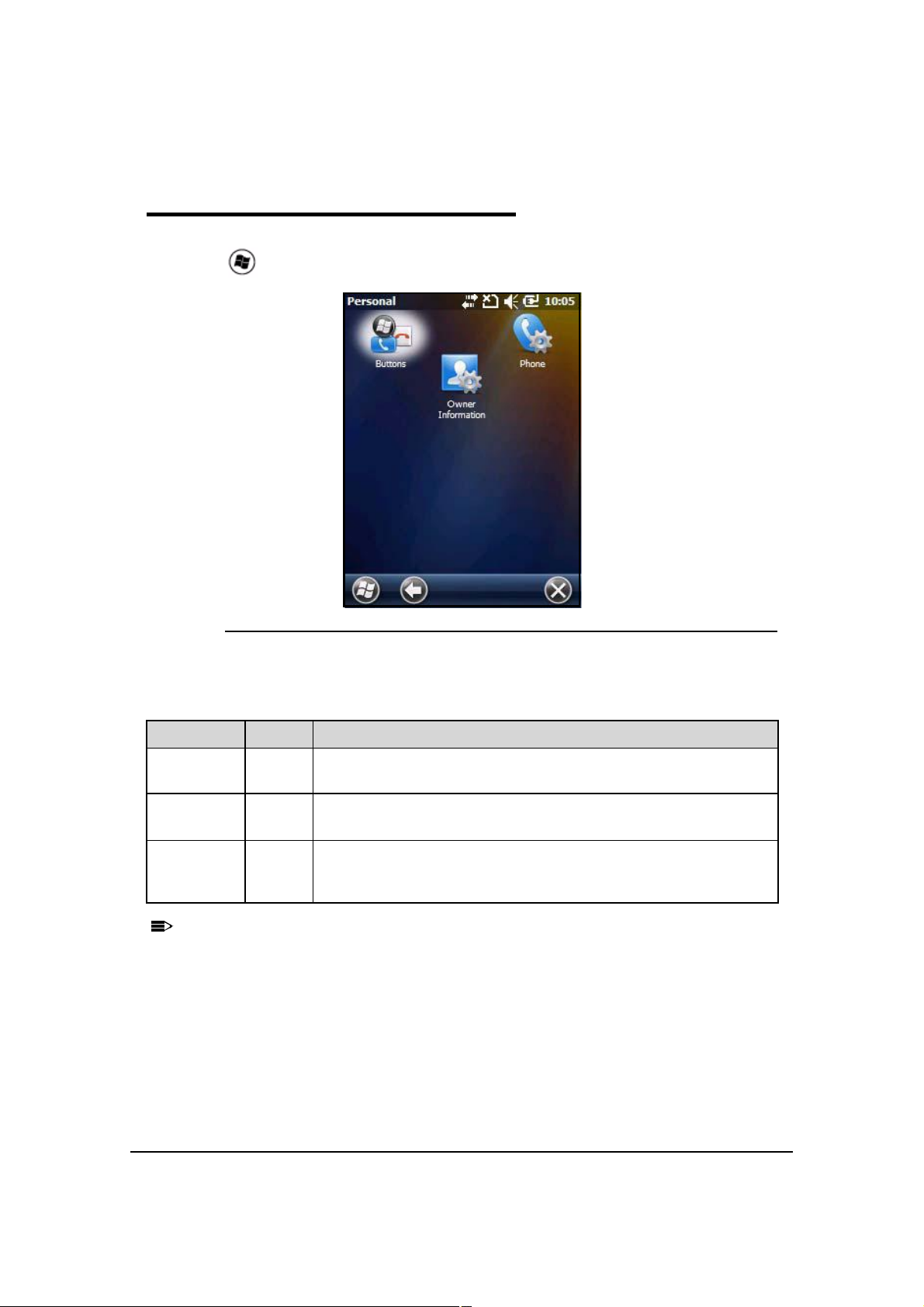

Personal Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

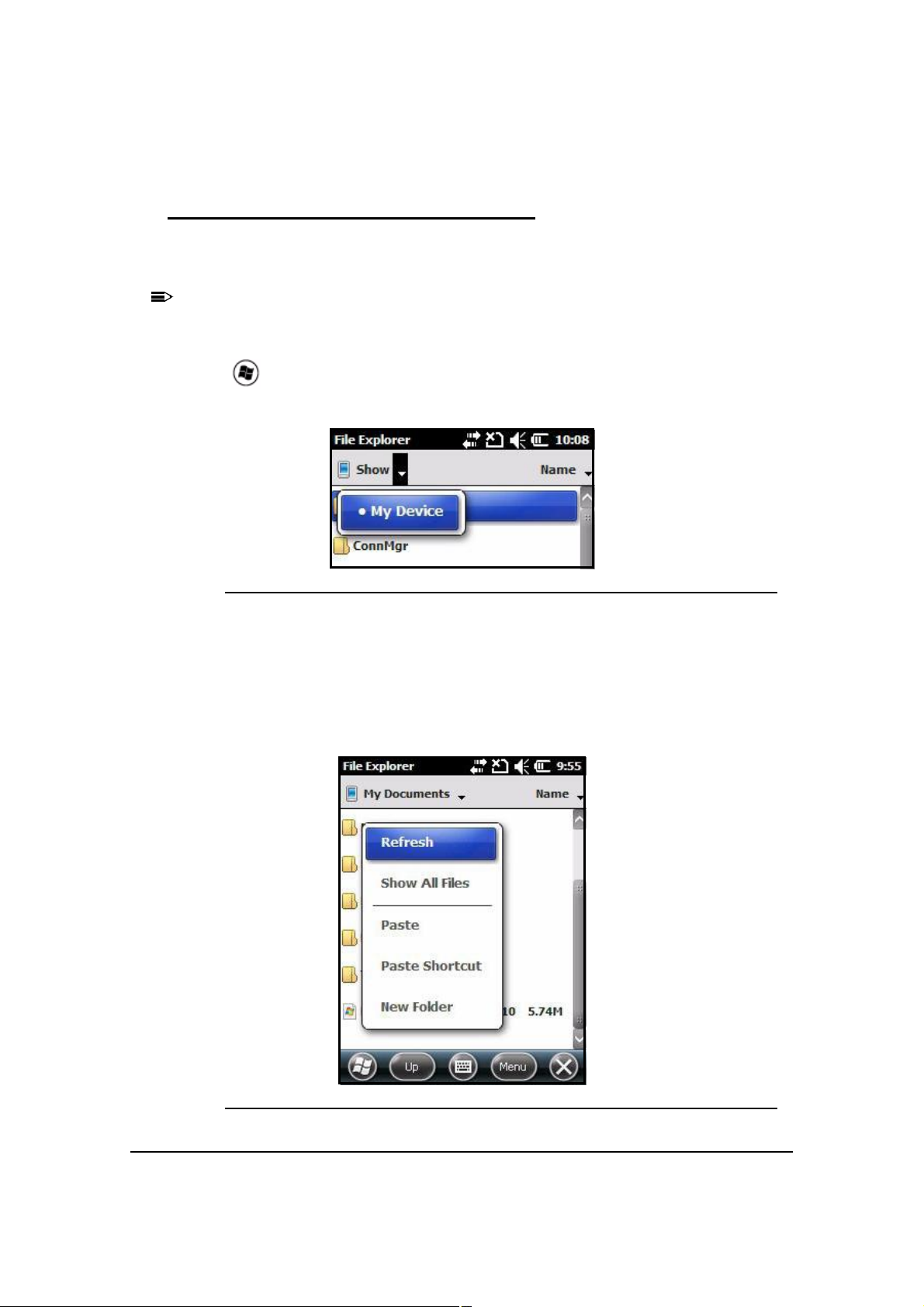

Using File Explorer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Using ActiveSync on the Workstation . . . . . . . . . . . . . . . . . . 7-5

System Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

About . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

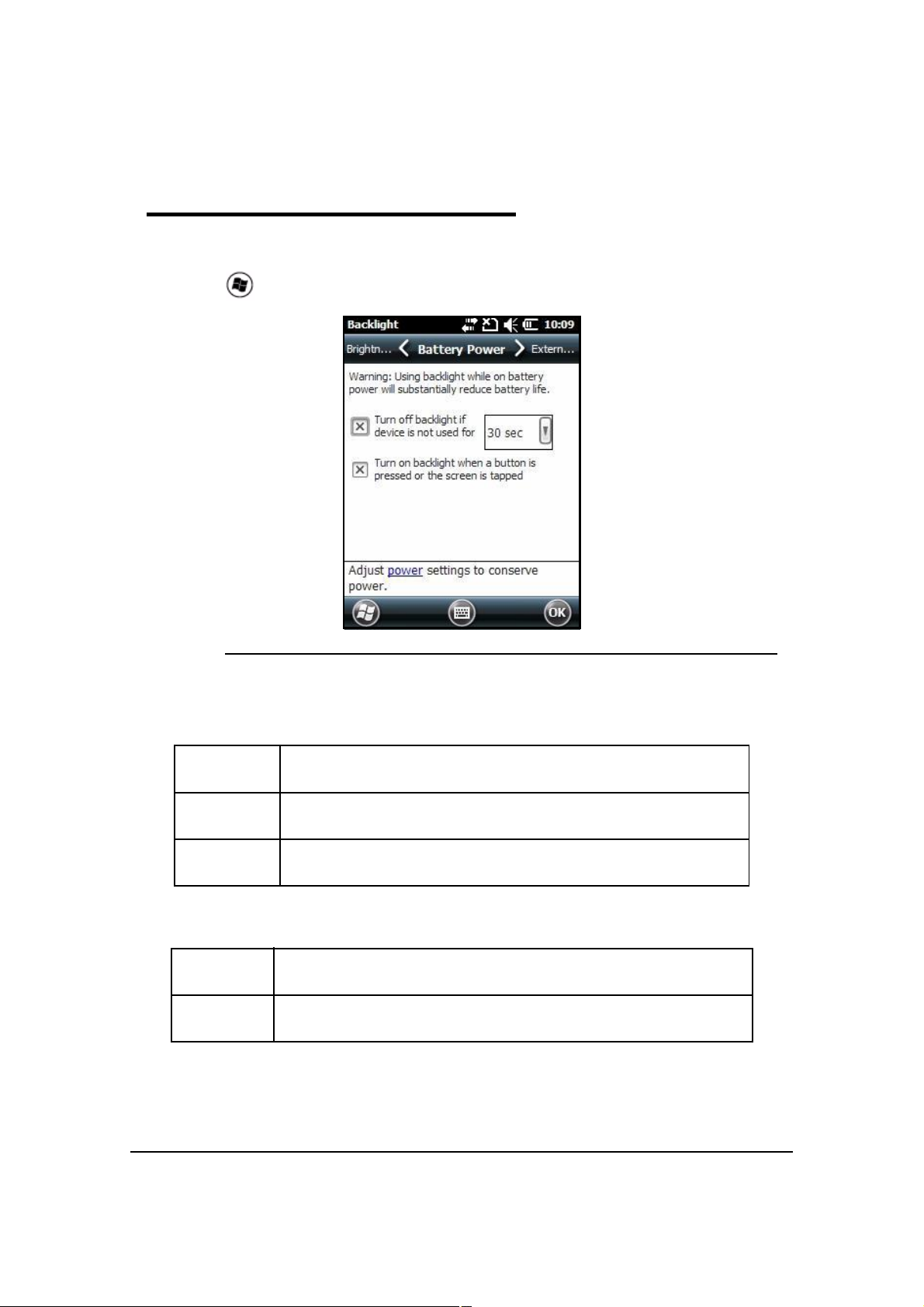

Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

Backlight Intensity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

Certificates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

Encryption. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10

Error Reporting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10

External GPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12

Main. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12

Storage Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13

Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14

Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14

Advanced Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14

Regional Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15

Remove Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15

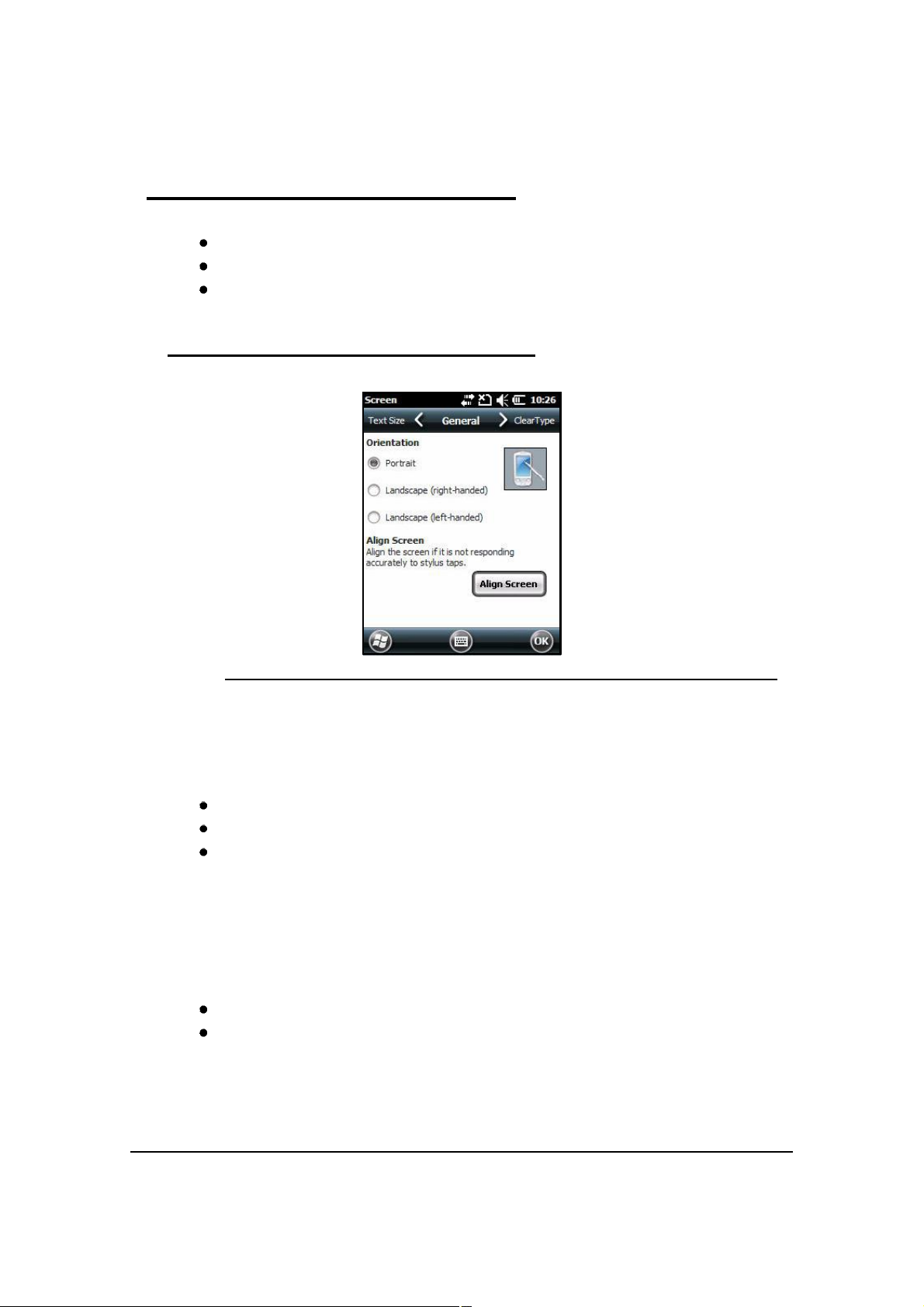

Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17

ClearType . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18

Text Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18

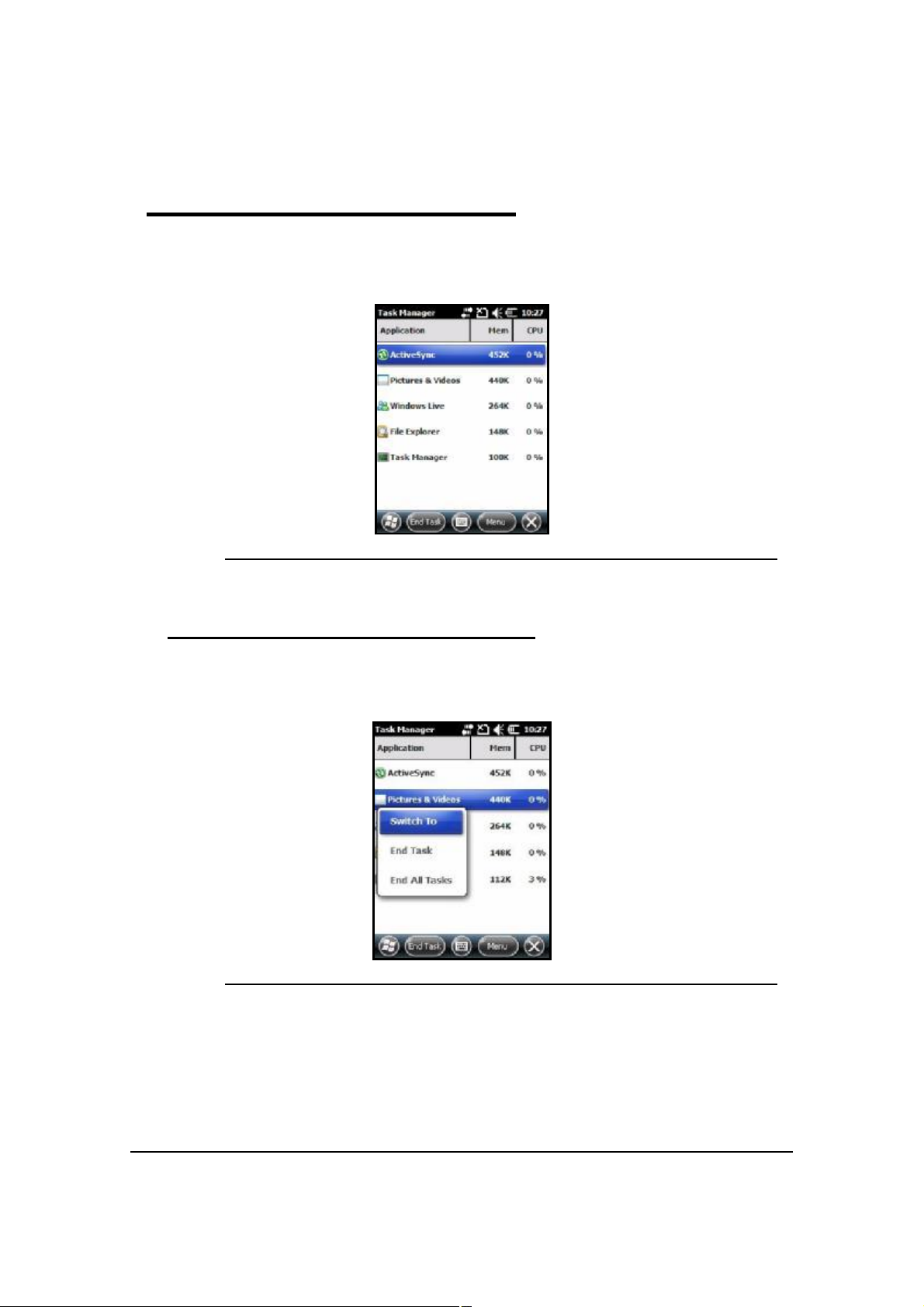

Task Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Using the Task Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Communication

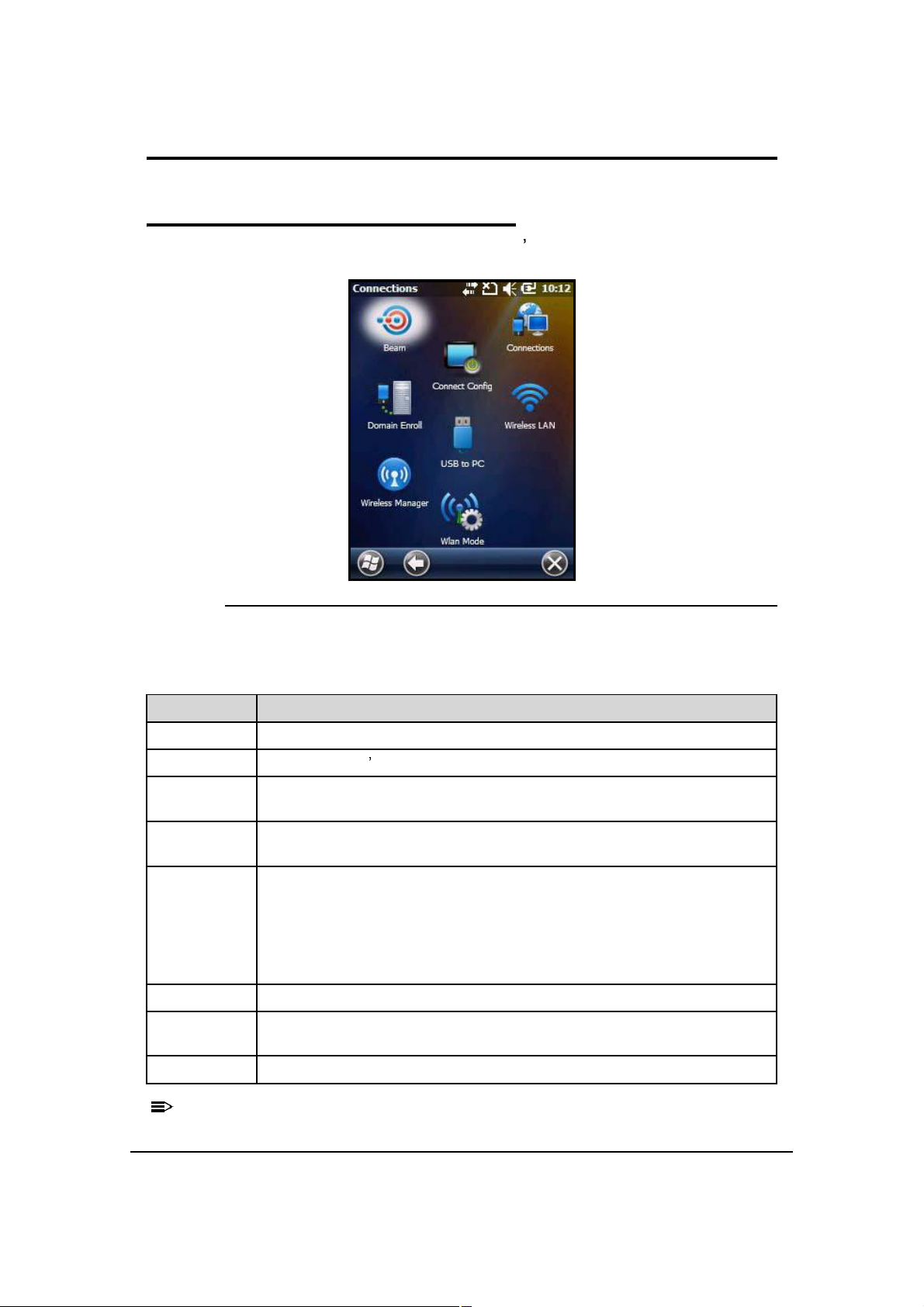

Connections Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Connections Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

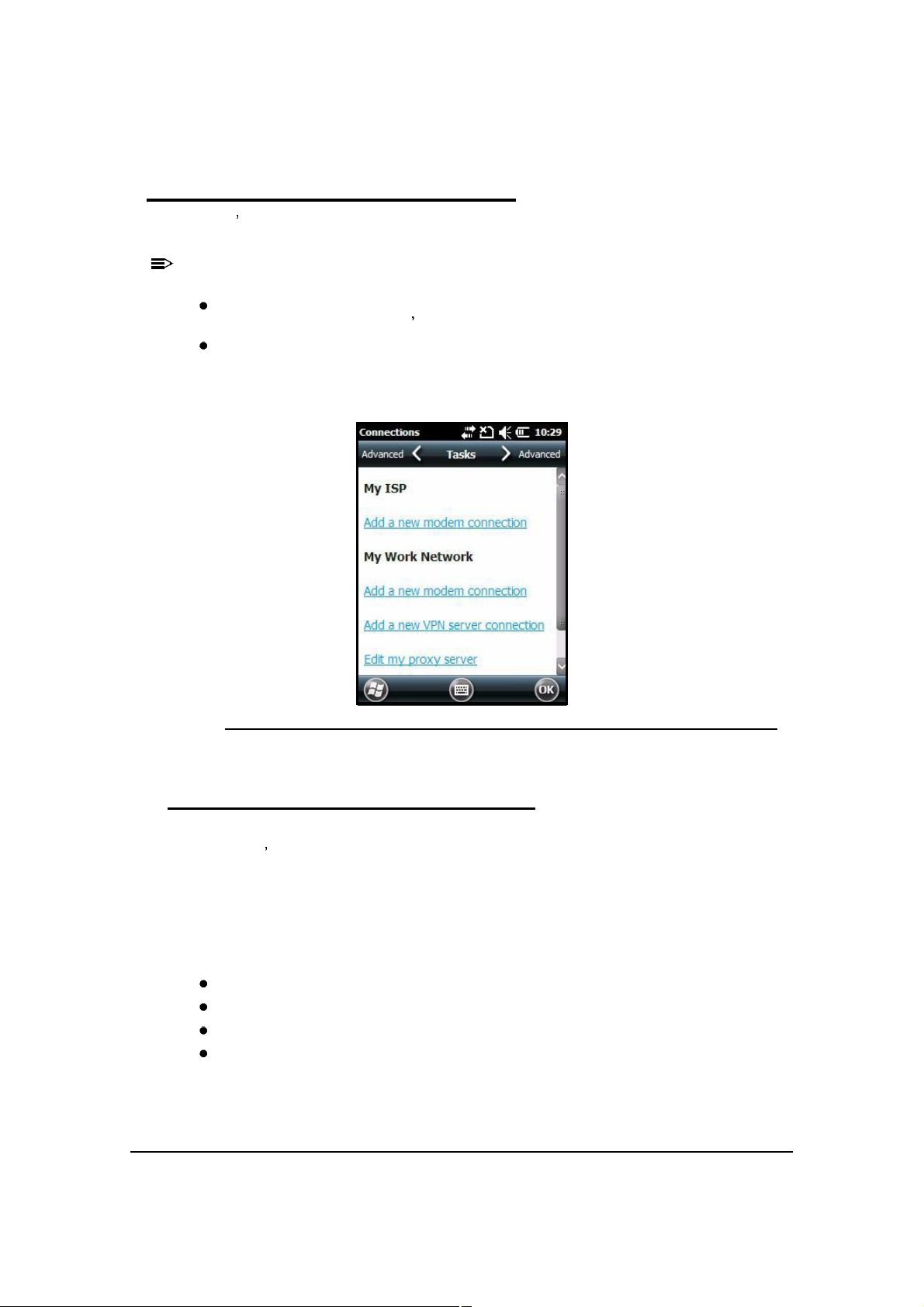

Tasks Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Modify an Existing Connection . . . . . . . . . . . . . . . . . . . . . . . 8-3

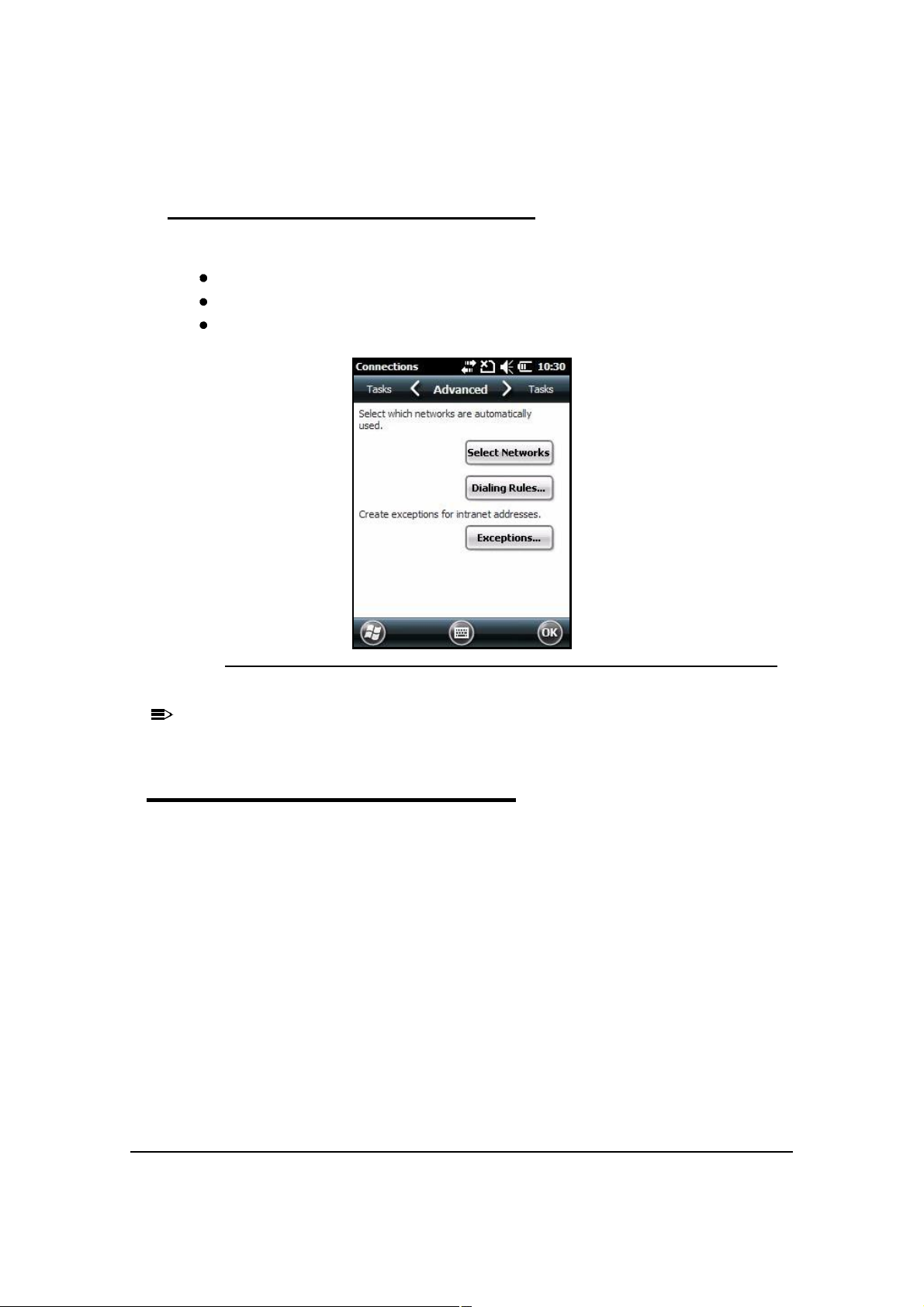

Advanced Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Online Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Wireless Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

ActiveSync Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Communication Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Hardware Requirements for Setup . . . . . . . . . . . . . . . . . . . . . 8-6

Software Requirements for Communication . . . . . . . . . . . . . 8-6

Setting Up the Host Workstation. . . . . . . . . . . . . . . . . . . . . . . 8-7

Communicating with the Dolphin 6000 device. . . . . . . . . . . . 8-7

Synchronizing with the Host Workstation . . . . . . . . . . . . . . . 8-7

Exploring the Device from the Workstation. . . . . . . . . . . . . . 8-8

Installing Additional Software . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

Adding Programs to the Device Using ActiveSync. . . . . . . . 8-9

Installer File. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Non-Installer File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Adding Programs Directly from the Internet . . . . . . . . . . . . . 8-10

COM Port Assignment Table . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

Working with GSM/GPRS/EDGE

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Voice and Data Communication . . . . . . . . . . . . . . . . . . . . . . . 9-2

SIM Card Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

SIM Card Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

Installing a SIM Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

Enabling the GSM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

Voice Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

Audio Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

Volume Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5

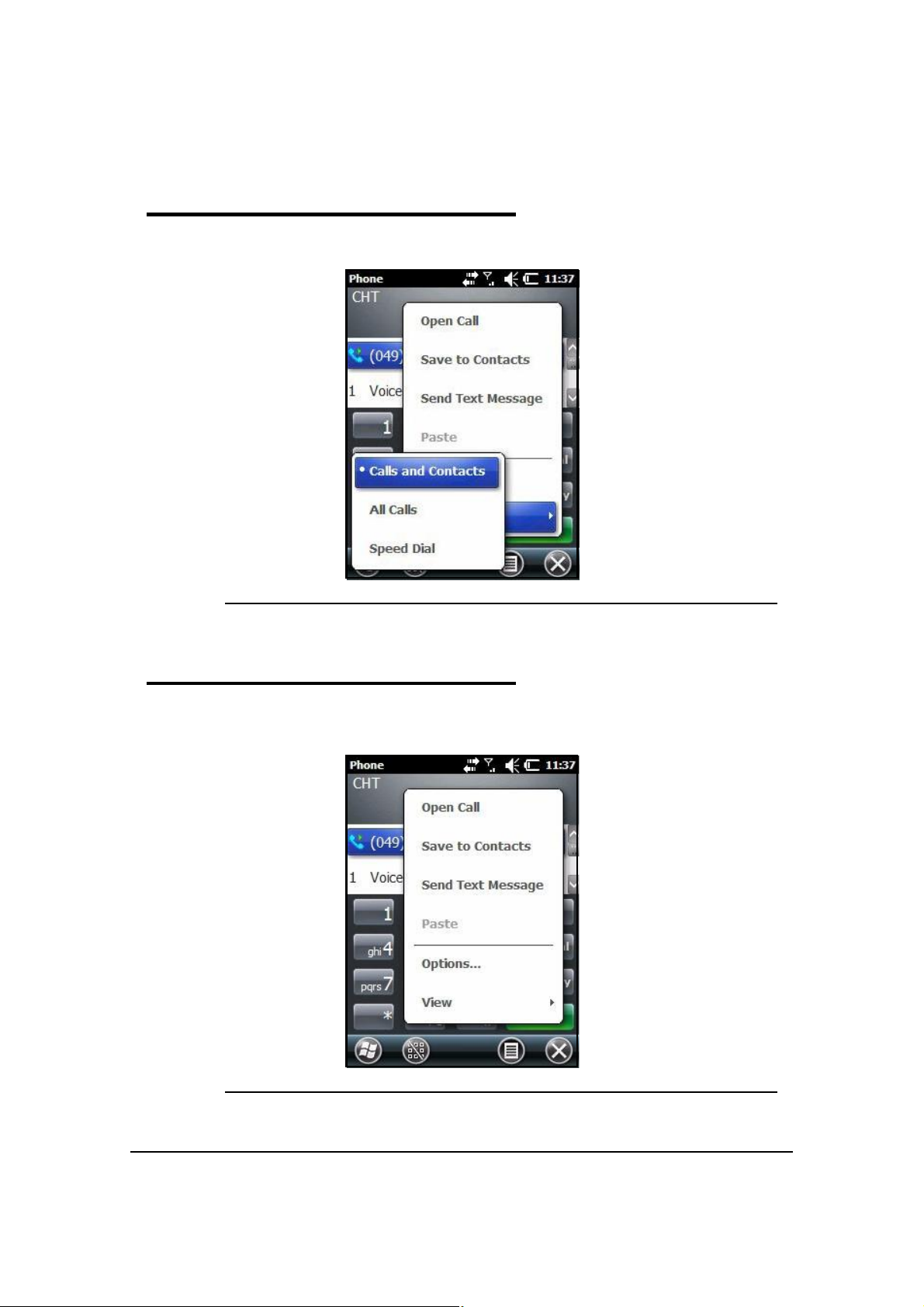

Accessing the Dialer Window . . . . . . . . . . . . . . . . . . . . . . . . . 9-5

Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5

Sending Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6

Ending Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6

Keypad Combinations for Calls. . . . . . . . . . . . . . . . . . . . . . . . 9-6

Accessing Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6

View Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7

Setup Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7

Sounds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-8

Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-8

Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9

Data Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

Information Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

Establishing Data Communication . . . . . . . . . . . . . . . . . . . . . 9-10

Ending the Data Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13

Manual Network Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-14

Working with Bluetooth Radio

Enabling the Bluetooth Radio . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Connecting to Bluetooth Devices . . . . . . . . . . . . . . . . . . . . . . 10-2

Pairing and Trusted Devices . . . . . . . . . . . . . . . . . . . . . . . . . . 10-5

Types of Devices and Services . . . . . . . . . . . . . . . . . . . . . . . . 10-6

Connecting to Bluetooth Printers . . . . . . . . . . . . . . . . . . . . . . 10-7

Connecting to Bluetooth Headsets. . . . . . . . . . . . . . . . . . . . . 10-7

Transferring Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8

Making the Device Discoverable. . . . . . . . . . . . . . . . . . . . . . . 10-10

Selecting COM Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10

Working with GPS

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Assisted GPS Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Powering the GPS Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Communication Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

COM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

GPS Intermediate Driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

Dolphin 6000 HomeBase

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Charge Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Charging Process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Parts and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2

Device Well . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2

AUX Battery Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2

Back Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3

Auxiliary Battery Well. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3

USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3

RS232 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3

DC Power Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3

Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-4

Serial Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-4

Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-5

To Power a Device and Charge its Battery. . . . . . . . . . . . . . . 12-5

Charging a Battery in the Auxiliary Battery Well. . . . . . . . . . 12-6

Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-7

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-7

Connecting the Communication Cables . . . . . . . . . . . . . . . . 12-7

Establishing Communication. . . . . . . . . . . . . . . . . . . . . . . . . 12-7

Communicating with the Dolphin 6000 Device . . . . . . . . . . . 12-8

Verifying Communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-8

Verifying Data Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-8

RS232 Communications Cables . . . . . . . . . . . . . . . . . . . . . . 12-8

RS232 Pin Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-9

vii

viii

Safety Information

Dolphin 6000 mobile computers meet or exceed the requirements of all applicable standards organizations for safe operation. Read the following guidelines carefully before using the mobile computer.

Label Locations 0

Figure 1-1. Laser Safety Label Location

Laser Safety Label 0

If the label in figure 1-2 indicates the product contains an engine with a laser light:

Figure 1-2. Laser Safety Label

Laser Eye Safety Statement 0

This device has been tested in accordance with and complies with IEC60825-1 (Ed. 2.0), EN60825-1: 2007. Complies with 21 CFR 1040.10 and 1040.11, except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. LASER LIGHT, DO NOT STARE INTO BEAM. CLASS 2 LASER PRODUCT, 1.0 mW MAX OUTPUT: 650nM.

WARNING:

Use of controls or adjustments to performance or procedures other than those specified herein may result in hazardous radiation .

Safety Information 1-1

LED Safety Statement 0

The LED output on this device has been tested in accordance with IEC60825-1 LED safety and certified to be a Class 1 LED device.

The maximum power outputs for the:

Visible laser diode @ 650nm, Power 1mW

Operating Temperature 0

The recommended operating temperature for the device is -10 C - 50 C.

RoHS Chart 0

(Parts Name) (Toxic and Hazardous Substances or Elements)

(Imager)

(PCB)

(Housing)

(Cables)

(LCD)

(Battery)

(LCD frame)

(Keypad)

o: (Indicates that this toxic or hazardous substance contained in all of

the homogeneous materials for this part is below the limit requirement in China s SJ/T11363-2006.)

x: SJ/T11363-2006 (Indicates that this toxic or hazardous substance contained in at

least one of the homogeneous materials for this part is above the limit requirement in China s SJ/T11363-2006. )

(Names and Content of Hazardous Substances or Elements)

(Pb)

x o o o o o

o o o o o o

x o o o o o

o o o o o o

(Hg)

(Cd) (Cr6+) (PBB) (PBDE)

Figure 1-3. China RoHS Chart

Agency Information 0

UL and cUL Statement 0

UL (Underwriters Laboratories) and cUL (Canadian Underwriters Laboratory) listed: UL60950-1 and CSA C22.2 No. 60950-1-03.

1-2 Safety Information

Approvals by Country 0

Table 1-1. Approvals by Country Table

Country EMC, Radio, & SAR Safety

U.S.A. FCC Part 15, Subpart B

FCC Part 15, Subpart C, 15.247 FCC Part 15, Subpart E FCC Part 22H FCC Part 24E FCC SAR OET 65 Supplement C

Canada ICES-003 (Class B)

RSS 132 RSS 133 RSS 210

European Community/CE

EN300328 EN301893 EN55022 EN55024 EN301489-1 EN301489-7/24 EN301489-17 EN300328 3GPPTS 51.010-1 EN301511 EN301908 EN50360 EN50361 EN50371 EN50392 IEC6220-1 and IEC6220-2 EN300440

UL60950-1

cUL60950

EN/IEC60950-1 EN/IEC60825-1

China SRRC GB4943

MII

CCC

Brazil Anatel

Mexico COFETEL and NOM NOM-019-SCFI-1998

AUS/NZ A Tick (GSM) and Ctick (WLAN,

BT)

This Class 2 Laser Product is in accordance with the requirements of IEC 60825-1 Ed. 1.2 Clause 6.2(a).

Safety Information 1-3

R&TTE Compliance Statement 0

NOTE

Dolphin 6000 RF devices (802.11 b/g, Bluetooth and/or GSM) are in conformity with all essential requirements of the R&TTE Directive (1999/5/EC).

This device is marked with CE0682 in accordance with the Class II product requirements specified in the R&TTE Directive. This device complies to 2006/95/EC Low Voltage Directive when supplied with the recommended power supply. The manufacturer shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.

The equipment is intended for use throughout the European Community; PAN European Frequency Range: 2.402 2.480 GHz. Restrictions for use in France are as follows:

Indoor use: Maximum power (EIRP*) of 100 mW for the entire 2.400 2.4835 GHz

Outdoor use: Maximum power (EIRP*) of 100 mW for the 2.400 2.454 GHz band &

maximum power (EIRP*) of 10 mW for the 2.454 2.483 MGHz band.

Dolphin 6000 RF Device 0

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may

cause undesired operation.

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation. If this device causes harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the device into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

If necessary, consult the dealer or an experienced radio/television technician for additional suggestions. For additional information, refer to Something About Interference, available at the FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction is the responsibility of the user. Use only shielded data cables with this system.

In accordance with FCC 15.21, unauthorized changes or modifications could void the user s authority to operate the equipment.

FCC : IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11.

1-4 Safety Information

FCC+IC Exposure : 0

IMPORTANT

FCC Radiation Exposure Statement:

The product comply with the US/Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or reduce output power if it doesn't affect the transmission/receiving quality.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IC (French) : 0

Ce dispositif est conforme la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage pr judiciable, et (2) ce dispositif doit accepter tout brouillage re u, y compris un brouillage susceptible de provoquer un fonctionnement ind sirable.

(Pour l'utilisation des appareils portables)

D claration d'exposition aux radiations:

Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-Unis et le Canada tablies pour un environnement non contr l .

Le produit est s r pour un fonctionnement tel que d crit dans ce manuel. La r duction aux expositions RF peut tre augment e si l'appareil peut tre conserv aussi loin que possible du corps de l'utilisateur ou que le dispositif est r gl sur la puissance de sortie la plus faible si une telle fonction est disponible.

Canadian Compliance 0

This Class B digital device complies with Canadian ICES-003. Operation is subject to the following two conditions:

The device may not cause harmful interference

This device must accept any interference received, including interference that may

cause undesired operation.

To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. The device (or its transmit antenna) installed outdoors is subject to licensing.

Cet appareil num rique de la Classe B est conforme la norme NMB-003 du Canada.

Safety Information 1-5

For European Community Users 0

The manufacturer complies with Directive 2002/96/EC of The European Parliament, and of The Council of 27 January 2003 on waste electrical and electronic equipment (WEEE).

Waste Electrical and Electronic Equipment 0

CAUTION:

This device requires the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, it is encouraged to use the appropriate procedures for product disposal. Those procedures will reuse or recycle most of the materials of the product being disposed of.

The crossed out wheeled bin symbol indicates the product should not be disposed of along with municipal waste and encourages the appropriate procedure for device disposal.

If more information is needed on the collection, reuse, and recycling systems, contact the local or regional waste administration.

Electrically Powered Devices 0

Most manufacturers of medical devices adhere to the IEC 601-1-2 standard. Pacemakers and hearing aids are considered electrically powered devices.This standard requires devices to operate properly in an EM Field with a strength of 3V/m over a frequency range of 26 to 1000MHz. The maximum allowable field strength emitted by the Dolphin 6000 device is

0.3V/m according to Subpart B of Part 1 of the FCC rules. The RF from the Dolphin 6000 device has no effect on medical devices that meet the IEC specification.

Microwaves 0

The radio in the Dolphin 6000 RF device operates on the same frequency band as a microwave oven. If a microwave is used within range of the Dolphin 6000 RF device, a performance degradation in the wireless network may be noticeable. The microwave and wireless network will continue to function.

1-6 Safety Information

Getting Started

NOTE

Out of the Box 0

Verify that the carton contains the following items:

Dolphin 6000 mobile computer (the device)

Main battery pack (5.7V Li-ion)

Quick Start Guide

If accessories were ordered, make sure they are included with the order.

Keep original packaging to return device for service if required.

Install Main Battery Pack 0

The Dolphin 6000 is shipped with the battery packaged separately from device. Perform the following to install main battery:

1. Slide latch to unlock battery door.

2. Open battery door.

3. Install battery into battery well.

Figure 2-1. Inserting Battery

4. Install battery door.

Install battery door before powering device.

Getting Started 2-1

Charge the Batteries 0

Power for Dolphin 6000 device comes from main battery pack, accessed from back panel.

Before Initial Use 0

Devices are shipped with both batteries discharged of all power. Initial charging time for main battery pack is 4 hours. Insert the device into the cradle to charge.

Charging Using the Communication Cable 0

1. Connect USB to I/O connector on device.

2. Plug power cord into power adapter.

3. Plug power adapter cable into power connector on COMM cable.

4. Plug COMM cable into appropriate port on host device.

5. Plug power cord into standard wall outlet. LED on front of device flashes and illuminates red when device starts initializing boot process.

 





 

Figure 2-2. Charging Connections

2-2 Getting Started

Boot the Device 0

NOTE

The device boots when power is applied and the PWR button is pressed.

CAUTION:

Do not press any keys or interrupt the boot process. When boot process is complete, Today screen appears, and device is ready for use.

Today screen appears several times during boot process. Wait several seconds before using device to make sure boot process is complete.

Using Touch Panel Display 0

The touch panel display is activated by using stylus (included with the device) or a finger. To activate display, open a file or select a menu. Use bottom of stylus to tap touch panel display or gently press touch panel with a finger.

Getting Started 2-3

Today Screen 0

After the device initializes the first time, the Today screen appear.

Figure 2-3. Today Screen

Navigation Bar 0

The Navigation bar is found on top of the screen. The active program and current time are shown.

Figure 2-4. Navigation Bar

Command Bar 0

The Command bar is found on bottom of the screen.

Figure 2-5. Command Bar

2-4 Getting Started

Navigation Bar Icons 0

Table 2-1. Icons Table

Indicator Meaning

Synchronizing data

The device could not synchronize data with the workstation via ActiveSync

New e-mail

New text message

New voicemail

New instant message

Vibrate on

Ringer off

Speakerphone on

Voice call in progress

Calls are forwarded

Call on hold

Missed call

Data call in progress

Battery has a full charge

Battery has a high charge

Battery has a medium charge

Battery has a low charge

Battery has a very low charge and requires charging

Device is running on external power. If a battery pack is installed, battery is charging in the background

The device is not connected to external power. A battery is installed, but is defective; its charge level cannot be measured

Getting Started 2-5

Table 2-1. Icons Table (Continued)

Indicator Meaning

No SIM card is installed

GPRS available

GPRS connecting

GPRS in use

EDGE available

EDGE connecting

EDGE in use

Radio is off

The radio is not connected to a network

The radio is connected. The bars indicate signal strength

No radio signal

The device is searching for a signal

Wi-Fi is on, but device is not connected

Wi-Fi data call

Pending alarm

Bluetooth

2-6 Getting Started

Set Time Zone, Time, and Date 0

1. On the Today screen, tap the time and date section (A).

Figure 2-6. Time and Date

The Clock & Alarms menu will open.

2. Select Time tab to set system clock.

Figure 2-7. Clock Settings

3. Tap Time Zone box to open drop-down menu.

4. Set correct time zone from drop-down menu.

5. Set correct time and date in remaining fields and tap OK to save.

Getting Started 2-7

Pop-Up Menus 0

Pop-up Menus allow a choice of action for a selected file.

1. Tap and hold the stylus on the action to open the pop-up menu.

2. When menu appears, lift the stylus, and tap the action desired.

Figure 2-8. Pop-Up Menu

3. Tap outside the menu to close without performing an action.

2-8 Getting Started

Selecting Programs 0

1. Tap the WindowsIcon to view the Start Menu.

2. Open the desired program by tapping on the program icon.

3. Move an icon to top of the Start Menu by tapping then holding the stylus on the icon, while dragging the icon to the top of the Start Menu.

Figure 2-9. Moving an Icon

File Explorer 0

Use File Explorer to find and move files.

1. Tap > File Explorer.

Figure 2-10. File Explorer Menu

Getting Started 2-9

2. Locate file.

NOTE

3. To move file, hold the stylus on the file to bring up the menu shown in Figure2-11. Tap Cut or Copy on menu.

Figure 2-11. Cut or Copy

4. Navigate to the desired destination.

5. Hold stylus in the blank area of the window.

If there is no blank area in the window go to step 7.

6. Tap Paste on menu (Figure2-12).

Figure 2-12. Paste

7. Tap Menu on Command bar. A pop-up menu will appear (Figure 2-13).

2-10 Getting Started

Figure 2-13. Paste Procedure

8. Tap down arrow to view Edit.

9. Tap Edit > Paste

Search Phone 0

Use the Search Phone application to quickly find information.

1. Tap > Search Phone.

2. To find a file, type name of file in Search For box.

3. Select type of data in Type box

4. Tap Search on the Command bar.

5. Select Larger than 64 KB in the Type box drop-down menu to find large files.

Getting Started 2-11

2-12 Getting Started

Hardware Overview

NOTE

Standard Configurations 0

WLAN, WPAN, WWAN with GPS and Camera 0

WLAN- Wireless Local Area Network

WPAN- Wireless Personal Area Network

WWAN- Wireless Wide Area Network

The following is a list of configuration features:

Microsoft Windows Mobile 6.5 Professional

MTK MT6516 ARM9 416MHz Processor

256MB SDRAM X 512MB Flash

29-Key Numeric Keypad

5.7V Li-ion rechargeable battery pack

Adaptus Imaging Technology: IS4813 single line laser scan engine

802.11b/g, Bluetooth, and GSM/GPRS/EDGE

GPS

3 megapixel auto focus color camera

Peripherals 0

HomeBase 0

The Dolphin 6000 HomeBase provides charging and communication functionality. It supports both RS232 and USB communications, that enables the device to interact with the majority of PC-based enterprise systems.

The device also contains an auxiliary battery well that can charge a spare Li-ion battery.

The following is a list of the HomeBase features:

RS232 (RX, TX, CTS, RTS), D-sub connector

USB Client, Mini USB connector

DC-IN

Separate battery charger.

USB cable must be used within 125 cm to guarantee transmission quality.

For more information, refer to Dolphin 6000 HomeBase.

Hardware Overview 3-1

Accessories 0

NOTE

Communication/Charging Cables 0

The Dolphin 6000 communication/charging cable kit is an all-in-one solution for mobile applications. The cable kit performs the following:

Powers the device

Charges the system Main Battery

Communicates with host or peripheral devices without a cradle

Supports USB communication

Functions with U.S., E.U., U.K., China, Brazil, Mexico, Australia and New Zealand power

cords. Refer to Approvals by Country Table.

The system is available with U.K or European power cord.

Li-ion Battery Pack 0

The 5.7V Li-ion rechargeable battery pack provides the main power for the device.

Vehicle Charging Cable 0

The vehicle charging cable for the Dolphin 6000 is an optional accessory.

USB Client Holder Cable 0

The USB Client Holder Cable includes the following:

USB Client

DC-IN

3-2 Hardware Overview

Front View 0

Figure 3-1. Front View

Hardware Overview 3-3

Table 3-1. Front View

No Item Description

1 Front Speaker Receives voice calls when using a handset. Refer to Voice

Communication.

2 Indicator Light

Emitting Diode (LED)

3 Touch Panel Display A color 2.8 inch liquid crystal display (LCD) touch panel is

4 SCAN Key Activates the scanner/imager.

5 Blue FN Key Switches the numeric keypad to an alpha/numeric mode or to

6 Power Key Puts the device in the Suspend Mode or wakes the device

7 Microphone Provides audio input for the handset and speakerphone voice

8 Recessed Keypad The device has a 29-key alpha/numeric keypad. For more

9 Orange FN Key Switches the numeric keypad from lower case or upper case

10 Navigation Keys When selected, move through the software programs. Refer to

Flashes and illuminates during resets and scanning/imaging. Can be programmed by various software applications.

covered with an industrial, protective lens The video graphic array (QVGA) display resolution of 240 X

320.

Is a system wakeup control for the device.

F1-F10 function keys mode.

from the Suspend Mode. Refer to Suspend Mode.

calls. Refer to Voice Communication.

information refer to Using the Keypad.

modes.

Using the Navigation Keys.

3-4 Hardware Overview

Base View 0

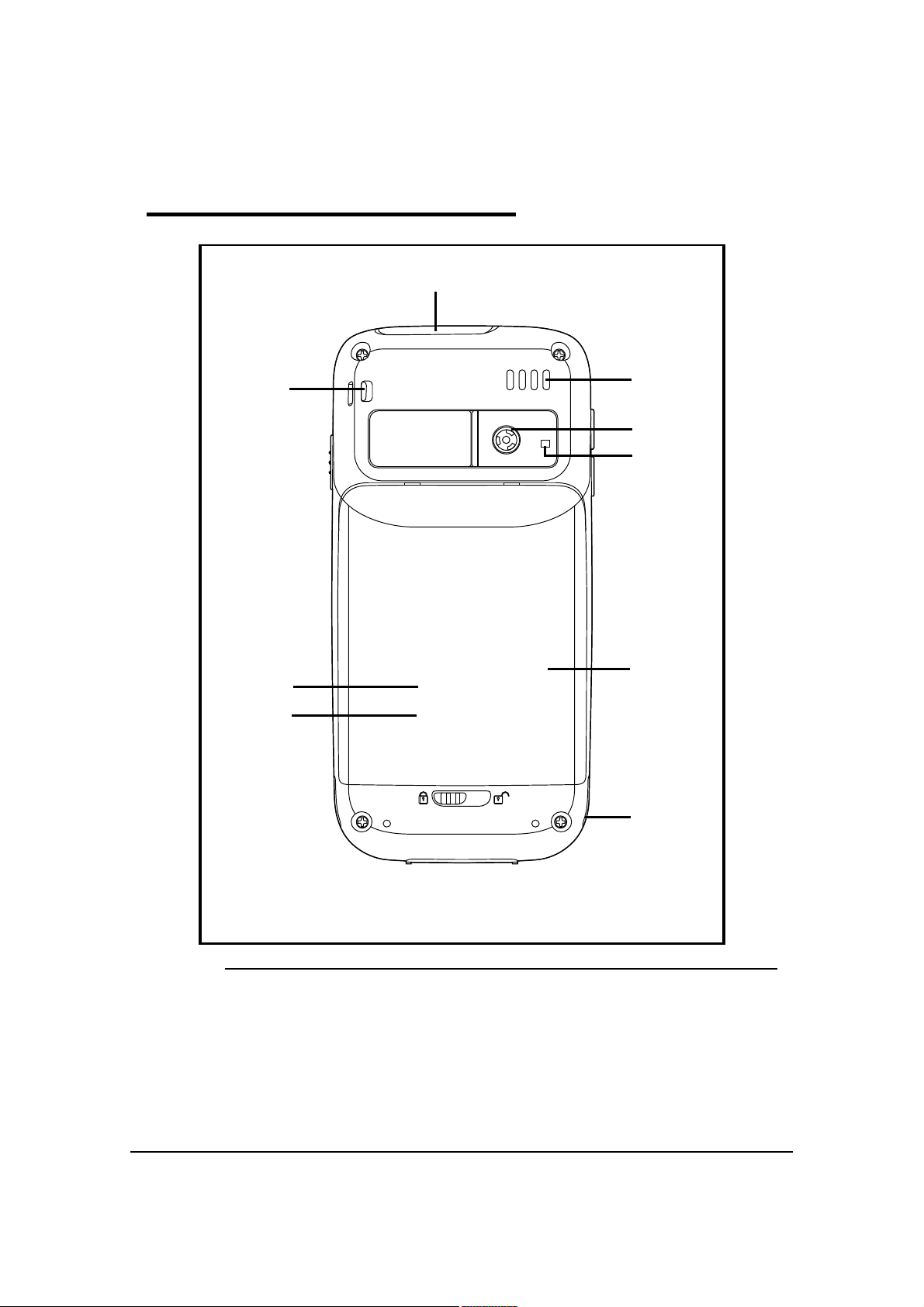

Figure 3-2. Base View

Hardware Overview 3-5

Table 3-2. Base View

NOTE:

No Item Description

1 Image/Scan Engine

Window

2 Rear Speaker Provides audio signals when scanning bar code labels or

3 Color Camera Provides easy picture caption with Automated Camera Control

4 Camera Flash Can be used and is controlled by the devices color camera.

5 Battery Door Secures the Li-ion Battery Pack in the device battery well.

6 Fastener for the

Stylus Tether

7 Subscriber Identity

Module (SIM)Card Socket

8 Memory Card Socket Provides the user with an option to expand the device s

The image engine reads and decodes linear, stacked linear (e.g., PDF417), and 1D matrix bar code symbologies. For greater accuracy contains a laser aimer. Refer to Using the

Scan Image Engine.

entering data. Supports playback for wave and MP3 files, software mixer, and Speakerphone for WWAN/GSM audio and VoIP. The operating frequency range is 1000-4000Hz at >86 dB.

(ACC). Additional features include automated picture profiles and an Application Programming Interface (API).

Refer to Battery Pack.

A coiled, elastic cord that tethers the stylus to the device

Connection for SIM Card use. Refer to Installing a SIM Card.

SIM Card is located underneath the battery door.

memory capacity. Supports industry-standard MicroSD and MicroSDHC memory interfaces. Refer to Memory Card

Installation.

Memory Card Socket is located underneath the battery door.

9 Lanyard Slot Attach point for lanyard

3-6 Hardware Overview

Left View 0

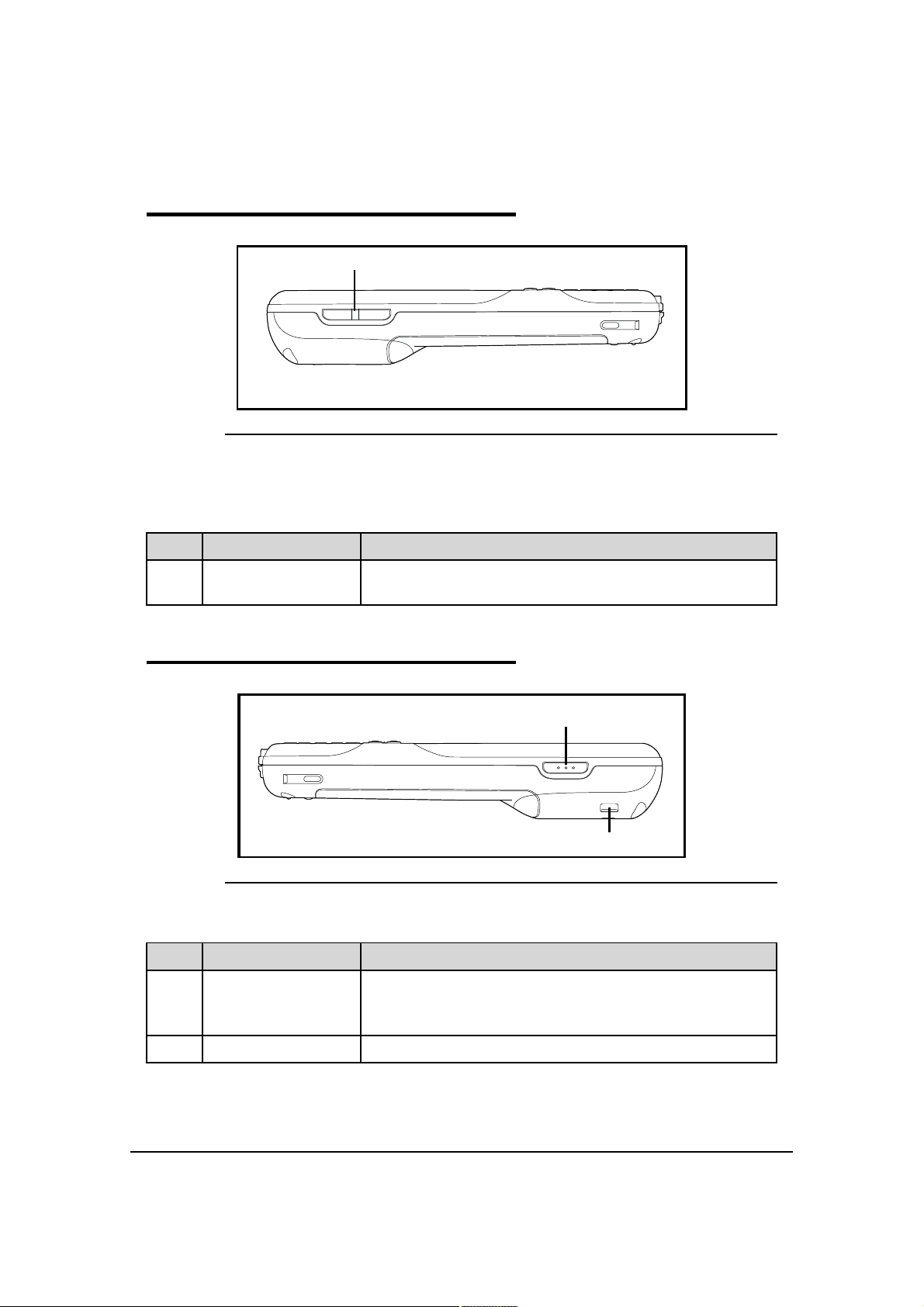

Figure 3-3. Left View

Table 3-3. Left View

No Item Description

1 Volume Control

Button

Used to raise or lower the device volume.

Right View 0

Figure 3-4. Right View

Table 3-4. Right View

No Item Description

1 Right Button Triggers the scanner/imager.

Can be reassigned to launch applications or execute commands.

2 Lanyard Slot Attach point for lanyard

Hardware Overview 3-7

Memory Card Installation 0

Perform the following to install the Memory Card:

1. Power down device.

2. Unlock Battery Door.

3. Remove Battery Door and Battery.

4. Slide latch toward top of device to unlock SIM card.

Figure 3-5. SIM Card latch

5. Lift SIM card latch to reveal Sim card.

Figure 3-6. SIM Card latch

6. Remove Sim card and reveal memory card latch.

7. Unlock memory card latch by sliding latch away from serial number label located in battery well.

Figure 3-7. Memory Card latch

8. Lift latch up to expose MicroSD or MicroSDHC socket.

3-8 Hardware Overview

Figure 3-8. Memory Card socket

NOTE

9. Insert microSD or microSDHC card into microSD or microSDHC socket.

Make sure interface on memory card is connected to interface in the socket.

10.Align corner on card with corner of socket.

11.Close memory card latch.

Figure 3-9. Memory Card latch

12.Lock memory card latch by sliding latch toward serial number label.

Figure 3-10. Memory Card latch

13.Insert SIM card into SIM card socket.

Hardware Overview 3-9

14.Close SIM card latch.

NOTE:

NOTE

Figure 3-11. SIM card latch

15.Lock SIM card latch by sliding latch up towards bottom of device.

Figure 3-12. SIM card latch

16.Install Battery

17.Install and lock Battery Door.

18.Power on device.

It is recommended to format all SD cards before initial use.

Installing a SIM Card 0

Perform the following to install the Sim card:

1. Power down device.

2. Unlock Battery Door.

3. Remove Battery Door and Battery.

4. Slide latch toward top of device to unlock SIM latch if applicable.

Figure 3-13. SIM Card latch

3-10 Hardware Overview

5. Lift SIM card latch

NOTE

6. Insert SIM card into SIM card socket.

7. Close SIM card latch.

Figure 3-14. SIM card latch

8. Lock SIM card latch by sliding latch up towards bottom of device.

Figure 3-15. SIM card latch

9. Install Battery

10.Install and lock Battery Door.

11.Power on device.

It is recommended to format all SD cards before initial use.

Hardware Overview 3-11

Bottom Rear Panel 0

Figure 3-16 and Table 3-5 provide a description of the 16 pin I/O connector.

 

Figure 3-16. I/O Connector

Table 3-5. Bottom Rear Panel

Pin Description

1 GND

2 VBUS

3 USBC-

4 USBC+

5 UART4_RTS

6 UART1_RX

7 UART1_TX

8 GND

9 UART4_CTS

10 GND

11 GND

12 Cradle_Detect

13 UART4_TX

14 UART4_RX

15 VCC

16 VCC

3-12 Hardware Overview

I/O Connector 0

The I/O connector provides the following:

Support DC charging of device and battery

Facilitate RS232 serial communications interface, including RX, TX, RTS, CTS and GND signals

USB interface to a host workstation via cradle or communication table

All Dolphin 6000 peripherals are designed to work exclusively through this connector. The I/O connector supports RS232 and USB communication. For RS232, the maximum communication speed is 115.2 Kbps with seven baud rate settings. For USB, communication speed is up to 12 Mbps.

Using the Touch Panel 0

When using the device touch panel, it is recommended to use screen protectors and proper stylus. Screen protectors are meant to defend the touch panel when using high to medium level user interaction with the device through the touch panel.

For general use, it is suggested to replace the screen protector every thirty (30) days. Cycles may vary according to the average level of the usage of the touch panel.

Hardware Overview 3-13

Battery Pack 0

The 5.7V, 12W hour Li-ion Battery Pack is the primary power source for the Device. The Li-ion Battery is designed to operate in a temperature range of -10 C to 50 C (14 F to 122 F).

Charging Options 0

If the battery is installed in the device, it will be charged if the device is in the HomeBase. If the battery is not installed in the device, it may be charged by placing it in the battery well. Use the Dolphin 6000 HomeBase (Refer to Dolphin 6000 HomeBase).

Charging Time 0

The Li-ion Battery Pack requires 4 hours to charge completely before initial use.

Storing Batteries 0

To maintain optimal battery performance, follow these storage guidelines:

Avoid storing batteries outside the specified range of -4 to 104 F (-20 to 40 C) or in extremely

high humidity.

For prolonged storage, do not keep batteries stored in a charger that is connected to a power

source.

Battery Pack Use and Disposal 0

The following are guidelines for the safe use and disposal of batteries:

Follow local regulations for battery disposal.

Replace defective batteries immediately. Using a defective battery could damage the Dolphin

6000 device.

Do not use a battery in any other manner outside its intended use in Dolphin 6000 device and

peripherals.

Excessive discharge damages a battery. Recharge the battery when the device indicates low

battery power.

Battery life is limited. Replace after battery is unable to hold an adequate charge.

If the battery or charger are not working properly, replace as soon as possible.

Managing Battery Power 0

Default Critical and Low Battery Points 0

When the device is running on battery power (as opposed to external power), warnings are displayed when the battery reaches critical and low battery points.

3-14 Hardware Overview

Checking Battery Power 0

In order to check the battery power:

1. Navigate to Start > Settings > System > Power.

Figure 3-17. Power Menu

Hardware Overview 3-15

Resetting the Device 0

Two options to reset the system are:

Soft Reset

Hard Reset.

Soft Reset (Warm Boot) 0

Soft Reset clears program memory and keeps storage memory. A Soft Reset can be implemented through the System API.

Hard Reset (Cold Boot) 0

A Hard Reset is defined as the toggling of a hardware reset input signal to a processor and other system hardware components. It does not flush or attempt to preserve buffered file system contents. A Hard Reset can be implemented through the System API.

In order to perform a Cold Boot:

1. Press and hold the power button for 3 seconds. The pop-up in Figure3-18 appears.

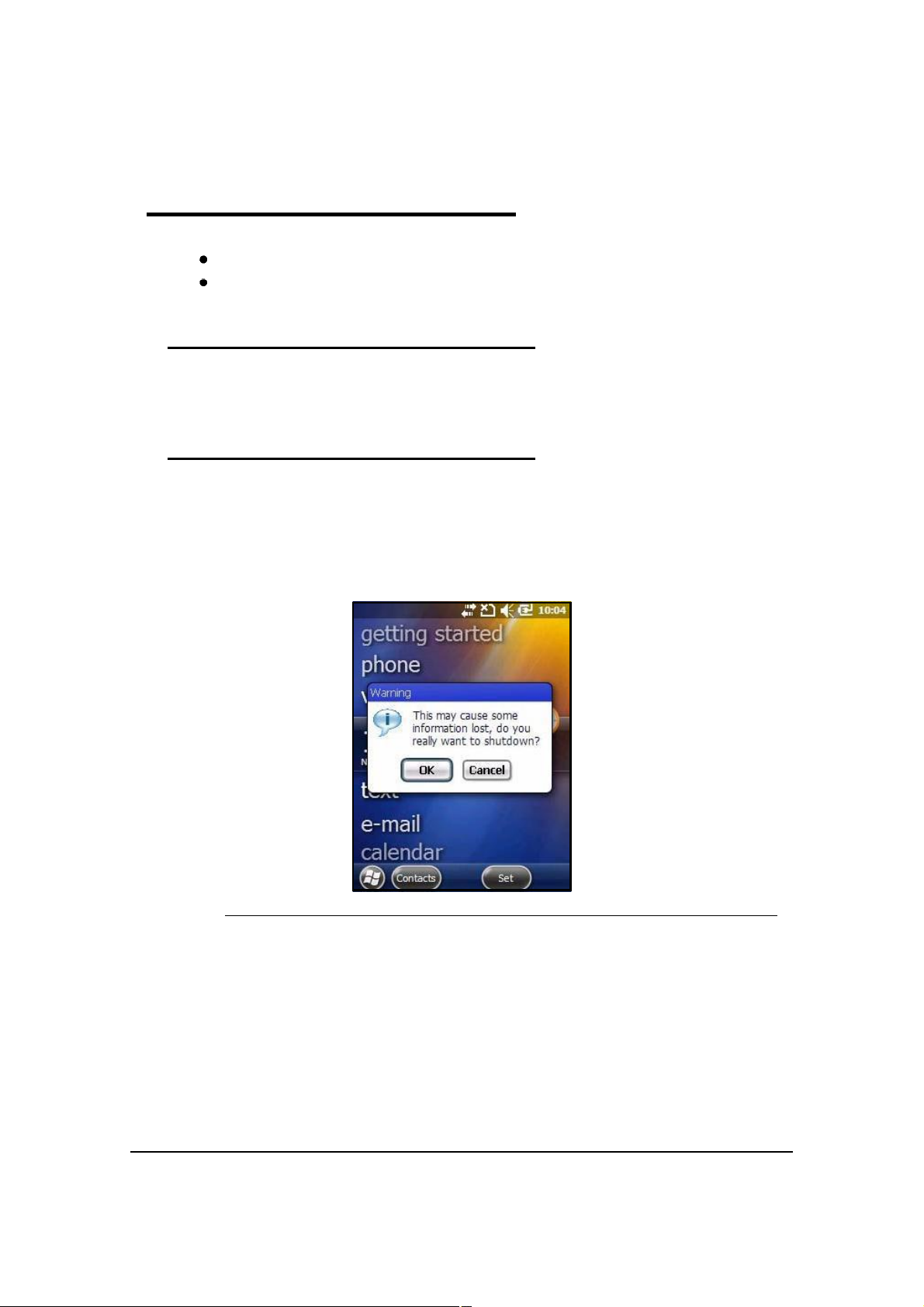

Figure 3-18. Hard Reset

3-16 Hardware Overview

Suspend Mode 0

NOTE

The device goes into the Suspend Mode automatically when inactive for a period of time. To set a time interval, select Advanced in the Power System Setting menu. Refer to Power.

To set the device into Suspend Mode, press the Power key and the screen goes blank.

If is not on the Today screen, press the Power key to return to Today screen and press the Power key again to set device into Suspend Mode.

To wake the device from Suspend Mode, press the Power key.

Hardware Maintenance 0

When needed, clean the image engine window and the LCD display with a clean, non-abrasive, lint-free cloth. The device can be cleaned with a damp cloth.

Hardware Overview 3-17

3-18 Hardware Overview

Using the Scan Image Engine

Overview 0

The barcode engine in the Dolphin 6000 is the Honeywell IS4813.

Angled Imaging 0

The scan engine view of field is 54 degrees.

Image Engine Specifications 0

Table 4-1. Depth of Field vs. Minimum Bar Code Element

Depth of Field*

Bar Code

Element Width

.13 mm 5.2 mil 70 mm (2.75 ) 95 mm (3.75 ) 25 mm (1.00 )

Start

(Frm Engine Face)

(In the Field of View)

End

(Frm Engine Face)

Total

.19 mm 7.5 mil 57 mm (2.25 ) 171 mm (6.75 ) 114 mm (4.50 )

* For non-decode IS4813 and IS4815 engines, depth of field data is for reference only. Actual values may vary depending on environmental conditions, host hardware, and decoding software.

Depth of field data was measured at 25 C under typical indoor lighting. Performance may vary depending on testing conditions.

.26 mm 10.4 mil 50 mm (2.00 ) 210 mm (10.00 ) 160 mm (6.25 )

.33 mm 13.0 mil 50 mm (2.00 ) 254 mm (10.00 ) 204 mm (8.00 )

.49 mm 19.5 mil 75 mm (2.95 ) 300 mm (11.81 ) 225 mm (8.86 )

Laser Specifications 0

The maximum power output for each diode is:

Illumination LED: 194.0 uW

Using the Scan Image Engine 4-1

Supported Bar Code Symbologies 0

Table 4-2. Symbology List

Symbology Type Symbology Name

1D Symbology UPC A

1D Symbology UPC E

1D Symbology EAN 8

1D Symbology EAN 13

1D Symbology BOOKLAND EAN

1D Symbology CODE 128

1D Symbology GS1 128 (EAN 128)

1D Symbology ISBT 128

1D Symbology CODE 39

1D Symbology TRIOPTIC CODE 39

1D Symbology CODE 93

1D Symbology CODE 11

1D Symbology INTERLEAVED 2 OF 5

1D Symbology MATRIX 2 OF 5

1D Symbology AIRLINE 2 OF 5

1D Symbology HONG KONG 2 OF 5

1D Symbology DISCRETE 2 OF 5 (STANDARD 2 OF 5)

1D Symbology CODABAR

1D Symbology MSI PLESSEY

1D Symbology UK PLESSEY

1D Symbology TELEPEN

1D Symbology GS1_DATABAR 14

1D Symbology GS1_DATABAR LIMITED

1D Symbology GS1_DATABAR EXPANDED

1D Symbology UCC_COUPON

4-2 Using the Scan Image Engine

Decoding 0

NOTE

Decode a Bar Code 0

Point the aiming beam at bar code. The aiming beam must align with bar code for better results.

A range of 4-10 inches (10-25 cm) from bar code is recommended.

1. Tap > IS4813_Demo.

2. Aim scanner at bar code.

Figure 4-1. Scanning a Bar Code

3. Activate and point aiming beam by pressing and holding the SCAN key.

4. The scan LED flashes red.

5. Hold device with aiming beam over bar code

See Aiming Options on page 4-4.

When bar code is decoded, the LED flashes green and there is a beep sound. The bar code information is entered into IS4813_Demo application.

Using the Scan Image Engine 4-3

Aiming Options 0

The aiming beam is smaller when holding the device closer to bar code and the aiming beam is larger when it is farther from bar code.

The aiming beam must be aimed closer to symbologies that have smaller bars or elements (mil size). The aiming beam must be aimed farther from symbologies that have larger bars or elements (mil size).

5300 Red High-Vis Aiming Pattern 0

The Dolphin 6000 device has a 5300 imager. The high-vis aimers frames the bar code accurately.

5100 Red Aiming Beam 0

Linear Bar Code 0

Figure 4-2. Red Aiming Beam

4-4 Using the Scan Image Engine

Using the Camera

Overview 0

The Dolphin 6000 device is installed with a 3.0-megapixel color camera, Automated Camera Control (ACC) and an Application Programming Interface (API). The API provides easy access to color picture and video capture functions. The camera lens and camera flash are located on the back of the device.

Taking a picture 0

1. Tap > Pictures & Videos -> Camera

2. Point camera lens at object.

3. Adjust position of camera lens to make sure object is showing on screen.

4. Press ENT key on keypad to take picture.

Menu 0

Tap Menu on the Command Bar to change camera settings, switch to video mode to see more camera options.

Item Descriptions

Video Start Video Mode

Mode Normal Mode, Burst Mode, Timer Mode

Brightness Set the brightness setting from +3.0 EV to -3.0 EV in .5 EV increments

Resolution Set picture resolution (i.e., 320 x 240, 640 x 480, 1280x960, 2048x1536)

Zoom Set zoom (x1, x2, x3, x4, x5, x6)

Focus Mode Focus On, Focus Off, Focus on Trigger, or Fixed-Focus

Focus Trigger

White Balance Set mode to Auto, Cloudy, Sunlight, Incandescent, Fluorescent, Tungsten

Flash Turn Camera Flash On or Camera Flash Off

Options Set General, Slide Show, Camera, and Video options

Using the Camera 5-1

Options 0

Tap Menu -> Options. The Options menu contains four tabs:

General Tab Slide Show Tab Camera Tab Video Tab

Figure 5-1. Options Menu Tabs

Recording Video 0

1. Tap > Pictures & Videos -> Camera -> Menu -> Video

2. Point camera lens at object.

3. Adjust position of camera lens to make sure object is showing on screen.

4. Press ENT key on keypad to start recording.

5. Tap Stop on the screen or press ENT on keypad to stop recording.

5-2 Using the Camera

Using the Keypad

Keypad 0

The Dolphin 6000 series has a 29-key alpha/numeric keypad.

Figure 6-1. Keypad

Using the Keypad 6-1

Using the Function Keys 0

Table 6-1. Function Keys Table

Name Key Function

Backspace Moves cursor back one space each time key is pressed. If

typing text, it deletes previous character each time it is pressed.

Enter (ENT) Confirms data entry.

Escape (ESC)

Power Key Puts the device into and wakes the device from Suspend

SCAN Key Wakes the device from Sleep Mode and activates the

SPACE Moves cursor ahead one space.

TAB Moves cursor to next tab stop or next control (on a form).

4-way Navigation Keys

Volume Up Input

Volume Down Input

Shift Key Changes keyboard between uppercase alphabet mode

Orange FN Key

Blue FN Key The blue FN key activates F1~F10 function keys. Press

Cancels current action. Press esc key to return to previous menu.

Mode; see Suspend Mode on page 17.

scan application.

Moves cursor left, right, up or down.

Volume level increases.

Volume level decreases.

and lowercase alphabet mode.

The orange FN key has 3 operating modes for Normal (default), Upper case and Lower case mode. Press orange key to change each mode.

blue key again to return to default mode.

6-2 Using the Keypad

Using the Navigation Keys 0

Located below the touchpanel display, the navigation keys moves the cursor through text, icons, folders and application screens.

29-Key Numeric Keypad 0

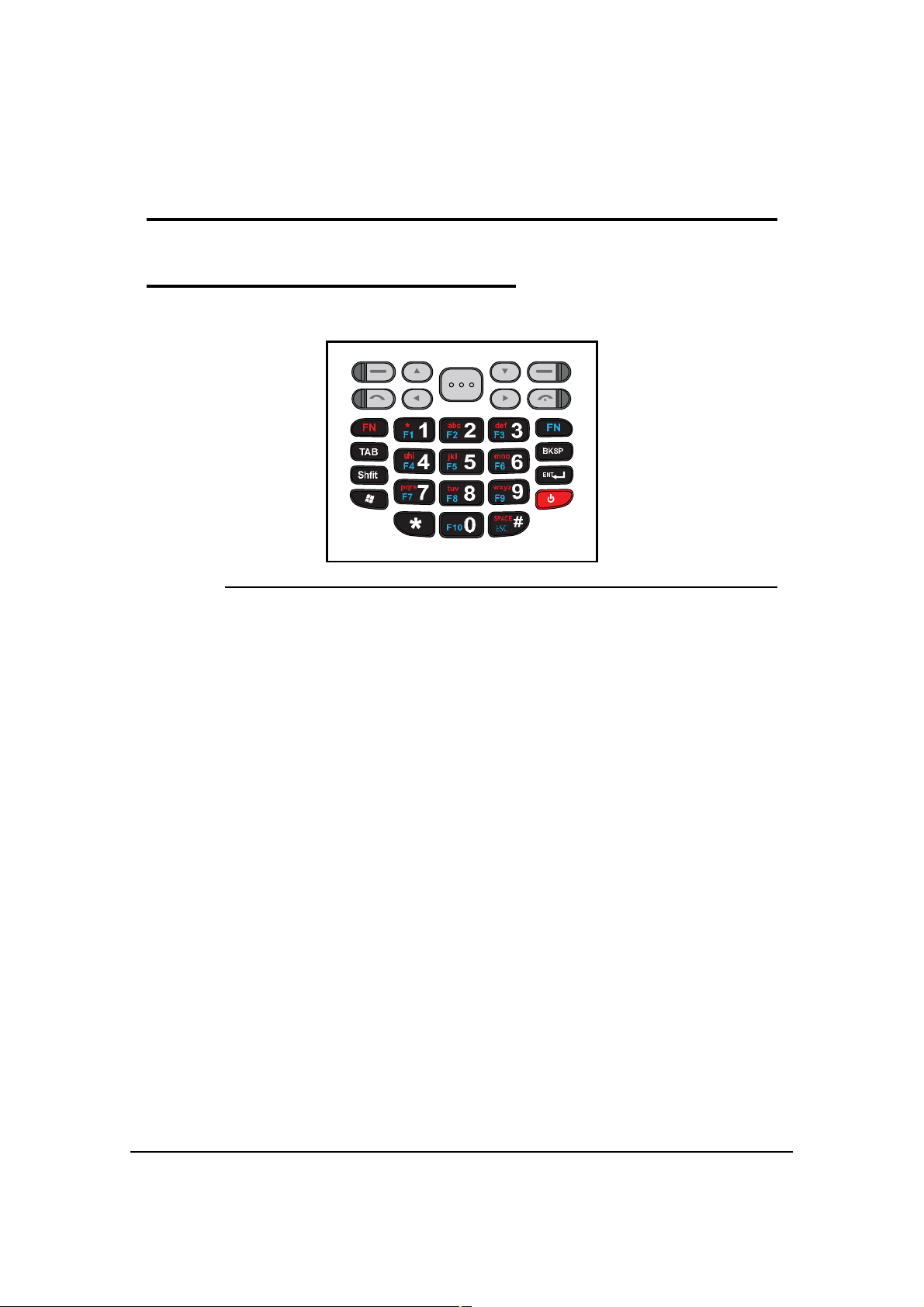

Figure 6-2. Keypad Buttons

Keypad Combinations 0

Table 6-2. Keypad Combinations Table

Numeric Keypad

Left - Left - Left - Left - Left -

Up Up Up Up Up

Scan Scan Scan Scan Scan

Down Down Down Down Down

Right - Right - Right - Right - Right -

(Green Call Button)

Numeric Mode (Default)

(Green Call Button)

Orange FN Key Blue FN Key

Lower Case Mode

(Green Call Button)

Upper Case Mode

(Green Call Button)

Toggle On/Off, the Off mode will operate on default mode of Orange FN Key

(Green Call Button)

Using the Keypad 6-3

Table 6-2. Keypad Combinations Table (Continued)

Left Left Left Left Left

Right Right Right Right Right

(Red End Call Button)

1 F1 * 1 **F1

2 F2 abc 2 abc ABC F2

3 F3 def 3 def DEF F3

4 F4 ghi 4 ghi GHI F4

5 F5 jkl 5 jkl JKL F5

6 F6 mno 6 mno MNO F6

7 F7 pqrs 7 pqrs PQRS F7

8 F8 tuv 8 tuv TUV F8

9 F9 wxyz 9 wxyz WXYZ F9

* *

0 F10 0 F10

# ESC SPACE # SPACE SPACE ESC

BKSP BKSP BKSP BKSP BKSP

Shift Shift Shift Shift Shift

Enter Enter Enter Enter Enter

(Red End Call Button)

Windows Windows Windows Windows Windows

Tab Tab Tab Tab Tab

Right Side Scan Scan Scan Scan

Volume Up Volume Up Volume Up Volume Up Volume Up

Volume Down Volume Down Volume Down Volume Down Volume Down

Power Power Power Power Power

6-4 Using the Keypad

System Settings

Overview 0

The device settings can be changed in the Settings menu. Tap -> Settings and Settings menu will open.

Figure 7-1. Settings Menu

Table 7-1. Settings Menu Icons Table

Icon Description

Bluetooth Adjust Bluetooth radio settings. This icon will show only if Bluetooth

radio and driver are installed. See Working with Bluetooth Radio.

Clocks & Alarms

Lock Make password to limit access to device.

Sounds & Notifications

Today Change appearance and information on Todayscreen.

Connections Change network connections settings. See Connections Menu.

Personal Change button settings and set SIP options. See Personal Menu.

Power See Power.

System Change system settings. See System Menu.

Microsoft My Phone

Set system clock, date, time and schedule alarms. See Clock &

Alarms.

Set sound volume, enable or disable sounds, change sound settings and enable or disable vibrator.

Synchronize phone contacts, calendar, tasks, text messages, music, photos, videos, and other documents with a My Phone account at http:\\myphone.microsoft.com.

System Settings 7-1

Clock & Alarms 0

To adjust the time and date:

1. Navigate to Clock & Alarms menu.

2. Use stylus or finger and tap time and date section.

Tap > Settings -> Clock & Alarms. The Clock & Alarms menu will open.

Figure 7-2. Time and Date

3. Select Time tab. This setting sets system clock.

Figure 7-3. Clock Settings

4. Tap Time Zone box to open the drop-down menu.

5. Set correct time zone from drop-down menu.

6. Set correct time and date in the remaining fields

7. Tap OK to save.

7-2 System Settings

Personal Menu 0

NOTE

To view the Personal Menu:

1. Tap > Settings -> Personal

Figure 7-4. Personal Menu

Table 7-2. Personal Menu Icons Table

Icon Description

Buttons Program side buttons on Dolphin 6000 to do specified tasks. See

Keypad.

Owner Information

Phone When GSM radio is turned on, tap this icon to set up user settings and

Personal settings are kept in RAM memory. They are replaced by system defaults after a Hard Reset. For more information about resets, see Resetting the Device.

Enter contact information. This information will appear on the Today screen.

enable or disable vibrator function. See Setup Options for system notifications.

System Settings 7-3

Using File Explorer 0

NOTE

If a specific program is not found, use File Explorer on the device or ActiveSync on a workstation to make a shortcut of a program and put shortcut in Start menu folder.

It is recommend to Copy and Paste a shortcut so that program settings are not changed by accident. Use Copy and Paste shortcut to help make sure program files stay where they must be for system to find them.

1. Tap > File Explorer

2. Navigate to My Device -> Program Files.

Figure 7-5. Selecting My Device

3. Use stylus to hold the program. A pop-up menu appears.

4. Tap Copy on pop-up menu.

5. Navigate to the Windows folder and open Start Menu (My Device -> Windows -> Start Menu). Then tap and hold a blank area in the window, and tap Paste Shortcut on pop-up menu.

Figure 7-6. Selecting Paste Shortcut

7-4 System Settings

NOTE:NOTE

If there is no blank area in window, tap Menu -> Edit -> Paste Shortcut.

Figure 7-7. Paste Procedure

6. Go to Start menu to make sure copied program is in Start menu folder.

Using ActiveSync on the Workstation 0

In ActiveSync, perform the same process as on device, except that Explore utility (Windows Explorer) is used to copy and paste the shortcut.

1. Open ActiveSync -> Explore and navigate to program.

2. Right-click on program and click Create Shortcut.

3. Select shortcut, right-click, and select Cut.

4. Navigate to StartMenu folder ( > Start Menu).

5. Right-click on empty area and select Paste Shortcut.

6. On device, click on to go to Start menu.

7. Make sure program is there.

System Settings 7-5

System Menu 0

The system settings can be changed in the System menu. To view the System menu:

1. Go to Settings -> System.

2. Tap an icon to open a system setting.

Figure 7-8. System Menu

Table 7-3. System Menu Icons Table

Icon See Page

About See About.

Backlight See Backlight.

Certificate s

Encryptio n

Error Reporting

External GPS

Managed Programs

Memory See Memory.

Regional Settings

See Certificates.

See Encryption.

See Error Reporting.

See External GPS.

See Regional Settings.

7-6 System Settings

Table 7-3. System Menu Icons Table (Continued)

Icon See Page

Remove Programs

Screen See Screen.

Task Manager

A-GPS

CleanBoot

Customer Feedback

Version

Network Time

Schedule Power On/Off

Windows Update

See Remove Programs.

See Task Manager.

About 0

The About menu shows information about device. There are four tabs:

Version Tab: Shows information about software, operating system, processor and

memory.

Device ID Tab: Shows information the device uses to identify itself to other devices. It is

important to know this information if device will be a part of a network.

Device Name: Shows system s default name. (This is the name used by ActiveSync.)

Description: Shows description of the device ID.

Copyrights Tab: Shows copyright information.

Phone Tab: Shows hardware version, software version, IMEI serial number, bluetooth

firmware version and driver information.

System Settings 7-7

Backlight 0

The Backlight menu adjusts the backlight level for screen.

To adjust the backlight level settings:

1. Tap > Settings -> System -> Backlight.

Figure 7-9. Battery Power Tab

There are three tabs:

Battery Power

External Power

Brightness Settings for backlight brightness when device is using battery power or

The options on Battery Power tab and External Power tab are same.

Turn Off Backlight

Turn On Backlight

Settings for backlight to turn off when device is using battery power.

Settings for backlight to turn off when device is using external power.

external power.

Choose this option when for backlight to automatically turn off.

Choose this option for backlight to turn on when a button or touch screen is tapped with stylus or pressed with finger.

7-8 System Settings

Backlight Intensity 0

In the backlight menu, tap Brightnesstab and move slider to change screen brightness for battery power and external power settings. The default setting is 4.

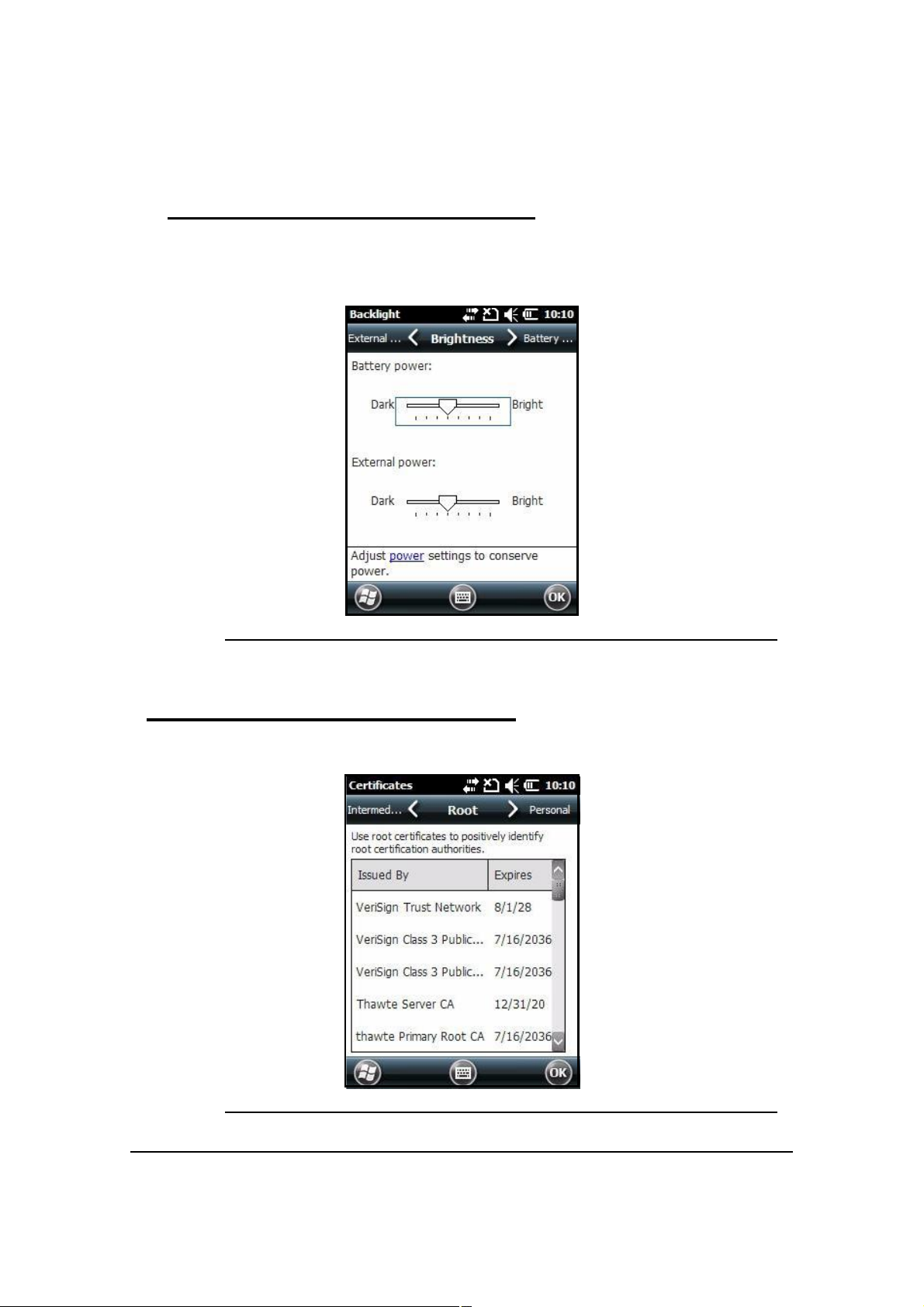

Figure 7-10. Brightness Tab

Certificates 0

The Certificatesmenu shows certificates that the operating system recognizes.

Figure 7-11. Certificates Menu

System Settings 7-9

Encryption 0

The Encryption menu can be adjusted to encrypt files on storage cards so those files cannot be read by another device.

Figure 7-12. Encryption Menu

Error Reporting 0

The Error Reporting menu can be adjusted enable or disable error reporting function of Windows Mobile 6.5.

Figure 7-13. Error Reporting Menu

7-10 System Settings

External GPS 0

NOTE

The External GPS menu gives the option to choose a port for a third-party GPS software application to access GPS receiver.

Figure 7-14. External GPS Menu

Installation settings from GPS manufacturer to set connection is required.

System Settings 7-11

Memory 0

The Memory menu shows capacity and usage statistics for RAM (volatile and Storage Card non-volatile) memory. View this setting when system messages about memory is received.

The device s memory allocation cannot be changed in Memory menu.

There are two tabs:

Main

Storage Card

Main 0

Figure 7-15. Main

The Main tab shows usage statistics of on-board RAM (volatile) memory.

Columns:

Storage = RAM memory used to keep programs and program data.

Program = RAM memory used to run programs.

Rows:

Total = Shows current Megabytes (MB) of memory that can be used.

In use = Shows total MB of memory being used.

Free = Shows total MB of available memory.

7-12 System Settings

Storage Card 0

Figure 7-16. Storage Card

The Storage Card tab shows capacity and usage statistics of Storage Card.

Select memory type from drop-down list.

Total storage card memory = Total Megabytes (MB) of memory capacity of Storage Card

In use = MB currently being used

Free = MB that can still be used

Storage Card One memory card can be installed in the Dolphin 6000 device. If memory card is installed in the device, select it in drop-down list and see capacity and usage statistics for card.

System Settings 7-13

Power 0

NOTE

The Power settings menu has two tabs:

Battery

Advanced

Battery 0

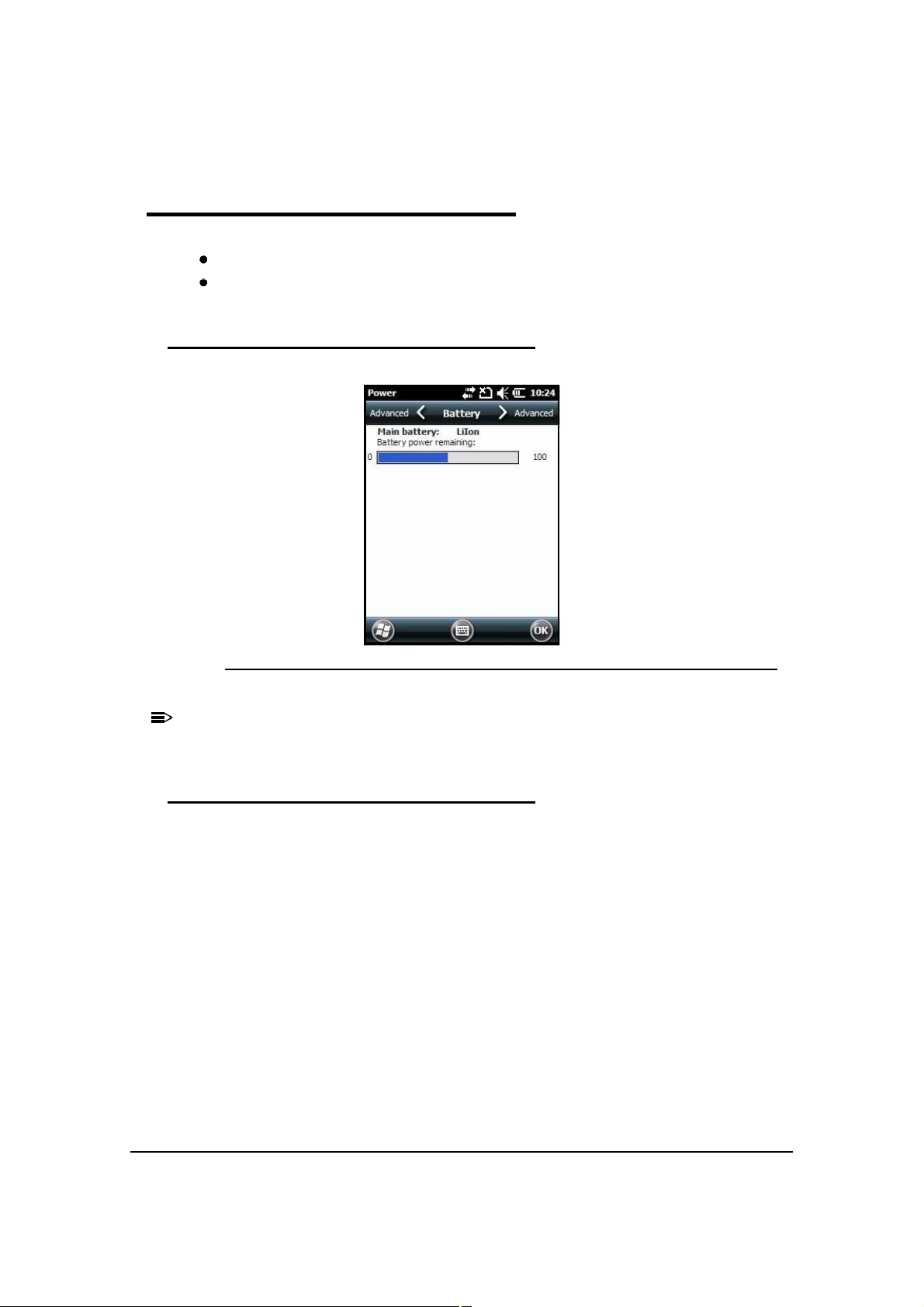

Figure 7-17. Battery

For more information, see Battery Pack.

Advanced Tab 0

In the Advanced tab, settings can be adjusted for screen to turn off when device is not in use.

To change settings for On battery power:

1. Tap box that shows time. A drop-down list will open.

2. Set amount of time to pass before screen will turn off when device is not in use.

To change settings for On external power:

1. Tap box that shows time. A drop-down list will open.

2. Set amount of time to pass before screen will turn off when device is not in use.

7-14 System Settings

Figure 7-18. Advanced Tab

NOTE

There is an option to set automatic turn-off times for device to save power. When device is turned off, that means device is in Suspend Mode. See Suspend Mode.

Regional Settings 0

The appearance and formatting can be adjusted to a geographic region in Regional Settings menu. Numbers (decimal places), currency (using $), time and date changes can be made. These settings apply to all screens. The Region tab shows region in drop-down list at top.

The device has many pre-programmed regional settings. Choose one from list and results appear on screen.

To see settings or change a setting:

1. Choose a tab

2. Make change

3. Tap OK on Command bar to save.

Remove Programs 0

In Remove Programs menu, programs installed on the device can be removed. Use this setting to troubleshoot when a messages is received and says device has no more memory. The programs will be removed from RAM memory. Any program (usually CAB or DLL files) saved in Auto-install folder (My Device -> IPSM -> Autoinstall) will re-install after hard reset.

For information about hard reset process, see Hard Reset (Cold Boot).

1. Tap the Remove Programs Icon.

2. Select program to remove.

System Settings 7-15

Figure 7-19. Remove Programs Menu

3. Tap Remove. The message in Figure7-20 appears.

Figure 7-20. Remove Program Pop-Up

4. Tap Yes. Wait for program to be removed.

5. Check and see that program is not showing in list.

7-16 System Settings

Screen 0

The Screen menu has three tabs:

General

ClearType

Text Size

General 0

Figure 7-21. General Tab

Orientation 0

The General tab is used to set dynamic screen rotation. There are three types of screen orientations:

Portrait

Landscape (right-handed)

Landscape (left-handed)

Align Screen 0

The screen can be re-aligned in General tab. If tapping buttons or icons with stylus does not work correctly, the screen must be re-aligned.

1. Tap Align Screen to open align screen window.

2. Tap a target several times with stylus. This re-calibrates touch screen.

Align Screen must be done using the stylus. The stylus tip is necessary for calibration.

Tap stylus into center of target once and release. Do not tap target more than one time.

System Settings 7-17

ClearType 0

NOTE

Figure 7-22. ClearType Tab

The screen supports ClearType font rendering.

To turn on ClearType font rendering, tap Enable ClearType and tap OK.

For more information about ClearType font rendering, visit:

www.microsoft.com/typography/WhatIsClearType.mspx.

Text Size 0

Figure 7-23. Text Size Tab

7-18 System Settings

In Text Size tab, font scaling can change in:

Today screen

Contacts

Calendar

Messaging

Tasks

Font scaling means point size of fonts can increase or decrease in applications.

To change font size:

1. Move slider to Smallest or Largest. The Example text changes to show the font change.

2. Tap OK to save font size setting.

System Settings 7-19

Task Manager 0

Task Manager shows information about applications and processes that are being used on device. Use Task Manager to view memory and CPU usage of applications and processes. View Task Manager when memory errors are received or when device operation is slow.

Figure 7-24. Task Manager Menu

Using the Task Manager 0

Applications 0

Figure 7-25. Applications in the Task Manager

To see status of programs running:

1. Tap Menu button on Command bar

2. Tap View -> Applications.

3. Tap and hold on an application

4. Tap Switch To on pop-up menu.

7-20 System Settings

5. Tap and hold on an application.

NOTE

6. Tap End Task or End All Tasks on pop-up menu.

When stopping a program, more RAM memory will be available. When stopping a program in TaskManager, unsaved data in that program is lost. To make more available memory and not lose data, go to active program and save data before closing program.

Processes 0

Figure 7-26. Processes in the Task Manager

To view information about processes:

1. Tap Menu button on Command bar.

2. Tap View -> Processes.

System Settings 7-21

7-22 System Settings

Communication

NOTE

Connections Menu 0

The Connections menu provides access to the device s wireless communication options.

Figure 8-1. Connections Menu

Table 8-1. Connection Menu

Icon Description

Beam Enables infrared communication.

Connections Opens Microsoft s connections manager. Refer to Connections Manager.

Wireless Manager

USB to PC Enables advanced wired USB to PC communication via ActiveSync. Refer to

Wireless LAN Enables to configure Wireless Zero Config (WZC). This icon appears only if

Domain Enroll Connects the phone to the company resources.

Connect Config

Manages the wireless radios installed on the device. Refer to Wireless

Manager.

ActiveSync Communication.

the 802.11b/g driver is loaded on the device and the WLAN Security Supplicant is not loaded.

By default, the Wireless Zero Config is disabled and the supplicant is loaded. This icon appears only if the supplicant is removed and the device is Cold Booted.

Enables automatic data configuration.

WLAN Mode Enables WLAN configuration.

All server-assigned IP addresses use Dynamic Host Configuration Protocol (DHCP).

Communication 8-1

Connections Manager 0

NOTE

Microsoft s Connections Manager sets up multiple network connections to the Internet Service Providers (ISPs) via the external modem.

Do not enter connection parameters in the connections manager if:

One of the on-board wireless radios is used to connect to a network. The Dolphin 6000 device

uses the settings from each radio s configuration utility to connect.

Wireless Zero Config is used. By default, WZC is disabled on Dolphin 6000 devices.

To open the Connections Manager, navigate to Start-> Settings-> Connections-> Connections icon .

Figure 8-2. Connections Manager

Tasks Tab 0

The Tasks tab enables to initially configure, then manage network settings when using a modem. User s should select an item from the menu and follow the instructions on the screen to complete the network configuration.

My ISP 0

Enables to add and manage modem connections to an ISP. To complete the setup screens, get the following information from the ISP:

ISP dial-up access telephone number

Username

Password

TCP/IP settings

8-2 Communication

My Work Network 0

NOTE:

NOTE

Enables to establish the following connection types:

Modem

Virtual Private Network (VPN)

Proxy server connection

When connected to ISP or private network, during synchronization with the PC, the device downloads the proper proxy settings. If the network connection is not configured on PC or need to be changed, then the ISP or network administrator should provide the following information:

Proxy sever name

Server type

Port

Type of Socks protocol used

User name and password.

To complete the setup screens, get the network parameters from system administrator.

Modify an Existing Connection 0

Manage Existing Connectionsappears on the Connections tab after at least one network connection has been established.

Tap Manage Existing Connectionson the Tasks tab and follow the setup screens.

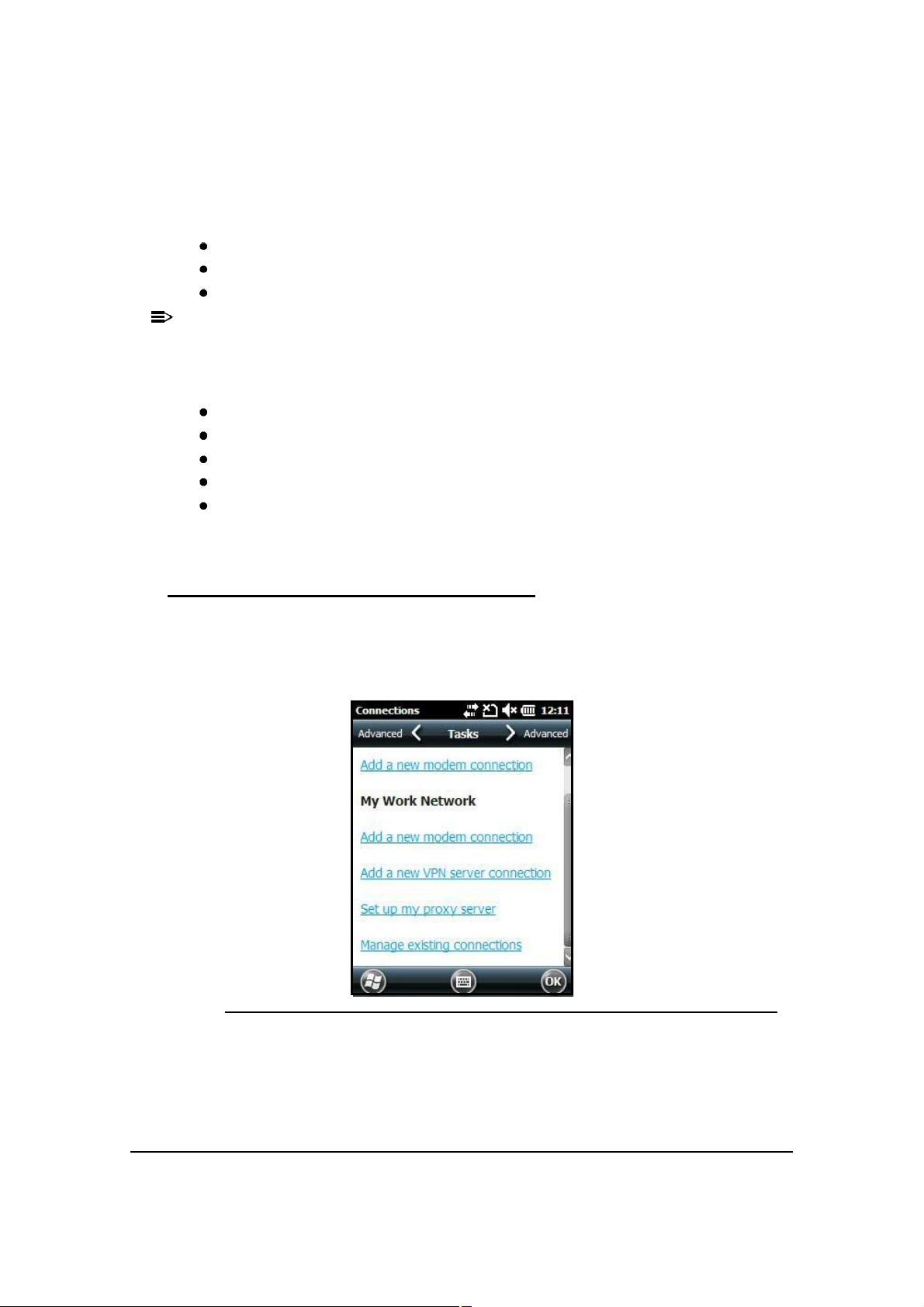

Figure 8-3. Manage Existing Connections

Communication 8-3

Advanced Tab 0

NOTE

The Advanced tab enables to select the following:

Default network

Dialing rules

IP address exceptions for modem connections.

Figure 8-4. Advanced Tab

Advanced settings should not be modified. Most ISPs use DHCP addresses.

Online Help 0

For more information about modem connection setup, tap on the Help icon in setup screens.

8-4 Communication

Wireless Manager 0

NOTE

ActiveSync Communication 0

ActiveSync 4.5 or higher enables to synchronize data between the device and the workstation. In order to perform the synchronization, the program must be installed and configured for the appropriate communication type on the host workstation and Dolphin 6000 device. Dolphin 6000 devices ship with ActiveSync installed by default.

If ActiveSync is already installed on the host workstation, then the workstation and Dolphin 6000 device need to be connected (via Dolphin 6000 peripheral) in order to initiate the communication.

If ActiveSync 4.5 or higher is not installed on the host workstation, it s possible to download the latest version of the program from the www.microsoft.com website.

CAUTION:

When communicating via ActiveSync, the device is designed to be connected to the host workstation with a communication peripheral, such as the charge/communication cable.

If communication in ActiveSync fails, remove the USB cable and connect the USB cable to the host workstation again to initiate the process.

Capabilities 0

The following is a list of the device s capabilities:

Back up and restore the device data

Copy files between the device and workstation.

It is suggested to copy, rather than synchronize the data.

Defining a synchronization mode. It is possible to synchronize continuously while connected to

the workstation or only when the synchronization command is selected.

Defining the time period and data type to be synchronized. It is possible to choose how many

weeks from the past appointments will be synchronized.

Communication Types 0

The Dolphin 6000 device supports the following types of communication via ActiveSync through its I/O Connector (see page 3-10) on the bottom panel:

USB The USB cable and hardware peripherals allow the device to communicate with a workstation or to networked through a USB hub. The Dolphin 6000 device supports full-speed USB communication (USB 1.1) with maximum data transfer rate: 12 Mbps. The Dolphin 6000 device defaults to USB communication out of the box.

Communication 8-5

Hardware Requirements for Setup 0

The following is a list of the hardware requirements needed for Setup:

Dolphin 6000 communication peripheral or cable

Dolphin 6000 power cable

USB cable (for USB communication).

Software Requirements for Communication 0

To synchronize successfully, ActiveSync v4.5 or higher must be configured for the same communication type on the host workstation and Dolphin 6000 device. ActiveSync must be setup on workstation before initializing synchronization from the device for the first time.

The following is a list of the supported operating systems:

Windows 98 Second Edition

Windows ME

Windows 2000

Windows NT (4.0 SP6 or higher)

Windows XP operating systems.

8-6 Communication

Setting Up the Host Workstation 0

NOTE

1. Verify that ActiveSync is configured to use the appropriate communication type by tapping

File > Connection Settings.

For USB communication, check AllowUSBconnections.

Figure 8-5. USB Connection Settings

USB can be selected in the software, without affecting the processing. The hardware setup should use only USB.

Communicating with the Dolphin 6000 device 0

After setting up the workstation and the device, ActiveSync connection should be established automatically. Perform the following:

1. Connect the Dolphin 6000 device to a Dolphin 6000 communication peripheral. The Dolphin 6000 device automatically opens ActiveSync, in order to establish a connection.

Synchronizing with the Host Workstation 0

The synchronization process begins automatically after Setup, if ActiveSync has been installed to the host workstation and the workstation has been connected to the device.

Communication 8-7

Exploring the Device from the Workstation 0

NOTE:

NOTE

When the Dolphin 6000 device and workstation are connected, open the main ActiveSync window (on the desktop), and tap Explore.

Figure 8-6. ActiveSync Window

The Mobile Device folder opens in Windows Explorer.

Figure 8-7. Mobile Device Folder

The Dolphin 6000 device is treated as a mass storage device, and transferring files can be dragged and dropped or copied and pasted.

Installing Additional Software 0

In addition to the default programs, the user can install any other program that meets the following requirements:

It is designed for Windows Mobile-based device and for the version of processor of the device.

To verify the processor, navigate to Start-> Settings-> System-> About-> Version

Has an EXE, CAB, or DLL extension.

The requirement to the device is that it must have enough memory to store the program.

The most popular place to find the software is on the Windows Mobile website:

www.microsoft.com/windowsmobile/en-us/downloads/default.mspx

8-8 Communication

Adding Programs to the Device Using ActiveSync 0

CAUTION:

When selecting programs, verify that the program and version of the program are designed for Windows Mobile and processor. To verify the processor tap on Start-> Settings-> System-> About-> Version.

Depending on the application, the software must be stored or installed on the host PC. Perform the following:

1. Download the program to the desktop computer from the Internet, CD or disk. It can be a single setup.exe, EXE-, CAB- or DLL-file or several files for different types of devices and processors.

2. Many programs provide special installation instructions. Read the installation instructions in Read Me files, or documentation that comes with the program.

3. Connect the device to the desktop computer via a communication peripheral.

Installer File 0

The idea of an installer program is to install on the PC and the device simultaneously. Perform the following:

1. On the PC, double-click the *.setup.exe or EXE-file. The installation wizard begins.

2. Follow the directions on the PC screen. The installation process includes transferring the software to the device.

Non-Installer File 0

There are programs that cannot be installed on PCs because they are designed for devices. If the instructions cannot be found in the Read Me file or documentation, perform the following:

1. Store the appropriate file or files on the host PC

2. Open ActiveSyncand click Explore

3. Click on the My Windows Mobile-Based Device folder and copy the program file or files to the Program Filesfolder on the device.

If the program has to be part of the Autoinstall that occurs after every Hard Reset, place the

program file in the Autoinstallfolder located at My Windows Mobile-> Based Device-> IPSM->

Autoinstall

CAUTION:

Hard Reset erases RAM data.

4. If the file or files have been copied to the Autoinstallfolder, the user can tap on the program inside the folder or perform a Hard Reset and the program installation starts automatically. For more information, refer to Hard Reset (Cold Boot).

After the installation on the device is complete, tap Start. The program and its icon appears on the Start screen. Tap on the icon to run the program.

Communication 8-9

Adding Programs Directly from the Internet 0

When selecting programs, verify that the program and version of the program are designed for Windows Mobile and the device s processor. Processor can be verified by tapping on > Settings-> System-> About-> Version tab. Make a note of the information in the Processor field.

Perform the following:

1. Choose the version of the software that is designed for the specific device and processor. To determine the device and processor type, tap on Settings-> System-> About. Make a note of the information in the Processor field.

2. Download the program to the device straight from the Internet, using Internet Explorer Mobile. It can be a single setup.exe, EXE-, CAB- or DLL-file or several files for different types of devices and processors.

3. Many programs provide special installation instructions. Read the installation instructions in Read Me files, or documentation that comes with the program.

4. Tap on an EXE-file. The installation wizard begins. Follow the directions on the screen.

5. Select the radio or radio combination and tap Apply. The Radio Manager begins enabling radio or radio combination.

6. When enabled, the Statusfield reads Success.

COM Port Assignment Table 0

Table 8-2. COM Port Assignment Table

COM Port Description

COM0 Not accessible

COM1 Not accessible

COM2 Not accessible

COM3 Serial Port: Rs232 Connector on the bottom panel

COM4 GPS Com Port

COM5 Bluetooth DUN

COM6 Unused

COM7 Unused

COM8 Unused

COM9 BT BTHATCI server

8-10 Communication

Working with GSM/GPRS/EDGE

Overview 0

The Dolphin 6000 device is designed with an integrated, embedded GSM/GPRS/EDGE penta-band radio module for WWAN communication.

GSM Global System for Mobile communications, GSM is an open, non-proprietary

wireless WAN system.

GPRS General Packet Radio Service, GPRS is a non-voice service that allows

packet-switched data to be instantly sent and received across mobile telephone networks.

EDGE E-GPRS is a non-voice service that allows packet-switched data to be instantly

sent and received across mobile telephone networks at a higher data rate than standard GPRS.

Requirements 0

Using GSM/GPRS/EDGE requires:

Network subscription to a GSM/GPRS/EDGE network (must know what service providers are in

the area)

An installed SIM card that has been activated by the network service provider (see SIM Card

Installation on page 9-2).

Working with GSM/GPRS/EDGE 9-1

Voice and Data Communication 0

NOTE

Dolphin 6000 devices with integrated GSM/GPRS/EDGE radios are best for the following two-way voice and data communications:

Voice: GSM voice data (dial-up)

Data: Available speed depends on the wireless network carrier and their supported packet-data

technology and network conditions.

GPRS Class 10: data transmission max. 85.6 kbps (DL), max. 42.8 kbps (UL)

EDGE (E-GPRS) Class 10: data transmission max. 237 Kbps (DL), max. 118 kbps (UL)

GSM radio for voice communication and data communication can be used, but not at same time. If making a voice call, the device cannot send data. If sending data, the device cannot make voice calls.

SIM Card Installation 0

Subscriber Information Module, a SIM card contains subscriber's personal information, GSM/GPRS radio settings, security keys, contacts, etc. SIM cards can be installed in compatible mobile devices that can switch devices without losing personal and setup information.

Figure 9-1. SIM Card Location

SIM Card Requirements 0

Before installing the SIM card:

The service provider mustactivate the SIM card.

The device mustbe turned off.

If no SIM card is installed, emergency phone calls such as 9-1-1 can still be done.

9-2 Working with GSM/GPRS/EDGE

Installing a SIM Card 0

NOTE

1. Power down device.

2. Unlock battery door.

3. Remove battery door and battery.

4. Unlock SIM card latch by sliding the latch toward top of device.

Figure 9-2. SIM Card latch

5. Lift latch up to expose SIM card socket.

Figure 9-3. SIM Card latch

6. Insert SIM card into SIM card socket.

Figure 9-4. SIM Card

Make sure interface on the card is connected to SIM Card interface in socket, align corner of the card with corner of the socket.

Working with GSM/GPRS/EDGE 9-3

7. Close SIM card latch.

Figure 9-5. SIM Card latch

8. Lock SIM card latch by sliding the latch toward bottom of device.

Figure 9-6. SIM Card latch

9. Install battery and battery door.

10.Lock battery door.

Enabling the GSM Radio 0

Voice Communication 0

Dolphin 6000 device can operate as a phone over GSM radio.

Audio Modes 0

Hands-free Mode

9-4 Working with GSM/GPRS/EDGE

Volume Control 0

NOTE

Press the up or down arrow on Volume Control button on left side of device to adjust volume of speaker

For more information, see Volume Control Button on page 3-7.

Accessing the Dialer Window 0

When GSM radio is active, tap > Phone.

The Phone dialer opens.

Figure 9-7. Phone Dialer

Dialing 0

Once the dialer window is open, the device can dial two ways:

Use touch screen and tap buttons on dialer window.

Use physical keypad (when keypad is in numeric mode).

Working with GSM/GPRS/EDGE 9-5

Sending Calls 0

NOTE

After number is dialed, tap Talk on the screen or press green Send key on keypad.

Figure 9-8. Phone Dialer Options

The Voice call in progress icon in the navigation bar indicates phone is in use.

Ending Calls 0

While the phone call is active, tap End on the screen or press red End keyon keypad.

Keypad Combinations for Calls 0

Keypad To Send a Call, Please... To End a Call, Please...

29-key numeric keypad Green Send Key Red End Key

Accessing Voice Mail 0

Tap > Phone -> Speed Dial -> Voice Mail -> Call.

Update voice mail retrieval number by turning off device and then turn on device in Wireless Manager. See Enabling the GSM Radio on page 9-4.

9-6 Working with GSM/GPRS/EDGE

View Options 0

Tap Menu -> View.

Figure 9-9. View Options Pop-Up Menu

Setup Options 0

Tap Menu -> Options. The Phone menu will open and there are sounds, services, network and security tabs.

Figure 9-10. Options Pop-Up

Working with GSM/GPRS/EDGE 9-7

Sounds 0

In Sounds tab, ring tones, ring types and keypad sounds can be changed.

Figure 9-11. Sounds Tab

Services 0

The phone will read settings for each service on SIM card and show the available options from carrier.

Figure 9-12. Services Tab

9-8 Working with GSM/GPRS/EDGE

Network 0

There are options to find and set networks on Network tab.

Figure 9-13. Network Tab

Security 0

There are options to make or change a PIN on Security tab.

Figure 9-14. Security Tab

Working with GSM/GPRS/EDGE 9-9

Data Communication 0

Data communication can be set up in Connections Manager. The carrier on SIM card is the ISP.

System Requirements 0

The GSM radio must be enabled. Refer to Enabling the GSM Radio.

Must have an active SIM card with a data plan installed. Refer to SIM Card Installation.

Information Requirements 0

The following is required from SIM card carrier:

APN (access point name).

Username and password of account.

Establishing Data Communication 0

1. Tap > Settings -> Connection -> Connections.

2. Under My ISP, tap Add a new modem connection.

3. Enter a name for connection. Select Cellular Line (GPRS) as modem

4. Tap Next.

Figure 9-15. Make New Connection

9-10 Working with GSM/GPRS/EDGE

5. Enter Access point name. Tap Next.

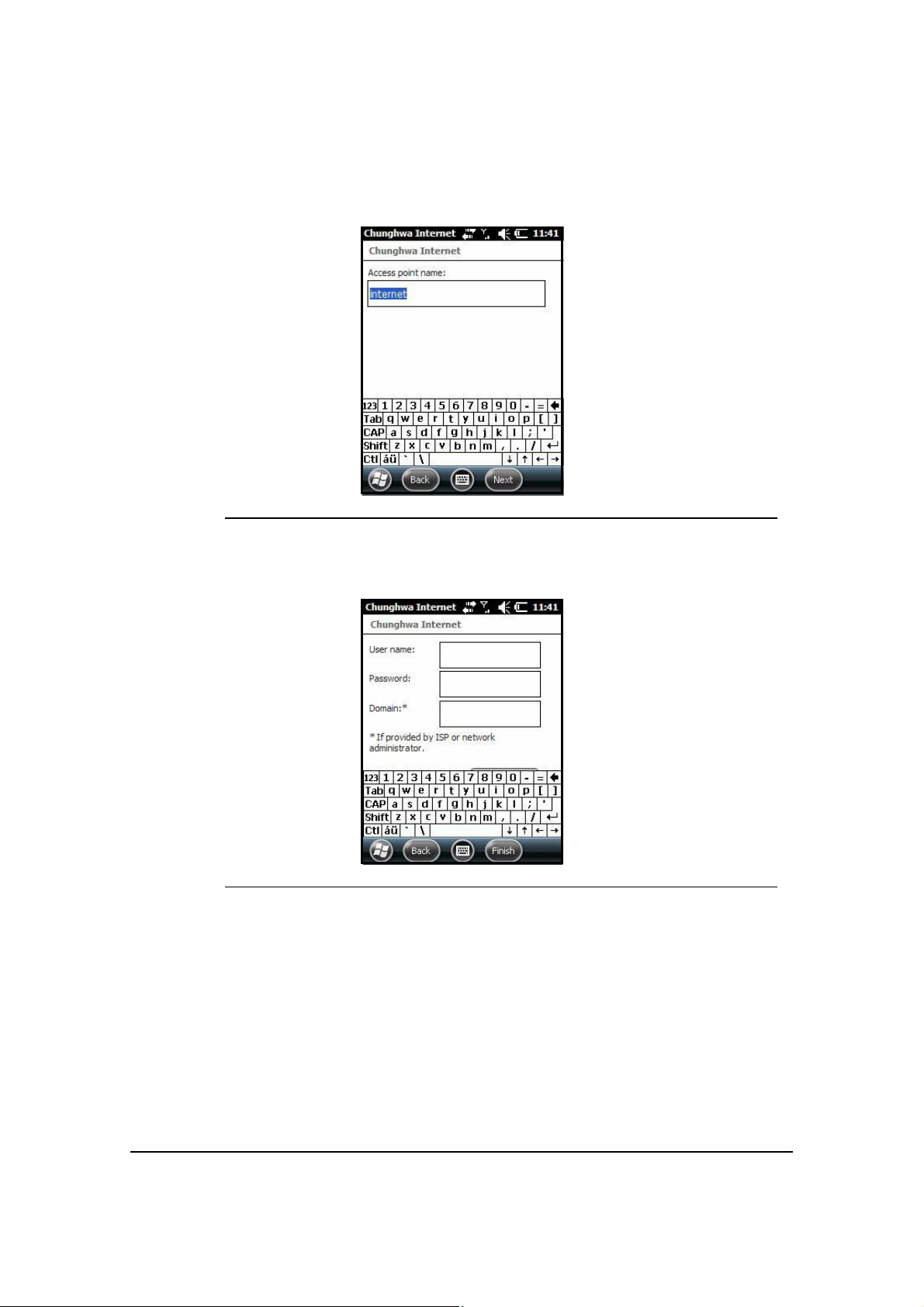

Figure 9-16. Access Point Name

6. Enter username and password from account. Tap Finish.

Figure 9-17. Username and Password

Working with GSM/GPRS/EDGE 9-11

7. In Connections window, tap Manage existing connections. The new connection should

NOTE

show on list in modem tab.

Figure 9-18. Modem Tab

8. Press the connection. A pop-up menu appears. (Figure 9-19)

9. Select Connect on the pop-up menu.

Figure 9-19. Connect on the Pop-Up Menu

10.The network icon in the navigation bar shows GSM radio is attempting to connect.

When the device is on a 2G (EDGE/GPRS) network, a data connection failure occurs if device is in use for a voice call while trying data connection. Voice and data use at the same time is only supported if device is on a 3G network. In 2G mode, a voice call has priority over data connection. Active data connection is automatically set in park mode and data is retrieved when voice call ends.

11.When connection is complete, network icon changes to Signal Strength Icon. Data can now be sent over GSM.

9-12 Working with GSM/GPRS/EDGE

Ending the Data Connection 0

The default setting makes data connection disconnect after an specific amount of time passes and is not in use. This amount of time is set by the ISP.

To end data connection manually, tap network icon in navigation bar and tap Disconnect on the pop-up bubble.

Working with GSM/GPRS/EDGE 9-13

Manual Network Selection 0

Select Automatic or Manual network selection in the Network tab. The device defaults to Automatic network selection.

1. When an active SIM card is inserted in device, tap > Settings -> Personal -> Phone -> Menu -> Options. The Phone menu window opens.

2. Choose Network tab.

Figure 9-20. Network Tab

3. Under Network selection, choose Automatic (the default setting) or Manual.

a. If Manual is selected, the device will search for available networks.

Figure 9-21. Network Selection Pop-Up

9-14 Working with GSM/GPRS/EDGE
