Honeywell 6270 User Guide

ARMED
READY
MESSAGE

77RRXXFFKK66FFUUHHHHQQ
..HH\\SSDDGG
8VHU*XLGH
 
K0976 4/03
HOME
FUNC
PAN I C
BACK
®
Table of Contents
ABOUT THE 6270................................................................................................ 5
Introduction to the 6270................................................................................. 5
The 6270 Interface ........................................................................................ 5
Navigating through the 6270.......................................................................... 6
About Your Home Screen.............................................................................. 6
6270 "Arming" Screen ................................................................................... 8
SYSTEM OVERVIEW......................................................................................... 10
Introduction to Your System ........................................................................10
Burglary Protection...................................................................................... 10
Partitions Zones Entry/Exit Delays Alarms Memory of Alarm
Fire Protection............................................................................................. 11
User Codes..................................................................................................12
Extended Functionality................................................................................ 12
SECURITY SYSTEM OPERATION.................................................................... 13
Introduction to Security System Operation .................................................. 13
How to Arm the System............................................................................... 13
How to Arm Multiple Partitions.....................................................................15
How to Bypass Zones.................................................................................. 17
How to Remove Bypassed Zones ............................................................... 20
How to Disarm the System.......................................................................... 22
How to Check the Status of Other Partitions ............................................... 24
How to Send Emergency Messages............................................................26
How to View the Event Log .........................................................................27
FIRE ALARM SYSTEM OPERATION................................................................ 29
Introduction to Fire Alarm System Operation............................................... 29
In Case of Fire Alarm................................................................................... 29
Silencing a Fire Alarm ................................................................................. 29
Fire Display Lock......................................................................................... 30
USER CODE SETUP .........................................................................................31
Introduction to User Code Setup ................................................................. 31
How to Access User Setup.......................................................................... 31
.............................................................................................. 10
................................................................................................... 10
.................................................................................. 11
.................................................................................................. 11
.................................................................................. 11
3
Table of Contents (Cont'd)
How to Add a User ......................................................................................33
How to Delete a User ..................................................................................37
How to Edit a User....................................................................................... 38
ADVANCED SYSTEM FEATURES ...................................................................40
Introduction to Advanced System Features................................................. 40
Console Emulation Mode ............................................................................ 40
How to Enter Console Emulation Mode....................................................... 40
VOICE MESSAGES ........................................................................................... 42
Introduction to Recording and Retrieving Messages................................... 42
Recording a Voice Message........................................................................42
Retrieving and Deleting a Voice Message................................................... 43
SUMMARY OF AUDIBLE NOTIFICATION........................................................ 45
SUMMARY OF 6270 LED OPERATION............................................................ 47
6270 LED Operation.................................................................................... 47
6270 SETUP....................................................................................................... 48
How to Access 6270 Setup Options ............................................................ 48
How to Access Setup ..................................................................................48
How to Adjust the Touch Screen Contrast................................................... 50
How to Adjust the Volume ........................................................................... 51
How to Select Screen Saver Activation Time ..............................................52
How to Set the Time and Date.....................................................................54
Time Zones
6270 OPERATING MODES ............................................................................... 57
Operating Modes......................................................................................... 57
How to Access Operating Modes ................................................................ 57
MAINTAINING YOUR SYSTEM......................................................................... 59
How to Clean your 6270.............................................................................. 59
Routine Care ............................................................................................... 60
GLOSSARY .......................................................................................................61
.......................................................................................... 55
4
About the 6270
Introduction
Congratulations on your ownership of an ADEMCO Security System. You've made a wise decision in choosing it, for it represents the latest in security protection technology today.
This security system offers you burglary protection and may provide fire and emergency protection. To realize the full potential of the system, it is important that you feel comfortable operating it. Your system may consist of:
x
6270 Touch Screen Keypad
x
One or more other keypads for system control
x
Various sensors for perimeter and interior burglary protection, plus a selected number of strategically placed smoke or combustion detectors
x
Lighting/switching devices.
home lighting
The
U
L
The system uses microcomputer technology to monitor all zones, and provides appropriate information for display on the 6270 and/or other keypads used with the system. Your system may also have been programmed to automatically transmit alarm or status messages over the phone lines to a central alarm monitoring station.
feature has not been evaluated by UL.
The 6270 Interface
The 6270 is an intuitive, graphical interface that combines security and optionally, home lighting control. With clear, simple controls on a touch-screen interface, the entire family will find the 6270 both easy to learn and easy to use.
As a security and home-automation interface, the 6270 may be used for:
x
Quick and easy security system operation
x
Home lighting control
5
About the 6270 (cont'd)
Navigating through the 6270
Navigation through the 6270 typically begins from the "Home" screen. This is the 6270’s main default screen (starting screen) and is the first screen you will see when the 6270 is powered up and initialized. It is from this screen that you will select from the main menu. Once you have made your selection, you will navigate through various sub-menus by touching buttons or icons to perform the function you desire.
About Your Home Screen
Your "Home" screen is the gateway to your 6270 Touch Screen Keypad. From this screen you can:
x
access messages
x
control your security system, and optionally,
x
control the premises lighting.
U
Your "Home" screen is displayed at all times, except when the system is armed or you select another screen option.
6
The home lighting feature has not been evaluated by UL.
L
The background and buttons shown on the “Home” screen in this manual are for example only. Your system installer may have changed the actual background and buttons shown on your “Home” screen.
About the 6270 (Cont'd)
6270 Icon/Button Descriptions
To aid in the navigation of the 6270, a set of user-friendly icons and buttons has been provided. The appearance, function, and location of these icons and buttons is described below:
ICON/BUTTON LOCATION FUNCTION
"Home" screen
"Home" screen
"Home" screen
Below screen Returns you to the 6270 "Home" screen.
Below screen Reverts to the last screen viewed.
Below screen
Below screen For future use.
To the right of screen
To the right of screen
Allows you to record and retrieve voice messages.
Allows you to turn certain devices on and off (if installed and programmed by your installer.)
Accesses "Arming" screen.
The lock symbol in the shield
Note:
indicates security system status. Unlocked – system disarmed Locked – system armed
Displays Emergency functions (as programmed by your installer.
Use to scroll up through lists displayed on the screen.
Use to scroll down through lists displayed on the screen.
7
About the 6270 (cont'd)
6270 "Arming" Screen
From the "Home" screen, press
SECURITY
to access the 6270 "Arming" screen. Use this picture and the table that follows to become familiar with the 6270 security functions.
ITEM FUNCTION
AWAY
STAY
NIGHT
Press this button to arm when no one will be staying on the premises. When armed in alarm if a protected door or window is opened, or if any movement is detected inside the premises. You may leave through the entrance door during the exit delay period without causing an alarm. You may also re-enter through the entrance door, but must disarm the system with your User Code within the entry delay period or an alarm will occur.
Press this button to arm when you are staying home, but might expect someone to use the entrance door later.
When armed in protected door or window is opened, but you may otherwise move freely throughout the premises. Late arrivals can enter through the entrance door without causing an alarm, but they must disarm the system within the entry delay period or an alarm will occur.
Press this button to arm when you are staying home and do not expect anyone to use the entrance door.
have configured NIGHT Mode differently; have him/her describe the actual settings of this mode.
, the system will sound an alarm if a
STAY
, the system will sound an
AWAY
Your installer may
8
About the 6270 (Cont'd)
ITEM FUNCTION
Multi­Partitions
MORE CHOICES
Check this circle when you want to arm more than one partition. When Multi-Partitions is checked, all partitions within the system can be armed at one time (if the user is so authorized). When the Arm Multi-Partitions circle does not contain a check mark, each partition must be armed individually.
Press this button for more Security, Lighting, and 6270 setup features.
9
System Overview
Introduction to Your System
This system offers you burglary protection and may offer fire and emergency protection. Monitoring is accomplished with various contact and motion sensors for perimeter and interior burglary protection, plus the system may have strategically placed smoke, heat, or combustion detectors.
Burglary Protection
The burglary protection portion of your system must be turned on or "armed" before it will sense burglary alarm conditions. Your system provides three modes of burglary protection: Away, Stay, and Night, and even allows you to “bypass” selected zones of protection while leaving the rest of the system armed (e.g. this enables you to arm the system but leave upper-story windows open.)
The system also provides a Chime mode, for alerting users to the opening and closing of doors and windows even while the system is disarmed.
Partitions
This system may be configured to arm and disarm more than one area, each as if it had its own control. These areas are called partitions. Partitions are used when the user wants to disarm certain areas while leaving other areas armed, or to limit access to certain areas to specific individuals. Each user of the system can be authorized to operate all or only some partitions, and can be given different privileges in each. Information about Partitions is presented later in this document.
Zones
Your system's sensing devices have been assigned to various "zones." For example, the sensing device on your Entry/Exit door may have been assigned to zone 01, sensing devices on windows in the master bedroom to zone 02, and so on. These numbers will appear on the display, along with an alpha descriptor for that zone (if programmed), when an alarm or trouble condition occurs.
10
System Overview (Cont'd)
Entry/Exit Delays
Your system has preset time delays, referred to as exit delay and entry delay. Whenever you arm your system, exit delay gives you time to leave through the designated exit door without setting off an alarm. Exit delay begins immediately after entering any arming command, and applies to all modes of arming protection. If programmed, a slow beeping will sound throughout the exit delay period.
Entry delay gives you time to disarm the system when you reenter through the designated entrance door. But the system must be disarmed before the entry delay period ends, or an alarm will occur. The keypad will beep during the entry delay period, reminding you to disarm the system. Ask your installer about the delay times programmed into your system.
Alarms
When an alarm occurs, the 6270 (and any other keypads) and external sounders will sound, and the zone(s) causing the alarm are displayed. If your system is connected to a central monitoring station, an alarm message will also be sent. To stop the alarm sounding, simply disarm the system.
Memory of Alarm
When an alarm condition occurs, the number(s) of the zone(s) that caused the problem are displayed, along with the type of alarm. These remain displayed until cleared by disarming the system.
Fire Protection
The optional fire protection portion of your security system (if used) is always on and will sound an alarm if a fire condition is detected.
11
System Overview (cont'd)
User Codes
Each user must be assigned a name with a corresponding 4-digit user code in order to gain access to various features and functions. Users for the system are programmed in a central user setup location that provides the specific questions for authorization level, partition assignment, and RF button assignment.
Extended Functionality
Extended functions are advanced functions that can be accessed through a standard alpha keypad or through emulation mode on your 6270 touch screen. Refer to your Control Panel User Guide for these features.
12
Security System Operation
Introduction to Security System Operation
You can arm your system in one of three arming modes: Away, Stay, and Night. The following table lists the three different arming modes and the results of each.
FEATURES FOR EACH ARMING MODE
Arming
Mode
Away Yes Yes Yes Yes Stay Yes Yes Yes No Night* Yes Yes (set for Away or
*Your installer may have configured Night Mode differently; have your installer write the actual mode settings above.
How to Arm the System
Arming the system in any mode is performed in the same way, as described below.
Note: Close all perimeter windows and doors before arming.
Exit
Delay
Entry Delay
Stay Mode)
No (set for Instant or
Maximum Mode)
Perimeter
Armed
Yes Yes (set for Away
Interior
Armed
Mode)
No (set for Stay,
Instant or Maximum Mode)
SCREEN ACTION

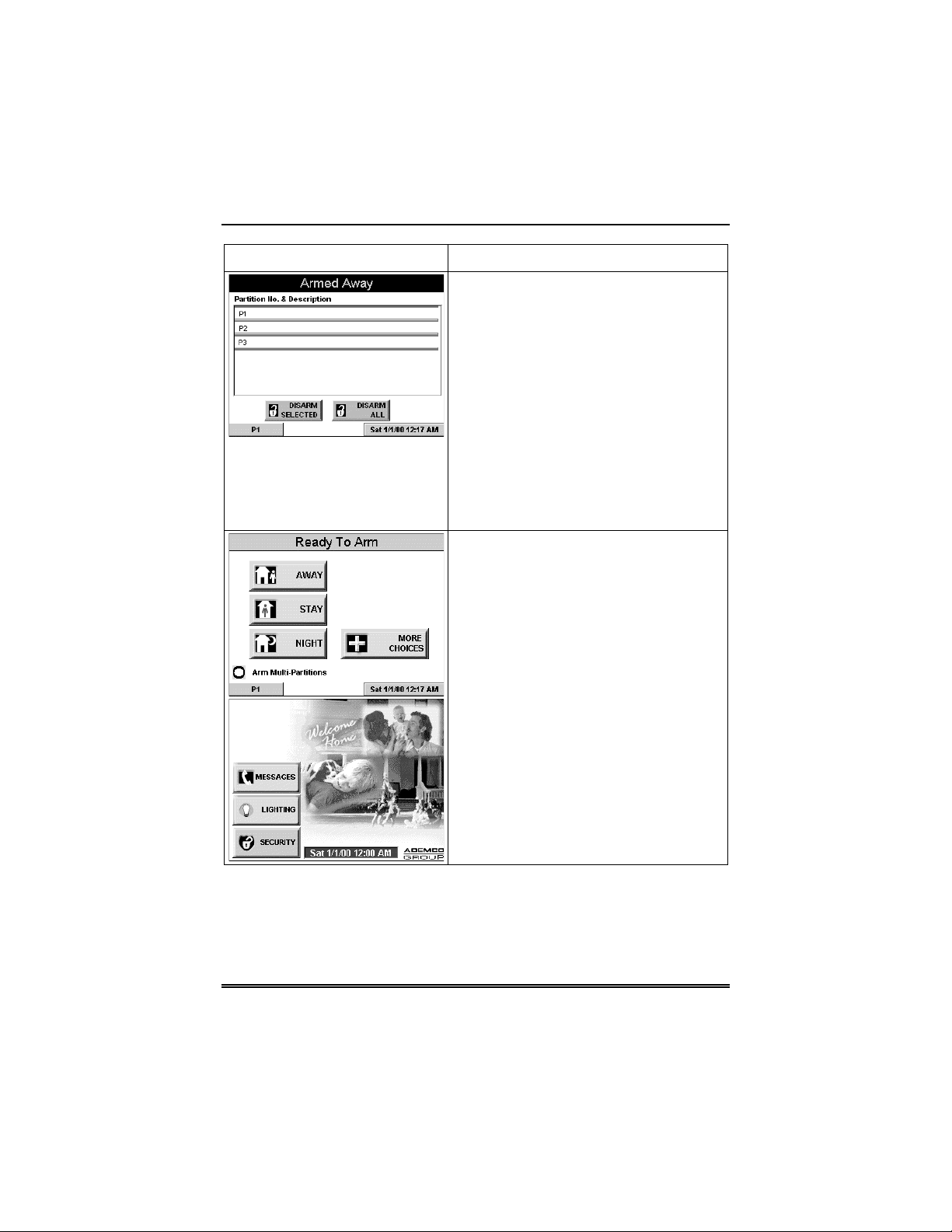

1. From the "Home" screen, press the
SECURITY
is displayed.
button. The "Arming" screen
13
Security System Operation (cont'd)
SCREEN ACTION
2. On the "Arming" screen, press the selected arming button.
The 6270 beeps twice (Away
o
and Night Maximum Modes) or 3 times (Stay and Night Instant Modes)
Arming (typical)
Armed (typical)
a
DISARM
o
a text message appears stating
o
which zones are arming and whether or not there is an exit delay
the screen changes to display
o
the remaining exit delay time, and
an "open lock" appears next to
o
the pressed button to indicate the system is arming.
The exit delay time continues to
o
decrement to one.
When exit delay time expires, the screen automatically changes to indicate the system is "Armed" and the "lock" next to the pressed button changes to a closed lock. The system is now armed in the selected mode.
button appears
14
Security System Operation (Cont'd)
How to Arm Multiple Partitions
To arm multiple partitions:
SCREEN ACTION
1. From the "Home" screen press the
SECURITY
screen.
2. Make certain the Multi-Partitions button is checked.
3. Press the appropriate arming mode button.
button to display the "Arming"
4. When prompted, enter the user code authorized to access other partition(s).
15
Security System Operation (cont'd)
SCREEN ACTION
If the user code is accepted, the system displays the partitions that the user has access to.
A user may have access to some
Note:
(but not all) of the available partitions! You have two arming options:
To arm one or more partitions, highlight the partition(s) to be armed by touching it on the screen, then press
SELECTED
Press partitions.
.
ARM ALL
to arm all available
ARM
16
Security System Operation (Cont'd)
How to Bypass Zones
The Bypass function is used when you want to arm your system with one or more zones left open. Bypassed zones are unprotected and will not cause an alarm when violated while your system is armed.
The system will not allow you to bypass fire or emergency zones.
x
To bypass zones, the system must be disarmed first.
x
To bypass zones do the following:
SCREEN ACTION
1. From the "Home" screen, press the
SECURITY
is displayed.
2. From the "Arming" screen, press the
MORE CHOICES
Choices" screen is displayed.
button. The "Arming" screen
button. The "More
17
Security System Operation (cont'd)
SCREEN ACTION

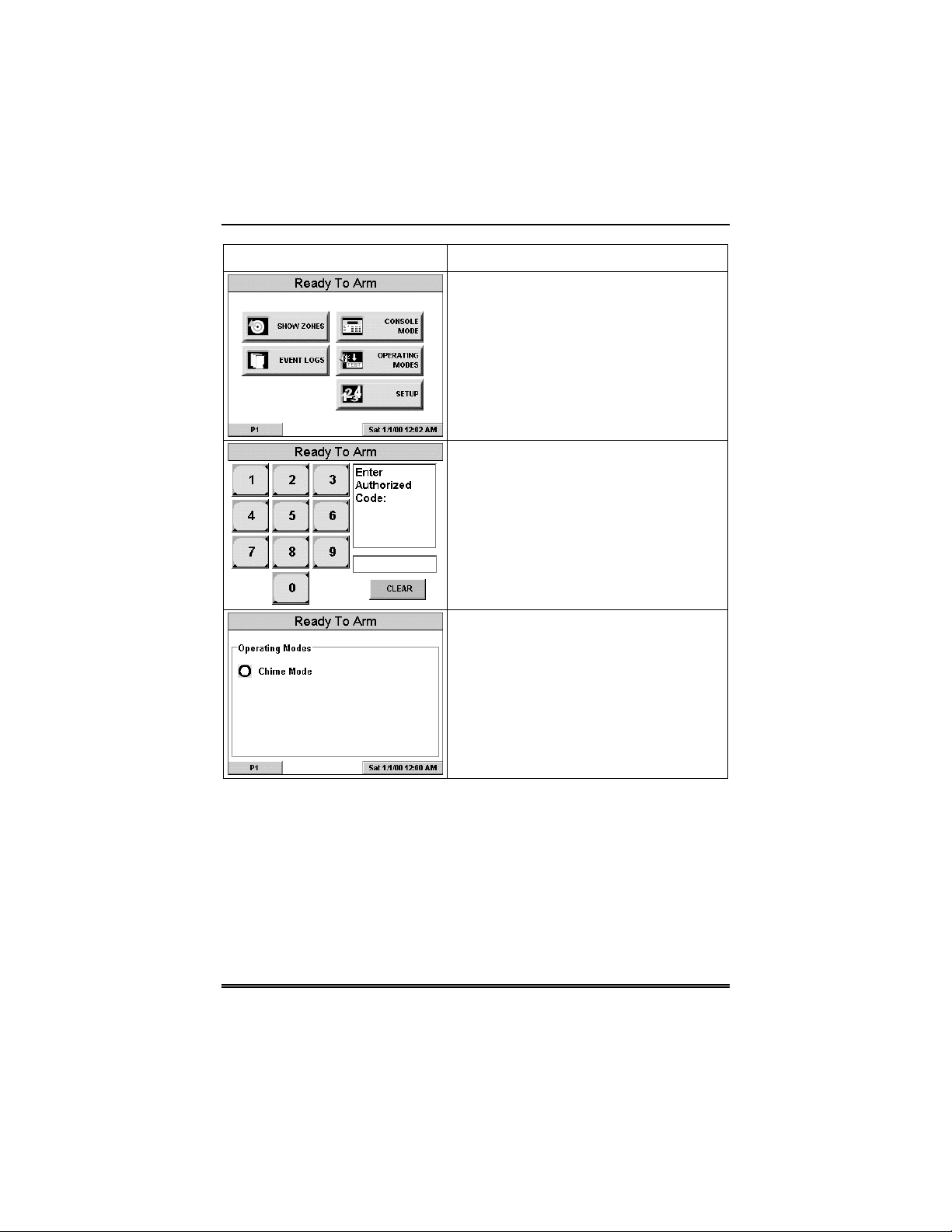

3. Press the the "More Choices" screen.
While the 6270 is requesting and receiving the zone data from the control panel, the screen displays " Then the zones, along with their current status, are displayed.
4. Highlight the zone(s) to be bypassed by touching it on the screen when the zones are displayed.
SHOW ZONES
button on
Please Wait!
".
18
5. Press the button. The "User Authorization" screen is displayed with the instructions "
Bypass Zones, Enter Code
BYPASS SELECTED
To
".
Security System Operation (Cont'd)
SCREEN ACTION
6. Enter your 4-digit user code. The "More Choices" screen is displayed showing the system status as
Bypass
7. Press the “Arming” screen.
button to return to the
BACK
Ready-
19
Security System Operation (cont'd)
How to Remove Bypassed Zones
A bypassed zone will automatically be unbypassed when you disarm the system. If the system is disarmed and a zone is bypassed, you can remove the bypass as follows:
SCREEN ACTION
1. View bypassed zones by pressing the
SHOW ZONES
While the 6270 is requesting and receiving the zone data from the control panel, the screen displays " Then the zones, along with their current status, are displayed.
button.
Please Wait!
".
20
2. Remove zone bypasses by pressing the
CLEAR BYPASSES
button.
Loading...
+ 44 hidden pages
