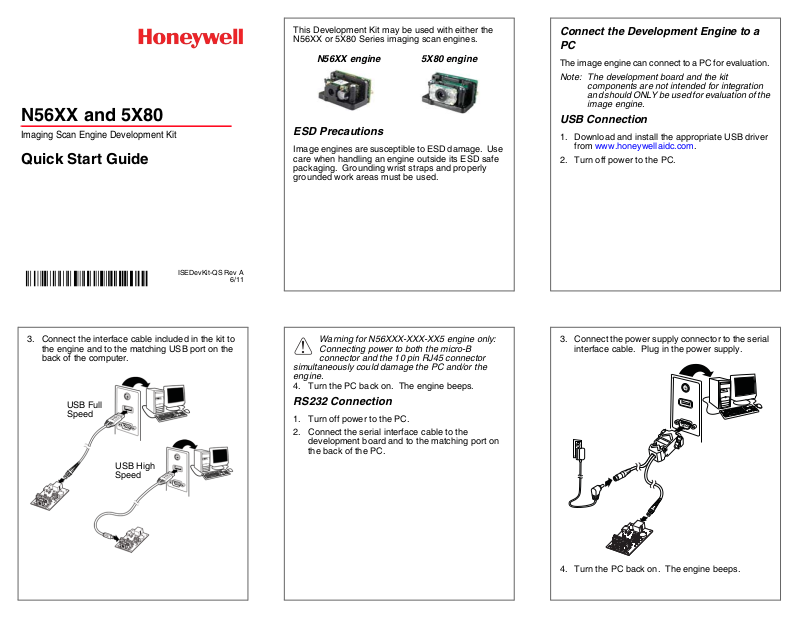

N56XX and 5X80

Imaging Scan Engine Development Kit

Quick Start Guide

ISEDevKit-QS Rev A

6/11

This Development Kit may be used with either the

N56XX engine 5X80 engine

USB Full Speed

USB High Speed

N56XX or 5X80 Series imaging scan engines.

ESD Precautions

Image engines are susceptible to ESD damage. Use care when handling an engine outside its ESD safe packaging. Grounding wrist straps and properly grounded work areas must be used.

Connect the Development Engine to a PC

The image engine can connect to a PC for evaluation.

Note: The development board and the kit

components are not intended for integration and should ONLY be used for evaluation of the image engine.

USB Connection

1. Download and install the appropriate USB driver from www.honeywellaidc.com.

2. Turn off power to the PC.

3. Connect the interface cable included in the kit to the engine and to the matching USB port on the back of the computer.

Warning for N56XXX-XXX-XX5 engine only: Connecting power to both the micro-B

connector and the 10 pin RJ45 connector simultaneously could damage the PC and/or the engine.

4. Turn the PC back on. The engine beeps.

RS232 Connection

1. Turn off power to the PC.

2. Connect the serial interface cable to the

development board and to the matching port on the back of the PC.

3. Connect the power supply connector to the serial interface cable. Plug in the power supply.

4. Turn the PC back on. The engine beeps.

5. Scan the RS 232 interface bar code below. This

RS-232 Interface

programs the development engine for an RS 232 interface at 115,200 baud, parity–none, 8 data bits, 1 stop bit, and adds a CR LF suffix.

User Documentation

Refer to www.honeywellaidc.com for detailed user documentation about installing and configuring image engines.

Technical Assistance

Contact information for technical support, product service, and repair can be found at

www.honeywellaidc.com.

Patents

For patent information, please refer to

www.honeywellaidc.com/patents.

Limited Warranty

Refer to www.honeywellaidc.com/

warranty_information for your product’s warranty

information.
