Voyager™ 1400g Series

Area-Imaging Scanner

User’s Guide

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. HII disclaims all responsibility for the selection and use of software and/or hardware to achieve intended results.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII.

poration. Other product names or marks mentioned in this document may be trademarks

or registered trademarks of other companies and are the property of their respective owners.

www.honeywellaidc.com

Product Agency Compliance

USA

FCC Part 15 Subpart B Class B

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio or television technician for

help.

If necessary, the user should consult the dealer or an experienced radio/ television technician for additional suggestions. The user may find the following booklet helpful: “Something About Interference.” This is available at FCC local regional offices. Honeywell is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Honeywell. The correction is the responsibility of the user.

Use only shielded data cables with this system. This unit has been tested with cables less than 3 meters. Cables greater than 3 meters may not meet class B performance.

Caution: Any changes or modifications made to this equipment not expressly approved by Honeywell may void the FCC authorization to operate this equipment.

UL Statement

UL listed: UL60950-1, 2nd Edition.

Canada

Industry Canada ICES-003

This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Conformité à la règlementation canadienne

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. Son fonctionnement est assujetti aux conditions suivantes :

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le brouillage pouvant causer un fonctionnement indésirable.

C-UL Statement

C-UL listed: CSA C22.2 No.60950-1-07, 2nd Edition.

Europe

The CE marking indicates compliance with the following directives:

• 2004/108/EC EMC

• 2011/65/EU RoHS (Recast)

In addition, complies to 2006/95/EC Low Voltage Directive, when shipped with recommended power supply.

European contact:

Honeywell Imaging & Mobility Europe BV Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands

Honeywell Scanning & Mobility Product Environmental Information

Refer to www.honeywellaidc.com/environmental for the RoHS / REACH / WEEE information.

Australia/NZ

C-Tick Statement

Conforms to AS/NZS 3548 EMC requirement

Russia

Gost-R certificate

South Korea

The product meets Korean agency approval for Class B equipment:

이 기기는 가정용(B 급) 전자파적합기기로서 주로 가정에서 사용 하는 것을 목적으로 하며 ,

모든 지역에서 사용할 수 있습니다 .

Taiw an

If the following label is attached to your product, the product meets Taiwan agency approval:

BSMI Standard: CNS13438, CNS14336-1 依據標準 : CNS13438, CNS14336-1

International

LED Safety Statement

The LED has been tested and classified as “EXEMPT RISK GROUP” to the standard: IEC 62471:2006.

CB Scheme

Certified to CB Scheme IEC 60950-1, Second Edition.

Patents

For patent information, please refer to www.hsmpats.com.

Solids and Water Protection

The Voyager 1400g has a rating of IP42, immunity of foreign particles and dripping water.

Warning

To reduce the possibility of heat-related injuries, avoid touching sections of the scanner that feel warm.

Required Safety Labels

Compliance Markings information, Part Number, and Serial Number information

Compliance Markings information

Chapter 1 - Getting Started

About This Manual ...................................................... 1-1

Unpacking Your Device............................................... 1-1

Connecting the Device ................................................ 1-1

Connecting with USB ............................................ 1-1

Connecting with Keyboard Wedge........................ 1-2

Connecting with RS232 Serial Port....................... 1-4

Connecting with RS485......................................... 1-5

Reading Techniques ................................................... 1-6

Menu Bar Code Security Settings ............................... 1-6

Setting Custom Defaults ............................................. 1-7

Resetting the Custom Defaults ................................... 1-7

Chapter 2 - Programming the Interface

Introduction ................................................................. 2-1

Programming the Interface - Plug and Play ................ 2-1

Keyboard Wedge ........................................................ 2-1

Laptop Direct Connect ................................................ 2-1

RS232 Serial Port ....................................................... 2-2

RS485 ......................................................................... 2-2

RS485 Packet Mode ............................................. 2-3

USB IBM SurePos....................................................... 2-4

USB PC or Macintosh Keyboard................................. 2-4

USB HID...................................................................... 2-5

USB Serial................................................................... 2-5

CTS/RTS Emulation.............................................. 2-5

ACK/NAK Mode..................................................... 2-5

Verifone Gilbarco

Honeywell Bioptic Aux Port Configuration................... 2-7

Datalogic™ Magellan

Configuration............................................................. 2-7

NCR Bioptic Aux Port Configuration ........................... 2-7

Wincor Nixdorf Terminal Default Settings ................... 2-8

Ruby Terminal Default Settings.................. 2-6

Terminal Default Settings ........................... 2-6

Bioptic Aux Port

Wincor Nixdorf Beetle™ Terminal Default Settings.....2-8

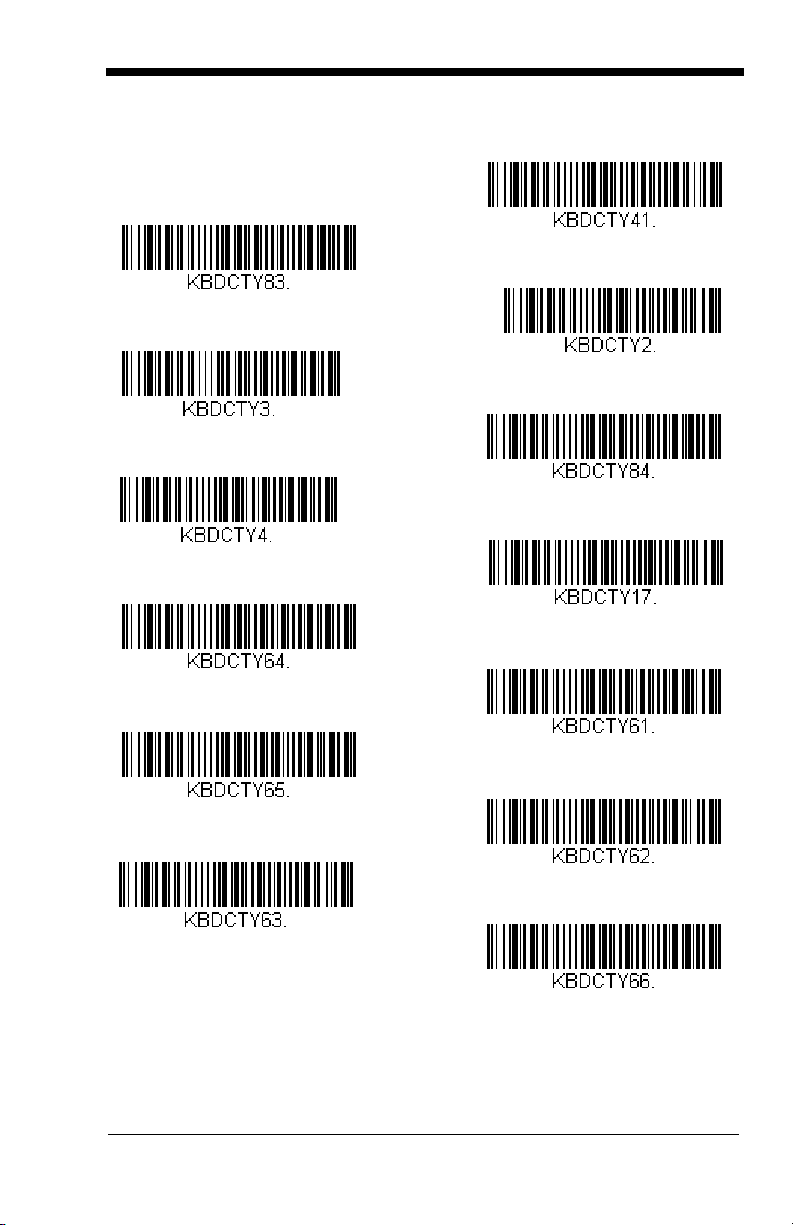

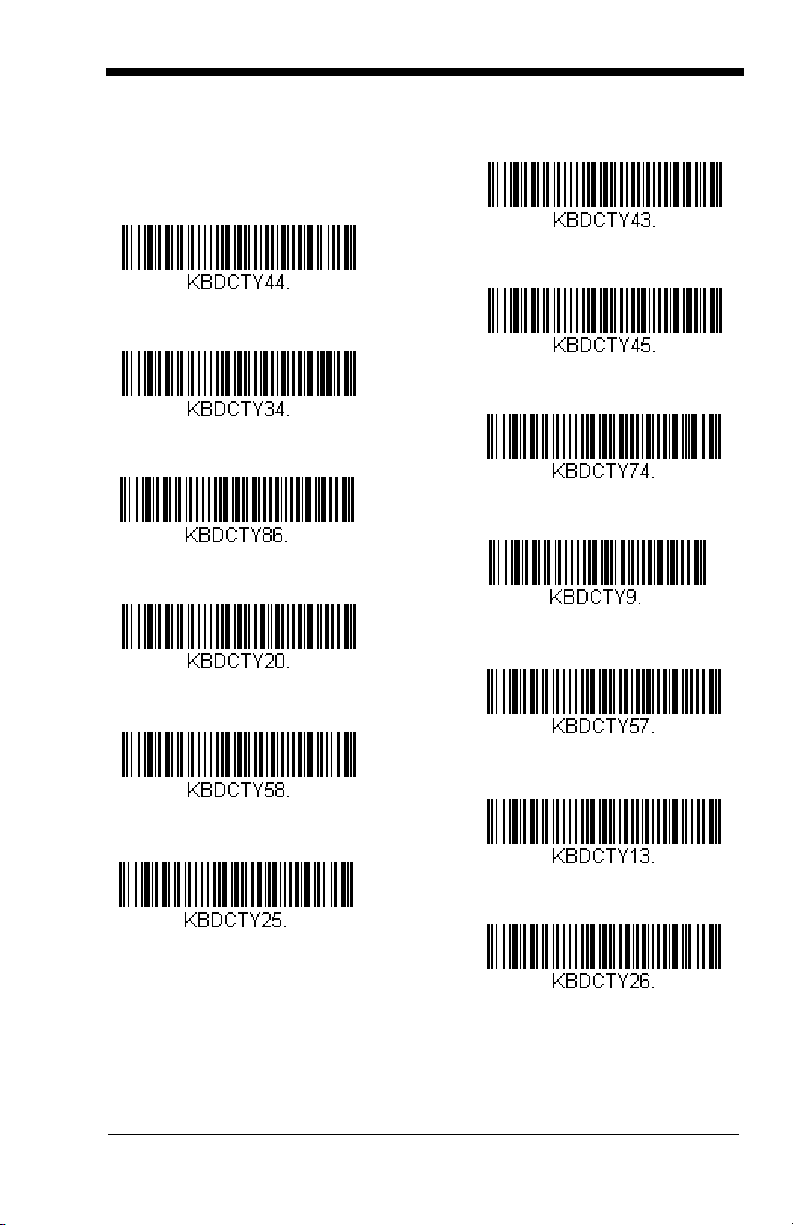

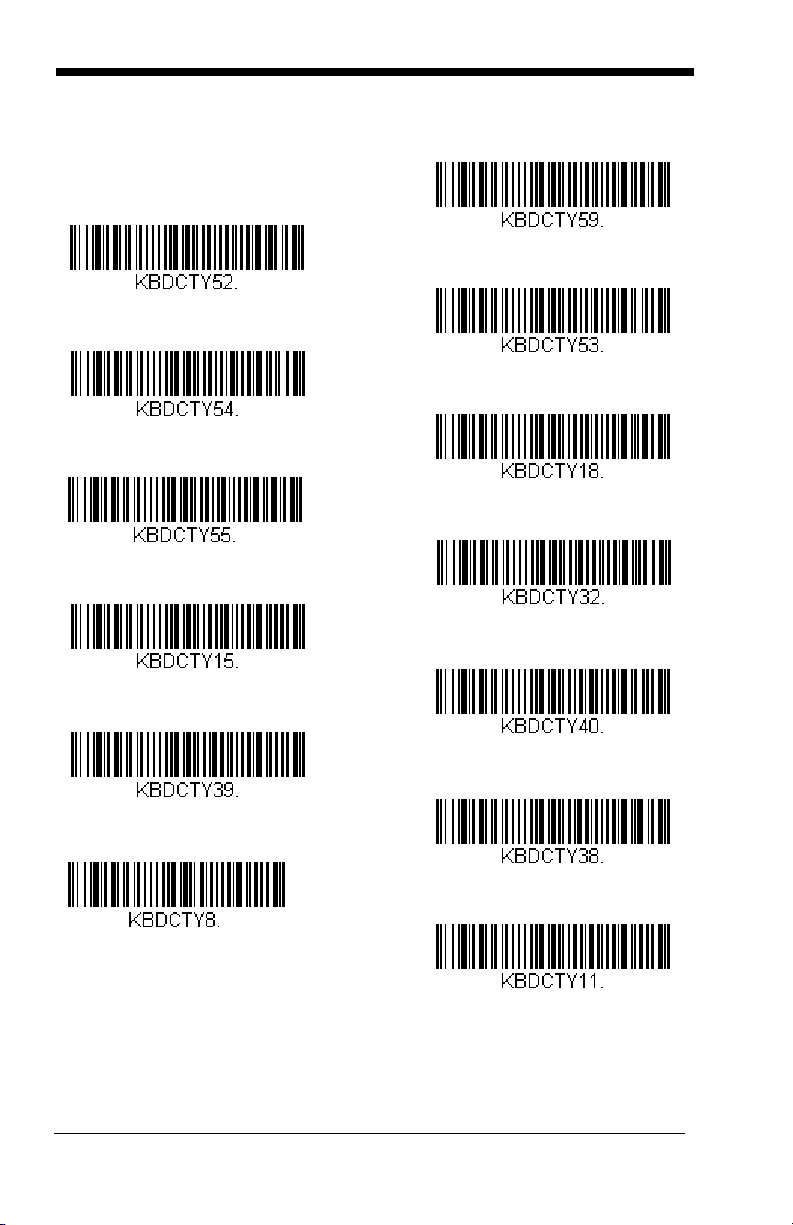

Keyboard Country Layout............................................2-9

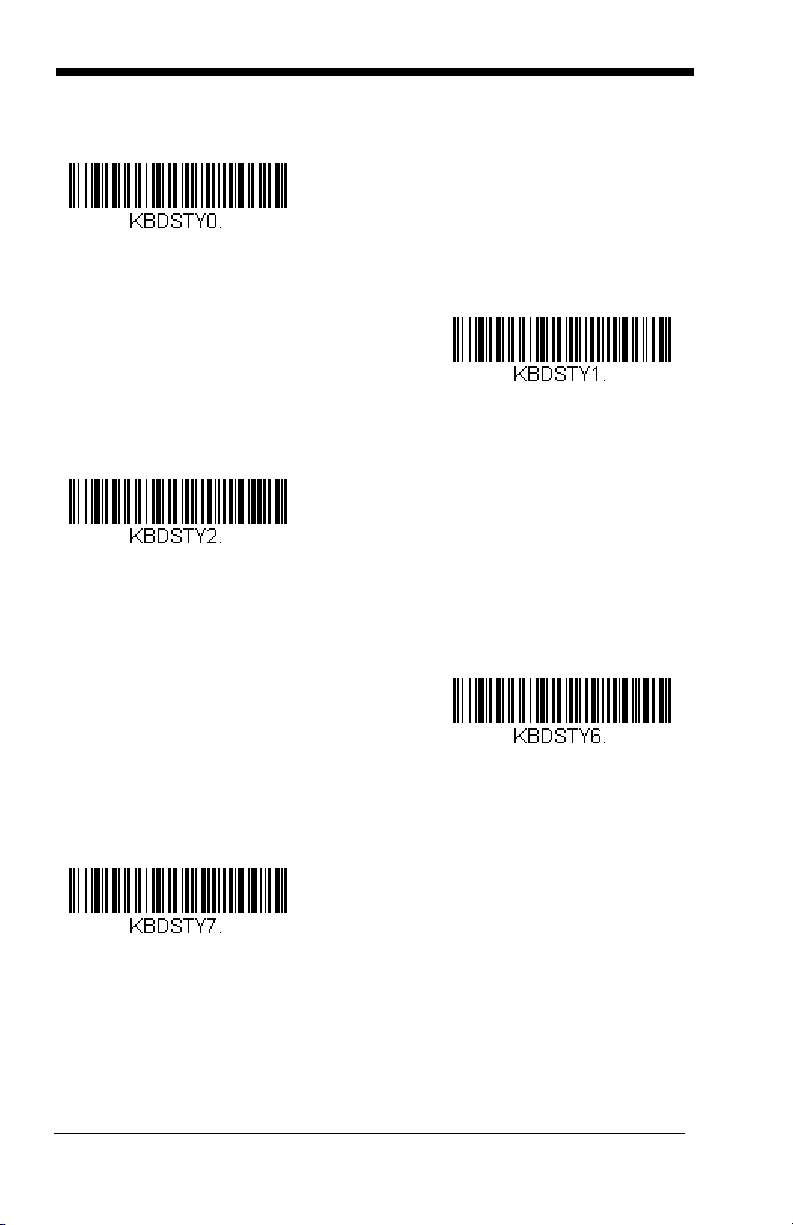

Keyboard Style ..........................................................2-15

Keyboard Conversion ................................................2-17

Control Character Output...........................................2-17

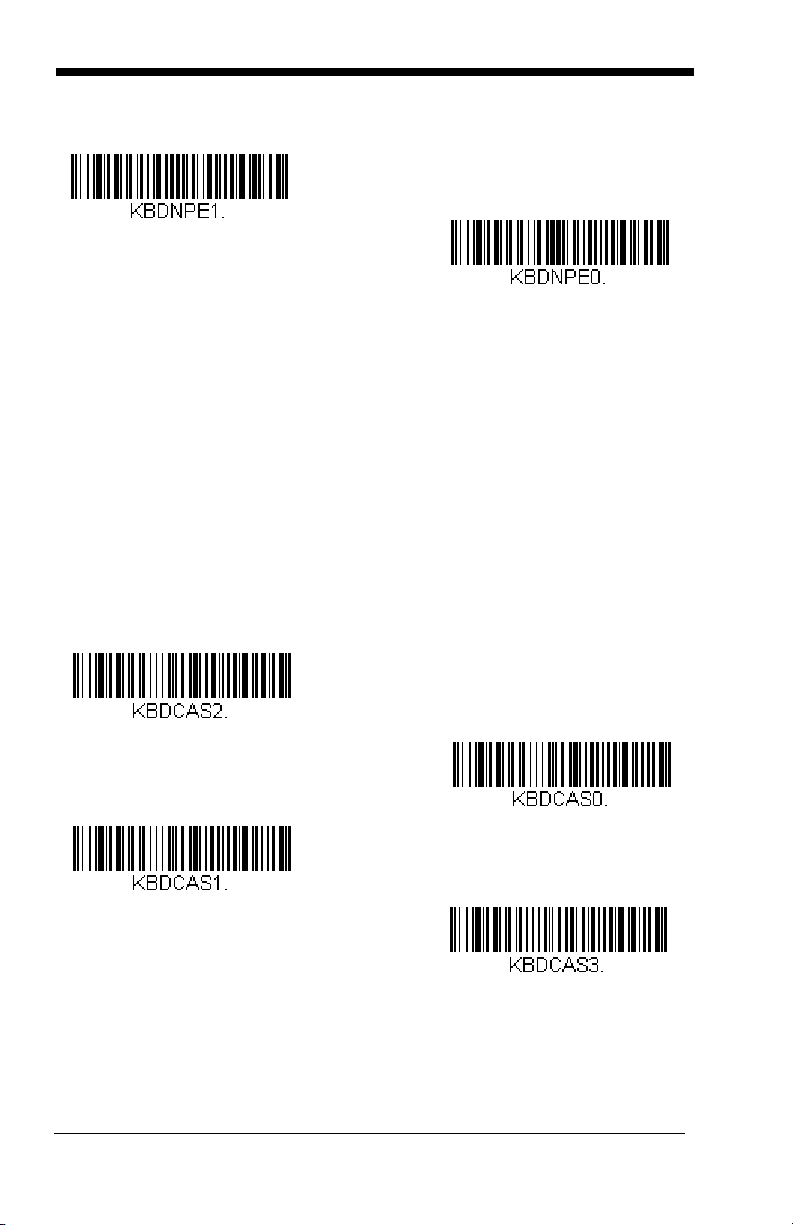

Keyboard Modifiers....................................................2-18

RS232 Baud Rate......................................................2-20

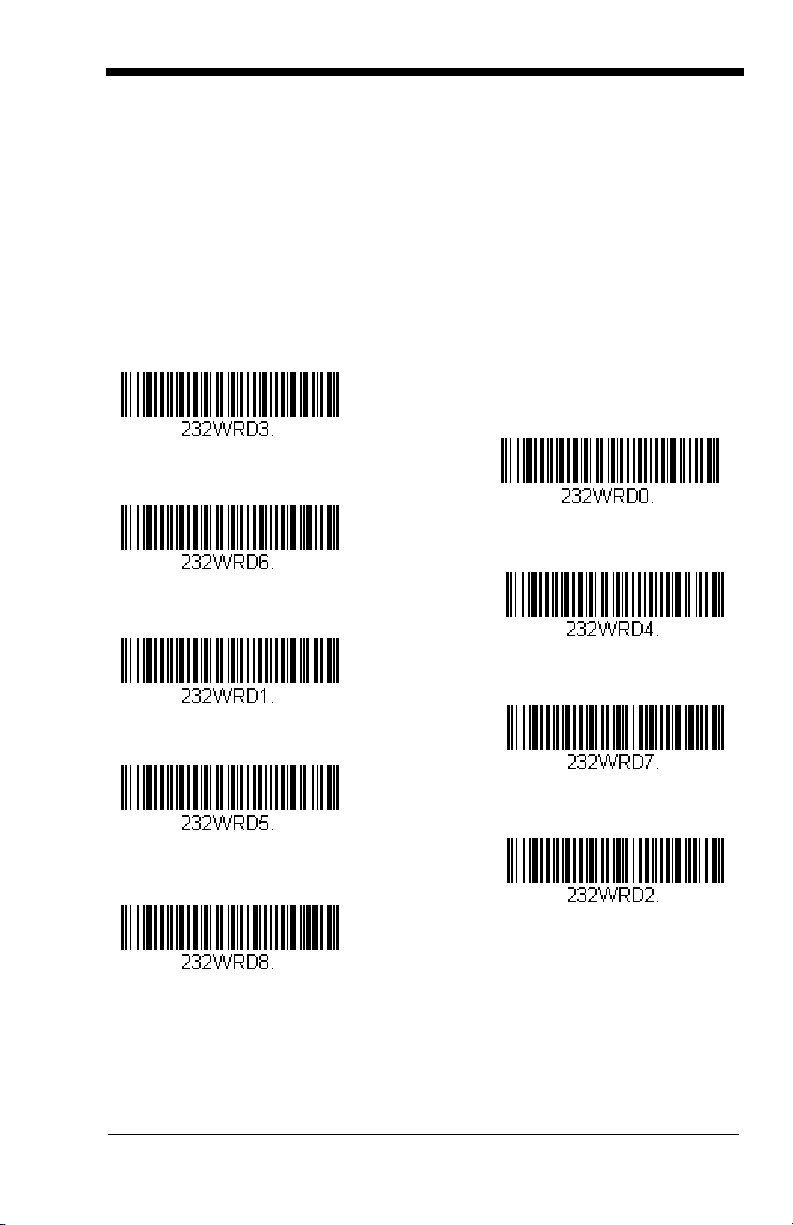

RS232 Word Length: Data Bits, Stop Bits,

and Parity ................................................................2-21

RS232 Receiver Time-Out.........................................2-22

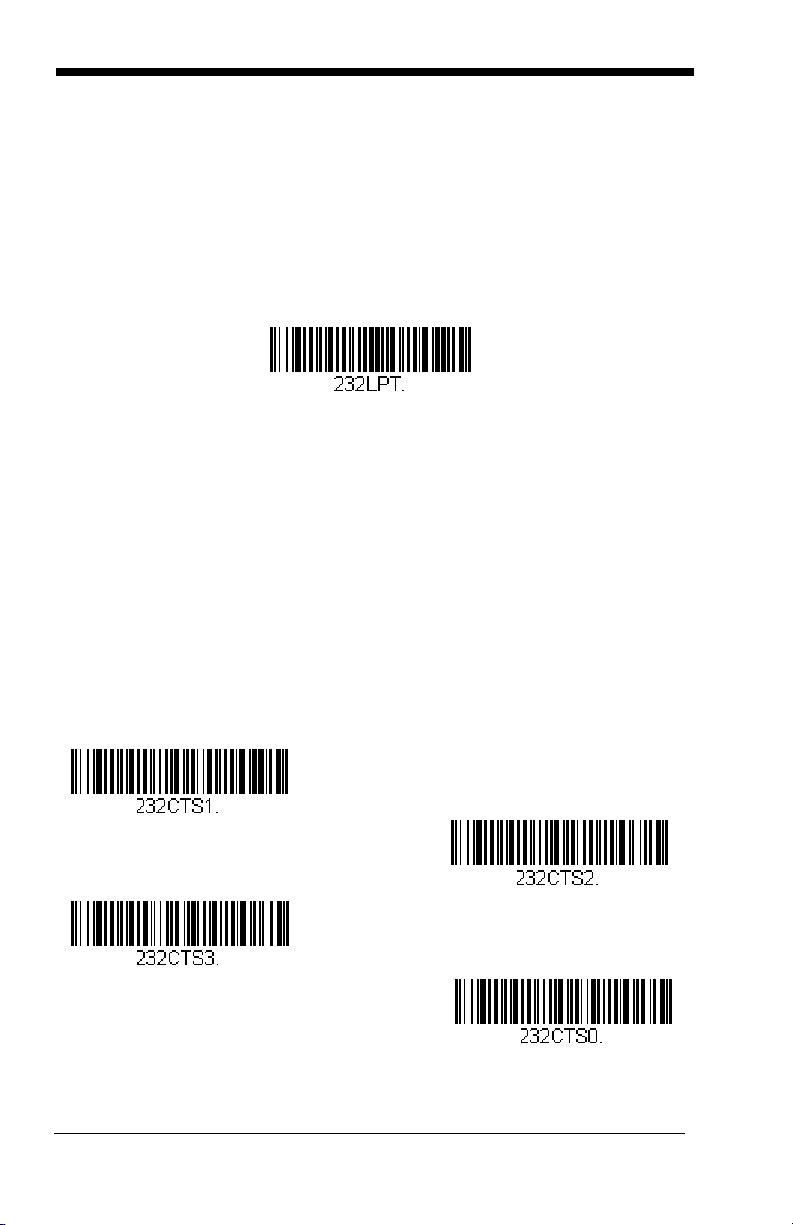

RS232 Handshaking..................................................2-22

RS232 Timeout....................................................2-23

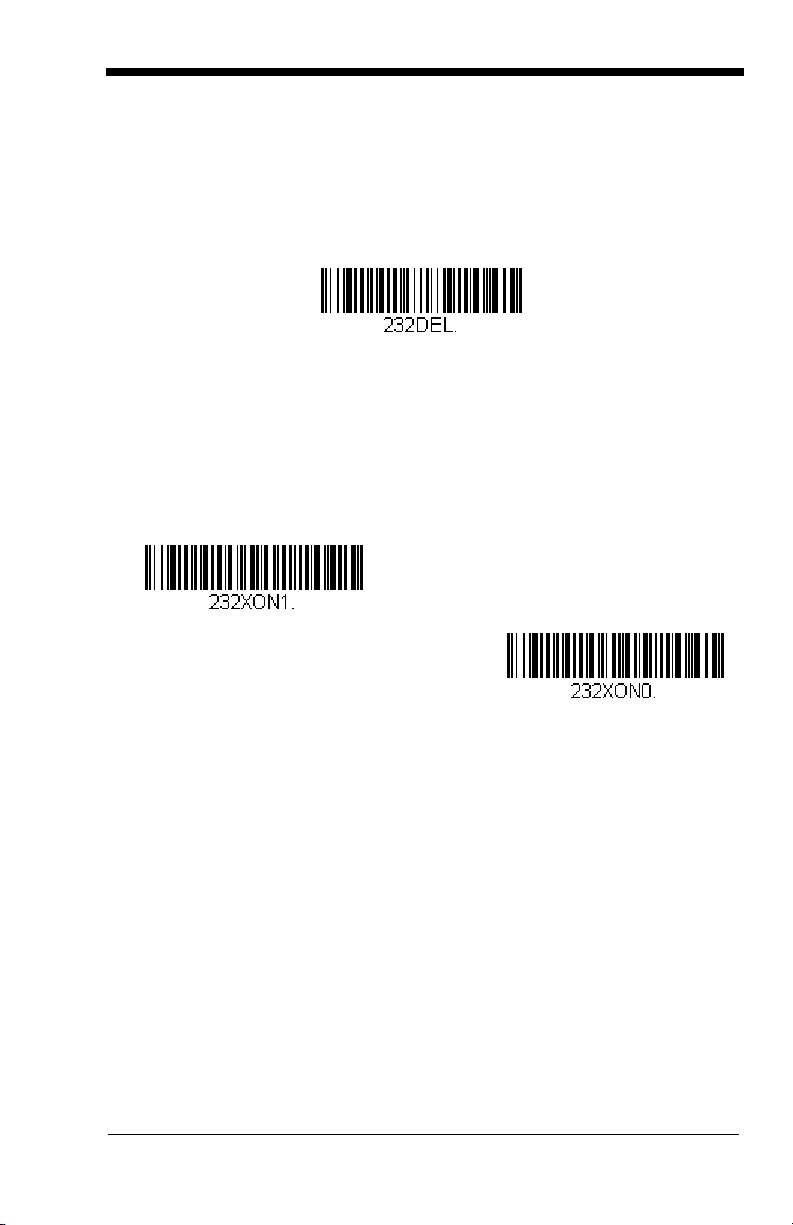

XON/XOFF ..........................................................2-23

ACK/NAK .............................................................2-23

Scanner to Bioptic Communication............................2-24

Scanner-Bioptic Packet Mode .............................2-24

Scanner-Bioptic ACK/NAK Mode......................... 2-25

Scanner-Bioptic ACK/NAK Timeout..................... 2-25

Chapter 3 - Input/Output Settings

Power Up Beeper ........................................................3-1

Beep on BEL Character...............................................3-1

Trigger Click.................................................................3-1

Good Read and Error Indicators..................................3-2

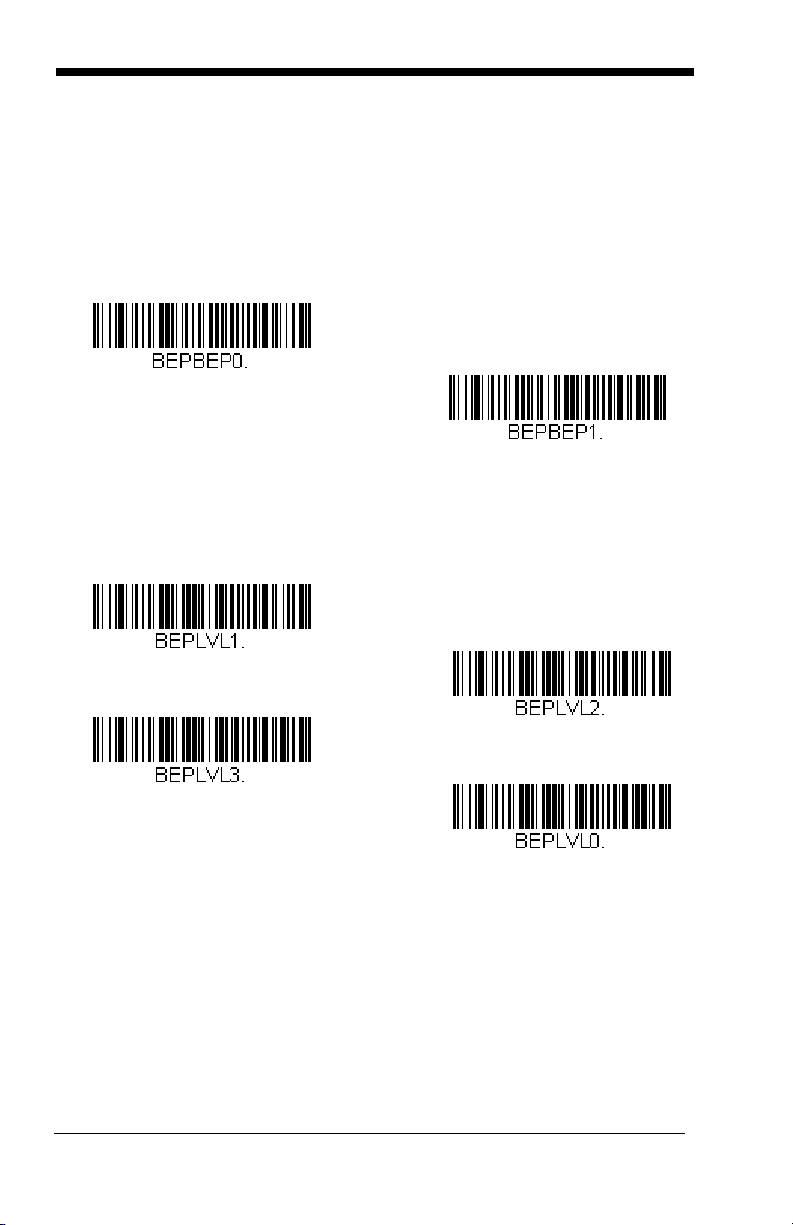

Beeper – Good Read.............................................3-2

Beeper Volume – Good Read................................3-2

Beeper Pitch – Good Read....................................3-3

Beeper Pitch – Error ..............................................3-3

Beeper Duration – Good Read ..............................3-3

LED – Good Read .................................................3-4

Number of Beeps – Good Read ............................3-4

Number of Beeps – Error.......................................3-4

Good Read Delay ..................................................3-5

User-Specified Good Read Delay..........................3-5

Manual Trigger Mode...................................................3-5

LED Illumination - Manual Trigger .........................3-6

In-Stand Sensor Mode ................................................ 3-6

Presentation Mode ...................................................... 3-7

Idle Illumination - Presentation Mode.................... 3-7

Presentation Sensitivity......................................... 3-7

Presentation Centering.......................................... 3-8

CodeGate

.................................................................. 3-9

Mobile Phone Read Mode......................................... 3-10

Hands Free Time-Out ............................................... 3-10

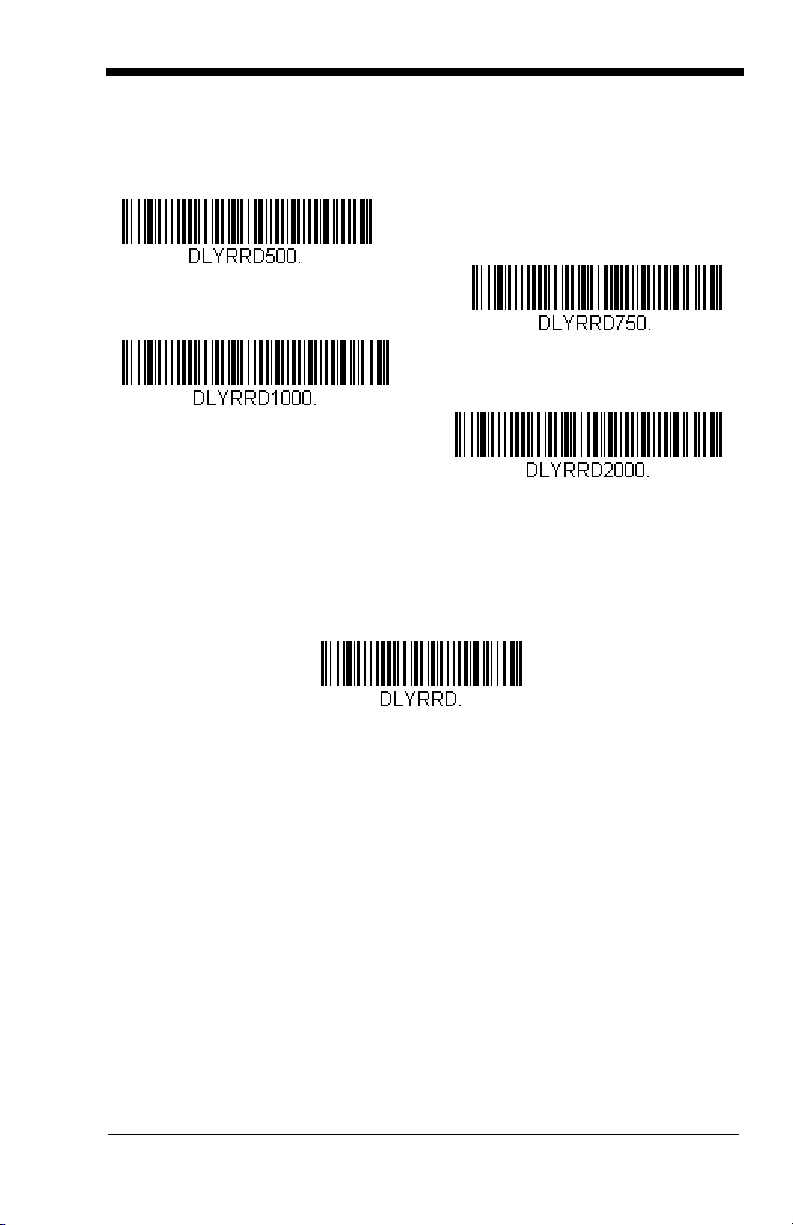

Reread Delay ............................................................ 3-10

User-Specified Reread Delay.................................... 3-11

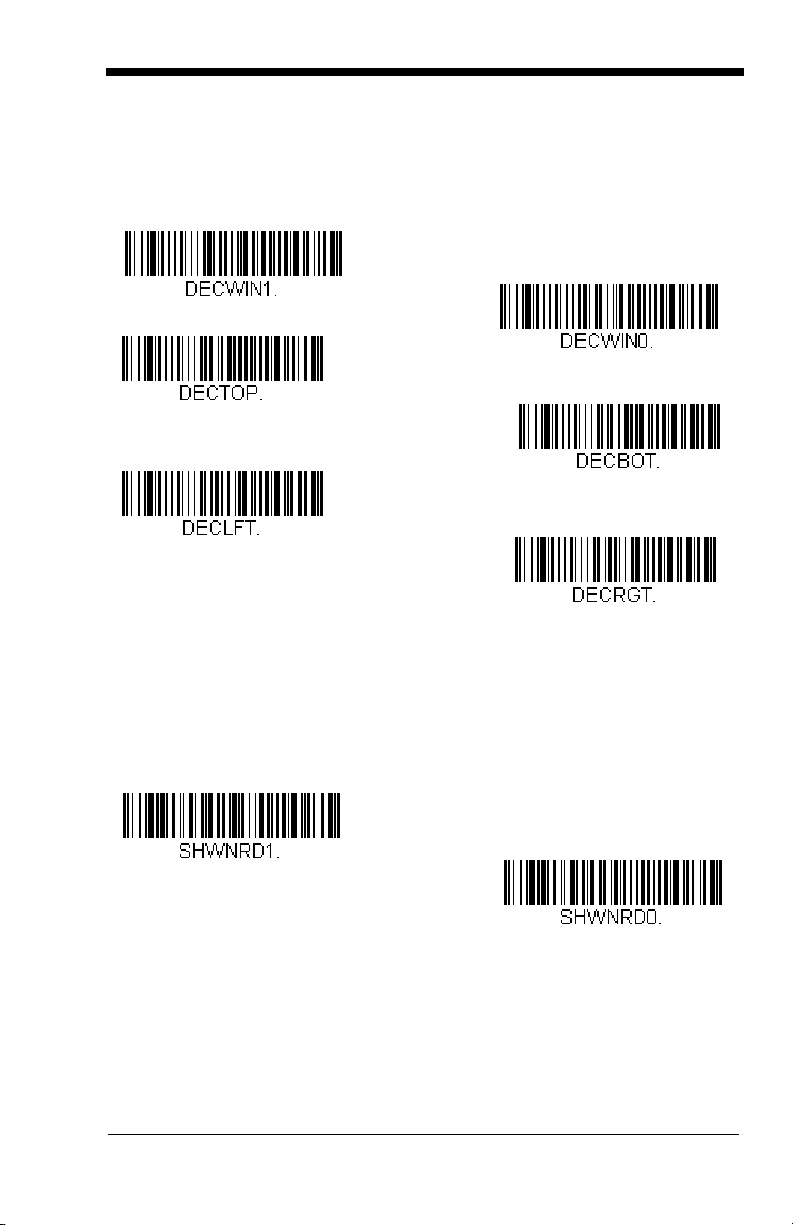

Centering................................................................... 3-11

No Read .................................................................... 3-13

Video Reverse........................................................... 3-14

Working Orientation .................................................. 3-15

Chapter 4 - Data Editing

Prefix/Suffix Overview ................................................. 4-1

To Add a Prefix or Suffix: ...................................... 4-1

To Clear One or All Prefixes or Suffixes................ 4-2

To Add a Carriage Return Suffix

to All Symbologies ........................................... 4-3

Prefix Selections ......................................................... 4-3

Suffix Selections.......................................................... 4-4

Function Code Transmit.............................................. 4-4

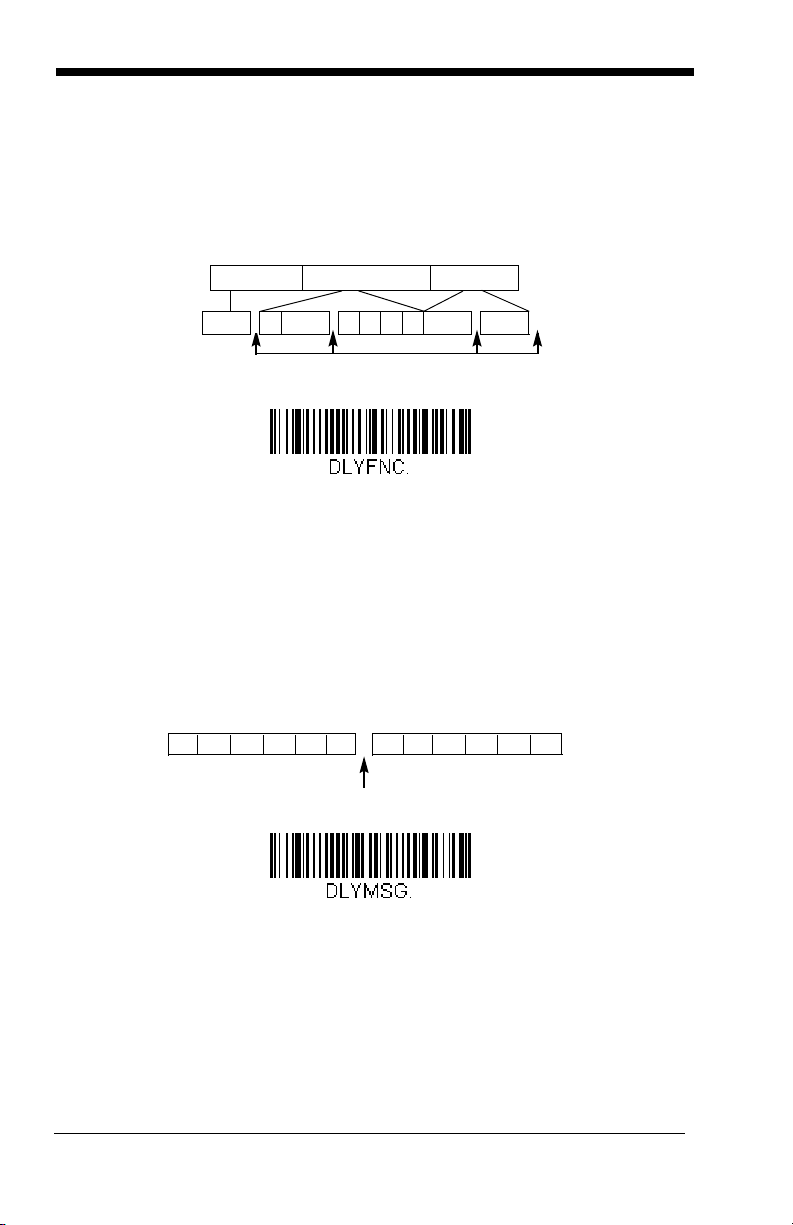

Intercharacter, Interfunction,

and Intermessage Delays ......................................... 4-4

Intercharacter Delay.............................................. 4-5

User Specified Intercharacter Delay...................... 4-5

Interfunction Delay ................................................ 4-6

Intermessage Delay .............................................. 4-6

Chapter 5 - Data Formatting

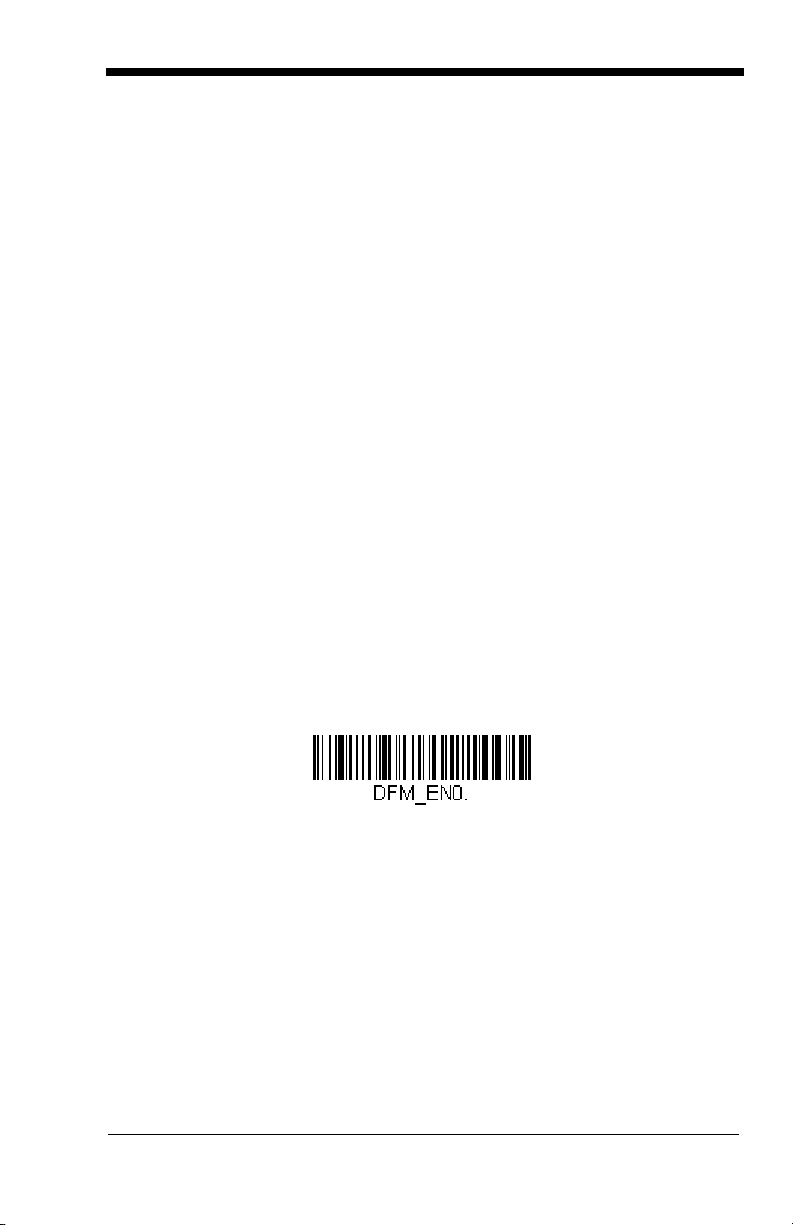

Data Format Editor Introduction .................................. 5-1

Add a Data Format...................................................... 5-1

Other Programming Selections ............................. 5-3

Terminal ID Table........................................................ 5-4

iii

Data Format Editor Commands...................................5-4

Move Commands...................................................5-5

Search Commands ................................................5-5

Miscellaneous Commands.....................................5-6

Data Formatter.............................................................5-7

Primary/Alternate Data Formats ..................................5-8

Chapter 6 - Symbologies

All Symbologies ...........................................................6-2

Message Length Description .......................................6-2

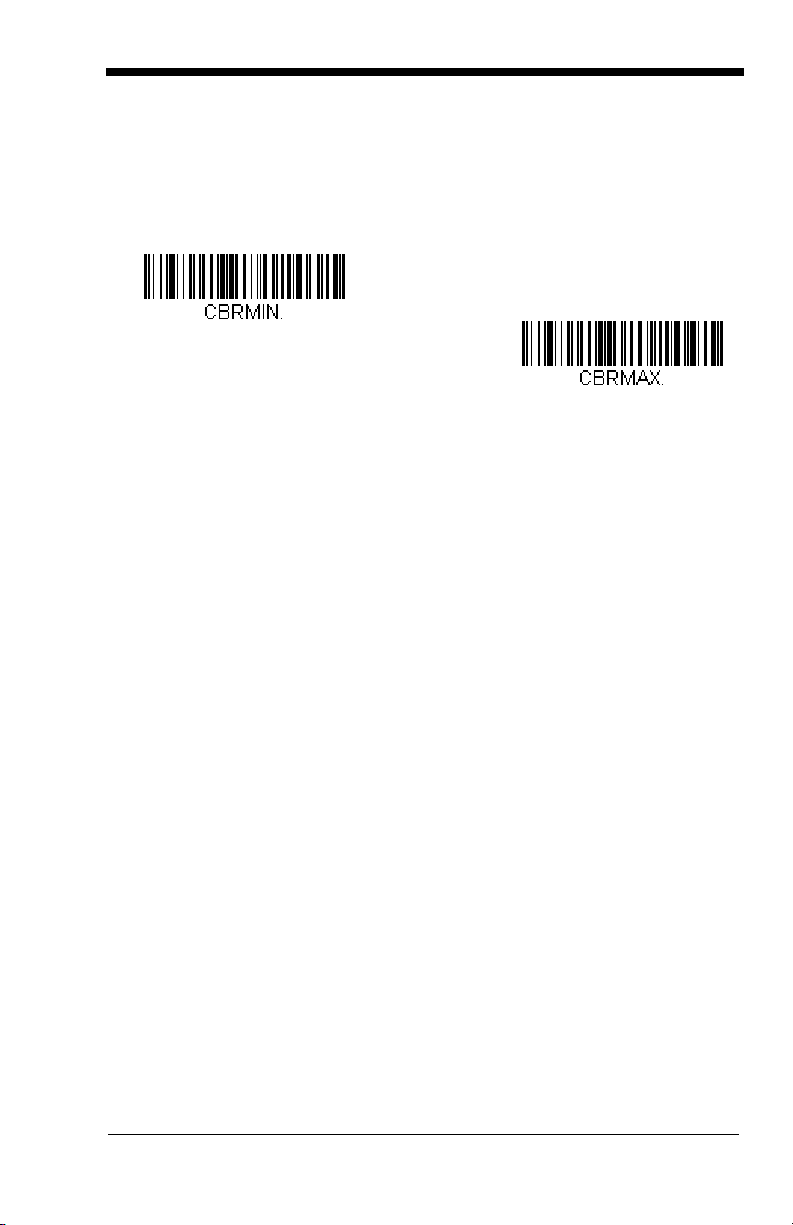

Codabar.......................................................................6-3

Codabar Concatenation.........................................6-4

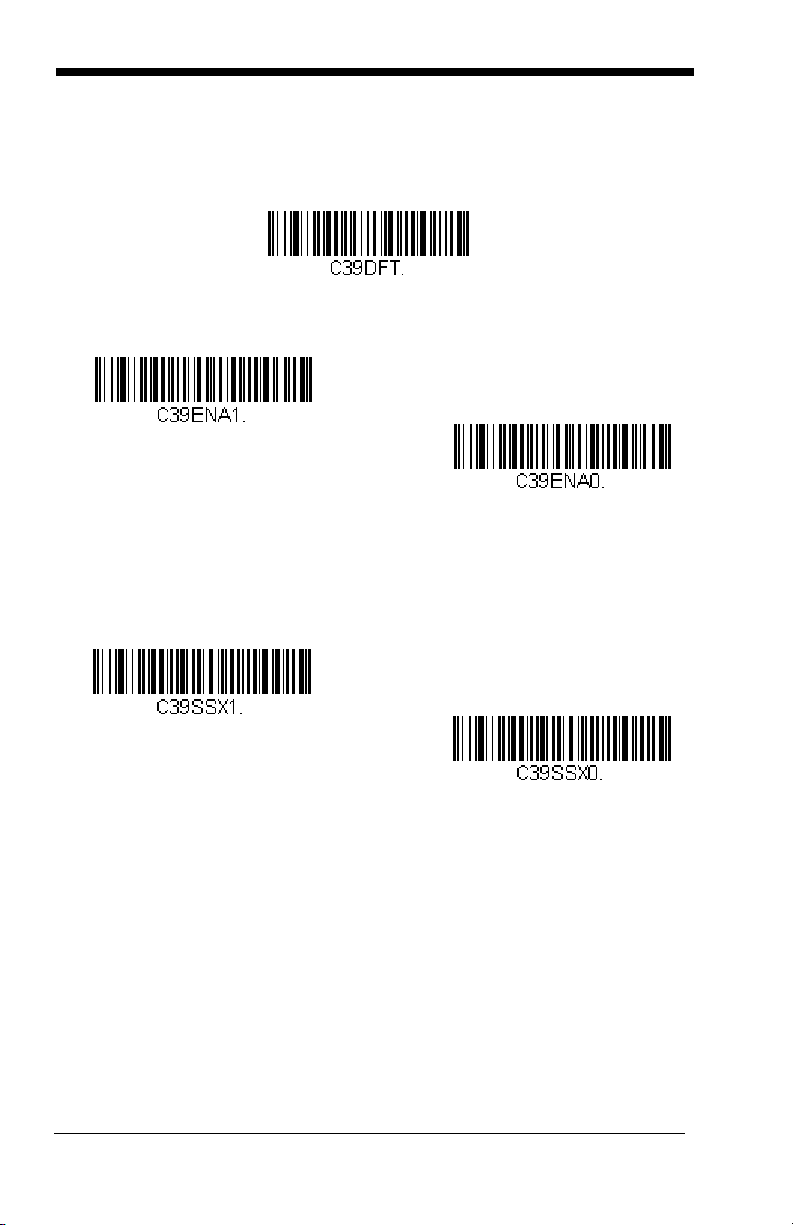

Code 39 .......................................................................6-6

Code 32 Pharmaceutical (PARAF) ........................6-8

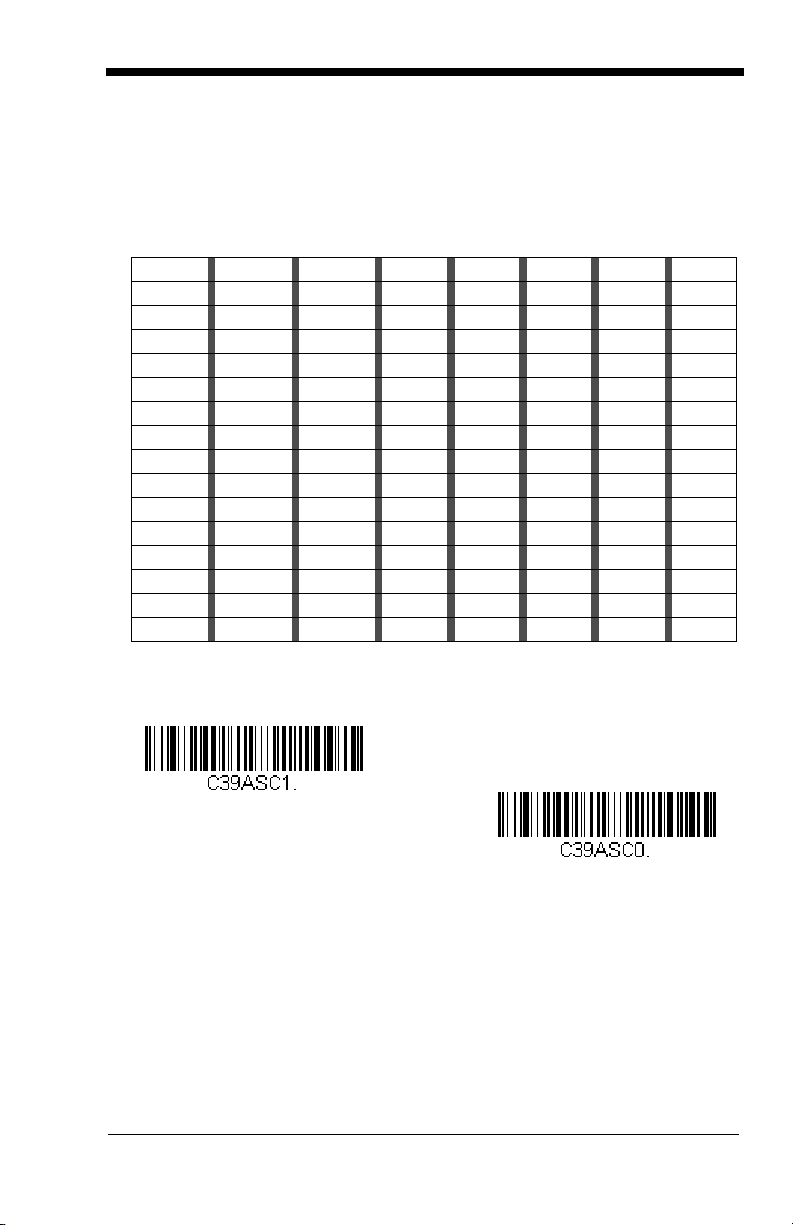

Full ASCII...............................................................6-9

Code 39 Code Page ..............................................6-9

Interleaved 2 of 5.......................................................6-10

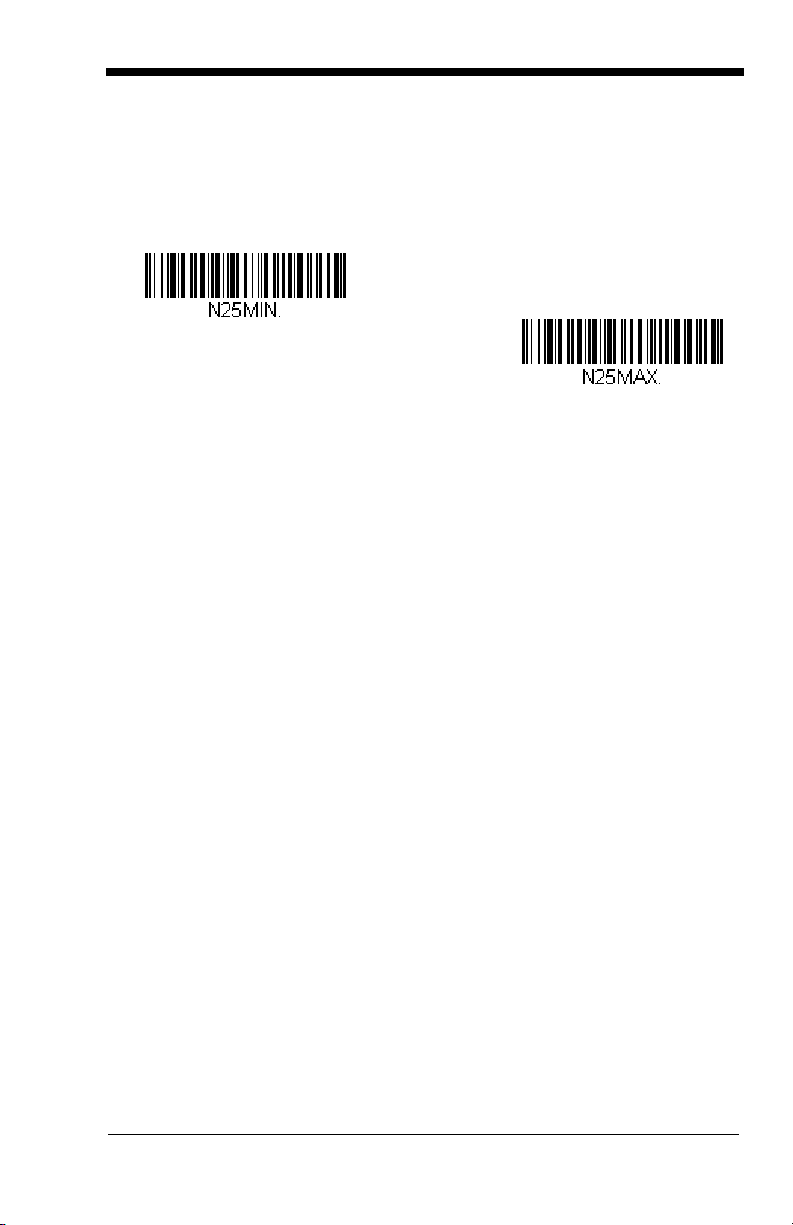

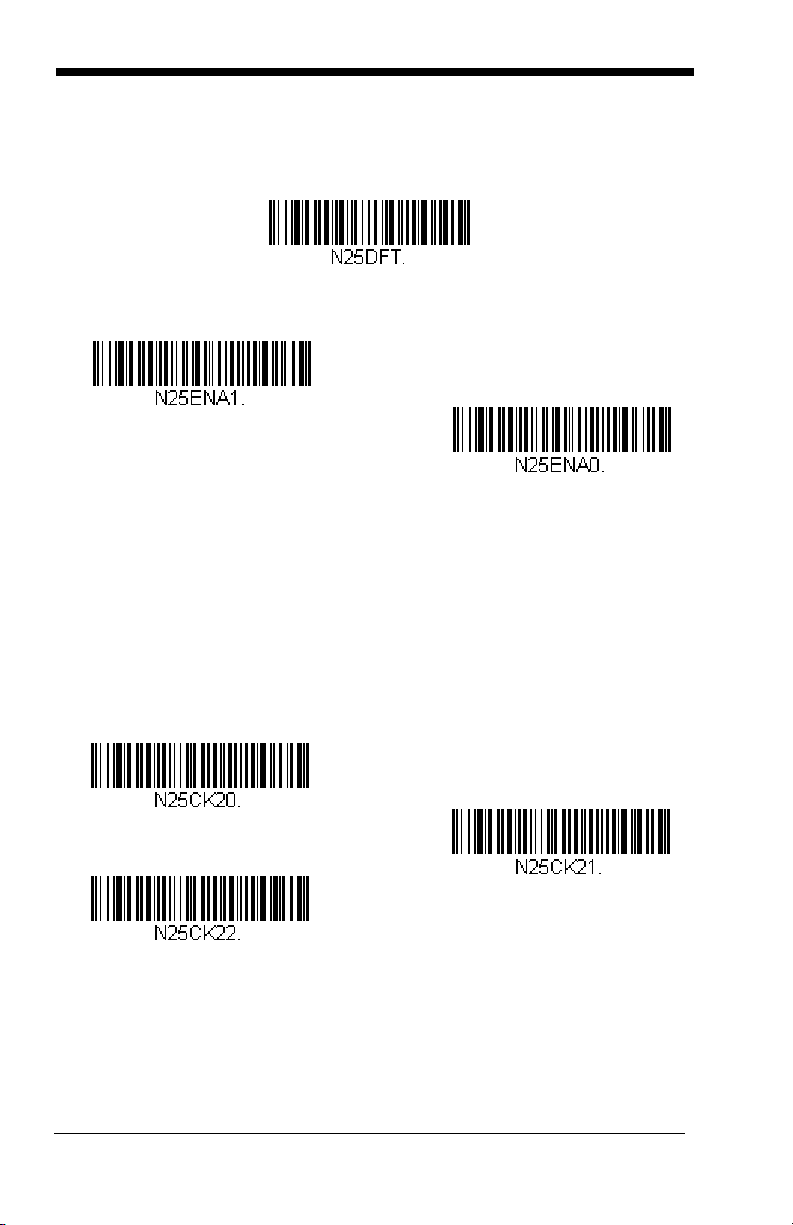

NEC 2 of 5 .................................................................6-12

Code 93 .....................................................................6-14

Code 93 Code Page ............................................6-15

Straight 2 of 5 Industrial (three-bar start/stop)...........6-16

Straight 2 of 5 IATA (two-bar start/stop) ....................6-17

Matrix 2 of 5...............................................................6-18

Code 11 .....................................................................6-19

Code 128 ...................................................................6-20

ISBT 128 Concatenation......................................6-20

Code 128 Code Page ..........................................6-22

GS1-128 ....................................................................6-23

Telepen......................................................................6-24

UPC-A........................................................................6-25

UPC-A/EAN-13

with Extended Coupon Code...................................6-27

Coupon GS1 DataBar Output....................................6-28

UPC-E0......................................................................6-29

UPC-E1......................................................................6-32

EAN/JAN-13 ..............................................................6-32

ISBN Translate.................................................... 6-34

EAN/JAN-8................................................................ 6-35

MSI............................................................................ 6-37

GS1 DataBar Omnidirectional................................... 6-39

GS1 DataBar Limited ................................................ 6-39

GS1 DataBar Expanded............................................ 6-40

Codablock A.............................................................. 6-41

Codablock F .............................................................. 6-42

PDF417 ..................................................................... 6-43

MacroPDF417 ........................................................... 6-44

MicroPDF417 ............................................................ 6-44

GS1 Composite Codes ............................................. 6-45

UPC/EAN Version ............................................... 6-45

GS1 Emulation .......................................................... 6-46

TCIF Linked Code 39 (TLC39).................................. 6-47

QR Code ................................................................... 6-48

QR Code Page.................................................... 6-49

Data Matrix................................................................ 6-50

Data Matrix Code Page....................................... 6-51

MaxiCode .................................................................. 6-52

Aztec Code................................................................ 6-53

Aztec Code Page ................................................ 6-54

Chinese Sensible (Han Xin) Code ............................ 6-55

Postal Codes - Linear................................................ 6-55

China Post (Hong Kong 2 of 5) ........................... 6-55

Korea Post........................................................... 6-57

Postal Codes - 2D ..................................................... 6-58

Single 2D Postal Codes: ..................................... 6-58

Combination 2D Postal Codes: ........................... 6-59

Chapter 7 - Interface Keys

Keyboard Function Relationships ............................... 7-1

Supported Interface Keys............................................ 7-3

Chapter 8 - Utilities

To Add a Test Code I.D. Prefix to All

Symbologies..............................................................8-1

Show Decoder Revision ..............................................8-1

Show Scan Driver Revision .........................................8-1

Show Software Revision..............................................8-1

Show Data Format.......................................................8-2

Test Menu....................................................................8-2

EZConfig-Scanning Introduction..................................8-2

Installing EZConfig-Scanning from the Web..........8-3

Resetting the Factory Defaults ....................................8-4

Chapter 9 - Serial Programming Commands

Conventions.................................................................9-1

Menu Command Syntax ..............................................9-1

Query Commands........................................................9-2

Responses.............................................................9-2

Resetting the Custom Defaults....................................9-4

Menu Commands ........................................................9-5

Chapter 10 - Product Specifications

Voyager 1400g Scanner Product Specifications .......10-1

Standard Connector Pinouts......................................10-3

Keyboard Wedge .................................................10-3

Serial Output........................................................10-3

USB .....................................................................10-4

RS485 Output ......................................................10-4

Chapter 11 - Maintenance

Repairs ......................................................................11-1

Maintenance ..............................................................11-1

Cleaning the Device............................................. 11-1

Inspecting Cords and Connectors .......................11-1

Replacing Cables.......................................................11-1

Replacing an Interface Cable.............................. 11-2

Troubleshooting a Voyager 1400g Scanner.............. 11-2

Chapter 12 - Customer Support

Appendix A - Reference Charts

Symbology Charts.......................................................A-1

Linear Symbologies...............................................A-1

2D Symbologies ....................................................A-3

Postal Symbologies...............................................A-3

ASCII Conversion Chart (Code Page 1252) ...............A-4

Lower ASCII Reference Table ....................................A-5

ISO 2022/ISO 646 Character Replacements ............A-10

Unicode Key Maps ....................................................A-13

vii

viii

Getting Started

About This Manual

This User’s Guide provides installation and programming instructions for the Voyager™ 1400g area-imaging scanner. Product specifications, dimensions, warranty, and customer support information are also included.

Note: The selections in this User’s Guide are dependent on the Voyager 1400g

model you have purchased. PDF bar codes can only be read by models 1400gPDF or 1400g2D and cannot be read by model 1400g1D. 2 dimensional bar codes can only be read by model 1400g2D and cannot be read by models 1400gPDF or 1400g1D.

Honeywell bar code scanners are factory programmed for the most common terminal and communications settings. If you need to change these settings, programming is accomplished by scanning the bar codes in this guide.

An asterisk (*) next to an option indicates the default setting.

Unpacking Your Device

After you open the shipping carton containing the product, take the following steps:

• Check for damage during shipment. Report damage immediately to the carrier who delivered the carton.

• Make sure the items in the carton match your order.

• Save the shipping container for later storage or shipping.

Connecting the Device

Connecting with USB

A scanner can be connected to the USB port of a computer.

1. Connect the appropriate interface cable to the device first, then to the computer.

1 - 1

2. The scanner beeps.

3. Verify the scanner operation by scanning a bar code from the Sample

Symbols in the back of this manual.

The unit defaults to a USB PC Keyboard. Refer to page 2-4 for other USB terminal settings.

For additional USB programming and technical information, refer to “USB Application Note,” available at www.honeywellaidc.com.

Connecting with Keyboard Wedge

A scanner can be connected between the keyboard and PC as a “keyboard wedge,” where the scanner provides data output that is similar to keyboard entries. The following is an example of a keyboard wedge connection:

1. Turn off power and disconnect the keyboard cable from the back of the terminal/computer.

2. Connect the appropriate interface cable to the device and to the terminal/computer.

1 - 2

3. Turn the terminal/computer power back on. The scanner beeps.

4. Verify the scanner operation by scanning a bar code from the Sample

Symbols in the back of this manual. The scanner beeps once.

The unit defaults to an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard. A carriage return (CR) suffix is added to bar code data.

1 - 3

Connecting with RS232 Serial Port

1. Turn off power to the terminal/computer.

2. Connect the appropriate interface cable to the scanner.

Note: For the scanner to work properly, you must have the correct cable for

your type of terminal/computer.

3. Plug the serial connector into the serial port on your computer. Tighten the two screws to secure the connector to the port.

4. Once the scanner has been fully connected, power up the computer.

This interface programs 115,200 baud, 8 data bits, no parity, and 1 stop bit.

1 - 4

Connecting with RS485

A scanner or cordless base can be connected for an IBM POS terminal interface.

1. Connect the appropriate interface cable to the device, then to the computer.

2. Turn the terminal/computer power back on. The scanner beeps.

3. Verify the scanner or cordless base operation by scanning a bar code from the Sample Symbols in the back of this manual. The scanner beeps once.

For further RS485 settings, refer to RS485, page 2-2.

1 - 5

Reading Techniques

Linear bar code

2D Matrix symbol

The scanner has a view finder that projects a bright red aiming beam that corresponds to the scanner’s horizontal field of view. The aiming beam should be centered over the bar code, but it can be positioned in any direction for a good read.

The aiming beam or pattern is smaller when the scanner is closer to the code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit. Symbologies with larger bars or elements (mil size) should be read farther from the unit. To read single or multiple symbols (on a page or on an object), hold the scanner at an appropriate distance from the target, press the button, and center the aiming beam or pattern on the symbol. If the code being scanned is highly reflective (e.g., laminated), it may be necessary to tilt the code up 15° to 18° to prevent unwanted reflection.

Menu Bar Code Security Settings

Honeywell scanners are programmed by scanning menu bar codes or by sending serial commands to the scanner. If you want to restrict the ability to scan menu codes, you can use the Menu Bar Code Security settings. Please contact the nearest technical support office (see Customer Support on page 12-1) for further information.

1 - 6

Setting Custom Defaults

Save Custom Defaults

Set Custom Defaults

Activate Custom Defaults

You have the ability to create a set of menu commands as your own, custom defaults. To do so, scan the Set Custom Defaults bar code below before scannning the menu commands for your custom defaults. If a menu command requires scanning numeric codes from the back cover, then a Save code, that entire sequence will be saved to your custom defaults. When you have entered all the commands you want to save for your custom defaults, scan the Save Custom Defaults bar code.

You may have a series of custom settings and want to correct a single setting. To do so, just scan the new setting to overwrite the old one. For example, if you had previously saved the setting for Beeper Volume at Low to your custom defaults, and decide you want the beeper volume set to High, just scan the Set Custom Defaults bar code, then scan the Beeper Volume High menu code, and then Save Custom Defaults. The rest of the custom defaults will remain, but the beeper volume setting will be updated.

Resetting the Custom Defaults

If you want the custom default settings restored to your scanner, scan the Activate Custom Defaults bar code below. This is the recommended default bar

code for most users. It resets the scanner to the custom default settings. If there are no custom defaults, it will reset the scanner to the factory default settings. Any settings that have not been specified through the custom defaults will be defaulted to the factory default settings.

1 - 7

1 - 8

IBM PC AT and Compatibles with

CR suffix

Laptop Direct Connect

with CR suffix

Programming the Interface

Introduction

This chapter describes how to program your system for the desired interface.

Programming the Interface - Plug and Play

Plug and Play bar codes provide instant scanner set up for commonly used interfaces.

Note: After you scan one of the codes, power cycle the host terminal to have

the interface in effect.

Keyboard Wedge

If you want your system programmed for an IBM PC AT and compatibles keyboard wedge interface with a USA keyboard, scan the bar code below. Keyboard wedge is the default interface.

Note: The following bar code also programs a carriage return (CR) suffix.

Laptop Direct Connect

For most laptops, scanning the Laptop Direct Connect bar code allows operation of the scanner in parallel with the integral keyboard. The following Laptop Direct Connect bar code also programs a carriage return (CR) suffix and turns on Emulate External Keyboard (page 2-17).

2 - 1

RS232 Serial Port

RS232 Interface

IBM Port 5B Interface

IBM Port 9B

HHBCR-1 Interface

IBM Port 17 Interface

IBM Port 9B

HHBCR-2 Interface

The RS232 Interface bar code is used when connecting to the serial port of a PC or terminal. The following RS232 Interface bar code also programs a carriage return (CR) and a line feed (LF) suffix, baud rate, and data format as indi-

cated below. It also changes the trigger mode to manual.

Option Setting

Baud Rate 115,200 bps Data Format 8 data bits, no parity bit, 1 stop bit

RS485

Scan one of the following “Plug and Play” codes to program the scanner for an IBM POS terminal interface.

Note: After scanning one of these codes, you must power cycle the cash

2 - 2

Each bar code above also programs the following suffixes for each symbology:

Packet Mode On

* Packet Mode Off

Packet Length

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B EAN 13 16 Interleaved 2 of 5 00 0D 0B UPC A 0D Code 128 * 00 0A 0B UPC E 0A Code 128 ** 00 18 0B

MaxiCode 00 2F 0B

* Suffixes programmed for Code 128 with IBM 4683 Port 5B, IBM 4683 Port 9B

HHBCR-1, and IBM 4683 Port 17 Interfaces

**Suffixes programmed for Code 128 with IBM 4683 Port 9 HHBCR-2 Interface

RS485 Packet Mode

The following selection allows you to break up large bar code data into smaller packets on an IBM POS terminal. To break up large bar codes into small packets, scan the Packet Mode On bar code below. Scan the Packet Mode Off bar code if you want large bar code data to be sent to the host in a single chunk. Default = Packet Mode Off.

RS485 Packet Length

If you are using Packet mode, you can specify the size of the data “packet” that is sent to the host. Scan the Packet Length bar code, then then the packet size (from 20 - 256) from the Programming Chart inside the back cover of this manual, then Save. Default = 40.

2 - 3

USB IBM SurePos

(USB Handheld Scanner)

Interface

USB IBM SurePos

(USB Tabletop Scanner)

Interface

(

)

USB Keyboard (Mac)

USB Japanese Keyboard (PC)

Scan one of the following “Plug and Play” codes to program the scanner for an IBM SurePos (USB handheld scanner) or IBM SurePos (USB tabletop scanner) interface.

Note: After scanning one of these codes, you must power cycle the cash

Each bar code above also programs the following suffixes for each symbology:

Symbology Suffix Symbology Suffix

EAN 8 0C Code 39 00 0A 0B EAN 13 16 Interleaved 2 of 5 00 0D 0B UPC A 0D Code 128 00 18 0B UPC E 0A Code 39 00 0A 0B

USB PC or Macintosh Keyboard

Scan one of the following codes to program the scanner for USB PC Keyboard or USB Macintosh Keyboard. Scanning these codes also adds a CR and LF.

2 - 4

USB HID

USB HID Bar Code Scanner

USB Serial

CTS/RTS Emulation On

* CTS/RTS Emulation Off

ACK/NAK Mode On

* ACK/NAK Mode Off

Scan the following code to program the scanner for USB HID bar code scanners.

USB Serial

Scan the following code to program the scanner to emulate a regular RS232based COM Port. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Honeywell website (www.honeywellaidc.com). The driver will use the next available COM Port number. Apple® Macintosh computers recognize the scanner as a USB CDC class device and automatically uses a class driver.

Note: No extra configuration (e.g., baud rate) is necessary.

CTS/RTS Emulation

ACK/NAK Mode

2 - 5

Verifone® Ruby Terminal Default Settings

Verifone Ruby Settings

Gilbarco Settings

Scan the following Plug and Play code to program the scanner for a Verifone Ruby terminal. This bar code sets the baud rate to 1200 bps and the data format to 8 data bits, no parity bit, 1 stop bit. It also also adds a line feed (LF) suffix and programs the following prefixes for each symbology:

Symbology Prefix

UPC-A A UPC-E A EAN-8 FF EAN-13 F

Gilbarco® Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Gilbarco terminal. This bar code sets the baud rate to 2400 bps and the data format to 7 data bits, even parity, 2 stop bits. It also also adds a carriage return (CR) suffix and programs the following prefixes for each symbology:

Symbology Prefix

UPC-A A UPC-E E0 EAN-8 FF EAN-13 F

2 - 6

Honeywell Bioptic Aux Port Configuration

Honeywell Bioptic Settings

Datalogic Magellan Bioptic Settings

Scan the following Plug and Play code to program the scanner for a Honeywell bioptic scanner auxiliary port configuration. This bar code sets the baud rate to 38400 bps and the data format to 8 data bits, no parity, 1 stop bit.

Datalogic™ Magellan© Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for a Datalogic Magellan bioptic scanner auxiliary port configuration. This bar code sets the baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.

NCR Bioptic Aux Port Configuration

Scan the following Plug and Play code to program the scanner for an NCR bioptic scanner auxiliary port configuration. The following prefixes are programmed for each symbology:

Symbology Prefix Symbology Prefix

UPC-A A Interleaved 2 of 5 b UPC-E E0 Code 128 f

GS1 DataBar Omnidirecitonal

EAN-8 FF GS1 DataBar

Expanded EAN-13 F Codabar N Code 39 a Code 32

Pharmaceutical

(PARAF)

2 - 7

Wincor Nixdorf Terminal Default Settings

NCR Bioptic Settings

Wincor Nixdorf Terminal Settings

Wincor Nixdorf Beetle Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf terminal. This bar code sets the baud rate to 9600 bps and the data format to 8 data bits, no parity, 1 stop bit.

Wincor Nixdorf Beetle™ Terminal Default Settings

Scan the following Plug and Play code to program the scanner for a Wincor Nixdorf Beetle terminal. The following prefixes are programmed for each symbology:

Symbology Prefix Symbology Prefix

Code 128 K EAN-13 A Code 93 L GS1-128 P Codabar N Interleaved 2 of 5 I UPC-A A0 Plessey O UPC-E C Straight 2 of 5 IATA H EAN-8 B All other bar codes M

2 - 8

Keyboard Country Layout

* United States

United States (Dvorak left)

United States (International)

Albania

Azeri (Cyrillic)

Azeri (Latin)

Belarus

Belgium

United States (Dvorak)

United States (Dvorak right)

Bosnia

Brazil

Scan the appropriate country code below to program the keyboard layout for your country or language. As a general rule, the following characters are supported, but need special care for countries other than the United States: @ | $ # { } [ ] = / ‘ \ < > ~

2 - 9

Keyboard Country (continued)

Bulgaria (Latin)

Canada (French)

Canada (Multilingual)

Croatia

Czech

Czech (Programmers)

Czech (QWERTY)

Czech (QWERTZ)

Bulgaria (Cyrillic)

Canada (French legacy)

Brazil (MS)

Denmark

Dutch (Netherlands)

2 - 10

Keyboard Country (continued)

Finland

Gaelic

Germany

Greek

Greek (220 Latin)

Greek (220)

Greek (319 Latin)

Greek (319)

Faeroese

France

Estonia

Greek (Latin)

Greek (MS)

2 - 11

Keyboard Country (continued)

Italian (142)

Hungarian (101 key)

Iceland

Irish

Italy

Japan ASCII

Kazakh

Kyrgyz (Cyrillic)

Hebrew

Hungary

Greek (Polytonic)

Latin America

Latvia

2 - 12

Keyboard Country (continued)

Lithuania (IBM)

Malta

Mongolian (Cyrillic)

Norway

Poland

Polish (214)

Polish (Programmers)

Portugal

Lithuania

Macedonia

Latvia (QWERTY)

Romania

Russia

2 - 13

Keyboard Country (continued)

SCS

Serbia (Latin)

Slovakia

Slovakia (QWERTY)

Slovakia (QWERTZ)

Slovenia

Spain

Spanish variation

Russian (Typewriter)

Serbia (Cyrillic)

Russian (MS)

Sweden

Switzerland (French)

2 - 14

Keyboard Country (continued)

Turkey F

Ukrainian

United Kingdom

United Stated (Dvorak right)

United States (Dvorak left)

United States (Dvorak)

United States (International)

Uzbek (Cyrillic)

Tatar

Turkey Q

Switzerland (German)

Keyboard Style

This programs keyboard styles, such as Caps Lock and Shift Lock. If you have used Keyboard Conversion settings, they will override any of the following Keyboard Style settings. Default = Regular.

2 - 15

Regular is used when you normally have the Caps Lock key off.

* Regular

Caps Lock

Shift Lock

Automatic Caps Lock

Autocaps via NumLock

Caps Lock is used when you normally have the Caps Lock key on.

Shift Lock is used when you normally have the Shift Lock key on (not common

to U.S. keyboards).

Automatic Caps Lock is used if you change the Caps Lock key on and off. The software tracks and reflects if you have Caps Lock on or off . This selection can only be used with systems that have an LED that notes the Caps Lock status (AT keyboards).

Autocaps via NumLock bar code should be scanned in countries (e.g., Ger- many, France) where the Caps Lock key cannot be used to toggle Caps Lock. The NumLock option works similarly to the regular Autocaps, but uses the NumLock key to retrieve the current state of the Caps Lock.

2 - 16

Emulate External Keyboard should be scanned if you do not have an external

Emulate External Keyboard

* Keyboard Conversion Off

Convert All Characters

to Upper Case

Convert All Characters

to Lower Case

keyboard (IBM AT or equivalent).

Note: After scanning the Emulate External Keyboard bar code, you must power

cycle your computer.

Keyboard Conversion

Alphabetic keyboard characters can be forced to be all upper case or all lowercase. So if you have the following bar code: “abc569GK,” you can make the output “ABC569GK” by scanning Convert All Characters to Upper Case, or to “abc569gk” by scanning Convert All Characters to Lower Case.

These settings override Keyboard Style selections.

Note: If your interface is a keyboard wedge, first scan the menu code for

Automatic Caps Lock (page 2-16). Otherwise, your output may not be as

expected.

Default = Keyboard Conversion Off.

Control Character Output

This selection sends a text string instead of a control character. For example, when the control character for a carriage return is expected, the output would display [CR] instead of the ASCII code of 0D. Refer to ASCII Conversion Chart

(Code Page 1252) on page A-4. Only codes 00 through 1F are converted (the

first column of the chart).

Note: Control + ASCII Mode overrides this mode.

2 - 17

Default = Off.

Control Character Output On

* Control Character Output Off

Windows Mode Control + ASCII

Mode On

* Control + ASCII Mode Off

DOS Mode Control + ASCII Mode

Windows Mode Prefix/Suffix Off

Keyboard Modifiers

This modifies special keyboard features, such as CTRL+ ASCII codes and Turbo Mode.

Control + ASCII Mode On: The scanner sends key combinations for ASCII control characters for values 00-1F. Windows is the preferred mode. All keyboard country codes are supported. DOS mode is a legacy mode, and it does not support all keyboard country codes. New users should use the Windows mode. Refer to Keyboard Function Relationships, page 7-1 for CTRL+ ASCII Values.

Windows Mode Prefix/Suffix Off: The scanner sends key combinations for ASCII control characters for values 00-1F, but it does not translate any prefix or suffix information.

Default = Control + ASCII Mode Off.

2 - 18

Turbo M o d e: The scanner sends characters to a terminal faster. If the terminal

Turbo Mode On

* Turbo Mode Off

Numeric Keypad Mode On

* Numeric Keypad Mode Off

Automatic Direct Connect Mode

* Automatic Direct Connect

Mode Off

drops characters, do not use Turbo Mode. Default = Off

Numeric Keypad Mode: Sends numeric characters as if entered from a numeric keypad. Default = Off

Automatic Direct Connect Mode: This selection can be used if you have an IBM AT style terminal and the system is dropping characters. Default = Off

2 - 19

RS232 Baud Rate

300

2400

600

1200

4800

38400

* 9600

19200

115,200

57,600

Baud Rate sends the data from the scanner to the terminal at the specified rate. The host terminal must be set for the same baud rate as the scanner. Default =

9600.

2 - 20

RS232 Word Length: Data Bits, Stop Bits,

7 Data, 1 Stop, Parity Even

7 Data, 1 Stop, Parity None

7 Data, 1 Stop, Parity Odd

7 Data, 2 Stop, Parity Even

7 Data, 2 Stop Parity None

* 8 Data, 1 Stop, Parity None

8 Data, 1 Stop, Parity Even

7 Data, 2 Stop, Parity Odd

8 Data, 1 Stop, Parity Odd

and Parity

Data Bits sets the word length at 7 or 8 bits of data per character. If an application requires only ASCII Hex characters 0 through 7F decimal (text, digits, and punctuation), select 7 data bits. For applications that require use of the full ASCII set, select 8 data bits per character. Default = 8.

Stop Bits sets the stop bits at 1 or 2. Default = 1. Parity provides a means of checking character bit patterns for validity.

Default = None.

2 - 21

RS232 Receiver Time-Out

Flow Control, No Timeout

* RTS/CTS Off

Two-Direction Flow Control

Flow Control with Timeout

The unit stays awake to receive data until the RS232 Receiver Time-Out expires. A manual trigger resets the time-out. When an RS232 receiver is sleeping, a character may be sent to wake up the receiver and reset the timeout. A transaction on the CTS line will also wake up the receiver. The receiver takes 300 milliseconds to completely come up. Change the RS232 receiver time-out by scanning the bar code below, then scanning digits from the inside back cover of this manual, then scanning Save. The range is 0 to 300 seconds.

Default = 0 seconds (no time-out - always on).

RS232 Handshaking

RS232 Handshaking allows control of data transmission from the scanner using software commands from the host device. When RTS/CTS is turned Off, no data flow control is used.

Flow Control, No Timeout: The scanner asserts RTS when it has data to send, and will wait indefinitely for CTS to be asserted by the host.

Two-Direction Flow Control: The scanner asserts RTS when it is OK for the host to transmit. The host asserts CTS when it is OK for the device to transmit.

Flow Control with Timeout: The scanner asserts RTS when it has data to send and waits for a delay (see RS232 Timeout on page 2-23) for CTS to be asserted by the host. If the delay time expires and CTS is not asserted, the device transmit buffer is cleared and scanning may resume.

Default = RTS/CTS Off.

2 - 22

RS232 Timeout

* XON/XOFF Off

XON/XOFF On

When using Flow Control with Timeout, you must program the length of the delay you want to wait for CTS from the host. Set the length (in milliseconds) for a timeout by scanning the bar code below, then setting the timeout (from 1-5100 milliseconds) by scanning digits from the inside back cover, then scanning Save.

XON/XOFF

Standard ASCII control characters can be used to tell the scanner to start sending data (XON/XOFF On) or to stop sending data (XON/XOFF Off). When the host sends the XOFF character (DC3, hex 13) to the scanner, data transmission stops. To resume transmission, the host sends the XON character (DC1, hex 11). Data transmission continues where it left off when XOFF was sent. Default = XON/XOFF Off.

ACK/NAK

After transmitting data, the scanner waits for an ACK character (hex 06) or a NAK character (hex 15) response from the host. If ACK is received, the communications cycle is completed and the scanner looks for more bar codes. If NAK is received, the last set of bar code data is retransmitted and

2 - 23

the scanner waits for ACK/NAK again. Turn on the ACK/NAK protocol by

ACK/NAK On

* ACK/NAK Off

* Packet Mode Off

Packet Mode On

scanning the ACK/NAK On bar code below. To turn off the protocol, scan ACK/NAK Off. Default = ACK/NAK Off.

Scanner to Bioptic Communication

The following settings are used to set up communication between Honeywell scanners and bioptic scanners.

Note: The scanner’s baud rate must be set to 38400 and the RS232 timeout

must be set to 3000 in order to communicate with a bioptic scanner. See

RS232 Baud Rate on page 2-20, and RS232 Timeout on page 2-23 for

further information.

Scanner-Bioptic Packet Mode

Packet Mode On must be scanned to set the scanner’s format so it is compatible with a bioptic scanner. Default = Packet Mode Off.

2 - 24

Scanner-Bioptic ACK/NAK Mode

* Bioptic ACK/NAK Off

Bioptic ACK/NAK On

ACK/NAK Timeout

Bioptic ACK/Nak On must be scanned so the scanner will wait for an ACK

or NAK from a bioptic scanner after each packet is sent. The ScannerBioptic ACK/NAK Timeout (below) controls how long the scanner will wait for a response. Default = Bioptic ACK/NAK Off.

Scanner-Bioptic ACK/NAK Timeout

This allows you to set the length (in milliseconds) for a timeout for a bioptic scanner’s ACK/NAK response. Scan the bar code below, then set the timeout (from 1-30,000 milliseconds) by scanning digits from the inside back cover, then scanning Save. Default = 5100.

2 - 25

2 - 26

Power Up Beeper Off -

Scanner

* Power Up Beeper On -

Scanner

*Beep on BEL Off

Beep on BEL On

Trigger Click On

*Trigger Click Off

Input/Output Settings

Power Up Beeper

The scanner can be programmed to beep when it’s powered up. Scan the Off bar code(s) if you don’t want a power up beep. Default = Power Up Beeper On

- Scanner.

Beep on BEL Character

You may wish to force the scanner to beep upon a command sent from the host. If you scan the Beep on BEL On bar code below, the scanner will beep every time a BEL character is received from the host. Default = Beep on BEL Off.

Trigger Click

To hear an audible click every time the scanner button is pressed, scan the Tri gger Click On bar code below. Scan the Trigger Click Off code if you don’t

wish to hear the click. (This feature has no effect on serial or automatic triggering.) Default = Trigger Click Off.

3 - 1

Good Read and Error Indicators

* Beeper - Good Read On

Beeper - Good Read Off

* High

Medium

Off

Low

Beeper – Good Read

The beeper may be programmed On or Off in response to a good read. Turning this option off, only turns off the beeper response to a good read indication. All error and menu beeps are still audible. Default = Beeper -

Good Read On.

Beeper Volume – Good Read

The beeper volume codes modify the volume of the beep the scanner emits on a good read. Default = High.

3 - 2

Beeper Pitch – Good Read

Low (1600 Hz)

* Medium (2400 Hz)

High (4200 Hz)

* Razz (250 Hz)

Medium (3250 Hz)

High (4200 Hz)

* Normal Beep

Short BeepShort Beep

The beeper pitch codes modify the pitch (frequency) of the beep the scanner emits on a good read. Default = Medium.

Beeper Pitch – Error

The beeper pitch codes modify the pitch (frequency) of the sound the scanner emits when there is a bad read or error. Default = Razz.

Beeper Duration – Good Read

The beeper duration codes modify the length of the beep the scanner emits on a good read. Default = Normal.

3 - 3

LED – Good Read

* LED - Good Read On

LED - Good Read Off

Number of Good Read Beeps/LED Flashes

Number of Error Beeps/LED Flashes

The LED indicator can be programmed On or Off in response to a good read. Default = On.

Number of Beeps – Good Read

The number of beeps of a good read can be programmed from 1 - 9. The same number of beeps will be applied to the beeper and LED in response to a good read. For example, if you program this option to have five beeps, there will be five beeps and five LED flashes in response to a good read. The beeps and LED flashes are in sync with one another. To change the number of beeps, scan the bar code below and then scan a digit (1-9) bar code and the Save bar code on the Programming Chart inside the back cover of this manual. Default = 1.

Number of Beeps – Error

The number of beeps and LED flashes emitted by the scanner for a bad read or error can be programmed from 1 - 9. For example, if you program this option to have five error beeps, there will be five error beeps and five LED flashes in response to an error. To change the number of error beeps, scan the bar code below and then scan a digit (1-9) bar code and the Save bar code on the Programming Chart inside the back cover of this manual.

Default = 1.

3 - 4

Good Read Delay

* No Delay

Short Delay (500 ms)

Medium Delay (1,000 ms)

Long Delay (1,500 ms)

User-Specified Good Read Delay

* Manual Trigger - Normal

This sets the minimum amount of time before the scanner can read another bar code. Default = 0 ms (No Delay).

User-Specified Good Read Delay

If you want to set your own length for the good read delay, scan the bar code below, then set the delay (from 0-30,000 milliseconds) by scanning digits from the inside back cover, then scanning Save.

Manual Trigger Mode

When in manual trigger mode, the scanner scans until a bar code is read, or until the button is released. Default = Manual Trigger-Normal.

3 - 5

LED Illumination - Manual Trigger

Low

* High

Medium High

Medium

* Sensor On

Sensor Off

If you wish to set the illumination LED brightness, scan one of the bar codes below. This sets the LED illumination for the scanner when the trigger is pressed. Default = High.

Note: The LEDs are like a flash on a camera. The lower the ambient light

in the room, the brighter the LEDs need to be so the scanner can “see” the bar codes.

In-Stand Sensor Mode

This feature senses when the scanner is removed from the stand and tells it to begin manual triggering. When Sensor On is enabled, the scanner defaults to Presentation Mode when it is in the stand, and to Manual Trigger Mode when it is removed from the stand. Default = Sensor On.

3 - 6

Presentation Mode

Low

Medium

* High

Sensitivity

Presentation Mode uses ambient light to detect bar codes. The LED dims until a bar code is presented to the scanner, then the LED brightens to read the code. If the light level in the room is not high enough, Presentation Mode may not work properly.

Idle Illumination - Presentation Mode

Scan one of the bar codes below to set the LED illumination for the scanner when it is in an idle state in Presentation Mode. Default = High.

Note: If you use one of the lower Idle Illumination settings, and there is not

enough ambient light, the scanner may have difficulty detecting when a bar code is presented to it. If the scanner has difficulty “waking up” to read bar codes, you may need to set the Idle Illumination to a brighter setting.

Presentation Sensitivity

Presentation Sensitivity is a numeric range that increases or decreases the scanner's reaction time to bar code presentation. To set the sensitivity, scan the Sensitivity bar code, then scan the degree of sensitivity (from 0-

20) from the inside back cover, and Save. 0 is the most sensitive setting, and 20 is the least sensitive. Default = 1.

3 - 7

Presentation Centering

Bar Code 1

Bar Code 2

10 20 30 40 50 60 70 80 90 100%

100

Use Presentation Centering to narrow the scanner’s field of view when it is in the stand to make sure the scanner reads only those bar codes intended by the user. For instance, if multiple codes are placed closely together, Presentation Centering will insure that only the desired codes are read.

Note: To adjust centering when the scanner is hand-held, see

Centering (page 3-11).

If a bar code is not touched by a predefined window, it will not be decoded or output by the scanner. If Presentation Centering is turned on by scanning Presentation Centering On, the scanner only reads codes that pass through the centering window you specify using the Top of Presentation Centering Window, Bottom of Presentation Centering Window, Left, and Right of Presentation Centering Window bar codes.

In the example below, the white box is the centering window. The centering window has been set to 20% left, 30% right, 8% top, and 25% bottom. Since Bar Code 1 passes through the centering window, it will be read. Bar Code 2 does not pass through the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in

order to be read. It does not need to pass completely through the centering window.

3 - 8

Scan Presentation Centering On, then scan one of the following bar

Left of

Presentation Centering

Window

Mobile Phone Read Mode

Hand Held Scanning - Mobile

Phone

Presentation Scanning -

Mobile Phone

Hands Free Time-Out

When this mode is selected, your scanner is optimized to read bar codes from mobile phone or other LED displays. However, the speed of scanning printed bar codes may be slightly lower when this mode is enabled.

Note: To turn off Mobil Phone Read Mode, scan the Manual Trigger Mode bar

code (see page 3-5).

Hands Free Time-Out

The Scan Stand and Presentation Modes are referred to as “hands free” modes. If the scanner’s button is pressed when using a hands free mode, the scanner changes to manual trigger mode. You can set the time the scanner should remain in manual trigger mode by setting the Hands Free Time-Out. Once the time-out value is reached, (if there have been no further button presses) the scanner reverts to the original hands free mode.

Scan the Hands Free Time-Out bar code, then scan the time-out duration (from 0-300,000 milliseconds) from the inside back cover, and Save. Default =

5,000 ms.

Reread Delay

This sets the time period before the scanner can read the same bar code a second time. Setting a reread delay protects against accidental rereads of the same bar code. Longer delays are effective in minimizing accidental rereads.

3 - 10

Use shorter delays in applications where repetitive bar code scanning is

Short (500 ms)

* Medium (750 ms)

Long (1000 ms)

Extra Long (2000 ms)

User-Specified Reread Delay

required. Reread Delay only works when in Presentation Mode (see page 3-7).

Default = Medium.

User-Specified Reread Delay

If you want to set your own length for the reread delay, scan the bar code below, then set the delay (from 0-30,000 milliseconds) by scanning digits from the inside back cover, then scanning Save.

Centering

Use Centering to narrow the scanner’s field of view to make sure that when the scanner is hand-held, it reads only those bar codes intended by the user. For instance, if multiple codes are placed closely together, centering will insure that only the desired codes are read.

Note: To adjust centering when the scanner is in the stand, see Presentation

Centering (page 3-8).

If a bar code is not touched by a predefined window, it will not be decoded or output by the scanner. If centering is turned on by scanning Centering On, the scanner only reads codes that pass through the centering window you specify using the Top of Centering Window, Bottom of Centering Window, Left, and Right of Centering Window bar codes.

3 - 11

In the example below, the white box is the centering window. The centering

Bar Code 1

Bar Code 2

10 20 30 40 50 60 70 80 90 100%

100

window has been set to 20% left, 30% right, 8% top, and 25% bottom. Since Bar Code 1 passes through the centering window, it will be read. Bar Code 2 does not pass through the centering window, so it will not be read.

Note: A bar code needs only to be touched by the centering window in order to

be read. It does not need to pass completely through the centering window.

3 - 12

Scan Centering On, then scan one of the following bar codes to change the

Left of Centering Window

Top of Centering Window

Right of Centering Window

Bottom of Centering Window

* Centering Off

Centering On

* Off

top, bottom, left, or right of the centering window. Then scan the percent you want to shift the centering window using digits on the inside back cover of this manual. Scan Save. Default Centering = 40% for Top and Left, 60% for Bot-

tom and Right.

No Read

With No Read turned On, the scanner notifies you if a code cannot be read. If using an EZConfig-Scanning Tool Scan Data Window (see page 8-2), an “NR” appears when a code cannot be read. If No Read is turned Off, the “NR” will not appear. Default = Off.

If you want a different notation than “NR,” for example, “Error,” or “Bad Code,” you can edit the output message (see Data Formatting beginning on page 5-1). The hex code for the No Read symbol is 9C.

3 - 13

Video Reverse

Video Reverse Only

Video Reverse and Standard Bar

Codes

* Video Reverse Off

Video Reverse is used to allow the scanner to read bar codes that are inverted. The Video Reverse Off bar code below is an example of this type of bar code. Scan Video Reverse Only to read only inverted bar codes. Scan Video Reverse and Standard Bar Codes to read both types of codes.

Note: After scanning Video Reverse Only, menu bar codes cannot be read.

You must scan Video Reverse Off or Video Reverse and Standard Bar Codes in order to read menu bar codes.

Note: Images downloaded from the unit are not reversed. This is a setting for

decoding only.

3 - 14

Working Orientation

Upright:

Vertical, Top to Bottom:

(Rotate CW 90°)

Upside Down:

Vertical, Bottom to Top:

(Rotate CCW 90°)

* Upright

Upside Down

Vertical, Top to Bottom

Vertical, Bottom to Top

Some bar codes are direction-sensitive. For example, KIX codes and OCR can misread when scanned sideways or upside down. Use the working orientation settings if your direction-sensitive codes will not usually be presented upright to the scanner. Default = Upright.

Default = Upright.

3 - 15

3 - 16

Prefix

Scanned Data

Suffix

1-11 alpha numeric & control characters

variable length1-11 alpha numeric & control characters

Data Editing

Prefix/Suffix Overview

When a bar code is scanned, additional information is sent to the host computer along with the bar code data. This group of bar code data and additional, user-defined data is called a “message string.” The selections in this section are used to build the user-defined data into the message string.

Prefix and Suffix characters are data characters that can be sent before and after scanned data. You can specify if they should be sent with all symbologies, or only with specific symbologies. The following illustration shows the breakdown of a message string:

Points to Keep In Mind

• It is not necessary to build a message string. The selections in this chapter are only used if you wish to alter the default settings. Default prefix = None. Default suffix = None.

• A prefix or suffix may be added or cleared from one symbology or all symbologies.

• You can add any prefix or suffix from the ASCII Conversion Chart (Code

Page 1252), beginning on page A-4, plus Code I.D. and AIM I.D.

• You can string together several entries for several symbologies at one time.

• Enter prefixes and suffixes in the order in which you want them to appear on the output.

• When setting up for specific symbologies (as opposed to all symbologies), the specific symbology ID value counts as an added prefix or suffix character.

• The maximum size of a prefix or suffix configuration is 200 characters, which includes header information.

To Add a Prefix or Suffix:

Step 1. Scan the Add Prefix or Add Suffix symbol (page 4-3). Step 2. Determine the 2 digit Hex value from the Symbology Chart

(included in the Symbology Charts, beginning on page A-1) for the

4 - 1

symbology to which you want to apply the prefix or suffix. For example, for Code 128, Code ID is “j” and Hex ID is “6A”.

Step 3. Scan the 2 hex digits from the Programming Chart inside the back

cover of this manual or scan 9, 9 for all symbologies.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code

Page 1252), beginning on page A-4, for the prefix or suffix you wish

to enter.

Step 5. Scan the 2 digit hex value from the Programming Chart inside the

back cover of this manual.

Step 6. Repeat Steps 4 and 5 for every prefix or suffix character. Step 7. To add the Code I.D., scan 5, C, 8, 0.

To add AIM I.D., scan 5, C, 8, 1. To add a backslash (\), scan 5, C, 5, C.

Note: To add a backslash (\) as in Step 7, you must scan 5C twice – once

to create the leading backslash and then to create the backslash itself.

Step 8. Scan Save to exit and save, or scan Discard to exit without saving. Repeat Steps 1-6 to add a prefix or suffix for another symbology.

Example: Add a Suffix to a specific symbology

To send a CR (carriage return)Suffix for U.P.C. only:

Step 1. Scan Add Suffix. Step 2. Determine the 2 digit hex value from the Symbology Chart

(included in the Symbology Charts, beginning on page A-1) for U.P.C..

Step 3. Scan 6, 3 from the Programming Chart inside the back cover of this

manual.

Step 4. Determine the hex value from the ASCII Conversion Chart (Code

Page 1252), beginning on page A-4, for the CR (carriage return).

Step 5. Scan 0, D from the Programming Chart inside the back cover of this

manual.

Step 6. Scan Save, or scan Discard to exit without saving.

To Clear One or All Prefixes or Suffixes

You can clear a single prefix or suffix, or clear all prefixes/suffixes for a symbology. If you have been entering prefixes and suffixes for single symbologies, you can use Clear One Prefix (Suffix) to delete a specific character from a symbology. When you Clear All Prefixes (Suffixes), all the prefixes or suffixes for a symbology are deleted.

4 - 2

Step 1. Scan the Clear One Prefix or Clear One Suffix symbol.

Add CR Suffix

All Symbologies

Add Prefix

Clear One Prefix

Clear All Prefixes

Step 2. Determine the 2 digit Hex value from the Symbology Chart

(included in the Symbology Charts, beginning on page A-1) for the symbology from which you want to clear the prefix or suffix.

Step 3. Scan the 2 digit hex value from the Programming Chart inside the

back cover of this manual or scan 9, 9 for all symbologies.

Your change is automatically saved.

To Add a Carriage Return Suffix to All Symbologies

Scan the following bar code if you wish to add a carriage return suffix to all symbologies at once. This action first clears all current suffixes, then programs a carriage return suffix for all symbologies.

Prefix Selections

4 - 3

Suffix Selections

Add Suffix

Clear One Suffix

Clear All Suffixes

* Enable

Disable

Function Code Transmit

When this selection is enabled and function codes are contained within the scanned data, the scanner transmits the function code to the terminal. Charts of these function codes are provided in Supported Interface Keys starting on

page 7-3. When the scanner is in keyboard wedge mode, the scan code is con-

verted to a key code before it is transmitted. Default = Enable.

Intercharacter, Interfunction, and Intermessage Delays

Some terminals drop information (characters) if data comes through too quickly. Intercharacter, interfunction, and intermessage delays slow the transmission of data, increasing data integrity.

4 - 4

Intercharacter Delay

1 2345

Intercharacter Delay

Prefix Scanned Data Suffix

Intercharacter Delay

Delay Length

Character to Trigger Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each character of scanned data. Scan the Intercharacter Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Intercharacter Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming

Chart inside the back cover of this manual.

Note: Intercharacter delays are not supported in USB serial emulation.

User Specified Intercharacter Delay

An intercharacter delay of up to 5000 milliseconds (in 5ms increments) may be placed after the transmission of a particular character of scanned data. Scan the Delay Length bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual.

Next, scan the Character to Trigger Delay bar code, then the 2-digit hex value for the ASCII character that will trigger the delay ASCII Conversion

Chart (Code Page 1252), beginning on page A-4.

To remove this delay, scan the Delay Length bar code, and set the number of delays to 0. Scan the Save bar code using the Programming Chart inside the back cover of this manual.

4 - 5

Interfunction Delay

Interfunction Delays

Prefix Scanned Data Suffix

1 2345STX HT CR LF

Interfunction Delay

2nd Scan Transmission1st Scan Transmission

Intermessage Delay

An interfunction delay of up to 5000 milliseconds (in 5ms increments) may be placed between the transmission of each segment of the message string. Scan the Interfunction Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Interfunction Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming

Chart inside the back cover of this manual.

Intermessage Delay

An intermessage delay of up to 5000 milliseconds (in 5ms increments) may be placed between each scan transmission. Scan the Intermessage Delay bar code below, then scan the number of 5ms delays, and the Save bar code using the Programming Chart inside the back cover of this manual.

To remove this delay, scan the Intermessage Delay bar code, then set the number of delays to 0. Scan the Save bar code using the Programming

Chart inside the back cover of this manual.

4 - 6

* Default Data Format

Data Formatting

Data Format Editor Introduction

You may use the Data Format Editor to change the scanner’s output. For example, you can use the Data Format Editor to insert characters at certain points in bar code data as it is scanned. The selections in the following pages are used only if you wish to alter the output. Default Data Format setting = None.

Normally, when you scan a bar code, it gets outputted automatically; however when you create a format, you must use a “send” command (see Send

Commands on page 5-4) within the format program to output data.

Multiple formats may be programmed into the scanner. They are stacked in the order in which they are entered. However, the following list presents the order in which formats are applied:

1. Specific Terminal ID, Actual Code ID, Actual Length

2. Specific Terminal ID, Actual Code ID, Universal Length

3. Specific Terminal ID, Universal Code ID, Actual Length

4. Specific Terminal ID, Universal Code ID, Universal Length

5. Universal Terminal ID, Actual Code ID, Actual Length

6. Universal Terminal ID, Actual Code ID, Universal Length

7. Universal Terminal ID, Universal Code ID, Actual Length

8. Universal Terminal ID, Universal Code ID, Universal Length

The maximum size of a data format configuration is 2000 bytes, which includes header information.

If you have changed data format settings, and wish to clear all formats and return to the factory defaults, scan the Default Data Format code below.

Add a Data Format

Step 1. Scan the Enter Data Format symbol (page 5-2). Step 2. Select Primary/Alternate Format

Determine if this will be your primary data format, or one of 3 alternate formats. This allows you to save a total of 4 different data formats. To program your primary format, scan 0 using the Programming Chart inside the back cover of this manual. If you are programming an alternate format, scan 1, 2, or 3, depending on which alternate format

5 - 1

you are programming. (See Primary/Alternate Data Formats on page

Enter Data Format

Save

Discard

5-8 for further information.)

Step 3. Terminal Type

Refer to Terminal ID Table (page 5-4) and locate the Terminal ID number for your PC. Scan three numeric bar codes on the inside back cover to program the scanner for your terminal ID (you must enter 3 digits). For example, scan 0 0 3 for an AT wedge.

Note: The wildcard for all terminal types is 099.

Step 4. Code I.D.

In the Symbology Charts, beginning on page A-1, find the symbology to which you want to apply the data format. Locate the Hex value for that symbology and scan the 2 digit hex value from the Programming Chart inside the back cover of this manual.

Note: If you are creating a data format for Batch Mode Quantity, use 35

for the Code I.D.

Step 5. Length

Specify what length (up to 9999 characters) of data will be acceptable for this symbology. Scan the four digit data length from the

Programming Chart inside the back cover of this manual. (Note: 50

characters is entered as 0050. 9999 is a universal number, indicating all lengths.)

Step 6. Editor Commands

Refer to Data Format Editor Commands (page 5-4). Scan the symbols that represent the command you want to enter.

Step 7. Scan Save to save your data format, or Discard to exit without saving

your changes.

5 - 2

Other Programming Selections

Clear One Data Format

Clear All Data Formats

Save

Discard

Clear One Data Format

This deletes one data format for one symbology. If you are clearing the primary format, scan 0 from the Programming Chart inside the back cover of this manual. If you are clearing an alternate format, scan 1, 2, or 3, depending on the format you are clearing. Scan the Terminal Type and Code I.D. (see Symbology Charts on page A-1), and the bar code data length for the specific data format that you want to delete. All other formats remain unaffected.

Clear all Data Formats

This clears all data formats.

Save to exit and save your data format changes. Discard to exit without saving any data format changes.

5 - 3

Terminal ID Table

Termin al Model(s)

IBM PC/AT and compatibles

USB SurePOS Handheld Scanner

USB SurePOS Tabletop Scanner

RS232 True

TTL

USB PC Keyboard

Mac Keyboard Japanese Keyboard (PC) HID POS Serial

Termin al

Data Format Editor Commands

Send Commands

Send all characters

F1 Include in the output message all of the characters from the input

message, starting from current cursor position, followed by an insert character. Syntax = F1xx where xx stands for the insert character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-4 for decimal, hex and character codes.

Send a number of characters

F2 Include in the output message a number of characters followed by an

insert character. Start from the current cursor position and continue for “nn” characters or through the last character in the input message, followed by character “xx.” Syntax = F2nnxx where nn stands for the numeric value (00-99) for the number of characters, and xx stands for the the insert character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-4 for decimal, hex and character codes.

Send all characters up to a particular character

F3 Include in the output message all characters from the input message,

starting with the character at the current cursor position and continuing to, but not including, the search character “ss,” followed by an insert character. The cursor is moved forward to the “ss” character. Syntax = F3ssxx where ss stands for the search character’s hex value for its

003 128

129

000 000 124 125 134 131 130

5 - 4

ASCII code, and xx stands for the insert character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-4 for decimal, hex and character codes.

Send all but the last characters

E9 Include in the output message all but the last “nn” characters, starting

from the current cursor position. The cursor is moved forward to one position past the last input message character included. Syntax = E9nn where nn stands for the numeric value (00-99) for the number of characters that will not be sent at the end of the message.

Insert a character multiple times

F4 Send “xx” character “nn” times in the output message, leaving the

cursor in the current position. Syntax = F4xxnn where xx stands for the insert character’s hex value for its ASCII code, and nn is the numeric value (00-99) for the number of times it should be sent. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-4 for decimal, hex and character codes.

Move Commands

Move the cursor forward a number of characters

F5 Move the cursor ahead “nn” characters from current cursor position.

Syntax = F5nn where nn is the numeric value (00-99) for the number of characters the cursor should be moved ahead.

Move the cursor backward a number of characters

F6 Move the cursor back “nn” characters from current cursor position.

Syntax = F6nn where nn is the numeric value (00-99) for the number of characters the cursor should be moved back.

Move the cursor to the beginning

F7 Move the cursor to the first character in the input message. Syntax =

F7.

Move the cursor to the end

EA Move the cursor to the last character in the input message. Syntax =

EA.

Search Commands

Search forward for a character

F8 Search the input message forward for “xx” character from the current

cursor position, leaving the cursor pointing to the “xx” character. Syntax = F8xx where xx stands for the search character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-4 for decimal, hex and character codes.

5 - 5

Search backward for a character

F9 Search the input message backward for “xx” character from the current

cursor position, leaving the cursor pointing to the “xx” character. Syntax = F9xx where xx stands for the search character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-4 for decimal, hex and character codes.

Search forward for a non-matching character

E6 Search the input message forward for the first non-“xx” character from

the current cursor position, leaving the cursor pointing to the non-“xx” character. Syntax = E6xx where xx stands for the search character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-4 for decimal, hex and character codes.

Search backward for a non-matching character

E7 Search the input message backward for the first non-“xx” character

from the current cursor position, leaving the cursor pointing to the non“xx” character. Syntax = E7xx where xx stands for the search character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-4 for decimal, hex and character codes.

Miscellaneous Commands

Suppress characters

FB Suppress all occurrences of up to 15 different characters, starting at the

current cursor position, as the cursor is advanced by other commands. When the FC command is encountered, the suppress function is terminated. The cursor is not moved by the FB command. Syntax = FBnnxxyy . .zz where nn is a count of the number of suppressed characters in the list, and xxyy .. zz is the list of characters to be suppressed.

Stop suppressing characters

FC Disables suppress filter and clear all suppressed characters. Syntax =

FC.

Replace characters

E4 Replaces up to 15 characters in the output message, without moving

the cursor. Replacement continues until the E5 command is encountered. Syntax = E4nnxx1xx2yy1yy2...zz1zz2 where nn is the

total count of of the number of characters in the list (characters to be replaced plus replacement characters); xx1 defines characters to be

replaced and xx zz1 and zz2.

defines replacement characters, continuing through

5 - 6

Stop replacing characters

Data Formatter Off

E5 Terminates character replacement. Syntax = E5.

Compare characters

FE Compare the character in the current cursor position to the character

“xx.” If characters are equal, move the cursor forward one position. Syntax = FExx where xx stands for the comparison character’s hex value for its ASCII code. Refer to the ASCII Conversion Chart (Code Page 1252), beginning on page A-4 for decimal, hex and character codes.

Check for a number

EC Check to make sure there is an ASCII number at the current cursor

position. The format is aborted if the character is not numeric.

Check for non-numeric character

ED Check to make sure there is a non-numeric ASCII character at the

current cursor position. The format is aborted if the character is numeric.

Insert a delay

EF Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting

from the current cursor position. Syntax = EFnnnn where nnnn stands for the delay in 5ms increments, up to 9999. This command can only be used with keyboard emulation.

Data Formatter

When Data Formatter is turned Off, the bar code data is output to the host as read, including prefixes and suffixes.

You may wish to require the data to conform to a data format you have created and saved. The following settings can be applied to your data format:

Data Formatter On, Not Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and suffixes are transmitted.

Data Format Required, Keep Prefix/Suffix

Scanned data is modified according to your data format, and prefixes and suffixes are transmitted. Any data that does not match your data format requirements generates an error tone and the data in that bar code is not transmitted.

5 - 7

Default = Data Formatter On, Not Required, Keep Prefix/Suffix.

* Data Formatter On,

Not Required,

Keep Prefix/Suffix

Data Format Required,

Keep Prefix/Suffix

Primary Data Format

Data Format 1

Data Format 2

Data Format 3

Primary/Alternate Data Formats

You can save up to four data formats, and switch between these formats. Your primary data format is saved under 0. Your other three formats are saved under 1, 2, and 3. To set your device to use one of these formats, scan one of the bar codes below.

5 - 8

Symbologies

This programming section contains the following menu selections. Refer to

Chapter 9 for settings and defaults.

• All Symbologies • Interleaved 2 of 5

• Aztec Code • Korea Post

• China Post (Hong Kong 2 of 5) • Matrix 2 of 5

• Chinese Sensible (Han Xin) Code • MaxiCode

• Codabar • MicroPDF417

• Codablock A • MSI

• Codablock F • NEC 2 of 5

• Code 11 • Postal Codes - 2D

• Code 128 • Postal Codes - Linear

• Code 32 Pharmaceutical (PARAF) • PDF417

• Code 39 • GS1 DataBar Omnidirectional

• Code 93 • QR Code

• Data Matrix

• EAN/JAN-13

• EAN/JAN-8 • TCIF Linked Code 39 (TLC39)

• GS1 Composite Codes • Telepen

• GS1 DataBar Expanded • UPC-A

• GS1 DataBar Limited

• GS1 DataBar Omnidirectional • UPC-E0

• GS1 Emulation • UPC-E1

•GS1-128

• Straight 2 of 5 IATA (two-bar start/ stop)

• Straight 2 of 5 Industrial (three-bar start/stop)

• UPC-A/EAN-13 with Extended Coupon Code

6 - 1

All Symbologies

All Symbologies On

All Symbologies Off

If you want to decode all the symbologies allowable for your scanner, scan the All Symbologies On code. If on the other hand, you want to decode only a particular symbology, scan All Symbologies Off followed by the On symbol for that particular symbology.

Note: When All Symbologies On is scanned, 2D Postal Codes are not enabled.

2D Postal Codes must be enabled separately.

Message Length Description

You are able to set the valid reading length of some of the bar code symbologies. If the data length of the scanned bar code doesn’t match the valid reading length, the scanner will issue an error tone. You may wish to set the same value for minimum and maximum length to force the scanner to read fixed length bar code data. This helps reduce the chances of a misread.

EXAMPLE: Decode only those bar codes with a count of 9-20 characters.

EXAMPLE: Decode only those bar codes with a count of 15 characters.

For a value other than the minimum and maximum message length defaults, scan the bar codes included in the explanation of the symbology, then scan the digit value of the message length and Save bar codes on the Programming

Chart inside the back cover of this manual. The minimum and maximum

lengths and the defaults are included with the respective symbologies.

Min. length = 09Max. length = 20

Min. length = 15Max. length = 15

6 - 2

Codabar

* On

Off

Transmit

* Don’t Transmit

Codabar On/Off

Codabar Start/ Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You may either transmit, or not transmit Start/Stop characters. Default = Don’t Transmit.

Codabar Check Character

Codabar check characters are created using different “modulos.” You can program the scanner to read only Codabar bar codes with Modulo 16 check characters. Default = No Check Character.

No Check Character indicates that the scanner reads and transmits bar code data with or without a check character.

When Check Character is set to Validate and Transmit, the scanner will only read Codabar bar codes printed with a check character, and will transmit this character at the end of the scanned data.

6 - 3

When Check Character is set to Validate, but Don’t Transmit, the unit will

* No Check Character

Validate Modulo 16

and Transmit

Validate Modulo 16, but

Don’t Transmit

* Off

Require

only read Codabar bar codes printed with a check character, but will not transmit the check character with the scanned data.

Codabar Concatenation

Codabar supports symbol concatenation. When you enable concatenation, the scanner looks for a Codabar symbol having a “D” start character, adjacent to a symbol having a “D” stop character. In this case the two messages are concatenated into one with the “D” characters omitted.

A12 3 4D

D5 6 7 8 A

Select Require to prevent the scanner from decoding a single “D” Codabar symbol without its companion. This selection has no effect on Codabar symbols without Stop/Start D characters.

6 - 4

Codabar Message Length

Minimum Message Length

Maximum Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 2-60. Minimum Default = 4, Maximum Default = 60.

6 - 5

Code 39

* On

Off

Transmit

* Don’t Transmit

< Default All Code 39 Settings >

Code 39 On/Off

Code 39 Start/ Stop Characters

Start/Stop characters identify the leading and trailing ends of the bar code. You may either transmit, or not transmit Start/Stop characters. Default =

Don’t Transmit.

Code 39 Check Character

No Check Character indicates that the scanner reads and transmits bar code data with or without a check character.

When Check Character is set to Validate, but Don’t Transmit, the unit only reads Code 39 bar codes printed with a check character, but will not transmit the check character with the scanned data.

6 - 6

When Check Character is set to Validate and Transmit, the scanner only

* No Check Character

Validate and Transmit

Validate, but Don’t Transmit

Minimum Message Length

Maximum Message Length

reads Code 39 bar codes printed with a check character, and will transmit this character at the end of the scanned data. Default = No Check Charac-

ter.

Code 39 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 0-48. Minimum Default = 0, Maximum Default = 48.

Code 39 Append

This function allows the scanner to append the data from several Code 39 bar codes together before transmitting them to the host computer. When the scanner encounters a Code 39 bar code with the append trigger char-

6 - 7

acter(s), it buffers Code 39 bar codes until it reads a Code 39 bar code that

* Off

does not have the append trigger. The data is then transmitted in the order in which the bar codes were read (FIFO). Default = Off.

Code 32 Pharmaceutical (PARAF)

Code 32 Pharmaceutical is a form of the Code 39 symbology used by Italian pharmacies. This symbology is also known as PARAF.

6 - 8

Full ASCII

* Full ASCII Off

Full ASCII On

If Full ASCII Code 39 decoding is enabled, certain character pairs within the bar code symbol will be interpreted as a single character. For example: $V will be decoded as the ASCII character SYN, and /C will be decoded as the ASCII character #. Default = Off.

NUL %U DLE $P SOH $A STX $B ETX $C EOT $D ENQ $E ACK $F BEL $G BS $H HT $I LF $J VT $K FF $L CR $M SO $N SI $O

DC1 $Q !/A 11AAQQa+Aq+Q DC2 $R “/B 22BBRRb+Br+R DC3 $S #/C 33CCSSc+Cs+S DC4 $T $/D 44 DD TT d+Dt+T NAK $U %/E 55EE UU e+Eu+U SYN $V &/F 66FF VVf+Fv+V ETB $W ‘/G77 GG WW g+Gw+W CAN $X (/H 88HHXXh+Hx+X EM $Y )/I 99IIYYi+Iy+Y SUB $Z */J :/ZJJ ZZ j+Jz+Z ESC %A +/K ;%FKK[%Kk+K{%P FS %B ,/L <%GLL\%Ll+L|%Q GS %C -- =%HMM]%Mm+M}%R RS %D .. >%INN^%Nn+N~%S US %E //O?%JOO _%Oo+ODEL %T

SP SPACE

00@%VPP‘%Wp+P

Character pairs /M and /N decode as a minus sign and period respectively. Character pairs /P through /Y decode as 0 through 9.

Code 39 Code Page

Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the bar code being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, scan the bar code below, select the code page with which the bar codes were created (see ISO 2022/ISO 646 Character Replacements on page A-

6 - 9

10), and scan the value and the Save bar code from the Programming

Code 39 Code Page

* On

Off

Chart on the inside the back cover of this manual. The data characters

should then appear properly.

Interleaved 2 of 5

< Default All Interleaved 2 of 5 Settings >

Interleaved 2 of 5 On/Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code data with or without a check digit.

When Check Digit is set to Validate, but Don’t Transmit, the unit only reads Interleaved 2 of 5 bar codes printed with a check digit, but will not transmit the check digit with the scanned data.

6 - 10

When Check Digit is set to Validate and Transmit, the scanner only reads

Validate, but Don’t Transmit

* No Check Digit

Validate and Transmit

Minimum Message Length

Maximum Message Length

Interleaved 2 of 5 bar codes printed with a check digit, and will transmit this digit at the end of the scanned data. Default = No Check Digit.

Interleaved 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

6 - 11

NEC 2 of 5

* On

Off

* No Check Digit

Validate and Transmit

Validate, but Don’t Transmit

< Default All NEC 2 of 5 Settings >

NEC 2 of 5 On/Off

Check Digit

No Check Digit indicates that the scanner reads and transmits bar code data with or without a check digit.

When Check Digit is set to Validate, but Don’t Transmit, the unit only reads NEC 2 of 5 bar codes printed with a check digit, but will not transmit the check digit with the scanned data.

When Check Digit is set to Validate and Transmit, the scanner only reads NEC 2 of 5 bar codes printed with a check digit, and will transmit this digit at the end of the scanned data. Default = No Check Digit.

6 - 12

NEC 2 of 5 Message Length

Minimum Message Length

Maximum Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 2-80. Minimum Default = 4, Maximum Default = 80.

6 - 13

Code 93

* On

Off

Minimum Message Length

Maximum Message Length

< Default All Code 93 Settings >

Code 93 On/Off

Code 93 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 0-80. Minimum Default = 0, Maximum Default = 80.

Code 93 Append

This function allows the scanner to append the data from several Code 93 bar codes together before transmitting them to the host computer. When this function is enabled, the scanner stores those Code 93 bar codes that start with a space (excluding the start and stop symbols), and does not immediately transmit the data. The scanner stores the data in the order in

6 - 14

which the bar codes are read, deleting the first space from each. The

* Off

Code 93 Code Page

scanner transmits the appended data when it reads a Code 93 bar code that starts with a character other than a space. Default = Off.

Code 93 Code Page

10), and scan the value and the Save bar code from the Programming

Chart on the inside the back cover of this manual. The data characters

should then appear properly.

6 - 15

Straight 2 of 5 Industrial (three-bar start/stop)

* Off

Minimum Message Length

Maximum Message Length

Straight 2 of 5 Industrial On/Off

Straight 2 of 5 Industrial Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

6 - 16

Straight 2 of 5 IATA (two-bar start/stop)

* Off

Minimum Message Length

Maximum Message Length

Straight 2 of 5 IATA On/Off

Straight 2 of 5 IATA Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-48. Minimum Default = 4, Maximum Default = 48.

6 - 17

Matrix 2 of 5

* Off

Maximum Message Length

Minimum Message Length

Matrix 2 of 5 On/Off

Matrix 2 of 5 Message Length

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

6 - 18

Code 11

* Off

One Check Digit

* Two Check Digits

Code 11 On/Off

Code 11 Check Digits Required

This option sets whether 1 or 2 check digits are required with Code 11 bar codes. Default = Two Check Digits.

6 - 19

Code 11 Message Length

Minimum Message Length

Maximum Message Length

* On

Off

Scan the bar codes below to change the message length. Refer to

Message Length Description (page 6-2) for additional information. Mini-

mum and Maximum lengths = 1-80. Minimum Default = 4, Maximum Default = 80.

Code 128

Code 128 On/Off

ISBT 128 Concatenation

In 1994 the International Society of Blood Transfusion (ISBT) ratified a standard for communicating critical blood information in a uniform manner. The use of ISBT formats requires a paid license. The ISBT 128 Application Specification describes 1) the critical data elements for labeling blood products, 2) the current recommendation to use Code 128 due to its high degree of security and its space-efficient design, 3) a variation of Code 128

6 - 20

Honeywell 1400G2D-5USB User Manual
