Navigation Manual
2023 CIVIC
Type R
The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd., reserves the right,
NOTICE
3
WARNING
however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.
Accessories Precautions
The GPS antenna is located in the dashboard. Metallic front or side window tinting can seriously degrade or obstruct GPS reception.
Signal noise from devices such as radar detectors, vehicle tracking devices, remote starters, and additional amplifiers can disrupt the navigation system. If you
install any such item, install it away from the navigation display and antenna.
Important Safety Information
Using the navigation system while driving can take your
attention away from the road, causing a crash in which you
could be seriously injured or killed.
Only operate system controls when the conditions permit you
to safely do so.
Avoid focusing on the screen or manually operating the system controls while driving.
Certain on-screen controls are disabled when driving, however most of the voice commands continue to function. Pull to the side of the road if you need to devote
more attention and time to look at the screen or access additional menus.
Route guidance may conflict with street closures, road construction, detours, and out-of-date map data.
The system itself may also have limitations. Verify route information by carefully observing roads, signs, and signals. Always use your own judgment and obey
traffic laws.
System Limitations
2
Upon removing this vehicle’s navigation display, please reuse, recycle, or dispose of as hazardous waste.
Clean the screen with a soft, damp cloth. You may use a mild cleaner intended for use on navigation screens.
P. 102
2 System Setup P. 17
Start-up 18 Voice Control System 19 Personal Information 20 Display Mode Settings 27
Guidance Volume Settings 29 Main Menu 30 Map Options 31 Route Options 38
Guidance Options 43 Tutorial 49 Manage Places 50 Map Update 56
Settings 57 Data Reset 60
Contents
Quick Reference Guide
System Setup
P. 2
P. 17
2 Navigation P. 61
Entering a Destination 62 Calculating the Route 78 Driving to Your Destination 81 Map Operation 85
Changing Your Route 89 Changing Your Destination 92
2 Troubleshooting P. 95
Troubleshooting 96
2 Reference Information P. 101
System Limitations 102 Customer Assistance 104 Legal Information 106
2 Voice Commands P. 111
Voice Commands 112 List of Categories 114
Navigation
Troubleshooting
Reference Information
Voice Commands
Index
P. 61
P. 95
P. 101
P. 111
P. 115
Quick Reference Guide
Quick Reference Guide
Store home address
(P20)
Register
1
home address.
Track route
(P81)
Follow your route in real-time with voice guidance.
Store contacts
(P23)
Store locations to use as the destination.
Enter destination
(P62)
Select your destination using several methods.

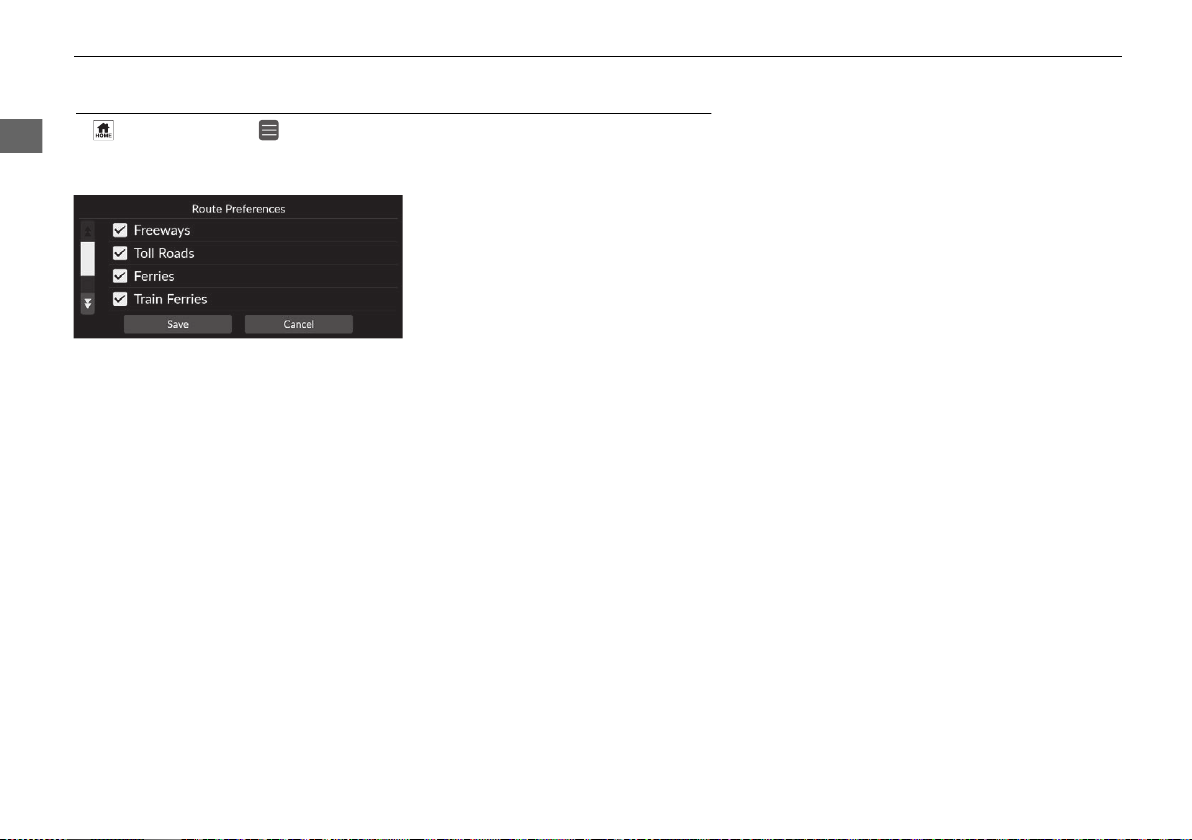

Select route
(P79)
Set route preferences and select one of the available routes.
Avoid certain areas
(P51)
Set streets and areas to detour around.
Add waypoints
(P90)
Add “pit stops” along your route.

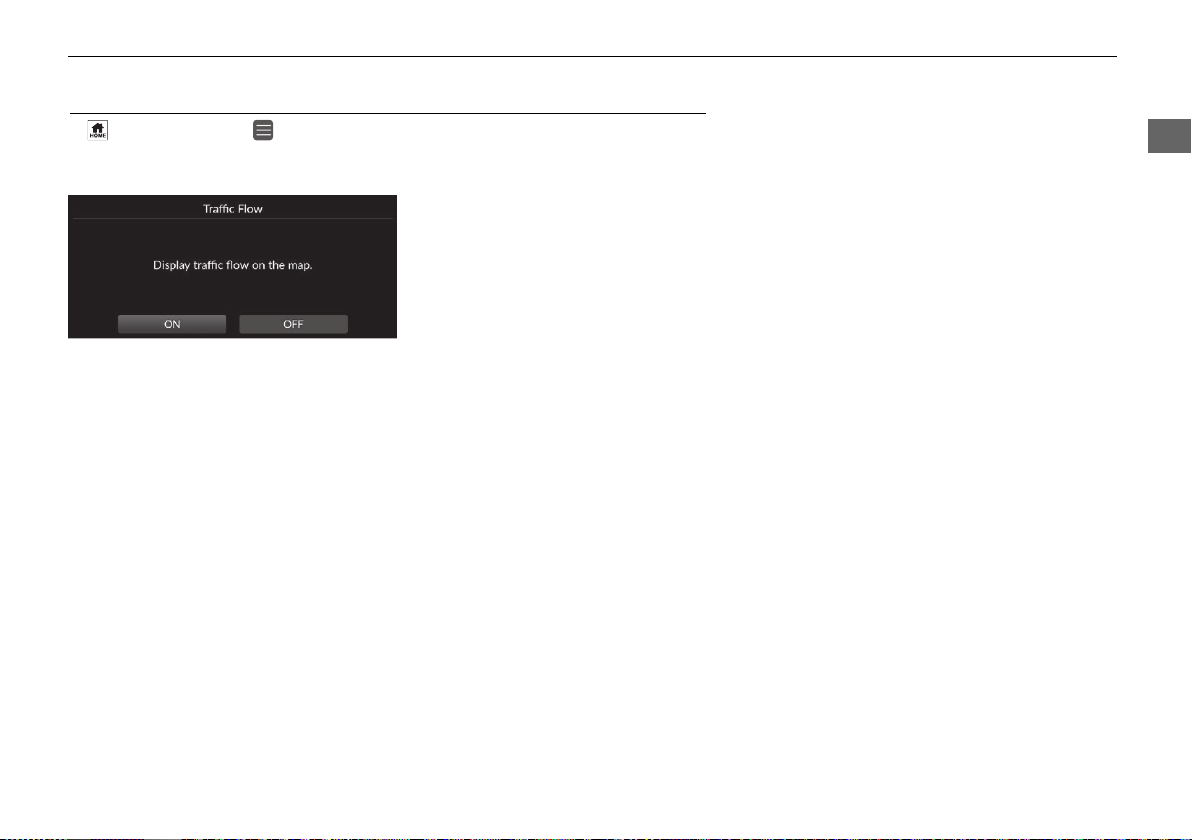

Traffic Information*
(P87)
View and avoid congestion and traffic incidents.
*: Available only in certain areas.
Overview—Functions at a Glance
Navigation
You can select any place/landmark as a destination by using the touchscreen. The navigation system gives you
turn-by-turn driving directions to your destination.
2
Quick Reference Guide
HOME Screen
(Home)
Display the HOME screen.
(Back)
Go back to the previous screen.
VOL (Volume)
Increase or decrease the audio volume.
Navigation
Display the navigation feature that was used the last time.
At start-up, the map screen is displayed.
Display Mode ()
Adjust screen brightness or turn
off the screen.
The system displays various functions from the HOME screen. Press the button at any time to return to the main HOME screen.
3
Quick Reference Guide
Touchscreen Operation
You can operate the system using your finger on the touchscreen.
The touchscreen can be operated if you are wearing thin gloves, but it may be more difficult for the system to respond.
Tap
Touch the screen lightly with your finger to select an option on the
screen.
Long Tap
Touch and hold the screen with your fingertip until you release
your finger from the screen to scroll the map toward your fingertip.
Swipe
Lightly sweep your finger side to side or up and down to scroll a list
or map.
You can change the touchscreen sensitivity setting.
2 Refer to the Owner’s Manual.
Flick
Flick with your finger to scroll the map according to the movement
of your finger.
4
Quick Reference Guide
Zoom In Zoom Out
Zoom In Zoom Out
Twice
Slide
Move your finger slowly across the screen to scroll the map.
Zoom In/Out
Open or close your fingers on the screen in a pinching motion to
zoom in or out of the map.
Alternately, you can touch the screen twice with one finger to
zoom in, or once with two fingers to zoom out.
5
Quick Reference Guide
How to Enter Information
On input search screens, the suggested search terms are
displayed. Select to display a list of possible entries.
You can remove all entered characters when you press and
hold the search bar then select .
You can enter information (e.g., city names, street names, numbers, and symbols) when prompted on the input screen.
Using Voice Commands
When you see in this manual, voice commands are available for
that feature.
The system recognizes certain commands. Available navigation
voice commands (P112)
Press the button, and say the letter, number, or symbol (e.g.,
say “1”).
On list screens:
Say the number of the list item (e.g., say “Three” to select
item 3).
Say “Back” to return to the previous screen.
Say “Cancel” to end the voice command function.
Say “Next” for next page.
Say “Previous” for previous page.
Using the Touchscreen
Select a character or icon on the screen to select it.
Select to remove the last entered character.
Select to display upper/lower case characters.
Select to enter a space character.
Select to display other types of characters.
Select to change the keypad language.
Select to entered character.
6
Quick Reference Guide
W
213th t
S
tt
S
S
Map orientation icon (P85)
Map scale
(P85)
Current location icon
Select to return to the
current location.
Searching specific category
(P62)
Current vehicle position Streets Main menu
(P30)
Traffic information
(P87)
Landmark icons
Traffic icons
Day Mode Night Mode
Map Screen Legend
The color of the map is different depending on the selected Map Theme.
Day or Night Mode
The screen switches to Day or Night mode automatically.
(P34)
7
Quick Reference Guide
During Route Guidance
Next guidance indicator
Select to hear voice guidance.
Next street name
Lane guidance
Destination
Cancel route
Calculated route
Current street name Mute voice guidance
Select again to switch the
voice guidance to on.
Distance to
destination
(waypoint)
Distance of the
actual route.
Arrival time
(waypoint)
Next turn-by-turn instructionsNext turn-by-turn detail
Remaining distance
Next driving maneuver is
ap
proaching.
During route guidance, route information is displayed on the map screen.
You can see the detailed information on the turn information screen.
Map Screen
Optional Information
(P82, 83)
Turn-by-Turn Directions
The next guidance point appears on
the Driver Information Interface.
8
Quick Reference Guide
Navigation—Home Addresses and Going Home
The “Home” feature automatically routes you to your home address from any location simply by selecting Go Home.
You can store one home address. (P20)
The order of the steps may change depending on the map data loaded on your system.
Storing Your Home Address
a Select Navigation.
b Select .
c Select Go Home and then select Yes.
d Select Name and then enter a name.
e Select Address Search and then select
desired search method.
f Enter your home address.
g Select Save when a desired location is
displayed.
h Select Phone No. and then enter a
phone number.
i Select Save.
Going Home
a Select Navigation.
b Select .
c Select Go Home.
Alternatively, you can say
“Navigation” and then “Go Home”
from any screen.
9
Quick Reference Guide
Navigation—Entering a Destination
Enter your destination using one of several methods, then follow route guidance on the map to your destination.
The order of the steps may change depending on the map data loaded on your system.
a Select Navigation.
b Select .
c Enter the keyword or address.
d Select .
e Select an address from the list.
f Select
Go: Route guidance to the destination
begins.
Save: Save the selected location to the
Saved Places.
Routes: Choose one of multiple routes.
: Display your destination map and
save a place.
10
Quick Reference Guide
Navigation—Changing Route or Destination
You can alter your route by adding waypoints to visit, or changing your destination during route guidance.
Adding a Waypoint (“Pit Stop”)
You can add waypoints along your route.
(P90)
a Select Navigation.
b Select .
c Select a search method.
d Select the location to add to the
destination list and select Go.
e Select Waypoint.

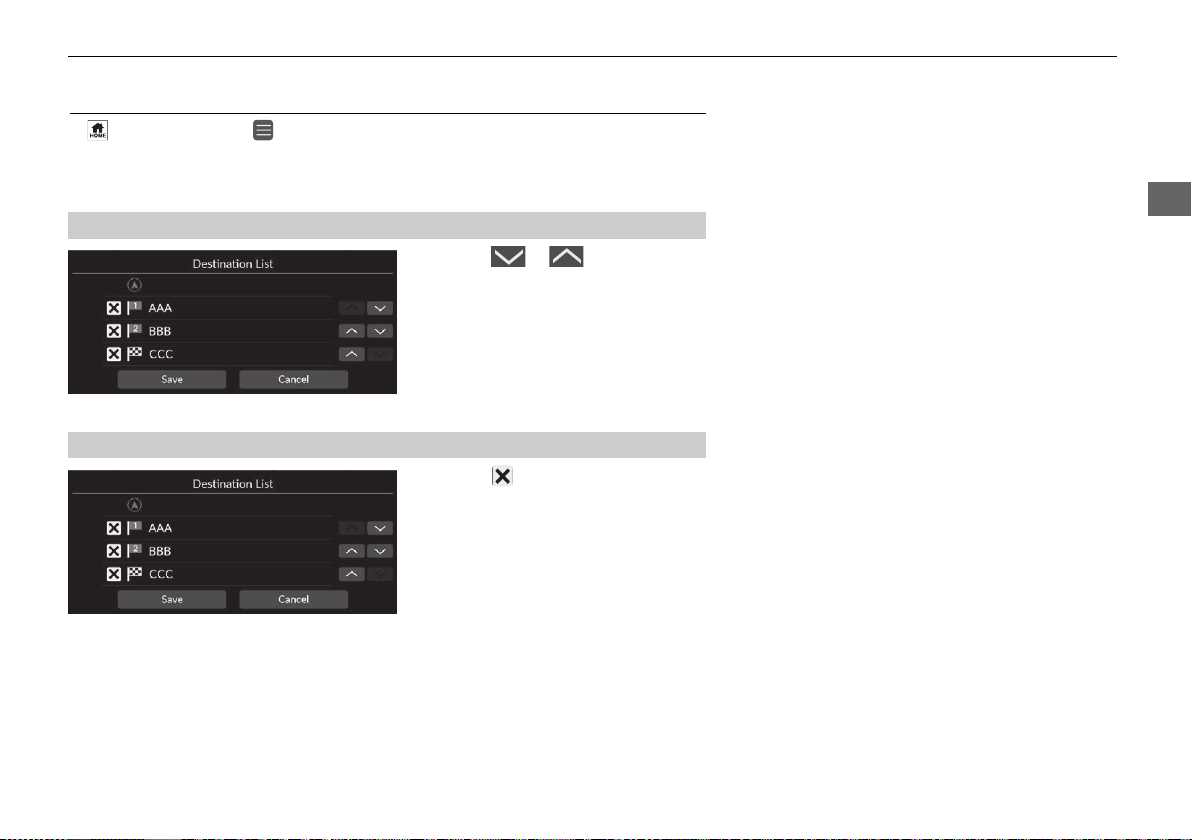

f If necessary, edit the order of the
destinations and select Save.
Changing Your Destination
There are several methods you can use to
specify a new destination during route
guidance.
Selecting an icon on the map (P92)
Select a place/landmark icon or a new
area on the map.
Entering a new destination (P93)
Select and then enter a new
destination.
Canceling Your Route
a Select .
Alternatively, you can say
“Navigation” and then “Stop
route” from any screen.
11
Quick Reference Guide
Voice Control Operation
Voice Portal Screen
a Press and release the button.
The system prompts you to say a voice
command. Press and release the
button again to bypass this prompt.
The system beeps when ready for a
command.
Press the button or say “Cancel”
to cancel.
b Say “Navigation.”
The Voice Command screen is
displayed.
After that, follow the voice prompt
and say a voice command.
The audio system is muted during voice
control mode.
You can use other voice commands on
the Voice Portal screen.
Carefully read the usage note for the
voice control.
Voice Control System (P19)
The system recognizes certain
commands.
Available navigation commands
(P112)
Voice Command Screen
a After saying “Navigation” from
the Voice Portal screen, the below
screen appears.
b Listen for the voice prompt, then say a
voice command.
You do not need to press the
button again in the Voice Command
screen.
Available voice commands are
highlighted on the screen.
12
Quick Reference Guide
Troubleshooting
For more Information
(P95)
Why does the vehicle position icon on the map appear
slightly off my actual position, especially at intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large differences in vehicle position
can indicate a temporary loss of the GPS signal.
Why does the “Arrival time” display sometimes increase
even though I am getting closer to my destination?
The “Arrival time” is based on the speed limit on each
road. Depending on the traffic conditions, the “Arrival
time” may be calculated to be earlier or later.
Why does my clock frequently change the time forward
and backward by one hour?
The clock setting is automatically updated based on your
GPS location. If you are driving near a time zone border,
the automatic update likely is the reason.
How do I turn on the navigation system voice guidance?
●
Adjust the volume using the volume knob during the
voice guidance.
●
Press the (Home) button. Select General Settings >
System > System Volumes.
Turn up volume level of Navigation Guidance if it is
low.
How do I specify a destination when an entered city or
street could not be found?
Try selecting the destination directly from the map.
13
How to Use This Manual
Searching the Table of Contents
(P1)
First, find the general chapter related to
what you are looking for (e.g., entering
a destination from the Saved Places).
Then, go to that chapter to view a more
specific table of contents.
Searching the Index
(P115)
This more detailed table of contents
shows you exactly what information is
listed by section and title.
The Index consists of
main terms and subentries. The sub-entries
help you get to the
desired page depending
on what you are looking
for.
Table of Contents
Chapter Contents
Navigation Screen
Index
Two types of Tables of Contents help
you find your desired information.
Menu items displayed on the
navigation screen (e.g., Saved Places)
can be found individually in the Index.
More Detailed
Contents
* Sample pages and images in this section may differ from the actual ones.
This section explains different methods on how you can easily find information in this manual.
14
*
Select the item on the system
control panel.
Menu Tree
The menu tree helps guide you
through the system’s menu options.
To get to your desired function, follow
the menu tree in order of the steps
shown.
Select the menu option.
After following the menu
tree, step-by-step
instructions explain how to
achieve the desired result.
Select Saved Places.
Saved PlacesNavigation
15
16
This page intentionally left blank.
System Setup
This section describes the start-up procedure and the navigation and setup functions.
Start-up ................................................... 18
Voice Control System ............................. 19
Voice Recognition .................................. 19
Personal Information.............................. 20
Setting Home Location........................... 20
Saved Places........................................... 23
Display Mode Settings ........................... 27
Adjusting Screen Brightness ................... 27
Switching Display Mode......................... 28
Guidance Volume Settings..................... 29
Main Menu .............................................. 30
Map Options ........................................... 31
Traffic Icons ........................................... 32
Traffic Flow............................................ 33
Color Theme .......................................... 34
Points of Interest.....................................34

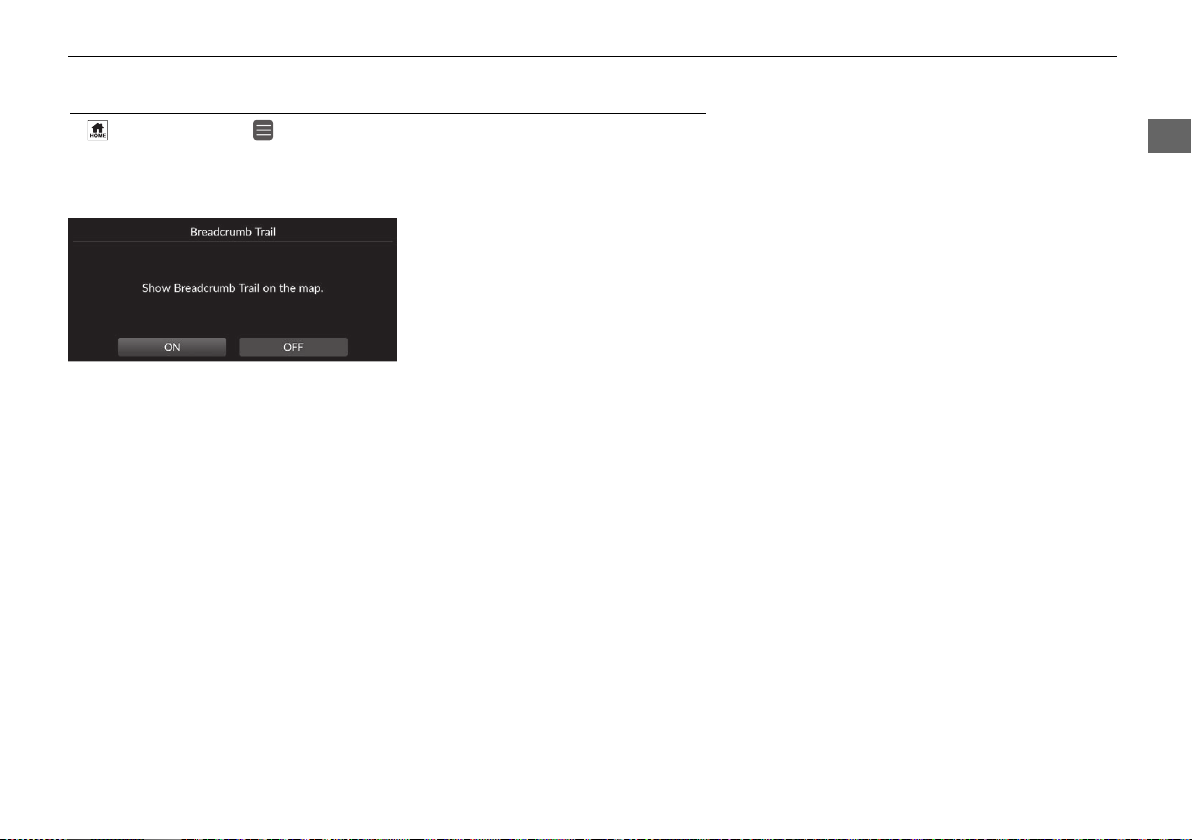

Breadcrumb Trail.....................................35

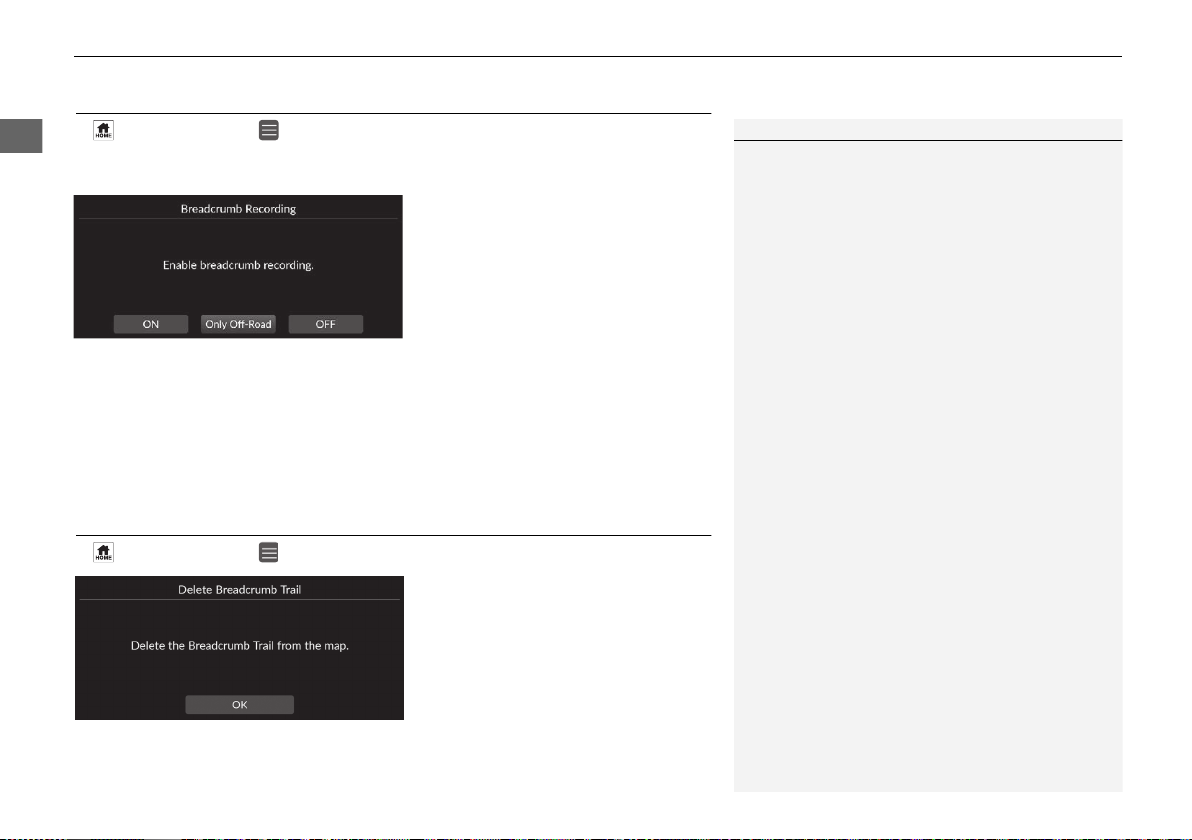

Breadcrumb Recording............................36
Delete Breadcrumb Trail ..........................36
Landmark Settings ..................................37

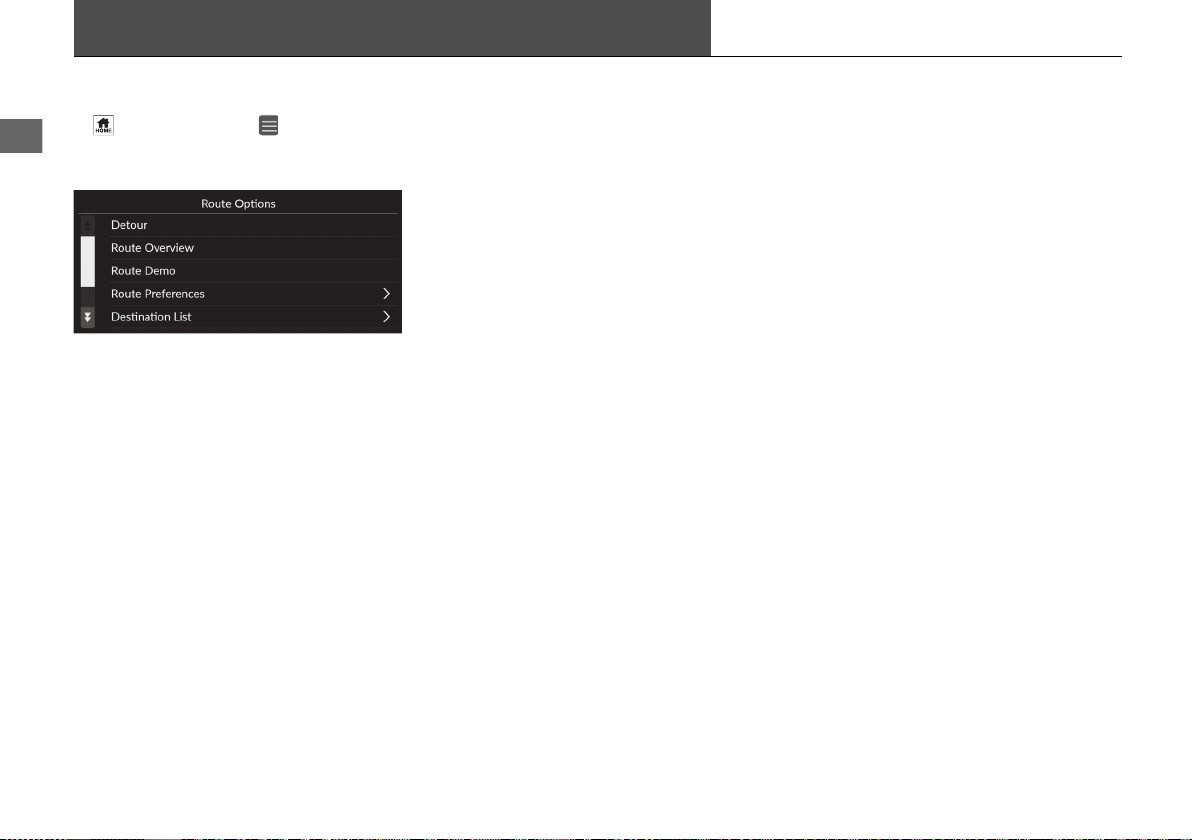

Route Options..........................................38
Route Demo ...........................................39
Route Preferences ...................................40
Traffic Rerouting .....................................41
Route Calculation Method ......................42
Guidance Options ....................................43
Estimated Arrival.....................................44
Predictive Routing ...................................45
Delete Learning History ...........................46
Auto Zoom .............................................46

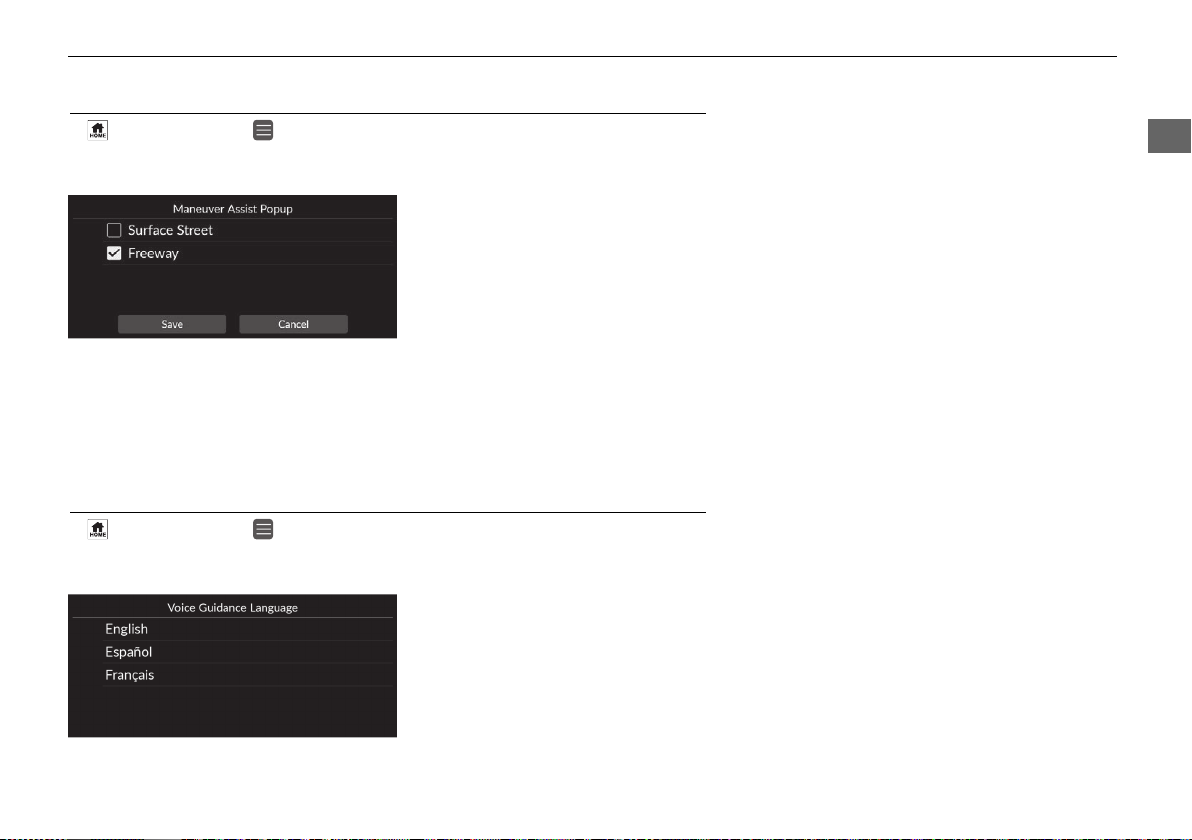

Maneuver Assist Popup .......................... 47
Voice Guidance Language...................... 47
Maneuver List ........................................ 48
Tutorial .................................................... 49
Manage Places ........................................ 50
Avoidance Areas .................................... 51
Editing Recent Destinations .................... 55
Editing Downloaded Places .................... 55
Map Update ............................................ 56
Settings.................................................... 57
Adjust Vehicle Position ........................... 58
Online Services....................................... 59
About Software License ......................... 59
Data Reset ............................................... 60
Reset Factory Default Settings ................ 60
17
System Setup
Start-up
1 Start-up
Avoid focusing on the screen and drive safely,
following the actual traffic restrictions.
When you use the navigation system, the system may
close other apps.
When you select Navigation, the system displays the
navigation feature that was used the last time. At
start-up, the map screen is displayed.
Navigation tutorial is displayed at initial start.
You can display the tutorial from the main menu at
any time.
2 Tutorial P. 49
The navigation system starts automatically when you set the power mode to
ACCESSORY or ON. At start-up, the following confirmation screen is displayed.
1. Select OK.
u The Bluetooth connection
message is displayed if you
disconnected a Bluetooth
device on the HOME screen.
u If you do not select OK, the
system will automatically select
OK after a certain period of
time.
u The system will automatically
start up the feature that was
used the last time.
2. Select Navigation.
u The map screen or navigation
tutorial screen is displayed. If
the navigation tutorial screen is
displayed, select Exit.
u When you want to display the
navigation top screen, press the
button.
Limitations for Manual Operation
■
Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Voice commands are still operable while the vehicle is in motion.
18
System Setup
Voice Control System
1 Voice Control System
When you press the button, the system prompts
you to say a voice command. Press and release the
button again to bypass this prompt and give a
command.
1 Voice Recognition
The voice control system can only be used from the
driver’s seat because the microphone unit removes
noises from the passenger’s side.
Your vehicle has a voice control system that allows hands-free operation of the
navigation system functions.
The voice control system uses the button on the steering wheel and a
microphone near the map lights on the ceiling.
For details of the button and microphone position, see the Owner’s Manual.
Voice Recognition
To achieve optimum voice recognition when using the navigation voice control
system:
• Make sure the correct screen is displayed for the voice command that you are
using. The system recognizes certain commands.
Available navigation commands:
2 Navigation Commands P. 112
• Close the windows.
• Adjust the dashboard and side vents so air does not blow onto the microphone
on the ceiling.
• Speak in a clear, natural speaking voice without pausing between words.
• Reduce any background noise if possible. The system may misinterpret your
command if more than one person is speaking at the same time.
19
System Setup
Personal Information
1 Personal Information
The home location can be overwritten. Select
Manage Places and then select Home.
2 Manage Places P. 50
Edit Home:
Name: Enter the preferred name.
Phone No.: Enter the preferred phone number.
Setting Home Location
H u Navigation u
Use the personal information menu to set your home location.
1. Select Go Home and then select
Yes.
2. Select Address then select an
option.
u Select Select from Map to set
home location.
u If selecting other than Select
from Map, proceed to steps 3
and 4.
3. Select the home location.
4. Select Save and then select Save.
20
System Setup
The following options are available:
• Select from Map: Sets your current location as your home location.
• Keyword Search: Sets the home location by entering a keyword or address.
• Category Search: Sets the home location by selecting a category.
• Address Search: Sets the home location by entering the address.
• Search Along Route: Sets the home location by along route.
• Saved Places: Sets the home location by selecting a place stored in the Saved
• Phone Number Search: Sets the home location by phone number.
• Coordinates Search: Sets the home location by entering coordinates.
• Recent: Sets the home location from a recently found location.
• Downloaded Places: Sets the home location by downloaded places.
uuPersonal Information u Setting Home Location
2 Storing Your Home Address P. 9
Places list.
Continued
21
uuPersonal Information u Setting Home Location
System Setup
Editing Home Location
■
H u Navigation uuManage Places u Home
The following options are available:
• Name: Enters a new name for the location.
• Address: Enters a new location.
• Phone No.: Enters a new phone number.
1. Select an item to edit.
2. Select Save.
22
System Setup
Saved Places
You can save locations so you can quickly find them and create routes to them.
■
H u Navigation u
uuPersonal InformationuSaved Places
Saving a Saved Location
1. Select a search method.
u Find a location that you want to
save.
2 Entering a Destination P. 62
2. Select Save.
3. Select Save.
u If necessary, enter a name and
phone number.
u If desired, select a POI icon.
Continued
23
uuPersonal Information u Saved Places
System Setup
Saving a Saved Location Manually
■
H u Navigation
1. Select a destination from the map.
2 Map Input P. 77
2. Select Save.
3. Select Save.
u If necessary, enter a name and
phone number.
u If desired, select a POI icon.
24
System Setup
Editing a Saved Location
1 Editing a Saved Location
You can add a new saved location by selecting .
■
H u Navigation uuManage Places u Saved Places
The following options are available:
• Name: Enters a new name for the location.
• Address: Enters a new location.
• Phone No.: Enters a phone number.
• Icon: Select a preferred icon.
uuPersonal InformationuSaved Places
1. Select a saved location you want
to edit.
2. Select an option.
3. Select Save to edit.
Continued
25
uuPersonal Information u Saved Places
System Setup
Deleting a Saved Location
■
H u Navigation uuManage Places u Saved Places
Deleting All Saved Locations
■
H u Navigation uuManage Places u Saved Places
1. Select .
u The selected location
2. Select Save.
Select and then select Yes.
disappears from the list.
26
System Setup
Display Mode Settings
1 Adjusting Screen Brightness
You can also adjust the display brightness by sliding
or swiping on the Brightness bar.
You can change the touchscreen sensitivity setting.
2 Refer to the Owner’s Manual.
You can change the color of the map.
2 Color Theme P. 34
Adjusting Screen Brightness
Set the screen brightness. Select Display Mode ( ) to change the screen
brightness.
Select Display Mode on the bottom
of the screen.
u The Brightness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.
u Select Display OFF to turn off the
screen. To turn on the screen,
press the or button.
27
uuDisplay Mode Settingsu Switching Display Mode
System Setup
Switching Display Mode
Illumination control Operation
Display Mode ()Adjusts screen brightness when the user wants to change
Sunlight sensor (see
the Owner’s Manual
for location)
Dash illumination
adjustment dial (see
the Owner’s Manual
for location)
Headlights (Auto/On/
Off)
the brightness of the display temporarily.
Remember: Display Mode ( ) overrides all other
display brightness adjustments either set automatically by
the sunlight sensor or manually from the System settings
screen.
If the sunlight sensor detects daylight and the headlights
are turned on, the system automatically overrides the
Night display and displays the Day display mode.
Remember: If desired, use the Display Mode () to
adjust the brightness of the display.
When the headlights are turned on, and you wish to have
the Day display mode, adjust the illumination to the full
brightness (beeps).
Remember: Adjust the dash brightness back to midrange
to allow auto switching by sensing the headlights are on
or off.
When turned on, the display changes to Night display
mode.
The previous three controls listed above can “cancel” this
function.
Remember: Use the Display Mode ( ) to adjust the
brightness of the display.
28
Loading...
