Honda EB11000 Owner's Manual

The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

Exhaust contains poisonous carbon monoxide gas that can build up to dangerous levels in closed areas. Breathing carbon monoxide can cause unconsciousness or death.

Never run the generator in a closed, or even partly closed area where people may be present.

The generator is a potential source of electrical shock if misused. Do not expose the generator to moisture, rain or snow. Do not let the generator get wet, and do not operate it with wet hands.

Keep this owner’s manual handy so that you can refer to it at any time. This owner’s manual is considered a permanent part of the generator and should remain with the generator if resold.

The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to discontinue or change specifications or design at any time without notice and without incurring any obligation whatever. No part of this publication may be reproduced without written permission.

Congratulations on your selection of a Honda generator. We are certain you will be pleased with your purchase of one of the finest generators on the market.

We want to help you get the best results from your new generator and to operate it safely. This manual contains the information on how to do that; please read it carefully.

As you read this manual, you will find inf ormation preceded by a

symbol. That information is intended to help you avoid

damage to your generator, other property, or the environment. We suggest you read the warranty policy to fully understand its

coverage and your responsibilities of ownership. The warranty policy is a separate document that should have been given to you by your dealer.

When your generator needs scheduled maintenance, keep in mind that your Honda servicing dealer is specially trained in servicing Honda generators. Your authorized Honda servicing dealer is dedicated to your satisfaction and will be pleased to answer your questions and concerns.

Best Wishes, Honda Motor Co., Ltd.

A FEW WORDS ABOUT SAFETY

Your safety and the safety of others are very important. And using this generator safely is an important responsibility.

To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.

Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining a generator. You must use your own good judgement.

You will find important safety information in a variety of forms, including:

on the generator.

Safety Labels

Safety Messages

of three signal words, DANGER, WARNING, or CAUTION.

These signal words mean:

−

preceded by a safety alert symbol and one

−

You WILL KILLED SERIOUSLY HURT

you don’t follow instructions.

You CAN KILLED SERIOUSLY HURT

you don’t follow instructions.

You CAN HURT

instructions.

such as

Safety Headings

Safety Section

Instructions

This entire book is filled with important safety information please read it carefully.

−

such as

−

how to use this generator correctly and safely.

GEN E RATOR SAF E T Y.

be or if

be if you don’t follow

IMPORTANT SAFETY INFORMATION

−

..............................................................................GENERATOR SAFETY . 5

.......................................................................Safety Label Locations . 5

............................................................Important Safety Information . 7

..............................................................COMPONENT IDENTIFICATION . 9

..............................................................................................CONTROLS . 12

....................................................................................Engine Switch . 12

.....................................................................................Recoil Starter . 12

..........................................................................................Fuel Valve . 13

.......................................................................................Choke Knob . 13

...................................................................................Circuit Breaker . 14

................................................................................Circuit Protector . 15

...........................................Ground Fault Circuit Interrupter (GFCI) . 16

.........................................................................................Hour Meter . 20

.........................................................................Auto Throttle Switch . 20

...............................................................................Ground Terminal . 21

................................................................................Oil Alert System .21

...................................................................................GENERATOR USE . 22

...............................Connections to a Building’s Electrical System . 22

.................................................................................Ground System . 22

.......................................................................Special Requirements . 22

.................................................................................AC Applications . 23

.....................................................................................AC Operation . 24

...................................................................AC Receptacle Selection . 25

........................................................................Auto Throttle System . 26

....................................................................High Altitude Operation . 27

.......................................................................PRE-OPERATION CHECK .28

..........................................................................................Engine Oil . 28

............................................................................................Refueling . 29

.......................................................................Fuel Recomendations . 30

................................................................................................Battery . 31

........................................................................STARTING THE ENGINE . 32

........................................................................STOPPING THE ENGINE . 35

......................................................................................MAINTENANCE . 36

......................................................The Importance of Maintenance . 36

..........................................................................Maintenance Safety . 37

............................................Emission Control System Information . 38

.....................................................................Maintenance Schedule . 40

............................................................................Engine Oil Change . 41

................................................................................Oil Filter Change . 42

...........................................................................Air Cleaner Service . 43

............................................................................Spark Plug Service . 45

............................................................Spark Arrester Maintenance . 47

...........................................................Fuel Sediment Cup Cleaning . 48

...........................................................................................Fuel Filter . 49

.............................................................................Fuse Replacement . 50

................................................................................................Battery . 51

..................................................................TRANSPORTING/STORAGE . 56

.............................................................................TROUBLESHOOTING . 60

.................................................................................WIRING DIAGRAM . 62

....................................................................................SPECIFICATIONS . 63

.................................................................CONSUMER INFORMATION . 64

...........................................................................Honda Publications . 64

..............................................................Dealer Locator Information .65

.........................................................Customer Service Information . 65

......................................................................................................INDEX . 66

GENERATOR SAFETY

SAFETY LABEL LOCATIONS

These labels warn you of potential hazards that can cause serious injury. Read them carefully.

If a label comes off or becomes hard to read, contact your Honda generator dealer for a replacement.

IMPORTANT SAFETY INFORMATION

Honda generators are designed to give safe and dependable service if operated according to instructions. Read and understand this owner’s manual before operating your generator. You can help prevent accidents by being familiar with your generator’s controls and by observing safe operating procedures.

Operator Responsibility

Know how to stop the generator quickly in case of emergency. Understand the use of all generator controls, output receptacles,

and connections. Be sure that anyone who operates the generator receives proper

instruction. Do not let children operate the generator without parental supervision.

Carbon Monoxide Hazards

Exhaust contains poisonous carbon monoxide, a colorless and odorless gas. Breathing carbon monoxide can cause loss of consciousness and may lead to death.

If you run the generator in a confined or even partly enclosed area, the air you breathe could contain dangerous amount of exhaust gas.

Never run your generator inside a garage, house, or near open windows or doors.

Electric Shock Hazards

The generator produces enough electric power to cause a serious shock or electrocution if misused.

Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution. Keep the generator dry.

If the generator is stored outdoors, unprotected from the weather, check the ground-fault circuit Interrupter (GFCI), and all other electrical components on the control panel, before each use. Moisture or ice can cause a malfunction or short circuit in electrical components that could result in electrocution.

Do not connect to a building’s electrical system unless an isolation switch has been installed by a qualified electrician.

Fire and Burn Hazards

The exhaust system gets hot enough to ignite some materials.

−

Keep the generator at least 3 feet (1 meter) away from buildings and other equipment during operation.

−

Do not enclose the generator in any structure.

−

Keep flammable materials away from the generator.

The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Be careful not to touch the muffler while it is hot. Let the engine cool before storing the generator indoors.

Gasoline is extremely flammable and is explosive under certain conditions. Do not smoke or allow flames or sparks where the generator is refueled or where gasoline is stored. Refuel in a wellventilated area with the engine stopped.

Fuel vapors are extremely flammable and may ignite after the engine has started. Make sure that any spilled fuel has been wiped up before starting the generator.

FRONT COVER

CONTROL PANEL

BATTERY

COMPONENT IDENTIFICATION

TOP COVER

AIR CLEANER

OIL FILLER CAP

FUSE

FRAME SERIAL NUMBER

＊

FUEL VALVE

RECOIL STARTER GRIP

OIL FILTER

OIL DRAIN BOLT

LIFTING HOOK FUEL GAUGE

MUFFLER

SPARK PLUG CAP

OIL LEVEL DIPSTICK

ENGINE SERIAL NUMBER

＊

FUEL TANK CAP

GROUND TERMINALFUEL FILTER

Record the engine and frame serial numbers and date of purchase for your future reference. Refer to these serial numbers when ordering parts and when making technical or warranty inquiries (see

page ). Frame serial number: Engine serial number: Date of purchase:

CONTROL PANEL

AUTO THROTTLE SWITCH

AC RECEPTACLES 120V 20A

AC RECEPTACLES 120V 30A

AC RECEPTACLE 120V/240V 50A (43.8A Max.)

ENGINE SWITCH

CHOKE KNOB

HOUR METER

CIRCUIT PROTECTORS 20A

CIRCUIT PROTECTOR 30A (120V)

CIRCUIT BREAKER

AC RECEPTACLE 120V/240V 30A

CIRCUIT PROTECTORS 30A (120V/240V)

GFCI RESET BUTTON

GFCI TEST BUTTON

CONTROLS

ENGINE SWITCH

To start and stop the engine.

Key position: OFF: ON: START:

Return the key to the ON position once the engine has started. Do not use the starter for more than 5 seconds at a time. If the engine fails to start, release the switch and wait 10 seconds before operating the starter again.

To stop the engine. Key can be removed/inserted. To run the engine after starting. To start the engine by operating the starter motor.

OONN

OOFFFF

SSTTAARRTT

ENGINE SWITCH

RECOIL STARTER

To start the engine, pull the starter grip lightly until resistance is felt, and then pull briskly.

Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter.

STARTER GRIP

DDiirreeccttiioonn ttoo ppuullll

FUEL VALVE

The fuel valve is located between the fuel tank and carburetor. When the valve lever is in the ON position, fuel is allowed to flow from the fuel tank to the carburetor. Be sure to return the fuel valve lever to the OFF position after stopping the engine.

OONN

OFF

FUEL VALVE LEVER

CHOKE KNOB

The choke knob opens and closes the choke valve in the carburetor. Pulling the choke knob to the CLOSED position enriches the fuel

mixture for starting a cold engine. Pushing the choke knob to the OPEN position provides the correct fuel

mixture for operation after starting, and for restarting a warm engine.

CHOKE KNOB

OOPPEENN

CCLLOOSSEEDD

CIRCUIT BREAKER

The circuit breaker will automatically switch OFF if there is a short circuit or a significant overload of the generator at the receptacle, or if the ground-fault circuit interrupter (GFCI) detects a ground-fault current.

Check the following if the circuit breaker switches OFF automatically:

When the GFCI RESET button is extended (page 18):

Unplug all appliances from the receptacle and check the appliance

−

for any defects as described in TROUBLESHOOTING (page 60). After making repairs, push the GFCI RESET button then turn the

circuit breaker ON.

When the GFCI RESET button is not extended:

Check that the appliance is working properly and does not exceed

−

the rated load capacity of the circuit before switching the circuit breaker ON again.

The AC circuit breaker may be used to switch the generator AC power ON or OFF.

GFCI RESET BUTTON

CIRCUIT BREAKER

OFF

CIRCUIT PROTECTOR

The circuit protectors will automatically switch OFF if there is a short circuit or a significant overload of the generator at the 120V 20A, 120V 30A locking plug, or 120/240V 30A locking plug receptacle. If a circuit protector switches OFF automatically, check that the appliance is working properly and does not exceed the rated load capacity of the circuit before resetting the circuit protector to the ON position.

CIRCUIT PROTECTOR for Receptacle

120V 30A

CIRCUIT PROTECTOR for Receptacle

120V 20A

120V/240V 30A

CIRCUIT PROTECTOR for Receptacle

CIRCUIT PROTECTOR

OFF

PUSH

GROUND FAULT CIRCUIT INTERRUPTER (GFCI)

Using the generator in rain or snow or near water can lead to death from electric shock. Keep the generator dry.

All receptacles on the generator are protected by a ground-fault circuit interrupter (GFCI) for protection against the shock hazard of groundfault current. The GFCI has TEST and RESET buttons and is connected to the circuit breaker.

An example of ground-fault current is the current that would flow through a person who is using an appliance with faulty insulation and, at the same time, is in contact with an electrical ground such as a plumbing fixture, wet floor, or earth.

The ground-fault circuit interrupter will not protect against short circuits or overloads. The circuit breaker in the control panel that supplies power to the circuit provides that protection (refer to circuit breaker on page ).14

GFCI TEST BUTTON

GFCI RESET BUTTON

CIRCUIT BREAKER

Observe the following precautions to ensure proper GFCI operation and to reduce shock hazards:

Use grounded 3-conductor extension cords, tools, and appliances, or double-insulated tools and appliances.

Inspect cords and plugs, and replace if damaged. Do not use cord lengths greater than 164 feet (50 meters), and do

not use multiple tools and appliances with built-in noise filters. Such use may activate the GFCI and trip the circuit breaker.

Inspection:

Always check GFCI operation before using the generator.

You risk electric shock if you operate this generator with a faulty GFCI (ground-fault circuit interrupter).

Test GFCI before use.

If GFCI fails test, do not use your generator. See your Honda dealer.

Unplug all tools and appliances from the generator.

Start the engine.

Turn the circuit breaker to the ON position.

Turn the Auto Throttle switch to

AUTO THROTTLE SWITCH

the OFF position.

Press the GFCI TEST button. The RESET button should extend, and the circuit breaker should switch to the OFF position.

OOFFFF

If the GFCI and circuit breaker do not function as described, take the generator to an authorized Honda generator dealer for repair.

GFCI TEST BUTTON

GFCI RESET BUTTON

CIRCUIT BREAKER

OOFFFF

Press the GFCI RESET button. The RESET button should stay in, flush with its base plate.

With the RESET button in and engine running, turn the circuit breaker to the ON position. The circuit breaker should remain in the ON position. The circuit breaker will not remain in the ON position if the RESET button is extended.

If the GFCI and circuit breaker do not function as described, take the generator to an authorized Honda generator dealer for repair.

GFCI RESET BUTTON

CIRCUIT BREAKER

During generator use, if the GFCI RESET button extends and the circuit breaker trips, this usually indicates a faulty power tool, appliance, or load.

If that occurs, perform test steps 1 through 6 to verify that the GFCI and circuit breaker are in proper working order. If the GFCI and circuit breaker test correctly, then you will know that the fault is in the power tool, appliance, or cord. Repair or replace the faulty power tool, appliance, or cord before further use.

HOUR METER

The hour meter indicates the hours the generator has been operated. Use it to determine when schedu led maintenanc e should be performed (see page ).

HOUR METER

AUTO THROTTLE

SWITCH

The Auto Throttle system automatically reduces engine speed when all loads are turned off or disconnected. When appliances are turned on or reconnected, the engine returns to the rated speed.

ON:

Recommended to minimize fuel consumption and further reduce noise levels when no load is applied to the generator.

OFF:

The Auto Throttle system does not operate. Recommended to minimize warm-up time when the generator is started. Leave the switch in the OFF position when using appliances that require only momentary power, that have a power demand of less than 1 ampere, or that have large startup power demands (see page ).26

AUTO THROTTLE SWITCH

OFF

GROUND TERMINAL

The generator ground terminal is connected to the frame of the generator, the metal non-current-carrying parts of the generator, and the ground terminals of each receptacle.

Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

GROUND TERMINAL

OIL ALERT

The Oil Alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase can fall below a safe limit, the Oil Alert system will automatically stop the engine (the engine switch will remain in the ON position). If the engine stops and will not restart, check the engine oil level (see page ) before troubleshooting in other areas.28

SYSTEM

GENERATOR USE

Connections to a Building’s Electrical System

You should contact a servicing Honda generator dealer for important information before using the EB11000 with a transfer switch.

Connections for standby power to a building’s electrical system must be made by a qualified electrician. The connection must isolate the generator power from utility power, and must comply with all applicable laws and electrical codes. A transfer switch, which isolates generator power from utility power, is available through authorized Honda generator dealers.

Improper connections to a building’s electrical system can allow electrical current from the generator to backfeed into the utility lines. Such backfeed may electrocute utility company workers or others who contact the lines during a power outage, and the generator may explode, burn, or cause fires when utility power is restored. Consult the utility company or a qualified electrician.

GROUND SYSTEM

Honda portable generators have a system ground that connects generator frame components to the ground terminals in the AC output receptacles. The system ground is connected to the AC neutral wire.

SPECIAL REQUIREMENTS

There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction.

In some areas, generators are required to be registered with local utility companies.

If the generator is used at a construction site, there may be additional regulations that must be observed.

AC APPLICATIONS

Before connecting an appliance or power cord to the generator:

Make sure that it is in good working order. Faulty appliances or power cords can create a potential for electrical shock.

If an appliance begins to operate abnormally, becomes sluggish, or stops suddenly, turn it off immediately. Disconnect the appliance, and determine whether the problem is the appliance or the rated load capacity of the generator has been exceeded.

Make sure that the electrical rating of the tool or appliance does not exceed that of the generator. Never exceed the maximum power rating of the generator. Power levels between rated and maximum may be used for no more than 30 minutes.

Substantial overloading may switch off the AC circuit breaker. Exceeding the time limit for maximum power operation or slightly overloading the generator may not switch the AC circuit breaker OFF, but will shorten the service life of the generator.

Limit operation requiring maximum power to 30 minutes. Maximum output is:

10.5 kVA

For continuous operation, do not exceed the rated power. Rated output is:

The total power requirements (VA) of all appliances connected must be considered. Appliance and power tool manufacturers usually list rating information near the model number or serial number.

9.5 kVA

AC Operation

Check GFCI operation before each use (see page 18 ).

Start the engine (see page ).

Make sure that the GFCI RESET button is pushed in (flush with its

base plate).

Switch ON the AC circuit breaker.

Plug in the appliance.

Most motorized appliances require more than their rated wattage for startup.

AC CIRCUIT BREAKERGFCI RESET BUTTON

Do not exceed the current limit specified for any one receptacle. If an overloaded circuit causes the AC circuit breaker or circuit protector to switch OFF, reduce the electricalload on the circuit,wait a few minutes, and then reset the circuit breaker.

AC RECEPTACLE SELECTION

The generator has separate main power producing circuits. These two circuits supply equal power to different receptacles shown.

Main power circuit

Receptacles powered

Power distribution

by each main circuit

Main Circuit I

Main Circuit II

1, 4 and 6

2, 3, 5 and 7

＋＋

1 4 6=39.6A rated.

＋＋＋

2357=39.6Arated.

The table shows the specifications when the 120/240V locking plug receptacle is used for 120V.

120V 20A (20A Max. for pair) 120V 20A (20A Max. for pair) 120V 30A

＆

120V/240V 30A

＆

120V/240V 50A (43.8A Max.)

Example: Receptacle 2 has a 17A load connected to it. Receptacle 3 has a 28A

load connected to it. Both receptacles are powered by main power circuit II. The equation tells us that the total power draw on circuit II is 45A. This is a substantial overload of this circuit. To eliminate the excess power draw on circuit II, the load from receptacle 2 should be switched to receptacle 1. Now circuit I is powering the 17A load (less than 39.6A) and circuit II is powering a 28A load (less than 39.6A).

Auto Throttle System

With the switch in the ON position, engine speed is automatically reduced when all loads are turned off or disconnected. When appliances are turned on or reconnected, the engine returns to rated speed. In the OFF position, the Auto Throttle system does not operate.

The Auto Throttle system will not respond to electrical loads of less than 1 ampere. Turn the Auto Throttle to the OFF position to operate loads of less than 1 amp.

Appliances with large start-up power demands may not allow the engine to reach normal operating rpm when they are connected to the generator. Push the Auto Throttle switch to the OFF position and connect the appliance to the generator. If the engine still will not reach normal operating speed, check that the appliance does not exceed the rated load capacity of the generator.

To avoid extended warm-up periods, keep the switch OFF until the engine reaches operating temperature.

The Auto Throttle system is not effective for use with appliances that require only momentary power. If the tool or appliance will be turned on and off quickly, the auto-throttle switch should be in the OFF position.

AUTO-THROTTLE SWITCH

OONN

OFF

High Altitude Operation

At high altitude, the standard carburetor air/fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions.

High altitude performance can be improved by specific modifications to the carburetor. If you always operate your generator at altitudes above 5,000 feet (1,500 meters), have your servicing dealer perform this carburetor modification. This engine, when operated at high altitude with the carburetor modifications for high altitude use, will meet each emission standard throughout its useful life.

Even with carburetor modification, engine horsepower will decrease about 3.5% for each 1,000-foot (300-meter) increase in altitude. The effect of altitude on horsepower will be greater than this if no carburetor modification is made.

When the carburetor has been modified for high altitude operation, the air/fuel mixture will be too lean for low altitude use. Operation at altitudes below 5,000 feet (1,500 meters) with a modified carburetor may cause the engine to overheat and result in serious engine damage. For use at low altitudes, have your servicing dealer return the carburetor to original factory specifications.

PRE-OPERATION CHECK

Before beginning your pre-operation checks, be sure the generator is on a level surface and the engine switch is in the OFF position.

Engine Oil

Check the oil level BEFORE EACH USE with the generator on a level surface and the engine stopped.

Use 4-stroke motor oil that meets or exceeds the requirements for API service category SJ or later (or equivalent). Always check the API SERVICE label on the oil container to be sure it includes the letters SJ or later (or equivalent).

SAE 10W-30 is recommended for general, all-temperature use. Other viscosities shown in the chart may be used when the average temperature in your area is within the indicated range.

Position generator on a flat, level surface.

Remove the dipstick and wipe it clean.

AMBIENT TEMPERATURE

Fully insert the dipstick, and then remove it to check the oil level.

If the level is near or below the lower limit mark on the dipstick, remove the oil filler cap, and fill with the recommended oil to the upper limit mark.

Reinstall the dipstick and filler cap.

OIL LEVEL DIPSTICK

UPPER LIMIT

LOWER LIMIT

OIL FILLER CAP

Refueling

With the engine stopped, check the fuel level gauge. Refill the fuel tank if the fuel level is low.

Gasoline is highly flammable and explosive.

You can be burned or seriously injured when handling fuel.

Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe up spills immediately.

Refuel in a well-ventilated area with the engine stopped. If the engine has been running, allow it to cool first. Refuel carefully to avoid spilling fuel. Do not fill above the upper limit.

Never refuel the engine inside a building where gasoline fumes may reach flames or sparks. Keep gasoline away from appliance pilot lights, barbecues, electric appliances, power tools, etc.

Spilled fuel is not only a fire hazard, it causes environmental damage. Wipe up spills immediately.

Fuel can damage paint and plastic. Be careful not to spill fuel when filling your fuel tank. Damage caused by spilled fuel is not covered under warranty.

EMPTYFULL

FUEL LEVEL GAUGE

FUEL TANK CAP

UPPER LIMIT

After refueling, tighten the fuel tank cap securely.

Fuel Recommendations

This engine is certified to operate on regular unleaded gasoline with a pump octane rating of 86 or higher.

Never use stale or contaminated gasoline or an oil/gasoline mixture. Avoid getting dirt or water in the fuel tank.

You may use regular unleaded gasoline containing no more than 10% ethanol (E10) or 5% methanol by volume. In addition, methanol must contain cosolvents and corrosion inhibitors.

Use of fuels with content of ethanol or methanol greater than shown above may cause starting and/or performance problems. It may also damage metal, rubber, and plastic parts of the fuel system.

Engine damage or performance problems that result from using a fuel with percentages of ethanol or methanol greater than shown above are not covered under warranty.

Battery

The electrolyte level must be kept between the UPPER and LOWER level marks.

UPPER LEVEL

LOWER LEVEL

If the electrolyte level is near the LOWER level, remove the battery filler caps and carefully add distilled water to the upper level line (see

page ).

The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous.

Getting electrolyte in your eyes or on your skin can cause serious burns.

Wear protective clothing and eye protection when working near the battery.

EMERGENCY PROCEDURES:

Eyes Flush with water from a cup or other container for at least 15

−

minutes (water under pressure can damage the eye). Immediately call a physician, local poison control, or 911.

Skin Remove contaminated clothing. Flush the skin with large

−

quantities of water. Call a physician immediately. Swallowing Drink water or milk. Call your local poison control center

−

or a physician immediately.

STARTING THE ENGINE

Starting the Engine

For your safety, do not operate the generator in an enclosed area such as a garage. Your generator’s exhaust contains poisonous carbon monoxide gas that can collect rapidly in an enclosed area and cause illness or death.

Exhaust contains poisonous carbon monoxide gas that can build up to dangerous levels in closed areas. Breathing carbon monoxide can cause unconsciousness or death.

Never run the generator in a closed, or even partly closed area where people may be present.

To prevent a possible fire, keep the generator at least 3 feet (1 meter) away from building walls and other equipment during operation. Do not place flammable objects close to the engine.

Operating this generator less than 3 feet (1 meter) from a building or other obstruction can cause overheating and damage the generator. For proper cooling, allow at least 3 feet (1 meter) of empty space above and around the generator.

Refer to generator.

Electric starting:

Perform the

1. Make sure that the AC circuit breaker is in the OFF position. The

2. generator may be hard to start if a load is connected.

Turn the fuel valve lever to the ON position.

AC Operation

(see page ) for connecting loads to the

PRE-OPERATION CHECK

(see page ).

Select the choke knob position.

A cold engine:

−

Pull the choke knob to the CLOSED position. A warm engine:

−

Leave the choke knob in the OPEN position. If the engine does not start, pull the choke knob to the CLOSED position.

Make sure the Auto Throttle switch is in the OFF position, or more time will be required for warm up.

Turn the engine switch to the START position and hold it there for 5 seconds or until the engine starts.

Operating the starter motor for more than 5 seconds can damage the motor. If the engine fails to start, release the switch and wait 10 seconds before operating the starter again. If the speed of the starter motor drops after a period of time, it is an indication that the battery should be recharged.

When the engine starts, allow the engine switch to return to the ON position.

If the choke knob was moved to the CLOSED position to start the engine, push the choke knob to the OPEN position as the engine warms up.

If you wish to use the Auto Throttle system, turn the Auto Throttle switch to the ON position after the engine has warmed up for 2 or 3 minutes.

Manual starting

Perform the

1. Make sure that the AC circuit breaker is in the OFF position. The

2. generator may be hard to start if a load is connected.

Turn the fuel valve lever to the ON position.

3. Pull the choke knob to the CLOSED position.

4. (with a cold and warm engine)

Make sure the Auto Throttle switch is in the OFF position, or more time will be required for warm up.

Turn the engine switch to the ON position.

Pull the recoil starter grip slowly until the resistance is felt, and then pull briskly.

PRE-OPERATION CHECK

(see page ).

Do not allow the starter grip to snap back against the engine. Return it gently to prevent damage to the starter or housing.

Push the choke knob to the OPEN position as the engine warms up.

If you wish to use the Auto Throttle system, turn the Auto Throttle switch to the ON position after the engine has warmed up for 2 or 3 minutes.

STOPPING THE ENGINE

Stopping the Engine

In an emergency:

To stop the engine in an emergency, turn the engine switch to the OFF position.

In normal use:

Turn off the main switch of all the appliances connected to the generator.

Turn the AC circuit breaker to the OFF position.

2. Turn the engine switch to the OFF position.

3. Turn the fuel valve lever to the OFF position.

MAINTENANCE

The Importance of Maintenance

Good maintenance is essential for safe, economical, and troublefree operation. It will also help reduce air pollution.

Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously hurt or killed.

Always follow the inspection and maintenance recommendations and schedules in this owner’s manual.

To help you properly care for your generator, the following pages include a maintenance schedule, routine inspection procedures, and simple maintenance procedures using basic hand tools. Other service tasks that are more difficult or require special tools are best handled by professionals and are normally performed by a Honda technician or other qualified mechanic.

The maintenance schedule applies to normal operating conditions. If you operate your generator under severe conditions, such as sustained high-load or high-temperature operation, or use it in unusually wet or dusty conditions, consult your servicing dealer for recommendations applicable to your individual needs and use.

Remember that your servicing dealer knows your generator best and is fully equipped to maintain and repair it.

To ensure the best quality and reliability, use only new, Honda Genuine parts or their equivalents for repair or replacement.

Maintenance, replacement, or repair of the emission control devices and systems may be performed by any engine repair establishment or individual, using parts that are ‘‘certified’’ to EPA standards.

Maintenance Safety

Some of the most important safety precautions follow. However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

Failure to properly follow maintenance instructions and precautions can cause you to be seriously hurt or killed.

Always follow the procedures and precautions in the owner’s manual.

Safety Precautions

Make sure the engine is off before you begin any maintenance or repairs. This will eliminate several potential hazards:

−

Carbon monoxide poisoning from engine exhaust.

Operate outside away from open windows or doors.

−

Burns from hot parts.

Let the engine and exhaust system cool before touching.

−

Injury from moving parts.

Do not run the engine unless instructed to do so.

Read the instructions before you begin, and make sure you have the tools and skills required.

To reduce the possibility of fire or explosion, be careful when working around gasoline. Use only a non-flammable solvent, not gasoline, to clean parts. Keep cigarettes, sparks, and flames away from all fuel-related parts.

Emission Control System Information

Source of Emissions

The combustion process produces carbon monoxide, oxides of nitrogen, and hydrocarbons. Control of hydrocarbons and oxides of nitrogen are very important because, under certain conditions, they react to form photochemical smog when subjected to sunlight. Carbon monoxide does not react in the same way, but it is toxic.

Honda utilizes appropriate air/fuel ratios and other emissions control systems to reduce the emissions of carbon monoxide, oxides of nitrogen, and hydrocarbons.

Additionally, Honda fuel systems utilize components and control technologies to reduce evaporative emissions.

The U.S. Clean Air Act

EPA regulations require all manufacturers to furnish written instructions describing the operation and maintenance of emission control systems.

The following instructions and procedures must be followed in order to keep the emissions from your Honda engine within the emission standards.

Tampering and Altering

Tampering with or altering the emission control system may increase emissions beyond the legal limit. Among those acts that constitute tampering are:

Removal or alteration of any part of the intake, fuel, or exhaust systems.

Altering or defeating the governor linkage or speed-adjusting mechanism to cause the engine to operate outside its design parameters.

Problems That May Affect Emissions

If you are aware of any of the following symptoms, have your engine inspected and repaired by your servicing dealer.

Hard starting or stalling after starting. Rough idle. Misfiring or backfiring under load. Afterburning (backfiring). Black exhaust smoke or high fuel consumption.

Replacement Parts

The emission control systems on your Honda engine were designed, built, and certified to conform with applicable emission regulations. We recommend the use of Honda Genuine parts whenever you have maintenance done. These original-design replacement parts are manufactured to the same standards as the original parts, so you can be confident of their performance. The use of replacement parts that are not of the original design and quality may impair the effectiveness of your emission control system.

A manufacturer of an aftermarket part assumes the responsibility that the part will no t adversely affect emission performance. The manufacturer or rebuilder of the part must certify that use of the part will not result in a failure of the engine to comply with emission regulations.

Maintenance

Follow the schedule is based on the assumption that your machine will be used for its designed purpose. Sustained high-load or high-temperature operation, or use in unusually wet or dusty conditions, will require more frequent service.

Maintenance Schedule

on page . Remember that this

Maintenance Schedule

REGULAR SERVICE PERIOD (3) ITEM Perform at every indicated month or operating hour interval, whichever comes first. Engine oil

Engine oil filter

Air filter

Battery electrolyte Spark plug

Spark arrester GFCI operation Idle speed Valve clearance Combustion chamber

Fuel tank Fuel filter

Fuel tube

Check level Change Replace

Check Clean Replace Check level

Check-adjust Replace Clean Check Check-adjust Check-adjust Clean

Clean Check Replace Check

First

Each

use

month

20 Hrs.

Every 2 years (Replace if necessary) (2)

Every

3 months

50 Hrs.

(1)

Every year (2)

Every

6 months

100 Hrs.

Every

year

300 Hrs.

Every

200 Hrs.

()

＊

(2) (2)

After

every

500 Hrs.

(2)

Replace the paper air filter only.

()

＊

Service more frequently when used in dusty areas.

(1)

These items should be serviced by your Honda servicing dealer, unless you have

(2)

the proper tools and are mechanically proficient. Refer to the Honda shop manual for service procedures. For commercial use, log hours of operation to determine proper maintenance

(3)

intervals.

Failure to follow this maintenance schedule could result in non-warrantable failures.

Engine Oil Change

Drain the oil while the engine is warm to assure rapid and complete draining.

Open the top cover to access the oil filler cap.

Remove the oil filler cap and oil drain bolt, and drain the oil into a suitable container.

Tighten the oil drain bolt securely.

Refill to the upper limit mark on the dipstick with the recommended oil (see page 28 ). Tighten the oil filler cap securely.

OIL FILLER CAP OIL DRAIN BOLT

Wash your hands with soap and water after handling used oil. Please dispose of used motor oil in a manner that is compatible with

the environment. We suggest you take it in a sealed container to your local service station or recycling center for reclamation. Do not throw it in the trash, pour it on the ground, or pour it down a drain.

Oil Filter Change

Drain the engine oil, and retighten the drain bolt securely (see page 41 ).

Remove the front cover to acsess the oil filter.

Remove the oil filter, and drain the oil into a suitable container. Please dispose of the used motor oil and filter in a manner that is compatible with the environment.

Clean the filter mounting base, and coat the O-ring of the new oil filter with clean engine oil.

Use only a Honda Genuine oil filter or a filter of equivalent quality specified for your model. Using the wrong Honda filter or a nonHonda filter which is not of equivalent quality may cause engine damage.

Screw on the new oil filter by hand until the O-ring contacts the filter mounting base, and then use an oil filter socket tool to tighten the filter an additional 7/8 turn.

TORQUE:

Refill the crankcase with the specified amount of the recommended

16 lbf·ft (22 N·m , 2.2 kgf·m)

oil (see page 28 & 41 ). Reinstall the oil filler cap/dipstick.

Start the engine and check for oil filter leaks.

Stop the engine, and check the oil level as described on page 29. If necessary, add oil to the upper limit mark on the dipstick.

O-RING

OIL FILTER SOCKET TOOL

Air Cleaner Service

A dirty air filter will restrict air flow to the carburetor. To prevent carburetor malfunction, service the air cleaner regularly. Service more frequently when operating the generator in extremely dusty areas.

Never run the generator without the air filter. Rapid engine wear will result.

Open the top cover to access the air cleaner.

Release four latch tabs from the air cleaner cover, and remove the cover.

Remove the foam air filter from the cover.

Remove the paper air filter from the air cleaner case.

AIR CLEANER COVER

PAPER AIR FILTER

FOAM AIR FILTER

LATCH TABS

AIR CLEANER CASE

Inspect both air filters, and replace them if they are damaged. Always replace the paper air filter at the scheduled interval (see page 40 ).

Clean the air filters if they are to be reused. Paper air filter: Tap the paper air filter several times on a hard

surface to remove d irt, or blow compressed air not exceeding 30 psi (207 kPa, 2.1 kgf/cm ) through the paper air filter from the

］

［

air cleaner case side. Never try to brush off dirt: brushing will force dirt into the fibers. Replace the paper air filter if it is excessively dirty.

Foam air filter : Clean in warm soapy water, rinse, and allow to dry thoroughly. Or clean in nonflammable solvent, not gasoline, and allow to dry. Do not put oil to the foam air filter.

Wipe dirt from the inside of the air cleaner case and cover, using a moist rag. Be careful to prevent dirt from entering the air chamber that leads to the carburetor.

Place the foam air filter to the air cleaner cover, then reinstall the paper air filter and cover to the air cleaner case. Hook four latch tabs securely.

Spark Plug Service

In order to service the spark plug, you will need a spark plug wrench (commercially available).

Recommended spark plugs:

ZGR5A (NGK) J16CR-U (DENSO)

To ensure proper engine operation, the spark plugs must be properly gapped and free of deposits.

An incorrect spark plug can cause engine damage.

If the engine has been running, let it to cool before servicing the spark plug.

Remove the spark plug caps.

Clean any dirt from around the spark plug bases.

Use a spark plug wrench to remove the spark plugs.

SPARK PLUG WRENCH

Visually inspect the spark plugs. Discard them if the insulator is cracked or chipped.

Measure the plug gap with a wire-

0.028 0.031 in

−

(0.7 0.8 mm)

−

type feeler gauge. Correct as necessary by carefully bending the side electrode.

0.028 0.031 in (0.7 0.8 mm)

−−

SIDE ELECTRODE

Check that the spark plug washers are in good condition, and thread

6. the spark plugs in by hand to prevent cross-threading.

After the spark plugs are seated, tighten with a spark plug wrench to

7. compress the washer.

If installing a new spark plug, tighten 1/2 turn after the spark plug seats to compress the washer. If reinstalling a used spark plug, tighten 1/8 1/4 turn after the spark plug seats to compress the washer.

−

A loose spark plug can overheat and damage the engine. Overtightening the spark plug can damage the threads in the cylinder head.

Reinstall the spark plug caps on the spark plugs securely.

Spark Arrester Maintenance

If the generator has been running, the muffler will be very hot. Allow it to cool before proceeding.

The spark arrester must be serviced every 100 hours to maintain its efficiency.

Remove the special screw, and remove the spark arrester from the

1. muffler.

SPARK ARRESTER

SPECIAL SCREW

Use a brush to remove carbon deposits from the spark arrester

2. screen.

SPARK ARRESTER SCREEN

Inspect the screen for breaks or tears and replace it if necessary.

3. Install the spark arrester in the reverse order of removal.

Fuel Sediment Cup Cleaning

The sediment cup prevents dirt or water that may be in the fuel tank from entering the carburetor. If the engine has not been run for a long time, the sediment cup should be cleaned.

Gasoline is highly flammable and explosive.

You can be burned or seriously injured when handling fuel.

Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe up spills immediately.

Turn the engine switch to the OFF position.

Turn the fuel valve lever to the OFF position. Remove the sediment cup by turning it counterclockwise.

3. Clean the sediment cup and O-ring in nonflammable or high flash

4. point solvent.

Reinstall the O-ring, and sediment cup.

5. Turn the fuel valve ON and check for leaks.

FUEL VALVE LEVER

TIGHTEN

OOFFFF

O-RING

LOOSEN

SEDIMENT CUP

Fuel Filter

Check the fuel filter for water accumulation or sediment.1.

FUEL FILTER

If the fuel filter is found with excessive water accumulation or

2. sediment, take the generator to your servicing dealer.

Fuse Replacement

Turn the engine switch OFF and remove the key before checking or replacing fuses to prevent accidental short-circuiting.

Remove the fuse holder cover and replace the fuse. Use only fuses with rating that specified.

MAIN FUSE: SUB FUSE:

10A

If frequent fuse failure occurs, determine the cause and correct the problem before attempting to operate the generator further.

Never use a fuse with a different rating from that specified. Serious damage to the electrical system or fire may result.

FUSE HOLDER COVER

5A FUSE (SUB FUSE)

10A FUSE (MAIN FUSE)

BLOWN FUSE

Battery

The battery contains sulfuric acid (electrolyte) which is highly corrosive and poisonous.

Getting electrolyte in your eyes or on your skin can cause serious burns.

Wear protective clothing and eye protection when working near the battery.

Emergency Procedures:

Eyes Flush with water from a cup or other container for at least 15

−

minutes (water under pressure can damage the eye). Immediately call a physician, local poison control, or 911.

Skin Remove contaminated clothing. Flush the skin with large

−

quantities of water. Call a physician immediately. Swallowing Drink water or milk. Call your local poison control center

or a physician immediately.

WARNING:

lead and lead compounds.

−

Battery posts, terminals, and related accessories contain

Wash hands after handling.

Removal

Remove the front cover to access the battery.

FRONT COVER

Remove the negative ( ) cable from the battery negative ( ) terminal; then remove the positive ( ) cable from the battery positive ( ) terminal.

＋

−− ＋

NEGATIVE ( ) CABLE POSITIVE ( ) CABLE

BATTERY SET PLATE

Remove the battery set plate.

Remove the battery from the battery tray.

−＋

Installation

Install the battery tray in the generator, and the battery on the tray.

Make sure the battery is on the edge of the battery tray near the fuse holder. Install the battery set plate.

Install the positive ( ) cable to the battery positive ( ) terminal,

＋＋

make sure to cover the terminal with the terminal cover. Then install the negative ( ) cable to the battery negative ( ) terminal.

−−

NEGATIVE ( ) CABLE POSITIVE ( ) CABLE

BATTERY SET PLATE

BATTERY TRAY FUSE HOLDER

Install the front cover. Be sure to install the cover in the direction

−＋

TERMINAL COVER

shown below.

FRONT COVER

Longer

Shorter

Refilling Battery Fluid

If the generator is operated with insufficient battery electrolyte, sulfation and battery plate damage will occur.

If rapid loss of electrolyte is experienced, or if your battery seems to be weak, causing slow starting or other electrical problems, see your authorized Honda generator dealer.

Remove the front cover and the battery (see page 52 ).

1. Check the electrolyte level in each battery cell.

2. Remove the battery filler caps and carefully add distilled water to

3. the upper level line. Never overfill the battery.

Install the battery filler caps.

4. Install the battery and the front cover (see page 53 ).

BATTERY

BATTERY FILLER CAPS

UPPER LEVEL

LOWER LEVEL

Charging

The generator’s engine has an approximate 3-amp charging system to charge the battery while the engine is running. If the generator is only used periodically, the battery must be charged monthly to maintain the battery service life.

A lead acid battery self discharges at a rate of 0.5 1.0% per day. This means that the battery, if the generator is not operated in a month, can discharge as much as 30% in the same period. This could cause the engine not to crank or shorten the service life of the battery. To charge the battery, follow the procedures below.

The battery is rated at 24AH (ampere-hours)/5 HR. 10% of the amperehour rating should be used as the charging current. A battery charger should be used that can be adjusted to deliver 2.4 amps.

The battery gives off explosive gasses; keep sparks, flames and cigarettes away from the battery while charging. Provide adequate ventilation when charging.

Remove the front cover and the battery (see page 52 ).

Remove the battery cell caps.

Connect the battery changer following the manufacturer’s instructions.

Charge the battery 3 4 hours.

After the battery is charged, inspect the electrolyte level in each of the cells. Add distilled water as necessary (see page 54 ).

−

Install the battery cell caps.

Clean the outside of the battery and the battery tray with a solution of baking soda and water.

Install the battery and the front cover (see page 53 ).

TRANSPORTING/STORAGE

Transporting

If the generator has been used, allow it cool for at least 15 minutes before loading the generator on the transport vehicle. A hot engine and exhaust system can burn you and can ignite some material. When transporting the generator, turn the engine switch and the fuel valve OFF, and keep the generator level to reduce the possibility of fuel leakage. Take care not to drop or strike the generator when transporting. Do not place heavy objects on the generator.

Storage

Before storing the unit for an extended period:

1. Be sure the storage area is free of excessive humidity and dust.

2. Service according to the table below:

STORAGE TIME

Less than 1 month 1 to 2 months

2 months to 1 year

1 year or more

Use gasoline stabilizerthat are formulated to extend storage life. Contact your authorized Honda generator dealer for stabilizer recommendations.

RECOMMENDED SERVICE PROCEDURE TO PREVENT HARD STARTING

No preparation required Fill with fresh gasoline and add gasoline stabilizer *. Fill with fresh gasoline and add gasoline stabilizer *. Drain the carburetor float bowl. (page 59 ). Drain the fuel sediment cup. (page 48 ). Fill with fresh gasoline and add gasoline stabilizer *. Drain the carburetor float bowl. (page 59 ). Drain the fuel sediment cup. (page 48 ). Remove the spark plugs. Pour a tablespoon (5 10 cc) of clean engine oil into each

−

cylinder. Using the electric starter, crank the engine a few revolutions to distribute the oil in the cylinders. Reinstall the spark plugs. Change the engine oil. (page 41 ). After removal from storage, drain the stored gasoline into a suitable container, and fill with fresh gasoline before starting.

Storage Procedure

Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

Stop the engine and keep heat, sparks, and flame away. Handle fuel only outdoors. Wipe up spills immediately.

Drain the fuel. a.

Remove the fuel tank cap, and empty the fuel tank into an approved gasoline container using a commercially available hand siphon. Reinstall the fuel tank cap.

Turn the fuel valve to the OFF position, and remove the fuel sediment cup and clean it. Then reinstall the fuel sediment cup securely (see page ).

Pull out the carburetor drain tube end under the fan cover of the engine, and place it in a suitable container.

Loosen the carburetor drain screw.

Drain the gasoline from the carburetor into the container.

Tighten the carburetor drain screw securely.

CARBURETOR DRAIN SCREW

CARBURETOR DRAIN TUBE

Change the engine oil (see page 43 ).

Remove the two spark plugs and pour about a tablespoon of clean engine oil into the cylinders. Crank the engine several revolutions to distribute the oil, and then reinstall the spark plugs.

Remove the battery and store it in a cool, dry place. Recharge it

4. once a month.

Cover the generator to keep out dust.

TROUBLESHOOTING

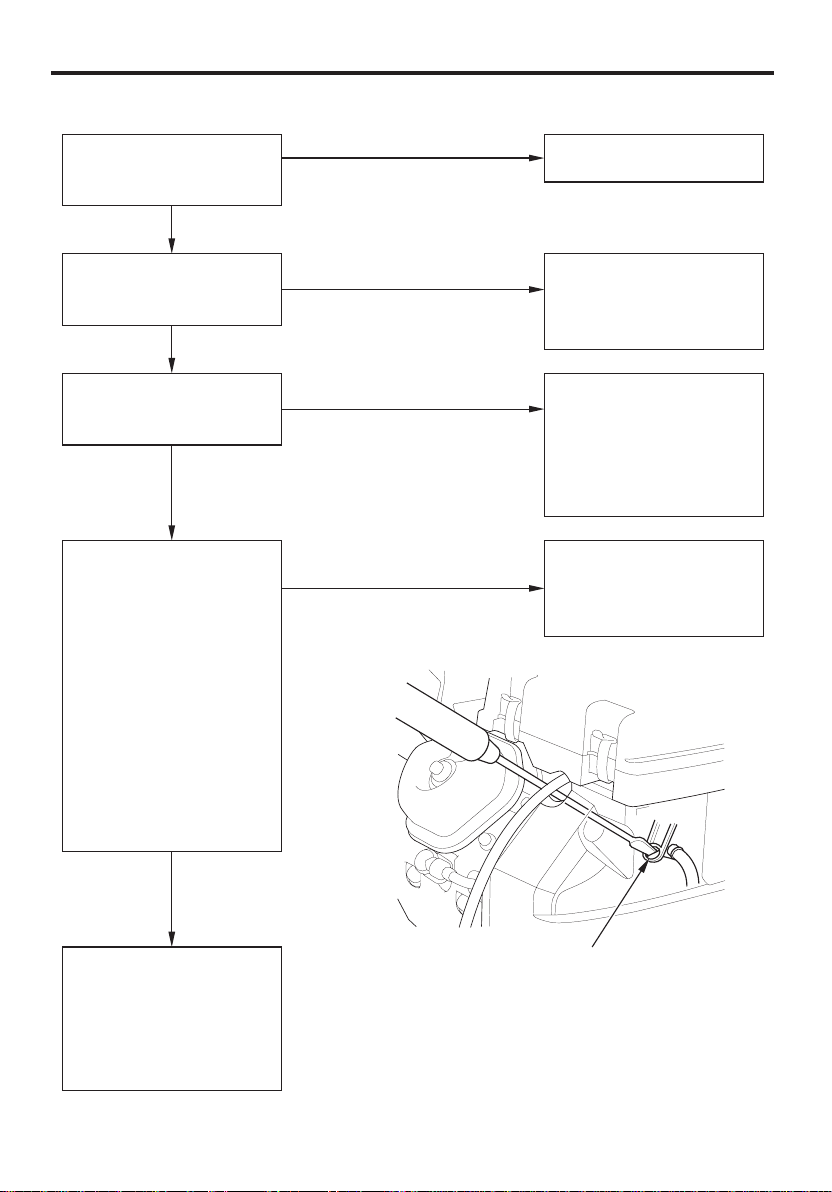

When the engine will not start:

Is there fuel in the tank?

YES

Is there enough oil in the engine?

YES

Is the spark plug in good condition?

YES

Is the fuel reaching the carburetor? To check:

Turn OFF the engine switch and loosen the drain screw.

Fuel should flow from the drain when the engine switch is turned ON.

Refill the fuel tank.

Add the recommended oil (see page 28 ).

Adjust the gap and dry the spark plug. Replace it if necessary (see page 45 ).

Clean the fuel sediment cup and fuel lines.

YES

If the engine still does not start, take the generator to an authorized Honda generator dealer.

DRAIN SCREW

No electricity at the AC receptacles:

Unplug all appliances and equipment, and inspect the GFCI operation. (refer to page 18) Take the generator to an au-

The GFCI RESET button is not extended.

Is the AC circuit breaker ON?

YES

Is the AC circuit protector ON?

YES

Check the electrical appliance or equipment for any defects.

The GFCI RESET button is extended again.

thorized Honda generator dealer.

Turn the AC circuit breaker ON.

Reset the circuit protector.

NO DEFECTS

Take the generator to an authorized Honda generator dealer.

DEFECTS

Replace the electrical appliance or equipment. Take the electrical appliance or equipment to an electrical shop for repair.

WIRING DIAGRAM

Dimensions

Model (Type) Length Width Height Dry weight

Engine

Model Engine Type Displacement

Bore Stroke

〔× 〕

Engine Speed Cooling System Ignition System Engine Oil Refill Capacities

Fuel Tank Capacity Spark Plug

SPECIFICATIONS

EB11000K1

37.4 in (950 mm)

24.2 in (615 mm)

24.4 in (620 mm) 434 lbs (197 kg)

GX620K1

4-Stroke,O.H.V. 2 cylinder

37.5 cu-in (614 cm

××

3.03 2.60 in (77 66 mm) 3,600 rpm Forced air Transistorized magneto approximately

1.16 US qt (1.10 without oil filter replacement approximately

1.48 US qt (1.40 with oil filter replacement

6.9 US gal (26 ZGR5A (NGK) J16CR-U (DENSO)

)

Generator

Model Type

Rated Voltage Rated Frequency

AC output Rated Ampere

Rated Output Maximum Output

Tune-up

ITEM SPECIFICATION MAINTENANCE

Spark plug gap Valve clearance

Other specifications No other adjustments needed.

※

The AC output when ambient temperature is 68°F (20°C).

EB11000K1 2-pole, rotating field type 120 V/240 V 60 Hz

39.6 A 2/39.6 A

※ ※

−−

0.028 0.031 in (0.7 0.8 mm)

IN: 0.15 0.02 mm (cold) EX: 0.20 0.02 mm (cold)

9.5 kVA

10.5 kVA

Refer to page: 45 See your authorized Honda dealer

Specifications are subject to change without notice.

CONSUMER INFORMATION

Honda Publications

Shop Manual

This manual covers complete maintenance and overhaul procedures. It is intended to be used by a skilled technician. Available through your Honda dealer or through Helm Inc. at 1 (888) 292-5395 or visit www.hondapowerequipment.com

Parts Catalog

This manual provides complete, illustrated parts lists. Available through your Honda dealer.

Accessories Catalog

Your authorized Honda power equipment dealer offers a wide selection of accessories (optional equipment) to make your generator even more useful. Visit www.hondapowerequipment.com and click on Generators and Welders to see the entire catalog of accessories.

Dealer Locator Information

To find an authorized Honda Servicing Dealer anywhere in the United States:

Visit our website:

www.hondapowerequipment.com

Customer Service Information

Servicing dealership personnel are trained professionals. They should be able to answer most questions you may have. If you encounter a problem that your dealer does not solve to your satisfaction, please discuss it with the dealership’s management. The Service Manager or General Manager can help. Almost all problems are solved in this way.

If you are dissatisfied with the decision made by the dealership’s management, contact the Honda Power Equipment Customer Relations Office. You can write to:

American Honda Motor Co., Inc. Power Equipment Division Customer Relations Office 4900 Marconi Drive

Alpharetta, Georgia 30005-8847 Or telephone: (770) 497-6400 8:30 am to 7:00 pm ET When you write or call, please give us this information:

Model and serial number (see page ) Name of dealer who sold the generator to you Name and address of dealer who services your generator Date of purchase Your name, address, and telephone number A detailed description of the problem

INDEX

..............................................................COMPONENT IDENTIFICATION . 9

................................................................................................CONTENTS .3
