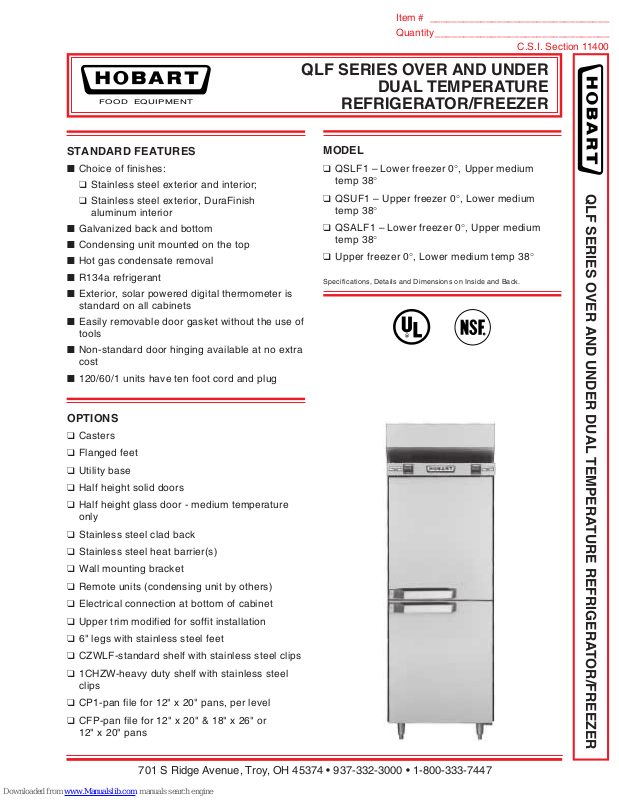

FOOD EQUIPMENT
Item # ________________________________
Quantity _______________________________
C.S.I. Section 11400
QLF SERIES OVER AND UNDER
DUAL TEMPERATURE
REFRIGERATOR/FREEZER
STANDARD FEATURES
■ Choice of finishes:
❑ Stainless steel exterior and interior;
❑ Stainless steel exterior, DuraFinish
aluminum interior
■ Galvanized back and bottom
■ Condensing unit mounted on the top
■ Hot gas condensate removal
■ R134a refrigerant
■ Exterior, solar powered digital thermometer is
standard on all cabinets
■ Easily removable door gasket without the use of
tools
■ Non-standard door hinging available at no extra
cost
■ 120/60/1 units have ten foot cord and plug
OPTIONS
❑ Casters
MODEL
❑ QSLF1 – Lower freezer 0°, Upper medium
temp 38°
❑ QSUF1 – Upper freezer 0°, Lower medium
temp 38°
❑ QSALF1 – Lower freezer 0°, Upper medium
temp 38°
❑ Upper freezer 0°, Lower medium temp 38°
Specifications, Details and Dimensions on Inside and Back.
R
QLF SERIES OVER AND UNDER DUAL TEMPERATURE REFRIGERATOR/FREEZER
❑ Flanged feet
❑ Utility base
❑ Half height solid doors
❑ Half height glass door - medium temperature
only
❑ Stainless steel clad back
❑ Stainless steel heat barrier(s)
❑ Wall mounting bracket
❑ Remote units (condensing unit by others)
❑ Electrical connection at bottom of cabinet
❑ Upper trim modified for soffit installation
❑ 6" legs with stainless steel feet
❑ CZWLF-standard shelf with stainless steel clips
❑ 1CHZW-heavy duty shelf with stainless steel
clips
❑ CP1-pan file for 12" x 20" pans, per level
❑ CFP-pan file for 12" x 20" & 18" x 26" or
12" x 20" pans
701 S Ridge Avenue, Troy, OH 45374 • 937-332-3000 • 1-800-333-7447
Page 2
QLF SERIES OVER AND UNDER
DUAL TEMPERATURE
REFRIGERATOR/FREEZER
SELLING FEATURES
FOOD EQUIPMENT
DOWN DUCT AIR DISTRIBUTION SYSTEM:
Ensures consistent cabinet temperatures.
EASILY REMOVABLE GASKETS: Solid door
gaskets are easily removed without tools for cleaning or replacement, eliminating the expense of a
service call.
FIELD REHINGEABLE DOOR: Maximum flexibility
for layout changes.
CHOICE OF TWO FINISHES: Allows customer to
choose the best finish for their application. Units are
available in: stainless steel exterior and interior;
stainless steel exterior, DuraFinish aluminum interior
with stainless steel bottom.
WARRANTY: The QLF series cabinet warranty is for
two years. It includes parts, labor, and travel during
normal working hours in the Continental United
States.
REFRIGERATION SYSTEM: Unitized and located
on top of the cabinet consisting of:
Motor-Compressor, high starting torque, hermetic
rated as follows:
Condenser fan and fan motor.
R-134a Refrigerant.
Non-CFC polyurethane foam insulation.
Coil fan and fan motor.
Condenser fans and fan motors.
Top-mounted heavy-duty condensers copper
tube, aluminum fin design to match motor compressor ratings.
Evaporator coils large enough to match motor
compressor ratings, mounted on ceiling inside each
compartment.
Temperature Controls.
Defrost system for 0° section includes defrost coil
heaters, safety overload protector and defrost clock.
38° Section 1⁄4 H.P. 1850 BTU/hr. at 90°F ambient
and 20°F evaporator temperature
0° Section 1⁄3 H.P. 1520 BTU/hr at 90°F ambient and
-10°F evaporator
Page 3
FOOD EQUIPMENT
SPECIFICATIONS
QLF SERIES OVER AND UNDER
DUAL TEMPERATURE
REFRIGERATOR/FREEZER
CONSTRUCTION: The first letter(s) in each model
number indicates the series and finish.
QS: Stainless steel exterior and interior
QSA: Stainless steel exterior, DuraFinish aluminum
interior with stainless steel bottom
LF: Lower Freezer
UF: Upper Freezer
QSLF-1/QSUF-1 SERIES
Exterior: Front housing, ends and doors are No. 4
finish stainless steel. Front frame is extruded thermal plastic providing superior thermal break between
the interior and exterior of the cabinet eliminating the
need for anti-condensate heaters. Exterior top, back
and bottom are galvanized steel.
Interior: Liner is crimped construction of No. 4 finish
stainless steel with 3⁄8" radius bends. Door drums are
of one piece ABS thermoplastic.
QSALF-1/QSAUF-1 SERIES
Exterior: Front housing, ends and doors are No. 4
finish stainless steel. Front door frame is extruded
thermal plastic providing superior thermal break
between interior and exterior of cabinet eliminating
the need for anti-condensate heaters on. Exterior
top, back and bottom are galvanized steel.
Interior: Liner is crimped construction of DuraFinish
aluminum with 3⁄8" radius bends. Liner bottom is
No. 4 finish stainless steel. Door drums are of one
piece ABS thermoplastic.
HARDWARE AND FITTINGS: Heavy-duty,
bumper-type door handle positioned horizontally
with cylinder locks. Positive action door hinged
mechanism fitted with stops, are chromium plated
and are mounted to reveal full door opening when
door is open pas 90 degrees. Door stays open at
105 degrees, and self closes at less than
90 degrees. Solid doors are field rehingeable.
Door gaskets are of smooth, high quality vinyl and
are easily replaceable without the use of tools.
Exterior, solar powered, digital thermometer is
standard on all cabinets.
6" adjustable legs with stainless steel feet are
available.
Two wire shelves per section are available. Steel
zinc plated and clear epoxy sealed. Shelf adjustments are on 1" centers on heavy-duty pilasters.
PLUMBING: No plumbing connections are required.
Condensate water automatically evaporated from the
top of the cabinet. Water drains from refrigeration
coil to a corrosion-resistant plastic tray where
evaporation is assisted by the condenser fan and
heat from the corrosion-resistant discharge line.
INSULATION: CFC Free Polyurethane foam,
poured, expanded and bonded in place, completely
filling all cavities between inner and exterior
surfaces of the cabinet and doors.
OPTIONS:
❑ Casters
❑ Flanged Feet
❑ Utility base
❑ Half height solid doors
❑ Half height glass door - medium temperature only
❑ Stainless steel clad back
❑ Stainless steel heat barrier(s)
❑ Wall mounting bracket
❑ Remote units (condensing unit by others)
❑ Electrical connection at bottom of cabinet
❑ Upper trim modified for soffit installation
❑ 6" legs with stainless steel feet
❑ CZWLF - standard shelf with stainless steel clips
❑ 1CHZW - heavy duty shelf with stainless steel
clips
❑ CP1 - pan file for 12" x 20" pans, per level
❑ CFP - pan file for 12" x 20" & 18" x 26" or
12" x 20" pans
Page 4
QLF SERIES OVER AND UNDER
DUAL TEMPERATURE
REFRIGERATOR/FREEZER

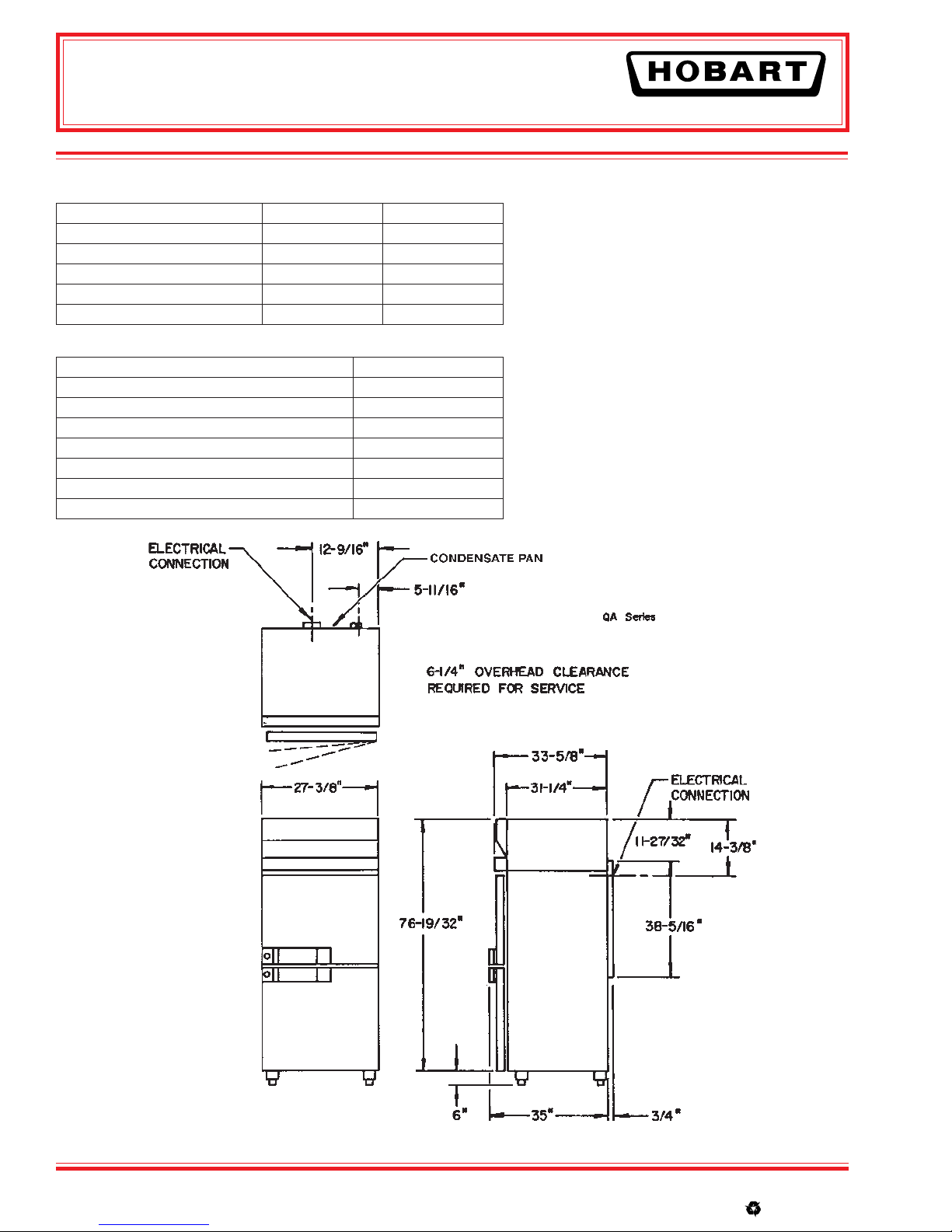

DETAILS AND DIMENSIONS
FOOD EQUIPMENT
ELECTRICAL DATA Refrigerator Freezer
Horsepower
Refrigerant R134a R134a
Standard Voltage 120/60/1 120/60/1
Max Watts 672 1068
Max Amps 5.6 8.9
Maximum watts 1740
PHYSICAL DATA
Net cubic feet of capacity, per section 9.4
Net square feet of shelf area 17.5
Depth over hardware 37
Depth over open door(s) 5921⁄32
Net door opening height 271⁄4
Net door opening width 221⁄4
Approximate shipping weight 440 lbs.
1
⁄4 H.P.
1
⁄3 H.P
ELECTRICAL SYSTEMS:
38° Section: Condensing unit is 1⁄4 H.P.
and consumes 672 watts at 5.6 amps.
0° Section: Condensing unit is 1⁄3 H.P.
and consumes 1068 watts at 8.9 amps.
Maximum unit consumption is 1740 watts
at 14.5 amps. A single cord and plug is
provided, mounted on the cabinet.
As continued product improvement is a policy of Hobart, specifications are subject to change without notice.
701 S Ridge Avenue, Troy, OH 45374 • 937-332-3000 • 1-800-333-7447
F-7735 (REV. 4/01) LITHO IN U.S.A. (H-01)
Printed On Recycled Paper
