Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400
CLCS86e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ 342 racks per hour
■ Opti-RinSe™ system
■ Insulated hinged double doors with door
interlock switches
■ 19.5 inch chamber height opening
■ Top mounted micro-processer control module
■ Energy saver mode
■ Dirty water indicator
■ Low temperature alert
■ Conveyor dwell
■ Delime notication
■ Service diagnostics
■ NAFEM Data Protocol compliant
■ Computational Fluid Dynamic Designed Self-
Aligning Wash Manifolds
■ Stainless steel debossed anti-clogging wash
arms
■ Removable Integrated Pump Intake Screen
■ Stainless steel self-draining pumps and impellers
■ Single, sloping scrap screen and deep basket
■ Stainless panels enclose perimeter and bottom
■ Door actuated drain closure
■ Single point electrical connection (three phase
only), does not include the booster heater
■ Convertible hot water or low temp nal rinse
■ Vent fan and booster heater control
DISHWASHER
MODEL
❑ CLCS86e – Dishwasher
OPTIONS AT EXTRA COST
❑ Stainless steel pressure-less 15/30 KW booster
heater
❑ Higher than standard chamber (24" opening)
ACCESSORIES
❑ Stainless steel vent hoods for the unload end,
vent stack and damper for the load end
❑ Direct drive unloader
❑ Blower-dryer
❑ Drain water tempering kit
❑ Flanged feet kit (requires three kits)
Specications, Details and Dimensions on Inside and Back.
CLCS86e DISHWASHER
DIRECTION OF OPERATION
❑ Right to Left
❑ Left to Right
VOLTAGE
❑ 208/60/1 ❑ 240/60/1 ❑ 380/60/3
❑ 208/60/3 ❑ 240/60/3 ❑ 480/60/3
❑ 600/60/3
F40244 – CLCS86e Dishwasher Page 1 of 12
CLCS66e shown
CLCS86e
DISHWASHER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
THE CLe WAREWASHER IS NOW STANDARD WITH MORE EFFICIENT FEATURES THAN EVER . . .
Inside and out the CLe warewashers by Hobart are packed with standard components and patented design
innovations that make them the biggest value in the dishwasher industry.
Wash Manifolds. Computational Fluid Dynamic
The insulated hinged inspection doors provide easy
access in the chamber. Exterior wash pipes and
reduced interior bafes reduce clean-up time. The
drive allows for a wide separation between the wash
and the rinse zone.
designed wash manifolds are self-aligning and come
with Hobart’s signature debossed anti-clogging
nozzles for superior result.
The Hobart exclusive microprocessor control module
offers a choice of many features, such as an exclusive
Energy Saver Mode, Low Temperature Alerts, and
Dirty Water Indicator. It also displays pertinent
machine status and has a Delime Notication. The
controls have built-in Service Diagnostics and are
NAFEM Data Protocol Compliant.
Soil Management System. Screen design sheds soil
more easily than at screens, reduces frequency of
cleaning — easy to empty large soil particles . . . Just
lift out the scrap basket.
Opti-RinSe™. Hobart’s exclusive Opti-RinSe™ signi-
cantly reduces operating cost by reducing rinse water
and the energy required to heat the water. The unique
spray pattern uses large droplets to more efciently
sanitize the ware.
OTHER STANDARD FEATURES . . .
• Thermal Layer Curtains help keep the heat inside
the machine.
• Ball Detent Clutch Conveyor Drive for maximum
protection against conveyor Jams
• Integrated Removable Pump Intake Screen to
offer the ultimate guard of keeping debris from
entering the pump.
• Hinged Door Seals and stainless steel labyrinth seal
for drip-free operation
• Low-Temp Convertibility In Field. All machines
shipped hot. Change software in eld at set up to
low temperature if desired – then, if requirements
change, convert from one mode to the other in the
eld. An exclusive feature – standard from Hobart.
• Door Actuated Drain Closure. Closing the door
automatically actuates drain closure, eliminates
extra manual steps, ensures that closure is in the
correct position.
Page 2 of 12 F40244 – CLCS86e Dishwasher
CLCS86e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
AVAILABLE OPTIONS AND ACCESSORIES . . .
Flexibility is synonymous with Hobart CLe dishwash ers. If your operation demands a dishwasher with a
vent hood, an extended hood . . . a power scrapper,
just specify the combination of options that suit your
needs.
Built-in Pressureless Stainless Steel Booster Heater.
Interwired and interplumbed. Saves on installation and
saves oor space. Simplies operation with just one
switch to power dishmachine and booster.
DDU38e Direct Drive Unloader. Center pawl to be
connected to dishwasher conveyor by means of a
stainless steel adjustable rod. As conveyor drives,
center pawl drives racks around 90 degree corner.
The DDU38e is designed to move the racks at the
same speed as the conveyor dishwasher speed.
The DDU38e adds 38" to the length of the machine.
Machine Ratings (Mechanical)
Racks per hour (193⁄4" x 193⁄4") 342
Conveyor Speed - feet per minute 9.5 max.
Dishes per Hour (Average 25 per rack) 8,550
Glasses per Hour (Average 45 per rack) 15,390
Floor Space – Table to Table (Inches) 86
Overall Dimensions – H x W x D (Inches) 681⁄2 x 863⁄4 x 311⁄4
Motor H.P. Power Scrapper 2
Conveyor Drive H.P.
Number of Tanks 3
Tank Capacity – Gallons Power Scrapper 23
Pump Capacity –
Gallons per Minute - Weir Test Combined 435
Heating Equipment –
(For keeping wash/power rinse hot)
Gas Burners (with Natural Gas/LP)
Electric Heating Unit – Size Used Regulated 25 KW (15-10)
Optional Booster Heater / Final Rinse 15 KW / 30 KW
Rinse – Minutes operated during hour of
maximum operation 60
Final Rinse Flow – Gals. per min.
At 15 PSI Flow Pressure 1.89
At 20 PSI Flow Pressure 2.2
Final Rinse Flow – Gals. per hr. – MAXIMUM
At 15 PSI Flow Pressure 114
At 20 PSI Flow Pressure 132
Rinse 20 PSI Flow Pressure
Gal./Rack
Steam Consumption –
Pounds per hr. - MAXIMUM
Approx. 30 lbs. per hr. = 1 boiler H.P. (BHP)
Dishwasher, based on 20 PSI steam and
on customer supplying final rinse water
at 180°F maximum 130
Steam Booster, if used on 20 PSI steam 20 PSI water flowing - 130°F entering
water raised to 180°F min. 63
Exhaust Requirements –
Cubic Feet per minute
OTHER AVAILABLE ACCESSORIES . . .
Blower-dryer, steam booster heater, and a singlepoint electrical connection to include electric booster
heater.
Peak Rate of Drain Flow – Gallons per minute.
(Initial rate with full tank) 38
Shipping Weight Crated – Approximate lbs. 1130
DISHWASHER
CLCS86e
Wash 2 – Rinse 2
1
⁄6
Wash 23 – Rinse 22
156,000 BTU per hr.
(2 - 78,000)
Hot Water Sanitizing -
Chemical Sanitizing
.39 - 180°F – .39 - 120°F
Entrance End 200
Discharge End 400
F40244 – CLCS86e Dishwasher Page 3 of 12
CLCS86e
DISHWASHER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 4 of 12 F40244 – CLCS86e Dishwasher
CLCS86e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
DISHWASHER
LOAD END
UNLOAD END
F40244 – CLCS86e Dishwasher Page 5 of 12
CLCS86e

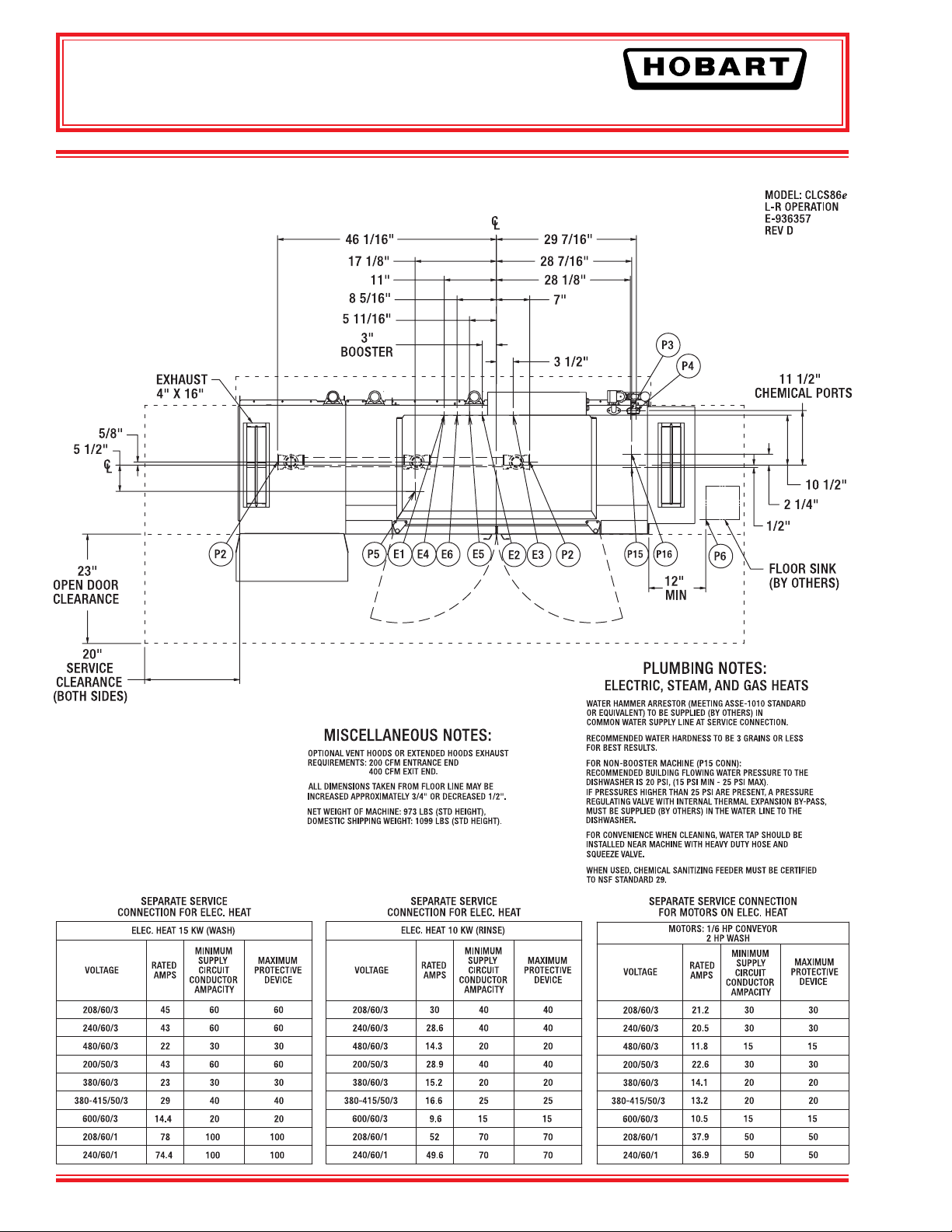

ELECTRIC L-R
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 6 of 12 F40244 – CLCS86e Dishwasher
CLCS86e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com

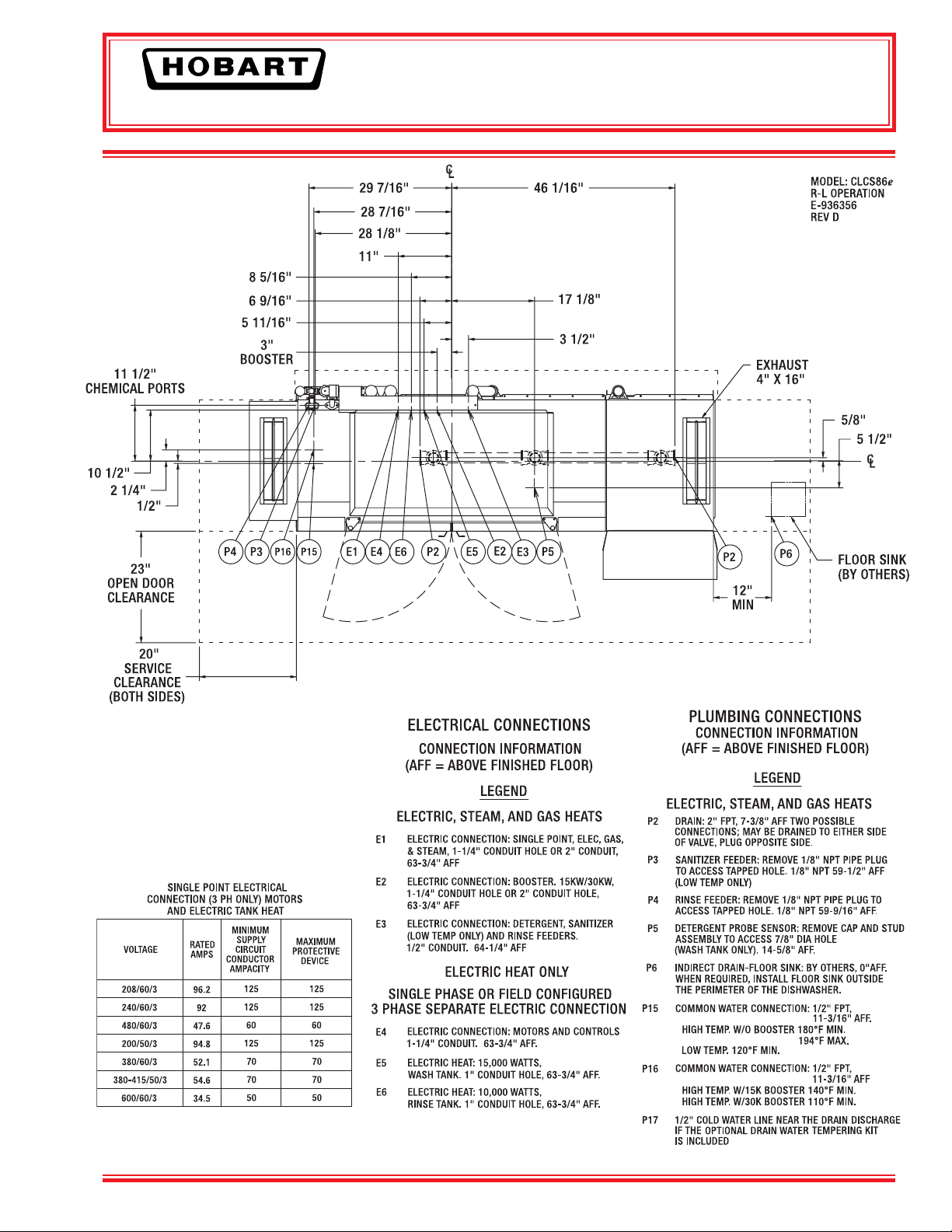

ELECTRIC R-L
F40244 – CLCS86e Dishwasher Page 7 of 12
CLCS86e
GAS L-R
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 8 of 12 F40244 – CLCS86e Dishwasher
CLCS86e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com

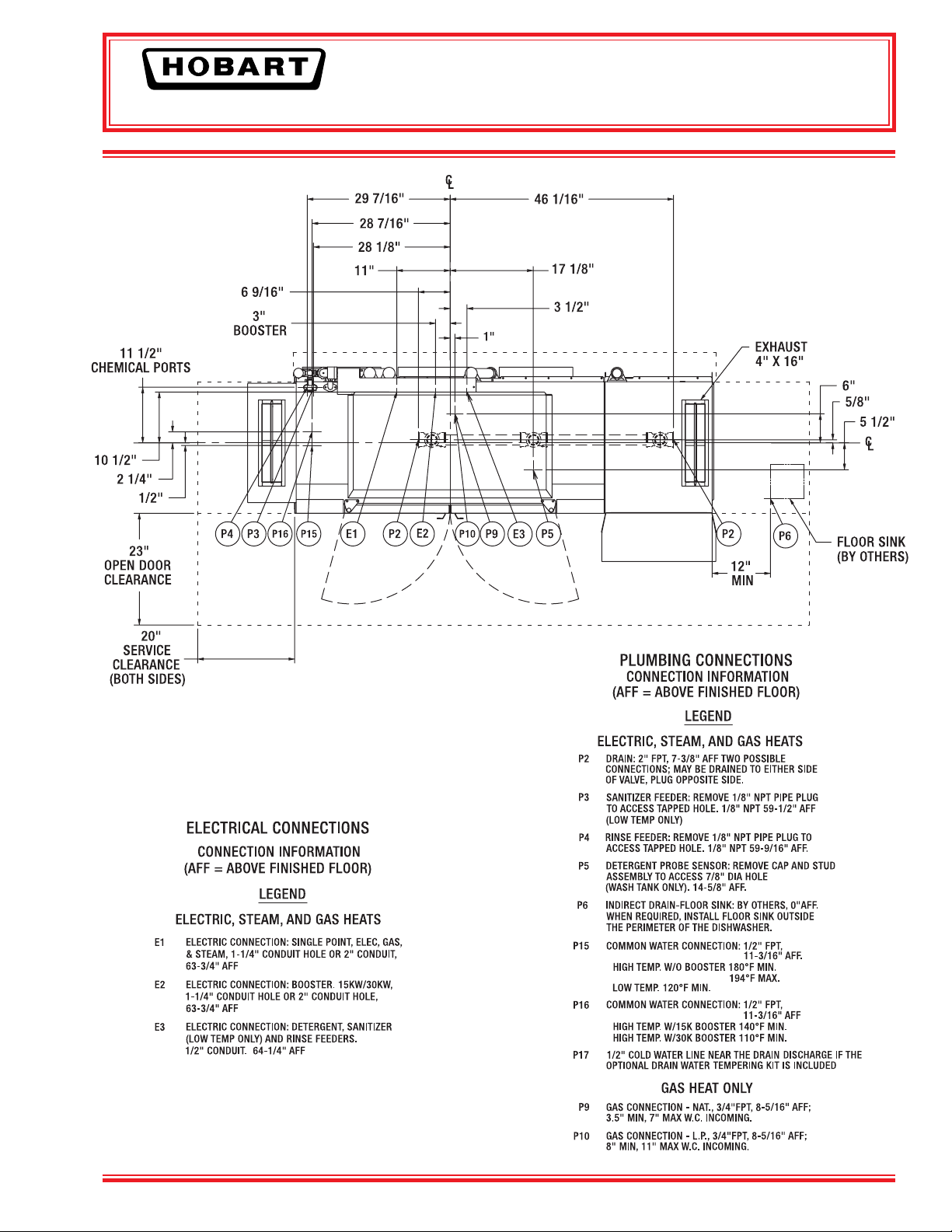

GAS R-L
F40244 – CLCS86e Dishwasher Page 9 of 12
CLCS86e
STEAM L-R
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 10 of 12 F40244 – CLCS86e Dishwasher
CLCS86e
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STEAM R-L
F40244 – CLCS86e Dishwasher Page 11 of 12
CLCS86e
DISHWASHER
SPECIFICATIONS: Meets requirements of A.S.S.E. Standard No.
1004.
DESIGN: Semi automatic, high or low temperature double-tank,
rack-type dishwasher with exible thermal layer curtains at the
ends of chamber and between prewash, wash, rinse and nal
rinse zones. Insulated hinged inspection doors located in front of
machine provide easy access to wash arms, rinse arms, strainer,
strainer basket, and pump intake screen. Length of machine inside
tank (at table connection) 86". Machine designed to clean and
sanitize with hot water 150°F wash, 160 power rinse and 180°F
(minimum) nal rinse, or low temperature 130°F wash and 120°F
nal rinse and a chemical sanitizer. Water hardness recommended
to be 3 gr. for best results. Automatic interlocks shut off pump and
conveyor if door is opened when machine is in operation.
CONSTRUCTION: Tanks, chambers, frame, legs, control box,
doors, and all panels are constructed of stainless steel.
PUMPS: Three recirculating stainless steel pumps and impellers
with ceramic seat seals. Easily accessible pump assembly permits
quick inspection. The pumps are self-draining. All piping distributing water to the upper and lower wash arms is stainless steel
tubing.
PUMP MOTORS: Built for Hobart 2 hp grease-packed ball
bearings, splash proof, ventilated with manual, resettable inherent
overload protection. Available in electrical specications of
208-240/60/1, 208-240/60/3, 480/60/3 and 600/60/3. Also
available, but not submitted for UL listing are 200-240/50/3 and
380-415/50/3.
CONTROLS: A stainless steel control module with power and
“start/stop” buttons is mounted on top of the machine. Machine
control circuitry will be operated from a 120-volt control circuit
transformer. Electrical components are completely wired with
105°C, 600V thermoplastic insulated wire with stranded conductors
routed through UL listed electrical conduit or covered wire way.
CONVEYOR: The drive system is designed for more even throughput of racks and allows for a 18.75-inch separation between the
wash and the rinse zone. Racks conveyed automatically through
wash and rinse zones and onto clean dish table. Ball Detent Clutch
drive prevents damage to machine or racks, should movement
of racks be obstructed. Rack tracks, conveyor structure, and
drive units of stainless steel for 193⁄4" x 193⁄4" racks as standard.
Conveyor speed: 9.5 FPM.
DRIVE MOTOR: Built for Hobart, 1⁄6 horsepower gear motor,
ventilated with manual, resettable inherent overload protection.
Available in electrical specications of 208-240/60/1, 208-240/60/3,
480/60/3 and 600/60/3. Also available, but not submitted for UL
Listing are 200-240/50/3 and 380-415/50/3.
CORNER POWER SCRAPPER: CLCS86e power scrapper is
equipped with an upper and lower wash arm with specially shaped
nozzles having large openings and arranged to effectively scrap all
types of tableware. Power scrapper arms and end caps are easily
removable for cleaning without use of tools. Removable perforated
stainless steel strainer pans support a deep perforated stainless
steel basket. Basket and strainer pans (3) can be removed without
lower wash arm removal.
POWER WASH AND RINSE: Wash and rinse tanks are equipped
with upper and lower stainless steel CFD Wash Arms which
effectively direct water jets to all ware surfaces. Both upper and
lower wash arms are self-aligning and have easily removable end
caps for cleaning without use of tools. A removable perforated
stainless steel strainer pan supports a deep perforated stainless
steel basket.
FINAL RINSE: Final rinse ow rate: 2.2 gpm, .39 gpr, 133-gph.
Stainless steel upper and lower Auto Position Rinse Arms™ have
single rows of nozzles. Racks entering the rinse zone automati-
As continued product improvement is a policy of Hobart, specications are subject to change without notice.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
cally trigger rinse. Final rinse water line is equipped with a vacuum
breaker downstream of an electrically operated solenoid valve
in common piping system. Removable perforated stainless steel
strainer basket can be removed without removing lower rinse arm.
Rinse agent and Low Temp Final Rinse – Sanitizer agent (5.25%
sodium hypochlorite – bleach) dispenser injection ports provided
in nal rinse piping above chamber. Caution: Certain materials,
including silver, aluminum, and pewter are attacked by sodium
hypochlorite (bleach) in the chemical sanitizing dishwasher mode
of operation.
FILL: Fill water line is equipped with vacuum breaker on downstream side of electrically operated solenoid valve in common
piping system, for automatic maintenance of tank level.
DRAIN AND OVERFLOW: Large bell-type automatic overow
and drain valve inside power scrapper tank controlled from inside
of machine. Power scrapper overows to drain. Wash tank drain
controlled from inside of the machine overows to power scrapper
through large internally mounted stainless steel tubing. Drain seals
are large diameter high temperature o-rings. Drain automatically
seats by closing inspection doors. Common drain utilizes a removable large diameter stainless steel tube sealed by rubber o-rings
at each drain housing. Drain housing can be plumbed from load or
unload end of machine.
STANDARD EQUIPMENT: Digital display of power scrapper, wash
and nal rinse temperature. Positive low water protection for tank
heat. Thermal Layered Curtains throughout machine are keyed to
ensure proper placement. Drains are automatically closed when
inspection doors are closed. Stainless steel adjustable feet. Bolted
stainless steel enclosure panels around perimeter and underneath
machine. Automatic tank ll. Door interlocks. Auto-timer. Vent fan
and booster heater controls. Single point electrical connection.
Low temperature alerts. Service diagnostics. Dirty water indicator.
Delime notication. Conveyor dwell. Energy Saver Mode. NAFEM
Data Protocol compliant.
TANK HEATING SELECTIONS (must choose one):
ELECTRIC: Two electric Incoloy® sheathed immersion heaters
(15 KW and 10KW). Tank water temperature is controlled by microprocessor controlled thermostat with positive low-water protection
and magnetic contactor. (Disconnect switches not furnished.) A
high limit device mounted on the surface of the tank additionally
protects heating element.
STEAM: One-inch stainless steel steam coil. Tank water temperature controlled by microprocessor controlled thermostat with
positive low-water protection. Steam supplied to machine through
high temperature steam solenoid valve and line strainer.
GAS: Regulated infrared immersion tube gas burner system.
Microprocessor controlled thermostat and a blower with a pressure
switch control tank water temperature. Positive low water protection is provided. A high limit device mounted on the surface of the
tube additionally protects immersion tube. A solid-state igniter
board controls the gas valve and provides ame ignition. A transformer steps the control circuit voltage down from 120 volts to 24
volts to power the igniter board and gas valve. For natural gas, gas
pressure to burner (customer connection) not to exceed 7" W.C.
For LP gas, gas pressure to burner (customer connection) not to
exceed 11" W.C. If gas pressure is higher than 7" W.C. natural or
11" W.C. LP pressure regulating valve must be supplied (by others)
in the gas line to the dishwasher.
OPTIONAL EQUIPMENT AT EXTRA COST:
Stainless steel pressureless booster heater. Stainless steel vent
hoods with vent stack and locking-type damper. Higher than
standard chamber. Unloaders. Floor mounted steam booster.
193⁄4" x 193⁄4" peg, combination and miscellaneous racks. Table limit
switch. Drain water tempering kit.
Page 12 of 12 F40244 – CLCS86e Dishwasher
F40244 (REV. 12/12) LITHO IN U.S.A. (H-01)
Loading...
