Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400
CL44eR
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Energy recovery
■ 202 racks per hour
■ Opti-RinSe™ system
■ 30 KW electric booster heater
■ Rapid return conveyor drive mechanism
■ Insulated hinged double doors with door
interlock switches
■ Door seal system
■ Pressure regulating valves
■ 19.5 inch chamber height opening
■ Top mounted micro-processer control module
■ Energy saver mode
■ Dirty water indicator
■ Low temperature alert
■ Conveyor dwell
■ Delime notication
■ Service diagnostics
■ NAFEM Data Protocol compliant
■ Computational uid dynamic designed self-
aligning wash manifolds
■ Stainless steel debossed anti-clogging wash
arms
■ Removable integrated pump intake screen
■ Stainless steel self-draining pump and impeller
■ Single, sloping scrap screen and deep basket
■ Stainless panels enclose perimeter and bottom
■ Door actuated drain closure
■ Single point electrical connection (does not
include the booster heater)
DISHWASHER
MODEL
❑ CL44eR – Dishwasher
OPTIONS AT EXTRA COST
❑ Single point electrical connection, to include
electric booster – three phase only
❑ Higher than standard chamber
ACCESSORIES
❑ Stainless steel vent hoods (load end only)
❑ Canopy exhaust power vent kit
❑ Direct drive unloader
❑ Side loader
❑ Blower-dryer
❑ Drain water tempering kit
Specications, Details and Dimensions on Inside and Back.
CL44eR DISHWASHER
DIRECTION OF OPERATION
❑ Right to Left
❑ Left to Right
VOLTAGE
❑ 208/60/3 ❑ 240/60/3 ❑ 380/60/3
❑ 480/60/3 ❑ 600/60/3
Shown with optional vent hood at load
F40291 – CL44eR Dishwasher Page 1 of 12
CL44eR
DISHWASHER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
THE CLeR WAREWASHER IS STANDARD WITH THESE EFFICIENT FEATURES . . .
Inside and out the CLeR warewashers by Hobart are packed with standard components and design innovations
that make them the biggest value in the dishwasher industry.
The Energy Recovery
System captures
escaping heat and
steam from the
exhaust air and uses
a heat exchanger to
recycle it into energy.
This free energy is
used to preheat the
incoming water supply
before it enters the
booster heater. The
ground temperature
water passes through
The insulated hinged inspection doors provide easy
access in the chamber. Exterior wash pipes and
reduced interior bafes reduce clean-up time.
The Rapid Return drive allows for a wide separation
between the wash and the rinse zone.
a heat exchanger
positioned directly in
line with the machine’s
unload exhaust system
to capture the energy
from the exhaust air and ware leaving the machine to
elevate the temperature of the water to 110° before it
enters the booster heater.
The Hobart exclusive microprocessor control module
offers a choice of many features, such as an exclusive
Energy Saver Mode, Low Temperature Alerts, and
Dirty Water Indicator. It also displays pertinent
machine status and has a Delime Notication. The
controls have built-in Service Diagnostics and are
NAFEM Data Protocol Compliant.
Wash Manifolds. Computational Fluid Dynamic
designed wash manifolds are self-aligning and come
with Hobart’s signature debossed anti-clogging
nozzles for superior result.
Opti-RinSe™. Hobart’s exclusive Opti-RinSe™
signicantly reduces operating cost by reducing rinse
water and the energy required to heat the water.
The unique spray pattern uses large droplets to more
efciently sanitize the ware.
Built-in Pressureless Stainless Steel Booster Heater.
Interwired and interplumbed. Saves on installation and
saves oor space. Simplies operation with just one
switch to power dishmachine and booster.
Page 2 of 12 F40291 – CL44eR Dishwasher
CL44eR
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
OTHER STANDARD FEATURES . . .
• Thermal Layer Curtains help keep the heat inside
the machine.
• Ball Detent Clutch Conveyor Drive for maximum
protection against conveyor jams
• Integrated Removable Pump Intake Screen to
offer the ultimate guard of keeping debris from
entering the pump.
• Hinged Door Seals and stainless steel labyrinth
seal for drip-free operation
• Door Actuated Drain Closure. Closing the door
automatically actuates drain closure, eliminates
extra manual steps, ensures that closure is in the
correct position.
AVAILABLE OPTIONS AND ACCESSORIES . . .
Flexibility is synonymous with Hobart CLeR dishwash ers. If your operation demands a dishwasher
with a vent hood, an extended hood . . . a power
scrapper, just specify the combination of options that
suit your needs.
Side Loader. Save up to 20 square feet in the
dishroom layout with an optional CLeR Side Loader.
Racks are indexed 90° into the dishwasher automatically – a feature that cuts space and reduces labor
dramatically. Your dishroom team will appreciate this
feature.
OTHER AVAILABLE ACCESSORIES . . .
Blower-dryer, direct drive unloader.
Machine Ratings (Mechanical)
Racks per hour (193⁄4" x 193⁄4") 202
Conveyor Speed - feet per minute 5.6 max.
Dishes per Hour (Average 25 per rack) 5,025
Glasses per Hour (Average 45 per rack) 9,045
Floor Space – Table to Table (Inches) 44
Overall Dimensions – H x W x D (Inches) 799⁄16 x 573⁄4 x 311⁄4
Motor H.P. 2
Conveyor Drive H.P.
Number of Tanks 1
Tank Capacity – Gallons 23
Pump Capacity –
Gallons per Minute - Weir Test 165
Heating Equipment –
(For keeping power wash hot)
Gas Burners (with Natural Gas) 78,000 BTU per hr.
Electric Heating Unit – Size Used 15 KW
Booster Heater / Final Rinse 30 KW
Rinse – Minutes operated during hour of
maximum operation 60
Final Rinse Flow – Gals. per min.
At 20 PSI Flow Pressure 2.1
Final Rinse Flow – Gals. per hr. – MAXIMUM
At 15 PSI Flow Pressure 108
At 20 PSI Flow Pressure 126
Rinse 20 PSI Flow Pressure
Gal./Rack
Steam Consumption –
Pounds per hr. - MAXIMUM
Approx. 30 lbs. per hr. = 1 boiler H.P. (BHP)
Dishwasher, based on 20 PSI steam and
on customer supplying final rinse water
at 180°F maximum 65
Steam Booster, if used on 20 PSI steam 20 PSI water flowing - 130°F entering
water raised to 180°F min. 60
Exhaust Requirements –
Cubic Feet per minute
Peak Rate of Drain Flow – Gallons per minute.
(Initial rate with full tank) 38
Shipping Weight Crated – Approximate lbs. 751
DISHWASHER
CL44eR
1
⁄6
Hot Water Sanitizing
.62 - 180°F
Entrance End 200
Discharge End 175
F40291 – CL44eR Dishwasher Page 3 of 12
CL44eR
DISHWASHER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 4 of 12 F40291 – CL44eR Dishwasher

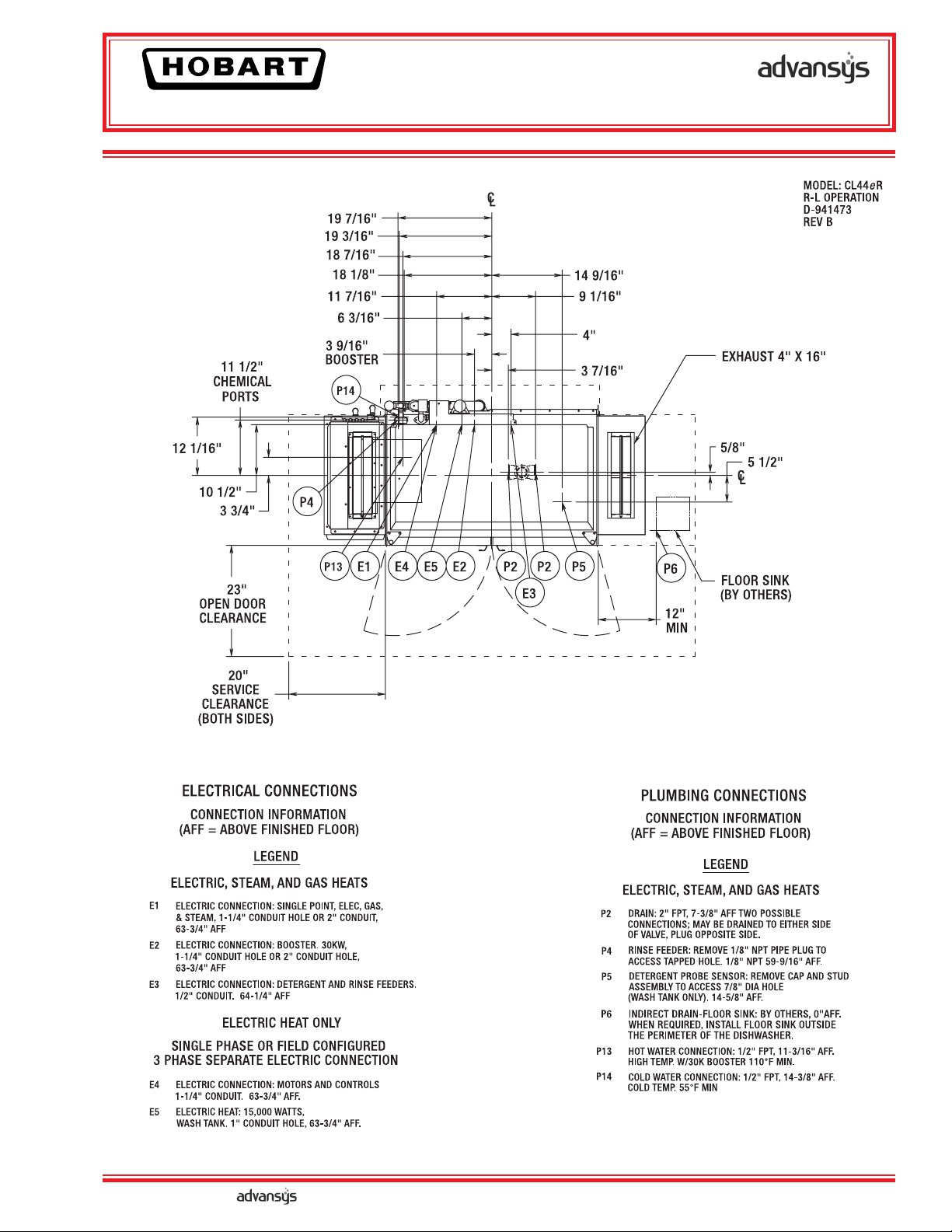

CL44eR
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
DISHWASHER
F40291 – CL44eR Dishwasher Page 5 of 12
CL44eR
ELECTRIC L-R
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 6 of 12 F40291 – CL44eR Dishwasher
CL44eR
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
ELECTRIC R-L
F40291 – CL44eR Dishwasher Page 7 of 12
CL44eR
GAS L-R
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 8 of 12 F40291 – CL44eR Dishwasher
CL44eR
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
GAS R-L
F40291 – CL44eR Dishwasher Page 9 of 12
CL44eR
STEAM L-R
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 10 of 12 F40291 – CL44eR Dishwasher
CL44eR
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STEAM R-L
F40291 – CL44eR Dishwasher Page 11 of 12
CL44eR
DISHWASHER
SPECIFICATIONS: Meets requirements of A.S.S.E. Standard
No. 1004.
DESIGN: Semi automatic, high temperature single-tank, racktype dishwasher with exible thermal layer curtains at the ends
of chamber and between wash and nal rinse zones. Insulated
hinged inspection doors located in front of machine provide
easy access to wash arms, rinse arms, strainer, strainer basket,
and pump intake screen. Length of machine inside tank (at
table connection) 44". Machine designed to clean and sanitize
with hot water 160°F wash and 180°F (minimum) nal rinse.
Water hardness recommended to be 3 gr. for best results.
Automatic interlocks shut off pump and conveyor if door is
opened when machine is in operation.
CONSTRUCTION: Tank, chamber, frame, legs, control box,
doors, and all panels are constructed of stainless steel.
PUMP: The 165 gpm recirculating stainless steel pump and
impeller with a ceramic seat seal. Easily accessible pump
assembly permits quick inspection. The pump is self-draining.
All piping distributing water to the upper and lower wash arms
is stainless steel tubing.
PUMP MOTOR: Built for Hobart 2 hp grease-packed ball bearings, splash proof, ventilated with manual, resettable inherent
overload protection. Available in electrical specications of
208-240/60/3, 480/60/3 and 600/60/3. Also available, but not
submitted for UL listing are 200-240/50/3 and 380-415/50/3.
ENERGY RECOVERY COIL: The condensing system using a
tube and n coil constructed of copper and corrosion resistant
aluminum.
CONTROLS: A stainless steel control module with power
and “start/stop” buttons is mounted on top of the machine.
Machine control circuitry will be operated from a 120-volt
control circuit transformer. Electrical components are
completely wired with 105°C, 600V thermoplastic insulated
wire with stranded conductors routed through UL listed
electrical conduit or covered wire way.
CONVEYOR: Rapid Return drive, designed for more even
throughput of racks and allows for a 16-inch sepa ration
between the wash and the rinse zone. Racks conveyed
automatically through wash and rinse zones. Ball Detent Clutch
drive prevents damage to machine or racks, should movement
of racks be obstructed. Conveyor speed: 5.6 FPM.
DRIVE MOTOR: Built for Hobart, 1⁄6 horsepower gear motor,
ventilated with manual, resettable inherent overload protection.
Available in electrical specications of 208-240/60/3, 480/60/3
and 600/60/3. Also available, but not submitted for UL Listing
are 200-240/50/3 and 380-415/50/3.
POWER WASH: Wash tank is equipped with upper and lower
stainless steel CFD Wash Arms which effectively direct water
jets to all ware surfaces. Both upper and lower wash arms are
self-aligning and have easily removable end caps for cleaning
without use of tools. A removable perforated stainless steel
strainer pan supports a deep perforated stainless steel basket.
FINAL RINSE: Final rinse ow rate: 2.1 gpm, .62 gpr, 126-gph.
Stainless steel upper and lower Auto Position Rinse Arms™
have single rows of nozzles. Racks entering the rinse zone
As continued product improvement is a policy of Hobart, specications are subject to change without notice.
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
automatically trigger rinse. Final rinse water line is equipped
with a vacuum breaker downstream of an electrically operated
solenoid valve in common piping system. Rinse agent
dispenser injection ports provided in nal rinse piping above
chamber.
FILL: Fill water line is equipped with vacuum breaker on downstream side of electrically operated solenoid valve in common
piping system, for automatic maintenance of tank level.
DRAIN AND OVERFLOW: Large bell-type automatic overow
and drain valve controlled from inside of machine. Drain
automatically seats by closing inspection doors. Drain housing
can be plumbed from load or unload end of machine.
STANDARD EQUIPMENT: Energy Recovery, Digital display
of wash and nal rinse temperature. Positive low water protection for tank heat. Thermal Layered Curtains throughout
machine are keyed to ensure proper placement. Drain is automatically closed when inspection doors are closed. Stainless
steel adjustable feet. Bolted stainless steel enclosure panels
around perimeter and underneath machine. Automatic tank ll.
Door interlock. Auto-timer. Vent fan and booster heater controls. Low temperature alerts. Service diagnostics. Dirty water
indicator. Delime notication. Conveyor dwell. Energy Saver
Mode. NAFEM Data Protocol compliant. Pressure regulating
valve. Booster heater (30 kw).
WASH TANK HEATING SELECTIONS (must choose one):
ELECTRIC: One electric Incoloy® sheathed immersion heater
(15 KW) removable from inside tank. Tank water temperature is
controlled by microprocessor controlled thermostat with positive low-water protection and magnetic contactor. (Disconnect
switches not furnished.) A high limit device mounted on the
surface of the tank additionally protects heating element.
STEAM: One-inch stainless steel steam coil. Tank water
temperature controlled by microprocessor controlled
thermostat with positive low-water protection. Steam supplied
to machine through high temperature steam solenoid valve and
line strainer.
GAS: Regulated infrared immersion tube gas burner system.
Microprocessor controlled thermostat and a blower with a
pressure switch control tank water temperature. Positive low
water protection is provided. A high limit device mounted on
the surface of the tube additionally protects immersion tube.
A solid-state igniter board controls the gas valve and provides
ame ignition. A transformer steps the control circuit voltage
down from 120 volts to 24 volts to power the igniter board and
gas valve. For natural gas, gas pressure to burner (customer
connection) not to exceed 7" W.C. For LP gas, gas pressure
to burner (customer connection) not to exceed 11" W.C. If gas
pressure is higher than 7" W.C. natural or 11" W.C. LP pressure regulating valve must be supplied (by others) in the gas
line to the dishwasher.
OPTIONAL EQUIPMENT AT EXTRA COST:
Stainless steel vent hoods with vent stack, and locking-type
damper (load end only). Canopy exhaust power vent kit. Higher
than standard chamber. Side loaders and unloaders. 193⁄4" x
193⁄4" peg, combination and miscel laneous racks. Table limit
switch. Drain water-tempering kit.
Page 12 of 12 F40291 – CL44eR Dishwasher
F40291 (REV. 10/14) LITHO IN U.S.A. (H-01)
Loading...
