Hobart C44A Parts Manual

Download

CATALOG OF

REPLACEMENT PARTS

MODEL C44A, C44AW, & C54A

SERIES DISHWASHERS

C44A ML-104047 R-L ML-104050 L-R

C44AW ML-104082 R-L ML-104083 L-R

C54A ML-104199 R-L ML-104198 L-R

PRIOR MLS COVERED IN THIS MANUAL:

C44A

ML-38898 R-L ML-38899 L-R

C44AW ML-103946 R-L ML-103947 L-R

A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

Table of Contents

Page Description

3 Conduit – Waterproof 5 Control Box 6 Component Panel (Control Box) W/O 120 V. Pilot Circuit

8 Component Panel (Control Box) 120 V. Pilot Circuit 11 Wash Motor And Pump Unit 13 Conveyor Drive Unit (C44A Series – 15 Conveyor Drive Unit (C54A, C44A, & AW Series – 1/6 Hp.) 17 Conveyor Drive Train 18 Conveyor Drive – Motor Parts (Von Weise – 1/4 Hp.) 19 Conveyor Drive – Motor Parts (Bison – 1/4 Hp.) 21 Track And Cradle (Wash Section) 23 Wash Arms And Tubes (Wash Section – Previous Construction) 25 Wash Arms And Tubes (Wash Section) 26 Fill And Outside Rinse Piping (Previous Construction) 29 Fill And Outside Rinse Piping (Current Construction) 31 Inside Metallic Rinse Piping 33 Inside Non-Metallic Rinse Piping (C44A & AW Series) 35 Actuator Mechanism And Rinse Drain-Off Pan 37 Drain Unit (Wash Section) 39 Door, Curtains, Baffles, And Strainers 41 Vent Hood 43 Extended Hood 45 Miscellaneous (Wash Section) 47 Low Water Protection (Steam Heat/Wash Tank) 49 Steam Coil Heat 51 Piping – Steam Coils 53 Steam Injector Heat 54 Control Box – Gas Heat 57 Gas Burner And Flue 58 Gas Heat Components 61 Electric Heat 62 Dish Racks

/4 Hp.)

This catalog contains parts for standard height as well as 6” higher than standard height. For proper identification of some parts, it is necessary to measure the door height; these parts are noted accordingly.

DOOR HEIGHT

/8 = Standard

/8 = 6” Higher than Standard

F-17820 Rev. D (May 2001)

- 2 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

30-31-32

Final Rinse/Control Box

Connection

Final Rinse

Connection

28-29

24 THRU 27

Conveyor Drive

Motor Connection

18 THRU 23

Anti-Jam Switch

Connection

Solenoid

15-16-17

Blower Motor

Gas Tank Heat

Steam Coil or Injector

Tank Heat

4-5

Wash Pump

Motor Connection

9 THRU 12

(Revised) Electric Tank

13-14

Heat Connection

6-7-8

Tank Heat Connection

All Heats

PL-55488

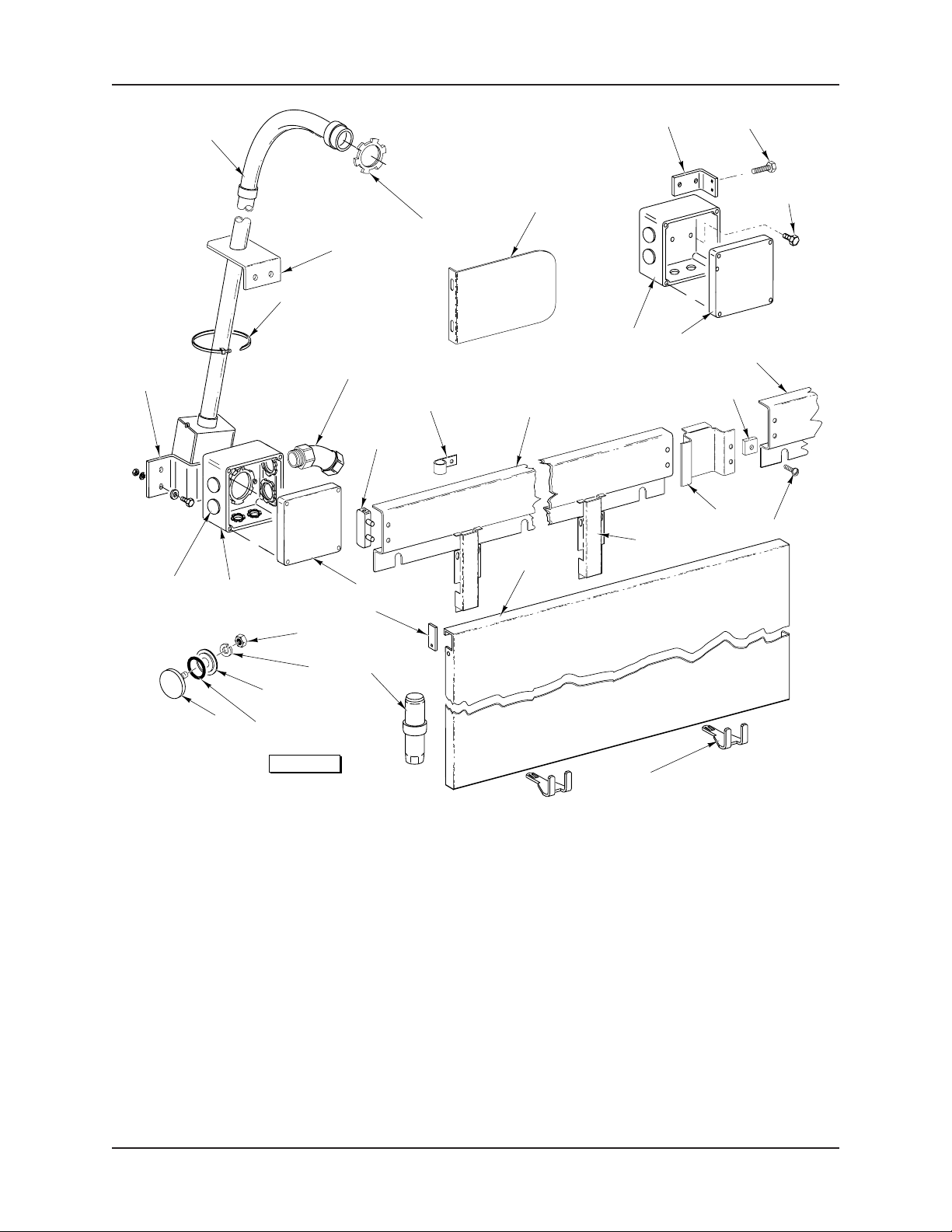

CONDUIT – WATERPROOF

ILLUS. PART NO. NAME OF PART AMT. PL-55488 Liquidtite Non-Metallic

1 00-329817 00-329817 Label – Temperature (Low Temp.) .......................................................... 1

2 00-329818 00-329818 Label – Temperature (High Temp.) .........................................................1

3 00-294947-00002 - Grounding Strap – Holes 11/8 Dia. & 7/8 Dia. ............................................ 1

4 FE-007-07 FE-024-65 Connector – 90 Deg. Sealtite (1/2 Male Thd. x 1/2 Flex. Cnd.) .................. 2

5 FE-008-10 FE-008-10

6 FE-008-33 FE-024-67 Connector – 90 Deg. Sealtite (1 Male Thd. x 1 Flex. Cnd.) .................... 2

7 - FE-006-50 Lock Nut 1 (Cnd.) ...................................................................................1

8 FE-008-12 FE-008-12 Gasket ................................................................................................... AR

9 - FE-024-59 Connector – Straight Sealtite (1 Male Thd. x 1 Flex Cnd.) .................... 1

10 - FE-024-63 Connector – 45 Deg. Sealtite (1 Male Thd. x 1 Flex Cnd.) .................... 1

11 - FE-006-50 Lock Nut 1 (Cnd.) ...................................................................................1

12 - FE-008-12 Gasket ..................................................................................................... 1

13 FE-007-01 - Connector – Straight Sealtite (1/2 Male Thd. x 3/8 Flex. Cnd.) .................. 2

14 - FE-024-57 Connector – Straight Sealtite (1/2 Male Thd. x 1/2 Flex Cnd.) .................. 2

15 FE-007-05 FE-024-61 Connector – 45 Deg. Sealtite (1/2 Male Thd. x 1/2 Flex. Cnd.) .................. 2

16 FE-007-04 FE-024-57 Connector – Straight Sealtite (1/2 Cable x 1/2 Flex. Cnd.) ........................ 1

17 FE-008-10 - 1/2 Gasket Assy. .................................................................................... 2

18 FE-007-01 - Connector – Straight Sealtite (1/2 Male Thd. x 3/8 Flex. Cnd.).................. 1

19 - FE-024-57 Connector – Straight Sealtite (1/2 Male Thd. x 1/2 Flex Cnd.) .................. 1

20 FE-007-02 - Connector – 45 Deg. Sealtite (1/2 Male Thd. x 3/8 Flex. Cnd.) .................. 1

21 - FE-024-61 Connector – 45 Deg. Sealtite (1/2 Male Thd. x 1/2 Flex Cnd.) .................. 1

22 FE-006-07 FE-006-07 Lock Nut 1/2 (Cnd.) .................................................................................. 1

23 FE-008-10 FE-008-10

24 FE-007-05 FE-024-61 Connector – 45 Deg. Sealtite (1/2 Male Thd. x 1/2 Flex. Cnd.) .................. 1

25 FE-007-07 FE-024-65 Connector – 90 Deg. Sealtite (1/2 Male Thd. x 1/2 Flex. Cnd.) .................. 1

26 FE-006-07 FE-006-07 Lock Nut 1/2 (Cnd.) .................................................................................. 1

27 FE-008-10 FE-008-10

28 00-294947-00001 - Grounding Strap – Holes 1" Dia. & 1" Dia. ............................................. 1

29 00-294947-00003 - Grounding Strap – Holes 11/8 Dia. & 13/8 Dia. .......................................... 1

30 FE-007-05 FE-024-61 Connector – 45 Deg. Sealtite (1/2 Male Thd. x 1/2 Flex. Cnd.) .................. 1

31 FE-007-07 FE-024-65 Connector – 90 Deg. Sealtite (1/2 Male Thd. x 1/2 Flex. Cnd.) .................. 1

32 FE-008-10 -

33 FE-007-04 FE-024-57 Connector – Straight Sealtite (1/2 Cable x 1/2 Flex. Cnd.) ........................ 2

/2 Gasket Assy. .................................................................................... AR

/2 Gasket Assy. ......................................................................................2

/2 Gasket Assy. ......................................................................................1

- 3 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

20 19 18

21 22

15 16

31 32

13 14

33-34

5-6

9-10

OR 7-8

28 29 30

PL-55293

F-17820 Rev. D (May 2001)

25-26-27

CONTROL BOX

- 4 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

CONTROL BOX

ILLUS. PART NO. NAME OF PART AMT. PL-55293

1 SC-066-05 Mach. Screw 10-24 x

2 00-436755-00001 Cover – Control Box ......................................................................................................................1

3 00-274884 Guard – Fan ................................................................................................................................... 1

*4 00-256154 Circuit Breaker ............................................................................................................................... 1

*5 00-271069 Control Box (Give Electric Spec., Machine Model, & Serial Number) .........................................1

**6 00-435505-00001 Control Box (Give Electric Spec., Machine Model, & Serial Number) ......................................... 1

7 00-274948 Shield .............................................................................................................................................. 1

8 SD-008-25 Self-Tapping Screw 10-16 x

9 00-328137 Shield .............................................................................................................................................. 1

10 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................2

11 00-437041-00003 Thermometer (8 Ft.) (Rinse) ......................................................................................................... 1

12 00-437041-00004 Thermometer (11 Ft.) (Wash) ....................................................................................................... 1

*13 00-415207-00002 Fan Cooling (230 V.) .......................................................................................................................1

**14 00-355504-00001 Fan (115 V.) .................................................................................................................................... 1

**15 00-087711-241-2 Switch – Rocker (DPDT) (Conveyor Dwell) ................................................................................. 1

*16 00-087711-192-2 Switch – Rocker (On/Off) (Conveyor Dwell) ................................................................................ 1

17 00-087711-228-1 Switch – Rocker (Motor On/Off) ...................................................................................................1

**18 00-087711-241-2 Switch – Rocker (On/Off) (Timer) ................................................................................................ 1

*19 00-087711-192-2 Switch – Rocker (On/Off) (Timer) ................................................................................................1

20 00-271840 Label – Timer ..................................................................................................................................1

**21 00-087711-198-2 Switch – Rocker (Power On/Off) (115 V.) ..................................................................................... 1

*22 00-087711-198-6 Switch – Rocker (Power On/Off) (240 V.) ..................................................................................... 1

23 00-107218 Coupling – Thermometer Bulb ....................................................................................................... 2

24 00-435072 Gasket ............................................................................................................................................ 1

25 WS-022-01 Washer ........................................................................................................................................... 6

26 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................6

27 NS-031-21 Stop Nut – Special 1/4-20 Hex ........................................................................................................ 6

28 00-274962 Label – Instruction (C44A Series) ................................................................................................. 1

29 00-436354 Label – Instruction (C44AW Series) .............................................................................................. 1

30 00-475088 Label – Instruction (C54A Series) ................................................................................................. 1

31 00-812850 Label – Control Box (W/O Conveyor Dwell) ............................................................................... AR

32 00-812852 Lable – Control Box (Conveyor Dwell) ....................................................................................... AR

33 WS-012-40 Washer ........................................................................................................................................... 4

34 FP-053-05 Pipe Locknut 1/2 NPSL (SST) ......................................................................................................... 2

35 WL-006-42 Lockwasher #6 Medium ................................................................................................................ 3

36 NS-011-07 Mach. Nut 6-32 Hex ....................................................................................................................... 3

37 00-274947 Grommet ........................................................................................................................................ 1

FE-021-12 Plug – 1/2 Knockout (Plastic) ........................................................................................................ AR

FE-023-26 Plug – 1 Knockout (Plastic) ......................................................................................................... AR

/8 Phil. Truss Hd. ........................................................................................ 2

/2 Phil. Pan Hd., Type B ...................................................................1

* Machines W/O 120 V. pilot circuit. ** Machines W/ 120 V. pilot crcuit.

- 5 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

7-8

5-6

1-2

12 13 14 15

3-4

9 10 11

18 17 16

4TB

GND

3TB

1TB

Previous Construction

37-38

65 66

20 19

3CON

2CON

1CON

24 23

22 21

1CR 2CR 3CR 4CR 5CR

26 25

4CON

2TB

28 27

29 THRU 33

514

36 35 34

1TR

1 2 3 4

3TR

8765

1 2 3 4

2TR

8765

1FB

RELAY

70 69 68 67

41 40 39

44 43 42

45 46 47

63-64

61 62

57-58

55 56

53 54

51 52

49 50

PL-50622

COMPONENT PANEL

(CONTROL BOX)

W/O 120 V. PILOT CIRCUIT

ILLUS. PART NO. NAME OF PART AMT. PL-50622

1 00-294325-013-1 Terminal Block ................................................................................................................................ 1

2 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................2

3 00-087713-040-1 Contactor 30 Amp. 3 Pole (Machines W/Conveyor Dwell) ........................................................... 1

4 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 2

5 00-294677-00002 Clamp – Wire (1/2 I.D.) .................................................................................................................... 1

6 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 1

7 00-294325-003-1 Block – Terminal ........................................................................................................................... AR

8 SD-037-21 Self-Tapping Screw 8-32 x 1 Phil. Hd., Type F ............................................................................ AR

9 00-118544-00002 Lug – Grounding .......................................................................................................................... AR

10 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................. AR

11 WL-007-12 Lockwasher #10 External Shakeproof ....................................................................................... AR

12 00-294325-003-1 Block – Terminal ........................................................................................................................... AR

*13 00-294325-004-1 Terminal Block ................................................................................................................................ 1

F-17820 Rev. D (May 2001)

- 6 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

COMPONENT PANEL (Cont.)

(CONTROL BOX)

W/O 120 V. PILOT CIRCUIT

ILLUS. PART NO. NAME OF PART AMT. PL-50622

14 SD-037-21 Self-Tapping Screw 8-32 x 1 Phil. Fil Hd., Type F (Use with Item 12 on 3 Ph. Machines) ..........2

15 SD-008-36 Self-Tapping Screw 8-18 x 7/18 Phil. Rd. Hd., Type B (Use with Item 13 or 12 on 1 Ph. Mach.) ... 2

16 00-118544-00002 Lug – Grounding ............................................................................................................................ 1

17 SD-008-25 Self-Tapping Screw 10-16 x

18 WL-007-12 Lockwasher #10 External Shakeproof ......................................................................................... 1

19 00-087713-041-1 Contactor 40 Amp. 3 Pole (Electric Heat) ..................................................................................... 1

20 SD-008-25 Self-Tapping Screw 10-16 x

21 00-205113-00002 Relay 3 P.D.T. .................................................................................................................................1

22 SD-019-29 Self-Tapping Screw 6-20 x

23 00-271066 Bracket ...........................................................................................................................................1

24 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bind Hd., Type B .................................................................... 2

25 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................2

26 00-087714-007-3 Relay D.P.D.T. ................................................................................................................................. 1

27 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2

28 00-087713-049-2 Contactor (Machines W/Vent Fan Control) ................................................................................... 1

29 00-271066 Bracket ...........................................................................................................................................1

30 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bind Hd., Type B .................................................................... 2

31 00-205113-00002 Relay 3 P.D.T. .................................................................................................................................1

32 00-205113-00002 Relay 3 P.D.T. .................................................................................................................................1

33 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................2

34 00-087714-031-1 Relay Time Delay ........................................................................................................................... 1

35 SD-034-70 Self-Tapping Screw 1/4-20 x 1 Slotted Hex Washer Hd. ...............................................................1

36 WL-007-15 Lockwasher 1/4 External Shakeproof ............................................................................................. 1

37 00-294500-00017 Transformer 24 V. (Gas Heat) ....................................................................................................... 1

38 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2

39 00-294436-00005 Fuse Block (Gas Heat) .................................................................................................................1

40 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bind Hd., Type B (Gas Heat) ................................................. 2

41 FE-022-45 Fuse (5 Amp.) (300 V.) (Gas Heat)...............................................................................................1

42 00-294500-018-1 Transformer (150 VA) Pilot Control ................................................................................................1

43 00-294500-018-2 Transformer (250 VA) Pilot Control (Machines W/Blower Dryer or Condenser) ......................... 1

44 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................4

45 00-274629-00002 Thermostat – Solid State (230 V.) .................................................................................................. 1

46 SC-098-07 Mach. Screw 4-40 x 13/4 Rd. Hd. (SST) ......................................................................................... 3

47 WS-028-12 Washer ........................................................................................................................................... 3

48 00-271065 Base Plate ...................................................................................................................................... 1

49 00-087714-028-2 Time Delay Relay (Machines W/Vent Fan Control) ...................................................................... 1

50 SD-014-26 Self-Tapping Screw 6-32 x 3/4 Slotted Pan Hd., Type D ................................................................ 2

51 00-087714-028-2 Relay Time Delay ........................................................................................................................... 1

52 SD-014-26 Self-Tapping Screw 6-32 x 3/4 Slotted Pan Hd., Type D ................................................................ 2

53 00-294677-00003 Clamp – Wire (3/4 I.D.) .................................................................................................................... 3

54 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................. 3

55 FE-022-74 Fuse (0.6 Amp.) (500 V.) (380-480 V. Mach. W/O Blower Dryer or Condenser) ........................2

56 FE-022-86 Fuse (0.8 Amp.) (500 V.) (380-480 V. Mach. W/Blower Dryer and/or Condenser) .....................2

57 00-294676 PCB – Terminal & Fuse .................................................................................................................. 1

58 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bind Hd., Type B .................................................................... 4

59 00-294677-00004 Clamp – Wire (1 I.D.) ..................................................................................................................... 3

60 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2

61 00-087713-040-1 Contactor 30 Amp., 3 Pole .............................................................................................................1

62 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2

63 WL-007-12 Lockwasher #10 External Shakeproof ......................................................................................... 6

64 SC-053-05 Mach. Screw 10-24 x 3/8 Truss Hd., Slotted .................................................................................. 6

65 00-294500-021-1 Transformer 24 & 120 V. Secondary (Gas Heat) ......................................................................... 1

66 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................4

67 00-205113-00002 Relay 3 P.D.T. .................................................................................................................................1

68 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................1

69 00-186748 Relay Mounting .............................................................................................................................. 1

70 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bind Hd., Type B .................................................................... 2

/2 Phil. Pan Hd., Type B ...................................................................1

/2 Phil. Pan Hd., Type B ...................................................................2

/2 Phil. Pan Hd., Type B .....................................................................1

* Single point electrical connection, 3 Ph., or 200-240 V., 1 Ph. machines

W/O single point electrical connection. Electric heat only.

- 7 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

21 20 19 18

15-16-17

12-13-14

10-11

1-2

67 68

5 THRU 9

3-4

63 64

23 22

25 24

65 66

27 26

29 28

30-31

59 60 61

33 32

34-35-36

52-53-54

55 56 57

38-39-40

PL-51065

THRU

77-78

THRU

49 50

COMPONENT PANEL

(CONTROL BOX)

120 V. PILOT CIRCUIT

ILLUS. PART NO. NAME OF PART AMT. PL-51065

1 00-294325-013-5 Block – Terminal ............................................................................................................................. 1

2 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................2

3 00-087713-041-2 Contactor 40 Amp. 3 Pole (Machines W/Conveyor Dwell) ........................................................... 1

4 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2

5 00-294325-013-4 Terminal – Block (Machines W/Vent Fan Control) ........................................................................ 1

6 00-437101 Bracket – Vent Fan Control ............................................................................................................ 1

7 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ...................................................................2

8 WL-014-07 Lockwasher #10 External Shakeproof (SST) ............................................................................... 2

9 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................2

10 00-294325-015-1 Block – Terminal ............................................................................................................................. 1

11 SD-037-21 Self-Tapping Screw 8-32 x 1 Phil. Hd., Type F.............................................................................. 2

12 00-118544-00002 Lug – Grounding ............................................................................................................................ 1

13 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT .................................................................. 1

14 WL-007-15 Lockwasher 1/4 External Shakeproof ............................................................................................. 1

15 00-118544-00002 Lug – Grounding (Electric Heat) ................................................................................................... 1

16 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT .................................................................. 1

17 WL-007-15 Lockwasher 1/4 External Shakeproof ............................................................................................. 1

18 00-294325-015-1 Block – Terminal (200-240 V., 380-480 V., 3 Ph. Electric Heat) .................................................... 2

19 00-294325-004-1 Block – Terminal (Not Shown) (200-240 V., 1 Ph., Electric Heat) (S.P.E.C.) ............................... 2

F-17820 Rev. D (May 2001)

- 8 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

COMPONENT PANEL (Cont.)

(CONTROL BOX)

120 V. PILOT CIRCUIT

ILLUS. PART NO. NAME OF PART AMT. PL-51065

20 SD-037-21 Self-Tapping Screw 8-32 x 1 Fil. Phil. Hd. Type F (Use W/Item 18 on 3 Ph. Machines) .............. 2

21 SD-008-36 Self-Tapping Screw 8-18 x 7/8 Phil. Rd. Hd. Type B (Use W/Item 19 on 1 Ph. Machines) ............ 2

22 00-087713-041-2 Contactor 40 Amp. 3 Pole (Electric Heat) ..................................................................................... 1

23 SD-008-25 Self-Tapping Screw 10-16 x 24 00-294677-00005 Clamp – Wire (1

/2 I.D.) .................................................................................................................. 2

25 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 2

26 00-205113-00001 Relay – 3 PDT (1CR, 3CR, & 4CR) .............................................................................................. 3

27 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil Pan Hd., Type B ...................................................................... 3

28 00-294677-00004 Clamp – Wire (1 I.D.) ..................................................................................................................... 2

29 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 2

30 00-087714-007-2 Relay – D.P.D.T. (115 V.) ................................................................................................................ 1

31 SD-019-29 Self-Tapping Screw 6-20 x

32 00-112527 Contactor (Machines W/Vent Fan Control) ................................................................................... 1

33 SD-008-25 Self-Tapping Screw 10-16 x

34 00-437103 Bracket – Relay Mounting ............................................................................................................. 1

35 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 2

36 WL-014-07 Lockwasher #10 External Shakeproof (SST) ............................................................................... 2

37 00-437070-00001 Plug On Module (Machines W/Vent Fan Control) ......................................................................... 1

38 00-087714-00036 Relay Time Delay (Variable) (Machines W/Vent Fan Control) ...................................................... 1

39 SD-036-13 Self-Tapping Screw 1/4-20 x 11/4 Hex Washer Hd., Type T ........................................................... 1

40 WL-007-15 Lockwasher 1/4 External Shakeproof ............................................................................................. 1

41 00-294500-046-1 Transformer (150 VA) Pilot Control ................................................................................................1

42 00-294500-046-2 Transformer (300 VA) Pilot Control ................................................................................................1

43 00-294500-046-3 Transformer (500 VA) Pilot Control ................................................................................................1

44 SD-008-25 Self-Tapping Screw 10-16 x 3/8 Phil. Bind Hd., Type B (Use W/Item 41 or 42) ............................ 4

45 WL-014-07 Lockwasher #10 External Shakeproof (SST) (Use W/Item 41 or 42) ......................................... 4

46 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT (Use W/Item 43)...................................... 4

47 WL-007-15 Lockwasher 1/4 External Shakeproof (Use W/item 43) ................................................................. 4

48 00-087714-00036 Relay Time Delay (Variable) .......................................................................................................... 1

49 00-294677-00005 Clamp – Wire (11/2 I.D.) .................................................................................................................. 2

50 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 2

51 00-435508 Base Plate ...................................................................................................................................... 1

52 00-274629-00001 Thermostat – Solid State (120 V.) .................................................................................................. 1

53 SC-098-07 Mach. Screw 4-40 x 13/4 Rd. Hd.(SST) ......................................................................................... 3

54 WS-028-12 Washer ........................................................................................................................................... 3

55 00-087714-031-2 Relay Time Delay (5 Sec.) ............................................................................................................. 1

56 SD-036-13 Self-Tapping Screw 1/4-20 x 11/4 Hex Washer Hd., Type T ........................................................... 1

57 WL-007-15 Lockwasher 1/4 External Shakeproof ............................................................................................. 1

58 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 4

59 FE-022-39 Fuse (1.5 Amp.) (250 V.) (60 Hz. Machines W/O Blower Dryer or Condenser) ......................... 1

60 FE-021-19 Fuse (3.2 Amp.) (125 V.) (50 Hz. & 50/60 Hz. Machines W/Blower Dryer and/or Condens ...... 1

61 FE-023-25 Fuse (5 Amp.) (125 V.) (380-480 V. Gas Heat Machine W/Blower Dryer and/or Condenser) ... 1

62 00-294676 P.C.B. – Terminal & Fuse ................................................................................................................1

63 00-294677-00004 Clamp – Wire (1 I.D.) ..................................................................................................................... 3

64 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 3

65 00-087713-040-2 Contactor – 30 Amp., 3 Pole .......................................................................................................... 1

66 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B ................................................................... 2

67 SC-053-05 Mach. Screw 10-24 x 3/8 Truss Hd., Slotted .................................................................................. 6

68 WL-007-12 Lockwasher #10 External Shakeproof ......................................................................................... 6

69 00-205113-00001 Relay – 3 PDT (5CR) ....................................................................................................................1

70 00-437102 Bracket – Relay Mounting ............................................................................................................. 1

71 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bind Hd., Type B .................................................................... 2

72 WL-014-05 Lockwasher #8 External Shakeproof ............................................................................................ 2

73 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B .....................................................................2

74 00-294500-021-1 Transformer 24 & 120 V. Secondary (Gas Heat) ......................................................................... 1

75 00-437070-00001 Plug On Module .............................................................................................................................. 1

76 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bind Hd., Type B .................................................................... 4

77 SD-036-13 Self-Tapping Screw 1/4-20 x 11/4 Hex Washer Hd., Type T ........................................................... 1

78 WL-007-15 Lockwasher 1/4 External Shakeproof ............................................................................................. 1

/2 Phil. Pan Hd., Type B ................................................................... 2

/2 Phil. Pan Hd., Type B .....................................................................2

/2 Phil. Pan Hd., Type B ................................................................... 2

- 9 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

32 33

Tank Wall

8 7

PL-55489

F-17820 Rev. D (May 2001)

C44A & C54A Series

23 24

C44AW Series

16 THRU 19

WASH MOTOR AND PUMP UNIT

- 10 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

WASH MOTOR AND PUMP UNIT

ILLUS. PART NO. NAME OF PART AMT. PL-55489

1 00-328362 Strainer – Pump ............................................................................................................................. 1

2 00-119050 Gasket............................................................................................................................................ 1

3 00-749586 Hose – Discharge .......................................................................................................................... 1

4 00-542337 Clamp – Hose ................................................................................................................................ 2

5 00-270968 Gasket – Wash Pipe ......................................................................................................................1

6 00-270970 Tube – Discharge........................................................................................................................... 1

7 SC-041-29 Cap Screw 3/8-16 x 7/8 Hex Hd. (SST) ............................................................................................ 4

8 WS-06-44 Washer ...........................................................................................................................................4

9 WL-006-22 Lockwasher 5/16 Light ..................................................................................................................... 4

10 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

11 00-274227-00002 Clamp ............................................................................................................................................. 1

12 SC-041-05 Cap Screw 1/4-16 x 5/8 Hex Hd. (SST) ............................................................................................ 2

13 WL-007-16 Lockwasher 1/4 ............................................................................................................................... 2

14 00-812069 Bracket – Motor Support ............................................................................................................... 1

15 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2

16 00-274230-00001 Motor (1 Ph., 60 Hz.) (2 Hp.) ........................................................................................................ 1

17 00-274230-00002 Motor (3 Ph., 60 Hz.) (2 Hp.) ........................................................................................................ 1

18 00-274230-00003 Motor (1 Ph., 50 Hz.) (2 Hp.) ........................................................................................................ 1

19 00-274230-00004 Motor (3 Ph., 50 Hz.) (2 Hp.) ........................................................................................................ 1

20 00-274227-00003 Adapter ...........................................................................................................................................1

21 00-274227-00006 Seal – Shaft .................................................................................................................................... 1

*22 00-274227-00007 Impeller & Sleeve (60 Hz.)............................................................................................................. 1

*23 00-274227-00010 Impeller & Sleeve (50 Hz.)............................................................................................................. 1

**24 00-274227-00012 Impeller & Sleeve (60 Hz.) ............................................................................................................. 1

**25 00-274227-00007 Impeller & Sleeve (60 Hz.) ............................................................................................................. 1

26 00-274227-00004 Gasket............................................................................................................................................ 1

27 00-119051 Gasket ............................................................................................................................................ 2

28 00-812776 Plate – Support ............................................................................................................................... 2

29 00-274227-00005 Stud .............................................................................................................................................. AR

30 00-274227-00001 Pump Shell (Incls. Items 19) .......................................................................................................... 1

31 00-274246 Shroud ............................................................................................................................................ 1

32 WL-006-23 Lockwasher 5/16 Medium (SST) .................................................................................................... 10

33 NS-015-11 Nut 5/16-18 Hex ............................................................................................................................... 10

* C44A & C54A Series ** C44AW Series

- 11 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

Previous Construction

5-6-7

THRU

CONVEYOR DRIVE UNIT

(C44A SERIES 1/4 Hp.)

THRU

PL-50731

F-17820 Rev. D (May 2001)

- 12 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

CONVEYOR DRIVE UNIT

(C44A SERIES 1/4 Hp.)

ILLUS. PART NO. NAME OF PART AMT. PL-50731

1 00-270930-00001 Motor – Conveyor Drive (208-240/480 V., 60 Hz., 3 Ph.) (Incls. Item 26) ................................... 1

2 00-270930-00002 Motor – Conveyor Drive (208-240 V., 60 Hz., 1 Ph.) (Incls. Item 26) .......................................... 1

3 00-270930-00003 Motor – Conveyor Drive (200-240 V., 50 Hz., 1 Ph.) (Incls. Item 26) .......................................... 1

4 00-270930-00004 Motor – Conveyor Drive (200-240/380-415 V., 50 Hz., 3 Ph.) (Incls. Item 26) ........................... 1

5 SC-041-30 Cap Screw

6 WL-006-29 Lockwasher 3/8 Hi-Collar ................................................................................................................ 4

7 NS-015-13 Nut 3/8-16 Hex (SST) ...................................................................................................................... 4

8 00-271083 Spacer – Overload ........................................................................................................................ 1

9 00-270927 Pilot Bearing ................................................................................................................................... 1

10 SC-120-72 Cap Screw 5/16-18 x 41/2 Hex Hd. ...................................................................................................1

11 WS-029-05 Washer ........................................................................................................................................... 4

12 00-270935 Spring – Overload .......................................................................................................................... 1

13 NS-032-33 Stop Nut 1/4-28 Flexloc ...................................................................................................................1

14 00-289256 Actuator – Switch ........................................................................................................................... 1

15 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................3

16 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 3

17 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 3

18 WS-029-05 Washer ........................................................................................................................................... 1

19 SC-027-24 Mach. Screw 6-32 x 11/2 Rd. Hd. ................................................................................................... 2

20 WL-010-22 Lockwasher #6 External Shakeproof ............................................................................................ 2

21 WS-002-06 Washer ........................................................................................................................................... 4

22 NS-010-06 Mach. Nut 6-32 Hex ....................................................................................................................... 2

23 00-270933-00001 Bracket – Anti-Jam Switch ............................................................................................................1

24 00-087711-060-1 Switch – Interlock (Incls. Items 19, 20, 21, & 22) ......................................................................... 1

25 00-274231-00011 Key – Woodruff #605 ..................................................................................................................... 1

26 00-274231-00057 Key – 3/16 x 3/16 x 11/8 Lg. (Bison) ..................................................................................................... 1

27 00-270929-00001 Bracket – Motor .............................................................................................................................1

00-103881-00038 Lubricant – Gear Case ................................................................................................................ AR

/8-16 x 1 Hex Hd. (SST) ............................................................................................. 4

- 13 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

13-14

THRU

C44AW Series

THRU

C54A Series

THRU

C44A Series

42-43-44

38-39-40

PL-55294

32 31

24-25

Previous Construction

CONVEYOR DRIVE UNIT

(C54A, C44A & AW SERIES 1/6 Hp.)

THRU

F-17820 Rev. D (May 2001)

- 14 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

CONVEYOR DRIVE UNIT

(C54A, C44A & AW SERIES 1/6 Hp.)

ILLUS. PART NO. NAME OF PART AMT. PL-55294

**1 00-328002-00001 Motor – Conveyor Drive (208-240/480 V., 60 Hz., 3 Ph.) (Incls. Items 27, 28, & 29) ................. 1

**2 00-328002-00002 Motor – Conveyor Drive (208-240 V., 60 Hz., 1 Ph.) (Incls. Items 27, 28, & 29) ........................ 1

**3 00-328002-00003 Motor – Conveyor Drive (200-240 V., 50 Hz., 1 Ph.) (Incls. Items 27, 28, & 29) ........................ 1

**4 00-328002-00004 Motor – Conveyor Drive (200-240/380-415 V., 50 Hz., 3 Ph.) (Incls. Items 27 & 28)................. 1

***5 00-437044-00006 Motor – Conveyor Drive (208-240/480 V., 60 Hz., 3 Ph.) (Incls. Items 27, 28, & 29) .................1

***6 00-437044-00007 Motor – Conveyor Drive (208-240 V., 60 Hz., 1 Ph.) (Incls. Items 27, 28, & 29) ........................ 1

***7 00-437044-00008 Motor – Conveyor Drive (200-240 V., 50 Hz., 1 Ph.) (Incls. Items 27, 28, & 29) ........................ 1

***8 00-437044-00009 Motor – Conveyor Drive (200-240/380-415 V., 50 Hz., 3 Ph.) (Incls. Items 27 & 28)................. 1

*9 00-437044-00001 Motor – Conveyor Drive (208-240/480 V., 60 Hz., 3 Ph.) (Incls. Items 27, 28, & 29) ................. 1

*10 00-437044-00002 Motor – Conveyor Drive (208-240 V., 60 Hz., 1 Ph.) (Incls. Items 27, 28, & 29) ........................1

*11 00-437044-00003 Motor – Conveyor Drive (200-240 V., 50 Hz., 1 Ph.) (Incls. Items 27, 28, & 29) ........................1

*12 00-437044-00004 Motor – Conveyor Drive (200-240/380-415 V., 50 Hz., 3 Ph.) (Incls. Items 27 & 28) ................. 1

13 00-328379-00001 Seal – Oil (Output Shaft-Shown) ................................................................................................... 1

14 00-328379-00002 Seal – Oil (Motor Drive Shaft) ....................................................................................................... 1

15 00-474423 Flinger ............................................................................................................................................. 1

16 00-274231-00057 Key –

17 BB-005-19 Ball Bearing – Fafnir #H202PP ...................................................................................................... 1

18 BB-020-18 Ball Bearing - N.D. #77503 ............................................................................................................. 1

19 SC-027-24 Mach. Screw 6-32 x 11/2 Rd. Hd. ................................................................................................... 2

20 WL-010-22 Lockwasher #6 External Shakeproof ............................................................................................ 2

21 WS-002-06 Washer ........................................................................................................................................... 4

22 NS-010-06 Mach. Nut 6-32 Hex ....................................................................................................................... 2

23 00-087711-060-1 Switch – Interlock (Incls. Items 13 thru 16) .................................................................................. 1

24 00-087711-00260 Switch – Interlock ........................................................................................................................... 1

25 FE-022-84 Strain Relief 1/2 NPT ....................................................................................................................... 1

26 SC-067-05 Mach. Screw 8-32 x 1/2 Hex Hd. (SST) ......................................................................................... 2

27 00-474488 Bracket – Switch ............................................................................................................................ 1

28 NS-031-16 Stop Nut 10-24 Hex (SST) ............................................................................................................2

29 SC-127-89 Mach. Screw 10-24 x 3/4 Phil. Rd. Hd. (SST) ................................................................................. 2

30 00-270927 Pilot Bearing ................................................................................................................................... 1

31 NS-032-33 Stop Nut 1/4-28 Flexloc ...................................................................................................................1

32 00-289256 Actuator – Switch ........................................................................................................................... 1

33 00-271083 Spacer – Overload ........................................................................................................................ 1

34 WS-029-05 Washer ........................................................................................................................................... 4

35 00-436017 Bracket – Overload .......................................................................................................................1

36 SC-120-72 Cap Screw 5/16-18 x 41/2 Hex Hd. ...................................................................................................1

37 00-270935 Spring – Overload .......................................................................................................................... 1

38 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................2

39 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

40 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

41 00-328027 Bracket – Motor ............................................................................................................................. 1

42 SC-041-31 Cap Screw 3/8-16 x 11/4 Hex Hd. ....................................................................................................4

43 WL-006-29 Lockwasher 3/8 Hi-Collar ................................................................................................................ 4

44 NS-015-13 Nut 3/8-16 Hex (SST) ...................................................................................................................... 4

/16 x 3/16 x 11/8 Lg. .................................................................................................................. 1

* C44A Series ** C44A Series *** C54A Series

- 15 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

25 26 27

TANK WALL

8 THRU 11

THRU

F-17820 Rev. D (May 2001)

PL-55301

CONVEYOR DRIVE TRAIN

- 16 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

CONVEYOR DRIVE TRAIN

ILLUS. PART NO. NAME OF PART AMT. PL-55301

1 NS-032-35 Stop Nut 5/16-18 Flexloc ..................................................................................................................1

2 00-474660 Slide – Drive Crank ........................................................................................................................1

3 SC-041-20 Cap Screw 5/16-18 x 21/8 Hex Hd. ...................................................................................................1

4 WS-005-32 Washer ........................................................................................................................................... 1

5 00-012430-00039 Key 3/16 Sq. x 3/8 Lg. .........................................................................................................................1

6 00-270943 Arm – Crank ................................................................................................................................... 1

7 SC-050-01 Set Screw 1/4-20 x 1/2 Square Hd. Cup Pt. ..................................................................................... 2

8 SC-041-13 Cap Screw 5/16-18 x 1 Hex Hd. (SST) ............................................................................................ 4

9 WS-017-08 Washer ........................................................................................................................................... 4

10 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4

11 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

12 00-270937 Shaft – Crank ................................................................................................................................. 1

13 00-436879 Spacer – Bearing ........................................................................................................................... 1

14 BB-021-19 Ball Bearing – Hoover NSK 6003 .................................................................................................. 1

15 00-328083 Coupling – Motor (C44AW & C54A Series) (C44A 1/6 Hp. Motor)................................................. 1

16 00-270931 Coupling – Motor (C44A Series 1/4 Hp. Motor) .............................................................................. 1

17 00-274228-00002 Insert – Coupling Service (LoveJoy) .......................................................................................... AR

18 00-274228-00001 Insert – Coupling Service (Browning) ......................................................................................... AR

19 00-270939 Seal – Lower Housing .................................................................................................................... 1

20 00-012430-00040 Key 3/16 Sq. x 3/4 Lg. .........................................................................................................................1

21 00-270942 Gasket ............................................................................................................................................ 1

22 00-274749 Housing Assy. (Incls. Items 12 thru 14, 19, & 23 thru 25) ............................................................1

23 BB-021-19 Ball Bearing – Hoover NSK 6003 .................................................................................................. 1

24 00-270940 Seal – Upper Housing .................................................................................................................... 1

25 00-274748 Seal – Labyrinth ............................................................................................................................. 1

26 00-527042 Adhesive....................................................................................................................................... AR

27 00-522696 Solvent .......................................................................................................................................... AR

- 17 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

25 - 26

22 - 23

15 16 17

PL-50734

CONVEYOR DRIVE – MOTOR PARTS

(VON WEISE – 1/4 Hp.)

ILLUS. PART NO. NAME OF PART AMT. PL-50734

1 00-274231-00013 Cover .............................................................................................................................................. 1

2 00-274231-00012 O-Ring ............................................................................................................................................ 1

3 00-274231-00005 Bearing (Flanged) .......................................................................................................................... 1

4 00-274231-00009 Woodruff Key .................................................................................................................................1

5 00-274231-00024 Washer ...........................................................................................................................................6

6 00-274231-00014 Gear – Output ................................................................................................................................ 1

7 00-274231-00006 Retaining Ring ................................................................................................................................2

8 00-274231-00004 Washer – Thrust ............................................................................................................................ 5

9 00-274231-00005 Bearing (Flanged) .......................................................................................................................... 1

10 00-274231-00003 Ball Bearing .................................................................................................................................... 1

11 00-274231-00002 Washer ...........................................................................................................................................1

12 00-274231-00021 Seal ................................................................................................................................................. 1

13 00-274231-00023 Spacer Kit – Motor ......................................................................................................................... 1

14 00-274231-00022 Ball Bearing .................................................................................................................................... 1

15 00-274231-00001 Motor – 60 Hz., 3 Ph. ..................................................................................................................... 1

16 00-274231-00025 Motor – 50/60 Hz., 1 Ph. ................................................................................................................ 1

17 00-274231-00029 Motor – 50 Hz., 3 Ph. ..................................................................................................................... 1

18 00-274231-00007 Gasket............................................................................................................................................ 1

19 00-274231-00020 Bushing ........................................................................................................................................... 1

20 00-274231-00015 Needle Bearing ............................................................................................................................... 1

21 00-274231-00019 Shaft ............................................................................................................................................... 1

22 00-274231-00018 Gear – 60 Hz. ................................................................................................................................ 1

23 00-274231-00027 Gear – 50 Hz. ................................................................................................................................ 1

24 00-274231-00015 Needle Bearing ............................................................................................................................... 1

25 00-274231-00017 Gear – 60 Hz. ................................................................................................................................ 1

26 00-274231-00026 Gear – 50 Hz. ................................................................................................................................ 1

27 00-274231-00010 Output Shaft ...................................................................................................................................1

28 00-274231-00008 Screw – Socket Head ....................................................................................................................8

29 00-274231-00016 Case ...............................................................................................................................................1

F-17820 Rev. D (May 2001)

* Refer to Page 12, Items 1 thru 4, for Conveyor Drive Motor and Gear Case.

- 18 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

7-8-9

CONVEYOR DRIVE – MOTOR PARTS

(BISON – 1/4 Hp.)

PL-50735

ILLUS. PART NO. NAME OF PART AMT. PL-50735

1 00-274231-00045 Housing Assy. (Incls. Needle Bearings) ........................................................................................ 1

2 00-274231-00049 Ball – 1/4 Dia. ................................................................................................................................... 5

3 00-274231-00050 Gear Assy. – Intermediate ............................................................................................................. 1

4 00-274231-00051 Gear Assy. – High Speed .............................................................................................................. 1

5 00-274231-00052 Stop Device Kit (Set of Spacer Washers) .................................................................................... 1

6 00-274231-00044 Adaptor Assy. (Incls. Needle Bearings) ........................................................................................ 1

7 00-274231-00040 Motor – 60 Hz., 3 Ph. (Incls. Items 6 thru 11) ............................................................................... 1

8 00-274231-00041 Motor – 50/60 Hz., 1 Ph. (Incls. Items 6 & 11) ..............................................................................1

9 00-274231-00042 Motor – 50 Hz., 3 Ph. (Incls. Items 6 & 11) ................................................................................... 1

10 00-274231-00053 Screw – Torx ..................................................................................................................................9

11 00-274231-00054 Seal – Motor Shaft .......................................................................................................................... 1

12 00-274231-00047 Gasket............................................................................................................................................ 1

13 00-274231-00048 Gear Assy. – Output Shaft (Incls. Item 14) ................................................................................... 1

14 00-274231-00056 Ball Bearing .................................................................................................................................... 1

15 00-274231-00046 Seal – Output Shaft ........................................................................................................................1

00-270930-00001 Motor – Conveyor Drive (208-240/480 V., 60 Hz., 3 Ph.) (Incls. Items 1 thru 7, 10 thru 15 ....... 1

00-270930-00002 Motor – Conveyor Drive (208-240 V., 60 Hz., 1 Ph.) (Incls. Items 1 thru 6, 8, & 10 thru 15 ...... 1

00-270930-00003 Motor – Conveyor Drive (200-240 V., 50 Hz., 1 Ph.) (Incls. Items 1 thru 6, 8, & 10 thru 15 ...... 1

00-270930-00004 Motor – Conveyor Drive (200-240/380-415 V., 50 Hz., 3 Ph.) (Incls. Items 1 thru 6 & 9

thru 15 ......................................................................................................................................... 1

- 19 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

55 54

THRU

51-52

49 -50

46-47-48

THRU

5-6

Previous Construction

3-4

THRU

8-9

18 - 19

20 - 21

11 12 13

Previous Construction

("Z" BENT CRADLE)

PL-55295

F-17820 Rev. D (May 2001)

TRACK AND CRADLE

(WASH SECTION)

- 20 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

TRACK AND CRADLE

(WASH SECTION)

ILLUS. PART NO. NAME OF PART AMT. PL-55295

1 00-436873-00001 Rack Track ..................................................................................................................................... 2

2 - Rack Track (Not Available) (Order *** Below) .............................................................................. 2

3 00-270977 Roller .............................................................................................................................................. 4

4 WS-018-04 Washer ........................................................................................................................................... 4

*5 WS-018-04 Washer ........................................................................................................................................... 6

*6 SC-041-31 Cap Screw 3/8-16 x 11/4 Hex Hd. ....................................................................................................6

7 SC-041-10 Cap Screw

8 NS-015-11 Nut

9 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 8

10 SC-041-11 Cap Screw 11 NS-015-11 Nut

12 WS-017-08 Washer ......................................................................................................................................... AR

13 WL-006-23 Lockwasher 5/16 Medium (SST) ................................................................................................... AR

14 00-271074 Baffle – Lower (R-L Only) .............................................................................................................. 1

*15 WL-006-28 Lockwasher *16 NS-046-09 Stop Nut

17 - Cradle (Not Available) (order one of the ** Below & ***: also order Item 29 & 31) .................... AR

*18 00-436704-00001 Dog (Front R-L) (Rear L-R) ..........................................................................................................3

*19 00-436704-00002 Dog – Not Shown (Front L-R) (Rear R-L) .................................................................................... 3

*20 00-436703-00001 Dog (Front R-L) (Rear L-R) (Service for “Z” Bent Cradles Only) ............................................... 3

*21 00-436703-00002 Dog (Front L-R) (Rear R-L) (Service for “Z” Bent Cradles Only) ............................................... 3

*22 00-270983 Spacer ............................................................................................................................................6

23 00-473231 Slider – Large ................................................................................................................................. 4

24 SC-041-14 Cap Screw 5/16-18 x 11/8 Hex Hd. (SST) ........................................................................................ 8

25 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 8

26 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 8

27 00-436928 Cradle .............................................................................................................................................1

28 00-271012 Baffle – Cradle Upper .................................................................................................................. AR

29 SC-041-13 Cap Screw 5/16-18 x 1 Hex Hd. (Mounts Front Track) .................................................................. 2

30 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) ......................................................................................... 10

31 WS-017-01 Washer .......................................................................................................................................... 20

32 WL-006-23 Lockwasher 5/16 Medium (SST) .................................................................................................... 14

33 NS-015-11 Nut 5/16-18 Hex ............................................................................................................................... 14

34 00-437047 Deflector – Silverware ................................................................................................................... 1

35 SC-127-91 Mach. Screw 1/4-20 x 5/8 Flat Hd. (SST) ......................................................................................... 2

36 WS-003-47 Washer ........................................................................................................................................... 2

37 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................2

38 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2

39 00-328789 Rack Track (C54A) ........................................................................................................................ 2

40 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................4

41 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 4

42 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 8

43 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 8

44 00-328793 Cradle (C54A) ................................................................................................................................1

45 00-274559 Screw – Connecting (C54A) ......................................................................................................... 2

46 WS-017-01 Washer ........................................................................................................................................... 4

47 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4

48 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

49 SC-041-31 Cap Screw 3/8-16 x 11/4 Hex Hd. ....................................................................................................2

50 WS-018-04 Washer ........................................................................................................................................... 2

51 00-436704-00001 Dog (Front R-L) (Rear L-R) (C54A) ............................................................................................. 1

52 00-436704-00002 Dog (Front L-R) (Rear R-L) (C54A) ............................................................................................. 1

53 00-270983 Spacer ............................................................................................................................................ 2

54 NS-046-09 Stop Nut 3/8-16 Elastic .................................................................................................................... 2

55 WL-006-28 Lockwasher 3/8 Medium .................................................................................................................2

56 00-473231 Slider – Large (C54A) .................................................................................................................... 2

57 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................4

58 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4

59 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

60 00-328795-00001 Support – Tank (C54A) .................................................................................................................. 1

61 00-328790 Drive Bracket (C54A) ....................................................................................................................1

62 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................4

63 WS-017-01 Washer ........................................................................................................................................... 2

64 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4

65 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

** 00-436927-00001 Cradle & Dog Assy. R-L (Standard Racks Only) (Incls. Items 5, 6, 15, 16, 18, 19, 22, & 27) ... 1 ** 00-436927-00002 Cradle & Dog Assy. L-R (Standard Racks Only) (Incls. Items 5, 6, 15, 16, 18, 19, 22, & 27) ... 1

*** 00-436968 Rack Track Assy. (Incls. Items 1 & 23 thru 26) ............................................................................ 2

00-328794 Cradle & Dog Assy. (C54A) (Incls. Items 44 & 49 thru 59) ..........................................................1

* Quantities listed are for 20 x 20 racks.

/16-18 x 5/8 Hex Hd. ................................................................................................... AR

/16-18 Hex ................................................................................................................................ 8

/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 8

/16-18 Hex .............................................................................................................................. AR

/8 Medium .................................................................................................................6

/8-16 Elastic .................................................................................................................... 6

- 21 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

59-60

56 57 58

2 THRU 5

7 THRU 11

Previous Construction

28 29 30 31

14-15-16

17-18-19-20

22-23-24-25

26 27

32 33

47 THRU 51

41 THRU 45

WASH ARMS AND TUBES

(WASH SECTION – PREVIOUS CONSTRUCTION)

PL-55502

37 36 35 34

F-17820 Rev. D (May 2001)

- 22 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

WASH ARMS AND TUBES

(WASH SECTION – PREVIOUS CONSTRUCTION)

ILLUS. PART NO. NAME OF PART AMT. PL-55502

1 00-271026 Hanger – Upper Wash Arm ......................................................................................................... AR

2 SC-053-42 Mach. Screw 1/4-20 x 5/8 Truss Hd. (SST) .................................................................................... AR

3 WS-022-01 Washer ......................................................................................................................................... AR

4 WL-006-17 Lockwasher 1/4 Medium ............................................................................................................... AR

5 NS-015-01 Nut

6 00-271029 Guide – Upper Wash Arm ............................................................................................................. 1

7 SC-041-11 Cap Screw

8 WS-017-01 Washer ........................................................................................................................................... 2

9 WS-017-08 Washer ........................................................................................................................................... 2

10 WL-006-23 Lockwasher

11 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

12 00-289760 Latch ...............................................................................................................................................1

13 00-067500-00110 O-Ring ............................................................................................................................................ 1

14 SC-053-42 Mach. Screw 15 WL-006-17 Lockwasher

16 NS-015-01 Nut 1/4-20 Hex (SST) .................................................................................................................... AR

17 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) .......................................................................................... AR

18 WS-022-01 Washer ......................................................................................................................................... AR

19 WL-006-17 Lockwasher 20 NS-015-01 Nut

21 00-185732 Bracket ......................................................................................................................................... AR

22 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ............................................................................................ 1

23 WS-022-01 Washer ........................................................................................................................................... 2

24 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1

25 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1

26 SC-041-09 Cap Screw 5/16-18 x 1/2 Hex Hd. .....................................................................................................2

27 NS-031-19 Stop Nut 1/4-20 Elastic (SST) .........................................................................................................2

28 00-271031 Bracket ...........................................................................................................................................1

29 WS-017-08 Washer ........................................................................................................................................... 2

30 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

31 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

32 00-274057 Wash Pipe (261/8 Door Height) ...................................................................................................... 1

33 00-274721 Wash Pipe (321/8 Door Height) ...................................................................................................... 1

34 SC-041-18 Cap Screw 5/16-18 x 13/4 Hex Hd. (SST) ........................................................................................ 4

35 WS-017-08 Washer ........................................................................................................................................... 8

36 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4

37 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

38 00-270968 Gasket – Wash Pipe ......................................................................................................................1

39 00-067500-00110 O-Ring ............................................................................................................................................ 1

40 00-435871 Plug – Wash Arm ......................................................................................................................... AR

41 00-271034 Catch – Adjustable .........................................................................................................................1

42 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

43 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

44 WS-017-08 Washer ........................................................................................................................................... 2

45 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2

46 00-274222 Support – Adjustable ......................................................................................................................1

47 SC-041-13 Cap Screw 5/16-18 x 1 Hex Hd. (AW Series) .................................................................................. 2

48 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) (A Series) ......................................................................... 2

49 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

50 WS-017-08 Washer ........................................................................................................................................... 2

51 NS-015-11 Nut 5/16-18 Hex .............................................................................................................................. AR

52 00-271035 Wash Arm – Lower (A Series) ...................................................................................................... 1

53 00-437065 Wash Arm – Lower (AW Series) ................................................................................................... 1

54 00-435871 Plug – Wash Arm ......................................................................................................................... AR

55 00-436945 Wash Arm – Upper (R-L & L-R) (AW Series) ............................................................................... 1

56 00-436947-00001 Hanger (AW Series) ....................................................................................................................... 1

57 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (AW Series).................................................................................. 2

58 WL-006-17 Lockwasher 1/4 Medium (AW Series)............................................................................................. 2

59 00-271040 Wash Arm – Upper (R-L) (A Series) ............................................................................................. 1

60 00-271831 Wash Arm – Upper (L-R) (A Series) ............................................................................................. 1

/4-20 Hex (SST) .................................................................................................................... AR

/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2

/16 Medium (SST) ..................................................................................................... 2

/4-20 x 5/8 Truss Hd. (SST) .................................................................................... AR

/4 Medium ............................................................................................................... AR

/4-20 Hex (SST) .................................................................................................................... AR

/4 Medium ............................................................................................................... AR

- 23 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

2 THRU 5

7 THRU 11

54-55

51 52 53

18 19

20 THRU 23

14 THRU 17

24 25

42 THRU 46

35 THRU 40

WASH ARMS AND TUBES

(WASH SECTION)

27 THRU 30

PL-55296

F-17820 Rev. D (May 2001)

- 24 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

WASH ARMS AND TUBES

(WASH SECTION)

ILLUS. PART NO. NAME OF PART AMT. PL-55296

1 00-271026 Hanger – Upper Wash Arm ......................................................................................................... AR

2 SC-125-85 Mach. Screw 1/4-20 x 5/8 Truss Hd. (SST) .................................................................................... AR

3 WS-022-01 Washer ......................................................................................................................................... AR

4 WL-006-17 Lockwasher 1/4 Medium ............................................................................................................... AR

5 NS-015-01 Nut

6 00-436007 Guide – Upper Wash Arm ............................................................................................................. 1

7 SC-041-11 Cap Screw

8 WS-017-01 Washer ........................................................................................................................................... 2

9 WS-017-08 Washer ........................................................................................................................................... 2

10 WL-006-23 Lockwasher 11 NS-015-11 Nut

12 00-289760 Latch ...............................................................................................................................................1

13 00-067500-00110 O-Ring ............................................................................................................................................ 1

14 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ............................................................................................ 1

15 WS-022-01 Washer ........................................................................................................................................... 2

16 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1

17 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1

18 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST) ............................................................................................ 2

19 NS-031-19 Stop Nut 1/4-20 Elastic (SST) .........................................................................................................2

20 00-812817 Bracket ...........................................................................................................................................1

21 WS-017-08 Washer ........................................................................................................................................... 2

22 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

23 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

24 00-329595 Wash Pipe (261/8 Door Height) ...................................................................................................... 1

25 00-329597 Wash Pipe (321/8 Door Height) ...................................................................................................... 1

26 00-475589 Plug – Wash Arm ......................................................................................................................... AR

27 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

28 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4

29 WS-017-08 Washer ........................................................................................................................................... 8

30 SC-041-18 Cap Screw 5/16-18 x 13/4 Hex Hd. (SST) ........................................................................................ 4

31 00-270968 Gasket – Wash Pipe ......................................................................................................................1

32 00-067500-00110 O-Ring ............................................................................................................................................ 1

33 00-475589 Plug – Wash Arm ......................................................................................................................... AR

34 00-067500-00127 O-Ring .......................................................................................................................................... AR

35 00-436939-00002 Catch – Adjustable (RH) ................................................................................................................1

36 00-436939-00001 Catch – Adjustable (LH) ................................................................................................................1

37 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

38 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

39 WS-017-08 Washer ........................................................................................................................................... 2

40 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2

41 00-274222 Support – Adjustable ......................................................................................................................1

42 SC-041-13 Cap Screw 5/16-18 x 1 Hex Hd. (AW Series) .................................................................................. 2

43 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) (A Series) ......................................................................... 2

44 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

45 WS-017-08 Washer ........................................................................................................................................... 2

46 NS-015-11 Nut 5/16-18 Hex .............................................................................................................................. AR

47 00-749405 Wash Arm – Lower (A Series) ...................................................................................................... 1

48 00-749418 Wash Arm – Lower (AW Series) ................................................................................................... 1

49 00-067500-00127 O-Ring .......................................................................................................................................... AR

50 00-749419 Wash Arm – Upper (R-L & L-R) (AW Series) ............................................................................... 1

51 00-436947-00001 Hanger (AW Series) ....................................................................................................................... 1

52 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (AW Series).................................................................................. 2

53 WL-006-17 Lockwasher 1/4 Medium (AW Series)............................................................................................. 2

54 00-749406 Wash Arm – Upper (R-L) (A Series) ............................................................................................. 1

55 00-749407 Wash Arm – Upper (L-R) (A Series) ............................................................................................. 1

/4-20 Hex (SST) .................................................................................................................... AR

/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2

/16-18 Hex ................................................................................................................................ 2

/16 Medium (SST) ..................................................................................................... 2

- 25 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

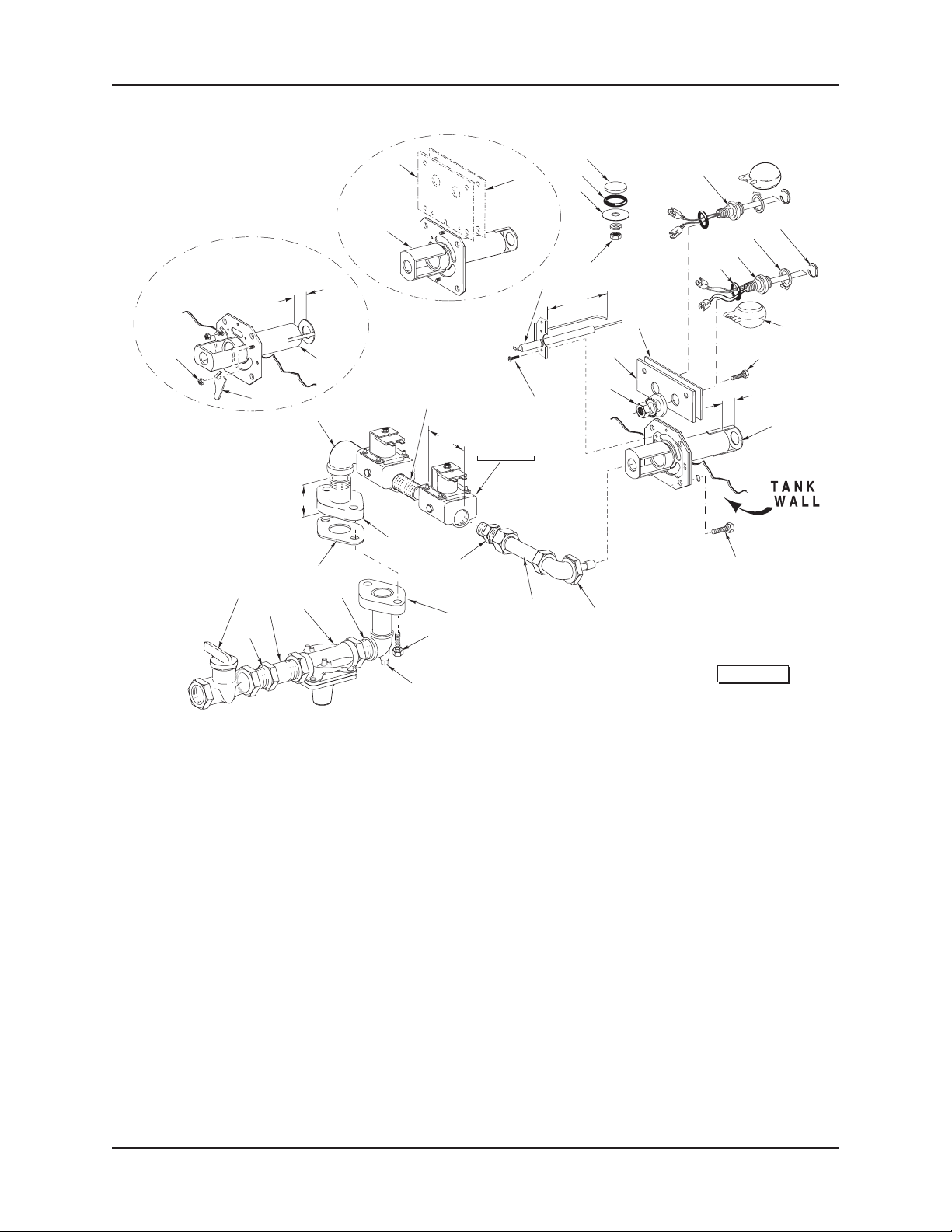

22-23

THRU

11-12

THRU

68 - 69

1 - 2

31 32 33

26 27

PL-51069

THRU

41 42

57 56 55

43 44

40 35 36 37

FILL AND OUTSIDE RINSE PIPING

(PREVIOUS CONSTRUCTION)

Previous Construction

59 58

Previous Construction

60 61 62

ILLUS. PART NO. NAME OF PART AMT. PL-51069

1 00-277112 Vacuum Breaker (3/4) ..................................................................................................................... 1

2 00-118270 Service Kit – Vacuum Breaker (Float & Seal Assy.) ..................................................................... 1

3 FP-015-23 Elbow – Pipe 3/4 x 90 Deg. (Brass) ................................................................................................ 1

4 FP-041-88 Nipple 3/4 x 5 Lg. TBE (Brass) ........................................................................................................1

5 FP-042-12 Nipple 3/4 x 81/4 Lg. TBE (Brass) .....................................................................................................1

6 00-271022 Bracket ........................................................................................................................................... 1

7 00-186922 Line Strainer (3/4) (Incls. Items 8, 9, & 10) ..................................................................................... 1

8 00-186923 Plug – Branch ................................................................................................................................. 1

9 00-186924 Gasket – Branch Plug ................................................................................................................... 1

10 00-186925 Screen – Line Strainer ................................................................................................................... 1

F-17820 Rev. D (May 2001)

- 26 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

FILL AND OUTSIDE RINSE PIPING (Cont.)

(PREVIOUS CONSTRUCTION)

ILLUS. PART NO. NAME OF PART AMT. PL-51069

11 00-328247 Gauge – Water Pressure .............................................................................................................. 1

12 00-436319 Petcock 1/4 ...................................................................................................................................... 1

13 00-063262-00031 Flange & Nipple .............................................................................................................................. 1

14 00-271023 Piping – Inside ................................................................................................................................ 1

**15 NS-015-01 Nut

16 00-271006-00001 Solenoid Valve 3/8 (120 V.) (Incls. Items 18 & 20) (Fill) .................................................................. 1

***17 00-271006-00002 Solenoid Valve

18 00-271839-00001 Coil – Solenoid Valve ...................................................................................................................... 1

19 00-271839-00002 Coil – Solenoid Valve ...................................................................................................................... 1

20 00-271837 Service Kit –

*21 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ...................................................................4

22 00-271008 Vacuum Breaker

23 00-274233 Service Kit – Vacuum Breaker ....................................................................................................... 1

24 00-271007 Fill Piping – Outside ....................................................................................................................... 1

25 SC-041-15 Cap Screw

26 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

27 NS-015-11 Nut

**28 WL-006-17 Lockwasher

29 00-271009 Fill Piping ......................................................................................................................................... 1

30 - Piping – Common Connection (Not Available, Order Item 34) ..................................................... 1

31 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2

32 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

33 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

34 00-435074 Piping – Common Connection ....................................................................................................... 1

35 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2

36 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

37 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

*38 FE-008-10

*39 FE-006-07 Lock Nut 1/2 (Cnd.) .........................................................................................................................1

40 00-063262-00006 Flange & Nipple .............................................................................................................................. 1

41 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

42 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

43 WS-029-05 Washer ........................................................................................................................................... 2

44 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................2

45 00-271002-00001 Solenoid Valve 3/4 (120 V.) (Incls. Items 47 & 49) (Rinse) ............................................................. 1

***46 00-271002-00002 Solenoid Valve 3/4 (208-240 V.) (Incls. Items 48 & 49) (Rinse) ...................................................... 1

47 00-271839-00001 Coil – Solenoid Valve (120 V.) ........................................................................................................1

48 00-271839-00002 Coil – Solenoid Valve (208-240 V.) ................................................................................................. 1

49 00-271838 Service Kit – 3/4 Solenoid Valve ...................................................................................................... 1

50 00-271001 Piping – Final Rinse ....................................................................................................................... 1

**51 00-119244 Cap & Stud Assy. ........................................................................................................................... 1

**52 00-067500-00031 O-Ring ............................................................................................................................................1

**53 00-119254 Retainer – Cap & Stud ................................................................................................................... 1

*54 00-122674 Float Assy. ..................................................................................................................................... 1

*55 FE-006-45 Connector – Straight 1/2 (Thinwall) ................................................................................................. 1

*56 FE-024-49 Connector – Straight 1/2 (Thinwall) ................................................................................................. 1

*57 FE-006-05 Lock Nut 1/2 ..................................................................................................................................... 1

*58 00-112007 Gasket ............................................................................................................................................ 1

*59 00-288465 Lid & Gasket Assy. (Incls. Item 58) ............................................................................................... 1

*60 NS-018-28 Jam Nut 1/2-20 Hex ........................................................................................................................ 1

*61 WL-014-31 Lockwasher 1/2 External Shakeproof (SST) .................................................................................. 1

*62 WS-010-40 Washer – Thrust ............................................................................................................................ 1

*63 00-270926 Junction Box – Auto Fill (RH) (R-L) .............................................................................................. 1

*64 00-067500-00072 O-Ring ............................................................................................................................................ 1

*65 00-112467 Retainer – Float .............................................................................................................................. 1

****66 00-328486 Probe & Switch Assy. (2 Wire) (Water Level) (Incls. Items 54, 64, & 65) .................................... 1

*67 RR-010-13 Retaining Ring ................................................................................................................................1

68 00-119611 Valve – Pressure Regulating 3/4" .................................................................................................... 1

69 00-289091-00001 Kit – Service ...................................................................................................................................1

70 00-067500-00012 O-Ring ............................................................................................................................................ 1

71 00-067500-00012 O-Ring ............................................................................................................................................ 2

/4-20 Hex (SST) ...................................................................................................................... 1

/8 (208-240 V.) (Incls. Items 19 & 20) (Fill) ...........................................................1

/2 Solenoid Valve ...................................................................................................... 1

/8 ........................................................................................................................ 1

/16-18 x 11/4 Hex Hd. ...................................................................................................2

/16-18 Hex ................................................................................................................................ 2

/4 Medium .................................................................................................................1

/2 Gasket Assy. ............................................................................................................................. 2

* C54A, 44A, & AW. ** CRS76A, 66A/AW & CPW90A, 80A/AW. *** Used on machines W/O 120 V. pilot circuit. **** Must order two jumper wires, Part #328758.

- 27 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

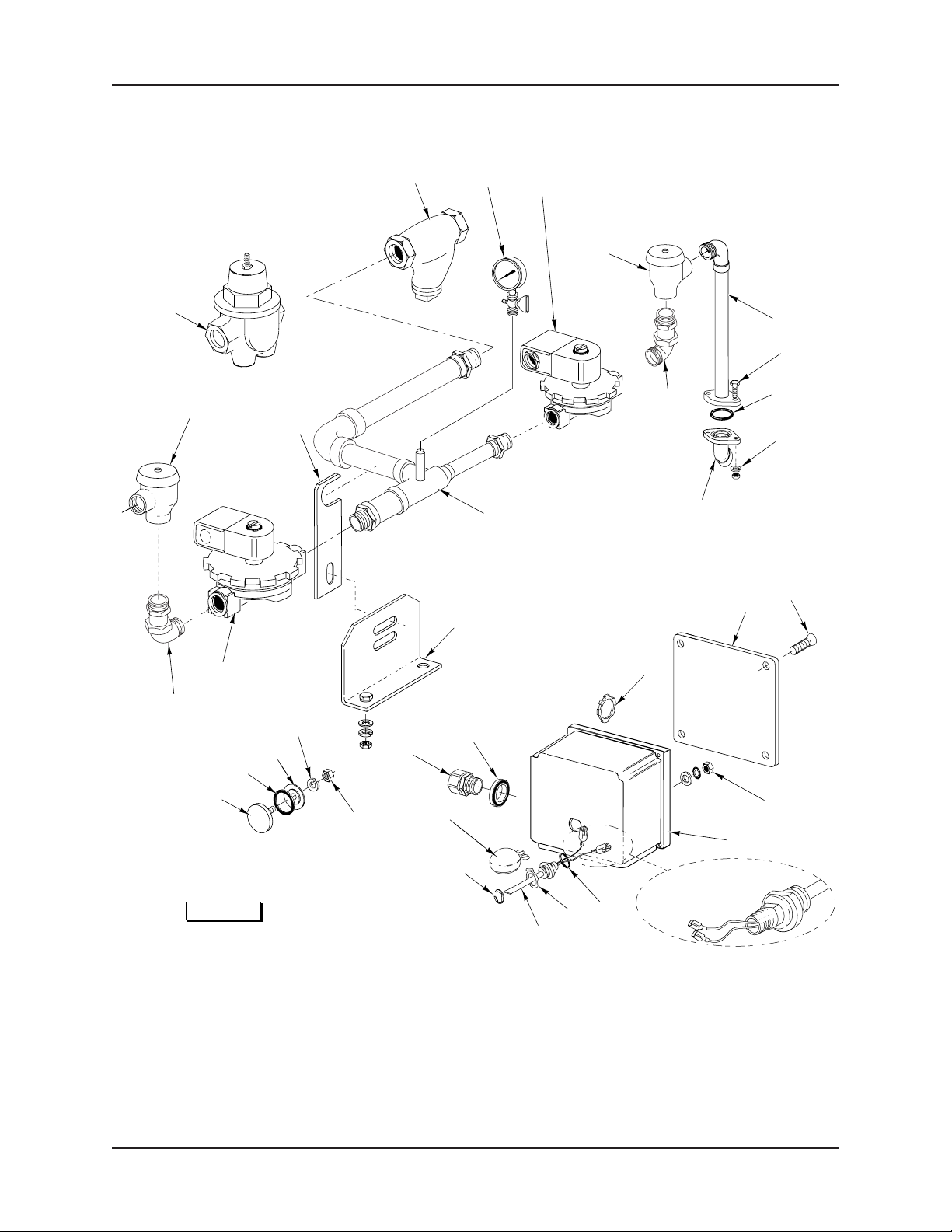

THRU

5-6

THRU

12-13

39-40

37-38

THRU

57 56 55

25 THRU 30

22 23

20 21

43 42

45 46 47

17 18

PL-55302

F-17820 Rev. D (May 2001)

FILL AND OUTSIDE RINSE PIPING

(CURRENT CONSTRUCTION)

- 28 -

Previous Construction

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

FILL AND OUTSIDE RINSE PIPING

(CURRENT CONSTRUCTION)

ILLUS. PART NO. NAME OF PART AMT. PL-55302

1 00-186922 Line Strainer (3/4) (Incls. Items 2, 3, & 4) ....................................................................................... 1

2 00-186923 Plug – Branch ................................................................................................................................. 1

3 00-186924 Gasket – Branch Plug ................................................................................................................... 1

4 00-186925 Screen – Line Strainer ................................................................................................................... 1

5 00-328247 Gauge – Water Pressure ..............................................................................................................1

6 00-436319 Petcock 1/4 ...................................................................................................................................... 1

7 00-271006-00001 Solenoid Valve 3/8 (120 V.) (Incls. Items 9 & 11) ............................................................................. 1

***8 00-271006-00002 Solenoid Valve 3/8 (208-240 V.) (Incls. Items 10 & 11) ................................................................... 1

9 00-271839-00001 Coil – Solenoid Valve ...................................................................................................................... 1

10 00-271839-00002 Coil – Solenoid Valve ...................................................................................................................... 1

11 00-271837 Service Kit – 1/2 Solenoid Valve ...................................................................................................... 1

12 00-271008-00002 Vacuum Breaker 3/8 ........................................................................................................................ 1

13 00-274233 Service Kit – Vacuum Breaker ....................................................................................................... 1

14 00-329609 Fill Piping – Outside ....................................................................................................................... 1

15 SC-041-15 Cap Screw

16 00-067500-00012 O-Ring ............................................................................................................................................ 1

17 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

18 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

19 00-328765 Adapter – Elbow .............................................................................................................................1

20 00-435972-00002 Piping – Inside (RH) .......................................................................................................................1

21 00-435972-00001 Piping – Inside (LH) ....................................................................................................................... 1

22 00-812946-00001 Piping Sub-Assy. R-L ..................................................................................................................... 1

23 00-812946-00002 Piping Sub-Assy. L-R ..................................................................................................................... 1

24 00-435967 Plate – Fill Piping ............................................................................................................................ 1

25 00-435974 Bracket – Fill Piping ....................................................................................................................... 1

26 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................2

27 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 2

28 WS-029-05 Washer ........................................................................................................................................... 6

29 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4

30 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

31 00-271002-00001 Solenoid Valve 3/4 (120 V.) (Incls. Items 33 & 35) .......................................................................... 1

***32 00-271002-00002 Solenoid Valve 3/4 (208-240 V.) (Incls. Items 34 & 35) ................................................................... 1

33 00-271839-00001 Coil – Solenoid Valve ...................................................................................................................... 1

34 00-271839-00002 Coil – Solenoid Valve ...................................................................................................................... 1

35 00-271838 Service Kit – 3/4 Solenoid Valve ...................................................................................................... 1

36 00-328764 Adapter Elbow 3/4 x 90 Deg. ........................................................................................................... 1

37 00-277112-00003 Vacuum Breaker ............................................................................................................................ 1

38 00-118270 Service Kit – Vacuum Breaker (Float & Seal Assy.) .....................................................................1

39 00-119611 Valve – Pressure Regulating 3/4" .................................................................................................... 1

40 00-289091-00001 Kit – Repair (Pressure Regulating Valve) ...................................................................................... 1

*41 SD-012-20 Self-Tapping Screw 8-32 x 1/2 Phil. Truss Hd., Type T ...................................................................4

*42 00-288465 Lid & Gasket Assy. (Incls. Item 43) ............................................................................................... 1

*43 00-112007 Gasket ............................................................................................................................................ 1

*44 FE-006-07 Lock Nut 1/2 (Cnd.) .........................................................................................................................1

*45 NS-018-28 Jam Nut 1/2-20 Hex ........................................................................................................................ 1

*46 WL-014-31 Lockwasher 1/2 External Shakeproof (SST) .................................................................................. 1

*47 WS-010-40 Washer – Thrust ............................................................................................................................ 1

*48 00-270926 Junction Box – Auto Fill (RH) (R-L) .............................................................................................. 1

*49 00-067500-00072 O-Ring ............................................................................................................................................ 1

*50 00-112467 Retainer – Float .............................................................................................................................. 1

****51 00-328486 Probe & Switch Assy. (Water Level) (Incls. Items 49, 50, & 54) .................................................. 1

*52 RR-010-13 Retaining Ring ................................................................................................................................1

*53 FE-008-10

/2 Gasket Assy. ............................................................................................................................. 2

*54 00-122674 Float Assy. ..................................................................................................................................... 1

*55 FE-006-45 Connector – Straight 1/2 (Thinwall) ................................................................................................. 1

*56 FE-024-49 Connector – Straight 1/2 (Thinwall) ................................................................................................. 1

*57 FE-006-05 Lock Nut 1/2 ..................................................................................................................................... 1

**58 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1

**59 00-119244 Cap & Stud Assy. ........................................................................................................................... 1

**60 00-067500-00031 O-Ring ............................................................................................................................................1

**61 00-119254 Retainer – Cap & Stud ................................................................................................................... 1

**62 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1

/16-18 x 11/4 Hex Hd. ...................................................................................................2

* C54A, 44A, & AW. ** CRS76A, 66A/AW & CPW90A, 80A/AW. *** Used on machines W/O 120 V. pilot circuit. **** Must order two jumper wires, Part #328758.

- 29 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

THRU

Chamber Top

1 - 2

C54A Series

45- 46-47

THRU

37-38-39

THRU

C44A & AW Series

51 52

40-41-42

F-17820 Rev. D (May 2001)

THRU

INSIDE METALLIC RINSE PIPING

- 30 -

PL-55304

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

INSIDE METALLIC RINSE PIPING

ILLUS. PART NO. NAME OF PART AMT. PL-55304

1 00-271004 Final Rinse Outside Piping (R-L) ................................................................................................... 1

2 00-329610-00002 Final Rinse Outside Piping (L-R) ................................................................................................... 1

3 00-067500-00012 O-Ring ............................................................................................................................................2

4 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

5 NS-015-11 Nut 6 00-271010-00001 Final Rinse Inside Piping (R-L) (26

7 00-271010-00002 Final Rinse Inside Piping (L-R) (261/8 Door Height) (C44A & AW) ...............................................1

8 00-274707-00001 Final Rinse Inside Piping (R-L) (321/8 Door Height) (C44A & AW) ...............................................1

9 00-274707-00002 Final Rinse Inside Piping (L-R) (321/8 Door Height) (C44A & AW) ...............................................1

***10 00-328805-00001 Final Rinse Inside Piping (R-L) (26 ***11 00-328805-00002 Final Rinse Inside Piping (L-R) (26

***12 00-328812-00001 Final Rinse Inside Piping (R-L) (321/8 Door Height) ......................................................................1

***13 00-328812-00002 Final Rinse Inside Piping (L-R) (321/8 Door Height) ......................................................................1

**14 00-328058-00001 Lower Rinse Arm (R-L) 6 Nozzles (Incls. Items 20, 33, & 40) .................................................... 1

**15 00-328058-00002 Lower Rinse Arm (L-R) 6 Nozzles (Incls. Items 20, 33, & 40) .................................................... 1

*16 00-271027-00001 Lower Rinse Arm (R-L) 5 Nozzles (Incls. Items 20, 33, & 41) .................................................... 1

*17 00-271027-00002 Lower Rinse Arm (L-R) 5 Nozzles (Incls. Items 20, 33, & 41) .................................................... 1

***18 00-328807-00001 Lower Rinse Arm (R-L) 5 Nozzles (Incls. Items 20, 33, & 42) .................................................... 1

***19 00-328807-00002 Lower Rinse Arm (L-R) 5 Nozzles (Incls. Items 20, 33, & 42) .................................................... 1

20 FP-030-27 Lock Nut 1/2 NPSL Pipe (Brass) .................................................................................................... 1

21 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1

22 FP-030-27 Lock Nut 1/2 NPSL Pipe (Brass) .................................................................................................... 1

**23 00-437063-00001 Upper Rinse Arm (R-L) 6 Nozzles (Incls. Items 22, 36, & 38) .................................................... 1

**24 00-437063-00002 Upper Rinse Arm (L-R) 6 Nozzles (Incls. Items 22, 36, & 38) .................................................... 1

*25 00-271088-00001 Upper Rinse Arm (R-L) 6 Nozzles (Incls. Items 22, 36, & 37) .................................................... 1

*26 00-271088-00002 Upper Rinse Arm (L-R) 6 Nozzles (Incls. Items 22, 36, & 37) .................................................... 1

***27 00-328808-00001 Upper Rinse Arm (R-L) 6 Nozzles (Incls. Items 22, 36, & 39) .................................................... 1

***28 00-328808-00002 Upper Rinse Arm (L-R) 6 Nozzles (Incls. Items 22, 36, & 39) .................................................... 1

29 SC-053-18 Mach. Screw 5/16-18 x 7/8 Truss Hd. (SST) ..................................................................................... 2

30 00-067500-00012 O-Ring ............................................................................................................................................1

31 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2

32 00-119127 Pipe Plug 1/8 Sq. Hd. ....................................................................................................................... 1

33 FP-029-08 Pipe Cap 1/2 (Brass) .......................................................................................................................1

34 SC-127-93 Mach. Screw 5/16-18 x 1/2 Truss Hd. (SST) ..................................................................................... 1

35 00-274058 Bracket ...........................................................................................................................................1

36 FP-029-08 Pipe Cap 1/2 (Brass) .......................................................................................................................1

*37 00-081812 Nozzle – Rinse (Brass) (0.078 Dia. Orifice) ................................................................................. 6

**38 00-081812-00003 Nozzle – Rinse (Brass) (0.036 Dia. Orifice) ................................................................................. 6

***39 00-081812-00004 Nozzles – Rinse (Brass) (0.094 Dia. Orifice) ............................................................................... 6

**40 00-328059 Nozzle – Rinse (Brass) (0.041 Dia. Orifice) ................................................................................. 6

*41 00-022731-00003 Nozzle – Rinse (SST) #50 Drill (0.070 Dia. Orifice) ..................................................................... 5

***42 00-022731-00002 Nozzles – Rinse (SST) (0.093 Dia. Orifice) .................................................................................. 5

***43 00-067500-00012 O-Ring ............................................................................................................................................2

***44 00-328806 Connector – Rinse Piping .............................................................................................................. 1

***45 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2

***46 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

***47 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

48 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

49 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

50 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 1

51 SC-125-28 Mach. Screw 10-24 x 1 Truss Hd. (SST) ...................................................................................... 1

52 NS-031-16 Stop Nut 10-24 Hex (SST) ............................................................................................................1

***53 00-122402-00002 Flange ............................................................................................................................................. 1

***54 00-276407 Gasket – Rinse Pipe ...................................................................................................................... 1

***55 SC-127-94 Mach. Screw 5/16-18 x 7/8 Truss Hd. (SST) ..................................................................................... 2

***56 WS-029-05 Washer ...........................................................................................................................................2

***57 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

***58 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

/16-18 Hex ................................................................................................................................ 2

/8 Door Height) (C44A & AW) ...............................................1

/8 Door Height) ......................................................................1

* C44A Series ** C44AW Series *** C54A Series

- 31 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

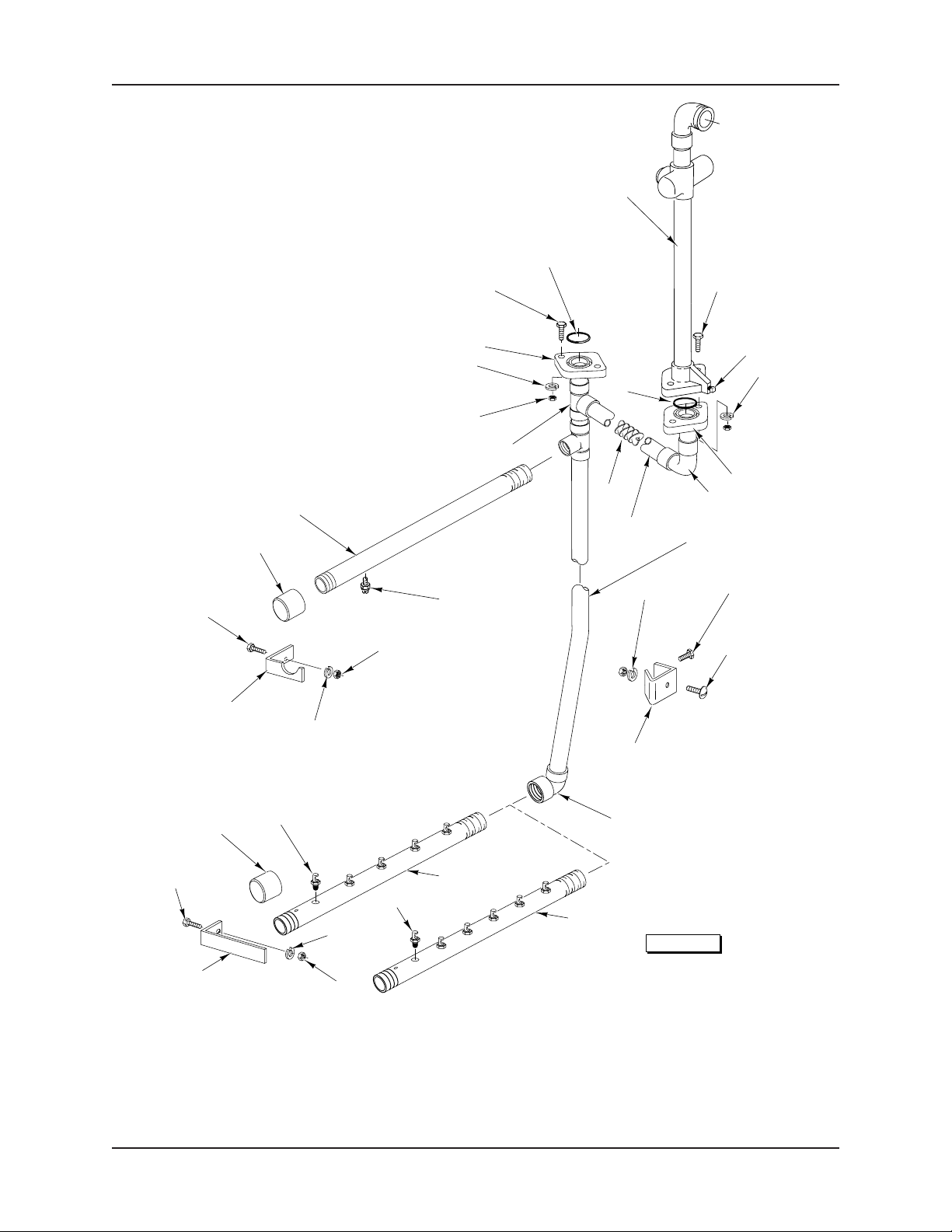

1-2

35 36

39 THRU 42

43-44

45-46

17-18

5-6

12-13

14-15-16

F-17820 Rev. D (May 2001)

24-25

INSIDE NON-METALLIC RINSE PIPING

(C44A AND AW SERIES)

- 32 -

22-23

PL-55305

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

INSIDE NON-METALLIC RINSE PIPING

(C44A AND AW SERIES)

ILLUS. PART NO. NAME OF PART AMT. PL-55305

1 00-329608-00001 Final Outside Rinse Piping (R-L) ................................................................................................... 1

2 00-329608-00002 Final Outside Rinse Piping (L-R) ................................................................................................... 1

3 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................2

4 00-119127 Pipe Plug 5 WL-006-23 Lockwasher 6 NS-015-11 Nut

7 00-067500-00012 O-Ring ............................................................................................................................................2

8 00-274533 Flange ............................................................................................................................................. 1

9 00-185781 Elbow – 1/2" x 90 Deg. (PVC) ......................................................................................................... 1

10 00-435070 Mixer – Spiral ................................................................................................................................. 1

11 00-274531-00001 Tube – Inside Rinse (61/8 Lg.) ........................................................................................................1

12 00-274708 Tube – Inside Rinse (32

13 00-274536 Tube – Inside Rinse (261/8 Door Height) ....................................................................................... 1

14 SC-053-50 Mach. Screw 10-24 x 11/2 Truss Hd. (SST) ................................................................................... 1

15 WL-006-07 Lockwasher #10 Medium ..............................................................................................................1

16 NS-011-18 Mach. Nut 10-24 Hex (SST) .......................................................................................................... 1

17 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 1

18 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1

19 SC-053-15 Mach. Screw 5/16-18 x 1/2 Truss Hd. (SST) ..................................................................................... 1

20 00-274058 Bracket ...........................................................................................................................................1

21 00-185781 Elbow – 1/2" x 90 Deg. (PVC) ......................................................................................................... 1

22 00-436355 Lower Rinse Arm (R-L) 6 Nozzles – C44AW (Incls. Items 19 & 26) ...........................................1

23 00-436355-00002 Lower Rinse Arm (L-R) 6 Nozzles – C44AW (Incls. Items 19 & 26) ...........................................1

24 00-274534 Lower Rinse Arm (R-L) 5 Nozzles – C44A (Incls. Items 26 & 27) .............................................. 1

25 00-274534-00002 Lower Rinse Arm (L-R) 5 Nozzles – C44A (Incls. Items 26 & 27) .............................................. 1

26 00-328059-00002 Nozzle – Rinse (SST) ....................................................................................................................6

27 WL-006-16 Lockwasher 1/4 Light ...................................................................................................................... 2

28 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2

29 00-274570 Bracket ...........................................................................................................................................1

30 SC-128-05 Mach. Screw 1/4-20 x 1/2 Fil. Hd. (SST) ...........................................................................................2

31 00-276380-00002 Cap – Lower Rinse Arm ................................................................................................................1

32 00-022731-00006 Nozzle – Rinse (SST) (0.035 Dia. Orifice) .................................................................................... 5

33 WL-006-16 Lockwasher 1/4 Light ...................................................................................................................... 2

34 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2

35 00-274532-00001 Bracket (R-L) ................................................................................................................................. 1

36 00-274532-00002 Bracket (L-R) ................................................................................................................................. 1

37 SC-024-06 Mach. Screw 1/4-20 x 1/2 Fil. Hd. (SST) ...........................................................................................2

38 00-276380-00002 Cap – Lower Rinse Arm ................................................................................................................1

39 00-274535 Upper Rinse Arm (R-L) 6 Nozzles – C44A (Incls. Items 28 & 35) .............................................. 1

40 00-274535-00002 Upper Rinse Arm (L-R) 6 Nozzles – C44A (Incls. Items 28 & 35) .............................................. 1

41 00-436356 Upper Rinse Arm (R-L) 6 Nozzles – C44AW (Incls. Items 29 & 35) ........................................... 1

42 00-436356-00002 Upper Rinse Arm (L-R) 6 Nozzles – C44AW (Incls. Items 29 & 35) ........................................... 1

43 00-081812-00002 Nozzle – Rinse (SST) (0.078 Dia. Orifice) .................................................................................... 6

44 00-081812-00006 Nozzle – Rinse (SST) (0.036 Dia. Orifice) .................................................................................... 6

45 FP-085-51 Tee 1/2 x 1/2 x 1/2 NPT Schedule 80 PVC ......................................................................................... 2

46 00-274531-00002 Tube (11/4 Lg.) ................................................................................................................................. 1

47 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

48 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

49 00-274533 Flange ............................................................................................................................................. 1

50 SC-053-18 Mach. Screw 5/16-18 x 7/8 Truss Hd. (SST) ..................................................................................... 2

51 00-067500-00012 O-Ring ............................................................................................................................................1

/8 Sq. Hd. ....................................................................................................................... 2

/16-18 Hex ................................................................................................................................ 2

/16 Medium (SST) ..................................................................................................... 2

/8 Door Height) ....................................................................................... 1

- 33 -

F-17820 Rev. D (May 2001)

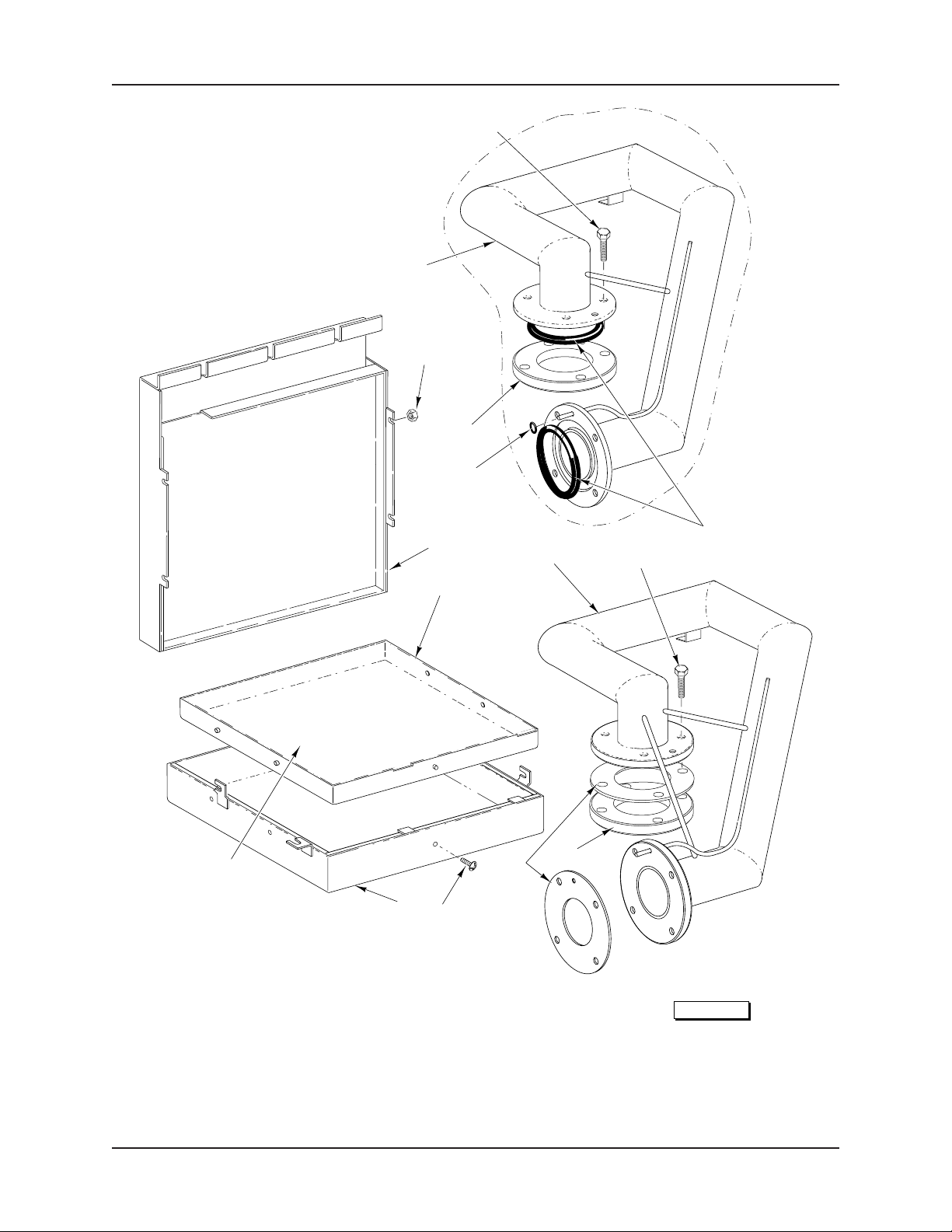

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

Previous Construction

61 62

58-59

56-57

53-54

THRU

9 10

THRU

PL-55297

THRU

46-47

48-49

42-43-44

Note location of hole in bracket to identify part.

ACTUATOR MECHANISM AND

RINSE DRAIN-OFF PAN

30 THRU 33

37-38

F-17820 Rev. D (May 2001)

- 34 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

ACTUATOR MECHANISM AND

RINSE DRAIN-OFF PAN

ILLUS. PART NO. NAME OF PART AMT. PL-55297

1 00-812922-00001 Strainer ...........................................................................................................................................1

2 00-276407 Gasket – Rinse Pipe ...................................................................................................................... 1

3 00-122402-00002 Flange ............................................................................................................................................. 1

4 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. .....................................................................................................2

5 WS-029-05 Washer ........................................................................................................................................... 2

6 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

7 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

8 00-545595 Sealer (1/8 Rd.) .............................................................................................................................. AR

9 00-436828-00002 Rinse Pan Assy. (R-L) ................................................................................................................... 1

10 00-436828-00001 Rinse Pan Assy. (L-R) ................................................................................................................... 1

11 00-328326 Flange & Nipple Assy..................................................................................................................... 1

12 00-475056 Flange & Nipple Assy. – 1"............................................................................................................. 1

13 00-436827 Gasket ............................................................................................................................................ 1

14 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

15 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

16 00-328803 Pan Rinse (C54A) .......................................................................................................................... 2

17 00-120115 Retainer – Seal ............................................................................................................................... 2

18 00-077621-00002 Ring – Sealing ................................................................................................................................ 1

19 00-120603 Gasket – Seal Retainer ................................................................................................................. 2

20 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

21 SC-041-15 Cap Screw 5/16-18 x 11/4 Hex Hd. ...................................................................................................4

22 WS-017-08 Washer ........................................................................................................................................... 8

23 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4

24 00-328798 Flowback Pipe (C54A) ................................................................................................................... 1

25 00-120603 Gasket – Seal Retainer ................................................................................................................. 1

26 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST) .......................................................................................... 4

27 WS-017-08 Washer ........................................................................................................................................... 8

28 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 4

29 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 4

*30 NS-029-01 Wing Nut 1/4-20 ............................................................................................................................... 2

*31 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................2

*32 WS-017-06 Washer ........................................................................................................................................... 2

*33 SC-053-42 Mach. Screw 1/4-20 x 5/8 Truss Hd. (SST) .................................................................................... AR

*34 00-270996 Insulator – Switch ........................................................................................................................... 1

*35 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2

*36 00-749347 Switch – Reed Encapsulated ........................................................................................................ 1

*37 00-290160 Magnet (Dot Toward Switch) .........................................................................................................1

*38 00-290159 Retainer – Magnet .......................................................................................................................... 1

*39 SC-127-26 Mach. Screw 6-32 x 3/8 Rd. Hd. (SST) ........................................................................................... 2

*40 PC-005-07 Cotter Pin 3/32 x 1/2 ........................................................................................................................... 1

*41 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2

*42 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

*43 WS-017-08 Washer ........................................................................................................................................... 2

*44 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

*45 00-436835 Shroud ............................................................................................................................................ 1

46 00-435808 Actuator (C44A/AW & C54A, Front L-R; RS & PW, Rear R-L)

47 00-435809 Actuator (C44A/AW & C54A, Front R-L; RS & PW, Rear L-R)

48 00-436955 Actuator (C44A/AW & C54A, R-L) (Current Construction) .......................................................... 1

49 00-436027 Actuator (C44A/AW & C54A, L-R) (Current Construction) .......................................................... 1

50 PC-005-07 Cotter Pin 3/32 x 1/2 ........................................................................................................................... 1

51 FP-085-06 Elbow 3/4 Hose Male to 3/4 Male Pipe Thd. (PVC) ........................................................................... 1

52 00-534177 Clamp – Hose #12 ......................................................................................................................... 1

53 00-271013-00002 Hose – Drain (L-R) ........................................................................................................................1

54 00-271013-00001 Hose – Drain (R-L) ........................................................................................................................1

55 00-534177 Clamp – Hose #12 ......................................................................................................................... 1

56 00-270948 Final Rinse Fitting ........................................................................................................................... 1

57 00-270949 Spacer – Final Rinse Fitting ........................................................................................................... 1

58 00-271077 Strainer (L-R) .................................................................................................................................1

59 00-274258 Strainer (R-L) .................................................................................................................................1

60 FE-024-31 Cover – Electric Box ...................................................................................................................... 1

61 00-274256 Rinse Pan Assy. (R-L) ................................................................................................................... 1

62 00-271843 Rinse Pan Assy. (L-R) ................................................................................................................... 1

(Previous Construction) ........................................................................................................... AR

* Quantities are listed for one mechanism. Quantities will vary with machine

type and side loader option.

- 35 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

51-52 - 53

PL-51072

41-42

F-17820 Rev. D (May 2001)

DRAIN UNIT

(WASH SECTION)

- 36 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

DRAIN UNIT

(WASH SECTION)

ILLUS. PART NO. NAME OF PART AMT. PL-51072

1 SC-021-22 Mach. Screw 10-24 x 3/8 Rd. Hd. (SST) ......................................................................................... 1

2 WL-006-07 Lockwasher #10 Medium ..............................................................................................................1

3 WS-023-34 Washer ........................................................................................................................................... 1

4 00-271070 Drain Lever (L-R) ........................................................................................................................... 1

5 00-119116 Axle – Drain Lever ......................................................................................................................... 1

6 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1

7 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1

8 00-270953 Lift Rod Overflow ...........................................................................................................................1

*9 SC-021-22 Mach. Screw 10-24 x 3/8 Rd. Hd. (SST) ......................................................................................... 1

*10 WL-006-07 Lockwasher #10 Medium .............................................................................................................. 1

*11 WS-023-34 Washer ........................................................................................................................................... 1

*12 00-271070 Drain Lever (L-R) ........................................................................................................................... 1

*13 00-119116 Axle – Drain Lever ......................................................................................................................... 1

*14 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................1

*15 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 1

*16 00-274147 Lift Rod – Drain .............................................................................................................................. 1

*17 WS-017-08 Washer ........................................................................................................................................... 1

*18 00-079410 Pull Rod Assy. – Upper ..................................................................................................................1

*19 NS-018-06 Jam Nut 5/16-18 Hex ....................................................................................................................... 1

*20 00-016269 Nut – Pull Rod Adjustor .................................................................................................................. 1

*21 NS-018-06 Jam Nut 5/16-18 Hex ....................................................................................................................... 1

*22 00-289519 Pull Rod Assy. – Lower .................................................................................................................. 1

*23 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 1

*24 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1

*25 00-067500-00118 O-Ring ............................................................................................................................................ 1

*26 SC-041-17 Cap Screw 5/16-18 x 11/2 Hex Hd. (SST) ........................................................................................ 1

*27 00-077466 Plug – Drain .................................................................................................................................... 1

*28 WS-017-08 Washer ........................................................................................................................................... 1

*29 PC-005-02 Cotter Pin 1/16 x 1/2 (SST) ................................................................................................................ 2

30 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

31 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1

32 WS-017-01 Washer ........................................................................................................................................... 2

33 00-270952 Retainer .......................................................................................................................................... 1

34 WS-017-01 Washer ........................................................................................................................................... 2

35 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 1

36 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

37 00-119099-00002 Tube – Overflow ............................................................................................................................. 1

38 00-067500-00120 O-Ring ............................................................................................................................................1

39 00-289464 Gasket – Drain ............................................................................................................................... 1

40 00-270947 Sleeve – Drain Body ...................................................................................................................... 1

41 00-289465 Drain Body ..................................................................................................................................... 1

42 00-270946 Drain Body (With 3/4-14 FPT Port on Side) .................................................................................... 1

43 FP-028-32 Pipe Plug 2 Sq. Hd. ........................................................................................................................ 1

44 WS-006-44 Washer ........................................................................................................................................... 6

45 WL-006-28 Lockwasher 3/8 Medium .................................................................................................................6

46 SC-041-30 Cap Screw 3/8-16 x 1 Hex Hd. (SST) ............................................................................................. 6

47 WS-022-01 Washer ........................................................................................................................................... 1

*48 WS-022-01 Washer ........................................................................................................................................... 1

*49 00-106283 Sleeve – Drain Valve Body ............................................................................................................. 1

50 00-328813 Bushing – Drain .............................................................................................................................. 1

*51 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. .....................................................................................................2

*52 WL-006-23 Lockwasher 5/16 Medium (SST) ..................................................................................................... 2

*53 NS-015-11 Nut 5/16-18 Hex ................................................................................................................................ 2

* Use in wash on machines with RS or PW.

- 37 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

5-6

8-9-10

38 39

29-30

27-28

22 THRU 26

Previous Construction

36-37

63 62 61

55-56-57

14 THRU 18

19-20

40 THRU 43

44 45 46

2-3

49-50

51-52-53

47-48

PL-55298

F-17820 Rev. D (May 2001)

DOOR, CURTAINS, BAFFLES,

AND STRAINERS

- 38 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

DOOR, CURTAINS, BAFFLES,

AND STRAINERS

ILLUS. PART NO. NAME OF PART AMT. PL-55298

1 00-271043-00001 Baffle – Unloading (R-L) ................................................................................................................1

2 00-271048 Baffle – Loading (L-R Steam or Electric Heat, C44A Series) ....................................................... 1

3 00-271048-00002 Baffle – Loading (L-R Gas Heat, C44A Series) (L-R, C44AW, & C54A Series) .......................... 1

4 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2

5 00-271046 Baffle – Loading (R-L Steam or Electric Heat, C44A Series) ....................................................... 1

6 00-271046-00002 Baffle – Loading (R-L Gas Heat, C44A Series) (R-L, C44AW, & C54A Series) .......................... 1

7 00-271047-00001 Baffle – Unloading (L-R) ................................................................................................................1

8 00-120151-00001 Splash Curtain (10-C1) ................................................................................................................ AR

9 00-120151-00001 Splash Curtain (10-C1) (Gas Heat, C44A Series or All Heats, C54A, & C44AW Series) .......... 1

10 00-120266-00001 Curtain Rod .................................................................................................................................. AR

11 00-185864 Catch – Door .................................................................................................................................. 1

12 PC-005-02 Cotter Pin 1/16 x 1/2 (SST) ................................................................................................................ 1

13 00-012114 Pin ...................................................................................................................................................1

14 00-271084 Splash Curtain (261/8 Door Height) ................................................................................................ 2

15 00-271084-00002 Splash Curtain (321/8 Door Height) ................................................................................................ 2

16 00-120266-00001 Curtain Rod ....................................................................................................................................2

17 00-120152-00055 Splash Curtain Assy. (Incls. Items 14 & 16) (261/8 Door Height) ................................................ AR

18 00-120152-00056 Splash Curtain Assy. (Incls. Items 15 & 16) (321/8 Door Height) ................................................ AR

19 00-112378-00049 Door Slide (261/8 Door Height) ....................................................................................................... 2

20 00-112378-00050 Door Slide (321/8 Door Height) ....................................................................................................... 2

21 00-271834 Bracket ...........................................................................................................................................1

22 00-271833 Baffle – RH Lower (L-R Operation) ............................................................................................... 1

23 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 3

24 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................3

25 WS-017-06 Washer ........................................................................................................................................... 6

26 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 3

27 00-328065 Actuator – Lift Drain ....................................................................................................................... 1

28 NS-031-21 Stop Nut – Special 1/4-20 Hex ........................................................................................................ 2

29 00-328065 Actuator – Lift Drain ....................................................................................................................... 1

30 NS-031-21 Stop Nut – Special 1/4-20 Hex ........................................................................................................ 2

31 00-270996 Insulator – Switch ........................................................................................................................... 1

32 00-290160 Magnet............................................................................................................................................ 1

33 00-290159 Retainer – Magnet .......................................................................................................................... 1

34 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 2

35 00-749347 Switch – Reed Encapsulated ........................................................................................................ 1

*36 - Door (261/8) .....................................................................................................................................1

*37 - Door (321/8) .....................................................................................................................................1

38 00-328064-00007 Door (261/8) .....................................................................................................................................1

39 00-328079-00007 Door (321/8) .....................................................................................................................................1

40 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ............................................................................................ 4

41 WS-017-06 Washer ........................................................................................................................................... 8

42 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................4

43 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 4

44 WS-022-01 Washer ........................................................................................................................................... 9

45 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................9

46 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 9

47 00-271049-00001 Baffle – Vertical (26-1/8 Door Height) ..............................................................................................3

48 00-274720-00001 Baffle – Vertical (32-1/8 Door Height) ..............................................................................................3

49 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................4

50 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. ......................................................................................................4

51 WS-022-01 Washer ........................................................................................................................................... 4

52 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................4

53 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 4

54 00-271832 Baffle – LH Lower ........................................................................................................................... 1

55 SC-053-41 Mach. Screw 1/4-20 x 1/2 Truss Hd. (SST) ...................................................................................... 2

56 WL-006-17 Lockwasher 1/4 Medium .................................................................................................................2

57 NS-015-01 Nut 1/4-20 Hex (SST) ...................................................................................................................... 2

58 00-271100 Bucket – Strainer ...........................................................................................................................1

59 00-271845 Strainer – Front .............................................................................................................................. 1

60 00-271847 Strainer – Rear (Not Shown) ......................................................................................................... 1

61 00-271084 Splash Curtain (261/8 Door Height) (C54A) ...................................................................................1

62 00-271084-00002 Splash Curtain (321/8 Door Height) (C54A) ...................................................................................1

63 00-120266-00001 Curtain Rod ....................................................................................................................................1

* No longer available. Order either Item 38 or 39 & Item 29 to convert

to present style.

- 39 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

Previous Constructions

11-12

PL-51074

F-17820 Rev. D (May 2001)

13 -14

VENT HOOD

- 40 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

VENT HOOD

ILLUS. PART NO. NAME OF PART AMT. PL-51074

1 00-080553 Drip Shield Assy. ............................................................................................................................ 1

2 00-079467-00002 Vent Hood Assy. ............................................................................................................................. 1

3 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ........................................................................................... 11

4 NS-031-19 Stop Nut 1/4-20 Elastic (SST) ........................................................................................................11

5 NS-036-12 Stop Nut 3/8-24 Elastic .................................................................................................................... 1

6 SC-125-25 Mach. Screw 6-32 x 3/4 Rd. Hd. (SST) ........................................................................................... 3

7 00-075623 Damper – Vent Stack .....................................................................................................................1

8 00-064919 Shaft – Damper ..............................................................................................................................1

9 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 3

10 00-075621 Vent Stack Assy. ............................................................................................................................1

11 SC-053-02 Mach. Screw 10-24 x 1/2 Truss Hd. (SST) ..................................................................................... 8

12 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................8

13 00-435799 Drip Shield Assy. ............................................................................................................................ 1

14 NS-031-15 Stop Nut 10-24 Hex (SST) ............................................................................................................4

15 NS-036-12 Stop Nut 3/8-24 Elastic .................................................................................................................... 1

16 00-075623 Damper – Vent Stack .....................................................................................................................1

17 00-435794-00001 Vent Hood Assy. (Incls. Items 13 thru 16, 18, 19, & 20) ............................................................... 1

18 SC-125-25 Mach. Screw 6-32 x 3/4 Rd. Hd. (SST) ........................................................................................... 3

19 NS-031-50 Stop Nut 6-32 Hex (SST) .............................................................................................................. 3

20 00-064919 Shaft – Damper .............................................................................................................................. 1

- 41 -

F-17820 Rev. D (May 2001)

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

Previous Construction

11 - 12

16-17

PL-55299

F-17820 Rev. D (May 2001)

13-14

EXTENDED HOOD

- 42 -

MODEL C44A, C44AW, & C54A SERIES DISHWASHERS REPLACEMENT PARTS

EXTENDED HOOD

ILLUS. PART NO. NAME OF PART AMT. PL-55299

1 00-080553 Drip Shield Assy. ............................................................................................................................ 1

2 00-079463-00002 Extended Hood Assy. .................................................................................................................... 1

3 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST) ........................................................................................... 13

4 NS-031-19 Stop Nut 1/4-20 Elastic (SST) ........................................................................................................13
