Hobart BLA1 Parts Manual

CATALOG OF

REPLACEMENT PARTS

BOTTOM LABEL APPLIER

MODELS

BLA1 ML-44106 LEFT TO RIGHT
BLA2 ML-44145 RIGHT TO LEFT

A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 33777 (6-97)

BOTTOM LABEL APPLIER

FORM 33777

TABLE OF CONTENTS WITH PL NUMBERS

PAGE DESCRIPTION

2 BLANK PAGE

3 TABLE OF CONTENTS
PL-52628 5 BLA COMPONENTS
PL-52627 7 BLA CABINET

REPLACEMENT PARTS BOTTOM LABEL APPLIER

© HOBART CORPORATION, 1997

– 3 –

BOTTOM LABEL APPLIER REPLACEMENT PARTS

9

18

19

20-21

53

50

1

54

52

48

47

51

10

11

6-7

8

45

35

34

36

37

2

4-5

3

12-13

33

32

57

14

15

31

23

24

55

16

17

22

25

26

27

49

46

42

56

38

41

44

43

40

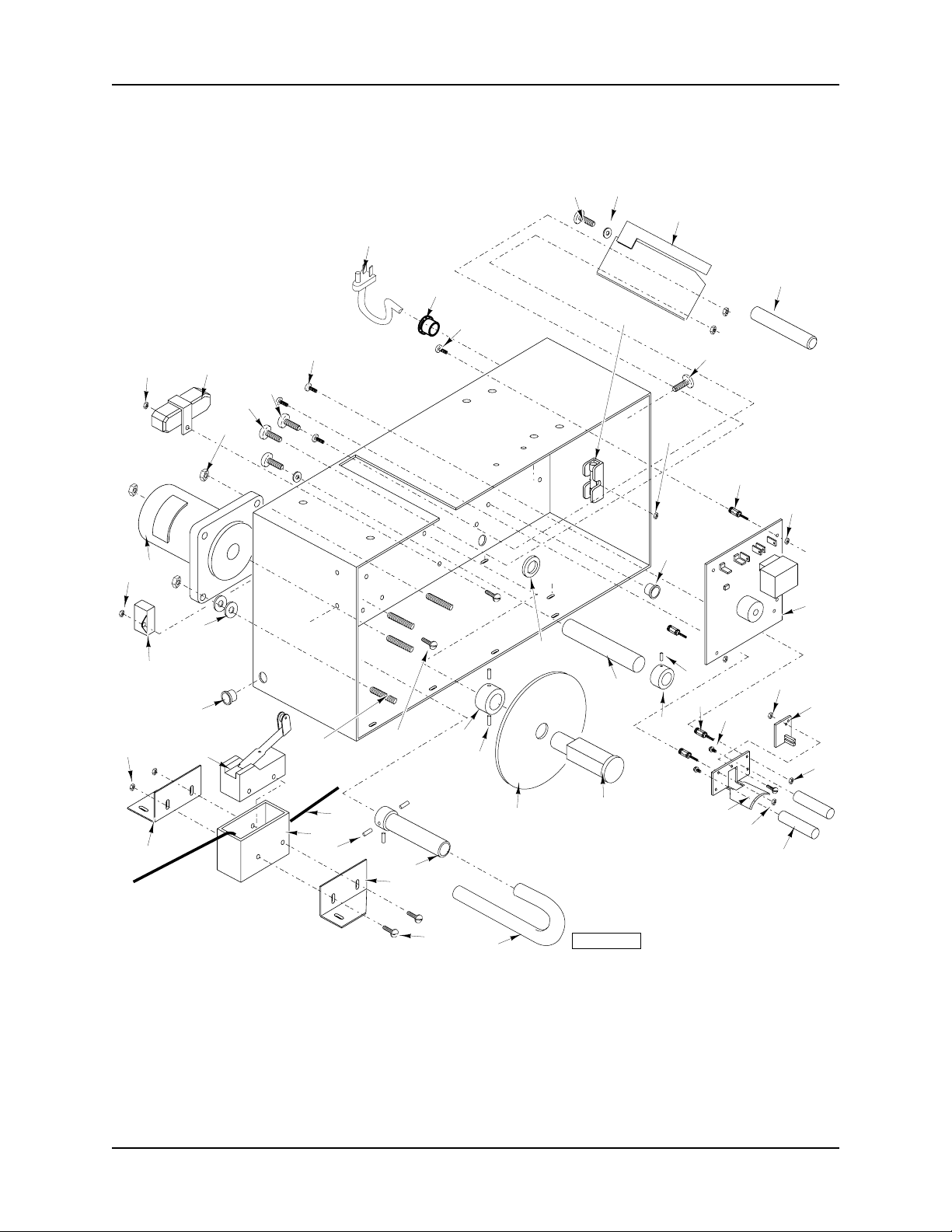

BLA COMPONENTS

– 4 –

39

PL-52628

30

29

28

REPLACEMENT PARTS BOTTOM LABEL APPLIER

BLA COMPONENTS

ILLUS. PART
PL-52628 NO. NAME OF PART AMT.

1 NS-044-07 Nut Assy. 6-32 Hex Keps ........................................................................................................1

2 00-047296 Resistor (50 W, 200 Ohm) ......................................................................................................1

3 NS-032-05 Nut Lock 10-32 “Flexloc” .........................................................................................................4

4 00-047359 Knob - Positioning ...................................................................................................................1

5 WL-004-40 Lockwasher 10 Medium ..........................................................................................................1

6 SC-041-50 Cap Screw 1⁄4-20 x 1⁄2 Hex Hd. .................................................................................................2

7 WL-003-38 Lockwasher 1⁄4 Medium ...........................................................................................................2

8 SC-109-10 Mach. Screw 6-32 x 3⁄8 Pan Hd. ..............................................................................................2

9 00-047356 Power Cord Assy. ...................................................................................................................1

10 FE-025-53 Bushing - Electric ....................................................................................................................1

11 SC-109-10 Mach. Screw 6-32 x 3⁄8 Pan Hd. ..............................................................................................4

12 FE-023-98 Fuse ........................................................................................................................................1

13 00-047354 Fuseholder ..............................................................................................................................1

14 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................1

15 FE-016-31 Bushing - Snap 3⁄8 ....................................................................................................................1

16 00-258301-00005 Stand - Off...............................................................................................................................4

17 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................4

18 SC-110-97 Mach. Screw 10-32 x 1⁄2 Truss Hd. ..........................................................................................1

19 WL-004-40 Lockwasher 10 Medium ..........................................................................................................1

20 00-047135 Angle Assy. - Label Separator (L to R) ...................................................................................1

21 00-047426 Angle Assy. - Label Separator (R to L) ...................................................................................1

22 00-047292 Board - Circuit Control ............................................................................................................1

23 00-258301-00005 Stand - Off...............................................................................................................................4

24 SC-124-02 Mach. Screw 8-32 x 1⁄2 Slotted Truss HD. ...............................................................................2

25 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................1

26 00-047293 Board - Circuit Sensor.............................................................................................................1

27 SC-124-01 Mach. Screw 6-32 x 3⁄8 Slotted Truss HD. ...............................................................................3

28 00-047126 Pin - Guide Sensor..................................................................................................................2

29 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................2

30 00-047137 Bracket - Mtg. Sensor .............................................................................................................1

31 SC-047-82 Set Screw 10-32 x 3⁄16 Hex Hdls. Cup PT. ...............................................................................1

32 00-047353 Collar Assy. .............................................................................................................................1

33 00-047129 Shaft - Label Stripper ..............................................................................................................1

34 00-253363 Clamp......................................................................................................................................1

35 SC-123-88 Mach. Screw 8-32 x 5⁄16 Slotted Truss HD. ..............................................................................2

36 00-047127 Collar - Flange Label Spool ....................................................................................................1

37 SC-047-82 Set Screw 10-32 x 3⁄16 Hex Hdls. Cup PT. ...............................................................................2

38 00-047130 Disc - Tension Label Roll ........................................................................................................1

39 00-047128 Spool - Label Roll....................................................................................................................1

40 00-047132 Key - Take - Up .......................................................................................................................1

41 00-047131 Spool - Take-Up ......................................................................................................................1

42 SC-124-03 Set Screw 1⁄4-28 x 3⁄4 Hex Hdls. Cup PT. .................................................................................3

43 SC-123-87 Mach. Screw 6-32 x 7⁄8 Slotted Pan HD...................................................................................1

44 00-047141 Bracket - Switch Mtg. (RH) .....................................................................................................1

45 SC-123-89 Mach. Screw 10-32 x 3⁄4 Hex Washer Hd., Slotted..................................................................4

46 00-129666 Terminal Enclosure - Plastic ...................................................................................................1

47 00-047136 Grommet .................................................................................................................................1

48 00-047361 Insulator - Gearmotor ..............................................................................................................4

49 00-047140 Bracket - Switch Mtg. (LH) ......................................................................................................1

50 NS-047-11 Mach. Nut 10-32 Hex (Left Hand THD.)..................................................................................2

51 00-084732 Microswitch W/Roller ..............................................................................................................1

52 00-047297 Capacitor - Motor 5.6 MFD/370V. ...........................................................................................1

53 NS-044-07 Nut Assy. 6-32 Hex Keps ........................................................................................................1

54 00-047295 Gear Motor 115 VAC, 72 RPM ...............................................................................................1

55 00-047133 Pin - Guide Stripper ................................................................................................................1

56 00-047360 Cord Assy. - Microswitch ........................................................................................................1

57 SC-115-26 Mach. Screw 6-32 x 5⁄16 Pan Hd. .............................................................................................1

– 5 –

BOTTOM LABEL APPLIER REPLACEMENT PARTS

5 Thru 8

12

4

9-10

11

13

27

14

15

2-3

1

30

29

28

24

23

22

25-26

20

21
PL-52627

BLA CABINET

– 6 –

16

17

19

18

REPLACEMENT PARTS BOTTOM LABEL APPLIER

BLA CABINET

ILLUS. PART
PL-52627 NO. NAME OF PART AMT.

1 00-047123 Cover Assy. - Resistor ............................................................................................................1

2 SC-123-88 Mach. Screw 8-32 x 5⁄16 Slotted Truss HD. ..............................................................................4

3 WL-006-02 Lockwasher 8 Medium ............................................................................................................4

4 SC-123-88 Mach. Screw 8-32 x 5⁄16 Slotted Truss HD. ..............................................................................2

5 SC-041-01 Cap Screw 1⁄4-20 x 3⁄4 Hex Hd ..................................................................................................4

6 WL-003-38 Lockwasher 1⁄4 Medium ...........................................................................................................2

7 WS-030-84 Washer....................................................................................................................................8

8 00-047134 Spacer - Mtg. - Applicator .......................................................................................................4

9 00-047116 Housing - Applicator R to L .....................................................................................................1

10 00-047117 Housing - Applicator L to R .....................................................................................................1

11 SC-115-26 Mach. Screw 6-32 x 5⁄16 Pan Hd. .............................................................................................2

12 NS-044-05 Nut Assy. 6-32 Hex Keps ........................................................................................................2

13 00-047136 Grommet .................................................................................................................................2

14 00-047122 Plate - Flange Control .............................................................................................................1

15 NS-044-07 Nut Assy. 6-32 Hex Keps ........................................................................................................4

16 00-047121 Cover - Control........................................................................................................................1

17 00-047298 Switch - Rocker .......................................................................................................................1

18 SC-123-88 Mach. Screw 8-32 x 5⁄16 Slotted Truss HD. ..............................................................................1

19 00-047355 Handle - Front Cover ..............................................................................................................1

20 00-047125 Hinge - Door............................................................................................................................1

21 NS-044-05 Nut Assy. 6-32 Hex Keps ........................................................................................................7

22 SC-114-83 Mach. Screw 6-32 x 1⁄4 Pan Hd. ..............................................................................................3

23 00-047119 Cover Assy. - Label Applicator ................................................................................................1

24 SC-022-01 Mach. Screw 6-32 x 3⁄8 Slotted Flat Hd....................................................................................2

25 SC-123-88 Mach. Screw 8-32 x 5⁄16 Slotted Truss HD. ..............................................................................2

26 WL-006-02 Lockwasher 8 Medium ............................................................................................................2

27 NS-044-07 Nut Assy. 6-32 Hex Keps ........................................................................................................4

28 SC-114-83 Mach. Screw 6-32 x 1⁄4 Pan Hd. ..............................................................................................4

29 00-047124 Magnet - Front Cover ..............................................................................................................2

30 SC-123-88 Mach. Screw 8-32 x 5⁄16 Slotted Truss HD. ..............................................................................2

00-047290 Kit - Spare Parts ......................................................................................................................1

00-047319 Bracket - Clamp Hi-Lite Printer ...............................................................................................1

00-047320 Cable Assy. - Post ..................................................................................................................1

– 7 –

BOTTOM LABEL APPLIER REPLACEMENT PARTS

FORM 33777 JUNE 1997 PRINTED IN U.S.A.
