Haier Three In One
Deep Freezer
HDF-325H
HDF-385H
SAFETY PRECAUTIONS
Read all of the instructions before using this appliance.
When using this appliance, always exercise basic safety
precautions, including the following:
1) Use this appliance only for its intended purpose as described in this use
and care guide.
2) This freezer must be properly installed in accordance with the
installation instructions before it is used. See grounding instructions in the
installation section.
3) Never unplug your freezer by pulling on the power cord. Always grasp
the plug firmly and pull straight out from the outlet.
4) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
5) Unplug your freezer before cleaning or before making any repairs.
Note: If for any reason this product requires service, we strongly
recommend that a certified technician performs the service.
6) Do not use any electrical device or any sharp instrument in
defrosting your freezer.
7) If your old freezer is not being used, we recommend that you remove the
doors. This will reduce the possibility of danger to children.
8) After your freezer is in operation, do not touch the cold surfaces in the
freezer compartment, particularly when hands are damp or wet. Skin may
adhere to these extremely cold sur faces.
9) Do not refreeze foods, which have been thawed completely.
10) This freezer should not be recessed or built-in an enclosed cabinet. It is
designed for freestanding installation only.
11) Do not operate your freezer in the presence of explosive fumes.
12) Use of an extension cord is not recommended.
1
For Future Reference Please
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away your old
freezer, take off the door. Leave the shelves in place so that
children may not easily climb inside.
Thank you for using our product.
This easy-to-use manual will guide
you in getting the best use of your
freezer.
Remember to record the model and
serial number. They are on a label in
back of the freezer.
Model number
Serial number
Date of purchase
2
Table Of Contents
PAGE
Safety Precautions.......................................................................... 1
Parts And Features......................................................................... 4
Installing Your Freezer.................................................................... 5
Unpacking Your Freezer.......................................................................... 5
Adjusting Your Freezer............................................................................ 5
Proper Air Circulation............................................................................. 5
Electrical Requirements ..................................................................... ... 6
Install Limitations..................................................................................... 6
Freezer Features And Use.............................................................. 7
Operating Your Freezer .......................................................................... 7
General Features .................................................................................... 7
Food Storage Baskets.......................................................................... 8
Castors .....................................................................................................8
Defrosting And Draining ........................................................................ 9
Lock and key ......................................................................................... 9

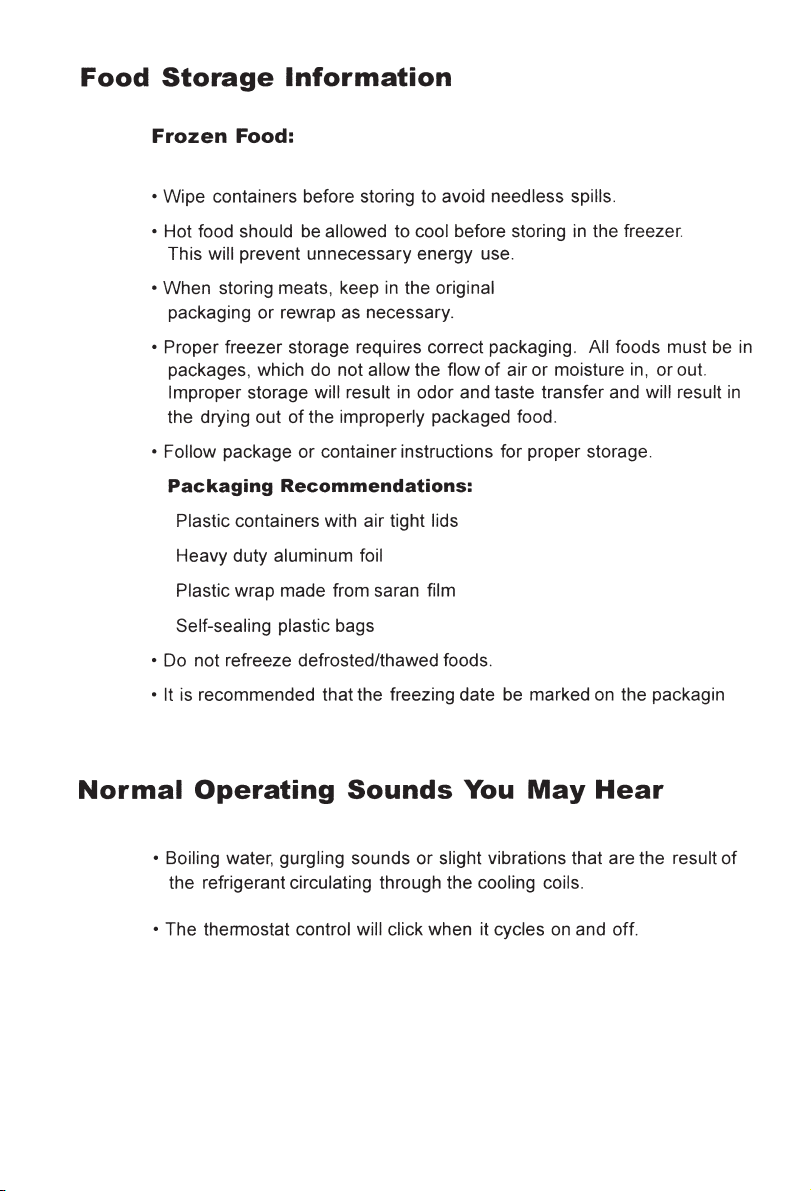

Food Storage Infor mation .................................................................... 10
Nor mal Operating Sounds .................................................................... 10
Proper Fr eezer Car e and Cleaning............................................ 11
Cleaning and Maintenance .................................................................. 11
Power Interruptions .............................................................................. 11
Vacation and Moving
Tr oubleshooting.................................................................
Care .................................................................. 11
................12Tr oubleshooting.............................................................................. 12
3
Parts And Features
4
5
7
6
8
3
1
2
1. Temperature Control Adjustment
2. Power-On Indicator (green light)
3. Vinyl Coated Wire Basket
4. Interior Drain Plug (see insert)
5. Exterior Drain Plug
Vary per model
6. Lock and Key
7.Handle
8. Castor
4
Installing Your Freezer
Unpacking Your Freezer
1. Remove all packaging material. This includes the foam base and all
adhesive tapes holding the freezer accessories inside and
outside.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the freezer.
Adjusting Your Freezer
•Your freezer is designed for freestanding installation only.
It should not be recessed or built-in.
• Place the freezer on a floor,which is
it fully loaded.
• When moving the freezer, never tilt it more than 45-degree angle.
This could damage the compressor and the sealed system.
•Ifthe freezer is tilted let it stand in an upright position for at least 24
hours prior to plugging. This is to allow the refrigerant to settle.
enough to support
strong
Proper Air Circulation
•Toassure your freezer works at the maximum efficiency it
was designed for you should install it in a location where there
is proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the deep freezer:
Sides 100mm
Top 100mm
Back 100mm
5
Electrical Requirement
• Make sure there is a suitable power outlet
the freezer.
• Note: For personal safety,this appliance must be properly ground.
Consult a qualified electrician or service center if the grounding
instruction are not completely understood ,or if doubt exists as to
whether the appliance properly grounded.
Install Limitations
•Donot install your freezer in any location not properly insulated or
heated e.g. garage etc.
• Select a suitable location for the freezer on a hard even
surface away from direct sunlight or heat source e.g. radiators,
baseboard heaters, cooking appliances etc. Any floor unevenness
should be corrected.
and proper grounding to
6
Freezer Features And Use
Operating Your Freezer
• Once the freezer is in its proper place, plug it in an proper electrical outlet.
• Set the temperature, on the temperature control knob. “1” being the
war mest and
Place food inside the freezer (green light will come on indicating that the
freezer is in operation). After using the freezer for 24 hours set the
freezer to your desired setting.
•Incase you unplug your freezer or experience an electrical outage,
allow 5 minutes before plugging it back in.
General Features
Adjustable temperature dial:
"7"
being the coldest. Initially set the temperature on "5".
Your freezer will automatically maintain
temperature control dial has 7 settings
Set the dial to "5"
to your needs.
and allow 24 hours to pass before
7
the temperature level you select. The
. “1” is the war mest, “7” is the
adjusting the
coldest.
temperature
Food Storage Basket
•Your freezer has one removable basket. It allows you
to store food more accessably or you can remove it if not needed.
Castors
Your freezer can be equipped with castors for easy moving.
We recommend installing castors before using the freezer.
Install following these easy steps:
1.Remove the food basket from the freezer
2.Slowly tilt the freezer on its side.
3.Tap one castor into the bottom of the freezer.
Fasten the castor into place with screws provided.
4.Install the other three castors in the same manner.
5.Return the freezer to its upright position and replace the food basket.
Note:
in the unit to allow the refrigerant to stabilize.
it is important to wait for 24 hours after installation before plugging
8
Defrosting and Draining The Freezer
• Defrost whenever the frost becomes 1/4" thick. Never use a sharp or
metallic instrument to remove the frost as it may damage the cooling
coils. (A punctured coil will void the warranty)
•
For draining, place a tray beneath the outer drain plug. Pull out the
drain dial (see fig. #2a) and rotate it so that the arrow points down
ward. This will let the water flow out into the tray.
• Remove the drain plug from the inside of the freezer (see fig. #2b).
Defrosting usually takes a few hours. To defrost faster keep the
freezer door open. When done, push the drain dial in and turn the
arrow to the up position. Re-plug the drain plug inside the freezer
compartment.Note: monitor the container under the drain to avoid
overflow.
• Wipe the interior of the freezer and replace the electrical plug in
the electrical outlet.
• Reset the temperature control to the desired setting.
fig. # 2a fig. # 2b
Lock and Key
•Your freezer has a lock and key feature to secure the freezer.
Close the lid and turn key to lock.Turn key in direction to unlock.
9
g．
10
Proper Freezer Care and Cleaning
Cleaning and Maintenance
Warning:
Caution:
To avoid electric shock always unplug your
freezer before cleaning. Ignoring this warning may
result in death or injury.
Before using cleaning products, always read and
follow manufacturer’s instructions and warnings to
avoid personal injury or product damage.
General:
• Prepare a cleaning solution of 3-4 tablespoons of
baking soda mixed with warm water. Use sponge or
soft cloth, dampened with the cleaning solution, to
wipe down your freezer.
• Rinse with clean warm water and dry with a soft cloth.
•Donot use harsh chemicals, abrasives, ammonia,
chlorine bleach,concentrated detergents, solvents or
metal scouring pads. Some of these chemicals may
dissolve, damage and/or discolor your freezer.
Door Gaskets:
• Clean door gaskets every three months according to
general instructions. Gaskets must be kept clean and
pliable to assure a proper seal.
• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good
seal.
Power Interruptions
• Occasionally there may be power interruptions due to thunderstorms or
other causes. Remove the power cord from outlet when a power
outage occurs. When power has been restored, replug power cord to
outlet. If outage is for a prolonged period, inspect and discard
spoiled or thawed food in freezer. Clean freezer before reusing.
Vacation and Moving Care
• For long vacations or absences, empty the food from the freezer ,
clean the door gaskets
Proper door open, so air can
move the freezer horizontal. Move the unit lying down.
11
according to "General cleaning" section.
circulate inside. When moving always
TroubleShooting
Freezer Does Not Operate:
• Check if thermostat control is not in the “1” position.
• Check if freezer is plugged in.
• Check if there is power at the ac outlet, by checking the circuit breaker.
•Wait for 30-40 minutes to see whether freezer will start. Compressor
cycle must be complete to operate.
Food temperature appears too warm:
• Frequent door openings.
• Allow time for recently added warm food to reach
freezer temperature.
• Check gaskets for proper seal.
• Adjust temperature control to colder setting.
Food temperature is too cold:
•Iftemperature control setting is too cold, adjust to a warmer setting
and allow several hours for temperature to adjust.
Freezer runs too frequently:
• This may be normal to maintain constant temperature during
high temperature and humid days.
• The door may have been opened frequently or for an extended
period of time.
• Check gasket for proper seal.
• Check to see if the door is completely closed.
• Check freezer compartment for blockage from
frozen food packages, containers, etc.
Freezer has an odor:
• Interior needs cleaning.
• Foods improperly wrapped or sealed are giving off odors.
12
Operation
Power supply
30 minutes later the appliance is turned on, the temperature inside the appliance will
drop significantly.
Temperature adjustment
The temperature in the appliance can be adjusted by turning the thermostat clockwise
or anticlockwise according to the ambient temperature and the food in storage. The
thermostat dial has the scales from 1 to 7. The digits of the scales do not indicate
specific temperature, but the changes of temperature in the appliance. Scale 1
represents highest and scale 7 the lowest temperature, In most cases, the thermostat
is set to scale 5 .
When fast freezing is intended,turn the SUPPER FREEZER SWITCH on and the
thermostat function is disabled,the compressor continues cooling unitl the SUPPER
FREEZER switch is turned off again.
5
4
6
3
2
7
1
SUPER FREEZER(yellow light )
POWER(green light)
Loading the food
Wait for a while (3 hours in summer and 2 hours in winter) before loading the food in
the freezer.
Door lock
Completely insert the key to the lock and turn the key clockwise or anticlockwise 180
to lock or unlock the door.
Caution: Some time is needed before the reset temperature is reached.The length of
this period is determined by the extent of temperature changes, ambient temperature,
frequency of door opening and amount of food in storage.
13
o
Loading...
