LCD Projector CP-S317/CP-X327

USER'S MANUAL Vol.1 (Basic)

USER'S MANUAL

Thank you for purchasing this projector.

WARNING • Please read the accompanying manual “SAFETY

INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct
usage through understanding. After reading, store this instruction manual in a
safe place for future reference.

ENGLISH

NOTE

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express
written authority.

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• All other trademarks are the property of their respective owners.

• The information in this manual is subject to change without notice.

CONTENTS

Page

PROJECTOR FEATURES................2

PREPARATIONS ..............................2

PART NAMES...................................4

SETTING UP

THE PROJECTOR ............................6

CONNECTING

YOUR DEVICES................................8

USING THE REMOTE

CONTROL.......................................13

TURNING ON THE POWER ...........14

TURNING OFF THE POWER .........16

ADJUSTING THE VOLUME ...........17

TEMPORARILY MUTING

THE SOUND....................................17

ADJUSTING THE POSITION..........18

USING THE AUTOMATIC

ADJUSTMENT FEATURE ..............19

CORRECTING KEYSTONE

DISTORTIONS ................................20

USING THE MAGNIFY

FEATURE........................................21

FREEZING THE SCREEN ..............21

SIGNAL SEARCHING.....................22

SELECTING THE ASPECT

RATIO..............................................22

TEMPORARILY BLANKING

THE SCREEN..................................22

USING THE MENU

FUNCTIONS....................................23

OPERATING THE PC SCREEN .....24

THE LAMP ......................................25

THE AIR FILTER.............................27

OTHER CARE.................................29

REGULATORY NOTICES...............30

Page

1

PROJECTOR

FEATURES

This liquid crystal projector is used to project
various computer signals as well as NTSC / PAL /
SECAM video signals onto a screen. Little space
is required for installation and large images can
easily be realized.

Ultra High Brightness

●

Crisp, ultra-bright presentations is achieved
by using a UHB (ultra high brightness) lamp
and a highly efficient optical system

Partial Magnification Function

●

Interesting parts of images can be magnified
for closer viewing

PREPARATIONS

Your projector should come with the items
shown below. Check to make sure that all the
items are included. Contact your dealer if
anything is missing.

NOTE

• Keep the original packing material for future reshipment.

RESET

KEYSTONE

POWER

INPUT

TENP

STANDBY/ON

LANP

Power cord

(US Type)

Projector

(with Lens Cap)

Liquid Crystal Projector

CP-S317/CP-X327

(CP-S317W/CP-X327W)

USER'S MANUALVol.1 Basic

Please read this user's manual thoroughly to ensure correct usage through understanding.

BEDIENUNGSANLEITUNG Teil 1 Grundlagen

Bitte lessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam.

MANUEL D'UTILISATION Vol.1 Fondements

Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil.

MANUALE D'ISTRUZIONI Vol.1 Informazioni di base

Vi preghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere quanto riportato
ai fini di un corretto utilizzo del proiettore.

MANUAL DE USUARIO Vol.1 Básico

Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto.

GEBRUIKSAANWIJZING Vol.1 Basis

Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de
uitgebreide mogelijkheden.

BRUKERHÅNDBOK Vol.1 Grunnleggende

Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.

NSTRUÇÕES DO PROPRIETÁRIO Vol.1 Básico

Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador.

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

NEDERLANDS

T

E
S
E
R
E
N
O

T
S
Y
E

ER

K

W
O
P

T
U
P
N
I

P
N

N
O

/

TE

Y

B
D
N
A
T
S

P
N
LA

NORSK

PORTGÊS

RGB cable USB mouse

Keystone Distortion Correction

●

Quick correction of distorted images electrically

Whisper Mode Equipped

●

Special mode is available for reducing
projector noise to achieve quieter operation

Power cord

(UK Type)

Power cord

(Europe Type)

Video/Audio cable

cable

User's Manuals

(Vol.1/Vol.2)

Safety Instructions

Soft carrying case

2

Two AA batteries

(for the remote

control)

STANDBY/ON

VIDEO

RGB SEARCH

ASPECT

AUTO BLANK

HOME

PAGE UP VOLUME

MAGNIFY

ON

END

PAGE DOWN

MUTE

OFF

KEYSTONEFREEZE

MENUPOSITION

ENTER

ESC RESET

Remote control

WARNING Precautions to observe in regards to the power cord: Please use extra

caution when connecting the projector's power cord as incorrect or faulty
connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the
following safety guidelines to insure safe operation of the projector:

•

Only plug the power cord into outlets rated for use with the power cord's specified voltage range.

• Only use the power cord that came with the projector.

• NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-

PRONGED PLUG!

• Make sure that you firmly connect the power cord to the projector and wall outlet.

ENGLISH

Connect your devices to the projector

1

Connect your computer, VCR and/or other
devices you will be using to the projector.

Insert the batteries into the remote

2

control

Connect the power cord

3

(1)

Connect the connector of the electrical power cord to the AC inlet of the main unit.

(2) Firmly plug the power cord's plug into the outlet

8 12

〜

13

Power outlet

(1)

(2)

Power cordAC inlet

3

PART NAMES

MENU button

23

RESET button

24

THE PROJECTOR

Indicates the corresponding
reference page

POWER indicator

TEMP indicator

LAMP indicator

Lens cap

10

14

AUDIO IN R and L ports

VIDEO IN port

11

26

14

27

Remote sensor

KEYSTONE button

20

INPUT button

15

STANDBY/ON button

14

RESET

KEYSTONE

POWER

TENP

LANP

INPUT

BY/ON

STAND

Air filter

27

Elevator button

6

15

15

Zoom ring

Focus ring

13

S-VIDEO IN port

11

RGB IN 1 and 2 ports

10

AC power inlet

3

STANDBY/ON

12

USB port

10

COMPONENT VIDEO port

11

INPUT

KEYSTONE

RGB OUT port

RESET

10

LANP

TENP

PO

W

ER

CONTROL port

6

Power switch

14

Elevator button

4

THE REMOTE CONTROL

RGB button

VIDEO button

ASPECT button

MAGNIFY buttons

FREEZE button

15

VIDEO

15

ASPECT

22

MAGNIFY

ON

21

OFF

21

RGB SEARCH

AUTO BLANK

HOME

PAGE UP VOLUME

END

PAGE DOWN

STANDBY/ON

MUTE

KEYSTONEFREEZE

SEARCH button

22

STANDBY/ON button

14

AUTO button

19

BLANK button

22

VOLUME button

17

MUTE button

17

KEYSTONE button

20

ENGLISH

KEYBOARD buttons

POSITION button

,,,
Cursor buttons

ESC button

24

18

23

23

MENUPOSITION

ENTER

ESC RESET

MENU button

23

RESET button

24

ENTER button

23

5

SETTING UP THE PROJECTOR

CAUTION •

of the accompanying manual “SAFETY INSTRUCTIONS” and this manual.

• If you press the elevator buttons without holding the projector, the projector might
crash down, overturn, smash your fingers and possibly result in malfunction. To
prevent damaging the projector and injuring yourself, ALWAYS HOLD THE
PROJECTOR whenever using the elevator buttons to adjust the elevator feet.

Install the projector in a suitable environment according to instructions

Adjusting the Projector's Elevator Feet

You can use the elevator feet to make adjustments if the surface on which you
need to set the projector is uneven or if you otherwise need to adjust the angle of
projection. The adjustment range of the elevator feet is 0 to 9 degrees.

Press and hold in the elevator

1

buttons

Raise or lower the projector to the

2

desired height and then release the
elevator buttons

When you release the elevator buttons, the elevator
feet will lock into position.

As necessary, you can also finely

3

adjust the height of the projector by
twisting the elevator feet by hand

6

Adjusting the Screen Size and Projection Distance

Refer to the illustrations and tables below to determine the screen size and
projection distance.

The values shown in the table are calculated for a full size screen

(CP-S317: 800x600 pixels/CP-X327: 1024x768 pixels).
a:Distance from the projector to the screen (±10%)
b:Distance from the lens center to the bottom of the screen (±10%)
c:Distance from the lens center to the top of the screen (±10%)

The screen

Top view

If 4:3 aspect ratio

4

3

ENGLISH

Lens center

c

b

The screen

c

Lens center

b

Screen Size [inch (m)]

30 (0.8) 35 (0.9) 42 (1.1) 1 (2) 17 (44)
40 (1.0) 47 (1.2) 56 (1.4) 1 (3) 23 (58)
50 (1.3) 59 (1.5) 71 (1.8) 1 (4) 29 (73)
60 (1.5) 71 (1.8) 85 (2.2) 2 (4) 34 (87)
70 (1.8) 83 (2.1)
80 (2.0) 95 (2.4)
90 (2.3)

100 (2.5)

Side view

a

Top view

Side view

a

120 (3.0)
150 (3.8)
200 (5.0)
250 (6.3)
300 (7.5)

If 16:9 aspect ratio

9

Screen Size [inch (m)]

30 (0.8) 38 (1.0) 46 (1.2) 2 (4) 16 (41)
40 (1.0) 51 (1.3) 61 (1.6) 2 (5) 22 (55)
50 (1.3) 64 (1.6) 77 (2.0) 3 (6) 27 (69)
60 (1.5) 77 (2.0) 93 (2.4) 3 (8) 32 (82)
70 (1.8) 90 (2.3)
80 (2.0)

90 (2.3)
100 (2.5)
120 (3.0)
150 (3.8)
200 (5.0)
250 (6.3)
300 (7.5)

a [inch (m)]

Min. Max.

107 (2.7) 129 (3.3)
119 (3.0) 143 (3.6)
143 (3.6) 172 (4.4)
180 (4.6) 216 (5.5)
240 (6.1) 288 (7.3)
300 (7.6) 361 (9.2)
360 (9.2)

16

a [inch (m)]

Min. Max.

104 (2.6) 125 (3.2)
117 (3.0) 140 (3.6)
130 (3.3) 156 (4.0)
156 (4.0) 188 (4.8)
196 (5.0) 235 (6.0)
261 (6.6) 314 (8.0)
327 (8.3)
393 (10.0)

100 (2.5)
114 (2.9)

433 (11.0)

109 (2.8)

393 (10.0)

472 (12.0)

b

[inch (cm)]c [inch (cm)]

2 (5) 40 (102)
2 (6) 46 (116)
3 (7) 51 (131)
3 (7) 57 (145)
3 (9) 69 (174)
4 (11) 86 (218)
6 (15)

114 (290)

7 (18)

143 (363)

9 (22)

171 (435)

b

[inch (cm)]c [inch (cm)]

4 (9) 38 (96)
4 (10) 43 (110)
5 (12) 49 (124)
5 (13) 54 (137)
6 (15) 65 (165)
8 (19) 81 (206)

10 (26)

108 (275)

13 (32)

135 (343)

15 (39)

162 (412)

7

CONNECTING YOUR DEVICES

Devices You Can Connect to the Projector
(Refer to this section for planning your device
configuration to use for your presentation.)

CAUTION • Incorrect connecting could result in fire or electrical shock. Please
read this manual and the separate “SAFETY INSTRUCTIONS”.

ATTENTION

• Whenever attempting to connect other devices to the projector, please thoroughly
read the manual of each device to be connected.

• TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to
connect a live device to the projector may generate extremely loud noises or other
abnormalities that may result in malfunction and/or damage to the device and/or
projector. Refer to the “TECHNICAL” of the USER’S MANUAL (Vol.2) for the pin
assignment of connectors and RS-232C communication data.

• Make sure that you connect devices to the correct port. Incorrect connection may
result in malfunction and/or damage to the device and/or projector.

• A component cable and some other cables have to be used with core set. Use the
accessory cable or a designated-type cable for the connection. For cables that have
a core only at one end, connect the core to the projector.

• Secure the screws on the connectors and tighten.

Precautions to observe when connecting other devices to the projector

Indicates the
corresponding
reference page

Display monitors

12

DVD players

11

Laptop computers

10

VCRs

11

Desktop computers

10

8

Ports and Cables

Refer to the table below to find out which projector port and cable to use for connecting a
given device. Use this table for determining which cables to prepare.

Function Projector Port Connection Cables

RGB input

RGB output RGB OUT

USB mouse control USB Accessory USB cable

PS/2 mouse control

ADB mouse control Optional ADB mouse cable

Serial mouse control Optional serial mouse cable

RS-232C communication Optional RS-232C cable

S-video input S-VIDEO IN

Video input VIDEO IN Accessory audio/video cable

Component video input

Audio input

NOTE

About Plug-and-Play Capability

RGB IN 1

RGB IN 2

CONTROL

COMPONENT VIDEO Y

COMPONENT VIDEO CR/P

AUDIO IN L

AUDIO IN R

B

R

Accessory RGB cable or optional RGB
cable with D-sub 15-pin shrink jack and
inch thread screws

Optional PS/2 mouse cable

Optional S-video cable with mini DIN 4-pin
jack

Optional component video cableCOMPONENT VIDEO CB/P

Accessory audio/video cable or optional
audio cable with RCA jack

• This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by
connecting this projector to computers that are VESA DDC (display data channel)
compatible. Please take advantage of this function by connecting the accessory RGB
cable to the RGB IN 1 port (DDC 1/2B compatible). Plug-and-Play may not work
properly if any other type of connection is attempted.

• Plug-and-Play is a system composed of the computer, its operating system and
peripheral equipment (i.e. display devices).

• Please use the standard drivers as this projector is a Plug-and-Play monitor.

• Plug-and-Play may not function properly with some type of computers. Use the RGB

IN 2 port if Plug-and-Play does not function correctly.

ENGLISH

9

B

A

AUDIO IN

COMPONENT VIIDEO

R L / (MONO) VIDEO IN

C

R / RR CB / PB Y

K

S-VIDEO IN

USB

1 RGB IN 2

RGB OUT CONTROL

A

BB

AUDIO IN

AUDIO cable

RGB cable

AUDIO OUT

RGB IN

Analogue

RGB OUT

CONNECTING YOUR DEVICES (continued)

Connecting to a Computer

ATTENTION Whenever attempting to connect a laptop computer to the projector,
be sure to activate the laptop's RGB external image output (set the laptop to CRT
display or to simultaneous LCD and CRT display). For details on how this is done,
please refer to the instruction manual of the corresponding laptop computer.

K

Laptop computer

AUDIO IN

R L / (MONO) VIDEO IN

R / RR CB / PB Y

C

COMPONENT VIIDEO

D

USB IN

USB cable

If connecting to a
USB port equipped
computer

USB OUT

S-VIDEO IN

A

CC

D

RGB OUT CONTROL

USB

AUDIO IN

AUDIO cable

AUDIO OUT

A

C

Desktop computer

NOTE

• Some computers may have multiple display screen modes. Use of some of these
modes will not be possible with this projector.

• For some RGB input modes, the optional Mac adapter is necessary.

1 RGB IN 2

RGB IN

RGB cable

Analogue

RGB OUT

B

B

CONTROL IN CONTROL OUT

MOUSE cable

10

Connecting to a DVD Player

K

AUDIO IN

R L / (MONO) VIDEO IN

B B B

R / RR CB / PB Y

C

A A A

COMPONENT VIIDEO

COMPONENT VIDEO IN

A

COMPONENT cable

COMPONENT VIDEO OUT

Ifusingacomponent
videoconnection

S-VIDEO IN

1 RGB IN 2

C

RGB OUT CONTROL

USB

AUDIO/VIDEO IN

B

C

AUDIO/VIDEO cable

AUDIO/VIDEO OUT

Ifusinganaudio/video
connection

DVD player

Connecting to a VCR

K

AUDIO IN

R L / (MONO) VIDEO IN

A A A

R / RR CB / PB Y

C

COMPONENT VIIDEO

S-VIDEO IN

A

1 RGB IN 2

B

RGB OUT CONTROL

USB

AUDIO/VIDEOIN AUDIO/VIDEOOUT

S-VIDEOIN

B

S-VIDEO IN

S-VIDEO cable

If using a S-video
connection

S-VIDEO OUT

ENGLISH

AUDIO/VIDEO cable

VCR

S-VIDEO cable

If using a S-video
connection

S-VIDEOOUT

11

RGB cable

A

AUDIO I N

COMPONENT VIIDEO

R L / (MONO) VIDEO IN

C

R / RR CB / PB Y

K

S-VIDEO IN

USB

1 RGB IN 2

RGB OUT CONTROL

A

RGBOUT

RGBIN

CONNECTING YOUR DEVICES (continued)

Connecting to a Display Monitor

12

Display monitor

USING THE REMOTE CONTROL

Putting batteries into the remote control unit

CAUTION

Precautions to observe in regards to the batteries

Always handle the batteries with care and use them only as directed. Improper use may result in

battery cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

• Keep the battery away from children and pets.

•

Be sure to use only the batteries specified for use with the remote control. Do not mix new batteries with used ones.

•

When inserting batteries, verify that the plus and minus terminals are aligned correctly (as indicated in the remote control).

ENGLISH

• When you dispose the battery, you should obey the law in the relative area or country.

Remove the battery

1

cover

Slide back and remove
the battery cover in the
direction of the arrow.

Insert the batteries

2 3

Align and insert the two AA
batteries (that came with the
projector) according to their plus
and minus terminals (as indicated

Close the battery
cover

Replace the battery cover
in the direction of the arrow
and snap it back into place.

in the remote control).

Operating the remote control

•

The remote control works with both the
projector's front and rear remote sensors.

•

The range of the remote sensor on the front and
back is 3 meters with a 60-degree range (30
degrees to the left and right of the remote sensor).

•

Since the remote control uses infrared light to send
signals to the projector (Class 1 LED), be sure to
use the remote control in an area free from
obstacles that could block the remote control's
output signal to the projector.

approximately
3 meters

30 degrees

30 degrees

approximately
3 meters

30 degrees

30 degrees

ATTENTION

Precautions to observe when using the remote control

• Do not drop or otherwise expose the remote control to physical impact.

•

Do not get the remote control wet or place it on wet objects. Doing so may result in malfunction.

• Remove the batteries from the remote control and store them in a safe place if you
won't be using the remote control for an extended period.

• Replace the batteries whenever the remote control starts to malfunction.

•

When strong light, such as direct sunlight or light from an extremely close range (such as from an
inverter fluorescent lamp), hits the projector's remote sensor, the remote control may cease to function.
Adjust the direction of the projector to keep light from directly hitting the projector's remote sensor.

13

STANDBY/ON INPUT KEYSTONE RESET

LANP

TENP

POWER

VIDEO

ASPECT

HOME

END

MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

ON

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

TURNING ON THE POWER

Precautions

Connect all devices to be used to the projector prior to turning on the power.

WARNING When the power is ON, a strong light is emitted. Do not look into the
lens.

Make sure that the power cord is firmly and

1

correctly connected to the projector and outlet

3

Turn on the projector's power

2

Set the power switch to [ | ] (ON). The projector will go
to STANDBY mode and the POWER indicator will light to
solid orange.

Control panel

8

power switch

〜

12

NOTE

power on/off in
right order.

• Power on the
projector before the
computer or video
tape recorder.

• Power off the
projector after the
computer or video
tape recorder.

14

RESET

R

E

KEYSTONE

W

O
P

P

N

E

T
P
N

A
L

Turn the

POWER indicator

STANDBY/ON

INPUT

LA

NP

KEYSTONE

TEN

P
P
O

W
ER

RESET

POWER

TENP

YSTONE

INPUT

STANDBY/ON

Press the STANDBY/ON button (control

3

panel or remote control)

LANP

RESET

• The projector begins warming up and the POWER
indicator blinks green.

• The POWER indicator stops blinking

STANDBY/ON

and lights to solid green once the
projector's power is completely on.

Remove the lens cap

4

The picture is projected.

Selecting an Input Signal

5

Using the remote control

If selecting RGB input
Press the RGB button

Press this button to toggle between the
devices connected to RGB IN 1 and 2.
As illustrated below, each time you
press the RGB button, the projector
switches between RGB IN 1 and 2.
Select the signal you wish to project.

RGB

RGB IN 1 RGB IN 2

If selecting video input
Press the VIDEO button

Press this button to toggle between the
devices connected to VIDEO IN, S­VIDEO IN and COMPONENT VIDEO. As
illustrated below, each time you press
the VIDEO button, the projector
switches between VIDEO IN, S-VIDEO
IN and COMPONENT VIDEO. Select the
signal you wish to project.

VIDEO

VIDEO IN S-VIDEO IN

Using the projector's control panel

Press the INPUT button

As illustrated below, each time you
press the INPUT button, the projector
switches between its input signal
ports. Select the signal you wish to
project.

INPUT

RGB IN 1 RGB IN 2 VIDEO IN

S-VIDEO INCOMPONENT VIDEO

ENGLISH

COMPONENT VIDEO

Use the zoom ring to adjust the

6

screen size

Use the focus ring to focus the

7


15

TURNING OFF THE POWER

STANDBY/ON INPUT KEYSTONE RESET

LANP

TENP

POWER

RESET

LANP

TENP

POWER

Press the STANDBY/ON button (control

1

panel or remote control)

RGB SEARCH

AUTO BLANK

HOME

PAGE UP VOLUME

END

PAGE DOWN

ENTER

STANDBY/ON

KEYSTONEFREEZE

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

Control panel

MUTE

MENUPOSITION

The message "Power off?" will appear on the screen for approximately 5 seconds.

Press the STANDBY/ON button again

2

(control panel or remote control)

Press the STANDBY/ON button again while the "Power off?"
message is visible. The projector lamp goes off and starts cooling
down. The POWER indicator blinks orange while the lamp cools
down. (Pressing the STANDBY/ON button while the POWER
indicator is blinking orange has no effect.)
The system goes into the STANDBY mode after cooling
down and the POWER indicator stops blinking orange and
then lights to solid orange.

Check that the POWER indicator stops

3

blinking and lights to solid
orange.
Switch the power switch to
[O] (OFF).

STANDBY/ON

STANDBY/ON

power switch

NOTE

• Except in
emergencies, follow
the above­mentioned
procedure for
turning power off.

16

POWER indicator

STANDBY/ON

INPUT

LAN

P

KEYSTONE

TENP

PO

W

ER

RESET

RESET

R

E

KEYSTONE

W

PO

INPUT

P

N

N

E

T

STANDBY/O

P
N

A
L

Confirm that the POWER indicator has

4

gone off and then attach the lens cap.

When the projector has completed powering down, the
POWER indicator will go off.

VOLUME

MUTE

ADJUSTING THE VOLUME

Press the VOLUME button

1

RGB SEARCH

AUTO BLANK

HOME

PAGE UP VOLUME

END

PAGE DOWN

ENTER

STANDBY/ON

KEYSTONEFREEZE

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

MUTE

MENUPOSITION

As illustrated on the right, a dialog will
appear on the screen to aid you in adjusting
the volume.

Press the , buttons to adjust

2

VOLUME

the volume

Press the VOLUME button again to close the dialog and
complete this operation. (Even if you don't do anything, the
dialog will automatically disappear after a few seconds.)

Press this to increase the volume

Press this to decrease the volume

TEMPORARILY MUTING THE SOUND

VOLUME

ENGLISH

16

VOLUME

16

RGB SEARCH

AUTO BLANK

HOME

PAGE UP VOLUME

END

PAGE DOWN

ENTER

STANDBY/ON

KEYSTONEFREEZE

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

MUTE

MENUPOSITION

Press the MUTE button

1

As illustrated on the right, a dialog will appear on the
screen indicating that you have muted the sound. Press
the VOLUME button to close the dialog. (Even if you don't
do anything, the dialog will automatically disappear after
a few seconds.)
Press the MUTE button again to restore the sound.

MUTE

VOLUME

16

17

ADJUSTING THE POSITION

Press the POSITION button

1

As illustrated on the right, a dialog will appear on the screen
to aid you in adjusting the position.

POSITION

VIDEO

ASPECT

MAGNIFY

OFF

ON

RGB SEARCH

AUTO BLANK

HOME

PAGE UP VOLUME

END

PAGE DOWN

STANDBY/ON

MUTE

KEYSTONEFREEZE

MENUPOSITION

POSITION

ENTER

ESC RESET

Use the , , , buttons to adjust

2

the position

When you want to initialize the position, press the RESET
button during adjustment.
Press the POSITION button again to close the dialog and
complete this operation. (Even if you don't do anything, the
dialog will automatically disappear after a few seconds.)
This function is only available for RGB IN 1/2 input.

18

USING THE AUTOMATIC ADJUSTMENT FEATURE

VIDEO

ASPECT

HOME

END

MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

ENTER

ESC RESET

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

Press the AUTO button

1

AUTO

Automatic Adjustment for RGB Input

Horizontal position (H. POSIT), vertical position (V.
POSIT), clock phase (H. PHASE) and horizontal size (H.
SIZE) are automatically adjusted.
Make sure that the application window is set to its
maximum size prior to attempting to use this feature.
Dark pictures may still be incorrectly adjusted. Use a
bright screen when adjusting.

Automatic Adjustment for Video Input

The signal type best suited for the respective input
signal is selected automatically.
This feature is available only if VIDEO is set to AUTO in
the INPUT menu.

NOTE

The automatic adjustment operation requires approximately 10 seconds. Also, please
note that it may not function correctly with some input signals.

ENGLISH

19

CORRECTING KEYSTONE DISTORTIONS

VIDEO

ASPECT

HOME

END

MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

ENTER

ESC RESET

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

KEYSTONE

Press the KEYSTONE button

1

As illustrated on the right, a dialog will appear
on the screen to aid you in correcting the
distortion.

Use the , buttons to select the

2

direction of distortion to correct ( / )

Use the , buttons to correct the

3

distortion

Press the KEYSTONE button again to close the dialog and
complete this operation. (Even if you don't do anything, the
dialog will automatically disappear after a few seconds.)

KEYSTONE

16

20

NOTE

• This function may not be work well with some types of input signals.

• The adjustable range for correcting keystone distortions will vary with the type of

input signal.

USING THE MAGNIFY FEATURE

MAGNIFY

HOME

END

MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

PAGE UP VOLUME

MAGNIFY

RGB SEARCH

AUTO BLANK

HOME

PAGE UP VOLUME

END

PAGE DOWN

ENTER

STANDBY/ON

KEYSTONEFREEZE

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

MUTE

MENUPOSITION

Press the MAGNIFY (ON) button

1

The projector enters MAGNIFY mode.

Press the POSITION button, then use the ,,

2

, buttons to select the area to enlarge and then

press the POSITION button again to confirm your
selection

POSITION

Press the , buttons to zoom in and

3

out of the selected area.

MAGNIFY

ON

POSITION

Press the MAGNIFY (OFF) button to exit MAGNIFY mode
and restore the screen to normal. (The projector will also
automatically exit MAGNIFY mode if there is a change in the
input signal's state.)

NOTE

The projector will automatically exit from MAGNIFY mode if either the INPUT SELECT,

AUTO, ASPECT or VIDEO feature is used, or, if there is a change in the input signal's state.

ENGLISH

FREEZING THE SCREEN

Press the FREEZE button

1

The [II] icon appears and the screen will freeze at
the current image. Press the FREEZE button again
and the [ ] appears as the projector exits FREEZE

▲

mode.

NOTE

•

The projector will automatically exit from FREEZE mode if either the POSITION, VOLUME, MUTE, AUTO,
BLANK ON/OFF or MENU ON/OFF feature is used, or, if there is a change in the input signal's state.

•

If the projector continues projecting the same image for a long time (i.e. you forget to exit FREEZE mode),
the image might possibly remain as an afterimage. Do not leave the projector in FREEZE mode for too long.

FREEZE

21

SIGNAL SEARCHING

VIDEO

ASPECT

HOME

END

MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

ON

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

VIDEO

ASPECT

HOME

END

MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

ENTER

ESC RESET

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

L

VIDEO

ASPECT

HOME

END

MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

ON

MENUPOSITION

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

BLANK

Press the SEARCH button

1

When you press the SEARCH button, the projector begins
searching for input signals. If it detects an input signal, the
search will cease and the projector will project the detected
signal. If the projector is unable to find an input signal at any of
its ports, it will return to the state it was in prior to the search.

SEARCH

RGB IN 1 RGB IN 2 VIDEO IN

COMPONENT VIDEO

SELECTING THE ASPECT RATIO

Press the ASPECT button

1

ASPECT

RGB IN 1, RGB IN 2, COMPONENT VIDEO

(HDTV signals : 1125i (1035i/1080i), 750p)

4:3 16:9

VIDEO IN, S-VIDEO IN, COMPONENT VIDEO

(Non-HDTV signals : 525i, 525p,625i)

4:3 16:9 SMAL

TEMPORARILY BLANKING THE SCREEN

S-VIDEO IN

22

Press the BLANK button

1

The input signal screen is shut off, and a blank screen
appears. You can set the blank screen using the menu
(from the SCREEN menu, select BLANK). Press the BLANK
button again to remove the blank screen, and return to the
input signal screen.

USING THE MENU FUNCTIONS

Press the MENU button

1

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

3

STANDBY/ON

RGB SEARCH

AUTO BLANK

HOME

PAGE UP VOLUME

END

PAGE DOWN

MUTE

KEYSTONEFREEZE

MENUPOSITION

ENTER

Select an item using the
or ENTER button.

The menu display appears on the screen. The
projector has the following menus: MAIN,
PICTURE 1, PICTURE 2, INPUT, SCREEN, and
OPTION. Select a menu using the / buttons. The
current settings of the items that can be manipulated via the
selected menu appear.

Select a menu using the

2

then press the or ENTER button.

/

The display of the selected menu appears.

[ex. Adjusting SHARPNESS]

Use the / buttons to select PICTURE 1, then press
the or ENTER button.

ENTER

/

buttons, then press the

MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

: SELECT

The operation display of the selected item appears. To adjust a numerical value,
press the or ENTER button again to switch to the single menu (small display
showing only the operation display area).

[ex. Adjusting SHARPNESS]

Use the / buttons to select SHARPNESS, then
press the or ENTER button.

ENTER

MENU
MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

: SELECT

COLOR BAL R
COLOR BAL B

SHARPNESS

MENU

buttons,

COLOR BAL R
COLOR BAL B
SHARPNESS
COLOR
TINT

COLOR

TINT

ENGLISH

–1
+1
–1
+1
–1

0

Press the

4

Press the MENU button to hide the menu and finish your operation. Alternatively,

/

buttons to adjust the level.

press the or ESC button to return to the previous display.

[ex. Adjusting SHARPNESS]

Use the / buttons to adjust the SHARPNESS.

23

OPERATING THE PC SCREEN

You can use the remote control as a simplified mouse or keyboard.

CAUTION

•

Only connect to a PC.

•

Before connecting, read the manuals of the device you will connect.

•

Do not unplug the connector cables while the computer is operating.

Caution: Mistaken use of the mouse/keyboard control could damage your equipment.

PS/2, ADB, Serial Mouse Control

RGB SEARCH

AUTO BLANK

HOME

PAGE UP VOLUME

END

PAGE DOWN

ENTER

STANDBY/ON

MUTE

KEYSTONEFREEZE

MENUPOSITION

1. Turn off the projector and PC power, and connect the projector’s
CONTROL terminal to the computer via the mouse cable.
If a USB cable is connected, disconnect it. If a USB cable is connected, the USB control

2.
function is given priority, and mouse control from the CONTROL terminal will not function.

3. Turn on the projector power, then the computer.
The functions in the table below can be controlled. If you have difficulty with control,
restart the computer (either from the software or by pressing the restart button).

Available Functions Remote Control Operation

Move Pointer

Left click with mouse Press ENTER button

Right click with mouse Press RESET button

Use buttons

VIDEO

ASPECT

MAGNIFY

ON

OFF

ESC RESET

USB Mouse/Keyboard Control

1.

Connect the projector’s USB terminal to the computer using a USB cable.
The functions in the table below can be controlled.

Available Functions Remote Control Operation

Move Pointer

Left click with mouse Press ENTER button

Right click with mouse Press RESET button

Press keyboard’s HOME key Press HOME button

Press keyboard’s END key Press END button

Press keyboard’s PAGE UP key Press PAGE UP button

Press keyboard’s PAGE DOWN key Press PAGE DOWN button

Press keyboard’s ESC key Press ESC button

Use buttons

NOTES

•

It may not be possible to control notebook PCs, and other computers with built-in pointing devices (e.g.
track balls), using this remote control. In this case, before connecting go into BIOS (system setup) and
select external mouse, and disable the pointing devices. In addition, the mouse may not function if the
computer does not have the needed utility program. See your computer’s hardware manual for details.

•

The USB control can be used with Windows 95 OSR 2.1 or higher. It may not be possible to
use the remote control, depending on the computer’s configurations and mouse drivers.

•

The USB control can only be used for the functions listed above. You cannot do things like press two buttons
at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).

•

This function is not available while the lamp is warming up (the POWER indicator flashes green), while adjusting the volume and
display, correcting for trapezoidal distortion, zooming in on the screen, using the BLANK function, or displaying the menu screen.

24

THE LAMP

HIGH VOLTAGE
HIGH TEMPERATURE
HIGH PRESSURE

Before replacing the lamp, check the serial number of the replacement lamp bulb (sold separately:
DT00511 for CP-S317/DT00521 for CP-X327), then contact your local dealer. Before replacing the
lamp, turn off the power, and unplug the power cord, then wait at least 45 minutes, in order to
ensure that the lamp is properly cooled. Removing the lamp bulb while it is still hot could cause
burns, or cause the lamp bulb to burst.

WARNING

The LCD projector uses a glass lamp bulb. It is a mercury lamp with high
internal pressure. High-pressure mercury lamps can break with a loud

ENGLISH

bang, or burn out, if jolted or scratched, or through wear over time. Each lamp has a
different lifetime, and some may burst or burn out soon after you start using them. In
addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing,
and for gas containing mercury to escape from the projector’s vent holes.

•

Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

•

If the replace lamp indicator (see "Related Messages" (Vol.2 ) and "Regarding the
indicator Lamps" (Vol.2 )) comes on, replace the lamp as soon as possible. Using the

8

7

lamp for long periods of time, or past the replacement date, could cause it to burst. Do
not use old (used) lamps; this is a cause of breakage.

•

If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems
elsewhere besides the lamp. If this happens, contact your local dealer.

•

If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make
sure not to breathe the gas that comes out of the projector vents, or get it in your eyes or mouth.

•

If the lamp should break (it will make a loud bang when it does), unplug the power cord from
the outlet, and make sure to request a replacement lamp from your local dealer. Note that
shards of glass could damage the projector’s internals, or cause injury during handling, so
please do not try to clean the projector or replace the lamp yourself.

•

Obey local ordinances when disposing of used lamps. In most cases, it is possible to dispose of used
bulbs in the same manner as used glass bottles, but in some cases, bulbs are sorted separately.

• Do not use the projector with the lamp cover removed.

25

THE LAMP (continued)

Replacing the lamp

All projector lamps will wear out eventually. If used for long periods of time, the image could become
darkened, and the color contrast could be impacted as well. We recommend that you replace your lamps
early. If the LAMP indicator turns red, or a message prompts you to replace the lamp when you power up
the projector, the lamp needs to be replaced. (See "Related Messages" (Vol.2 ) and "Regarding the
Indicator Lamps" (Vol.2 ) for details.)

8

7

Turn off the projector, and unplug the

1

power cord. Allow the lamp bulb to cool
for at least 45 minutes, and prepare a
new lamp (sold separately: DT00511 for
CP-S317/DT00521 for CP-X327)

After making sure that the projector has

2

cooled adequately, slowly flip over the
projector, so that the bottom is facing up

Unscrew the 2

3

screws, and
remove the
lamp cover

Unscrew the 1 screw, and slowly pull

4

out the lamp by the handle

•

Be careful not to touch the inside of the lamp case.

Insert the new lamp, and tighten the 1

5

screw firmly to lock it in place

•

Also steadily push the opposite side of the
screwed side of the
lamp into the unit.

Replace the lamp cover, and tighten

6

the 2 screws firmly to lock it in
place

Slowly turn the projector so that

7

the top is facing up

Turn on the projector power, and using

8

the menu, reset the lamp timer

•

To reset the lamp timer, from the OPTION
menu, select LAMP TIME.

ATTENTION •

• Do not use with lamp cover removed.

•

Do not reset the lamp timer without replacing the lamp. Reset the lamp timer always when replacing
the lamp. The message functions will not operate properly if the lamp timer is not reset correctly.

• When the lamp has been replaced after the message of "CHANGE THE LAMP ...THE POWER
WILL TURN OFF AFTER 0 hr." is displayed, or the LAMP indicator is red, complete the following
operation within 10 minutes of switching power ON.

NOTE

Before replacing the lamp, switch power OFF, wait approximately 20 minutes, and switch power

ON again. If the LAMP indicator is still red, replace the lamp.

Make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

• The LAMP indicator is also red when the lamp unit reaches high temperature.

26

THE AIR FILTER

Caring for the air filter

The air filter should be cleaned about every 100 hours. If the LAMP indicator and
TEMP indicator blink red simultaneously, or a message prompts you to clean the air
filter when you turn on the unit, the filter needs to be cleaned. (See "Related
Messages" (Vol.2 ) and "Regarding the Indicator Lamps" (Vol.2 ) for details.)

Turn off the projector, and unplug the power cord

1

Apply a vacuum cleaner to

2

the top of the air filter cover
to clean the air filter

Turn on the projector, and use the menu to reset the filter

3

timer

• To reset the air filter timer, from the OPTION menu, select FILTER TIME.

7 8

Air Filter Cover

ENGLISH

27

THE AIR FILTER (continued)

Replacing the air filter

If the soiling will not come off the air filter, or it becomes damaged, then it needs to be
replaced. Please contact your local dealer, after confirming the model of your
separately sold replacement air filter. (See "Optional Parts" on Vol.2 .)

Turn off the projector, and unplug the power cord. Prepare a

1

new air filter (one specified for your projector)

Remove the air filter cover and air filter

2

Insert the new filter, and replace the

3

filter cover

10

Turn on the projector power, and using the menu, reset the

4

filter timer

• To reset the lamp timer, from the OPTION menu, select FILTER TIME.

ATTENTION • Make sure to turn off the power and unplug the power cord before caring for

the unit. Please carefully read "Safety Instructions", in order to care for your projector correctly.

• Do not use with air filter cover removed.

• If the air filter becomes clogged by dust or the like, internal temperature rises and could cause

malfunction. The power is automatically turned off in order to prevent the unit from overheating
internally.

28

OTHER CARE

Caring for the inside of the projector :

In order to ensure the safe use of your projector, please have it cleaned and inspected by
your local dealer about once every 2 years. Never try to care for the inside of the unit
yourself. Doing so is dangerous.

Caring for the lens :

Lightly wipe the lens with a commercially available lens-cleaning wipe. Do not touch the
lens directly with your hand.

Caring for the cabinet and remote control transmitter :

Wipe lightly with gauze or a soft cloth. If soiling is severe, dip a soft cloth in water or a
neutral cleanser diluted in water, and wipe lightly after wringing well. Then, wipe lightly
with a soft, dry cloth.

ATTENTION • Make sure to turn off the power and unplug the power cord before caring for

the unit. Please carefully read "Safety Instructions" in this manual, in order to care for your projector
correctly.

• Do not use cleaners or chemicals other than those listed above, including benzene and paint
thinner.

• Do not use aerosols or sprays.

• Do not polish or wipe with hard objects.

ENGLISH

29

REGULATORY NOTICES

REGULATORY NOTICES

FCC Statement Warning

WARNING: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

INSTRUCTIONS TO USERS: This equipment complies with the requirements
of FCC (Federal Communication Commission) equipment provided that the
following conditions are met.
The cables may have to be used with the core set to the projector side. Use
the cables which are included with the projector or specified.

STANDBY/ON

INPUT

LANP

KEYSTONE

T

ENP
PO
W

E
R

RESET

Core

CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.

For the Customers in CANADA

NOTICE: This Class B digital apparatus complies with Canadian ICES-003.

Pour les utilisateurs au Canada

AVIS: Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du
Canada.

30

Liquid Crystal Projector

CP-S317/CP-X327

(CP-S317W/CP-X327W)

USER'S MANUAL Vol.2 Extended

Please read this user's manual thoroughly to ensure correct usage through understanding.

BEDIENUNGSANLEITUNG Teil 2 Fortsetzung

Bitte lessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam.

MANUEL D'UTILISATION Vol.2 Développé

Nous vous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil.

MANUALE D'ISTRUZIONI Vol.2 Ampliato

Vi preghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere quanto riportato
ai fini di un corretto utilizzo del proiettore.

MANUAL DE USUARIO Vol.2 Ampliado

Lea cuidadosamente este manual del usuario para poder utilizar corretamente el producto.

GEBRUIKSAANWIJZING Vol.2 Uitgebreid

Lees voor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de
uitgebreide mogelijkheden.

BRUKERHÅNDBOK Vol.2 Utvidet

Vennligst les denne bruksanvisningen grundig for å være garantert driftssikker bruk.

NSTRUÇÕES DO PROPRIETÁRIO Vol.2 Continuação

Para assegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador.

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

NEDERLANDS

NORSK

RESET

KEYSTONE

POWER

TENP

LANP

INPUT

STANDBY/ON

PORTGÊS

TECHNICAL

LCD Projector CP-S317/CP-X327

USER'S MANUAL Vol.2 (Extended)

USER'S MANUAL

Thank you for purchasing this projector.

WARNING • Please read the accompanying manual “SAFETY

INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct
usage through understanding. After reading, store this instruction manual in a
safe place for future reference.

ENGLISH

NOTE

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• All other trademarks are the property of their respective owners.

• The information in this manual is subject to change without notice.

written authority.

CONTENTS

Page

MULTIFUNCTIONAL SETTINGS ........................................................................2

WHAT TO DO WHEN YOU THINK A MACHINE DEFECT HAS OCCURRED ......7

SPECIFICATIONS .............................................................................................10

WARRANTY AND AFTER-SERVICE................................................................11

.......................................................................................

For "TECHNICAL" see the end of this manual.

1

MULTIFUNCTIONAL SETTINGS

This device has 6 separate menus: MAIN, PICTURE 1, PICTURE 2, INPUT,
SCREEN, OPTION. Each of these menus is operated using the same methods.
The basic operations of these menus are as follows.

Menu screen display : Press the MENU button.
Menu selection : Choose a menu name using the

button or the ENTER button.

Item selection : Choose an item using the

button or the ENTER button.

Return menu to last previous screen

: Press the button or the ESC button.

Execution of settings and/or adjustments:Operate by using the button. (For further

details, read the explanation for each separate menu.)

I

nitialization of settings and/or adjustments

: During operation, press the RESET button.

(Note that items whose functions are
performed simultaneously with the operation
of clock phase, language selection, automatic
adjustment, etc., cannot be initialized.)

End menu operations: Press the MENU button, or do not perform any operation for

several seconds.

MAIN Menu

With the MAIN menu, the seven items shown in the Table below can be
performed.
Perform each operation in accordance with the instructions in the Table.

MAIN Menu

Item Description

BRIGHT

CONTRAST

ASPECT

PICT.POSIT.

GAMMA

MIRROR

LANGUAGE

2

Adjust Brightness: Light Dark
Adjust Contrast: Strong Weak

Select Aspect Ratio:

At RGB Input or Hi-Vision 1125i(1035i/1080i)/750p of COMPONENT VIDEO
Input:
4:3 16:9
At VIDEO Input, S-VIDEO Input or 525i/525p/625i of COMPONENT VIDEO Input:
4:3 16:9 SMALL

• The SMALL picture may not be displayed correctly with certain input signals.

Select Picture Position (for 16:9/SMALL Picture):

TOP

CENTER BOTTOM

Select Gamma Mode:

NORMAL CINEMA DYNAMIC

Select Mirror Status:

NORMAL H:INVERT V:INVERT H&V:INVERT

Select Menu Language:

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL

ITALIANO NORSK NEDERLANDS

POTUGUÊS

button, and press the

button, and press the

MENU
MAIN

BRIGHT

PICTURE-1

CONTRAST

PICTURE-2

ASPECT

INPUT

PICT. POSIT.

SCREEN

GAMMA

OPTION

MIRROR
LANGUAGE

: SELECT

Example : MAIN Menu

(BRIGHT)

12

PICTURE 1 Menu

MENU

: SELECT

MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

COLOR BAL R
COLOR BAL B
SHARPNESS
COLOR
TINT

12

MENU

: SELECT

MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

V POSITION
H POSITION
H PHASE
H SIZE
OVER SCAN

12

With the PICTURE 1 menu, the five items shown in the Table
below can be performed.
Perform each operation in accordance with the instructions in the
Table.

PICTURE1 Menu

Item Description

Example : PICTURE1 Menu

(COLOR BAL R)

ENGLISH

COLOR BAL R

COLOR BAL B

SHARPNESS

COLOR

TINT

Adjust Red Color Balance: Dark Light

Adjust Blue Color Balance: Dark Light

Adjust Sharpness (for VIDEO/S-VIDEO): Clear Soft

Adjust COLOR (for VIDEO/S-VIDEO/COMPONENT VIDEO):

Dark Light
Adjust Tint (for VIDEO/S-VIDEO): Green Red

PICTURE 2 Menu

With the PICTURE 2 menu, the five items shown in the Table
below can be performed.
Perform each operation in accordance with the instructions in the
Table.

PICTURE2 Menu

Item Description

V POSITION

H POSITION

H PHASE

H SIZE

OVER SCAN

Adjust Vertical Position (for RGB): Up Down
Adjust Horizontal Position (for RGB): Left Right

Adjust Horizontal Phase (for RGB/COMPONENT VIDEO):

Right Left

• Adjust to eliminate flicker.
Adjust Horizontal Size (for RGB): Large Small

• If the horizontal size adjustment is excessive, the image may not be displayed
correctly. In such a case, initialize H SIZE with the RESET button.

Select Over-scan Ratio (for VIDEO/S-VIDEO/COMPONENT VIDEO):

LARGE MIDDLE SMALL

• It is recommended to select SMALL to avoid flicker at the lower part of the
picture.

Example : PICTURE2 Menu

(V POSITION)

3

MULTIFUNCTIONAL SETTINGS (continued)

MENU

: SELECT

MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

AUTO
VIDEO
HDTV
SYNC ON G

EXECUTE

INPUT Menu

With the INPUT menu, the four items shown in the Table below can be
performed. With inputting of RGB IN 1 and RGB IN 2 signals, the
horizontal and vertical frequencies of the signals will be displayed on the
initial screen of the INPUT menu.
Perform each operation in accordance with the instructions in the Table.

INPUT Menu

Item Description

Auto Adjust (for RGB): Automatically adjusts H POSITION, V POSITION, H

PHASE, and H SIZE. Use this function with the maximum window size.
Auto Adjust (for VIDEO/S-VIDEO): Automatically selects the proper VIDEO
mode for the current input signal. This function is active only when the AUTO
mode is selected for the item VIDEO. Refer to the description for the item

4

AUTO

VIDEO

HDTV

SYNC ON G

VIDEO below.

• This function may not be available with a PAL60 signal and certain other

signals.

• The AUTO mode operation requires approximately 10 seconds.

• For COMPONENT VIDEO, the signal type is identified automatically even if

this function is inactive. For a HDTV signal, refer to the item HDTV below.

Select Mode of Signal Type (for VIDEO/S-VIDEO):

AUTO NTSC PAL SECAM
NTSC4.43 M-PAL

N-PAL
Selecting AUTO mode activates and performs the AUTO function for VIDEO/S­VIDEO. It automatically selects the proper mode from among those above.
Use this function if the image becomes unstable with VIDEO/S-VIDEO. (e.g.
The image becomes irregular, or lacks color.)

• AUTO mode may not function correctly with a PAL60 signal and certain other

signals.

• The AUTO mode operation requires approximately 10 seconds.

• For COMPONENT VIDEO, the signal type is identified automatically even if

this function is inactive. For a HDTV signal, refer to the item HDTV below.

Select HDTV Signal Mode:

1080i 1035i

• If the selected HDTV mode is incompatible with the input signal, the picture

may be distorted.

On/Off SYNC ON G Mode:

TURN ON TURN OFF
Selecting TURN ON turns on the SYNC ON G mode. The SYNC ON G mode
allows reception of SYNC on G.

• In the SYNC ON G mode, the picture may be distorted with certain input

signals. In such a case, remove the signal connector so that no signal is
received and turn SYNC ON G off, and then reconnect the signal.

Example : INPUT Menu

(AUTO)

MENU
MAIN

SCREEN Menu

With the SCREEN menu, the five items shown in the Table below can be performed.
Please perform each operation in accordance with the instructions in the Table.

SCREEN Menu

Example : SCREEN Menu

PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

: SELECT

BLANK
START UP
MyScreen
MyScreen Size
MyScreen Lock

(BLANK)

Item Description

Selection of BLANK Screen:

MyScreen ORIGINAL .. . . ..

The BLANK Screen may be voluntarily selected. The BLANK Screen is displayed when the screen
has been erased (i.e., made to vanish) by manipulating the BLANK button (please refer to the
“Temporarily Blanking the Screen” section of the separate booklet, Vol. 1 (Basic)).

BLANK

MyScreen:

Using the MyScreen category (see this Table, below), one can register a desired screen

(or screens). At the time of factory shipment, this is set as a non-patterned (plain) blue color screen.

ORIGINAL:
Option screens:

Existing standard screens. Please make confirmation using the actual screen(s).

Various colored non-patterned (plain) screens displayed within the Menus.

• The MyScreen and the ORIGINAL Screen will each change to a non-patterned (plain) black color

screen several minutes after being displayed.

Selection of START UP Screen:

MyScreen ORIGINAL

TURN OFF
The START UP Screen may be voluntarily selected. The START UP Screen is displayed when
no signal has been inputted, or when spec signals are being inputted.

START UP

MyScreen:

desired screen (or screens). At the time of factory shipment, this is set as a non-patterned

Using the MyScreen category (see this Table, below), one can register a

(plain) blue color screen.

ORIGINAL:
TURN OFF:

•

The MyScreen and the ORIGINAL Screen will each change to the BLANK Screen several

Existing standard screens. Please make confirmation using the actual screen(s).

A non-patterned (plain) blue color screen.

minutes after being displayed.

Registration of MyScreen:

When this item is executed, the MyScreen Menu for registration of MyScreen for the BLANK Screen
and the START UP Screen is displayed. When operations are performed in accordance with this Menu,
one can “cut” and register desired screens from among the received images within the display.

1. After the “Do you start capturing this picture?” message has been displayed, pressing the ESC (or

RESET) button interrupts execution of the MyScreen. When the ENTER button is pressed, the
picture becomes static (no longer moves), and a frame for picture cutting, as well as the message
that follows below, appear. Please press the button when the screen you want to register is

MyScreen

currently being displayed.

2.

When the “Move the capture area as you want.” message has been displayed, pressing the ESC (or RESET)
button will eliminate the static state of the picture, and operations can be performed again from operation 1.

The frame can be moved using the

buttons. After designating the screen
you want to register, pressing the ENTER button will initiate screen registration. The registration
process takes approximately 1 minute to complete.

3. When the registration has been completed, the screen of the registered MyScreen, plus the
message, “MyScreen registration is finished,” will be displayed for several seconds, after which
the operation is terminated.

MyScreen Size

Selection of MyScreen display size:

x1 FULL

Invalidation of MyScreen registration function:

MyScreen Lock

TURN ON TURN OFF
When TURN ON is selected, the MyScreen category (see this Table, above) cannot be executed; in
this way, one can prohibit rewrites (“writeovers”) of the MyScreen.

MyScreen
ORIGNAL

ENGLISH

5

MULTIFUNCTIONAL SETTINGS (continued)

MENU

: SELECT

MAIN
PICTURE-1
PICTURE-2
INPUT
SCREEN
OPTION

VOLUME
AUTO OFF
WHISPER
LAMP TIME
FILTER TIME

12

OPTION Menu

With the OPTION menu, the five items shown in the Table below
can be performed.
Please perform each operation in accordance with the instructions
in the Table.

OPTION Menu

Item Description

AUTO OFF

WHISPER

LAMP TIME

FILTER TIME

6

VOLUME

Adjust Volume: High Low

Adjust AUTO OFF Time:

Long (MAX. 99 min.) Short (Min. 1 min.) (DISABLE: 0 min.)
The system automatically enters the standby mode if no signal is received
within the set time. This function is inactive when DISABLE (0 min.) is selected.

Select WHISPER Mode:

NORMAL WHISPER
When WHISPER is selected the WHISPER mode is activated. In the WHISPER
mode, acoustic noise and screen brightness are reduced.

Refer to LAMP TIME: When set, this function displays the total time the
projector lamp has been used since new.

Reset LAMP TIME [Use this function only when the lamp has been replaced!]:

Depress the RESET button for at least 3 seconds while lamp time is being
displayed. The reset menu will then appear. After you replace the lamp with a
new lamp, select RESET on the menu with the button.

• Do not reset the lamp time unless you have replaced the lamp. And, always

reset the lamp time when replacing the lamp. The message functions will not
operate properly if the lamp time is not reset correctly.

• Before replacing the lamp, carefully read the descriptions headed "THE

LAMP".

Refer to FILTER TIME: This function displays the total time the air-filter has
been used since new.

Reset FILTER TIME [Use this function only when the filter is cleaned or replaced!]:

Depress the RESET button for at least 3 seconds while lamp time is being
displayed. The reset menu will then appear. After you replace the filter, select
RESET on the menu with the button.
DEFAULT CANCEL

• Do not reset the filter time unless you have cleaned or replaced the filter. And,

always reset the filter time when cleaning or replacing the filter. The message
functions will not operate properly if the filter time is not reset correctly.
Before cleaning or replacing the filter, carefully read the descriptions headed "THE AIR FILTER".

•

Example : OPTION Menu

(VOLUME)

WHAT TO DO WHEN YOU THINK A MACHINE DEFECT HAS OCCURRED

Related Messages

When the unit's power is ON, messages such as those shown below may be displayed. When
any such message is displayed on the screen, please respond as described below.

Message Description

CHANGE THE LAMP

AFTER REPLACING LAMP,

RESET THE LAMP TIMER.

CHANGE THE LAMP

AFTER REPLACING LAMP,

RESET THE LAMP TIMER.

THE POWER WILL TURN OFF

AFTER

CHANGE THE LAMP

AFTER REPLACING LAMP,

RESET THE LAMP TIMER.

THE POWER WILL TURN OFF

AFTER CLEANING AIR FILTER,

ON

AFTER 0 hr.

CLEAN THE AIR FILTER

RESET THE FILTER TIMER.

NO INPUT IS DETECTED

ON

SYNC IS OUT OF RANGE

fH

CHECK THE AIR FLOW

kHz Hz

(Note 1)

hr.

(Note 1)

fV

Lamp usage time is approaching 2,000 hours. (Note 2)
Preparation of a new lamp, and an early lamp change, is
recommended. After you have changed the lamp, please be
sure to reset the lamp timer.

Lamp usage time is approaching 2,000 hours. A lamp change
within hours is recommended. (Note 2)
When lamp usage reaches 2,000 hours, the power will
automatically be turned OFF. Please change the lamp by
referring to “THE LAMP” in Vol.1 (Basic). After you have
changed the lamp, please be sure to reset the lamp
timer.

As lamp use has reached 2,000 hours, the power will soon be
automatically turned OFF. (Note 2)
Please immediately turn the power OFF, and follow the
instructions in the “THE LAMP” section of the separate booklet,
Vol.1 (Basic).
After you have changed the lamp, please be sure to reset the
lamp timer.

A note of precaution when cleaning the air filter.
After cleaning the filter, operate FILTER TIME of the OPTION
Menu, and perform reset of the filter timer.

There is no input signal.
Please confirm the signal input connection, and the status of the
signal source.

The horizontal or vertical wavelength of the inputted signal is
outside of the response parameters of this unit. Please confirm
the specs for this unit or the signal source specs.

The internal portion temperature is rising. Please turn the power
OFF, and allow the unit to cool down for approximately 20
minutes. After having confirmed the following items, then please
resent the power to ON.

•

Is there blockage of the air passage aperture?

•

Is the air filter dirty?

•

Does the peripheral temperature exceed 35°C?

ENGLISH

NOTES

Note 1: Although this message will be automatically disappeared after around 3 minutes, it will be

reappeared every time the power is turned ON.

Note 2: Lamps have a finite product life. Lamps are characterized by the fact that, after long hours of

usage, a lamp will no longer light up, or the lamp will break or burst, etc. This unit is equipped
with an automatic shut-down function, such that the power will automatically be turned OFF
when lamp usage time has reached 2,000 hours. Please be aware, however, that among lamp
types, there are major differences in product lifetimes; a lamp may thus fail to light even prior
to the functioning of the automatic shut-down function of this unit.

7

Regarding the Indicator Lamps

Lighting and flashing of the POWER indicator, the LAMP indicator, and the
TEMP indicator have the meanings as described in the Table below.
Please respond in accordance with the instructions within the Table.

POWER

indicator

The orange

lamp is lighted

Flashing of the green lamp
The green lamp is lighted
Flashing of the orange lamp

Blinking of the

red lamp

The red lamp

is lighted, or

blinks

The red lamp

is lighted, or

blinks

The red lamp

is lighted, or

blinks

The red lamp is

lighted, or

blinks

The green lamp

is lighted

The green

lamp is lighted

LAMP

indicator

Turned OFF
(Not lighted)

Turned OFF Turned OFF
Turned OFF Turned OFF
Turned OFF Turned OFF

- -

The red lamp

is lighted

Blinking of the

red lamp

Turned

OFF

Turned

OFF

Alternative blinking

with the red lamp

Simultaneous blinking

with the red lamp

TEMP

indicator

Turned OFF

(Not lighted)

Turned

OFF

Turned

OFF

Blinking of the

red lamp

The red lamp is

lighted

Description

The STANDBY mode is set

The unit is warming up. Please wait.
The unit is in an ON state. Ordinary operations may be performed.
The unit is cooling down. Please wait.

The unit is cooling down. Please wait.
A certain error has been detected. Wait until the POWER indicator lamp has finished
flashing, and then perform the proper response measure using the item descriptions
below as reference.

The lamp does not light.
There is a possibility that the interior portion has become heated. Turn the power OFF and wait
approximately 20 minutes. After the main unit has cooled down, please confirm whether or not
there is blockage of the air passage aperture, whether or not the filter is dirty, and/or whether or
not the peripheral temperature exceeds 35°C, etc. After performing any needed maintenance,
turn the power ON again; if the same display is displayed, then please change the lamp.

Either there is no lamp and/or lamp cover, or either of these has not been properly fixed
(attached). Turn the power OFF and wait approximately 45 minutes. After the main unit has
sufficiently cooled down, please make confirmation of the attachment state of the lamp and
lamp cover. After performing any needed maintenance, turn the power ON again; if the same
display is displayed, then please contact a sales store or a service company.

The cooling fan is not operating. Turn the power OFF and wait approximately 20 minutes. After the
main unit has cooled down, please make confirmation that no foreign matter has become caught in
the fan, etc. After performing any needed maintenance, turn the power ON again; if the same display
is displayed, then please contact a sales store or a service company.

There is a possibility that the interior portion has become heated. Turn the power OFF and wait
approximately 20 minutes. After the main unit has cooled down, please confirm whether or not
there is blockage of the air passage aperture, whether or not the filter is dirty, and/or whether or
not the peripheral temperature exceeds 35°C, etc. After performing any needed maintenance,
turn the power ON again; if the same display is displayed, then please contact a sales store or a
service company.

There is a possibility that the interior portion has become overcooled. Please use the unit within
the usage temperature parameters (0°C to 35°C). After performing any needed maintenance,
turn the power ON again; if the same display is displayed, then please contact a sales store or a
service company.

This is a notification that it is time to clean the filter.
After cleaning the filter, operate the FILTER TIME portion of the OPTION Menu, and perform
reset of the FILTER TIME.

NOTE

When the interior portion has become overheated, for safety purposes, the power source is automatically turned OFF,
and the indicator lamps may also be turned OFF. Press the “

” (power OFF) side of the main power switch, and wait

for approximately 20 minutes. Please then use the unit only after having first confirmed that the unit has sufficiently

cooled down.

8

WHAT TO DO WHEN YOU THINK A MACHINE DEFECT HAS OCCURRED (continued)

Phenomena That May Easily Be Mistaken for Machine Defects

Before requesting repair, check in accordance with the following chart.
If the situation cannot be corrected, then contact your dealer.

Phenomenon

Power does not
come ON

No sound or
pictures are
outputted

Pictures are
displayed, but no
sounds are heard

Sounds are
heard, but no
pictures are
displayed

Cases not involving a machine defect

The main power source is not ON.
The electrical power cord is not plugged in. Correctly connect the power cord.

The main power source has been
interrupted during operation, such as by
a power outage (blackout), etc.

The input changeover settings
are mismatched.

No signal is being inputted.
The electrical wiring to this unit

is not correctly connected.
The volume setting has been set at (or

adjusted to) an extremely low level.
The MUTE mode is the current setting.
The electrical wiring to this unit

is not correctly connected.
The brightness setting has been set at

(or adjusted to) an extremely low level.
The lens cap has not been removed.

Items to be confirmed

Turn on the main power.

Be sure to press the “O” (power OFF) side
of the main power switch, and leave this OFF
for approximately 20 minutes. After the unit
has sufficiently cooled down, turn ON the
power source.

Select the input signal, and
correct the settings.

Correctly connect the connection cord.

Correctly connect the connection cord.

Adjust the VOLUME setting to a higher level.
Press the MUTE button to release

(change) the MUTE mode setting.
Correctly connect the connection cord.
Adjust the BRIGHT setting to a

brighter level.
Remove the lens cap.

ENGLISH

Reference

Page(s)

Vol.1-3, 14

Vol.1-14

Vol.1-15
Vol.1-10, 11
Vol.1-10, 11

Vol.1-17

Vol.1-17

Vol.1-10, 11

Vol.2-2
Vol.1-14

Colors have a faded­out appearance
Color tone is poor

Pictures appear
dark

Pictures appear
blurry

Color depth setting or color tone setting

The brightness setting and/or contrast
setting has not been properly adjusted.

The WHISPER mode is the current
setting.

Lamp is approaching the end of its
product lifetime.

Either the FOCUS setting or the H
PHASE is not properly adjusted.

Perform picture adjustments by changing the
COLOR BAL R, the COLOR BAL B, and/or the
TINT settings, etc.

Perform picture adjustments by changing the
BRIGHT and/or CONTRAST settings, etc.

Change (by releasing) from the
WHISPER mode.

Exchange the old lamp with a new
lamp.

Adjust the FOCUS and H PHASE settings.

Vol.2-3

Vol.2-2

Vol.2-6

Vol.1-25, 26

Vol.1-15
Vol.2-3

NOTE

Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and
such do not constitute or imply a machine defect.

9

9

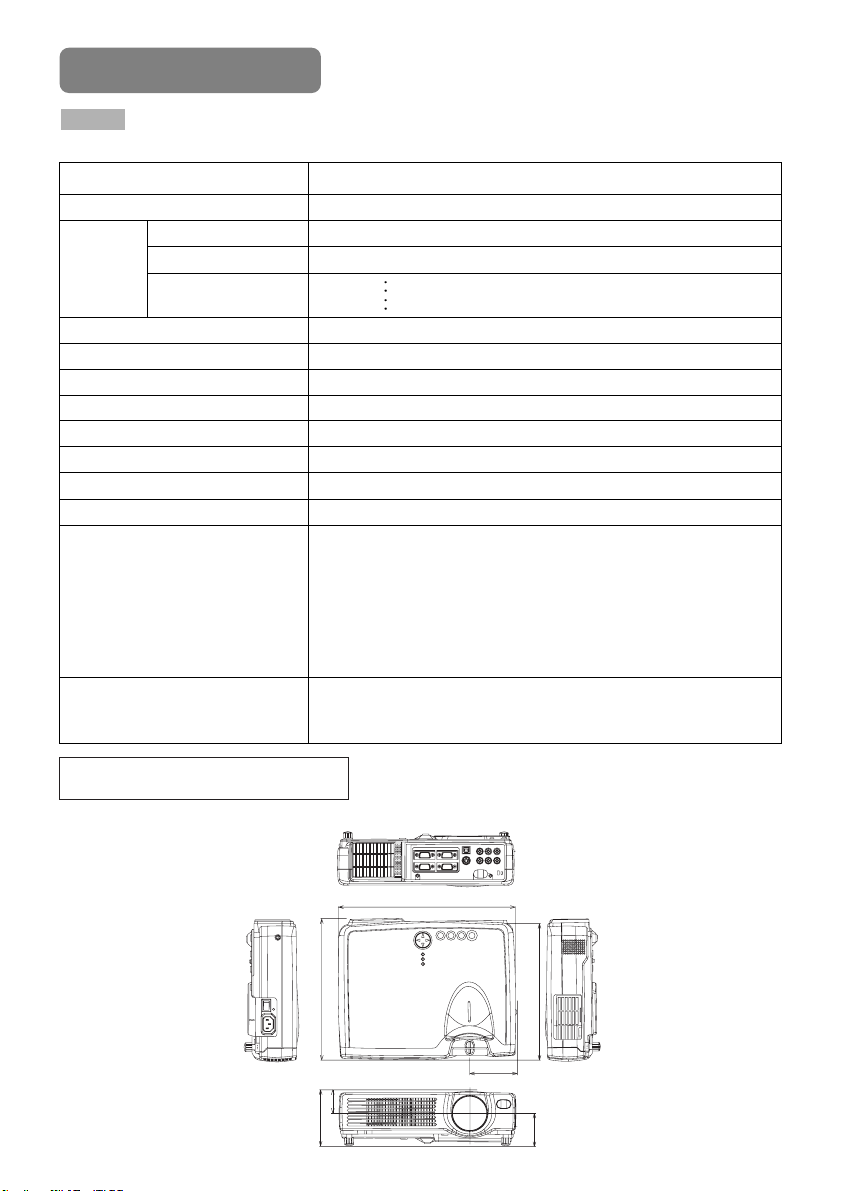

SPECIFICATIONS

NOTE

• This specifications are subject to change without notice.

Item Specification

Product name Liquid crystal projector

Liquid
crystal
panel

Lens Zoom lens F=1.7 ~ 1.9 f=21.7 ~ 26.1 mm
Lamp 150 W UHB
Speaker 1.0W
Power supply AC100 ~ 120V, 2.7A / AC220 ~ 240V, 1.3A
Power consumption 240W
Temperature range 0 ~ 35°C (Operating)
Size 295 (W) x 87.5 (H) x237 (D) mm
Weight (mass) 2.7 kg

Terminal

Optional Parts

Panel size 1.8 cm (0.7 type)
Drive system TFT active matrix

Pixels

CP-S317
CP-X327 786,432 pixels (1024 horizontal x 768 vertical)

480,000 pixels (800 horizontal x600 vertical)

RGB Terminal

RGB IN(1, 2) ..................2

VIDEO Terminal

VIDEO IN ........................1

S-VIDEO IN ....................1

COMPONENT VIDEO

(Y, CB/PB,CR/PR)......1

Lamp: CP-S317=DT00511, CP-X327=DT00521
Air Filter: MU01691
* For others, consult your dealer.

AUDIO Terminal

AUDIO IN(R, L) ..............1

OUT Terminal

RGB OUT........................1

CONTROL Terminal

CONTROL ......................1

USB ................................1

Dimension Diagram

10

237

87.5

295

231

77.5

37

Unit : mm

50.5

WARRANTY AND AFTER-SERVICE

If a problem occurs with the equipment, first refer to the “WHAT TO DO WHEN YOU
THINK A MACHINE DEFECT HAS OCCURRED” section and run through the suggested
checks. If this does not resolve the problem contact your dealer or service company. They
will tell you what warranty condition is applied.

7

ENGLISH

11

Hitachi America, Ltd.

Computer Division 2000 Sierra Point Parkway,
MS760 Brisbane, CA 94005-1835
Tel: [phone] Fax: [phone]
www.hitachi.com/lcd.

Hitachi Canada, Ltd.

6740 Campobello Road, Mississauga, Ontario
L5N2L8, Canada
Tel: [phone] Fax: [phone]

Hitachi Home Electronics (Europe), Ltd.

Dukes Meadow, Millboard Road, Bourne End ,
Buckinghamshire SL8 5XF UK
Tel: [phone] Fax: [phone]

Hitachi Home Electronics Europe Ltd

426 Bergensesteenweg, 1500 Halle, Belgium
Tel: [phone] Fax: [phone]

Hitachi Home Electronics Europe Ltd

Gewerbepark, Hintermattlistr, Postfach, 5506
Magenwil, Switzerland
Tel: [phone] Fax: [phone]

Hitachi Europe GmbH

Business Systems Division
Via T. Gulli. 39, 20147 Milano, Italy
Tel: [phone] Fax: [phone]

Hitachi Sales Europe GmbH

Business Systems Division
Am Seestern 18, 40547 Dusseldorf, Germany
Tel: [phone] Fax: [phone]

Hitachi Business Systems (Nordic)

Brugata 14, N-0184 Oslo, Norway
Tel: [phone] Fax: [phone]

Hitachi Business Systems (Nordic)

Domnarvsgatan 29, Lunda, Box 62, S-163 91
Spanga, Sweden
Tel: [phone] Fax: [phone]

Hitachi Business Systems (Nordic)

Kuldyssen 13, DK-2630 Tåstrup, Denmark
Tel: [phone] Fax: [phone]

Hitachi Business Systems (Nordic)

Tapiolan Keskustorni 11 Krs. Fin-02100 Espoo,
Finland
Tel: [phone] Fax: [phone]

Hitachi France

Immeuble, 'Ariane', 18 Rue Grange Dame Rose,
B.P. 134, 78148 Velizy, Cedex, France
Tel: [phone] Fax: [phone]

Hitachi Sales Iberica S A

Gran Via Carlos 111, 101, 1-1, 08028 Barcelona,
Spain
Tel: [phone] Fax: [phone]

Hitachi Home Electronics Asia, (S) Pte Ltd.

16 Collyer Quay #20-00 Hitachi Tower Singapore
049318, Singapore
Tel: [phone] Fax: [phone]

Hitachi Sales (Malaysia) Sdn. Bhd.

Wisma Hitachi, No.2, Lorong 13/6A, 46200
Petaling
Jaya, Selangor Darul Ehsan, Malaysia
Tel: [phone] Fax: [phone]

Hitachi Sales (Thailand), Ltd.

994,996 Soi Thonglor, Sukhumvit 55 Road,
Klongton,
Klongtoey, Bangkok 10110, Thailand
Tel: [phone] Fax: [phone]

Hitachi (Hong Kong), Ltd.

8th Floor Park-in Commercial Centre, No.56,
Dundas
Street, Kowloon Bay, Kowloon, Hong Kong
Tel: [phone] Fax: [phone]

Hitachi Sales Corp. of Taiwan.

2nd Floor, No.65, Nanking East Road, Section 3,
Taipei, Taiwan
Tel: [phone] Fax: [phone]

Hitachi Australia Ltd.

13-15 Lyonpark Road, North Ryde NSW 2113,
Australia
Tel: [phone] Fax: [phone]

Hitachi, Ltd.

15-12, Nishi Simbashi 2-chome, Minato-ku, Tokyo,
105 Japan
Tel: [phone] Fax: [phone]

*QR53891*

Printed in Japan
