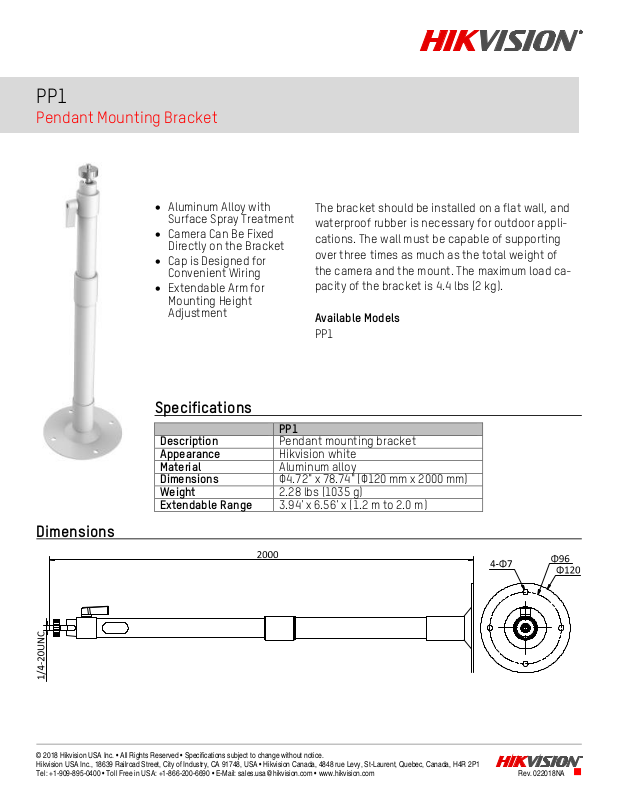

Hikvision HIK-PP1 Specsheet

PP1

Description

Pendant mounting bracket

Appearance

Hikvision white

Material

Aluminum alloy

Dimensions

Φ4.72" x 78.74" (Φ120 mm x 2000 mm)

Weight

2.28 lbs (1035 g)

Extendable Range

3.94' x 6.56' x (1.2 m to 2.0 m)

PP1

Pendant Mounting Bracket

• Aluminum Alloy with
Surface Spray Treatment

• Camera Can Be Fixed
Directly on the Bracket

• Cap is Designed for
Convenient Wiring

• Extendable Arm for
Mounting Height
Adjustment

The bracket should be installed on a flat wall, and
waterproof rubber is necessary for outdoor appli­cations. The wall must be capable of supporting
over three times as much as the total weight of
the camera and the mount. The maximum load ca­pacity of the bracket is 4.4 lbs (2 kg).

Available Models
PP1

Specifications

Dimensions

© 2018 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice.
Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1
Tel: [phone] • Toll Free in USA: [phone] • E-Mail: [e-mail] • www.hikvision.com Rev. 022018NA


