Hikvision DS-A80624S Specsheet
Features
Economical and Stable Hardware Platform
● Modular design.
● 64-bit multi-core processor.
● 4 to 32 GB high-speed cache.
● SAS2.0 and PCI-E2.0 high-speed transmission channel.
● Four 10M/100M/1000M network interfaces.
● Redundant design for key modules.
● 4U chassis model supports 24 HDDs.
HDD Detection and Repair/RAID Optimization
● Detection before operation.
● Detection in operation.
● Fault repair.
● RAID 0, 1, 3, 5, 6, 10, 50, and VRAID.
● Global and local hot spare.
● Quick RAID building.
● Capability of cascading up to two storage enclosures
behind a single SAS port.
Advanced Data Protection
● Synchronous backup of key information in system disk
and HDD.
● RAID-based tamper-proof data technology.
● Auto data synchronization between devices.
Energy Efficient
● CPU load balance.
● Auto fan tuning.
● HDD sleeping.
User-Friendly UI
● One touch configuration.
● Various alarm management.
● SADP protocol supported.
● SNMP supported.
Surveillance-Specialized Stream Media Direct Storage (Direct
Streaming Mode)
● Space pre-allocation strategy.
● Direct storage for video and picture streams.
● Supports direct IP camera/DVR/NVR streaming and
recording.
● Support H264,H264+,H265,H265+.
● Support N+1.
● Supports camera access through RTSP, ONVIF, and PSIA
protocol.
● Supports alarm/scheduled/manual recording.
● Automatic network replenishment (ANR), timely
uploading, and video loss alarm.
● Lock key videos.
● VRAID data protection.
● Supports both Direct Streaming Mode and IPSAN Mode.
● Search, play, and download videos by video type or video
time.
Introduction

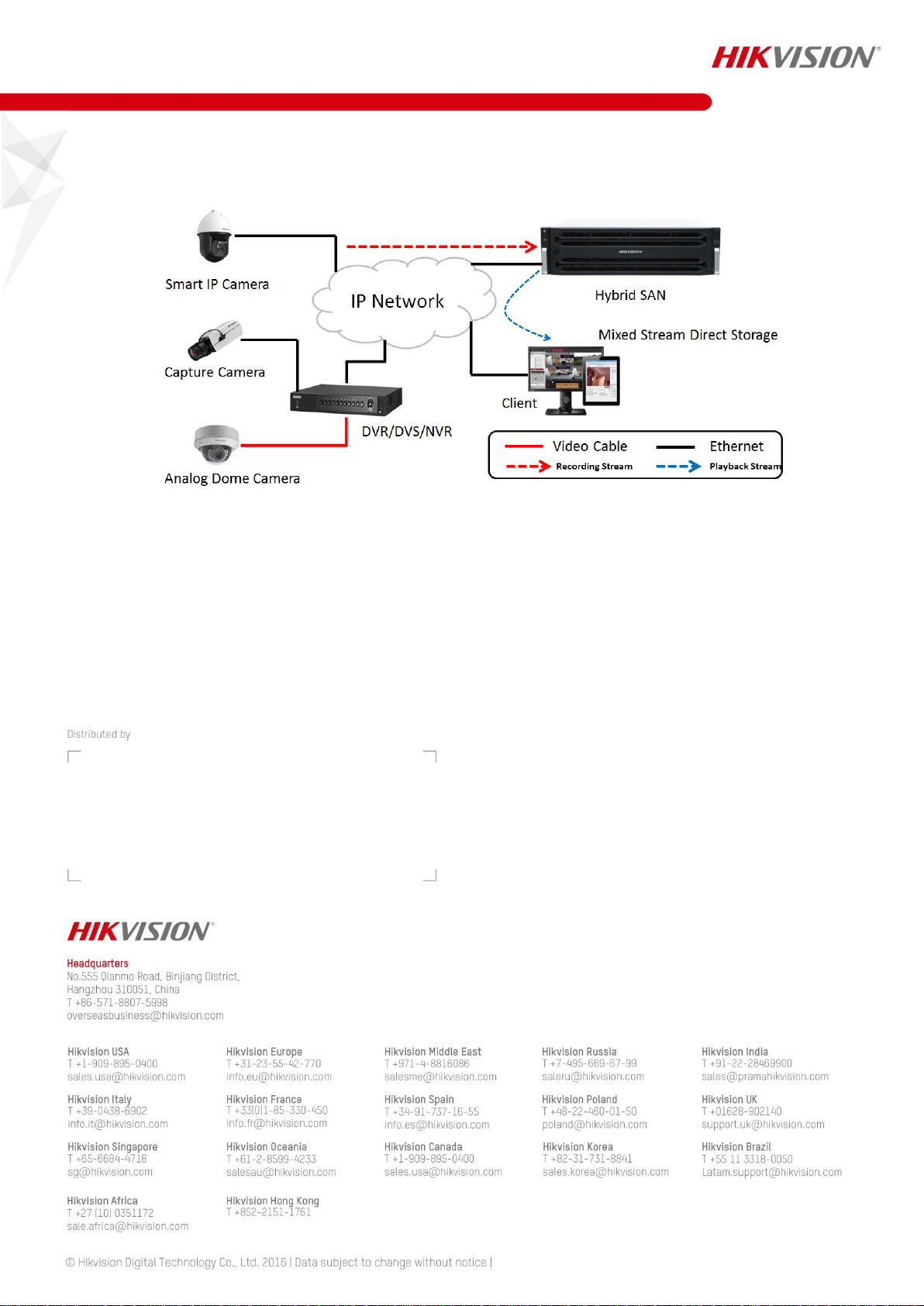

The DS-A80 series is an economical and reliable Hybrid SAN
(Storage Area Network) product. Hikvision Hybrid SAN product
creates a network with access to data storage servers, and it
integrates Hikvision’s unique video direct streaming technology as
well as supports IPSAN. This flexible, cost-effective solution
features ONVIF-support to third-party cameras such as BOSCH,
AXIS, SONY, Samsung etc, support for RTSP, and SIP protocols, and
extended data retention. With no recording server needed,
Hikvision’s Hybrid SAN systems truly make applications simple,
flexible, and budget-friendly.
DS-A80 Series Hybrid SAN
Model
DS-A80624S
Performance
Direct Streaming Mode:
video (2 Mbps) + picture
320-ch recording + playback
IPSAN
180-ch recording + playback
Controller
Processor
One controller (64-bit multi-core processor)
Cache
4 to 32 GB
HDD
HDD slot
24
Interface/capacity
SATA/1TB, 2TB, 3TB, 4TB, 6TB,8TB
Hot-swapping
Supported
RAID
RAID 0, 1, 3, 5, 6, 10, 50, VRAID, JBOD, Hot-Spare
Network
Protocol
iSCSI, RTSP, ONVIF, PSIA
Storage
Management
Disk management
Disk inspection, alarm and repair
Logical volume
management
iSCSI volume, video volume management
Recording
Management
Recording mode
Timing recording, manual recording, dual-stream recording, alarm recording
Video protection
Lock key video, N+1 service protection, ANR, video loss detection and alarm
Searching mode
Search by time and event
Downloading mode
Quick download, batch download, download by segment, download by merging
Device
Maintenance
Management mode
Web-based GUI, serial port CLI, centralized management of multiple devices
Alarm mode
Sound, light, email, message, web page
Log downloading
Download no web page
External
interface
Data network interface
3, 1000M Ethernet interface
Management network
interface
1, 1000M Ethernet interface
MiniSAS interface
Supported
COM
1
USB 3.0
2
Alarm interface
1
HDMI
2
General
Power supply
Redundant
Consumption (with HDDs)
● Working: ≤ 430(1466 BTU with 24 HDDs)
● Rated: ≤ 800 W
Environment temperature
● Working: +5 °C to +40 °C (41 °F to 104 °F)
● Storing: -40 °C to +55 °C (-104 °F to +131 °F)
Environment humidity
● Working: 20% to 80%RH (non-condensing/frozen);
● Storing: 5% to 90%RH (non-condensing/frozen)
Chassis
4U (19-inch height)
Dimensions (W × H × D)
447 × 172 × 550mm (17.6 x 6.8 x 21.7in)
Weight (without HDDs)
≤ 33.5kg
