Key Feature
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 6/12/24-ch IP camera inputs (up to 6 MP)
Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
Up to 6 TB capacity per HDD
Compression and Recording
H.265 Pro+ can improve encoding efficiency and reduce the data storage cost
Full channel recording at up to 4 MP lite resolution
Storage and Playback
Smart search for efficient playback
Support the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
Max. 24/48/96 Mbps incoming bandwidth and output bandwidth limit configurable

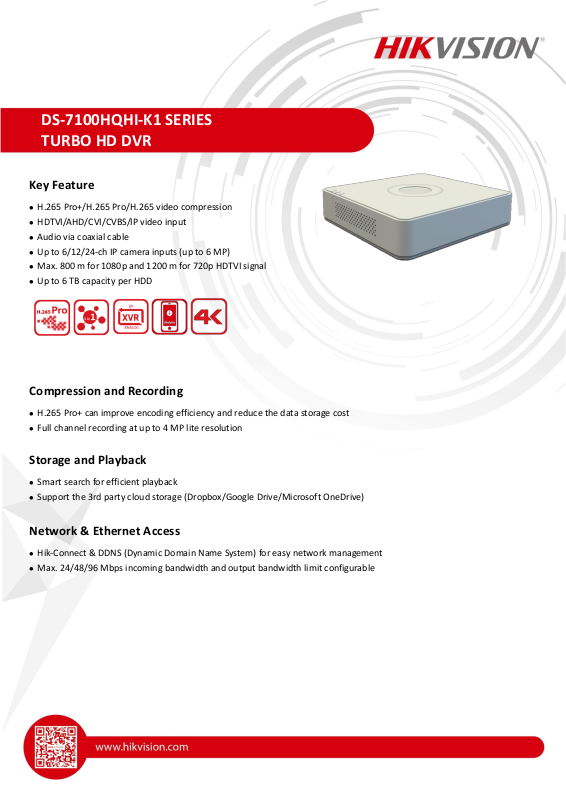

DS-7100HQHI-K1 SERIES
TURBO HD DVR
Specification
Model
DS-7104HQHI-K1
DS-7108HQHI-K1
DS-7116HQHI-K1
Recording
Video compression
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
When 1080p Lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps
(N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate
32 Kbps to 6 Mbps
Dual stream
Support
Stream type
Video, Video & Audio
Audio compression
G.711u
Audio bit rate
64 Kbps
Video and Audio
IP video input
2-ch (up to 6-ch)
4-ch (up to 12-ch)
8-ch (up to 24-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
4-ch
8-ch
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1,
channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
AHD input
4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input
4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input
Support
VGA output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×
720/60Hz, 1024 × 768/60Hz
1-ch, 4K (3840 ×
2160)/30Hz, 2K (2560 ×
1440)/60Hz, 1920 ×
1080/60Hz, 1280 ×
1024/60Hz, 1280 ×
720/60Hz, 1024 ×
768/60Hz
Audio input
1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output
1-ch, RCA (Linear, 1 KΩ)
Two-way audio
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback
4-ch
8-ch
16-ch
Network
Remote connection
32
64
128
Network protocol
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,
HTTPS, ONVIF
Network interface
1, RJ45 10M/100M self-adaptive Ethernet interface
1,
RJ45 10M/100M/1000M
self-adaptive
Ethernet interface
Auxiliary interface
SATA
1 SATA interface
Capacity
Up to 6 TB capacity for each disk
USB interface
Real panel: 2 × USB 2.0
Alarm in/out
N/A
General
Power supply
12 VDC
Consumption
(without HDD)
≤ 8 W
≤ 12 W
≤ 15 W
Working temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Working humidity
10% to 90%
Dimension (W × D × H)
200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
285 × 210 × 45 mm (11.2
× 8.3 × 1.8 inch)
Weight (without HDD)
≤ 1 kg (2.2 lb)
The rear panel of DS-7108/7116HQHI-K1 provides 8/16 video input interfaces.
Physical Interface
Available Model
DS-7104HQHI-K1, DS-7108HQHI-K1, DS-7116HQHI-K1
Index
Description
Index
Description
1
VIDEO IN
6
LAN Network Interface
2
HDMI Interface
7
USB Interfaces
3
VGA Interface
8
GND
4
AUDIO OUT, RCA Connector
9
12 VDC Power Input
5
AUDIO IN, RCA Connector
