Type Model
Type I
Camera
DS-
2CE78U8T
-
IT3
Type II
Camera
DS-
2CE57U8T
-
VPIT
• DS-2CE78U8T-IT3
• DS-2CE57U8T-VPIT
TurboHD
4K Series
Turret and Dome Camera
User Manual
Thank you for purchasing our product. If there are
any questions or requests, do not hesitate to contact
the dealer.
This manual applies to the models below:
Hikvision USA Inc., 18639 Railroad St., City of
Industry, CA 91748, USA • Hikvision Canada, 4848 rue
Levy, Saint Laurent, Quebec, Canada, H4R 2P1
Telephone: +1-909-895-0400 • Toll Free in USA: +1866-200-6690 • E-Mail: sales.usa@hikvision.com •
www.hikvision.com
COPYRIGHT ©2017-2018 Hangzhou Hikvision Digital
Technology Co., Ltd. ALL RIGHTS RESERVED.
Any and all information, including, among others,
wordings, pictures, graphs are the properties of
Hangzhou Hikvision Digital Technology Co., Ltd. or its
subsidiaries (hereinafter referred to be “Hikvision”).
This user manual (hereinafter referred to be “the
Manual”) cannot be reproduced, changed, translated,
or distributed, partially or wholly, by any means,
without the prior written permission of Hikvision.
Unless otherwise stipulated, Hikvision does not make
any warranties, guarantees or representations,
express or implied, regarding to the Manual.
This manual may contain technical or printing errors,
and the content is subject to change without notice.
Updates will be added to new versions of this
manual. We will readily improve or update the
products or procedures described in the manual.
UM DS-2CExxU8T-xxxx 042318NA 1
1 Preface
1.1
Regulatory Information
1.1.1 FCC Information
Please take attention that changes or modification
not expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
FCC Compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the
user will be required to correct the interference at his
own expense.
1.1.2 FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
1.1.3 EU Conformity Statement
This product and, if applicable, the supplied
accessories too are marked with “CE” and
comply therefore with the applicable
harmonized European standards listed
under the Low Voltage Directive
2014/35/EU, the EMC Directive
2012/19/EU (WEEE Directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new
equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info.
2006/66/EC (Battery Directive): This
product contains a battery that cannot be
disposed of as unsorted municipal waste in
documentation for specific battery information. The
battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb),
or mercury (Hg). For proper recycling, return the
battery to your supplier or to a designated collection
point. For more information see:
www.recyclethis.info.
1.1.4 Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.
UM DS-2CExxU8T-xxxx 042318NA 2
the European Union. See the product
1.1.5 Safety Instruction
Warnings
Follow these
Cautions
Follow these
material damage.
These instructions are intended to ensure that the
user can use the product correctly to avoid danger or
property loss.
The precaution measure is divided into “Warnings”
and “Cautions.”
Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if
any of the cautions are neglected.
safeguards to prevent
serious injury or death.
precautions to prevent
potential injury or
1.1.6
•
In the use of the device, you must be in strict
compliance with the electrical safety regulations of
Warnings
the nation and region.
•
Input voltage should meet both the SELV (Safety
Extra Low Voltage) and the Limited Power Source
with 12 VDC according to the IEC60950-1 standard.
Refer to technical specifications for detailed
information.
•
The camera is powered by an external DC power
supply (12 VDC, 1 A) that complies with the LPS,
and the output current of this external DC power
supply must be no more than 6 A.
•
Do not connect multiple devices to one power
adapter to avoid overheating or a fire hazard
caused by overload.
•
Make sure that the plug is firmly connected to the
power socket.
•
Make sure that the device is firmly fixed if wall
mounting or ceiling mounting is adopted.
•
If smoke, odor, or noise rise from the device, turn
off the power at once and unplug the power cord,
and then contact the service center.
•
Never attempt to disassemble the camera by
unprofessional personal.
1.1.7
•
Do not drop the camera or subject it to physical
Cautions
shock.
•
Do not touch sensor modules with fingers.
•
Do not place the camera in extremely hot, cold (the
operating temperature shall be -40° to 60° C), dusty
or damp locations, and do not expose it to high
electromagnetic radiation.
•
If cleaning is necessary, use a clean cloth with a bit
UM DS-2CExxU8T-xxxx 042318NA 3
of ethanol, and wipe it gently.
Mark Description
DC Voltage
•
Do not aim the camera at the sun or extra bright
places.
•
The sensor may be burned out by a laser beam, so
when any laser equipment is in using, make sure
that the sensor surface will not be exposed to the
laser beam.
•
Do not expose the device to high electromagnetic
radiation or extremely hot, cold, dusty, or damp
environments.
•
To avoid heat accumulation, good ventilation is
required for the operating environment.
•
Keep the camera away from liquid while in use for
non-waterproof devices.
•
While in delivery, the camera shall be packed in its
original packing, or packing of the same material.
1.1.8 Mark Description
Table 0-1 Mark Description
2 Introduction
2.1
Product Features
The camera is applicable for both indoor and outdoor
conditions. Application scenarios include roads,
warehouses, underground parking lots, bars, etc.
The main features are as follows:
• 8 MP high performance CMOS sensor
• IR cut filter with auto switch
• OSD menu with configurable parameters
• Auto white balance
• Internal synchronization
• SMART IR mode
• 3-axis adjustment
2.2
Overview
2.2.1 Overview of Type I Camera
Figure 1 Overview of Type I Camera
UM DS-2CExxU8T-xxxx 042318NA 4
2.2.2 Overview of Type II Camera
Figure 2 Overview of Type II Camera
3 Installation
Before you start
• Make sure that the device in the package is in good
condition and all the assembly parts are included.
• Make sure that all the related equipment is
powered off during the installation.
• Check the specification of the products for the
installation environment.
• Check whether the power supply is matched with
your required output to avoid damage.
• Make sure the wall is strong enough to withstand
three times the weight of the camera and the
mount.
• If the wall is cement, insert expansion screws
before installing the camera. If the wall is wooden,
use self-tapping screw to secure the camera.
• If the product does not work properly, contact your
dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance
yourself.
3.1
Type I Camera Installation
Before you start
Both wall mounting and ceiling mounting are suitable
for the turret camera. Ceiling mounting will be taken
as an example in this section. You can take steps of
ceiling mounting as the reference, when adopting the
wall mounting.
Steps
1. Disassemble the camera.
1). Rotate the camera to align the notch to one
of the marks.
2). Pry the mounting base to remove the
mounting base from the camera body with a
flat object, e.g., a coin.
UM DS-2CExxU8T-xxxx 042318NA 5
Figure 3 Disassemble the Camera
2. Paste the drill template (supplied) onto the spot
you want to install the camera.
3. Drill the screw holes according to the drill
template and the cable hole (optional) on the
ceiling.
Figure 4 Drill Template
Note:
Drill the cable hole in the center of the drill template,
when adopting the ceiling outlet to route the cable.
4. Secure the mounting base to the ceiling with the
supplied screws.
Figure 5 Fix the Mounting Base to the Ceiling
Notes:
The supplied screw package contains self-tapping
screws and expansion bolts.
For a cement wall/ceiling, expansion bolts are
required to fix the camera. For a wooden wall/ceiling,
self-tapping screws are required.
5. Route the cables through the cable hole or the
side opening.
6. Secure the camera to the mounting base.
UM DS-2CExxU8T-xxxx 042318NA 6
Figure 6 Secure the Camera
7. Connect the corresponding cables such as power
cord and video cable.
8. Power on the camera to check if the image on
the monitor is at an optimum angle. If not, adjust
the camera according to the figure below to get
an optimum angle.
Figure 7 3-axis Adjustment
1). Hold the camera body and rotate the
enclosure to adjust the pan position [0° to
360°].
2). Move the camera body up and down to
adjust the tilt position [0° to 75°].
3). Rotate the camera body to adjust the
rotation position [0° to 360°].
3.2
Type II Camera Ceiling Mounting
Steps
1. Paste the drill template to the ceiling.
2. Drill the screw holes and cable hole (optional) in
the ceiling according to the drill template.
Figure 8 Drill Template
UM DS-2CExxU8T-xxxx 042318NA 7
Note:
A cable hole is required when using the ceiling outlet
to route cables.
3. Loosen the set screws with a hex wrench
(supplied) to remove the bubble.
Figure 9 Remove the Bubble
4. Fix the mounting base on the ceiling with
supplied screws.

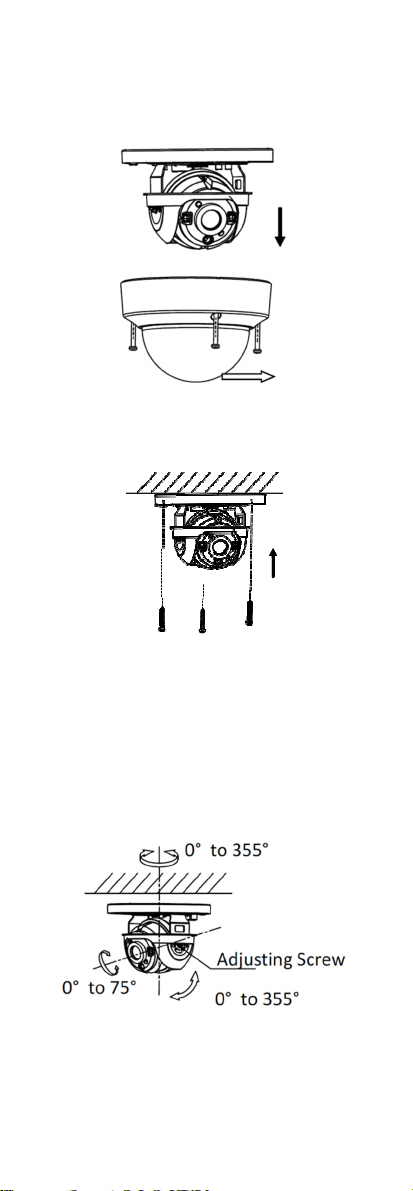

Figure 10 Fix the Mounting Base
5. Route the cables through the cable hole
(optional) or the side opening.
6. Connect the corresponding cables such as power
cord and video cable.
7. Power on the camera to check if the monitor
image is at an optimum angle. If not, adjust the
camera according to the figure below to get an
optimum angle.
Figure 2-9 Type 11 Camera 2-Axis Adjustment
1). Loosen the tilt adjusting screw to adjust the
tilt position [0° to 75°].
2). Hold the black liner to adjust the pan position
[0° to 355°].
UM DS-2CExxU8T-xxxx 042318NA 8
3). Hold the camera body to adjust the rotation
Ca
Mo
position [0° to 355°].
8. Reinstall the bubble, and tighten the screws.
Figure 12 Bubble Reinstallation
4 Menu Description
Purpose:
Call the menu by clicking the button on the PTZ
Control interface, or call preset No.95.
Steps:
1. Connect the camera to the TVI DVR and the
monitor, as shown.
TVI DVR
Figure 13 Connection
2. Power on the analog camera, TVI DVR, and the
monitor to view the image on the monitor.
3. Click PTZ Control to enter the PTZ Control
interface.
4. Call the camera menu by clicking button, or
call preset No. 95.
UM DS-2CExxU8T-xxxx 042318NA 9

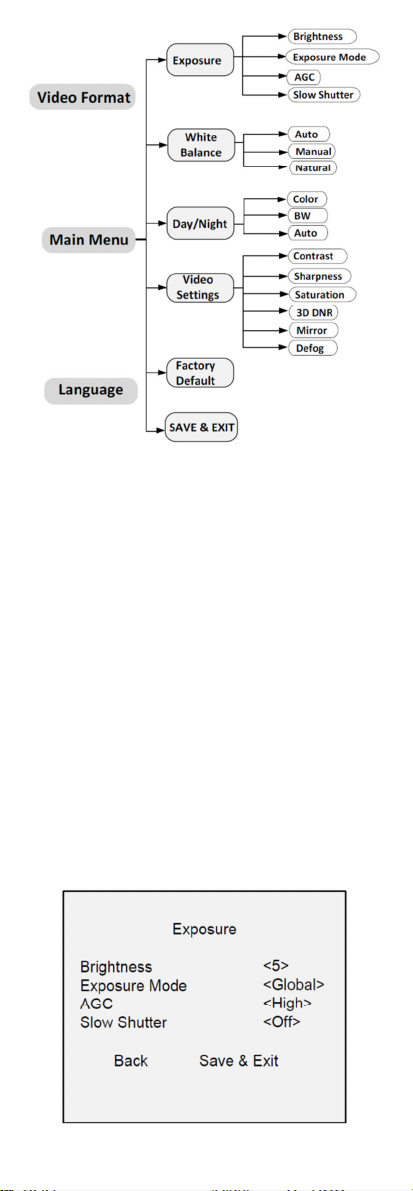

Figure 14 Main Menu Overview
5. Click the direction arrow to control the camera.
1). Click up/down direction button to select the
item.
2). Click Iris + to confirm the selection.
3). Click left/right direction button to adjust the
value of the selected item.
4.1 Video Format
You can set frame rate as 8 MP @ 12.5 fps, 8 MP @
15 fps, 5 MP @ 20 fps, 4 MP @ 25 fps, 4 MP @ 30 fps,
1080p @ 25 fps, or 1080p @ 30 fps.
4.2
Language
Supports English.
4.3
Settings
4.3.1 Exposure
Exposure describes the brightness-related
parameters, which can be adjusted by Brightness,
Exposure Mode, AGC, and Slow Shutter.
Figure 15 Exposure
UM DS-2CExxU8T-xxxx 042318NA 10
• Brightness
Brightness refers to the brightness of the image.
You can set the brightness value from 1 to 10 to
darken or brighten the image. The higher the
value, the brighter the image.
• Exposure Mode
You can set the Exposure Mode as Global, BLC,
HLC, and WDR.
˗ Global
Refers to the normal exposure mode, which
adjusts lighting distribution, variations, and nonstandard processing.
˗ BLC (Backlight Compensation)
BLC compensates light to the object in the front
to make it clear, but may cause the overexposure of the background where the light is
strong.
˗ HLC (High Light Compensation)
HLC masks strong light sources that usually flare
across a scene. This makes it possible to see
image details that would normally be hidden.
˗ WDR (Wide Dynamic Range)
Wide dynamic range helps the camera provide
clear images even under backlit circumstances.
WDR balances the brightness level of the whole
image and provides clear images with details.
When WDR is selected as the exposure mode,
you can set it as low, medium, high or off.
• AGC (Automatic Gain Control)
Optimizes the clarity of the image in poor light
conditions. The AGC level can be set to High,
Medium, or Low. Select Off to disable the AGC
function.
Note:
The noise will be amplified when AGC is on.
• Slow Shutter
Slow Shutter increases the exposure time per
frame, which makes a camera more sensitive to
light. Therefore, it can produce images even under
low lux conditions. You can set the Slow Shutter as
Off, x2, x4 under 8 MP @ 15 fps, or 8 MP @ 12.5
fps mode, and as Off, x2, x4, x6, x8, or x16 under
other modes according to different light
4.3.2 WB (White Balance)
White balance, the white rendition function of the
camera, is to adjust the color temperature according
to the environment. It can remove unrealistic color
casts in the image. You can set WB mode as Auto,
Manual, or Natural.
• Auto
Under Auto mode, white balance is being adjusted
automatically according to the color temperature
of the scene illumination.
UM DS-2CExxU8T-xxxx 042318NA 11
• Manual
Click Iris+ to enter the submenu. Set the R Gain/B
Gain value from 1 to 255 to adjust the shades of
red/blue color of the image.

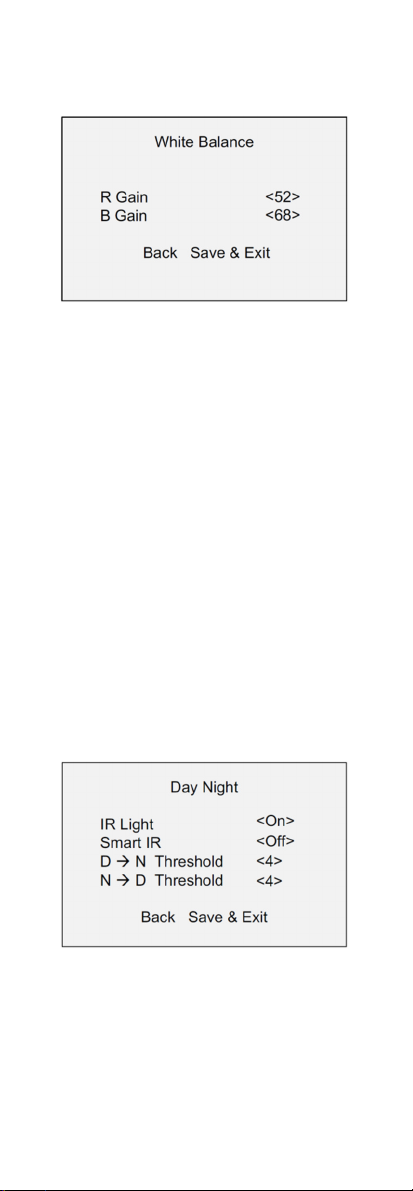

Figure 16 White Balance
• Natural
Set the white balance to Natural mode when large
parts of the monitoring scene is monochrome.
4.3.3 Day Night
Color, BW (Black White), and AUTO are selectable for
DAY and NIGHT switches.
• Color
The image is color in day mode all the time.
• B/W
The image is black and white all the time, and the
IR light turns on in poor light conditions.
• Auto
The image switches from color to B/W, or from
B/W to color, automatically according to the
lighting conditions.
Click Iris+ to enter the submenu, you can turn
on/off the IR Light and set the value of Smart IR in
this menu.
Figure 17 Day Night
˗ IR Light
You can turn on/off the IR Light to meet the
requirements of different circumstances.
˗ Smart IR
The Smart IR function adjusts the light to its
most suitable intensity and prevents
overexposure. You can turn on/off this function.
UM DS-2CExxU8T-xxxx 042318NA 12
˗ D N Threshold (Day to Night Threshold)
Day to Night Threshold controls the sensitivity
of switching the day mode to the night mode.
You can set the value from 1 to 9. The larger the
value, the more sensitive the camera.
˗ N D Threshold (Night to Day Threshold)
Night to Day Threshold controls the sensitivity
of switching the night mode to the day mode.
You can set the value from 1 to 9. The larger the
value, the more sensitive the camera.
4.3.4 Video Settings
Move the cursor to Video Settings and click Iris+ to
enter the submenu. Contrast, Sharpness, Saturation,
3D DNR, Mirror, and Defog are adjustable.

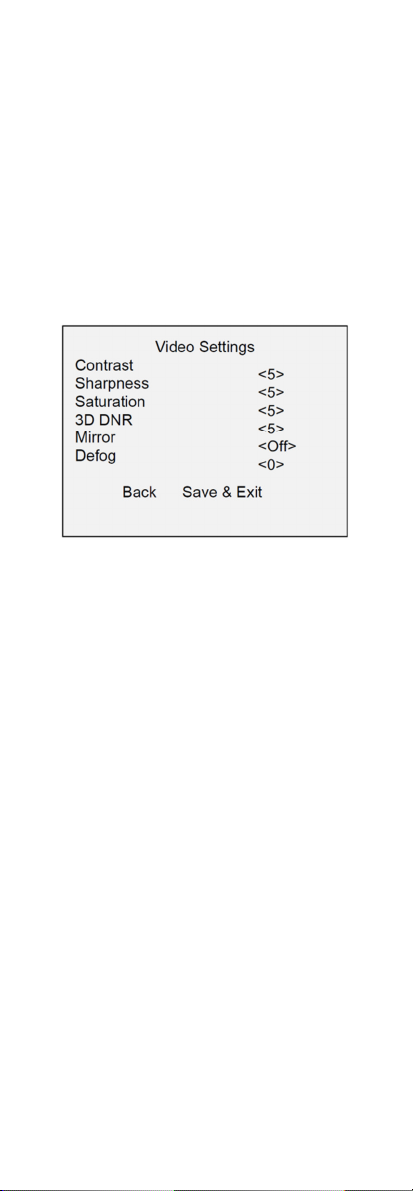

Figure 18 Video Settings
• Contrast
This feature enhances the difference in color and
light between parts of an image. You can set the
Contrast value from 1 to 10.
• Sharpness
Determines the amount of detail an imaging
system can reproduce. You can set the Sharpness
value from 1 to 10.
• Saturation
Adjust this feature to change the saturation of the
color. The value ranges from 1 to 10.
• 3D DNR (Digital Noise Reduction)
The 3D DNR function can decrease the noise
effect, especially when capturing moving images in
poor light conditions, and deliver more accurate
and sharper image quality. You can set the 3D DNR
value from 1 to 10.
• Mirror
Off, H, V, and HV are selectable for mirror.
Off: The mirror function is disabled. H: The image
flips 180° horizontally. V: The image flips 180°
vertically.
HV: The image flips 180° both horizontally and
vertically.
UM DS-2CExxU8T-xxxx 042318NA 13
• Defog
This is used in special environments such as foggy
or rainy weather, or in high illumination
conditions, when the dynamic range is lower than
that in an ordinary environment and the image
appears hazy.
Enabling the defog function can enhance the
subtle details to display clear images.
4.3.5 Factory Default
Click Iris+ to enter the submenu, and click OK to reset
all the settings to the factory default. Click Cancel to
disregard the reset settings.
4.3.6 Save & Exit
Move the cursor to Save & Exit, and click Iris+ to save
the settings and exit the menu.
UM DS-2CExxU8T-xxxx 042318NA 14
Loading...
