Hikvision DS-2CE70D0T-ITMF User Manual
DS-2CE70D0T-ITMF
2 MP Camera
Key Feature
2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm, 6 mm fixed focal lens
Smart IR, up to 20 m IR distance
4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
IP67
|
|
Specification |
|
|
|
|
Camera |
|
|
|
|
|
Image Sensor |
2 MP CMOS |
|
|
|
|
Signal System |
PAL/NTSC |
|
|
|
|
Effective Pixels |
1920 (H) × 1080 (V) |
|
|
|
|
|
TVI: 1080P@25fps, 1080P@30fps |
|
Frame Rate |
AHD: 1080P@25fps, 1080P@30fps |
|
CVI: 1080P@25fps, 1080P@30fps |
|
|
|
|
|
|
CVBS: P/N |
|
Min. Illumination |
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
|
|
|
|
Shutter Time |
PAL:1/25 s to 1/50,000 s |
|
NTSC:1/30 s to 1/50,000 s |
|
|
|
|
|
Lens |
2.8 mm, 3.6 mm, 6 mm fixed lens |
|
Horizontal Field of View |
106°(2.8 mm), 80°(3.6 mm), 51°(6 mm) |
|
Lens Mount |
M12 |
|
|
|
|
Day & Night |
ICR |
|
|
|
|
WDR |
Digital WDR |
|
|
|
|
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 80°, Rotation: 0° to 360° |
|
Menu |
|
|
Image Mode |
STD/HIGH-SAT |
|
|
|
|
AGC |
Yes |
|
|
|
|
Day/Night Mode |
Auto/Color/BW (Black and White) |
|
|
|
|
White Balance |
Auto |
|
|
|
|
AE (Auto Exposure) Mode |
Global/BLC/HLC/DWDR |
|
|
|
|
Noise Reduction |
2D DNR |
|
|
|
|
Language |
English |
|
|
|
|
Function |
Brightness, Sharpness, Mirror, Smart IR |
|
Interface |
|
|
Video Output |
Switchable TVI/AHD/CVI/CVBS |
|
General |
|
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less |
|
(non-condensing) |
|
|
|
|
|
|
|
|
|
12 VDC ± 25% |
|
Power Supply |
*You are recommended to use one power adapter to supply the power |
|
|
for one camera. |
|
|
|
|
Power Consumption |
Max. 3.6 W |
|
|
|
|
Protection Level |
IP67 |
|
|
|
|
Material |
Metal |
|
|
|
|
IR Range |
Up to 20 m |
|
|
|
|
Communication |
HIKVISION-C |
|
|
|
|

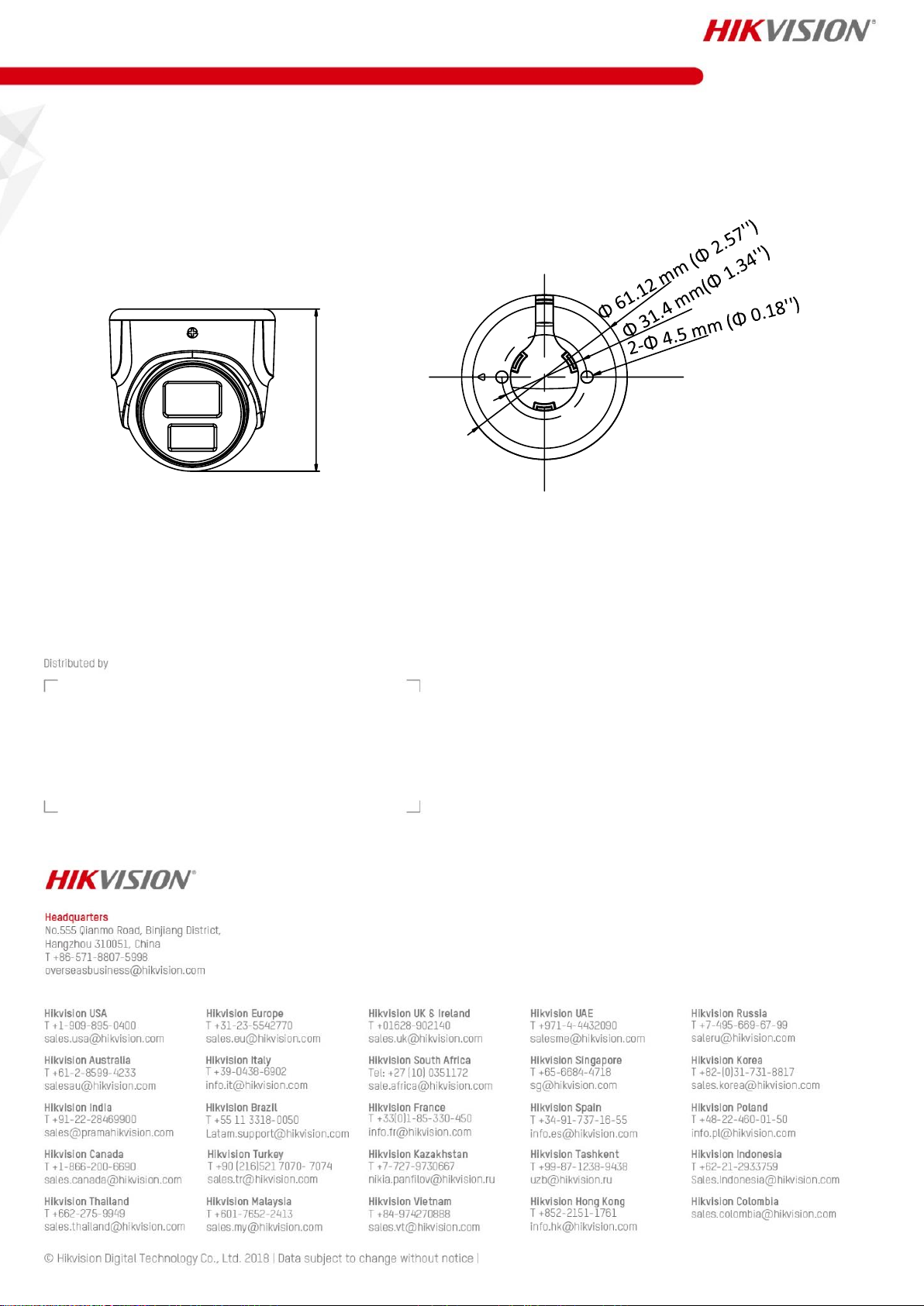

Dimensions |
Φ 61.12 mm × 60 mm (Φ 2.57" × 2.56") |
|
|
|
|
Weight |
160 g (0.35 lb.) |
|
|
|
