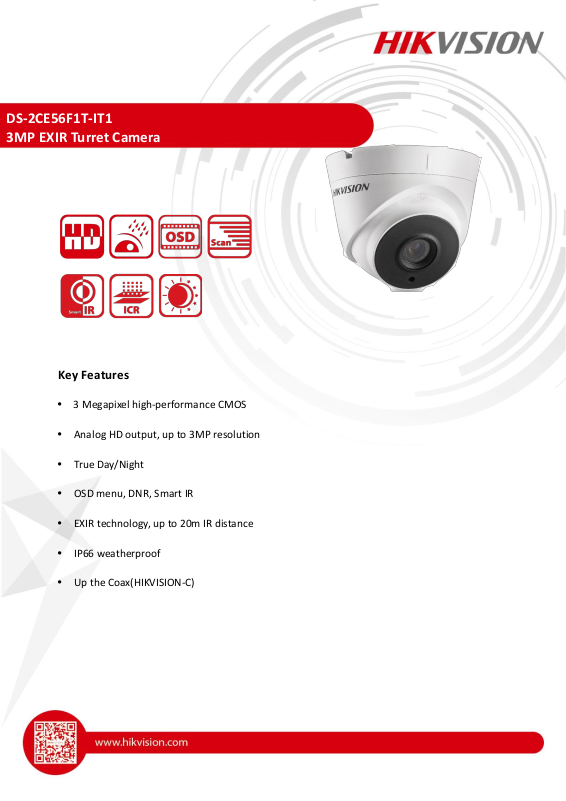

DS-2CE56F1T-IT1

3MP EXIR Turret Camera

Key Features

3 Megapixel high-performance CMOS

Analog HD output, up to 3MP resolution

True Day/Night

OSD menu, DNR, Smart IR

EXIR technology, up to 20m IR distance

IP66 weatherproof

Up the Coax(HIKVISION-C)



Specifications





Camera







Image Sensor

3MP CMOS Image Sensor





Effective Pixels

2052(H)*1536(V)





Min. illumination

0.01 Lux @ (F1.2,AGC ON),0 Lux with IR





Shutter Time

1/25(1/30)s to 1/50,000s







2.8mm, 3.6mm, 6mm optional

Lens



Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm)







Lens Mount

M12





Day & Night

ICR





Angle Adjustment

Pan: 0°- 360°; Tilt:0°- 75°; Rotate: 0°- 360°





Synchronization

Internal Synchronization





Video Frame Rate

1920×1536@18fps





HD Video Output

1 Analog HD output





S/N Ratio

62dB





Menu







AGC

Support





D/N Mode

Color/BW/SMART





White Balance

ATW/ MWB





BLC

Support





Functions

Digital noise reduction, Mirror, SMART IR

General







Operating Conditions

-40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)





Power Supply

12 VDC±15%





Power Consumption

Max. 5W





Protection Level

IP66





IR Range

Up to 20m





Communication

Up the coax, Protocol: HIKVISION-C (TVI output)





Dimensions

φ110mm×93.2mm (φ4.33”×3.67”)





Weight

350g (0.77lb)
