Hikvision DS-2CD2742FWD-IZS User Manual

Accessories

DS-2CD2742FWD

-

IZS

Camera

Image Sensor

1/3"

progressive scan CMOS

Minimum Illumination

Color

: 0.014 lux @ (

ƒ/

1.4,AGC on); B/W

: 0 lux with IR

Shutter Speed

1/3 s to 1/10,000 s

Slow

Shutter

Yes

Lens 2.8 mm to

12 mm @

ƒ/

1.4, motorized lens

Angle of View

112° to 33.8°

Lens Mount

Φ14

Day/Night

IR cut filter with auto switch/schedule/triggered by alarm

Digital Noise Reduction

3D DNR

Wide Dynamic Range

120 dB

Pan/Tilt /Rotation

Pan: 0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°

Compression Standards

Video Compression

H.264+/H.264/MJPEG

H.264 Type

Main Profile

Video Bit Rate

32 Kbps to 16 Mbps

Dual Streams

Yes

G.711/G.722.1/G.726/MP2L2, 64 Kbps (G.711)/16 Kbps

(G.722.1)/16 Kbps (G.726)/32 to 128 Kbps (MP2L2)


Maximum Resolution

2688 × 1520

Frame Rate

20 fps (2688 × 1520), 30 fps (1920 × 1080,

1280 × 720)

Compression, color, saturation, brightness, contrast, sharpness,

rotate mode, privacy

mask

Backl

ight Compensation

Yes, zone configured

Region of Interest (ROI)

Yes

Analytics

Smart Features

Line crossing detection, intrusion detection

Network

Network Storage

NAS (supports NFS,SMB/CIFS); ANR

Motion detection, line

crossing detection, intrusion detection, tamper

alarm, network disconnect, IP address conflict, storage exception

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,

802.1X, QoS, IPv6, Bonjo

ur

Three level user authentication, password authorization, HTTPS and

watermark, IP address filtering, log

-

in lockout

Standards

ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

Interface

Co

mmunication

1 RJ-45 10M/100M Ethernet port

On-Board Storage

Built-in microSD/SDHC/SDXC slot, up to 128 GB

Alarm 1 a

larm I/O

Audio 1 a

udio I/O

General

-

30° C to 60° C (

-

22° F to 140° F), humidity 95% or less

(non

-

condensing)

Power 12 VDC ±10%, PoE (802.3af) UL/cUL Listed

Power Consumption

Maximum 5.5 W

IR Range

30 meters (

~

100 feet)

Ingress Protection

IP66

Impact Protection

IEC60068

-

275Eh, 20J; EN50102, up to IK10

Dimensions

Φ140 mm

× 99.9 mm (

Φ

5.51" ×

3.94")

Weight

1000 g (2.20 lbs)

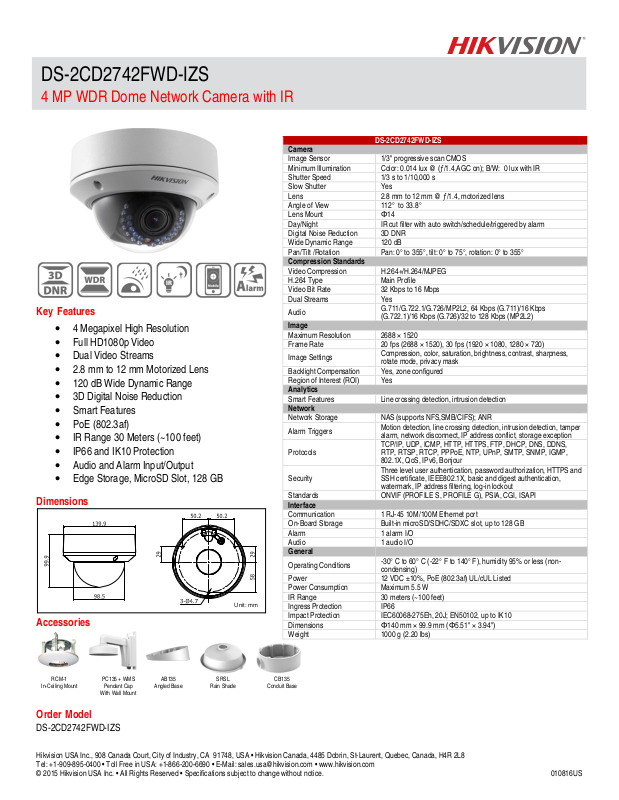

DS-2CD2742FWD-IZS

4 MP WDR Dome Network Camera with IR

Key Features

• 4 Megapixel High Resolution

• Full HD1080p Video

• Dual Video Streams

• 2.8 mm to 12 mm Motorized Lens

• 120 dB Wide Dynamic Range

• 3D Digital Noise Reduction

• Smart Features

• PoE (802.3af)

• IR Range 30 Meters (~100 feet)

• IP66 and IK10 Protection

• Audio and Alarm Input/Output

• Edge Storage, MicroSD Slot, 128 GB

Dimensions

Unit: mm

Audio

Image Settings

Alarm Triggers

Protocols

Security

Operating Conditions

RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP,

SSH certificate, IEEE802.1X, basic and digest authentication,

RCM-1 PC135 + WMS AB135 SRSL CB135
In-Ceiling Mount Pendant Cap Angled Base Rain Shade Conduit Base
With Wall Mount

Order Model

DS-2CD2742FWD-IZS
