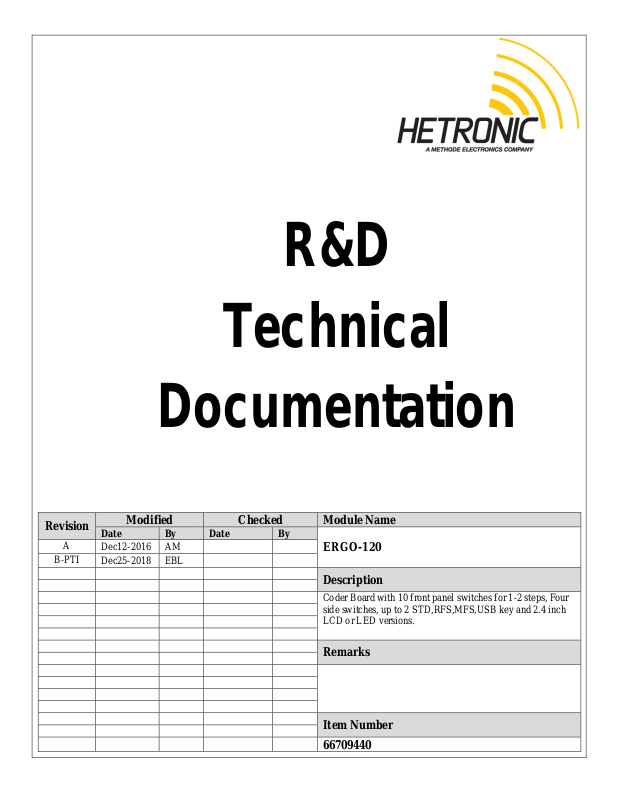

Hetronic MFSERGO120 Users Manual

R&D

Technical

Documentation

Revision

A

B-PTI

Coder Board with 10 front panel switches for 1-2 steps, Four

Modified Checked Module Name

Date By Date By

Dec12-2016 AM
Dec25-2018 EBL

ERGO-120

Description

side switches, up to 2 STD,RFS,MFS,USB key and 2. 4 i nc h
LCD or LED versions.

Remarks

Item Number
66709440

1. COMPLIANCE STATEMENTS

1.1. FCC Interference Statement (Part 15.105 (b))

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio /TV technician for help.

1.2. FCC Part 15 Clause 15.21

“Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment”

1.3. FCC Part 15.19(a)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

1.4. ISED RSS-Gen Notice, ICES Notice:

(1) This device may not cause interference; and (2) This device must accept any interference,
including interference that may cause undesired operation of the device.

1) l’appareil ne doit pas produire de brouillage; 2) l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.“

“CAN ICES-3 (B)/NMB-3(B)“

Revision Project: ERGO-120 Page

Research and

Development

Technical Documentation

B

Descriptio
n:

Coder Board with 10 front panel switc hes fo r 1- 2 steps, Four
side switches, up to 2 STD,RFS,MFS,USB key and 2. 4 i nc h
LCD or LED versions.

2 of 8

Research and

Development

Technical Documentation

Revision Project: ERGO-120 Page

Coder Board with 10 front panel switches for 1-2 steps, Four
side switches, up to 2 STD,RFS,MFS,USB key and 2.4 inch
LCD or LED versions.

B

Descriptio
n:

3 of 8
