Model 8000 Computron

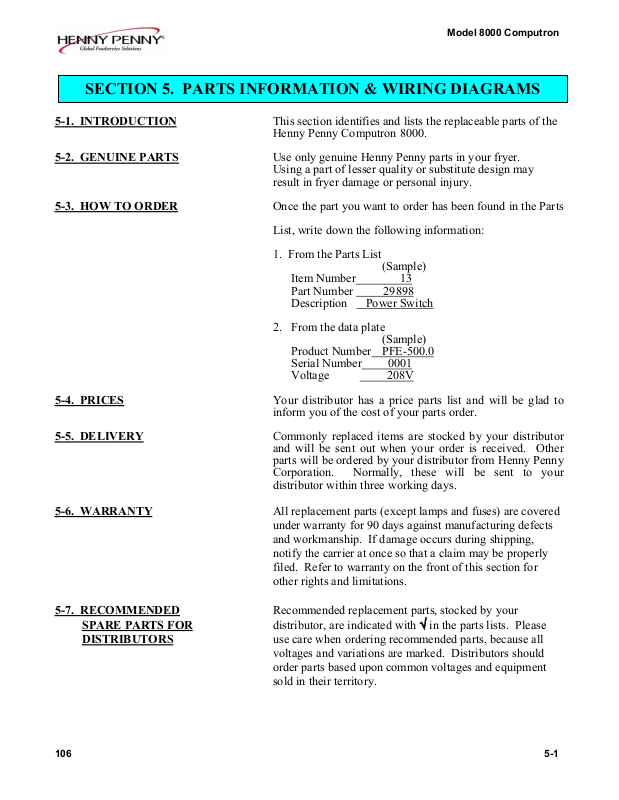

SECTION 5. PARTS INFORMATION & WIRING DIAGRAMS
5-1. INTRODUCTION This section identifies and lists the replaceable parts of the
Henny Penny Computron 8000.
5-2. GENUINE PARTS Use only genuine Henny Penny parts in your fryer.
Using a part of lesser quality or substitute design may
result in fryer damage or personal injury.
5-3. HOW TO ORDER Once the part you want to order has been found in the Parts
List, write down the following information:
1. From the Parts List
(Sample)
Item Number 13
Part Number 29898
Description Power Switch
2. From the data plate
(Sample)
Product Number PFE-500.0
Serial Number 0001
Voltage 208V
5-4. PRICES Your distributor has a price parts list and will be glad to
inform you of the cost of your parts order.
5-5. DELIVERY Commonly replaced items are stocked by your distributor
and will be sent out when your order is received. Other
parts will be ordered by your distributor from Henny Penny
Corporation. Normally, these will be sent to your
distributor within three working days.
5-6. WARRANTY All replacement parts (except lamps and fuses) are covered
under warranty for 90 days against manufacturing defects
and workmanship. If damage occurs during shipping,
notify the carrier at once so that a claim may be properly
filed. Refer to warranty on the front of this section for
other rights and limitations.
5-7. RECOMMENDED Recommended replacement parts, stocked by your
SPARE PARTS FOR
distributor, are indicated with √ in the parts lists. Please
DISTRIBUTORS use care when ordering recommended parts, because all
voltages and variations are marked. Distributors should
order parts based upon common voltages and equipment
sold in their territory.
106 5-1
Model 8000 Computron
Figure 5-1. Computron 8000-500 – 3 phase Exploded View
5-2 805
Model 8000 Computron
Figure &
Item Part
Number Number Description Qty
Figure 1-1 Control Panel
11 32633 Card – C8000 Std. Product Menu 1
11 32634 Card – C8000 Blank Menu 1
11 69228 Card – C8000 Campero 1
11 39089 Card – C8000 Jollibee’s 1
11 39156 Card – C8000 Wendy’s/Davco 1
11 68731 Card – C8000 Giant Eagle 1
11 68731 Card – C8000 McDonalds 1
√ 13 29898 Power Switch 1
15 27303 Decal – Control –Bent 1
15 24849 Decal – Control – Flat 1
15 32658 Decal – C8000-02 1
15 39269 Decal – C8000-02 – Wendy’s 1
Figure 5-1 Computron 8000 Exploded View
√ 16 55167 Assembly – Probe/Compression Fitting – Ele. 1
√ 17 16738 High Limit – 450 degree F. 1
√ 18 29521 Assembly – Transformer - 10/24 VAC 1
√ 19 18364 Assembly – Fuse Holder – 15 amp 2
√ 19 EF02-007 Fuse – 15 amp 2
√ 20 29510 Contactor – Mercury – 24 VAC 1
√ 20 65073 Contactor – Square D - 24 VAC - CE 1
√ 21 29509 Contactor – 24 VAC 1
22 58850 Bracket – Double Contactor 1
23 66717 Stud Assembly – Contactor Bracket 1
√ 24 24347 Assembly – Current Sense Transformers 1
√ 25* 26974 Assembly – Speaker 1
26* 29515 Solenoid – 24 Volt – 60 Hz. 1
26* 29698 Solenoid – 24 Volt – 50 Hz. 1
√ 26* 29547 Solenoid Coil – 24 Volt – 50/60 Hz. 1
√ 26* 29575 Coil – Solenoid – 24VAC – 50 Hz 1
27* 63294 Insulation – Fryer Pot – 1/4” 1
27* 63295 Insulation – Fryer Pot – 1/8” 1
recommended parts
√
*not shown
106 5-3
Model 8000 Computron
Figure &
Item Part
Number Number Description Qty
√ 28* 32612RB Assembly – Control 8000 Flat Panel 1
(SN: KA021JJ to GA085JB-GAS)
(SN: KB021JJ to HB013JB-ELEC.)
√ 28* 65465RB Assembly – Control 8000 Flat Panel 1
(SN: GA086JB and above-GAS)
(SN: HB014JB and above-ELEC.)
√ 28* 32613RB Assembly – Control 8000 Bent Panel 1
(SN: KA020JJ and below-GAS)
(SN: KB020JJ and below-ELEC.)
√ 28* 68798RB Assembly – Control 8000 Bent Panel-Campero 1
(SN: KA020JJ and below-GAS)
(SN: KB020JJ and below-ELEC.)
√ 28* 68799RB Assembly – Control 8000 Flat Panel-Campero 1
(SN: KA021JJ to GA085JB-GAS)
(SN: KB021JJ to HB013JB-ELEC.)
√ 28* 68800RB Assembly – Control 8000 Flat Panel-Campero 1
(SN: GA086JB and above-GAS)
(SN: HB014JB and above-ELEC.)
√ 28* 65462RB Assembly – Control 8000 Bent Panel– Jollibee’s 1
(SN: KA020JJ and below-GAS)
(SN: KB020JJ and below-ELEC.)
√ 28* 65463RB Assembly – Control 8000 Flat Panel – Jollibee’s 1
(SN: KA021JJ to GA085JB-GAS)
(SN: KB021JJ to HB013JB-ELEC.)
√ 28* 65464RB Assembly – Control 8000 Flat Panel– Jollibee’s 1
(SN: GA086JB and above-GAS)
(SN: HB014JB and above-ELEC.)
√ 28* 65171RB Assembly - Control 8000 – Express Foods 1
√ 28* 65193RB Assembly - Control 8000 – Servequip 1
√ 28* 68409RB Assy - Control 8000 - 600 – Wendy’s w/SSI/FPS 1
(SN: GA086JB and above-GAS)
√ 28* 68683RB Assy-Control 8000 Bent Panel– Wendy’s w/SSI/FPS 1
√ 28* 70001RB Assembly - Control 8000-’02-GM w/FPS 1
√ 28* 39307RB Assembly - Control 8000-‘02 – Giant Eagle 1
√ 28* 65097RB PC Board Only – Wendy’s/Davco 1
√ 28* 14756 Assembly – Control 8000 – McDonalds 1
√
recommended parts
*not shown
5-4 106
Model 8000 Computron
Figure 5-2. Computron 8000 - 500 – 1 phase Exploded View
Item Part
Number Number Description Qty
√ 1 29510 CONTACTOR, Mercury - 24 VAC 1
√ 1 65073 CONTACTOR – Square D - 24 VAC - CE 1
√ 2 29509 CONTACTOR - 24 Volt 1
√ 3 16738 CONTROL, High Limit Temperature 1
4 NS01-014 NUT, Hex 16
5 WA01-007 WASHER 16
6 LW02-005 LOCKWASHER 8
7 18242 BREAKER, CIRCUIT 50 amp 1
8 24347 ASSY, Current Sense Xformers 1
√ 9 29521 ASSY, Transformer - 10/24 VAC 1
√ 10 18364 ASSY, Fuse Holder - 15 amp 2
√ 10 EF02-007 FUSE, 15 amp 2
√ 10 EF02-006 HOLDER, Fuse 2
11 17216 ASSY, Bracket - High Limit 1
12 18244 SHROUD, Single Phase (KB020JJ & below) 1
12 63226 SHROUD, Single Phase (KB021JJ to HB013JB) 1
12 27418 SHROUD, Single Phase (HB014JB & above) 1
13 29687 BRACKET, Double Contactor 1
√ recommended parts
106 5-5
Model 8000 Computron

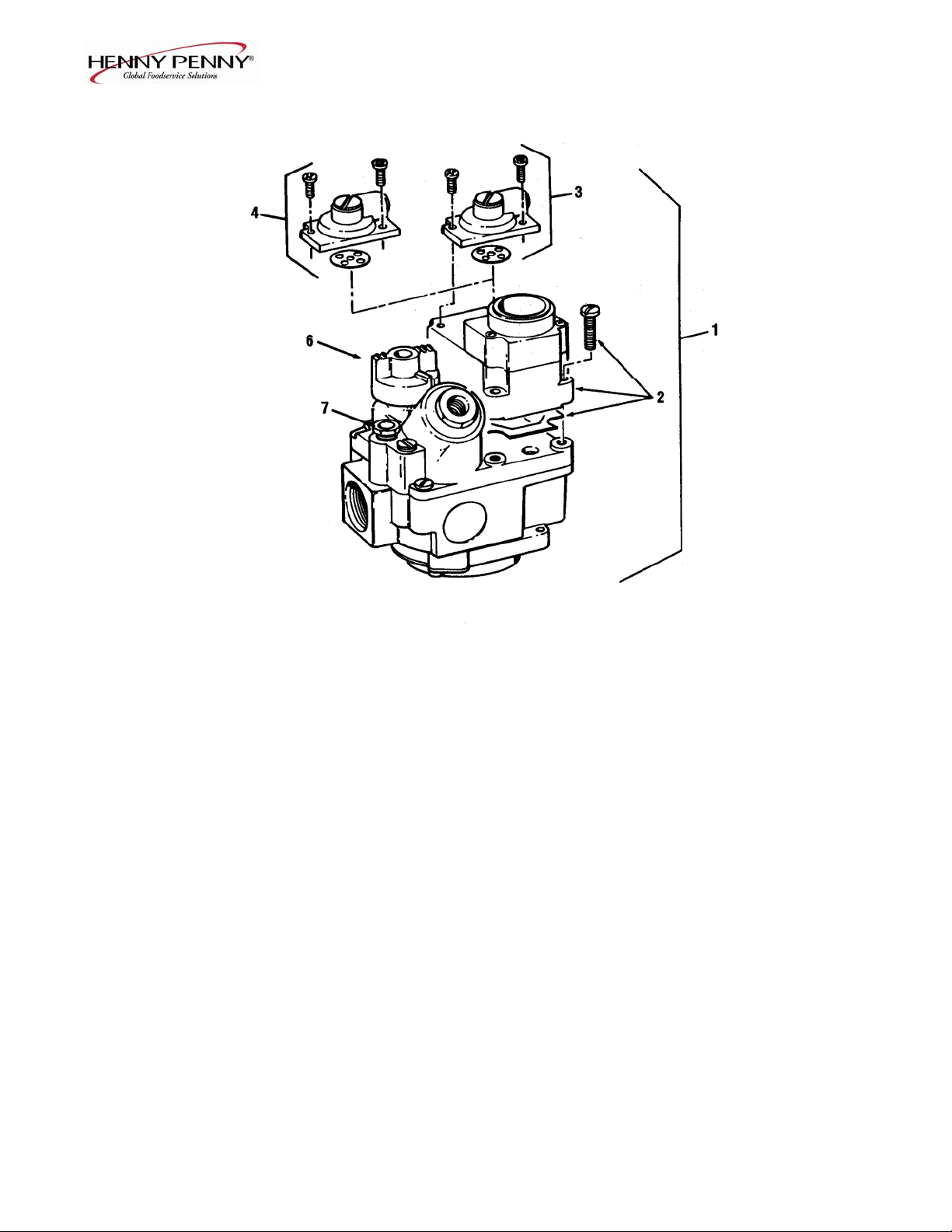

Figure 5-3. Computron 8000 - 600 – Gas Control Valve
ITEM PART PER
NO. NUMBER DESCRIPTION ASSY
√ 1a 58863 VALVE, Control, Natural Gas, 24 Volt - SN: KA021JJ & Above 1
√ 1a 16216 VALVE, Control, Natural Gas, 120 Volt 1
√ 1b 64036 VALVE, Control, Propane Gas, 24 Volt - SN: KA021JJ & Above 1
√ 1b 16217 VALVE, Control, Propane Gas, 120 Volt 1
√ 1a 16380 VALVE, Control, Natural Gas, 208-240 Volt 1
√ 1b 16381 VALVE, Control, Propane Gas, 208-240 Volt 1
√ 1a 29614 VALVE, Control, Natural Gas, 24 Volt-SN: KA020JJ & below 1
√ 1b 29728 VALVE, Control, Propane Gas, 24 Volt-SN: KA020JJ & below 1
√ 2 16254 OPERATOR, Gas Control Valve, 120 Volt, Natural 1
√ 2 16710 OPERATOR, Gas Control Valve, 208-240 Volt, Natural 1
√ 2 16386 OPERATOR, Gas Control Valve, 120 Volt, Propane 1
√ 2 16384 OPERATOR, Gas Control Valve, 208-240 Volt, Propane 1
√ 3 16253 REGULATOR, Gas Control Valve, Natural Gas 1
√ 4 16352 REGULATOR, Gas Control Valve, Propane Gas 1
√ 6 16267 KNOB, Gas Control Valve 1
√ 7 16373 FITTING, Compression - Pilot Tube 2
√ recommended parts
5-6 106
Model 8000 Computron
Figure 5-3. Computron 8000 - 600 – Gas Components
ITEM PART PER
NO. NUMBER DESCRIPTION ASSY
√ 1 16738 CONTROL, High Temperature Limit 1
2 SC02-018 SCREW, Thread Forming #8 2
3 NS02-001 NUT, #10-32 Hex Keps 2
4 17216 BRACKET ASSY, High Limit Thermostat 1
√ 5 16684 FAN, 120 Volt (where applicable) 1
6 SC01-010 SCREW, Fan 4
7 WA01-006 WASHER, Fan 4
8 NS02-005 NUT, Fan 4
√ 9 29521 ASSY, TRANSFORMER - 10/24 VAC 1
√ 10 14331 KIT, Temperature Probe 1
11* 36097 PROBE GUARD 1
√ recommended parts
*not shown
106 5-7
