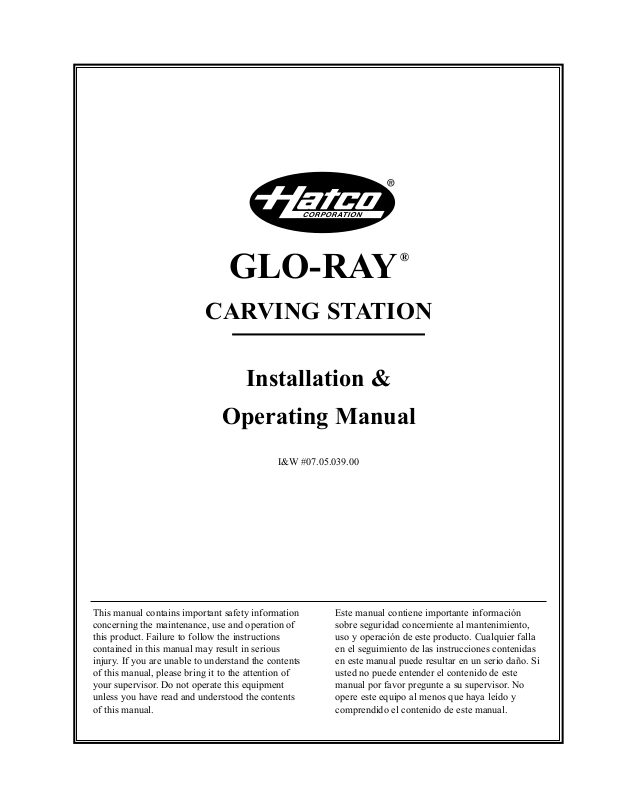

Hatco GRCSCL-24, GRCSCLH-24 General Manual

GLO-RAY

®

CARVING STATION

Installation &

Operating Manual

I&W #07.05.039.00

This manual contains important safety information
concerning the maintenance, use and operation of
this product. Failure to follow the instructions
contained in this manual may result in serious
injury. If you are unable to understand the contents
of this manual, please bring it to the attention of
your supervisor. Do not operate this equipment
unless you have read and understood the contents
of this manual.

Este manual contiene importante información
sobre seguridad concerniente al mantenimiento,
uso y operación de este producto. Cualquier falla
en el seguimiento de las instrucciones contenidas
en este manual puede resultar en un serio daño. Si
usted no puede entender el contenido de este
manual por favor pregunte a su supervisor. No
opere este equipo al menos que haya leído y
comprendido el contenido de este manual.

i

Form No. GRCSM-0401

INTRODUCTION

Hatco Glo-Ray Carving Stations are designed as the
ideal attachment to extend holding times during serving
periods. Glo-Ray warmers have prefocused heat that
bathes the entire surface to provide effective heat
distribution and eliminate hot spots, keeping all foods at
optimum serving temperatures to ensure quality.
Ceramic and blanket heating elements are guaranteed
against breakage and burnout for one year.

This manual provides the installation and operating
instructions for the Glo-Ray Carving Station. We
recommend all installation, operating and safety
instructions appearing in this manual be read prior to
installation or operation of your Hatco foodwarmer.
Safety instructions that appear in this manual after a
warning symbol and the words WARNING or

CAUTION printed in bold face are important.

WARNING means there is the possibility of serious

injury or death to yourself or others. CAUTION
means there is the possibility of minor or moderate
injury. CAUTION without the symbol signifies the
possibility of equipment or property damage only.

Hatco Glo-Ray Carving Stations are a product of
extensive research and field testing. The materials used
were selected for maximum durability, attractive
appearance and optimum performance. Every unit is
thoroughly inspected and tested prior to shipment.

CONTENTS

Important Owner Information.....................................i

Introduction ...................................................................i

Important Safety Instructions .....................................1

Model Description.........................................................2

All Models ..............................................................2

GRCSCL-24 Models...............................................2

GRCSCLH-24 Models............................................2

Specifications.................................................................3

Electrical Rating Chart............................................3

Plug Configurations ................................................3

Dimensions..............................................................3

Installation.....................................................................4

General ....................................................................4

Breath Protector(s) ..................................................4

Custom Drip Pan.....................................................4

Location ..................................................................4

Operation.......................................................................5

Maintenance ..................................................................6

Cleaning ..................................................................6

Display Light Bulb Replacement............................6

Accessories.....................................................................7

Left-Hand Breath Protector & Retrofit Kit.............7

Custom Drip Pan.....................................................7

Cutting Board..........................................................7

Hatco Limited Warranty .............................................8

Authorized Parts Distributors....................Back Cover

IMPORTANT OWNER INFORMATION

Record the model number, serial number (identification
plate located on the lower right hand side, front corner
of the unit), voltage and purchase date of your
Glo-Ray

®

Carving Station in the spaces below. Please
have this information available when calling Hatco for
service assistance.

Model No. ____________________________________

Serial No. ____________________________________

Voltage ______________________________________

Date of Purchase ______________________________

Business 8:00 a.m. to 5:00 p.m.
Hours: Central Standard Time

(Summer Hours: June to September ­8:00 a.m. to 5:00 p.m. C.D.T.
Monday through Thursday
8:00 a.m. to 2:30 p.m. C.D.T. Friday)

Telephone: [phone]

Fax: [phone] (Parts & Service)

[phone] (International)

CAUTIONS

1. For safe and proper operation, the Carving
Station must be located a reasonable distance
from combustible walls and materials. If safe
distances are not maintained, discoloration or
combustion could occur.

CAUTIONS

1. Do not loosen the adjustment knobs more
than ½ turn. Doing so could loosen the
internal nut causing it to fall off, thereby
making the legs non-adjustable.

2. Use only non-abrasive cleaners. Abrasive
cleaners could scratch the finish of your
Glo-Ray Carving Station marring its
appearance and making it susceptible to soil
accumulation.

3. To avoid damage to cutting board do not
allow board to be immersed in water or run
through a dishwasher. Damage to cutting
board is not covered under warranty.

4. Only soft cleaning cloths should be used to
clean breath protector(s). Breath protector(s)
are made of shatterproof polycarbonate and
will scratch if proper care is not taken.

1

WARNINGS

1. Some exterior surfaces on the Carving Station
will get hot. Use caution when touching these
areas to avoid injury.

2. To prevent electric shock, always unplug the
Glo-Ray Carving Station before performing
cleaning or maintenance.

3. Plug warmer into an electrical outlet of the
correct voltage, size and NEMA designation.
If the plug and outlet do not match, contact a
qualified electrician to determine the proper
voltage and size and install the proper
electrical outlet.

4. Only bulbs which meet or exceed N.S.F.
standards, specifically designed for food
holding areas must be used. Breakage of bulbs
not specially coated could result in personal
injury and/or food contamination.

5. If service is required on this unit, contact your
Authorized Hatco Service Agent, or contact
the Hatco Service Department at 800-558-0607
or 414-671-6350; fax [phone] or
International fax [phone].

6. This product has no “user” serviceable parts.
To avoid damage to the unit or injury to
personnel, use only Authorized Hatco Service
Agents and Genuine Hatco Parts when service
is required.

7. Genuine Hatco Replacement Parts are
specified to operate safely in the environments
in which they are used. Some aftermarket or
generic replacement parts do not have the
characteristics that will allow them to operate
safely in Hatco equipment. It is essential to
use Hatco Replacement Parts when repairing
Hatco equipment. Failure to use Hatco
Replacement Parts may subject operators of
the equipment to hazardous electrical voltage,
resulting in electrical shock or burn.

8. Unit is not waterproof. DO NOT submerge in
water. Do not operate if it has been submerged
in water.

Form No. GRCSM-0401

IMPORTANT! Read the following important safety instructions to avoid personal injury or death,
and to avoid damage to the equipment or property.

IMPORTANT SAFETY INSTRUCTIONS

MODEL DESCRIPTION

2

ALL MODELS

The Hatco Glo-Ray Carving Stations have aluminum
and stainless steel housings. All models feature
incandescent display lights and easy to install breath
protector(s) and a pre-attached cord and plug set.
Models are available with or without heat in the base.

GRCSCL-24 MODELS

The Hatco GRCSCL-24 model is an aluminum
foodwarmer with stainless steel base, ceramic heating
elements, incandescent lights and a sturdy breath
protector on the right side.

GRCSCLH-24 MODELS

The Hatco GRCSCLH-24 model is similar to the
GRCSCL-24, but features a blanket element base in
addition to the ceramic element top heat. Independent
controls define the temperature settings for both the top
and base heat.

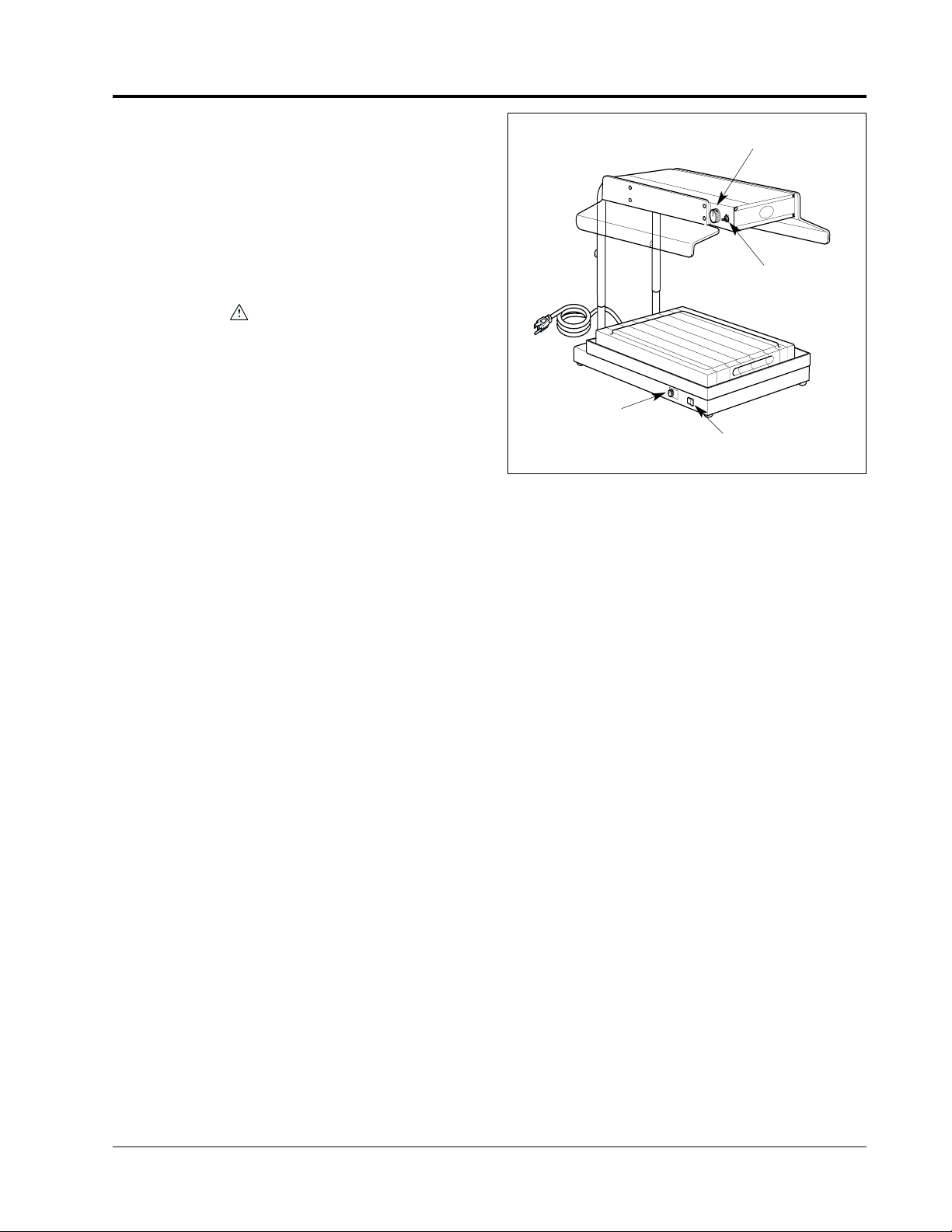

Figure 1. Glo-Ray Carving Station

Form No. GRCSM-0401
