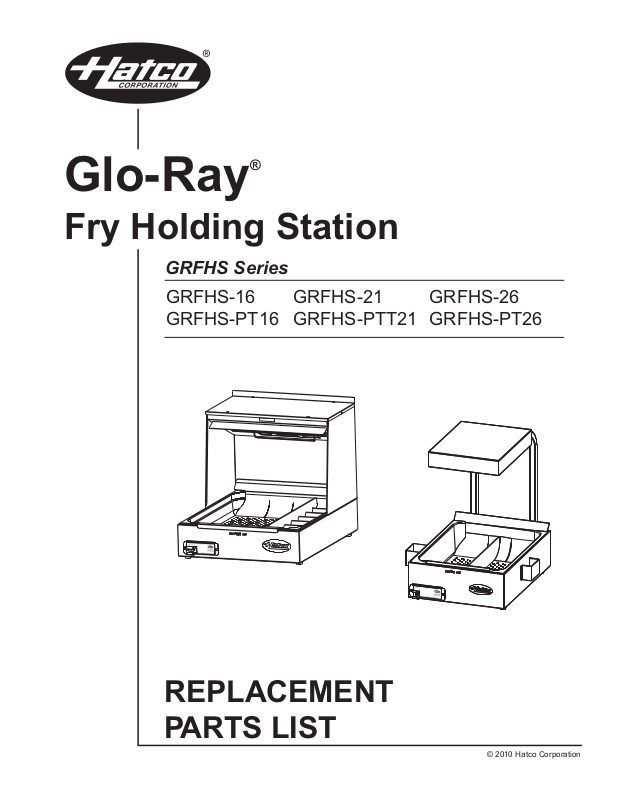

Page 1
®
Glo-Ray
Fry Holding Station
GRFHS Series
GRFHS-16 GRFHS-21 GRFHS-26
GRFHS-PT16 GRFHS-PTT21 GRFHS-PT26
REPLACEMENT
PARTS LIST
© 2010 Hatco Corporation
Page 2
1
11
12
13
14
15
16
17
6
7
8
9
10
4
2
3
5
22
18
19
23
24
25
26
27
28
29
HATCO GLO-RAY®FRY HOLDING STATION
G R F H S - P T X X
Width (inches)
Fry Holding Station
No Characters = Bin
PT = Pass-Through
PTT = Pass-Through Tunnel
Glo-Ray
CAUTION
GRFHS-16, -21, -26 Models
Model Designation
Form No. GRFHSRP-0210
Use of replacement parts other than those supplied by
Hatco Corporation may result in damage to unit or injury to
personnel and will void all warranties.
2
Page 3
4
5
22
18
20
21
19
23
24
25
26
27
28
29
1
11
12
13
14
15
16
17
6
7
8
9
10
2
3
HATCO GLO-RAY®FRY HOLDING STATION
24 Hour 7 Day Parts and Service
Assistance available in the United States
and Canada by calling (800) 558-0607.
GRFHS-PT16, -PT26, -PTT21 Models
Form No. GRFHSRP-0210
3
Page 4
PARTS COMMON TO ALL GRFHS MODELS
Week Fifty-One
0751
Year 2007
Item Description Part No. Qty.
1 Thermostat, Control R02.16.066.00 1
2 Control Decal 07.03.319.00 1
3 Rubber Foot Assembly R05.30.029.00 4
Item Description Part No. Qty.
4 Cord Grip Assembly 02.20.259.00 1
5 Terminal Block,3 Pole R02.15.030.00 1
PARTS SPECIFIC TO MODEL GRFHS-16
Item Description 100 V 120 V 220–230 V (CE) 230–240 V (CE)
6 Light Bulb, 60 W (Qty. 2) 02.30.043.00 02.30.043.00 02.30.058.00 02.30.058.00
7 Light Socket, Dual with Leads 02.30.087.00 02.30.087.00 02.30.087.00 02.30.087.00
8 Heat Reflector Assembly R04.25.208.00 R04.25.208.00 R04.25.208.00 R04.25.208.00
9 Heating Element, Ceramic — Upper 02.07.014.00 02.07.001.00 02.07.015.00 02.07.003.00
10 Wire Guard 04.25.226.00 04.25.226.00 04.25.226.00 04.25.226.00
11 On/Off Rocker Switch Kit * R00.02.0028.00 R00.02.0028.00 R00.02.0029.00 R00.02.0029.00
12 Guard, Toggle Switch
13 On/Off Toggle Switch
14 On/Off Toggle Switch Retro-fit Kit --- --- --- --15 Pan Divider 04.25.297.00 04.25.297.00 04.25.297.00 04.25.297.00
16 Trivet 04.25.327.00 04.25.327.00 04.25.327.00 04.25.327.00
17 Cover, Bottom 04.25.325.00 04.25.325.00 04.25.325.00 04.25.325.00
18 Cover, Top 04.25.324.00 04.25.324.00 04.25.324.00 04.25.324.00
19 Power Cord and Plug R02.18.154.00 R02.18.154.00 02.18.077.00 02.18.066.00
20 Support Post (Qty. 2) --- --- --- --21 Cap Plug (Qty. 2) --- --- --- --22 Blanket Element, Base, 220 W 02.05.504.00 02.05.504.00 02.05.528.00 02.05.528.00
23 Fry Box Ribbon — 4 Pleat 04.25.356.00 04.25.356.00 04.25.356.00 04.25.356.00
24 Fry Bag Ribbon — 5 Pleat 04.25.350.00 04.25.350.00 04.25.350.00 04.25.350.00
25 Fry Box/Bag Combo Ribbon — 6 Pleat --- --- --- --26 Fry Bag Ribbon — 7 Pleat --- --- --- --27 Fry Box Ribbon — 8 Pleat --- --- --- --28 Fry Box/Bag Combo Ribbon — 9 Pleat --- --- --- --29 Fry Bag Ribbon — 10 Pleat --- --- --- ---
Electrical Drawing
†
†
04.01.038.00 04.01.038.00 04.01.038.00 04.01.038.00
R02.19.008A.00 R02.19.008A.00 R02.19.008A.00 R02.19.008A.00
HS1-5537 HS1-5537 HS1-5537 HS1-5537
The shaded areas contain information for International models only.
* Item 11 only used on GRFHS-16 units manufactured before December, 2002.
† Items 12 and 13 only used on GRFHS-16 units manufactured during or after December, 2002.
NOTE: The last four digits in a ten digit numerical serial number are the manufacturing date code.
Example: Serial number 9625060751 has a date code of “0751” which indicates the following:
Form No. GRFHSRP-0210
4
Page 5
PARTS SPECIFIC TO MODEL GRFHS-PT16
Item Description 100 V 120 V 220–230 V (CE) 230–240 V (CE)
6 Light Bulb, 60 W (Qty. 2) --- 02.30.043.00 --- --7 Light Socket, Dual with Leads --- 02.30.087.00 --- --8 Heat Reflector Assembly --- 04.25.355.00 --- ---
9 Heating Element, Ceramic — Upper --- 02.07.001.00 --- --10 Wire Guard --- 04.08.117.00 --- --11 On/Off Rocker Switch Kit --- --- --- --12 Guard, Toggle Switch --- 04.01.038.00 --- --13 On/Off Toggle Switch --- R02.19.008A.00 --- --14 On/Off Toggle Switch Retro-fit Kit --- --- --- --15 Pan Divider --- 04.25.297.00 --- --16 Trivet --- 04.25.327.00 --- --17 Cover, Bottom --- 04.25.325.00 --- --18 Cover, Top --- 04.25.496.00 --- --19 Power Cord and Plug --- R02.18.154.00 --- --20 Support Post (Qty. 2) --- --- --- --21 Cap Plug (Qty. 2) --- 02.20.055.00 --- --22 Blanket Element, Base, 220 W --- 02.05.504.00 --- --23 Fry Box Ribbon — 4 Pleat --- 04.25.356.00 --- --24 Fry Bag Ribbon — 5 Pleat --- 04.25.350.00 --- --25 Fry Box/Bag Combo Ribbon — 6 Pleat --- --- --- --26 Fry Bag Ribbon — 7 Pleat --- --- --- --27 Fry Box Ribbon — 8 Pleat --- --- --- --28 Fry Box/Bag Combo Ribbon — 9 Pleat --- --- --- --29 Fry Bag Ribbon — 10 Pleat --- --- --- ---
Electrical Drawing ---
10.01.763
--- ---
The shaded areas contain information for International models only.
Form No. GRFHSRP-0210
5
Page 6
PARTS SPECIFIC TO MODEL GRFHS-21
Item Description 100 V 120 V 220–230 V (CE) 230–240 V (CE)
6 Light Bulb, 60 W (Qty. 2) 02.30.043.00 02.30.043.00 02.30.058.00 02.30.058.00
7 Light Socket, Dual with Leads 02.30.087.00 02.30.087.00 02.30.087.00 02.30.087.00
8 Heat Reflector Assembly (Qty 2) R04.25.223.00 R04.25.223.00 R04.25.223.00 R04.25.223.00
9 Heating Element, Ceramic — Upper (Qty. 2) 02.07.007.00 02.07.006.00 02.07.017.00 02.07.013.00
10 Wire Guard 04.25.311.00 04.25.311.00 04.25.311.00 04.25.311.00
11 On/Off Rocker Switch Kit --- --- --- --12 Guard, Toggle Switch
13 On/Off Toggle Switch
14 On/Off Toggle Switch Retro-fit Kit
15 Pan Divider 04.25.316.00 04.25.316.00 04.25.316.00 04.25.316.00
16 Trivet 04.25.304.00 04.25.304.00 04.25.304.00 04.25.304.00
17 Cover, Bottom 04.25.296.00 04.25.296.00 04.25.296.00 04.25.296.00
18 Cover, Top 04.25.298.00 04.25.298.00 04.25.298.00 04.25.298.00
19 Power Cord and Plug R02.18.154.00 R02.18.154.00 02.18.077.00 02.18.066.00
20 Support Post (Qty. 2) --- --- --- --21 Cap Plug (Qty. 2) --- --- --- --22 Blanket Element, Base, 320 W 02.05.486.00 02.05.486.00 02.05.494.00 02.05.494.00
23 Fry Box Ribbon — 4 Pleat --- --- --- --24 Fry Bag Ribbon — 5 Pleat 04.25.314.00 04.25.314.00 04.25.314.00 04.25.314.00
25 Fry Box/Bag Combo Ribbon — 6 Pleat 04.25.315.00 04.25.315.00 04.25.315.00 04.25.315.00
26 Fry Bag Ribbon — 7 Pleat 04.25.313.00 04.25.313.00 04.25.313.00 04.25.313.00
27 Fry Box Ribbon — 8 Pleat --- --- --- --28 Fry Box/Bag Combo Ribbon — 9 Pleat --- --- --- --29 Fry Bag Ribbon — 10 Pleat --- --- --- ---
Electrical Drawing
†
†
●
04.01.038.00 04.01.038.00 04.01.038.00 04.01.038.00
R02.19.008A.00 R02.19.008A.00 R02.19.008A.00 R02.19.008A.00
R00.02.0030.00 R00.02.0030.00 R00.02.0030.00 R00.02.0030.00
HS1-5358 HS1-5537 HS1-5537 HS1-5537
The shaded areas contain information for International models only.
† Items 12 and 13 only used on GRFHS-21 units manufactured during or after December, 2002.
●
Item 14 only used on GRFHS-21 units manufactured before December, 2002.
Form No. GRFHSRP-0210
6
Page 7
PARTS SPECIFIC TO MODEL GRFHS-PTT21
Item Description 100 V 120 V 220–230 V (CE) 230–240 V (CE)
6 Light Bulb, 60 W (Qty. 2) --- 02.30.043.00 --- --7 Light Socket, Dual with Leads --- 02.30.087.00 --- --8 Heat Reflector Assembly (Qty. 2) --- R04.25.208.00 --- --9 Heating Element, Ceramic — Upper,
650 W (Qty. 2) --- 02.07.008.00 --- --10 Wire Guard --- 04.25.354.00 --- --11 On/Off Rocker Switch Kit --- --- --- --12 Guard, Toggle Switch
13 On/Off Toggle Switch
14 On/Off Toggle Switch Retro-fit Kit
15 Pan Divider --- 04.25.349.00 --- --16 Trivet --- 04.25.348.00 --- --17 Cover, Bottom --- 04.25.336.00 --- --18 Cover, Top --- --- --- --19 Power Cord and Plug --- R02.18.154.00 --- --20 Support Post (Qty. 2) --- --- --- --21 Cap Plug (Qty. 2) --- --- --- --22 Blanket Element, Base, 320 W --- 02.05.351.00 --- --23 Fry Box Ribbon — 4 Pleat --- --- --- --24 Fry Bag Ribbon — 5 Pleat --- --- --- --25 Fry Box/Bag Combo Ribbon — 6 Pleat --- --- --- --26 Fry Bag Ribbon — 7 Pleat --- --- --- --27 Fry Box Ribbon — 8 Pleat (Qty. 2) --- 04.25.356.00 --- --28 Fry Box/Bag Combo Ribbon — 9 Pleat
29 Fry Bag Ribbon — 10 Pleat (Qty. 2) --- 04.25.350.00 --- ---
Electrical Drawing ---
†
†
●
‡
--- 04.01.038.00 --- ---
--- R02.19.008A.00 --- ---
---- R00.02.0030.00 --- ---
--- See Note --- ---
HS1-5537 --- ---
The shaded areas contain information for International models only.
† Items 12 and 13 only used on GRFHS-PTT21 units manufactured during or after December, 2002.
●
Item 14 only used on GRFHS-PTT21 units manufactured before December, 2002.
‡ Item 28 utilizes one each of items 23 and 24.
Form No. GRFHSRP-0210
7
Page 8
PARTS SPECIFIC TO MODEL GRFHS-26
Item Description 100 V 120 V 220–230 V (CE) 230–240 V (CE)
6 Light Bulb, 60 W (Qty. 2) --- 02.30.043.00 02.30.058.00 02.30.058.00
7 Light Socket, Dual with Leads --- 02.30.087.00 02.30.087.00 02.30.087.00
8 Heat Reflector Assembly --- R04.25.223 R04.25.223 R04.25.223
9 Heating Element, Ceramic — Upper --- 02.07.006.00 02.07.017.00 02.07.013.00
10 Wire Guard --- 04.25.225 04.25.225 04.25.225
11 On/Off Rocker Switch Kit --- ---- --- --12 Guard, Toggle Switch
13 On/Off Toggle Switch
14 On/Off Toggle Switch Retro-fit Kit
15 Pan Divider --- 04.25.297.00 04.25.297.00 04.25.297.00
16 Trivet --- 04.25.335 04.25.335 04.25.335
17 Cover, Bottom --- 04.25.336 04.25.336 04.25.336
18 Cover, Top --- 04.25.337 04.25.337 04.25.337
19 Power Cord and Plug --- R02.18.154.00 02.18.077.00 02.18.066.00
20 Support Post (Qty. 2) --- --- --- --21 Cap Plug (Qty. 2) --- --- --- --22 Blanket Element, Base, 220 W --- 02.05.535 02.05.535 02.05.535
23 Fry Box Ribbon — 4 Pleat --- 04.25.356.00 04.25.356.00 04.25.356.00
24 Fry Bag Ribbon — 5 Pleat --- 04.25.350.00 04.25.350.00 04.25.350.00
25 Fry Box/Bag Combo Ribbon — 6 Pleat --- --- --- --26 Fry Bag Ribbon — 7 Pleat --- --- --- --27 Fry Box Ribbon — 8 Pleat --- --- --- --28 Fry Box/Bag Combo Ribbon — 9 Pleat --- --- --- --29 Fry Bag Ribbon — 10 Pleat --- --- --- ---
Electrical Drawing ---
†
†
●
--- 04.01.038.00 04.01.038.00 04.01.038.00
--- R02.19.008A.00 R02.19.008A.00 R02.19.008A.00
--- R00.02.0030.00 R00.02.0030.00 00.02.0030.00
HS1-5696 HS1-6040 HS1-6040
The shaded areas contain information for International models only.
† Items 12 and 13 only used on GRFHS-26 units manufactured during or after December, 2002.
●
Item 14 only used on GRFHS-26 units manufactured before December, 2002.
Form No. GRFHSRP-0210
8
Page 9
PARTS SPECIFIC TO MODEL GRFHS-PT26
Item Description 100 V 120 V 220–230 V (CE) 230–240 V (CE)
6 Light Bulb, 60 W (Qty. 2) --- 02.30.043.00 02.30.058.00 02.30.058.00
7 Light Socket, Dual with Leads --- 02.30.087.00 02.30.087.00 02.30.087.00
8 Heat Reflector Assembly --- R04.25.208.00 R04.25.223.00 R04.25.223.00
9 Heating Element, Ceramic — Upper --- 02.07.002.00 02.07.017.00 02.07.013.00
10 Wire Guard --- 04.25.354.00 04.25.354.00 04.25.354.00
11 On/Off Rocker Switch Kit --- --- --- --12 Guard, Toggle Switch
13 On/Off Toggle Switch
14 On/Off Toggle Switch Retro-fit Kit
15 Pan Divider --- 04.25.349.00 04.25.349.00 04.25.349.00
16 Trivet --- 04.25.327.00 04.25.327.00 04.25.327.00
17 Cover, Bottom --- 04.25.336.00 04.25.336.00 04.25.336.00
18 Cover, Top --- 04.25.353.00 04.25.353.00 04.25.353.00
19 Power Cord and Plug --- R02.18.154.00 02.18.077.00 02.18.066.00
20 Support Post (Qty. 2) --- --- --- --21 Cap Plug (Qty. 2) --- --- --- --22 Blanket Element, Base, 220 W --- 02.05.531.00 02.05.534.00 02.05.534.00
23 Fry Box Ribbon — 4 Pleat --- 04.25.356.00 04.25.356.00 04.25.356.00
24 Fry Bag Ribbon — 5 Pleat --- 04.25.350.00 04.25.350.00 04.25.350.00
25 Fry Box/Bag Combo Ribbon — 6 Pleat --- --- --- --26 Fry Bag Ribbon — 7 Pleat --- --- --- --27 Fry Box Ribbon — 8 Pleat (Qty. 2) --- 04.25.356.00 04.25.356.00 04.25.356.00
28 Fry Box/Bag Combo Ribbon — 9 Pleat
29 Fry Bag Ribbon — 10 Pleat (Qty. 2) --- 04.25.350.00 04.25.350.00 04.25.350.00
Electrical Drawing ---
†
†
●
‡
--- 04.01.038.00 04.01.038.00 04.01.038.00
--- R02.19.008A.00 R02.19.008A.00 R02.19.008A.00
--- R00.02.0030.00 R00.02.0030.00 00.02.0030.00
--- See Note See Note See Note
HS1-5537 HS1-5537 HS1-5537
The shaded areas contain information for International models only.
† Items 12 and 13 only used on GRFHS-PT26 units manufactured during or after December, 2002.
●
Item 14 only used on GRFHS-PT26 units manufactured before December, 2002.
‡ Item 28 utilizes one each of items 23 and 24.
Form No. GRFHSRP-0210
9
Page 10
NOTES
Form No. GRFHSRP-0210
10
Page 11
NOTES
Form No. GRFHSRP-0210
11
Page 12
HATCO CORPORATION
P.O. Box 340500
Milwaukee, WI 53234-0500 U.S.A.
(800) 558-0607 (414) 671-6350
Parts and Service Fax (800) 690-2966
International Fax (414) 671-3976
[email protected]
www.hatcocorp.com
HATCO AUTHORIZED PARTS DISTRIBUTORS
ALABAMA
Jones McLeod Appl. Svc.
Birmingham 205-251-0159
ARIZONA
Service Solutions Group
Phoenix 602-234-2443
Byassee Equipment Co.
Phoenix 602-252-0402
CALIFORNIA
Industrial Electric
Commercial Parts & Service, Inc.
Huntington Beach 714-379-7100
Chapman Appl. Service
San Diego 619-298-7106
P & D Appliance
Commercial Parts & Service, Inc.
S. San Francisco 650-635-1900
COLORADO
Hawkins Commercial Appliance
Englewood 303-781-5548
FLORIDA
Whaley Foodservice Repair
Jacksonville 904-725-7800
Nass Service Co., Inc.
Orlando 407-425-2681
B.G.S.I.
Pompano Beach 954-971-0456
Comm. Appliance Service
Tampa 813-663-0313
GEORGIA
TWC Services
Mableton 770-438-9797
Heritage Service Group
Norcross 866-388-9837
Southeastern Rest. Svc.
Norcross 770-446-6177
HAWAII
Burney’s Comm. Service, Inc.
Honolulu 808-848-1466
Food Equip Parts & Service
Honolulu 808-847-4871
ILLINOIS
Parts Town
Lombard 708-865-7278
Eichenauer Elec. Service
Decatur 217-429-4229
Midwest Elec. Appl. Service
Elmhurst 630-279-8000
Cone’s Repair Service
Moline 309-797-5323
INDIANA
GCS Service
Indianapolis 317-545-9655
IOWA
Electric Motor Service Co.
Davenport 319-323-1823
Goodwin Tucker Group
Des Moines 515-262-9308
KENTUCKY
Service Solutions Group
Lexington 859-254-8854
Service Solutions Group
Louisville 502-451-5411
LOUISIANA
Chandlers Parts & Service
Baton Rouge 225-272-6620
MARYLAND
Electric Motor Service
Baltimore 410-467-8080
GCS Service
Silver Spring 301-585-7550
MASSACHUSETTS
Ace Service Co., Inc.
Needham 781-449-4220
MICHIGAN
Bildons Appliance Service
Detroit 248-478-3320
Commercial Kitchen Service
Bay City 517-893-4561
Midwest Food Equip. Service
Grandville 616-261-2000
MINNESOTA
GCS Service
Plymouth 800-345-4221
MISSOURI
General Parts
Kansas City 816-421-5400
Commercial Kitchen Services
St. Louis 314-890-0700
Kaemmerlen Parts & Service
St. Louis 314-535-2222
NEBRASKA
Anderson Electric
Omaha 402-341-1414
NEVADA
Burney’s Commercial
Las Vegas 702-736-0006
Hi. Tech Commercial Service
N. Las Vegas 702-649-4616
NEW JERSEY
Jay Hill Repair
Fairfield 973-575-9145
Service Plus
Flanders 973-691-6300
NEW YORK
Acme American Repairs, Inc.
Brooklyn 718-456-6544
Alpro Service Co.
Brooklyn 718-386-2515
Appliance Installation
Buffalo 716-884-7425
Duffy’s Equipment Services, Inc.
Buffalo 800-836-1014
3Wire Northern
Plattsburgh 800-634-5005
Duffy’s Equipment Services, Inc.
Sauquoit 800-836-1014
J.B. Brady, Inc.
Syracuse 315-422-9271
NORTH CAROLINA
Authorized Appliance
Charlotte 704-377-4501
OHIO
Akron/Canton Comm. Svc. Inc.
Akron 330-753-6635
Service Solutions Group
Cincinnati 513-772-6600
Commercial Parts and Service
Columbus 614-221-0057
Electrical Appl. Repair Service
Brooklyn Heights 216-459-8700
E. A. Wichman Co.
Toledo 419-385-9121
OKLAHOMA
Hagar Rest. Service, Inc.
Oklahoma City 405-235-2184
Krueger, Inc.
Oklahoma City 405-528-8883
OREGON
Ron’s Service, Inc.
Portland 503-624-0890
PENNSYLVANIA
Elmer Schultz Services
Philadelphia 215-627-5401
FAST Comm. Appl. Service
Philadelphia 215-288-4800
Appliance Installation & Service
Pittsburgh 412-809-0244
K & D Service Co.
Harrisburg 717-236-9039
Electric Repair Co.
Reading 610-376-5444
RHODE ISLAND
Marshall Electric Co.
Providence 401-331-1163
SOUTH CAROLINA
Whaley Foodservice Repair
W. Columbia 803-791-4420
TENNESSEE
Camp Electric
Memphis 901-527-7543
TEXAS
GCS Service
Fort Worth 800-433-1804
Armstrong Repair Service
Houston 713-666-7100
Cooking Equipment Specialist
Mesquite 888-866-9276
Refrigerated Specialist, Inc.
Mesquite 888-866-9276
Commercial Kitchen Repair Co.
San Antonio 210-735-2811
UTAH
La Monica’s Rest. Equip. Service
Murray 801-263-3221
VIRGINIA
Daubers
Norfolk 757-855-4097
Daubers
Springfield 703-866-3600
WASHINGTON
3Wire Restaurant Appliance
Seattle 800-207-3146
WISCONSIN
A.S.C., Inc.
Madison 608-246-3160
A.S.C., Inc.
Milwaukee 414-543-6460
CANADA
ALBERTA
Key Food Equipment Service
Edmonton 780-438-1690
BRITISH COLUMBIA
Key Food Equipment Service
Vancouver 604-433-4484
Key Food Equipment Service
Victoria 250-920-4888
MANITOBA
Air Rite, Inc.
Winnipeg 204-895-2300
NEW BRUNSWICK
EMR Services, Ltd.
Moncton 506-855-4228
ONTARIO
R.G. Henderson Ltd.
Toronto 416-422-5580
Choquette - CKS, Inc.
Ottawa 613-739-8458
QUÉBEC
Choquette - CKS, Inc.
Montreal 514-722-2000
Choquette - CKS, Inc.
Québec City 418-681-3944
UNITED KINGDOM
Marren Group
Northants +44(0)1933 666233
Printed in U.S.A. February 2010 Form No. GRFHSRP-0210
Loading...
