Harman Kardon HS100 Service Manual

harman kardon

Model HS100

INTEGRATED HOME THEATER SYSTEM

DVD/ DVD-Audio/DVD±R/RW/CD/CD±R/VCD/SVCD Player

5 X 35W 5.1 CHANNEL A/V RECEIVER

Service Manual

- Contents -

SERVICING PRECAUTIONS……………...……2

ESD PRECAUTIONS……..…….…....................4

SPECIFICATIONS………………………….…….5 PACKAGING/ACCESSORIES………..…..…….6 FRONT PANEL CONTROLS……………..…….7 INFORMATION DISPLAY……………………….8 REAR PANEL CONNECTIONS…………...…...9 REMOTE CONTROL………………..………….10 INSTALLATION/CONNECTIONS…..………….12

SYSTEM SETUP.................................…….…14

harman/kardon, Inc.

250 Crossways Park Dr.

Woodbury, New York 11797

BASIC OPERATION………….…….…………..…19 BASIC TROUBLESHOOTING GUIDE/RESET.…..…..….20 OVERALL EXPLODED VIEW……………..…..…21 BLOCK DIAGRAM.……………..…………..…..…22

HS100 ELECT R I C AL PART S LI ST……..…....... .2 3

HS100 MECHANICAL PARTS LIST…………….31 PCB DRAWINGS……………………………….…33 SEMICONDUCTOR PINOUTS………..…………43 SCHEMATICS…………………………..…………53

Rev 1 6/2007

SERVICING PRECAUTIONS

NOTES REGARDING HANDLING OF THE PICK-UP

1. Notes for transport and storage

1) The pick-up should always be left in its conductive bag until immediately prior to use.

2) The pick-up should never be subjected to external pressure or impact.

2. Repair notes

1) The pick-up incorporates a strong magnet, and so should never be brought close to magnetic materials.

2) The pick-up should always be handled correctly and carefully, taking care to avoid external pressure and impact. If it is subjected to strong pressure or impact, the result may be an operational malfunction and/or damage to the printed-circuit board.

3) Each and every pick-up is already individually adjusted to a high degree of precision, and for that reason the adjustment point and installation screws should absolutely never be touched.

4) Laser beams may damage the eyes! Absolutely never permit laser beams to enter the eyes! Also NEVER switch ON the power to the laser output part (lens, etc.) of the pick-up if it is damaged.

5) Cleaning the lens surface If there is dust on the lens surface, the dust should be cleaned away by using an air bush (such as used for camera lens). The lens is held by a delicate spring. When cleaning the lens surface, therefore, a cotton swab should be used, taking care not to distort this.

6) Never attempt to disassemble the pick-up. Spring by excess pressure. If the lens is extremely dirty, apply isopropyl alcohol to the cotton swab. (Do not use any other liquid cleaners, because they will damage the lens.) Take care not to use too much of this alcohol on the swab, and do not allow the alcohol to get inside the pick-up.

Storage in conductive bag

NEVER look directly at the laser beam, and don’t let contact fingers or other exposed skin.

Magnet

How to hold the pick-up

Conductive Sheet

Cotton swab

Pressure

Drop impact

2

HS100 Integrated Home Theater System harman/kardon

NOTES REGARDING COMPACT DISC PLAYER REPAIRS

1. Preparations

1) Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These components are sensitive to, and easily affected by, static electricity. If such static electricity is high voltage, components can be damaged, and for that reason components should be handled with care.

2) The pick-up is composed of many optical components and other high-precision components. Care must be taken, therefore, to avoid repair or storage where the temperature of humidity is high, where strong

magnetism is present, or where there is excessive dust.

2. Notes for repair

1) Before replacing a component part, first disconnect the power supply lead wire from the unit

2) All equipment, measuring instruments and tools must be grounded.

3) The workbench should be covered with a conductive sheet and grounded. When removing the laser pick-up from its conductive bag, do not place the pick-up on the bag. (This is because there is the possibility of damage by static electricity.)

4) To prevent AC leakage, the metal part of the soldering iron should be grounded.

5) Workers should be grounded by an armband (1MΩ)

6) Care should be taken not to permit the laser pick-up to come in contact with clothing, in order to prevent static electricity changes in the clothing to escape from the armband.

7) The laser beam from the pick-up should NEVER be directly facing the eyes or bare skin.

Resistor (1 Mohm)

Conductive Sheet

Resistor (1 Mohm)

Armband

3

HS100 Integrated Home Theater System harman/kardon

ESD PRECAUTIONS

Electrostatically Sensitive Devices (ESD)

Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some field-effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ESD devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ESD devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges sufficient to damage ESD devices.

5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESD devices.

6. Do not remove a replacement ESD device from its protective package until immediately before you are ready to install it. (Most replacement ESD devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive materials).

7. Immediately before removing the protective material from the leads of a replacement ESD device, touch the protective material to the chassis or circuit assembly into which the device will by installed.

CAUTION : BE SURE NO POWER IS APPLIED TO THE CHASSIS OR CIRCUIT, AND OBSERVE ALL

OTHER SAFETY PRECAUTIONS.

8. Minimize bodily motions when handing unpackaged replacement ESD devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ESD device).

4

HS100 Integrated Home Theater System harman/kardon

SPECIFICATIONS 33

DVD Player

Pickup: Semiconductor laser, wavelength 650nm Video signal system: NTSC Video signal horizontal resolution: > 480 lines (DVD) Video signal-to-noise ratio: > 60dB (DVD) Audio frequency response: DVD (PCM): 20Hz – 22kHz (±1dB)

(Stereo) CD (PCM): 20Hz – 20kHz (±1dB) Audio signal-to-noise ratio: >80dB (PCM) Total harmonic distortion: < 0.01% (PCM) Dynamic range: DVD (PCM): >85dB (EIAJ, 2kHz)

CD: >85dB (EIAJ)

FM Tuner

System: PLL quartz-locked digital synthesizer system Tuning range: 87.50 – 108.00MHz Antenna terminals: 75 Ohms, unbalanced Intermediate frequency: 10.7MHz

AM Tuner Section

Frequency range: 520 – 1720kHz Signal-to-noise ratio: 45dB Usable sensitivity: Loop 500 µV Distortion: 1kHz, 50% Mod 0.8% Selectivity: ±10kHz, 30dB

Video Outputs

Component video output: Y: 1 Vp-p/75 ohms, sync negative polarity

Pr: 0.7 Vp-p/75 ohms

Pb: 0.7 Vp-p/75 ohms Composite video output: 1 Vp-p/75 ohms S-video output: Y: 1 Vp-p/75 ohms

C: NTSC 0.286 Vp-p/75 ohms

Audio Section

Amplifer power: 35 watts per channel, 20Hz – 20kHz,

< 0.5% THD into 6 ohms Line output: 1 Vrms, 1 kilohm

General

Power requirements: AC 120V, 50Hz Power consumption: 3W Standby, 380W Maximum Dimensions (HxWxD): 2-11/16" x 17-15/16" x 2-3/16" Weight: 10.6 lb

HS 100 SPECIFICATIONS

Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis.

All features and specifications are subject to change without notice.

Harman Kardon and Power for the Digital Revolution are registered trademarks of Harman International Industries, Incorporated.

DTS is a trademark of DTS, Inc.

* Windows Media

®

Audio (WMA) is a proprietary file format developed by Microsoft. Microsoft, Windows and Windows Media are registered trademarks of Microsoft Corporation in the United States

and/or other countries.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Supplied Accessories

The following accessory items are supplied with the HS 100 controller. If any of these items are missing, please contact Harman Kardon customer service at www.harmankardon.com.

• A system remote control • An AM loop antenna

• An FM wire antenna • Three AAA batteries

• AC power cord

HS 100 SPECIFICATIONS

5

HS100 Integrated Hom e Theater System harman/kardon

6

HS100 Integrated Home Theater System harman/kardon

18

16

15

17

15

13

6

12

11

10

5

9

4 3

8

7

No. Part No. Description Qty. 1 01.00.BZ.X.W.E232 Carton box HS100 EU version 1

01.00.BZ.X.W.E231 Carton box HS100 US version 1

2 Barcord label 1

2

1

3 01.00.YS.SM1.E261 Owner manual HS100 US version 1

01.00.YS.SM1.E262 Owner manual HS100 EU version 1 4 Plastic bag for manual 25*35cm 1 5 01.00.YS.FY3.345 Safety instruction manual HS100 EU 1

01.00.YS.FY3.346 Warning card HS100 US version 1

01.00.YS.FY3.347 Guarantee card HS100 US version 1 6 01.47.CNT.CTX.042 AM antenna AM-300-AWM 1 7 01.47.CNT.CTX.037 FM antenna FM-075 1

01.47.CNT.CTX.038 FM antennab FM-TV-75-A 1 8 01.47.CNT.LJX.5.012 SCART cable 1 9 01.47.CNT.ACX.E052 AC power cord EU version 1

01.47.CNT.ACX.E053 AC power cord US version 1

1001.00.RC.100 Remote control HS100 1 11 Plastic bag for RC 9*27.5cm 1

1201.14.DX.B.0007 battery 7# battery 3 13 Plastic bag for battery 6*9c 1 14 accessories box 1 15 accessories Polyfoam 2

01.00.BZ.F.P.E100 Polyfoam HS100- left 1

01.00.BZ.F.P.E101 Polyfoam HS100- right 1 16 Main unit 1 17 Plastic bag for unit 54.5*60cm 1

2

FRONT-PANEL CONTROLSFRONT-PANEL CONTROLS

FRONT-PANEL CONTROLS 55

NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product at www.harmankardon.com.



Power On/Off (Standby): When the HS 100

is connected to AC power, the ring around this button will glow amber, indicating that the unit is in Standby and is ready to be turned on. Press this button (or the Power On Button 0 on the remote control) to turn the unit on. When the unit is on, the amber illumination around the button turns blue and the lighting surrounding the Volume Control A will turn blue.

1

Open/Close: Press this button to open or close

the Disc Tray.

2

Skip (Previous): Press this button to move

backward through the music tracks on a CD or the chapters on a DVD.

3

Skip (Next): Press to move forward through the

music tracks on a CD or the chapters on a DVD.

4

Play/Pause: Press to initiate playback or to

momentarily pause playback. To resume playback, press the button again. If a DVD is playing, action will freeze and a still picture will be displayed when the button is pressed.

5

Stop: Press this button once to place the disc in

the Resume mode, which means that playback will stop; but as long as the tray is not opened, DVD playback will continue from the same point on the disc when the Play button is pressed again. Resume will also work if the unit was turned off. When this button is pressed twice, playback of the disc will restart at the beginning of the disc.

6

Source: Press this button repeatedly to scroll

through the available audio and video sources.

7

Headphone Jack: This jack may be used to listen

to the system’s output through a pair of headphones with a standard 3.5mm stereo mini plug. Note that the main room speakers will automatically be turned off when the headphone jack is in use.

8

Information Display: This display delivers mes-

sages and status indications to help you operate the HS 100 controller.

9 Remote Sensor: The infrared sensor that receives commands from the remote control is behind the front-panel lens in this area. To ensure proper operation of the HS 100, it is important that this area is not blocked or covered.

A

Volume Control: Turn this knob clockwise to

increase the volume, counterclockwise to decrease the volume. If the HS 100 is muted, adjusting the volume control will automatically release the unit from the silenced condition.

B Disc Drawer: This drawer holds the discs played in the HS 100. Be certain to properly seat all discs carefully in the recess in the drawer tray. Do not press down on the drawer when it is open, as this will damage the player.



Power On/Off (Standby)

1

Open/Close

2

Skip (Previous)

3

Skip (Next)

4

Play/Pause

5

Stop

6

Source

7

Headphone Jack

8

Information Display

9

Remote Sensor

A

Volume Control

B

Disc Drawer

7

HS100 Integrated Hom e Theater System harman/kardon



1

2

3

PLAYER

DVD-AUDIO

5.1ch

CD

JPEG MP3

RADIO

VCD

AUX

DVD

DIGITAL IN

WMA

PROG

RAND HOUR

TRACK

CHAP

TITLE

GROUP

4

REP PBC

5

6

A-B

P.SCAN

TEST

1 ALL

SEC

MIN

V.OFF

7

B

A

9

8

FRONT-PANEL DISPLAY

6 FRONT-PANEL DISPLAY

NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product at www.harmankardon.com.

A Disc Type Indicators B Program Indicator C Random Indicator D VCD Playback Control Indicator E Repeat Indicators F Time Indicators

G A-B Repeat Indicator H Angle Indicator I Progressive Scan Indicator J Parental Lock Indicator K Test Indicator L Source Indicators

M Playback-Mode Indicators N Title Indicators O Chapter/Track Number Indicators

A

Disc Type Indicators: The CD, DVD or DVD-Audio

indicator will light to show the type of disc currently being played.

B Program Indicator: This indicator lights when the programming functions are in use.

C Random Indicator: This indicator lights when the unit is in the Random Play mode.

D VCD Playback Control Indicator: This indicator lights when the playback control function is turned on with VCDs.

E Repeat Indicators: These indicators light when any of the Repeat functions are in use.

NOTE: In addition to functioning individually to display information about DVD, DVD-Audio or CD discs, the NOF indicators also are used together as a group to display information messages about the status of the HS 100, such as the selected input’s name and surround mode, the station playing when the tuner is in use and specific function messages when a DVD, DVD-Audio or CD disc is playing (such as Reading when the disc is loading).

F Time Indicators: These positions in the indicator will show the running time of a DVD in play. When a CD is playing, these indicators will show the current track time, time remaining in the current track, or the total remaining time on the disc.

G A-B Repeat Indicator: This indicator lights when a specific passage for repeat playback has been selected.

H Angle Indicator: This indicator blinks when alter- nate viewing angles are available on the DVD currently playing.

I Progressive Scan Indicator: This indicator lights when the unit sends out a progressive scan signal.

J Parental Lock Indicator: This indicator lights when the parental lock system is engaged in order to prevent anyone from changing the rating level without a code.

K Test Indicator: This indicator lights when the TV test screen is activated.

L Source Indicators: These indicators will light to show which source is currently selected.

M Playback-Mode Indicators: These indicators light to show the current playback mode:

N

Lights when a disc is playing in the normal mode.

NNN

When the HS 100 is in the Fast Search play mode, two or three of these indicators will light to show that the unit is in a Fast Play mode, depending on the speed.

1

Lights when the disc is paused.

‹‹‹

Lights when the disc is in the Fast Search Reverse mode. Two or three of these indicators will light to show that the unit is in a Fast Play mode, depending on the speed.

N Title Indicators: These two positions in the dis- play will show the current title number when a DVD disc is playing.

O Chapter/Track Number Indicators: When a DVD disc is playing, these two positions in the display will show the current chapter. When a CD is playing, they will show the current track number.

8

HS100 Integrated Hom e Theater System harman/kardon

K

TEST

SEC

PLAYER

JPEG MP3

RADIO

VCD

AUX

DVD

DIGITAL IN

GROUP

CD

TITLE

A

DVD-AUDIO

TRACK

5.1ch CHAP

B

PROG

C

RAND HOUR

D

REP PBC

E

1 ALL

HJ

GF

A-B

I

P.SCAN

MIN

WMA

L

M

N

O

REAR-PANEL CONNECTIONS 7

REAR-PANEL CONNECTIONS

0

Center Speaker Outputs

1

Front Speaker Outputs

2

Surround Speaker Outputs

3

Subwoofer Output

4

Optical Digital Input

5

Coaxial Digital Input

6

Analog Audio Outputs

7

Analog Audio In

8

Composite Video Output

9

S-Video Output

A

Component Video Outputs

B

TV Audio In

C

AC Power Cord Jack

D

FM Antenna

E

AM Antenna

NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product at www.harmankardon.com.

0

Center Speaker Outputs: Connect these outputs

to the matching + and – terminals on your center channel speaker. The Green terminal is the positive (+) terminal that should be connected to the Red (+) terminal on the speakers. Connect the Black (–) terminal on the HS 100 to the Black negative (–) terminal on your speaker. (See page 12 for more information on speaker polarity.)

1

Front Speaker Outputs: Connect these outputs

to the matching + or – terminals on your left and right speakers. The White terminal is the positive (+) terminal that should be connected to the Red (+) terminal on Front Left speaker, while the Red terminal is the positive (+) terminal that should be connected to the Red (+) terminal on Front Right speaker. Connect the Black (–) terminals on the HS 100 to the Black (–) terminals on the speakers. See page 11 for more information on speaker polarity.

2

Surround Speaker Outputs: Connect these out-

puts to the matching + and – terminals on your surround channel speakers. The Blue terminal is the positive (+) terminal that should be connected to the Red (+) terminal on the Surround Left speaker, while the Gray terminal should be connected to the Red (+) terminal on the Surround Right speaker. Connect the Black (–) terminal on the HS 100 to the matching Black negative (–) terminals for each surround speaker. (See page 11 for more information on speaker polarity.)

NOTE: You’ll find more details about all Audio/Video connections under Setup and Connections on the following pages.

3

Subwoofer Output: Connect to the SUB/LFE input

on the subwoofer.

4

Optical Digital Input: Connect the optical digital

output from an HDTV receiver, LD player, MD player, satellite receiver or CD player to this jack. The signal may be a Dolby Digital signal, DTS signal or a standard PCM digital source.

5

Coaxial Digital Input: Connect the coax digital

output from an HDTV receiver, LD player, MD player, satellite receiver or CD player to this jack. The signal may be a Dolby Digital signal, DTS signal or a standard PCM digital source. Do not connect the RF digital output of an LD player to these jacks.

6

Analog Audio Outputs: Connect these jacks to

the Record/Input jacks of an audio recorder for recording.

7

Analog Audio In: Connect to the output of a

line-level analog audio source: TV, tape player, Minidisc, PC, etc.

8

Composite Video Output: Connect this jack to the

video input on a television or video projector.

9

S-Video Output: Connect this jack to the S-video

input on a television or video projector.

A

Component Video Outputs: These outputs carry

the component video signals for connection to display monitors with component video inputs. For standard analog TVs or projectors with inputs marked Y/Pr/Pb or Y/Cr/Cb, connect these outputs to the corresponding

inputs. If you have a high-definition television or projector that is compatible with high-scan-rate progressive video, connect these jacks to the “HD Component” inputs. Note that if you are using a progressive scan display device, then “Progressive” must be selected in the Video Setup menu in order to take advantage of the progressive scan circuitry. See page 14 for more information on progressive scan video.

IMPORTANT: These jacks should NOT be connected to standard composite video inputs.

B TV Audio In: Connect the analog left/right outputs of a cable TV set-top, satellite receiver, or the analog left/right stereo outputs from a video display with integrated digital tuner to these jacks.

C

AC Power Cord: Connect the AC power cord to

this jack when the installation is complete. To ensure safe operation, use only the power cord supplied with the unit. If a replacement is required, it must be of the same type and capacity.

D

FM Antenna Jack: Connect to the supplied FM

antenna. E AM Antenna: Connect the AM loop antenna sup-

plied with the receiver to these terminals with the white wire connected to the “AM” terminal and the black wire connected to the “GND” terminal. If an external AM antenna is used, make connections to the AM and GND terminals in accordance with the instructions supplied with the antenna.

9

HS100 Integrated Hom e Theater System harman/kardon

0

1

2

3

4

6

5

7

8

9

A

C

B

E

D

8 REMOTE CONTROL

REMOTE CONTROL

0

Power On

1

Transmit Indicator

2

Radio

3

Player

4

Repeat

5

Playlist

6

Display

7

Pic +/Pic –

8

Subtitle

9

Open/Close

A

Navigation Buttons

B

Status

C

Numeric Keys

D

Search/Slow Reverse

E

Title

F

Skip/Step (Previous)

G

Skip/Step (Next)

H

Pause

I

STOP

J

Search/Slow Forward

K

Play

L

Angle

M

Zoom

N

Clear

O

OSD

P

Enter

Q

Disc Menu



Audio



Volume Control



A-B Repeat



Random



Digital In



AUX



TV



Mute



Power Off



IR Transmitter Window

NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product at www.harmankardon.com.

10

HS100 Integrated Hom e Theater System harman/kardon

1

3

5

7

9

B

D

F

0

2

4

6

8

A

C

E





















Q

P

O

N

M

L

K

J

I

H

G

REMOTE CONTROL 9

REMOTE CONTROL

0

Power On: Press this button to turn the HS 100

on when it is in Standby mode.

1 Transmit Indicator: This LED will light red when any button is pressed to confirm that the remote code is being transmitted.

2

Radio: Press this button to select the internal

tuner as the input source. When the tuner is in use, press this button to switch between the AM and FM frequency bands.

3

Player: Press this button to select the internal

CD/DVD drive as the input source.

4

Repeat: Press this button to go to the Repeat

menu. You can repeat a chapter, track or the entire disc.

5

Playlist: Press this button to change the playback

order of the disc.

6

Display: Press this button to change the bright-

ness of the front-panel display or to turn the display off completely in the following order: FULL BRIGHTNESS ➜ HALF BRIGHTNESS ➜ OFF ➜ FULL BRIGHTNESS.

7

Pic +/Pic –: Press these buttons to move to the

previous or next image when viewing JPEG images.

8

Subtitle: When a DVD is playing, press this but-

ton to select a subtitle language or to turn subtitles off.

9

Open/Close: Press this button to open or close

the disc tray.

A

Navigation Buttons (M/N/K/L): Press

these buttons to move the cursor in the OSD.

B

Status: Press this button while a disc is play-

ing to view the banner display. Use the Navigation

Buttons

A

to move through the different features in

the banner display. When a symbol is highlighted, press the Enter Button P on the remote to select it.

C

Numeric Keys: Press this button to select

numbers.

D

Search/Slow (Rev.): Allows you to search in

reverse through a disc while it is in Play mode. Each time you press this button, the search speed changes as indicated by a number of arrows on the right top of your screen. After pressing the Pause Button H and then pressing this button, each press will change the slow-play speed as indicated by the number of arrows on the right top of the screen.

E

Title: When a disc is playing, press this button to

go back to the first section of the disc.

F

Skip/Step (Previous): Press this button to go

to the beginning of the current track. Press it again quickly to go to the beginning of the previous track. After pressing the Pause Button H, each press of this button will move the image in reverse, frame by frame.

G

Skip/Step (Next): Press this button to go to the

beginning of the next track. After pressing the Pause Button H, each press of this button will move the image forward, frame by frame.

H

Pause: Press this button to freeze a picture (with

DVD/VCD) or pause playback (CD). Press it again for normal playback.

I

Stop: Press this button to stop a disc. When a

disc is playing, if you press STOP and the Play Button

K

, the disc will resume play; i.e., it will start from the

same point on the disc where the unit was stopped. If you press STOP twice and the Play Button

K

,

the disc will start from the beginning.

J

Search/Slow (Fwd.): Press this button to search

forward through a disc while it is in Play mode. Each time you press this button, the search speed changes, as indicated by a number of arrows on the right top of your screen. After pressing the Pause Button H and then pressing this button, each press of this button will change the slow-play speed, as indicated by the number of arrows on the right top of the screen.

K

Play: Press this button to begin playback of a

disc. If the disc drawer is open, pressing this button will also close the drawer automatically.

L

Angle: Press this button to access various cam-

era angles on a DVD (if the DVD contains multiple camera angles) or to rotate JPEG images.

M

Zoom: When a DVD or VCD is playing, press this

button to zoom the picture. There are four steps to the zoom function, each progressively larger. Press through each of the zoom stages to return to a normal picture.

N

Clear: Press this button to remove the Banner

menu from the screen.

O

OSD: Press this button to access the On-Screen

Display menu.

P

Enter: Press this button to activate a setting or

option.

Q

Disc Menu: Press this button to display the

actual DVD Disc menu on the TV screen in Play mode. When playing discs with JPEG images, pressing this button will access the thumbnails.



Audio: Press this button to access various audio

languages on a DVD (if the DVD contains multiple audio streams).



Volume (+ or –): Increase/decrease the master

volume level.



A-B: Press this button to select section A-B and to

play repeatedly.



Random: Press this button for Random playback

in random order.



Digital In: Press this button to selects the audio

device connected to either digital audio input as the input source.



AUX: Press this button to select the device con-

nected to the Audio In Jacks 7 as the input source.



TV: Press this button to select the device con-

nected to the TV In Audio Jacks

B

as the input

source.



Mute: Press this button to mute the sound.

Press the button again, or press either of the Volume

Control Buttons



, to return to normal audio

output.



Power Off: Press this button to place the

HS 100 in the Standby mode.

 IR Transmitter Window: Point this window toward the HS 100 when pressing buttons on the remote to make certain that the infrared commands are properly received.

11

HS100 Integrated Hom e Theater System harman/kardon

10 INSTALLATION AND CONNECTIONS

INSTALLATION AND CONNECTIONS

Installation and Connections

After unpacking the HS 100 controller unit and the speakers, the first step is to place each speaker and the HS 100 controller unit in its location in your listening room. Consult the separate owner’s manual packed with the speaker system for detailed information on physical mounting of the speakers.

When making any connections between speakers and the HS 100, as well as between the HS 100 and other audio/video components, it is important that both the HS 100 and external components be turned off, preferably with the power removed from the AC outlet. This protects against accidental turn-on that might cause damage not covered by the products’ warranty.

When placing any speaker or the controller, make certain that it is on a solid surface capable of supporting its weight, and make certain that there is a means for connecting cables or speaker wires to reach through the back of any cabinets or shelves to the components they are connected to. As important, please note that due to the weight of the speaker cabinets, particularly the subwoofer, and the weight of and heat generated by the HS 100 controller, there is the remote possibility that the rubber padding on the bottom of the feet of the system components may leave marks on certain soft woods, wood veneers or carpets. Always use caution when placing any speaker or electronic component on a material that is soft or porous, or of a significantly different color than the feet or rubber padding on the component.

Speaker Placement

It is important that the speakers be placed in positions that enable them to do the best job of reproducing the sound as it was meant to be heard, regardless of the program content. Particularly in a multichannel 5.1 system, the placement of speakers can have a noticeable impact on the accuracy of the surround process.

When placing your speakers in a listening room, picture an imaginary circle starting at the center of your video screen that arcs around the room with the prime listening position, or “sweet spot” at the center of the circle. Depending on the number of speakers in your system, there is a recommended placement along the arc for each speaker, though the specific construction of your room (taking into account the available walls, bookcases, or floor space at which the speakers may be placed) will obviously have some impact on where the speakers are ultimately located. As a general rule, try to place all speakers so that they are positioned at the same height as your ears when you are seated at the prime listening position.

Use the following suggestions as a guide, and make the changes needed to fit the speakers to your room. Don’t be afraid to experiment a bit until you find the right combination of locations that works for you. There

is no real “right” or “wrong” place to put the speakers; work to optimize their locations so that audio moves across the front of the room smoothly, without seeming to jump from one speaker to another.

Center Channel Speaker

The ideal location for the center channel speaker is at “0 degrees” in our circle, directly in front of the prime listening position. Place the center channel speaker as close to the top (or bottom) of the video screen as possible so that when you position the front left/right speakers the tweeters of all three front channel speakers are within 24" of one another.

Front Left/Right Speakers

The recommended placement for front left/right speakers is to place them at the 30-degree position with reference to the center channel speaker. The distance between them should be about the same as the distance from the center channel speaker to the prime listening position.

Although the natural tendency is to place the speakers so they are parallel to the wall behind them, and thus in line with the video screen, the preferred placement is to angle the speakers slightly (“toe in”) so that they point to the prime listening position.

Surround Speakers

In a 5.1 surround system, an additional pair of left/right speakers is added to the front left, right and center speakers. Although many believe that these speakers should be placed at the rear of the room, the preferred position for them is at the sides of the room, with rear placement a second option when room conditions prevent the use of side-mounted surround speakers.

When side-wall mounting is possible, place the left/right surround speakers at a point that is 110 degrees along our circle from the center of the video screen. This translates to placing them to the side and slightly behind your preferred listening position. If possible, angle the speakers in slightly so that they are pointing toward the listener’s ears.

If it is not possible to place the surround speakers at the sides of the room, the alternate position is at the back of the room, about 150 degrees on our circle from the center of the video screen. Another way to spot the optimal, alternate rear-wall mounting position is to place the left surround speaker on the back wall so that it points directly at the front right speaker, and to have the right surround speaker point directly at the front left speaker. If possible aim the surround speakers so that they point “in” toward the listening area, rather than perpendicular to the walls.

NOTES ON SPEAKER PLACEMENT:

The limitations of your listening room, including the placement of walls and furniture, may make it difficult to follow the speaker placement suggestions shown above. Depending on the specific layout of the room, here are some ways to compensate for unusual conditions:

• Try to follow the suggested placement, but move the speakers within a few feet from the preferred locations.

• Regardless of where they are placed, always try to make certain that the main surround speakers are the same distance from the front speakers. (For example, try not to have the right surround speaker further back into the room than the left surround speaker.)

• If it is not possible to wall-mount or place speakers on a shelf, consider the use of optional floor stands.

Main Speaker Connections

Once you have placed your left, center, right and surround speakers in the listening room, use the speaker wire supplied with the HKTS 7 speaker system to connect the individual speakers to the rear panel of the HS 100. Follow the instructions in the HKTS 7 owner’s manual concerning connection of the speaker wire to the back of each of the main speakers.

To simplify installation, the speaker wire included with the HKTS 7 has a color marking tab at each end of the wire to indicate the channel the wire’s speaker is connected to. When connecting the wire to the speakers, we strongly recommend that you connect the wire in con

formance with this color code, as it then makes it

easier

to match the color code for the speaker termi-

nals on the HS 100.

The color coding is as shown below:

Speaker Position Cable Color Code

Front Left White Center Green Front Right Red Surround Right Gray Surround Left Blue

If you wish to shorten the length of the speaker wires, a set of colored stickers is included with the HKTS 7 owner’s manual. For consistency, apply the tab to the

12

HS100 Integrated Hom e Theater System harman/kardon

Video Screen Center Speaker

30° 30°

Front Right

Speaker

110 °

Side Surround Right Speaker

Side Surround

Left Speaker

Front Left

Speaker

110 °

Alternate position for surround positions

INSTALLATION AND CONNECTIONS 11

INSTALLATION AND CONNECTIONS

side of the cable pair that has a white stripe. The speaker wires are not only color-coded for channel identification; they are also color-coded for polarity. Since proper polarity is important for system performance, note that the side of each cable pair with the white stripe and color tab is the positive side, and the pure black side of the cable pair is the negative. When connecting the cables to the speakers, the red speaker terminal is positive (+), and should be connected to the side of the wire with the white stripe and color tab. The pure black side of the cable, where there is no color tab, is negative and should be connected to the black speaker terminal.

Once the wires are connected at the speaker end, connect each speaker to the rear panel of the HS 100. The color-coding on the speaker wire connectors makes it easy to make the connections properly. The positive (+) connection for the Front Speaker Connections 1 are white for left and red for white, positive connection for the Center Speaker Connection 0 is green, and the positive connections for the Surround Speakers 2 are blue for left and gray for left. In each case, the corresponding black side of each speaker cable is the negative (–) connection and goes to the matching black terminal for the speaker.

Subwoofer Placement and Connection

Since subwoofers produce nondirectional sound, they may be placed almost anywhere in a room. Actual placement should be based on room size and shape and the type of subwoofer used. One method of finding the optimal location for a subwoofer is to begin by placing it in the front of the room, about six inches from a wall, or near the front corner of the room. Another method is to temporarily place the subwoofer at your normal listening position, and then walk around the room until you find a spot where the subwoofer sounds best. Place the subwoofer in that spot, or you may wish to experiment with the best location for a subwoofer in your listening room.

Using the audio interconnect packaged with the HKTS 7 system, connect one end to the Subwoofer Output 3 on the rear panel of the HS 100 and connect the other end to the “SUB” input on the subwoofer.

Audio Equipment Connections

Since the HS 100 is a complete integrated home theater system with an onboard DVD Audio/Video player and tuner, you may not need to make any additional audio equipment connections. However, if you have any external audio components, they should be connected as follows:

Products with digital audio outputs, such as an external CD changer, set-top cable box, satellite receiver, video game console, compatible computer sound card or HDTV receiver may be connected to either the Optical 4 or Coaxial 5 Digital inputs.

Connections to the analog audio output of a cable settop, satellite receiver, or the Left/Right analog output of a TV set with built-in digital television tuner should be connected to the TV Audio Inputs B.

You may connect the outputs of any other analog audio device, such as a phono preamp, video game console, camcorder, audio recorder or similar to the Analog Audio Inputs 7. If you are connecting an audio recorder to the HS 100, the record/in jacks on the recording device should be connected to the Analog

Audio Outputs 6 on the HS 100.

Video Equipment Connections

Depending on the type of TV set or video display to be used, connect the HS 100 to the display using one of the following methods:

• If you have a high-definition, or “digital”, television,

connect the Component Video Outputs B to a matching set of component inputs on the display.

• If your TV set has only S-video and standard, composite video inputs, we recommend that the S-Video Output 9 be used as the connection.

• When a standard, composite video input is all that is available on the TV set for video input, connect the

Composite Video Output 8 to the TV.

System Connections

Connect the FM antenna supplied with the HS 100, or an optional, external FM antenna feed to the FM Antenna Jack D. If the antenna uses 300-ohm twin-lead cable, you must use an optional 300-ohm to 75-ohm adaptor to make the connection. Assemble the supplied AM loop antenna so that the tabs at the bottom of the antenna loop snap into the holes in the base. Connect the white wire to the “AM” terminal and the black wire to the GND Terminals E.

Connect the AC power cord to the AC Power Cord Jack C, and then plug the cord into an unswitched AC outlet. Note that the ring surrounding the Power On/Off switch will turn amber to indicate that the HS 100 is connected to an AC power source and in the Standby mode.

System Preparation

Remove the protective plastic film from the HS 100’s front-panel lens. If left in place, this film may affect the performance of the remote control.

Install the three supplied AAA batteries in the remote, as shown below.

To remove the battery cover, place your thumb on the round inset area on the door and gently press upward until the door slides out. When inserting the batteries be certain to follow the (+) and (–) polarity indications that appear at the bottom of the battery compartment. Replace the battery compartment cover by pressing it down toward the bottom of the remote until it snaps into place.

Connecting the AC Power

You are now ready to power up the HS 100 controller before beginning the final adjustments.

1. Plug the AC power cord into the AC Power Cord

Jack

C

, and then into an unswitched AC outlet.

Note that the Power Indicator

1

will turn orange,

indicating that the unit is in the Standby mode.

2. Turn the HS 100 on either by pressing the Power

On/Off

1

or the Input Source Selector4on

the front panel, or via the remote by pressing the

Power On Button

0

on the remote. The Power

Indicator

1

will turn blue to confirm that the unit is

on, and the Main Information Display



will also

light up.

Congratulations! You have now completed the physical installation and connection of your HS 100 system and only a few configuration steps are needed to tailor the way the HS 100 operates to meet your needs and the requirements of your listening room. Please continue with the steps on the following pages to make certain that your new system delivers all the performance it was designed to provide.

13

HS100 Integrated Hom e Theater System harman/kardon

12 SYSTEM SETUP

SYSTEM SETUP

System Setup

The final step in the installation of the HS 100 is to establish the system’s configuration. Before proceeding, make certain that the HS 100 is properly connected to a video display and an AC power source. Turn on the video display, and switch its input, if necessary, to the input connected to the HS 100’s video output.

Turn on the HS 100 by pressing the Power On/Off

Switch  on the front panel or the Power On Button 0 on the remote. Note that the lighting

surrounding the Power On/Off Switch  will turn blue, a blue light will surround the front-panel Volume Control 9, the Information Display 8 will light and the HS 100 screen will appear on your video display.

In many cases you will not need to change the default settings. This is normal, as we have anticipated the typical system setup. Of course, you may return to the setup menus and change them at any time to reflect a change in your personal preferences or equipment selection.

System Defaults

General Functionality of the OSD Menu

The setup and control of the HS 100 takes place in an advanced user-guided On Screen Display (OSD) menu system. The OSD can be activated by pressing the OSD

Button

O

on the remote control. Pressing this button

again de-activates the OSD. The main menu consists of a PLAYER menu,

RADIO menu, TV menu, AUX menu, DIGITAL IN menu and a SET-UP menu.

The PLAYER menu will show all information and options available for the disc currently playing. The

RADIO menu will show radio and RDS options. The TV, AUX and DIGITAL IN menus show the

surround options for these specific audio inputs.The SET-UP menu will help you configure all audio and video settings which are normally made only once.

Each main menu contains submenus.These submenus are shown as icons on the left side of the menu. They may be selected by moving the white highlighted square around the icon by pressing the Navigation Buttons

A

. Menus may be activated by pressing the Enter

Button

P

when an icon is highlighted. When the

Enter Button

P

has been pressed, the color of the icon will change to dark blue and the current settings of this submenu will appear on the right side of the menu. Although each menu has various submenus and settings, they are all navigated in the same way. All submenus, settings and options can be accessed with the help of the Navigation Button

A

and the Enter

Button

P

on the remote control.

å Main Menu Line ∫ Submenus ç Current Settings ∂ Command Descriptions é Option Descriptions

To change a setting, simply move the highlight cursor to the setting you wish to change.This setting will be highlighted in light blue, and a brief explanation will appear in the Upper Menu Line on the bottom of your screen, together with the available options for this setting on the Lower Menu Line. Use the

M/N

Navigation Buttons

A

to highlight the requested option for this setting.

Press the Enter Button

P

to activate the new

setting.

Setup Menu

The first step in checking or changing the system defaults is to access the SET-UP Menu. First, make certain that the HS 100 Controller is properly connected to a video display, and that power is connected. For this process, however, you do not need to load a disc into the unit.

During Stop, Pause or Play mode, if you press the OSD

Button

O

on the remote, the main menu appears on

the screen. In the SET-UP menu you will find submenus for

making or changing all settings and adjustments for both the Audio and Video aspects of your HS 100.

To access the SET-UP Menu, press the OSD Button

O

, and press theM/N/K/LNavigation

Buttons

A

until SET-UP is highlighted. Press

Enter Button

P

to activate the SYSTEM

settings:

System Settings

The System Setting submenu contains the following sections. Follow the explanations in the Upper Menu Line at the bottom of the screen to change settings.

Display Language: This setting selects the language that will be used for the HS 100’s OSD menus and other system messages. The default is English, but you may also select French, Spanish, German or Italian.

Preferred Subtitle Language: This setting selects the language used for the display of subtitles. The default setting is OFF, which plays discs without subtitles. To set the player so that subtitles will always play in a specific language when they are available, select from any of the choices shown on the Option Descriptions É when adjusting this item, as shown above. If you do not find your preferred language in the list of options, you may select a preferred language by first pressing the

‹/›

Navigation Buttons k during the setting

adjustment so that OTHER is highlighted. Press the

Enter Button z and then use the Numeric Keys m to enter the four-digit code listed on page 31 for

the desired language. This selects a preferred subtitle language, but it will only be available when the disc being played contains that language. The list of subtitles available on any given disc is always shown on the disc jacket, usually at the bottom of the back cover. Note that the subtitles may also be switched on or off, or a new language selected during playback using the

Subtitle Button 8, as described on page 21.

Panel Time-Out: This settings selects the time-out

interval for the front-panel Information Display 9. The default setting is OFF, which disables this feature so that the front-panel indicators are always illuminated. You may also choose five to 20 seconds as the length of time after you press any button on the front panel or remote for the display to go out. To view the displays when they are off, press any button on the remote.

Status Bar Time-Out: This setting selects the time-out interval for the on-screen Status Bar that appears at the top of your video screen when the Status Button l is pressed while a disc is playing. During DVD playback, the status bar shows the current title and chapter, as well as the elapsed or remaining time in the current title. You may program the status bar to remain on screen for either five or 20 seconds after the Status Button l is pressed. When OFF is selected, the time-out is disabled, and the status bar will remain on the screen until the Status Button l or Clear

Button x is pressed.

Parental Control: This setting enables you to restrict

viewing to films or other discs encoded with parental control information to a specific level or below, and it also allows you to change the password that must be entered to change the settings for this option. The default setting allows all discs to be played, but you may change the setting so that viewing is controlled within eight steps, with lower numbers being more

14

HS100 Integrated Hom e Theater System harman/kardon

å

∫

é

∂

SYSTEM SETUP 13

SYSTEM SETUP

restrictive and high numbers allowing more material to be viewed. The steps correspond to the standard MPAA ratings symbols as follows. Additional information about movie ratings is available online at www.mpaa.org/movieratings.

• Step 1 is equivalent to a “G” rating for general audiences with material appropriate for all viewers.

• Step 2 is an intermediate level between “G” and “PG” rated material.

• Step 3 is equivalent to a “PG” rating.

• Step 4 is equivalent to a “PG-13” rating.

• Step 5 is an intermediate level between “PG-13” and “R” rated material.

• Step 6 is equivalent to an “R” rating.

• Step 7 is equivalent to an “NC17” rating.

• Step 8 allows all discs to be played, regardless of their content rating.

To access the Parental Control settings, press the

K/L

Navigation Buttons k until the current

setting on the Parental Control Settings line is highlighted and press the Enter Button z. Next, enter the default password by pressing “8888” using the Numeric Buttons m. Finally, use the

M/N

Navigation Buttons k to highlight the desired parental control level as shown on the Options Descriptioins É line as described above. You may also change the password by highlighting NEW PASSWORD, pressing Enter Button z and by following the instructions that appear in the

Command Descriptions ∂ line.

Disc Recognition: This setting controls the Disc

Recognition feature. When turned on, it allows you to pause a DVD-Video disc, remove it from the player, play another disc, and then resume the playback of the original disc at a later time from the point at which you paused. When a previously played disc is reinserted in the HS 100, an on-screen status message will ask whether you wish to start playback from the beginning of the disc or resume at the point where you left off. Note that even when the setting is activated, you must

pause

the playback, rather than bring it to a full stop,

and the unit must not be turned off between discs.

PBC Support: This setting controls the activation of PBC (Play Back Control) Support for VCD discs. If you plan to play VCD discs, which are a CD-ROM-based format that predates DVD, we recommend that the setting be turned ON.

Screen Saver: This setting controls the activation of a screen saver that prevents the image of the “splash screen” from being “burned” into the face of your video display when a disc is stopped for more than five minutes. If you use the HS 100 with a plasma display, direct-view CRT set or a CRT-based projector, we strongly recommend that the setting be turned ON.

Show Angle Icon: This setting controls the activation of the Angle Icon. When this setting is turned ON, the Angle Icon, which is a small image of a movie camera, will appear in the upper right corner of the screen when multiple-angle material is available on the disc being played. When the icon appears, press the Angle Button v on the remote to switch between the available views or program material.

Audio Setup Menu

This menu establishes the HS 100’s configuration for general audio settings, such as preferred language and digital audio settings.

As with all setup menus, press the OSD Button ` to activate the main menu screen, and then press the

M/N

Navigation Buttons k so that SETUP is

highlighted. Press Enter Button z, and then use the

M/N/K/L

Navigation Buttons k until the

AUDIO SETUP menu is highlighted within a white outline and press the Enter Button z again. Finally, press the

M/N/K/L

Navigation Buttons

e once more to move the highlight to the Control Settings ç side of the menu screen.

The following adjustments are available on the AUDIO SETUP menu:

Preferred Audio Language: This setting is used to select the default language that will be used for program playback. The factory default setting is English, but you may choose French, Spanish, German or Italian by making a selection on the Options Descriptions É line. To select a language other than those shown, select OTHER from the choices on the Options Descriptions É line and press the Enter Button z. Then, use the Numeric Keys p to enter the four-digit code listed on page 31 for the desired language. This selects a preferred audio program language, but it will only be available when the disc being played contains that language. The list of languages available on any given disc is always shown on the disc jacket, usually at the bottom of the back cover. Note that the audio playback language may also be changed at any time during playback using the Audio Button , as described on page 20, but any changes made will only be effective during playback of that disc.

Dynamic Range: This setting allows you to take advantage of the programming present on some

Dolby Digital recordings to reduce the volume of louder, peak passages while maintaining intelligibility of quieter passages. This means that you may listen to programs at a level that allows the full impact of a soundtrack to be heard at a volume that is lower than you might otherwise use to avoid complaints about loud volume levels. The HS 100 accomplishes this by compressing the audio to a greater or lesser degree, depending on which setting you choose. Three options are available:

• MINIMUM does not make any changes to the

original playback, and should be used when the volume setting in the listening room may be as loud as you desire.

• MEDIUM applies a moderate amount of com-

pression so that louder passages are a little quieter.

• MAXIMUM applies more compression so that

louder passages are much softer.

Feel free to experiment with the settings at any time. Note that if your receiver or processor also allows you to program the dynamic range setting, also known as the “Night Mode,” you do not need to make any adjustments on the HS 100 and should leave the setting at MINIMUM.

Delay Unit: This setting selects the measurement system used in entering delay times when the AUDIO ADJUSTMENTS menu is activated. Distance entry in feet is the default, but you may alternatively choose to enter the distances in meters.

Tone Control: This setting determines whether the Tone Controls are activated. When OFF is selected, the audio output is run “flat” with no tone cut or boost. When ON is selected, the tone control settings made in the next two adjustments are applied.

Bass Level: When the Tone Control setting (above) is ON, the amount of bass (low frequency) boost or cut selected here is applied to the output signal. To change the setting, make certain that the number at the right side of the Bass Level Command Descriptions Line is press the Enter Button P and then use the

Navigation Buttons A to change the setting.

Treble Level: When the Tone Control setting (above)

is ON, the amount of treble (high frequency) boost or cut selected here is applied to the output signal. To change the setting, make certain that the number at the right side of the Treble Level Command Descriptions Line is press the Enter Button P and then use the

M/N

Navigation Buttons A to change the setting.

DVD Sound Mode: This setting selects the surround

mode that will be used when a DVD is playing. (To set the surround mode option for another input, such as “TV,” “Digital In,” “AUX” or the unit’s internal AM/FM tuner, go to the specific menu for that input.) The factory default is ORIGINAL, which will play back DVDs in the format output from the disc, such as Dolby Digital or

15

HS100 Integrated Hom e Theater System harman/kardon

SYSTEM SETUP

14 SYSTEM SETUP

DTS. To select the mode that will be used when a disc with two-channel audio is playing, make certain that the mode name at the right side of the DVD Sound Mode Command Descriptions Line is highlighted and then press the Enter Button P. Use the

M/N

Navigation Buttons A to change the setting.

Audio Adjustment

The Audio Adjustment Submenu contains the speaker delay and output level adjustment settings of the HS 100. Follow the explanations in the Command Options ∂ on the bottom of your screen to make adjustments.

Delay

Due to the different distances between the listening position for the front and surround channel speakers, the amount of time it takes for sound to reach your ears from each set of speakers is different. You may compensate for this difference through the use of the delay settings to adjust the timing for specific speaker placement in your particular home theater or listening room. Before proceeding, measure the distance between each speaker and the preferred listening location.

Next, press the

M/N/K/L

Navigation Buttons

A so that the second of the two AUDIO icons in the Sub-Menus column ∫ is surrounded by a white outline, with the icon box turning dark, rather than light, blue. This is the Audio Settings Menu. Next, press the

M/N/K/L

Navigation Buttons A until the dis-

tance setting under the Front Left speaker title is highlighted and press the Enter Button P. To change the setting, press the

M/N

Navigation Buttons A

so that the number highlighted in the Options Description line é at the bottom of the screen is

the distance from the speaker to the listening position. Press the Enter Button P when you are done.

Press the

M/N/K/L

Navigation Buttons A to

move across the menu screen to each of the distance settings under each of the rest of the speaker positions, and repeat the procedure to enter the distance setting. Note that distance setting for the subwoofer does not need to be entered, as delay is not a factor with low-frequency information.

Output Level Adjustment

Output level adjustment is a key part of the configuration process for any surround sound system.

NOTE:

Listeners are often confused about the operation of the surround channels.While some assume that sound should always be coming from each speaker, most of the time there will be little or no sound in the surround channels.This is because they are only used when a movie director or sound mixer specifically places sound there to create ambience, a special effect or to continue action from the front of the room to the rear. When the output levels are properly set, it is normal for surround speakers to operate only occasionally.Artificially increasing the volume to the rear speakers may destroy the illusion of an enveloping sound field, which duplicates the way you hear sound in a movie theater or concert hall.

For ideal surround playback, the output level from each channel should be equal, and in most cases the factory default setting of 0dB should accomplish that. However, in some cases the specifics of your listening room may require some adjustments. To adjust the output levels, first put in a disc with test tones or content you are familiar with, and that has a reasonably even level without a great deal of changes. Then, press the

M/N

/

K/L

Navigation Buttons A until the output level setting with the factory default of “+0dB” at the bottom of the list under the Front Left speaker distance setting is highlighted. If an increase or decrease needs to be made to the level, press the Enter Button P and then use the

M/N

Navigation Buttons A so

that the desired level is highlighted in the Options Description line é at the bottom of the menu screen. Press the Enter Button P, and then press the

M/N/K/L

Navigation Buttons A to move

across the menu screen to each of the output level settings under each of the rest of the speaker positions, and repeat the procedure to enter the output level offset, if needed, that brings all of the channels to the same output volume. You may need to repeat this procedure more than once to accurately set the levels.

Video Setting

This menu establishes the DVD’s configuration for video format settings such as aspect ratio and output scan.

As with all setup menus, press the OSD Button y to activate the main menu screen, and then press the

M/N

Navigation Buttons k so that SETUP

is highlighted. Press the Enter Button z, and then use the

M/N/K/L

Navigation Buttons k until

the VIDEO SETUP menu is highlighted within a white outline, and press the Enter Button z again. Finally, press the

M/N

Navigation Buttons

e once more to move the highlight to the Control Settings ç side of the menu screen.

The following adjustments are available on the Video Setup menu:

Aspect Ratio: This setting selects the aspect ratio of video programming. Your choice should be made according to the shape of your video display and your personal preferences. Three choices are available:

• 16:9: If you have a widescreen (16:9) display, or a

display that has a widescreen mode, choose this setting. With this setting, the HS 100 will adjust the output for widescreen movies so that they fill the entire screen in the proper aspect ratio. Note, however, that in this setting a disc recorded in the 4:3 aspect ratio will appear in the widescreen as a boxed image in the center, with black columns on the left and right side of the screen. Note that if the widescreen option is chosen and a widescreen movie is played on a conventional 4:3 aspect ratio set, the image will be distorted due to vertical compression.

• 4:3 Letterbox: If you have a standard, 4:3 aspect

ratio video display, choose this setting if you wish to see the entire frame of the movie as it is recorded on the disc without any image cutoff at the left and right sides. While this allows widescreen movies to be shown in their entirety, they will occupy a smaller portion of the screen and black “letterbox” bars may appear at the top and bottom of the screen.

• 4:3 PanScan: If you have a standard, 4:3 aspect

ratio video display and prefer to have widescreen movies displayed without the black bars at the top and bottom of the screen, choose this option. Note, however, that since most DVDs do not contain special “pan/scan” coding that allows the on-screen image to follow the action, you may find that while the image will fill the screen, the vertical spread will cause it to be cropped at the left and right side.

Scan Type: This setting allows you to select between progressive and interlaced scanning for the Component Video Outputs ⁄ to maximize the image resolution for the type of video display in use. When all desired setup and configuration entries have been made, press the OSD Button y to return the player to normal operation and you are ready to enjoy the finest in DVD or CD playback. Note that the output at the S-Video ‚ and Composite Video ª outputs will always be standard-rate video that is compatible with any television set or video display. Two choices are available:

16

HS100 Integrated Hom e Theater System harman/kardon

SYSTEM SETUP

SYSTEM SETUP 15

• Progressive: Select this option if you have a video

display that is compatible with input sources of 480p or greater. Displays labeled as “HDTV Ready,” including virtually all large-screen LCD and plasma displays, are compatible with progressive scan.

• Interlaced: Select this option when you are using

an older video display that has Y/Pr/Pb component inputs, but which is not capable of displaying high scan rate, or “HD,” signals.

Video Mode: This setting affects only the Component Video Outputs ⁄, and it controls how the

video signals are optimized for progressive scan display. In most cases, the “automatic” mode is your best choice, as it senses whether the disc being played was originally recorded on video or shot on film. However, in some cases you may wish to compensate for errors in the disc authoring that occur when the frame rate is not properly maintained when films are converted to video. Three choices are available:

• Auto: This is the recommended setting, as it lets the

HS 100 analyze the signals from the DVD and adjust the output accordingly.

• Movie: Choose this option for optimal playback of

material that was shot on film, even though you are viewing it on video via a DVD.

• Video: Choose this option for optimal playback of

material that was shot directly to video, such as concerts and sports programming.

Video Adjustments Menu

This menu allows you to adjust five key parameters of the video signal to compensate for differences between HS 100 and other video sources. You may use either the HS 100’s built-in color bar test signal or a test disc as the standard for the adjustments. To ensure that your system is properly optimized, we strongly recommend that you adjust your video display using the display’s own controls before making any changes to the HS 100’s output. Once the display is properly calibrated with all settings on the HS 100 set to their midpoint, use the controls on this menu to finetune the HS 100’s output.

Due to the nature of these settings, the navigation is somewhat different from the HS 100’s other menus and controls. The menu itself is called up in the same way as the other menus. Press the OSD Button y to activate the main menu screen, and then press the

K/L

Navigation Buttons k so that SETUP

is highlighted. Press the Enter Button z, and then use the

M/N/K/L

Navigation Buttons k until

the VIDEO ADJUSTMENTS menu box (which contains an icon with slider controls and the word VIDEO, and is located at the bottom of the column in the Submenus Area ∫) is highlighted within a white outline. Then press Enter z again.

When you press Enter z the video adjustments will appear inside a black bar at the top of the screen, with either the video from a disc being played or the splash screen shown on the rest of the screen.

To change any of the video adjustments shown at the top of the screen, first press the

M/N/K/L

Navigation Buttons k so that the “+” to the right of a parameter name is highlighted to increase the setting or “–” to the right of a parameter name is highlighted to decrease the setting. Then press the Enter Button z to change the value as shown by the number of blue lines to the left or right of the center line. When only the dark center line is shown with no blue lines, the setting is at the midpoint default value.

When adjusting the Black Level setting, note that the adjustment available is to either have the setting at the midpoint, which provides a full “0 to 100” black level setting, or “full,” which complies with standards for video with what is called “setup,” or a “7.5 to 100” black level setting.

Changes to any of the settings may be made with a test disc playing, or you may use the internal test signal by pressing the

M/N/K/L

Navigation Buttons

k until the word OFF is highlighted next to the TEST SCREEN line. To activate the test signal,

press the Enter Button z and note that a special combination test signal, including both color bars and gray scale along with 100% black and white fields, will be displayed. To recall the video controls, press the OSD Button y and then navigate among the settings and make any necessary changes following the steps in the previous paragraph.

Test Screen

With the test screen showing on your video display, the following adjustments may be made:

• The proper color intensity setting on your TV.

• Proper color adjustments using the color bars, which should be (left to right) black, white, yellow, cyan (turquoise), green, magenta, red, blue, black.

• The proper color transition, seen as sharp separation of the bars.

• The performance of the color circuits in your TV (with “Video” signals); bar edges should show no vertical crawling dots.

With the gray scale and the black/white fields below the color bars, the brightness and contrast of your screen can be adjusted.

TV Picture Adjustment With Test Screen

Brightness Adjustment:

1. Turn down the color control on your TV until the

color bars are visible in black and white.

2. Adjust the contrast to the lowest level where you still

can see all bars within the gray scale in the test picture separately and clearly.

3. Adjust the brightness so that the bars in the gray

scale are all visible. The bar furthest to the left has to be as black as possible rather than gray but the next gradation must clearly be distinct from it. All the bars in the gray scale should be gradually and evenly changing from black to white, left to right.

Contrast Adjustment:

1. Adjust the contrast on your TV until you see a bright

white bar in the lower right corner of the screen and a deep-dark-black bar to the left. The optimal contrast setting will depend on your preference and the surrounding light in the TV room.

2. If the brightness of the white bar no longer increases

when the contrast is turned up or the borders of the white “harman/kardon” letters on top bloom (overlight) into the black areas (drastically decreasing the sharpness of the type), the contrast has been turned up too much. Reduce the contrast until these effects disappear and the video still looks realistic.

3. If you are watching TV with customary surrounding

daylight, adjust the contrast so that a normal video picture has about the same look as the surroundings in your room. That way the eye is relaxed when watching the TV picture. This contrast setting may be reduced when the surrounding light is dimmed, thereby usually improving the sharpness of a video significantly.

4. The gray scale in the middle line needs to have

the same clear difference between each bar as

17

HS100 Integrated Hom e Theater System harman/kardon

SYSTEM SETUP

16 SYSTEM SETUP

before the contrast adjustment. If not, go back to “

Brightness Adjustment” and repeat Step 3 and then

“

Contrast Adjustment,” making only minor adjust-

ments each time for optimization.

Color and Tint Adjustment

1. When the brightness and contrast are set optimally, adjust the color control to the level of your preference. Set the level where the colors look strong but still natural, not overdone. If the color level is too high, depending on the TV, some of the bars will seem wider or the color intensity will not increase while the control is turned up. Then the color control must be reduced again. Ultimately, you also should test the color intensity with a video – e.g., pictures of natural faces, flowers, fruit and vegetables, and other common natural articles for an optimal setting of the color intensity.

2. Use the large white bar below the gray scale to tweak the warmth of the picture. Every viewer has a preference as to how the glow of the picture should be. Some prefer a little colder picture, some a warmer glow. The Tint function and the white bar can be used to control this. Adjust the Tint to the level where you feel the white color has the tone you prefer.

18

HS100 Integrated Hom e Theater System harman/kardon

BASIC OPERATION 19

BASIC OPERATION

Basic Operation

Once all connections have been made and the proper configuration settings entered, you are ready to enjoy the incredible listening and viewing experience made possible by the HS 100. The pages that follow have all the information needed to operate the HS 100, but the following will help get you started with a basic overview.

• To turn on the HS 100, press the ON Button 0 on the remote or the Power On/Off Button  on the front panel to use the input that was in use when the HS 100 was turned off.

• The HS 100 may also be turned on with direct access of a specific input by pressing the Player

3, Radio 2, TV , Aux  or Digital In  buttons on the remote.

• To select another input, press the Player 3, Radio 2, TV , Aux  or Digital In 

buttons on the remote to choose the source.

• Turn the Volume Control A or press the Volume Control Buttons  on the remote to raise or lower the volume.

• To temporarily silence the output, press the Mute Button . Press the Mute Button  again or use the Volume Control A to return to normal operation.

• Control over the settings for an individual input, such as DVD playback and navigation or using the tuner is done through a combination of the on-screen menus and the remote control and front panel buttons.

Í To access the menu for a specific input, press

the OSD Button O, and then press the

‹/›

Navigation Buttons A until the desired source (or the Setup menu for global system adjustments) is highlighted in a light blue box. Note that the current source will be shown with a white line below its name while you select another source. Press the Enter Button P to select the highlighted source.

Í Consult the pages in this manual pertaining to

each input source for the specific instructions about using or configuring that source.

Surround Modes

One of the most important features of the HS 100 is its ability to reproduce a multichannel surround presentation from digital sources, analog matrix-encoded sources or traditional two-channel stereo program material. In some cases, such as when a Dolby Digital or DTS source with a 5.1 soundtrack is playing, surround mode selection is automatic, regardless of which mode may be set in an input’s menu. In other cases, the surround mode may be preset within the individual input’s menu page. Each time the source is changed, the HS 100 will automatically change to the Surround Mode selected for that source.

When a DVD is playing, there may be a number of different surround mode or audio options such as a full 5.1 soundtrack in one language, a 2.0 soundtrack in different languages, or special commentary or descriptive tracks for the vision-impaired. You may select these tracks, when available, during DVD playback by pressing the Audio Button  and then using the

‹/› Navigation Buttons A to choose

from the options shown in the on-screen menu.

19

HS100 Integrated Hom e Theater System harman/kardon

32 TROUBLESHOOTING

TROUBLESHOOTING

If you experience any of the following difficulties while using the system, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your authorized Harman Kardon dealer.

No power.

• Is the power cord firmly plugged into the power outlet?

• The system’s processor may require a reset. In this event, unplug the player from the power outlet briefly and then plug it in again.

No picture.

• Check that the system is connected correctly and securely.

• The video cable may be damaged. Replace it with a new one.

• Make sure the system is connected to a video input on the TV (see page 12).

• Make sure the TV is turned on.

• Make sure the correct video input on the TV is selected for viewing with this system.

There is no sound, or volume is very low.

• Check that the speakers and components are connected correctly and securely.

• Make sure that you have selected the correct source on the system.

• Press MUTE on the remote control, if the words “MUTE ON” are blinking on the front-panel display.

• The protective circuitry has been activated because of a short circuit. Turn off the system, eliminate the short circuit problem and turn on the power again.

• An audio interconnect cable is damaged. Replace it with a new one.

• The system is in pause mode or in slow-motion play mode, or fast forward or fast reverse. Press

N

to

return to normal play mode.

• Check the speaker settings (see page 16).

The audio channels are reversed.

• Check that the speakers and components are connected correctly and securely.

Severe hum or noise is heard.

• Check that the speakers and components are connected securely.

• Check that the connecting cords are away from a transformer or motor or fluorescent light.

• The audio plugs are dirty. Wipe them with a cloth slightly moistened with alcohol.

• Clean the disc.

The surround effect is difficult to hear when you are playing a Dolby Digital soundtrack.

• Check to see whether the Dolby Digital mode is turned on properly; otherwise, unload and load the disc again.

• Check the speaker connections.

• Depending on the DVD disc, the output signal may at times be mono or stereo even if the soundtrack is recorded in Dolby Digital format.

The sound comes from the center speaker only.

• Depending on the disc, sound may sometimes come from the center speaker only.This also applies to mono recordings (from disc or any analog source), when Pro Logic mode is selected. This is normal.

No sound is heard from the center speaker.

• Adjust center speaker volume (see pages 16).

No sound or only very low volume from the rear speakers.

• Adjust the rear speaker volume (see page 16).

Radio stations cannot be tuned in.

• Check that the antenna is connected correctly.Adjust the antenna and connect an external antenna if necessary.

• No stations have been preset.

• The tuner mode is not selected, select the Radio mode.

The remote does not function.

• Remove any obstacles between the remote control and the system.

• Move the remote control closer to the system.

• Point the remote control at the remote sensor on the front panel.

• Replace all the batteries in the remote control with new ones if they are weak.

• Check that the batteries are loaded correctly.

The disc does not play.

• There is no disc inside. (“NO DISC” appears on the front-panel display and the TV screen.) Insert a disc.

• Insert the disc correctly with the playback side facing down on the disc tray.

• Clean the disc.

• The system cannot play certain disc types (see page 3).

• DVD with wrong region code (see page 11).

Playback stops automatically.

• Some discs include an auto pause signal. When playing such a disc, the system stops playback at the signal.

Track Skip or Direct Select with numeric buttons, Search, Slow-Motion Play, Repeat Play or Program Play, etc., cannot be done.

• Depending on the DVD, some of the above operations may not be available (playback control with DVD).

The audio language cannot be changed when you play a DVD.

• Multilingual sound is not recorded on the DVD.

• Changing the language for the sound is prohibited on the DVD.

The subtitle language cannot be changed when you play a DVD.

• Multilingual subtitles are not recorded on the DVD.

• Changing the language for the subtitles is prohibited on the DVD.

The subtitles cannot be turned off when you play a DVD.

• Depending on the DVD, you may not be able to turn the subtitles off.

The angles cannot be changed when you play a DVD.

• Multi-angles are not recorded on most DVDs.

• Change the angles when the angle mark appears on the TV screen.

• Changing the angles is prohibited on some DVDs.

Please also refer to the Troubleshooting guide contained in the HKTS 7 owner’s manual if you suspect a problem with the speakers.

32 TROUBLESHOOTING

20

HS100 Integrated Hom e Theater System harman/kardon

21

HS100 Integrated Home Theater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

DATA0/1/2

SDA/SCL

AMUTE

DDX8001 NJM4558

IR

LC75710

PIC16C56A

VFD

WM8728

TUNER

LM833

24C64

BH7862

SMPS

PV1

AN8785SB

SCART

BU1924F

74HC4052

LM833

74HC164

ATAPI

RGB/Y/Pb/Pr CVBS&S-VIDEO AUXIN DOWNMIX

NJM4558

POWER SUPPLY

AUXIN

SCART IN

TUNER IN

SWITCH

SCART CONTROL

CS5333

L/R IN

CLK

DATA3

SDA/SCL

DAC_IN

VIDEO OUTPUT

CLK

L/R OUT

POWER/STANDBY

CLK

DDX2100 DDX2100 DDX2100

74AHC158

DIGITAL IN

LM4880

SUBWOOFER

HEADPHONE

+12V

-12V +D5V +3.3V +A5V +S5V

+28V

CLKL/R IN

DIGITAL IN

28V 28V 28V

RDS

LR

VIDEO OUT

SYSTEM 3.43

HS 100 MA IN BOARD 050725

B

124Tuesday,Novem ber 22,2005

Title

Size Docum entN um ber R ev

Date: Sheet

of

H arm an Kardon,N orthridge,C alifornia 91329,U S A

22

HS100 Integrated Home Theater Sy stem harman/kardon

23

HS100 Integrated Hom e Theater System harman/kardon

HS100 Electrical Parts List (120v)

MainBoard (1239C-PV1)

Part Number Description Qty Reference Designator

Resistors

01.57.R.2.E000J Resistor, chip 0603-0Ω ±5% 8 R1 R116 FB24 FB25 DR1 DR2 DR3 R143

01.57.R.2.E100J Resistor, chip 0603-10Ω±5% 9 R61 R62 R63 R114 3R2 3R4 DR4 DR5 DR6

01.57.R.2.E220J Resistor, chip 0603-22Ω±5% 6 R29 (R30) (R31) (R32) (R33) R202

01.57.R.2.E270J Resistor, chip 0603-27Ω±5% 2 R145 R146

01.57.R.2.E330J Resistor, chip 0603-33Ω±5% 5 R184 R185 R186 R189 R190

01.57.R.2.E560J Resistor, chip 0603-56Ω±5% 2 R149 R150

01.57.R.2.E750F Resistor, chip 0603-75Ω±1% 16 R9 R37 R39 R40 (R41) (R42) R43 (R44)

01.57.R.2.E820J Resistor, chip 0603-82Ω±5% 3 R182 R183 R187

01.57.R.2.E910J Resistor, chip 0603-91Ω±5% 1 AR10

01.57.R.2.E101J Resistor, chip 0603-100Ω±5% 5 R117 R137 R199 RR11 RR12

01.57.R.2.E151J Resistor, chip 0603-150Ω±5% 2 R89 R98

01.57.R.2.E1870F Resistor, chip 0603-187Ω±1% 2 R11 (R12)

01.57.R.2.E221J Resistor, chip 0603-220Ω±5% 4 RR6 RR7 RR8 RR9

01.57.R.2.E331J Resistor, chip 0603-330Ω±5% 2 R56 R67

01.57.R.2.E471J Resistor, chip 0603-470Ω±5% 4 R193 R211 (R212) R213

01.57.R.2.E681J Resistor, chip 0603-680Ω±5% 4 R55 R66 (3R3) (3R9)

01.57.R.2.E102J Resistor, chip 0603-1KΩ±5% 9 R78 R191 R192 R194 RR3

01.57.R.2.E122J Resistor, chip 0603-1.2KΩ±5% 1 R204

01.57.R.2.E1781F Resistor, chip 0603-1.78KΩ±1% 2 R57 R68

01.57.R.2.E222J Resistor, chip 0603-2.2KΩ±5% 1 R139

01.57.R.2.E272J Resistor, chip 0603-2.7KΩ±5% 5 (R17) (R18) (R19) (R20) AR11

01.57.R.2.E302J Resistor, chip 0603-3KΩ±5% 2 R81 R120

01.57.R.2.E392J Resistor, chip 0603-3.9KΩ±5% 1 (R195)

01.57.R.2.E472J Resistor, chip 0603-4.7KΩ±5% 23 R4 R7 R15 (R53) (R65) R93 R99 R106 R107

R45 R46 R47 R48 AR3 AR4 AR5 AR6

R173A1 R173B1 R173C1 R173D1

R108 R109 R110 R111 R113 AR2 AR12 (R4B1) (R5A1) (R121) (R122) (R123) AR7 R144

01.57.R.2.E4752F Resistor, chip 0603-4.75KΩ 1% 2 R54 R64

01.57.R.2.E562J Resistor, chip 0603-5.6KΩ±5% 2 R133 R197

01.57.R.2.E622J Resistor, chip 0603-6.2KΩ±5% 1 R128

01.57.R.2.E682J Resistor, chip 0603-6.8KΩ±5% 2 R86 R97

01.57.R.2.E752J Resistor, chip 0603-7.5KΩ±5% 6 R58 R69 R126 R196 R131 R134

01.57.R.2.E822J Resistor, chip 0603-8.2KΩ±5% 2 R90 R96

01.57.R.2.E103J Resistor, chip 0603-10KΩ±5% 52 (R2) (R3) (R5) (R6) (RR1) (RR2) (RR10)

01.57.R.2.E103F Resistor, chip 0603-10KΩ±1% 2 R130 R135

01.57.R.2.E153J Resistor, chip 0603-15KΩ±5% 3 R26 (R119) (R210)

01.57.R.2.E183J Resistor, chip 0603-18KΩ±5% 3 R124 R141 R201

01.57.R.2.E203J Resistor, chip 0603-20KΩ±5% 4 3R1 3R5 3R6 3R10

01.57.R.2.E273J Resistor, chip 0603-27KΩ±5% 1 R203

01.57.R.2.E333J Resistor, chip 0603-33KΩ±5% 1 R127

01.57.R.2.E473J Resistor, chip 0603-47KΩ±5% 1 R115

01.57.R.2.E683J Resistor, chip 0603-68KΩ±5% 1 R181

01.57.R.2.E104J Resistor, chip 0603-100KΩ±5% 5 (R28) R95 R102 (R129) 3R7

01.57.R.2.E105J Resistor, chip 0603-1MΩ±5% 4 (R14) (R138) R198 3R8

01.57.R.3.E2R2J Resistor, chip 0805-2.2Ω±5% 2 R147 R148

01.57.R.8.EP3304 Resistor, thick film chip network 33Ω*4 ±5% 4 RN13 RN16 RN17 RN18

01.57.R.8.EP0824 Resistor, thick film chip network 82Ω*4 ±5% 1 RN12

01.57.R.8.EP4734 Resistor, thick film chip network 47KΩ*4 ±5% 1 RN2

01.57.R.C.ED750 Fixed carbon film RT1/4W-75Ω 1 R75

01.57.R.Y.270 Zinc oxide varistor, for ESD AVR-M1608C270MTABB 2 ESD10 ESD11

(R16) (R21) (R22) (R23) (R24) (R27) (R34) R35 (R36) R38 R59 (R60) (R71) R72 (R79) R80 R84 (R85) R112 (R118) (R125) R132 R151 R152 R153 R154 R155 R158 R159 R167 R172 R175 (R176) (R177) (R178) R180 R188 (R205) (R206) (R207) (R208) R209 (R215) R156 R157

24

HS100 Integrated Hom e Theater System harman/kardon

Part Number Description Qty Reference Designator

MainBoard (1239C-PV1)

Capacitors

01.54.CS.2.E6P8X Capacitor,multilayer ceramic, chip 0603-6.8P X7R 1 C24

01.54.CS.2.E100N Capacitor,multilayer ceramic, chip 0603-10P NPO±5%/50V 4 (C21) C124 C125 (C151)

01.54.CS.2.E200N Capacitor,multilayer ceramic, chip 0603-20P NPO±5%/50V 6 (2C4) (2C8) (C31) (C35) (C37) (C43)

01.54.CS.2.E220N Capacitor,multilayer ceramic, chip 0603-22P NPO±5%/50V 3 (C22) (C23) (C47)

01.54.CS.2.E330N Capacitor,multilayer ceramic, chip 0603-33P NPO±5%/50V 3 (C91) (C95) C119

01.54.CS.2.E470N Capacitor,multilayer ceramic, chip 0603-47P NPO±5%/50V 8 (C20) C81 C83 C108 C115 C60 C61 C87

01.54.CS.2.E510N Capacitor,multilayer ceramic, chip 0603-51P NPO±5%/50V 2 (C38) (C42)

01.54.CS.2.E201N Capacitor,multilayer ceramic, chip 0603-200P NPO±5%/50V 2 C59 C74

01.54.CS.2.E221N Capacitor,multilayer ceramic, chip 0603-220P NPO±5%/50V 1 C109

01.54.CS.2.E271N Capacitor,multilayer ceramic, chip 0603-270P NPO±5%/50V 1 C90

01.54.CS.2.E561N Capacitor,multilayer ceramic, chip 0603-560P NPO±5%/50V 3 (C26) (C72) C94

01.54.CS.2.E102X Capacitor,multilayer ceramic, chip 0603-102 X7R±10%/50V 1 (C139)

01.54.CS.2.E152X Capacitor,multilayer ceramic, chip 0603-152 X7R±10%/50V 1 C110

01.54.CS.2.E562X Capacitor,multilayer ceramic, chip 0603-562 X7R±10%/50V 1 C116

01.54.CS.2.E103Y Capacitor,multilayer ceramic, chip 0603-103 Y5V-20+80%/50V 5 C82 C84 (C114) (C158) (C161)

01.54.CS.2.E183X Capacitor,multilayer ceramic, chip 0603-183 X7R±10%/50V 3 (C122) (C28) (C36)

01.54.CS.2.E333X Capacitor,multilayer ceramic, chip 0603-333 X7R±10%/50V 1 (C112)

01.54.CS.2.E104Y Capacitor,multilayer ceramic, chip 0603-104 Y5V-20+80%/50V 122 CB1 CB2 CB3 CB4 CB5 CB6 CB7 CB8 CB9 CB10 CB11 CB12 CB13 CB14 CB15 CB16 CB17 CB18 CB19 CB20 CB21 CB22 CB23 CB24 CB25 CB26 CB27 CB28 CB29 CB30 CB31 CB32 CB33 CB34 CB35 CB36 CB37 CB38 CB39 CB40 CB41 CB42 CB43 CB44 CB45 CB46 CB47 CB48 CB49 CB50 CB51 CB52 CB53 CB54 CB55 CB56 CB57 CB58 CB59 CB60 CB61 CB62 CB63 CB64 CB65 CB66 CB67 CB68 CB69 CB70 CB71 CB72 CB73 CB74 CB75 CB76 CB77 CB78 CB79 CB80 CB81 CB82 CB83 CB84 CB85 CB86 CB87 CB88 CB89 CB90 CB91 CB92 CB93 CB94 CB95 CB96 CB97 CB98 CB99 CB102 CB103 CB104 CB105 CB106 CB107 CB108 CB110 CB111 CB112 CB113 CB114 CB115 CB116 CB117 CB135 CB120 CB121 CB122 CB131 CB132 CB134 C85

01.54.CS.2.E105Y Capacitor,multilayer ceramic, chip 0603-105 Y5V-20+80%/10V 3 (C150) (C156) (C157)

01.54.CS.3.E101N Capacitor,multilayer ceramic, chip 0805-100P NPO±5%/50V 2 C54 C64

01.54.CS.3.E681N Capacitor,multilayer ceramic, chip 0805-680P NPO±5%/50V 2 (C67) (C68)

01.54.CS.3.E102N Capacitor,multilayer ceramic, chip 0805-102 NPO±5%/50V 2 C56 C69

01.34.CL.D.E1U50VC Capacitor, AL.electrolytic CD110-1UF/50V 5*11 9 C41 C44 EC22 EC23 EC24 EC25 3C1 3C2

01.34.CL.D.EV2U250VC Capacitor, AL.electrolytic CD110-2.2UF/50V 5*11 1 C93

01.34.CL.D.E4U750VC Capacitor, AL.electrolytic CD110-4.7UF/50V 5*11 2 EC43 EC44

01.34.CL.D.E10U16VC Capacitor, AL.electrolytic CD110-10UF/16V 5*11 12 EC15 EC16 EC20 EC21 EC28 EC29 EC33

01.34.CL.D.E22U16VC Capacitor, AL.electrolytic CD110-22UF/16V 5*11 3 C27 C40 C46

01.34.CL.D.E47U16VC Capacitor, AL.electrolytic CD110-47UF/16V 5*11 24 C6 C14 C15 C29 C30 C49 C51 C58 C66

01.34.CL.D.E100U10VD Capacitor, AL.electrolytic CD110-100UF/10V 5*12 7 C11 C25 C39 C45 EC1 EC2 EC32

01.34.CL.D.E100U25VD Capacitor, AL.electrolytic CD110-100UF/25V 6.3*12 4 C17 C76 EC30 EC31

01.34.CL.D.E100U50VD Capacitor, AL.electrolytic CD110-100UF/50V 8*12 2 C4 C7

01.34.CL.D.E220U16VD Capacitor, AL.electrolytic CD110-220UF/16V 6.3*12 18 EC3 EC4 EC5 EC6 EC7 EC8 EC11 EC40

01.34.CL.D.E330U16VD Capacitor, AL.electrolytic CD110-330UF/16V 6.3*12 2 C52 C53

01.34.CL.D.E470U16VD Capacitor, AL.electrolytic CD110-470UF/16V 8*12 3 C5 C13 C18

01.34.CL.D.EV1500U6V3 Capacitor, AL.electrolytic CD110-1500UF/6.3V 8*17 1 C48

Semiconductors

01.41.D.PD.IN4148 Diode IN4148 DIP 5 D15 D17 D18 D19 D20

01.41.D.PD.5393 Diode IN5393 DIP 3 D24 D26 D27

01.41.D.PS.LL4148 Diode LL4148 SMD 2 D16 D25

3C3

EC34 EC35 EC36 EC39 C12

C75 C79 C80 C99 C100 C101 EC9 EC10 EC12 EC13 EC14 EC19 EC27 EC42 EC45

EC41 C1 C3 C8 C16 C19 C34 C77 3C6 3C7

25

HS100 Integrated Hom e Theater System harman/kardon

Part Number Description Qty Reference Designator

MainBoard (1239C-PV1)

01.42.Q.S.9014 Transistor C9014 SMD 7 Q3 Q4 Q5 Q6 Q7 Q8 Q13

01.42.Q.S.8050 Transistor KTC8050 SMD 6 Q23 Q24 Q25 2Q4 2Q5 Q20

01.42.Q.S.8550 Transistor S8550 SMD 5 Q1 Q2 Q12 Q17 Q26

01.42.Q.S.EDTC343 Transistor DTC343TKT146 SMD 4 Q9 Q10 (Q19) (Q27)

01.42.Q.S.DTA114 Transistor DTA114EKAT146 SMD 1 Q22

01.42.Q.S.E3018 Transistor 2SK3018T106 SMD 1 Q18

01.42.Q.D.8050 Transistor 8050 DIP 1 Q16

01.42.Q.D.8550 Transistor 8550 DIP 1 Q15

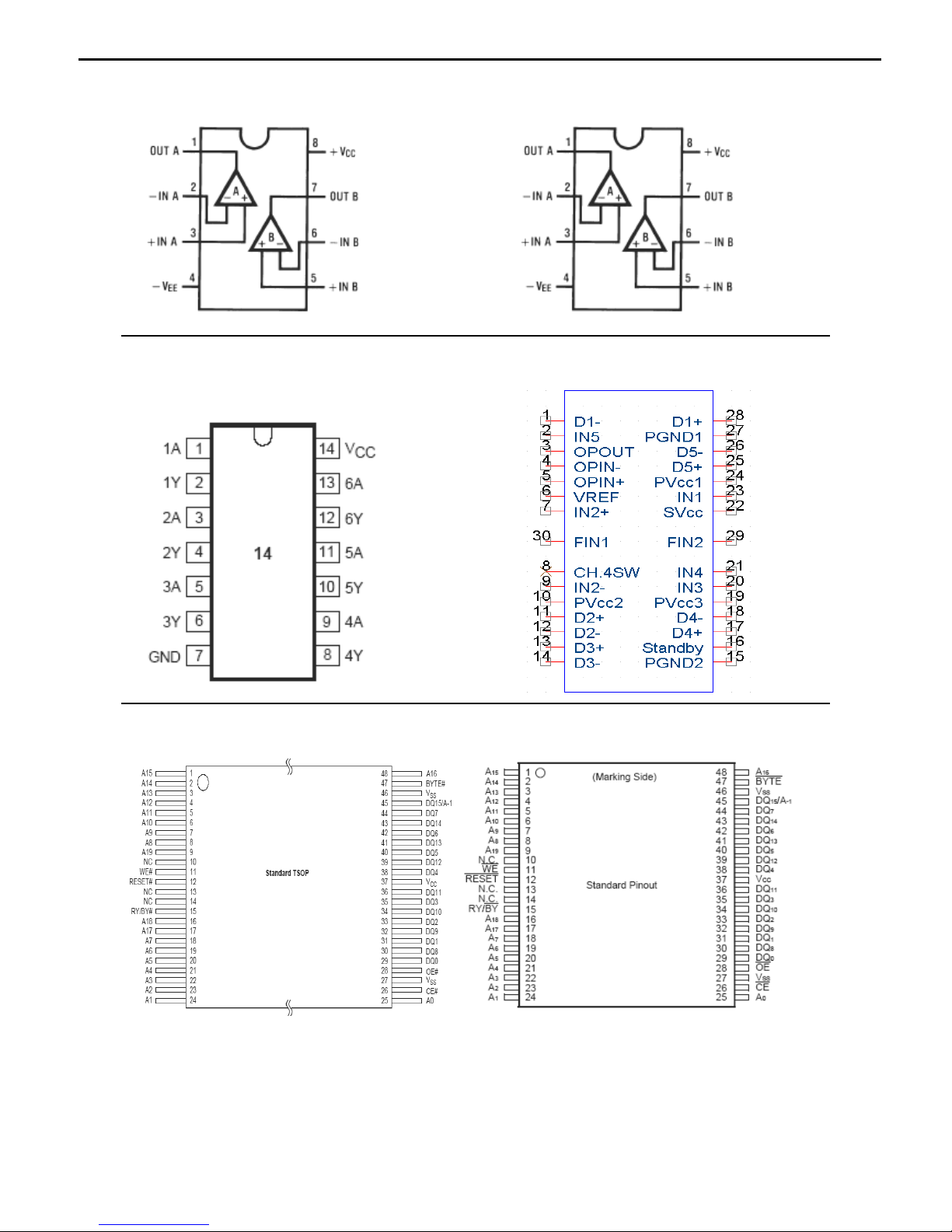

01.44.IC.S.8785 IC, Panasonic, Motor Driver AN8785SB, HSOP042 1 U1

01.44.IC.S.018EZ01 IC, Sharp, Voltage Regulator O18EZ01, PQ025 1 U2

01.44.IC.D.79L05 IC, NS, Voltage Regulator 79L05, 3P, TO-92 1 U3

01.44.IC.S.3390 IC, Amlogic, decoder AML3390DTS, 208P, PQFP 1 U4

01.44.IC.S.74HC164 IC, TI, 8-bit serial-in/ parallel-out

shift register

01.44.IC.S.29LV160DB IC, AMD, Flash AM29LV160DB-90EC, 48P, TSOP48 1 U7（burn-in firmware ）

01.46.IC.27C02 IC, Atmel Servo FLASH. AT27C020-70ZC, PLCC 1 U8（burn-in servo code)

01.44.IC.S.103S47 IC, Panasonic, Servo chip MN103S47JRB, 176P, QFP 1 U9

01.46.IC.641620 IC, Hyundai, SDRAM HY57V641620HGT-7, 54P, TSOP54 1 (U6)

01.44.IC.S.4558 IC, JRC, Pre-amp NJM4558, 8P, SOP 1 U12

01.44.IC.S.833 IC, NS, Pre-amp LM833, 8P, SOP 2 U11 U20

01.44.IC.S.7862 IC, Rohm, Video Buffer BH7862FS, 32P, SSOP-A32 1 U14

01.44.IC.S.4880 IC, NS, Audio Power Amplifier LM4880, 8P, SOP8 1 3U2

01.44.IC.S.24C64 IC, Atmel, EEPROM AT24C64, 8P, SOP 1 U15（burn-in EU or US firmware ）

01.44.IC.S.8728 IC, Wolfson, Audio DAC WM8728, 20P, SSOP20 1 U16

01.44.IC.D.78L05 IC, NS, Voltage Regulator 78L05, 3P, TO-92 3 U10 U13 U19

01.44.IC.S.4052 IC, NS, Analog Multiplexer CD4052, 16P, SOP16 1 U21

01.44.IC.S.74HC158 IC, TI, Data selectors 74HC158, 16P, SOP16 1 U22

01.44.IC.S.5333 IC, Crystal, A/D Converter CS5333, 16P, TSSOP16 1 U23

01.44.IC.D.L7809 IC, NS, Voltage Regulator L7809, 3P, TO-220 1 U24

01.44.IC.S.1924 IC, Rohm, RDS decoder BU1924, 16P, SOP16 1 U25

01.46.IC.7414 IC, Philips, Hex inverting Schmitt

trigger

74HC164, 14P, SO14 1 U5

74HCT14, 14P, SO14 1 U26

Miscellaneous

01.13.L.L.S.E002 Inductor, multilayer ceramic, chip 0603-10UH 1 R136

01.13.L.L.S.E117 Inductor, multilayer ceramic, chip 0805-0.39UH 1 (L18)

01.13.L.L.S.E118 Inductor, multilayer ceramic, chip 0805-0.68UH 2 (L16) (L17)

01.13.L.R.068 Tuner 19k filter EJ219 2 Z1 Z2

01.13.L.Z.ESA300 Bead, chip 0603-300Ω 1 R74

01.13.L.Z.ESA50 Bead, chip 0603-50Ω 11 FB10 FB11 FB12 (FB13) (FB14) (FB15) FB26

01.13.L.Z.ESB50 Bead, chip 0805-50Ω 37 FB1 FB2 FB4 FB6 FB7 FB8 FB27 FB28

01.13.L.Z.ED50A Bead, leaded fixed 50Ω（3.5*6.0*0.8） 4 FB3 FB5 FB9 FB30

01.13.L.Z.EHFSF Bead, without pin HFSFBB3.5*6*0.8 2 match with Y1

01.00.JZ.E27000 Fundamental. Oscillator 27.000MHZ-49S-20P 1 Y1

01.00.JZ.E33868 Fundamental. Oscillator 33.8688MHZ-49S-20P 1 Y2

01.00.JZ.E4332 Fundamental. Oscillator 4.332MHz-49S-20P 1 Y3

01.40.CON.S05.E007 Connector FPC-0.5-24P (upward touching) 1 CN3

01.43.004 Jack, Sharp, Fiber optic input jack GP1FA513RZ, In-line Package 1 CN2

01.40.CON.DCZ.062 Connector 1.25-11P 1 CN1

01.40.CON.DPH.023 Connector PH-5A, 5P, In-line Package 2 CN4 CN6

01.40.CON.DPH.027 Connector PH-6A, 6P, In-line Package 1 CN5

01.40.CON.DPH.041 Connector PH-9A, 5P, In-line Package 1 CON6

01.40.CON.DPH.001 Connector PH-10A, 6P, In-line Package 1 CON7

01.40.CON.DCZ.142 Video&S-Video output jack SAV-01 (yellow) 1 CON8

01.40.CON.DCZ.183 Component Video output jack AV3-8.4-13G 1 CON4

01.40.CON.DCZ.173 Audio output&input jack AV4-8.4-5 1 CON9

01.40.CON.DCZ.123 Coaxial output jack AV1-8.4-6G (orange) 1 CON5

01.40.CON.S10.E024 Connector 1.0-16P 1 CON1

FB31 FB32 FB33 (FB34)

FB29 L1 L2 L3 L4 L5 L6 L7 (L8) L9 L10 L11 L12 L13 L14 L15 L19 L20 L21 L22 (L23) L24 L25 L26 L28 L29 L30 L31 L33

A

26

HS100 Integrated Hom e Theater System harman/kardon

Part Number Description Qty Reference Designator

MainBoard (1239C-PV1) only for US version

01.57.R.2.E472J

01.57.R.2.E822J

01.57.R.C.EC302

01.57.R.Y.270

01.40.CON.DCZ.182

Resistor, chip Resistor, chip Fixed carbon film Zinc oxide varistor, for ESD Connector

0603-4.7KΩ±5% 4 0603-8.2KΩ±5% 2 RT1/6W-3KΩ 2

VR-M1608C270MTABB 2 V2-8.4-7B/PB 1

R92 R101 R104 R105 R88 R94 hand-make solder ESD4 ESD5 CON3

MainBoard (1239C-PV1) only for EU version

01.57.R.2.E750F

01.57.R.2.E202J

01.57.R.2.E332J

01.57.R.2.E472J

01.57.R.2.E822J

01.57.R.2.E153J

01.57.R.C.ED151

01.57.R.C.ED102

01.57.R.Y.270

01.54.CS.2.E104Y

01.13.L.Z.ESA50

01.42.Q.S.EDTC343

01.40.CON.DCZ.181 SCART Connector CS-101 with shield 1

Resistor, chip Resistor, chip Resistor, chip Resistor, chip Resistor, chip Resistor, chip Fixed carbon film Fixed carbon film Zinc oxide varistor, for ESD Capacitor, multilayer ceramic, chip Bead, chip Transistor

0603-75Ω±1% 4 0603-2KΩ±5% 2 0603-3.3KΩ±5% 6 0603-4.7KΩ±5% 3 0603-8.2KΩ±5% 4 0603-15KΩ±5% 1 RT1/4W-150Ω 1 RT1/4W-1KΩ 2

VR-M1608C270MTABB 6

0603-104 Y5V-20+80%/50V 3 0603-50Ω 6 DTC343TKT146 SMD 3

R49 R50 R51 R52 2R11 2R12 2R3 2R4 2R6 2R7 2R8 2R9 R104 R105 2R10 R88 R94 R92 R101 (2R13) 2R5 2R1 2R2 ESD4 ESD5 ESD6 ESD7 ESD8 ESD9 CB100 CB101 CB109 FB18 FB19 FB20 FB21 FB22 FB23 2Q1 2Q2 2Q3 CON3

Amplifier Board (1241C-1)

Resistors

01.57.R.2.E000J Resistor, chip 0603-0Ω ±5% 6 RR1 RR2 RR3 RR7 RR8 RR9

01.57.R.2.E151J Resistor, chip 0603-150Ω±5% 1 R11

01.57.R.2.E271J Resistor, chip 0603-270Ω±5% 1 R15

01.57.R.2.E102J Resistor, chip 0603-1KΩ±5% 2 R8 R12

01.57.R.2.E152J Resistor, chip 0603-1.5KΩ±5% 3 R7 R9 R10

01.57.R.2.E332J Resistor, chip 0603-3.3KΩ±5% 1 AR5

01.57.R.2.E103J Resistor, chip 0603-10KΩ±5% 7 R3 R4 R5 R6 AR9 AR16 AR23

01.57.R.2.E473J Resistor, chip 0603-47KΩ±5% 1 R13

01.57.R.4.E4R7J Resistor, chip 1206-4.7Ω±5% 10 AR6 AR7 AR10 AR11 AR13 AR14 AR17

01.57.R.4.E150J Resistor, chip 1206-15Ω±5% 5 AR8 AR12 AR15 AR19 AR22

AR18 AR20 AR21

Capacitors

01.54.CS.2.E270N Capacitor,multilayer ceramic, chip 0603-27P NPO±5%/50V 1 C2

01.54.CS.2.E101N Capacitor,multilayer ceramic, chip 0603-100P NPO±5%/50V 1 C5

01.54.CS.2.E221N Capacitor,multilayer ceramic, chip 0603-220P NPO±5%/50V 1 AC22

01.54.CS.2.E102X Capacitor,multilayer ceramic, chip 0603-102 X7R±10%/50V 2 AC6 C4

01.54.CS.2.E153Y Capacitor,multilayer ceramic, chip 0603-153 Y5V-20+80%/50V 1 C1

01.54.CS.2.E104Y Capacitor,multilayer ceramic, chip 0603-104 Y5V-20+80%/50V 42 (CB2) CB3 (CB4) (AC1) (AC2) (AC3)

01.54.CS.3.E102N Capacitor,multilayer ceramic, chip 0805-102 NPO±5%/50V 10 (CB7) (CB8) (CB9) (CB10) (CB11) (CB12)

01.54.CS.2.E122X Capacitor,multilayer ceramic, chip 0603-122 X7R±10%/50V 1 AC20

01.54.CS.3.E104Y Capacitor,multilayer ceramic, chip 0805-104 Y5V+80-20%/50V 20 AC28 AC33 AC38 AC41 AC43 AC47 AC52

01.54.CS.4.E470 Capacitor,multilayer ceramic, chip 1206-470P X7R±10%/50V 5 AC30 AC46 AC58 AC74 AC86

01.33.CT.C1U50V Solid Electrolyte Tantalum Chip

Capacitor

01.33.CT.B22U10V Solid Electrolyte Tantalum Chip

Capacitor

01.34.CL.D.E68463J Box-type metallized poly film cap 0.68uF 63V J NPO P=5 5 AC36 AC49 AC64 AC77 AC92

01.34.CL.D.E10U25VC Capacitor, AL.electrolytic CD110-10UF/25V 5*11 1 EC5

C-1UF-50V 5 AC37 AC44 AC65 AC72 AC93

B-22UF-10V 2 AC11 AC24

(AC4) (AC7) (AC8) (AC9) (AC10) (AC13) (AC14) (AC15) AC18 (AC19) AC23 AC25 (AC26) (AC27) (AC29) AC31 AC32 AC40 AC42 AC50 AC51 AC55 AC59 AC60 AC68 AC70 AC78 AC79 AC83 AC87 AC88 AC98 AC96

(CB13) (CB14) (CB15) (CB16)

AC54 AC56 AC61 AC66 AC69 AC71 AC75 AC80 AC82 AC84 AC89 AC94 AC97

27

HS100 Integrated Home Theater System harman/kardon

Part Number Description Qty Reference Designator

Amplifier Board (1241C-1)

01.34.CL.D.E100U16VC Capacitor, AL.electrolytic CD110-100UF/16V 5*11 3 EC1 EC2 AC12

01.34.CL.D.E1000U50V Capacitor, AL.electrolytic CD288H-1000UF/50V 13*25 3 AC34 AC62 AC90

01.34.CL.D.E47U16VC Capacitor, AL.electrolytic CD110-47UF/16V 5*11 2 EC3 EC4

Semiconductors

01.44.IC.S.2100 IC, Apogee, Power Device DDX2100, 36P 3 AU1 AU2 AU3

01.44.IC.S.8001 IC, Apogee, Digital Audio

Processor

01.44.IC.S.3522 IC, Analogic, Microprocessor Reset

Circuit

01.42.Q.S.EDTC343 Transistor DTC343TKT146 SMD 1 Q2

01.44.IC.S.4558 IC, JRC, Pre-amp NJM4558, 8P, SOP 1 U4

01.44.IC.S.9161A IC, RichTek, Voltage Regulator RT9161/A-33, 4P, SOT-89 1 U1

01.41.D.PS.LL4148 Diode LL4148 SMD 2 D4 D5

Miscellaneous

01.13.L.Z.ESB50 Bead, chip 0805-50Ω 1 FB1

01.13.L.Z.ESB300 Bead, chip 0805-300Ω 2 L2 L3

01.13.L.L.D.127 Magnetic shielding Inductor 983BN-1003-15UH 10 LL1 LL2 LL3 LL4 LL5 LL6 LL7 LL8 LL9 LL10

01.00.FZ.ZZ.009 Jumper 5mm 1 Q1

01.40.CON.DCZ.129 Connector Vertical VH three holes two pins 1 CN1

01.40.CON.S10.E024 Connector 1.0-16P 1 CN5

01.40.CON.DCZ.172 Sub output jack AV1-8.4-6G (Purple) 1 CN3

01.40.CON.DCZ.184 Amplifier output jack WP10-23-3 1 CN4

01.40.CON.DPH.058 Connector PH-5A 1 CN6

DDX8001, 64P, TQFP64 1 U3

AAT3522IGY-3.08, 3P, SST3 1 U2

Front Panel Board - VFD board (1813C)

01.57.R.3.E472J Resistor, chip 0805-4.7KΩ±5% 1 3R35

01.57.R.3.E103J Resistor, chip 0805-10KΩ±5% 3 3R1 3R2 3R14

01.57.R.3.E203J Resistor, chip 0805-20KΩ±5% 1 3R13

01.57.R.Y.270 Zinc oxide varistor, for ESD AVR-M1608C270MTABB 2 ESD1 ESD2

01.54.CS.3.E300N Capacitor,multilayer ceramic, chip 0805-30P NPO±5%/50V 1 3C18

01.54.CS.3.E560N Capacitor,multilayer ceramic, chip 0805-56P NPO±5%/50V 2 C90 C91

01.54.CS.3.E101N Capacitor,multilayer ceramic, chip 0805-100P NPO±5%/50V 3 3C4 3C19 3C20

01.54.CS.3.E473X Capacitor,multilayer ceramic, chip 0805-473 X7R±10%/50V 2 3C21 3C22

01.54.CS.3.E104Y Capacitor,multilayer ceramic, chip 0805-104 Y5V+80-20%/50V 1 3CB1

01.54.CS.3.E225Y Capacitor,multilayer ceramic, chip 0805-225 Y5V-20+80%/16V 1 3CB5

01.34.CL.D.EX100U16VB Capacitor, AL.electrolytic CD11X-100UF/16V 6.3*7 1 3C5

01.41.D.PS.LL4148 Diode LL4148 SMD 1 3D12

01.42.Q.S.8050 Transistor KTC8050 SMD 1 3Q2

01.42.Q.S.8550 Transistor S8550 SMD 1 3Q1

01.44.IC.S.75710 IC, Sanyo, VFD driver LC75710 1 3U2

01.44.IC.D.38B17 IR receiver HL38B17, DIP 1 3IR1

01.13.L.Z.ESB220 Bead, chip 0805-220Ω 2 FB9 FB10

01.13.L.Z.ESB50 Bead, chip 0805-50Ω 1 FB5

01.13.L.L.S.E007 Inductance, chip 0805-10UH 1 FB11

190-0001301F-0120 VFD VFD22-1301F 1 VFD

01.40.CON.DCZ.219 Headhpone jack CKX-3.5-12 1 3J5

01.40.CON.DPH.023 Connector PH-5A 1 3J3

01.40.CON.DPH.031 Connector PH-7A 1 3J10

01.40.CON.DPH.041 Connector PH-9A 2 3J11 3J12

Front Panel Board - Volume board (1814C)

01.57.R.3.E000J Resistor, chip 0805-0Ω ±5% 2 3R15 3R21

01.57.R.3.E101J Resistor, chip 0805-100Ω±5% 2 3R17 3R19

01.57.R.3.E301J Resistor, chip 0805-300Ω±5% 4 3R6 3R28 3R29 3R30

01.57.R.3.E222J Resistor, chip 0805-2.2KΩ±5% 1 3R24

01.57.R.3.E103J Resistor, chip 0805-10KΩ±5% 3 3R20 3R22 3R23

01.57.R.3.E104J Resistor, chip 0805-100KΩ±5% 1 3R18

01.54.CS.3.E123X Capacitor,multilayer ceramic, chip 0805-123 X7R±10%/50V 1 3CB8

01.54.CS.3.E104Y Capacitor,multilayer ceramic, chip 0805-104 Y5V+80-20%/50V 1 3CB4

28

HS100 Integrated Hom e Theater System harman/kardon

Part Number Description Qty Reference Designator

Front Panel Board - Volume board (1814C)

01.54.CS.3.E105Y Capacitor,multilayer ceramic, chip 0805-105 Y5V-20+80%/16V 1 3CB7

01.34.CL.D.E47U10V2B Capacitor, AL.electrolytic CD11X-47UF/10V 4*7 1 3C3

01.34.CL.D.E22U35VB Capacitor, AL.electrolytic CD11X-22UF/35V 5*7(105℃) 8 3C1 3C8 3C9 3C10 3C11 3C12 3C14 3C15

01.34.CL.D.E100U35VD Capacitor, AL.electrolytic CD110-100UF/35V 6.3*12 2 3C6 3C7

01.34.CL.D.E22U50VB Capacitor, AL.electrolytic CD11X-22UF/50V 6.3*7 1 3C13

01.41.D.PS.LL4148 Diode LL4148 SMD 9 3D1 3D2 3D3 3D4 3D5 3D6 3D7 3D8 3D10

01.41.D.WD.6V2 Zener Diode 6.2V 1 3DZ1

01.44.IC.S.9022

01.36.VR.20K Volume encoder ED1612-24-24HC-F20(Z) 1 CON1

01.41.D.FD.65018 Diode, color is blue HFBA65018CP Ф5 4 3LD1 3LD2 3LD3 3LD4

01.40.CON.DPH.031 Connector PH-7A 1 3J9

Front Panel Board - Button board (1815C)

01.57.R.3.E101J Resistor, chip 0805-100Ω±5% 1 3R38

01.57.R.3.E471J Resistor, chip 0805-470Ω±5% 1 3R7

01.57.R.3.E102J Resistor, chip 0805-1KΩ±5% 1 3R4

01.57.R.3.E472J Resistor, chip 0805-4.7KΩ±5% 7 3R3 3R25 3R26 3R27 3R31 3R34 3R36

01.57.R.3.E153J Resistor, chip 0805-15KΩ±5% 1 3R5

01.54.CS.3.E220N Capacitor,multilayer ceramic, chip 0805-22P NPO±5%/50V 2 3C16 3C17

01.54.CS.3.E821N Capacitor,multilayer ceramic, chip 0805-820P NPO±5%/50V 2 3C23 3C24

01.54.CS.3.E104Y Capacitor,multilayer ceramic, chip 0805-104 Y5V+80-20%/50V 2 3CB3 3CB6

01.54.CS.3.E225Y Capacitor,multilayer ceramic, chip 0805-225 Y5V-20+80%/16V 1 3CB2

01.34.CL.D.E47U10V2B Capacitor, AL.electrolytic CD11X-47UF/10V 4*7 1 3C2

01.41.D.PS.LL4148 Diode LL4148 SMD 1 3D9

01.42.Q.S.8550 Transistor S8550 SMD 1 3Q5

01.00.JZ.E04000 Fundamental. Oscillator 4.000MHZ-49S-22P 1 3Y1

01.39.SW.QC.D665 Touch switch 6*6*5 5 3K2 3K3 3K4 3K5 3K6

01.44.IC.D.16C56A IC, Microchip, MCU PIC16C56A-04/P 1 3U1 (burn-in MCU code)

01.40.CON.DPH.060 Connector PH-7A 1 3J7

01.40.CON.DPH.041 Connector PH-9A 1 3J8

01.40.CON.DTJ.006 Connector TJC3-3A 1 3J4

IC, NS, Vacuum Fluorescent Display Filament Driver

LM9022, 8P, SO8 1 3U3

Front Panel Board - Standby board (1816C)

01.57.R.3.E621J Resistor, chip 0805-620Ω±5% 2 3R11 3R111

01.57.R.3.E202J Resistor, chip 0805-2KΩ±5% 2 3R12 3R122

01.57.R.3.E472J Resistor, chip 0805-4.7KΩ±5% 2 3R9 3R10

01.41.D.PS.LL4148 Diode LL4148 SMD 2 3D14 3D15

01.42.Q.S.8050 Transistor KTC8050 SMD 1 3Q3

01.42.Q.S.8550 Transistor S8550 SMD 1 3Q4

01.41.D.FD.503 Diode, color is blue & orange HFT503CPB0 2 3LCD1 3LCD2

01.39.SW.QC.D665 Touch switch 6*6*5 2 3K1 3K7

01.40.CON.DPH.060 Connector PH-7A 1 3J6

Power Supply Board (1356C)

Resistors

01.57.R.C.EC100 Fixed carbon film RT1/6W-10Ω 4 R3 R5 R23 R25

01.57.R.C.EC101 Fixed carbon film RT1/6W-100Ω 1 R16

01.57.R.C.EC221 Fixed carbon film RT1/6W-220Ω 2 R13 R14

01.57.R.C.EC331 Fixed carbon film RT1/6W-330Ω 1 R30

01.57.R.C.EC102 Fixed carbon film RT1/6W-1KΩ 3 R27 R31 R36

01.57.R.C.EC222 Fixed carbon film RT1/6W-2.2KΩ 4 R18 R19 R20 R29

01.57.R.C.EC512 Fixed carbon film RT1/6W-5.1KΩ 6 R33 R32 R11 R12 R15 R17

01.57.R.C.EC103 Fixed carbon film RT1/6W-10KΩ 1 R10

01.57.R.C.EC123 Fixed carbon film RT1/6W-12KΩ 1 R22

01.57.R.C.EC303 Fixed carbon film RT1/6W-30KΩ 1R9

01.57.R.C.EC104 Fixed carbon film RT1/6W-100KΩ 1 R21

01.57.R.C.ED200 Fixed carbon film RT1/4W-20Ω 1 R26

01.57.R.C.ED301 Fixed carbon film RT1/4W-300Ω 1 R39

01.57.R.C.ED102 Fixed carbon film RT1/4W-1KΩ 1 R35

01.57.R.C.ED473 Fixed carbon film RT1/4W-47KΩ 1R4

29

HS100 Integrated Hom e Theater System harman/kardon

Part Number Description Qty Reference Designator

Power Supply Board (1356C)

01.57.R.C.ED303 Fixed carbon film RT1/4W-30KΩ 2 R7 R8

01.57.R.C.ED474 Fixed carbon film RT1/4W-470KΩ 1R2

01.57.R.C.ED105 Fixed carbon film RT1/4W-1MΩ 1R0

01.57.R.C.40E435 Cermet Resistor RI40-1/2W-4.3MΩ 1R6

01.57.R.C.EF683 Fixed carbon film RT1W-68KΩ 2 R1 R24

01.57.R.C.EGR22 Fixed carbon film RT2W-0.22Ω 1 R28

01.57.R.C.EG102 Fixed carbon film RT2W-1KΩ 2 R34 R38

01.57.R.R.5D9 NTC thermistor NTC-5D-9 1 NTC

01.57.R.Y.10K Zinc oxide varistor 10K.471 1 RV1

Capacitors

01.00.CD.GY.E104275V High-voltage metallized polyester

film

01.00.CD.GY.E471400V High-voltage metallized polyester

film

01.00.CD.GY.E221400V High-voltage metallized polyester

film

01.00.CD.CP.E1031KV High-voltage metallized polyester

film

01.00.CD.DS.E47150V Radial leads mlcc 471/50V X7R±10% 1 C13

01.00.CD.DS.E47325V Radial leads mlcc 473/25V X7R±10% 3 C2 C8 C14

01.00.CD.DS.E10425V Radial leads mlcc 104/25V X7R±10% 6 C3 C4 C5 C6 C7 C11

01.00.CD.DS.E27250V Radial leads mlcc 272/50V X7R±10% 1 C12

01.00.CD.JZ.104100VJ Metallized capacitor CT-104/100V 1 C16

01.34.CL.D.E1U50VC Capacitor, AL.electrolytic CD110-1UF/50V 5*11 2 EC22 EC25

01.34.CL.D.E2U225VC Capacitor, AL.electrolytic CD110-2.2UF/25V 5*11 1 EC10

01.34.CL.D.E47U50VCD Capacitor, AL.electrolytic CD110-47UF/50V 6.3*12 2 EC1 EC17

01.34.CL.D.E100U16VC Capacitor, AL.electrolytic CD110-100UF/16V 5*11 3 EC23 EC24 C9

01.34.CL.D.E100U25VD Capacitor, AL.electrolytic CD110-100UF/25V 6.3*12 4 EC3 EC4 EC5 EC6

01.34.CL.D.E1000U35V Capacitor, AL.electrolytic CD288H-1000UF/35V 12*25 105°C 4 EC18 EC19 EC20 EC21

01.34.CL.D.E1000U16VG Capacitor, AL.electrolytic CD288H-1000UF/16V 10*20 105°C 2 EC13 EC14

01.34.CL.D.E220U10VD Capacitor, AL.electrolytic CD110-220UF/10V 5*12 2 EC9 EC15

01.34.CL.D.E220U16VD Capacitor, AL.electrolytic CD110-220UF/16V 6.3*12 4 EC7 EC8 EC11 EC12

01.34.CL.D.E220U400V Capacitor, AL.electrolytic CD294-220UF/400V 25*40 105°C 1 EC16

01.34.CL.D.E4U7160V Capacitor, AL.electrolytic CD110-4.7UF/160V 8*13 1 EC2

Semiconductors

01.41.D.PD.8M Bridge Rectifiers KBU8M 1 BG1

01.41.D.PD.21DQ10 Diode 21DQ10 DIP 1 D7

01.41.D.PD.31DQ06 Diode 31DQ06 DIP 1 D9

01.41.D.PD.FR107 Fast recovery rectifiers diode FR107 DIP 8 D1 D2 D3 D5 D6 D8 D13 D15

01.41.D.PD.IN4148 Switching Diode IN4148 DIP 4 D10 D11 D12 D16

01.41.D.PD.20A20 Schottky diode FCH20A20 DIP 2 D17 D18

01.41.D.PD.207 Fast recovery rectifiers diode FR207 DIP 1 D14

01.41.D.WD.24V Zener Diode 24V 1 ZD1

01.41.D.WD.18V Zener Diode 18V 1 ZD2

01.41.D.PD.MCR100-6 Silicon controlled rectifiers MCR100-6 DIP 1 SC1

01.42.Q.D.5551 NPN Transistor 2N5551 DIP 2 Q1 Q3

01.42.Q.D.9014 NPN Transistor C9014 DIP 2 Q4 Q7

01.42.Q.D.8550 PNP Transistor 8550 DIP 1 Q5

01.44.IC.D.11N90 MOS-FET FQA11N90 DIP 1 Q6

01.44.IC.D.L7805 IC, NS, Voltage Regulator L7805 DIP 1 IC5

01.44.IC.D.7812 IC, NS, Voltage Regulator L7812 DIP 1 IC3

01.44.IC.D.7912 IC, NS, Voltage Regulator L7912 DIP 1 IC4

01.44.IC.D.BA033T IC, Rohm, Voltage Regulator BA033T DIP 1 IC6

01.44.IC.D.7554 IC, Fairchild, Versatile PWM Control FAN7554 DIP 1 IC2

01.44.IC.D.5L0380R IC, Fairchild, Power Switch KA5L0380RYDTU DIP 1 IC1

01.44.IC.D.KA431A IC, Fairchild, Precision Adjustable

Voltage Regulator

01.44.IC.D.PC817 IC, Sharp, Photoelectric Coupler PC817 DIP 2 PH1 PH2

104/275V X2 3 CX3 CX1 CX2

471/400V Y1 4 CY3 CY4 CY5 CY6

221/400V Y1 2 CY1 CY2

103/1KV 2 C1 C10

KA431AZ DIP 2 IC7 IC8

Miscellaneous

01.13.L.L.D.013 Filter inductor L630-100 1 L7

30

HS100 Integrated Hom e Theater System harman/kardon

Part Number Description Qty Reference Designator

Power Supply Board (1356C)

01.13.L.L.D.085 Filter inductor L630(10UH) 1 L6

01.13.L.L.D.E002 Filter inductor LH0608-20UH 4 L2 L3 L4 L5

01.13.L.L.D.132 Common Mode Choke LCL-UF1601(30mH) 1 LF2

01.13.L.L.D.133 Common Mode Choke LCL-203A(20mH) 1 LF1

01.13.L.L.D.037 Inductor 10UH 1 FB1

01.13.L.L.D.134 Filter inductor 470UH 1 LF3

01.40.CON.DCZ.129 Connector Vertical VH three holes two

pins(white)

01.40.CON.DCZ.130 Connector Vertical VH three holes two

pins(orange)

01.40.CON.DTJ.006 Connector TJC3-3A 1 CN4

01.40.CON.DTJ.028 Connector TJC3-10A 1 CN5

01.40.CON.DTJ.011 Connector TJC3-5A 1 CN6

01.40.CON.DCZ.131 Fuse Holder BLX-2A 1 FU1

01.38.FUSE.D.315AL Fuse T3.15AL/250V 1 FU1

01.13.L.R.082 Transformer BCK-ER2802S1 1 TR1

01.13.L.R.081 Transformer BCK-EC4201A 1 TR2

2 CN2 CN3

1 CN1

31

HS100 Integrated Hom e Theater System harman/kardon

HS100 Mechanical Parts List

Part Number Description Qty Notes

01.15.JX.DV342 loader DV342 loader 1

01.49.06 Tuner module TFCF1E803A EU version 1

01.49.07 Tuner module TFCF1E804A US version 1

01.00.WJ.TJ.415 HS100 metals part HS100-chassis 1

01.00.WJ.TJ.416 HS100 metals part HS100-top cover 1

01.00.WJ.TJ.417 HS100 metals part HS100-rear panel (EU) 1

01.00.WJ.TJ.418 HS100 metals part HS100-rear panel (US) 1

01.00.WJ.TJ.419 HS100 metals part HS100-heatsink support 1

01.00.WJ.TJ.544 HS100 metals part HS100-top cover support 1

01.13.L.H.011 Magnetism annulus H16*9*28-HA 1

01.00.WJ.TJ.420 heatsink 135*95*45mm 1

01.00.WJ.TJ.317 heatsink 16*12*32mm 2

01.00.WJ.TJ.421 heatsink 50*19*35mm 1

01.00.WJ.TJ.268 heatsink 28*28*10mm 1

01.00.WJ.QT.041 3 pin grounding piece M4 4

01.00.SJ.HS100.001 HS100 plastic part

01.00.SJ.HS100.002 HS100 plastic part

01.00.SJ.HS100.003 HS100 plastic part

01.00.SJ.HS100.004 HS100 plastic part

01.00.SJ.HS100.005 HS100 plastic part

01.00.SJ.HS100.006 HS100 plastic part

01.00.SJ.HS100.007 HS100 plastic part

01.00.SJ.HS100.008 HS100 plastic part

01.00.SJ.HS100.009 HS100 plastic part

01.00.SJ.HS100.010 HS100 plastic part

01.00.SJ.HS100.011 HS100 plastic part

01.00.SJ.HS100.012 HS100 plastic part

01.00.SJ.HS100.013 HS100 plastic part

01.00.SJ.HS100.014 HS100 plastic part

01.00.SJ.1000A.016 HS100 plastic part 1000A-IR receiver support 1

01.00.FZ.TG.025 Screw map Ф3*4mm 2

01.00.SJ.QT.005 PCB plastic frame Φ7*8mm 8

01.00.FZ.QT.153 astigmatism PVC Φ45.5*Φ9.5mm 1

01.00.SJ.QT.001 VFD filter 105.7mm*24.3mm*0.5 1

01.40.CON.DCZ.178 AC power socket WS-044-0 1

01.00.SB.035 Metal logo 47mm"Harman" supper slim logo 1

01.00.SB.036 Metal logo 100mm"Harman" supper slim logo 1

01.00.SB.037 Metal logo HS100 supper slim logo 1

01.13.L.H.020 Magnetism annulus M248 1

01.00.FZ.QT.122 Plastic fastener 12mm 3

01.47.CNT.LJX.7.026 Connect cable 2.0-5Y-5Y-260mm -B 1

01.47.CNT.LJX.7.087 Connect cable 2.0-6Y-6Y-320mm -B 1

01.47.CNT.LJX.7.096 Connect cable VH 40mm 1

01.47.CNT.LJX.7.088 Connect cable 2.0-9Y-9Y-320mmA 1

01.47.CNT.LJX.4.015 Connect cable 2.54-10Y-2.0-160mmB 1

01.47.CNT.LJX.4.016 Connect cable 2.54-5Y-2.0-200mmA 1

01.47.CNT.LJX.7.097 Connect cable VH-3Y-2Y-2Y-180mmB 1

01.47.CNT.LJX.7.172 Connect cable VH-3Y-2Y-700mm 1

01.47.CNT.LJX.7.173 Connect cable 2.0-5Y-5Y-720mmA (with shield) 1

01.47.CNT.LJX.4.013 Connect cable 2.54-3Y-3Y-150mmA 1

01.47.CNT.LJX.7.090 Connect cable 2.0-7Y-7Y-240mmA 1

01.47.CNT.LJX.7.150 Connect cable 2.0-9Y-9Y-60mmB 1

01.47.CNT.LJX.7.092 Connect cable 2.0-7Y-7Y-80mmA 1

01.47.CNT.LJX.5.052 Grounding cable 40mm(solder one end and grounding piece 1

01.47.CNT.LJX.5.023 Grounding cable 35mm 1

HS100－front panel HS100－5 in 1 button HS100－2 in 1 button HS100－5 in 1 button collar HS100－Open/Close button collar HS100－volume chamfer HS100－power indicator lampshade HS100－volume button lampshade HS100－disc tray door HS100－volume button HS100－pedestal underlay HS100－ HS100－len for VFD HS100－little plastic piece

len for tray door

EU version US version HS100-PT01 HS100-PT02 HS100-PT03 HS100-PT03 DSC1000-PT07 HS100-PT04 toggle headphone line DSC1000-PT08 for AMP board match D17，D18 match Q6 on SMPS for U4 on mainboard G1 G2 G3 G4 on SMPS HS100-RE01

1

HS100-RE02

1

HS100-RE03

1

HS100-RE04

1

HS100-RE05

1

HS100-RE06

1

HS100-RE07

1

HS100-RE08

1

HS100-RE09

1

HS100-RE10

1

HS100-RE11

2

HS100-RE12

1

HS100-RE13

1

HS100-RE14

1

between volume button and PCB

stick on the len for tray door stick on the top cover stick on len for front panel for AC power cord

connect loader and mainboard connect loader and mainboard for CN1 on power supplier board connect VFD board and mainboard connect power supplier board and mainboard connect power supplier board and amplifier board connect power supplier board and amplifier board connect power supplier board and AC power socket connect front panel board and mainboard connect VFD board and power supplier board connect 1815C and 1816C connect 1815C and 1813C connect 1814C and 1813C connct 1813C and ground connect point A and B on power supplier board

n

32

HS100 Integrated Hom e Theater System harman/kardon

01.48.BPX.1.E084 flat cable 1.0*16P*50mmA 1

01.48.BPX.1.E085 flat cable 1.25*11P*70mmA 1

01.48.BPX.2.E031 flat cable 0.5*24P*190mmB 1

01.00.DP.XJ.E192 silica gel underlay 50.6*4.2*1.5mm (with 500# white glue) 4

01.00.DP.HM.E165 sponge 10*10*4mm (with double sides glue) 1

01.00.DP.HM.E199 sponge 20*20*7mm (with double sides glue) 2

01.00.DP.HM.E142 sponge 20*10*2.5mm (with double sides glue) 1

01.00.DP.JY.E110 Insulated PVC 130*126mm (with single side glue) 1

01.00.DP.JY.E149 Insulated PVC

01.00.DP.HM.E198 sponge 20*20*11mm (with double sides glue) 1

01.00.DP.HM.E250 sponge 20*20*10mm (with single side glue) 3

01.00.DP.HM.E207 sponge 20*10*10mm (with single side glue) 2

01.00.DP.HM.E015 sponge 20*20*3.5 (with single side glue) 2

01.00.DP.HM.E252 sponge 20*20*10mm (with double sides glue) 1

01.00.DP.HM.E255 sponge 70*30*67mm( +0/-0.5 with single side glue) 1

01.00.DP.HM.E243 sponge 165*12*2mm (with single side glue) 1

01.00.DP.JY.111 Talc piece 20*24mm 1

01.00.DP.JY.112 Diathermanous Se Rubber 16*11*1mm 3

01.00.DD.PM.074 sponge with electric material 10*10*15mm 5

01.00.DD.QT.E049 I/O electric interleaver WNH4P-S-46.2-2-96-N-P 1

01.00.DD.QT.E050 electric cloth 95*12mm 1

80*55*0.5mm （transparence PVC with si

connect amplifier board and mainboard

connect tuner module and mainboard connect loader and mainboard HS100-H01 for pedestal underlay for IR receiver support for VFD fixed plat cable on the chassie for power supplier stick on the top cover support

1

place between the main transfer and chassis place under the amplifier board place under the amplifier board place between the amplifier board and heatsink place between tuner module and left side of chassis place on the chassis to support the top cover

match Q6 on SMPS place on AU1 AU2 AU3 fixed on the mainboard and amplifier board cover on the amplifier output jack connect the bottom ground and amplifier output jack

33

HS100 Integrated Home Theater System harman/kardon

34

HS100 Integrated Home Theater System harman/kardon

35

HS100 Integrated Home Theater System harman/kardon

36

HS100 Integrated Home Theater System harman/kardon

37

HS100 Integrated Home Theater System harman/kardon

38

HS100 Integrated Home Theater System harman/kardon

39

HS100 Integrated Home Theater System harman/kardon

40

HS100 Integrated Home Theater System harman/kardon

41

HS100 Integrated Home Theater System harman/kardon

42

HS100 Integrated Home Theater System harman/kardon

Pinouts for HS 100

8050, NPN Transistor, SMD 8550, NPN Transistor, SMD

9014, NPN Transistor, SMD DTC343TK, NPN Transistor, SMD

DTC114EKA, PNP Transistor, SMD 2SK3018, Silicon N-channel MOSFET, SMD

AT27C020-70JC, Servo Memory, SMD PT28C020P-90, Servo Memory, SMD

43

HS100 Integrated Home Theater System harman/kardon

LM833M, pre-amp, SMD NJM4558, pre-amp, SMD

74HCT14, Hex inverting Schmitt trigger, SMD AN8785SB, motor driver, SMD

AM29LV160DB-90EC, flash, SMD MBM29LV160BE-70P, flash, SMD

44

HS100 Integrated Home Theater System harman/kardon

AML3390DTS, decoder, SMD

AML3390DTS

64

14

13

12

11

10

15

54

16

66

18

1

17

65

79

104

52

5

4

3

51

20

31 32

30

53

19

2

78

67

22

25

28

23

26

29

33 35

34

27

24

21

44

47

50

41

40

39

38

36

49

46

43

37

48

45

42

6 7 8 9

63

6059585756

55

62

61

80

686970717273747576

779381828384858889909192949596979899100

101

87

86

103

102

156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

172

170

171

169

168

167

166

165

164

163

162

161

160

159

158

157

M1_D7

ADATA0

ADATA1

ADATA2

ADATA3

AOCLK

ALRCLK

IEC958

AMCLK

VDD_18

VSS_18

VDD_DAC1

VD4

VD5

VD6

VSS_DAC1

VSS_DAC0

RSET0 VREF0_OUT

COMP0

ADC

VDD_DAC0

VD7

M1_A11

M1_DQM0

AVDD_DAC0_B

AVDD_DAC0_G

AVDD_DAC0_R

AVSS_DAC0_B

AVSS_DAC0_G

AVSS_DAC0_R

VRET0_IN AVDD_DAC0

AVSS_DAC0

AVID0

AVID1

AVID2

AVID3

AVID4

AVID5

COMP1

RSET1

VREF1_OUT

VRET1_IN

AVDD_DAC1

AVDD_DAC1_B

AVDD_DAC1_G

AVDD_DAC1_R

AVSS_DAC1

AVSS_DAC1_B

AVSS_DAC1_G

AVSS_DAC1_R

VD3 VD2 VD1 VD0

M1_D6

M1_D5

M1_D4

M1_D3

M1_D2

M1_D1

M1_D0

VDD_33

VSS_33

VDD_18

M1_D15

M1_D14

M1_D13

M1_D12

M1_D11

M1_D10

M1_D9

M1_D8

M1_DQM1

M1_CLKO

MA_BA0

M1_A9

M1_A8

M1_A7

M1_A6

M1_A5

M1_A4

M1_WE_n

M1_CAS_n

M1_RAS_n

M1_SCS_n

M1_BA1

M1_A10

M1_A0

M1_A1

M1_A2

M1_A3

M1_ECS_n

M1_EOE_n

VDD_33

VSS_33

VDD_33

VSS_33

TMS

TDI

VDD_33

VSS_33

M2_D15

M2_D1 M2_D2 M2_D3 M2_D4

VDD_18

VSS_18

M2_D5 M2_D6 M2_D0 M2_D7

M2_A0

M2_ECS_n

M2_A1

M2_A10

VDD_33

VSS_33

M2_A2

M2_EOE_n

M2_A3

M2_A11

M2_A4 M2_A9 M2_A5 M2_A8 M2_A6

VDD_18

VSS_18

M2_D9

M2_A7 M2_D10 VDD_33

VSS_33

M2_D13

M2_WE_n

M2_D14 M2_D12 M2_D11

M2_D8

M2_DQM0 M2_CAS_n M2_RAS_n M2_SCS_n

M2_BA0

M2_BA1 M2_DQM1 M2_CLKO

VDD_18

DA2

DA1

DA0

DD15

DD14

DD13

DD12

DD11

DD10

DD9

DD8

DD7

DD6

DD5

DD4

DD3

DD2

VDD_33

VSS_33

DD1

DD0

VDD_18

AICLK_XOUT

AICLK_XIN

VSS_18

SCLK_XOUT

SCLK_XIN

DIORDY/stb

DMACK_n

DIOW_n/err

DIOR_n/sos

CS0_n/req

CS1_n

DMARQ/dack

IRQ14

CSEL

RESET_n

TDO

TEST_n

TRST_n

TCK

DVDD_PLL2

VSS_PLL2

AVDD_PLL2

DVDD_PLL1

VSS_PLL1

AVDD_PLL1

DVDD_PLL0

DVSS_PLL0

AVSS_PLL0

AVDD_PLL0

AT24C64, EEPROM, SMD

45

HS100 Integrated Home Theater System harman/kardon

78L05, Voltage Regulator, TO-92 78L12, Voltage Regulator, TO-92

79L05, Voltage Regulator, TO-92 MCR100-6, Silicon controlled rectifiers, TO-92

2N5551, NPN, TO-92 8550, PNP, TO-92

8050, NPN, TO-92 9014, NPN, TO-92

PC817, Photoelectric Coupler, DIP KA431, Precision Adjustable Voltage Regulator, TO-92

46

HS100 Integrated Home Theater System harman/kardon

MN103S47JRB, servo, SMD

O18EZ01, Voltage Regulator, SMD WM8728, Audio DAC, SMD

TOP VIEW

T0-252

GNDVIN

VOUT

135

DPAK

SHARP 018EZ01

47

HS100 Integrated Home Theater System harman/kardon

BH7862FS, Video Buffer, SMD

LC75710NE, VFD driver, SMD 74HC164, SMD

8-bit serial-in/ parallel-out shift register

48

HS100 Integrated Home Theater System harman/kardon

LM9022, SMD PIC16C56A, MCU, DIP Vacuum Fluorescent Display Filament Driver

L7809, Voltage Regulator, TO-220 LM7805, Voltage Regulator, TO-220

BA033T, Voltage Regulator, TO-220

L7812 or LM7812, Voltage Regulator, TO-220 L7912 or LM7912, Voltage Regulator, TO-220

49

HS100 Integrated Home Theater System harman/kardon

KA5L0380R, Power Switch, In-line Package BU1924, RDS decoder, SMD

BU1924F

1 2 3 4 5 6 7 8 9

10

11

12

13

14

15

16

OUAL RDATA VERL MUX VDD1 VSS1 VSS3 CAP T2

T1

VSS2

VDD2

X1

X0

NC

RCLK

HY57V641620HG, SDRAM, SMD DDX2100, Power Device, SMD

DDX2100

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

GNDS OUTNR1 OUTNR2 VCC2N PGND2N PGND2P VCC2P OUTPR1 OUTPR2 OUTNL1 OUTNL2 VCC1N PGND1N PGND1P VCC1P OUTPL1 OUTPL2 NC GNDREF

GNDR1

VREG11

VREG12

VL

CONFIG

PWRDN

TRI-STATE

FAULT

TWARN

INLA

INLB

INRA

INRB

VREG21

VREG22

VSIG1

VSIG2

LM4880, Audio Power Amplifier, SMD CD4052, Analog Multiplexer, SMD

50

HS100 Integrated Home Theater System harman/kardon

DDX8001, Digital Audio Processor, SMD

AAT3522IGY-3.08, Microprocessor Reset Circuit, SMD RT9161/A-33, Voltage Regulator, SMD

74HC158, data selectors, SMD CS5333, A/D Converter, SMD

51

HS100 Integrated Home Theater System harman/kardon

KBU8M, Bridge Rectifiers, In-line Package FCH20A20, Schottky diode, In-line Package

FQA11N90, MOS-FET, In-line Package FAN7554, Versatile PWM Controller, DIP

52

HS100 Integrated Home Theater System harman/kardon

1 2 3 4 5 6 7 8

A

B

C

D

87654321

D

C

B

A

Title

Number RevisionSize

A3

Date: 29-Aug-2005 Sheet of File: F:\HS100.ddb Drawn By:

AGND

EC17

47U/50V

D13 FR107

R23 10R

AGND

C14 473/25V

C13 470pF

R27 1K

R28

0.22/2W

R30 330R

R31 1K R32 5.1K

R29 2.2K

PH2 PC817

CY6 471/400V

AGND

EC22

1U/50V

C12

272/25V

C11

104/25V

R22 12K

R25 10R D15 FR107

AGND

D16 IN4148

R26 20R 1/4W

EC18

1000U/35V

L7 20UH

EC19

1000U/35V

D14

FR207

C10 103/1kV

R24

68K 1W

413

2

567

8

IC2

FAN7554

R2

470k 1/4W

CX2

104/275V

D11 1N4148

D12 1N4148

R14 220R

ZD1 24V

AGND

EC1

47UF/50V

AGND

C2

473/25V

R4

47K

R5 10R

D3 FR107

AGND

EC2

4.7uF/160V

D2 FR107

D1

FR107

R1

68K/1W

C1

103/1KV

EC16

220u/400v

CX1 104/275V

CY4

471/400V

PH1 PC817

FU1

T3.15AL/250V

R13 220R

R12 5.1KR11 5.1K

R10

10K

CY3

471/400V

C3

104/25V

R8 30K 1/4W

R9 30K

Q3

2N5551

R7 30K 1/4W

R20

2.2K

R21 100K

Q7 9014

AGND

LF2 UF1601

EC20

1000U/35V

EC21

1000U/35V

CY1

221/400V

CY2

221/400V

2

1

3

D17 20A/200V

2

1

3

D18 20A/200V

CY5 471/400V

~

~1

+

~

~2

-

DB1

8A/800V

IC8

KA431

IC7

KA431

G

DS

Q6 FQP11N90

2

6

8

17

18

13

14

15

16

11

4

3

12

TR1

FUSE_MARK_T

1

4

6

10

14

2

5

TR2

LF1 LCL-203A

LF3

470UH

CN1

To Swicth

CN2

AC Input

CN5

D6 FR107

EC6

100u/25V

D5

FR107

EC3

100u/25V

EC5

100u/25V

EC4

100u/25V

L3 20uH

L2

20uH

A+12V / 100mA

A-12V / 100mA

C4

104/25V

D7 21DQ10

EC7

220u/16V

EC8

220u/16V

L4

20uH

EC9

220u/10V

A +5V / 200mA (600mA Max)

C6

104/25V

D8 RF107

SC1

MCR100-6

R15

5.1K

R16

100R

EC11

220uF/16V

L6

10uH

EC14

1000u/16V

D9

31DQ06

EC13

1000u/16V

+5.0V / 900 mA

+3.3V / 340mA

Vin

1

GND

2

Vout

3

IC6

BA033T

EC15

220u/10V

EC12

220uF/16V

R18

2.2K

R19

2.2K

L5

20uH

C9

100uF/16V

R17

5K1

Vin

1

GND

2

Vout

3

IC5 7805

C5

104/25V

1

2

3

4

5

6

7

8

9

10

CN3

CON10-2.5A

1 2 3

CN4

CON3-2.5

+12V

-12V

GND GND

+3V3

GND

A+5V D+5V

S+5V GND

STBY

+5V GND

C7

104/25V

RV1

10D471K

I&T

NTC 5D-9

C16

104/50V

Q5

C8550

Q4

9014

Drain2VCC

3

GND1FB

4

IC1 5L0380

REV 1.9

Yicong Huang

HS100 PWOER SUPPLY

R0 1M

Vin

1

GND

2

Vout

3

IC3 7812

Vin2GND1Vout

3

IC4 7912

EC23

100u/16V

EC24

100u/16V

1

R34

1K/2W

R33 5.1K

EC25

1UF/50V

R35 1K 1/4W

+22V

GND

R36 1K

1

R37

100K 1W(NC)

,9

10,

1,

,7

8,9,

12,13,

1

2

3

4

5

CN6

CON5-2.5A

+12V

-12V

GND

+5V

1N4148

D10

1

R38

1K/2W

R39 300R

EC10 2.2uF/25V

C8 473/25V

ZD2 18V

Q1 2N5551

R3 10R

R6 4.7M

FB1

10uH

CX3 104/275V

53

HS100 Integrated Home Theater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

1239C-PV1 3.43

HS100 MAIN BOARD 050725

A4

224Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

A3_1 <3>:VIDEOOUT

V_SW1

REMOTE

TVFORMAT1

TVFORMAT0

RGB_SWITCH

V_Y V_C B/CB/PB R/CR/PR G/Y/Y

V_COMP

SCART_L SCART_R

TVIN_L

TVIN_R

A0

<2>:SERVO

SDD[0..15]

SDA[0..2]

SDMARQ

DMACK

SDIORD#

NRST#

SCS3FX#

SINTRQ

SDIOWR#

SCS1FX#

A4_2 <4>:AUDIOOUT

AMCLK ASCLK ALRCK ADATA3

DI/SDA CL/SCL ML

HW_MUTE

RESET_n

PHONE_DET

SCART_L

SCART_R

A5_2 <5>:INPUT

ADC_DAT

TDI

AIN_SEL1

AIN_SEL0

DI/SDA CL_SCL TUNER_CE

DO

TUNER_ON

TVIN_L TVIN_R

SW2

AMCLK ASCLK ALRCLK

RDATA RCLK

RESET_n

A4

<1>:MPEG

SCS0_n/req

SDMARQ/dack

SDIOW_n/err

SDD[0..15]

SCS1_n

SDIOR_n/sos

SIRQ14

SDMACK_n

SDA[0..2]

VD4

ADC_DAT

TDI

ADATA3

DI/SDA

ALRCLK

ASCLK

AMCLK

DI/SDA CL/SCL

V_Y V_C

V_COMP

B/Cb/Pb

G/Y/Y

R/Cr/Pr

REMOTE

TUNER_CE

ML

DO

CL/SCL

TUNER_ON

AIN_SEL1

AIN_SEL0

V_SW1

HW_MUTE

TVFORMAT0 TVFORMAT1

RGB_SWITCH

PHONE_DET

RESET_n

SW2

RDATA

RCLK

12

54

HS100 Integrated Home T heater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

+1.8V

FOR LM833&NJM4558

TO CS5333

TO SERVO

TO U7

TO BH7862

TO SERVO

TO 74HC4052

TO U5

1239C-PV1

3.43

HS100 MAIN BOARD 050725

A3

324Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

VCORE

VA+5V

VCC3.3

-12VA

SGND AGND

DGND

5VD

PGND

VCC1.8

-5V

+5V

D5VCC

-12VCC

+A12V

AAGND

-12VA

+12VCC

-12VCC

DGND

VL

A3V_S

VPP

S5VA

5V

VA5V

PGND

S5V

CB10 104

PAD2 INSTALL1

123456789

GND

CB116

104

+

EC12 47U/16V

FB9 50R

D24

IN5393

+

C14 47U/16V

FB3 FB

+

EC10

47UF/25V

GND

VIN

VOUT

123

U3

79L05

D26

IN5393

L7 FB

C11 470U/16V

CB7 104

CB13

104

FB2 50R

TOPVIEW

POWER SUPPLY

CON7

1

2

3

4

5

7

8

6

9

10

+12V

GND

-12VA

GND

+3.3V

A5V

GND

D5V

S5VCC

SGND

+

EC6

220U/16V

D27

IN5393

+

EC4

220U/16V

L12 FB

L20 FB

CB14 104

CB2 104

+

C17 100U/16V

CB9

104

R75 75R

CB93

104

FB5 FB

L11 FB

C13 470U/16V

PAD1 INSTALL1

123456789

GND

CB122 104

FB1 50R

C18

470U/16V

FB7 50R

+

C16

220U/16V

TP6

FB4 50R

CB91

104

TOP VIEW

T0-252

GNDVIN

VOUT

135

DPAK

U2 SHARP 018EZ01

CB11 104

+

C1

220UF/16V

CB5 104

L21 FB

C5

470U/16V

+

C6

47UF/16V

FB6 50R

PAD3 INSTALL1

123456789

GND

+

C3

220U/16V

CB8 104

L22 FB

55

HS100 Integrated Home T heater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

Power_on Configeration

DEBUG PORT

Q7 SCART OUT Y/VBS AND R/C SELECT

Q0 RE S ERVE

Q6 OPTICAL/OAXIAL INPUT SELET

Q4,Q5 Audio INPUT (AUX,SCART,TUNER)SELECT

Q1-Q3 FS0,FS1 AND RGB_SEL FOR SCART OUT

1239C-PV1

3.43

HS100 MAIN BOARD 050725

C

4

24

Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

VD1

M1_D1

M1_D7

M2_A1

M1_D5

M2_A8

M1_A7

M2_A7

M2_A0

M2_D3

AVID0

M1_D9

SDIOWR

M2_A4

M2_D2

M1_A11

M1_D8

M2_D1

SDMACK

M1_D12

M1_A9

M1_D13

M1_D2

M1_A1

SCS0

M2_A11

M1_A10

M2_D6

M2_A10

M1_A3

M1_D15

M1_A4

M1_A0

M2_A9

M1_A8

AVID1

M2_D7

M2_D0

M2_A5

M1_A5

M1_D10

M2_A3

M1_D0

M2_A[0..11]

M1_A6

M2_A6

SDMARQ/dack

M1_D3

M2_D5

M2_A2

Core_1.8

SCS1

SIRQ14

M2_D[0..7]

M1_D14

M1_A2

M2_D4

M1_D6

M1_D4

M1_D11

SDA2

VD7

ADATA3

M2_A19

M2_A18

SDA[0..2]

VCC3.3Q1

M2_A20

AIN_SEL0

AIN_SEL1

ADATA2

ADATA0 ADATA1

VCC1.8Q

RESET_n

CSEL

Core_3.3

VCC3.3Q0

SDD10

SDD12

SDD3

SDD15

SDD6

SDD1

SDD0

SDD7

SDD2

SDD8

SDD14

SDD13

SDD4

SDD9

SDD[0..15]

SDD11

SDD5

SDA0

SDA1

VD4

TDO

TCK

TDI TMS

SDIOR

ALRCK

TWARN

PWRDN

AMUTE

CLOCK/SCL

ADATA2

DATA/SDA

ASCLK

ADATA1 ADATA0

AMCLK

DI/SDA CL/SCL

AMUTE

VD5

VD6

M1_DQM1

M1_DQM0

M1_CLKO

M1_BA0

M1_BA1

M1_WE_n

M1_CAS_n

M1_RAS_n

M1_SCS_n

M1_A[0..11]

M1_D[0..15]

PWRDN

TWARN

RESET_n

M2_A[0..11]

M2_D[0..7]

M2_A19

M2_A18

M2_RAS_n M2_CAS_n

M2_WE_n

M2_BA1

M2_BA0 M2_DQM1 M2_DQM0

M2_EOE_n

CSEL

M2_A20

TUNERON/OFF

CSEL

DI/SDA

REMOTE

ADATA0 ADATA1 ADATA2

VFD_CE

RESET_n

CL/SCL

DI/SDA

AMCLK

ASCLK

ALRCK

ADATA0

ADATA1

ADATA2

PWRDN

TWARN

DI/SDA

PRE_RE

VFD_CE

REMOTE

MCU-CLK

CL/SCL

VCC1.8

AV1 AV0

Core_3.3

AV1

VDD_DAC0

VCC1.8

VDD_DAC1

Core_1.8

AV0

VCC1.8

Core_1.8

Core_3.3

VCC3.3

DGND

DGND DGND

DGNDDGND

DGND

D5VCC

DGND

Core_1.8

DGND DGND

DGND

DGND DGND

DGND

AVGND

VCC3.3

+5V

VCC3.3

D5VCC

D5V

CB40 104

+

EC2 100U/16V

CB41 104

CB33 104

CB22 104

CB39 104

RR1 1 0 k

CB46 104

R25

open(OPT)

+

EC7

220U/16V

R12 187

R21 10K

AR2

4.7K

CB18 104

CB25 104

+

EC1 100U/16V

C55

NA

C22 22PF

CB21 104

3J3

PH-10A-2.0mm

1

2

3

4

5

6

7

8

9

MCU-CLK

SCL

SDA

VFDCE

IR

RESET

AMUTE

GND

+5V

CB19 104

CB35 104

+

EC3 220U/16V

CB42 104

CB38 104

C57

NA

R22 10K

R23

10K

R2 10k

CB31 104

R3 10k

R9

75R

R34

10k

CB27 104

Y1 27M

R18

2.7K

CB23 104

C23

22PF

R38

10k

CB37 104

R11 187

R36

10k

R35

10k

CB36 104

CB48 104

L3FB

L4 FB

L5FB

CB28 104

R17

2.7K

CB45 104

Memory #1

Memory #2

Audio

GPIO,Video

IDE / DVD_DSP

gpio0

gpio1

gpio2

gpio3

gpio4

gpio5

gpio6

gpio7

AML3370

3.3VCore 1.8V Core GND

1.8V GND

GND

Power

TEST

CLOCKS

MPEG AUDIO VIDEO PLL PLL PLL

GND

3.3V

GND

1.8V

GND

1.8V

U4

55565758596063647574737271706968969798998885848382819589909194921007677

143 151 150 149 148 145 144 142 114 124 122 115 116 119 117

141 139 135 133 131 129 127 123 128 130 138 132

118

112

111

110

109

140 134 106

113

107

1413121110

15

185

54

16

182

170

169

168

155

156

167

171

187

188

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

177

178

180

174

179

176

175

172

173

80

147

126

1056618

153

136

120

208

186

189

1176579104

125

146

1836287

137

121

103

190

1548661

102

52

6

5

4

3

7 8

51

20

31 32

30

18453181

163

165

157

158

160

161

162

164

159

19

152

9

2

78

9367101

108

166

22 25 28

23 26 29

33

35

34

27 24 21 44 47 50

41 40 39 38

36 49 46 43 37 48 45 42

M1_D0

M1_D1

M1_D2

M1_D3

M1_D4

M1_D5

M1_D6

M1_D7

M1_D8

M1_D9

M1_D10

M1_D11

M1_D12

M1_D13

M1_D14

M1_D15

M1_A0

M1_A1

M1_A2

M1_A3

M1_A4

M1_A5

M1_A6

M1_A7

M1_A8

M1_A9

M1_A10

M1_WE_n

M1_CAS_n

M1_RAS_n

M1_BA1

M1_SCS_n

M1_ECS_n

M1_DQM1

M1_CLKO

M2_D0 M2_D1 M2_D2 M2_D3 M2_D4 M2_D5 M2_D6 M2_D7 M2_D8 M2_D9 M2_D10 M2_D11 M2_D12 M2_D13 M2_D14

M2_A0 M2_A1 M2_A2 M2_A3 M2_A4 M2_A5 M2_A6 M2_A7 M2_A8 M2_A9 M2_A10 M2_A11

M2_WE_n

M2_CAS_n

M2_RAS_n

M2_SCS_n

M2_BA0

M2_ECS_n M2_EOE_n M2_CLKO

M2_DQM0

M2_DQM1

ADATA0

ADATA1

ADATA2

ADATA3

AOCLK

ALRCLK

AICLK_XOUT

IEC958

AMCLK

SCLK_XOUT

RESET_n

TEST_n

TRST_n

TDI

TMS

TCK

TDO

DD0

DD1

DD2

DD3

DD4

DD5

DD6

DD7

DD8

DD9

DD10

DD11

DD12

DD13

DD14

DD15

DA0

DA1

DA2

DIOR_n/sos

DIOW_n/err

DIORDY/stb

DMARQ/dack

DMACK_n

CS0_n/req

CS1_n

CSEL

IRQ14

VDD_18

VSS_33

VDD_18

VSS_33

VSS_18

VDD_33

VSS_33

VDD_DAC1

VD3

VD4

VD5

VD6

VD2 VD1

VSS_DAC1

VSS_DAC0

RSET0

VREF0_OUT

COMP0

AICLK_XIN

ADC

SCLK_XIN

DVDD_PLL1

VSS_PLL2

AVDD_PLL0

AVSS_PLL0

DVDD_PLL0

AVDD_PLL1

VSS_PLL1

AVDD_PLL2

DVSS_PLL0

VDD_DAC0

M2_D15

VD0

VD7

M1_A11

MA_BA0

M1_DQM0

M1_EOE_n

M2_BA1

DVDD_PLL2

AVDD_DAC0_B AVDD_DAC0_G AVDD_DAC0_R

AVSS_DAC0_B AVSS_DAC0_G AVSS_DAC0_R

VRET0_IN

AVDD_DAC0

AVSS_DAC0

AVID0 AVID1 AVID2 AVID3 AVID4 AVID5

COMP1

RSET1

VREF1_OUT

VRET1_IN

AVDD_DAC1

AVDD_DAC1_B

AVDD_DAC1_G AVDD_DAC1_R

AVSS_DAC1

AVSS_DAC1_B AVSS_DAC1_G AVSS_DAC1_R

R19

2.7K

CB62

104

CB26 104

U15

24C64

1 2 3

4

5 6

7

8

NC NC NC

GND

SDA SCL

WP

VCC

CON1

DAMP CON/16P,1.0mm

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

CB34 104

CB30 104

R20

2.7K

CB32 104

CB43 104

R24

10K

C9

NA

+

EC5 220U/16V

CB47 104

FB34 FB

U5 74VHC164

1 2 3 4 5 6 7 8

9

10

11

12

13

14 A B Q0 Q1 Q2 Q3 GND CP

MR

Q4

Q5

Q6

Q7

VCC

FB26 FB

L2 FB

FB31 FB

CON2

ARC JTAG

1 2 3 4 5 6

+3.3V GND

TMS

TDI

TCK

TDO

L1 FB

FB32 FB

C21 10PF

FB33 FB

C10

NA

CB44 104

CB17 104

CB29 104

RR2 1 0 k

R16 10K

CB20 104

R27 10k

L6FB

CB108 104

R28 100K

L8

FB

C20 47PF

C50

NA

CB24

104

SCS0

SDMARQ

SDIOWR

SDD[0..15]

SCS1

SDIOR

SIRQ14

SDMACK

SDA[0..2]

DETECT

ADC_DAT

V_Y V_C

B/Cb/Pb G/Y/Y R/Cr/Pr

TUNER_CE

DAC_ML

RCLK

SW2

AIN_SEL0

AIN_SEL1

RGB_SWITCH TVFORMAT1 TVFORMAT0

DO

RDSCLK

HW_MUTE

ADATA3

TDI

ASCLK

ALRCK

AMCLK

VD4

VFDCLK

CL/SCL DI/SDA

AMUTE

V_COMP

AMUTE

56

HS100 Integrated Home Theater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

MBM29LV160BE-70

1239C-PV1 3.43

HS100 MAIN BOARD 050725

B

524Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

M1_A2

M1_A10

M1_A5

M1_WE_n

M1_CAS_n

M1_A1

M1_A8 M1_A9

M1_A6

M1_A0

M1_A11

M1_A7

M1_A3

D3.3

M1_A[0..11]

M1_A4

M1_SCS_n

M1_D15

M1_D8

M1_D7

M1_D3 M1_D4

M1_D6

M1_D11

M1_D5

M1_D[0..15]

M1_D1

M1_D12

M1_D14

M1_D2

M1_D0

M1_D9 M1_D10

M1_D13

M1_RAS_n

M2_D[0..7]

M2_A[0..11]

M2_D0

M2_D1

M2_D2

M2_D3

M2_D4

M2_D5

M2_D6

M2_D7

M2_WE_n

M2_A19

M2_BA0 M2_CAS_n M2_RAS_n M2_DQM1 M2_DQM0

M2_A5

M2_A8

M2_A9

M2_A11

M2_A7

M2_A10

M2_A6

M2_A1 M2_A0

M2_A2

M2_A4 M2_A3

M2_EOE_n

M2_A20

CE#

RESET_n

M2_A18

M2_BA1

M1_DQM1

M1_DQM0

M1_WE_n

M1_CAS_n

M1_RAS_n

M1_SCS_n

M1_CLKO

M1_BA1

M1_BA0

M1_A[0..11]

M1_D[0..15]

M2_DQM0

M2_DQM1

M2_BA0

M2_EOE_n

M2_A[0..11]

M2_CAS_n M2_RAS_n

M2_WE_n

M2_A19

M2_A20

M2_BA1

M2_A18

RESET_n

M2_D[0..7]

D3.3

DGND

DGND DGND DGND

DGND

VPP

DGND

VPP

D3.3

DGND

VCC3.3

DGND

D3.3

CB55 104

CB54 104

U6

1MX16X4

23 24 25 26 29 30 31 32 33 34 22 35

20 21

2 4 5 7 8 10 11 13 42 44 45 47 48 50 51 53

38

37

19

18

16

17

15 39

36 40

1 14 27

3 9 43 49

28 41 54

6 12 46 52

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11

BA0 BA1

DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8

DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15

CLK

CKE

CS#

RAS#

WE#

CAS#

DQML DQMH

NC NC

VDD VDD VDD

VDDQ VDDQ VDDQ VDDQ

VSS VSS VSS

VSSQ VSSQ VSSQ VSSQ

R29 22

CB58

104

R31 2 2 R32 2 2

CB52 104

R30 2 2

CB50 104

+

C19 220U/16V

R121

4.7K

CB56 104

+

EC8 220UF/16V

U7

AMD29LV160DB-90

12 11

10

9

8

7

6

5

26

23

25

4

28

29

3

2

13 14

15

17

18 19 20 21

24

22

31

30

1

32

16

33

34

35

36

37

38

40

39

41

42

43

44

45

47

48

27 46

RESET

WE

NC

A19

A8

A9

A10

A11

CE

A2

A0

A12

OE

DQ0

A13

A14NCNC

RY/BY

A17

A7 A6 A5 A4

A1

A3

DQ1

DQ8

A15

DQ9

A18

DQ2

DQ10

DQ3

DQ11

VCC

DQ4

DQ5

DQ12

DQ13

DQ6

DQ14

DQ7

DQ15/A-1

BYTE

A16

GND GND

C24

6.8PF

CB51 104

CB49 104

R122

4.7K

+

C8 220UF/16V

CB57 104

CB53 104

R123

4.7K

FB27 FB

R33 2 2

CB16

104

RESET_n

57

HS100 Integrated Home Theater System harman/kardon

FOR SANYO DV34

OR

DTA114EKA

NA

1239C-PV1 3.43

HS100 MAIN BOARD 050725

A3

624Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

F-

T-

F+

HFM

VRCD

VRDVD

T+

DLD

PINDVD

HFM

RFP

VRDVD

RFVCC

T-

T+

DLD

PINCD

E

D

F-

CLD

VRCD

CDDVD

F

C

F+

VC

B

A

TRAY OPSW CLSW

DMV

TRVSW

SPIN

TRVIN

STANDBY

FOIN

TRIN

VHALF

F2 TB F1

TC RFP FE2

FE1

TA

T1

T2

PINDVD

PINCD

VREF2.2V

HFM33V

LPCO1

LPCO2

CD/DVD

TD

S5V

D_GND

P_GND

A_GND

S5VA

A_GND

S5VA

D_GND

D3.3V

A3.3V

A_GND

S5VA

A_GND

S5VA

S3V3

D3.3V D3V_SA3.3V A3V_S

VA+5V

DVCC

D1.5VDVCC

D_GND

P_GND

A_GND

S5VA

D_GND

C80

47uF/6.3V

R133

5.6K

R148 2R2

R119 15K

L29 FB

CB77 104

R152

10K

R1347.5K

R130 10K

+

EC40

100uF/16V

Q6

9014

321

R203 27K

R124 1 8K

R154 10K

R202 22

R170 1 0K

CN5 6X2.0mm

1 2 3 4 5 6

SPDMSPDM+ LIMITSW LIMITSW SLEDMTSLEDMT+

R13510K

U1

AN8785SB

8

281

11 12 13 14

17

18

25

26

30 29

23

7

9 20

21

2

5

4

3

27

15

24

10 19

16

22

6

CH.4SW

D1+D1-

D2+ D2D3+ D3-

D4+

D4-

D5+

D5-

FIN1 FIN2

IN1

IN2+

IN2- IN3

IN4

IN5

OPIN+

OPIN-

OPOUT

PGND1

PGND2

PVcc1

PVcc2 PVcc3

Standby

SVcc

VREF

R131 7.5K

CB80 104

R201 18K

Q7 9014

321

C101

10uF/16V

R158 10K

CB95 104

Q1 8550

3

2

1

CB79 104

R204

1.2K

R126

7.5K

R147 2R2

C72 560P

+

C25

100UF/25V

Q13

9014

3

2

1

L13 FB

CB131 104

Q26 8550

321

R155 10K

CN4 5X2.0mm

12345

CLSW

GND

OPSW

LM+

LM-

C129 NA

Q3

9014

3

2

1

R146 27R

R172 10K

Q25

8050

3

2

1

R128 6.2K

+

EC11

220U/16V

C59 200P

R167 10K

Q2 8550

3

2

1

CN3 FH12-24S-0.5SH

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

FF+ T+ TC D CDDVD-SW RF A B F GND-PD VC VCC E NC VR-CD VR-DVD CD-LD MD HFM NC LD-DVD GND-LD

L30 FBR141 18K

C74 200P

CB86 104

CB87 104

R127 33K

R153 10K

Q8

9014

3

2

1

L10 FB

Q4

9014

3

2

1

R159 10K

CB66 104

C26 560P

L28 FB

C79

47uF/6.3V

R149 56R

R151

10K

CB69 104

R129 100K

10K

Q22 DTA114TCA

3

2

1

EC41 47UF/10V

R145 27R

R150 56R

L9 FB

C77

220uF/16V

Q5

9014

321

58

HS100 Integrated Home Theater System harman/kardon

PT28C020

NA

NA NA

NA

1239C-PV1

3.43

HS100 MAIN BOARD 050725

C

724Tuesday, November 22, 2005

Title

Size Document Number R ev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

OPSW

HDD15

/OE

FADR1

SDD1

HDD5

INTRQ

HDD13

SDD12

CD/DVD

STANDBY

FDT7

FADR14

SDD11

IOCS16

HDD9

/CS1FX

/IOCS16

HDD7

/CS3FX

HDD4

HDD2

HDD0

/DMACK

SDD4

DA2

HDD15

HDD12

FDT4

DA1

SDD2

SDD10

FADR12

SDD9

HIORDY

HDD10

SDD8

/CS3FX

CD/DVD

FADR17

FADR0

FADR7

HDD11

/IORD

HDD6

IORDY

DA1

/IOWR

HDD14

SDD3

HDD5

/IORD

TRAY

/CE

FADR2

FADR3

HFM33V

SPDRV

SDD6

HDD8

SDD0

SDD13

HDD3

DA0

FADR10

FDT3

CLSW

SDD14

/IOCS16

HDD1

/IOWR

LPC1

FDT2

FADR13

FADR8

FADR9

DA2

SDD15

SDD5

SPDRV

FDT6

FADR6

FADR15

NRST

STANDBY

TRVSW

HDD12

HDD13

HDD14

/DASP

FDT5

FADR4

TRSDRV

IORDY

INTRQ

FADR5

TRSDRV

HDD8

HDD11

FDT1

HDD6

DA0

/CS1FX

HDD0

HDD3

HDD10

FDT0

FADR16

FADR11

HDD4

HDD9

SDD7

HDD2

TRVSW

TRAY

HIORDY

/DMARQ

/DMACK

/DMARQ

FADR0 FADR1 FADR2 FADR3 FADR4 FADR5 FADR6 FADR7 FADR8 FADR9 FADR10 FADR11 FADR12 FADR13 FADR14 FADR15 FADR16 FADR17

FDT0 FDT1 FDT2 FDT3 FDT4 FDT5 FDT6 FDT7

/CE /OE

NWE

SDMARQ

HDD7

IOCS16

/DMACK

VD4

/DASP

/HRST

SDIOWR

/IORD

/DMACK

OSCI

/HRST

FOIN

RFP

TRIN VHALF PINCD

DMV

FE2 T2 T1 TB TC TD TA

F1

F2

FE1

PINDVD

TRVIN

SPIN

CD/DVD

TRAY

STANDBY

LPCO2

LPCO1

VREF2.2V

TRVSW

CLSW OPSW

HFM33V

A3V_S

D3V_S

D1.5V

D3.3V

D_DRAM

D3V_S

D_GND

VREFH

D_GND

A_GND

D_GND

A3.3V

A_GND

D1.5V

A3V_S

VREFH

D_GND

D3V_S

D_DRAM

D3V_S

D1.5V

VHALF

D_GND

S5VA

D_GND

DVCC

D_GND

VA+5V

D3.3V

D_GND

D_GNDD3V_S

DVCC

D_GND

D3.3V

D_GND

D3.3V

CB68 104

Q23 8050

1

32

R125 1 0K

C151 10PF

R190 33R

CB76 104

CB70

104

R205 10K

C156

105

R140 10R

CB64

104

R212 470R

Q20

8050

1

32

+

EC42

10uF/16V

1 2

R184 33R

C150 105

R143 0R

R182 82R

C108 104

Q24 8050

1

32

CB74 104

L15 FB

+

EC43

4.7uF/25V

R195 3.9K

C115 47PF

R187 82R

R198 1M

CB59

104

R191 1K

CB134 104

C124 10PF

R181 68K

R206 10K

R193 470R

CB135 104

D16 1N4148

1 2

L14

FB

RN13 33X4

12

34

56

78

CB1 104

R188 10 K

RN2

4X47K

1 2

3 4

5 6

7 8

R17710K

C139

102

R185 33R

L32 FB

R20910K

CB81 104

L26

FB

R199 100R

C116 5 62

R208 10K

C109 221

R160 0R

+

EC44

4.7uF/25V

R207 1 0K

C158 103

R8 10R

L33 FB

CB72 104

C161 103

R142 0R

U8

AT27C020

12 11 10

9 8 7 6

5 27 26 23 25

4 28 29

3

2

13 14 15 17 18 19 20 21

24

22

31

30

1

32

16

A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16

I/O0 I/O1 I/O2 I/O3 I/O4 I/O5 I/O6 I/O7

OE

CE

VPP

A17 A18

VCC

GND

L24 FB

R144 4.7K

CB63 104

R196 7.5K

R156 10K

R215 1 0K

R186 33R

R157 10K

C122 1 83

CB60 104

PV1

U9

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20

22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44

21

454950515253545556575859606162636465666768

464748

69707172737475767778798081828384858687

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

158

159

P2/EXINT0 P3/EXINT1 P4/EXCNT0 VDD3 VSS P5/EXCNT1 P7/FADR17 P8/FADR18 FADR11 FADR9 VDD15 FADR8 FADR13 FADR14 NWE FADR16 FADR15 DRAMVSS DRAMVDD15 DRAMVDD33

FADR12 FADR7 FADR6 FADR5 FADR4 FADR3 FADR2 FADR1 FADR0 VSS VDD3 FDT0 FDT1 FDT2 FDT3 FDT4 FDT5 FDT6 FDT7 NCE FADR10 NOE MMOD

VSS

SCLOCK/Dwire0

SDATA/Dwire1

TxD/Dwire2/MDATA

RxD/Dwire3/MCLOCK

VDD3

OSCI1

OSCO1

VSS

DRV0

DRV1

DRV2

DRV3

DRV4

DRV5

DRV6

DRV7

VSS

DRV8

DRV9

DRV10

NRST

SERIAL_Rx

SERIAL_Tx

VDD3FGTX

VDD15

VSS

AVDDD

PLFIL2

PLFIL1

VREFC

VREFB

VREFA

AVSSD

VC0

RESI

ANAMONI

POFLT

CDATA

CCAPA

CGD

AVDDC

RFINN

RFINP

VIN5

VIN6

VIN7

VIN8

VIN1

VIN2

VIN3

VIN4

VIN9

VIN10

AVSSC

VREFH

VHALF

LPC2

LPCO2

LPC1

LPCO1

AVSSB

CTKC

CSLFLT

CWBLOUT

CWBLIN

VCOF

RVI

AVDDB

AD2

AD1

AD0

AVDDA

DAC1

DAC0

AVSSA

MONI0

MONI1

MONI2

MONI3

VSS

VDD3

MASPOL/MONI4

DASPST/MONI5

NEJECT/MONI6

NTRYCL/MONI7

DMARQ

NIOWR

VDD3

VSS

NIORD

IORDY

NDMACK

INTRQ

NIOCS16

DA1

NPDIAG

DA0

VSS

VDD3

DA2

NCS1FX

NCS3FX

NDASP

HDD15

HDD0

HDD14

HDD1

HDD13

VDD3

VDD15

VSS

HDD2

HDD12

HDD3

HDD11

HDD4

HDD10

HDD5

VSS

VDD3

HDD9

HDD6

HDD8

HDD7

VDDH

NRESET

MASTER

DRAMVDD15

DRAMVSS

CB71 104

CB73 104

R207 10K

R194 1 K

R210 15K

CB82 104

R183 82R

CB4 1 04

C125 10PF

C112 3 33

RN16 33X4

12

34

56

78

R17610K

RN18 33X4

12

34

56

78

R192 1K

R175 10K

RN17 33X4

12

34

56

78

C110 152

R118 1 0K

Y2

33.86M

R211 470R

C157

105

R180 10K

R189 33R

CB132 104

R197 5.6K

L25 FB

CB75 104

R178

10K

C119 33PF

R213 470R

C114 1 03

RN12 82X4

12

34

56

78

SIRQ14

SDD[0..15]

SDIOWR SDIOR

SCS1

SCS0

SDA2

SDA0

SDA1

SDMARQ

SDMACK

RESET_n

VD4

59

HS100 Integrated Home T heater System harman/kardon

1

D D

C C

B B

A A

TO SCART

RED

CONNECTOR COLOR

PB

GREEN

PR

BLUE

Y

COMPONENT VIDEO

S-VIDEO

COMPOSITE

YELLOW

VIDEO

0603 50R

1239C-PV1 3.43

HS100 MAIN BOARD 050725

A2

824Tuesday, November 22, 2005

Title

Size Document Number Re v

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

PR_OUT

PB_OUT

C_OUT

Y_OUT

PY_OUT

C_OUT#1

Y_OUT#1

CR_OUT#1

PY_OUT#1

CB_OUT#1

CVBS_OUT

RGB_SWITCH

TVFORMAT0

TVFORMAT1

B

G

R

SCART_R

SCART_L

TVIN_R

TVIN_L

CVBS

AVGND

VA5V

AVGND

AVCC

-12V

AVGND

FB14

R48 75R 1%

C47 22PF

C51 47U/10V

C39 100U/6.3V

FB13

C38 51PF

FB12

C41 1U/6.3V

FB10

L16

0.68UH

ESD11

AVR-M1608C270M*ABB

ESD10

AVR-M1608C270M*ABB

C27 22U/10V

(CHASSIS)

CON8

CVBS + S-VIDEO

1 2 3

4 5

6

7

8 9

GND GND GND

Y C

GND

CVBS

GND GND

R43 75R 1%

AR10 91R 1%

R41

75R 1%

L18

0.39UH

R52 75R 1%

CB112 104

AR4 75R 1%

CB111 104

CB115 104AR6

75R 1%

CB114104

R44

75R 1%

C37

20PF

CB113 104

L27 NA

FB11

C52 330U/16V

R40

75R 1%

C2 NA

R51 75R 1%

C42 51PF

C31 20PF

FB15

R45

75R 1%

C46 22U/6.3V

R42

75R 1%

2R13

15K

C44 1U/6.3V

CB98 104

C40 22U/10V

C48 330U/6.3V

CON4

CONN TRIPLE RCA VIDEO W/ CHASSY PIN

4

3

7

2

5

6

1

BH7862SF

U14

BH7862FS

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

CTRAP

MUTE1

CIN

GND

YIN

VCC

GND

PYIN

GND

PYTRAP

VCC

PbIN

GND

PrIN

MUTE2

PrTRAP

COUT

TEST

MIXOUT

MIXFB

GND

YTRAP

GND

YOUT

YFB

GND

PYOUT

PYFB

GND

PbOUT

N.C.

PrOUT

2R12 2K

C53 330U/16V

2R10 4.7K

R39

75R 1%

2Q4

8050

R50 75R 1%

C45 100U/6.3V

R46 75R 1%

R49 75R 1%

C43

20PF

R47 75R 1%

CB99 104

AR3 75R 1%

AR5 75R 1%

CB3

104

C34 220UF/16V

2Q5

8050

2R11 2K

L17

0.68UH

C35 20PF

R37

75R 1%

C49 47U/10V

TVFORMAT1 TVFORMAT0

RGB_SWITCH

SCART_L

SCART_R

TVIN_R

TVIN_L

R/CR/PR

V_Y

V_C

B/CB/PB

G/Y/Y

RGB_SWITCH

60

HS100 Integrated Home T heater System harman/kardon

TVFORMAT1

1

TVFORMAT0

0

SCART Inactive (Standby)

0

10

0 SCART Active Auto Switch to 4:3 Aspect Ratio

TV FUNCTION

SCART Active Auto Switch to 16:9 Aspect Ratio

SCART

RGBSWITCH

X X X

X

0 1

RGB

PIN8(V) PIN16(V)

X

1-3V

0-0.4V

X XX

CVBS

6V

12V

0V

X

0603 50R

NA

1239C-PV1

3.43

HS100 MAIN BOARD 050725

B

924Tuesday, November 22, 2005

Title

Size Document Number R ev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

SWITCH

BLNK

CVBS

TVIN_L

R OUT

TVIN_R

G_OUT

AOL

AOR

B_OUT

TVFORMAT0

RGB_SWITCH

B

G

R

CVBS

TVIN_R

TVIN_L

TVFORMAT1

SCART_R

SCART_L

VA+5V

AVGND

AAGND

DGND

AAGND

AVGND

DGND

+A12V

DGND

AVGND

AAGND

ESD6

AVR-M1608C270M*ABB

ESD7

AVR-M1608C270M*ABB

C

BE

4.7K

3

2

1

2Q3

SMT3

DTC343TK ROHM

ESD8

AVR-M1608C270M*ABB

2C2 681

2C4 20PF

2R4

3.3K

EC15 10UF/16V

SCART CONNECTOR

BACK PANEL VIEW

CON3

SCART CONNECTOR, RIGHT ANGLE, FEMALE

1

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

2

AOR

AOL

AGND

BGND

AIL

B

SWTCH

GGND

CLKOUT

G

DATA

RGND

DATAGND

R//C

BLNK

VGND

BLNKGND

VOUT//Y

VIN

SHIELD

AIR

2R6

3.3K 5%

2R5 150R

2R2

1K

2C1 681

FB16

FB18

2R8

3.3K 5%

ESD9

AVR-M1608C270M*ABB

CB100 104

FB17

C

BE

4.7K

3

2

1

2Q2

SMT3

DTC343TK

ROHM CB101 104

FB20

ESD5

AVR-M1608C270M*ABB

2R7

3.3K

R70 10R

ESD4

AVR-M1608C270M*ABB

2R1 1K

2C8 20PF

EC16 10UF/16V

R73 10R

C

BE

4.7K

3

2

1

2Q1

SMT3

DTC343TK ROHM

FB21

FB23

FB19

CB109 104

FB22

2R3

3.3K 5%

2R9

3.3K

61

HS100 Integrated Home Theater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

2-CHANNEL AUDIO DAC

RIGHT

LEFT

MAIN L/R

O R SELE

MUTE LOGIC

0805

TO HEADPHONE

SCART AUDIO

NA

NA NA

NA

NANA

NA

1239C-PV1 3.43

H S100 MAIN BOARD 050725

Custom

10 24Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

L-filt

AL2

AR2

DOWNMIXL

DOWNMIXR

R-filt

SDI

ALRCK

ASCLK

AMCLK

ADATA3

SCK VOUTL

ML

VOUTR

L-filt

VCC

AUXIN L

AUXIN R

AMUTE

L-filt

R-filt

PRE_RE

RESET_n

HWMUTE

AUXIN_L

AUXIN_R

L-filt

AMUTE

AAGND

-12VA

AAGND

+A12V

-12VA

+A12V

DGND

AAGND

-12VA

AAGND

-12VA

AAGND

D5VCC

AAGND

AAGNDAAGND

AAGND

+A12V

-12VA

+A12V

AAGND

DVC

AAGND

-12VA

+A12V

D5VCC

DVC

D5VCC

AAGND

D25 1N4148

1 2

R76 650R

EC36 10U/10V

+

C75 47uF/16V

R173C1

1k

R4B1 4.7K

V- V+

U11

LM833M

2

3

6

5

1

7

4

8

L31

FB

C29

47U/10V 16V

AR11

2.7K

FB25

.05K

R54

4.75K 1%

R78 1K

R63 10R

U26C 74HC14/SO

5 6

ESD15

AVR-M1608C270M*ABB

D20 1N4148

12

R1 0

U26B 74HC14/SO

3 4

R84 10K

R68

1.78K 1%

U26D 74HC14/SO

9 8

R139 2.2K

U16

WM8728

1

15 20 19 11

7

18 17

6

4 3

5

16

12

8

2

13

9

14

10

LRCIN

CSBIWL LATI2S SCKDSD VOUTL

DVDD

SDIDEM MUTEB

DGND

MCLK BCKIN

ZERO

MODE

VMID

VOUTR

DIN

VREFN

AGND

VREFP

AVDD

R66 650R

D181N4148 N/A

12

DR4 10R

R64 4.75K 1%

R80 10K

+

C76

100U/16V

R5A1 4.7K

C64 100PF

CON9

2

1

3

4

5

R173D11k

C4

100uF/50V

R65

4.7K

R67 330R

DR5 10R

R56 330R

D15

1N4148

1 2

Q12

8550

R173A1

1k

C69

102

+

EC9

47U/25V

R61 10R

R26 15K

R72 10K

FB24 .05K

C7 100uF/50V

+

EC34 10uF/10V

+

C15 220U/10V

R62 10R

C30

47U/16V 16V

C56

102

Q17

8550

R71 10K

U26A 74HC14/SO

1 2

Q14

SMT3 DTC343TK ROHM

R132 10K

R137 100R

ESD12

AVR-M1608C270M*ABB

R58

7.50K 1%

ESD13

AVR-M1608C270M*ABB

C66

47U/10V 16V

C54 100PF

ESD14

AVR-M1608C270M*ABB

CB85 104

CB15 104

R53

4.7K

R82 650R

R79 10K

C58

47U/10V 16V

R116

0R

D171N4148 N/A

12

R59 10K

R83 330R

+

-

U12B

NJM4558

5

6

7

8 4

Q9

SMT3

DTC343TK ROHM

CB6 104

R77 330R

+

-

U12A

NJM4558

3

2

1

8 4

C12 10U/10V

U19 78L05

3 1

2

IN OUT

GND

C68 680PF

D19

1N4148

12

CB94

104

R60 10K

C99

47U/10V

16V

R69

7.50K 1%

EC35 10U/10V

C67 680PF

C100

47U/10V

16V

CB120

104

R173B1

1k

R85 10K

Q10

SMT3

DTC343TK ROHM

R55 650R

L19 FB

Q11

SMT3

DTC343TK ROHM

DR6 10R

R57

1.78K 1%

RESET_n

CL/SCL DI/SDA

SCART_L

SCART_R

DAC_ML

ALRCK

ASCLK ADATA3

AMCLK

HP_L

HP_R

62

HS100 Integrated Home Theater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

AU TO SWITCH LOGIC

DETECT LOGIC

When the HP insert into the HP jack, the detect pin unconnect to the channel R, and the detect level is 3.3V, amplifier will be muted.

When the HP doesn't insert into the HP jack, the detect pin will connect to the channel R, and the detect level is 0V, amplifier will work normally.

1239C-PV1 3.43

HS100 MAIN BOARD 050725

B

11 24

Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet of

Harman Kardon, Northridge, California 91329, USA

PHONE_R

PHONE_L

HPV5

+A12V

3R8

1M

3R5 20k 1%

3C2 1UF

3R9 680R

3C7

220uF/16V

C

BE

4.7K

3

2

1

Q27

SMT3

DTC343TK ROHM

C

BE

4.7K

3

2

1

Q19

SMT3

DTC343TK ROHM

CB90 104

3C3

100uF/10V

EC45

47uF/16V

Q18

2SK3018

2

13

3R6 20k 1%

ESD2 AVR-M1608C270M*ABB

CN6

TO PHONEJACK STEREO SW

1

2

3

4

5

FB8 FB 50R

3R3 680R

3R10 20k 1%

3C1 1UF

CB84 104

R120 3k

3C6 220uF/16V

R81 3 k

R5 10k 1%

3R7 100k

R136 0

U13

78L05

3 1

2

IN OUT

GND

CB92 104

3R2 10R

3U2

LM4880M

1

2

3

4 5

6

7

8

AOUT

AIN

BYP

GND S ON

BIN

BOUT

VDD

3R1 20k 1%

3R4 10R

R6 10k 1%

ESD1 AVR-M1608C270M*ABB

CB89

104

DETECT

HP_R

HP_L

AMUTE

63

HS100 Integrated Home T heater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

AUDIO INPUT1(1)0

01

1

AUDIO INPUT1(1)

0

AUIN_SL0AUIN_SL1 0

TUNER IN(3)

SCART IN(0)

OUTPUT

11

DIGITAL AUDIO INPUT

Audio Format: I2S UP TO 24 Bit

NA

74HC158

1239C

3.43

HS100 MAIN BOARD 050725

B

12 24Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

AUIN_R

TUNER_R

COAX_IN

RESET_n

AD_INLASCLK AD_INR

AUXIN_L

TVIN_L

TUNER_L

TVIN_R

AMCLK

AD_INL

AD_INR

ALRCK

OPTICAL_IN

ADC_DAT

AIN_SEL1

AIN_SEL0

AUXIN_R

AUXIN_L

TUNER_L

TUNER_R

+A12V

VA+5V

-5V

DGND

AGND

DGND

D5VCC

VL

5VD

DGND

5VD

-12VA

+A12V

-12VA

5V

VA+5V

5VD

DGND

+

EC24 1U/10V

CB78 104

EC33

10U/10V

R113

4.7K

C61 47PF

CB103

104

C82 103 R95 100k

R106 4.7K

C81

47PF

R114

10

L23

FB

ESD16

AVR-M1608C270M*ABB

R13 NA

R89 150R

R88

8.2k

R108 4.7K

R10 NA

+

EC19

47U/10V

R101

4.7k

R99 1 K

R110

4.7k

R93 1 K

CB97 104

R104 4.7K

DR2 0R

R112 10K

+

EC20

10U/10V

EC39

10U/10V

R86 6.8K

CB12 104

V- V+

U20

LM833M

2

3

6

5

1

7

4

8

C84 103

R101

8.2k

EC22

47U/16V

R7

4.7K

R87 NA

DR3 0R

U21

74HC4052

1

2

3

4

5

6 7 8

9

10

11

12

13

14 15

16

Y0

Y2

Y

Y3

Y1

EN VEE GND

B

A

X3

X0

X

X1 X2

VCC

+

EC23 1U/10V

R100

5.6k

R103 NA

R96

8.2k

C83 47PF

R107 4.7K

R94

8.2k

R102 100k

+

EC21 10U/10V

U22

74LS158

2 3 5 6

11

10

14 13

1

15

4

7

9

12

16

8

1A 1B 2A 2B

3A

3B

4A 4B

A/B G

1Y

2Y

3Y

4Y

VCC

GND

R115 47K

C85

104

CB61 104

FB28 FB

CB117 104

C60 47PF

R4

4.7K

+

EC13

47U/10V

TOP VIEW

GND

CSY

SIG

CON5

3

1

2

+

EC14

47U/10V

EC25

47U/16V

U23

CS5333

1 2 3 4 5 6 7 8 9

10

11

12

13

14

15

16

VL MCLK SCLK SDATA VA GND LRCK DIV DIF

TST

FIL+

R_GND

RIN

LIN

VQ

RST

CB104

104

R138 1M

R91

5.6k

R14 1M

R105 4.7K

Fiber Optic TX Module

TOP VIEW

VIN

GND

VCC

DRIVER

IC

CN2

SPDIF IR TX SHARP GP1F550RZ

1

2

3

C87 47PF

+

C16

220U/16V

R90

8.2k

CB67 104

CB102

104

R98 150R

CB88 104

R74 0

CB83 104

DR1 0R

R92

8.2k

R109 4.7K

R97 6.8k

AIN_SEL1 AIN_SEL0

SW2

TDI

TVIN_L

TVIN_R

AMCLK ASCLK

ALRCK

RESET_n

ADC_DAT

64

HS100 Integrated Home Theater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

1

TUNER POWER CONTROL

R

L

1239C

3.43

HS100 MAIN BOARD 050725

B

13 24Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

TUNER_L

TUNER_ON

CL/SCL

TUNER_R

TUNER_VCC

RDS_MPX

L

R

TUNER_CE

RDATA

DI/SDA

DO

RCLK

TUNER_PWR

TUNER_L

TUNER_R

TUNER_PWR

VCCTUNER_PWR

+P12V

5AVCC

VA+5V

TUNER_VCC

RDS5V

CN3

DTS/11P,2.0mm

1

2

3

4

5

6

7

8

9

10

11

RR13 1K N/A

+

EC26

10U/10V N/A

Z1

L

FB30 50R

RR12 100

FB26 FB N/A

RR6 2 20

RR3

1K

Q20

2SC3326 N/A

RR9 2 20

C36

0.018UF

Q15 8550

AR7

4.7K

FB29 50R

CB106

104

CB107

104

C28

0.018UF

Q16

8050

C95 33PF

U24 7809

1

2

3

IN

GND

OUT

R15

4.7K

+

EC31

100U/25V

CB105

104

U25

BU1924F

1 2 3 4 5 6 7 8 9

10

11

12

13

14

15

16

OUAL RDATA VERL MUX VDD1 VSS1 VSS3 CAP T2

T1

VSS2

VDD2

X1

X0

NC

RCLK

Z2

L

C90 270P

RR10 10K

C94 561

AR12

4.7K

AR1

4.7K NA

C91 33PF

RR8 2 20

R117

100

RR7 2 20

C93

2.2U/10V

RR11 100

Y3

4.4332M

12

+

EC30

100U/25V

+

EC29 10U/10V

EC32

100U/10V

+

EC28 10U/10V

+

EC27

47U/10V

U10 78L05

1

2

3

IN

GND

OUT

RR14 1K N/A

Q21

2SC3326 N/A

TUNER_ON

RDSDATA

RCLK RDD_DI

RDS_DO

RDS_CS

RCLK

65

HS100 Integrated Home T heater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

FROM DECODE

LC75710 RESET

1813C 1.3

HS100 FRONT PANEL 050927

C

14 24Tuesday, November 22, 2005

Title

Size Document Number Re v

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

G8G9G10

G11

G12

G13

AM37

AM36

G7

AC1

AC2

G1

G2

G3

G4

G5

G6

AM38

-24V

AM38 AM1 AM2 AM3 AM4 AM5 AM6 AM7 AM8 AM9 AM10 AM11 AM12 AM13 AM14 AM15 AM16 AM17

AM19

AM18

AM20 AM21 AM22 AM23 AM24 AM25 AM26 AM27 AM28 AM29

AM26

AM12

AM11

AM10

AM1

AM35

AM25

AM22

AM17

AM2

AM4

AM8

AM21

AM24

AM14

AM31

AM18

AM15

AM28

AM13

AM27

AM3

AM33

AM20

AM7

AM5

AM23

AM6

AM30

AM34

AM16

AM9

AM32

AM19

AM29

AM30 AM31 AM32 AM33 AM34 AM35

G13

G12

G11

G10

G9

G8

G7

G6

G5

G4

G3

G2

G1

AM37

AM36

AM[1..35]

IR_IN

STANDBY

MUTE

GND

VOLVOL+

STANDBY

MCU-CLK

IR_IN

IR_OUT

+5VDD

VOL-

GND

-29V

VOL+

AC1

+5V

AC2

IR

MCU-CLK

SCL

MUTE

VFDCE

+5V GND

RESET

SDA

HP_DETECT

L

R

DGND

+5V

DGND DGND

DGND

+5VDD

DGND

+5VDD

DGND

3C20

100P

3C22 47n

VFD 5*7 DOT MATRIX

1G11G 2G3G4G5G6G7G8G9G10G12G13G

5*75*75*75*75*75*75*75*75*75*75*75*75*7

3U3

VFD MATRIX

1 2

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53

54 55

3 4 5 6 7 8

9 10 11 12 13 14 15

16

AC AC

P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31 P32 P33 P34 P35 P36 P37 P38

AC AC

1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G

P1

C91 5 6p

3Q2

8050

3J10

7pin 2.0mm

1

2

3

4

5

6

7

3C4

100P

3CB4 104

3R2

10K

3J3

5pin 2.0mm

5

4

3

2

1

C92

56p N/A

3R14 10k

3C19

100P

3J5

CKX-3.5-12-9P

1

4

3

2

9

7 8

5

6

+

3C3 47uF/10V

ESD2

+

3C5

100uF/16V

3J11

9pin 2.0mm

1 2 3 4 5 6 7 8 9

ESD1

3R8 NA

3C18 30P

3C21 47n

3CB1 104

3CB5

2.2uF

3Q1 8550

3

2

1

FB10 220R

3R1 10K

FB9 220R

LC75710NE

3U2

LC75710NE

123456789101112131415

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

333435363738394041424344454647

48

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64

AM1

AM2

AM3

AM4

AM5

AM6

AM7

AM8

AM9

AM10

AM11

AM12

AM13

AM14

AM15

AM16

AM17

AM18

AM19

AM20

AM21

AM22

AM23

AM24

AM25

AM26

AM27

AM28

AM29

AM30

AM31

AM32

AM33

AM34

AM35

AA1

AA2

AA3

AA4/G16

AA5/G15

AA6/G14

AA7/G13

AA8/G12

G11

G10

G9G8G7

G6 G5 G4 G3 G2 G1 VFL TEST VSS SOCO OSCI VDD RES FCS CLK DATAI

3R35 4.7k

C90 5 6p

3D12

1N4148

FB5 50 R

3J12

9pin 2.0mm

1 2 3 4 5 6 7 8 9

3IR1 IR

1 2 3

VCC GND

IR

3R16 NA

FB11 10UH

3R13 20K

66

HS100 Integrated Home Theater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

VOLUME CONTROL

NA

1814C 1.2

HS100 FRONT PANEL 050920

C

15 24Tuesday, November 22, 2005

Title

Size Document Number Re v

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

AC2

-29V

AC1

-29V

VOL+

VOL-

AC2

+5V

-29V

VOL+ VOLAC1

GND

+5V

DGND

+5V

DGND

DGNDDGND

+5V

DGND

3R21

0.68R

+

3C1 22uF/35V

3R20 10K

+

3C7 100u/35V

3R18 100K

ESD3

AVR-M1608C270M*ABB

3C24 820PF

+

3C13

22uF/50V

3R29 300R

3CB7 105

3C23 820PF

+

3C14 22uF/35V

3R22 10K

3D6

1N4148

3R28 300R

+

3C9 22uF/35V

3R30 300R

3U3

LM9022

1

2

3

4 5

6

7

8

SHUTDOWN

BYPASS

+IN

-IN VO1

VDD

GND

VO2

+

3C10 22uF/35V

+

3C8 22uF/35V

3R23 10K

3D2

1N4148

+

3C11 22uF/35V

3R19

100R

3D1

1N4148

3R6 300R

+

3C6 100u/35V

3D10

1N4148

3D7

1N4148

+

3C12 22uF/35V

3LD2

LED

3R24

2.2K

3R15

0.68R

3LD4

LED

3D3

1N4148

3D5

1N4148

3DZ1

ZENER 6.2V0.4W

+

3C15 22uF/35V

3LD1

LED

3LD3

LED

+

3C3

47uF/10V

3J9

7pin 2.0mm

1

2

3

4

5

6

7

CON1

123

GND

VOL-

VOL+

3R17

100R

3D8

1N4148

3CB8 103

3D4

1N4148

67

HS100 Integrated Home T heater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

unmute

Work

amber

blue

amber

Amber

mutemute

unmute

Standby

blue

Blue

pin8 logic:

pin9 logic:

1815C 1.2

HS100 FRONT PANEL 050920

B

16 24Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

IR_IN

RA0

VOL+

RB5

MUTE

RB6VOL-

RB4

AMUTE

+5VDD

STANDBY IR_IN VOLVOL+ MCU-CLK IR_OUT MUTE

GND

RA0 RB6 RB5 RB4 STANDBY +5VDD GND

+5VDD STANDBY GND

STANDBY

IR_OUT

MCU-CLK

DGND

+5VDD

DGND

+5VDD

DGND

+5VDD

DGND

3R3

4.7k

3C17 22PF

3U1

PIC16C56A

1 2 3 4 5 6 7 8 9

17

18

10

11

12

13

14

15

16

RA2 RA3 T0CKI MCLK/VPP VSS RB0 RB1 RB2 RB3

RA0

RA1

RB4

RB5

RB6

RB7

VDD

OSC2/CLKOUT

OSC1/CLKIN

3Y1 4M

3R26

4.7k

3J4

TJC3-3A 2.54mm

1

2

3

GND

STANDBY

5V

3D9

1N4148

12

3CB6 104

3R4 1K

3R25

4.7k

3K4 Prev

1

23

4

3R36

4.7k

3CB2

2.2uF

3C16 22PF

3R7 470R

3R5 15K

3CB3 104

3K6 source

1

23

4

3K5 Next

1

23

4

3R27

4.7k

3R35 4.7k

3Q5 8550

3

2

1

3J8

9pin 2.0mm

1 2 3 4 5 6 7 8 9

3J1

7pin 2.0mm

1

2

3

4

5

6

7

+

3C2 47u/10V

3R31 4.7k

3K2

Play

1

23

4

3K3 Stop

1

23

4

3R34 4.7k

3R38 100R

68

HS100 Integrated Home T heater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

BLUE AMBER

1816C 1.2

HS100 FRONT PANEL 050920

A

17 24Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

RB4

RB5

RA0

RB6

STANDBY

RA0 RB6 RB5 RB4 STANDBY +5VDD GND

+5VDD

DGND

3R122

2K

3Q3

8050

3K7

standby

1

23

4

3J6

7pin 2.0mm

1 2 3 4 5 6 7

3R111 620R

3LD2

STANDBY

3R12 2K

3Q4

8550

3

2

1

3D15 1N4148

1 2

3R10

4.7K

3LD1

STANDBY

3D14 1N4148

1 2

3K1 Open/close

1

23

4

3R9

4.7K

3R11 620R

69

HS100 Integrated Home T heater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

FOR DDX2100

FOR DDX8001

FROM MAIN BOARD

0805

SMT SMT

PIN7:GND;PIN14:3.3V

RR3

NA

0ohm

NA

RR8

O ohm

AC5

SELECTION:

0 ohm

U5AC17 RR7

0 ohm NA

Option 1

Option 2

AC16

NA

NA ON

RR9

0 ohm

calibrate the synchronization between LRCK and MCLK

0 ohm NA 0 ohm NA NA

1241C-1

1.3

HS100 AMP BOARD 050725

C

22 24

Tuesday, November 22, 2005

Title

Size Document Number Rev

Date: Sheet

of

Harman Kardon, Northridge, California 91329, USA

TWARM2

TWARM3

CH6SUB+

CH6SUB-

AMP_TWAR TWARM1

ADATA2

AMP_TWAR

DATA/SDA CLOCK/SCL

ASCLK

AMUTE

AMP_PD

ADATA1 ADATA0

AMUTE

CKOUTCKOUT

+5V

RESET

CKOUT

+2.5V

+3.3V

-12V

+12V

AGND

+28V

PGND

-12V

+12V

AGNDAGND

AGND

-12V

+12V

GND

PGND

VCC_-12V

GND

DV33

VCC_12V

PGND

+3.3V

PGND

+3.3V

AAT3522 U 2

2

1

3

VI

GND

RET

AC7 104

RR5

NA

+

-

U14A

NJM4558

3

2

1

8 4

RR6

NA

AC14 104

D4 1N4148

1 2

Q2

SMT3

DTC343TK ROHM

D5 1N4148 1 2

D3 JUMPER

1 2

D1 JUMPER

1 2

AC20 122

D2 JUMPER

1 2

EC3

47U/16V

AC19 104

R10 1.5K

EC4

47U/16V

CN2

5X2.0mm

1

2

3

4

5

+12V

GND

-12V

+5V

GND

R7

1.5K

RR4 NA

CN5

DAMP CON/15P,2.54mm

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

RR1 0R

AC6

102

Q18 3904

R6 10K

AC11

2.2U/10V

R1 0

RR2 0R L3 300R

CB3 104

S

R

C1 1D

U5A

74HC74

4 3 216

5

U3

DDX8001

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

171819202122232425262728293031

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

495051525354555657585960616263

64

MVO TEST_MODE VDD3.3_1 GND_1 NC SDI_78 SDI_56 SDI_34 SDI_12 LRCKI BICKI VDD3.3_2 GND_2 NC RESET PLL_BYPASS

SA

SDA

SCL

XTI

PLL_FILTERNCGNDA_PLL

VDD3.3_PLL

CKOUTNCGND_3

VDD3.3_3

OUT8_B

OUT8_A

OUT7_B

OUT7_A

OUT6_B

OUT6_A

VDD3.3_4

GND_4

NC

OUT5_B

OUT5_A

OUT4_B

OUT4_A

OUT3_B

OUT3_A

VDD3.3_5

GND_5

NC

OUT2_B

OUT2_A

OUT1_B

OUT1_A

EAPD

VDD3.3_6

GND_6

NC

BICKO

LRCKO

SDO_12

SDO_34

VDD3.3_7

GND_7NCSDO56

SDO_78

PWDN

C2

27P

AC1

104

AC26

104

EC2

100U/16V

CN3 SUBWFR

1 2

3

FB1 50R

R3 10KAC29

104

RT9161A33 U1

2

1

3

VI

GND

VO

RR7 NA

+

EC5 10U/25V

AC16

NA

R12 1K

RR9 0R

AC24

22U/6.3V

CB2

104

CB1

104

EC1

100U/16V

AC22

221.

EC6

47U/16V

R5 10K

R4 10K

L2 600R 100MHZ

AC23

104

C5

100P

R8 1K

+

-

U14B

NJM4558

5

6

7

8 4

AC3 104

R11 150R

R13

47K

R9

1.5K

AR5

3.4K

AC9 104

AC25

104

C4

102

C1

15nF

RR8 0RRR3 0R

AC13 104

R15

270R

AC17

NA

CN1

5X2.0mm

1

2

+22V(28V)

GND

AMP_TWAR TWARM1

TWARM2

TWARM3

CH6_SUB+

CH6_SUB-

DATA/SDA

ADATA0

AMP_TWAR

AMP_PD

AMCLK

CLOCK/SCL

ASCLK

ADATA2 ADATA1

ALRCK

DATA/SDA

AMCLK

EAPD

AMP_PD

ADATA0

ADATA1

ASCLK

ADATA2

CH1_L-

CH2_SL-

CH3_R+ CH3_RCH4_SR+ CH4_SRCH5_C+ CH5_C-

CH1_L+

CH2_SL+

CLOCK/SCL

CH6_SUB-

CH6_SUB+

ALRCK

70

HS100 Integrated Home T heater System harman/kardon

5

4

3

2

1

D D

C C

B B

A A

A4A4

PRONT L

CENTER

REAR R

REAR L

N/A

PRONT R

1241C-1 3.43

HS100 AMP BOARD 050725

23 24Tuesday, November 22, 2005

Title

Size Document Number R ev

Date: Sheet of

Harman Kardon, Northridge, California 91329, USA

+3.3V

+36V

+3.3V

+36V

+3.3V

+36V

LL5 15UH

CB9

102

+

AC37 1U/50V

AC102 104

AC64

0.68UF/NPO

AR20

4.7R

AC75

104

AR13

4.7R

AC40 104

AC83 104

AC100 104

+

AC65 1U/50V

AC101 104

AR10

4.7R

AC74 470pF

LL4 15UH

LL1 15UH

AC98 104

AC61

104

AC88

104

AC51

104

AC68 104

AR17

4.7R

AC31 104

AC32

104

AC60

104

AC58 470pF

AR18

4.7R

CB13 102

AC97 104

AC28

104

+

AC72 1U/50V

LL7 15UH

AC43

104

AR6

4.7R

AC80

104

AC59 104

+

AC90 1000U/50V

AR16 10K

CB16 102

AR14

4.7R

AC33

104

AC66

104

AR23 10K

AC41 104

CB11 102

AC30 470pF

AC54

104

CB7 102

AR19

15R

AR8

15R

CN4

AMPOUT

4

3

7

2

5

6

1

8

9

10

11

12

AC78 104

AC47

104

AC38

104

LL9 15UH

AU2

DDX2100

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

1819

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

GNDS

OUTNR1

OUTNR2

VCC2N

PGND2N

PGND2P

VCC2P

OUTPR1

OUTPR2

OUTNL1

OUTNL2

VCC1N

PGND1N

PGND1P

VCC1P

OUTPL1

OUTPL2

NCGNDREF

GNDR1

VREG11

VREG12

VL

CONFIG

PWRDN

TRI-STATE

FAULT

TWARN

INLA

INLB

INRA

INRB

VREG21

VREG22

VSIG1

VSIG2

+

AC62 1000U/50V

AC49

0.68UF/NPO

AR12

15R

+

AC44 1U/50V

AC92

0.68UF/NPO

AC50 104

AR21

4.7R

+

AC34 1000U/50V

AC69

104

CB8

102

LL8 15UH

AR9 10K

AC52

104

AC84 104

AC89

104

AU1

DDX2100

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

1819

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

GNDS

OUTNR1

OUTNR2

VCC2N

PGND2N

PGND2P

VCC2P

OUTPR1

OUTPR2

OUTNL1

OUTNL2

VCC1N

PGND1N

PGND1P

VCC1P

OUTPL1

OUTPL2

NCGNDREF

GNDR1

VREG11

VREG12

VL

CONFIG

PWRDN

TRI-STATE

FAULT

TWARN

INLA

INLB

INRA

INRB

VREG21

VREG22

VSIG1

VSIG2

AC82 104

CB15 102

AC70 104

AC55 104

AR11

4.7R

+

AC93 1U/50V

AC71 104

AC42 104

AC94

104

AC86 470pF

LL10

15UH

AR7

4.7R

LL3 15UH

AC36

0.68UF/NPO

AC96 104

CB12 102

AC56 104

AC77

0.68UF/NPO

LL6

15UH

CB14

102

AC46 470pF

+

AC99

OPEN

AR22 15R

LL2

15UH

AC79

104

AU3

DDX2100

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

1819

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

GNDS

OUTNR1

OUTNR2

VCC2N

PGND2N

PGND2P

VCC2P

OUTPR1

OUTPR2

OUTNL1

OUTNL2

VCC1N

PGND1N

PGND1P

VCC1P

OUTPL1

OUTPL2

NCGNDREF

GNDR1

VREG11

VREG12

VL

CONFIG

PWRDN

TRI-STATE

FAULT

TWARN

INLA

INLB

INRA

INRB

VREG21

VREG22

VSIG1

VSIG2

CB10 102

AC87 104

AR15

15R

TWARM3

TWARN2

CH4_SR+

CH3_R+

CH5_C-

EAPD

CH4_SR-

CH3_R-

CH5_C+

CH2_SL+

CH1_L+TWARN1

EAPD

CH1_L-

CH2_SL-

71

HS100 Integrated Home T heater System harman/kardon
