INTRODUCTION 3
SUPPLIED ACCESSORIES 3
IMPORTANT SAFETY INFORMATION 3
PLACE THE AVR 3
FRONT-PANEL CONTROLS 4
REAR-PANEL CONNECTORS 6

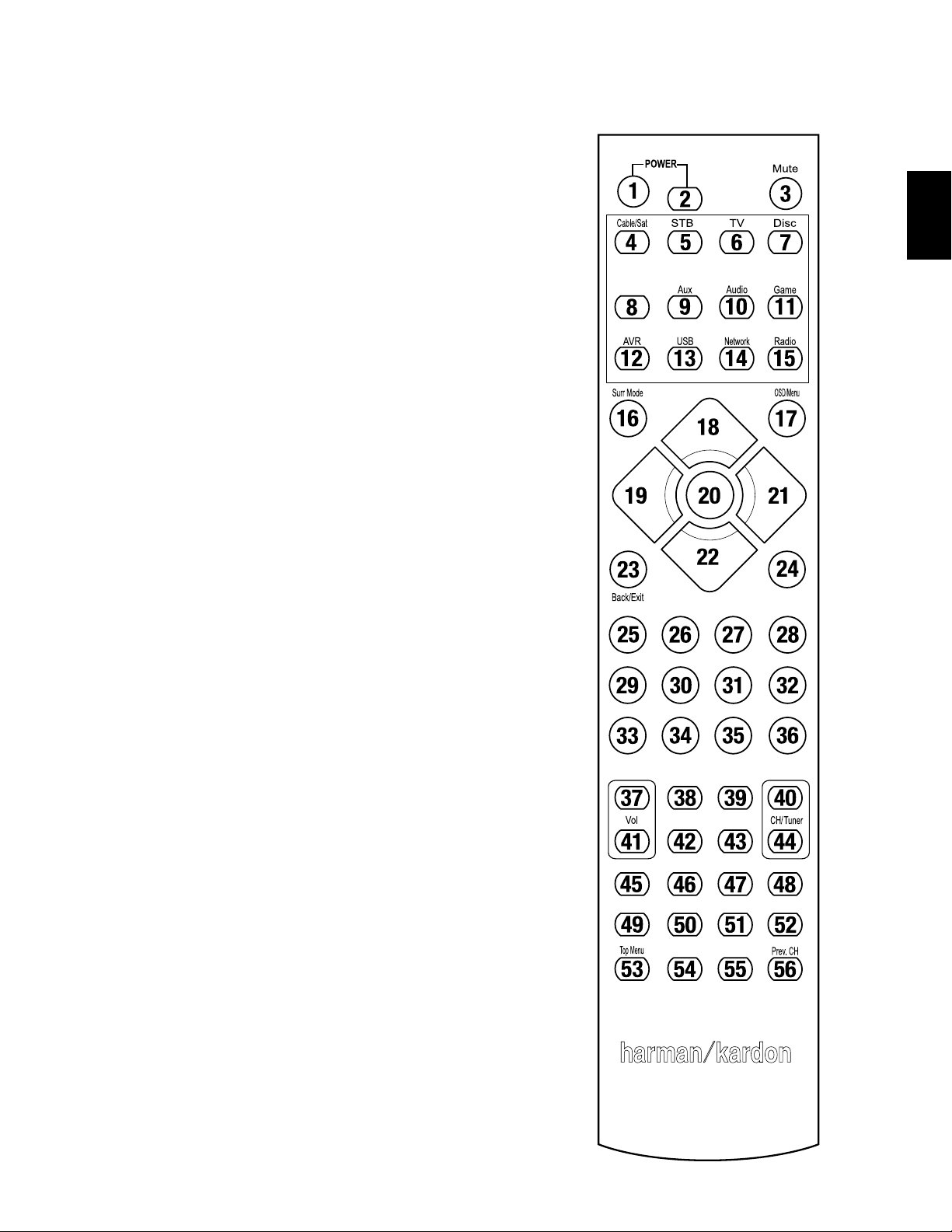

SYSTEM REMOTE CONTROL FUNCTIONS 8
INTRODUCTION TO HOME THEATER 10
TYPICAL HOME THEATER SYSTEM 10
MULTICHANNEL AUDIO 10
SURROUND MODES 10
PLACE YOUR SPEAKERS 10
PLACING THE LEFT, CENTER AND RIGHT SPEAKERS 10
PLACING THE SURROUND SPEAKERS 10
PLACING THE SUBWOOFER 10
TYPES OF HOME THEATER SYSTEM CONNECTIONS 11
SPEAKER CONNECTIONS 11
SUBWOOFER CONNECTIONS 11
SOURCE DEVICE CONNECTIONS 11
VIDEO CONNECTIONS 12
RADIO CONNECTIONS 12
NETWORK CONNECTOR 12
USB PORT 12
MAKING CONNECTIONS 13
CONNECT YOUR SPEAKERS 13
CONNECT YOUR SUBWOOFER 13
CONNECT YOUR TV OR VIDEO DISPLAY 14
CONNECT YOUR AUDIO AND VIDEO SOURCE DEVICES 15
USB AND IOS DEVICES 17
CONNECT TO YOUR HOME NETWORK 17
CONNECT THE RADIO ANTENNAS 17
CONNECT IR EQUIPMENT 17
CONNECT THE TRIGGER OUTPUT 18
CONNECT TO AC POWER 18
SET UP THE REMOTE CONTROL 19
INSTALL THE BATTERIES IN THE REMOTE CONTROL 19
PROGRAM THE REMOTE TO CONTROL YOUR SOURCE
DEVICES AND TV 19
SET UP THE AVR 20
TURN ON THE AVR 20
USING THE ON-SCREEN MENU SYSTEM 20
CONFIGURE THE AVR FOR YOUR SPEAKERS 20
SET UP YOUR SOURCES 22
SET UP THE NETWORK 23
OPERATING YOUR AVR 23
HARMAN REMOTE APP 23
CONTROLLING THE VOLUME 24
MUTING THE SOUND 24
LISTENING THROUGH HEADPHONES 24
SELECTING A SOURCE 24
SELECTING A SURROUND MODE 24
LISTENING TO FM AND AM RADIO 25
LISTENING TO MEDIA ON A USB DEVICE 25
LISTENING TO AN IPOD/IPHONE/IPAD DEVICE 26
LISTENING TO VTUNER (INTERNET RADIO) 26
LISTENING TO MEDIA VIA YOUR HOME NETWORK 26
LISTENING TO MEDIA VIA SPOTIFY CONNECT 27
USING THIS DEVICE WITH SPOTIFY CONNECT 27
Thank you for choosing this Harman Kardon product!
For more than fifty years, the Harman Kardon mission has been to share a passion for music
and entertainment, using leading-edge technology to achieve premium performance.
Sidney Harman and Bernard Kardon invented the receiver, a single component designed
to simplify home entertainment without compromising performance. Over the years,
Harman Kardon products have become easier to use, while offering more features and
sounding better than ever.
The AVR 1510S/AVR 151S 5.1-channel digital audio/video receivers (AVRs) continue this
tradition with some of the most advanced audio and video processing capabilities yet,
and a wealth of listening and viewing options.
To obtain the maximum enjoyment from your new AVR, please read this manual and refer
back to it as you become more familiar with its features and their operation.
If you have any questions about this product, its installation or its operation, please
contact your Harman Kardon retailer or custom installer, or visit the Web site at
www.harmankardon.com.
Supplied Accessories
The following accessory items are supplied with your AVR. If any of these items are
missing, please contact your Harman Kardon dealer or Harman Kardon customer service
at www.harmankardon.com.
• System remote control
• AM loop antenna
• FM wire antenna
• Two AAA batteries
• AC power cord (AVR 151S only)
IMPORTANT SAFETY INFORMATION
Verify Line Voltage Before Use
The AVR 1510S has been designed for use with 120-volt alternating current (AC). The AVR
151S has been designed for use with 220 – 240-volt AC. Connection to a line voltage
other than that for which your receiver is intended can create a safety and fire hazard and
may damage the unit. If you have any questions about the voltage requirements for your
specific model, or about the line voltage in your area, contact your selling dealer before
plugging the unit into a wall outlet.
Do Not Use Extension Cords
To avoid safety hazards, use only the power cord supplied with your unit. We do not
recommend that extension cords be used with this product. As with all electrical devices,
do not run power cords under rugs or carpets, or place heavy objects on them. Damaged
power cords should be replaced immediately by an authorized service center with a cord
meeting factory specifications.
Handle the AC Power Cord Gently
When disconnecting the power cord from an AC outlet, always pull the plug; never
pull the cord. If you do not intend to use your AVR for any considerable length of time,
disconnect the plug from the AC outlet.
Do Not Open the Cabinet
There are no user-serviceable components inside this product. Opening the cabinet may
present a shock hazard, and any modification to the product will void your warranty.
If water or any metal object such as a paper clip, wire or staple accidentally falls inside
the unit, disconnect it from the AC power source immediately, and consult an authorized
service center.
CATV or Antenna Grounding (AVR 1510S)
If an outside antenna or cable system is connected to this product, be certain that it is
grounded so as to provide some protection against voltage surges and static charges.
Section 810 of the United States National Electrical Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding
conductors, location of antenna discharge unit, connection to grounding electrodes and
requirements of the grounding electrode.
NOTE TO CATV SYSTEM INSTALLER: This reminder is provided to call the CATV (cable TV)
system installer’s attention to article 820-40 of the NEC, which provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected
to the grounding system of the building, as close to the point of cable entry as possible.
ENGLISH
Place the AVR
• Place the AVR on a firm and level surface. Be certain that the surface and any
mounting hardware can support the AVR’s weight.
• Provide proper space above and below the AVR for ventilation. Recommended
clearance distances are 30cm above the unit, 30cm behind the unit and 30cm on
each side of the unit.
• If you install the AVR in a cabinet or other enclosed area, provide cooling air within
the cabinet. Under some circumstances, a fan may be required.
• Do not obstruct the ventilation slots on the top of the AVR or place objects directly
over them.
• Do not place the AVR directly on a carpeted surface.
• Do not place the AVR in moist or humid locations, in extremely hot or cold locations,
in areas near heaters or heat registers, or in direct sunlight.
3
AVR
Front-Panel Controls
Front-Panel Controls
Tuning Mode Button
(AVR 1510S)/ RDS
Button (AVR 151S)
Power
Indicator
Power
Button
1510S
USB
Port
Channel Volume
Adjust Button
Sensor
IR
Set
Button
Left/Right
ButtonsHeadphone Jack
Front-Panel
Display
Up/Down Buttons/
Tuning Buttons
Volume
Knob
Surround Modes
Select Buttons
Audio Input
Button
Surround Mode
Category Button
Source Select
Buttons
4
AVR
Front-Panel Controls
Front-Panel Controls, continued
Power indicator/Power button: The AVR has three different power modes:
• Off (Power indicator glows solid amber): The Off mode minimizes energy consumption
when you’re not using the AVR. When the AVR is off, it will not automatically turn on
or play audio in response to a DLNA DMR stream from a networked device. When
the AVR is off, pressing the Power button turns it on. To turn the AVR off when it is
on, press the Power button for more than three seconds. The Front-Panel Display will
indicate “Your device is switched off” for two seconds, then will switch off.
NOTE: You can use the System Setup menu to set the AVR to automatically enter the
off mode after it has been in the Sleep mode for a certain period of time. See System Settings, on page 29.
• Sleep (Power indicator glows solid amber and front-panel display indicates “Device
sleep”): The Sleep mode powers-down some of the AVR’s circuitry, but allows the
AVR to automatically turn on and play audio in response to a DMR stream from a
networked device. When the AVR is in Sleep, pressing the Power button turns it on.
To put the AVR into Sleep when it is on, press the Power button for less than three
seconds. The front-panel display will indicate “Your device is going to sleep” and
then indicate “Device sleep” while the AVR is in the Sleep mode.
NOTE: The AVR will automatically enter the Sleep mode after 30 minutes of no audio
signal or user control input, unless USB, iPod, Home Network, vTuner or DLNA DMR
is active. In these cases, the AVR will automatically enter the Sleep mode after the
number of hours set in the Auto Power Off system setting. See System Settings, on
page 29.
• On (Power indicator glows solid white): When the AVR is on it is fully operational.
Headphone jack: Connect a 1/4" stereo headphone plug to this jack for private listening.
Tuning Mode button (AVR 1510S only): Press this button to toggle the radio between
the manual (one frequency step at a time) and automatic (seeks frequencies with
acceptable signal strength) FM tuning mode. The button also toggles the radio between
stereo and mono modes when an FM station is tuned in.
RDS button (AVR 151S only): When listening to an FM radio station that broadcasts RDS
information, this button activates the various RDS functions.
USB port: The USB port can be used to play audio files from an Apple iOS
connected to the port, and can also be used to play MP3 and WMA audio files from a USB
device inserted into the port. Insert the connector or device into the USB port oriented so
it fits all the way into the port. You may insert or remove the connector or device at any
time – there is no installation or ejection procedure.
You can also use the USB port to perform firmware upgrades. If an upgrade for the AVR’s
operating system is released in the future, you will be able to download it to the AVR using
this port. Complete instructions will be provided at that time.
IMPORTANT: Do not connect a PC or other USB host/controller to this port, or you
may damage both the AVR and the other device.
Channel Volume Adjust button: Press this button to activate the individual channel level
adjustment. After pressing this button, use the Up/Down buttons/Tuning buttons to select
the channel for adjustment and use the Left/Right buttons to adjust the channel’s level.
Audio Input button: Press this button to change the audio input connection for the current
source. Use the Left/Right buttons to cycle through the available input connections, and
press the Set button to assign the currently-displayed connection to the source.
IR sensor: This sensor receives infrared (IR) commands from the remote control. Make
sure that the sensor is not blocked.
Set button: Press this button to select the currently highlighted menu item.
Left/Right buttons: Use these buttons to navigate the AVR’s menus.
®
device
Front-panel display: Various messages appear on this two-line display in response to
commands and changes in the incoming signal. In normal operation, the current source
name appears on the upper line, while the active surround mode is displayed on the
lower line. When the on-screen display menu system (OSD) is in use, the current menu
settings appear.
Up/Down buttons/Tuning buttons: Use these buttons to navigate the AVR’s menus.
When the radio is the active source, use these buttons to tune stations according to the
setting of the Tuning Mode button (see above).
Surround Mode Category button: Press this button to select a surround-sound category.
Each press changes the surround-mode category: Auto Select, Virtual Surround, Stereo,
Movie, Music and Game. To change the specific surround-sound mode within the
category, use the Surround Mode Select buttons. See Audio Processing and Surround Sound, on page 27, for more information about surround modes.
Surround Mode Select buttons: After you have selected the desired surround-mode
category, press these buttons to select a specific mode within the category, such as to
change from Dolby
mode availability depends on the nature of the source input signal, i.e., digital versus
analog, and the number of channels encoded within the signal.
Source Select buttons: Press these buttons to select the active source.
Volume knob: Turn this knob to raise or lower the volume.
®
Pro Logic® II Movie mode to DTS® NEO:6 Cinema mode. Surround
ENGLISH
5
AVR

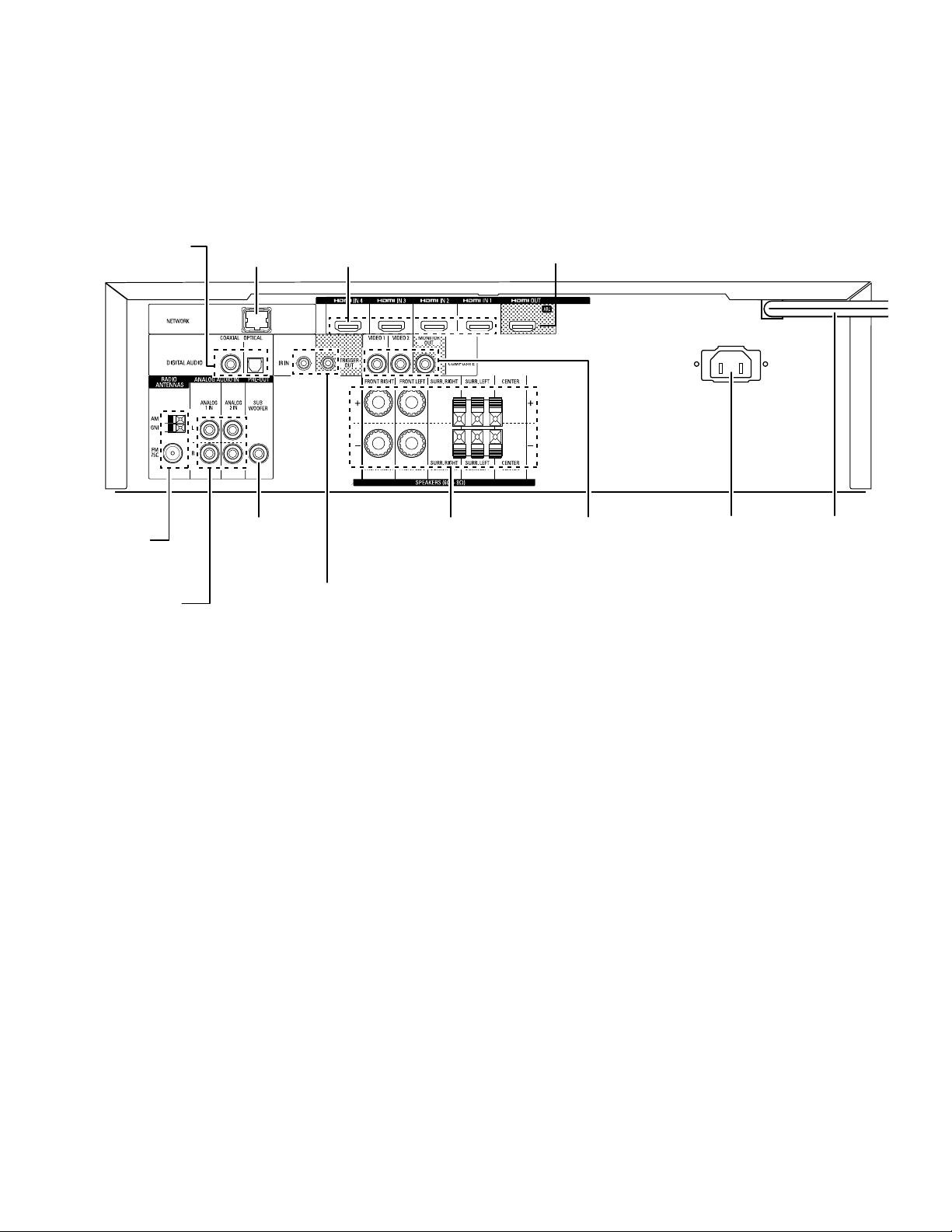

Rear-Panel Connectors
Rear-Panel Connectors
Digital Audio
Connectors
Radio Antenna
Connectors
Analog Audio
Connectors
Network
Connector
Subwoofer
Pre-Out
Connector
HDMI Input
Connectors
IR and Trigger
Connectors
Speaker
Connectors
HDMI Output
Connectors
Analog Video
Connectors
AC Input
Connector
(AVR 151S)
Power Cord
(AVR 1510S)
6
AVR
Rear-Panel Connectors, continued
Digital Audio connectors: If your non-HDMI source devices have digital outputs,
connect them to the AVR’s digital audio connectors. NOTE: Make only one type of digital
connection (HDMI, optical or coaxial) from each device. See Connect Your Audio and Video Source Devices, on page 15, for more information.
Radio Antenna connectors: Connect the supplied AM and FM antennas to their
respective terminals for radio reception.
Analog Audio connectors: The following analog audio connectors are provided:
• Analog Audio Input connectors: Use the AVR’s Analog Audio Input connectors for
source devices that don’t have HDMI or digital audio connectors. See Connect Your
Audio and Video Source Devices, on page 15, for more information.
Network connector: If your home network is wired, use a Cat. 5 or Cat. 5E Ethernet
cable (not supplied) to connect the AVR’s Network connector to your home network to
enjoy Internet radio and content from DLNA-compatible devices that are connected to the
network. See Connect to Your Home Network, on page 17, for more information.
Subwoofer Pre-Out connector: Connect this jack to a powered subwoofer with a linelevel input. See Connect Your Subwoofer, on page 13, for more information.
IR and Trigger connector: The following IR and trigger connectors are provided:
• IR In connectors: When the IR sensor on the front panel is blocked (such as when
the AVR is installed inside a cabinet), connect an optional IR receiver to the IR In
jack.
• 12V Trigger connector: This connector provides 12V DC whenever the AVR is on. It
can be used to turn on and off other devices such as a powered subwoofer.
HDMI Output connectors: If your TV has an HDMI connector and you are connecting
HDMI source devices to the AVR, use an HDMI cable (not included) to connect it to the
AVR’s HDMI Out connector.
Rear-Panel Connectors
®
HDMI
Input connectors: An HDMI connection transmits digital audio and video signals
between devices. If your source devices have HDMI connectors, using them will provide
the best possible video and audio performance quality. Since the HDMI cable carries
both digital video and digital audio signals, you do not have to make any additional audio
connections for devices you connect via the HDMI connection. See Connect Your Audio and Video Source Devices, on page 15, for more information.
AC Input connector (AVR 151S only): After you have made and verified all other
connections, plug the supplied AC power cord into this receptacle and into an unswitched
wall outlet.
Power cord (AVR 151S only): After you have made and verified all other connections,
plug the power cord into an unswitched wall outlet.
ENGLISH
Notes on using the HDMI Output connector:
• When connecting a DVI-equipped display to the HDMI Out connector, use an
HDMI-to-DVI adapter and make a separate audio connection.
• Make sure the HDMI-equipped display is HDCP (High-bandwidth Digital Content
Protection)-compliant. If it isn’t, do not connect it via an HDMI connection; use an
analog video connection instead and make a separate audio connection.
Speaker connectors: Use two-conductor speaker wire to connect each set of terminals
to the correct speaker. See Connect Your Speakers, on page 13, for more information.
Analog Video connectors: The following Analog Video connectors are provided:
• Composite Video Input connectors: Use composite video connectors for video
source devices that don’t have HDMI connectors. You will also need to make an
audio connection from the source device to the AVR. See Connect Your Audio and Video Source Devices, on page 15, for more information.
• Composite Video Monitor Out connector: If your TV or video display does not
have an HDMI connector, or if your TV does have an HDMI connector but you are connecting some source devices with only composite video connectors, use a
composite video cable (not included) to connect the AVR’s Composite Video Monitor
Out connector to your TV ’s composite video input.
7
AVR
System Remote Control Functions
System Remote Control Functions
IR Transmitter
Power Off Button
Power On Button
AVR Button
Surround Modes Button
OK Button
Back/Exit Button
Clear Button
Server
Mute Button
Source Selector Buttons
OSD/Menu Button
Up/Down/Left/Right
Buttons
Info/Option Button
Info/Option
Number Buttons
Test Tone Button
Volume Up/Down Buttons
Transport Control Buttons
8
Delay Button
Tone Button
Preset Scan Button
Direct Button
Sleep Button
Channel/Tuner Buttons
Tone
Display Dimmer Button
RDS Button
Memory Button
TopMenu
Previous Channel Button
AVR
System Remote Control Functions
System Remote Control Functions, continued
In addition to controlling the AVR, the AVR remote is capable of controlling eight other
devices, including an iPod/iPhone device connected to the AVR’s front-panel USB port.
During the installation process, you may program the codes for each of your source
components into the remote. (See Program the Remote to Control Your Source Devices and TV, on page 19, for programming information.) To operate a component, press its
Source Selector button to change the remote’s control mode.
A button’s function depends on which component is being controlled. See Table A13 in
the Appendix for listings of the functions for each type of component. Most of the buttons
on the remote have dedicated functions, although the precise codes transmitted vary
depending on the specific device being controlled. Due to the wide variety of functions for
various source devices, we have included only a few of the most-often used functions on
the remote: number buttons, transport controls, television-channel control, menu access
and power on and off. Buttons dedicated to the AVR – AVR Power On/Off, Surround
Modes, Volume, Mute, Delay and Sleep Settings – are available at any time, even when
the remote is controlling another device.
Power On/Power Off buttons: Press these buttons to turn the AVR on and put it into
Sleep or turn it off. See Power Indicator/Power Button, on page 5, for more information.
IR Transmitter: As buttons are pressed on the remote, infrared codes are emitted
through this lens.
Mute button: Press this button to mute the AVR’s speaker-output connectors and
headphone jack. To restore the sound, press this button or adjust the volume.
Source Selector buttons: Press one of these buttons to select a source device, e.g.,
Disc, Cable/Sat, Radio, etc. This action will also turn on the AVR and switch the remote’s
control mode to operate the selected source device.
• The first press of the Radio button switches the AVR to the last-used tuner band (AM
or FM). Each successive press changes the band.
• The first press of the USB button switches the AVR to the last-used source (USB or
iPod). Each successive press cycles between the two sources.
• The first press of the Network button switches the AVR to the last-used source
(Network or vTuner). Each successive press cycles between the two sources.
AVR button: Press to put the remote into the AVR control mode.
Surround Modes button: Press this button to access the Surround Modes submenu.
Select a surround-mode category: Auto Select, Virtual Surround, Stereo, Movie, Music or
Game. When you select the category, it is highlighted and the surround mode changes.
To change the surround mode for the selected category navigate to the Surround Mode
menu in the AVR’s on-screen display menu, select the desired category, and use the Left/
Right buttons to select one of the available surround modes. See the Advanced Functions
section, on page 27, for more information.
OSD/Menu button: When the remote is controlling the AVR, press this button to display
the AVR’s on-screen display (OSD) menu. This button is also used within the tuner menus
and an iPod connected to the AVR’s front-panel USB port, and is also used to display the
main menu on some source devices.
OK button: This button is used to select items from the menu system. It is also used to
toggle between the Manual and Automatic tuning modes for FM or AM radio. To toggle
between these options, press and hold this button for more than 3 seconds.
Up/Down/Left/Right buttons: These buttons are used to navigate the menu system and
to operate the tuner.
Back/Exit button: Press this button to return to the previous menu or to exit the menu
system.
Info/Option button: Press to display the available option settings for the current
source.
Number buttons: Use these buttons to enter numbers for radio-station frequencies or
to select station presets.
Clear button: Press this button to clear a radio station frequency you have started to
enter.
Test Tone button: Press this button to activate test noise that will circulate through each
speaker, allowing you to adjust the individual speaker levels. Use the Up/Down buttons
to switch the noise to a different speaker and use the Left/Right buttons to change the
volume of the speaker the noise is playing through.
Delay Adjust button: Pressing this button lets you adjust two different types of delay
settings (use the Up/Down buttons to cycle through the settings):
• Lip Sync: This setting lets you resynchronize the audio and video signals from a
source to eliminate a “lip sync” problem. Lip-sync issues can occur when the video
portion of a signal undergoes additional processing in either the source device or the
video display. Use the Left/Right buttons to delay the audio by up to 180ms.
• Distance: These settings let you set the delay for each speaker to compensate for the
different distances they may be from the listening position. Use the Up/Down buttons
to cycle through each of the system’s speakers, and use the Left/Right buttons to set
the distance each speaker is from the listening position. See Configure the AVR for Your Speakers, on page 20, for more information.
Sleep button: Press this button to activate the sleep timer, which turns off the receiver
after a programmed period of time. Each press decreases the time by 10 minutes, down
from 90 minutes – ending with the “Sleep Off” message.
Volume Up/Down buttons: Press these buttons to raise or lower the volume.
Channel/Tuner buttons: When radio has been selected, press these buttons to select a
preset radio station. While operating a cable, satellite or HDTV set-top box or a television,
press these buttons to change channels.
Tone button: Pressing this button lets you adjust the Tone settings for the current source.
Use the Left/Right buttons to switch between On and Off, or to adjust the Bass or Treble
from -10dB to +10dB. See Set Up Your Sources, on page 22, for more information.
Display Dimmer button: Press this button to dim the AVR’s front-panel display partially
or fully.
Preset Scan button: When Radio is the selected source, press this button to play each of
your preset radio stations in order for five seconds. Pressing the button again to remain
tuned to the current station.
Direct button: Press this button to directly tune to a radio station by using the Number
buttons to enter its frequency.
Memory button: Press this button to save the current radio or vTuner station as a
preset.
RDS button (AVR 151S only): When listening to an FM radio station that broadcasts RDS
information, this button activates the various RDS functions.
Transport Control buttons: These buttons are used to control source devices.
Previous Channel button: In AVR control mode, this button lets you adjust the output
levels for each speaker individually. Use the Up/Down buttons to cycle through each
speaker, and use the Left/Right buttons to set the level of that speaker. See Configure the AVR for Your Speakers, on page 20, for more information. When TV is the selected source,
press this button to switch to the previously-tuned channel.
ENGLISH
9
AVR
Introduction to Home Theater and
Place Your Speakers
Introduction to Home Theater
This introductory section will help you to familiarize yourself with some basic concepts
unique to multichannel surround-sound receivers, which will make it easier for you to
set up and operate your AVR.
Typical Home Theater System
A home theater typically includes an audio/video receiver, which controls the system
and supplies amplification for the loudspeakers; a disc player; a source component for
television broadcasts (cable box, satellite dish receiver, HDTV tuner or antenna connected
to the TV); a TV or video display; and multiple loudspeakers.
Multichannel Audio
The main benefit of a home theater system is its ability to produce “surround sound.”
Surround sound uses multiple speakers and amplifier channels to immerse you in the
audio/video presentation for a dramatically increased sense of realism.
Your AVR may have up to five main speakers connected directly to it, plus a subwoofer.
Each main speaker is powered by its own amplifier channel inside the AVR. A system
with more than two speakers is called a multichannel system. The different main speaker
types in a home theater system are:
Front Left and Right: The front left and right speakers are used as in a two-channel
system. In many surround-sound modes, these speakers are secondary, while the main
action, especially dialogue, is reproduced by the center speaker.
Center: When you are watching movies and television programs, the center speaker
reproduces most of the dialogue and other soundtrack information, anchoring it with the
picture. When you are listening to a musical program, the center speaker helps to create
a seamless front soundstage, creating a realistic “you-are-there” listening experience.
Surround Left and Right: The surround left and right speakers produce ambient sounds
that help create a realistic and immersive surround-sound environment. They also help
recreate directional sound effects such as aircraft flyovers.
Many people expect the surround speakers to play as loudly as the front speakers.
Although you will calibrate all of the speakers in your system to sound equally loud at the
listening position, most artists use the surround speakers for ambient effects only, and
they create their programs to steer relatively little sound to these speakers.
Subwoofer: A subwoofer is designed to play only the lowest frequencies (the deep
bass). It augments smaller, limited-range main speakers that are usually used for the
other channels. Many digital-format programs, such as movies recorded in Dolby Digital,
contain a low-frequency effects (LFE) channel that is directed to the subwoofer. The LFE
channel packs the punch of a rumbling train or airplane, or the power of an explosion,
adding realism and excitement to your home theater.
Surround Modes
There are different theories as to the best way to present surround sound and to
distribute each audio channel’s sounds to the surround-sound system’s speakers.
A variety of algorithms have been developed in an effort to recreate the way we hear
sounds in the real world, providing you with a rich variety of options. Several companies
have developed different surround-sound technologies, all of which can be accurately
reproduced by your AVR:
• Dolby Laboratories: Dolby TrueHD, Dolby Digital Plus, Dolby Digital, Dolby Digital
EX.
• DTS: DTS-HD High Resolution Audio, DTS-HD Master Audio, DTS, DTS-ES (Discrete
and Matrix), DTS Neo:6
• HARMAN International: Logic 7
• Stereo Modes: 2CH Stereo and 5CH Stereo.
Appendix Table A8, on page 36, contains detailed explanations of the different surround-
sound options available on your AVR. Digital surround-sound modes, such as the Dolby
Digital and DTS modes, are available only on specially encoded programs, such as those
available via HDTV, DVD and Blu-ray Disc media and digital cable or satellite television.
Other surround modes may be used with digital and analog signals to create a different
surround presentation or to use a different number of speakers. Surround-mode selection
depends upon the number of speakers in your system, the program you are watching or
listening to, and your personal tastes.
®
, DTS 96/24™.
®
, HARMAN virtual speaker, HARMAN headphone.
Place Your Speakers
Determine the locations for your system’s speakers according to their manufacturer’s
directions and the layout of your listening room. Use the illustrations below as a guide.
To create the most realistic surround-sound environment possible, you should place
your speakers in a circle with the listening position at its center. You should angle each
speaker so it directly faces the listening position. Use the diagram below as a guide.
TV
C
FL
SL
Placing the Left, Center and Right Speakers
Place the center speaker either on top of, below or mounted on the wall above or below
the TV or video display screen. Place the front left and right speakers along the circle,
about 30 degrees from the center speaker and angled toward the listener.
Place the front left, front right and center speakers at the same height, preferably at
about the same height as the listener’s ears. The center speaker should be no more than
2 feet (0.6m) above or below the left/right speakers. If you’re using only two speakers
with your AVR, place them in the front left and right positions.
Placing the Surround Speakers
You should place the left and right surround speakers approximately 110 degrees from
the center speaker, slightly behind and angled toward the listener. Alternatively, place
them behind the listener, with each surround speaker facing the opposite-side front
speaker. You should place the surround speakers 2 feet – 6 feet (0.6m – 1.8m) higher
than the listener’s ears.
NOTE: Your receiver will sound its best when the same model or brand of loudspeaker
is used for all positions.
Placing the Subwoofer
Because a room’s shape and volume can have a dramatic effect on a subwoofer’s
performance, it is best to experiment with placement so that you will find the location
that produces the best results in your particular listening room. With that in mind, these
rules will help you get started:
• Placing the subwoofer next to a wall generally will increase the amount of bass in
the room.
• Placing the subwoofer in a corner generally will maximize the amount of bass in
the room.
• In many rooms, placing the subwoofer along the same plane as the left and right
speakers can produce the best integration between the sound of the subwoofer and
that of the left and right speakers.
• In some rooms, the best performance could even result from placing the subwoofer
behind the listening position.
A good way to determine the best location for the subwoofer is by temporarily placing it in
the listening position and playing music with strong bass content. Move around to various
locations in the room while the system is playing (putting your ears where the subwoofer
would be placed), and listen until you find the location where the bass performance is
best. Place the subwoofer in that location.
SUB
FR
SR
10
AVR
Types of Home Theater System Connections
Types of Home Theater System Connections
There are different types of audio and video connections used to connect the AVR to your
speakers, your TV or video display, and your source devices. The Consumer Electronics
Association has established the CEA® color-coding standard.
Analog Audio ConnectionColor
Front Left/RightWhite/Red
CenterGreen
Surround Left/RightBlue/Gray
SubwooferPurple
Digital Audio ConnectionColor
CoaxialOrange
Optical InputBlack
Analog Video ConnectionColor
Composite Video Yellow
Speaker Connections
Speaker cables carry an amplified signal from the AVR’s speaker terminals to each
loudspeaker. They contain two wire conductors, or leads, that are differentiated in some
way, such as with colors or stripes.
The differentiation helps you maintain proper polarity, without which your system’s lowfrequency performance can suffer. Each speaker is connected to the AVR’s speakeroutput terminals using two wires, one positive (+) and one negative (–). Always connect
the positive terminal on the speaker, which is usually colored red, to the positive terminal
on the receiver, which is colored as indicated in the Connection Color Guide Table, above.
The negative terminals on the speakers and the AVR are black.
Your AVR uses binding-post speaker terminals for the Front Left/Right speakers that
can accept bare-wire cables or banana plugs in addition to spring-clip terminals for
the Center and Surround speakers that only accept bare-wire cables. For the springclip terminals, press the levers to open the connectors, insert the bare wires into the
openings, and release the levers to secure the wires. Bare-wire cables are installed as
shown below:
1. Unscrew Cap3. Tighten Cap2. Insert Bare Wire
Banana plugs are inserted into the hole in the middle of the terminal cap, as shown
below:
Subwoofer Connections
The subwoofer is a speaker dedicated to reproducing only the low (bass) frequencies,
which require more power. To obtain the best results, most speaker manufacturers offer
powered subwoofers that contain their own amplifiers. Use a single RCA audio cable to
make a line-level (non-amplified) connection from the AVR’s Subwoofer connector to a
corresponding input jack on the subwoofer.
Although the AVR’s purple subwoofer output looks similar to a full-range analog audio
jack, it is filtered so that only the low frequencies pass through it. Don’t connect this
output to any device other than a subwoofer.
Source Device Connections
Audio and video signals originate in source devices (components where a playback
signal originates) such as your Blu-ray Disc or DVD player, CD player, DVR (digital video
recorder) or other recorder, tape deck, game console, cable or satellite television tuner,
an iPod or iPhone (connected to the AVR’s USB port) or an MP3 player. The AVR’s FM/AM
tuner also counts as a source, even though no external connections are needed other
than the FM and AM antennas. Separate connections are required for the audio and
video portions of the source device’s signal, except for digital HDMI connections. The
types of connections you use will depend upon the capabilities of the source device and
of your TV or video display.
Digital Audio Connections – HDMI
There are two types of audio connections – digital and analog. Digital audio signals are
required for listening to sources encoded with digital surround modes, such as Dolby
Digital and DTS, or for uncompressed PCM digital audio. Your AVR has three types of
digital audio connections: HDMI, coaxial and optical. Do not use more than one type of
digital audio connection for each source device. However, it’s okay to make both analog
and digital audio connections to the same source.
Your AVR is equipped with rear-panel HDMI input and output connectors. HDMI technology
enables high-definition digital audio and video information to be carried using a single
cable, delivering the highest quality picture and sound. If your TV or video display device
has an HDMI input connector, make a single HDMI connection from each HDMI-enabled
source device to the AVR. Usually, a separate digital audio connection is not required.
The AVR’s HDMI output connection contains an Audio Return Channel (ARC) that carries
a digital audio signal from your TV or video display back to the AVR. It allows you to listen
to HDMI devices that are connected directly to your TV (such as an Internet connection)
without making an additional connection from the device to the AVR. The ARC signal
is active when the TV source is selected. See System Settings, on page 29, for more
information.
The HDMI connector is shaped for easy plug-in (see illustration, below), and HDMI
cable runs are limited to about 10 feet (3m). If your video display has a DVI input and is
HDCP-compliant, use an HDMI-to-DVI adapter (not included), and make a separate audio
connection.
ENGLISH
A. Tighten Cap
Always connect the colored (+) terminal on the AVR to the (+) terminal on the speaker
(usually red), and the black (–) terminal on the AVR to the (–) terminal on the speaker
(usually black).
IMPORTANT: Make sure the ( + ) and ( – ) bare wires do not touch each other or
the other terminal. Touching wires can cause a short circuit that can damage your
receiver or amplifier.
B. Insert Banana Connector into Hole in Cap
11
AVR
Types of Home Theater System Connections
Digital Audio Connections – Coaxial
Coaxial digital audio jacks are usually color-coded in orange. Although they look like
standard RCA-type analog jacks, you should not connect coaxial digital audio outputs to
analog inputs or vice versa.
Digital Audio Connections – Optical
Optical digital audio connectors are normally covered by a shutter to protect them from
dust. The shutter opens as the cable is inserted. Optical input connectors are color-coded
using a black shutter.
Analog Audio Connections
Two-channel analog connections require a stereo audio cable, with one connector for
the left channel (white) and one for the right channel (red). These two connectors are
attached to each other.
Radio Connections
Your AVR uses separate terminals for the included FM and AM antennas. The FM antenna
uses a 75-ohm F-connector.
The AM antenna connector uses spring-clip terminals. After assembling the antenna as
shown below, press the levers to open the connectors, insert the bare wires into the
openings, and release the levers to secure the wires. The antenna wires are not polarized,
so you can insert either wire into either connector.
Network Connector
The AVR’s Network connector allows you to enjoy Internet radio or content from other
DLNA-compatible devices that are connected to the same network. Use a Cat. 5 or
Cat. 5E Ethernet cable to connect the AVR’s RJ-45 connector to your home network.
For source devices that have both digital and analog audio outputs, you may make both
connections.
Video Connections
Many source devices output both audio and video signals (e.g., Blu-ray Disc, DVD
player, cable television box, HDTV tuner, satellite box, VCR, DVR). In addition to an audio
connection as described above, make a video connection for each of these source
devices. Make only one type of video connection for each device.
Digital Video Connections
If you have already connected a source device to one of the AVR’s HDMI input connectors,
you have automatically made a video connection for that device, since the HDMI cable
carries both digital audio and digital video signals.
Analog Video Connections – Composite Video
Composite video is the most commonly available analog video connection. Both the
chrominance (color) and luminance (intensity) components of the video signal are
transmitted using a single cable. The jack is usually color-coded yellow and looks like an
analog audio jack. Do not connect a composite video jack to an analog audio or coaxial
digital audio jack, or vice versa.
USB Port
The AVR can play audio files from an Apple iOS® device connected to the USB port,
and allows you to control the iOS device via the AVR remote control. The AVR can also
play MP3 and WMA audio files from a USB device inserted into the USB port. Insert the
connector or device into the USB port oriented so it fits all the way into the port. You may
insert or remove the connector or device at any time – there is no installation or ejection
procedure.
The USB port on your AVR is also used to perform firmware upgrades. If an upgrade for
the AVR’s operating system is released in the future, you will be able to download it to the
AVR using this port. Complete instructions will be provided at that time.
IMPORTANT: Do not connect a PC or other USB host/controller to the AVR’s USB
port, or you may damage both the AVR and the other device.
12
AVR
Making Connections
Making Connections
CAUTION: Before making any connections to the audio/video receiver, ensure
that the AVR’s AC cord is unplugged from the AC outlet. Making connections
with the receiver plugged in and turned on could damage the speakers.
Connect Your Speakers
After you have placed your loudspeakers in the room as explained in Place Your Speakers,
on page 10, connect each speaker to its color-coded terminal on the AVR as explained
in Speaker Connections, on page 11. Connect the speakers as shown in the illustration.
Connect Your Subwoofer
Use a single RCA audio cable to connect the AVR’s Subwoofer connector to your subwoofer
as explained in Subwoofer Connections, on page 11. Consult your subwoofer’s user
manual for specific information about making connections to it.
ENGLISH
AVR Subwoofer
Connection
Powered
Subwoofer
Single
RCA Audio
Cable
(not supplied)
13
AVR
Conector de saída
Connect Your TV or Video Display
If your TV has an HDMI connector and you have HDMI source devices: Use an HDMI
cable (not included) to connect it to the AVR’s HDMI Out connector. This will provide the
best possible picture quality.
AVR HDMI
TV
Cabo HDMI
(não fornecido)
Making Connections
If your TV does not have an HDMI connector or if your TV does have an HDMI
connector but you are connecting some source devices with only composite video
connectors: Use a composite video cable (not included) to connect the AVR’s Composite
Monitor Out connector to your TV’s composite video connector.
NOTE: If you use only the composite video connection to your TV, you will not be able to
view the AVR’s on-screen menus.
AVR Composite
Monitor Out Connector
TV
Composite Video Cable
(not supplied)
14
AVR
Connect Your Audio and Video Source Devices
Source devices are components where a playback signal originates, e.g. a Blu-ray Disc™or DVD player; a cable, satellite or HDTV tuner; etc.Your AVR has several different types of input connectors for your audio and video source devices: HDMI, composite video, optical digital audio, coaxial digital audio and analog audio.The connectors are not labeled for specific types of source devices; they are labeled numerically, so you can connect your devices according to your individual system’s makeup.
Your AVR’s various source buttons have default assignments to different input connectors (listed in the “Default Connector(s)” column of the table below). For ease of setup, you should connect each source device to the connector where the corresponding default source button is assigned (e.g., connect your Blu-ray Disc player to HDMI 2).
However, you can connect your source devices as you wish and re-assign any of the input connections to any of the Source Buttons listed in the table according to where you actually connect each of your source devices.
As you connect your various source devices, fill out the “Connected Component” column in the table – it will make it easier for you to assign the various source buttons after you have completed making all of the connections. (You will make any changes to the source-button assignments and fill in the “Assigned Connector(s)” column later in the setup process.)
Note:You cannot assign connectors to the Network, Radio,TV and USB source buttons.
If any of your source devices have HDMI connectors, using them will provide the best
possible video and audio performance quality. Since the HDMI cable carries both digital
video and digital audio signals, you do not have to make any additional audio connections
for devices you connect via an HDMI cable.
AVR HDMI Connectors
HDMI Cable
(not supplied)
To HDMI
Output
HDMI-Equipped Source Device
NOTE: If you have HDMI devices already connected directly to your TV, you can feed their
sound to the AVR via the HDMI Out connector’s Audio Return Channel, and they will not
require additional connections to the AVR.
Connect Your Composite Video Devices
Use composite video connectors for video source devices that don’t have HDMI
connectors. You will also need to make an audio connection from the source device to
the AVR.
Connect Your Optical Digital Audio Devices
If your non-HDMI source devices have optical digital outputs, connect them to the AVR’s
optical digital audio connectors.
NOTE: Make only one type of digital connection (HDMI, optical or coaxial) from each
device.
AVR Digital
Audio Connectors
Optical Digital Audio
Cable (not supplied)
Optical-Equipped Source Device
Connect Your Coaxial Digital Audio Devices
If your non-HDMI source device has a coaxial digital output, connect it to the AVR’s
coaxial digital audio connector.
NOTE: Make only one type of digital connection (HDMI, optical or coaxial) from each
device.
AVR Digital
Audio Connectors
To Optical Digital
Audio Output
AVR Composite In Connectors
Composite Video Cable(not supplied)
To Composite
Video Output
Composite-Equipped Source Device
Coaxial Digital Audio
Cable (not supplied)
Coaxial-Equipped Source Device
To Coaxial Digital
Audio Output
16
AVR
Making Connections
Connect Your Analog Audio Devices
Use the AVR’s analog audio connectors for source devices that don’t have HDMI or digital
audio connectors.
AVR
Analog Audio Connectors
Stereo Audio Cable
(not supplied)
To Stereo Analog
Audio Output
Analog Source Device
Connect the Radio Antennas
• Connect the supplied FM antenna to the AVR’s FM 75Ω antenna connector. For the
best reception, extend the FM antenna as far as possible.
• Bend and fold the base of the supplied AM antenna as shown and connect the
antenna wires to the AVR’s AM and Gnd connectors. (You can connect either wire to
either connector.) Rotate the antenna as necessary to minimize background noise.
AM Antenna
(supplied)
AVR
Antenna
Connectors
Bend and fold base
FM Antenna (supplied)
Connect IR Equipment
The AVR is equipped with a Remote IR Input connector that lets you remotely control the
AVR in a variety of situations:
• When you place the AVR inside a cabinet or facing away from the listener, connect
an external IR receiver, such as the optional Harman Kardon HE 1000, to the AVR’s
IR In jack.
External IR
Receiver
AVR IR In Jack
ENGLISH
USB and iOS Devices
Use the AVR’s front-panel USB port to connect an iPod, iPhone or iPad using an Apple
cable (not supplied) or to directly connect a USB memory stick. You can play audio files
from the device or memory stick and use the AVR’s remote to control playback.
AVR
Front-Panel
USB Port
USB
Memory
Stick
Apple Cable
(not supplied)
Connect to Your Home Network
Use a Cat. 5 or Cat. 5E cable (not supplied) to connect the AVR’s Network connector to
your home network to enjoy Internet radio and content from DLNA-compatible devices
that are connected to the network.
AVR
Network
Connector
Cat. 5/5E Cable (not supplied)
Network
Modem
To Home
Network
and Internet
AVR and Source Devices
Installed Inside of Cabinet
17
AVR
AC Power
Connect the Trigger Output
If your system has equipment that can be controlled by a DC trigger signal, connect it to
the AVR’s Trigger Out connector with a mono 1/8-inch (3.5mm) mini-plug interconnect
cable. The AVR will supply a 12V DC (100mA) trigger signal at this connection whenever
it is powered on.
Connect the supplied AC power cord to the AVR’s AC Input connector and then to a
working, non-switched AC power outlet.
AVR
AC Input
Connector
AC Power
Outlet
Power Cord (supplied)
AVR 1510S:
Connect the AVR’s power cord to a working, non-switched AC power outlet.
AVR
Power Cord
Outlet
18
AVR
Set Up the Remote Control
Set Up the Remote Control
Install the Batteries in the Remote Control
Remove the remote control’s battery cover, insert the two supplied AAA batteries as
shown in the illustration, and replace the battery cover.
1. Remove
Cover
2. Insert
Batteries
3. Replace
Cover
2. Look up the code numbers for the device in Tables A10 – A20 in the Appendix. Write all
the applicable code numbers in a convenient place.
3. Press the Source Selector button for the device and hold it as it glows red, goes dark
and glows red again. Then release it. The remote is now in the Programming mode.
NOTE:
The remote will remain in the Programming mode for 20 seconds. If you do not
complete Step 4 within 20 seconds, the remote will exit the Programming mode, and you
will need to repeat Step 3.
4. Aim the remote at the source device and use the remote’s Number buttons to enter a
code number from Step 1, above.
a) If the device turns off, press the Source Selector button again to save the code. The
Source Selector button will flash, and the remote will exit the Programming mode.
b) If the device does not turn off, enter another code number.
c) If you run out of code numbers for a device, you can search through all of the codes
in the remote’s library for dervices of its type by pressing the remote’s Up button
repeatedly until the device turns off. When it does, press the Source Selector button
to save the code.
5. Check that other functions control the device correctly. Sometimes manufacturers use
the same Power code for several models, while other function codes vary. Repeat this
process until you’ve programmed a satisfactory code set that operates most of the
device’s functions.
6. If you searched through the remote’s code library to find the code, you can find out
which code number you have programmed by pressing and holding the Source Selector
button to re-enter the Programming Mode. Then press the remote’s OK Button, and the
Source Selector button will flash in the code sequence. One flash represents “1,” two
flashes for “2,” and so forth. A series of quick flashes represents “0.” Record the code
number programmed for each device in Table A6 in the Appendix.
Repeat Steps 3 – 6 for each source device you want to control with the AVR remote.
ENGLISH
Program the Remote to Control Your Source Devices and TV
You can program your AVR remote to control many brands and models of audio/video
source devices and TVs. The remote is also ready to operate your iPod or iPhone when it
is connected to the AVR’s front-panel USB port.
Each of the remote’s Source Selector buttons has been preprogrammed to control certain
types of source devices:
Cable/Sat: Controls cable TV and satellite TV tuner boxes
Disc: Controls Blu-ray Disc and DVD players
Radio:
Controls the AVR’s built-in FM/AM tuner
TV:
Controls TVs and video displays
USB:
Browses compatible media on an Apple iOS device that is connected to, or a USB
device that is inserted in the AVR’s USB port Note: Does not require programming.
DVR:
Controls TiVo® recorders
Game:
Controls video-game consoles
Media Server:
Network:
home network and on vTuner (Internet Radio). Note: Does not require programming.
AUX:
Although the Source Selector buttons are preprogrammed for the device types listed
above, you can reassign a Source Selector button to a different device type. See
Reassigning a Source Selector Button for a Different Device Type, on page 19.
Once you have programmed the remote, you can switch the remote’s control mode to
access the functions for a particular device by pressing the remote’s Source Selector
button for that device.
Follow these steps to program the Source Selector buttons for your source devices:
1. Turn on the source device you want to program the remote to control.
Controls media servers
Browses compatible media on DLNA-compatible devices connected to your
Controls HDTV tuner boxes, CD players, VCRs and PVDs.
Reassigning a Source Selector Button for a Different Device Type
You can reassign a Source Button to control a different device type (for example, you can
program the Media Server button to control a DVD player).
1. Turn on the source device you want the remote to control.
2. Look up the code numbers for the device in Tables A10 – A20 in the Appendix. Write all
the applicable code numbers in a convenient place.
3. Press the Source Selector button you want to override and hold it for three seconds
as it glows red, goes dark and glows red again. Then release it. The remote is now in
the Programming mode.
4. Press the Source Selector button that corresponds to the source device’s type (i.e.,
for a DVD player, press the Blu-ray button). The Source Selector button you pressed in
Step 3 will flash once.
5. Aim the remote at the source device and use the remote’s Number buttons to enter a
code number from Step 2, above.
a) If the device turns off, press the Source Selector button from Step 3 again to
save the code. The Source Selector button will flash, and the remote will exit the
Programming mode.
b) If the device does not turn off, enter another code number.
c) If you run out of code numbers for a device, you can search through all of the codes
in the remote’s library for devices of its type by pressing the remote’s Up button
repeatedly until the device turns off. When it does, press the Source Selector button
from Step 3 to save the code.
Most of the button labels on the AVR remote describe each button’s function when the
remote is used to control the AVR. However, the button may perform a different function
when used to control another device. Refer to the Remote Control Function List, Table A9
in the Appendix.
19
AVR
Set Up the AVR
Set Up the AVR
In this section, you will configure the AVR to match your actual system’s makeup. Although
it’s possible to configure the AVR using only the remote and the messages on the AVR’s
front-panel display, it is easier if you use the on-screen menu system.
Turn On the AVR
Press the front-panel Power button.
Power Button
1510S
main menu when you press the AVR button. If necessary, reread the Making Connections
and Set Up the Remote sections before continuing.
Configure the AVR for Your Speakers
Your AVR is flexible and may be configured to work with most speakers and to compensate
for the acoustic characteristics of your room.
Before beginning, place your loudspeakers as explained in the Place Your Speakers
section, on page 10, and connect them to the AVR. Consult the owner’s guide for the
speakers or the manufacturer’s Web site for their frequency-range specification. Although
you may set the AVR’s individual channel levels “by ear,” an SPL (sound-pressure level)
meter purchased at a local electronics store will provide greater accuracy.
Record your configuration settings in Tables A2 through A7 in the Appendix for easy reentry after a system reset or the unit has been unplugged for more than four weeks.
Step One – Determine Your Speakers’ Crossover Frequencies
Consult the technical specifications for all of your speakers and locate the frequency
response, usually given as a range, e.g., 100Hz – 20kHz (±3dB). Write down the lowest
frequency that each of your speakers (except the subwoofer) is capable of playing (100Hz
in the above example) as the crossover in Table A2 in the Appendix. NOTE: This is not the
same as the crossover frequency listed in the speaker’s specifications.
The AVR’s bass management determines which speakers will be used to play back the
low-frequency (bass) portion of the source program. Sending the lowest notes to small
satellite speakers will result in bad sound and may even damage the speakers. The
highest notes may not be heard at all through the subwoofer.
With proper bass management, the AVR divides the source signal at a crossover frequency.
All information above that crossover frequency is played through your system’s speakers,
and all information below the crossover frequency is played through the subwoofer. This
way, each loudspeaker in your system will perform at its best, delivering a more powerful
and enjoyable sound experience.
Using the On-Screen Menu System
To access the menu system, press the OSD/Menu button on the remote. The OSD/Menu
Menu will appear, and if a video source is playing, the menu will automatically re-size so
the picture will be visible behind the menu.
NOTE:
The actual on-screen menus may differ slightly from the illustrations in this
manual.
The Main Menu system consists of six submenus: Source Select, Source Setup, Surround
Mode, Speaker Setup, Network and System Setup. Use the Up/Down/Left/Right buttons
on the remote or the front panel to navigate the menu system, and press the OK button
to select a menu or setting line, or to enter a new setting.
The current menu, setting line or new setting will appear in the front-panel display, as
well as on screen.
To return to the previous menu or exit the menu system, press the Back/Exit button. Be
certain all settings are correct, as any changes you have made will be retained.
Most users should follow the instructions in this Set Up the AVR section to configure a
basic home theater system. You may return to these menus at any time to make additional
adjustments, such as those described in the Advanced Functions section, on page 27.
Before beginning the following setup steps, all loudspeakers, a video display and all
source devices should be connected. You should be able to turn on the AVR and view the
Step Two – Measure the Speaker Distances
Ideally, all of your speakers would be placed in a circle, with the listening position at the
center. However, you may have had to place some speakers a little farther away from
the listening position than others. Because of this, sounds that are supposed to arrive
simultaneously from different speakers may blur, due to different arrival times.
Your AVR provides a Distance adjustment that compensates for these real-world speaker
placement differences.
Measure the distance from each speaker to the listening position, and write it down in
Table A3 in the Appendix. Even if all of your speakers are the same distance from the
listening position, enter your speaker distances as described in Distance, on page 21.
Step Three – Speaker Setup Menu
Now you are ready to program the AVR. Sit in your usual listening position, and make the
room as quiet as possible.
With the AVR and video display turned on, press the OSD/Menu button to display the menu
system and select the Speaker Setup menu. The Speaker Setup screen will appear.
NOTE: To save the current settings, press the Back/Exit button.
For best results, adjust the submenus in this order: Speakers, Crossover, Distance and
Output Adjust.
20
AVR
Set Up the AVR
Speakers
This selection lets you program the correct setting for each speaker group. The settings
in this menu affect the remainder of the speaker setup process and the availability of
various surround modes at any time.
Select ON when the speakers are present in the system; select OFF for positions where
no speakers are installed. The Front Left & Right setting is always ON and may not be
disabled.
When you have finished, press the Back/Exit button.
Crossover
After you return to the Speaker Setup menu, navigate to the Crossover line and press the
OK button to display the Crossover menu.
L/R+LFE: This setting sends all low-frequency information to the subwoofer,
including a) information that would normally be played through the front left and
right speakers and b) the special low-frequency effects (LFE) channel information.
OFF: Select this setting when no subwoofer is in use. All low-frequency information
will be sent to the front left and right speakers.
LFE: This setting plays low-frequency information contained in the left and right
program channels through the front left and right speakers, and directs only the
LFE-channel information to the subwoofer.
Distance
As described above in Step Two, when you measured the distances from each of your
speakers to the listening position, your AVR provides an adjustment that compensates
for the different distances so that the sound from each speaker will reach the listening
position at the proper time. This process will improve the clarity and detail of the sound.
On the Speaker Setup menu, move the cursor to the Distance line and press the OK
button to display the Adjust Speaker Distance menu.
Enter the distance from each speaker to the listening position that you measured in Step
Two and recorded in Table A3 in the Appendix (see page 33). Select a speaker, then use
the Left/Right buttons to change the measurement. You can enter distances between 0
and 30 feet (9.1m). The default distance for all speakers is 10 feet (3m).
The default unit of measurement is feet. To change the unit to meters, select the Unit line
and press the Left or Right button to change the setting.
ENGLISH
The AVR will display only those speaker groups you set to On in the Number of Speakers
menu.
Refer to Table A2 to see the crossover frequencies that you wrote down for your
speakers.
For each speaker group, select one of these eight crossover frequencies: Large, 40Hz,
60Hz, 80Hz, 100Hz, 120Hz, 150Hz or 200Hz. If the speaker’s crossover frequency is
below 40Hz, select the first option, “Large.” This setting doesn’t refer to the speaker’s
physical size but to its frequency response, which is also called “full range.”
We recommend that you set the Subwoofer Crossover to the same frequency you used
for the Front Left & Right speaker setting. If you set the Front Left & Right speakers
to “Large”, we recommend that you experiment with different Subwoofer Crossover
Frequency settings to find the one that produces the best blend between the subwoofer
and Front Left & Right speakers with your system in your room.
Write down the settings in Table A2 in the Appendix.
When you have finished entering the settings, press the Back/Exit button to return to the
Speaker Setup menu.
Select the “Speakers” menu again and note the Subwoofer setting: This setting depends
upon the Crossover setting you selected for the front left and right speakers.
• If you set the front speakers to a numeric crossover frequency, the subwoofer
setting will always be Sub. All low-frequency information will always be sent to the
subwoofer. If you don’t have a subwoofer, either upgrade to full-range front left and
right speakers or add a subwoofer at the earliest opportunity.
• If you set the front left/right speakers to Large, select one of the three following
settings for the subwoofer:
Step Four – Setting Channel Output Levels
For a conventional stereo receiver, a simple balance control adjusts the stereo imaging
by varying the relative loudness of the left and right channels. In a home theater system
with up to five main channels plus a subwoofer, achieving proper imaging becomes
both more critical and more complex. The goal is to ensure that each channel is heard
at the listening position with equal loudness (when signals of equal loudness are played
through them).
The Output Adjust menu allows you to calibrate the levels manually, either using the
system’s built-in test tone or while playing source material.
From the Speaker Setup menu select Output Adjust to display the speaker volume
adjustment menu.
All of the system’s speakers will appear with their current level settings. You can adjust
each speaker’s level between –10dB and +10dB in 1dB increments.
21
AVR
Set Up the AVR
While making adjustments, you can measure the channel levels in one of these ways:
• Preferably, use a handheld SPL meter set to the C-weighting, slow scale. Adjust each
speaker so that the meter reads 75dB when the AVR’s built-in test noise is playing.
• By ear. Adjust the levels so that the test tone sounds equally loud to you when it plays
through each speaker.
To set your levels using the AVR’s internal test tone, select the menu’s Test Tone line and
use the Left/Right buttons to turn the test tone on. Then select the Test Tone SEQ line to
select between Auto and Manual:
Auto: The test tone will automatically circulate to all speakers, as indicated by the
highlight bar. Use the Left/Right buttons to adjust the level for any speaker when the test
tone is paused there. Use the Up/Down buttons to move the highlight bar to another line,
and the test tone will follow the bar. To stop the test tone, use the Up/Down buttons to
move the cursor out of the screen’s speaker listings area.
Manual: The test tone will stay on the selected speaker until you use the Up/Down
buttons to move it to another speaker. Use the Left/Right buttons to adjust the level for
the speaker through which the test tone is playing.
If you are using an external source to set your output levels, set Test Tone to Off, use the
Up/Down buttons to navigate to each speaker, and use the Left/Right buttons to adjust
the speaker’s level while the source plays.
NOTE: If you are using a handheld SPL meter with external source material, such as a
test disc or an audio selection, play it and adjust the AVR’s master volume control until
the meter measures 75dB. Then adjust the individual speaker levels.
Output Reset: To reset all levels to their factory defaults of 0dB, scroll down to this line
and press the OK button.
When you have finished adjusting the speaker levels, record the settings in Table A2 in
the Appendix. Then press the Back/Exit Button.
Notes on Setting Speaker Volumes in Home Theater Systems:
While setting your system’s individual speaker volume levels is ultimately up to your
personal taste, here are some ideas you may find helpful:
• For films and video-music programs, your overall goal should be to create an
enveloping, realistic sound field that draws you into the film or music program
without drawing your attention away from the action on the screen.
• For multichannel music recordings, some music producers will create a sound field
that places the musicians all around you; others will create a sound field that places
the musicians in front of you, with more subtle ambience in the surround speakers
(as you would experience in a concert hall).
• In most multi-channel film soundtracks, the surround speakers are not intended
to be as loud or as active as the front speakers. Adjusting the surround speakers
so they are always as loud as the front speakers could make dialogue difficult to
understand and will make some sound effects sound unrealistically loud.
Notes on Setting Subwoofer Volume:
• Sometimes the ideal subwoofer volume setting for music is too loud for films, while
the ideal setting for films is too quiet for music. When setting the subwoofer volume,
listen to both music and films with strong bass content and find a “middle ground”
volume level that works for both.
• If your subwoofer always seems too loud or too quiet, you may want to place it in
a different location. Placing the subwoofer in a corner will always tend to increase
its bass output, while placing it away from any walls or corners will always tend to
reduce its bass output.
Set Up Your Sources
The Source Setup menu lets you assign the correct physical audio and video connections
to each source and lets you set many audio and video playback features for each source.
IMPORTANT: The “Video In” and “Audio In” settings are not optional and must
be adjusted before you use your AVR to enable playback of each source.
adjust the other settings later. See System Settings, on page 29, for complete information
about adjusting all of the Settings menu options.
1. Review the input connections you listed on the Source Buttons and Assigned Connectors table, on page 15. Note what changes (if any) you want to make from the
default connector assignments that appear on the list.
2. Turn on your TV and select the TV input where you connected the AVR in Connect Your
TV or Video Display, on page 14.
3. Press the remote control’s OSD/Menu button. The AVR’s OSD setup menu will appear
on the TV. (Note: If you have used a composite video connection to your TV, the OSD
menus will not appear on your TV. Follow the steps below using the AVR’s front-panel
display.)
4. Use the remote’s arrow and OK buttons to select “Source Setup,” and use the left/right
arrow buttons to select a source button with connectors that you want to re-assign.
5. Select “Video In” and select the video input connector you want to assign to the source
button. Press the OK button. NOTE: If you select an HDMI connector as the video input
connector, the audio input connector will automatically change to the same HDMI
connector. You cannot use a different audio input connector with an HDMI video input
connector.
You can
22
AVR
Set Up the AVR and
Operating Your AVR
6. If you have not selected an HDMI connector for Video In, select “Audio In” and select the
audio input connector you want to assign to the source button. Press the OK button.
7. Press the remote’s Back/Exit button and repeat steps 3 – 6 for the remaining source
buttons with connectors you want to re-assign.
Title: This selection lets you change the display name for the source, which is useful if
your source’s device type is different from the source’s preprogrammed name. Use the
Up/Down buttons to scroll forward or backward through the alphanumeric characters
until the desired character appears, then use the Left/Right buttons to move the cursor to
the next or previous position. Move the cursor again to leave a blank space. (Your name
can have a maximum of 10 characters.) When you have finished, press the OK Button.
The new name will appear on the AVR’s front panel and throughout the on-screen menu
system.
Tone: This setting determines whether the treble and bass controls are active for the
source. When it’s set to Off, the tone controls are out of the circuit, with no changes to the
sound. When it’s set to On, the bass and treble controls are in the circuit.
Treble/Bass: These settings boost or cut the treble or bass frequencies by up to 10dB,
in 2dB increments. Use the Left/Right buttons to change the setting. The default setting
is 0dB.
Night Mode: This setting activates Night mode for the source, which works with specially
encoded Dolby Digital discs or broadcasts. Night mode compresses the audio so that
louder passages are reduced in volume to avoid disturbing others, while dialogue remains
intelligible. The following settings are available:
• Off: No compression is applied. Loud passages in the program remain as they were
recorded.
• Mid: Loud passages in the program are reduced moderately in volume.
Dolby True HD stream is compressed automatically as set by the incoming
stream.
• Max: Loud passages in the program are reduced more in volume.
Lip Sync: This setting lets you resynchronize the audio and video signals from the source
to eliminate a “lip sync” problem. Lip-sync issues can occur when the video portion of a
signal undergoes additional processing in either the source device or the video display.
Use the Left/Right buttons to delay the audio by up to 180ms. (The active source’s video
will be visible behind the OSD menu, allowing you to synchronize the audio with the
picture.)
You can also make lip sync adjustments without activating the AVR’s OSD menus.
Pressing the remote’s Delay button will display the Lip Sync menu bar on the TV,
superimposed at the bottom of the video. Use the Left/Right buttons to delay the audio
until it is synchronized with the picture.
If your network uses an automatic IP address, you should not have to perform any
network setup procedures. Once you connect the AVR to your home network, the network
should automatically assign the AVR an IP address, and the AVR should automatically join
your network.
If your AVR does not automatically join your network (in which case the AVR will display a
“Not Connected” message when you press the Network source button):
1. Press the OSD/Menu button, select System Setup, then select Network.
2. The Network menu will appear.
3. Select IP Configuration, then press the Right button button twice to cycle the setting
from “Auto” to “Manual” and back to “Auto.”
4. Scroll down to the bottom of the page, then press down once more. Select “Apply &
Save”. The AVR will attempt to connect to the network.
5. If the AVR again fails to connect to the network, you may need to enter your network’s
settings manually. In this case, you may need to obtain your network’s settings from
your ISP or network administrator. After obtaining your network’s settings:
a) Select IP Configuration and use the Left/Right buttons to change the setting to
“Manual.” The following settings will become active: IP Address, Subnet Mask,
Gateway, Primary DNS and Secondary DNS
b) Use the Up/Down buttons to select the correct numbers and make entries for all
of these settings.
c) When you have finished, scroll down to the bottom of the page, then press down
once more. Select “Apply & Save,” and press the OK button. The AVR will refresh
the network connection while it remains on. If the AVR cannot connect to the
network using the manual settings, contact your ISP or network administrator for
assistance.
IMPORTANT: You must select “Apply & Save” for your network settings to take
effect.
NOTE: We recommend that you directly connect the AVR to a home-network router so
that it can directly access the Internet for Internet radio, or access devices on the network
for playback of content stored on the devices (see Listening to Media via Your Home Network, on page 26, for more information).
NOTE: If you have trouble connecting to the network at any time, cycle the AVR into
the Off mode, and then turn it back on.
Operating Your AVR
Now that you have installed your components and completed a basic configuration, you
are ready to begin enjoying your home theater system.
ENGLISH
Set Up the Network
To play MP3 or WMA media located on DLNA-compatible devices connected to the
network or use the AVR’s internal Internet radio tuner, the AVR must be connected to
your home network.
HARMAN Remote App
For easy control of your AVR with your hand-held device, download the free Harman
Kardon Remote app from iTunes App Store for compatible Apple products, or from Google
Play for compatible Android powered smartphones.
The Harman Kardon Remote App controls virtually all the functions of AVR 1510S and
AVR 151S AVRs that are connected to the same network as the device that has the
app installed. With this easy-to-use app you can turn the AVR on or off, select a source,
control the volume and virtually any other function. You can also access and navigate all
of the AVR’s on-screen setup menus.
23
AVR
Operating Your AVR
Controlling the Volume
Adjust the volume either by turning the front-panel Volume knob (clockwise to increase
volume or counterclockwise to decrease volume) or by pressing the Volume Up/Down
buttons on the remote. The volume is displayed as a negative number of decibels (dB)
below the 0dB reference point (–80dB – +10dB).
0dB is the maximum recommended volume for your AVR. Although it’s possible to turn
the volume to a higher level, doing so may damage your hearing and your speakers. For
certain more dynamic audio materials, even 0dB may be too high, allowing for damage
to equipment. Use caution with regard to volume levels.
To change the volume level display from the default decibel scale to a 0-to-90 scale,
adjust the Volume Units setting in the System Settings menu, as described in System Settings, on page 29.
Muting the Sound
To mute all speakers and the headphones, press the Mute button on the remote. Any
recording in progress will not be affected. The MUTE message will appear in the display
as a reminder. To restore the sound, press the Mute button again, or adjust the volume.
Listening Through Headphones
Plug the 1/4-inch stereo plug on a pair of headphones into the front-panel Phones
jack for private listening. The default HARMAN Headphone mode uses virtual surround
processing to emulate the sound of a 5.1-channel speaker system. Press the Surround
Modes button on the front panel or the remote to switch to the Headphone Bypass mode,
which delivers a conventional two-channel signal to the headphones. No other surround
modes are available for the headphones.
NOTE: You will be unable to listen through headphones if the iPod source is selected.
Selecting a Source
There are three different ways to select a source:
• Press the front-panel Source buttons to scroll through the sources.
• Using the on-screen menus, press the OSD/Menu button, highlight “Source Select”
and press the OK button. Scroll to the desired source and press the OK button.
• You can directly select any source by pressing its Source Selector button on the
remote.
The AVR selects the audio and video inputs assigned to the source, and any other settings
you made during setup.
The source name, the audio and video inputs assigned to the source, and the surround
mode will appear on the front panel. The source name and active surround mode will also
briefly appear on the TV screen.
Video Troubleshooting Tips
If there is no picture:
• Check the source selection and video input assignment.
• Check all connections for a loose or incorrect connection.
• Check the video input selection on the TV/display device.
Additional Tips for Troubleshooting HDMI Connections
• Turn off all devices (including the TV, the AVR and any source components).
• Unplug the HDMI cables, starting with the cable between the AVR and the TV,
and continuing with the cables between the AVR and each source device.
• Carefully reconnect the cables from the source devices to the AVR. Connect the
cable from the AVR to the TV last.
• Turn on the devices in this order: TV, AVR, source devices.
NOTE: Depending upon the particular components involved, the complexity of
the required communication between HDMI components may cause delays of
up to a minute in the completion of some actions, such as input switching or
switching between SD and HD channels.
Selecting a Surround Mode
Selecting a surround mode can be as simple or sophisticated as your individual system
and tastes. Feel free to experiment, and you may find a few favorites for
or program types. You can find more detailed information on surround modes in
Audio Processing and Surround Sound, on page 27.
To select a surround mode, press the OSD/Menu button and select Surround Mode. The
Surround Mode menu will appear.
Auto Select: For digital programs, such as a movie recorded with a Dolby Digital or DTS
soundtrack, the AVR will automatically use the soundtrack’s native surround format. For
two-channel analog and PCM programs, the AVR uses the Logic 7 Movie or 2CH Stereo
mode, depending on the source.
Virtual Surround: When only two main speakers are present in the system, you can use
Virtual Surround to create an enhanced soundfield that virtualizes the missing speakers.
Stereo: When you want two-channel playback, select the number of speakers you want
to use for playback:
• “2 CH Stereo” uses two speakers.
• “5 CH Stereo” plays the left-channel signal through the front left and surround
left speakers, the right-channel signal through the front right and surround right
speakers, and a summed mono signal through the center speaker.
Movie: Select from the following when you want a surround mode for movie playback:
Logic 7 Movie, DTS Neo:6 Cinema or Dolby Pro Logic II
Music: Select from the following when you want a surround mode for music playback:
Logic 7 Music, DTS Neo:6 Music or Dolby Pro Logic II. The Dolby Pro Logic II Music mode
allows access to a submenu with some additional settings. See Audio Processing and Surround Sound, on page 27, for more information.
Game: Select from the following when you want a surround mode for game playback:
Logic 7 Game, Dolby Pro Logic II Game.
After you select the Surround Mode Category, use the Left/Right buttons to change the
surround mode.
You can also change surround mode categories by repeatedly pressing the Surround
Mode button on either the remote or the front panel. You can change surround modes
within surround mode categories by pressing the Surround Mode Select buttons on the
front panel.
See Audio Processing and Surround Sound, on page 27, for more information on surround
modes.
certain sources
24
AVR
Operating Your AVR
Listening to FM and AM Radio
Select the Radio source. A screen similar to the one in the illustration below will appear.
Use the Up/Down buttons or the Remote’s Channel buttons to tune a station as displayed
on the front panel and on-screen display.
The AVR defaults to automatic tuning, meaning each press of the Up/Down buttons scans
up or down the frequency band until a station with acceptable signal strength is found.
To switch to manual tuning, in which each press of the Up/Down buttons steps through
a single tuning frequency increment, press the Tuning Mode button on the front panel.
Each press of the button toggles between automatic and manual tuning modes. You can
also switch between automatic and manual tuning modes by pressing the OK button on
the remote control for 3 seconds.
Once you have tuned an FM station, toggling the mode setting also switches the radio
between stereo and monaural reception. (Mono reception may improve reception of
weaker stations.)
Preset Stations
You can store a total of 30 stations (AM and FM combined) as presets. When you want to
save the currently tuned station as a preset, press the remote’s Memory button. Use the
Number buttons to enter the desired preset number.
There are three ways to tune to a preset station:
• Press the Left/Right buttons.
• Press the remote’s Preset Scan button. The AVR will tune to each preset station
in order for five seconds. When the desired preset is tuned, press the Preset Scan
button again.
• Enter the preset number using the Number buttons. For presets 10 through 30, press
0 before the preset number. For example, to enter preset 21, press 0-2-1.
Auto Store is an alternate method for storing presets automatically. When you select Auto
Store, your AVR will scan for any frequencies with good signal and save them as presets
automatically. To use Auto Store:
• In either FM or AM source, press the Info/Option button on the AVR’s remote
control.
• Press OK to select “Auto Store.”
• Highlight “Yes” and press “OK.”
Your AVR may take several minutes to complete the Auto Store process. Note that
performing Auto Store will erase all currently saved preset station.
Listening to Media on a USB Device
Your AVR is compatible with MP3 and WMA media.
MP3 compatibility: Mono or stereo, contstant bit rates (CBR) from 8kbps to 320kbps,
variable bit rates (VBR) from lowest to highest quality, with sample rates from 8kHz –
48kHz.
WMA compatibility: Ver. 9.2, stereo CBR with 32kHz – 48kHz sampling rate and 40kbps
– 192kbps bit rate, mono CBR with 8kHz – 16kHz sampling rate and 5kbps – 16kbps
bit rate, VBR Pass Encoding and Quality Encoding 10 – 98, 44kHz and 48kHz sampling
rate.
No other types of media are supported.
Playing files on a USB device
1. Insert the USB drive into the AVR’s front-panel USB port.
IMPORTANT: Do not connect a personal computer or peripheral to the USB port. USB
hubs and multi-card readers are not supported.
2. Press the USB source selector button on the remote until the front-panel display’s
“USB” as the source. The USB screen will appear.
3. Select a folder and press the OK button. The AVR will list all compatible audio files.
4. Select a file to begin playback. The USB play screen will appear. Any ID3 information
will be displayed, along with the track’s elapsed/current time and icons indicating the
current playback status.
NOTES:
• To skip to the next track, press the Right button; to skip to the beginning of the
current track, press the Left button once; to skip to the beginning of the previous
track, press the Left button twice (or the Left button once if the track’s elapsed time
is less than 5 seconds.)
• You can use the Transport Control buttons to control playback (skipping to the
previous or next track, searching at high speed forward or backward within a track,
playing a file, pausing playback or stopping playback).
• To repeat a file or folder, press the Option/Info Button and select the Repeat option.
Each press of the Left or Right buttons will change the setting from Off (no repeat)
to On (files at the current directory level of the drive). Repeat will always be activated
when Shuffle Music playback is turned on.
• To play the audio tracks in random order, press the Options/Info button and select
Shuffle. Each press of the Shuffle turns the setting on or off. The AVR will automatically
repeat the tracks until playback is stopped manually.
• To collapse a folder or return to the previous menu level, press the Back/Exit
button.
ENGLISH
25
AVR
Operating Your AVR
Listening to an iPod/iPhone/iPad Device
When an iPod, iPhone or iPad device is connected to the AVR’s front-panel USB port, you
may play audio files through your high-quality audio system, operate the iPod, iPhone or
iPad using the AVR remote or the AVR’s front-panel controls and charge the iPod, iPhone or
iPad. For the latest compatibility information, please see our Web site: www.harmankardon.
com.
Press the USB source selector button on the remote until the front-panel displays “iPod”
as the source. The iPod playback screen will appear.
The table below summarizes the controls available during normal playback via the USB
port.
iPod, iPhone or iPad Function Remote Control Button
Play Play
Pause Pause
Forward Search Forward Search
Reverse Search Reverse Search
Next Track Skip Forward or Right Arrow
Previous Track Skip Backward or Left Arrow
While a selection is playing, the song title, and play mode icon will appear on the frontpanel display.
The iPod playback screen displays the play mode icon, song title, artist and album. If
random or repeat play has been programmed, an icon will appear.
Listening to vTuner (Internet Radio)
Your AVR’s Network connection brings you a world of MP3- and WMA-format streams via
the Internet. After you have successfully connected to your home network as described in
Connect to Your Home Network, on page 17, and set up the network as described in Set
Up the Network, on page 23, press the Network Source Selector button on the remote.
Each press toggles between the Network and vTuner screens.
With the vTuner screen (above) displayed, the AVR will automatically connect to the
Internet via the www.radioharmankardon.com portal. To select a stream use the Up/
Down buttons to search by category. NOTE: The categories displayed vary by region.
Navigation is similar to other menus. Scroll to the desired item and press the OK button to
select it. To return to the previous menu level (or to clear the top-level menu from view),
press the Back/Exit button or the Left button.
The AVR is not able to connect to streams that require site registration or other interaction
prior to playing the stream. If the AVR cannot connect to the stream, a “Not Connected”
message will appear briefly, and the Internet Radio screen will remain essentially blank.
Preset Streams
You can store a total of 30 streams as presets. When you want to save the currently tuned
stream as a preset, press the remote’s Memory button. Use the Number buttons to enter
the desired preset number. These streams are accessible from the Presets menu item.
To create a Favourites list, log onto www.radioharmankardon.com from your computer.
Enter your AVR’s vTuner ID # (the vTuner ID # is on the Help screen in the vTuner source
main menu) and create an account. Favourites that you select on the Web site will be
available on the AVR.
CAUTION: We strongly recommend that you use the screen saver built into
your video display to avoid possible damage from “burn-in” that may occur
with plasma and CRT displays when a still image, such as a menu screen,
remains on the display for an extended period of time.
Press the Option/Info button to view the iPod options menu:
Repeat: Select this setting to repeat a track or all tracks in the current album or playlist.
Each press of the Left/Right buttons switches the setting: Repeat Off, Repeat One or
Repeat All.
Shuffle: Select this setting to play all the available songs in random order. Each press of
the Left/Right buttons switches the setting: Shuffle Off or Shuffle On.
NOTE: The iTunes application allows you to exempt some tracks from Shuffle mode. The
AVR cannot override this setting.
26
Listening to Media via Your Home Network
Your AVR can access MP3 and WMA audio media that is stored on other DLNA-compatible
devices that are connected to the same network as your AVR.
MP3 compatibility: Mono or stereo, contstant bit rates (CBR) from 8kbps to 320kbps,
variable bit rates (VBR) from lowest to highest quality, with sample rates from 8kHz –
48kHz.
WMA compatibility: Ver. 9.2, stereo CBR with 32kHz – 48kHz sampling rate and 40kbps
– 192kbps bit rate, mono CBR with 8kHz – 16kHz sampling rate and 5kbps – 16kbps bit
rate, VBR Pass Encoding and Quality Encoding 10 – 98, 44kHz and 48kHz sampling rate.
AVR
Operating Your AVR and
Advanced Functions
Before you can access files located on other devices via the network, each device
must first give permission to share files with the AVR:
To share media on PCs:
1. Open Windows Media Player.
2. Open the Library menu and select Media Sharing. The Media Sharing window will
appear.
3. Check the “Share My Media” box. An icon for the AVR will appear in the window.
4. Select the AVR icon, select “Allow,” then select “OK.”
The computer’s WMA and MP3 media should now be available to the AVR.
To share media on other types of computers, operating systems or media software:
Check the instructions for the computer, operating system or media player.
To listen to shared media, press the Network Source Selector button. (If vTuner appears
as the source, press the button a second time to switch from the Internet Radio source to
the Network source.) The Home Network screen will appear.
The screen will list by name all devices on the network that allow sharing. Use the Up/
Down and OK buttons to browse the content stored in the device’s media player library.
Scroll to the desired item and press the OK button to select it. To return to the previous
menu level (or to clear the menu from view from the top level), press the Back/Exit
button.
NOTE: Although video content may appear in the menu, the AVR does not support video
playback from the network connection, although the AVR will attempt to play the audio
information from the video file.
Listening to Media via Spotify Connect
Your Harman Kardon AVR and Spotify control device need to be on the same
Wi-Fi network to work.
From the Spotify App on your mobile device tap on the Now Playing bar to reveal extra
controls, and select the Speaker icon. From the Connect screen, just choose your AVR
models from the list as a destination device and it’ll start playing. Adjust the volume
directly from the app using the volume bar from the Connect screen.
Using This Device With Spotify Connect
Spotify lets you listen to millions of songs – the artists you love, the latest hits and
discoveries just for you.
If you are a Spotify user, you can control this device using your Spotify app.
Step 1 Connect your device to the same wifi network as your phone, tablet or PC
running the Spotify app.
Step 2 Open the Spotify app, and play any song.
Step 3 Tap the song image in the bottom left of the screen.
Step 4 Tap the Connect icon
Step 5 Pick your speaker from the list.
For information on how to set up and use Spotify Connect please visit www.spotify.
com/connect
Licenses
The Spotify Software is subject to third party licenses found here : www.spotify.com/
connect/third- -party- -licenses.
Advanced Functions
Much of the adjusting and configuration your AVR requires is handled automatically, with
little intervention required on your part. You can also customize your AVR to suit your
system and your tastes. In this section we will describe some of the more advanced
adjustments available to you.
Audio Processing and Surround Sound
Audio signals can be encoded in a variety of formats that can affect not only the quality
of the sound but the number of speaker channels and the surround mode. You may also
manually select a different surround mode, when available.
Analog Audio Signals
Analog audio signals usually consist of two channels – left and right.
process two-channel audio signals to produce multichannel surround sound, even
when no surround sound has been encoded in the recording. Among the available
modes are the Dolby Pro Logic II, Virtual Speaker, DTS Neo:6, Logic 7 and 5 CH Stereo
modes. To select one of these modes, press the Surround Modes button.
Digital Audio Signals
Digital audio signals offer greater flexibility and capacity than analog signals, and
allow the encoding of discrete channel information directly into the signal. The result is
improved sound quality and startling directionality, since each channel’s information is
transmitted discretely. High-resolution recordings sound extraordinarily distortion-free,
especially in the high frequencies.
Surround Modes
Surround-mode selection depends upon the format of the incoming audio signal as well
as your personal taste. Although there is never a time when all of the AVR’s surround
modes are available, there is usually a wide variety of modes available for a given
input. Table A8 in the Appendix, on page 36, offers a brief description of each mode and
indicates the types of incoming signals or digital bitstreams the mode may be used with.
Additional information about the Dolby and DTS modes is available on the companies’
Web sites: www.dolby.com and www.dtsonline.com.
When in doubt, check the jacket of your disc for more information on which surround
modes are available. Usually, nonessential sections of the disc, such as trailers, extra
materials or the disc menu, are available only in Dolby Digital 2.0 (two-channel) or
PCM two-channel mode. If the main title is playing and the display shows one of these
surround modes, look for an audio or language setup section in the disc’s menu. Also,
make sure your disc player’s audio output is set to the original bitstream rather than twochannel PCM. Stop play and check the player’s output setting.
The channels included in a typical 5.1-channel recording are front left, front right, center,
surround left, surround right and LFE (low-frequency effects). The LFE channel is denoted
as “.1” to represent the fact that it is limited to the low frequencies.
Digital formats include Dolby Digital 2.0 (two channels only), Dolby Digital 5.1, Dolby
Digital Plus (7.1), Dolby TrueHD (7.1), DTS-HD High-Resolution Audio (7.1), DTS-HD
Master Audio (7.1), DTS 5.1, DTS 96/24 (5.1), 2-channel PCM modes in 32hHz, 44.1kHz,
48kHz, 88.2kHz or 96kHz, and 5.1 or 7.1 multichannel PCM. (Your AVR will downmix the
discrete surround back-channel information in 6.1-channel and 7.1-channel recordings
into your system’s surround left and surround right channels.)
When the AR receives a digital bitstream, it detects the encoding method and the number
of channels, which is displayed briefly as three numbers, separated by slashes (e.g.,
“3/2/.1”).
Your AVR is able to
ENGLISH
27
AVR
Advanced Functions
The first number indicates the number of front channels in the signal: “1” represents
a monophonic recording (usually an older program that has been digitally remastered
or, more rarely, a modern program for which the director has chosen mono as a special
effect). “2” indicates the presence of the left and right channels but no center channel.
“3” indicates that all three front channels (left, right and center) are present.
The second number indicates whether any surround channels are present: “0” indicates
that no surround information is present. “1” indicates that a matrixed surround signal is
present. “2” indicates discrete surround left and right channels. (Bitstreams with discrete
surround back left and right channel signals will be indicated by a “4,” although the
AVR downmixes the surround back-channel information into the surround left and right
channels.)
The third number is used for the LFE channel: “0” indicates no LFE channel. “.1” indicates
that an LFE channel is present.
Dolby Digital 2.0 signals may include a Dolby Surround flag indicating DS-ON or DS-OFF,
depending on whether the two-channel bitstream contains only stereo information or a
downmix of a multichannel program that can be decoded by the AVR’s Dolby Pro Logic
decoder. By default, these signals are played in Dolby Pro Logic II Movie mode.
When a PCM signal is received, the PCM message and the sampling rate (32kHz, 44.1kHz,
48kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz) will appear.
When only two channels – left and right – are present, the analog surround modes may be
used to decode the signal into multiple channels. If you would prefer a different surround
format than the native signal’s digital encoding, press the Surround Modes button to
display the Surround Modes menu (see Selecting a Surround Mode, on page 24).
The Auto Select option sets the surround mode to the native signal’s digital encoding, e.g.,
Dolby Digital, DTS, Dolby TrueHD or DTS-HD Master Audio. For two-channel materials, the
AVR defaults to the Logic 7 Movie mode. If you prefer a different surround mode, select
the surround-mode category: Virtual Surround, Stereo, Movie, Music or Game. Press the
OK button to change the mode.
Each surround-mode category is set to a default surround mode:
• Virtual Surround: Virtual speaker.
• Stereo: 2-CH Stereo.
• Movie: Logic 7 Movie.
• Music: Logic 7 Music.
• Game: Logic 7 Game.
You may select a different mode for each category. Below is a complete list of available
surround modes. (The actual surround modes available will depend on the number of
speakers in your system.)
• Virtual Surround: Virtual speaker.
• Stereo: 2-CH Stereo or 5-CH Stereo.
• Movie: Logic 7 Movie, DTS Neo:6 Cinema, Dolby Pro Logic II Movie.
• Music: Logic 7 Music, DTS Neo:6 Music, Dolby Pro Logic II Music.
• Game: Logic 7 Game or Dolby Pro Logic II Game.
Once you have programmed the surround mode for each type of audio, select the line
from the Surround Modes menu to override the AVR’s automatic surround-mode selection.
The AVR will use the same surround mode the next time the source is selected.
Dolby PLII Music:
Logic II Music Mode in the Surround Modes menu:
Center Width: This setting affects how vocals sound through the three front speakers.
A lower number focuses the vocal information tightly on the center channel. Higher
numbers (up to 7) broaden the vocal soundstage. Use the Left/Right buttons to adjust.
Dimension: This setting affects the depth of the surround presentation, allowing you to
“move” the sound toward the front or rear of the room. The setting of “0” is a neutral
default. Setting “F-3” moves the sound toward the front of the room, while setting “R-3”
moves the sound toward the rear. Use the Left/Right buttons to adjust it.
Panorama: With the Panorama mode turned on, some of the sound from the front
speakers is moved to the surround speakers, creating an enveloping “wraparound”
effect. Each press of the OK button toggles the setting On or Off.
Please refer to Table A8 in the Appendix for more information on which surround modes
are available with different bitstreams
Some additional settings are available when you select the Dolby Pro
28
AVR
System Settings
System Settings
The AVR’s System Settings menu lets you customize in what way many of the AVR’s
features operate. Press the OSD/Menu button and navigate to the System line. Press the
OK button to display the System Settings menu.
Panel Timeout: This setting allows you to set the AVR’s front-panel display to automatically
turn off after remaining on for a predertimined time (3 – 10 seconds) each time you use
a control. Set this to “Off” to have the display remain on continually.
Auto Power Off: This setting allows you to set the AVR to automatically switch to the Off
mode after being in the Sleep mode for a predetermined time (1 – 8 hours) and switch
to the Sleep mode after this amount of time if a source with an analog audio input or
internal source (FM, AM, USB, iPod, Home Network, vTuner or DMR) is active. See Power Indicator/Power Button, on page 5, for more information.
Menu Timeout: This setting allows you to set the amount of time (20 – 50 seconds) a
menu screen will remain on after the last adjustment. Set this to “Off” to have the menus
remain on continually until you press the OSD/Menu button.
Status Message: When the AVR is turned on, the volume is adjusted, the source is
changed or a change in the input signal is detected, a status message will be displayed
on the TV screen. Select how long the message remains visible, from 2 to 10 seconds,
with a default of 3 seconds. Select “Off” if you do not wish to see the status messages on
the TV screen (they will still appear on the AVR’s front-panel message display).
Volume Default and Default Volume Setting: These two settings are used together to
program the volume level when you turn on the AVR. Set Volume Default to On, and then
set the Default Volume Setting to the desired turn-on volume. When Volume Default is
set to Off, the AVR will turn on at the last-used volume setting from the previous listening
session.
HDMI Audio to TV: This setting determines whether HDMI audio signals are passed
through the HDMI Monitor Out connector to the video display. In normal operation, leave
this setting at Off, as audio will be played through the AVR. To use the TV by itself, without
the home theater system, turn this setting to On. In this case you will need to mute the
TV’s speakers (or switch the setting to Off) when using the AVR for audio.
HDMI Link: This setting allows the communication of control information among the
HDMI devices in your system. Turn this setting to On to allow control communication
between the HDMI devices; turn the setting to Off to forbid control communication. When
this setting is set to Off, the TV source audio input is set to Optical. When this setting is
set to On, the TV source audio input is set to HDMI ARC.
Software Update: If a software upgrade is released for your AVR, installation instructions
will be available in the Product Support section of the Web site or from Harman Kardon
customer service. At that time, you may use this submenu to install the upgrade
software.
IMPORTANT: During a software upgrade, do not power off the AVR or use any of its
controls. Doing so could permanently damage the AVR.
Sleep Timer
The sleep timer sets the AVR to play for up to 90 minutes and then turn off
automatically.
Press the Sleep button on the remote, and the time until turn-off will be displayed. Each
additional press of the Sleep button decreases the play time by 10 minutes, from 90 to
10 minutes. The SLEEP OFF setting disables the sleep timer.
When the sleep timer has been set, the front-panel display will automatically dim to half
brightness.
If you press the Sleep button after the timer has been set, the remaining play time will be
displayed. Press the Sleep button again to change the play time.
Processor Reset
If the AVR behaves erratically after a power surge, unplug the AC power cord for at least
3 minutes. Plug the cord back in and turn the AVR on. If this procedure doesn’t help, reset
the AVR’s processor as described below.
NOTE:
A processor reset erases all user configurations, including speaker and level
settings, and tuner presets. After a reset, reenter all of these settings from your entries
in the Appendix worksheets.
To reset the AVR’s processor:
1. Press the front-panel Standby/On switch for more than three seconds to turn the AVR
off (the Power Indicator will turn amber).
2. Press and hold the front-panel Surround Modes button for at least 5 seconds until the
RESET message appears on the front-panel Message Display.
NOTE:
After performing a processor reset, wait at least 1 minute before pressing any
Source Selector buttons.
If the AVR does not function correctly after a processor reset, contact an authorized
Harman Kardon service center for assistance. Authorized service centers may be located
by visiting our Web site at www.harmankardon.com.
ENGLISH
29
Troubleshooting
AVR
Troubleshooting
SymptomCauseSolution
Unit does not function• No AC power• Ensure that the power cord is plugged into a live AC
Front-panel display lights, but there’s no sound or picture • Intermittent input connection
• Mute is on
• Volume control is turned down
No sound from any speaker• Amplifier is in protection mode due to possible short
circuit
• Amplifier is in protection mode due to internal
problems
No sound from center or surround speakers• Incorrect surround mode
• Program material is monophonic
• Incorrect speaker configuration
• Program material is stereo
power outlet
• Check if the AC outlet is switch-controlled
• Secure all input and speaker connections
• Press Mute button
• Turn up Volume control
• Check all speaker wires at speaker and AVR
connections for crossed wires
• Contact your local Harman Kardon service center
• Select a surround mode other than stereo
• Mono programs contain no surround information
• Check the speaker configuration in the setup menu
• The surround decoder may not create center- or
surround-channel information from nonencoded
programs
Unit does not respond to remote control commands• Weak batteries in remote
• Remote sensor is obscured
Intermittent buzzing in tuner• Local interference• Move the AVR or antenna away from computers,
Unable to activate remote control Programming mode• Source Selector button is not held for at least 3
seconds
Unable to establish network connection• AVR network programming requires rebooting• Cycle the AVR into the Off mode, and then turn it on
Additional information on troubleshooting possible problems with your AVR and installation-related issues may be found in the list of “Frequently Asked Questions,” which is located
in the Product Support section of our Web site: www.harmankardon.com
• Change batteries in remote
• Ensure that the AVR’s front-panel remote sensor is in
the line of sight of the remote
fluorescent lights, motors or other electrical appliances
• Be sure to hold the Source Selector button for at least
3 seconds
again
30
Loading...
+ 306 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
