Harman-Kardon AVR 145 User Manual

Download

Designed to Entertain.

AVR 145

AUDIO/VIDEO RECEIVER

OW N ER’S MANUAL

3 SAFETY INFORMATION 5 INTRODUCTION 7 FRONT-PANEL CONTROLS

9 REAR-PANEL CONNECTIONS 11 REMOTE CONTROL FUNCTIONS 14 INTRODUCTION TO HOME THEATER 15 CONNECTIONS 15 Speaker Connections 15 Subwoofer 15 Connecting Source Devices to the AVR 16 Audio Connections 16 Digital Audio 16 Analog Audio 16 Video Connections 17 Antennas 17 RS-232 Serial Port 18 SPEAKER PLACEMENT 19 INSTALLATION 19 Step One – Connect the Speakers 19 Step Two – Connect the Subwoofer 19 Step Three – Connect the Antennas 19 Step Four – Connect the Source Components 22 Step Five – Connect Video Display 22 Step Six – Plug in AC Power 22 Step Seven – Insert Batteries in Remote 23 Step Eight – Program Sources Into the Remote 24 Step Nine – Tur n On the AVR 145 25 INITIAL SETUP 25 Using the On-Screen Menu System 25 Step One – Determine Speaker Size 26 Step Two – Measure Speaker Distances 26 Step Three – Manual Setup Menu 26 Speaker Size Menu 27 Speaker Crossover Menu 28 Delay Adjust Menu 28 Step Four – EzSet Output Level Calibration 29 Step Five – Configure Sources 31 OPERATION 31 Turning On the AVR 145 31 Sleep Timer 31 Volume Control 32 Mute Function 32 Tone Controls 32 Headphones 32 Source Selection 33 Audio Input Selection 33 Video Input Selection 33 6-Channel Direct Inputs 33 Using the Tuner 34 Recording 34 Using 35 Selecting a Surround Mode 36 ADVANCED FUNCTIONS 36 Audio Processing and Surround Sound 36 Analog Audio Signals 36 Digital Audio Signals 37 Surround Modes 38 Dolby Surround Settings 38 Default Modes 41 Setting Channel Output Levels Manually 42 System Settings 43 Dim Function

43 Advanced Remote Control Functions 43 Punch-Through Programming 43 Macros 44 Resetting the Remote 44 Processor Reset 44 Memory 45 TROUBLESHOOTING GUIDE 46 TECHNICAL SPECIFICATIONS 46 T rademark Acknowledgements 47 APPENDIX

WARNING

For Canadian model

Modèle pour les Canadien

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Sur les modèles dont la fiche est polarisee: ATTENTION:Pour éviter les chocs électriques,introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

This class B digital apparatus complies with Canadian ICES-003. For models having a power cord with a polarized plug: CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

TABLE OF CONTENTS

The

Bridge

SAFETY INFORMATION

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings.Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.A polarized plug has two blades with one wider than the other.A grounding-type plug has two blades and a third grounding prong.The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs,convenience receptacles and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,the apparatus has been exposed to rain or moisture,does not operate normally,or has been dropped.

15. Do not use attachments not recommended by the product manufacturer, as they may cause hazards.

16.This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home,consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

17. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.Article 810 of the National Electrical Code,ANSI/NFPA 70,provides information with regard to proper grounding of the mast and supporting structure,grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors,location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

18.An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits,or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

19. Do not overload wall outlets,extension cords, or integral convenience receptacles,as this can result in a risk of fire or electric shock.

20. Never push objects of any kind into this product through openings,as they may touch

dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

21.The apparatus shall not be exposed to dripping or splashing,and no objects filled with liquids,such as vases, shall be placed on the apparatus.

22. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards.Refer all servicing to qualified service personnel.

23.When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part. Unauthorized substitutions may result in fire,electric shock or other hazards.

24. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

25.The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

Figure A. Example of Antenna Grounding as per National ElectricalCode ANSI/NFPA 70

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Important Safety Information

Verify Line Voltage Before Use

Your AVR 145 has been designed for use with 120-volt AC current. Connection to a line voltage other than that for which it is intended can create a safety and fire hazard and may damage the unit.

If you have any questions about the voltage requirements for your specific model, or about the line voltage in your area, contact your selling dealer before plugging the unit into a wall outlet.

Do Not Use Extension Cords

To avoid safety hazards,use only the power cord attached to your unit. We do not recommend that extension cords be used with this product.As with all electrical devices,do not run power cords under rugs or carpets or place heavy objects on them. Damaged power cords should be replaced immediately by an authorized service center with a cord meeting factory specifications.

Handle the AC Power Cord Gently

When disconnecting the power cord from an AC outlet,always pull the plug; never pull the cord. If you do not intend to use the unit for any considerable length of time, disconnect the plug from the AC outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product. Opening the cabinet may present a shock hazard, and any modification to the product will void your guarantee.If water or any metal object such as a paper clip,wire or staple accidentally falls inside the unit, disconnect it from the AC power source immediately, and consult an authorized service center.

CATV or Antenna Grounding

If an outside antenna or cable system is connected to this product, be certain that it is grounded so as to provide some protection against voltage surges and static charges. Section 810 of the National Electrical Code,ANSI/NFPA No. 70-1984,provides information with

respect to proper grounding of the mast and supporting structure,

grounding of the lead-in wire to an antenna

discharge unit, size of grounding conduc-

tors,location of antenna discharge unit,

connection to grounding electrodes and

requirements of the grounding electrode. NOTE TO CATV SYSTEM INSTALLER:This reminder is provided to call the CATV

(cable TV) system installer’s attention to article 820-40 of the NEC, which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building,as close to the point of cable entry as possible.

Installation Location

• To ensure proper operation and to avoid the potential for safety hazards, place the unit on a firm and level surface.When placing the unit on a shelf, be certain that the shelf and any mounting hardware can support the weight of the product.

• Make certain that proper space is provided both above and below the unit for ventilation. If this product will be installed in a cabinet or other enclosed area, make certain that there is sufficient air movement within the cabinet. Under some circumstances,a fan may be required.

• Do not place the unit directly on a carpeted surface.

• Avoid installation in extremely hot or cold locations, or in an area that is exposed to direct sunlight or heating equipment.

• Avoid moist or humid locations.

• Do not obstruct the ventilation slots on the top of the unit, or place objects directly over them.

• Due to the weight of the AVR 145 and the heat generated by the amplifiers, there is the remote possibility that the rubber padding on the bottom of the

unit’s feet may leave marks on certain wood or veneer materials.Use caution when placing the unit on soft woods or other materials that may be damaged by heat or heavy objects.Some surface finishes may be particularly sensitive to absorbing such marks,due to a variety of factors beyond Harman Kardon's control, including the nature of the finish, cleaning materials used, and normal heat and vibration caused by the use of the product,or other factors.We recommend that caution be exercised in choosing an installation location for the component and in normal maintenance practices,as your warranty will not cover this type of damage to furniture.

Cleaning

When the unit gets dirty,wipe it with a clean, soft,dry cloth. If necessary, and only after unplugging the AC power cord,wipe it with a soft cloth dampened with mild soapy water, then a fresh cloth with clean water.Wipe it dry immediately with a dry cloth. NEVER use benzene,aerosol cleaners,thinner,alcohol or any other volatile cleaning agent. Do not use abrasive cleaners, as they may damage the finish of metal parts. Avoid spraying insecticide near the unit.

Moving the Unit

Before moving the unit, be certain to disconnect any interconnection cords with other components,and make certain that you disconnect the unit from the AC outlet.

Important Information for the User

This equipment has been tested and found to comply with the limits for a Class-B digital device,pursuant to Part 15 of the FCC Rules.The limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio-frequency energy

and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communication. However, there is no guarantee that harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules.Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,and (2) this device must accept interference received, including interference that may cause undesired operation.

NOTE: Changes or modifications may cause this unit to fail to comply with Part

15 of

the FCC Rules and may void the user’s authority to operate the equipment.

Unpacking

The carton and shipping materials used to protect your new receiver during shipment were specially designed to cushion it from shock and vibration.We suggest that you save the carton and packing materials for use in shipping if you move,or should the unit ever need repair.

To minimize the size of the carton in storage,you may wish to flatten it. This is done by carefully slitting the tape seams on the bottom and collapsing the carton.Other cardboard inserts may be stored in the same manner. Packing materials that cannot be collapsed should be saved along with the carton in a plastic bag.

If you do not wish to save the packaging materials,please note that the carton and other sections of the shipping protection are recyclable.Please

respect the environ-

ment and discard those materials at a local recycling center. It is important that you remove the protective plastic film from the front-panel lens.

Leaving the film in place will affect the performance of your remote control.

SAFETY INFORMATION

Thank you for choosing Harman Kardon®!

In the years since Harman Kardon invented the high-fidelity receiver, we have taken to heart the philosophy of bringing the joy of home entertainment to as many people as possible,adding performance and ease-ofuse features that enhance the home entertainment experience.In the years since our first single-channel component was introduced, Harman Kardon has offered a number of receiver models,each an improvement upon its predecessors,leading to the AVR 145,a 5.1-channel digital audio/video receiver that offers a wealth of listening and viewing options, all in an elegant package.

To obtain the maximum enjoyment from your new receiver, we urge you to read this manual and refer back to it as you become more familiar with its features and their operation.

If you have any questions about this product, its installation or its operation, please contact your retailer or customer installer, or visit our Web site at www.harmankardon.com.

Please register your product on our Web site at www.harmankardon.com.

Note:You’ll need the product’s serial number. At the same time, you can choose to be notified about our new products and/or special promotions.

AVR 145 5.1-Channel Audio/Video Receiver

Audio Section

• 40 watts x 5, five channels driven at full power at 8 ohms, 20Hz – 20kHz, <0.07% THD, (surround modes). 200 Watts total.

• 50 watts x 2, two channels driven at full power at 8 ohms, 20Hz – 20kHz, <0.07% THD, (surround off mode). 100 Watts total.

• High current capability, ultrawide bandwidth amplifier design with low negative feedback

• All-discrete amplifier circuitry

• Dual independent power supplies,for front and surround channels

• Triple crossover bass management

• 24-Bit, twin-core Cirrus Logic

CS 49510 DSP processor with

32-bit post processor

• 192kHz/24-bit D/A conversion

• Sampling upconversion to 96kHz

Surround Modes

• Dolby®Digital

• Dolby Pro Logic

II (Movie,Music and Game)

• Dolby Virtual Speaker Version 2 (Reference 2- or 3-speaker; Wide 2-, 3-, 4- or 5-speaker)

• Dolby Headphone Version 2

• DTS

(5.1; DTS Stereo)

• DTS 96/24

™

(DTS Stereo)

• DTS Neo:6

(Cinema 3- or 5-channel; Music 5-channel)

• Logic 7

(Cinema, Music and Enhance)

• Hall 1 and Hall 2

• Theater

• 5-Channel Stereo

• Surround Off (DSP or Analog Bypass)

WWW.HARMANKARDON.COM

INTRODUCTION

Audio Inputs

• AM/FM tuner

• CD

• Tape

• 6-Channel direct

• /DMP for iPod

* connectivity

Audio/Video Inputs (With S-Video)

• Video 1

• Video 2

• Video 3

• DVD

• Two 100MHz assignable component video inputs

Digital Audio Inputs

• Two rear-panel/one front-panel coaxial

• Two rear-panel/one front-panel optical

Outputs

• Subwoofer output

• Tape (analog audio)

• Video 1(analog audio and video)

• Video Monitor (composite, S-video and component)

• One coaxial, one optical (digital audio)

• Headphone

Ease of Use

• EzSet™automated setup (microphone integrated into remote)

• On-screen display with composite and S-video; choice of blue or black background

• Two-line dot-matrix front-panel display

• Color-coded connections

• Programmable eight-device main remote control

• Source input renaming

• A/V Sync Delay

• RS-232 serial port for system upgrades

• Switched accessory power outlet

Supplied Accessories

The following accessory items are supplied with the AVR 145.If any of these items are missing,please contact Harman Kardon customer service at www.harmankardon.com.

• System remote control

• AM loop antenna

• FM wire antenna

• Three AAA batteries

• Two covers for front-panel jacks

*Compatible with all iPod models equipped with a dock connector. Not compatible

with iPod shuffle

™

models.Although iPod photo and video models are compatible,

images and videos stored on the iPod may not be viewed.

The

Bridge

Main Power Switch:This is a mechanical switch that turns the

power supply on or off. It is usually left pressed in (On position) at all times,and cannot be turned on using the remote control.

Standby/On Switch: This is an electrical switch that turns the

receiver on for playback, or leaves it in standby mode for quick turn-on using this switch or the remote control.

Power Indicator:This LED has three possible modes.When main

power is turned off, the LED is dark and the receiver won’t respond to any button presses.When main power is turned on, but before the Standby/On Switch is used, the LED turns amber and the receiver is ready to be turned on.When the receiver is turned on, the LED turns blue.

Source Select: Press this button to select a source device, which is

a component where a playback signal originates,e.g.DVD, CD, cable TV, satellite or HDTV tuner.

Source Indicators:The name of the current source input lights up.

The indicated input changes each time the Source Select button is pressed.

Volume Knob:Turn this knob to raise or lower the volume,which will

be shown in decibels (dB) in the Message Display.

Message Display:Various messages appear in this two-line display

in response to commands.When the on-screen display menu system (OSD) is in use,the message OSD ON will appear to remind you to check the video display.

Tuner Band: Press this button to select the tuner as the source, or to

switch between the AM and FM bands.

Tuning: Press either side of this button to tune a radio station. Tuning Mode:This button toggles between manual (one frequency

step at a time) and automatic (seeks frequencies with acceptable signal strength) tuning mode.It also toggles between stereo and mono modes when an FM station is tuned.

Preset Stations: Press this button to select a preset radio station. Headphone Jack: Plug a 1/4" headphone plug into this jack for

private listening.

Surround Mode: Press this button to select a type of surround

sound (e.g. multichannel) mode.Choose from the Dolby modes, DTS modes,Logic 7 modes, DSP modes or Stereo modes.

Surround Select:After you have selected the desired type of sur-

round mode,press this button to select a specific variant of that type of mode.

Surround Mode Indicators: One or more of these icons may light

up as you select different surround modes.The Message Display also indicates the surround mode.

Analog Audio,Video and Digital Audio Inputs: Connect a

source component that will only be used temporarily to these jacks, such as a camera or game console.Remember to select only one type of audio and one type of video connection.

Speaker/Channel Input Indicators:The box icons indicate

which speaker positions you have configured, and the size (frequency range) of each speaker.When a digital audio input is used, letters will light inside the boxes to indicate which channels are present in the incoming signal.

Navigation: These buttons are used together with the following five

buttons to make selections.

Tone Mode: Press this button to access the tone controls (bass and

treble). Use the ‹

/› Navigation buttons to make your selections.

Speaker: Press this button to configure speaker sizes, that is,the fre-

quency-range capability of each speaker.

Channel Level Adjust:Press this button to set the output levels for

each channel so that all speakers sound equally loud at the listening position.

Digital Input Select: Press this button to select the specific digital

audio input (or analog audio input) you used for the current source.

Delay: Press this button to set delay times that compensate for placing

the speakers at different distances from the listening position.

FRONT-PANEL CONTROLS

Volume

NOTE: To make it easier to follow the instructions throughout the manual that refer to this illustration,a copy of this page may be downloaded from the Product Support section at

www.harmankardon.com

Digital Input

Select

Delay

Source

Indicators

Speaker/Channel

Analog Audio

Inputs

Video Inputs

Digital

Audio Inputs

Tuning

Mode

Headphone

Jack

Source

Select

Input Indicators

Preset Stations

Message Display

Surround Mode Indicators

Tone Mode

Navigation

Setup

Speaker Size

Tuning

Surround

Mode

Power

Indicator

Tuner Band

Surround

Select

Main Power

Switch

Standby/On

Switch

Channel Level

Adjust

REAR-PANEL CONNECTIONS

AM and FM Antenna Terminals: Connect the included AM and

FM antennas to their respective terminals for radio reception.

Front,Center and Surround Speaker Outputs: Use two-con-

ductor speaker wire to connect each set of terminals to the correct speaker. Remember to observe the correct polarity (positive and negative connections).Always connect the positive lead to the colored terminal on the receiver and the red terminal on the speaker. Connect the negative lead to the black terminal on both the receiver and the speaker. See the Connections section for more information on connecting your speakers.

Subwoofer Output: If you have a powered subwoofer,connect it to

this jack.

Video 1,Video 2 and DVD Audio/Video Inputs:These jacks

may be used to connect your video-capable source components (e.g., VCR, DVD player, cable TV box) to the receiver. Remember to use only one type of video connection for each source.See the Connections section for more information on audio and video connection options for each source component.

Video 1 Audio/Video Outputs:These jacks may be used to con-

nect your VCR or another recorder.

Composite and S-Video Monitor Outputs: If some of your

sources use composite or S-video connections,then you will need to connect one or both of these monitor outputs to the corresponding inputs on your television or video display in order to view the sources.

CD and Tape Audio Inputs:These jacks may be used to connect

your audio-only source components (e.g., CD player, tape deck). Do not connect a turntable to these jacks unless you are using the turntable with a phono preamp.

Tape Outputs:These jacks may be used to connect your CDR or

another audio-only recorder.

Coaxial and Optical Digital Audio Inputs:If your source has

a compatible digital audio output, connect it to one of these jacks for improved audio performance.Remember to use only one type of digital audio connection for each source.

Coaxial and Optical Digital Audio Outputs:If your source is

also an audio recorder, you may connect a compatible digital audio output to the recorder’s input for improved recording quality.

The Bridge/DMP Input: Connect the optional Har man Kardon

to this input for use with your iPod (not included).Make sure the receiver is turned off (in Standby mode) when connecting The Bridge.

6-Channel Inputs: Connect the analog audio outputs of a DVD-

Audio,SACD

™

, Blu-ray Disc™or HD-DVD™player (or any other external

decoder) to these jacks to enjoy these proprietary formats.

Component Video Inputs: If both your video source (e.g., DVD

player or HDTV tuner) and your television or video display have analog component video (Y/Pb/Pr) capability, then you may connect the component video outputs of your source to one of the two component video inputs.Do not make any other video connections to that source.

Component Video Monitor Outputs:If you are using one or

both of the Component Video Inputs and your television or video display is component-video-capable,you may connect these jacks to the corresponding inputs on your video display.You will also need to connect the composite and/or S-video monitor outputs to your video display if some of your sources use those types of video connections.

RS-232 Serial Port:This specialized connector may be used with

your personal computer in case Harman Kardon offers a software upgrade for the receiver at some time in the future.

RS-232 Mode: Leave this switch popped out in the Operate position

unless the AVR 145 is being upgraded.

RS-232 Reset:This switch is only used during a software upgrade.

A standard processor reset is performed by pressing and holding the front-panel Tone button.

Switched AC Accessory Outlet: You may plug the AC power

cord of one source device into this outlet, and it will turn on whenever you turn on the receiver. Do not use a source that consumes more than 50 watts of power.

AC Power Cord:After you have made all other connections,plug the

AC power cord into an unswitched outlet.

The

Bridge

AC Power

NOTE: To make it easier to follow the instructions throughout the manual that refer to this illustration,a copy of this page may be downloaded from the Product Support section at

www.harmankardon.com

Cord

RS-232

Mode

RS-232

Serial Port

RS-232

Reset

Coaxial Digital

Audio Inputs

(1 & 2)

The Bridge/

DMP Input

Component Video

Monitor Outputs

Component Video

Inputs (1 & 2)

Optical Digital

Audio Inputs (1 & 2)

Optical Digital

Audio Output

Switched AC

Accessory

Center

Speaker

Outputs

Coaxial Digital

Audio Output

Surround

Speaker

Outputs

6-Channel

Inputs

Outlet

Video

Monitor

Video 1

A/V

Video 2

A/V

Outputs

DVD A/V

Inputs

Video 1

A/V

Inputs

FM Antenna

Inputs

Outputs

AM Antenna

Front

Speaker

Tape

Inputs

Outputs

Subwoofer

Tape

Output

Outputs

The AVR 145 remote is capable of controlling nine devices,including the AVR itself and an iPod docked in the optional The Bridge accessory. During the installation process,you may program the codes for each of your source components into the remote.Each time you wish to use the codes for any component, you will need to first press the Selector button for that component.This changes the button functions to the appropriate codes for that product.

Each Input Selector has been preprogrammed to control certain types of components,with only the codes specific to each brand and model changing,depending on which product code is programmed.The device types programmed into each selector may not be changed.

DVD: Controls DVD players and recorders. CD: Controls CD players and recorders. Tape: Controls cassette decks. Video 1: Controls VCRs,TiVo and DVRs. Video 2: Controls cable and satellite television set-top boxes. Video 3: Controls televisions and other video displays. The Bridge/DMP: Controls an iPod docked in The Bridge.

For example, if you have inserted a disc in your CD player and Iyou would like to skip ahead three tracks,but you then find that the volume is too loud, you would follow this procedure:

1. Press the CD Input Selector to switch to the codes that control your

CD player.

2. Press the Play Button (in the Transport Controls section) if the disc is

not already playing.

3. Press the Skip Up Button three times to advance three tracks.

4. Press the AVR Button so that you can access the Volume Controls.

5. Press the Volume Down Button until the volume level is satisfactory.

Any given button may have different functions,depending on which component is being controlled. Some buttons are labeled with these functions.For example,the Sleep and DSP Surround Buttons are labeled for use as Channel Up/Down Buttons when controlling a television or cable box. See Table A8 in the appendix for listings of the different functions for each type of component.

IR Transmitter Lens: As buttons are pressed on the remote,

infrared codes are emitted through this lens.Make sure it is pointing toward the component being operated.

EzSet™Microphone:This microphone “hears”the test tone used

during the EzSet level-setting procedure.Make sure it is pointing toward the receiver when running EzSet.

Power On Button: Press this button to turn on the AVR or another

device.The Master Power Switch on the AVR 145’s front panel must first have been switched on.

Mute Button: Press this button to mute the AVR 145’s speaker and

headphones outputs temporarily.To end the muting,press this button or adjust the volume.Muting is also canceled when the receiver is turned off.

Program/EzSet Indicator:This LED lights up or flashes in one of

three colors as the remote is programmed with codes,and during the EzSet procedure.

Power Off Button: Press this button to turn off the AVR 145 or

another device.

AVR Selector:Press this button to switch the remote to the codes

that operate the receiver.

Input Selectors: Press one of these buttons to select a source

device,which is a component where a playback signal originates, e.g., DVD, CD,cable TV, satellite or HDTV tuner.This will also turn on the receiver and switch the remote to the codes that operate the source device.

AM/FM Button: Press this button to select the tuner as the source,

or to switch between the AM and FM bands.

6-Channel Input Selector: Press this button to select the 6-

Channel Inputs as the audio source.The receiver will use the video input and remote control codes for the last-selected video source.

EzSet (SPL) Button:Press this button to run the EzSet output-level

calibration procedure.Make sure to point the remote toward the receiver during EzSet.

The Bridge/DMP Selector: Press this button to select an iPod

docked in the optional The Bridge as the audio source.The remote will switch to the codes that operate the iPod.

Test Tone: Press this button to activate the test tone for manual out-

put-level calibration.

TV/Video: This button has no effect on the receiver,but is used to

switch video inputs on some video source components.

Sleep Button: Press this button to activate the sleep timer,which

shuts off the receiver after a programmed period of time of up to 90 minutes.

Volume Controls: Press these buttons to raise or lower the volume,

which will be shown in decibels (dB) in the Message Display.

DSP Surround: Press this button to select a DSP surround mode

(Hall 1, Hall 2,Theater).

On-Screen Display (OSD): Press this button to activate the on-

screen menu system.

Channel Level: Press this button to set the output levels for each

channel so that all speakers sound equally loud at the listening position. Usually this is done while playing an audio selection,such as a favorite CD, after you have calibrated the levels using EzSet,as described in the Getting Started section.

REMOTE CONTROL FUNCTIONS

IR T ransmitter Lens

Program/EzSet Indicator

Power On

AVR Selector

AM/FM

EzSet (SPL)

Test Tone

Sleep

DSP Surround

On-Screen Display

Channel Level

Digital Input

Tuning Mode

Direct Station Entry

Tuning

Tone Mode

Night Mode

Track Skip

Transport Controls

EzSet Microphone

Power Off

Mute

Input Selectors

6-Channel Input Selector

/DMP Selector

TV/Video Volume Control

Not Used

Speaker Setup

Set

Numeric Keys

Delay

Memory Clear

Preset Stations Selectors Disc

Skip

Macros Surround Mode Selectors

Dim

The

Bridge

145

NOTE: To make it easier to follow the instructions throughout the manual that refer to this illustration, a copy of this page may be downloaded from the Product Support section at www.harmankardon.com

REMOTE CONTROL FUNCTIONS

Speaker Setup: Press this button to configure speaker sizes, that is,

the frequency-range capability of each speaker. Usually this is done using the on-screen menu system, as described in the Getting Started section.

Navigation and Set Buttons: These buttons are used together to

make selections within the on-screen menu system, or when accessing the functions of the four buttons surrounding this area of the remote – Channel Level, Speaker Setup,Digital Input or Delay.

Digital Input Select: Press this button to select the specific digital

audio input (or analog audio input) you used for the current source.

Delay: Press this button to set delay times that compensate for placing

the speakers at different distances from the listening position, or to resolve a “lip sync”issue that may be caused by digital video processing.This is done using the on-screen menu system, as described in the Initial Setup section.

Numeric Keys: Use these buttons to enter radio station frequencies

when using the tuner (after pressing the Direct Button), or to select station presets.

Tuning Mode:This button toggles between manual (one frequency

step at a time) and automatic (seeks frequencies with acceptable signal strength) tuning mode.It also toggles between stereo and mono modes when an FM station is tuned.

Memory: After you have tuned a particular radio station, press this

button, then the numeric keys,to save that station as a radio preset.

Tuning: Press these buttons to tune a radio station. Depending on

whether the tuning mode has been set to manual or automatic,each press will either change one frequency step at a time,or seek the next frequency with acceptable signal strength.

Direct: Press this button before using the Numeric Keys to directly

enter a radio station frequency.

Clear: Press this button to clear a radio station frequency you have

started to enter.

Preset Stations Selector: Press these buttons to select a preset

radio station.

Tone Mode: Press this button to access the tone controls (bass and

treble). Use the Navigation buttons to make your selections.

Disc Skip:This button has no effect on the receiver, but is used with

some optical disc changers to skip to the next disc.

Macros: These buttons may be programmed to execute long com-

mand sequences with a single button press.They are useful for programming the command to turn on or off all of your components,or for accessing specialized functions for a different component than you are currently operating.

Surround Mode Selectors: Press any of these buttons to select

a type of surround sound (e.g., multichannel) mode.Choose from the Dolby modes,DTS modes, Logic 7 modes or Stereo modes.Each press of a button will cycle to the next available variant of that mode. Not all modes or mode groups are available with all sources.

Night Mode: Press this button to activate Night mode with specially

encoded Dolby Digital discs or broadcasts.Night mode compresses the audio so that louder passages are reduced in volume to avoid disturbing others,while dialogue remains intelligible.

Track Skip:These buttons have no effect on the receiver, but are

used with many source components to change tracks or chapters.

Dim: Press this button to partially or fully dim the front-panel display. Transport Controls:These buttons have no effect on the receiver,

but are used to control many source components.By default, when the remote is operating the receiver, these buttons will control a DVD player.

INTRODUCTION TO HOME THEATER

The AVR 145 may be the first multichannel surround sound receiver you have owned.Although it has more connections and features than older two-channel receivers,many of the principles are similar and the new concepts are easy to understand.This introductory section will help you to familiarize yourself with the basic concepts,which will make setup and operation smoother.

If you are already familiar with home theater, you may skip this section and proceed to the Connections section on page 15.

Typical Home Thea ter System

A home theater typically includes your audio/video receiver, which controls the system; a DVD player;a source component for television broadcasts,which may be a cable box, a satellite dish receiver, an HDTV tuner or simply an antenna connected to the TV; a video display (television); and loudspeakers.

All of these components are connected by various types of cables for audio and video signals.

Multichannel Audio

The main benefit of a home theater system is that several loudspeakers are used in various locations around the room to produce “surround sound.”Surround sound helps to immerse you in the musical or film presentation for increased realism.

The AVR 145 may have up to five speakers connected directly to it (plus a subwoofer). Each speaker is powered by its own amplifier channel inside the receiver.When more than two speakers are used, it is called a multichannel system.

• Front Left and Right – The main speakers are used the same way as in a two-channel system. However, you may notice that in many surround modes,these speakers are used more for ambient sound while the main action is moved to the center speaker.

• Center – The center speaker is usually placed above or below the video screen, and is used mostly for dialogue in movies and television programs.This placement allows the dialogue to originate near the actors’ faces,for a more natural sound.

• Surround Left and Right – The surround speakers are used to improve directionality of ambient sounds.In addition, by using more loudspeakers in the system, more dynamic soundtracks may be played without risk of overloading any one speaker.

Many people expect the surround speakers to play as loudly as the front speakers.Although all of the speakers in the system will be calibrated to sound equally loud at the listening position, most artists use the surround speaker for ambient effects only, and they program their materials to steer very little sound to these speakers.

• Subwoofer – A subwoofer is a special-purpose speaker designed to play only the lowest frequencies (the bass). It may be used to augment smaller, limited-range satellite speakers used for the other channels.In addition, many digital-format programs,such as movies recorded in Dolby Digital, contain a special low-frequency effects

(LFE) channel which is directed only to the subwoofer.The LFE channel packs the punch of a rumbling train or airplane,or the power of an explosion, adding realism and excitement to your home theater. Many people use two subwoofers,placed on the left and right sides of the room, for additional power and even distribution of the sound.

Surround Modes

There are different theories as to the best way to present surround sound and to distribute soundtrack information among the various speakers.A variety of algorithms have been developed in an effort to accurately reproduce the way we hear sounds in the real world.The result is a rich variety of surround mode options.Some modes are selected automatically, depending on the signal being received from the source.In many cases, you may select a surround mode manually.

Several companies have taken surround sound in slightly differing directions.It is helpful to group the numerous surround modes either by their brand name,or by using a generic name:

• Dolby Laboratories, Inc. Modes – Dolby Digital, Dolby Pro Logic II, Dolby Virtual Speaker, Dolby Headphone

• DTS Modes – DTS, DTS Neo:6, DTS 96/24

• Harman International (Harman Kardon’s Parent Company) – Logic 7

• DSP Modes – Generic modes that include Hall 1, Hall 2 and Theater

• Stereo Modes – Generic modes that expand upon conventional two- channel stereo,including DSP Surround Off,Analog Bypass Surround Off and 5-Channel Stereo

Table 4 on pages 38 – 40 contains detailed explanations of the differences between the various mode groups,and the mode options available within each group.Digital modes, such as Dolby Digital and DTS, are only available with specially encoded programs,such as DVDs and digital cable or satellite television. Other modes may be used with various digital and analog signals to create a different surround presentation, or to use a different number of speakers.Surround mode selection depends upon the number of speakers in your system, the materials you are watching or listening to,and your personal tastes. Feel free to experiment.

CONNECTIONS

There are different types of audio and video connections used to connect the receiver to the speakers and video display, and to connect the source devices to the receiver.To make it easier to keep them all straight, the Consumer Electronics Association (CEA) has established a color-coding standard.Table 1 may be helpful to you as a reference while you set up your system.

Table 1– Connection Color Guide

Types of Cables

This section will briefly review different types of cables and connections that you may use to set up your system.

Speaker Cables

Speaker cables carry an amplified signal from the receiver’s speaker terminals to each loudspeaker. Speaker cables generally contain two wire conductors,or leads, inside plastic insulation.The two conductors are usually differentiated in some way, by using different colors,or stripes,or even by adding a ridge to the insulation. Sometimes the actual wires are different, one being copper red and the other silver.

The differentiation is important because each speaker must be connected to the receiver’s speaker-output ter minals using two wires, one positive (+) and one negative (–).This is called speaker polarity. It’s important to maintain the proper polarity for all speakers in the system. If some speakers have their negative terminals connected to the receiver’s positive terminals,perfor mance can suffer,especially for the low frequencies.

Always connect the positive terminal on the loudspeaker, which is usually colored red, to the positive terminal on the receiver,which is colored as shown in the Connection Color Guide (Table 1). Similarly,always connect the black negative terminal on the speaker to the black negative terminal on the receiver.

The AVR 145 uses binding-post speaker terminals that can accept banana plugs or bare-wire cables.

Banana plugs are simply plugged into the hole in the middle of the terminal cap.

Figure 1 – Binding-Post Speaker Terminals With Banana Plugs

Bare wire cables are installed as follows:

1. Unscrew the terminal cap until the pass-through hole in the collar is

revealed.

2. Insert the bare end of the wire into the hole.

3. Screw the cap back into place until the wire is held snugly.

Figure 2 – Binding-Post Speaker Ter minals With Bare Wires

Subwoofer

The subwoofer is a specialized type of loudspeaker that is usually connected in a different way.The subwoofer is used to play only the low frequencies (bass), which require much more power than the other speaker channels.In order to obtain the best results, most speaker manufacturers offer powered subwoofers,in which the speaker contains its own amplifier on board. Sometimes the subwoofer is connected to the receiver using the front left and right speaker outputs,and then the front left and right speakers are connected to terminals on the subwoofer. More often, a line-level (nonamplified) connection is made from the receiver’s Subwoofer Output to a corresponding jack on the subwoofer.

Although the subwoofer output looks similar to the analog audio jacks used for the various components,it is filtered and only allows the low frequencies to pass.Don’t connect this output to your other devices. Although doing so won’t cause any harm, performance will suffer.

Figure 3 – Subwoofer

Connecting Source Devices to the AVR

The AVR 145 is designed to process audio and video input signals, playing back the audio and displaying the video on a television or monitor connected to the AVR.These signals originate in what are known as “source devices,” including your DVD player, CD player,DVR (digital video recorder) or other recorder, tape deck, game console,cable or satellite television box or MP3 player.Although the tuner is built into the AVR,it also counts as a source, even though no external connections are needed, other than the FM and AM antennas.

In general, separate connections are required for the audio and video portions of the signal.The types of connections used depend upon what’s available on the source device, and for video signals,the capabilities of your video display.

Audio Connections

Left Right Front (FL/FR) Center (C) Surround (SL/SR) Subwoofer (SUB) Surround Back (SBL/SBR)

Digital Audio Connections

Coaxial Optical Input Output

Video Connections

Component Y Pb Pr Composite S-Video

12 3

Pre-out

Subwoofer

CONNECTIONS

Audio Connections

There are two formats for audio connections: digital and analog. Digital audio signals are of higher quality, and are required for listening to sources encoded with digital surround modes,such as Dolby Digital and DTS.There are two types of digital audio connections commonly used: coaxial and optical. Either type of digital audio connection may be used for each source device,but never both simultaneously for the same source.However,it’s okay to make both analog and digital audio connections at the same time to the same source.

Digital Audio

Coaxial digital audio jacks are usually color-coded in orange.Although they look similar to analog jacks,they should not be confused, and you should not connect coaxial digital audio outputs to analog inputs or vice versa.

Figure 4 – Coaxial Digital Audio

Optical digital audio connectors are normally covered by a shutter to protect them from dust.The shutter opens as the cable is inserted.Input connectors are color-coded using a black shutter, while outputs use a gray shutter.

Figure 5 – Optical Digital Audio

Due to the nature of digital signals as binary bits,they aren’t subject to signal degradation the way analog signals are.Therefore,the quality of coaxial and optical digital audio connections should be the same, although it is important to limit the length of the cable.Whichever type of connection you choose,Harman Kardon recommends that you always select the highest quality cables available within your budget.

Analog Audio

Analog connections require two cables,one for the left channel (white) and one for the right channel (red).These two cables are often attached to each other for most of their length. Most sources that have digital audio jacks also have analog audio jacks,although some older types of sources,such as tape decks, have only analog jacks.For sources that are capable of both digital and analog audio,you may wish to make both connections.If you wish to record materials from DVDs or other copy-protected sources,you may only be able to do so using analog connections.Remember to comply with all laws regarding copyright if you choose to make a copy for your own personal use.

Figure 6 – Analog Audio

Multichannel analog connections are used with advanced sources where the digital content is copy-protected and all surround processing is performed inside the source.These types of connections are usually used with DVD-Audio,SACD,Blu-ray Disc,HD-DVD and other advanced players.

Figure 7 – Multichannel Analog Audio

Figure 8 – The Bridge

Harman Kardon receivers also include a proprietary,dedicated audio connection called “The Bridge/DMP”. If you own an iPod with a dock connector, you may separately purchase The Bridge and connect it to The Bridge/DMP port on the receiver. Dock your iPod (not included) in The Bridge,and you may listen to your materials through your high-performance audio system.You may even use the AVR 145 remote to control the iPod,with navigation messages displayed on the front panel and on the screen of a video display connected to the AVR.

Video Connections

Although some sources produce an audio signal only (e.g., CD player, tape deck), many sources output both audio and video signals (e.g., DVD player, cable television box, HDTV tuner,satellite box, VCR, DVR). In addition to the audio connection, you will need to connect one type of video connection for each source (never more than one at the same time for any source).

There are three types of analog video connections: composite video, S-video and component video.

Composite video is the basic connection most commonly available.The jack is usually color-coded yellow,and looks like an analog audio jack, although it is important never to confuse the two.Do not connect a composite video jack to an analog or coaxial digital audio jack, and vice versa. Both the chrominance (color) and luminance (intensity) components of the video signal are transmitted using a single cable.

Figure 9 – Composite Video

Optical

Coaxial digital audio cable

Coaxial

Front Surround Center

Multichannel analog audio cable (RCA)

Subwoofer

Optical digital audio cable

nalog audio

cable (RCA)

L R

Composite video cable

CONNECTIONS

S-video,or “separate” video,transmits the chrominance and luminance components using separate wires contained within a single cable.The plug on an S-video cable contains four metal pins,plus a plastic guide pin. Be careful to line up the plug correctly when you insert it into the jack on the receiver, source or video display.

Figure 10 – S-Video

Component video separates the video signal into three components – one luminance (“Y”) and two subsampled color signals (“Pb” and “Pr”) – that are transmitted using three separate cables.The “Y”cable is colorcoded green, the “Pb”cable is colored blue and the “Pr”cable is colored red.

Figure 11 – Component Video

If it’s available on your video display, component video is recommended as the best quality connection, followed by S-video and then composite video.

Antennas

The AVR 145 uses separate terminals for the included FM and AM antennas that provide proper reception for the tuner.

The FM antenna uses a 75-ohm F-connector.

Figure 12 – FM Antenna

The AM loop antenna needs to be assembled.Then connect the two leads to the screw terminals on the receiver.

Figure 13 – AMAntenna

RS-232 Serial Port

The RS-232 serial port on the AVR 145 is used only for data. If Harman Kardon releases a software upgrade for the receiver’s operating system at some time in the future,the upgrade may be downloaded to the AVR using this port. Complete instructions will be provided at that time.

omposite

video cable

Component video cable

Before you begin to connect cables,it is important to set up your speakers in their correct locations in the room.

Optimally, the speakers should be placed in a circle with the listening position at its center.The distance from the listening position to the video display forms the radius of the circle.

The speakers should be angled so that they directly face the listening position.

The center speaker is placed either on top of, below or mounted on the wall above or below the video display screen.

The front left and right speakers are placed along the circle,about 30 degrees from the center speaker and angled toward the listener.

It is best to place the front left/right and center speakers as close to the same height as possible,preferably at about the same height as the listener’s ears.In any event the center speaker should be no more than two feet above or below the left/right speakers.

The side surround speakers should be placed 110 degrees from the center speaker, that is,slightly behind and angled toward the listener. If this isn’t feasible,place the surround speakers behind the listener,with each surround speaker facing the opposite-side front speaker.The surround speakers may be placed a little higher than the listener’s ears.

The subwoofer’s location is less critical, since low-frequency sounds are omnidirectional. Placing the subwoofer close to a wall or in a corner will reinforce the low frequencies,and may create a “boomy” sound. You may wish to experiment over time by placing the subwoofer where the listener normally sits and then walking around the room until the low frequencies sound best. Place the subwoofer in that spot.

NOTE: Your receiver will sound its best when the same model loudspeaker is used for all positions (other than the subwoofer). If that isn’t possible,tr y to use speakers made by the same manufacturer.

SPEAKER PLACEMENT

Figure 14 – Speaker Placement

SUB

110 °

150°

Alternate Placement

for Side Surround

Left Speaker

30° 30°

110 °

150°

Alternate Placement

for Side Surround

Right Speaker

INSTALLATION

You are now ready to connect your various components to your receiver. Before beginning,make sure that all components, including the AVR 145, are turned completely off and their power cords are unplugged. Don’t

plug any of the power cords back in until you have finished making all of your connections.

Remember that your receiver generates heat while it is playing.Select a location that leaves several inches of space on all sides of the receiver. It is preferable to avoid completely enclosing the receiver inside a cabinet. It is also preferable to stack components on separate shelves rather than directly on top of the receiver. Some surface finishes are delicate. Try to select a location with a sturdy surface finish.

Step One – Connect the Speakers

If you have not yet done so,place your speakers in the listening room as described in the Speaker Placement section above.

Connect the center, front left, front right, surround left and surround right loudspeakers to the corresponding speaker terminals on the AVR 145. Remember to maintain the proper polarity by always connecting the positive and negative terminals on each speaker to the positive and negative terminals on the receiver. Use the Connection Color Guide on page 15 as a reference.

Figure 15 – Speaker Connections

Step Two – Connect the Subwoofer

Connect the Subwoofer Output on the AVR 145 to the line-level input on your subwoofer. Consult the manufacturer’s guide for the subwoofer for additional information.

Figure 16 – Subwoofer Connection

Step Three – Connect the Antennas

Connect the FM and AM antennas to their terminals.

Figure 17 – Antenna Connections

Step Four – Connect the Source Components

Use the worksheets in the Appendix to note which connections you will use for each of your source devices.

For each source, select a source input (Video 1, Video 2,Video 3, etc.). In Table 2 we recommend connecting certain types of sources to certain source inputs to make it easier to program and use the remote control.

Decide which audio connections you will use.If your source device has them, use

either

the coaxial digital or the optical digital audio connection. Referring to Table 2, we recommend you connect the DVD source to the Coaxial 1 input jack, and the source designated Video 2 to the Optical 2 input jack. However, you may make whatever connections are best for your system.

In addition to the digital audio connections,we recommend that you connect the analog audio connections for each source,as a backup to the digital connections.For sources that don’t have digital audio outputs, you must use the analog audio connections.

For each video source, select one type of video connection. Component video is preferred, but both your source device and your video display must have this type of video capability. If either device does not, then use S-video.Again, if either your source device or your video display doesn’t have S-video connections,then use composite video.

Referring to Table 2, we recommend that you connect the DVD source to the Component Video 1 inputs, and any one source designated as Video 1,Video 2 or Video 3 to the Component Video 2 inputs.However, you may make whatever video connections are best for your system.

AVR 145

FR FL SR SL

AVR 145

SUB

Video 1 Source

Since this source includes audio and video recording output jacks,it is best suited to a video recorder, such as your VCR or DVR.

Referring to Table 2, connect your recorder to the Video 1 Analog Audio inputs and outputs and to either the Coax 2 or Optical 2 digital audio input (and corresponding digital audio output). Use either the Video 1 S-video or composite video input and output if you wish to make recordings.If you don’t plan on recording, you may use the Component Video 2 inputs.

Figure 18 – Video 1 A/V Inputs and Outputs,and Digital Audio Inputs

Remember to connect the audio and video

output

jacks on your

recorder to the Video 1 or digital audio

input

jacks on the AVR, and the

audio and video

input

jacks on your recorder to the Video 1 or digital

audio

output

jacks on the AVR.

Device Type AVR 145 Source Input Audio Connections Video Connections

VCR, DVR, PVR, Video 1 • Video 1 Analog (inputs and outputs) •

One

of component Video 2,Video 1 S-video TiVo or other and or Video 1 composite video audio/video recorder • Either Coax 2 or Optical 2, with • For recording,use Video 1 S-video or

corresponding coax or optical digital composite video output, and do not use output component video connections at all

Cable TV, Satellite, Video 2 • Video 2 Analog and •

One

of component Video 2,Video 2 HDTV or other • Optical 1 S-video,Video 2 composite video device that delivers television programs

TV, game console, Video 3 (front-panel jacks) • Video 3 Analog and •

One

of component Video 2,Video 3 S-video camera or other •

Either

Coax 3 or Optical 3

Video 3 composite video

audio/video device DVD Audio/Video, DVD • DVD Analog • Component Video 1

SACD HD-DVD, • 6-Channel inputs (optional) and Blu-ray Disc • Coax 1

CD player CD • CD Analog and • Not required

•

Either

Coax 2 or Optical 2

CDR, MiniDisc, Tape • Tape Analog (inputs and outputs) and • Not required cassette •

Either

Coax 2 or Optical 2

• Use corresponding coax or optical digital output

INSTALLATION

NOTE: It’s possible for a source to use none of the connections named for that source.For example,you might connect your DVD player to the Component Video 1 inputs and the Coax 1 digital audio input. However, we will refer to this source as “DVD”, and in Step Five of the Initial Setup section you will program the receiver so that these connections are assigned to the DVD source.When you select “DVD”as your source using the front panel or the remote,the correct connections for your DVD player will be used.

We recommend connecting your various sources using the connections shown in Table 2 below in order to simplify programming your receiver and remote control. However, you may connect any device to any source input.

Table 2 – Recommended Source Component Connections

INSTALLATION STEPS

NOTE: It isn’t possible to make recordings using component video connections.Keep this in mind as you connect other source devices that you may wish to make recordings from.

Video 2 Source

The Video 2 source is used only for playback,never recording.The AVR145 remote control is programmed to operate many brands and models of cable and satellite television devices,and we recommend connecting your cable or satellite set-top box to this source.

Referring to Table 2, connect your set-top box to the Video 2 Analog Audio inputs and to the Optical 1 Digital Audio input.If possible,use the Component Video 2 inputs. Otherwise,connect the set-top box’s S-video or composite video output to the matching Video 2 video input.

Figure 19 – Video 2 A/V, DIgital Audio and Component Video Inputs

NOTE: If you receive your television programming using your TV with an antenna or direct cable connection, then you will need to connect the analog and optical digital audio (if available on your TV) outputs to the Video 2 Analog Audio inputs and to the Optical 1 Digital Audio input.Do not connect any video output on the television set to any video input on the receiver. See Step Five for information on connecting the receiver’s video monitor outputs to the television.

Video 3 Source

The Video 3 source is used only for playback,never recording.It is also generally reserved for components that are only temporarily connected to the receiver, such as cameras and game consoles.When not in use, you may place the supplied covers over the front-panel Video 3 jacks for a cleaner appearance.Simply snap the covers in place.When you wish to use the jacks,gently press on the left side of each cover to pivot it out for removal.

Referring to Table 2, connect your camera or game console to the Video 3 Analog Audio inputs and to either the Coaxial 3 or Optical 3 digital audio input. If possible,use the Component Video 2 inputs. Otherwise,connect the component’s S-video or composite video output to the matching Video 3 video input.

Figure 20 – Video 3 A/V and Digital Audio Inputs

DVD

The DVD source is used for a DVD player. If you have a more advanced multichannel device,such as a Blu-ray Disc or HD-DVD player,connect it to the DVD source.

Referring to Table 2, connect your DVD player to the DVD Analog Audio inputs and to the Coaxial 1 Digital Audio input.If possible,use the Component Video 1 inputs. Otherwise,connect the DVD player’s S-video or composite video output to the matching DVD video input.

Figure 21 – DVD A/V, DIgital Audio and Component Video Inputs

If your DVD player plays multichannel lossless discs,such as SACD or DVD-Audio,you will also need to connect the 6-channel analog audio outputs on the DVD player to the 6-channel analog audio inputs on the receiver in order to enjoy these discs to their fullest.

Figure 22 – 6-Channel Analog Audio Inputs

The CD source is used for a strictly audio device,such as a CD player. Referring to Table 2, connect your CD player to the CD Analog Audio

inputs and to the Coaxial 2 or Optical 2 Digital Audio input.

Figure 23 – CD Audio Inputs and Digital Audio Inputs

No video connections are made,although if your system has unusual requirements,you may connect a video device using component video outputs to the Component Video 2 inputs on the receiver, if those jacks are not in use by another device.

Tape

The Tape source is used for audio-only recorders, such as a CDR, MiniDisc or cassette deck.

Referring to Table 2, connect your recorder to the Tape Analog Audio inputs and outputs,and to either the Coax 2 or Optical 2 Digital Audio input (and corresponding digital audio output).

Figure 24 – Tape Audio Inputs and Outputs,and Digital Audio Inputs and Outputs

Remember to connect the

output

jacks on your recorder to the Tape

or digital audio

input

jacks on the AVR, and the

input

jacks on your

recorder to the Tape or digital audio

output

jacks on the AVR.

No video connections are made,although if your system has unusual requirements,you may connect a video device using component video outputs to the component Video 2 inputs on the receiver, if those jacks are not in use by another device.

With Harman Kardon’s optional The Bridge, you can listen to audio stored on your iPod (not included),use your AVR 145 remote control to operate the iPod,and even charge the iPod while it’s docked in The Bridge.

Simply plug the proprietary cable from The Bridge into the special The Bridge/DMP connector on the rear of the AVR 145’s.Refer to the owner’s manual for The Bridge to select the appropriate insert to match your iPod.

Figure 25 – The Bridge/DMP Connector

Step Five – Connect Video Display

Only video connections should be made between the receiver and your video display (TV), unless your TV is the source for your television programming (see note above).

You will need to make a video connection for each type of video used for your sources.In addition, even if you didn’t use S-video or composite video for any of your sources,you will still need to use one of these two video monitor connections in order to view the AVR 145’s onscreen menus and displays.

First, determine what types of video your display is capable of handling. Remember that component video is preferred, followed by S-video and then composite video.Ideally,this guided you in selecting the video connections for your sources.

Next, note which types of video connections you used for your source devices.Make sure you didn’t use a better type of video connection for a source than your video display can handle.If so, you will need to disconnect the source and use a video connection that’s compatible with your display.

If you used component video for any sources,connect the Component Video Monitor outputs on the receiver to one set of component video inputs on your display. Make a note of how these inputs are labeled on the display.

Figure 26 – Component Video Monitor Outputs

If you used S-video for any sources,or if all of your sources used component video,connect the S-video Monitor output on the receiver to an S-video input on your display. Make a note of how the input is labeled.

If you used composite video for any sources,connect the composite video Monitor output on the receiver to a composite video input on the display.Again, make a note of how this input is labeled on the display.

Figure 27 – S-Video and Composite Video Monitor Outputs

Consult the manual for your TV to make sure you understand how to select each video input.As you play different source devices that use different types of video connections,you will need to remember to select the correct video input on your video display.

Step Six – Plug in AC Power

Having made all of your wiring connections,it is now time to plug each component’s AC power cord into a working outlet.

You may plug one device into the AC Switched Accessory Outlet on the rear of the AVR 145. Make sure this device draws no more than 50 watts.The device should have its mechanical or master power switch turned on, and it will power on any time the AVR 145 is turned on.

Figure 28 – Switched AC Accesssory Outlet

Before plugging the AVR 145’s AC Power Cord into an electrical outlet, make sure that the Master Power Switch on the front panel is popped out so that the word OFF appears on its top.Gently press the button to turn the switch off.This will prevent the possibility of damaging the AVR in case of a transient power surge.

Step Seven – Insert Batteries in Remote

The AVR 145 remote control uses three AAA batteries, which are included.

To remove the battery cover located on the back of the remote,firmly press the ridged depression and slide the cover towards the top of the remote.

INSTALLATION

The

Bridge

INSTALLATION

Insert the batteries as shown in the diagram, making sure to observe the correct polarity.

Figure 29 – Remote Battery Compartment

When using the remote,remember to point the lens toward the front panel of the AVR 145. Make sure no objects,such as furniture,are blocking the remote’s path to the receiver. Bright lights,fluorescent lights and plasma video displays may interfere with the remote’s functioning. The remote has a range of about 20 feet, depending on the lighting conditions.It may be used at an angle of up to 30 degrees to either side of the AVR.

If the remote seems to operate intermittently, or if pressing a button on the remote does not cause the AVR Selector or one of the Input Selectors to light up,then make sure the batteries have been inserted correctly, or replace all three batteries with fresh ones.

Step Eight – Program Sources Into the Remote

The AVR 145 remote is capable of controlling not only the receiver, but it may also be programmed to control many brands and models of VCRs,DVD players, CD players,cable boxes, satellite receivers,cassette decks and TVs, as well as The Bridge.

It may help to think of the remote as a book with pages.Each page represents the button functions for a different device.In order to access the functions for a particular device,you first need to turn to that page.This is done by pressing the AVR Button to access the codes that control the receiver, or the Input Selector buttons to access the codes for the devices programmed into the remote.

At the factory,the AVR 145’s codes and the codes to control an iPod docked in The Bridge are preprogrammed,and the codes for many Harman Kardon DVD and CD players are also preprogrammed. If you have other source devices in your system, follow these steps to program the correct codes into the remote.

1. Using the codes in Tables A9–A16 of the Appendix,look up the product type (e.g. DVD,cable TV box) and the brand name of your source.The number(s) listed are potential candidates for the correct code set for your particular device.

2.Tur n on your source device.

3. Put the remote into Program mode by pressing and holding the Input Selector and the Mute button simultaneously until the LED on the remote starts to flash, and then releasing the buttons.

Figure 30 – Input Selectors

4. Enter a code from Step 1 above. a) If the device turns off, then press the Input Selector again to accept

the code,which will flash. The remote will exit the Program mode.

b) If the device does not turn off, try entering another code. If you run

out of codes,you may search through all of the codes in the remote’s library for that product type by pressing the

⁄ or ¤

button repeatedly until the device turns off.When the device turns off, enter the code by pressing the Input Selector, which will flash. The remote then exits Program mode.

5. Once you have accepted a code,it’s a good idea to try using some

other functions to control the device.Sometimes manufacturers use the same Power code for several different models, while other codes will vary.You may wish to repeat this process until you’ve programmed a satisfactory code set that operates most of the functions you frequently use.

6.You may find out which code number you have programmed by

pressing and holding the Input Selector and Mute Button simultaneously to enter the Program mode.Then press the Set Button, and the LED will blink in the code sequence.One blink represents “1”, two blinks for “2”, and so forth.A series of many fast blinks represents “0”. Record the codes programmed for each device here.

Table 3 – Remote Control Codes

If you are unable to locate a code set that correctly operates your source device,it will not be possible to use the AVR remote to control that device.However,you may still connect the source to the AVR 145 and operate it using the device’s original remote control.Alternatively, you may wish to consider purchasing Harman Kardon’s optional TC 30 activity-based remote,which is programmed by accessing a large database of product codes on the Internet.The TC 30 is also capable of “learning” codes from your device’s original remote.

Source Input Product Type Remote Control Code

(circle one)

Video 1 VCR, PVR Video 2 Cable,Satellite Video 3 TV DVD DVD CD CD, CDR Tape Cassette

Most of the button labels on the remote describe the button’s function when used to control the AVR 145. However,the button may perform a very different function when used to control another device.Refer to the Remote Control Function List,Table A8 in the Appendix, for a list of each button’s functions with the various product types.

If you wish, you may program Macros,which are preprogrammed code sequences that execute many code commands with a single button press.You may also program “punch-through” codes,which allow the remote to operate the volume,channel or transport controls of another device without having to switch the remote to the mode for that device. See pages 43 through 44 for instructions on these advanced programming functions.

NOTE: The AVR 145 remote is preprogrammed to operate the transport controls of Harman Kardon DVD players when the AVR or the Video 2 (cable/satellite) or Video 3 (TV) source is selected. The volume and mute controls operate the AVR when any device except Tape has been selected. You may change this punch-through programming at any time.

Step Nine – Turn On the AVR 145

Two steps are required the first time you turn on the AVR 145.

1. Gently press the Master Power Switch until the word OFF is no longer visible.The Power Indicator above the two power switches should light up in amber.This indicates that the AVR is in Standby mode and is ready to be turned on. Normally,you may leave the Master Power Switch in the ON position, even when the receiver is not being used.

Figure 31 – Power Switches

2.There are several ways in which the AVR 145 may be turned on from Standby mode.

a) Press the Standby/On Switch on the front panel. b) Press the Source Select Button on the front panel.

Figure 32 – Source Select Button

c) Using the remote,press any one of these buttons: AVR, DVD,CD,

TAPE,VID1,VID2,VID3,AM/FM or 6/8CH.

Figure 33 – AVR and Input Selectors

NOTE: Any time you press one of the Input Selectors on the remote (i.e.,DVD,CD,TAPE,VID1,VID2 or VID3),the remote will switch modes so that it will only transmit the codes programmed to operate that device.In order to control the receiver, you will need to press the AVR button to return the remote to AVR mode.

INSTALLATION

Before you begin enjoying your new receiver, a few adjustments should be made to configure the AVR 145 to match your actual system.

Make sure that you have connected a video display to either the Svideo or composite video monitor output on the receiver.When you tur n on your display and the AVR, you should see a blue screen. A message may appear briefly at the bottom of the screen.This message is part of the on-screen display system, and is referred to as the “semi-OSD”.The semi-OSD is activated any time you send a command to the AVR, and any time the AVR detects a change in the incoming signal. Semi-OSD messages are overlaid on top of any video signal, so that you may continue to watch your program while making adjustments to the AVR.

Although it’s possible to configure the AVR using only the remote and the semi-OSD messages,we recommend that you use the full-screen menu system, known as the “full OSD”.

Using the On-Screen Menu System

The full OSD system is accessed by pressing the OSD Button on the remote.While the full OSD system is in use,it isn’t possible to see any video programming.In addition,an OSD ON message will appear on the front panel of the receiver to remind you to use a video display.

Figure 34 – Navigation Buttons

The Master Menu will always be displayed when you first press the OSD Button. Use the

⁄⁄¤

Buttons on the remote to point the cursor to different lines in the menu. Press the Set Button on the remote to select a line that has no setting to be adjusted, such as one of the submenus listed in the Master Menu, or a line that returns you to a previous menu. Within the submenus,after you have positioned the cursor at a particular line item, you will need to use the ‹/› Buttons on the remote to change a setting.When the desired setting appears,use the

⁄⁄¤

Buttons to navigate to another line item. Except for the TITLE setting in the INPUT SETUP menu, there is no need to press the Set Button after your desired setting appears.

NOTE: The ‹/› and Set Buttons on the front panel have no effect on the OSD system.

The Master Menu allows access to four submenus: Input Setup, Surround Select, Manual Setup and System Setup.

Figure 35 – Master Menu Screen

If you are an experienced home theater user, you may prefer to use the menus in this order:

1. System Setup (described in Advanced Functions section)

2. Manual Setup (described here and in Advanced Functions)

3. Input Setup (described in this section)

4. Surround Select (see Advanced Functions section) However, we recommend that most users follow the instructions in this

INITIAL SETUP section to configure a basic home theater system.You may return to these menus at any time to make additional adjustments.

This section requires that you complete all of the steps in the Installation section that apply to your receiver.You should have connected all of your loudspeakers and a video display, as well as your source devices. You should be able to turn on the receiver and view a blue screen on your video display. If necessary,reread the Installation Section before continuing.

Step One – Determine Speaker Size

The AVR 145 can’t detect how many speakers you’ve connected to it; nor can it determine their capabilities.For this part of the system setup, you will need to consult the owner’s guide for each of your speakers.If you don’t have the guide,you may be able to obtain the speaker’s technical specifications from the manufacturer’s Web site,or by contacting the manufacturer directly.

The specification you’re looking for is the frequency response, which is usually given as a range,e.g.,100Hz – 20kHz (±3dB). This specification tells you whether the speaker is able to play sounds that are very high- or low-pitched, represented by the high and low frequencies.We are concerned with the lowest frequency that each of your main speakers is capable of playing,which is 100Hz in this example, a respectable figure for a typical satellite speaker. Use the worksheets in the appendix to note this number as the crossover for that speaker (not the same as the crossover frequency listed in the speaker’s specifications).

INITIAL SETUP

The frequency response for your subwoofer will usually cover only the very lowest frequencies,since the subwoofer is only designed to play bass materials.A typical frequency response for a subwoofer is 25Hz – 150Hz. In this case,the higher number is most important and should be noted in the worksheet.

The purpose of programming this information into the AVR 145 is to program the receiver’s bass management, which determines which speakers the receiver will use to play back the low-frequency (bass) portion of the source program.

If you send the lowest notes to small satellite speakers,you won’t hear these notes very well, and you may even damage the speaker by going beyond its capabilities.If you send the highest notes to the special-purpose subwoofer, you may not hear them at all.

With proper bass management, the AVR 145 divides the source signal at a crossover point.All information above the crossover point is played through the satellite speaker (front left/right, center or surround left/right), and all information below the crossover point is played through the subwoofer.This enables each loudspeaker in your system to perform at its best, delivering an enjoyable sound experience.

Step Two – Measure Speaker Distances

Ideally, all of your speakers were placed in a circle,each at the same distance from the listening position. However, your room may not be ideal, and you may have had to place some speakers a little further away than others.This could affect the overall sound of the receiver, as sounds that are supposed to arrive simultaneously from different speakers blur, due to different arrival times.

Fortunately, the AVR 145 has a delay adjustment that enables the receiver to compensate for real-world speaker placements.

Before you begin making adjustments,measure the distance from each speaker to the listening position, and note it in the worksheets in the appendix. Even if all of your speakers are the same distance from the listening position, you should enter your speaker distances.

Step Three – Manual Setup Menu

Now you are ready to program these adjustments into the receiver. It’s best to sit in the usual listening position and make the room as quiet as possible.Don’t worr y if you make a mistake; you can always go back and change these settings.

With the receiver and video display turned on, press the OSD Button on the remote.Use the

¤ Button on the remote to move the cursor to the

MANUAL SETUP line,and press the Set Button to display the Manual Setup menu.

Figure 36 – Manual Setup Menu Screen

The Manual Setup menu is the gateway to four submenus.The first three menus – Speaker Size,Speaker X-over and Delay Adjust – are described here.The fourth menu – Channel Adjust – is described in the Advanced Functions section.

Speaker Size Menu

Press the Set Button to display the Speaker Size submenu.

Figure 37 – Speaker Size Menu Screen

The Speaker Size menu lists each of the speaker groups.You will be programming the correct setting for each group,indicating how many speakers are in your system and what their capabilities are,based on the information you obtained in Step One – Determine Speaker Size. Each of the main speaker groups can be set to one of three settings: LARGE, SMALL or NONE.These settings don’t refer to the physical size of the speaker, but rather to the size of the frequency range of each speaker.These may or may not tur n out to be the same.

If the lower number of the frequency response for your speakers is less than 100Hz, choose the LARGE setting.If this number is 100Hz or greater, choose the SMALL setting.If you don’t have a speaker connected to that position, choose NONE.

As you can see,the system requires you to use both speakers in a pair. For example, you can’t connect just a front left speaker without a right speaker, or just a right surround (rear) speaker without a left one. However, you can connect only the front speakers,or both front and surround speakers without a center, or the front left/right and center speakers without any surrounds.

INITIAL SETUP

LEFT/RIGHT: This line tells the AVR 145 the capabilities of your front left and right speakers.Use the ‹/› Buttons to select either SMALL or LARGE for these speakers.

CENTER: Move the cursor to the line for the center speaker,and use the ‹/› Buttons to select a setting for this speaker.

NOTE: If the receiver is currently in one of the Logic 7 surround modes,which will be the case the first time you turn on the receiver, you won’t be able to set the center speaker to LARGE, due to the requirements of the Logic 7 processor.You may use the SMALL setting instead.As you listen to the receiver, if you find the SMALL setting is not satisfactory,change the surround mode to one of the Dolby Pro Logic II modes (using the Surround Select menu, accessible from the Master Menu), and then you may come back to this menu and change the center speaker to the LARGE setting.

SURROUND: Move the cursor to the line for the surround, or rear, speakers,and use the ‹/› Buttons to select a setting for these two speakers.

SUBWOOFER: Move the cursor to the line for the subwoofer,which is programmed a little differently.The subwoofer’s “size”setting depends upon how you programmed the front left and right speakers.

• If you set the front speakers to SMALL, the subwoofer setting will be SUB, and you won’t be able to change it. All low-frequency information will always be sent to the subwoofer. If you don’t have a subwoofer, you may wish to set your front speakers to LARGE so as not to lose this information, but you may need to lower the volume to avoid adverse results.

• If you set the front speakers to LARGE, you may select from three possible settings for the subwoofer.

• L/R+LFE: This setting sends all low-frequency information to the subwoofer, including both information that would normally be played through the front left and right speakers and the special low-frequency effects (LFE) channel information.

• LFE: This setting plays low-frequency information contained in the left and right program channels to the front speakers,and directs only the LFE channel information to the subwoofer.

• NONE: This setting steers all low-frequency information to the front speakers,and no information to the subwoofer output. Use this setting if you have a passive subwoofer, or a powered subwoofer that you connected to the front speaker outputs.

NOTE: If you are using a Har man Kardon HKTS speaker system, select the SMALL setting for the LEFT/RIGHT, CENTER and SURROUND lines,and the subwoofer will automatically be set to SUB.

BASS MGR: This advanced setting is used if you wish to configure your speakers differently for different sources.For example,you may prefer to set your speakers to LARGE while listening to CDs from your CD player. By changing this setting to INDEPENDENT, you may have different set-

tings for your CD player and your DVD player or other devices.We recommend that you leave this setting at its factory default of GLOBAL until you have more experience with the AVR.

Move the cursor to the BACK TO MANUAL SETUP line and press the Set Button to return to the Manual Setup Menu.

NOTE: The Speaker/Channel Indicators on the front panel of the receiver will display the speaker size settings as follows.For each speaker configured as SMALL, a single box will appear in the position for that speaker. For each speaker configured as LARGE, a double box will appear in its position. If a speaker is configured as NONE, no box will appear.The subwoofer will be indicated by a single box, or no box if no subwoofer has been configured.The letters inside the boxes appear when a digital signal is being received that has that channel discretely encoded. The letters flash when the signal is not present, such as when a DVD is paused.

Figure 38 – Speaker/Channel Input Indicators

Speaker Crossover Menu

On the Manual Setup menu, move the cursor to the SPEAKER X-OVER line and press the Set Button to display the Speaker Crossover menu.

Figure 39 – Speaker Crossover Menu Screen

Setting the Speaker Crossover menu correctly ensures that your speakers are properly used so that they sound their best.Although you could skip this step the first time you use the receiver, we recommend that you take the few extra minutes to enter the correct crossover settings.

You may select from seven possible settings: 40Hz, 60Hz, 80Hz, 100Hz, 120Hz, 150Hz or 200Hz. Depending upon the frequency response of your speakers which you recorded in Step One – Determine Speaker Size,for each speaker group select the number that matches or is just above the low end of your speaker’s frequency response.

INITIAL SETUP

The LFE line sets the frequency for a low-pass filter that determines what information is sent to the subwoofer for playback. Since the subwoofer output combines low-frequency information for all channels,in order to make sure that no information is lost due to different speakers having different capabilities,the subwoofer filter should be matched to the highest crossover frequency used for any speaker group.

Looking at each of your three speaker-group settings in this menu, determine which group is set to the highest frequency. Move the cursor to the LFE line,and use the ‹/› Buttons to select that speaker group. If all three speaker groups have the same setting,you may leave the LFE filter to its factory default of the LEFT/RIGHT speaker group.

Move the cursor to the BACK TO MANUAL SETUP line and press the Set Button to return to the Manual Setup menu.

Delay Adjust Menu

As explained above in Step Two – Measure Speaker Distances, sometimes the speakers are placed at different distances from the listening position, which can muddy the sound, as sounds are heard earlier or later than desired.

Even if all of your speakers are placed the same distance from the listening position, you should not skip this menu.

On the Manual Setup menu, move the cursor to the DELAY ADJUST line and press the Set Button to display the Delay Adjust menu.

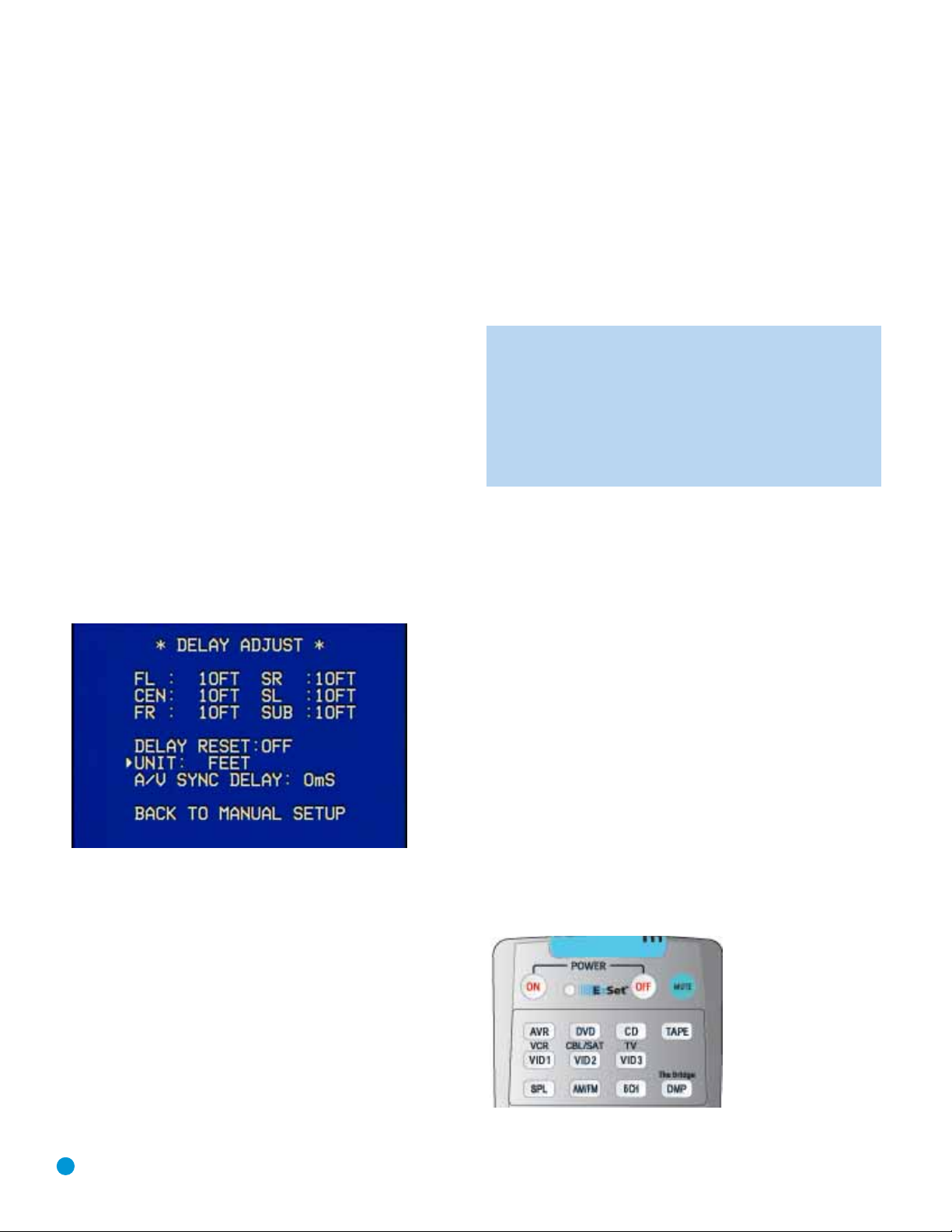

Figure 40 – Delay Adjust Menu Screen

This menu requires you to enter the distance from each speaker to the listening position, which you measured in Step Two – Measure Speaker Distances.

The default unit of measurement is in feet. If you wish to change the unit to meters,move the cursor down to the UNIT line, and use the ‹/› Buttons to change the unit to METER.

Use the

⁄/¤ Buttons to move the cursor to the FL (front left) line;

then use the ‹/› Buttons to change the measurement as needed. Use the

⁄/¤ Buttons to move to each speaker in tur n – CEN

(center), FR (front right), SR (surround right), SL (surround left) and SUB (subwoofer).

DELAY RESET: This line is used if you wish to reset all of the speaker delay settings to the factory default of 10 feet (3.0 meters) at once.Use the ‹/› Buttons to change the setting of OFF to ON.If you change any speaker’s setting,this line will automatically revert to OFF.

A/V SYNC DELAY: This line allows you to compensate for a situation in which one of your source devices,or your video display,introduces a significant amount of video processing that causes the audio and video parts of the signal to get out of sync.This is known as a “lip sync”problem.You may delay the audio for all channels by up to 80 milliseconds to compensate.

NOTE: We recommend that you adjust the A/V Sync Delay using the Delay Button on the remote,rather than in this menu, so that you can view the picture while adjusting the audio delay. With the program playing,press the Delay Button,and the A/V SYNC DELAY message will appear on the front panel and in the semi-OSD display. Press the Set Button to display the current delay setting,and use the ‹/› Buttons to adjust the setting until the synchronization issue is resolved.

Move the cursor to the BACK TO MANUAL SETUP line and press the Set Button to return to the Manual Setup menu, or simply press the OSD Button to exit the menu system.

Step Four – EzSet Output Level Calibration

This is an important step in the configuration process,and should not be skipped.

By now you should have connected all of your speakers and sources and your video display.You should have turned on the receiver and used the Manual Setup menus to program each of your speakers as Large or Small.

Sit in the listening position with the remote control, and make sure to eliminate external noises for the few minutes needed to run the EzSet procedure.

Use the volume control buttons on the remote to adjust the volume to –15dB.

Now point the remote at the receiver and press the SPL Button until the LED blinks,then press the “5” Key.The procedure works best if you hold the remote at about ear level, pointed toward the receiver.Try not to tilt the remote out of line with the IR receiver on the AVR’s front panel.

Figure 41 – EzSet (SPL) Button

INITIAL SETUP

The receiver will generate a loud test tone,which sounds like static. In fact, it’s a tone that simultaneously uses all frequencies from 20Hz to 20kHz.

The tone should be heard first through the front left speaker. It will circulate to the other speakers in this order: front left, center,front right, surround right, surround left.The tone pauses for a few moments at each speaker position, while a microphone built into the remote measures the loudness (sound pressure level) of the tone.The remote contains programming that compares the loudness of the tone at each position to a reference and sends commands to the receiver to adjust the output level for that channel until the tone matches the reference.

A tri-color LED on the remote indicates EzSet’s findings.The LED turns red if the channel’s level is too high,amber if the level is too low,and green when the level is correct.

The result is that each speaker will be heard equally loud at the listening position.This is important for movie directors, who adjust the loudness of each channel in the recording to produce a desired sound presentation. Usually,the director reduces the loudness of,or even the presence of information in the surround channels so as not to distract the viewer from the main action taking place on screen. If the test tone sounds as loud in the rear speakers as it does coming from the other speakers, then the receiver is performing correctly.

As the tone circulates to each speaker position, the semi-OSD system and the front panel will display a message reporting which channel the tone is being sent to.Make sure that the message matches the speaker you are actually hearing the tone from, and that you are hearing a tone from each speaker. If that isn’t the case,press the Test Button

twice

to stop EzSet, and turn off the receiver and unplug it. Then check your speaker-wire connections.

The semi-OSD system and front panel will also display the level adjustments being made.The levels may vary from –10dB to +10dB.If you notice that the levels for all speakers are being adjusted very far in either direction, then stop EzSet by pressing the Test Button

twice

, and adjust the master volume level higher to compensate for EzSet pushing each speaker close to +10dB, or lower to compensate for EzSet lowering each speaker close to –10dB.

As the levels are being adjusted, the LED on the remote will change until it is green for all channels.

The tone will circulate a second time,and then the procedure will end.

NOTE: In order to optimize perfor mance for each of the many surround modes and their variants,the AVR 145 is able to associate a different set of output level settings with each mode. While this results in extremely realistic reproduction of surround sound presentations,it does require that you determine the correct settings for each surround mode.

The first time you turn on the AVR, it will default to the Logic 7 Music mode.Harman Kardon recommends that at initial set-up you use the default Logic 7 mode,and then copy down the settings produced by EzSet. Change the surround mode either

using the on-screen Surround Setup menu, or by pressing the desired surround mode group button on the remote,and reenter the same settings for each new mode,selecting all modes you are likely to use.

If you prefer, you may run EzSet for the major surround modes, such as Logic 7 (select either Cinema or Music), Dolby (select Dolby Pro Logic II Movie) and DTS (select DTS Neo:6).Then you may copy the resulting level settings for the other mode variants within each group.

Advanced users may rerun EzSet for each mode individually.

Step Five – Configure Sources

This is the last step in the configuration process. Press the OSD Button to view the Master Menu.The cursor will be

pointing to the INPUT SETUP line,and you need only press the Set Button to display the Input Setup menu.

Figure 42 – Input Setup Menu Screen

The first line indicates that the receiver is currently set to the tuner source.In fact, you may hear static if the tuner is set to an unused frequency.You will not be able to make any changes to the tuner, other than selecting a component video input or adjusting the tone controls. It is not recommended that you make either of these changes for the tuner.

Press the ‹ Button to view the next source.The sources will be selected in the following order:Tape, 6-Channel Inputs,Video 1, Video 2, Video 3, DVD and CD.Pressing the

› Button selects the sources in the

reverse order. For each of these sources, you may adjust the settings below.At a mini-

mum, you should make sure that sources you connected to either of the component video inputs has the correct settings,and that sources you connected to any of the digital audio inputs also display the correct settings.Other settings are optional, and you may adjust them at a later time when you have more experience with the AVR. Refer to the worksheets you filled out during installation as you assign inputs to each source.

TITLE: You may change the display name for any source (except the tuner). Not only does this enable you to customize your system; it helps

INITIAL SETUP

you to select the correct source device even when you have forgotten which physical connections you used.

Move the cursor down to the TITLE line and press the Set Button.A block cursor will blink.

Figure 43 – Retitling a Source Input

Now you may use the ⁄/¤ Buttons to scroll through the alphabet in upper and lower case,as well as numbers and a variety of punctuation marks.When you have selected the desired character, press the › Button to move to the next space.You may also press the › Button to leave a blank. Press the Set Button when you have finished spelling out the new display name for the source.

COMPONENT IN: If you connected the source to one of the two component video inputs,make sure the correct set of inputs is displayed at this line.If it isn’t, move the cursor to this line, and then press the › Button to change the setting.

AUDIO IN: By default, the analog audio inputs are assigned to all sources at the factory other than the DVD and Video 2 sources, which default to Coax 1 and Optical 1, respectively.If you used a digital audio connection for the source,you will need to change this setting to assign the correct digital audio input to the source,even if you also connected the analog audio outputs of the source to the receiver. Move the cursor to this line,and press the

‹/› Buttons until the correct digital input

appears. AUTO POLL: The Auto Poll feature is used when both an analog audio

and digital audio connection have been made for one source device. If for some reason no digital signal is available,the AVR 145 will switch to the analog inputs for the source.This situation can occur with some cable or satellite television broadcasts,where some channels are broadcast with digital audio and others with analog audio.

For some sources, the Auto Poll feature is unnecessary and may be undesirable.For example,if your DVD player is stopped, you may not want to use the analog audio signal or you may have decided not to connect analog audio.Move the cursor to this line, and press the

‹/›

Buttons until OFF appears,disabling the Auto Poll feature.With Auto Poll turned off, the receiver will only check for a signal at the audio input assigned to the source.

The remaining lines in the Input Setup menu activate the tone controls, and may be skipped at this time.We recommend leaving the tone controls at their factory defaults for most listening,in order to enjoy the sound mix created by your favorite movie and music artists.However,if your room or speakers have unusual characteristics,or simply as a matter of personal preference,see the Tone Controls section on page 32 for more information.

You are now ready to begin enjoying your new receiver!

OPERATION

Now that you have installed your system components and completed at least a basic configuration of your receiver, you are ready to begin enjoying your home theater system.

Turning On the AVR 145

Gently press the Master Power Switch until the word OFF is no longer visible.The Power Indicator above the two power switches should light up in amber.This indicates that the AVR is in Standby mode and is ready to be turned on. Normally,you may leave the Master Power Switch in the ON position, even when the receiver is not being used.

Figure 44 – Power Switches

There are several ways in which the AVR 145 may be turned on: a) Press the Standby/On Switch on the front panel. b) Press the Source Select Button on the front panel.

Figure 45 – Source Select Button

c) Using the remote,press any one of these buttons: AVR, DVD,CD,

TAPE,VID1,VID2,VID3,AM/FM, 6/8CH or The Bridge/DMP.

Figure 46 – AVRand Input Selectors

NOTE: Any time you press one of the remote’s Input Selectors (i.e.,DVD,CD,TAPE,VID1,VID2,VID3 or The Bridge/DMP), the remote will switch modes so that it will only transmit the codes programmed to operate that device.In order to control the receiver, you will need to press the AVR Button to return the remote to AVR mode.

To turn the receiver off, press either the Standby/On Switch on the front panel, or press the AVR Button and the OFF Button on the remote. Unless the receiver will not be used for an extended period of time (for example,if you will be on vacation), it is not necessary to turn off the Master Power Switch.When the Master Power Switch is turned off,any settings you have programmed, including system configuration and preset radio stations,will be preser ved for up to four weeks.

Sleep Timer

You may program the AVR to play for up to 90 minutes and then turn off automatically using the sleep timer.

Press the Sleep Button on the remote,and the time until turn-off will be displayed. Each additional press of the Sleep Button will reduce the time until turn-off by 10 minutes,until the OFF setting is reached, which disables the sleep timer.

Figure 47 – Sleep Button

When the sleep timer has been set, the front-panel display will automatically dim to half-brightness.If you press any button on the remote or front panel, the display will return to full-brightness.The display will dim again several seconds after your last command.

If you press the Sleep Button after the timer has been set, the remaining time until turn-off will be displayed.You may press the Sleep Button to change the time until turn-off. Pressing and holding the Sleep Button will disable the sleep timer, and the SLEEP OFF message will appear.

Volume Control

The volume may be adjusted either by turning the knob on the front panel (clockwise to increase volume or counterclockwise to decrease volume), or by pressing the Volume Control Buttons on the remote.The volume is displayed as a negative number of decibels (dB) below the 0dB reference point, and may be changed in 0.5dB increments.Unlike some volume controls on other products,0dB is the maximum volume for the AVR 145.Although it’s physically possible to turn the volume to a higher level, doing so may damage your hearing and your speakers.For certain more-dynamic audio materials,even 0dB may be too high, allowing for damage to equipment.

Figure 48 – Volume Controls

OPERATION

Remember that the AVR 145 is designed to reproduce audio with a minimum amount of distortion.This clarity may lead you to think that your hearing and the equipment can handle higher volumes.We urge caution with regard to volume levels.

Mute Function

To temporarily mute all speakers and the headphones,press the Mute Button on the remote.Any recording in progress will not be affected. The MUTE message will flash in the display as a reminder.To restore normal audio,either press the Mute Button again, or adjust the volume. Turning off the AVR will also end muting.

Figure 49 – Mute Button

Tone Controls

You may boost or cut either the treble or the bass frequencies by up to 10dB in 2dB increments.

Using the front-panel controls or the remote,press the Tone Mode Button once.This will indicate whether the tone controls are in or out of the circuitry.If you wish to return the tone controls to 0, or “flat” response,press the ‹/› Buttons until the TONE OUT message appears,which preser ves any changes you have made to the bass or treble settings for later use.To reactivate your changes,the tone control must again be set to TONEIN.

With the TONE IN message displayed,press the Tone Mode Button repeatedly to access TREBLE MODE and BASS MODE.Use the ‹/› Buttons to change the treble or bass settings,as desired. The display will return to normal a few seconds after your last command.

Figure 50 – Tone Button

You may alternatively adjust the tone controls using the full-OSD menu system. Press the OSD Button on the remote to view the Master Menu. The cursor will be pointing to the INPUT SETUP line; press the Set Button to display that menu.You will be able to view the tone settings.If you wish to make any changes to the TONE,BASS or TREBLE settings, use the arrow keys on the remote to move the cursor to the line you wish to change.Once you have changed the setting using the ‹/› Buttons,simply move the cursor up or down to a different line; it isn’t necessary to press the Set Button to enter the new setting.When you have finished, either wait until the display times out and disappears, press the OSD Button to clear the display, or move the cursor to the

BACK TO MASTER MENU line if you wish to make other changes using the menu system.

NOTE: The AVR 145 does not have any conventional balance control.The EzSet process compensates for any characteristics of your room or speakers,and we recommend that you leave the settings as they are after EzSet has been run. However, you may manually adjust the levels of the left and right channels – decreasing one and increasing the other by the same amount – using the Channel Adjust submenu,as described on page 41. This achieves the same effect as a balance control.

Headphones

Plug the 1/4" plug on a pair of headphones into the headphone jack on the front of the receiver for private listening.The first time you use the headphones,the DOLBY H:BP message will be displayed, indicating that Dolby Headphone surround processing is in the bypass mode,which delivers a conventional 2-channel signal to the headphones.

Figure 51 – Headphone Jack

Press the Surround Select Button on the front panel, or the Dolby Button on the remote,to switch to Dolby Headphone virtual surround processing,indicated by the DOLBY H:DH message. Dolby Headphone delivers an enhanced sound field that emulates a 5.1-channel speaker system. No other surround modes are available for the headphones.

Source Selection

Press the front-panel Source Select Button to scroll through the sources.The left side of the button scrolls down the list that appears in the display; the right side scrolls upward. For direct access to the tuner, press the Tuner Band Button, which switches to the last-used band and frequency. For direct access to any source,press its Input Selector on the remote (see Figure 46).

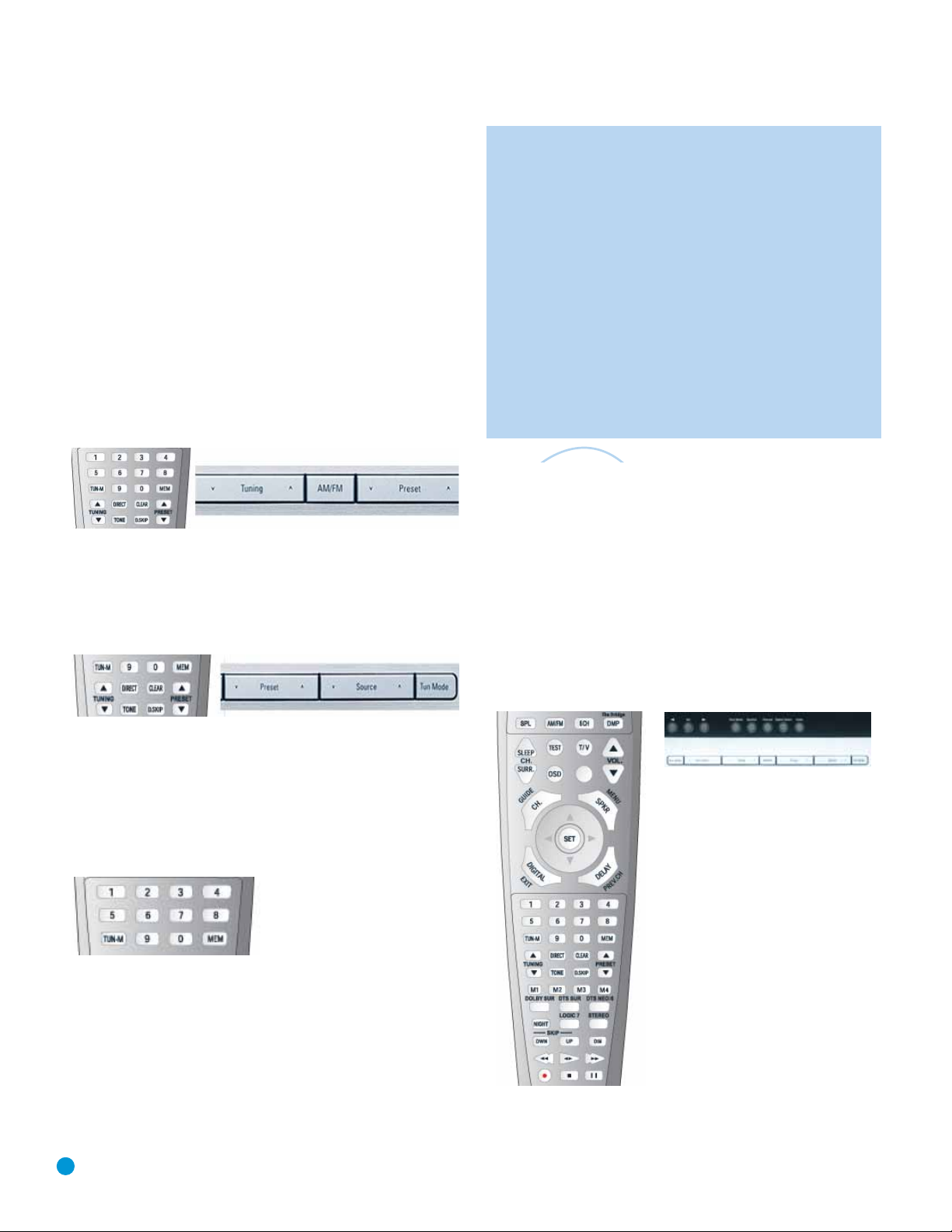

Figure 52 – Source Select and Tuner Band Buttons

NOTE: The Bridge/DMP source has no icon in the Source Indicators display.When selected, the DMP indication will appear in the message display’s upper line, and one of two messages will scroll on the right side to indicate whether The Bridge is unplugged or connected. If you have retitled this source,then only the new name will appear in the upper line.

The AVR 145 will switch to the audio and video inputs assigned to that source.If you set the BASS MGR setting in the Speaker X-over menu to

OPERATION

INDEPENDENT, the AVR 145 will change the speaker size configuration to the one you programmed for the source.If you selected a surround mode for the source,the AVR 145 will switch to that mode.

The source name will appear in the upper line of the front-panel display. If you retitled the source,only the new title will appear.Otherwise, the audio input assigned to the source (analog or one of the digital audio inputs) will also appear.The surround mode will be displayed on the lower line.The same information will also appear on screen in the semi-OSD, unless you have set the semi-OSD to OFF in the System Setup menu.

Audio Input Selection

The AVR 145 is programmed at the factory to use the analog audio inputs for each source (except for the DVD and Video 2 sources, which default to Coax 1 and Optical 1).To assign a digital audio input to a source (if you have not done so using the Input Setup menu during Initial Setup), press the Digital Button on the remote or front panel.The current audio input selection will flash in the display, and you may press the

⁄/¤ (or ‹/› on the front panel) Buttons to scroll through the

audio inputs.When the desired input appears,press the Set Button to select it.

Figure 53 – Digital Input Selection

If the Auto Poll feature has been left ON in the Input Setup menu,and if a digital audio input has been assigned to the source,the AVR 145 will first check the digital audio input for a signal. If a signal is present, the AVR 145 will select the digital audio input.If no signal is present,the AVR 145 will switch to the analog audio inputs for the source.

Video Input Selection

When a source is selected, the AVR 145 switches to a video input as follows:

The COMPONENT IN line of the Input Setup menu indicates which of the two component video inputs on the AVR 145 is assigned to each source.All of the sources listed in the left column of the Source Indicators display on the front panel are assigned to the Component Video 2 inputs by default, and the sources listed in the right column default to the Component Video 1 sources.This list appears in Figure 54.

Figure 54 – Front-Panel Input Indicators

You may reassign either component video input to another source,but there is no option to disable the component video inputs for any source. If a signal is present at the component video input assigned to that

source,it will be selected. If your device is not using component video, make sure that other devices connected to the component video inputs are turned off.

If no signal is present at the component video input, then the S-video or composite video input for the source will be selected. It is not possible to reassign the S-video or composite video inputs to other sources.

For audio-only sources, such as the tuner or CD inputs,when no component video signal is present, the last-used video source will be selected.

6-Channel Direct Inputs

If you wish to hear audio through the 6-Channel Direct Inputs together with video,then connect your multichannel player to the Component Video 1 Inputs (the default for the 6-Channel Inputs), and the correct audio and video inputs will be selected when you select 6CH as your source.If your multichannel player uses S-video or composite video connections,you will first need to select the source you connected the video output to (e.g., DVD), and then select the 6CH source.

Figure 55 – 6-Channel Input Selector

NOTE: The 6-Channel Inputs pass the incoming signals directly to the volume control, without digitizing or processing them. Therefore,you will need to configure bass management settings (i.e.,speaker size, delay and output level) on your source device so that they match the settings you programmed using the Manual Setup menu. Consult the owner’s guide for your multichannel player for more information.

Using the Tuner

The AVR 145’s built-in tuner may be selected in one of three ways:

1. Press the Source Selector Button on the front panel repeatedly until the tuner is selected.The last-used band (AM or FM) will be active.

2. Press the Tuner Band Button (marked AM/FM). Press this button again to switch bands.

3. Press the Tuner Input Selector (marked AM/FM) on the remote.Press this button again to switch bands.

Figure 56 – Tuner Input Selection

DIGITAL LOGIC 7

PRO LOGIC

3 STEREO DSP

5 7 CH. STEREO

SURR. OFF

DVD

VID 1

VID 2

FMAM

VID 3

TAPE 6 8 CH

OPERATION

Radio stations may be selected in one of four ways:

1. If you know the frequency number, enter it directly by first pressing the Direct Button on the remote,and then using the Numeric Keys.

2.After you have programmed Preset stations (see below), either enter the Preset number (1 through 30) using the remote or use the frontpanel Preset Stations Button to scroll through the list of presets.

3. In Auto tuning mode, with each press of the Tuning Buttons (frontpanel or remote) the AVR 145 will scan in the chosen direction until a station with acceptable signal strength is detected. Press the Tuning Button again to stop scanning.

4. In Manual tuning mode,with each press of the Tuning Buttons the AVR 145 will tune the next frequency increment (0.1MHz for FM,or 10kHz for AM) in the selected direction.Press and hold the Tuning Button for faster scanning.

Figure 57 – Tuning a Station

Press the Tuning Mode Button (TUN-M on the remote) to switch between Auto and Manual tuning modes.When an FM station has been tuned, pressing the Tuning Mode Button will switch between stereo and mono tuning,which may improve reception of weaker stations.

Figure 58 – Tuning Mode

To store a station in one of the 30 presets:

1.Tune the desired station.

2. Press the Memory Button on the remote.

3. Use the Numeric Keys to enter the desired preset number.

Figure 59 – Storing a Preset Station

Recording

Two-channel analog and digital audio signals,as well as composite and S-video signals,are normally available at the appropriate recording outputs.Thus,to make a recording,you need only make sure to connect your audio or video recorder to the appropriate output jacks,as described in the Installation section, insert blank media and make sure the recorder is turned on and recording while the source is playing.

NOTES:

1.Analog audio signals are not converted to digital for m, and digital audio signals are not converted to analog audio form. However, you may record a coaxial or optical digital audio source using either type of digital audio output.

2. Only PCM digital audio signals are available for recording. Proprietary formats such as Dolby Digital and DTS may not be recorded using the digital audio connections,although if the source is connected to the AVR using the analog audio connections,an analog recording may be made.

3. Component video sources are not available for recording.

4. Please make certain that you are aware of any copyright restrictions on any material you record. Unauthorized duplication of copyrighted materials is prohibited by federal law.

Using

The Bridge is an optional dock that may be used with a compatible iPod (not included).When The Bridge is connected to its proprietary input on the AVR 145 and the iPod is docked, you may play the audio materials on your iPod through your high-quality audio system,operate the iPod using the AVR remote or the AVR’s front-panel controls,view navigation messages on the AVR’s front panel or a connected video display, and charge the iPod.

Either press the front-panel Source Selector repeatedly until the message “DMP/The Bridge is CONNECTED”scrolls across the front panel and semi-OSD displays,or press the DMP Button on the remote to select The Bridge as the input source.

(Left) Figure 60 – Using The Bridge (Remote) (Above) Figure 61 – Using The Bridge (Front Panel)

The

Bridge

ADVANCED FUNCTIONS

This table summarizes the controls available when The Bridge is in use.

Table 4 – Using The Bridge

NOTE: For the Search function, press and hold the indicated button. Pressing the Previous Track Button once skips to the beginning of the current track. Press the Previous Track Button

twice

to skip

to the beginning of the previous track.

Selecting a Surround Mode

Surround mode selection can be as simple or sophisticated as your individual system and tastes.Feel free to experiment with the many available surround modes on the AVR 145, and you may find a few that become your favorites for certain sources or program types.Although more detailed information on surround modes may be found in the Advanced Functions section, it is easy to select any of the modes available at a given time:

To select a surround mode using the front-panel controls,press the Surround Mode Button repeatedly until the desired group of modes is selected: Logic 7, Dolby,DTS, DSP or Stereo.Then press the Surround Select Button repeatedly to select the desired mode within the group.

Figure 62 – Select a Surround Mode (Front Panel)

To select a surround mode using the remote control, locate the button dedicated to the desired group of modes: Logic 7, Dolby Sur,DTS Sur, DTS Neo:6, Surr (DSP) or Stereo.Press that button repeatedly to select the desired mode.

Figure 63 – Select a Surround Mode (Remote)

To select a surround mode using the full-OSD menu system, press the OSD Button to display the Master Menu. Navigate to the SURROUND SELECT line and press the Set Button to view the Surround Select menu. Each of the major surround mode groups is listed here.Select that group to access the MODE setting for selection of an individual mode.As explained in the Advanced Functions section,there are also some additional settings that may be made.

You are now ready to enjoy the best in home theater entertainment, using your AVR 145.As you become more familiar with the receiver, you may wish to explore some of its advanced functions,which are described in the following section.

iPod Function Remote Control Key Front-Panel Button

Play Play (›) Tuner Mode Pause Pause (II) Tuner Mode Menu Menu (Spkr) Tuner Band (AM/FM) Select Set Set Scroll Forward Left Arrow (‹) Preset Down Scroll Reverse Right Arrow (›) Preset Up Forward Search/Next Track Forward/Next (››) Tuning Up Reverse Search/Previous Track Reverse/Previous (

‹‹) Tuning Down

ADVANCED FUNCTIONS

Much of the AVR 145’s performance is handled automatically, with little intervention required on your part. However,the AVR 145 is a sophisticated component, and is capable of being customized to suit your particular system and your tastes.In this section we describe some of the more advanced adjustments available on the AVR 145.You may save this section for later, when you have become more familiar with your receiver.

Audio Processing and Surround Sound

Audio signals generated by sources are encoded in a variety of formats that can affect not only the quality of the sound but the number of speaker channels and the surround mode.You may also manually select a different surround mode,although for certain types of audio signals, the modes available will be limited in certain ways,as described below.

Analog Audio Signals

Analog audio signals usually consist of two channels – left and right.The AVR 145 offers three basic options for playback of analog audio:

1. Analog Bypass Mode: In this mode,the 2-channel signal is passed directly to the volume control, without being digitized or undergoing any processing for bass management or surround sound.The requirements for selecting analog bypass mode are:

a) The analog audio inputs for the source must be selected.If neces-

sary,press the Digital Button on the remote and use the

⁄/¤

Buttons to make the selection.

b) The tone controls must be disabled by setting TONE MODE to OUT.

Either use the Input Setup menu in the full-OSD system to make this change,or press the Tone Mode Button on the front panel or remote and use the ‹/› Buttons (

⁄/¤ on the remote) until

the TONE OUT message appears.

c) The Surround Off mode must be selected.The easiest way to

select the Surround Off mode is to press the Stereo Button on the remote until the Surround Off icon is lit (and the DSP icon is

not

lit)

in the front-panel display.

2. DSP Surround Off Mode: The DSP Surround Off mode digitizes the incoming signal and applies the bass management settings,including speaker configuration, delay times and output levels.This mode is desirable when your front speakers are small, limited-range satellites and you are using a subwoofer. Both the DSP and Surround Off icons will be lit when this mode is active.Press the Stereo Button on the remote repeatedly to select this mode.

3. Analog Surround Modes: One of the main benefits of a surround receiver such as the AVR 145 is its ability to process 2-channel audio signals to produce multichannel surround sound in a variety of modes,even when no surround sound has been encoded in the recording.Among the available modes are the Dolby Pro Logic II modes,the Dolby Virtual Speaker modes,the DTS Neo:6 modes, the Logic 7 modes,the Hall and Theater modes and the Stereo modes.

Digital Audio Signals

Digital audio signals offer the benefit of greater capacity, which allows recording artists to encode center and surround channel information directly into the signal.The result is improved sound quality and startling directionality, since each of these channels is reproduced discretely.

Alternatively, the artist will encode only two channels, but by using a digital signal, the artist has the capacity to increase the sampling rate,which enables him or her to include even more detailed information about the audio signal. High-resolution recordings usually sound extraordinarily distortion-free at all frequencies,but especially at high frequencies.

Multichannel digital recordings usually are found in the 5.1-, 6.1- or

7.1-channel formats.The channels included in a 5.1-channel recording are front left, front right, center,surround left, surround right and LFE. The LFE channel is denoted as “.1”to represent the fact that it is not full-range,being limited to the low frequencies.

6.1-Channel recordings add a single surround back channel, and 7.1channel recordings add surround back left and surround back right channels to the 5.1-channel configuration.The AVR 145 is unable to play the surround back channels in these recordings,and will use

5.1-channel (or fewer) surround modes. Digital formats include Dolby Digital 2.0 (two channels only), Dolby

Digital 5.1, DTS 5.1, DTS 96/24 and 2-channel PCM modes in

44.1kHz, 48kHz or 96kHz. When a digital signal is received, the AVR 145 detects the encoding

method and the number of channels.The appropriate icon will light in the front panel for Dolby Digital and DTS signals.The number of channels encoded will scroll once across the front panel display as three numbers,separated by slashes (e.g.,“3/2/1”).

The first number indicates the number of front channels in the signal: “1” represents a monophonic recording,usually an older program that

has been digitally remastered or, more rarely,a modern program on which the artist has selected an effect.

“2” indicates the presence of the left and right channels,but no

center channel.

“3” indicates that all three front channels (left, right and center) are

present.

The second number indicates whether any surround channels are present:

“0” indicates that no surround information is present.

“1” indicates that a matrixed surround signal is present. “2” indicates discrete left and right surround channels.

The third number is used for the LFE channel: “0” indicates no LFE channel.

“.1” indicates that an LFE channel is present.

ADVANCED FUNCTIONS

NOTE: The 6.1-channel signals – Dolby Digital EX and DTS-ES Matrix and Discrete – each include a flag meant to signal the receiver to decode the surround back channel. Since the AVR145 is only capable of processing and playing 5.1 channels,the indications EX-OFF or ES-OFF,as appropriate, will always appear for 6.1-channel bitstreams.

When a PCM signal is received, the PCM message,followed by the sampling rate of the signal (44.1kHz, 48kHz or 96kHz), will scroll once across the front-panel display.

In addition, the Speaker/Channel Input Indicators will indicate the number of channels discretely encoded in the signal by displaying a letter inside that channel’s speaker box.The letters flash when no signal is present, such as when a DVD is paused.

Figure 64 – Speaker/Channel Input Indicators

Even when only two channels – left and right – are present in the signal, the analog surround modes may be used to decode the signal into the remaining channels.

Surround Modes

As mentioned in the Introduction to Home Theater section,surround mode selection is dependent upon the format of the incoming audio signal, as well as personal taste.There is no harm in experimenting with all of the modes available with any given source material.Table 5 offers a brief description of each mode the AVR 145 is capable of using,and also indicates the types of incoming signals or digital bitstreams the mode may be used with.Additional information about the Dolby and DTS modes is available on the companies’ Web sites: www.dolby.com and www.dtsonline.com.

When in doubt, check the jacket of your DVD for more information on which surround modes are available on the disc.Be aware that usually nonessential sections of the disc,such as trailers, extra materials or the disc menu, are only available in Dolby Digital 2.0 (2-channel) or PCM 2-channel mode.If the main title is playing and the letters in the Speaker/Channel Input Indicators are not lit for all speaker locations, look for an audio setup section of the disc’s menu.Also, make sure your DVD player’s audio output is set to the original bitstream rather than just PCM. Check the DVD player’s output setting by stopping play of the disc and checking the DVD player’s menu system.

As indicated in Table 5, different surround modes may only be available with certain input signals or bitstream formats.For any incoming signal, only a limited number of surround modes are available.Although there is never a time when all of the AVR 145’s surround modes are available, there is usually a wide variety of modes available for a given input.

There are three methods of manually selecting one of the available surround modes:

1. From the front panel, press the Surround Mode Button until the desired mode group (Dolby, DTS,DSP, Stereo,Logic 7) is selected, and the last-used mode from that group will be activated.Then press the Surround Select Button repeatedly to scroll through the modes available within that group.

2. Using the remote,press the button for the desired mode group:

Dolby Surr for Dolby modes DTS Sur for DTS Digital modes DTS Neo:6 for the DTS Neo:6 modes Logic 7 for the Logic 7 modes Stereo for the Stereo or Surround Off modes Surr for the DSP Surround modes (Hall 1, Hall 2,Theater)

Press the mode button repeatedly to scroll through the modes available within that group.

3.The full-OSD menu system allows access to submenus for each of the mode groups through the Surround Select menu.

Figure 65 – Surround Select Menu Screen

Navigate to the line for the desired surround mode group,and press the Set Button to access the submenu for that group.In most cases, the submenu consists of only two lines:

1.A MODE line, which displays the currently selected mode.Use the ‹/› Buttons to scroll through the available modes.

2.A BACK TO SURROUND SELECT line,which may be used to exit the submenu.

The Dolby Surround submenu adds some advanced settings.

ADVANCED FUNCTIONS

Table 5 – Surround Modes

Surround Mode Description Incoming Bitstream or Signal

Dolby Digital Provides up to five separate main audio channels and a dedicated • Dolby Digital 1/0/.0 or .1, 2/0/.0 or .1,

low-frequency effects (LFE) channel. May be encoded for Night mode, 3/0/.0 or .1,2/1/.0 or .1, 2/2/.0 or .1, which allows the user to apply a compression setting that maintains 3/2/.0 or .1 intelligibility of softer passages while reducing the loudness of dynamic • Dolby Digital EX (played as 5.1) passages to avoid disturbing others.

Dolby Digital Stereo Delivers a two-channel downmix of Dolby Digital materials. • Dolby Digital 1/0/.0 or .1, 2/0/.0 or .1,

3/0/.0 or .1, 2/1/.0 or .1, 2/2/.0 or .1, 3/2/.0 or .1

• Dolby Digital EX

Dolby Surround Settings

In addition to the MODE line,the DOLBY SURROUND submenu includes three settings that are active only when the Dolby Pro Logic II Music mode has been selected.

Figure 66 – Dolby Surround Menu Screen

CENTER WIDTH: This setting affects how vocals sound through the three front speakers.A higher number (up to 7) focuses the vocal information tightly on the center channel. Lower numbers broaden the vocal soundstage across the three speakers.

DIMENSION: This setting affects the depth of the surround presentation, allowing you to “move”the sound toward the front or rear of the room.The setting of “0”is a neutral default. Setting “F-3”moves the sound mostly toward the front of the room, while setting “R-3”moves the sound mostly toward the rear.

PANORAMA:With the Panorama mode turned ON, some of the sound from the front speakers is moved to the surround speakers,creating an enveloping “wraparound”type of effect.

Night Mode

Night mode is available with some Dolby Digital programs,if it has been encoded in the material. It compresses the peak sound levels,maintaining the intelligibility of the dialogue and quieter passages,while reducing the loudness of special effects and louder passages to avoid disturbing others.Three levels of compression are available:

OFF: At this setting,there is no compression, as the Night mode is

deactivated.

MID: A mild compression is applied. MAX: More compression is applied.

We suggest that you experiment with the modes to find a setting that meets your needs.

The Night mode may also be adjusted without using the full-OSD menu system.With a Dolby Digital program encoded with Night mode playing, press the Night Button on the remote.Each press of the button will cycle through the three settings,with the selected setting being displayed on the front panel and in the semi-OSD display.

Upsampling

The last line of the Surround Select menu activates upsampling,only available with the Dolby Pro Logic II Movie,Dolby Pro Logic II Music and Dolby Pro Logic modes.Normally set to OFF,upsampling, when activated, processes digital sources at a higher resolution for improved sound quality.This feature can be useful to eliminate distortion in some lowresolution sources.

Default Modes

During initial use or after a processor reset, the AVR 145 will default to the Logic 7 Music mode for all analog and PCM audio inputs.Subsequently, when a source input is selected and an analog or PCM signal is received, the AVR will switch to the last surround mode used for that source input/incoming signal combination.

Whenever a multichannel Dolby Digital or DTS signal is detected, the AVR 145 will automatically switch to that mode,unless the DEFAULT SURR MODE setting in the System Setup menu has been changed to OFF. You may observe that other surround modes are available for use with the multichannel digital bitstreams.If you would prefer the AVR 145 to use one of those alternate modes any time the same digital signal is detected, then select that mode while the multichannel bitstream is present, and then change the DEFAULT SURR MODE setting in the System Setup menu to OFF.

ADVANCED FUNCTIONS

Surround Mode Description Incoming Bitstream or Signal

Dolby Pro Logic II Analog decoder that derives five full-range,discrete main audio channels See below.

from matrix surround-encoded or 2-channel analog sources.Four variants are available.

Dolby Pro Logic II Variant of Dolby Pro Logic II that is optimized for movie and • Dolby Digital 2.0 or 2.1

Movie television programs. • Analog (2-channel)

• Tuner

• PCM (44.1kHz, 48kHz, 96kHz)

Dolby Pro Logic II Variant of Dolby Pro Logic II that is optimized for music selections. • Dolby Digital 2.0 or 2.1

Music Allows adjustment of sound field presentation in three dimensions: • Analog (2-channel)

• Center Width (adjusts width of vocal soundstage) • Tuner

• Dimension (adjusts depth of soundstage) • PCM (44.1kHz, 48kHz, 96kHz)

• Panorama (adjusts wraparound surround effect)

Dolby Pro Logic II Variant of Dolby Pro Logic II that emphasizes use of the surround • Dolby Digital 2.0 or 2.1

Game channels and subwoofer for total immersion in the video gaming • Analog (2-channel)

experience. • Tuner

• PCM (44.1kHz, 48kHz, 96kHz)

Dolby Pro Logic Original version of Dolby Pro Logic that steered a mono signal • Dolby Digital 2.0 or 2.1

containing information below 7kHz to the surround channels. • Analog (2-channel)

• Tuner

• PCM (44.1kHz, 48kHz, 96kHz)

Dolby Virtual Speaker Simulates 5.1 channels when fewer speakers are present, or a more See below.

enveloping sound field is desired.

Dolby Virtual Speaker When fewer than five main speakers are present,the Reference • Dolby Digital (uses only two-speaker mode Reference mode virtualizes the missing speakers with accurate localization. when

ignal does not contain scenter channel

Select from two- or three-speaker mode,depending on how many

information)

physical speakers are in your system. • Analog (2-channel)

• Tuner

• PCM (44.1kHz or 48kHz)

Dolby Virtual Speaker Wide mode may be used with two, three,four or five • Dolby Digital (number of channels available Wide main speakers to widen the front soundstage varies by number of channels in signal)

by virtualizing the locations of the left and right speakers. • Analog (2-channel)

• Tuner

• PCM (44.1kHz or 48kHz)

DTS Digital Using a different encoding/decoding method than Dolby Digital, • DTS 1/0/.0 or .1,2/0/.0 or .1, 3/0/.0 or .1,

it also provides up to 5 discrete main channels,plus an LFE channel. 3/1/.0 or .1, 2/2/.0 or .1, 3/2/.0 or .1

• DTS-ES Matrix (played as 5.1)

• DTS-ES Discrete (played as 5.1)

DTS Stereo Delivers a 2-channel downmix of DTS Digital materials, or presents • DTS 1/0/.0 or .1, 2/0/.0 or .1, 3/0/.0 or .1,

a matrix-encoded surround presentation. 3/1/.0 or .1, 2/2/.0 or .1, 3/2/.0 or .1

• DTS 96/24

• DTS-ES Matrix

• TS-ES Discrete

ADVANCED FUNCTIONS

Surround Mode Description Incoming Bitstream or Signal

DTS Neo:6 DTS Neo:6 analog processing is available with DTS-ES (Matrix or Discrete) See below

signals and 2-channel analog or PCM signals to create a 3- or 5-channel presentation.

DTS Neo:6 Depending on the number of speakers in your system, select 3- or 5-channel • DTS-ES Matrix

Cinema modes, enhanced for movie or video presentations. • DTS-ES Discrete

• Analog (2-channel)

• PCM (44.1kHz or 48kHz)

DTS Neo:6 Available only in 5-channel mode,creates a surround presentation suitable • DTS-ES Matrix

Music for music recordings. • DTS-ES Discrete

• Analog (2-channel)

• PCM (44.1kHz or 48kHz)

Logic 7 Exclusive to Harman Kardon,Logic 7 enhances 2-channel recordings by See below

deriving separate information for the surround back channels.This provides more accurate placement of sound, improves panning and expands the sound field, even when used with 5.1-channel systems.Logic 7 uses 96kHz processing.

Logic 7 Especially suited to 2-channel sources containing Dolby Surround or • Analog (2-channel)

Cinema matrix encoding, Logic 7 Cinema mode increases center channel intelligibility. • Tuner

• PCM (44.1kHz, 48kHz, 96kHz)

Logic 7 The AVR 145 is programmed at the factory to default to this mode for • Analog (2-channel)

Music 2-channel signals. Logic 7 Music mode is well suited to conventional • Tuner

2-channel music recordings. • PCM (44.1kHz, 48kHz, 96kHz)

Logic 7 Logic 7 Enhance circulates low frequencies in the 40Hz – 120Hz range to • Analog (2-channel)

Enhance the main speakers for less localized bass performance than would be achieved • Tuner

solely with a subwoofer. Enhance mode is best used with music recordings. • PCM (44.1kHz, 48kHz, 96kHz)

Hall 1 Hall 1 is a DSP (digital signal processor) mode that simulates a small • Analog (2-channel)

concert hall. • Tuner

• PCM (44.1kHz or 48kHz)

Hall 2 Simulates a medium-sized concert hall. • Analog (2-channel)

• Tuner

• PCM (44.1kHz or 48kHz)

Theater Simulates a live-performance theater. • Analog (2-channel)

• Tuner

• PCM (44.1kHz or 48kHz)

5-Channel Stereo Useful for parties,the left- and right-channel information is played through • Analog (2-channel)

both the front and surround speakers on each side,while the center speaker • Tuner plays a summed mono mix. • PCM (44.1kHz or 48kHz)

DSP Surround Off Turns off all surround processing and plays a pure 2-channel signal. • Analog (2-channel)

The signal is digitized and bass management settings are applied, making it • Tuner appropriate when a subwoofer is used. • PCM (44.1kHz, 48kHz, 96kHz)

Surround Off Maintains an analog input signal in that form, bypassing all digital processing • Analog (2-channel) (Analog Bypass) (i.e.,surround and bass management). Requires TONE OUT setting. • Tuner

ADVANCED FUNCTIONS

Setting Channel Output Levels Manually

For a conventional 2-channel receiver, the balance control enables the user to control the stereo imaging by adjusting the relative loudness of the left and right channels,as heard at the listening position.

With five main channels plus a subwoofer, imaging becomes both more critical and more complex. Unlike the rotary balance control, the goal of the AVR 145’s channel output adjustment process is to examine the output level of each channel independently and ensure that each is heard at the listening position with equal loudness.

If you followed the instructions in Step Four of the Initial Setup section, then you let EzSet handle this critical task for you, simply and automatically.

However, if you prefer to make these adjustments manually,the AVR145’s Channel Adjust menu allows you to do so, either using the system’s test tone or while playing source material.In addition, this is the only method for adjusting the level of the subwoofer.

You may use either the EzSet remote or a handheld SPL meter (available at most electronics stores) set to the C-Weighting, Slow scale.

1. Make sure all speakers have been connected correctly.

2. Use the Speaker Size menu, or press the Speaker Setup Button on the remote,to make sure the correct speaker size has been entered for each speaker in your system.

3. Use the Speaker X-over menu to program the correct crossover setting for each speaker in your system.

4. Use the Delay Adjust menu,or press the Delay Button on the remote control, to enter the distance between each speaker and the listening position.

5. If you are using a handheld SPL meter with source material, such as a test disc or another audio selection, play it now and adjust the AVR’s master volume control until the

meter

measures 75dB.

6. If you are using the EzSet remote,either set the master volume to –15dB, or you may play source material and press the SPL Button once.Adjust the volume until the LED turns green. If it’s amber, the volume is too low; if it’s red, the volume is too high.

7.There are several methods of adjusting the channel output levels, using either the test tone or source materials.In all cases, you may measure the channel levels in one of three ways:

a) By ear.Try to adjust the levels so that all channels sound equally loud. b) Using a handheld SPL meter set to the C-Weighting, Slow scale.Try to

adjust each channel so that the meter reads 75dB.

c) Using the AVR 145 remote,press the SPL Button once so that the

LED lights steadily.When it’s amber, the level is too low and should be raised.When the LED is red, the level is too high and should be lowered.When the LED is green, the level is correct.

A. Using the Remote Control With the Test Tone

While sitting in the listening position, press the Test Button on the remote.The test tone will start playing at the front left channel.After a few seconds,it will move to the center channel, then the front right channel, surround right, surround left and finally the subwoofer,displaying the channel name on the front of the receiver and in the semi-OSD display, as well as the current level setting (varies between –10dB and +10dB). Press the

⁄/¤ Buttons to adjust the level setting, and the

tone will remain at that channel until several seconds after your last adjustment.When you have finished adjusting the levels, press the Test Button again to stop the tone.Measure the levels by ear,using an SPL meter, or using the remote,as described above.

B. Using the Front-Panel Controls

You may adjust the levels by pressing the Channel Button on the front panel, and the FRONT L LEVEL message will appear. Use the

‹/›

Buttons on the front panel to select the desired speaker channel to adjust, and press the Set Button when the desired channel is displayed. The current level for that channel will appear, and you may adjust it using the

‹/› Buttons. Press the Set Button to return to the speaker

channel choices.This method is not recommended, as you will not be able to measure the channel levels at the listening position. In addition, this method requires that a source is playing.

C. Using the Full-OSD Menu

Next to EzSet, the full-OSD menu system offers the easiest and most flexible manner of setting output levels.Press the OSD Button to display the Master Menu, and then navigate to the MANUAL SETUP line.Press the Set Button to display the Manual Setup menu, and then navigate to the CHANNEL ADJUST line. Press the Set Button to display the Channel Adjust menu.

Figure 67 – Channel Adjust Menu Screen

All of the speaker channels will appear at the top of the screen with their current level settings.Any channels that have not been programmed using the Speaker Size menu will display four dashes and will not be accessible.

CHANNEL RESET: If you wish to start by resetting all of the levels to their factory defaults of 0dB,navigate to this line and change the setting to ON.The levels will be reset, and this setting will then revert to OFF.

If you are using an external source to set your output levels,simply navigate to each channel and use the

⁄/¤ Buttons to adjust the level as

desired. If you would like to set your levels using the AVR 145’s internal test

tone,you will need to adjust the TEST TONE SEQ and TEST TONE lines as follows.

TEST TONE SEQ: When this setting reads AUTO,the test tone will automatically circulate to all channels,pausing for a few moments at each channel and then moving to the next channel several seconds later, as indicated by the blinking cursor.You may adjust the level for any channel when the test tone is paused there by using the

‹/› Buttons.You may

also use the

⁄/¤ Buttons at any time to move the cursor to another

line,and the test tone will follow the cursor. When this setting reads MANUAL, the test tone will not move to the

next channel until you use the

⁄/¤ Buttons to move it.

TEST TONE: This line determines whether the test tone is active or not. To begin the process of setting the levels,use the

‹/› Buttons to

change the setting to ON.Any time you manually move the cursor out of the channel listings area of the screen, this setting will automatically change to OFF, ending the test tone.

NOTE: Setting the channel levels while one surround mode is active does not necessarily carry over to all other modes.We recommend that after you have set the levels satisfactorily in one mode,you note the results and change to other surround modes.For those modes that don’t reflect your level settings, you may either copy the settings you obtained as a short cut, or re-do the procedure to determine the correct settings for those surround modes.

System Settings

The AVR 145 offers several system settings that allow you to make the receiver easier to use rather than directly affecting performance.Most of these settings may be accessed from the SYSTEM SETUP menu, which is selected by pressing the OSD Button and navigating to the SYSTEM SETUP line of the MASTER MENU. Press the Set Button to display the submenu.

Figure 68 – System Setup Menu Screen

VFD FADE TIME OUT: Some people find the brightness of the AVR’s front-panel display distracting during movies or listening sessions.It’s possible to dim the front-panel display completely using the Dim function (see below).Alternatively, you may set the display to remain dark most of the time,lighting up only when a button is pressed or a remote command is received.This setting allows you to turn on this feature and program the amount of time the display remains lit before fading to dark.

Select a time-out period of between 3 and 10 seconds,or select OFF if you prefer to leave the displays either on or dimmed at all times.

VOLUME DEFAULT and DEFAULT VOL SET: These two settings are used together to program a volume level the AVR will always switch to when turned on.This feature avoids overtaxing the system in case the last user turned the volume very high.

Press the OSD Button to remove the display from the screen so that you may adjust the volume to a desired level while a source is playing. Make a note of the number that appears in the display, and return to the SYSTEM SETUP menu.At the DEFAULT VOL SET line, select the desired volume setting,and activate the feature by setting VOLUME DEFAULT to ON.

NOTE: Although volume is normally displayed 0.5dB increments,the default volume setting only allows whole numbers.

SEMI OSD TIME OUT: At this line you may program the amount of time (2 to 5 seconds) the two-line semi-OSD on-screen messages remain, or you may deactivate the semi-OSD display altogether if you find it distracting.The same messages will continue to appear on the front panel of the receiver.

FULL OSD TIME OUT: At this line you may program the amount of time (20, 30, 40 or 50 seconds) the full-OSD menus remain visible on screen.The full-OSD system may not be deactivated.

DEFAULT SURR MODE: This setting determines how the AVR 145 will handle Dolby Digital and DTS sources.For the purposes of this setting, the “default surround mode”means the mode encoded in the program, such as Dolby Digital 5.1.With this setting ON, the receiver will always use the default surround mode in the program.When this setting is changed to OFF, the receiver will use the surround mode you selected the last time this type of audio stream was detected.

As an example,the Default Surround Mode setting can be beneficial when used with Dolby Digital 2.0 programs,such as the ones broadcast on many channels of some cable and satellite television systems.If you would prefer to play these programs in the Dolby Pro Logic II Movie surround mode,then set DEFAULT SURR MODE to OFF, and select your desired surround mode the first time a Dolby Digital 2.0 program is played. Dolby Digital 5.1 programs will still be played in 5.1-channel mode.

NOTE: For PCM and analog sources, the factory default surround mode is Logic 7 Music.In general, the receiver will use the surround mode selected the last time that type of signal was received.

ADVANCED FUNCTIONS

OSD BACKGROUND: This setting allows you to choose between a blue or black background for the full-OSD menus.

NOTE: It isn’t possible to view video sources while the full-OSD menus are displayed.

Dim Function

Some people find the front-panel messages to be distracting and would prefer to dim them or turn them off altogether.

To dim the display:

1. Press the Dim Button on the remote.Each button press will cycle through the three settings of:

VFD FULL: Nor mal brightness VFD HALF: Display is dimmed but still visible; the light inside the vol-

ume knob goes dark VFD OFF: Display goes completely dark except for Power Indicator to

remind you that the receiver is turned on

2. Press the Set Button on the front panel and hold it for about five seconds.A message indicating the current brightness setting (see above) will appear in the display. Use the front-panel

‹/› Buttons to change

the setting.

Advanced Remote Control Functions

The AVR 145 remote control not only operates the AVR 145,but it also serves as a universal remote that may be programmed to operate many of your other home theater components,as described in the Installation section. Each time you select one of your other components,the AVR remote switches to the control functions for that component. Since many buttons will have unique functions for each component, you may wish to refer to the Function List in the Appendix for assistance in operating your other components.The function of each button will not necessarily correspond to the label printed on the button.

Punch-Through Programming

The AVR 145 remote allows you to select one component for the remote to operate,while simultaneously setting certain groups of controls to operate another component. For example,while using the AVR to control surround modes and other audio functions,you may wish to operate the transport controls of your DVD player. Or while using the remote to control video functions on your TV, you may wish to use your cable box to change channels and the AVR to control the volume.

All of this is possible using punch-through programming.

NOTE: It is not necessar y to program the remote to control your DVD player’s transport controls while the AVR is in use,as the remote is preprogrammed at the factory with this function.

To program punch-through control while operating any device:

1. Simultaneously press and hold the Input Selector (or AVR selector) for

the main device the remote will be operating and the Mute button until the LED flashes and the remote enters program mode.

2. Select the type of punch-through programming. a) To program volume control punch-through, press the Volume Up

Button.

b) To program channel control punch-through, press the Volume

Down Button.

c) To program transport control punch-through, press the Play Button.

3. Press the Input Selector (or AVR selector) for the device whose vol-

ume,channel or transport controls you would like to be active while operating the device you selected in the first step.The LED will flash green to confirm the programming.

For example, if you wish to watch your TV (programmed into the Video 3 button) while changing channels using your cable box (Video 2), you would first press the Video 3 and Mute buttons until the LED flashed. You would then press the Play Button, followed by the Video 2 button.

To undo punch-through programming,follow the same steps as above, but press the same Input (or AVR) Selector in steps 1 and 3.

Macros

Macros are used to program sequences of up to nineteen commands that are executed with a single button press.Macros are well-suited for power on and off commands,or to send out a favorite multi-digit channel number with one button press,or to have the ability to send out a code sequence to control another device while the remote is operating one device but with more flexibility than the built-in punch-through controls.

Some commands may not be programmed into macros: Mute,Dim, Channel Up/Down, any of the surround mode commands.

NOTE: Use caution when programming complicated macros. It isn’t possible to program a pause or delay before sending commands after Power On,and the component may not be ready to respond to commands instantaneously after powering on.

To program, or “record” a macro,follow these steps:

1. Simultaneously press one of the four Macro Buttons or the Power On

Button and the Mute Button at the same time to enter program mode.

2. Press the Input (or AVR) Selector for each device before you enter

commands to be transmitted to that device.This step counts as one of the 19 commands allowed for each macro.

3. For the Power On command,do not press the Power On button.

Press the Mute Button instead.

4. Press the Power Off Button to program the Power Off command.

5. Press the Sleep Button to end the programming process.

ADVANCED FUNCTIONS

It isn’t possible to “edit”a command within a macro. However,you may erase the macro as follows:

1. Simultaneously press and hold the Mute Button and the Macro Button containing the macro until the LED flashes.

2. Press the Surround Button to erase the macro.

Resetting the Remote

To reset the remote to its factory defaults,enter Program mode by simultaneously pressing and holding any Input Selector and the Mute Button.When the LED flashes, enter the code “333”. When the LED goes out, the remote will have been fully reset.

Processor Reset

There may be instances where you wish to fully reset the AVR 145 to its factory defaults,or the unit may behave erratically after a power surge.

For erratic behavior, we recommend you try turning the Master Power Switch off and unplugging the AC Power Cord for at least three minutes. Try plugging the cord back in and turning the receiver back on. If this doesn’t work, you may want to try a system reset.

NOTE:

A system reset erases all user configurations,including speaker and level settings and tuner presets.After a reset, you will need to re-enter all of these settings.

To reset the AVR 145, place the receiver in Standby mode (press the front-panel Standby/On Switch so that the Power Indicator turns amber). Then press and hold the front-panel Tone Mode Button for at least five seconds until the RESET message appears in the display.

If the receiver still does not function correctly after a processor reset, contact an authorized Harman Kardon service center for assistance. Service centers may be located by visiting our Web site at www. harmankardon.com.

Memory

If the AVR 145 is unplugged or experiences a power outage,it will retain user settings for up to four weeks.

ADVANCED FUNCTIONS

TROUBLESHOOTING GUIDE

SYMPTOM CAUSE SOLUTION

Unit does not function when Main • No AC Power • Make certain AC power cord is plugged into Power Switch is pushed a live outlet

• Check to see whether outlet is switch-controlled

Display lights,but no sound • Intermittent input connections • Make certain that all input and speaker connections or picture are secure

• Mute is on • Press Mute Button

• Volume control is down • Turn up volume control

No sound from any speaker; • Amplifier is in protection mode • Check speaker wire connections for shorts at receiver and light around power switch is red due to possible short speaker ends

• Amplifier is in protection mode • Contact your local Harman Kardon service center due to internal problems

No sound from surround or • Incorrect surround mode • Select a mode other than Stereo center speakers • Input is monaural • There is no surround information from mono sources

• Incorrect configuration • Check speaker mode configuration

• Stereo or Mono program material • The surround decoder may not create center- or rear-channel

information from nonencoded programs

Unit does not respond to • Weak batteries in remote • Change remote batteries remote commands • Wrong device selected • Press the AVR selector

• Remote sensor is obscured • Make certain front panel sensor is visible to remote

or connect an optional remote sensor

Intermittent buzzing in tuner • Local interference • Move unit or antenna away from computers,fluorescent

lights,motors or other electrical appliances

Letters flash in the channel indicator • Digital audio feed paused • Resume play for DVD display and digital audio stops • Check that Digital Input is selected

In addition to the items shown above,additional information on troubleshooting possible problems with your AVR 145, or installation-related issues,may be found in the list of "Frequently Asked Questions" which is located in the Product Support section of our Web site at www.harmankardon.com.

AVR 145 TECHNICAL SPECIFICATIONS

Audio Section

Stereo Mode Continuous Average Power (FTC)

50 Watts per channel,20Hz–20kHz, @ <0.07% THD, both channels driven into 8 ohms

Five-Channel Surround Modes Power per Individual Channel

Front L&R channels: 40 Watts per channel @ <0.07% THD, 20Hz–20kHz into 8 ohms

Center channel: 40 Watts @ <0.07% THD, 20Hz–20kHz into 8 ohms

Surround (L & R Side) channels: 40 Watts per channel @ <0.07% THD, 20Hz–20kHz into 8 ohms

Input Sensitivity/Impedance

Linear (High-Level) 200mV/47k ohms Signal-to-Noise Ratio (IHF-A) 100dB Surround System Adjacent Channel Separation

Pro Logic I/II 40dB

Dolby Digital (AC-3) 55dB

DTS 55dB Frequency Response

@ 1W (+0dB,–3dB) 10Hz – 130kHz High Instantaneous

Current Capability (HCC) ±25 Amps Transient Intermodulation

Distortion (TIM) Unmeasurable Slew Rate 40V/µsec

FM Tuner Section

Frequency Range 87.5 –108.0MHz

Usable Sensitivity IHF 1.3µV/ 13.2dBf

Signal-to-Noise Ratio Mono/Stereo 70/68dB

Distortion Mono/Stereo 0.2/0.3%

Stereo Separation 40dB @ 1kHz

Selectivity ±400kHz, 70dB

Image Rejection 80dB

IF Rejection 90dB

AM Tuner Section

Frequency Range 520–1720 kHz Signal-to-Noise Ratio 45dB Usable Sensitivity Loop 500µV Distortion 1kHz, 50% Mod 0.8% Selectivity ±10kHz, 30dB

Video Section

Television Format NTSC Input Level/Impedance 1Vp-p/75 ohms Output Level/Impedance 1Vp-p/ 75 ohms

Video Frequency Response (Composite and S-Video) 10Hz–8MHz (–3dB)

Video Frequency Response (Component Video) 10Hz–100MHz (–3dB)

General

Power Requirement AC 120V/60Hz Power Consumption 65W idle, 540W maximum

(5 channels driven)

Dimensions (Product) (Shipping) Width 17-5/16 inches (440mm) 22 inches (559mm) Height 5-7/8 inches (150mm) 10-1/2 inches (267mm) Depth 13-3/4 inches (350mm) 18-3/4 inches (476mm)

(Product) (Shipping)

Weight 24.4 lb (11.1kg) 29 lb (13.2kg)

Depth measurement includes knobs,buttons and terminal connections. Height measurement includes feet and chassis. All features and specifications are subject to change without notice.

Harman Kardon, Har man International, Designed to Entertain and Logic 7 are trademarks of Harman International Industries,Incorporated, registered in the United States and/or other countries. and EzSet are trademarks of Harman International Industries,Incorporated.

Dolby,Pro Logic and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories.

DTS,DTS Surround, DTS-ES and DTS Neo:6 are registered trademarks,and DTS 96/24 is a trademark, of DTS, Inc.

Cirrus Logic is a registered trademark of Cirrus Logic,Inc. SACD is a trademark of Sony Corporation. Apple and iPod are registered trademarks,and Shuffle is a trademark, of Apple Computer,Inc. Blu-ray Disc is a trademark of the Blu-ray Disc Association. HD-DVD is a trademark of the DVD Format/Logo Licensing Corporation (DVD FLLC). TiVo is a registered trademark of TiVo Inc.

Please register your product on our Web site at www.har mankardon.com. Note: You’ll need your serial number. At the same time,you can choose to be notified about our new products and/or special promotions.

The

Bridge

Appendix – default settings, worksheets, remote product codes

Table A1 – Source Input Setting Defaults

Source DVD Video 1 Video 2 Video 3 The Bridge/DMP CD Tape Tuner 6-Channel

Title INT. TUNER Component Comp V 1 Comp V 2 Comp V 2 Comp V 2 Comp V 1 Comp V 1 Comp V 1 Comp V 1 Comp V 1

Video Input Audio Input Coax 1 Analog Optical 1 Analog The Bridge/DMP Analog Analog Tuner 6-Channel Auto Poll On On On On --- On On --- --Surround Logic 7 Logic 7 Logic 7 Logic 7 Logic 7 Logic 7 Logic 7 Logic 7 Logic 7

Mode* 5CH Music 5CH Music 5CH Music 5CH Music 5CH Music 5CH Music 5CH Music 5CH Music 5CH Music

*The default shown is the preferred surround mode for PCM and Analog audio sources.

Table A2 – Speaker/Channel Setting Defaults

Source DVD Video 1 Video 2 Video 3 The Bridge CD Tape Tuner 6-Channel

/DMP

Bass Manager: Global Left/Right Speaker Size Small Small Small Small Small Small Small Small Small Center Speaker Size Small Small Small Small Small Small Small Small Small Surround Speaker Size Small Small Small Small Small Small Small Small Small Subwoofer Sub Sub Sub Sub Sub Sub Sub Sub Sub Left/Right Speaker Crossover 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz Center Speaker Crossover 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz Surround Speaker Crossover 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz 100Hz Subwoofer Crossover Left/Right Left/Right Left/Right Left/Right Left/Right Left/Right Left/Right Left/Right Left/Right

Table A3 – Delay Setting Defaults

Speaker Position Distance From Speaker to Listening Position Your Delay Settings

Front Left 10 feet Center 10 feet Front Right 10 feet Surround Right 10 feet Surround Left 10 feet Subwoofer 10 feet A/V Sync Delay 0mS

APPENDIX

Table A4 – Source Input Settings

Source DVD Video 1 Video 2 Video 3 The Bridge/DMP CD Tape Tuner 6-Channel

Title INT. TUNER Video Input Component Video Input Audio Input The Bridge/DMP Tuner 6-Channel Auto Poll --- --- --Surround Mode

Table A5 – Speaker/Channel Settings

Source DVD Video 1 Video 2 Video 3 The Bridge/DMP CD Tape Tuner 6-Channel

Bass Manager : Global/Independent

Left/Right Speaker Size Center Speaker Size Surround Speaker Size Subwoofer Left/Right Speaker Crossover Center Speaker Crossover Surround Speaker Crossover Subwoofer Crossover Left/Right Channel Level Center Channel Level Surround Channel Level Subwoofer Channel Level

Note: Channel levels vary by surround mode rather than source input.

APPENDIX

Table A6 – Remote Control Codes

Source Input Product Type (circle one) Remote Control Code

Video 1 VCR, PVR Video 2 Cable, Satellite Video 3 TV DVD DVD CD CD, CDR Tape Cassette

Table A7 – System Settings

Feature Default Setting Your Setting

VFD Fade Time Out Off Volume Default Off Default Vol Set -25dB Semi OSD Time Out 5 seconds Full OSD Time Out 20 seconds Default Surr Mode On OSD Background Blue

APPENDIX

Refer to the numbered buttons in this drawing when using the Function List.

Figure 69 – Remote Control Function List Reference

APPENDIX

11 14

26 28

414342

49 5150

53 54 55

59 60

656766

63 64

APPENDIX

No. Button Name AVR Function DVD CD/CD-R Tape VCR (VID1) TiVo(VID1) CBL (VID2) SAT (VID2) TV (VID3)

(DMP)

1 Power On Power On Power On Power On Power On Power On/Off Power On Power On Power On Power On 2 Power Off Power Off Power Off Power Off Power Off TV Power Power Off Power Off Power Off Power Off

3 Mute Mute Mute Mute Mute Mute Mute Mute Mute Mute Mute 4 AVR AVR Select AVR Select AVR Select AVR Select AVR Select AVR Select AVR Select AVR Select AVRSelect AVR Select 5 DVD DVD Input Select DVD Select DVD Select DVDSelect DVD Select DVD Select DVD Select DVDSelect DVD Select DVD Select 6 CD CD Input Select CD Select CD Select CD Select CD Select CD Select CD Select CDSelect CDSelect CDSelect 7 Tape Tape Input Select Tape Select Tape Select Tape Select Tape Select TapeSelect TapeSelect Tape Select Tape Select Tape Select 8 VID 1 (VCR) Video 1 Select VCR Select VCR Select VCRSelect VCR Select VCR Select VCR Select VCR Select VCR Select VCR Select

9 VID 2 (CBL/SAT) Video 2 Select CBL/SAT Select CBL/SAT Select CBL/SAT Select CBL/SAT Select CBL/SATSelect CBL Select SATSelect CBL/SAT Select CBL/SAT Select 10 VID 3 (TV) Video 3 Select TV Select TV Select TV Select TVSelect TV Select TV Select TV Select TVSelect TV Select 11 SPL EzSet 12 AM/FM Tuner Select Tuner Select Tuner Select Tuner Select Tuner Select Tuner Select Tuner Select Tuner Select Tuner Select Tuner Select 13 6CH 6/8 Ch. Input Select 6/8 Ch. Input Select 6/8 Ch. Input Select 6/8 Ch.Input Select

6/8 Ch. Input Select

6/8 Ch. Input Select 6/8 Ch. Input Select 6/8 Ch.Input Select

6/8 Ch. Input Select

14 (DMP) The Bridge (DMP)

The Bridge (DMP) Select The Bridge (DMP) Select

The Bridge (DMP) Select

The Bridge (DMP) Select The Bridge (DMP) Select

The Bridge (DMP) Select

The Bridge (DMP) Select The Bridge (DMP) Select

The Bridge (DMP) Select 15 Sleep/CH+ Sleep Audio Channel + Channel + Channel + Channel + Channel + 16 Test Tone Test Tone 17 T/V TV/DVD or V. OFF Input Select TV/VCR TV Input TV/CBL TV/SAT TV/VCR 18 Vol Up Volume Up Volume Up Volume Up Volume Up Volume Up Volume Up Volume Up Volume Up Volume Up 19 Surr/CH–

DSP Surround Mode Select

Disc Menu or Title CDR Select Channel – Channel – Channel – Channel – Channel – 20 OSD OSD Program OSD Live TV OSD OSD OSD 21 Blank HD Mode 22 Vol Down Volume Down Volume Down Volume Down Volume Down Volume Down Volume Down Volume Down Volume Down Volume Down 23 CH./Guide Channel Trim Title or Disc Menu Continuous Play Guide Info/Guide Info/Guide 24

⁄

Move/Adjust Up Up Up Up Up Up Up 25 Speaker/Menu Speaker Adjust Menu or Setup Intro Scan Menu Menu Menu Menu Menu Menu 26 ﬁ Move/Adjust Left Left Left Left Left Left Left Scroll – 27 Set Set Enter Enter Select Enter Enter Enter Select 28 ﬂ Move/Adjust Right Right Right Right Right Right Right Scroll + 29

Move/Adjust Down Down Down Down Down Down Down 30 Digital/Exit Digital Input Select Open/Close Return/Exit 31 Delay/Prev.Ch. Delay Adjust Return or Status Open/Close Prev Channel Prev Channel Prev Channel 32 1 111 11111 33 2 222 22222 34 3 333 33333 35 4 444 44444 36 5 555 55555 37 6 666 66666 38 7 777 77777 39 8 888 88888 40 Tun-M Tuner Mode Chapter+ or Zoom Repeat 41 9 999 99999 42 0 000 00000 43 Memory Memory Audio or Playlist Time 44 Tuning Up Tuning Up Next Chapter Track Direct Cancel PPV Cancel Sleep

Table A8 – Remote Control Function List

The

Bridge

No. Button Name AVR Function DVD CD/CD-R Tape VCR (VID1) Tivo (VID1) CBL (VID2) SAT (VID2) TV (VID3)

(DMP)

45 Direct Direct Tuner Entry Angle Random Play FAV FAV 46 Clear Clear Clear Clear Clear Clear Bypass Next 47 Preset Up Preset Tune Up Slow Forward +10 Music Alt 48 Tuning Down Tuning Down Prev Chapter Track Increment 49 Tone Tone mode 50 D. Skip Disc Skip (DVD) Disc Skip Disc Skip Skip 51 Preset Down Preset Tune Down Slow Rev 52 M1 Macro 1 Macro 1 Macro 1 Macro 1 Macro 1 Macro 1 Macro 1 Macro 1 Macro 1 53 M2 Macro 2 Macro 2 Macro 2 Macro 2 Macro 2 Macro 2 Macro 2 Macro 2 Macro 2 54 M3 Macro 3 Macro 3 Macro 3 Macro 3 Macro 3 Macro 3 Macro 3 Macro 3 Macro 3 55 M4 Macro 4 Macro 4 Macro 4 Macro 4 Macro 4 Macro 4 Macro 4 Macro 4 Macro 4 56 Dolby Surround Dolby Modes 57 DTS Surround DTS Digital Modes 58 DTS Neo:6 DTS Neo:6 Select 59 Night Night Mode Select Subtitle On/Off CDP Select 60 Logic 7 Logic 7 Select 61 Stereo Stereo Mode Select 62 Skip Down Skip – (DVD) Step – Skip – Scan – Thumbs Down Skip – (DVD) Skip – (DVD) Skip – (DVD) 63 Skip Up Skip + (DVD) Step + Skip + Scan + Thumbs Up Skip + (DVD) Skip + (DVD) Skip + (DVD) 64 Dim Dimmer Dimmer 65 Rewind (‹‹) R. Search (DVD) R. Search R. Search Rewind Rewind R. Search R. Search (DVD) R.Search (DVD) R. Search (DVD)

Skip–/R. Search 66 Play (‹›) Play (DVD) Play Play R. Play/F. Play Play Play Play (DVD) Play (DVD) Play (DVD) Play 67 F F (››) F. Search (DVD) F. Search F. Search Fast Fwd Fast Fwd F. Search F.Search (DVD) F.Search (DVD) F. Search (DVD)

Skip+/F. Search 68 Record Record Record/Pause Record Record 69 Stop Stop (DVD) Stop Stop Stop Stop Slow Stop (DVD) Stop (DVD) Stop (DVD) 70 Pause Pause (DVD) Pause Pause Pause Pause Pause (DVD) Pause (DVD) Pause (DVD) Pause

APPENDIX

The

Bridge
