Instruction Manual
HI9063 - HI91530K
HI91531K - HI91532K
Portable Waterproof
Microprocessor
K-Type Thermocouple
Thermometers
http://www.hannainst.com
These Instruments are in
Compliance with the CE Directives
Dear Customer,
Thank you for choosing a Hanna Instruments Product.
Please read this instruction manual carefully before using the instru-
ment.
This manual will provide you with all the necessary information for
the correct use of the instrument, as well as a precise idea of its
versatility in a wide range of applications.
These instruments are in compliance with directives EN 50081-1
and EN 50082-1.
TABLE OF CONTENTSTABLE OF CONTENTS
TABLE OF CONTENTS
TABLE OF CONTENTSTABLE OF CONTENTS
PRELIMINARY EXAMINATION....................................................... 3
PRELIMINARY EXAMINATIONPRELIMINARY EXAMINATION
PRELIMINARY EXAMINATION
PRELIMINARY EXAMINATIONPRELIMINARY EXAMINATION
Remove the instrument from the packing material and examine it
carefully to make sure that no damage has occurred during shipment.
If noticeable damage is found, notify your Dealer.
Note: Save all packing material until the instrument has been ob-
served to function correctly because all defective items must be
returned to the Dealer in their original packing.
GENERAL DESCRIPTIONGENERAL DESCRIPTION
GENERAL DESCRIPTION
GENERAL DESCRIPTIONGENERAL DESCRIPTION
GENERAL DESCRIPTION .............................................................. 3
FUNCTIONAL DESCRIPTION HI 9063 ........................................... 5
FUNCTIONAL DESCRIPTION HI 91530K ....................................... 5
FUNCTIONAL DESCRIPTION HI 91531K ....................................... 6
FUNCTIONAL DESCRIPTION HI 91532K ....................................... 7
OPERATIONAL GUIDE ................................................................. 8
DISPLAY CODES GUIDE............................................................. 12
CALIBRATION........................................................................... 13
BATTERY REPLACEMENT............................................................ 13
ACCESSORIES .......................................................................... 14
WARRANTY.............................................................................. 18
CE DECLARATION OF CONFORMITY............................................ 19
ISO 9000 Certified
Company since 1992
The HI 9063, HI 91530K, HI 91531K and HI91532K are micropro-
cessor-based thermometers that allow temperature measurement using
interchangeable K-type thermocouple probes. The non-linearity of the
temperature probe is linearized by the built-in microprocessor, which
also provides accurate compensation for variations in the measurement circuit and the reference junction.
A wide range of HI 766 K-type thermocouple temperature probe
are available as optional (see Accessories).
Standard features include:
• display and clearing of maximum/minimum temperature measured (except HI91530K)
• reading hold
• low battery detection
These functions are easily accessible through the waterproof rubber
keypad. Self-explanatory symbols are used to remind the user of the
operating mode or condition.
Upon request these meters, exception made for HI9063, are also
available with a Factory Calibration Certificate against NIST Standard.
Recalibration service is available at your nearest Hanna Service Center.
23
FUNCTIONAL DESCRIPTION HI9063FUNCTIONAL DESCRIPTION HI9063
FUNCTIONAL DESCRIPTION HI9063
FUNCTIONAL DESCRIPTION HI9063FUNCTIONAL DESCRIPTION HI9063
1 CHANNEL THERMOMETER1 CHANNEL THERMOMETER
1 CHANNEL THERMOMETER
1 CHANNEL THERMOMETER1 CHANNEL THERMOMETER
FUNCTIONAL DESCRIPTION HI91530KFUNCTIONAL DESCRIPTION HI91530K
FUNCTIONAL DESCRIPTION HI91530K
FUNCTIONAL DESCRIPTION HI91530KFUNCTIONAL DESCRIPTION HI91530K
1 CHANNEL THERMOMETER1 CHANNEL THERMOMETER
1 CHANNEL THERMOMETER
1 CHANNEL THERMOMETER1 CHANNEL THERMOMETER
1
s
ins
rum n
2
5
6
°C
HI 9063
microcomputer
K-thermocouple
thermometer
CLEAR
HI LO HOLD
1) Probe Connector
2) LCD Display
3) ON/OFF Switch
4) Temperature Measurement Unit
Selection
HI
-50 . . . . . +150°C
-58 . . . . . +302°F
-50 . . . . . +950°C
-58 . . . . . +1742°F
°C/°F
ON/OFF
5) CLEAR Key
6) Maximum Measured
Temperature
7) Minimum Measured
Temperature
4
3
8
7
8) HOLD Key.
Range ºC -50.0 to 150.0ºC & -50 to 950ºC
ºF -58.0 to 302.0ºF & -58 to 1742ºF
Resolution ºC 0.1ºC / 1ºC
ºF 0.1ºF / 1ºF
Accuracy ±0.3% F.S.
(@ 20°C/68°F) for one year, excluding probe error
Typical EMC ±3°C (with HI 766 probes)
Deviation ±6°F (with HI 766 probes)
Probe K-Type Thermocouple (optional)
(see pages 14-17)
Battery Type & Life 4 x 1.5 Volt, AA size
500 hours of continuous use
Environment -10 to 50ºC (14 to 122ºF), 100%RH
Dimensions 196 x 80 x 60 mm (7.7 x 3.1 x 2.4")
Weight 425 g (15 oz.)
1
s
ins
rum n
2
3
K
HI 91530K
microprocessor
K-thermocouple
thermometer
HOLD
°C
RANGE
-200.0 . . . . . 1370°C
-300.0 . . . . . 2500°F
ON/OFF
°C/°F
4
5
1)Probe Connector
2)LCD Display
3)HOLD Key
4)ON/OFF Key
5)Temperature Measurement Range Selection (°C or °F).
Range °C -200.0 to 1370°C
°F -300.0 to 2500°F
Resolution °C 0.1°C (up to 999.9°C) / 1°C
°F 0.1°F (up to 999.9°F) / 1°F
Accuracy ±0.2% Full Scale
(@ 20°C/68°F) for one year, excluding probe error
Typical EMC ±3°C (with HI 766 probes)
Deviation ±6°F (with HI 766 probes)
Probe K-Type Thermocouple (optional)
(see pages 14-17)
Battery Type & Life 4 x 1.5 Volt, AA size
500 hours of continuous use
Environment -10 to 50°C (14 to 122°F), 100%RH
Dimensions 196 x 80 x 60 mm (7.7 x 3.1 x 2.4")
Weight 425 g (15 oz.)
45
ins
rum n
s
M·HOLD
MR ∆T
T1/T2
HI 91532K
MICROPROCESSOR
DUAL INPUT
K-THERMOCOUPLE
°C THERMOMETER
0.1/1
°C
K
ON/OFF
RANGE
-200.0 . . . . . 1370°C
4
5
3
1
2
7
6
8
9
FUNCTIONAL DESCRIPTION HFUNCTIONAL DESCRIPTION H
FUNCTIONAL DESCRIPTION H
FUNCTIONAL DESCRIPTION HFUNCTIONAL DESCRIPTION H
1 CHANNEL THERMOMETER1 CHANNEL THERMOMETER
1 CHANNEL THERMOMETER
1 CHANNEL THERMOMETER1 CHANNEL THERMOMETER
1
s
ins
rum n
II
91531K91531K
I
91531K
II
91531K91531K
FUNCTIONAL DESCRIPTION HI91532KFUNCTIONAL DESCRIPTION HI91532K
FUNCTIONAL DESCRIPTION HI91532K
FUNCTIONAL DESCRIPTION HI91532KFUNCTIONAL DESCRIPTION HI91532K
2 CHANNELS THERMOMETER2 CHANNELS THERMOMETER
2 CHANNELS THERMOMETER
2 CHANNELS THERMOMETER2 CHANNELS THERMOMETER
2
HI 91531K
microprocessor
K-thermocouple
thermometer
3
M·HOLD
4
MR HI
K
RANGE
-200.0 . . . . . 1370°C
--300.0 . . . . . 2500°F
LO
°C
ON/OFF
°C/°F
5
6
7
8
1) Probe Connector
2) LCD Display
3) HOLD and Temperature Memorization
4) Memorized Temperature
5) Minimum Measured Temperature
6) ON/OFF Key
7) Temp. Measur.Range Selection (°C or °F)
8) Maximum Measured Temperature.
Range °C -200.0 to 1370°C
°F -300.0 to 2500°F
Resolution °C 0.1°C (up to 999.9°C) / 1°C
°F 0.1°F (up to 999.9°F) / 1°F
Accuracy ±0.2% Full Scale
(@ 20°C/68°F) for one year, excluding probe error
Typical EMC ±3°C (with HI 766 probes)
Deviation ±6°F (with HI 766 probes)
Probe K-Type Thermocouple (optional)
(see pages 14-17)
Battery Type & Life 4 x 1.5 Volt, AA size
500 hours of continuous use
Environment -10 to 50°C (14 to 122°F), 100%RH
Dimensions 196 x 80 x 60 mm (7.7 x 3.1 x 2.4")
Weight 425 g (15 oz.)
1)Probe Connector for T2
2)Probe Connector for T1
3)LCD Display
4)HOLD and Temperature Memorization
5)Memorized Temperature
6)Probe Input Selection (T1 or T2)
7)ON/OFF Key
8)Temperature Resolution (0.1°C or 1°C)
9)Temperatures Difference.
Range -200.0 to 1370°C
Resolution 0.1°C (up to 999.9°C) / 1°C
Accuracy ±0.2% Full Scale
(@ 20°C/68°F) for one year, excluding probe error
Typical EMC ±3°C (with HI 766 probes)
Deviation
Probe K-Type Thermocouple (optional)
(see pages 14-17)
Battery Type & Life 4 x 1.5 Volt, AA size
500 hours of continuous use
Environment -10 to 50°C (14 to 122°F), 100%RH
Dimensions 196 x 80 x 60 mm (7.7 x 3.1 x 2.4")
Weight 425 g (15 oz.)
67
OPERATIONAL GUIDEOPERATIONAL GUIDE
°C
°C
OPERATIONAL GUIDE
OPERATIONAL GUIDEOPERATIONAL GUIDE
INITIAL PREPARATION
To install the batteries, turn the unit
over and unscrew the battery cover.
Remove the battery cover exposing the
battery compartment as shown in the
diagram. Remove and unwrap the new
batteries prior to installation. Place the
batteries in the compartment while
paying attention to their polarity. After the batteries are installed, replace
the battery cover to the back of the
instrument.

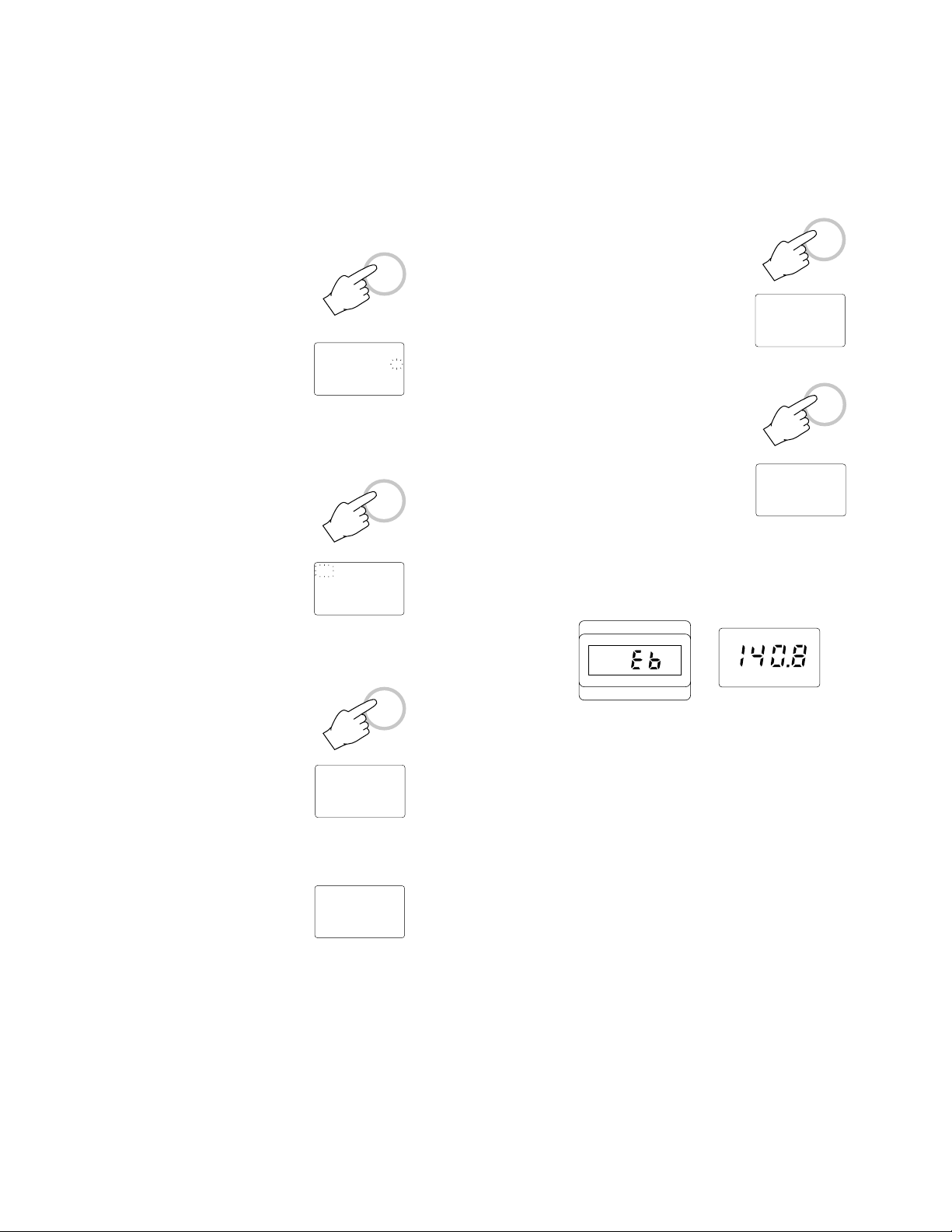

To switch the instrument on, press the ON/OFF
key.
ON/OFF
The thermometer will carry out a brief selftest. All of the segment on the LCD will be
displayed during this period. After the test
°C
°F
HI
LO
the thermometer will revert to the measurement mode.
If a probe is not plugged in, the display will show "Er" in HI 9063 or
"-----" in the other models.
°C
K
To switch your thermometer off, press the ON/OFF key.
MEASURING SCALE (°C/°F) (HI 9063, HI 91530K AND
HI 91531K ONLY)
When the meter is turned on, it automatically
defaults to the °C scale.
Measurements can be performed in either the
Centigrade or Fahrenheit scale. To change the
scale, press the °C/°F button once.
°C/°F
RESOLUTION (HI 9063 AND HI91532K ONLY)
When switched on, the instrument operates in
the wider measurement range with a resolution
of 1°. The measurement range may be changed
ON/OFF
to a higher resolution by pressing once again
the ON/OFF key in HI9063 or the 0.1/1 key in
HI91532K.
0.1/1
HI/LO MEMORY (HI9063 AND HI91531K
ONLY)
The maximum and minimum temperature are continuously monitored
and stored in memory throughout the measuring process. These readings may be recalled at any time.
Simply press either the HI or LO key to view
the respective readings. The appropriate in-
HI LO
dicator ("HI" or "LO"), will be displayed along
with the value retrieved from memory. The
HI
values will be kept stored until the CLEAR
function is activated or the meter is turned
off.
M
CLEAR HI/LO FUNCTION (HI 9063 AND HI 91531K
ONLY)
In HI9063, by pressing the CLEAR key, the
present measurement reading is assigned to
the highest and lowest temperature memories,
i.e. both memories have equal temperature reading.
The "HI" and "LO" display indicators will blink
three times to notify user that cleaning process is in progress.
In HI91531K, by pressing the HI and LO
keys at the same time, the present temperature value is assigned to the highest and
lowest temperature memories, i.e. both
memories have equal temperature reading.
The display will show "----" to notify the
user that cleaning process is in progress.
HI LO
K
CLEAR
HI
LO
°C
89
HOLD MODE (HI9063 AND HI91530K ONLY)
The reading hold function is activated by the
HOLD key. In HI9063, the measured temperature is frozen on the display when this function
key is pressed, and to resume normal operational mode, press this key again. In
HI91530K, keep the HOLD key pressed to
freeze the reading on the display, and to
resume normal operational mode, release this
key. A blinking "M" on display indicates the
operation mode in both models.
MEMORY (HI 91531K AND HI 91532K ONLY)
The reading memory function is activated by
the M.HOLD key.
The measured temperature is frozen on the
display and stored in the memory of the instrument when this function key is pressed.
A "HOLD" and a blinking "MEM" on display
indicates the operation mode.
Once the M•HOLD key is pressed, the temperature reading displayed at that time will
be stored into memory.
To freeze the reading on the display, simply
continue to press and hold the M•HOLD key.
Once the key is released the instrument will
return to its normal operational mode. To retrieve the last memorized temperature value
press MR key and "MEM" will appear with
the reading.
MEM
HOLD
MEM
HOLD
M·HOLD
MR
To view the input temperature of Probe 2 (T2),
press the T1/T2 key and a "K2" will appear on
the display.
M
T1/T2
K2
TEMPERATURE DIFFERENCE (HI93532K ONLY)
The difference between the temperature measured by the two probes can be displayed by
simply pressing the ∆T key.
∆T
A "∆" will appear on the right-hand of the
display to indicate this function.
∆
LOW BATTERY DETECTION
The instrument stops to operate when the low battery signal is detected. This is indicated by the code "Eb" in HI9063 and "BAT" in all
other models. The batteries must be replaced (see page 13).
BAT
K
°C
PROBE SELECTION (HI 93532K ONLY)
When switched on, the instrument automatically shows the temperature measured by
Probe 1 (T1) and a "K1" appears on the LCD
display.
10 11
K1
DISPLAY CODES GUIDEDISPLAY CODES GUIDE
DISPLAY CODES GUIDE
DISPLAY CODES GUIDEDISPLAY CODES GUIDE
CALIBRATIONCALIBRATION
CALIBRATION
CALIBRATIONCALIBRATION
Display Description
°C The instrument is reading in the Centigrade scale.
HI9063, HI91530K and HI91531K only:
°F The instrument is reading in the Fahrenheit scale.
HI91530K, HI91531K and HI91532K only:
- - - - The probe is not connected to the instrument or the
reading is out of range.
HOLD Freezes current reading on display.
BAT Batteries are weak, replace batteries.
HI9063 and HI91531K only:
HI The instrument shows the highest measured value.
LO The instrument shows the lowest measured value.
HI91531K and HI91532K only:
MEM The value of the temperature memorized is recalled.
MEM Freezes current reading
HOLD on the display and stores the reading value into
memory.
HI91532K only:
K1 The instrument shows the temperature measured by
probe 1.
K2 The instrument shows the temperature measured by
probe 2.
∆∆
∆ The instrument shows the difference between the
∆∆
temperature measured by the two probes.
HI9063 only:
Er The probe is not connected to the instrument or the
reading is out of range.
Eb Low battery error, replace the batteries.
M (blinking) HOLD function is active.
All Hanna Instruments thermometers have been accurately pre-calibrated at the factory. It is generally recommended to have all
thermometers recalibrated at least once a year.
For an accurate annual recalibration, contact your nearest Hanna
Service Center.
BATTERY REPLACEMENTBATTERY REPLACEMENT
BATTERY REPLACEMENT
BATTERY REPLACEMENTBATTERY REPLACEMENT
The instruments stops to operate when the low battery signal is
detected. This is indicated by the code "Eb" in HI9063 and "BAT" in
all other items.
BAT
K
°C
Battery replacement must only take place in a non hazardous area
using the battery types specified in this instruction manual (see page
17).
To install the batteries, turn the unit over
and unscrew the 2 screws on the battery
cover.
Remove the battery cover exposing the
battery compartment as shown in the
diagram. Unwrap the four new 1.5 V AA
batteries prior to installation.
Place the batteries in the compartment
while paying attention to their polarity
(see diagram). After the batteries are
installed, replace the battery cover to
the back of the instrument.
12 13
ACCESSORIESACCESSORIES
ACCESSORIES
ACCESSORIESACCESSORIES
K-TYPE THERMOCOUPLE PROBES
WITH DETACHABLE HANDLE & MINI-CONNECTOR
(to be used in conjunction with the HI 766HD probe handle)
HI 766PA Roller surface probe, max 320°C/600°F
100mm
280mm
11"
7.8"
HI 766PB Surface probe, max 650°C/1200°F
200mm
7.9"
HI 766PC Penetration probe, max 900°C/1650°F
155mm
6.1"
3mm
0.12"
::
:
::
4"
HI 766PE1 General purpose probe, max 900°C/1650°F
155mm
6.1"
3mm
0.12"
HI 766PE2 General purpose probe, max 900°C/1650°F
200mm
7.8"
HI 766HD Rugged thermocouple probe handle with 1m (3.3' )
cable fitted with a mini-connector
5mm
0.20"
WITH INTEGRAL HANDLE, 1 M CABLE & MINICONNECTOR:
HI 766A Roller surface probe, max 320°C/600°F
100mm
4"
HI 766PD Air probe, max 300°C/570°F
250mm
9.8"
14 15
3mm
0.12"
280mm
420mm
13.3"
16.5"
HI 766B Surface probe, max 650°C/1200°F
400mm
15.7"
11"
260mm
10.2"
HI 766B1 90º Surface probe, max 450°C/840°F
300mm
11.8"
30mm
1.2"
HI 766E2 General purpose probe, max 900°C/1650°F
360mm
13.8"
220mm
8.5"
5mm
0.2"
HI 766B2 Spring-loaded,surface probe, max 900°C/1650°F
130mm
5.1"
HI 766B3 Spring-loaded,small surface probe with insulated shaft,
max 200°C/390°F
130mm
5.1"
HI 766C Penetration probe, max 900°C/1650°F
260mm
10.3"
120mm
4.8"
3mm
0.12"
HI 766D Air probe, max 300°C/570°F
385mm
15.2"
245mm
9.6"
3mm
0.12"
8mm
0.3"
5mm
0.2"
HI 766F High temperature, flexible wire probe without handle,
max 1100°C/2000°F
255mm
10"
1.5mm
0.06"
HI 766F1 Flexible wire probe without handle, max 480°C/900°F
1m
3.3’
HI 766TV1 Pipe clamp probe, max 200°C/390°F
35mm
Max.
1.4"
2mm
0.08"
HI 766E1 General purpose probe, max 900°C/1650°F
260mm
10.2"
120mm
4.7"
16 17
3mm
0.12"
OTHER ACCESSORIES
HI 721308 1.5V, AA size alkaline battery (10 pcs)
HI 721318 Hard carrying case holding up to 3 temperature probes,
dimensions: 340x 230 x 90 mm
MANKWPR2 Instruction Manual
WARRANTYWARRANTY
WARRANTY
WARRANTYWARRANTY
All Hanna Instruments meters are warranted for two years against
defects in workmanship and materials when used for their intended
purpose and maintained according to instructions. The electrodes and
the probes are warranted for a period of six months. This warranty is
limited to repair or replacement free of charge.
Damages due to accident, misuse, tampering or lack of prescribed maintenance are not covered.
If service is required, contact the dealer from whom you purchased the
instrument. If under warranty, report the model number, date of purchase, serial number and the nature of the failure. If the repair is not
covered by the warranty, you will be notified of the charges incurred. If
the instrument is to be returned to Hanna Instruments, first obtain a
Returned Goods Authorization number from the Customer Service department and then send it with shipping costs prepaid. When shipping any
instrument, make sure it is properly packaged for complete protection.
To validate your warranty, fill out and return the enclosed warranty card
within 14 days from the date of purchase.
CE DECLARATION OF CONFORMITYCE DECLARATION OF CONFORMITY
CE DECLARATION OF CONFORMITY
CE DECLARATION OF CONFORMITYCE DECLARATION OF CONFORMITY
DECLARATION OF CONFORMITY
We
Hanna Instruments Srl
V.le delle industrie 12
35010 Ronchi di Villafranca (PD)
ITALY
herewith certify that the thermometers
HI 9063 HI 91530K HI 91531K HI 91532K
have been tested and found to be in compliance with the following regulations:
IEC 801-2 Electrostatic Discharge
IEC 801-3 RF Radiated
EN 55022 Radiated, Class B
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner,
Hanna Instruments Inc., 584 Park East Drive, Woonsocket, Rhode Island,
02895 , USA.
Hanna Instruments reserves the right to modify the design, construction and appearance of its products without advance notice.
18 19
Date of Issue: 01-03-1996
D.Volpato - Engineering Manager
On behalf of
Hanna Instruments S.r.l.
Recommendations for Users
Before using these products, make sure that they are entirely suitable for
the environment in which they are used.
Operation of these instruments in residential area could cause unacceptable interferences to radio and TV equipments, requiring the operator to
take all necessary steps to correct interferences.
Any variation introduced by the user to the supplied equipment may
degrade the instrument's EMC performance.
To avoid electrical shock, do not use these instruments when voltages at
the measurement surface exceed 24VAC or 60VDC.
To avoid damages or burns, do not perform any measurement in microwave ovens.
In particular cases the meters could turn off. In such cases they can be
turned on by pressing the ON/OFF key.
MANKWPR3
05/98PRINTED IN ITALY
http://www.hannainst.com
Loading...
