Instruction Manual
HI 9146
Portable Waterproof
Microprocessor
Dissolved Oxygen Meter
www.hannainst.com
Dear Customer,
Thank you for choosing a Hanna Product.
Please read this instruction manual carefully
before using the instrument.
This manual will provide you with the necessary
information for a correct use of the instrument,
as well as a precise idea of its versatility.
If you need more technical information, do not
hesitate to e-mail us at tech@hannainst.com
This meter is in compliance with directives.
TABLE OF CONTENTS
Preliminary Examination ............................. 3
General Description..................................... 3
Functional Description - Probe .................... 4
Functional Description - Meter..................... 5
Specifications ............................................. 6
Probe Preparation ....................................... 7
Cali bratio n ................................................... 8
Measurement ............................................ 10
Altitude Compensation .............................. 12
Salinity Compensation .............................. 13
Probe & Membrane Maintenance .............. 14
Battery Replacement ................................ 16
Accessories.............................................. 17
Warranty ................................................... 18
CE Declaration of Conformity .................... 19
PRELIMINARY EXAMINATION
Remove the instrument from the packing material
and examine it to make sure that no damage
has occurred during shipping. If there is any
damage, notify your Dealer.
The meter is supplied complete with:
• HI 76407/4F DO probe with 4 m cable and
protective sleeve for HI9146-04
• HI 76407/10F DO probe with 10 m cable &
protective sleeve for HI9146-10
• 2 membranes (HI 76407A) with O-rings
• protective cap
• 30 mL electrolyte solution (HI 7041S)
• 4 x 1.5V AA batteries
• instruction manual
• rugged carrying case
Note: Save all packing material until you are
sure that the instrument functions
correctly. Any defective items must be
returned in the original packing with the
supplied accessories.
GENERAL DESCRIPTION
The Hanna HI 9146 is a water-resistant,
microprocessor-based, auto-calibrating
Dissolved Oxygen meter with ATC. It has been
developed for dissolved oxygen and temperature
measurement in water and wastewater as well
as other applications such as fish farming.
Dissolved oxygen is indicated in hundredths of
parts per million (ppm=mg/L) or in % of
saturation.
The temperature range is indicated in centigrade
from 0 to 50°C with 0.1°C resolution.
The ppm and the % saturation are both
compensated for changes in solubility of oxygen
in water and for permeability of the membrane
as well as the temperature effect.
23
Salinity compensation in water allows
determination of mg/L of dissolved oxygen in
salty waters and the altitude compensation
readjusts for the altitude variance.
Four 1.5V AA alkaline batteries provide power
and make the instrument completely portable.
HI 9146 is also designed to be used with a battery
recharger or a 12 Vdc power supply. A 12 Vdc
input jack is incorporated into the housing.
A microprocessor ensures an accurate and
rapid calibration and measurement. The case
rugged and water-resistant for maximum
protection in the field as well as in the laboratory.
The dissolved oxygen probe has a membrane
covering the polarographic sensor elements
and a built-in thermistor for temperature
measurement and compensation. The thin
permeable membrane isolates the sensor
elements from the testing solution, but allows
oxygen to enter. When a voltage is applied
across the sensor, oxygen that passes through
the membrane causes a current to flow from
which the oxygen concentration is determined.
FUNCTIONAL DESCRIPTION - PROBE
1. D.O. Probe
2. Protective Cap
3. Watertight Shielded
Cable
4. Polypropylene
Probe Body
5. Temperature Sensor
6. O-Ring Seal
7. AgCl Anode (sensor
element)
8. Platinum Cathode
(sensor element)
9. Oxygen Permeable
PTFE Membrane
10. Membrane Protective Cap
6
7
8
9
3
4
4
5
6
7
8
9
FUNCTIONAL DESCRIPTION - METER
1) Battery Compartment
2) Probe Connector
3) Liquid Crystal Display
4) ON/OFF key
5) CAL key (to enter/exit calibration mode)
6) FACTOR key (to select altitude F1 and
salinity F2)
1
7) UP and DOWN arrow keys (to select F1
and F2 levels)
8) HOLD key (to freeze displayed value)
9) RANGE key (to select ppm or % of
saturation)
10) Power socket for 12 Vdc adapter
19) LOW BAT indicator
20) SAMPLE indicator (to indicate measure-
2
10
ment mode)
21) F1 indicator (altitude factor)
22) F2 indicator (salinity factor)
23) % or ppm mode indicator
24) Temperature and factor display
45
SPECIFICATIONS
PROBE PREPARATION
Range 0.00 to 45.00 mg/L O
0.0 to 300 %O
0.0 to 50.0 °C
Resolution 0.01 mg/L O
0.1 %O
0.1 °C
Accuracy ±1.5% Full Scale mg/L O
(@25°C/77°F) ±1.5% Full Scale %O
±0.5 °C
Typical EMC ±0.3 mg/L O2 / ±3.5 %O
Deviation ±0.5 °C
Calibration Automatic in saturated air
Temperature Automatic from 0 to 50°C
Compensation (32 to 122°F)
Altitude 0 to 4 km
Compensation 100 m resolution
Salinity 0 to 80 g/L
Compensation 1 g/L resolution
Environment 0 to 50°C (32 to 122°F)
RH 100%
Power supply • 4x1.5V AA batteries;
200 hours of continuous use;
auto-off after 4 hours.
• 12 Vdc adapter
Dimensions 196 x 80 x 60 mm
(7.7 x 3.1 x 2.4")
Weight 500 g (1.1 lb.)
2
2
2
2
All probes are shipped dry by Hanna Instruments. To hydrate the probe and prepare it
for use, connect it to the meter and proceed
as follows.
1 Remove the red and black plas-
Shipping
cap
tic cap which is for shipping
purposes and can be discarded.
2
2
2
2 Wet the sensor by soaking the
bottom 2½ cm (1") of the probe
in electrolyte (HI 7041S) for 5
minutes.
black
red
3 Take a membrane
(HI 76407A sup-
plied with the
meter) and Make
sure that the rubber O-ring sits
SECOND
FILL
FIRST
INSERT
O’RING
properly inside
the membrane
cap.
THIRD
TAP
4 Rinse the mem-
brane with electrolyte while shaking
it gently. Refill
with clean electrolyte.
THEN SCREW
BACK ON
5 Gently tap the sides of the membrane cap
with your finger tip to ensure that no air
bubbles remain trapped. To avoid damaging to the membrane, do not tap the membrane directly on the bottom.

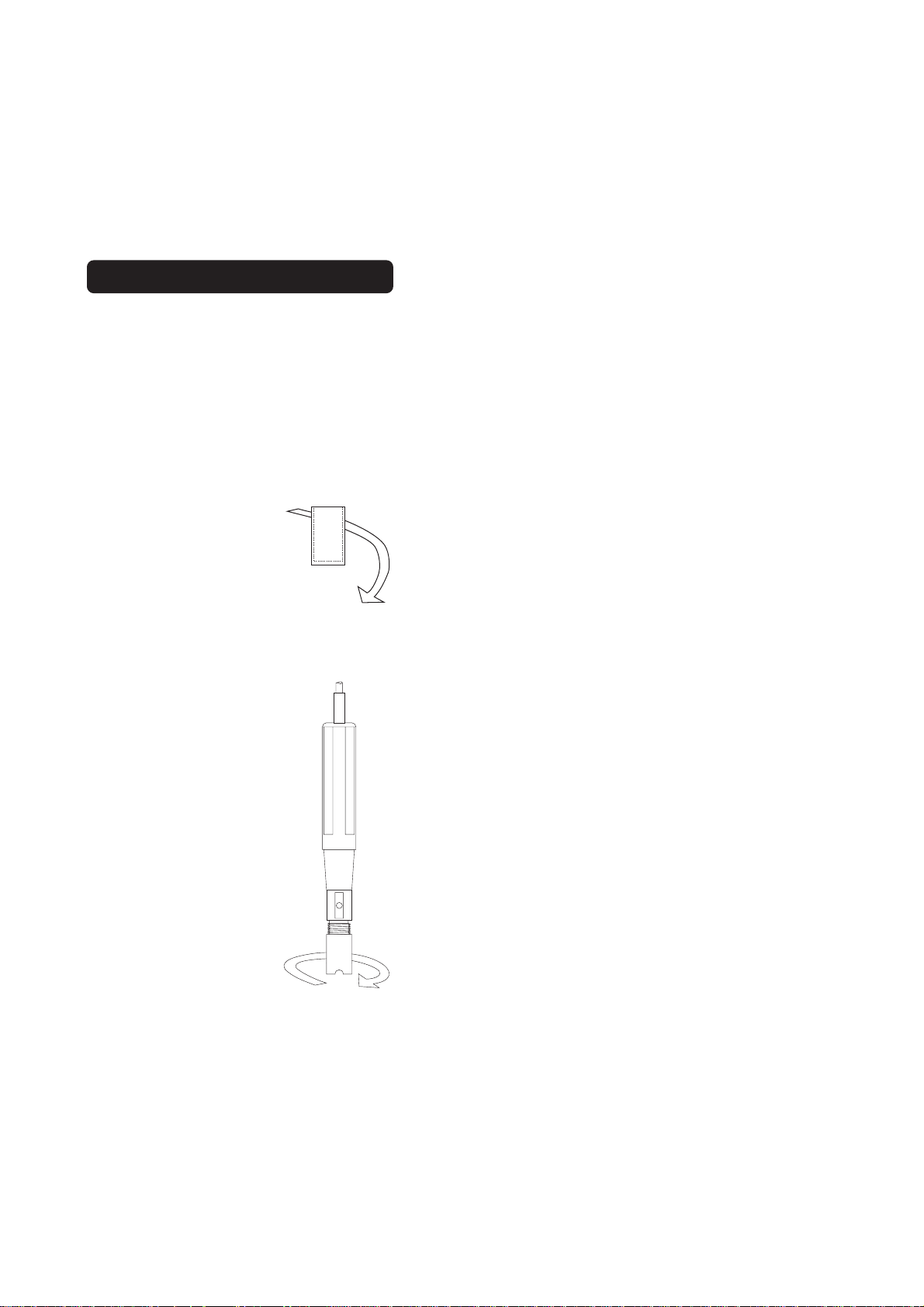

6 With the sensor facing down, screw the
cap clockwise. Some electrolyte will overflow.
When not in use, protect the membrane by placing the protective cap
on it.
67

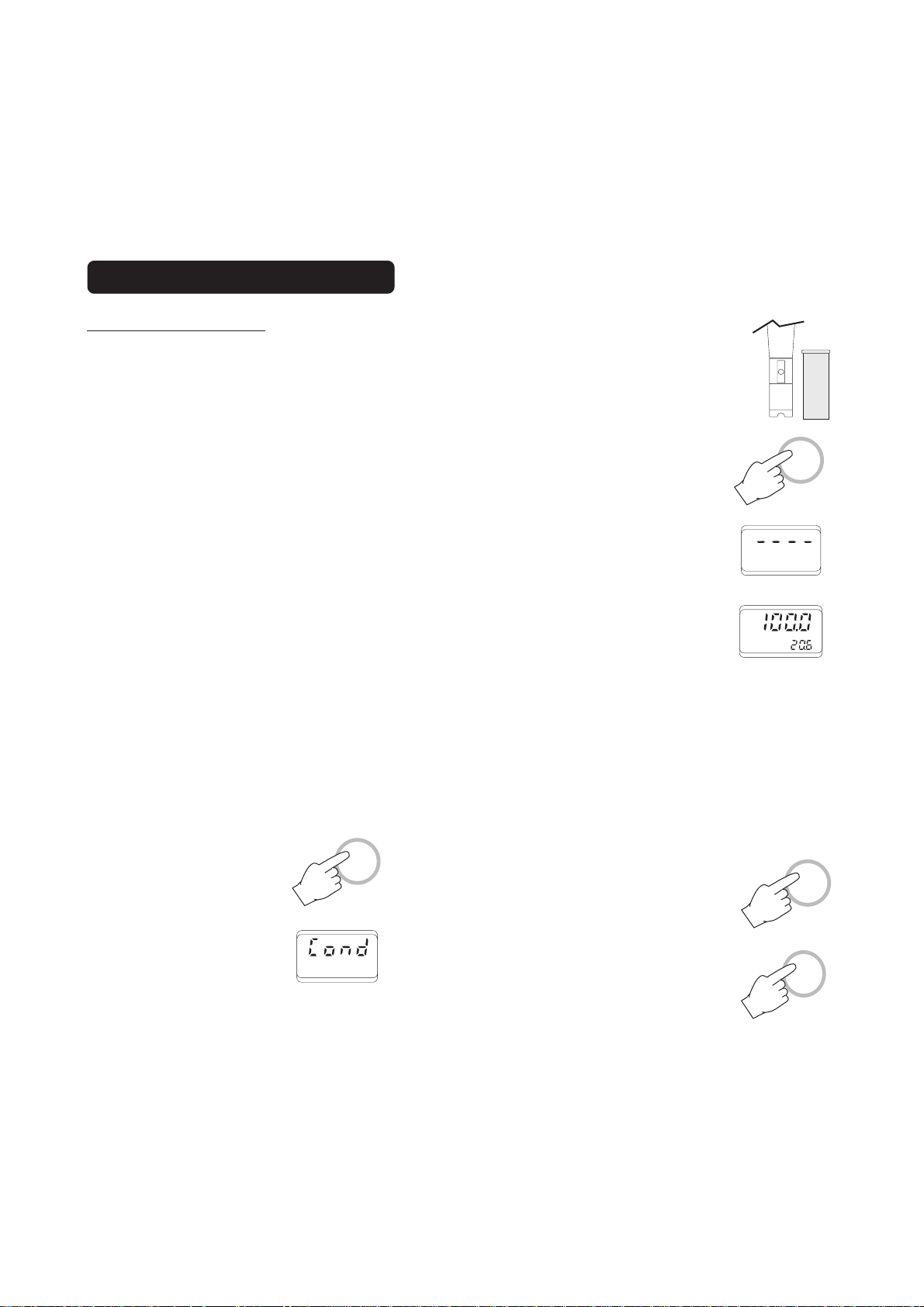

CALIBRATION
PROBE POLARIZATION
The probe is under polarization with a fixed
voltage of approximately 800 mV.
Probe polarization is essential for stable measurements with the same recurring degree of
accuracy.
With the probe properly polarized, oxygen is
continually "consumed" by passing through
the sensitive diaphragm and dissolving in the
electrolyte solution contained inside the probe.
If this operation is interrupted, the electrolyte
solution continues to be enriched with oxygen
until it reaches an equilibrium with the surrounding solution. Whenever measurements
are taken with a non-polarized probe, the
oxygen level indicated is that of the test solution as well as any oxygen present in the
electrolyte solution. This reading is obviously
incorrect. The Hanna oxygen meter shown
here automatically polarize the probe when
they are switched on.
Calibration is simple and is recommended
every time the meter is switched on.
• Make sure the probe is ready for measurement (see page 5), i.e. the membrane is
filled with electrolyte and probe is connected to the meter and properly polarized.
• Switch the meter on.
• "COND" appears on the
display to inform you that
the probe is in auto-condi-
ON/OFF
tioning (automatic polarization) mode.
• Once "COND" disappears
the probe is polarized and
instrument can be calibrated.
• For an accurate calibration, it is recommended to wait an additional 5 or 10 minutes to ensure optimum conditioning of the
probe.
• Remove the protective cap.
• Press CAL. "----" appears
on the larger LCD together
with "CAL" to indicate that
the instrument is in calibra-
CAL
tion mode.
• The instrument will automatically standardize itself
CAL
to the actual saturation
value. After approx. 1
minute it will show "100%"
on the LCD and a small
SAMPLE
%
°C
"SAMPLE" to indicate that
the calibration is complete.
• Press FACTOR and ensure F1 and F2 are
set to the appropriate altitude and salinity
values (pages 10-11).
Notes: • The instrument must be calibrated
whenever the probe, membrane
or the electrolyte is changed.
• To exit the calibration mode during
calibration, press CAL.
• The display may be
switched from readings
in % saturation to mg/
L without recalibration,
CAL
by simply pressing
RANGE.
RANGE
89

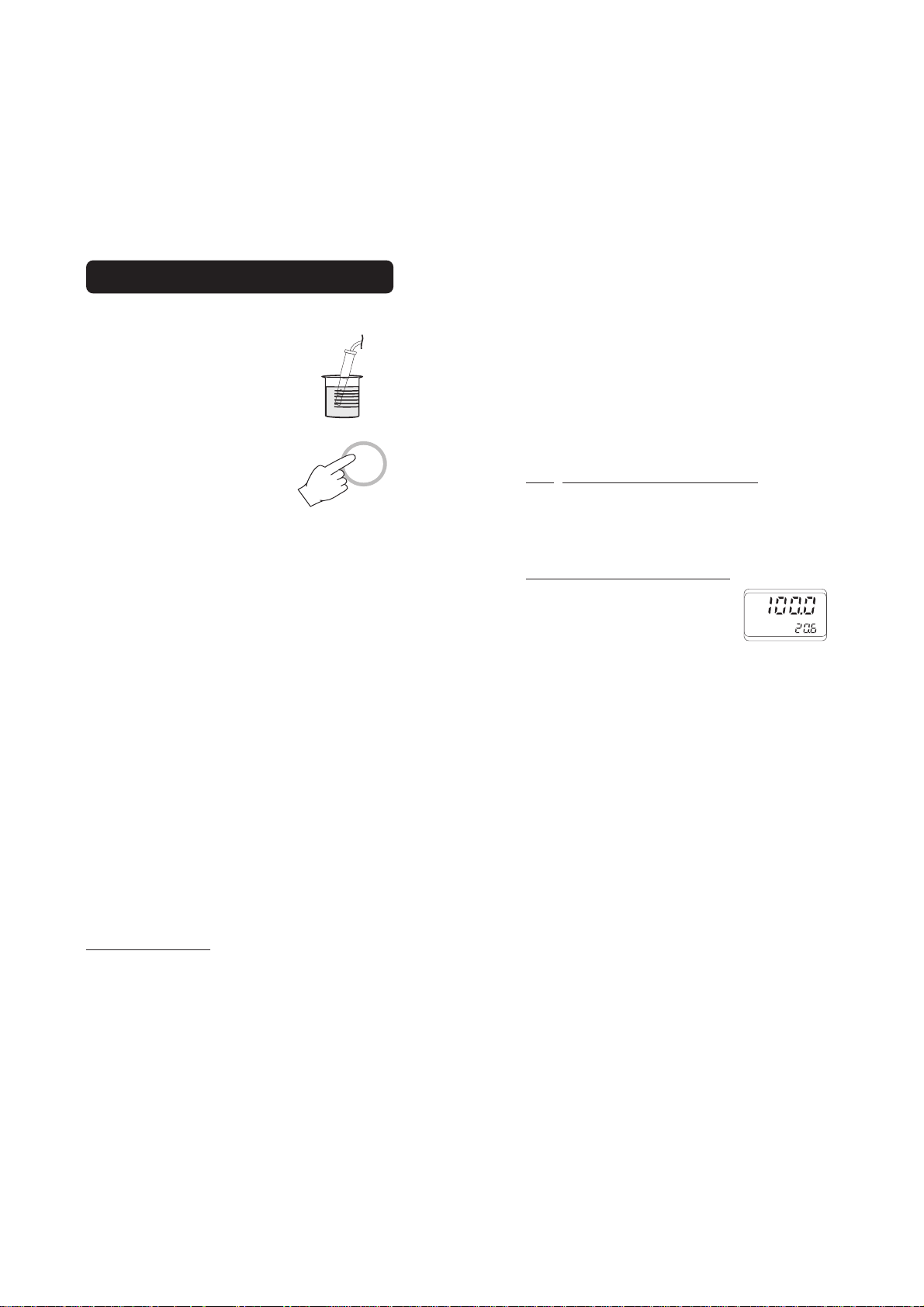

MEASUREMENT
Make sure the meter has been
calibrated and the protective
cap has been removed. Immerse the tip of the probe in
the sample to be tested and
ensure that the temperature
sensor is also immersed.
To display values in % saturation, press RANGE.
RANGE
For accurate dissolved oxygen measurements,
a water movement of at least 30 cm (12”)/sec
is required. This is to ensure that oxygen
depleted on the membrane surface is constantly replenished. A moving stream will provide adequate circulation.
During field measurements, this condition may
be obtained by manually stirring the probe.
Accurate readings are not possible while the
liquid is stationary.
During laboratory measurements, the use of a
magnetic stirrer to ensure a certain agitation of
the fluid is recommended. This way, any errors
due to the presence of air bubbles on the
membrane surface are minimized.
If the sample contains significant salinity or
if the measurement is taken at a higher
altitude than sea level, the read-out values
must be corrected (by taking into account the
lower degree of oxygen solubility in such
conditions - see below).
Set the altitude and/or the salinity before
calibration and taking mg/L measurements.
The meter will automatically compensate for
these factors.
% O2 SATURATION READINGS
The % O2 reading provides the rate of oxygen
saturation with reference to 100.0% at sea
level.
TEMPERATURE READINGS
The lower part of the display
will show the measured
temperature in Celsius
SAMPLE
%
°C
degrees.
Allow the probe to reach thermal equilibrium
with the sample before taking any measurement. The greater the difference between the
ambient temperature and the temperature of the
sample, the longer it will take the probe to
acclimatized itself to the sample.
For an accurate measurement, allow sufficient
time for thermal equilibrium between the probe
and the measurement sample (a few minutes
if the temperature difference is several degrees).
mg/L READINGS
The mg/L readings make it possible to read the
concentration of the dissolved oxygen directly
in ppm.
10 11

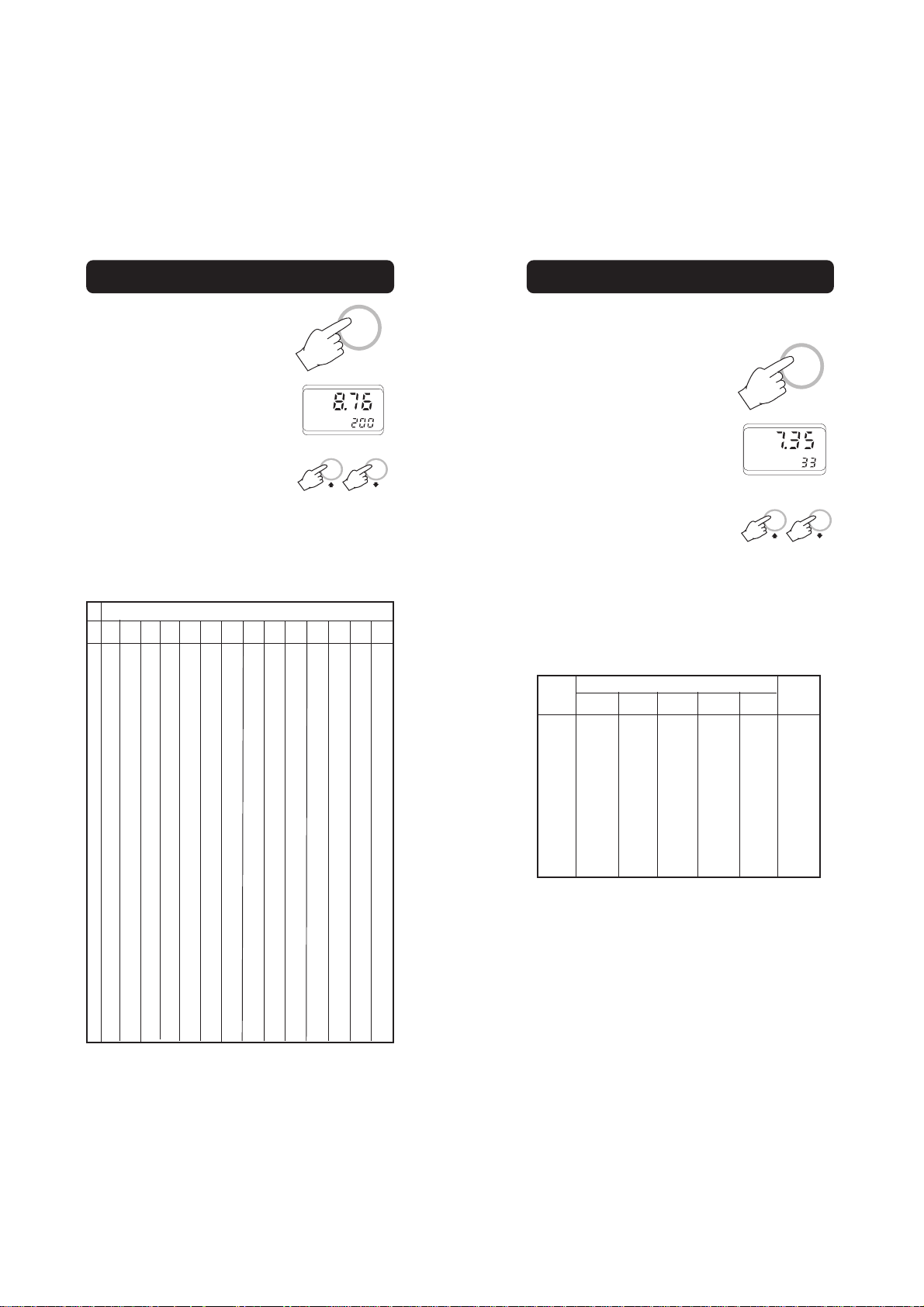

ALTITUDE COMPENSATION
SALINITY COMPENSATION
Press FACTOR and “F1” will
be displayed.
SAMPLE
FACTOR
ppm
F1
Use the UP and the DOWN
keys to set the altitude from 0
or
and 4.0 km (4000 m), in steps
of 0.1 km (100 m).
The table provides an idea of the error that can
be introduced at different altitudes and the
quantity to be subtracted to correct the reading.
Altitude above Sea Level (in meters)
°C
0
300
600
1200
1500
12.7
12.0
11.4
10.8
10.3
1800
2100
2400
2700
3000
3300
3600
4000
12.3
11.8
10.9
10.2
9.4
8.7
8.1
7.6
11.6
11.2
10.3
9.6
8.9
11.0
10.6
10.4
9.8
9.4
9.0
8.6
8.3
7.9
7.7
7.3
7.0
6.8
6.5
6.4
6.2
5.9
5.7
5.6
5.4
5.3
5.1
5.0
4.9
9.8
10.1
9.3
9.9
9.6
8.9
9.5
9.2
8.5
9.1
8.8
8.1
8.7
8.3
7.8
8.3
8.0
7.5
8.0
7.7
7.2
7.7
7.4
6.9
7.3
7.1
6.6
7.1
6.8
6.3
6.8
6.6
6.1
6.6
6.3
5.9
6.3
6.1
5.7
6.1
5.9
5.5
6.0
5.8
5.4
5.7
5.5
5.2
5.6
5.4
5.0
5.4
5.2
4.8
5.2
5.0
4.7
5.1
4.9
4.6
4.9
4.8
4.4
4.8
4.6
4.3
4.7
4.5
4.2
8.2
9.1
8.5
7.8
8.6
8.0
7.4
8.2
7.6
7.1
7.8
7.3
6.8
7.5
7.0
6.4
7.2
6.6
6.2
6.9
6.4
5.9
6.6
6.1
5.7
6.3
5.9
5.5
6.0
5.6
5.3
5.8
5.5
5.1
5.7
5.2
4.8
5.4
5.0
4.7
5.2
4.9
4.6
5.1
4.7
4.4
4.9
4.6
4.2
4.8
4.5
4.1
4.6
4.3
4.0
4.5
4.2
3.9
4.3
4.0
3.7
4.3
4.0
3.7
4.1
3.8
3.5
4.0
3.7
3.5
3.9
3.6
3.4
6.6
7.7
7.1
6.3
7.3
6.7
6.0
6.9
6.4
5.7
6.5
6.1
5.4
6.3
5.8
5.1
6.0
5.6
4.9
5.7
5.3
4.7
5.5
5.1
4.5
5.3
4.9
4.3
5.1
4.7
4.1
4.9
4.5
4.0
4.7
4.4
3.8
4.5
4.2
3.7
4.3
4.0
3.6
4.2
3.9
3.5
4.1
3.8
3.3
3.9
3.7
3.2
3.8
3.5
3.1
3.7
3.5
3.0
3.6
3.3
2.9
3.5
3.2
2.9
3.4
3.1
2.8
3.3
3.1
2.7
3.2
2.9
2.6
3.1
2.9
2.6
900
0
14.6
14.1
13.6
13.3
12.7
12.0
11.4
10.9
10.4
13.2
12.9
12.4
12.2
11.9
11.6
11.2
11.0
10.6
10.5
10.2
10.1
9.7
9.9
9.6
9.3
9.7
9.2
8.9
9.2
8.7
8.6
8.8
8.5
8.2
8.4
8.1
7.8
8.1
7.8
7.5
7.8
7.5
7.3
7.5
7.3
7.0
7.2
7.0
6.8
7.1
6.8
6.6
6.9
6.6
6.4
6.6
6.3
6.1
6.4
6.2
5.9
6.2
6.0
5.8
6.1
5.8
5.6
5.9
5.7
5.5
5.7
5.5
5.3
5.6
5.4
5.2
5.4
5.2
5.0
2
13.8
4
13.1
6
12.4
8
11.8
10
11.3
12
10.8
14
10.3
16
9.9
18
9.5
20
9.1
22
8.7
24
8.4
26
8.1
28
7.8
30
7.5
32
7.3
34
7.1
36
6.8
38
6.6
40
6.4
42
6.3
44
6.1
46
5.9
48
5.8
50
5.6
Press FACTOR twice and
“F2” will be displayed.
Press UP and DOWN to set
the salinity between 0 and 80
g/L.
Press FACTOR again to display the temperature.
Salinity (g/L) at Sea Level
°C
10
12
14
16
18
20
22
24
26
28
0 g/L
11.3
10.8
10.3
9.9
9.5
9.1
8.7
8.4
8.1
7.8
10 g/L
10.6
10.1
9.7
9.3
8.9
8.5
8.2
7.9
7.6
7.4
20 g/L
9.9
9.5
9.1
8.7
8.4
8.0
7.8
7.5
7.2
7.0
30 g/L
9.3
8.9
8.6
8.2
7.9
7.6
7.3
7.1
6.8
6.6
SAMPLE
35 g/L
9.0
8.6
8.3
8.0
7.6
7.4
7.1
6.9
6.6
6.4
FACTOR
ppm
F2
or
°F
50.0
53.6
57.2
60.8
64.4
68.0
71.6
75.2
78.8
82.4
12 13
PROBE & MEMBRANE MAINTENANCE
The oxygen probe body is made of reinforced
polypropylene for maximum durability.
A thermistor sensor measures temperature of
the sample. It is recommended that the protective cap be always kept on the probe when the
probe is not in use.
To replace the membrane or refill it with
electrolyte, proceed as follows:
• Remove the protective cap by gently twisting and pulling it off the
probe (see fig. 1).
• Unscrew the membrane
by turning it counterclockwise (see fig.2)
• Wet the sensor by soaking the bottom 2½ cm
(1") of the probe in electrolyte (HI 7041S) for 5
TWIST
AND
PULL
fig. 1
minutes.
• Rinse a new membrane
(HI 76407A) with electrolyte while shaking it
gently. Refill with clean
electrolyte.
• Gently tap the sides of
the membrane with your
finger tip to ensure that
no air bubbles remain
trapped. Do not directly
tap the bottom as this
may cause irreparable
damage to the membrane.
• Make sure that the rubber O-ring is seated
properly inside the membrane cap.
• With the sensor facing down, screw the
membrane cap clockwise. Some electrolyte will overflow.
The Platinum cathode sensor (#8 in the Functional Description on page 2) should always be
bright and untarnished. If it is tarnished or
stained, which could be due to contact with
certain gases or extended use with a loose or
damaged membrane, the cathode sensor
should be cleaned. Use a clean, lint-free cardboard or cloth. Rub the cathode very gently
side to side 4-5 times. This will be enough to
polish and remove any stains without damaging the platinum tip. Then, rinse the probe with
deionized or distilled water. Install a new membrane and fill it with fresh electrolyte following
the instructions above. Recalibrate the instrument.
Important: In order to have accurate and
stable measurements, it is important that the
surface of the membrane is in perfect condition. This permeable membrane isolates the
sensor elements from the environment but
allows oxygen to enter. If any dirt is deposited
on the membrane, rinse it carefully with distilled or deionized water. If any imperfections
are observed, or any damage is evident (such
as wrinkles, tears or holes), the membrane
should be replaced. Make sure that the O-Ring
is properly seated in the membrane cap.
UNSCREW
fig. 2
14 15
BATTERY REPLACEMENT
+
-
When the batteries are run
down "LOBAT" is displayed
on the Liquid Crystal Dis-
LOBAT
SAMPLE
ppm
°C
play.
This is to inform the user that the display will
be shut-off after about 4 hours of use to
prevent erroneous measurements due to low
voltage.
Use only the Hanna voltage adapters (such as
HI 710005 or HI 710006 - see below) with
proper polarity configuration.
Battery replacement must only take place in a
non-hazardous area using alkaline batteries.
In order to replace run down batteries, simply
remove the two screws
on the rear cover of the
instrument (#1 in the
Functional Description on
page 3) and replace the
four 1.5V AA batteries
with new ones, paying attention to the correct polarity.
A 12 Vdc power source
can also be used to power
the unit (see accessories).
Simply unscrew the protective cap on the top of
the instrument (#10 page
3) and plug the power supply into the socket.
Note: The instrument uses the following con-
figuration.
The meter can however also run on other adapters. In this case, check the correct polarity of
your adapter before connecting it to the meter.
ACCESSORIES
HI 7041S Electrolyte solution for D.O.
probe, 30 mL
HI 76407/4F D.O. probe with 4 m (13’) cable
and protective sleeve
HI 76407/10F D.O. probe with 10 m (33’)
cable and protective sleeve
HI 76407A/P D.O. membrane (5 pcs)
HI 710005 115 Vac to 12 Vdc power
adapter, US plug
HI 710006 230 Vac to 12 Vdc power
adapter, European plug
16 17
WARRANTY
All Hanna meters are warranted for two
years against defects in workmanship and
materials when used for their intended purpose
and maintained according to the instructions.
Probes are warranted for six months.
This warranty is limited to repair or replacement
free of charge.
Damages due to accidents, misuse, tampering
or lack of prescribed maintenance are not covered.
If service is required, contact the dealer from
whom you purchased the instrument. If under
warranty, report the model number, date of
purchase, serial number and the nature of the
failure. If the repair is not covered by the warranty, you will be notified of the charge for repair
or replacement. If the instrument is to be returned to Hanna Instruments, please obtain a
Return Goods Authorization from the Customer
Service Department and then send it with shipment cost prepaid.
When shipping any instrument, make sure it is
properly packaged for complete protection.
CE DECLARATION OF CONFORMITY
Hanna Instruments reserves the right to modify design, construction and appearance of its products without advance notice.
18 19
Recommendations for Users
Before using these products, make sure that they are entirely suitable for the environment
in which they are used.
Operation of this instrument in residential area could cause unacceptable interference to
radio and TV equipment, requiring the operator to take all necessary steps to correct
interferences.
Any variation introduced by the user to the supplied equipment may degrade the instrument's
EMC performance.
To avoid electrical shock, do not use these instruments when voltage at the measurement
surface exceeds 24VAC or 60VDC.
To avoid damage or burns, do not perform any measurement in microwave ovens.
SALES AND TECHNICAL SERVICE CONTACTS
Australia:
Tel. (03) 9769.0666 • Fax (03) 9769.0699
China:
Tel. (10) 88570068 • Fax (10) 88570060
Egypt:
Tel. & Fax (02) 2758.683
Germany:
Tel. (07851) 9129-0 • Fax (07851) 9129-99
Greece:
Tel. (210) 823.5192 • Fax (210) 884.0210
Indonesia:
Tel. (21) 4584.2941 • Fax (21) 4584.2942
Japan:
Tel. (03) 3258.9565 • Fax (03) 3258.9567
Korea:
Tel. (02) 2278.5147 • Fax (02) 2264.1729
Malaysia:
Tel. (603) 5638.9940 • Fax (603) 5638.9829
Singapore:
Tel. 6296.7118 • Fax 6291.6906
South Africa:
Tel. (011) 615.6076 • Fax (011) 615.8582
Taiwan:
Tel. 886.2.2739.3014 • Fax 886.2.2739.2983
Thailand:
Tel. 66.2619.0708 • Fax 66.2619.0061
United Kingdom:
Tel. (01525) 850.855 • Fax (01525) 853.668
USA:
Tel. (401) 765.7500 • Fax (401) 765.7575
For e-mail contacts and complete list of Sales and
Technical offices, please see www.hannainst.com
MAN9146R1 05/05
Loading...
