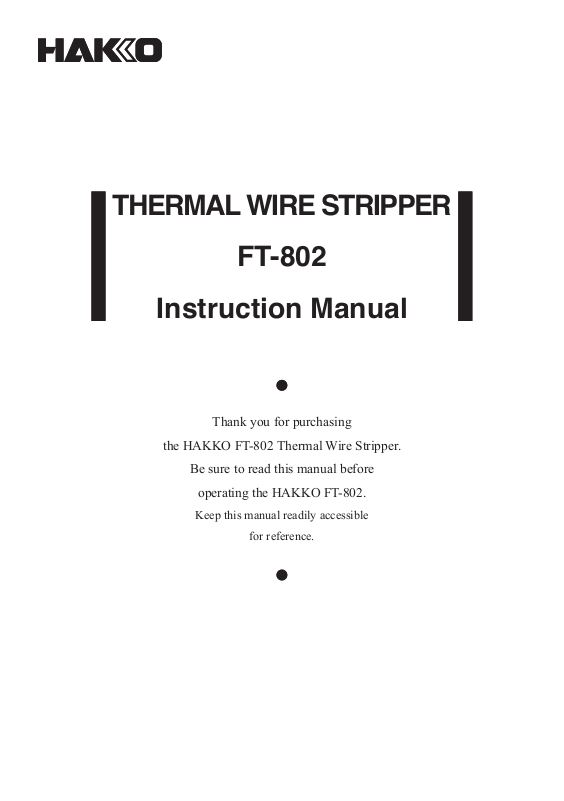

Hakko FT-802 Instruction Manual

THERMAL WIRE STRIPPER

FT-802

Instruction Manual

Thank you for purchasing

the HAKKO FT-802 Thermal Wire Stripper.

Be sure to read this manual before

operating the HAKKO FT-802.

Keep this manual readily accessible

for reference.

Table of Contents

1. PACKING LIST AND PART NAMES ....................................................... 1

2. SPECIFICATIONS ................................................................................... 1

3. WARNINGS, CAUTIONS AND NOTES .................................................. 2

4. INITIAL SETUP ........................................................................................ 3

4-1　Blades ..............................................................................................3

5. HOW TO USE ..........................................................................................4

6. SETTING PARAMETERS ........................................................................7

7. MAINTENANCE .....................................................................................12

8. INSPECTION ..........................................................................................12

9. TROUBLESHOOTING ...........................................................................13

10. PART NUMBER .....................................................................................13

4-1-1　Attaching blades ....................................................................3

4-1-2　Removing blades ...................................................................3

4-1-3　Blade holder ...........................................................................3

4-2　Station ..............................................................................................4

5-1　Operation and display (switch and operation buttons) .....................4

5-2　Setting/changing output ....................................................................4

5-3　Handle ..............................................................................................5

5-3-1　Attaching the lead adjuster ....................................................5

5-3-2　How to use the lead adjuster .................................................6

5-3-3　Stripping a wire ......................................................................6

6-1　Parameter setting table ....................................................................7

6-2　Parameter setting procedure ............................................................8

1. PACKING LIST AND PART NAMES

Please make sure that all items listed below are included in the package.

Blade removal plate

HAKKO
FT-802 station

Handle holder

Power switch

THERMAL WIRE STRIPPER

FT-802

Instruction Manual

Lead adjuster

Handle

Blade (not included)

Plug

Receptacle

Power receptacle

HAKKO FT-8004

Wire material
indicator seal

PACKING LIST

HAKKO FT-802 station ...................................1

HAKKO FT-8004.............................................1

Power cord .....................................................1

Hexagon wrench (1.27mm) ............................1

Instruction Manual ..........................................1

Hexagon socket set screw (M2.5x2.5) ...........2

Wire material indicator seal ...........................1

2. SPECIFICATIONS

• HAKKO FT-802

Power Consumption 76W

• Station

Output

Outside dimensions

Weight

AC 20V
76(W)×159 (H)×161 (D)mm

(3.0×6.3×6.3in.)

1.6kg (3.5lb.)

*Specications and design are subject to change without notice.

*This product is protected against electrostatic discharge.

• HAKKO FT-8004 (Handle)

Power Consumption

Length of Cord

Length (w/o cord, blade)

Weight (w/o cord,blade)

NOTE:

Hexagon socket set screw (2)

Power cord

Hexagon wrench

72W (20V)

1.6m (5.3ft.)

153mm (6.0in.)

47g (0.10lb.)

CAUTION

This product includes features such as electrically conductive plastic parts and grounding of the
handle and station as measures to protect the device to be soldered from the effects of static
electricity.
Be sure to observe the following instructions:

⿟The handle and other plastic parts are not insulators, they are conductors. When replacing parts or

repairing, take sufcient care not to expose live electrical parts or damage insulation materials.

⿟Be sure to ground the unit during use.

1

3. WARNINGS, CAUTIONS AND NOTES

Warnings and cautions are placed at critical points in this manual to direct the operator’s

attention to signicant items. They are deemed as follows:

WARNING :

CAUTION :

Failure to comply with a WARNING may result in serious injury or death

Failure to comply with a CAUTION may result in injury to the operator,

or damage to the items involved.

A NOTE indicates a procedure or point that is important to the process being described

WARNING

After the power is turned on, the blade temperature can reach as high as 800°C (1472°F).
Improper handling may cause burns or re. Be sure to observe the following precautions.

⿟Do not touch the blade or metal parts near the blade.
⿟Do not allow the blade to come close to, or touch, ammable materials.
⿟Inform others in the area that the unit is hot and should not be touched.
⿟Turn the power off when not in use, or left unattended.
⿟Turn the power off when changing parts or storing the HAKKO FT-802.
⿟Place the handle on the handle holder when not using the HAKKO FT-802.
⿟The unit is for a counter or workbench use only.
⿟This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in safe way and understand the hazards

involved.
⿟Children shall not play with the appliance.
⿟Cleaning and user maintenance shall not be made by children without supervision.

Observe the following precautions to prevent accidents or damage to the unit.

CAUTION

⿟Do not use the HAKKO FT-802 for applications other than wire stripping.
⿟Do not strike the blade against workbench to remove stripped insulation debris. This will damage the

blade.
⿟Do not modify the HAKKO FT-802.
⿟Do not allow the HAKKO FT-802 to become wet, or use it when hands are wet.
⿟Since smoke is produced when using the wire stripper, be sure the work area is well ventilated.
⿟Use only genuine Hakko replacement parts.
⿟Remove power and iron cords by holding the plug. not the wires.
⿟While using HAKKO FT-802, do not do anything which may cause bodily harm or physical damage.

2

4. INITIAL SETUP

4-1 Blades

4-1-1 Attaching blades

Stop provisionally in the tapped hole of the

①

handle, and do a set the hexagon socket set
screw.

Insert the blade so that the blade mounting

②

 ange locks into the FT-8004.Merge type V
and the V-groove of the back of the blade.

NOTE:

Blades are not heated unless both blades are
inserted fully. Be sure to use the blades as
a set.

Fix it with a  nger so that the point of a

③

sword does not work, tighten the hexagon
socket set screw with the hexagonal
wrench to secure the blades.

4-1-2 Removing blades

Switch off the power and wait until the blades

①

have cooled down.

Remove the screws with the hexagonal

②

wrench and remove the blades using the main
body blade removal plate.

V groove

Hexagon wrench

Hexagon socket set screw (M2.5x2.5)

Blade removal plate

CAUTION

* When pulling out or inserting blades, be sure

that the power is switched off.

* Before pulling out the blades, check that the

blades have cooled down suf ciently.

4-1-3 Blade holder

The removed blades can be placed in the holder
as shown at right.
Hex wrench can placed in the position of the
arrow.

NOTE:

Place the removed blade in the blade holder.

Blade removal plate

Blade guard

3

4. INITIAL SETUP (continued)

plug Receptacle

4-2 Station

Connect the power cord to the inlet on the

①

rear side of the station.

Place the HAKKO FT-8004 on the handle holder

②

with the blades facing up.

Plug the handle plug into the receptacle.

③

Plug the power cord plug into an electrical outlet.

④

Handle holder

5. HOW TO USE

5-1 Operation and display (switch and operation buttons)

①Switch on the power.

② will be lit for 2 sec.

③The displayed output value will

blink. After the temperature has
increased and stabilized,
the displayed value will change from
blinking to lit. The unit is ready for
use when the displayed value is lit.

* For the output value, set it according

to the following wire material
indication table.

PVC

PE

PA

PVDF

ETFE

SI

PTFE

Output value (%)

10

10

20

30

40

45

55

Material

NOTE:

Output values will vary from the values in the
table above depending on the wire composition
and wire diameter. In addition, it may be
necessary to set higher values depending on
blade oxidation and maintenance conditions.

5-2 Setting/changing output

Ex: When changing the output from 50% to 65%:

①Press the , or [ENTER] button for 2 sec

or longer.

The unit will enter the output change mode and

the displayed value will change to blinking.

②Press the or button to finalize setting of

value.

After your desired value is displayed, press

the [ENTER] button. When the displayed value
will change from blinking to lit, the unit is ready
for use.

4

Display

Increase the
displayed value.

Decrease the
displayed value.

Pressing the button
for a long time
enters the mode for
changing the output

ENTER

value.
Finalizes setting of

Power switch

the data input value
and ends the data
input mode.

CAUTION

* The factory default value is set to 50%.
* Since the blades will become hot, place the

handle on the handle holder when it is not
being used.

Press the button 3

times and press

the [ENTER] button.

Temperature is stabilized

NOTE:

The output value range is 5% to 100%.
If the output is 80% or less,
the timer start for the auto sleep setting set by parameter 02. If 　 , 　 or "

is displayed, the current output value will then be displayed. If the output is more than 80%,

The output values can be set in increments of 5%.

will be displayed when the handpiece is placed on the station indicating

" are pressed while

Enter

will be displayed when the handpiece is placed on the station, for more information see page 10.

Relation of display and blade temperature when handle is placed on the station

Output Sleep function Display Blade temperature

80% or less ON

-->

: same as the output value -->

: 50% of the output value

OFF Same as the output value

85% or more ON 50% of the output value

OFF 50% of the output value

For setting parameters of the auto sleep function, see page 10.

5-3 Handle

5-3-1 Attaching the lead adjuster

Remove the insulating cover from the tip on

①

the handle cover L-side (the side with the
HAKKO logo and FT-8004) and remove the
screw from the handle cover L-side.

Remove the handle cover L.

②

Align the lead adjuster mounting hole with

③

the handle cover L mounting hole, replace the
screw, and tighten it lightly.

Firmly t the nail of the root side of the

④

insulation cover in the handle cover.

Attach the handle cover L to the handle. Adjust

⑤

the length of the lead adjuster and rmly
tighten the screw.

NOTE:

Pay attention to the direction of the blades when

attaching the lead adjuster. (See the following gure.)

Attach the lead adjuster so that the adjuster plate
end is in parallel with the blade surface.

①

Insulatingcover

②

③

Leadadjuster

HandlecoverL

④

The lead adjuster can be removed with the
handle cover attached to the handle.

⑤

5

5. HOW TO USE (continued)

5-3-2 How to use the lead adjuster

The lead adjuster is a tool for setting the wire

stripping length.

Adjust the distance between the blade end and

the adjuster plate to the desired wire stripping

length and slide it.

(Settable stripping length is 1 to 35mm.)

5-3-3 Stripping a wire

Align the wire end with the lead adjuster.

①

Pinch the wire with the blades according to

②

the diameter of the wire to be stripped. The
pinched area will be melted by heat.

Spread the heat evenly over the pinched area

③

by rotating the wire and the blades.

Pull the blades toward the wire end to be

④

stripped.

Adjuster plate

1 to 35mm

6

6. SETTING PARAMETERS

To make this product more convenient to use, the HAKKO FT-802 has the following parameters
which can be set. The parameter settings can be changed to suit your use environment.

• Password setting

Setting a password allows you to lock the settings
for the output values and parameter values.

• High output setting*

The high output function for the blade output can
be enabled or disabled.

• Output upper limit setting*

An upper limit for the blade output can be set to
prevent the output from being set above the limit
value.

* When stripping is difficult by wire diameter and

composition, use a high output mode.

6-1 Parameter setting table

• Auto sleep enable/disable setting

The auto sleep function can be enabled or disabled.

• Auto sleep time setting

Auto sleep saves the set output by approx. 50%
and reduces the blade temperature to conserve
power consumption.

• Auto shutoff enable/disable setting

The auto shut-off function can be enabled or
disabled.

• Auto shutoff time setting

After the set time has elapsed, the output will be
switched off and the unit will enter standby mode.

Parameter

number

Password
setting

High output

1

setting*

Output upper
limit setting*

Auto sleep
enable/disable
setting

Auto sleep time
setting*

Auto shutoff
enable/disable
setting

Auto shutoff time
setting*

*1. “High output setting” and “Output upper limit setting” are displayed when “1” or “2” is selected in “Password setting”.
*2. “Auto sleep time setting” is displayed when “1” is selected in “Auto sleep enable/disable setting”.
*3. “Auto shutoff time setting” is displayed when “1” is selected in “Auto shutoff enable/disable setting”.

1

2

3

LED display Set details Initial value

or

or

or

〜

or

〜

or

(3 digit)

Settable in 5% intervals

: Disabled

: Partially
enabled

: Enabled

or

: Disabled

: Enabled

: Disabled

: Enabled

〜

: Time until
effective

: Disabled

: Enabled

〜

: Time until
effective

: Disabled

: Enabled

（min）

: Enabled

（min）

7

6. SETTING PARAMETERS (continued)

6-2 Parameter setting procedure

Parameter input mode flowchart

Follow the steps below to input parameter values.

①Hold the and buttons pressed while switching on the power to enter parameter input mode.

②Select the parameter number.

Initially, the parameter number will be blinking. Change the parameter number to
the parameter to be set by pressing the or button.
Pressing the button causes the number to be displayed in the following order:

（   ➡   ）➡   ➡（    ）➡   ➡（    ）

Pressing the button displays the number in reverse order.
Selecting the parameter number and pressing the [ENTER] button changes the display to
the parameter value.

③Select the parameter value.

The currently-set value is displayed initially. Change to the desired parameter value by
pressing the or button. Pressing the [ENTER] button returns to the parameter number
selection mode.

After setting the required parameter values, press and hold the [ENTER] button while
performing operations in Step 2 to 3.

④The display will change to and the unit will ask you whether to exit the parameter input

mode. Selecting and pressing the [ENTER] button will exit the parameter input mode.

NOTE:

You can switch the display between and by pressing the or
button. When selecting , the current screen will be jumped to the
parameter number selection screen ② again.

8

Password setting

Setting a password enables the set output value or parameter values to be locked.
The password is set by selecting a combination of 3 characters from among the 6 characters of .
The password setting has 3 levels.

: Disabled (no lock)

Partially enabled. (The parameter settings are locked by the password. Although the output value is not

:

locked and can be changed, the output value cannot be set higher than the output upper limit setting.)

: Enabled (Output value and parameter setting details are completely locked by the password.)

1.Setting method (when the password is enabled)

Ex) To set the password to , follow the steps below.

Press the [ENTER] button. Press the button twice.

Press the button three times (to change to the password input screen.)

Press the [ENTER] button.

Press the button twice.

Press the [ENTER] button. Press the [ENTER] button.

Press the button
three times

Press and hold the
[ENTER] button.

Press the [ENTER] button.

Press the [ENTER] button.

Returns to
normal
operation

2. Inputting method (When the password is enabled, input the previously set password; in
the example.)

If the password is enabled, it is necessary to input the password to enter the output value setting

NOTE:

mode or parameter setting mode.

Parameter setting

While holding the or button
pressed, switch on the power.

Press the button
three times

Or

Press the [ENTER] button.

Output value setting

Pressing the or button
or [ENTER] button for 2 sec.

Press the button
three times

Press the [ENTER] button.

Press the button twice. Press the [ENTER] button.

The display will change to the parameter
setting or output value setting display
respectively. For the setting method,
refer to the “Setting/changing output” or
“Setting parameters”.

9

6. SETTING PARAMETERS (continued)

WARNING

The high temperature at 105% - 120% could shorten blade life or that the blade will glow red.
Place the handle on the handle holder when not using the HAKKO FT-802.

High output setting

Enable or disable the high-output function.
This function operates when the password setting mode is set to (partially enabled) or
(enabled).
When the high output function is enabled, it is possible to set higher values than usual in Output
upper limit setting.
When the high output function is enabled, the maximum settable upper limit value and the maximum
parameter    Output upper limit setting will be 120. (When the function is disabled, the maximum
value for both is 100.)

: High output function is disabled.
: High output function is enabled.

NOTE:

In order to achieve high values above 100 for the settable value, parameter     High output
setting should be changed to     , then parameter     Output upper limit setting must
also be changed before changing the settable value.

Output upper limit setting

An upper limit for the blade output value can be set, making it impossible to set the value to higher than
the upper limit.
This function operates when the password setting mode is set to (partially enabled) or
(enabled).
If the set parameter value is    , the maximum settable output value will be 80. It is possible to set
the values in increments of 5%.
(The initially set value is 100%.)

10

Auto sleep enable/disable setting

Enable or disable the auto sleep function.
The auto
consumption.
When the auto sleep function is enabled, the auto sleep function will operate when the specified time has
elapsed after placing the handle on the handle holder.
The time until the auto sleep function operates can be set ink“ : Auto sleep time setting”.

NOTE:

sleep function saves the set output by approx. 50%, reducing the blade temperature and power

This function extends the service life of blades.

: Auto-sleep is disabled.
: Auto-sleep is enabled.

When setting the output setting to 85 or more, regardless of the ON / OFF setting of the auto
sleep function, placing the soldering iron on the soldering iron will activate the auto sleep function.

Auto sleep time setting

This function operates when the Auto sleep enable/disable setting is set to (enabled). Set the time
until the auto sleep function operates after placing the handle on the handle holder. When the time is set
to , the auto sleep function starts immediately after placing the handle on the handle holder.

Display: is lit.
〜 The auto sleep time can be set in increments of 1 min.
(The initial default set time is 15 min. and the maximum time is 30 min.)

The auto sleep function does not work when the handle is not placed on the handle holder. When

NOTE:

the auto sleep function is operating, the unit will become active again when the handle is lifted off
of the handle holder.

Auto shutoff enable/disable setting

Enable or disable the auto shutoff function.
When the auto shutoff function is enabled, the auto shutoff function will operate when the specified time
has elapsed after the unit entered auto sleep after placing the handle on the handle holder.
The time until the auto shutoff function operates can be set in : Auto shutoff time setting”.

: Auto shutoff is disabled.
: Auto shutoff is enabled.

Auto shutoff time setting

This function operates when the Auto shutoff enable/disable setting is set to (enabled).
When the set time has elapsed without action after placing the handle on the handle holder, the auto
shutoff function will operate. The output will become zero and the unit will enter standby mode.

Display: is lit.
〜 : Auto shutoff is enabled. (The set time shows the time when the auto shutoff function will

operate after sleeping.)

The auto shutoff time can be set in increments of 1 min. (The initial default set time is

15 min. and the maximum time is 30 min.)

Ex) Auto sleep is set to 10 min. and auto shutoff is 20 min.

When the handle is

placed on the handle holder

10 min 20 min

0

Time until auto

sleep starts

In sleep mode

Auto shutoff

CAUTION

* Do not leave the unit in the auto shutoff mode for a long time. If the unit will not be used for a long

time, be sure to switch off the power.

NOTE:

The auto shutoff function does not work when the handle is not placed on the handle holder.

If the auto shutoff function operates, switch the power off once and then switch it back on to start

using the unit again.

11

7. MAINTENANCE

The unit should be maintained periodically to be able to use it in proper condition for a long
time. Since the degree of consumption of the unit varies depending on the use temperature,

etc., perform maintenance of the unit according to use conditions.

WARNING

Since the soldering iron can reach a very high temperature, please work carefully. Except
for special cases, always turn the power switch OFF and disconnect the power plug before
performing any maintenance procedure.

About blades

①Maintenance

Although blades are designed to resist oxidation, if oxidation of
the blades occurs and prevents you to do wire-stripping work
smoothly, use a wire brush lightly on the blade to remove the oxide.
Applying a wire brush strongly may damage the blades, resulting in
reduced service life. Therefore, do not brush blades excessively.

②Suspension during use

Leaving the unit in a no-load condition for a long time with the blade
heated highly may cause the surface to be oxidized, resulting in
reduced service life of blades due to overload applied to the heating
element.
Be sure to enable auto sleep and place the handle on the handle holder
when not using it.
Be sure to switch off the power switch if the unit will not be used for a
long time.

8. INSPECTION

WARNING

Unless otherwise specied, be sure to switch off the power and unplug the power plug when

performing the following procedures.

①Blown heating element

②How to check whether the

connection cord is
connected or disconnected

5

1

③How to replace the fuse

Check that no electrical abnormality occurs in the heating element.

Measure the resistance at normal temperature (15 to 25℃).
The normal value is 3.5Ω±10％ If the measured resistance value is

abnormal, replace the blade with a new one.

Attach normal blades (whose resistance value of heating elements is

normal) to both handles and measure the resistance value between

the connector pins.

Resistance between Pin 1 and Pin 5: 6.2Ω to 8.0Ω

If the resistance value is outside the above value range, replace

the HAKKO FT-8004 with a new one.

1. Unplug the power cord from the inlet.

2. Pull out the fuse holder.

3. Replace the current fuse with a new one.

4. Reassemble the fuse holder to its original condition.

Measure the resistance of this section of the heating element.

12

9. TROUBLESHOOTING

WARNING

⿟ Be sure to unplug the power cord before repairing. Failure to do so may cause an electric shock.

Phenomenon

The unit does not work
even when the power is
switched on.

blinks.

is displayed.

10. PART NUMBER

Check

Is the power cord or the connection
plug disconnected?

Is the fuse blown?

Are the blades inserted fully?

Is the connection cord disconnected?
Is the heating element blown?

Actions

Connect the power cord and connection
cord.

Check for factors causing the fuse to be
blown and replace the fuse with a new
one.
If the replaced fuse blows again, please
request repair.

Insert the blade fully to the end.

Refer to the items in disconnection of
connection cord and blowing of heating
element.

Switch the power off and on again.
If the same phenomenon occurs even
after switching the power off and on
again, please request repair.

󱾀Handle

Item No.

1

2

3

Part No.

FT8004-81

B5242

B5243

HAKKO FT-8004

Part name

Lead adjuster w/o-ring,screw,stopper

Sleeve assembly

2 31

with

Specifications

Hexagon socket set screws and Hexagon wrench

13

10. PART NUMBER (continued)

Please access to the following address for the other Sales affiliates.

http://www.hakko.com

SEMS screw
M3×18 (2)

2

SEMS screw
M3×6

1

4

󱾀Station

Item No.

Part No.

B5244

1

B5245

2

B2387

3

B2419

B2421

B2422

B2424

B2436

B3550

B3011

4

B2987

Blade removal plate w/screw

Handle holder w/SEMS screw M3×18 Qty 2

Power cord/3 core & American plug

Power cord/3 core & American plug

Power cord/3 cored wire with no plug

Power cord/3 core & BS plug

Power cord/3 core & European plug

Power cord/3 core & Chinese plug

Power cord/3 core & SI plug

Fuse/250V-2A

Fuse/250V-1A

1 2 3

󱾀Blade

Item No.

HEAD OFFICE

4-5, Shiokusa 2-chome, Naniwa-ku, Osaka 556-0024 JAPAN
TEL:[phone] FAX:[phone]
http://www.hakko.com E-mail:[e-mail]

OVERSEAS AFFILIATES

U.S.A.: AMERICAN HAKKO PRODUCTS, INC.

TEL: [phone] FAX: [phone]
Toll Free (800)88-HAKKO

4 2 5 5 6

http://www.hakkousa.com

HONG KONG: HAKKO DEVELOPMENT CO., LTD.

TEL: [phone] FAX: [phone]
http://www.hakko.com.hk
E-mail:[e-mail]

SINGAPORE: HAKKO PRODUCTS PTE., LTD.

TEL: [phone] FAX: [phone]
http://www.hakko.com.sg
E-mail:[e-mail]

Part No.

1

G4-1601

2

G4-1602

3

G4-1603

Wire stripper blade/Straight

Wire stripper blade/18-28AWG

Wire stripper blade/26-38AWG

Part name

AWG 28

AWG 24

AWG 20

Part name

AWG 26
AWG 22

AWG 18

3

for HAKKO FT-802

100-127V

220-240V

AWG 38
AWG 32

AWG 28

Specifications

Specifications

AWG 36
AWG 30

AWG 26

© 2018 HAKKO C orporatio n. All Right s Reserve d.
Company an d product nam es are tradem arks or registe red trademar ks of their resp ective

companies.

MA0 29 92 XZ1812 26

20 18.1 2
