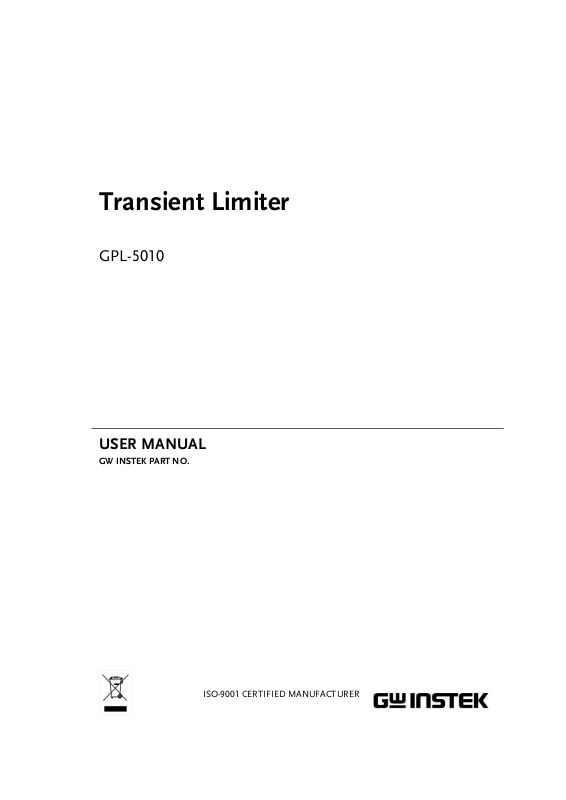

Gw instek GPL-5010 QUICK START GUIDE

Transient Limiter
GPL-5010
USER MANUAL
GW INSTEK PART NO.
ISO-9001 CERTIFIED MANUFACTURER
This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company.
The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.
Good Will Instrument Co., Ltd. No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan
Table of Contents
Table of Contents
OVERVIEW ........................................................................ 2
PACKAGE CONTENTS ....................................................... 3
APPLICATION ................................................................... 4
SCHEMATIC DIAGRAM ..................................................... 5
APPEARANCE .................................................................... 6
APPENDIX ........................................................................ 7
GPL-5010 Specifications ........................ 7
1
GPL-5010 User Manual

OVERVIEW

GWINSTEK GPL-5010 transient limiter is commonly used to test electromagnetic interference. For EMI testing, when accidentally overloaded, it can protect the terminal circuit and the valuable EMI test equipment. Meanwhile, together with our GLN-5040A Two Line V­Network, they constitute a complete EMI test system.
2
PACKAGE CONTENTS
Item
Quantity
Limiter main unit
1 Pcs
User instruction manual and warranty card
1 Book
Test report
1 Sheet

PACKAGE CONTENTS

3
GPL-5010 User Manual
It can be used in Power supply (switch type and
linear) design.
It can be used in Inverter/transformer design. It can be used in LED illumination design.

APPLICATION

4
SCHEMATIC DIAGRAM
GPL-5010
EMC Receiver LISN EUT
Transient
Limiter
Mains power
DUT
GSP
L

SCHEMATIC DIAGRAM

5
GPL-5010 User Manual
Output Interface: N male
Input Interface: BNC female

APPEARANCE

6
APPENDIX
Bandwidth
9kHz-200MHz
Limit level
50mW(+17dBm)
System impedance
50Ω
Connectors Input
Input : BNC (female)
Output
Output : N (male)
Maximum input level Continuous: 2.5W(+34dBm)
Pulse: 10kW(10uS)
DC: ±12V
Insertion loss
<2kHz
>30dB
9kHz-50MHz
10dB±0.5dB
50MHz-200MHz
10dB+2.2dB/ 10dB-0.5dB
<6kHz, >400MHz
>13dB
Frequency response curve
Figure 1(25°C )
Amplitude limiting specification curve
Figure 2(25°C ) Operating temperature
0°C -55°C
Storage temperature
-40°C -80°C
Dimensions
118mm(L)x44mm(W)x23mm(H)
Weight
Approx. 92g
Certification
CE(EN61010-1:2010
EN61326-1:2013 EN61000-3-2:2014 EN61000-3-3:2013)

APPENDIX

GPL-5010 Specifications

7
GPL-5010 User Manual
Figure 1 Frequency Response Curve
Figure 2 Amplitude Limiting Specification Curve
